Lenovo ThinkPad 13-20J2S00G00

Specifications

Lenovo ThinkPad 13-20J2S00G00

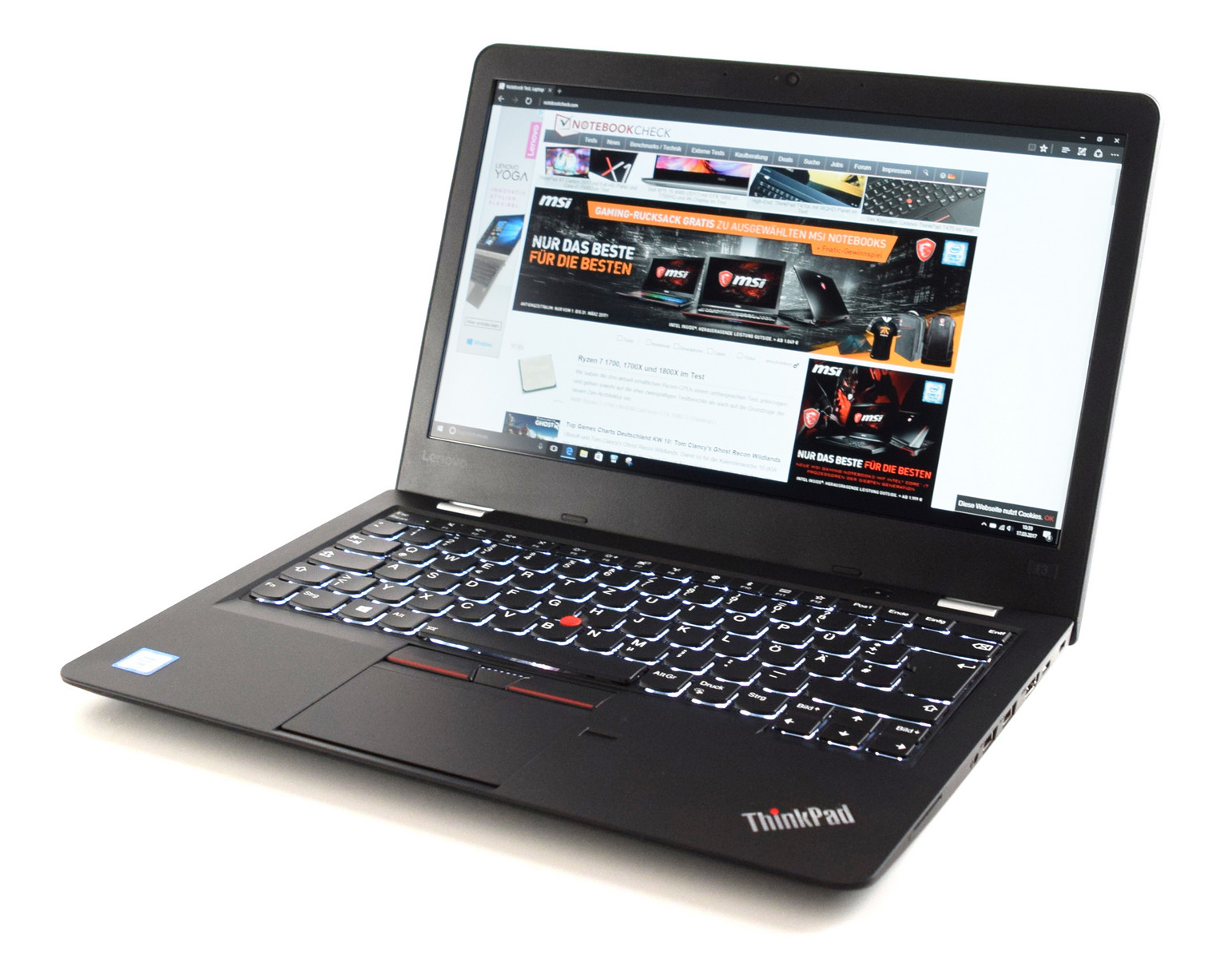

Lenovo ThinkPad 13-20J2S00G00 (ThinkPad 13 Series)
Processor
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Graphics adapter
Intel HD Graphics 620, Core: 1050 MHz, 21.20.16.4541 WHQL
Memory
8 GB
, DDR4-2133, 1/2 插槽已占用, 最高 32 GB
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, LP133WF2-SPL78, IPS, LED, glossy: no
Mainboard
Intel Kaby Lake-U Premium PCH
Storage
Toshiba NVMe THNSF5512GPUK, 512 GB
, M.2, PCIe NVMe, PCIe 3.0 x 4, 32Gb/s, 459 GB free
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米 耳机插口, Card Reader: 4-in-1 (MMC, SD, SDHC, SDXC), 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 19.8 x 322.4 x 222.8
Battery
42 Wh Lithium-Polymer
Camera
Webcam: HD webcam
Additional features
Speakers: 立体声, 2x 2 瓦特, Keyboard: 巧克力键盘, Keyboard Light: yes, 45-watt power supply, quick start guide, warranty conditions, 12 Months Warranty
Weight
1.434 kg, Power Supply: 293 g
Price
999 Euro



Price comparison

Average Score: 87% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 71%, features: 58%, display: 86% mobility: 78%, workmanship: 80%, ergonomy: 89%, emissions: 90%

Reviews for the Lenovo ThinkPad 13-20J2S00G00

87% 联想 ThinkPad 13 2017 (酷睿 i7, 全高清) 笔记本电脑简短评测 | Notebookcheck
一个有价值的继任者? 去年,联想以ThinkPad 13在商务领域取得了良好的成绩,如今它将基于Kaby Lake处理器的继任者投入到新一轮的竞赛中。我们将检验此举是否成功,并听取了我们之前的建议。
Lenovo ThinkPad 13 Gen 2 review – a ThinkPad-branded 13-inch ultrabook that doesn’t feel like one
Source: Laptop Media English EN→zh-CN Archive.org version
Lenovo’s ThinkPad series has always been a go-to brand when looking for a high-end business laptop but in the recent years, the OEM started releasing more affordable solutions as well. The ThinkPad Edge series is a perfect example of a well-executed budget-oriented machine. Unfortunately, though, the ThinkPad 13 Gen 2 offers just about the same features as the ThinkPad E470 and E570 but at higher than expected price. The only noticeable difference is the screen size.
Single Review, online available, Very Long, Date: 07/11/2017

Comment

Intel HD Graphics 620:

集成显卡(GT2, 24 EUs)可以在一些Kaby-Lake-Refresh处理器构架(15 W ULV 系列)中找到。而在技术上,与前代 Kaby-Lake集成显卡相同,我们称它为HD Graphics 620.



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7500U:

基于Kaby-Lake架构的双核处理器,主频为2.7至3.5 GHz,支持超线程,采用改进的14纳米制程技术制造。

» Further information can be found in our Comparison of Mobile Processsors.


13.30":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.434 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
