Lenovo ThinkPad E14 20RA001MGE

Specifications

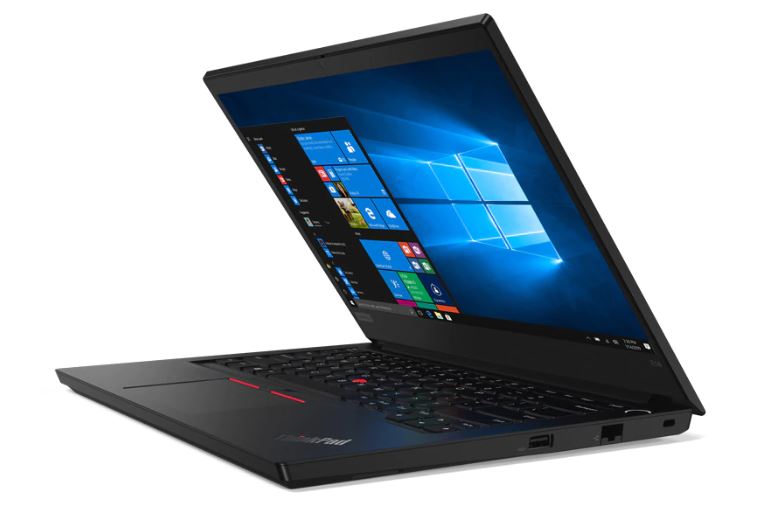

Lenovo ThinkPad E14 20RA001MGE
Lenovo ThinkPad E14 20RA001MGE (ThinkPad E14 Series)
Processor
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Graphics adapter
Intel UHD Graphics 620
Memory
16 GB
, DDR4-2400, 1 SO-DIMM slot
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, NV140FHM-N48, IPS LED, glossy: no
Mainboard
Intel Comet Lake-U PCH-LP Premium
Storage
SK hynix BC501 HFM512GDHTNG-8310A, 512 GB
, M.2 2280 PCIe NVMe, 437 GB free
Soundcard
Intel Comet Lake PCH-LP - cAVS
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 组合音频, 1 Fingerprint Reader
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0
Size
height x width x depth (in mm): 17.9 x 325 x 232
Battery
45 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: 2W扬声器, Keyboard: 六排背光键盘, Keyboard Light: yes, 65W Type-C 充电, Lenovo Vantage, Microsoft Office Trial, McAfee, 12 Months Warranty
Weight
1.648 kg, Power Supply: 347 g
Price
865 Euro
Links
Lenovo homepage



Price comparison

Average Score: 84.5% - good
Average of 1 scores (from 2 reviews)
price: - %, performance: 66%, features: 58%, display: 82% mobility: 75%, workmanship: 79%, ergonomy: 88%, emissions: 96%

Reviews for the Lenovo ThinkPad E14 20RA001MGE

84.5% 联想ThinkPad E14笔记本电脑评测：轻薄设计打败了可升级性 | Notebookcheck
联想为其廉价ThinkPad E系列配备了更新的，更薄的模具，该机使用了更多的铝。这似乎是一种改进，但实际上这也意味着失去了一些功能。 除此之外， ThinkPad E14非常类似于其前身ThinkPad E490。
Test Lenovo ThinkPad E14 - Kultowa marka w wersji dla każdego
Source: PurePC Turkish PL→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 03/27/2020
Trên tay Lenovo ThinkPad E14: mỏng nhẹ, độ bền cao, bàn phím “xịn”
Source: FPT shop VN→zh-CN Archive.org version
Single Review, online available, Medium, Date: 06/27/2020

Comment

Intel UHD Graphics 620:

集成显卡（GT2,24 EU），可以在一些Kaby-Lake-Refresh 中央处理器型号（15 W ULV系列）上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-10210U:

基于Comet Lake的低功耗四核处理器（在技术上与Whiskey Lake相同，但仍采用14nm ++生产）。通过超线程（8个线程），CPU频率在1.6和4.2 GHz之间（全核最大为3.9 GHz）。集成内存控制器支持DDR4-2666，性能可以由OEM调整（可能为10-25瓦，默认为15W）。

与更快的i5-10510U相比，三级缓存从8 MB减少到6 MB。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上，这个屏幕尺寸常见于亚笔记本电脑，超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。

» To find out how fine a display is, see our DPI List.


1.648 kg: 这是11到13寸的超大尺寸平板电脑，亚笔记本电脑，超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
