Lenovo ThinkPad E480-20KN001QGE

Specifications

Lenovo ThinkPad E480-20KN001QGE
Lenovo ThinkPad E480-20KN001QGE (ThinkPad E480 Series)
Processor
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620
Memory
8 GB
, DDR4-2400
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, IPS, glossy: no
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
256 GB NVMe, 256 GB
Soundcard
Conexant CX11852
Connections

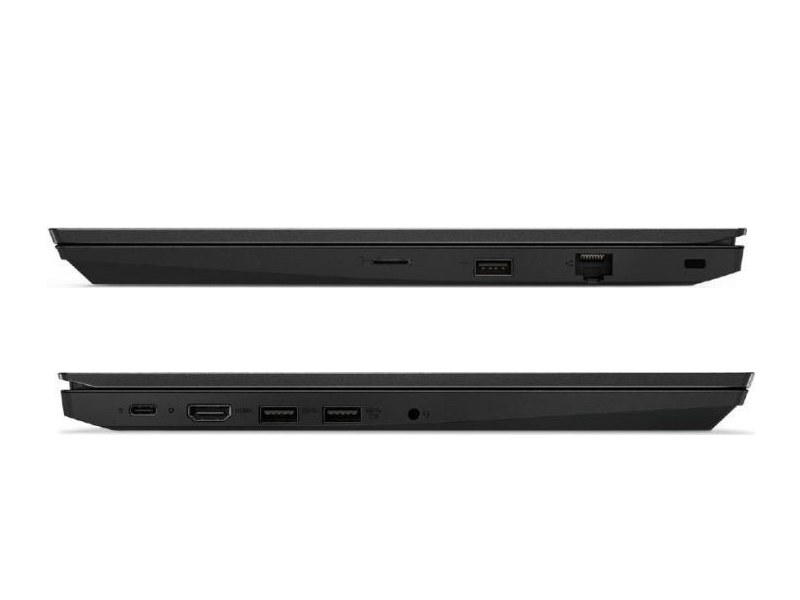

1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm, Card Reader: microSD, 1 Fingerprint Reader
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth .1
Size
height x width x depth (in mm): 19.9 x 329 x 242
Battery
45 Wh, 3980 mAh Lithium-Ion
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: 1.5 W stereo speakers, Keyboard: 6-row chiclet keyboard, Keyboard Light: no, 12 Months Warranty
Weight
1.78 kg, Power Supply: 358 g
Price
750 Euro
Links
Lenovo homepage



Price comparison

Average Score: 71% - average
Average of 1 scores (from 1 reviews)

Reviews for the Lenovo ThinkPad E480-20KN001QGE

71% Lenovo ThinkPad E480 Review
Source: Think Digit English EN→zh-CN Archive.org version
The Lenovo ThinkPad E480 not only continues to wear the E series badge with pride but also returns to its roots by displaying some traditional ThinkPad traits. This new model is definitely a job well done.
Single Review, online available, Long, Date: 09/05/2018
Rating: Total score: 71%

Comment

Intel UHD Graphics 620:

集成显卡（GT2,24 EU），可以在一些Kaby-Lake-Refresh 中央处理器型号（15 W ULV系列）上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8250U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的频率介于1.6和3.4 GHz之间（Turbo Boost），并支持超线程。集成GPU的时钟频率介于300和1,100 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上，这个屏幕尺寸常见于亚笔记本电脑，超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。

» To find out how fine a display is, see our DPI List.


1.78 kg: 大部分12到16寸的亚笔记本电脑，超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
