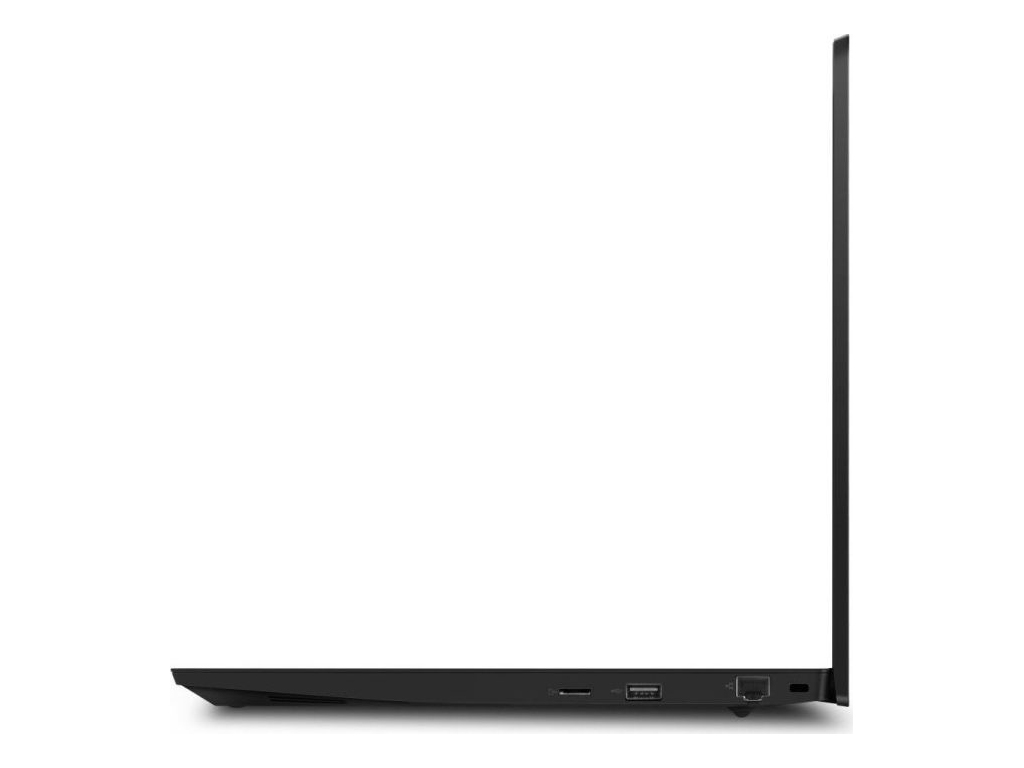

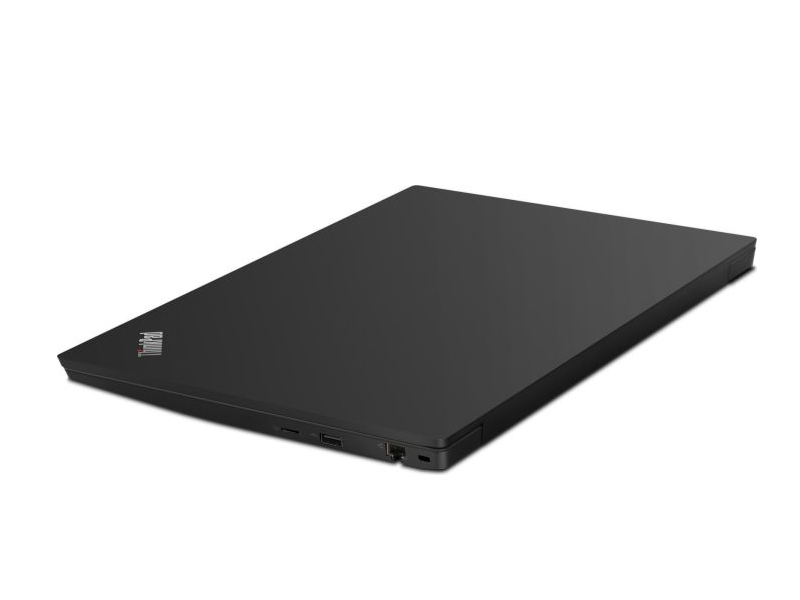

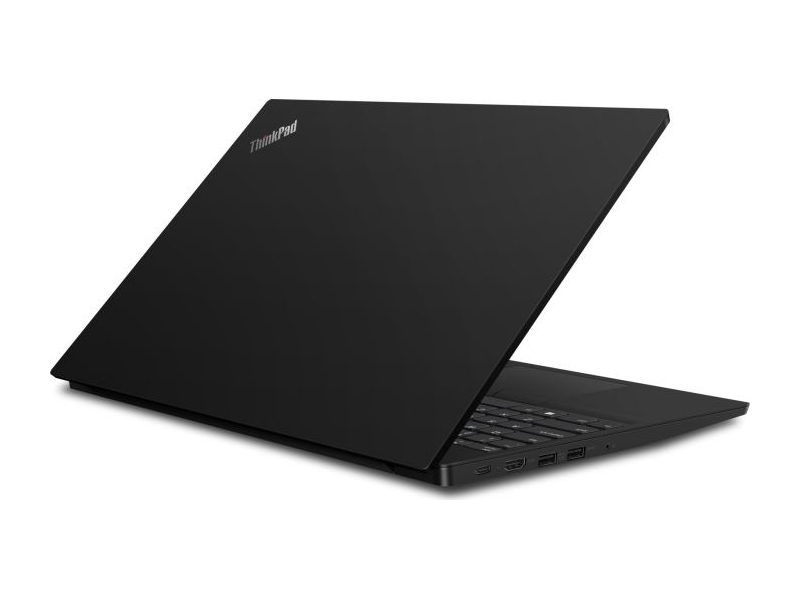

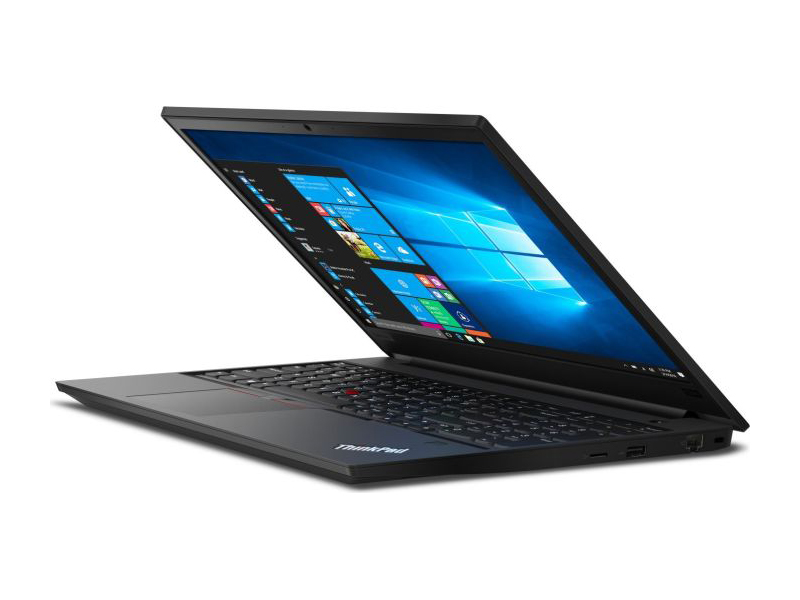

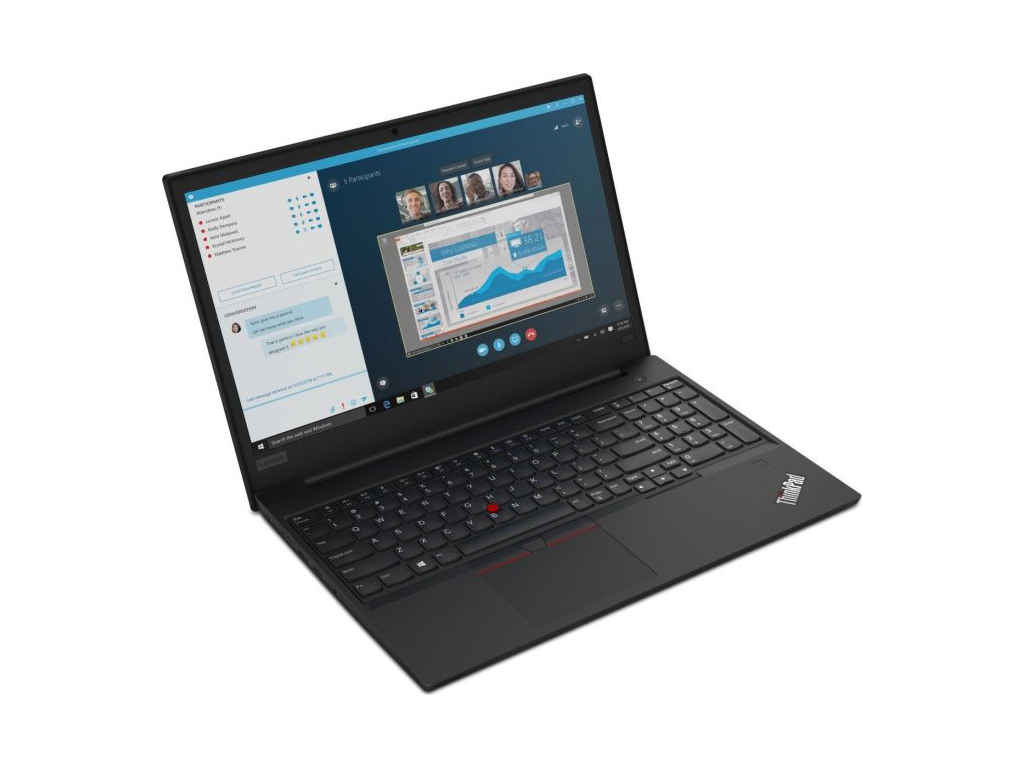

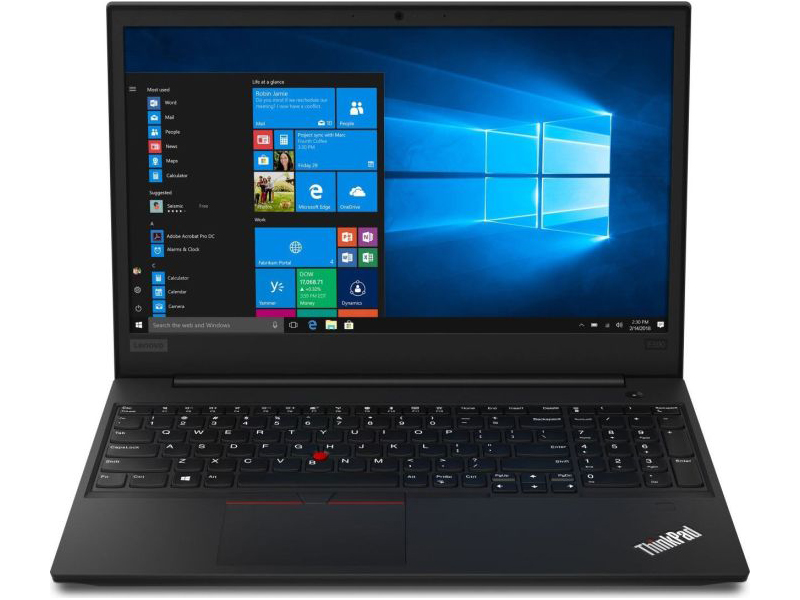

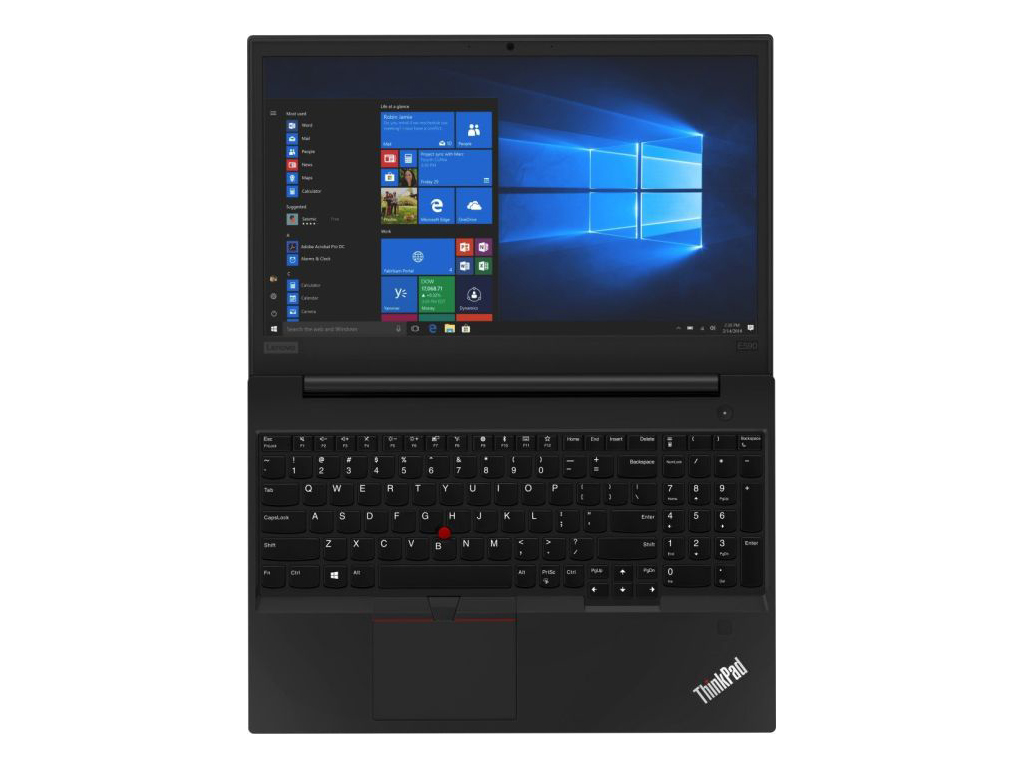

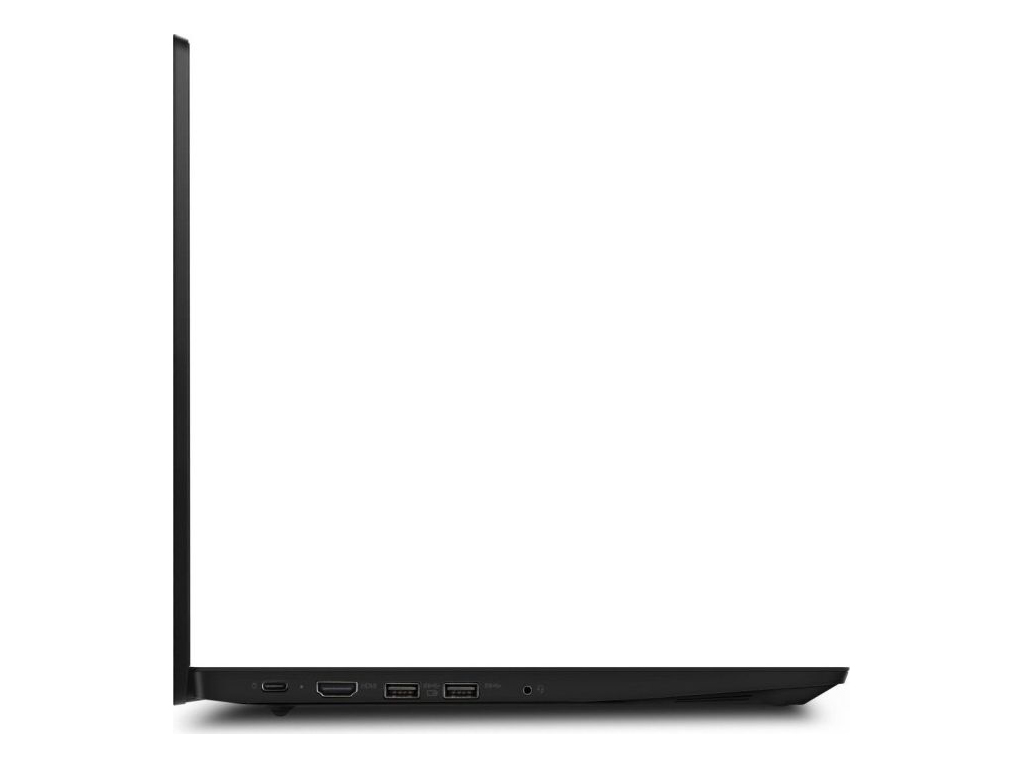

Lenovo ThinkPad E590-20NB0012GE

Specifications

Lenovo ThinkPad E590-20NB0012GE
Lenovo ThinkPad E590-20NB0012GE (ThinkPad E590 Series)
Processor
Intel Core i7-8565U 4 x 1.8 - 4.6 GHz, Whiskey Lake-U
Graphics adapter
AMD Radeon RX 550X (Laptop) - 2048 MB VRAM, Core: 1176 MHz, RAM: 1500 MHz, GDDR5, 64-Bit-Anbindung, Adrenalin 19.5.1 (26.20.11015.1003), Enduro
Memory
8 GB
, DDR4-2666, Single-Channel, zwei Speicherbänke (eine Bank belegt)
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Lenovo B156HAN02.1, IPS, glossy: no
Mainboard
Intel Cannon Lake-U PCH-LP Premium
Storage
Toshiba KBG30ZMT256G, 256 GB
, 212 GB free
Soundcard
Conexant CX11880 @ Intel Cannon Point-LP PCH - cAVS (Audio, Voice, Speech)
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Audiokombo, Card Reader: MicroSD, 1 Fingerprint Reader, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-AC 9260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0
Size
height x width x depth (in mm): 19.9 x 369 x 253
Battery
45 Wh, 4120 mAh Lithium-Polymer, 11.1 V, Battery runtime (according to manufacturer): 11 h
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, McAfee LiveSafe (Testversion), 12 Months Warranty
Weight
1.936 kg, Power Supply: 358 g
Price
950 Euro



Price comparison

Average Score: 87.6% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 69%, features: 67%, display: 86% mobility: 77%, workmanship: 86%, ergonomy: 88%, emissions: 89%

Reviews for the Lenovo ThinkPad E590-20NB0012GE

87.6% Lenovo ThinkPad E590 (i7, RX 550X, SSD, FHD) Laptop Review | Notebookcheck
With the ThinkPad E590, Lenovo delivers a quiet workstation with very good keyboard and trackpad plus TrackPoint. The dedicated Radeon RX 550X GPU is only able to realise its potential for short periods of time, as the laptop's cooling system is not up to the task for longer sessions of use. This means that gaming is not really an option.
Lenovo ThinkPad E590 review – Whiskey Lake processors in ThinkPad E580 body
Source: Laptop Media English EN→zh-CN Archive.org version
All in all, we see a good business laptop here – with all the security features that distinguish the ThinkPad brand. However, we are a little disappointed by the simple rebranding Lenovo made. We were expecting it to bring something even better, but it happened to be the same device. Still, we would recommend it over the HP ProBook 450 G6, simply because of the amazing keyboard. However, if you are willing to pay a little bit extra, Dell has a great business 15-incher in the face of Latitude 15 5590.
Single Review, online available, Very Long, Date: 04/18/2019

Comment

AMD Radeon RX 550X (Laptop):



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-8565U:

基于Whiskey Lake的低功耗四核处理器(技术上与Kaby Lake相同,但采用进一步改进的14nm ++工艺生产)。四个内核的频率在1.8至4.6 GHz(Turbo Boost)之间,并支持超线程。

» Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


1.936 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
