Lenovo ThinkPad T480s-20L8S02D00

Specifications

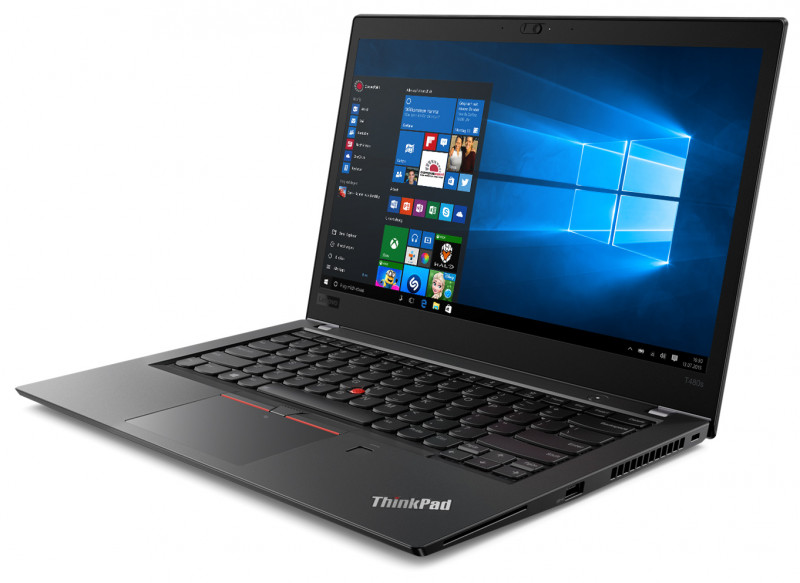

Lenovo ThinkPad T480s-20L8S02D00
Lenovo ThinkPad T480s-20L8S02D00 (ThinkPad T480s Series)
Processor
Intel Core i5-8250U 4 x 1.6 - 3.4 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620, Core: 1100 MHz
Memory
8 GB
, DDR4-2400, Single-Channel, verlötet, 1 freier Steckplatz, max. 24 GB
Display
14.00 inch 16:9, 2560 x 1440 pixel 210 PPI, LP140QH2-SPB1, IPS, glossy: no
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm Klinke, Card Reader: 4-in-1 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Fingerprint Reader, TPM 2.0
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 18.45 x 331 x 226.8
Battery
57 Wh Lithium-Polymer, Battery runtime (according to manufacturer): 12.8 h
Camera
Webcam: 720p HD, ThinkShutter
Additional features
Speakers: Stereo (2x 1W), Keyboard: Chiclet, Keyboard Light: yes, 65-Watt-Netzteil, 36 Months Warranty
Weight
1.367 kg, Power Supply: 356 g
Price
1259 Euro



Price comparison

Average Score: 81.58% - good
Average of 4 scores (from 4 reviews)
price: - %, performance: 74%, features: 68%, display: 90% mobility: 81%, workmanship: 94%, ergonomy: 92%, emissions: 92%

Reviews for the Lenovo ThinkPad T480s-20L8S02D00

91.3% Lenovo ThinkPad T480s (i5, WQHD) Laptop Review | Notebookcheck
New revision. Lenovo equips the ThinkPad T480s with a new chassis and closes the gap towards its own ThinkPad X1 Carbon. Intel's latest quad-core processors are obviously included as well. We checked the SKU with the high-resolution WQHD IPS panel.
80% Lenovo ThinkPad T480s review: A solid business workhorse with all-day battery life
Source: Zdnet.com English EN→zh-CN Archive.org version
Lenovo's ThinkPad T480s has many plus points, and the upgrade to 8th Generation Intel processors is welcome. It's a pity that you have to go rather well beyond the entry-level price to get more than 128GB of storage, and further still if you need integrated mobile broadband. Touch-screen support is only available in one off-the-shelf configuration too. The T480s is highly configurable, but of course every tweak will add to the overall cost.
Single Review, online available, Short, Date: 05/23/2018
Rating: Total score: 80%
85% Lenovo ThinkPad T480 review: It's a solid workhorse
Source: Neowin English EN→zh-CN Archive.org version
The Lenovo ThinkPad T480 is an excellent machine for a specific type of use case. It's designed to be a workhorse, to do what you need it to do when you need to do it. It's clearly more of a rugged design than other ThinkPads, and it offers a different feature set. For example, the ThinkPad T480s offers similar features in a slimmer body, and the X1 Carbon is meant to be super thin and light.
Single Review, online available, Long, Date: 04/26/2018
Rating: Total score: 85%
70% Lenovo ThinkPad T480s Review
Source: Laptop Mag English EN→zh-CN Archive.org version
The ThinkPad T480s is a speedy and long-lasting business laptop with a camera cover for the privacy conscious, but its display could be better.
Single Review, online available, Medium, Date: 03/20/2018
Rating: Total score: 70%
Das trotzdem beste Business-Notebook
Source: Golem German DE→zh-CN Archive.org version
Single Review, online available, Long, Date: 09/12/2018

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8250U:

基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的频率介于1.6和3.4 GHz之间(Turbo Boost),并支持超线程。集成GPU的时钟频率介于300和1,100 MHz之间。 SoC采用14nm + FinFET工艺制造。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.367 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
