Lenovo ThinkPad T580-20L9001AUS

Specifications

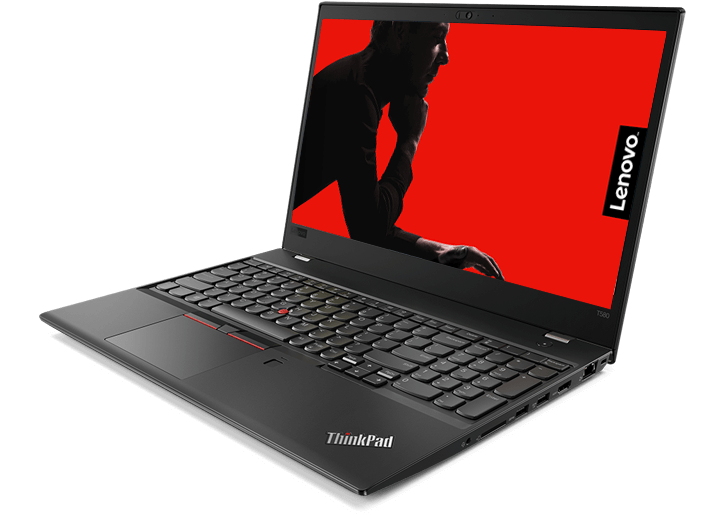

Lenovo ThinkPad T580-20L9001AUS
Lenovo ThinkPad T580-20L9001AUS (ThinkPad T580 Series)
Processor
Intel Core i7-8650U 4 x 1.9 - 4.2 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620, Core: 1150 MHz, RAM: 1200 MHz, 23.20.16.5018
Memory
16 GB
, DDR4-2400
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, yes, embedded on-cell touch panel, B156HAK02.0, IPS, glossy: no
Mainboard
Intel Sunrise Point-LP
Storage
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
Soundcard
Realtek High Definition Audio
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm combo audio, Card Reader: 4-in-1 SD card reader, 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)
Size
height x width x depth (in mm): 20.2 x 365.8 x 252.8
Battery
56 Wh Lithium-Ion, removeable, (32 Wh internal + 24 Wh external)
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p / ThinkShutter privacy filter
Primary Camera: 1 MPix
Additional features
Speakers: 2 x 2 Watt, bottom-mounted, Keyboard: ThinkPad AccuType chiclet-style, Keyboard Light: yes, 36 Months Warranty
Weight
1.958 kg, Power Supply: 356 g



Price comparison

Average Score: 78.2% - good
Average of 2 scores (from 2 reviews)
price: - %, performance: 73%, features: 61%, display: 84% mobility: 70%, workmanship: 86%, ergonomy: 91%, emissions: 88%

Reviews for the Lenovo ThinkPad T580-20L9001AUS

86.4% Lenovo ThinkPad T580 (i7-8650U, FHD) Laptop Review | Notebookcheck
Size matters. Lenovo’s 15-inch isn’t quite up to par with its smaller business offerings, but perhaps today’s configuration—a Core i7-8650U, 16 GB RAM, FHD anti-glare touch display, and NVMe SSD—can help to bridge the gap. We’ll find out in our full review!
Lenovo Thinkpad T580 Back Screen Cover Repair
Source: Ricks Tech English
Support, online available, Very Long, Date: 09/28/2023
70% Lenovo ThinkPad T580 Review
Source: Laptop Mag English EN→zh-CN Archive.org version
With strong performance and some neat privacy features, the Lenovo ThinkPad T580 is a very good 15-inch business laptop.
Single Review, online available, Long, Date: 07/16/2018
Rating: Total score: 70%

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-8650U: » Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


1.958 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
