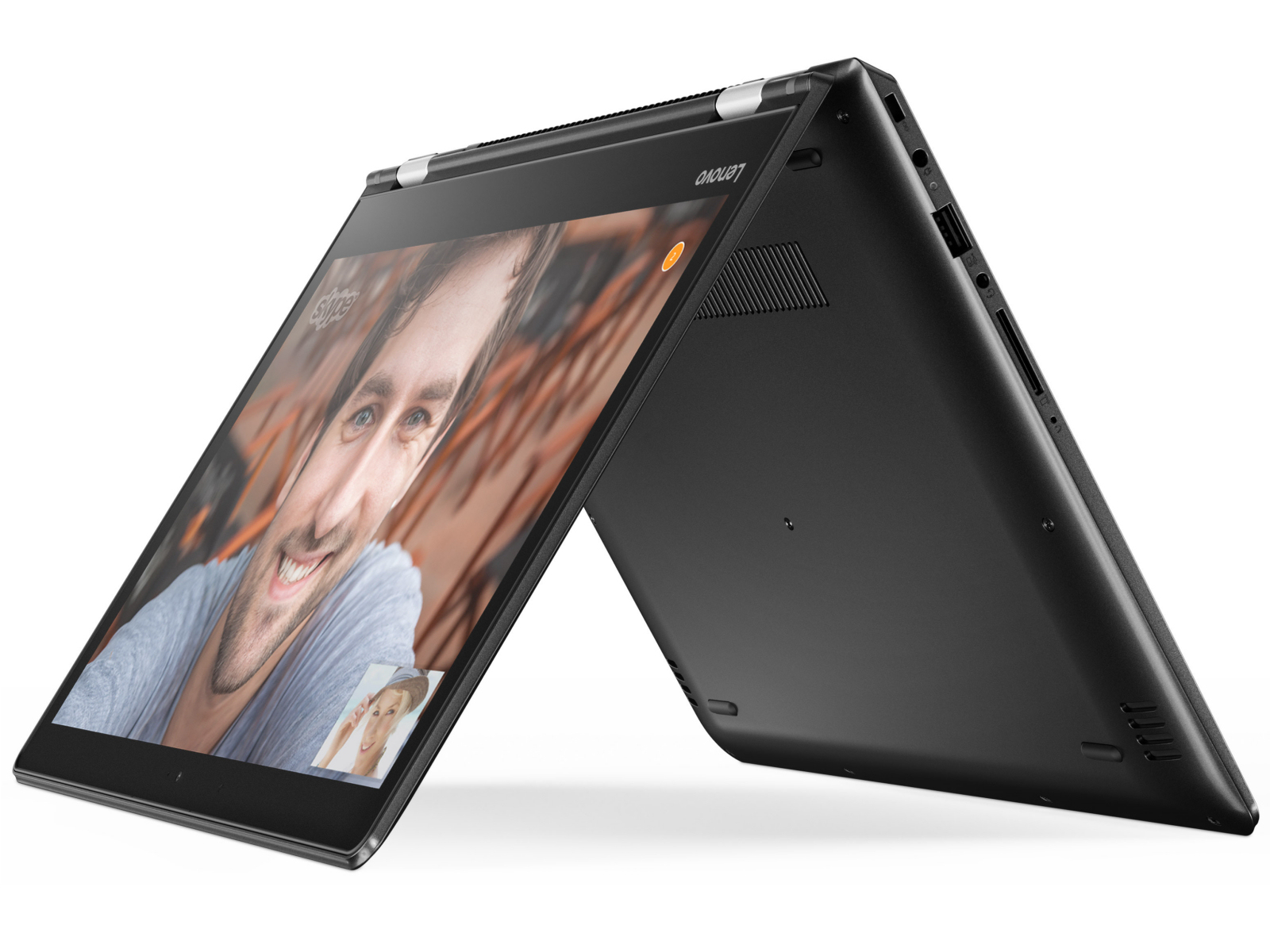

Lenovo Yoga 510-14AST

Specifications

Lenovo Yoga 510-14AST
Yoga 510-14AST (Yoga 510 Series)
Processor
AMD A9-9410 2 x 2.9 - 3.5 GHz, Stoney Ridge
Graphics adapter
AMD Radeon R5 (Stoney Ridge), Core: 800 MHz, 单通道, Crimson 17.2.1
Memory
4 GB
, DDR4-2132, 单通道, 一条内存插槽 (占用)
Display
14.00 inch 16:9, 1366 x 768 pixel 112 PPI, 电容屏, 10 点触控, 支持主动客制化, AU Optronics B140XTN02.E, TN LED, glossy: yes
Mainboard
AMD CZ FCH
Soundcard
Realtek ALC236 @ AMD K15.7 - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 复合音频接口, Card Reader: SD卡读卡器, Brightness Sensor, Sensors: 动作传感器
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 20.9 x 336.4 x 232
Battery
35 Wh, 4510 mAh Lithium-Ion, 8.7 V
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Additional features
Speakers: 立体声扬声器, Keyboard: 巧克力键盘, Keyboard Light: no, Lenovo Photo Master, McAfee LiveSafe (trial), MS Office 365 (trial), 24 Months Warranty
Weight
1.75 kg, Power Supply: 176 g
Price
499 Euro



Price comparison

Average Score: 78.4% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 59%, features: 48%, display: 71% mobility: 74%, workmanship: 81%, ergonomy: 87%, emissions: 94%

Reviews for the Lenovo Yoga 510-14AST

78.4% 联想 Yoga 510-14AST (A9-9410, HD) 变形本简短评测 | Notebookcheck
令人失望的屏幕。 联想的14寸变形本售价约为500欧元(约合533美元)。买家将会得到Stoney Ridge APU以及固态硬盘,4GB运行内存。因为一块可视角度欠佳的TN屏幕,使得联想留下的好印象全毁了。
¡Chollo 10/04! Lenovo Yoga 510-14AST. Convertible 14,0" sencillo muy barato (349 €)
Source: Ofertaman Spanish ES→zh-CN Archive.org version
Single Review, online available, Very Short, Date: 04/10/2018

Comment

AMD Radeon R5 (Stoney Ridge):

一些AMD-A双核心APU(“Stoney Ridge")中集成的显卡。该芯片基于GCN架构,搭配192个着色单元,主频最高800 MHz。根据热设计功率不同,它的性能会区别很大(整个芯片功耗15-25瓦)。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


A9-9410:

2016年AMD的Stoney Ridge系列入门级APU。它集成2个处理核心,一个单通道DDR4-2133内存控制器以及一块有192着色单元的Radeon 显卡,热设计功率为15瓦(10-25瓦之间配置)。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.75 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
