富士通 LifeBook T734 变形本简短评测

复古商务。 通用性和便携性是这款富士通最新笔记本的重要特点。手写笔和多点触控成为了新的输入方式，3G网络则提供了必要的便携性。不过这并不足以给它带来出色的成绩。
Haswell Touchscreen Windows Convertible / 2-in-1
❌
323 mm 222 mm 31 mm 2.2 kg316 mm 233 mm 35 mm 2 kg316.5 mm 221 mm 19.3 mm 1.6 kg309.6 mm 199.3 mm 20 mm 2.1 kg285 mm 212 mm 25 mm 1.4 kg297 mm 210 mm 1 mm 5.7 g
266
cd/m²		260
cd/m²		248
cd/m²
268
cd/m²		273
cd/m²		268
cd/m²
262
cd/m²		261
cd/m²		259
cd/m²
Distribution of brightness
Fujitsu FUJ5612 tested with X-Rite i1Pro 2
Maximum: 273 cd/m² (Nits) Average: 262.8 cd/m²
Brightness Distribution: 91 %
Center on Battery: 273 cd/m²
Contrast: 1011:1 (Black: 0.27 cd/m²)
ΔE Color 4.03 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.54 | 0.5-98 Ø5.2
Gamma: 2.5
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX		Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM		Lenovo ThinkPad Yoga
HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1		HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU
Display
Display P3 Coverage
41.85
43.87
43.9
sRGB Coverage
61.8
65
65.8
AdobeRGB 1998 Coverage
43.32
45.55
45.37
Screen
-16%
-37%
-14%
Brightness middle
273
410
50%
400.5
47%
434
59%
Brightness
263
366
39%
370
41%
414
57%
Brightness Distribution
91
82
-10%
85
-7%
91
0%
Black Level *
0.27
0.545
-102%
0.641
-137%
0.6
-122%
Contrast
1011
752
-26%
625
-38%
723
-28%
Colorchecker dE 2000 *
4.03
4.57
-13%
6.19
-54%
4.84
-20%
Greyscale dE 2000 *
2.54
3.74
-47%
5.4
-113%
3.69
-45%
Gamma
2.5 88%
2.61 84%
2.71 81%
2.6 85%
CCT
6631 98%
7108 91%
5829 112%
6547 99%
Color Space (Percent of AdobeRGB 1998)
39.19
42.96
42
Total Average (Program / Settings)
-16% / -16%
-37% / -37%
-14% / -14%

* ... smaller is better

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX
2.94 Points
Lenovo ThinkPad Yoga 20CD0038GE
HD Graphics 4400, 4500U, Samsung SSD 840 250GB MZ7TD256HAFV
2.56 Points -13%
Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM
1.05 Points -64%
HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU
2.67 Points -9%
Dell Latitude XT3
HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
3.15 Points +7%
Fujitsu Lifebook E734
HD Graphics 4600, 4200M, Seagate ST500LM000 Solid State Hybrid Drive
3.25 Points +11%
CPU Single 64Bit (sort by value)
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX
1.24 Points
Lenovo ThinkPad Yoga 20CD0038GE
HD Graphics 4400, 4500U, Samsung SSD 840 250GB MZ7TD256HAFV
1.31 Points +6%
Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM
0.66 Points -47%
HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU
1.19 Points -4%
Dell Latitude XT3
HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
1.36 Points +10%
Fujitsu Lifebook E734
HD Graphics 4600, 4200M, Seagate ST500LM000 Solid State Hybrid Drive
1.36 Points +10%
Cinebench R11.5 CPU Single 64Bit
1.24 Points
Cinebench R11.5 CPU Multi 64Bit
2.94 Points
Cinebench R11.5 OpenGL 64Bit
13.31 fps
Cinebench R15 CPU Single 64Bit
112 Points
Cinebench R15 CPU Multi 64Bit
259 Points
Cinebench R15 Ref. Match 64Bit
63.3 %
Help
PCMark 7 - Score (sort by value)
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX
2745 Points
Lenovo ThinkPad Yoga
HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1
4749 Points +73%
Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM
3248 Points +18%
HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU
4417 Points +61%
Dell Latitude XT3
HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
2478 Points -10%
PCMark 7 Score
2745 points
PCMark 8 Home Score Accelerated v2
2386 points
PCMark 8 Creative Score Accelerated v2
2482 points
PCMark 8 Work Score Accelerated v2
3155 points
Help
HD Tune
CrystalDiskMark 3.0
hddimg
Western Digital Scorpio Blue WD5000LPVX
Transfer Rate Minimum: 21.4 MB/s
Transfer Rate Maximum: 107.2 MB/s
Transfer Rate Average: 78.4 MB/s
Access Time: 18.3 ms
Burst Rate: 167.9 MB/s
CPU Usage: 2.5 %
3DMark 11 - 1280x720 Performance (sort by value)
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX
655 Points
HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU
601 Points -8%
Lenovo ThinkPad Yoga
HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1
815 Points +24%
3DMark Vantage P Result
3077 points
3DMark 11 Performance
655 points
3DMark Ice Storm Standard Score
38418 points
3DMark Cloud Gate Standard Score
3322 points
3DMark Fire Strike Score
432 points
Help
lowmed.highultra
Tomb Raider (2013) 32.9 16.8 10.3
BioShock Infinite (2013) 23 12 10.5
Fifa 14 (2013) 112 64.5 41.9
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX		Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM		HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU		Dell Latitude XT3
HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
Noise
-15%
2%
-4%
Idle Minimum *
30.4
29.6
3%
28
8%
30.8
-1%
Idle Average *
30.4
33.5
-10%
28
8%
30.8
-1%
Idle Maximum *
30.4
33.5
-10%
28
8%
30.8
-1%
Load Average *
35.9
45.8
-28%
37.2
-4%
37.1
-3%
Load Maximum *
35.9
46.5
-30%
40.3
-12%
41.7
-16%

* ... smaller is better

Noise Level

Idle
30.4 / 30.4 / 30.4 dB(A)
HDD
31.2 dB(A)
DVD
36.5 / dB(A)
Load
35.9 / 35.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Max. Load
 30.5 °C29.5 °C26.8 °C
 32.1 °C31 °C28.5 °C
 32.1 °C34.3 °C29.8 °C
Maximum: 34.3 °C
Average: 30.5 °C
26.6 °C30.5 °C29.6 °C
27.2 °C33.3 °C32.7 °C
28.2 °C33.6 °C33.2 °C
Maximum: 33.6 °C
Average: 30.5 °C
Power Supply (max.)  48.4 °C | Room Temperature 24.2 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 30.5 °C / 87 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 33.6 °C / 92 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.9 °C / 82 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.3 °C / 93.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-6.3 °C / -11.3 F).
Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 5 / 8.4 / 8.4 Watt
Load midlight 24.8 / 32.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Fujitsu LifeBook T734
HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX		Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM		Lenovo ThinkPad Yoga
HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1		HP EliteBook Revolve 810
HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU		Dell Latitude XT3
HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
Battery Runtime
27%
9%
-17%
-49%
Reader / Idle
766
545
-29%
797
4%
458
-40%
346
-55%
WiFi
385
411
7%
455
18%
315
-18%
207
-46%
Load
115
232
102%
122
6%
124
8%
61
-47%
Battery Runtime
Idle (without WLAN, min brightness)
12h 46min
WiFi Surfing
6h 25min
Load (maximum brightness)
1h 55min
Fujitsu LifeBook T734
Fujitsu LifeBook T734

最后，我们总结一下它的表现。从一开始我们就被T734的维护升级空间所震撼了。另外，除了好用的触控屏幕你还可以得到一个不错的键盘。这个设备有几个安全功能，所以它很适合商务用途。接口的数量可以通过拓展坞或者ExpressCard接口扩充。它的IPS屏幕提供了足够的可视角度范围，甚至适合在一些户外情况下使用。我们对它的低系统噪音和运行中极少的升温十分惊讶。它的缺点包括机身材质的选择，它们既不抗磨损也不太坚固。同时我们对它的屏幕没有达到富士通宣称的300流明屏幕亮度十分失望。它的扬声器也非常糟糕。

整体上，T734是一款不错的商务设备。得力于笨重但易于维护的机身设计，它的整体风格让我们想到系统维护工作人员的设备，像是一些计算机课里面用到的。它的3G模组、平板功能和可选的第二块电池都给它提供了不错的便携性。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

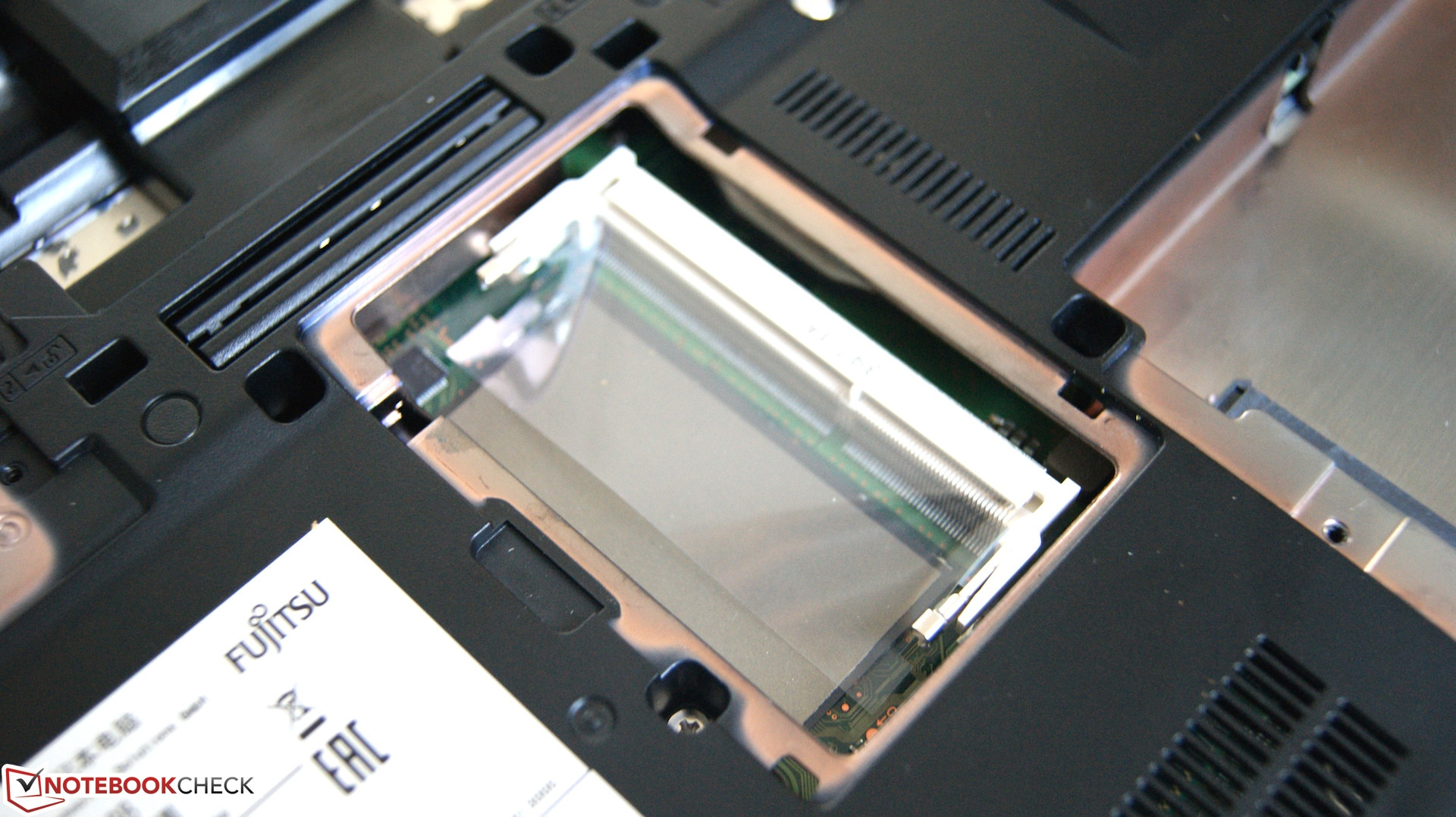

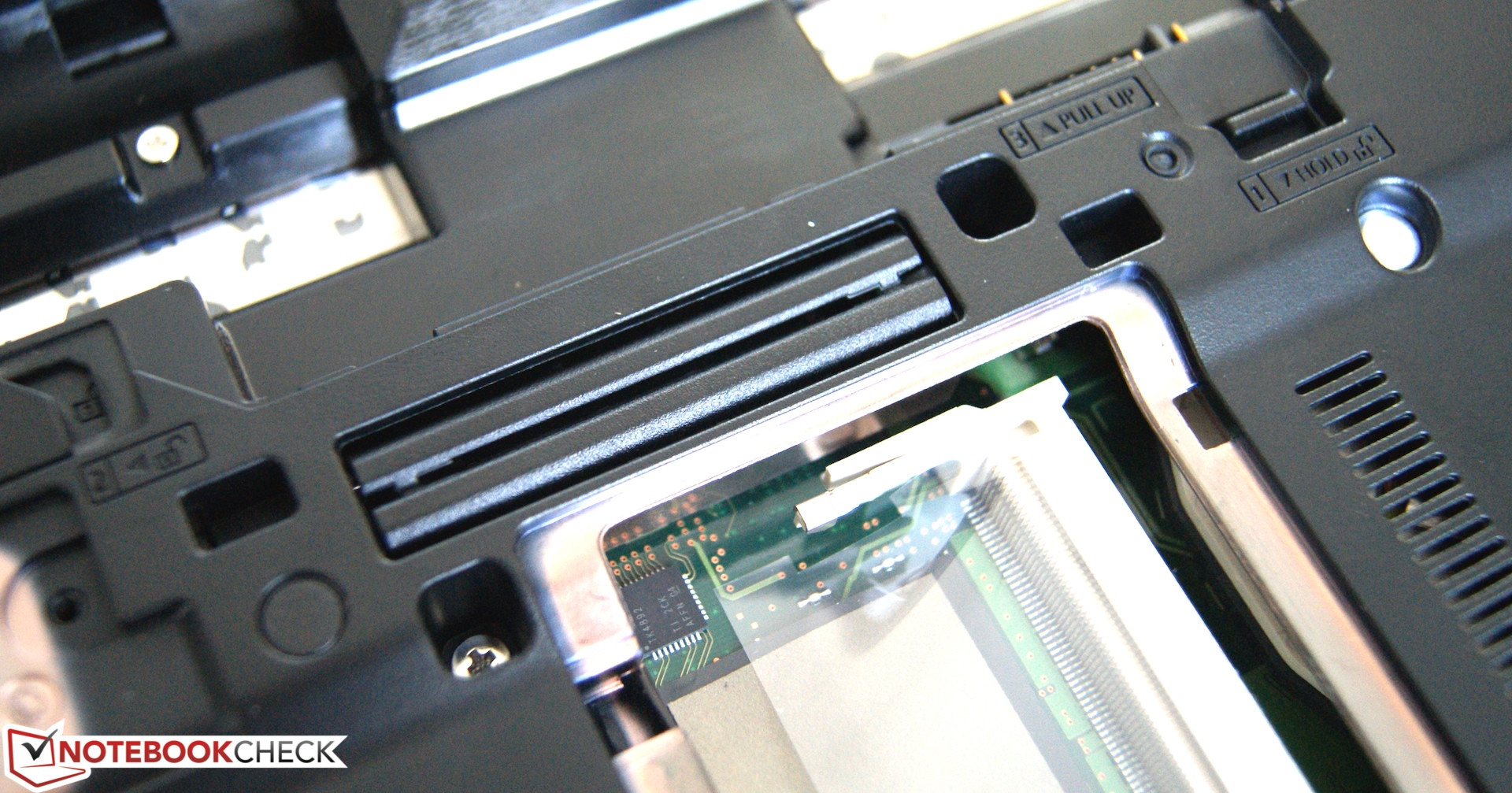

两个空余内存槽
两个空余内存槽

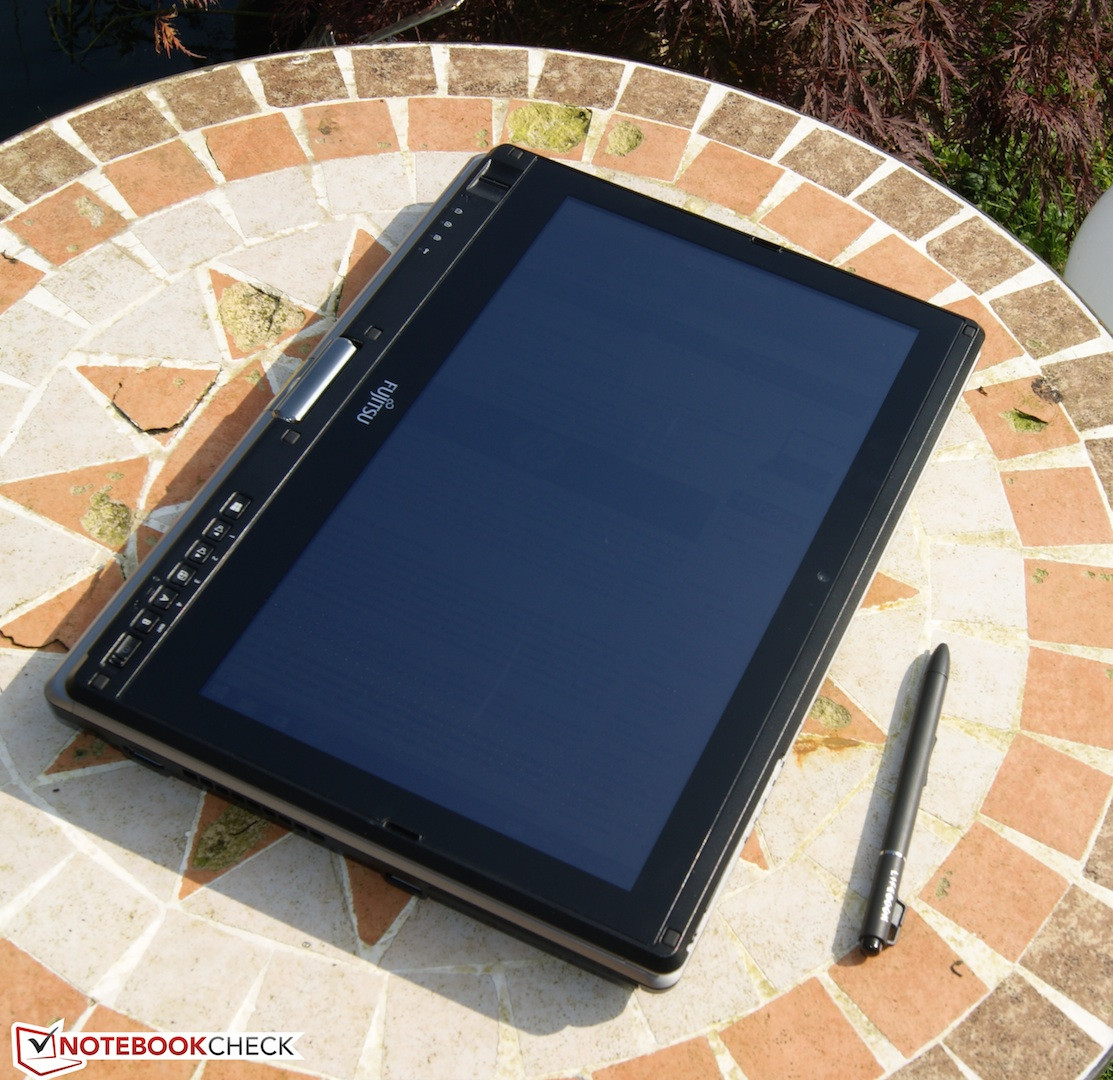

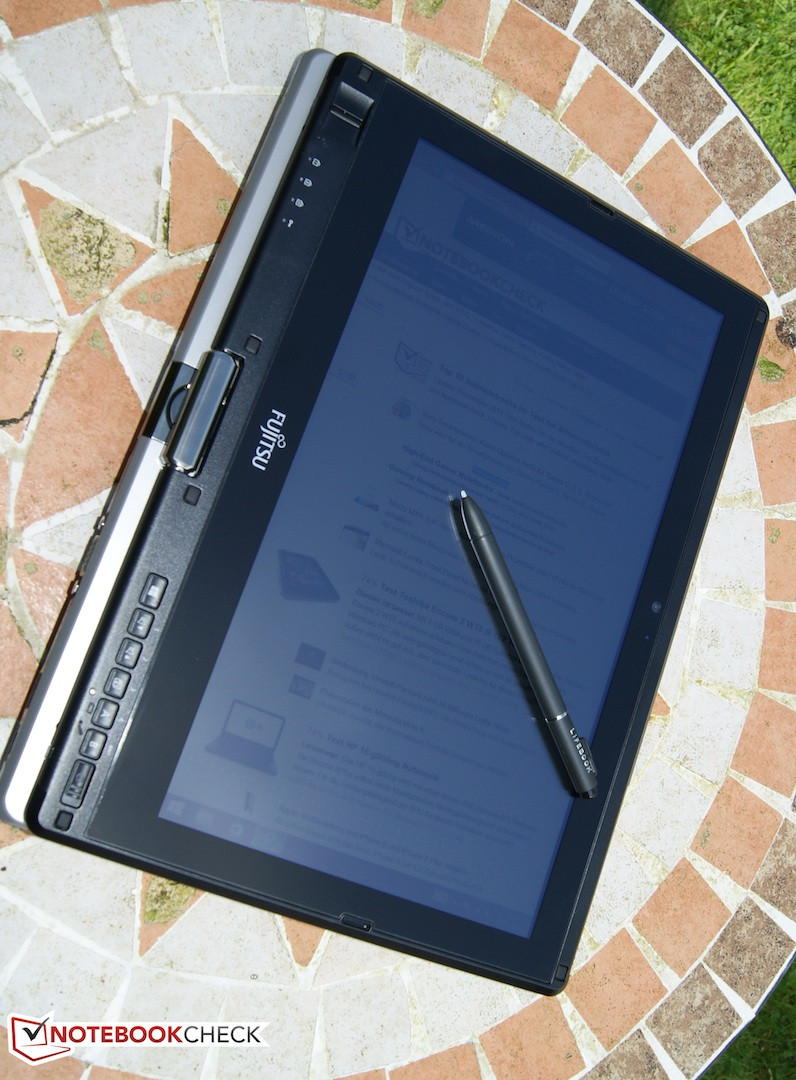

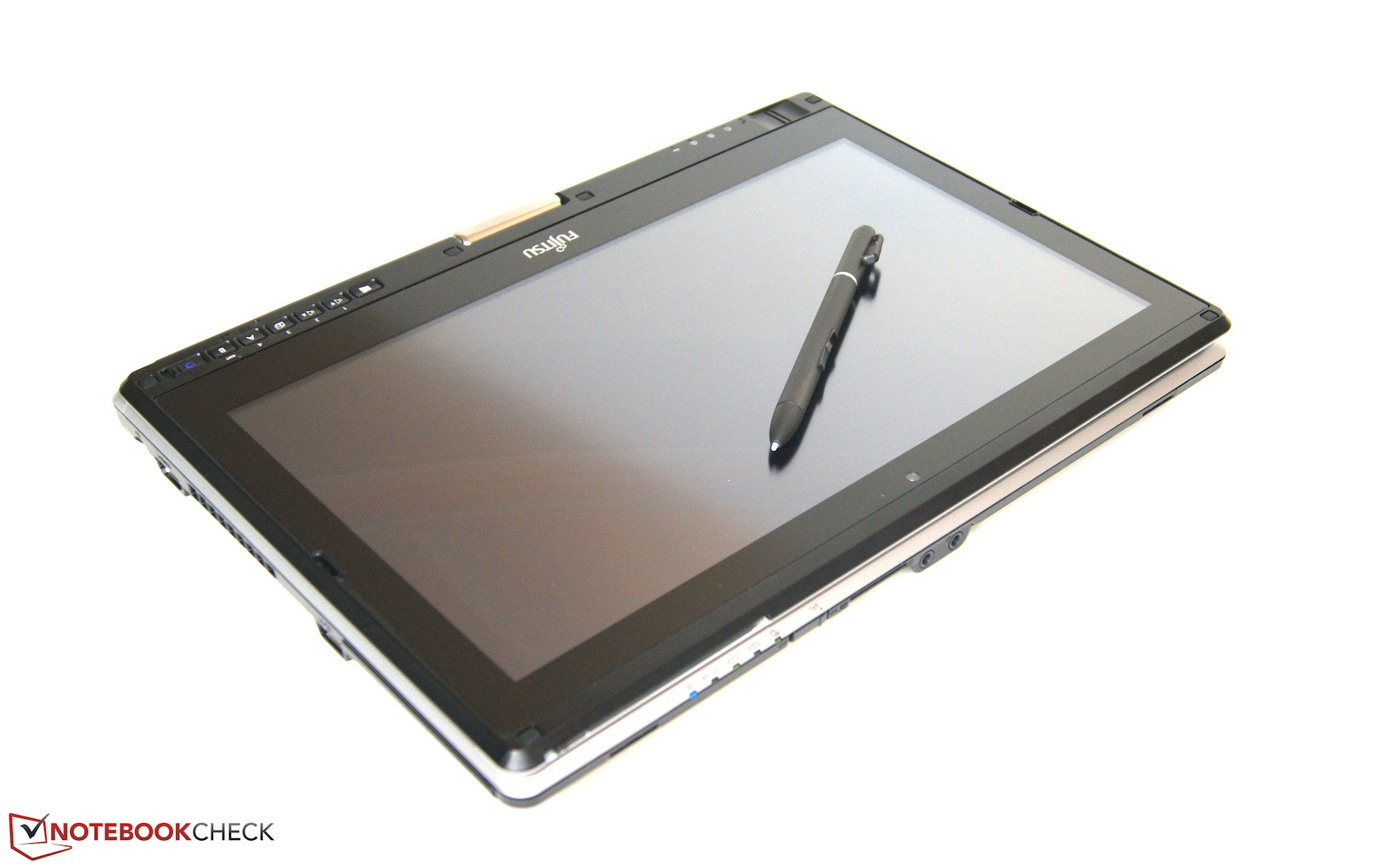

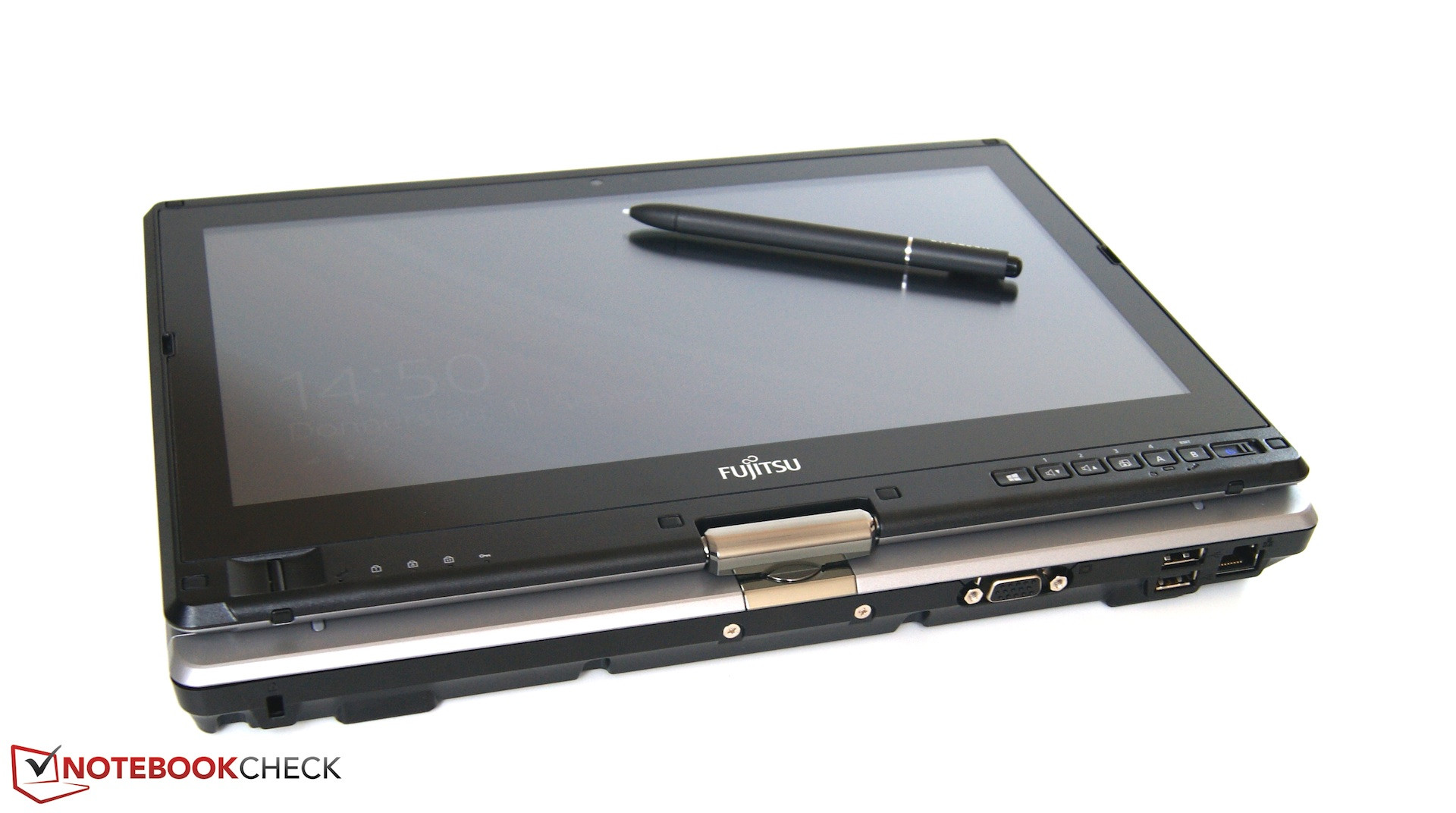

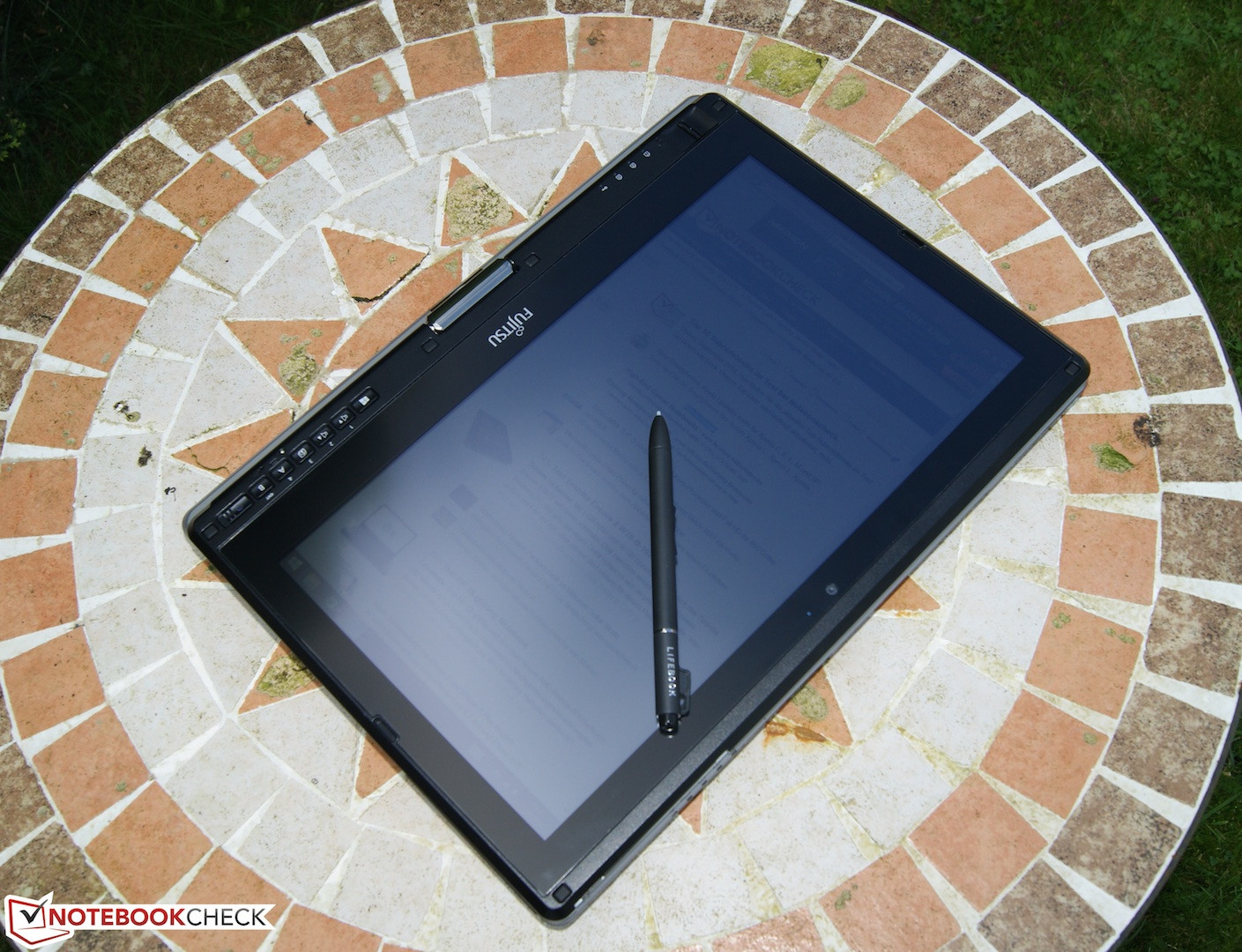

平板模式
平板模式

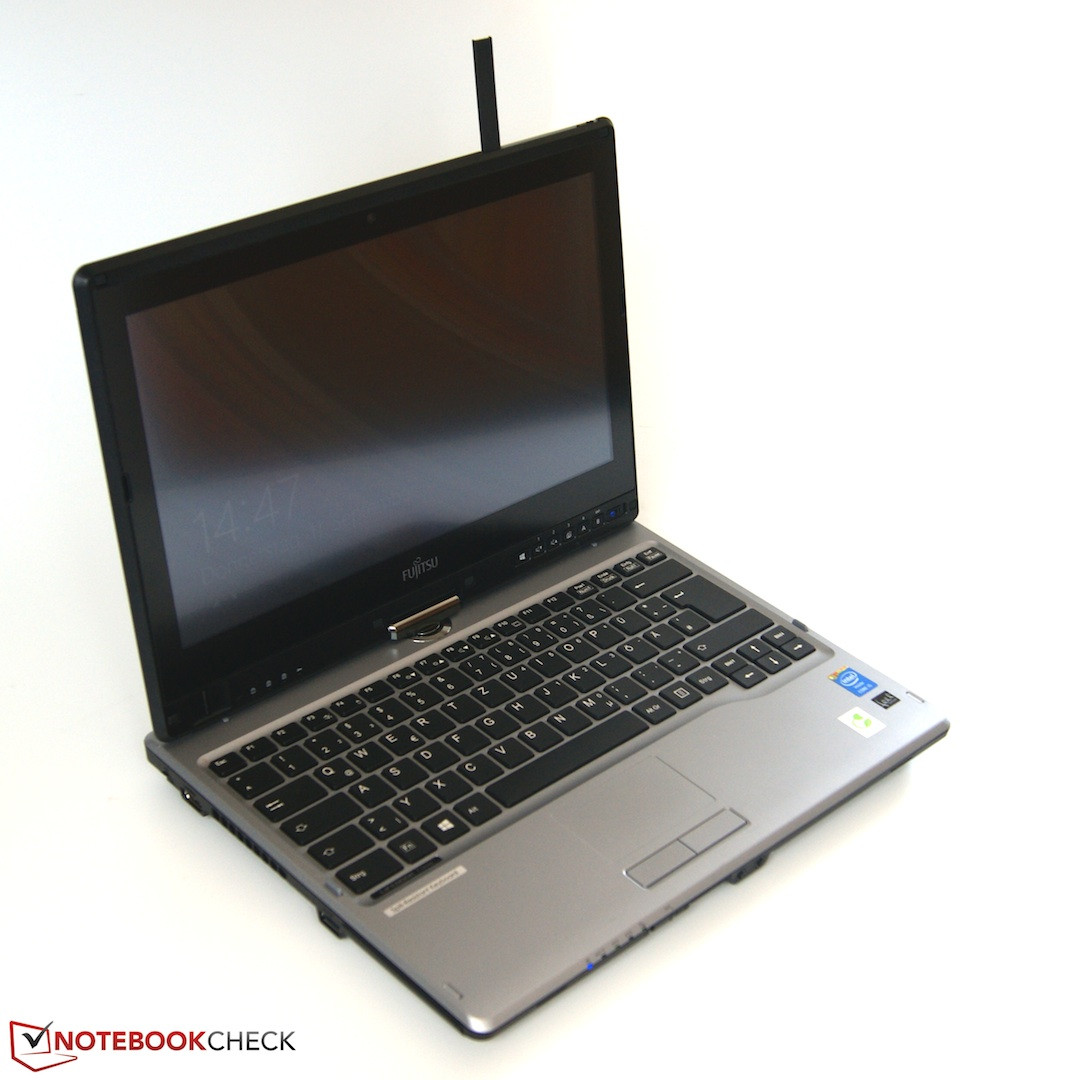

这款富士通笔记本的3G天线
这款富士通笔记本的3G天线

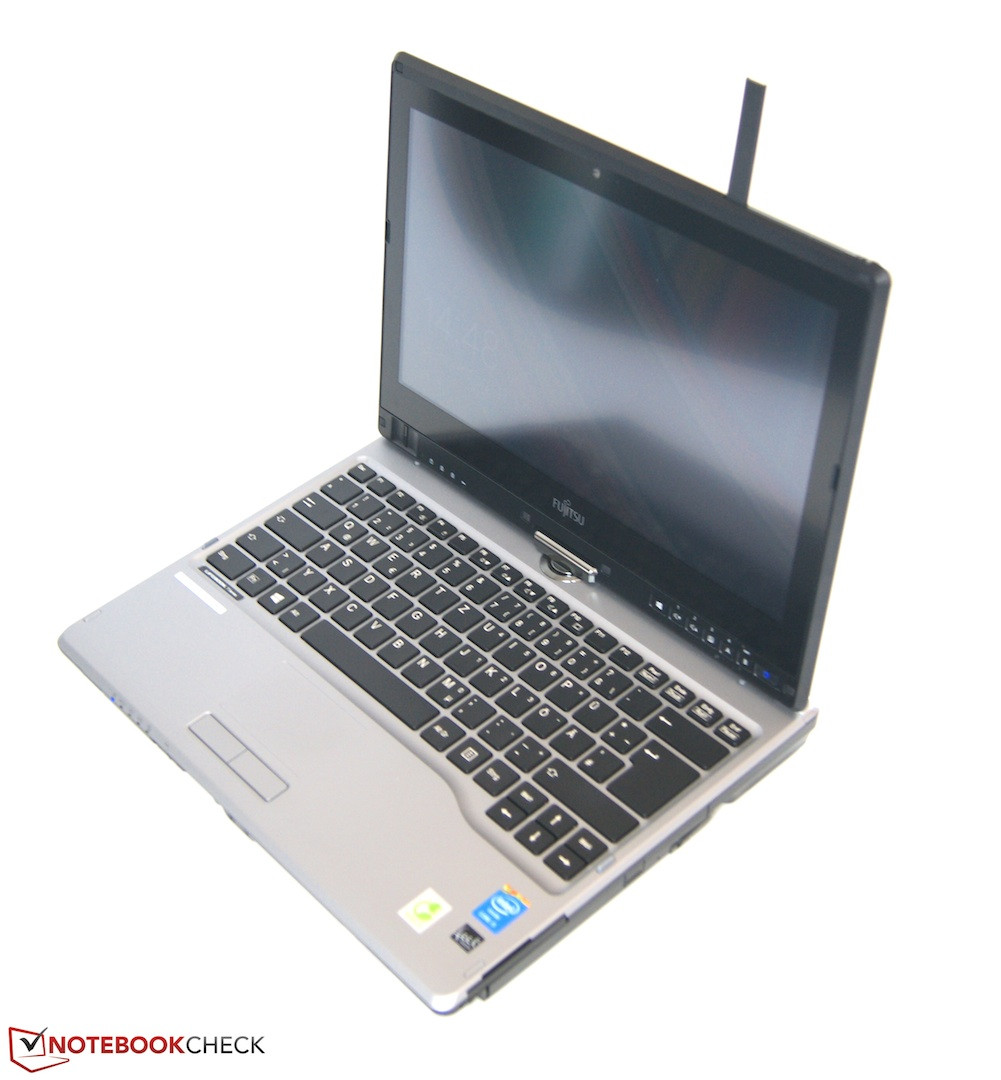

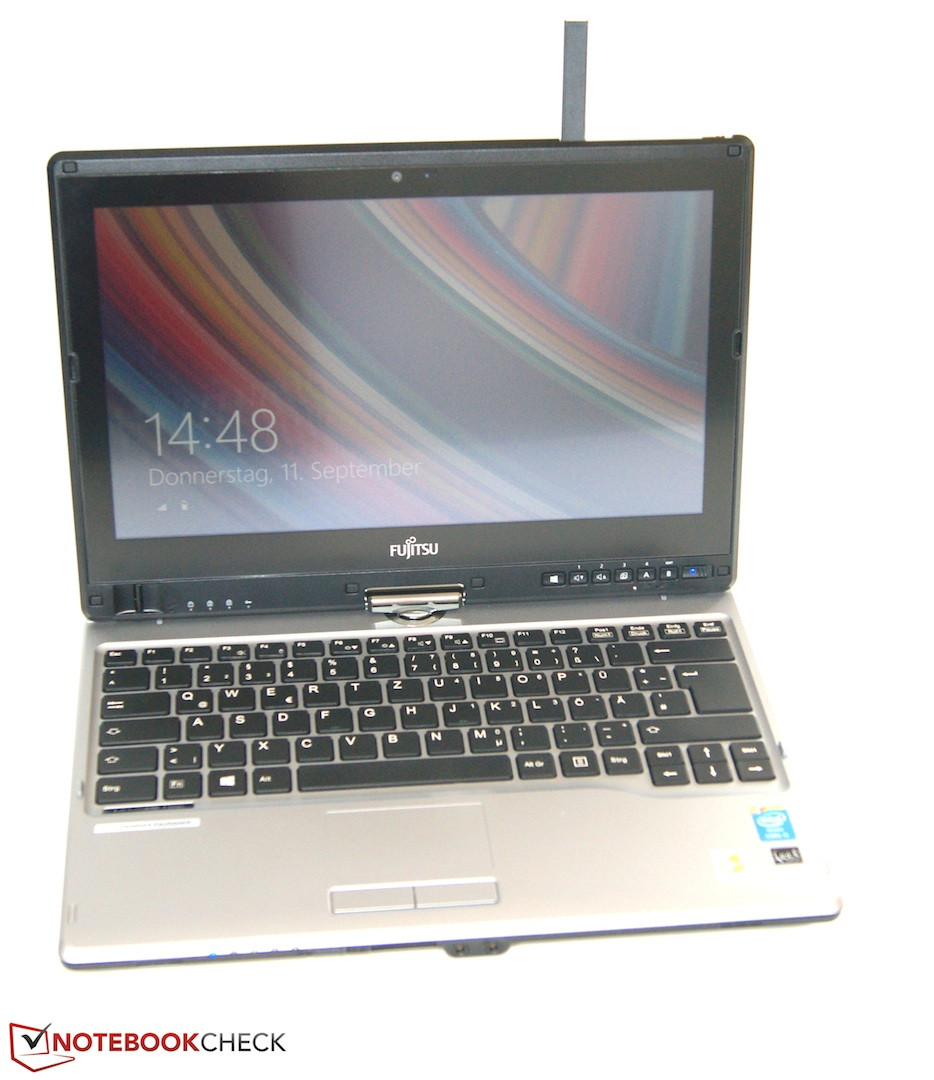

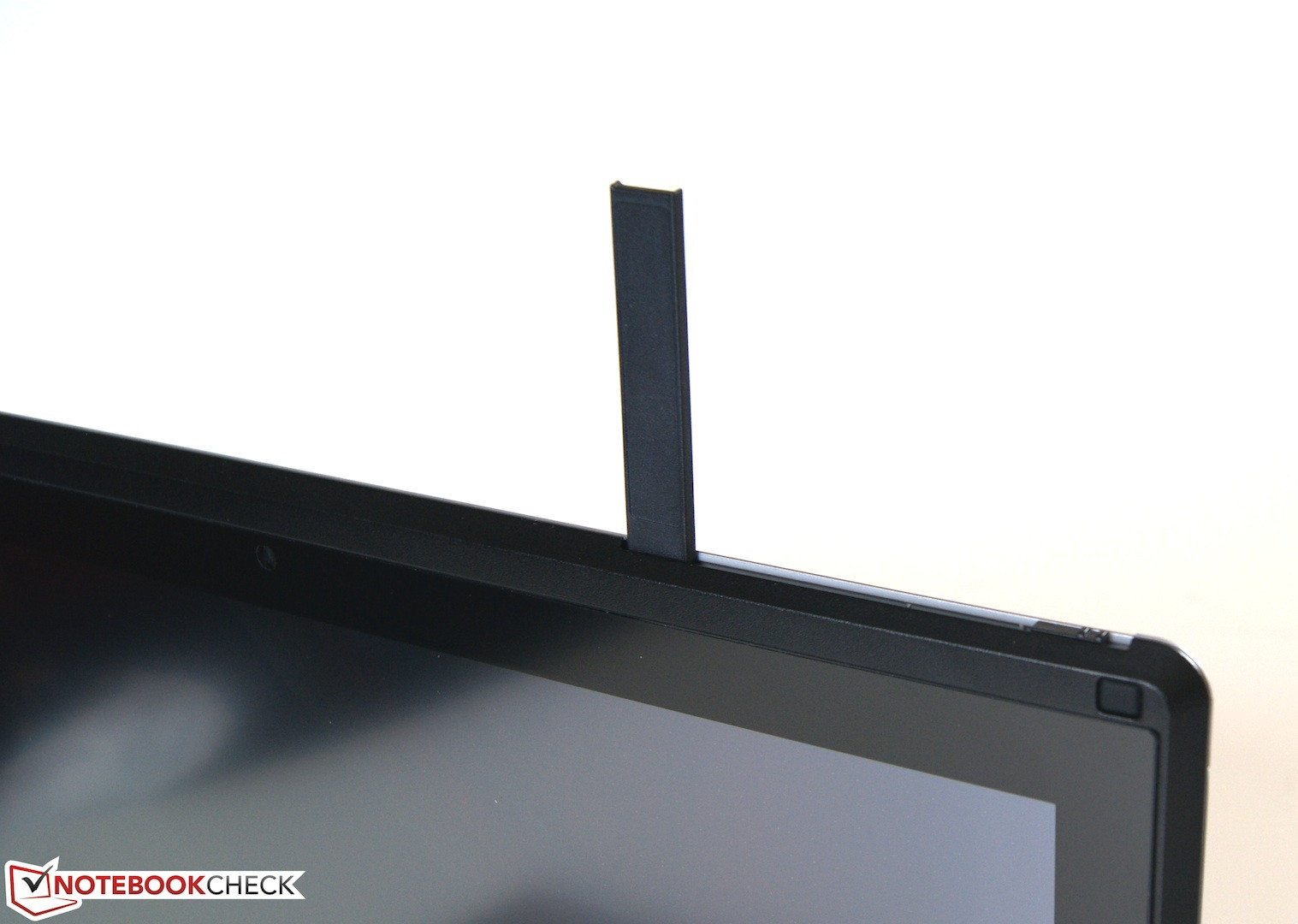

可展开天线
可展开天线

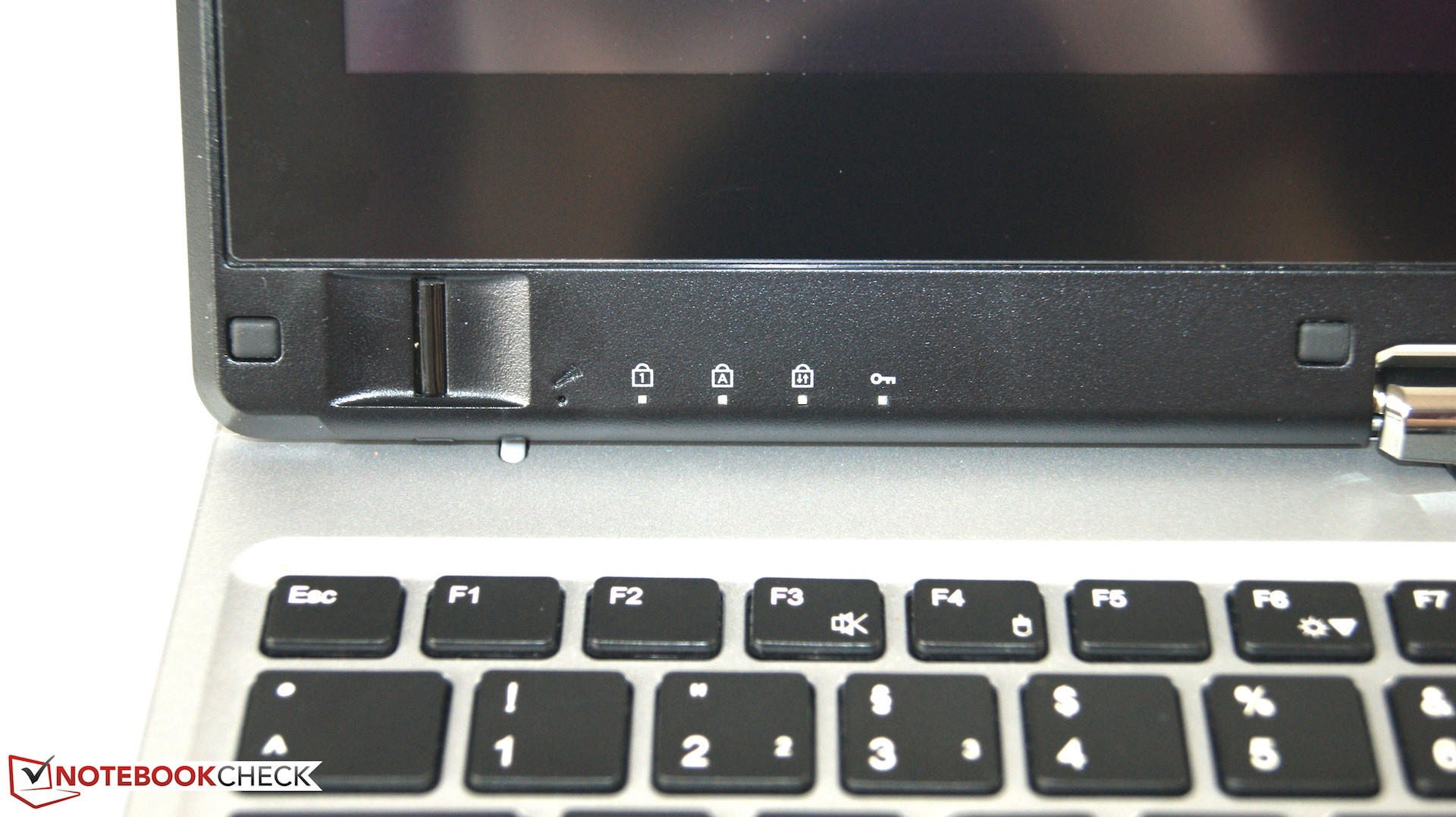

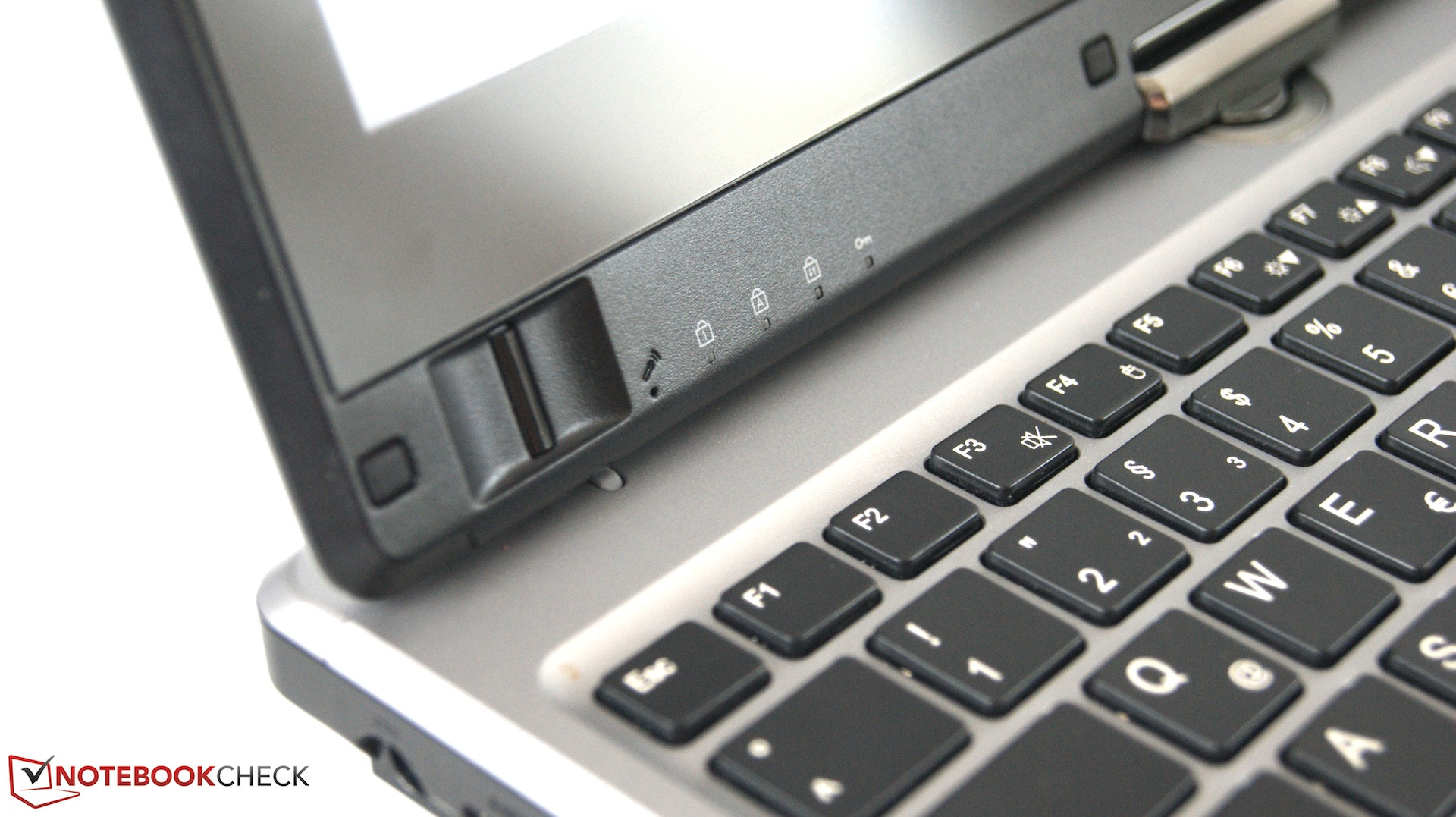

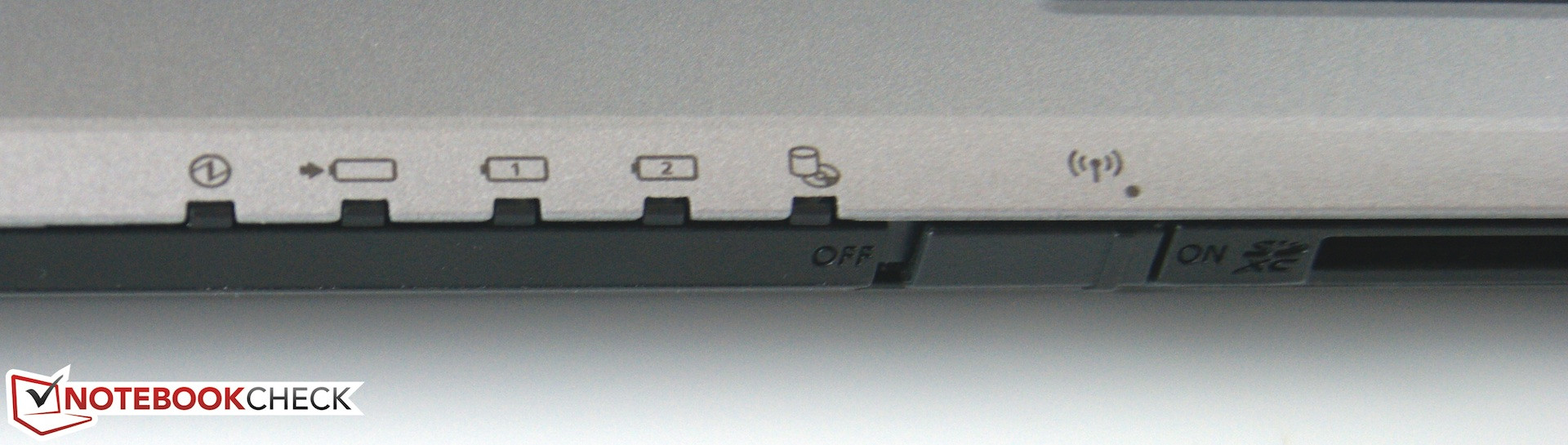

状态指示灯，也包括了第二块电池的指示灯。
状态指示灯，也包括了第二块电池的指示灯。

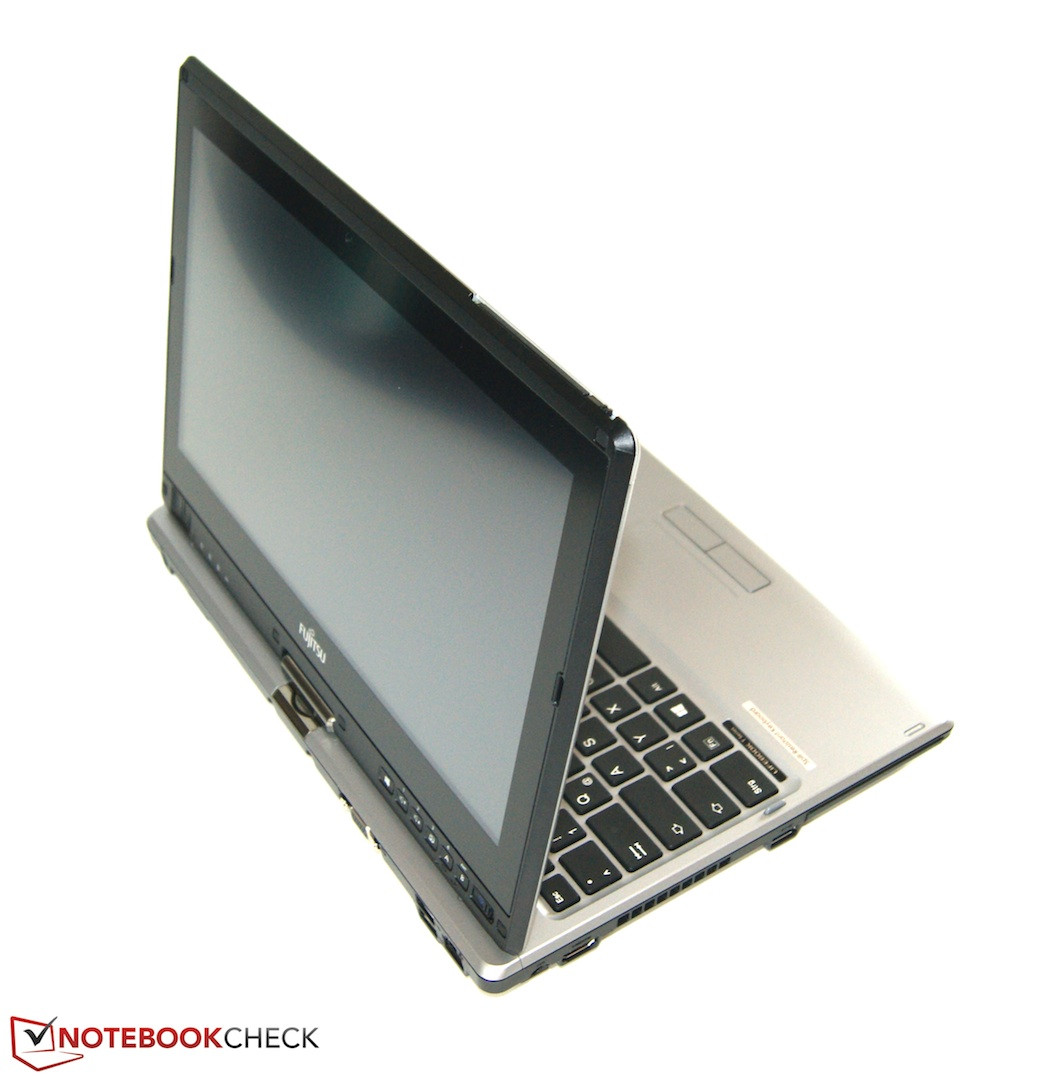

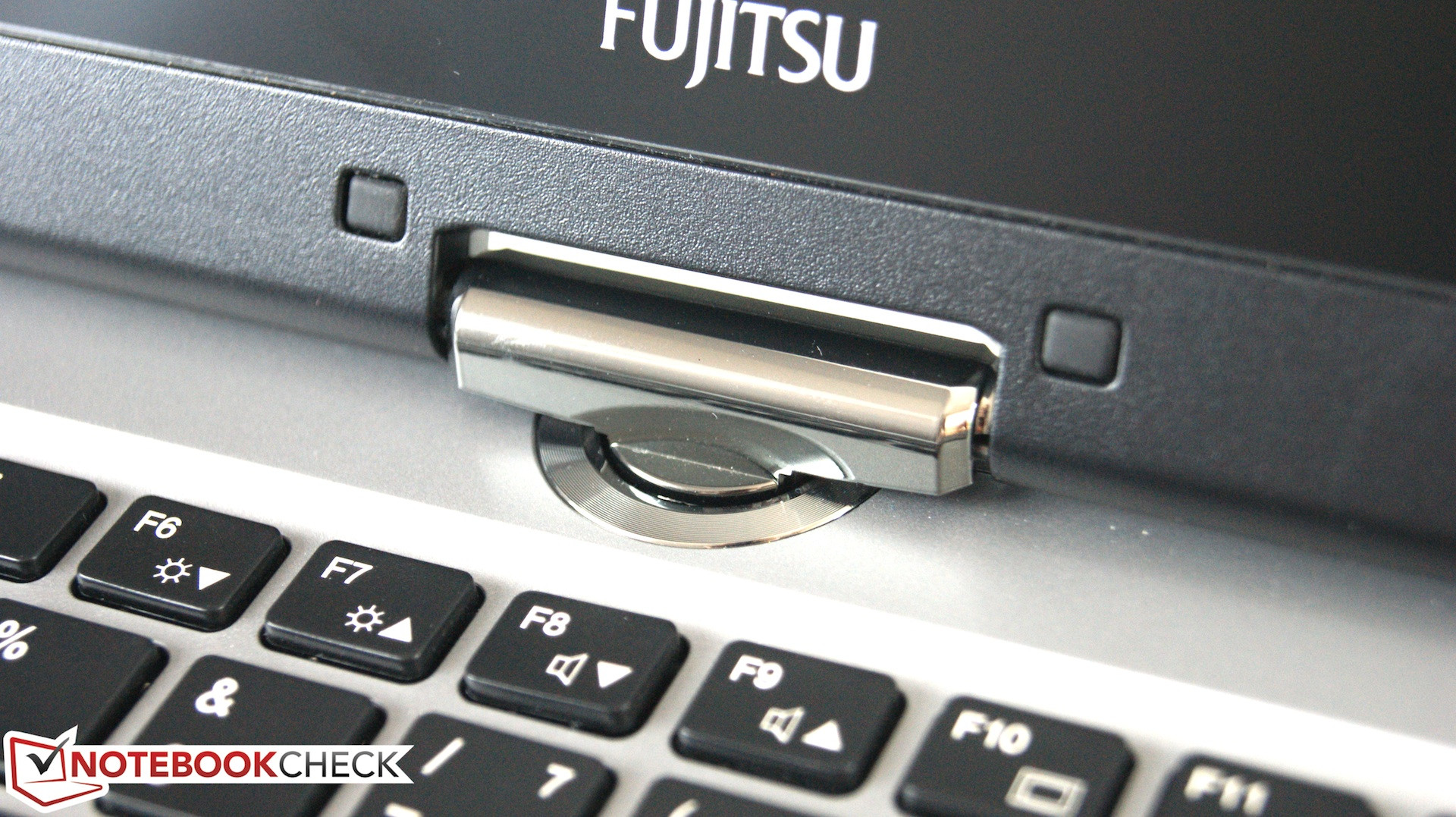

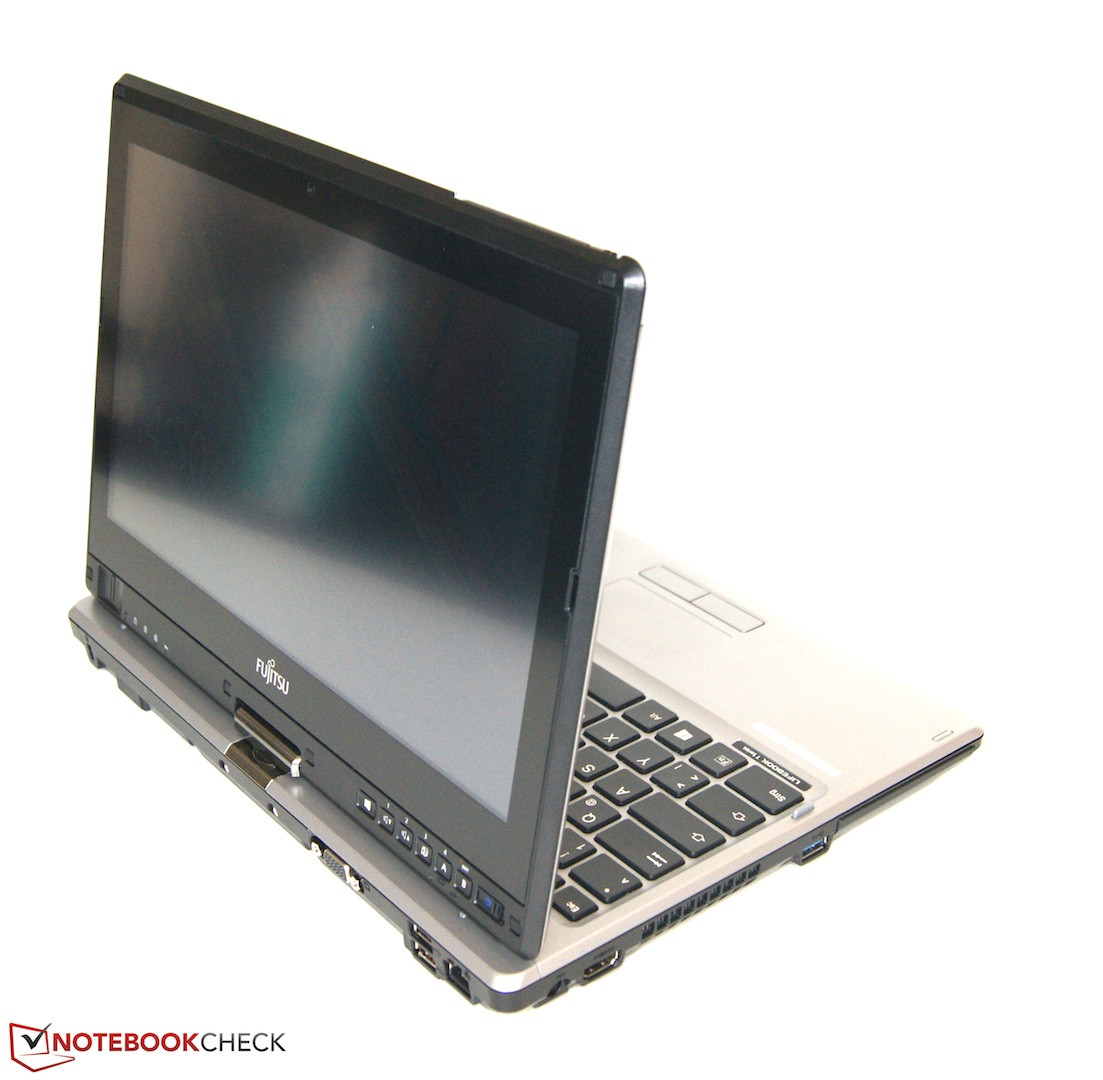

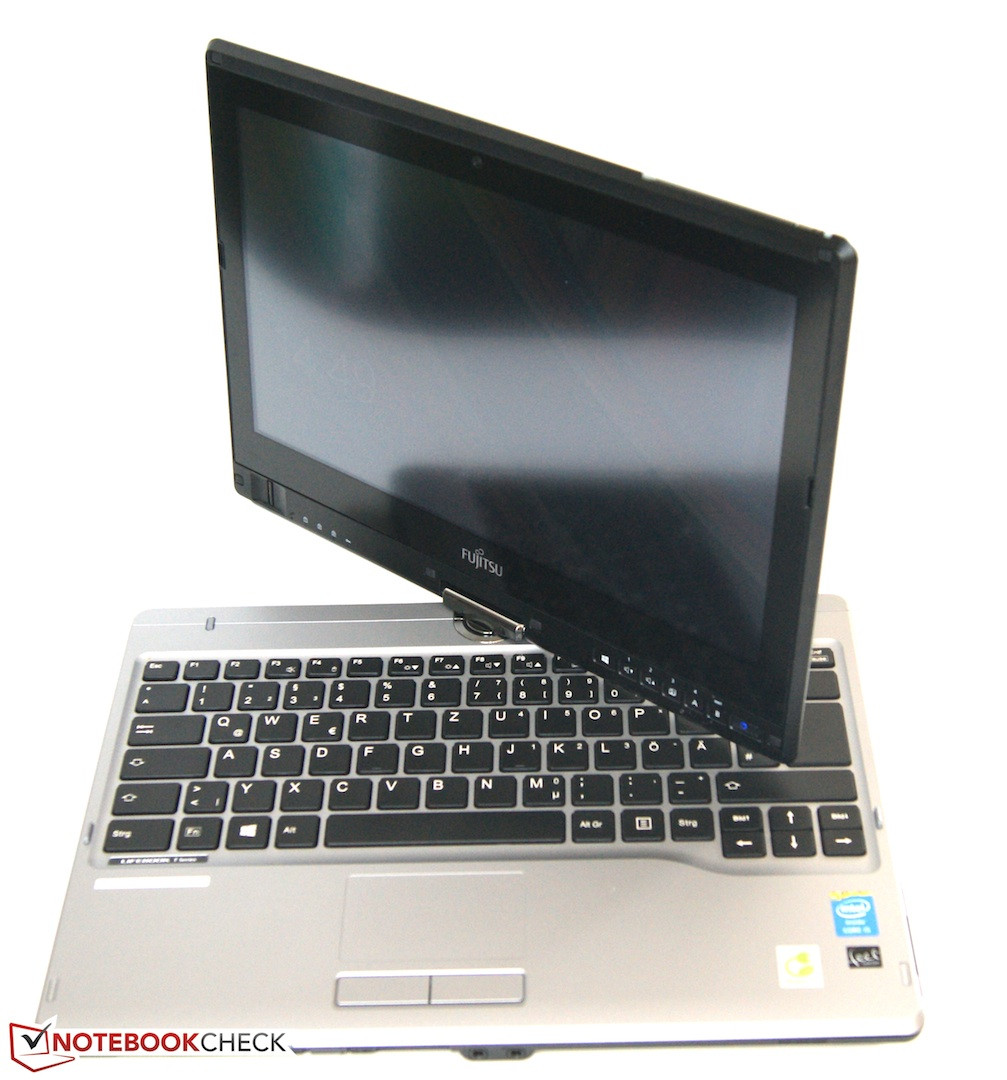

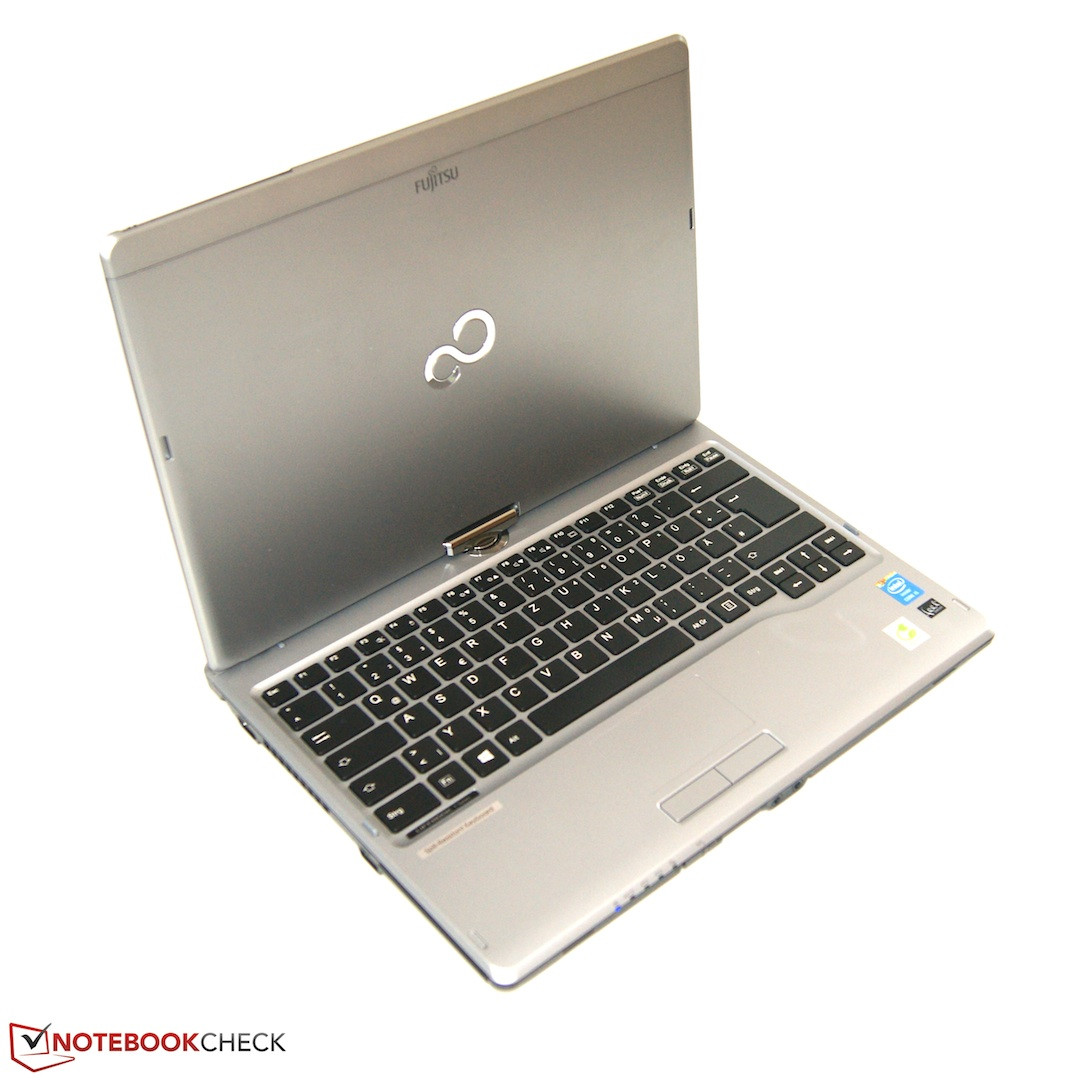

屏幕可旋转360度。
屏幕可旋转360度。

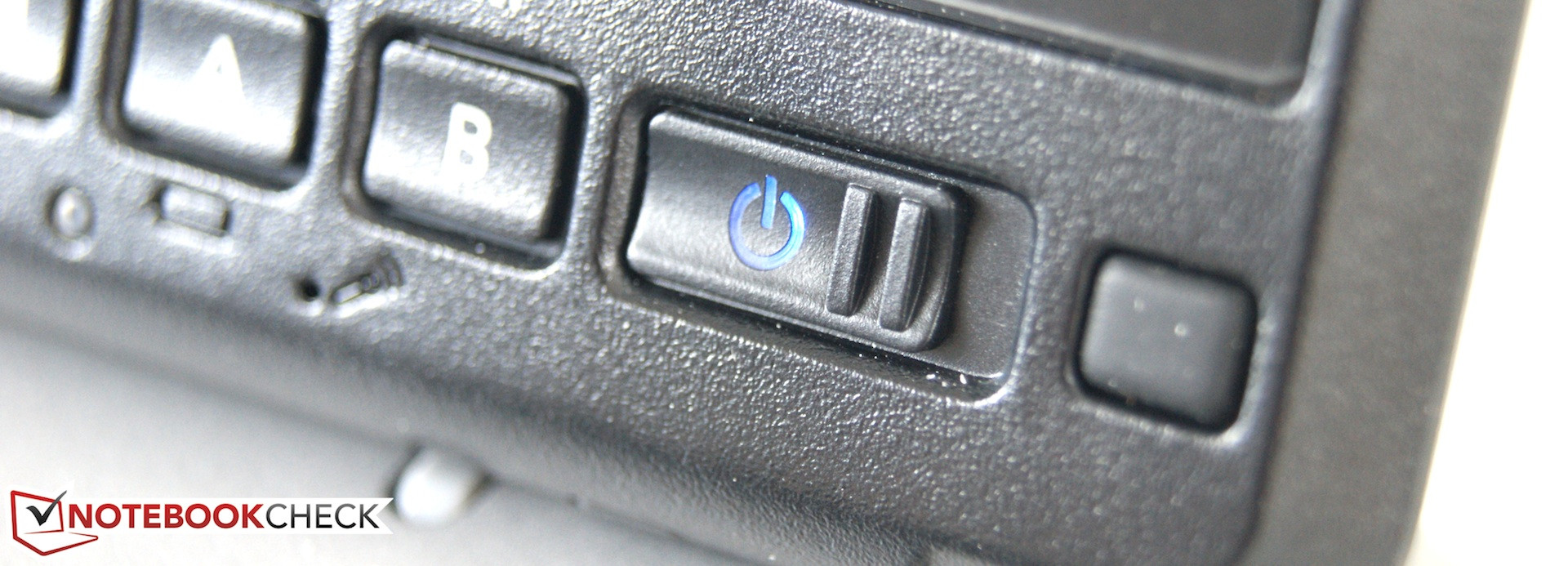

电源键在屏幕边上。
电源键在屏幕边上。

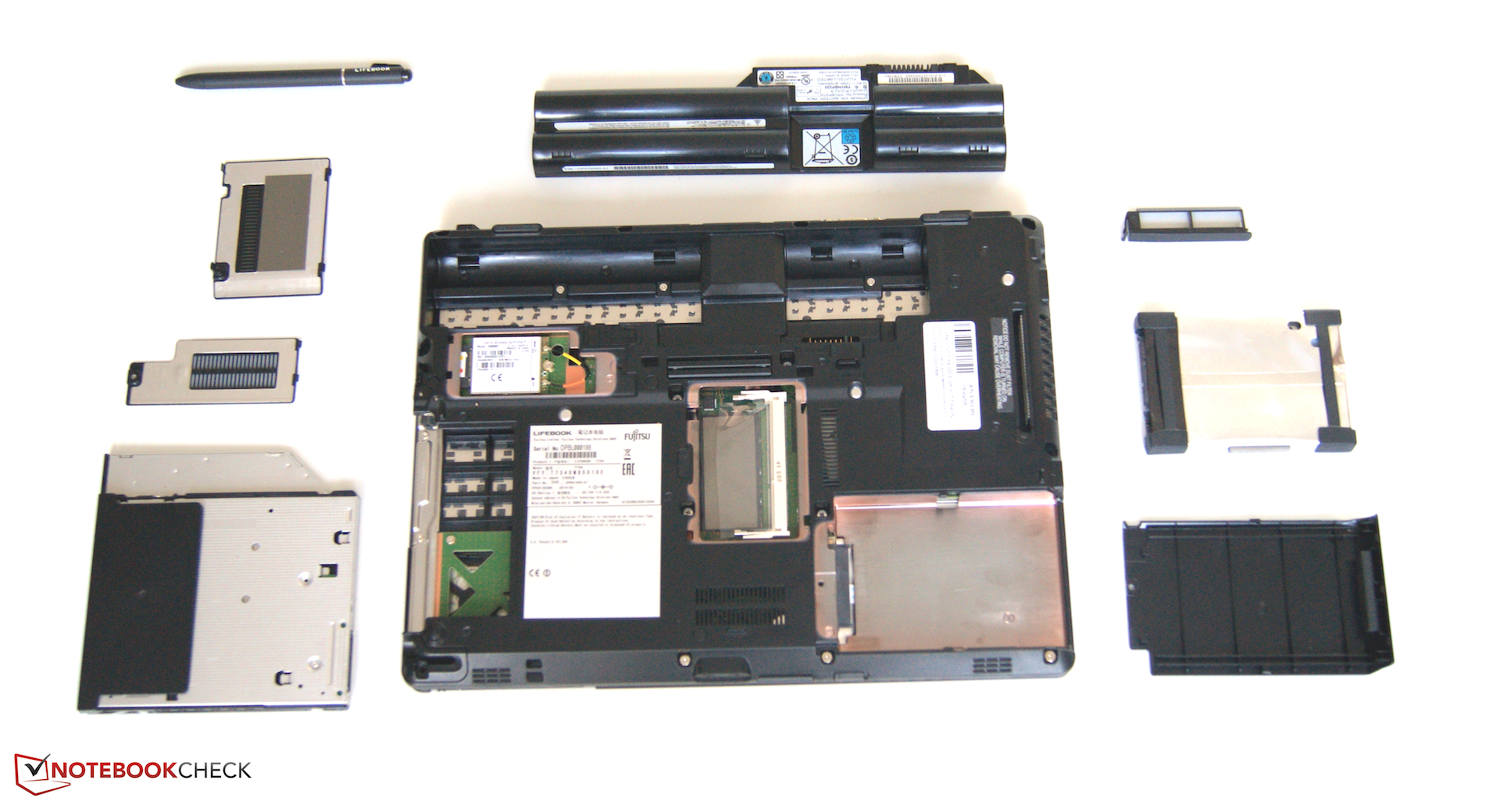

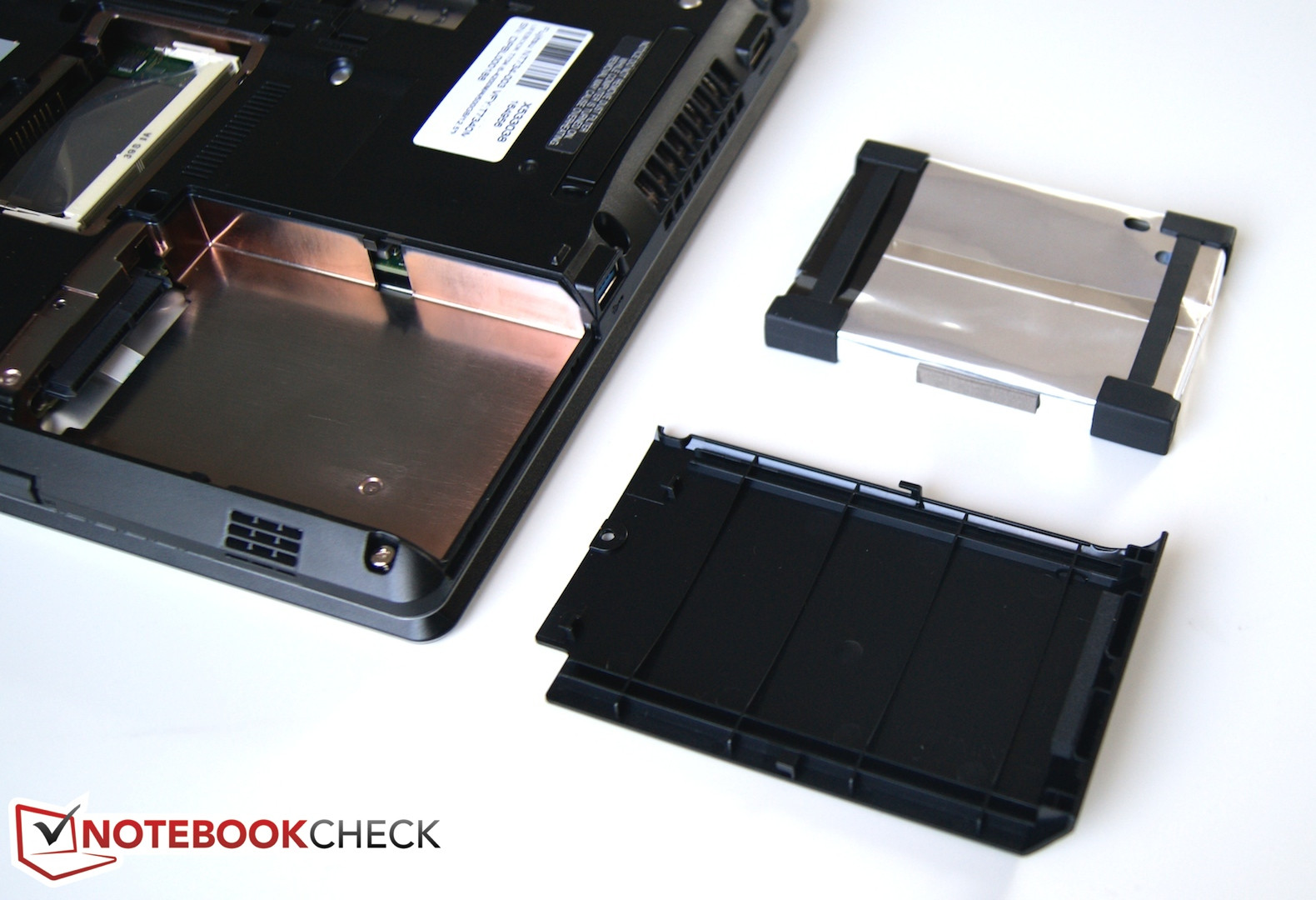

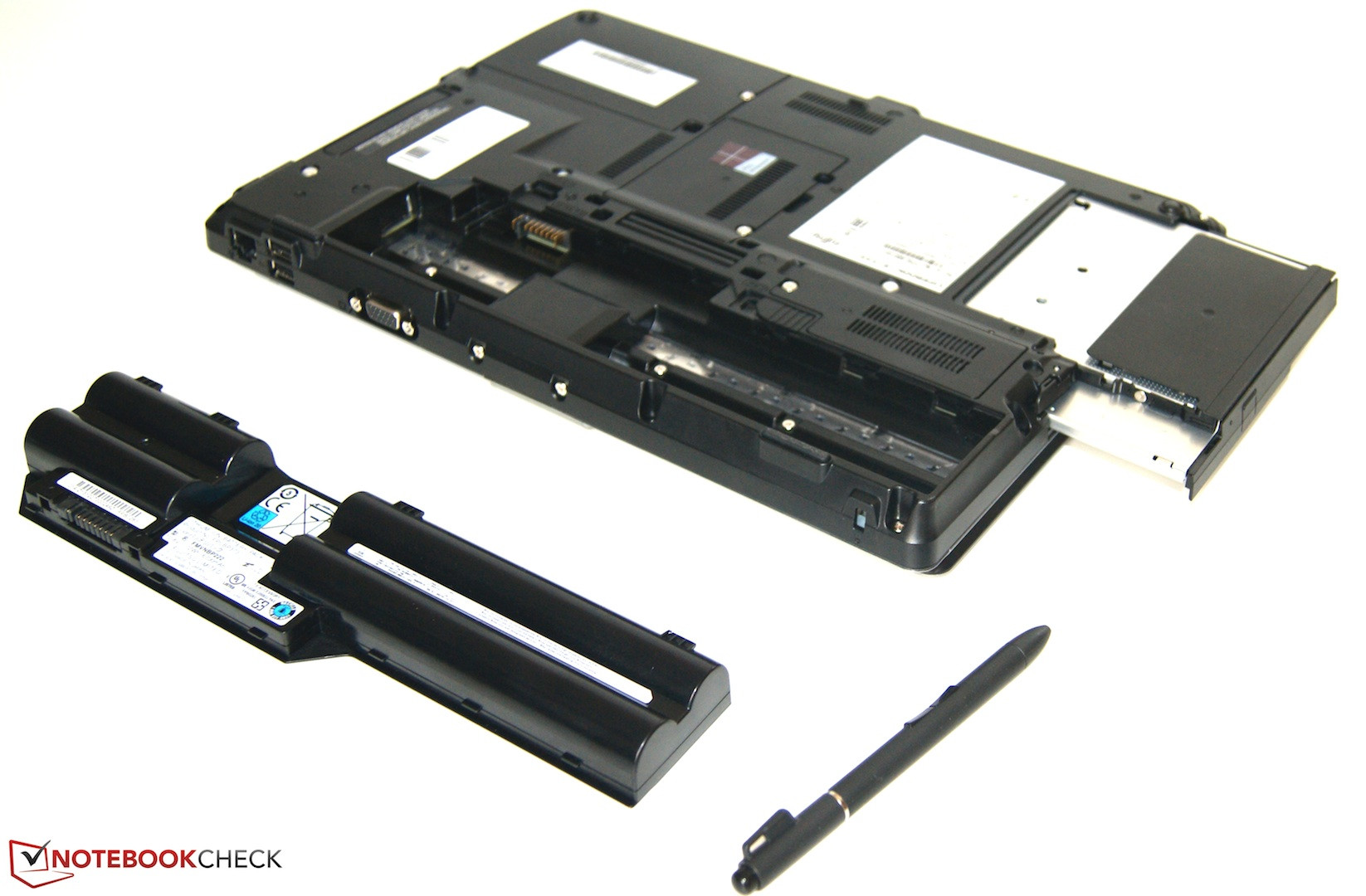

你可以不使用任何工具卸下这些部件。
你可以不使用任何工具卸下这些部件。

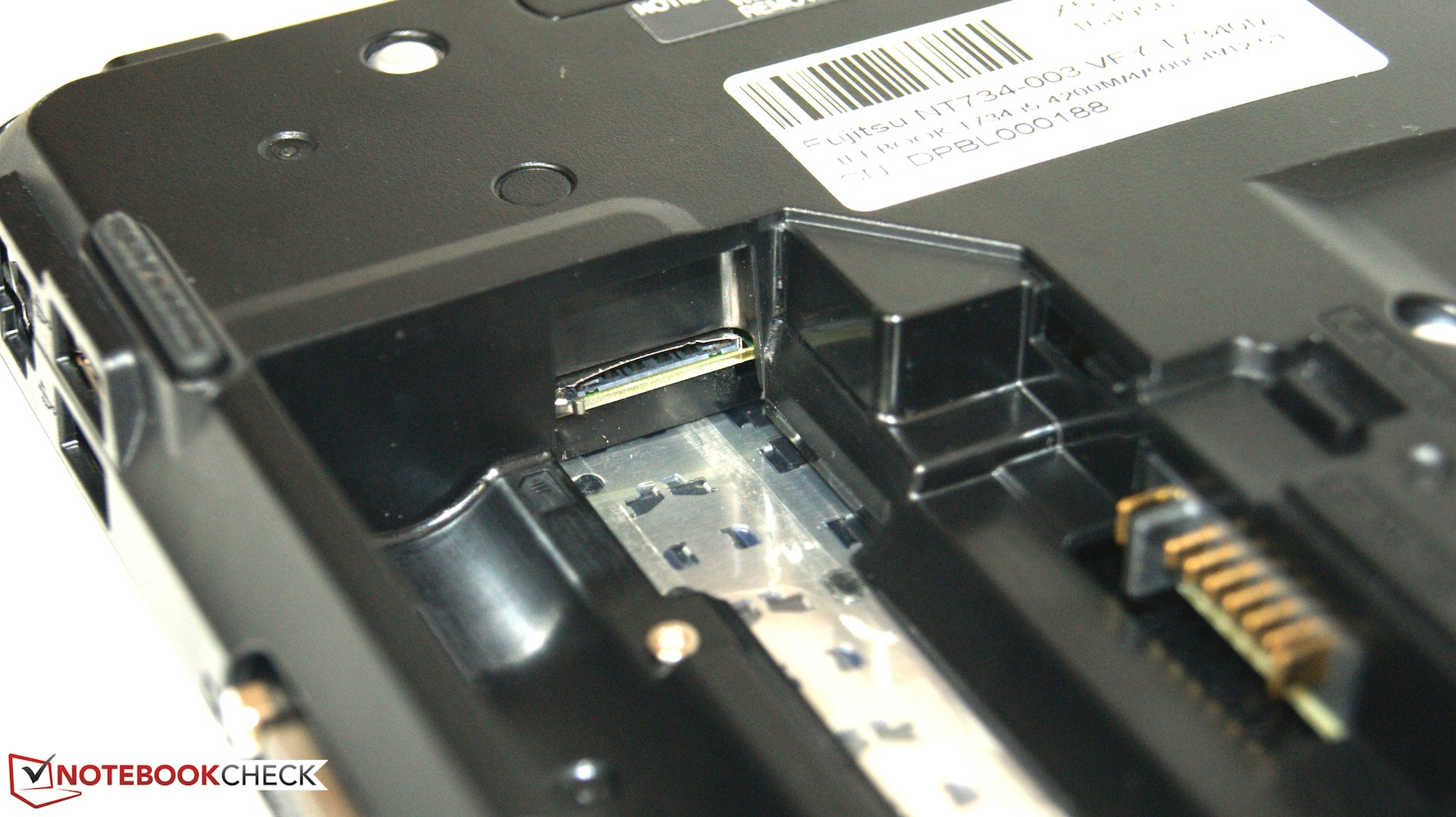

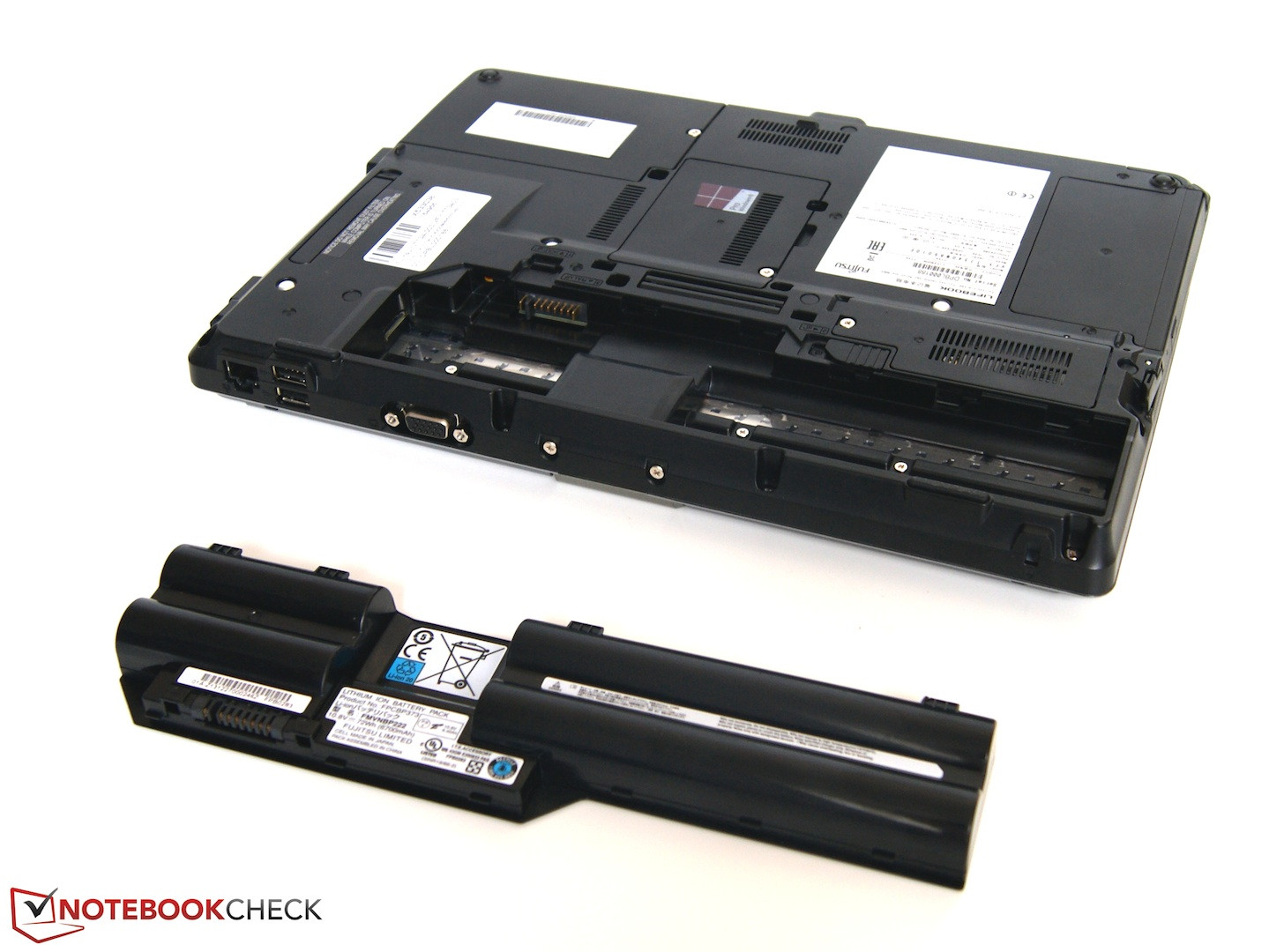

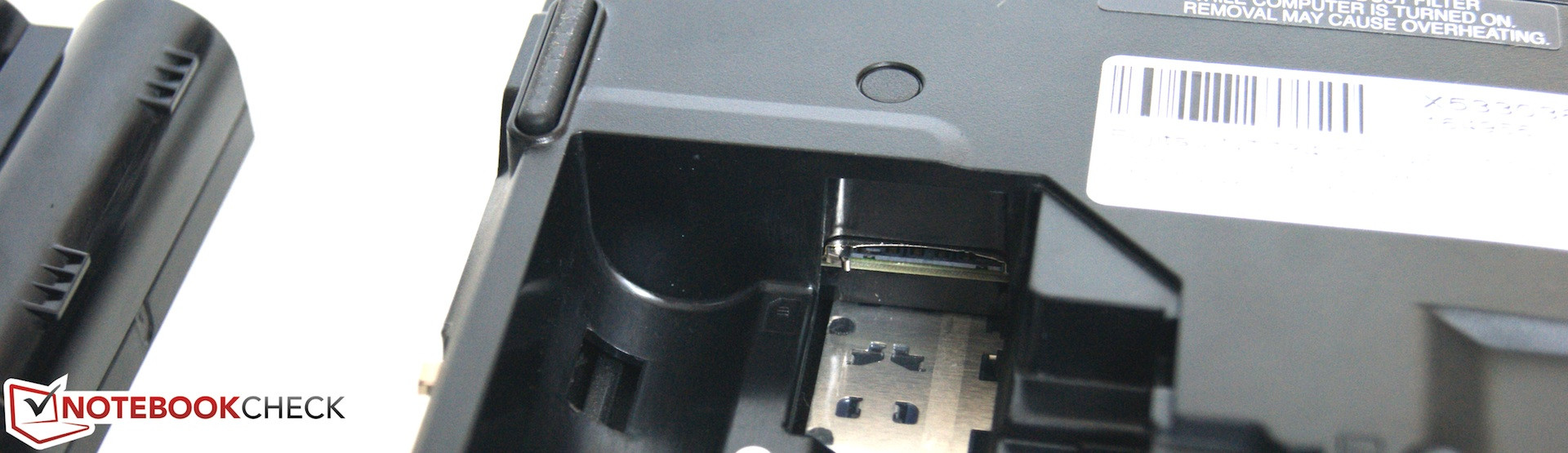

SIM卡插槽在电池下面。
SIM卡插槽在电池下面。

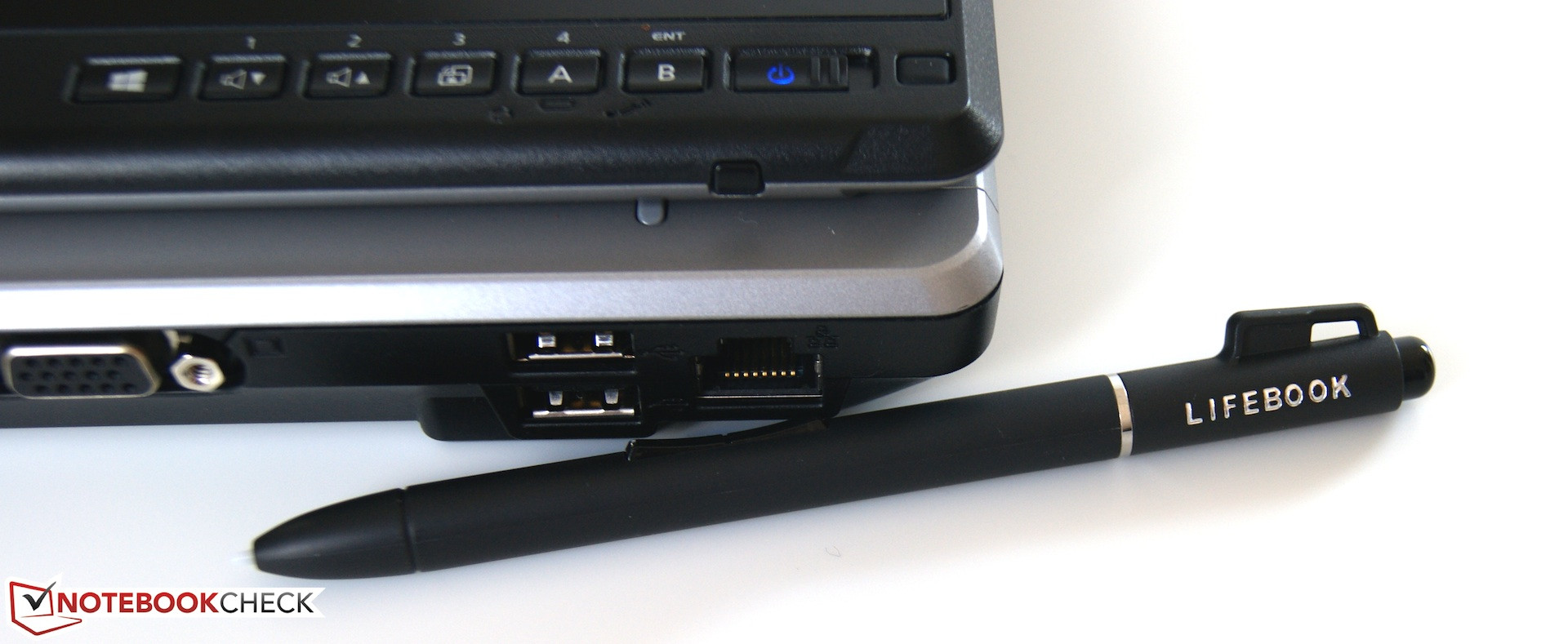

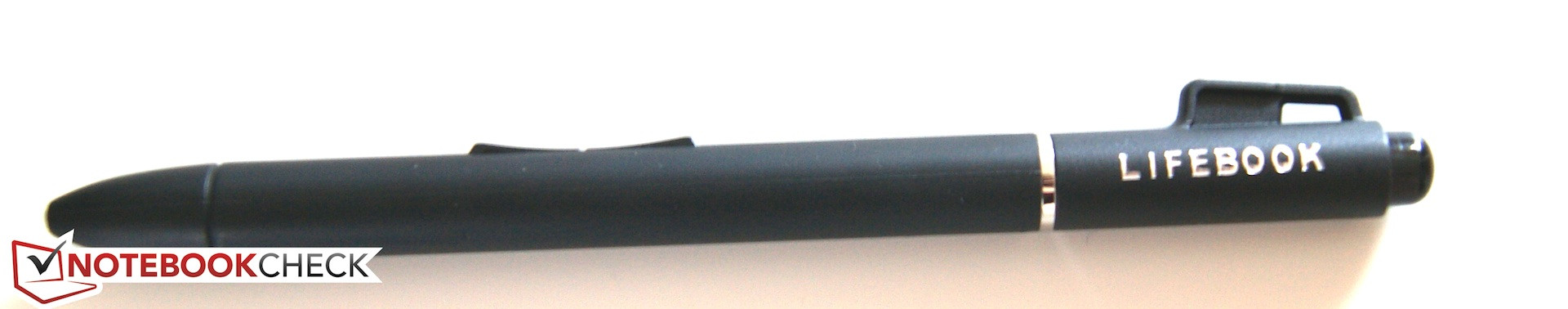

易用的手写笔。
易用的手写笔。

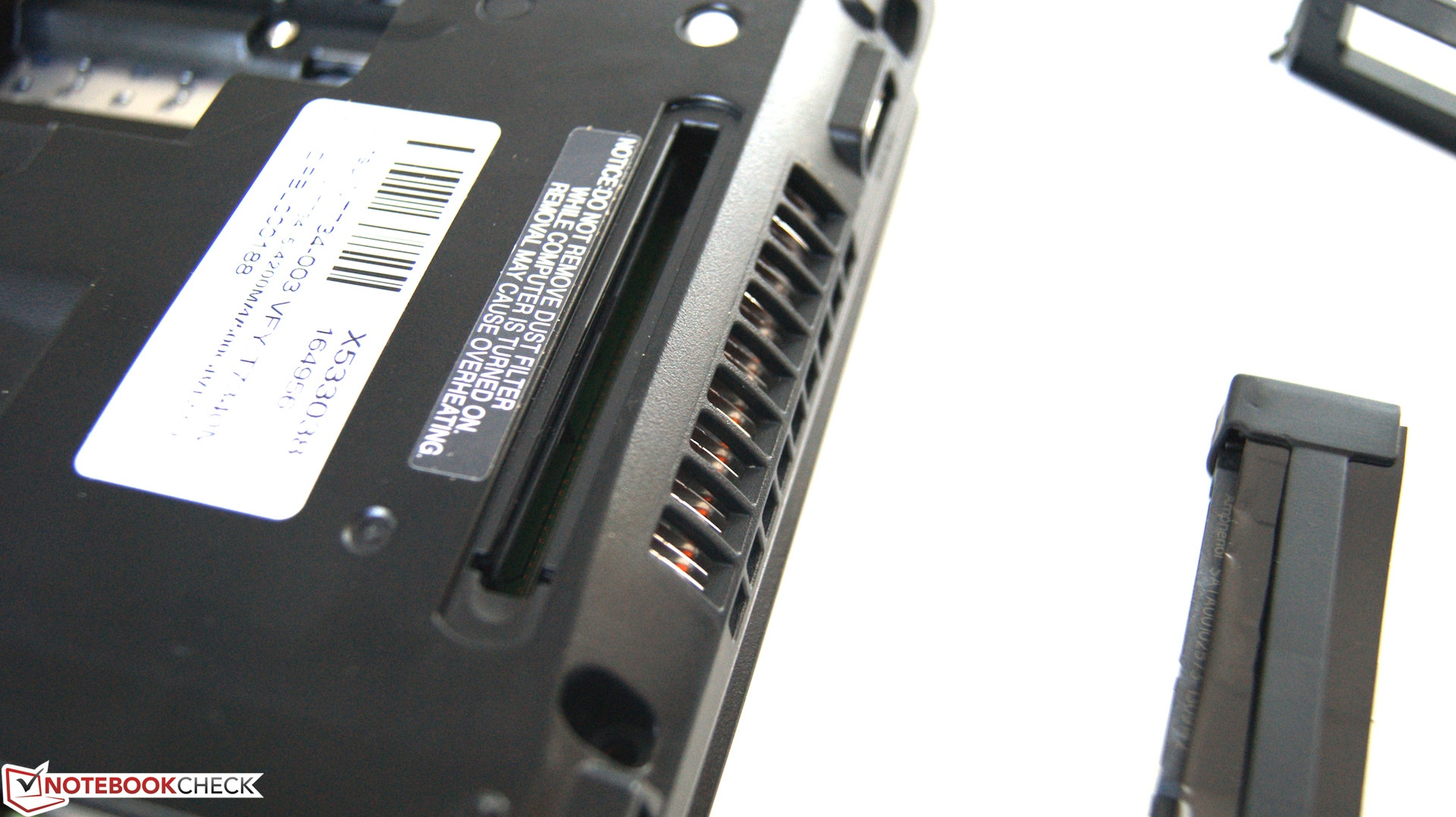

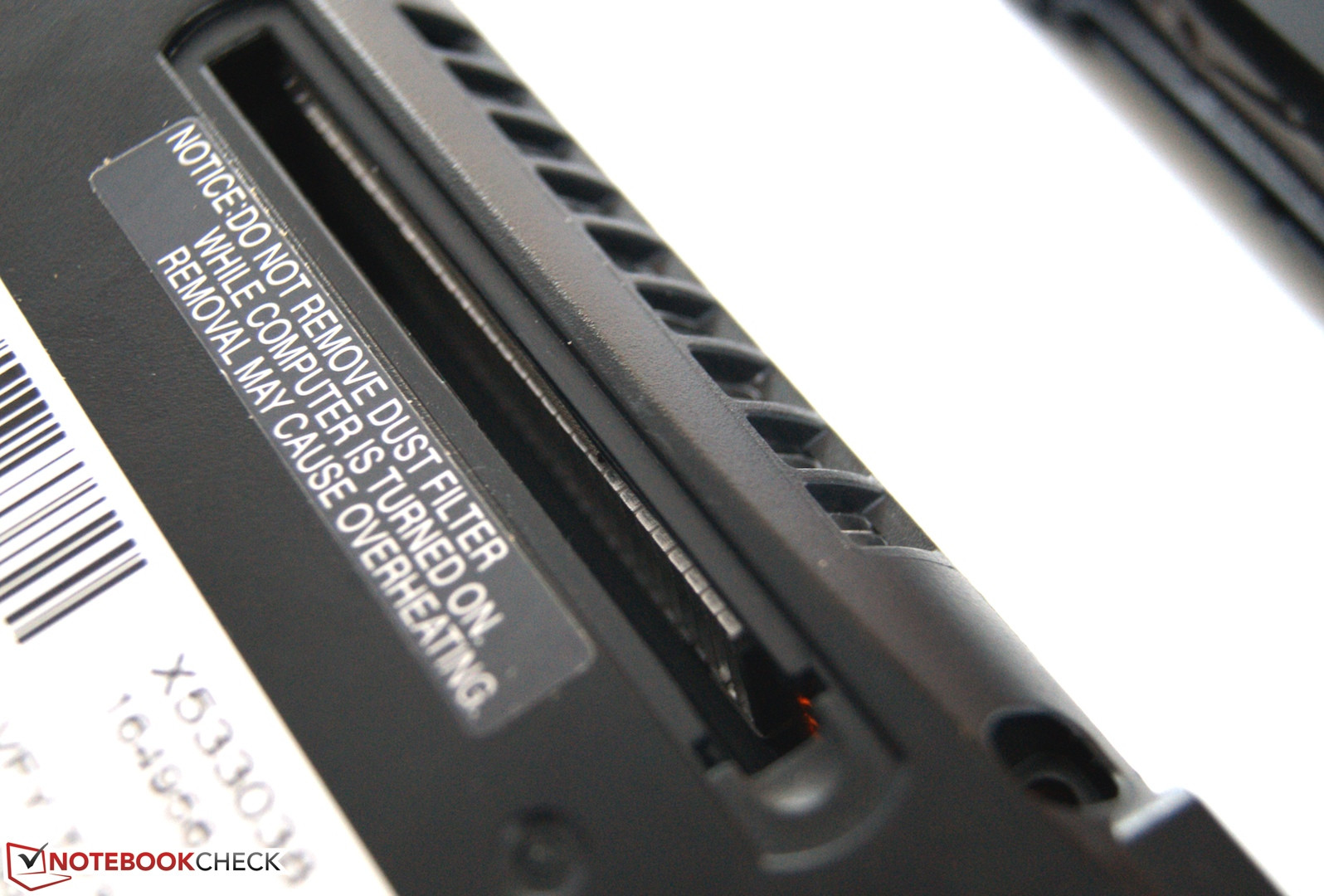

可清洗的灰尘过滤器。
可清洗的灰尘过滤器。
可拓展的接口数量。
可拓展的接口数量。
拆开笔记本只需要卸下很少的几个螺丝。
拆开笔记本只需要卸下很少的几个螺丝。


Please share our article, every link counts!
Mail Logo

Specifications

Fujitsu LifeBook T734 (LifeBook T Series)
Processor
Intel Core i5-4200M 2 x 2.5 - 3.1 GHz, Haswell
Graphics adapter
Intel HD Graphics 4600, Core: 400 MHz, RAM: 800 MHz, 10.18.10.3316
Memory
4 GB
, DDR3 板载单通道, 两个空余内存槽
Display
12.50 inch 16:9, 1366 x 768 pixel, 支持 Wacom Feel 技术的多点触控屏幕, 双触控输入, 手写笔, Fujitsu FUJ5612, IPS, glossy: no
Mainboard
Intel HM86 (Lynx Point)
Storage
Western Digital Scorpio Blue WD5000LPVX, 500 GB
, 5400 rpm, 5400 RPM, 8MB 缓存
Soundcard
Intel Lynx Point PCH - High Definition Audio Controller
Connections
1 Express Card 34mm, 1 Express Card 54mm, 2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 1x 输入/麦克风, 1x 输出/耳机, 2x 麦克风以降低噪音, Card Reader: SD, 1 Fingerprint Reader, Sensors: 环境光传感器, 三向加速传感器, 指南针, 陀螺仪, 拓展坞接口, SIM 卡
Networking
Intel I217-V (ClarkvilleV) Network Adapter (10/100/1000MBit/s), Intel Dual Band Wireless-N 7260 (a/b/g/n = Wi-Fi 4/), Bluetooth Intel(R) Wireless Bluetooth(R) 4.0 + HS-Adapter, UMTS
Optical drive
Matshita DVD-RAM UJ8E2
Size
height x width x depth (in mm): 35 x 316 x 233
Battery
72 Wh Lithium-Ion, 6 芯, 可选: DVD光驱槽换为28Wh电池, Battery runtime (according to manufacturer): 10.6 h
Operating System
Microsoft Windows 8.1 Pro 64 Bit
Camera
Webcam: 2 MP
Additional features
Speakers: 2x 立体声扬声器, Keyboard: 孤岛式, Keyboard Light: no, DVD恢复盘, 屏幕布, 手写笔, 36 Months Warranty
Weight
1.965 kg, Power Supply: 402 g
Price
1100 Euro
Links
Fujitsu homepage
LifeBook T (Series)



Devices with Same Screen Size and/or Weight

富士通LifeBook U9311X评测--带LTE的1公斤商务敞篷车
Iris Xe G7 96EUs, Tiger Lake i7-1185G7, 13.30", 1.029 kg
富士通 Lifebook T937 (i7, 512 GB) 变形本简短评测
HD Graphics 620, Kaby Lake i7-7600U, 13.30", 1.387 kg
富士通 Lifebook P727 (i7, 16 GB, LTE) 变形本简短评测
HD Graphics 620, Kaby Lake i7-7600U, 12.50", 1.202 kg

Devices from the same Manufacturer

富士通LifeBook E5412A笔记本电脑评论：一台有两个内存插槽的经典商务笔记本
Vega 7, Cezanne (Zen 3, Ryzen 5000) R5 PRO 5675U, 14.00", 1.389 kg
富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板
UHD Graphics G1 (Ice Lake 32 EU), Ice Lake i3-1005G1, 15.60", 1.8 kg
富士通 LifeBook E557 (i3-7100U, HD620) 笔记本电脑简短评测
HD Graphics 620, Kaby Lake i3-7100U, 15.60", 2.1 kg
富士通 Stylistic V535 (Z3795,128 GB, LTE) 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3795, 8.30", 0.55 kg

More articles related to this device

Fujitsu LifeBook T734 (LifeBook T Series)

Pros

+ 便于维护升级
+ 许多不同的配置型号
+ 安全功能
+ 可扩充的接口配备
+ 输入体验
+ 尽管没有使用超低电压处理器电池续航依旧很长

Cons

- 机身材质
- 扬声器
- 屏幕边框宽度
- 仅一个USB3.0接口

Fujitsu LifeBook T734 - 09/19/2014 v4 (old)
Nino Ricchizzi

Chassis
63 / 98 → 64%
Keyboard
79%
Pointing Device
66%
Connectivity
89 / 80 → 100%
Weight
63 / 35-78 → 65%
Battery
88%
Display
86%
Games Performance
56 / 68 → 82%
Application Performance
69 / 87 → 79%
Temperature
92%
Noise
93%
Audio
31 / 91 → 34%
Camera
71 / 85 → 84%
Average
73%
76%
Convertible - Weighted Average
> Notebookcheck中文版（NBC中国） > 评测 > 富士通 LifeBook T734 变形本简短评测
Nino Ricchizzi, 2014-10- 4 (Update: 2014-10- 4)
