微软 Lumia 535 智能手机简短评测

升上新旗。 Lumia 535是第一款在新主人微软旗下研发且使用了微软商标的智能手机。它定位于入门级市场,依靠大屏幕和多彩的机壳引人注目。我们的测试将会告诉你这个机身的内在如何。
ARM Smartphone Touchscreen Windows
140.2 mm 72.4 mm 8.8 mm 146 g132.4 mm 68 mm 11.25 mm 140 g132.5 mm 67 mm 9.3 mm 145 g127.5 mm 67.9 mm 11.9 mm 145 g124.8 mm 64.8 mm 12.3 mm 142 g118 mm 62.4 mm 12 mm 119 g148 mm 105 mm 1 mm 1.5 g

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
430
cd/m²
430
cd/m²
399
cd/m²
441
cd/m²
431
cd/m²
407
cd/m²
423
cd/m²
433
cd/m²
425
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 441 cd/m² (Nits) Average: 424.3 cd/m²
Brightness Distribution: 90 %
Center on Battery: 431 cd/m²
Contrast: 673:1 (Black: 0.64 cd/m²)
ΔE Color 3.6 | 0.5-29.43 Ø4.93
ΔE Greyscale 3.71 | 0.5-98 Ø5.2
Gamma: 2.4
Microsoft Lumia 535
Adreno 302, 200 MSM8212, 8 GB eMMC Flash
Motorola Moto E 1. Gen 2014
Adreno 302, 200 8210, 4 GB Flash
LG L Fino
Adreno 302, 200 MSM8212, 4 GB Flash
Huawei Ascend Y530
Adreno 302, 200 8210, 4 GB Flash
Sony Xperia E1
Adreno 302, 200 8210, 4 GB Flash
Screen
-10%
-20%
-49%
-29%
Brightness middle
431
373
-13%
299
-31%
375
-13%
348
-19%
Brightness
424
365
-14%
303
-29%
370
-13%
358
-16%
Brightness Distribution
90
96
7%
93
3%
91
1%
92
2%
Black Level *
0.64
0.5
22%
0.5
22%
0.74
-16%
0.51
20%
Contrast
673
746
11%
598
-11%
507
-25%
682
1%
Colorchecker dE 2000 *
3.6
4.84
-34%
5.41
-50%
8.8
-144%
6.43
-79%
Greyscale dE 2000 *
3.71
5.62
-51%
5.44
-47%
8.69
-134%
7.92
-113%
Gamma
2.4 92%
2.59 85%
2.23 99%
2.03 108%
2.52 87%
CCT
6878 95%
7943 82%
7400 88%
8507 76%
9560 68%

* ... smaller is better

Linpack Android / IOS
Single Thread (sort by value)
Microsoft Lumia 535
58.6 MFLOPS
Motorola Moto E 1. Gen 2014
77.5 MFLOPS +32%
HTC Desire 310
81.7 MFLOPS +39%
Multi Thread (sort by value)
Microsoft Lumia 535
234.4 MFLOPS
Motorola Moto E 1. Gen 2014
145.5 MFLOPS -38%
HTC Desire 310
168 MFLOPS -28%
BaseMark OS II
Overall (sort by value)
Microsoft Lumia 535
391 Points
Nokia Lumia 920
482 Points +23%
LG L Fino
380 Points -3%
System (sort by value)
Microsoft Lumia 535
572 Points
Nokia Lumia 920
472 Points -17%
LG L Fino
711 Points +24%
Memory (sort by value)
Microsoft Lumia 535
593 Points
Nokia Lumia 920
788 Points +33%
LG L Fino
164 Points -72%
Graphics (sort by value)
Microsoft Lumia 535
189 Points
Nokia Lumia 920
362 Points +92%
LG L Fino
318 Points +68%
Web (sort by value)
Microsoft Lumia 535
367 Points
Nokia Lumia 920
399 Points +9%
LG L Fino
562 Points +53%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Nokia Lumia 920
6.3 fps
Motorola Moto E 1. Gen 2014
11.1 fps
LG L Fino
13.3 fps
Sony Xperia E1
0 fps
HTC Desire 310
8.8 fps
Huawei Ascend Y530
11.7 fps
1920x1080 T-Rex Offscreen (sort by value)
Nokia Lumia 920
3.6 fps
Motorola Moto E 1. Gen 2014
4.5 fps
LG L Fino
4.4 fps
Sony Xperia E1
0 fps
HTC Desire 310
3.8 fps
Huawei Ascend Y530
0 fps
WebXPRT 2013
Overall (sort by value)
Microsoft Lumia 535
131 Points
Nokia Lumia 920
169 Points +29%
Sony Xperia E1
161 Points +23%
HTC Desire 310
196 Points +50%
Photo Effects (sort by value)
Microsoft Lumia 535
2296 ms *
Nokia Lumia 920
2671 ms * -16%
Sony Xperia E1
1936 ms * +16%
HTC Desire 310
1535 ms * +33%
Face Detection (sort by value)
Microsoft Lumia 535
5996 ms *
Nokia Lumia 920
3301 ms * +45%
Sony Xperia E1
3768 ms * +37%
HTC Desire 310
2803 ms * +53%
Stocks Dashboard (sort by value)
Microsoft Lumia 535
2571 ms *
Nokia Lumia 920
1855 ms * +28%
Sony Xperia E1
2486 ms * +3%
HTC Desire 310
2224 ms * +13%
Offline Notes (sort by value)
Microsoft Lumia 535
2835 ms *
Nokia Lumia 920
2247 ms * +21%
Sony Xperia E1
2416 ms * +15%
HTC Desire 310
2124 ms * +25%
Sunspider - 1.0 Total Score (sort by value)
Microsoft Lumia 535
1254 ms *
Nokia Lumia 920
891 ms * +29%
LG L Fino
1526 ms * -22%
Sony Xperia E1
ms * +100%
HTC Desire 310
1331 ms * -6%
Huawei Ascend Y530
1539 ms * -23%
Google V8 Ver. 7 - Google V8 Ver. 7 Score (sort by value)
Microsoft Lumia 535
1141 Points
Nokia Lumia 920
785 Points -31%
Motorola Moto E 1. Gen 2014
1777 Points +56%
HTC Desire 310
2200 Points +93%
Peacekeeper - --- (sort by value)
Microsoft Lumia 535
293 Points
Motorola Moto E 1. Gen 2014
562 Points +92%
Sony Xperia E1
550 Points +88%
HTC Desire 310
612 Points +109%
Huawei Ascend Y530
628 Points +114%

Legend


Microsoft Lumia 535 Qualcomm Snapdragon 200 MSM8212, Qualcomm Adreno 302, 8 GB eMMC Flash

Nokia Lumia 920 Qualcomm Snapdragon S4 Plus MSM8960, Qualcomm Adreno 225, 32 GB SSD

Motorola Moto E 1. Gen 2014 Qualcomm Snapdragon 200 8210, Qualcomm Adreno 302, 4 GB Flash

LG L Fino Qualcomm Snapdragon 200 MSM8212, Qualcomm Adreno 302, 4 GB Flash

Sony Xperia E1 Qualcomm Snapdragon 200 8210, Qualcomm Adreno 302, 4 GB Flash

HTC Desire 310 Mediatek MT6582M, ARM Mali-400 MP2, 4 GB Flash

Huawei Ascend Y530 Qualcomm Snapdragon 200 8210, Qualcomm Adreno 302, 4 GB Flash

* ... smaller is better

Max. Load
 38.6 °C34.6 °C29.3 °C
 39 °C35.1 °C29.8 °C
 38.5 °C35.4 °C29.4 °C
Maximum: 39 °C
Average: 34.4 °C
26.9 °C27.4 °C35.1 °C
26.4 °C26.9 °C35.7 °C
26.4 °C27.3 °C35.9 °C
Maximum: 35.9 °C
Average: 29.8 °C
Power Supply (max.)  37.7 °C | Room Temperature 21.5 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 34.4 °C / 94 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 39 °C / 102 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 35.9 °C / 97 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 32.8 °C / 91 F.
Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 1.3 / 1.6 / 2.4 Watt
Load midlight 3.3 / 4.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 870
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
15h 48min
WiFi Surfing
6h 16min
Big Buck Bunny H.264 1080p
5h 22min
Load (maximum brightness)
2h 07min
Microsoft Lumia 535
Adreno 302, 200 MSM8212, 8 GB eMMC Flash
LG L Fino
Adreno 302, 200 MSM8212, 4 GB Flash
Motorola Moto E 1. Gen 2014
Adreno 302, 200 8210, 4 GB Flash
Sony Xperia E1
Adreno 302, 200 8210, 4 GB Flash
Huawei Ascend Y530
Adreno 302, 200 8210, 4 GB Flash
Battery Runtime
24%
68%
78%
46%
Reader / Idle
948
801
-16%
1336
41%
H.264
322
350
9%
WiFi
376
407
8%
846
125%
480
28%
483
28%
Load
127
228
80%
248
95%
290
128%
208
64%
In review: Microsoft Lumia 535. Review sample courtesy of Microsoft Germany.
In review: Microsoft Lumia 535. Review sample courtesy of Microsoft Germany.

微软的Lumia 535是一款不错的入门级智能手机。它主要优势在于最新版的系统,明亮而色彩准确的屏幕,和不错的相机。它的GPS模组也在测试中表现优秀,出乎我们的意料。可选的最大128GB存储空间扩展在这个价位也独一无二。

这款手机的最大缺点则包括了反应迟缓的触控屏幕和平庸的电池续航。后者由它在功耗测试中相对较高的耗能就可见一斑。这两个问题或许可以在未来的软件更新中获得改善。

纤薄而一如既往的多彩Lumia设计是它最大的标志。在这个价位的竞争对手都相比更笨重。整体上,微软为我们带来了一款不错的智能手机,在易用而出色的软件系统和优秀配置、高性价比等方面都让人无可挑剔。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

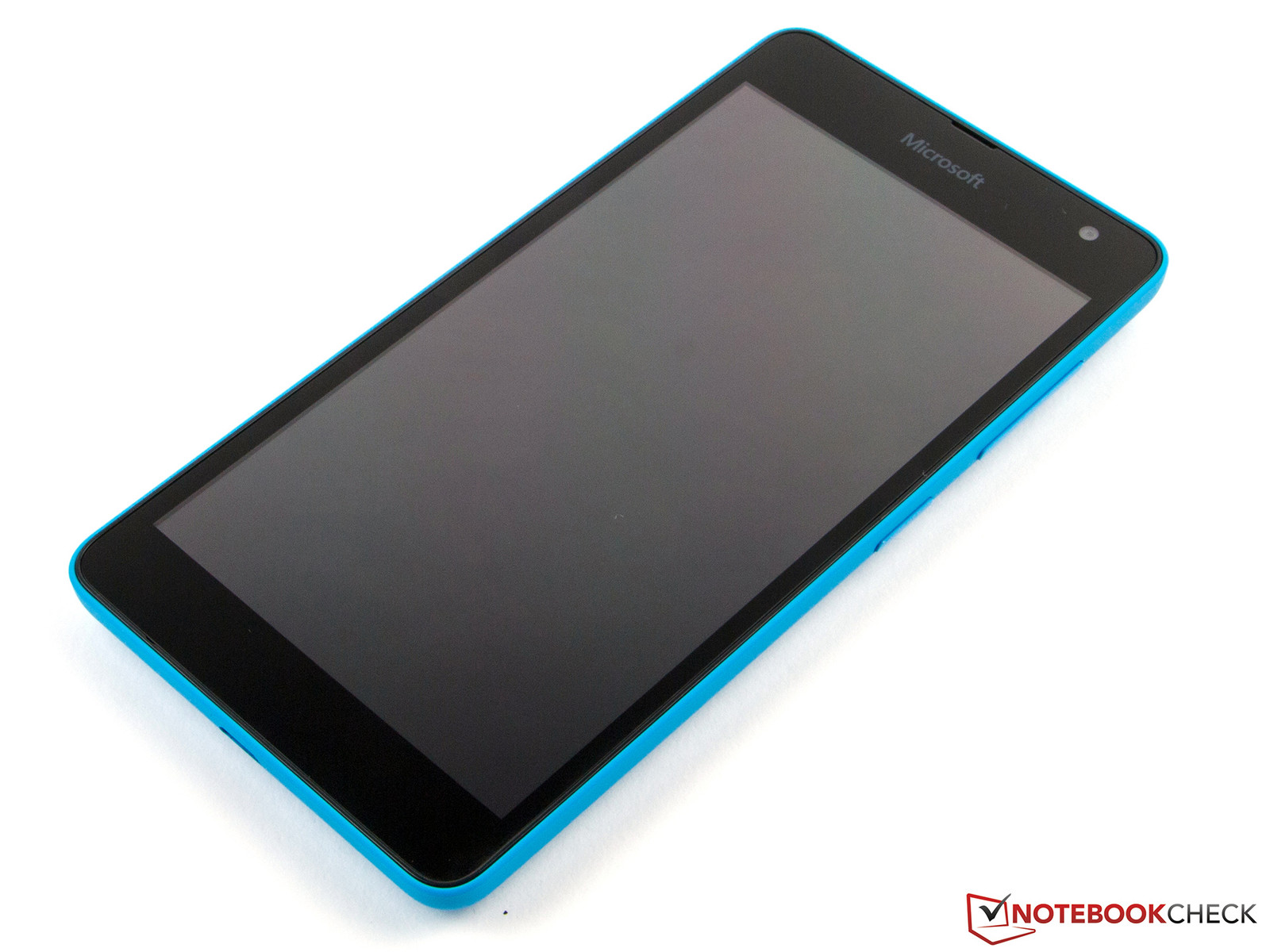

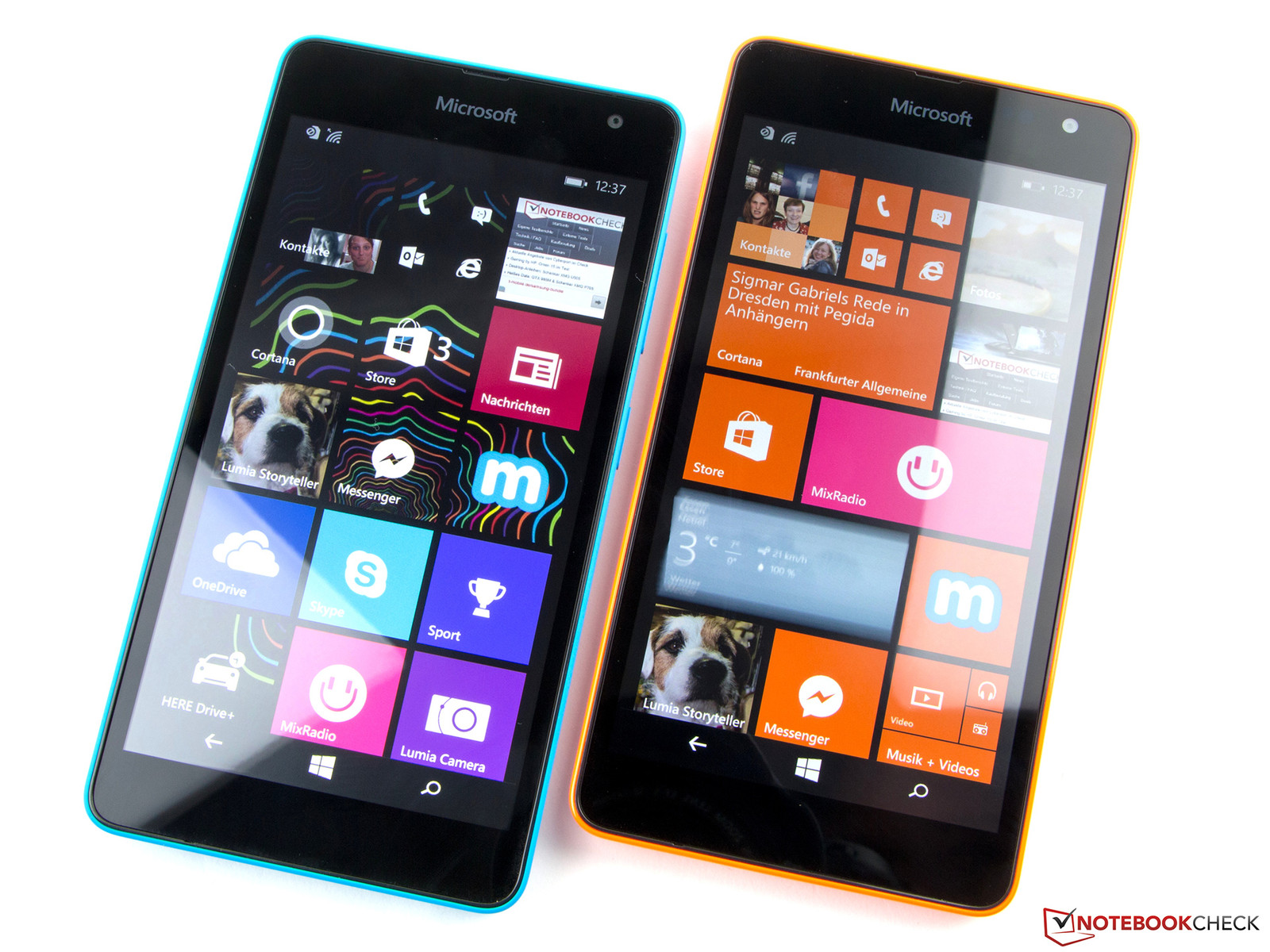

它的屏幕尺寸为5寸。
它的屏幕尺寸为5寸。
不过分辨率仅960x540像素。
不过分辨率仅960x540像素。
它的色彩还原十分优秀,不过黑值不够低。
它的色彩还原十分优秀,不过黑值不够低。

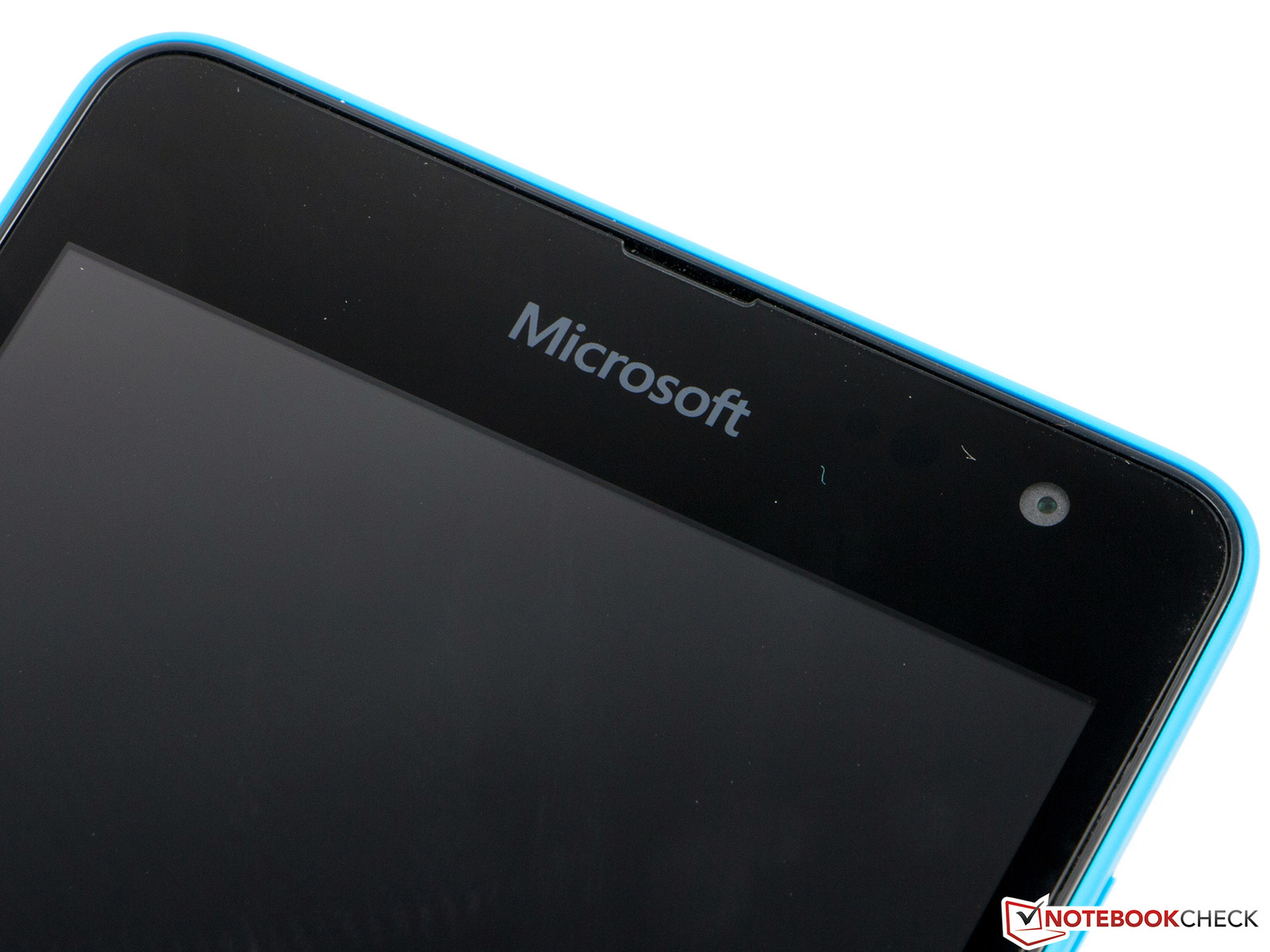

前置相机可以拍摄不错的自拍照片。
前置相机可以拍摄不错的自拍照片。

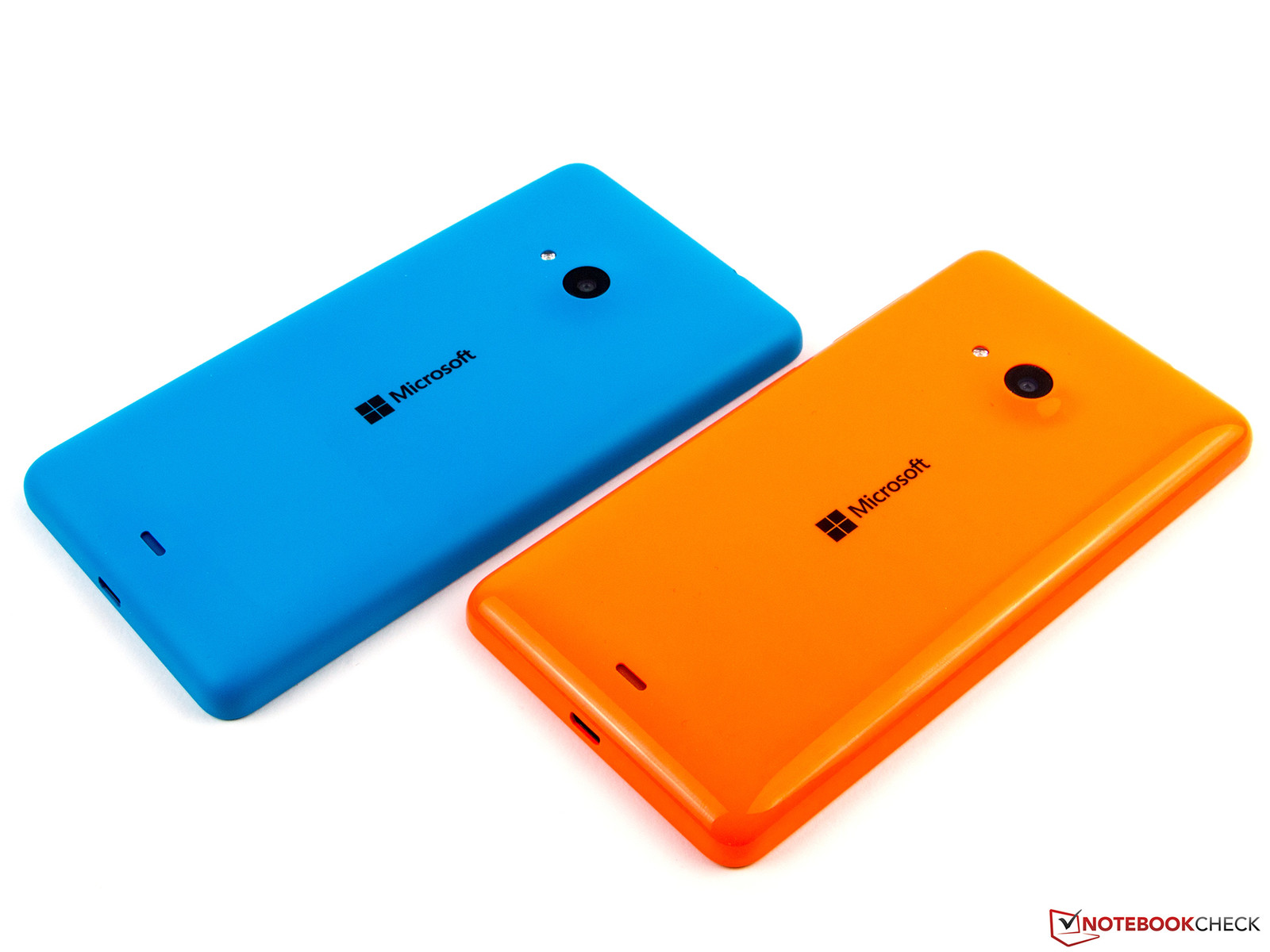

它的机背采用了纯色的复合碳纤维外壳。
它的机背采用了纯色的复合碳纤维外壳。

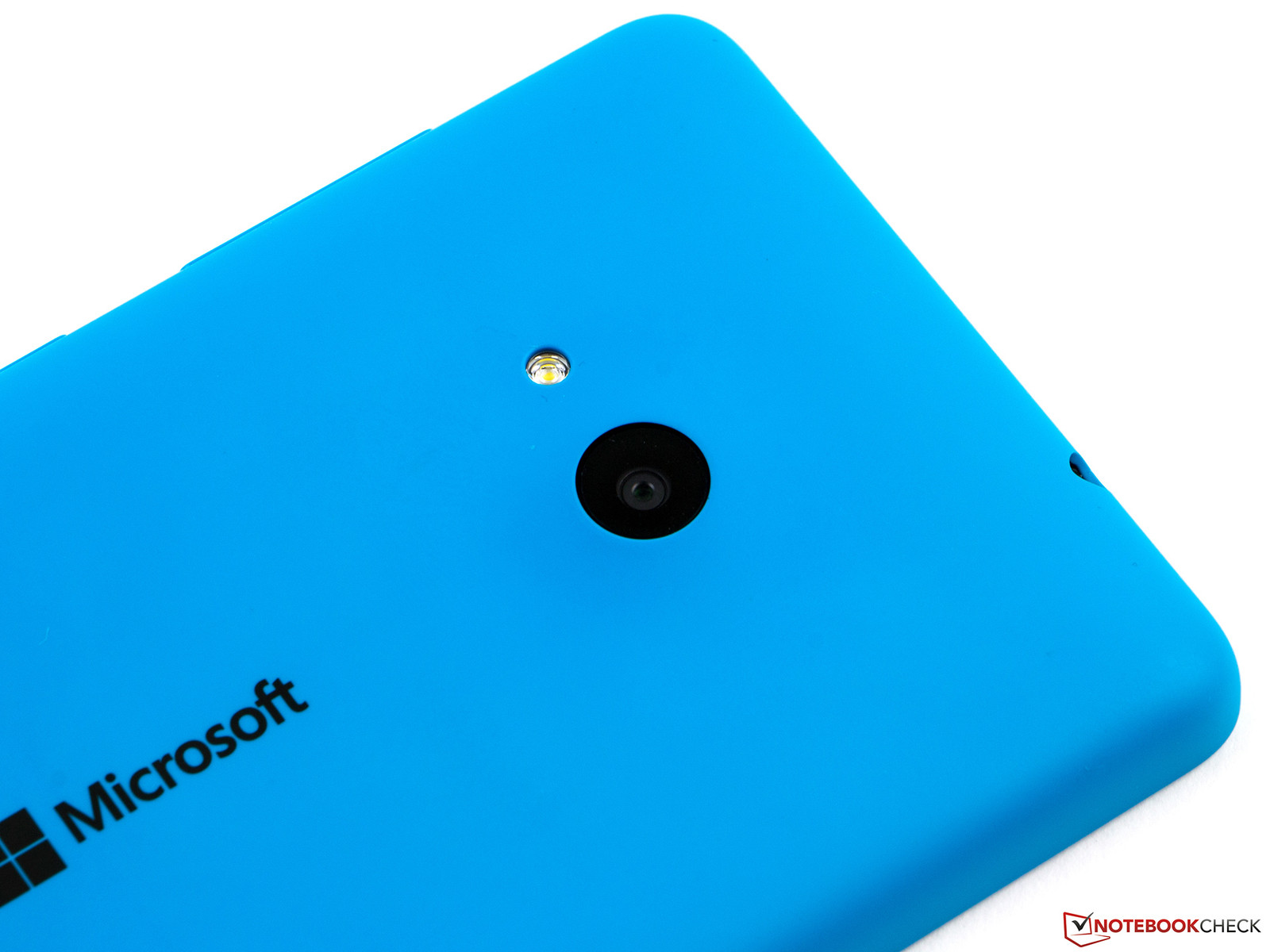

主相机配有闪光灯和自动对焦。
主相机配有闪光灯和自动对焦。

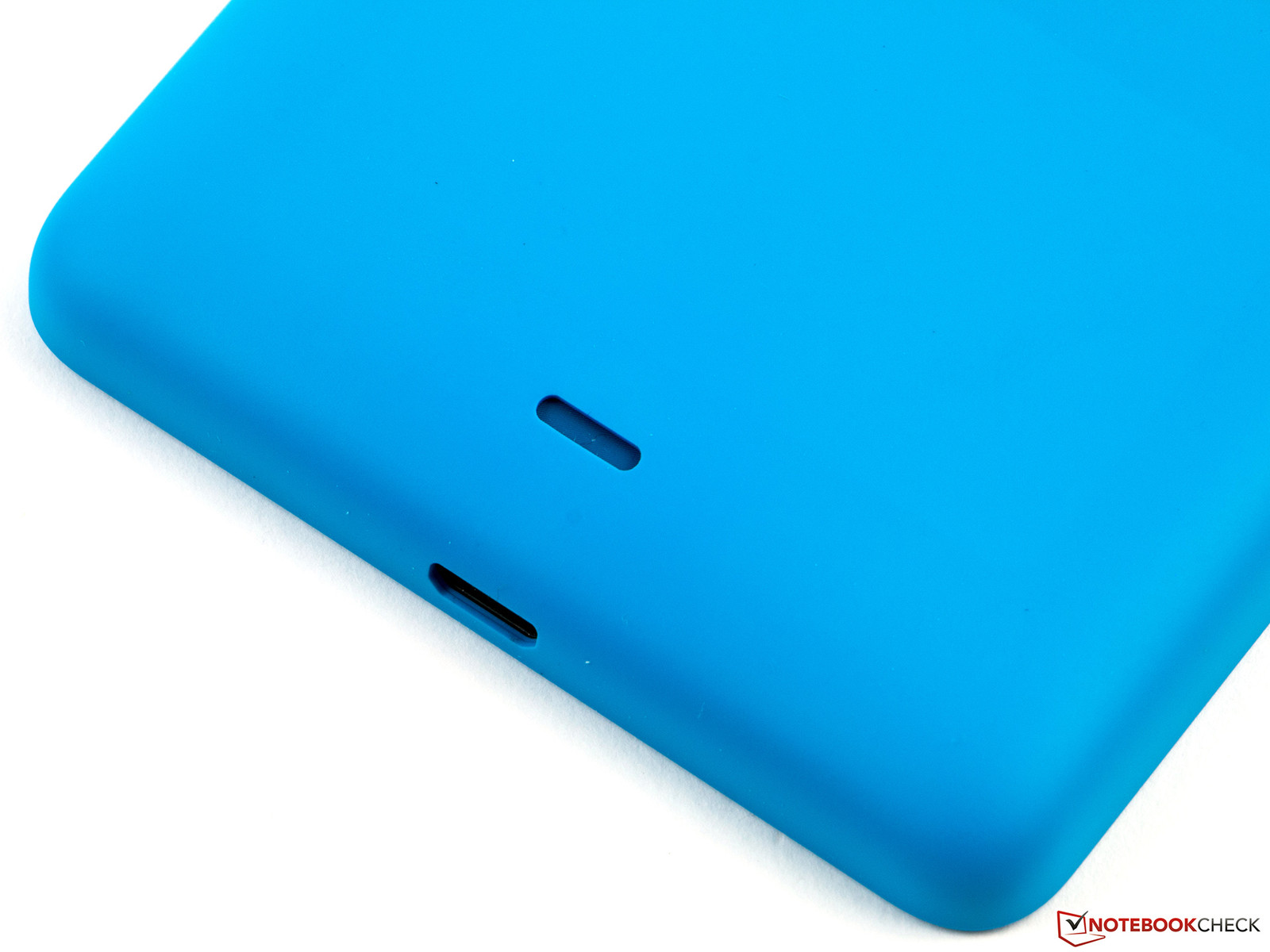

它的扬声器在免提通话中的效果不错。
它的扬声器在免提通话中的效果不错。

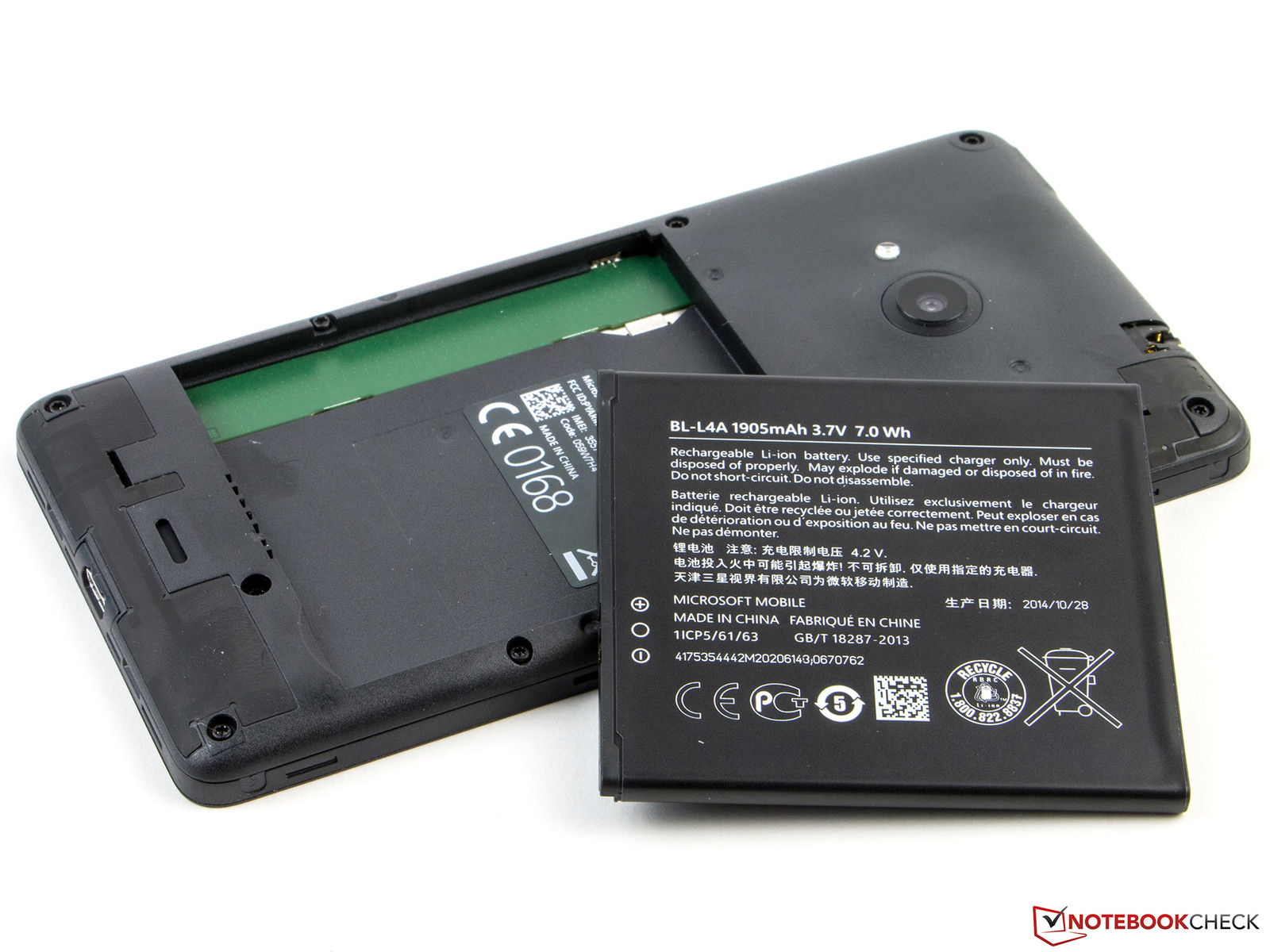

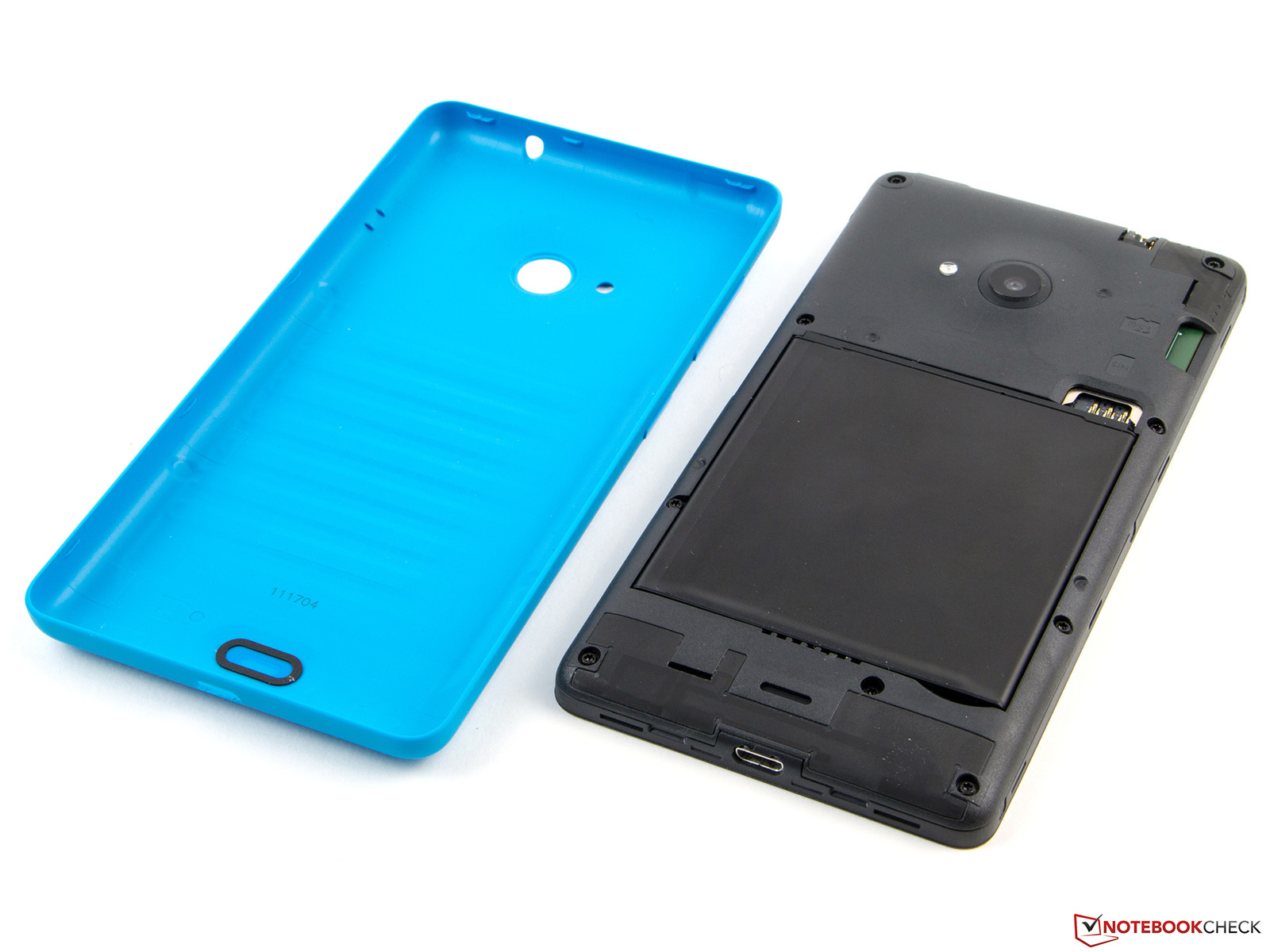

它的后盖可以简单的打开。
它的后盖可以简单的打开。
电池也很容易卸下。
电池也很容易卸下。

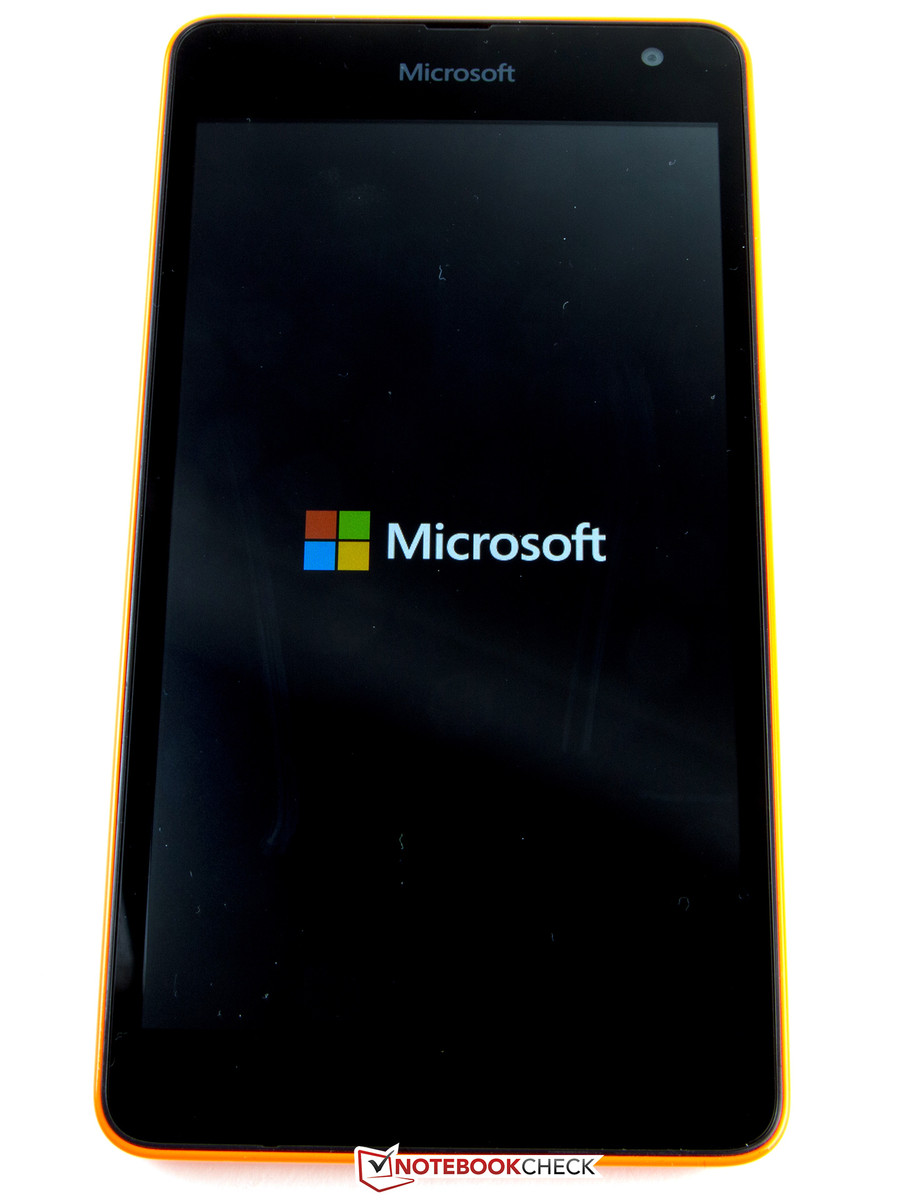

现在它在启动时会显示微软的徽标。
现在它在启动时会显示微软的徽标。

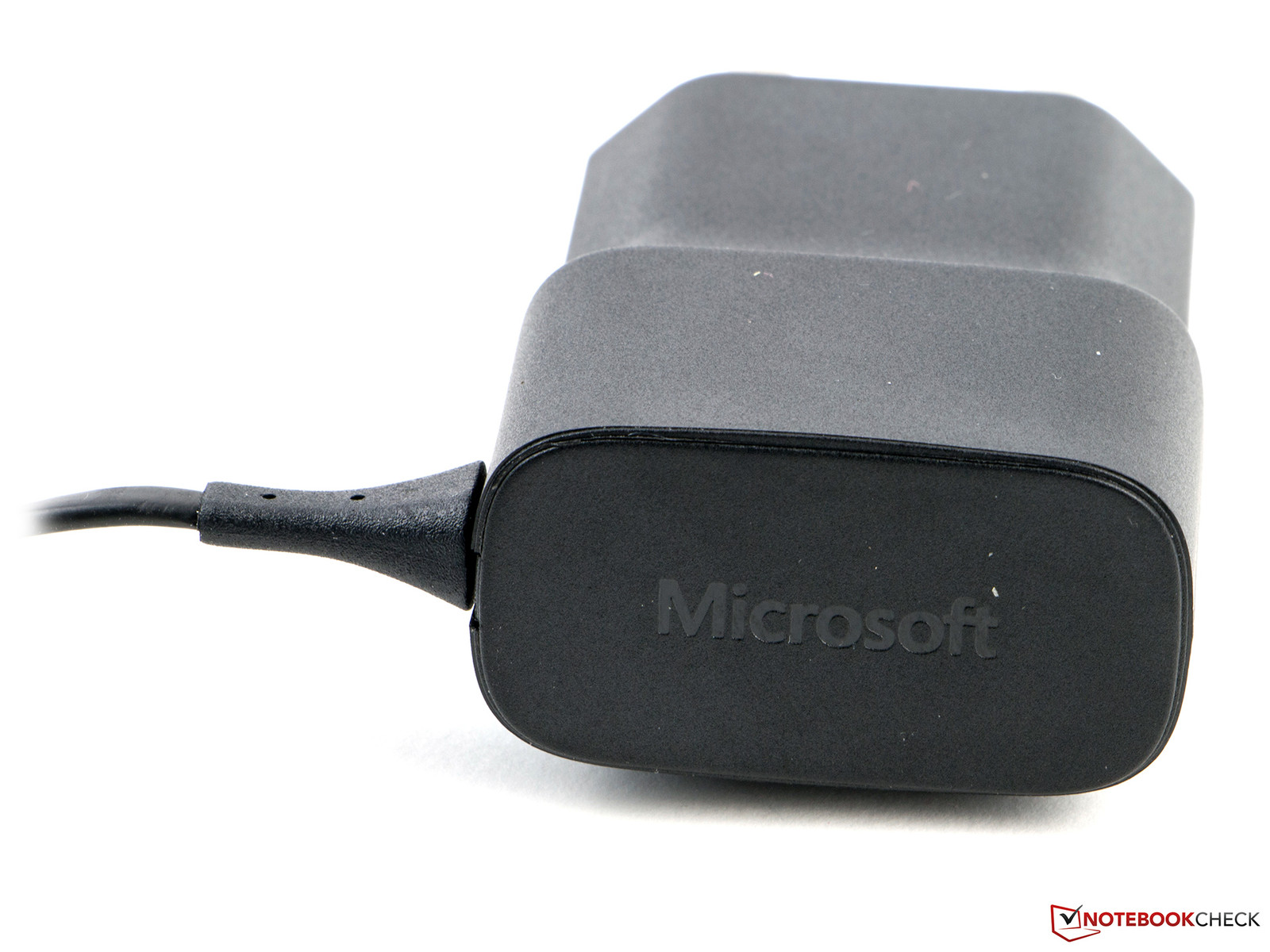

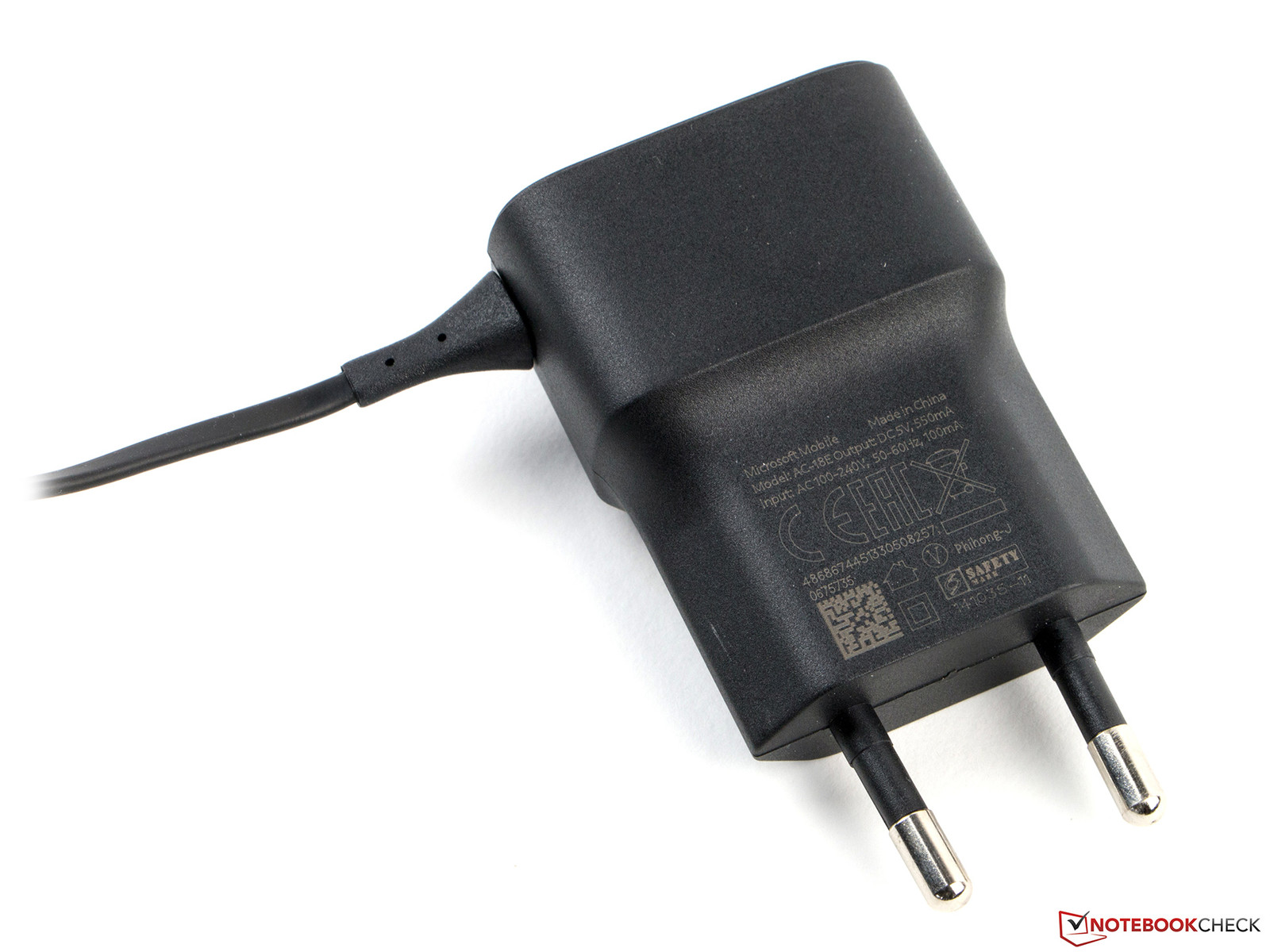

在电源适配器上也能找到微软的名字。
在电源适配器上也能找到微软的名字。
电源适配器功率较弱,而且并非模块化插头设计。
电源适配器功率较弱,而且并非模块化插头设计。

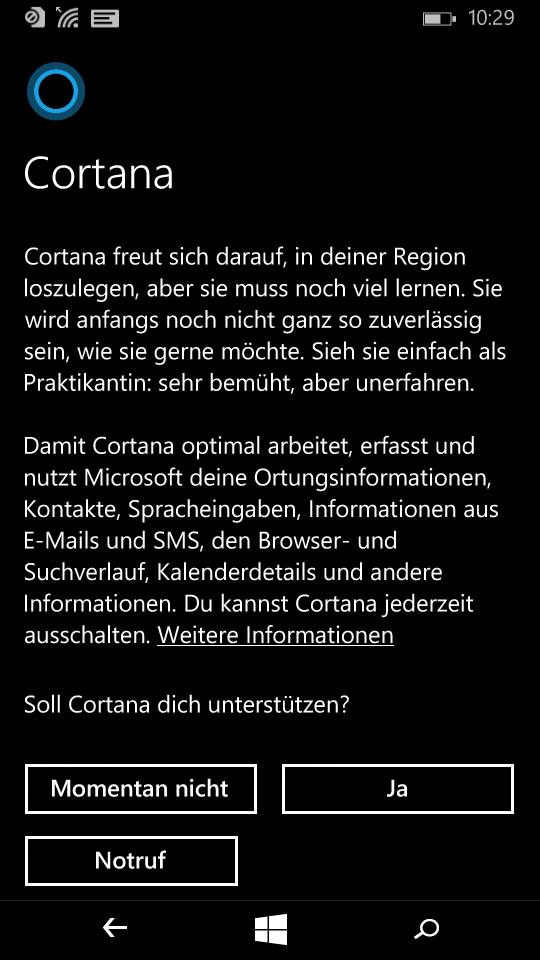

Cortana现在也支持德语。
Cortana现在也支持德语。

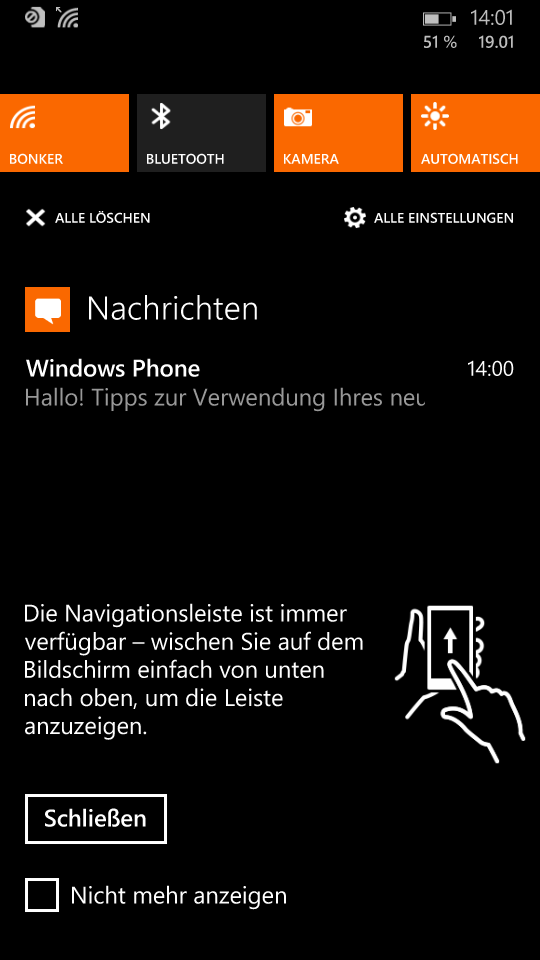

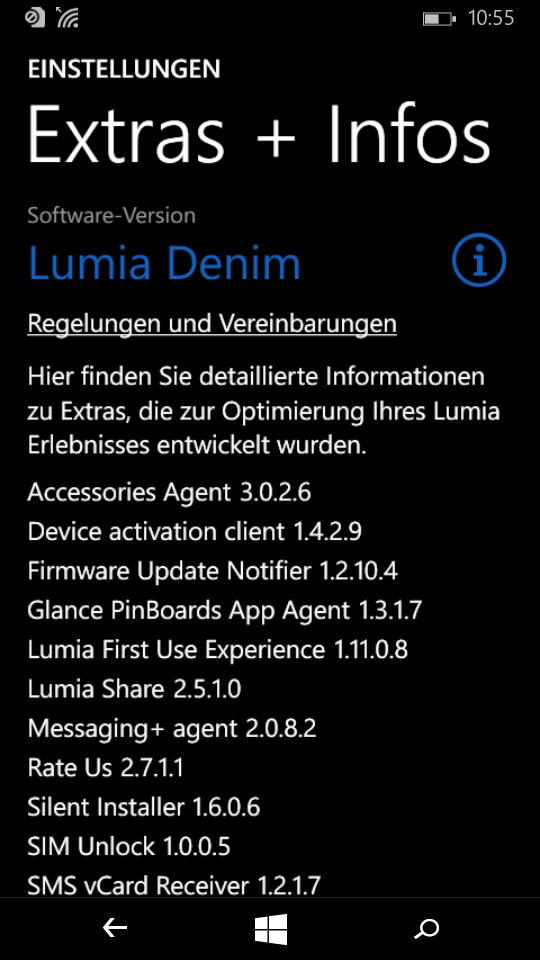

它预装了最新的Windows Phone系统版本。
它预装了最新的Windows Phone系统版本。

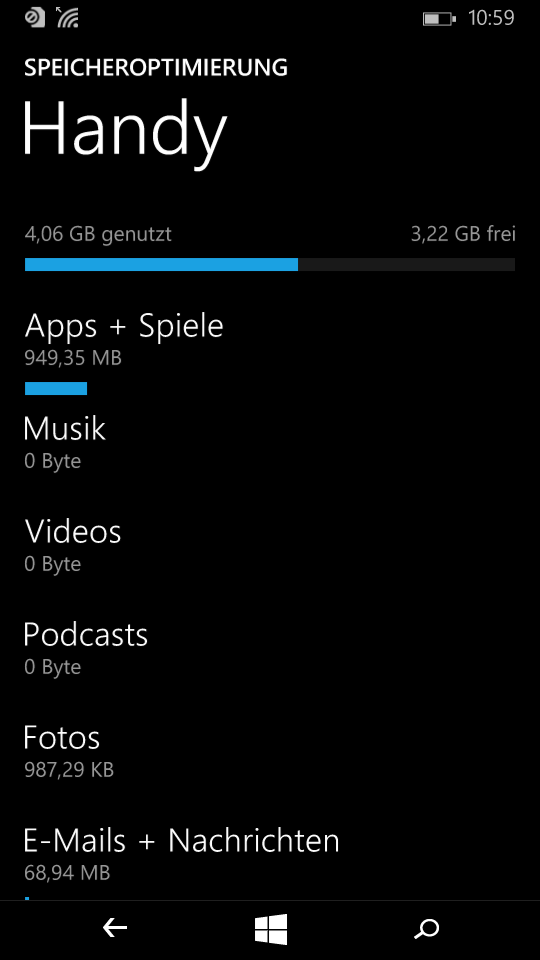

存储空间较小,不过可以拓展。
存储空间较小,不过可以拓展。

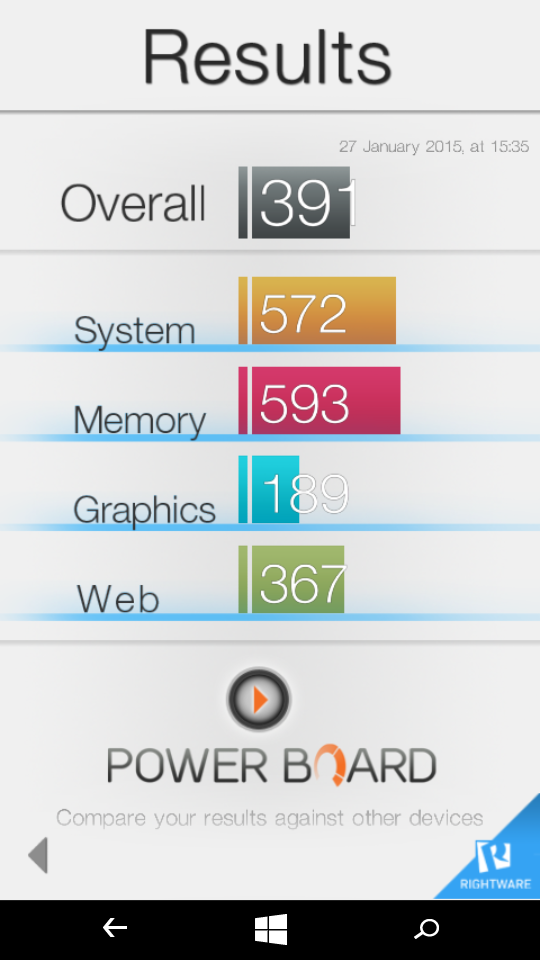

Basemark OS II
Basemark OS II
屏幕按键支持淡入淡出。
屏幕按键支持淡入淡出。

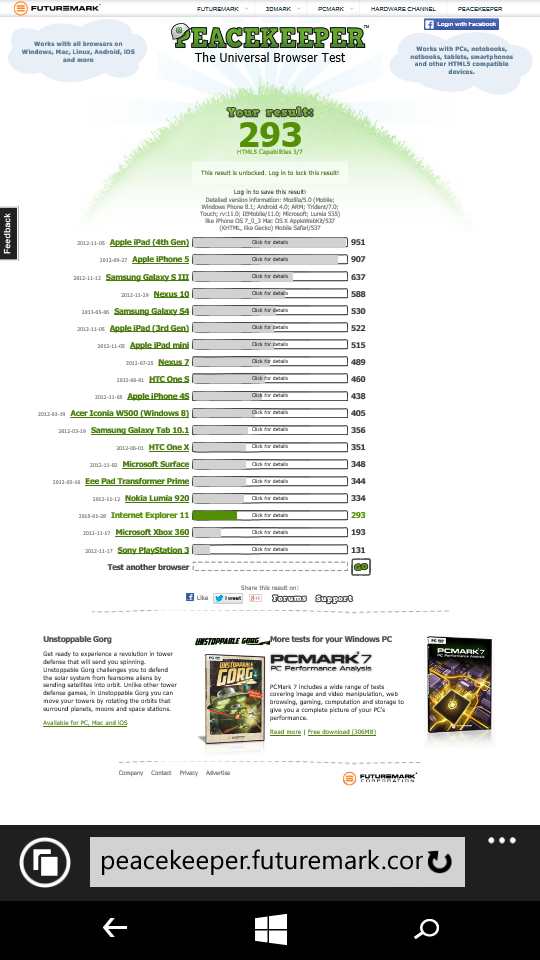

Peacekeeper
Peacekeeper

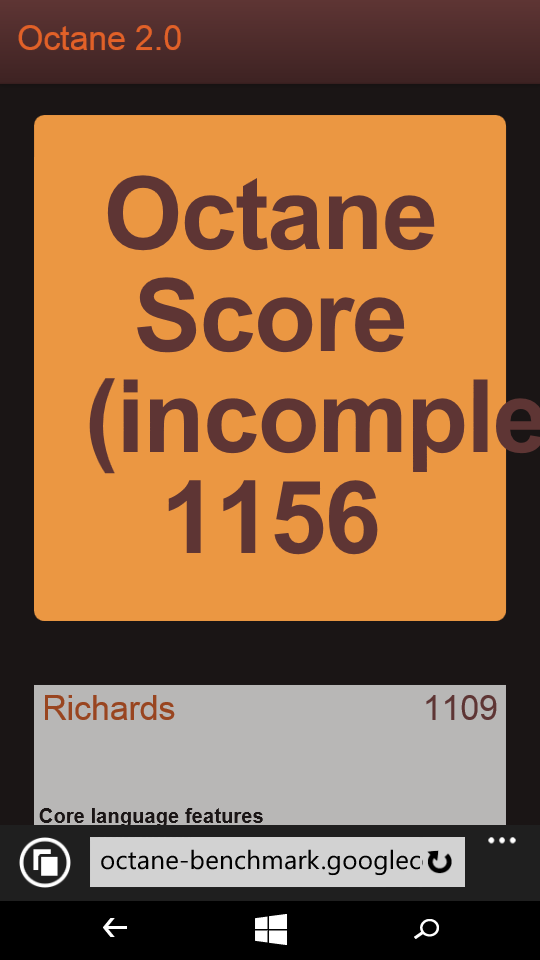

Google Octane 2.0测试无法运行完成
Google Octane 2.0测试无法运行完成

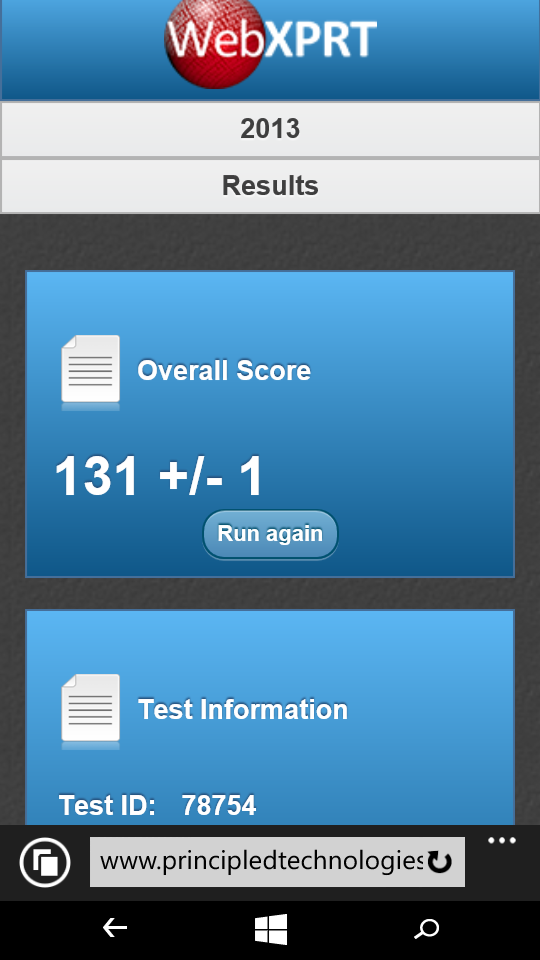

WebXPRT 2013
WebXPRT 2013
Please share our article, every link counts!

Specifications

Microsoft Lumia 535 (Lumia Series)
Processor
Qualcomm Snapdragon 200 MSM8212 4 x 1.2 GHz, Cortex-A7
Graphics adapter
Qualcomm Adreno 302, Core: 400 MHz
Memory
1024 MB
, LPDDR2, 333 MHz
Display
5.00 inch 16:9, 960 x 540 pixel, 电容型, IPS, 220 ppi, Corning Gorilla Glass 3, glossy: yes
Storage
8 GB eMMC Flash, 8 GB
, 3.22 GB free
Connections
1 USB 2.0, Audio Connections: 整合耳机麦克风插口, Card Reader: micro-SD 最大支持 128 GB (SD, SDHC, SDXC), Sensors: 环境光传感器,加速传感器和近距传感器, GPS, Glonass, Miracast, DLNA
Networking
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GSM/GPRS/EDGE (850, 900, 1800 和1900 MHz), HSPA+ (900 和2100 MHz), 头辐射值: 0.54 W/kg, 体辐射值: 0.55 W/kg
Size
height x width x depth (in mm): 8.8 x 140.2 x 72.4
Battery
7 Wh Lithium-Ion, 3.7 V, 1905 mAh, Talk time 2G (according to manufacturer): 11 h, Talk time 3G (according to manufacturer): 13 h
Operating System
Microsoft Windows Phone 8.1
Camera
Webcam: 500万像素(f/2.4, 24 mm), 主相机: 5 00万像素(自动对焦, f/2.4, 28 mm, LED闪光灯)
Additional features
Speakers: 一个单声道扬声器, Keyboard: 触控, 电源适配器, Here Maps, Here Drive+, MixRadio, Storyteller, 24 Months Warranty
Weight
146 g, Power Supply: 33 g
Price
119 Euro



Devices with the same GPU

LG L Fino 智能手机简短评测
Adreno 302, Snapdragon 200 200 MSM8212, 4.50", 0.145 kg

Devices with Same Screen Size and/or Weight

微软Surface Duo 2评论--伟大但仍不成熟的智能手机概念
Adreno 660, Snapdragon SD 888 5G, 8.30", 0.284 kg
微软 Lumia 650 智能手机简短评测
Adreno 304, Snapdragon 200 212 APQ8009, 5.00", 0.122 kg
微软 Lumia 550 智能手机简短评测
Adreno 304, Snapdragon 200 210 MSM8909, 4.70", 0.142 kg
微软 Lumia 950 XL 智能手机简短评测
Adreno 430, Snapdragon 810 MSM8994, 5.70", 0.165 kg
微软 Lumia 950 智能手机简短评测
Adreno 418, Snapdragon 808 MSM8992, 5.20", 0.15 kg
微软 Lumia 640 智能手机简短评测
Adreno 305, Snapdragon 400 MSM8226, 5.00", 0.145 kg

Pros

+ 最新的Windows Phone 8.1 (Denim)
+ 高质量GPS模组
+ 可扩展存储空间
+ 不错的相机
+ 明亮的屏幕,色彩准确...

Cons

- ...但黑值较高
- 通话质量较低
- 功耗较高
- 触控屏幕响应迟钝

Microsoft Lumia 535 - 01/30/2015 v4 (old)
Daniel Schmidt

Chassis
81%
Keyboard
63 / 75 → 84%
Pointing Device
73%
Connectivity
49 / 60 → 82%
Weight
93%
Battery
88%
Display
81%
Games Performance
50 / 63 → 79%
Application Performance
25 / 70 → 36%
Temperature
90%
Noise
100%
Audio
63 / 91 → 69%
Camera
61%
Average
71%
79%
Smartphone - Weighted Average
