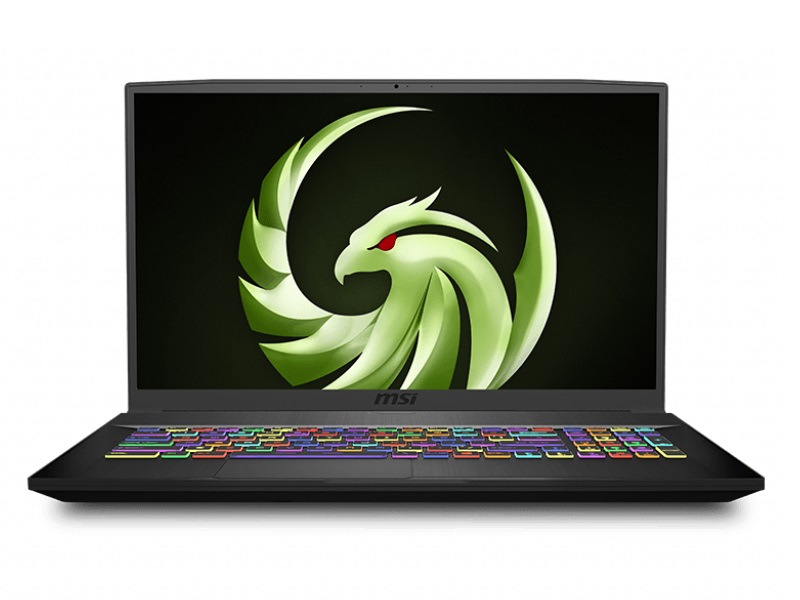

MSI Bravo 17 A4DDR

Specifications

MSI Bravo 17 A4DDR
MSI Bravo 17 A4DDR (Bravo 17 Series)
Processor
AMD Ryzen 7 4800H 8 x 2.9 - 4.2 GHz, Renoir-H (Zen 2)
Graphics adapter
AMD Radeon RX 5500M - 4 GB VRAM, Core: 1448 MHz, RAM: 1750 MHz, GDDR6, Adrenalin 19.40.30, Switchable Graphics
Memory
16 GB
, 2x 8 GB SO-DIMM DDR4-3200, Dual Channel, alle Slots belegt, max. 64 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.7 (AUO479D), IPS, Full-HD, FreeSync, glossy: no, 120 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Toshiba KBG30ZMV512G, 512 GB
, PCIe-SSD, Slots: 1x M.2 Typ 2280 & 1x 2.5 Zoll (frei)
Soundcard
Realtek ALC233 @ AMD K17.6 - Audio Processor
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 1 Kopfhörer, 1 Mikrofon
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 23 x 397 x 260
Battery
51 Wh Lithium-Ion, 3 Zellen
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p
Additional features
Speakers: 2x 2W, Keyboard: Chiclet, Keyboard Light: yes, 180-Watt-Netzteil, Quick Start Guide, Recovery Information, Dragon Center, 24 Months Warranty
Weight
2.244 kg, Power Supply: 590 g
Price
1300 EUR



Price comparison

Average Score: 80.9% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 89%, features: 53%, display: 83% mobility: 63%, workmanship: 76%, ergonomy: 79%, emissions: 79%

Reviews for the MSI Bravo 17 A4DDR

80.9% MSI Bravo 17 laptop review: All-AMD gaming machine | Notebookcheck
While Intel and Nvidia dominated the gaming laptop market in the past years, more and more devices based solely on AMD components are now appearing. The Bravo 17 from MSI trumps with modern 7 nm components. A Ryzen 7 4800H is used as a processor, while a Radeon RX 5500M takes care of the graphics.
Обзор игрового ноутбука MSI Bravo 17
Source: Ixbt RU→zh-CN Archive.org version
Single Review, online available, Very Long, Date: 08/17/2020

Comment

AMD Radeon RX 5500M:

基于Navi 14芯片(新的RDNA架构)并以现代7nm工艺制造的中端移动图形卡。提供1,408个内核,时钟频率为1,645 MHz,并使用GDDR6图形内存。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


R7 4800H:

移动式八核APU,使用Zen 2内核,频率为2.9至4.2 GHz,带有7个CU的Vega图形卡,频率高达1600 MHz。

» Further information can be found in our Comparison of Mobile Processsors.


17.30":

这个大尺寸屏幕常见于以桌面使用为主的笔记本电脑。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


2.244 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
