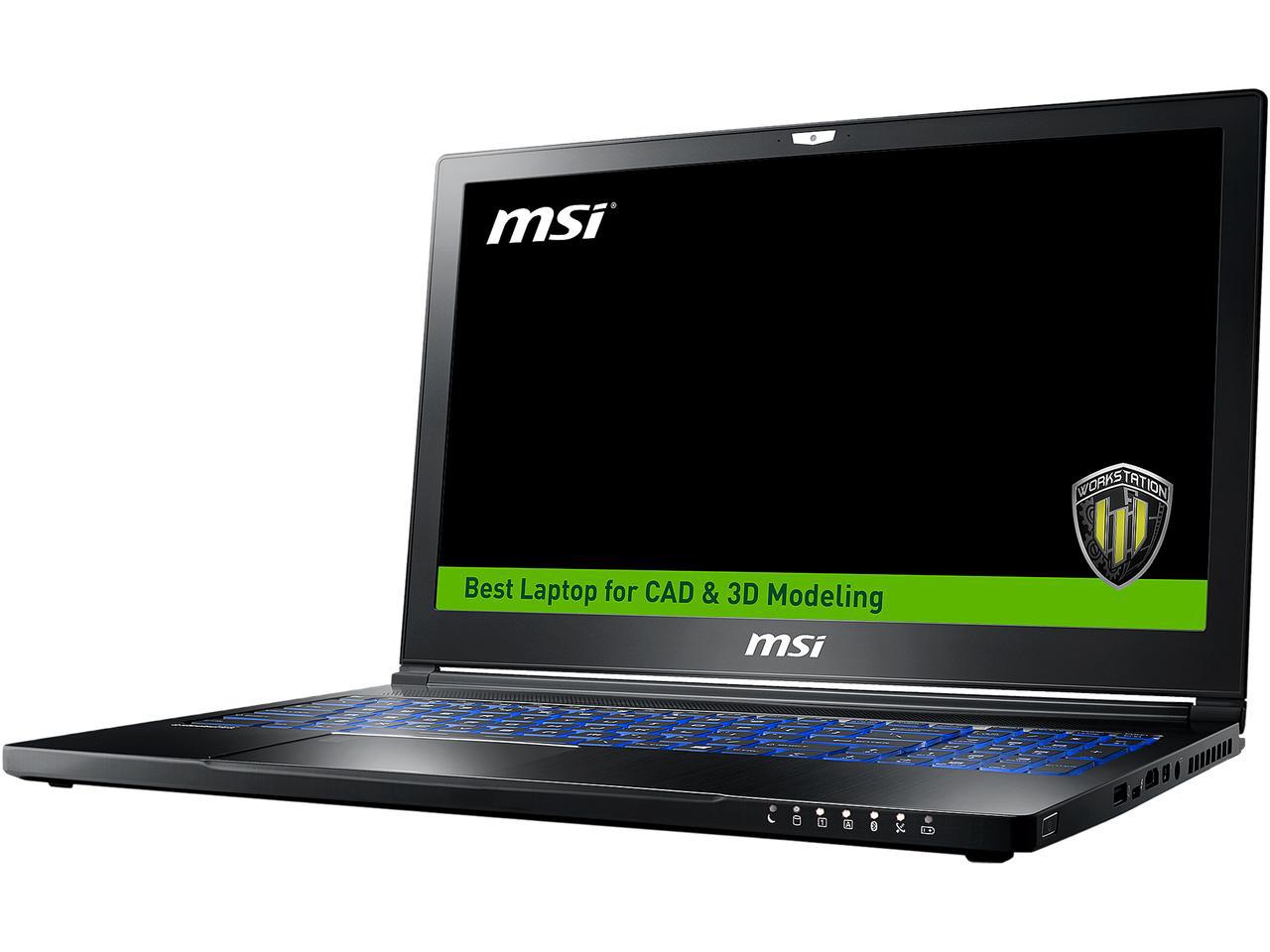

MSI WS63VR 7RL-023US

Specifications

MSI WS63VR 7RL-023US
MSI WS63VR 7RL-023US
Processor
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Graphics adapter
NVIDIA Quadro P4000 Max-Q - 8 GB VRAM, Core: 1114 MHz, RAM: 1502 MHz, Nvidia ODE R384 U3 (385.41), Nvidia Optimus
Memory
32 GB
, Dual-channel, DDR4-2400 / PC4-19200
Display
15.60 inch 16:9, 3840 x 2160 pixel 282 PPI, No, SAMSUNG LƒFL156FL02-101 , IPS, glossy: no
Mainboard
Intel HM175 (Skylake PCH-H)
Storage
Toshiba NVMe THNSN5512GPU7, 512 GB
, 512 GB PCIe NVMe SSD + 2 TB 5400 RPM HDD (Seagate ST2000LM015-2E8174), 475 GB free
Soundcard
Realtek ALC899 @ Intel Skylake PCH-H - High Definition Audio Controller
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: HiFi Audio out + Microphone in, Card Reader: 4-in-1 SD / SDHC / SDXC Card Reader, 1 Fingerprint Reader, Brightness Sensor
Networking
Qualcomm Atheros AR8171/8175 PCI-E Gigabit Ethernet (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)
Size
height x width x depth (in mm): 18 x 380 x 249
Battery
48 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Additional features
Speakers: 2 x 2 Watt, Keyboard: Steelseries-branded chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
1.92 kg, Power Supply: 585 g
Price
3400 USD



Price comparison

Average Score: 82.8% - good
Average of 2 scores (from 1 reviews)
price: - %, performance: 91%, features: 68%, display: 85% mobility: 66%, workmanship: 80%, ergonomy: 80%, emissions: 82%

Reviews for the MSI WS63VR 7RL-023US

85.6% MSI WS63VR (i7-7700HQ, 4K, Quadro P4000 Max-Q) Laptop Review | Notebookcheck
Max-Q goes to work. MSI's updated WS63VR 7RL brings Nvidia's new Max-Q design to the GPU giant's Quadro line. How well does the Max-Q philosophy benefit a powerful professional-grade graphics card, especially with regards to heat and power management?
80% MSI WS63VR 7RL Review
Source: Laptop Mag English EN→zh-CN Archive.org version
The MSI WS63VR is a powerful workstation in a body that's smaller than you would expect. It can handle any productivity task you throw at it, and it's even ready for some gaming and virtual reality on the side. Unfortunately, although it's sharp, the 15.6-inch, 4K display simply isn't as bright and colorful as competitors' screens, and its stiff touchpad may make you consider grabbing an external mouse.
Single Review, online available, Long, Date: 08/09/2017
Rating: Total score: 80%

Comment

NVIDIA Quadro P4000 Max-Q:



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7700HQ: » Further information can be found in our Comparison of Mobile Processsors.


15.60": 15到16寸是笔记本电脑的标准尺寸,产品型号最为丰富。» To find out how fine a display is, see our DPI List.


1.92 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
