联想 Miix 2 11 多模式平板简短评测

Name: Lenovo Miix 2 11
Brand: Lenovo

高性价比。 联想的这款搭配了Core i3处理器、全高清IPS屏幕、一块“真正的”固态硬盘（不是eMMC闪存）和一个键盘底座的Windows平板电脑要价约550欧元（约738美元）。它的低售价是联想对竞争者的宣战誓言，还是他们认为唯一可以吸引潜在消费者的方式呢？请阅读我们的评测以了解更多。

Sascha Mölck, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 07/29/2014 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Haswell Touchscreen Windows Tablet


325 cd/m²	324 cd/m²	304 cd/m²
340 cd/m²	344 cd/m²	307 cd/m²
331 cd/m²	344 cd/m²	328 cd/m²

Distribution of brightness

Au Optronics B116HAN03.0 tested with X-Rite i1Pro 2

Maximum: 344 cd/m² (Nits) Average: 327.4 cd/m²
Brightness Distribution: 88 %
Center on Battery: 278 cd/m²
Contrast: 860:1 (Black: 0.4 cd/m²)
ΔE Color 7.46 | 0.5-29.43 Ø4.95
ΔE Greyscale 7.49 | 0.5-98 Ø5.2
Gamma: 2.31

	Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	Lenovo Miix 2 10 HD Graphics (Bay Trail), Z3740D, SanDisk U100 128 GB	Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
Display
Display P3 Coverage		64.1	45.21	39.2
sRGB Coverage		93.2	66.1	58.8
AdobeRGB 1998 Coverage		65.4	46.96	40.51
Screen		9%	-5%	-46%
Brightness middle	344	409 19%	385.8 12%	294 -15%
Brightness	327	370 13%	371 13%	266 -19%
Brightness Distribution	88	85 -3%	87 -1%	86 -2%
Black Level *	0.4	0.45 -13%	0.749 -87%	0.89 -123%
Contrast	860	909 6%	515 -40%	330 -62%
Colorchecker dE 2000 *	7.46	5.04 32%	5.19 30%	11.14 -49%
Greyscale dE 2000 *	7.49	6.81 9%	4.45 41%	11.48 -53%
Gamma	2.31 ^95%	2.63 ^84%	2 ^110%	2.1 ^105%
CCT	6080 ^107%	7042 ^92%	6674 ^97%	12680 ^51%
Color Space (Percent of AdobeRGB 1998)		54	43
Total Average (Program / Settings)		9% / 9%	-5% / -5%	-46% / -46%

* ... smaller is better

Cinebench R10 Rendering Multiple CPUs 32Bit

3382

Cinebench R10 Rendering Single 32Bit

1921

Cinebench R10 Shading 64Bit

4045 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

4380 Points

Cinebench R10 Rendering Single CPUs 64Bit

2951 Points

Cinebench R11.5 CPU Multi 64Bit

1.06 Points

Cinebench R11.5 OpenGL 64Bit

7.65 fps

Cinebench R11.5 CPU Single 64Bit

0.68 Points

Cinebench R15 CPU Single 64Bit

59 Points

Cinebench R15 CPU Multi 64Bit

93 Points

Help

... in comparison

Cinebench R11.5 - CPU Single 64Bit (sort by value)
Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	0.68 Points
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	0.29 Points -57%
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	0.35 Points -49%
Sony VAIO Fit 11A multi-flip SVF11AN1L2ES HD Graphics (Bay Trail), N2920, Samsung MZNTE128HMGR-000SO	0.38 Points -44%
Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX	0.39 Points -43%
Acer Aspire V5-132P HD Graphics (Ivy Bridge), 2129Y, Toshiba MQ01ABF050	0.45 Points -34%
Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	0.62 Points -9%

Cinebench R11.5 - CPU Multi 64Bit (sort by value)
Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	1.06 Points
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	0.51 Points -52%
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	0.66 Points -38%
Acer Aspire V5-132P HD Graphics (Ivy Bridge), 2129Y, Toshiba MQ01ABF050	0.88 Points -17%
Sony VAIO Fit 11A multi-flip SVF11AN1L2ES HD Graphics (Bay Trail), N2920, Samsung MZNTE128HMGR-000SO	1.47 Points +39%
Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX	1.48 Points +40%
Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	1.54 Points +45%

PCMark Vantage Result		6762 points
PCMark 7 Score		3141 points
PCMark 8 Home Score Accelerated v2		1392 points
PCMark 8 Creative Score Accelerated v2		1510 points
PCMark 8 Work Score Accelerated v2		2428 points
Help

... in comparison

PCMark 8 - Home Score Accelerated v2 (sort by value)
Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	1392 Points
Acer Aspire V5-132P HD Graphics (Ivy Bridge), 2129Y, Toshiba MQ01ABF050	1340 Points -4%
Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0	2044 Points +47%

PCMark 7 - Score (sort by value)
Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	3141 Points
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	1254 Points -60%
HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	1462 Points -53%
Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX	1473 Points -53%
Acer Aspire V5-132P HD Graphics (Ivy Bridge), 2129Y, Toshiba MQ01ABF050	1721 Points -45%
Asus Transformer Book T100TA-C1-GR HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash	2339 Points -26%
Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0	2399 Points -24%
Sony VAIO Fit 11A multi-flip SVF11AN1L2ES HD Graphics (Bay Trail), N2920, Samsung MZNTE128HMGR-000SO	2839 Points -10%
Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	3843 Points +22%

HD Tune

CrystalDiskMark 3.0

AS SSD

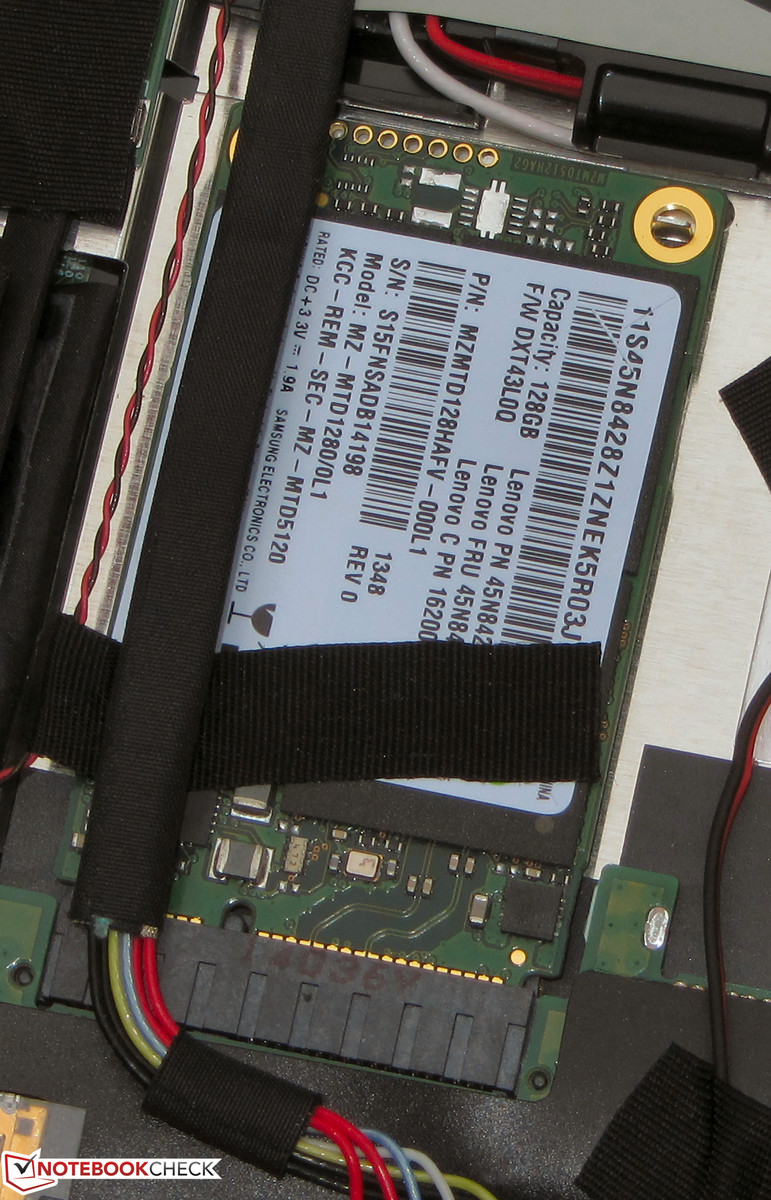

Samsung SSD PM841 MZMTD128HAFV mSATA

Transfer Rate Minimum: 381.1 MB/s

Transfer Rate Maximum: 411.8 MB/s

Transfer Rate Average: 403.8 MB/s

Access Time: 0.1 ms

Burst Rate: 164.9 MB/s

CPU Usage: 4.8 %

	Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	Asus Transformer Book T100TA-C1-GR HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash	SCHENKER XMG P724 GeForce GTX 880M SLI, 4810MQ, Samsung SSD 840 EVO 500GB mSATA	SCHENKER XMG P704 GeForce GTX 880M, 4910MQ, Crucial M500 480 GB CT480M500SSD3 mSATA
CrystalDiskMark 3.0		-83%	113%	86%
Read Seq	517	109 -79%	522 1%	476.5 -8%
Write Seq	134.8	43.2 -68%	500 271%	400.1 197%
Read 512	451.2	104.7 -77%	482.4 7%	418.9 -7%
Write 512	124.2	18.93 -85%	447.3 260%	399.1 221%
Read 4k	28.61	10.33 -64%	41.72 46%	29.13 2%
Write 4k	79.8	4.034 -95%	125.9 58%	136 70%
Read 4k QD32	214	10.44 -95%	394.4 84%	339.4 59%
Write 4k QD32	130.3	4.408 -97%	355.9 173%	331 154%

3DMark 06 Standard Score		2060 points
3DMark 11 Performance		367 points
3DMark Ice Storm Standard Score		15825 points
3DMark Cloud Gate Standard Score		1716 points
3DMark Fire Strike Score		199 points
Help

... in comparison

3DMark 11 - 1280x720 Performance (sort by value)
Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	367 Points
Asus Transformer Book T100TA-C1-GR HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash	209 Points -43%
Sony VAIO Fit 11A multi-flip SVF11AN1L2ES HD Graphics (Bay Trail), N2920, Samsung MZNTE128HMGR-000SO	254 Points -31%
Acer Aspire V5-132P HD Graphics (Ivy Bridge), 2129Y, Toshiba MQ01ABF050	321 Points -13%
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	464 Points +26%
Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	509 Points +39%
Lenovo ThinkPad Edge E145-20BC000UGE Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX	581 Points +58%
Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0	828 Points +126%

	low	med.	high	ultra
Dirt 3 (2011)	24.4	12
Tomb Raider (2013)	14	7.7
BioShock Infinite (2013)	10.4	5.2

	Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	HP Pavilion 11-n070eg x360 HD Graphics (Bay Trail), N2820, Seagate Momentus Thin ST500LT012-1DG142	Asus Transformer Book T100TA-C1-GR HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash	Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	Toshiba Satellite W30t-A-101 HD Graphics 4200, 4020Y, WD Blue UltraSlim WD5000MPCK-22AWHT0
Tomb Raider		-5%	2%	79%	204%
1024x768 Low Preset	14	13.7 -2%	15.9 14%	25 79%	44.4 217%
1366x768 Normal Preset AA:FX AF:4x	7.7	7.1 -8%	6.9 -10%		22.4 191%

Noise Level

Idle		28 / 28 / 28 dB(A)
Load		28 / 30.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-300 (15 cm distance)

Max. Load

Idle


34.9 °C	35.2 °C	29.6 °C
34.4 °C	35.1 °C	30.3 °C
35.3 °C	35.1 °C	31.9 °C

Maximum: 35.3 °C
Average: 33.5 °C


27.6 °C	37.7 °C	41.3 °C
27.9 °C	34.1 °C	37.1 °C
27.3 °C	31.8 °C	34.8 °C

Maximum: 41.3 °C
Average: 33.3 °C

Power Supply (max.) 39.7 °C | Room Temperature 23.2 °C | Raytek Raynger ST

(±) The average temperature for the upper side under maximal load is 33.5 °C / 92 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35.3 °C / 96 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.3 °C / 106 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.2 °C / 86 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.3 °C / 95.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-7.2 °C / -12.9 F).

Power Consumption

Off / Standby	0 / 0.1 Watt
Idle	2.9 / 5.3 / 6.2 Watt
Load	14.4 / 11.7 Watt


Key: min: , med: , max: Voltcraft VC 940 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Idle (without WLAN, min brightness)		11h 22min
WiFi Surfing		4h 44min
Big Buck Bunny H.264 1080p		5h 15min
Load (maximum brightness)		3h 22min

	Lenovo Miix 2 11 HD Graphics 4200, 4012Y, Samsung SSD PM841 MZMTD128HAFV mSATA	Asus Transformer Book T100TA-C1-GR HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash	Dell Venue 11 Pro HD Graphics 4200, 4020Y, 128 GB SATA SSD	Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	Lenovo Miix 2 10 HD Graphics (Bay Trail), Z3740D, SanDisk U100 128 GB
Battery Runtime		67%	5%	56%	0%
Reader / Idle	682	999 46%	762 12%	1183 73%	461 -32%
WiFi	284	647 128%	402 42%	499 76%	345 21%
Load	202	256 27%	123 -39%	241 19%	224 11%

基本上,联想的Miix 2给人以很好的印象。付出550欧元，消费者可以得到一个全面的Windows平板和一个可连接的键盘座。这个键盘底座完全可以满足日常使用。当然，相比很多其他的平板键盘它并不是最差的。除了USB 2.0接口，键盘底座还提供了一个低音炮。它的音响效果也因此有了不少提高。平板提供了优秀的全高清IPS屏幕和一块快速的固态硬盘。在购买后，用户也可以选择自行更换更快或者容量更大的硬盘。遗憾的是，它的Core i3处理器并不能持续提供高性能。这款设备的散热能力有些不足。不过，它的性能足以满足日常应用，这也是这款平板的定位。我们认为它有限的内存（2GB）是整个系统的一个瓶颈。对于更贵的Miix 2 11型号也是如此，联想应该考虑为他们配备4 GB的内存。

Dell Venue 11 Pro是替代Miix 2 11的一个不错的选择，尽管它的售价更贵，且键盘需要单独购买。不过Venue 11的优势在于更长的电池续航时间，当连接键盘底座时，额外的电池将会让使用时间变得更长。

作为可以考虑的一个替代这两款平板的一个选择，我们必须提到联想Lenovo ThinkPad Edge E145笔记本电脑。如果你需要一款11.6寸设备来进行写作的话，这款笔记本将会非常适合。它相对于Miix 2和Venue 11有更好的整体表现，它提供了更好用的键盘和更长的电池续航。另外，它的售价现仅370欧元（约500美元）。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Lenovo Miix 2 11

Processor

Intel Core i3-4012Y 2 x 1.5 GHz, Haswell

Graphics adapter

Intel HD Graphics 4200, Core: 850 MHz, 10.18.10.3338

Memory

2048 MB

, DDR3, 单通道, 板载

Display

11.60 inch 16:9, 1920 x 1080 pixel, Au Optronics B116HAN03.0, IPS, glossy: yes

Mainboard

Intel Lynx Point-LP

Storage

Samsung SSD PM841 MZMTD128HAFV mSATA, 128 GB

, 80 GB free

Soundcard

Intel Lynx Point-LP - High Definition Audio Controller

Connections

2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD, Sensors: 方向传感器，亮度传感器

Networking

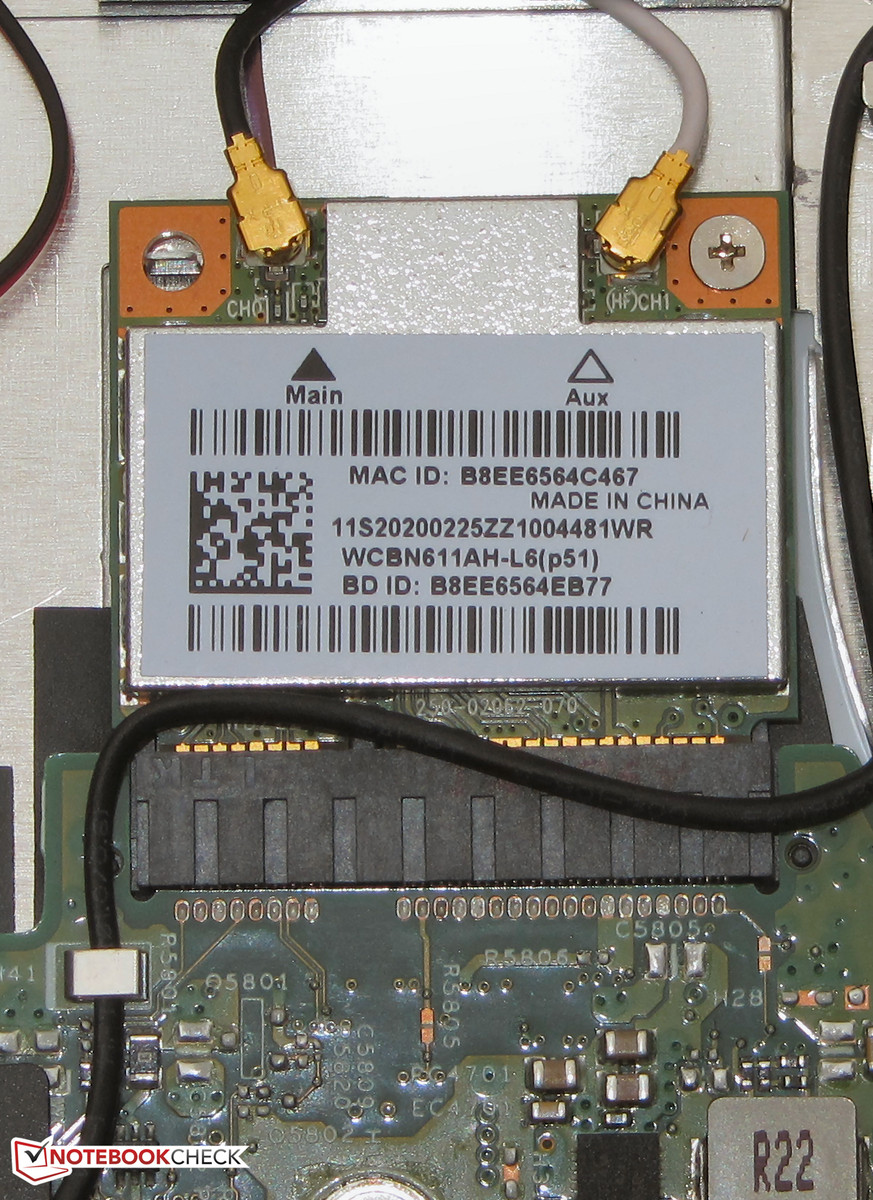

Atheros AR5BWB222 Wireless Network Adapter (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Size

height x width x depth (in mm): 11 x 300 x 190

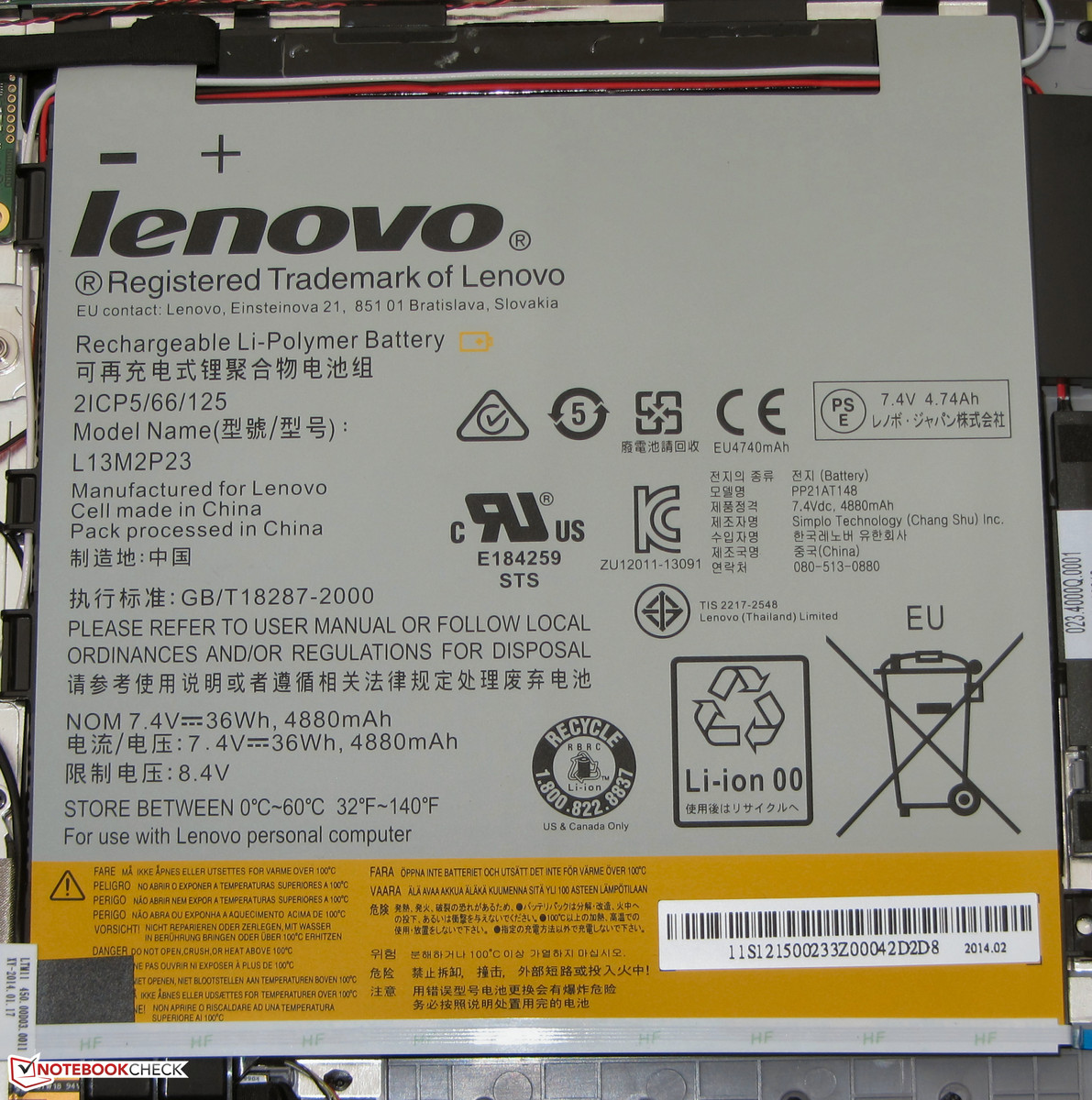

Battery

36 Wh Lithium-Polymer, 7.4 V, 4880 mAh

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: 500万像素（后置），200万像素（前置）

Additional features

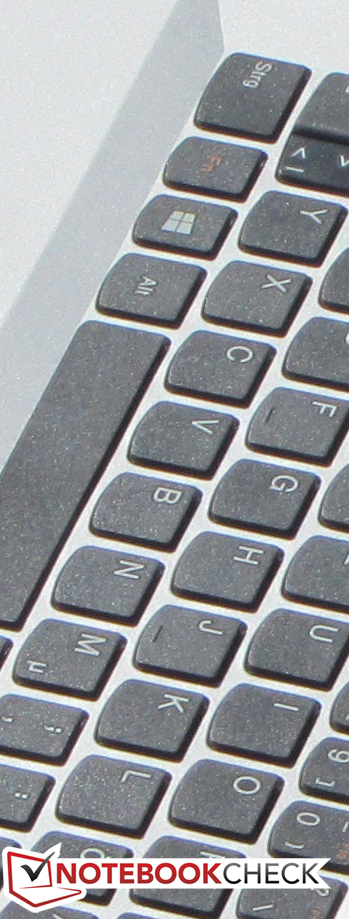

Speakers: 立体声 (平板), 低音炮 (键盘底座), Keyboard: 孤岛式, Keyboard Light: no, McAfee LiveSafe - Internet Security, MS Office 365, Nitro Pro 8, 24 Months Warranty, 平板重量: 770g

Weight

1.35 kg, Power Supply: 150 g

Price

699 Euro

Links

Lenovo homepage

Devices from a different Manufacturer and/or with a different CPU

Acer Aspire Switch 11 Pro 带128GB硬盘底座版变形本简短评测
HD Graphics 4200, Core i5 4202Y

惠普 Pro X2 410 G1 变形本简短评测
HD Graphics 4200, Core i5 4202Y

东芝 Portégé Z10t-A2111 变形本简短评测
HD Graphics 4200, Core i7 4610Y

Devices with the same GPU

惠普 Split x2 13-m210eg 变形本简短评测
HD Graphics 4200, Core i5 4210Y, 13.30", 2.2 kg

Devices with Same Screen Size and/or Weight

联想 Yoga 7 二合一 14IML9 可折叠机评测：低于 700 美元的经典之作
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 14.00", 1.626 kg

联想ThinkPad X1 2in1 G9评测--配备120Hz OLED且无TrackPoint按键的高端商务可折叠电脑
Graphics 4-Core, Meteor Lake-U Ultra 7 165U, 14.00", 1.329 kg

联想 ThinkBook 14 二合一 G4 IML 评测：流星湖-U带来全新时尚外观
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 14.00", 1.639 kg

Pros
+	High resolution IPS panel
+	Keyboard dock with subwoofer

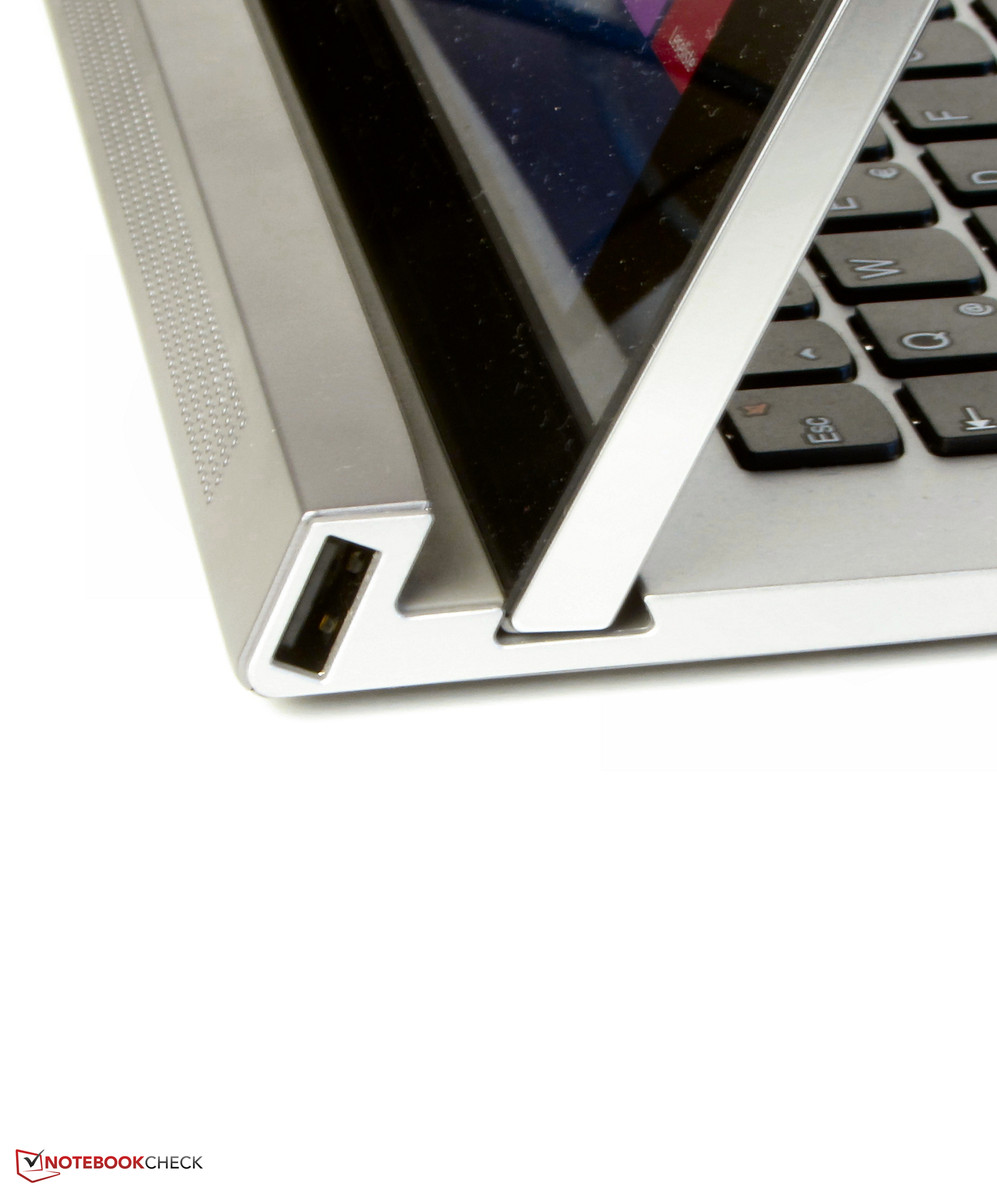

+	Full-sized USB port on tablet
+	Respectable battery life
+	Solid State Disk in mSATA format
Cons
-	CPU and GPU rarely or never utilize their full performance capabilities
-	Only 2 GB working memory

Lenovo Miix 2 11 - 2014-07-15 07/15/2014 v4 ^(old)
Sascha Mölck

Chassis

73 / 98 → 74%

Keyboard

71%

Pointing Device

78%

Connectivity

52 / 80 → 65%

Weight

71 / 35-78 → 84%

Battery

89%

Display

81%

Games Performance

42 / 68 → 62%

Application Performance

60 / 87 → 69%

Temperature

89%

Noise

100%

Audio

60 / 91 → 66%

Camera

56 / 85 → 66%

Average

71%
