华硕 N551JK-CN166H 笔记本电脑简短评测

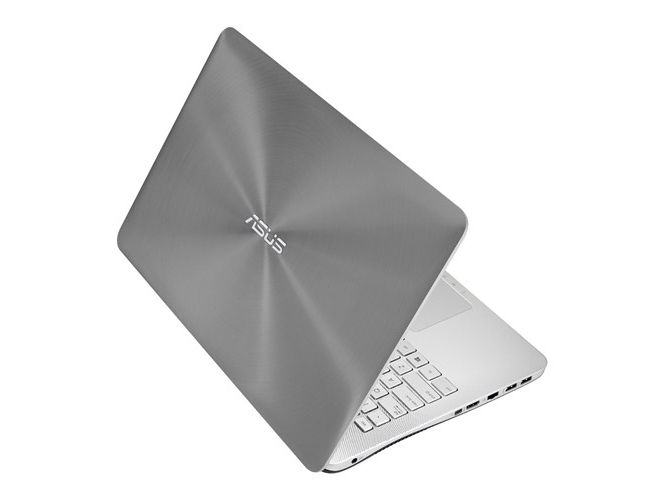

银色娱乐本。 华硕推出了一款整体设计十分优秀的全功能笔记本,搭配时尚铝合金外观,定位中高端,售价约1000欧元(约7141人民币)。由于搭配了GeForce GTX 850M,它甚至可以用来玩游戏。只有处理器的选择有些让人费解。我们的深入评测将会告诉你它在各个测试中的实际表现如何。
Haswell Gaming Laptop / Notebook Windows
324
cd/m²
336
cd/m²
320
cd/m²
318
cd/m²
323
cd/m²
308
cd/m²
308
cd/m²
279
cd/m²
294
cd/m²
Distribution of brightness
Samsung 156HL01-102 (SDC324C) tested with X-Rite i1Pro 2
Maximum: 336 cd/m² (Nits) Average: 312.2 cd/m²
Brightness Distribution: 83 %
Center on Battery: 323 cd/m²
Contrast: 850:1 (Black: 0.38 cd/m²)
ΔE Color 7.4 | 0.5-29.43 Ø4.91
ΔE Greyscale 6.24 | 0.5-98 Ø5.2
69% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.7% sRGB (Argyll 2.2.0 3D)
67.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.98
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
Display
-26%
-9%
Display P3 Coverage
67.3
49.35
-27%
66.9
-1%
sRGB Coverage
96.7
71.8
-26%
84
-13%
AdobeRGB 1998 Coverage
69.4
51.1
-26%
61.4
-12%
Screen
-34%
-2%
Brightness middle
323
343
6%
317
-2%
Brightness
312
330
6%
319
2%
Brightness Distribution
83
84
1%
87
5%
Black Level *
0.38
0.75
-97%
0.46
-21%
Contrast
850
457
-46%
689
-19%
Colorchecker dE 2000 *
7.4
9.72
-31%
5.79
22%
Greyscale dE 2000 *
6.24
11.24
-80%
5.01
20%
Gamma
2.98 74%
2.3 96%
2.35 94%
CCT
8098 80%
11010 59%
7347 88%
Color Space (Percent of AdobeRGB 1998)
69
46
-33%
55
-20%
Total Average (Program / Settings)
-30% / -32%
-6% / -4%

* ... smaller is better

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
3.5 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
2.79 Points -20%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
7.22 Points +106%
Asus N550JK-CN109H
GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3.55 Points +1%
CPU Single 64Bit (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
1.46 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
1.35 Points -8%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
1.53 Points +5%
Asus N550JK-CN109H
GeForce GTX 850M, 4200H, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1.47 Points +1%
Cinebench R10 Rendering Single 32Bit
4773
Cinebench R10 Rendering Multiple CPUs 32Bit
10668
Cinebench R11.5 CPU Single 64Bit
1.46 Points
Cinebench R11.5 CPU Multi 64Bit
3.5 Points
Cinebench R15 CPU Single 64Bit
130 Points
Cinebench R15 CPU Multi 64Bit
323 Points
Help
PCMark 7
Score (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
4131 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
5034 Points +22%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
5879 Points +42%
Productivity (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
3494 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
4290 Points +23%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
5084 Points +46%
Entertainment (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
3226 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
3633 Points +13%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
4392 Points +36%
PCMark 8
Home Score Accelerated v2 (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
3113 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
3099 Points 0%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
3603 Points +16%
Work Score Accelerated v2 (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
3881 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
3870 Points 0%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
4318 Points +11%
PCMark 7 Score
4131 points
PCMark 8 Home Score Accelerated v2
3113 points
PCMark 8 Creative Score Accelerated v2
3437 points
PCMark 8 Work Score Accelerated v2
3881 points
Help
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
CrystalDiskMark 3.0
22685%
13254%
Read Seq
102.3
509
398%
514
402%
Read 4k
0.326
32.95
10007%
32.23
9787%
Read 4k QD32
0.609
351.7
57650%
180.7
29572%
HGST Travelstar 5K1000 HTS541010A9E680
Transfer Rate Minimum: 50.2 MB/s
Transfer Rate Maximum: 326.8 MB/s
Transfer Rate Average: 88.7 MB/s
Access Time: 19.8 ms
Burst Rate: 254.4 MB/s
CPU Usage: 3.6 %
3DMark
1920x1080 Fire Strike Graphics (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
3054 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
2798 Points -8%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
3862 Points +26%
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
21589 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
18079 Points -16%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
28014 Points +30%
3DMark 11 - 1280x720 Performance GPU (sort by value)
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
4369 Points
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
3925 Points -10%
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
4850 Points +11%
3DMark 11 Performance
4255 points
3DMark Ice Storm Standard Score
61456 points
3DMark Cloud Gate Standard Score
9818 points
3DMark Fire Strike Score
2675 points
Help
lowmed.highultra
Battlefield 4 (2013) 75.2 54.3 20.3
Thief (2014) 35.8 34.8 32.8 18.2
GRID: Autosport (2014) 54.8 44.32 31.48

Noise Level

Idle
32.1 / 32.9 / 33.7 dB(A)
DVD
36.6 / dB(A)
Load
42 / 44.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Max. Load
 35.1 °C32 °C25.8 °C
 35.2 °C39.4 °C26.3 °C
 30 °C34.6 °C28 °C
Maximum: 39.4 °C
Average: 31.8 °C
22.5 °C28.4 °C34.6 °C
23.2 °C32.6 °C37.6 °C
26.2 °C25.7 °C25.2 °C
Maximum: 37.6 °C
Average: 28.4 °C
Power Supply (max.)  32 °C | Room Temperature 20.5 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 31.8 °C / 89 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 39.4 °C / 103 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 37.6 °C / 100 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.6 °C / 94.3 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-5.8 °C / -10.5 F).
Power Consumption
Off / Standbydarklight 0.1 / 0.5 Watt
Idledarkmidlight 8.6 / 12 / 13 Watt
Load midlight 72.2 / 104 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Asus N551JK-CN166H
GeForce GTX 850M, 4200H, HGST Travelstar 5K1000 HTS541010A9E680
HP Envy 15-k010ng
GeForce GTX 850M, 4510U, Samsung SSD PM851 256 GB MZNTE256HMHP
Acer Aspire V 15 Nitro VN7-591G-77A9
GeForce GTX 860M, 4710HQ, Kingston RBU-SNS8100S3128GD
Battery Runtime
3%
9%
Reader / Idle
436
507
16%
596
37%
WiFi
271
249
-8%
277
2%
Load
76
77
1%
68
-11%
H.264
221
Gaming
45
Battery Runtime
Idle (without WLAN, min brightness)
7h 16min
WiFi Surfing
4h 31min
DVD
3h 16min
Load (maximum brightness)
1h 16min
Asus N551JK-CN166H
Asus N551JK-CN166H

华硕N551JK-CN166H的最终得分说明它在测试中成功地证明了自己。我们没有找到什么重大的问题。当然,选择一颗双核的47W功率处理器有些奇怪,这可能主要出于预算方面的考虑。它较软的键盘按键和小尺寸数字键盘区设计好不好可能是个人喜好的问题,不过我们认为它的输入设备质量整体不错。混合式的硬盘当然无法与两块真正的固态硬盘相抗衡,惠普和Acer的笔记本电脑都因此获得了更流畅的使用体验。我们的测试机在负载下也保持了安静和清凉;它的性能也因此得到了最大程度的发挥。它的一大亮点在于非常明亮、视角稳定且高对比的屏幕。它只有在色彩准确度和伽马曲线方面有些不足。而时尚又坚固的机身对测试者来说也为它加分不少——如果不考虑到维护底盖的问题的话。

惠普 Envy 15-k010ng在比较中略占下风,不过Acer Aspire V 15 Nitro (VN7-591G-77A9)则不然,它凭借固态硬盘和更强更快的处理器和显卡得分更高。同时它也相比其他两款产品更轻更薄。不过,它的屏幕无法与这台测试机相媲美,而Acer那款笔记本的发热量和噪音也更大。另外,这也导致了处理器频率在满负载下有下降的问题。我们在测试中对这款笔记本缺乏维护底盖和不准确的触控板表示了不满。Nitro显然对于游戏玩家来说是个更好的选择,不过华硕这款笔记本也没有什么真正的缺点,Acer这款产品的性价比相对更高一些。我们没法不推荐华硕的N551JK-CN166H,有什么理由不喜欢它呢?



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

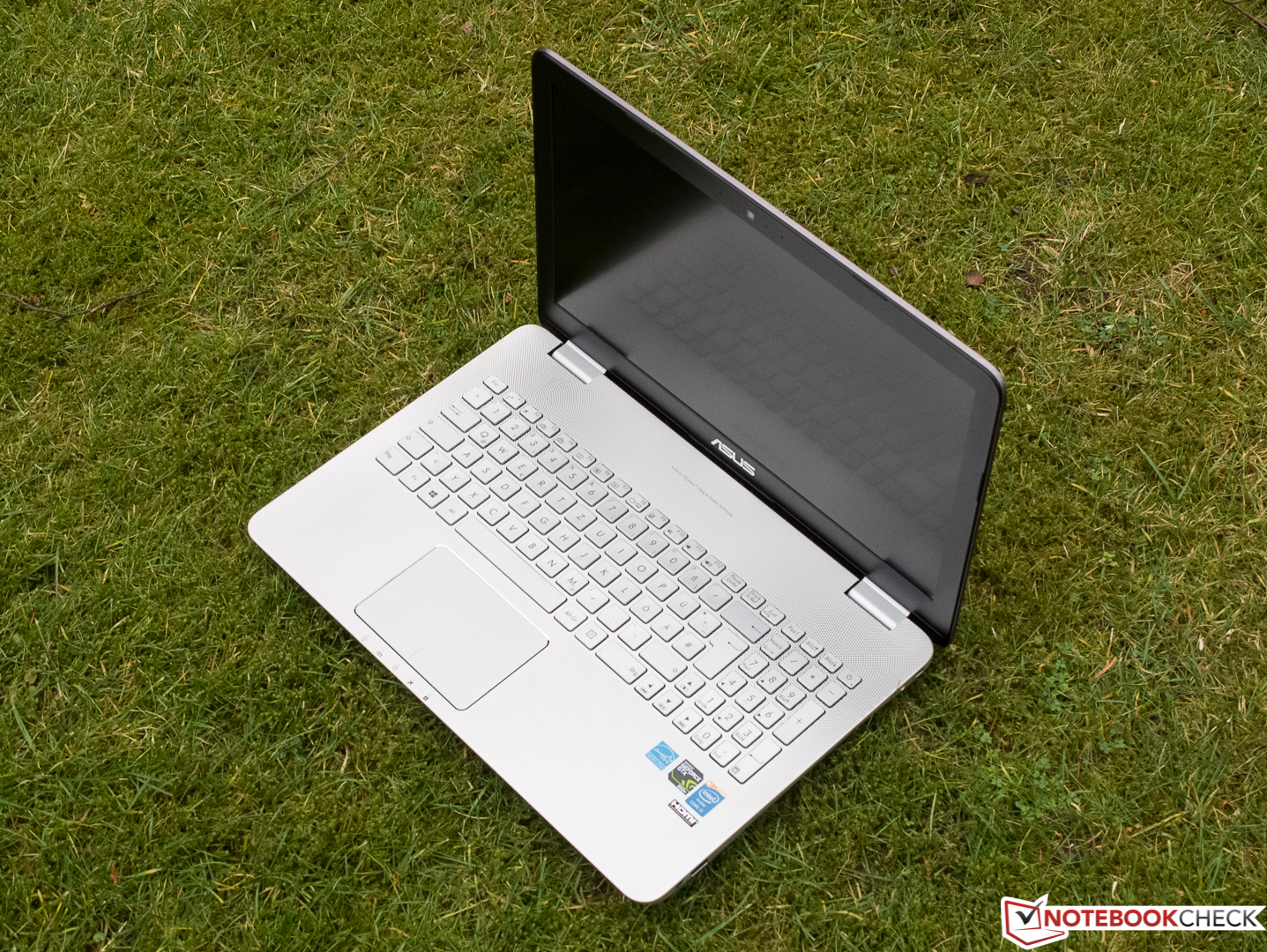

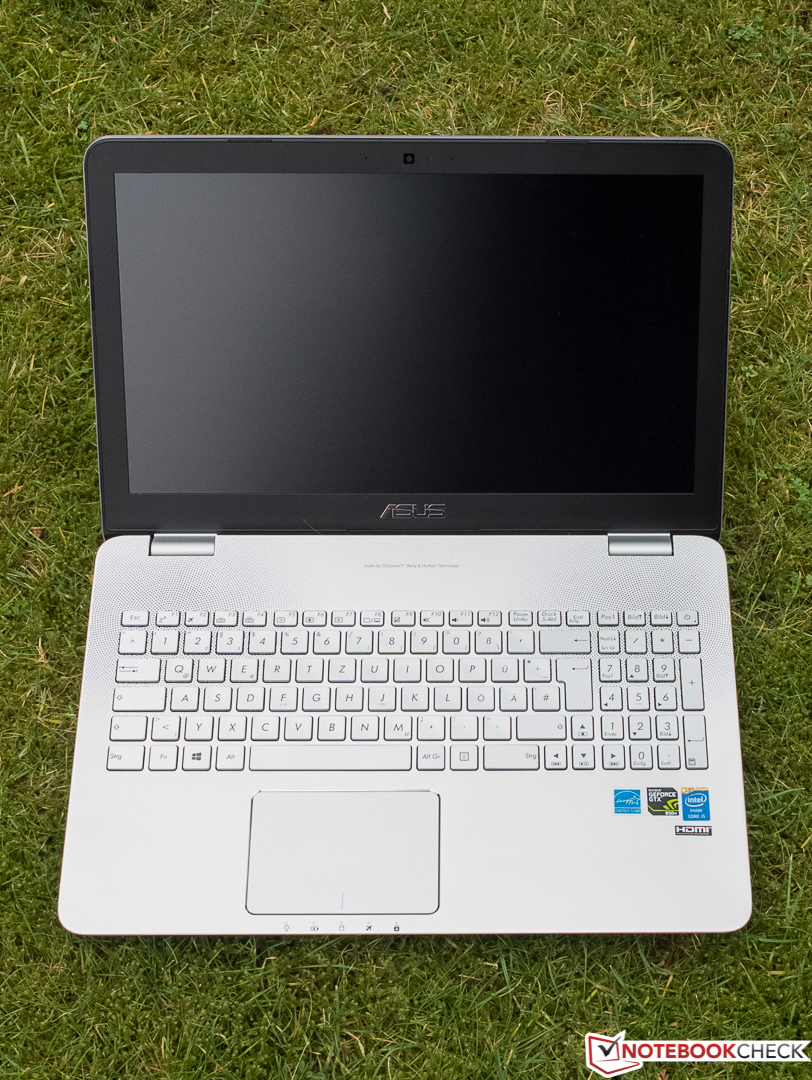

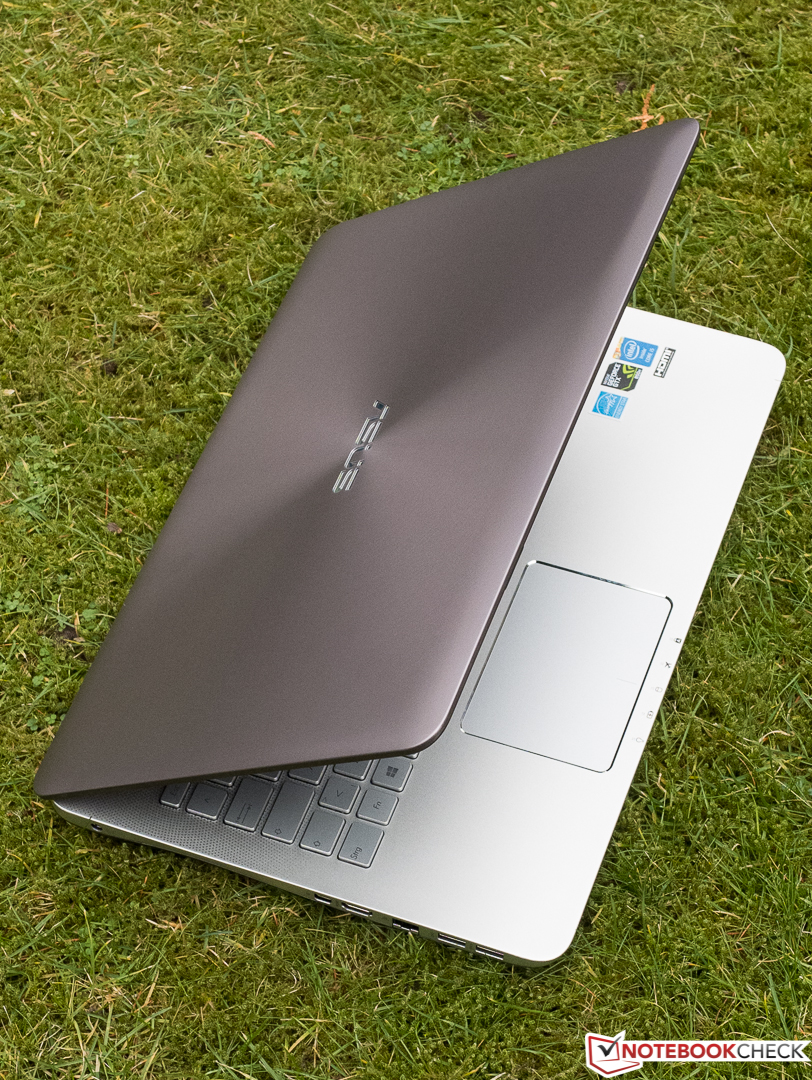

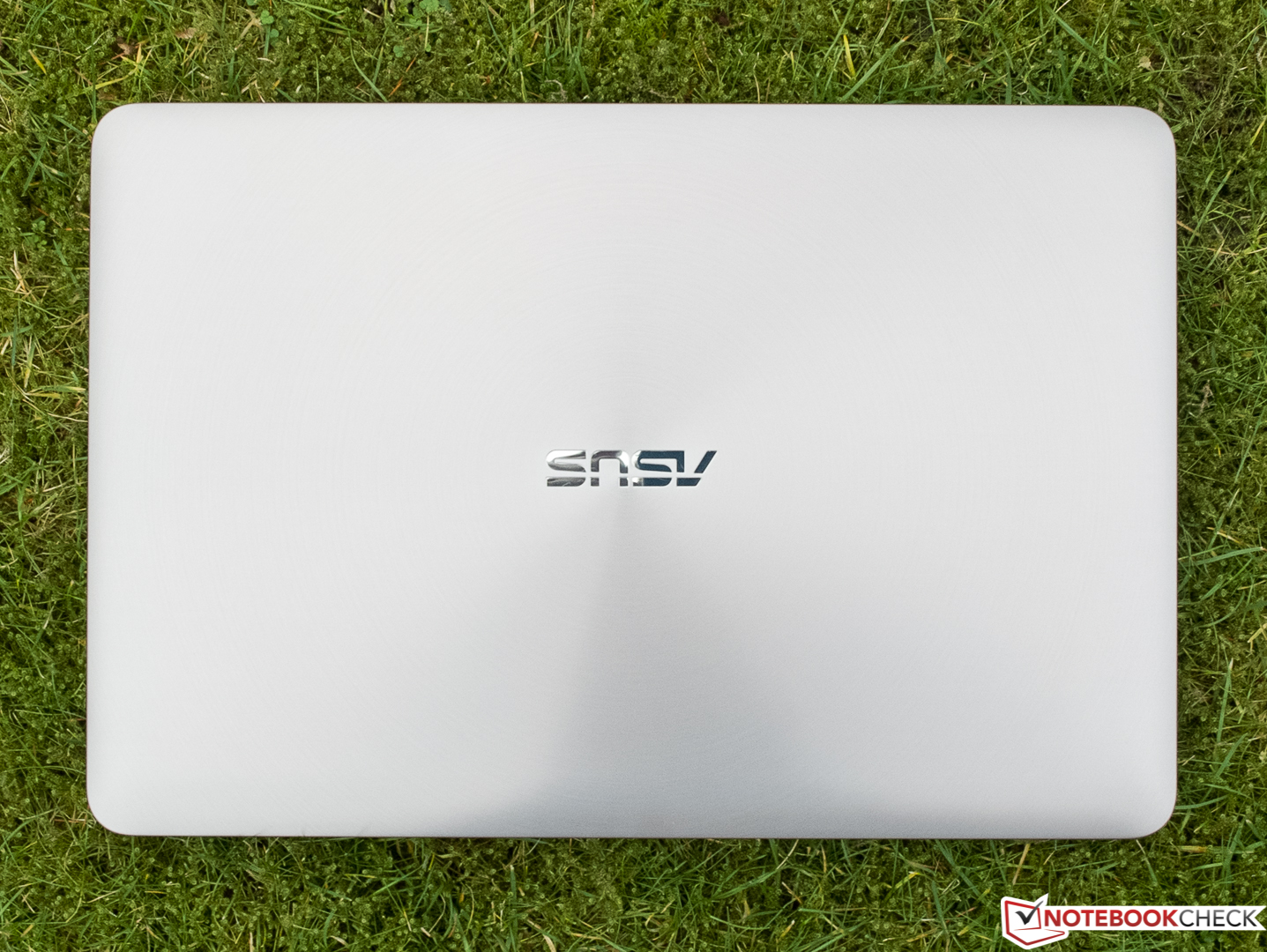

亮银色,...
亮银色,...

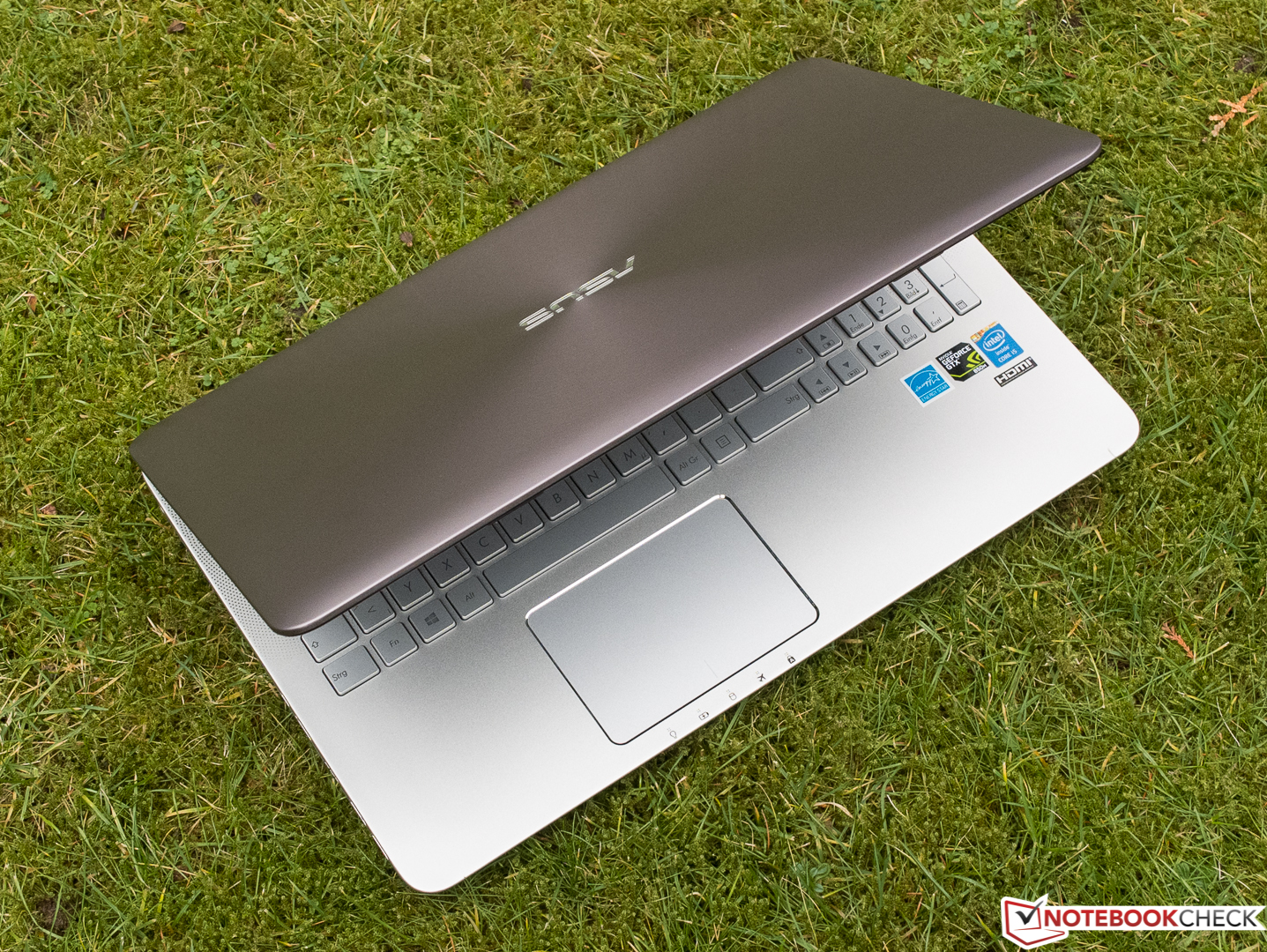

...充满了你的双眼。
...充满了你的双眼。

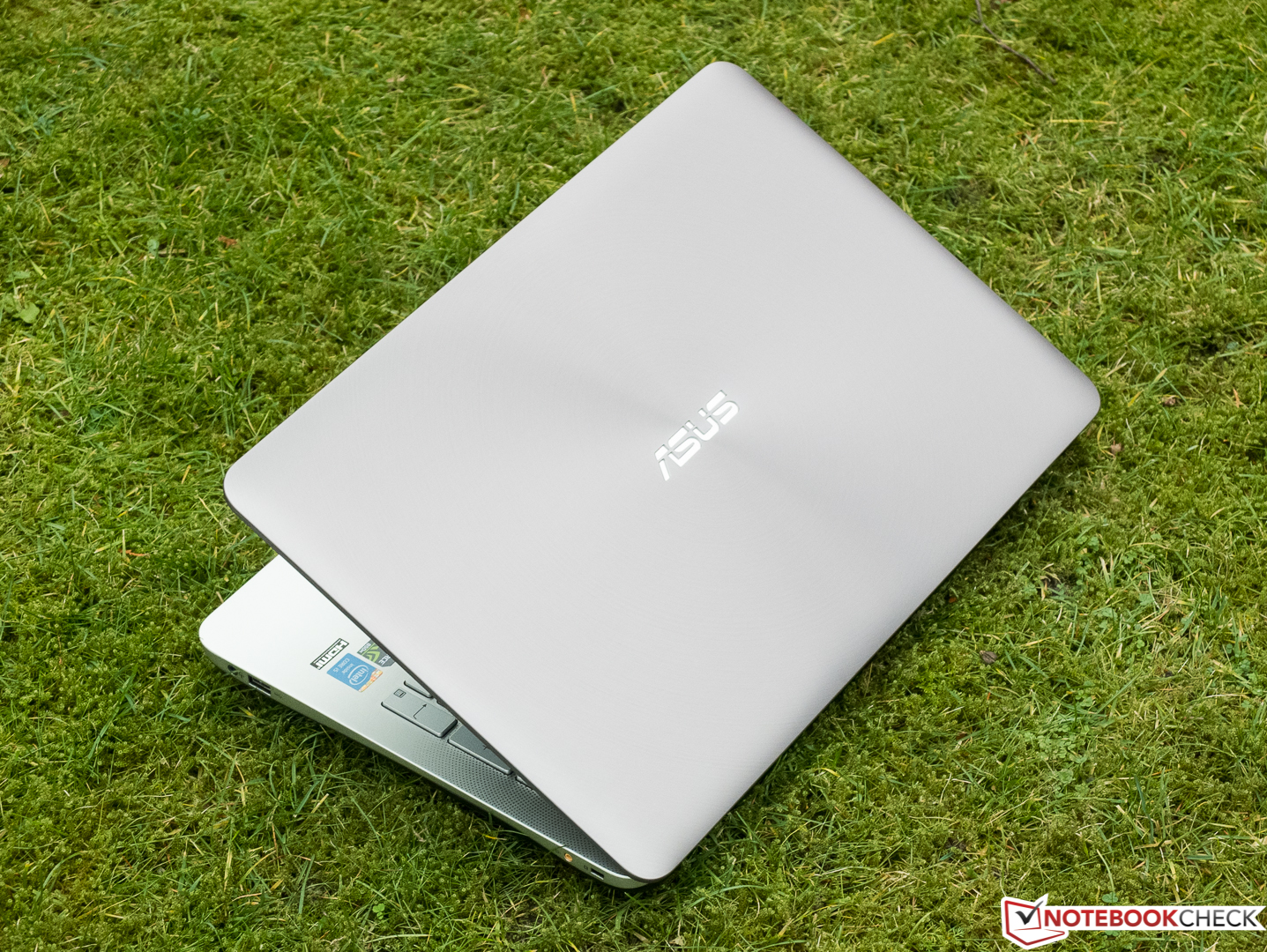

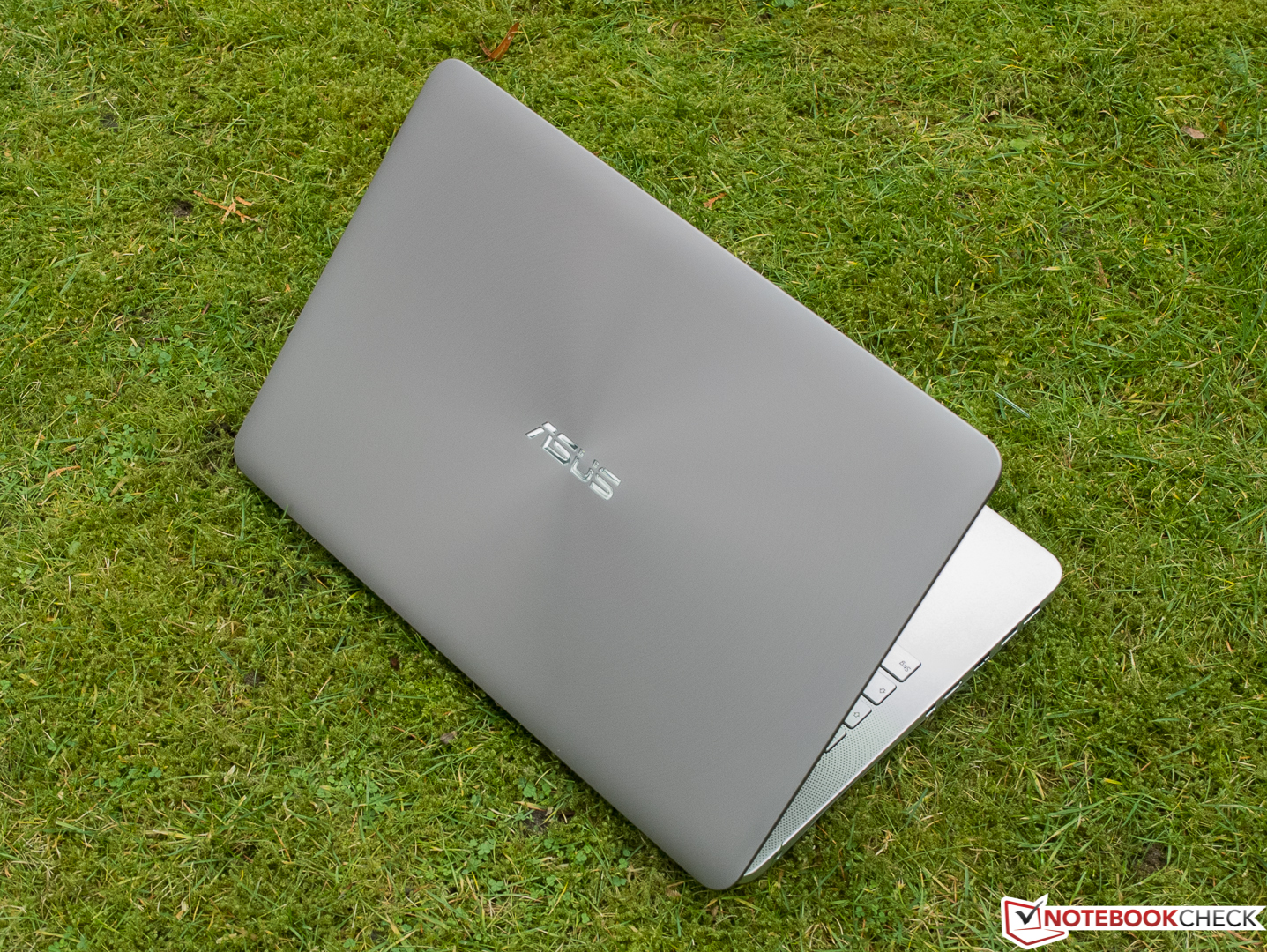

我们认为...
我们认为...

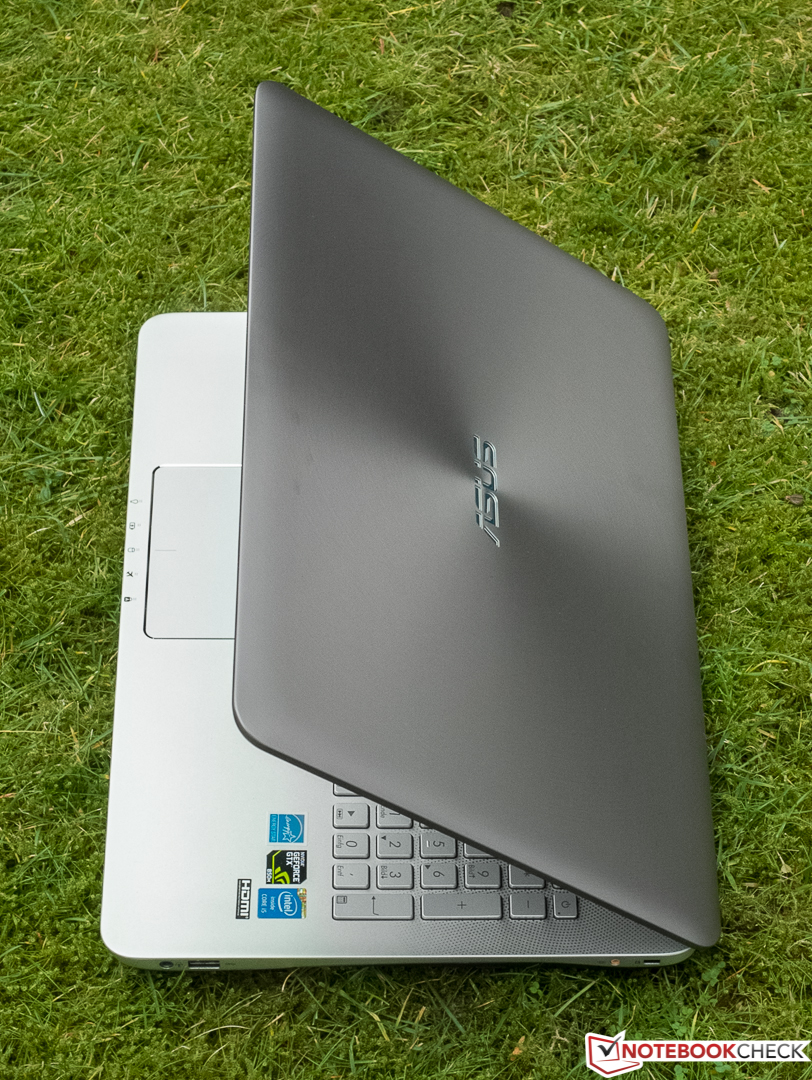

...它的机身材质为塑料...
...它的机身材质为塑料...

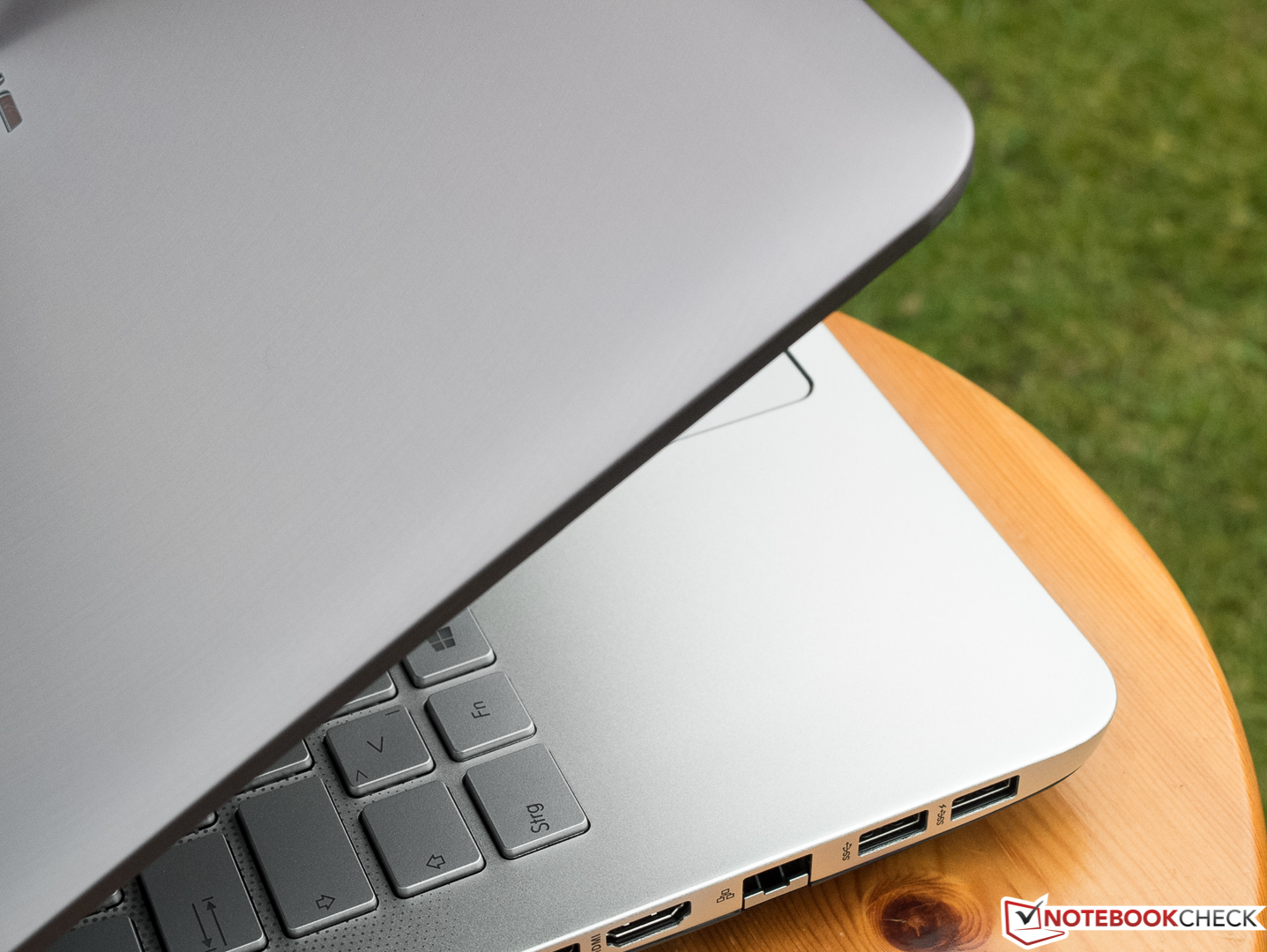

...不过金属的质感...
...不过金属的质感...
...看起来以假乱真。
...看起来以假乱真。

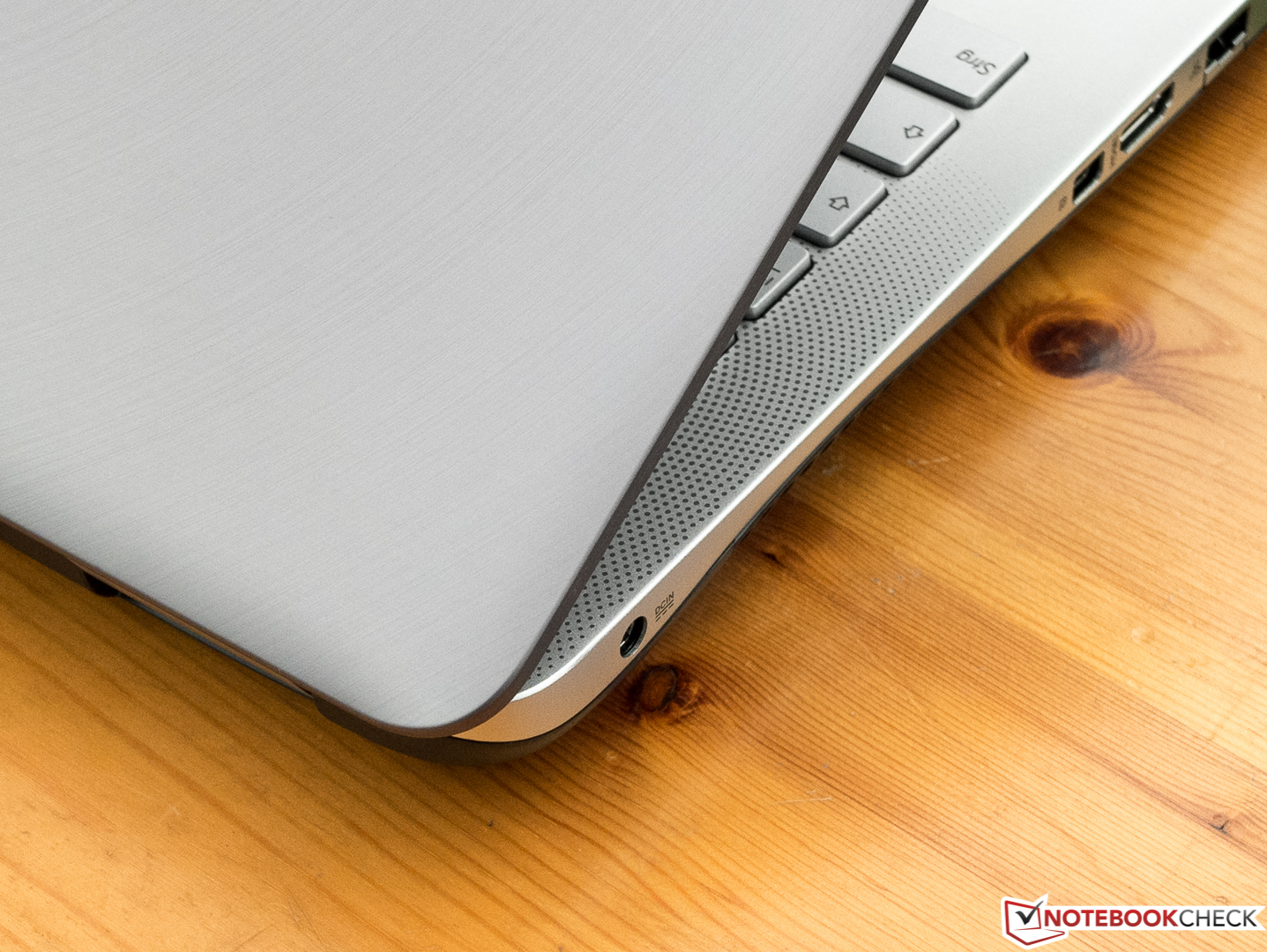

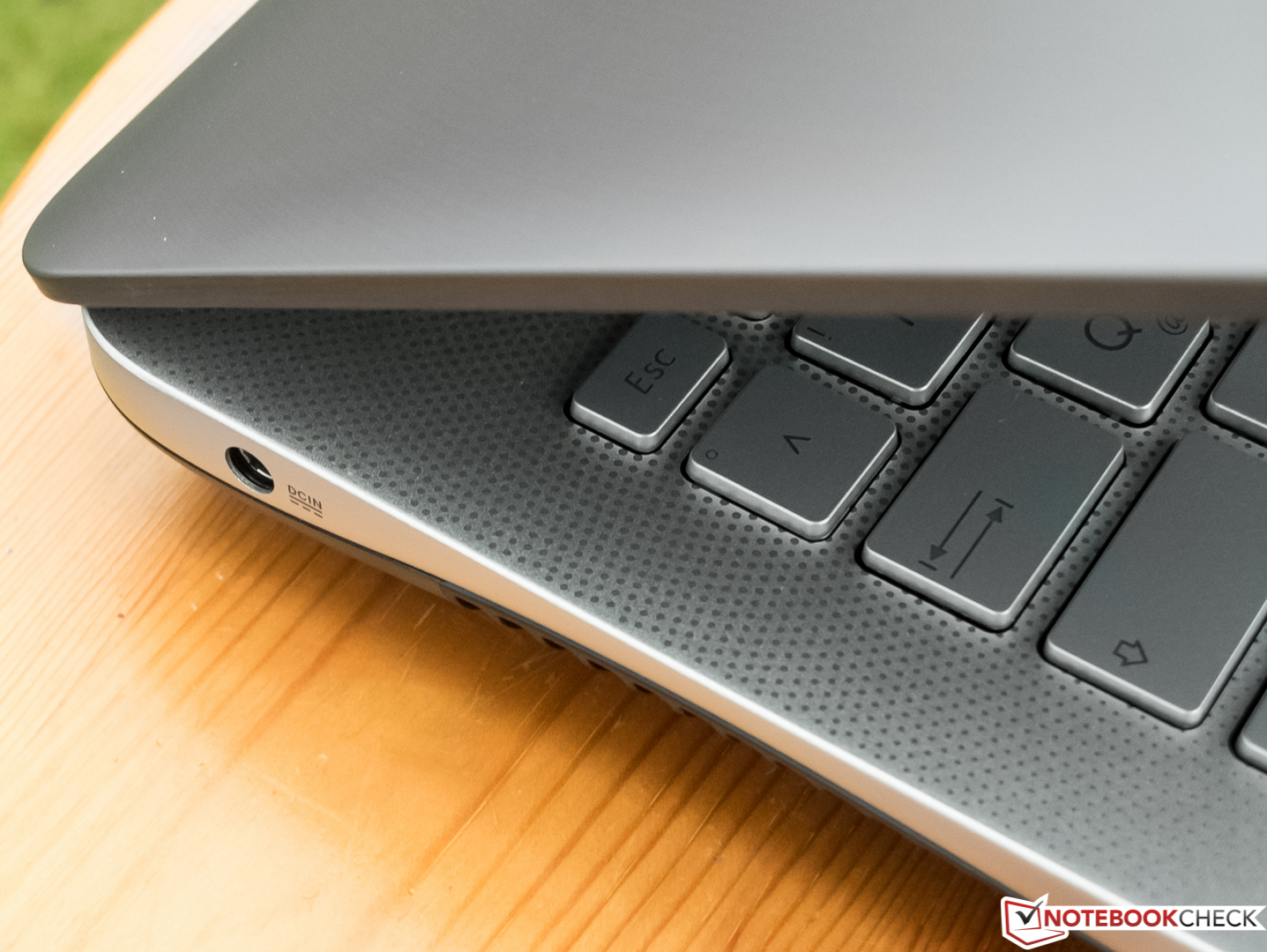

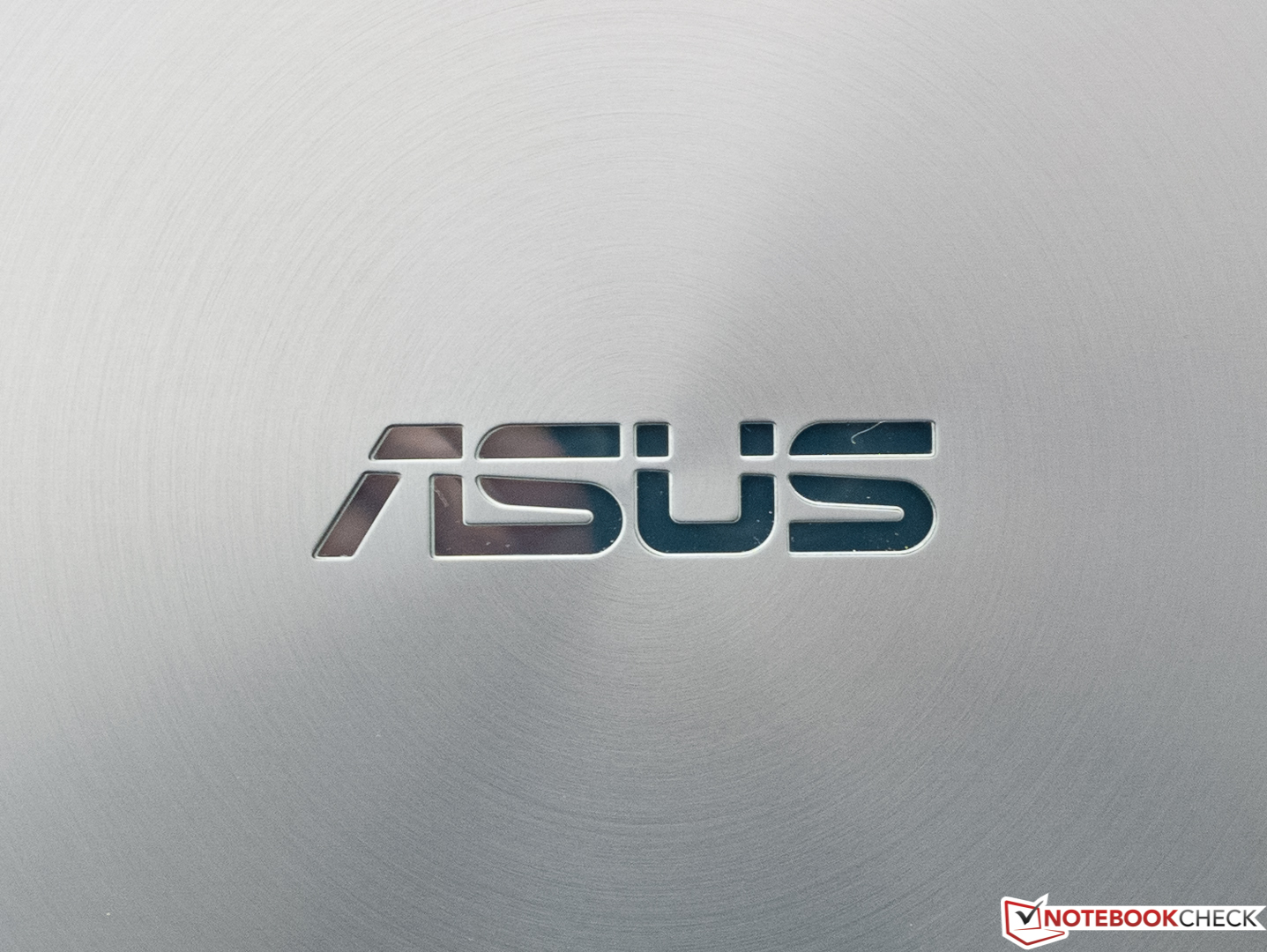

特写。
特写。

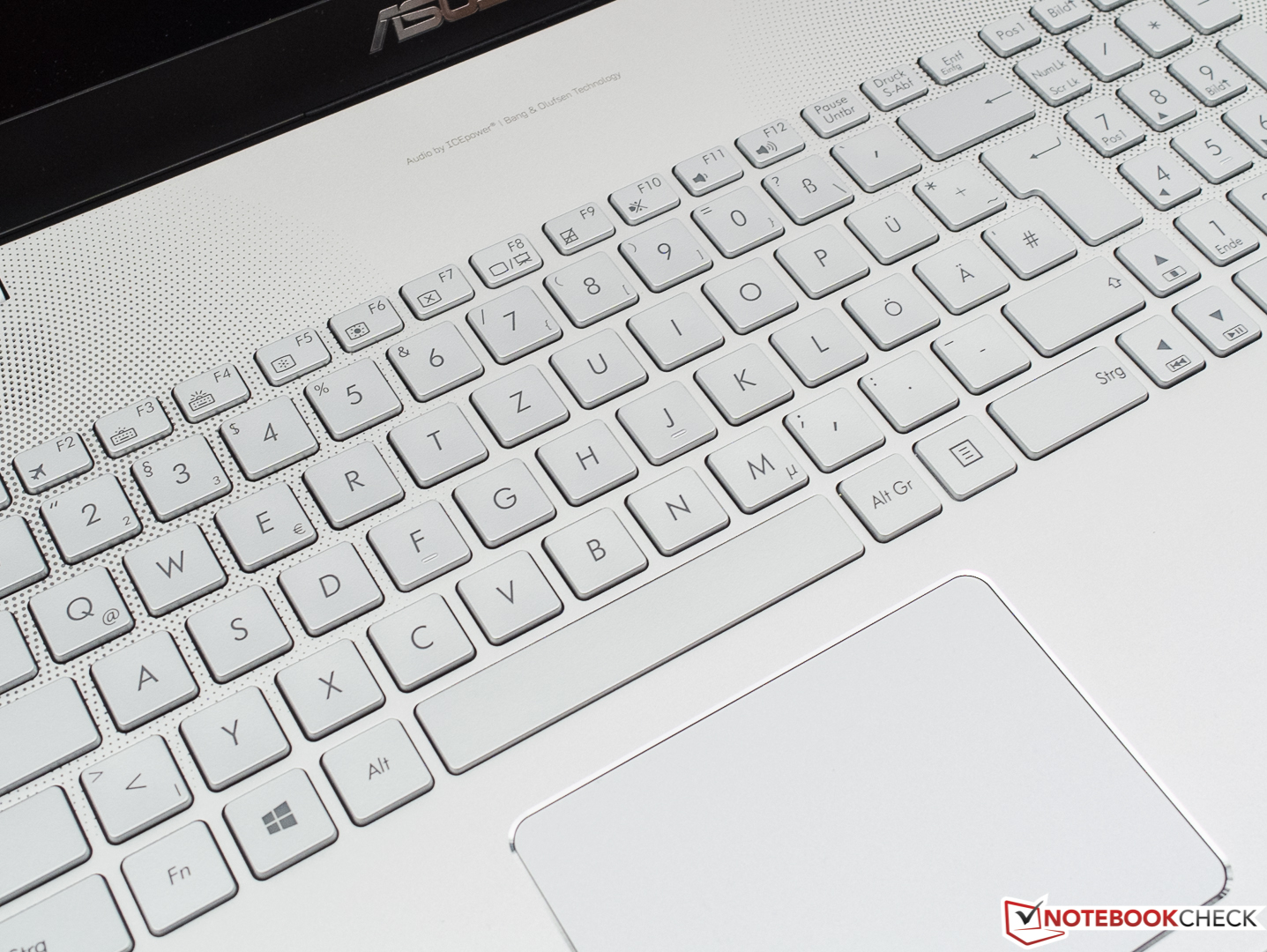

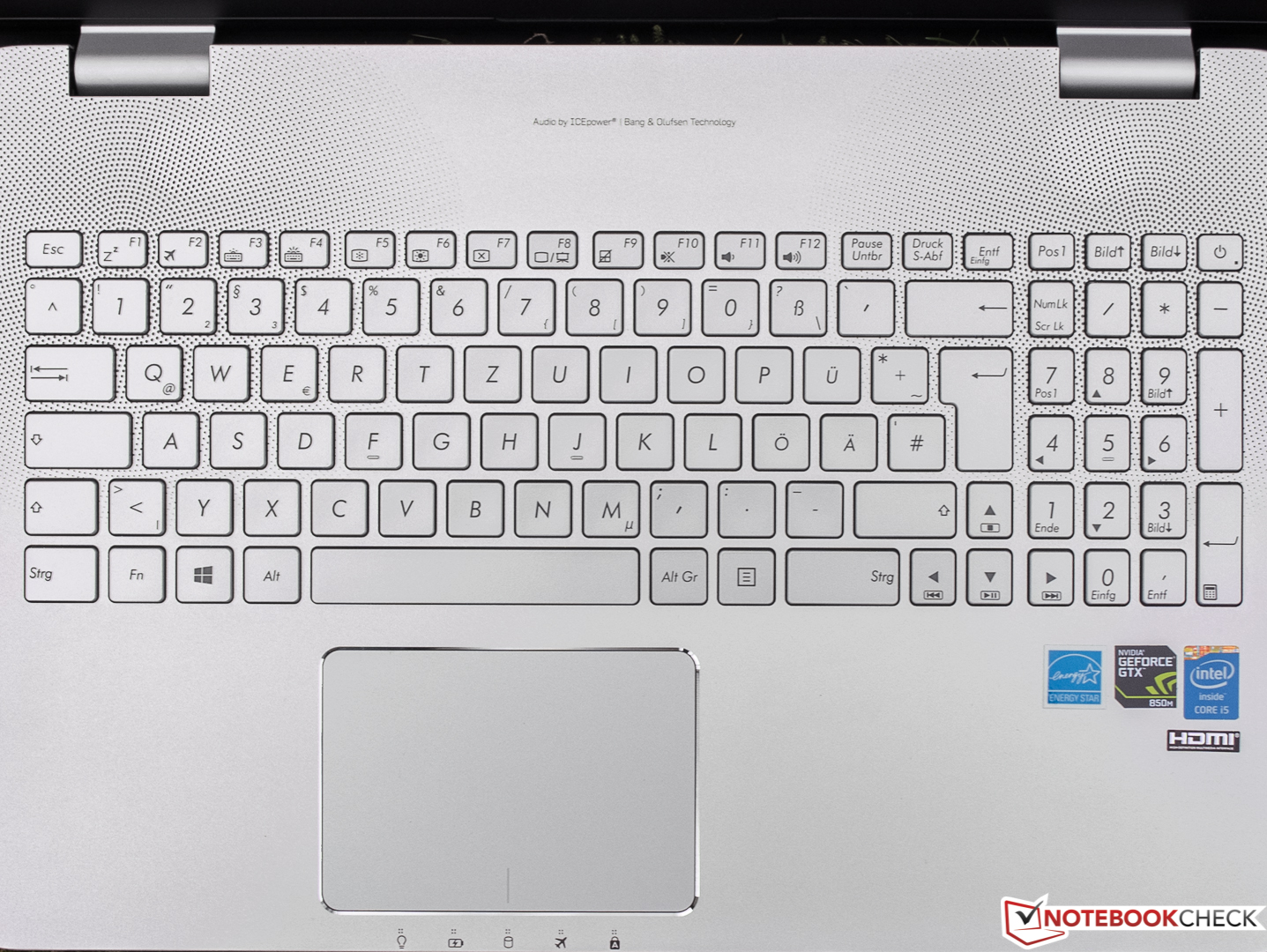

输入设备。
输入设备。

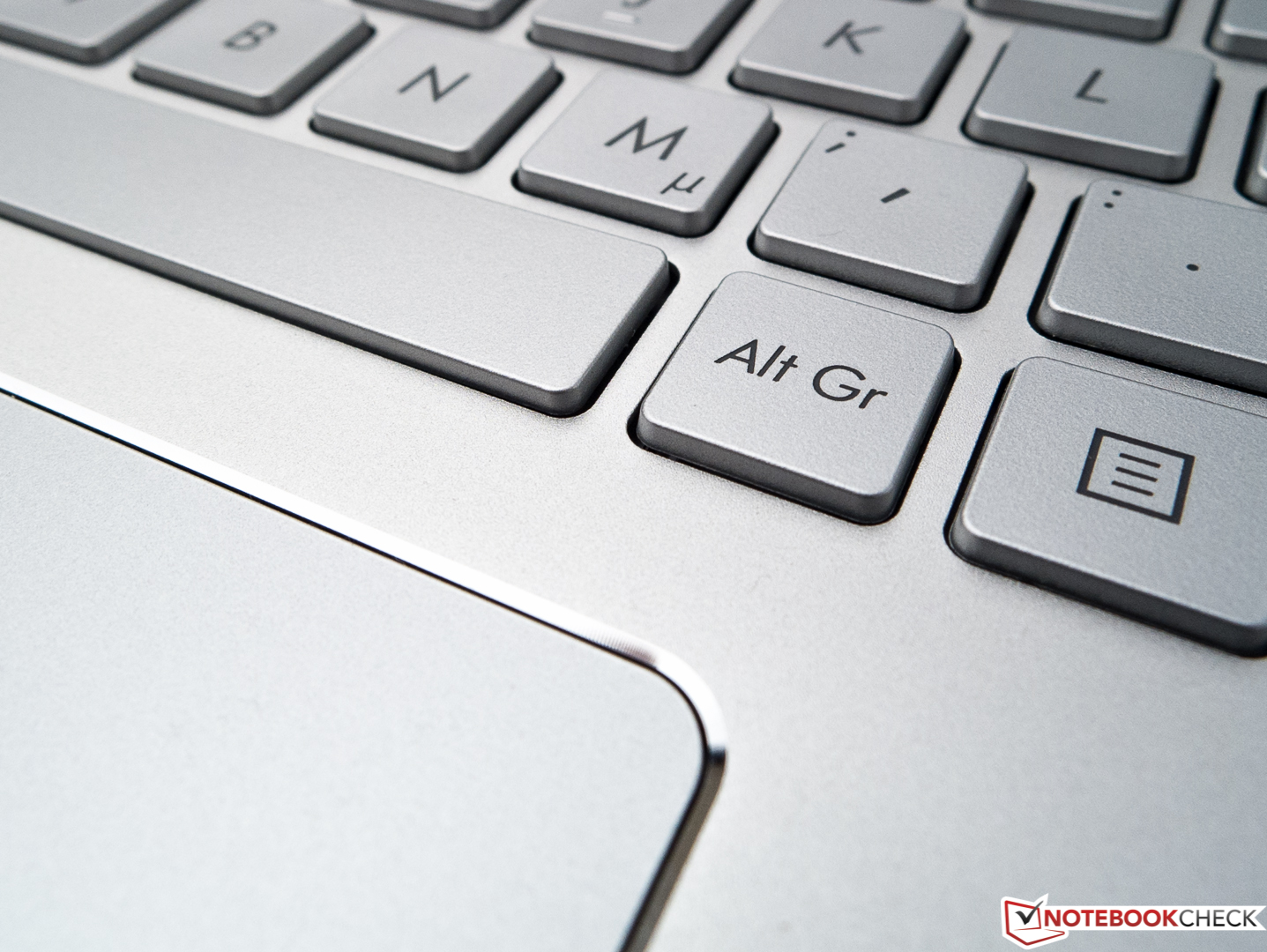

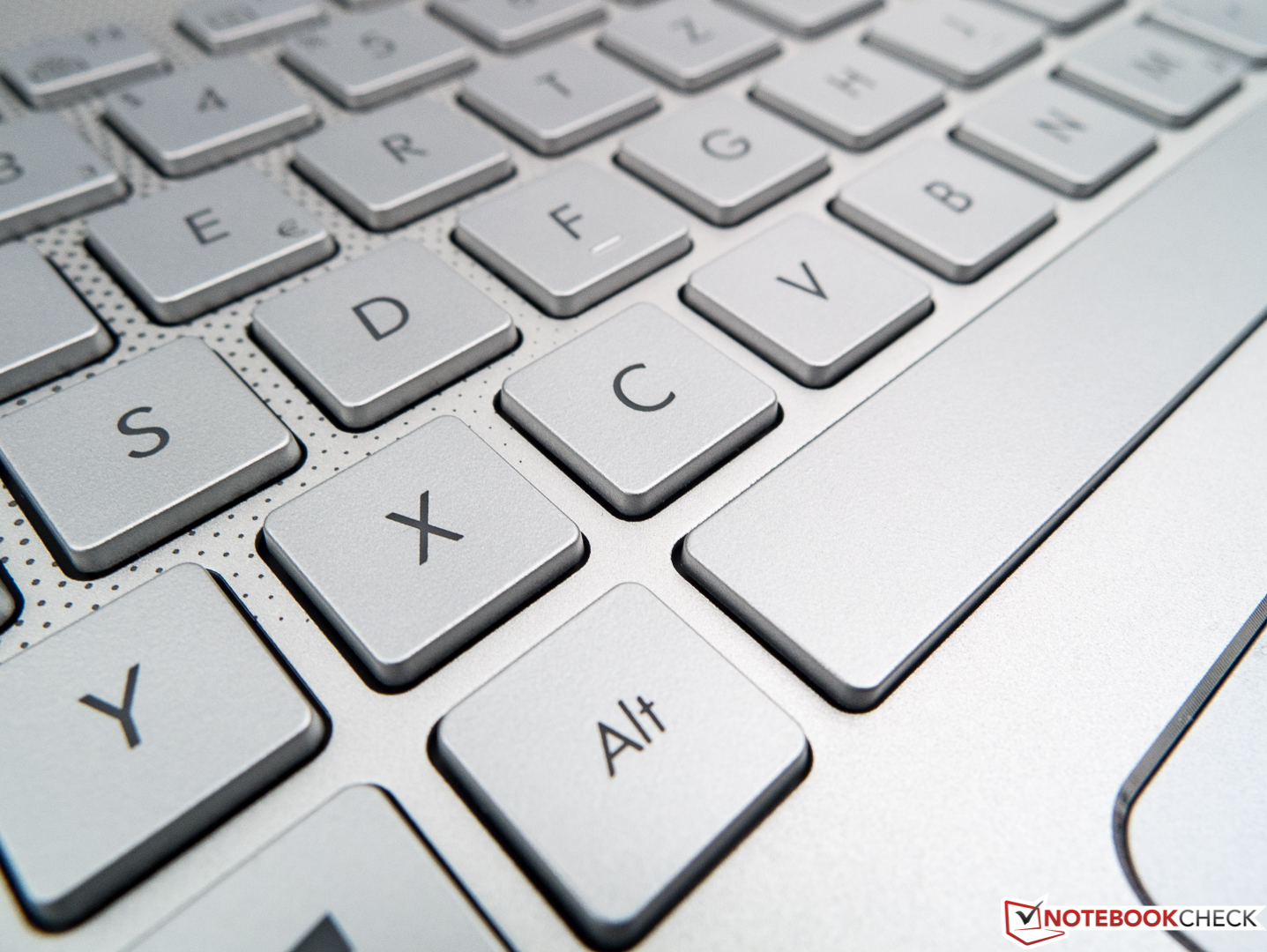

键程...
键程...
...中等。
...中等。

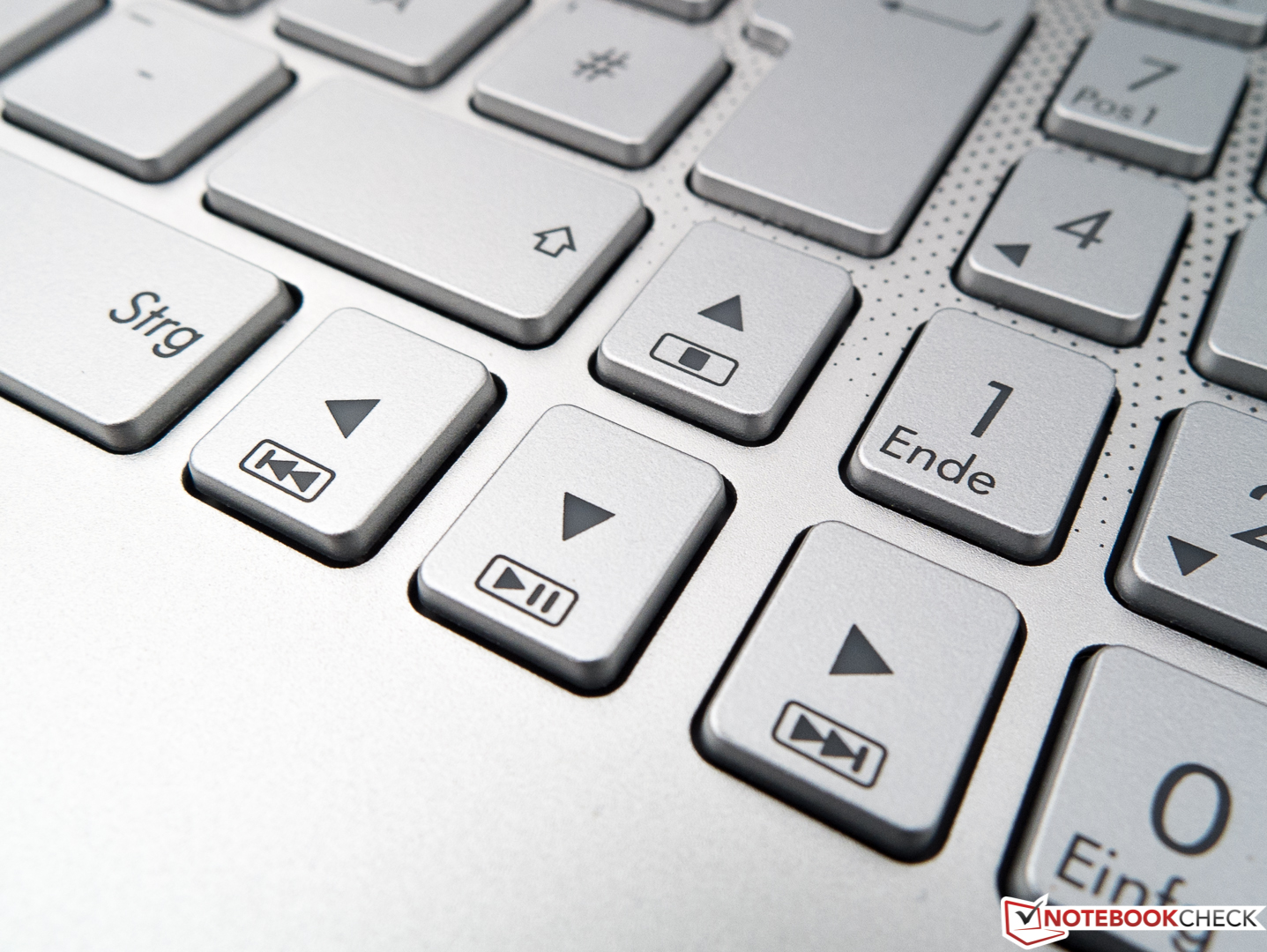

方向键有附属功能。
方向键有附属功能。

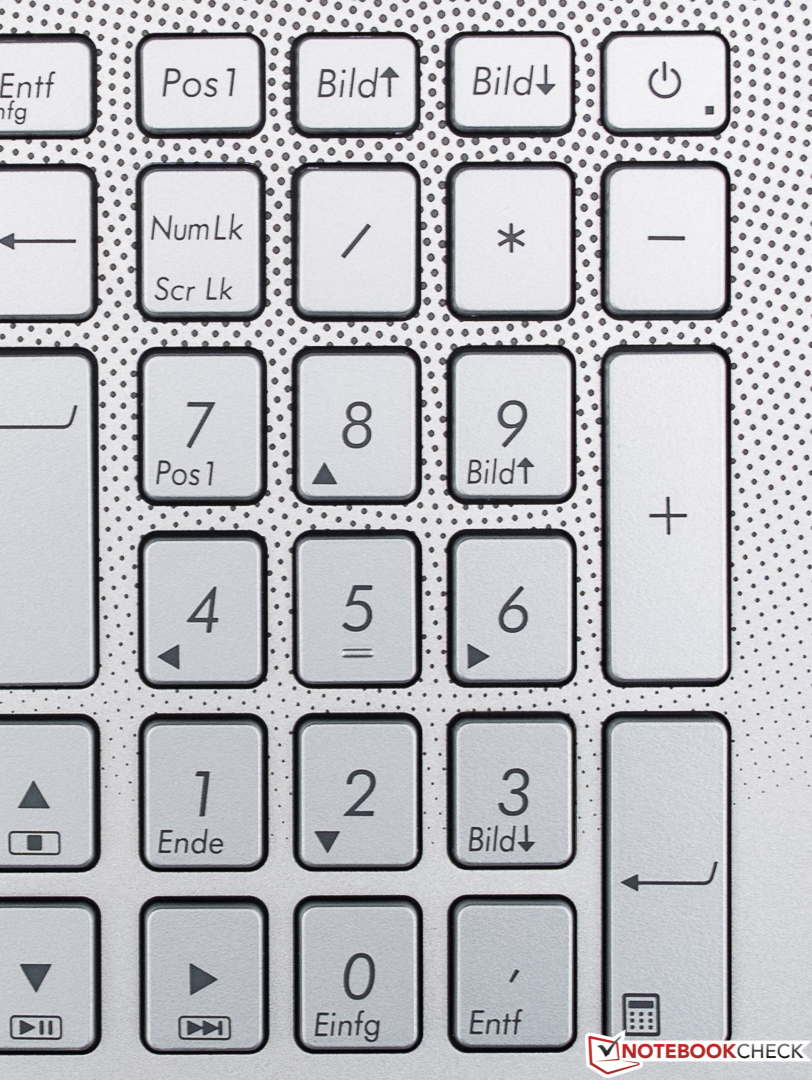

笔者并不是很喜欢它拥挤的数字键盘,...
笔者并不是很喜欢它拥挤的数字键盘,...
...还有...
...还有...

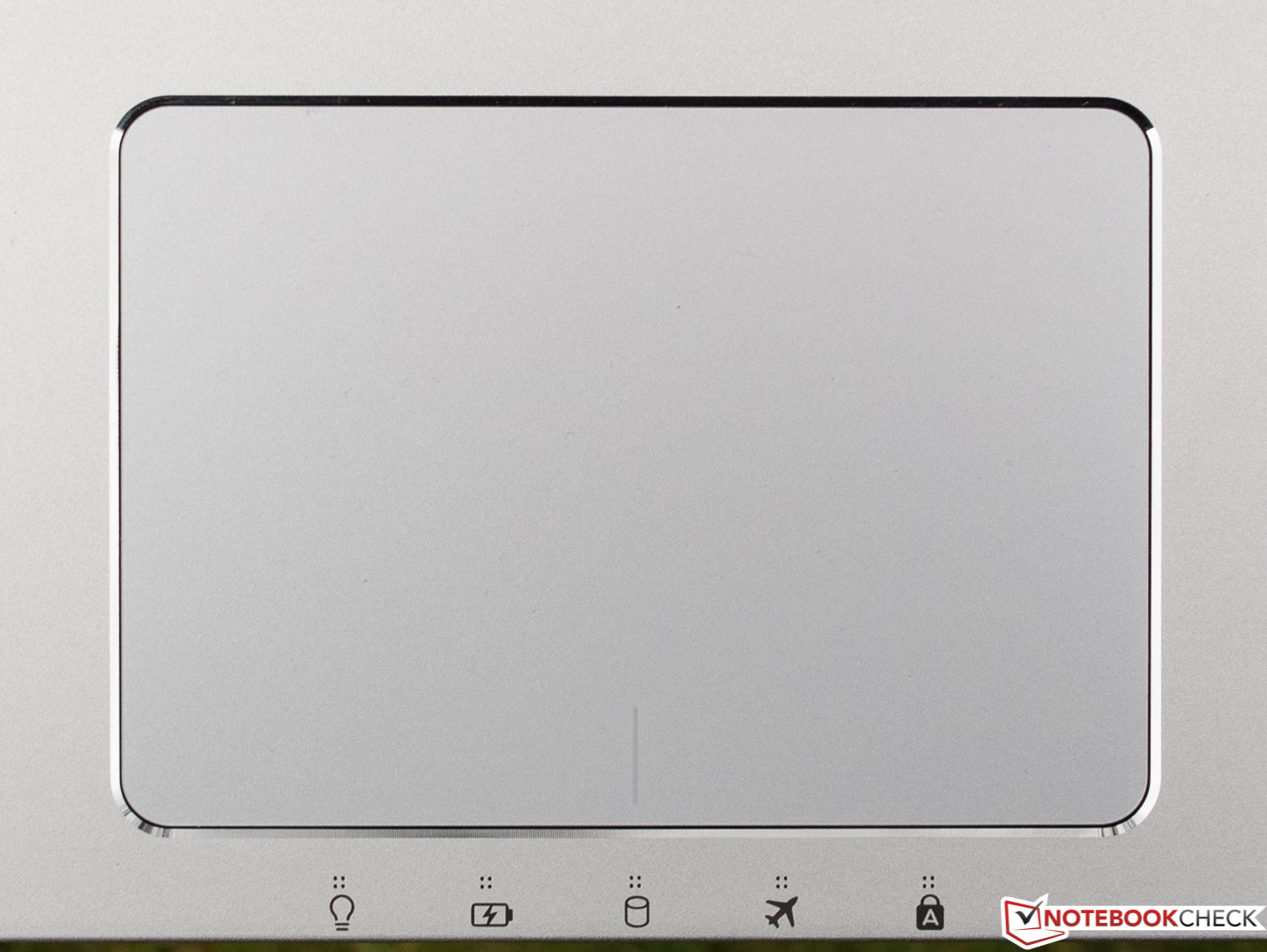

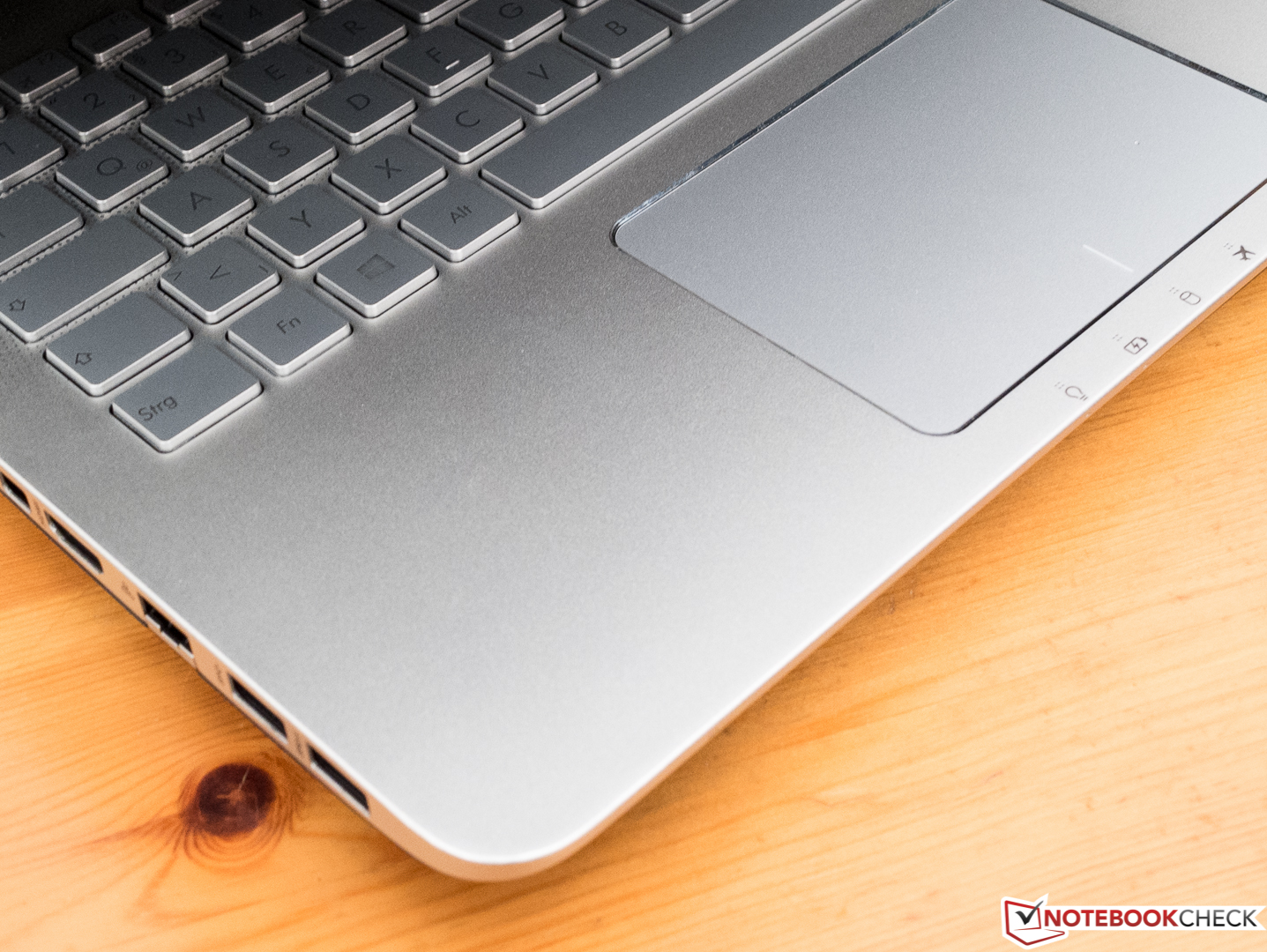

..它的点击触控板。
..它的点击触控板。

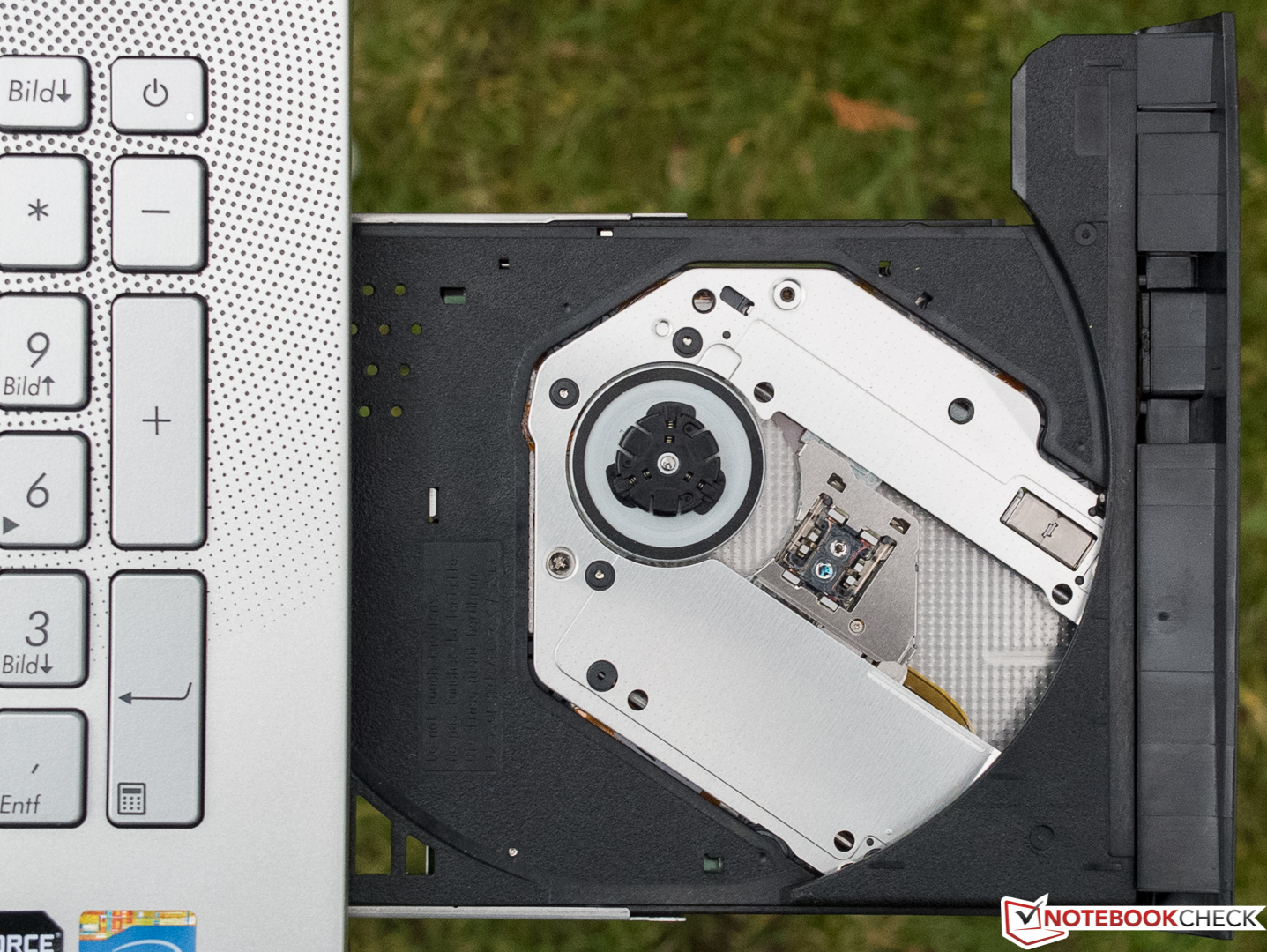

双激光头以分别支持DVD和蓝光。
双激光头以分别支持DVD和蓝光。

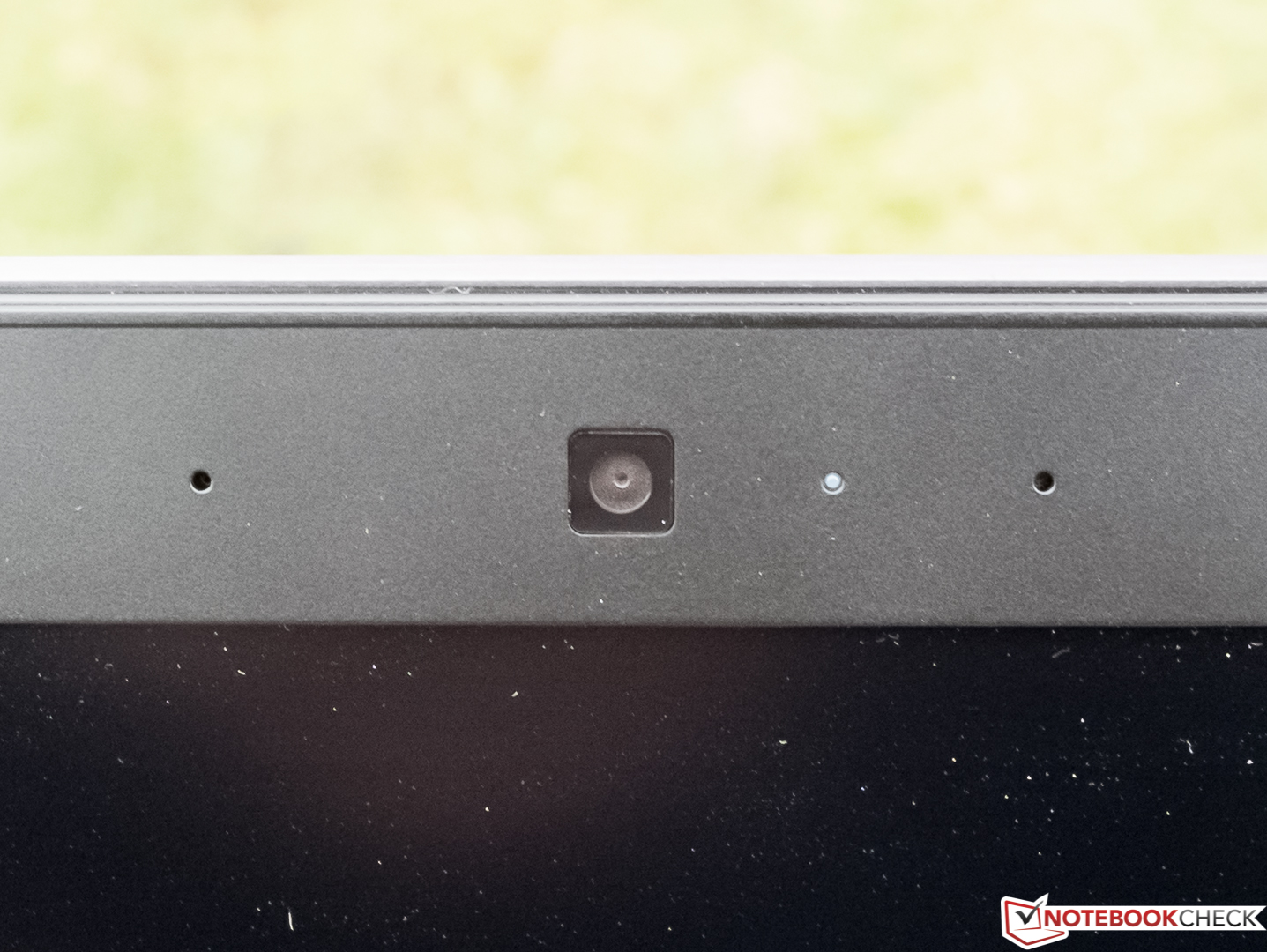

摄像头,立体声麦克风,光线传感器。
摄像头,立体声麦克风,光线传感器。

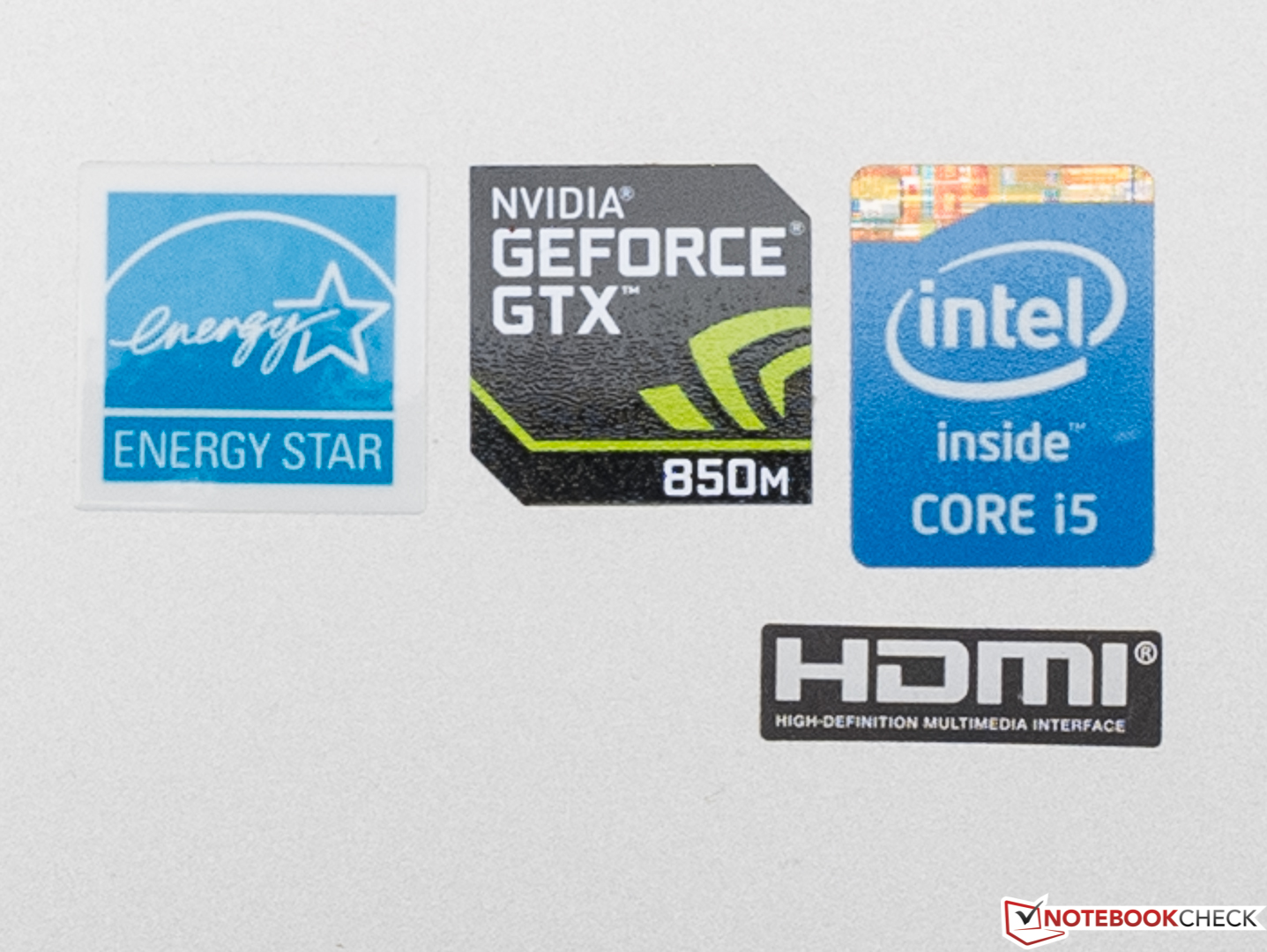

展示标签。
展示标签。
屏幕的最大展开角度约135度。
屏幕的最大展开角度约135度。

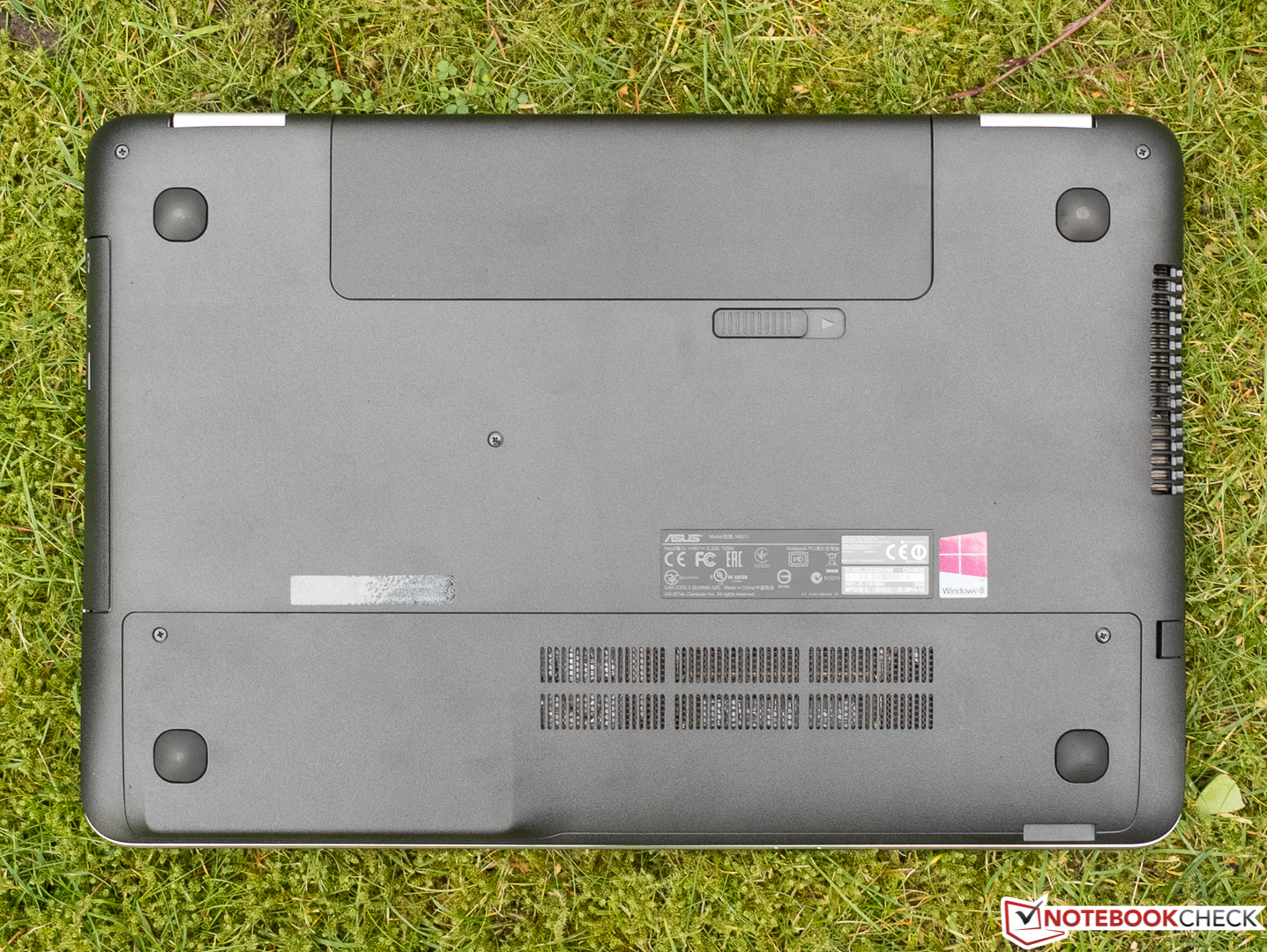

底部。
底部。

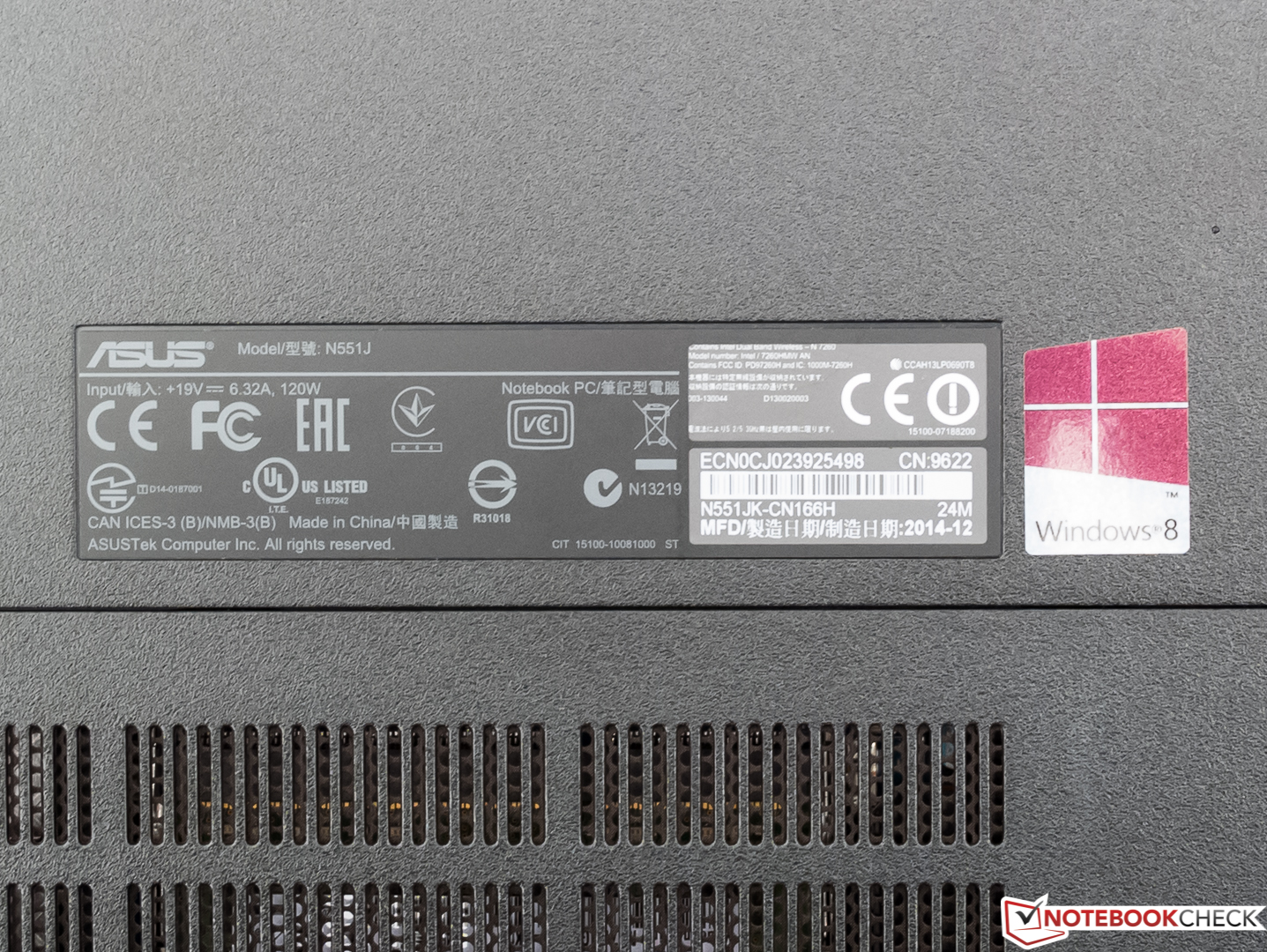

型号铭牌。
型号铭牌。

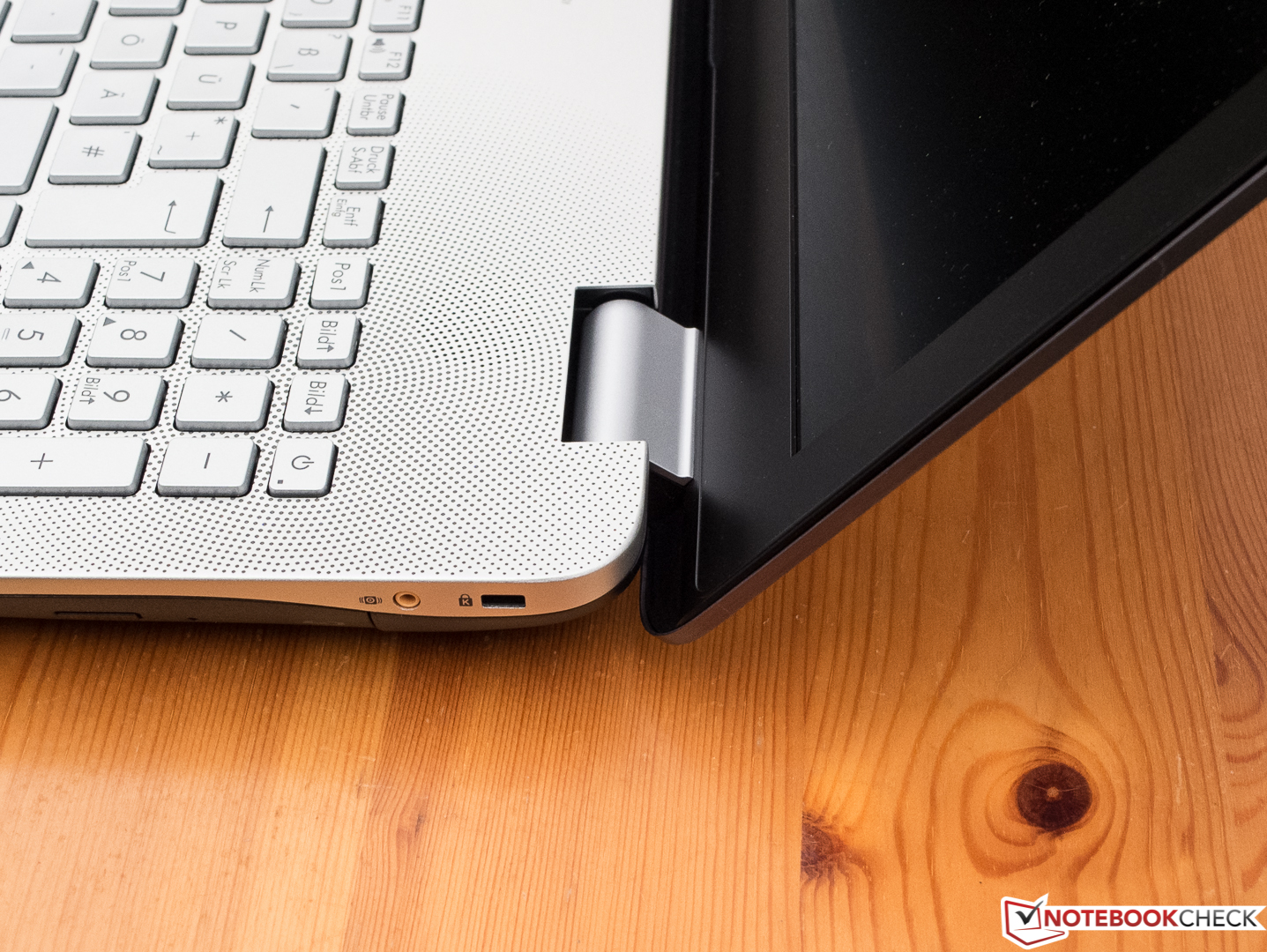

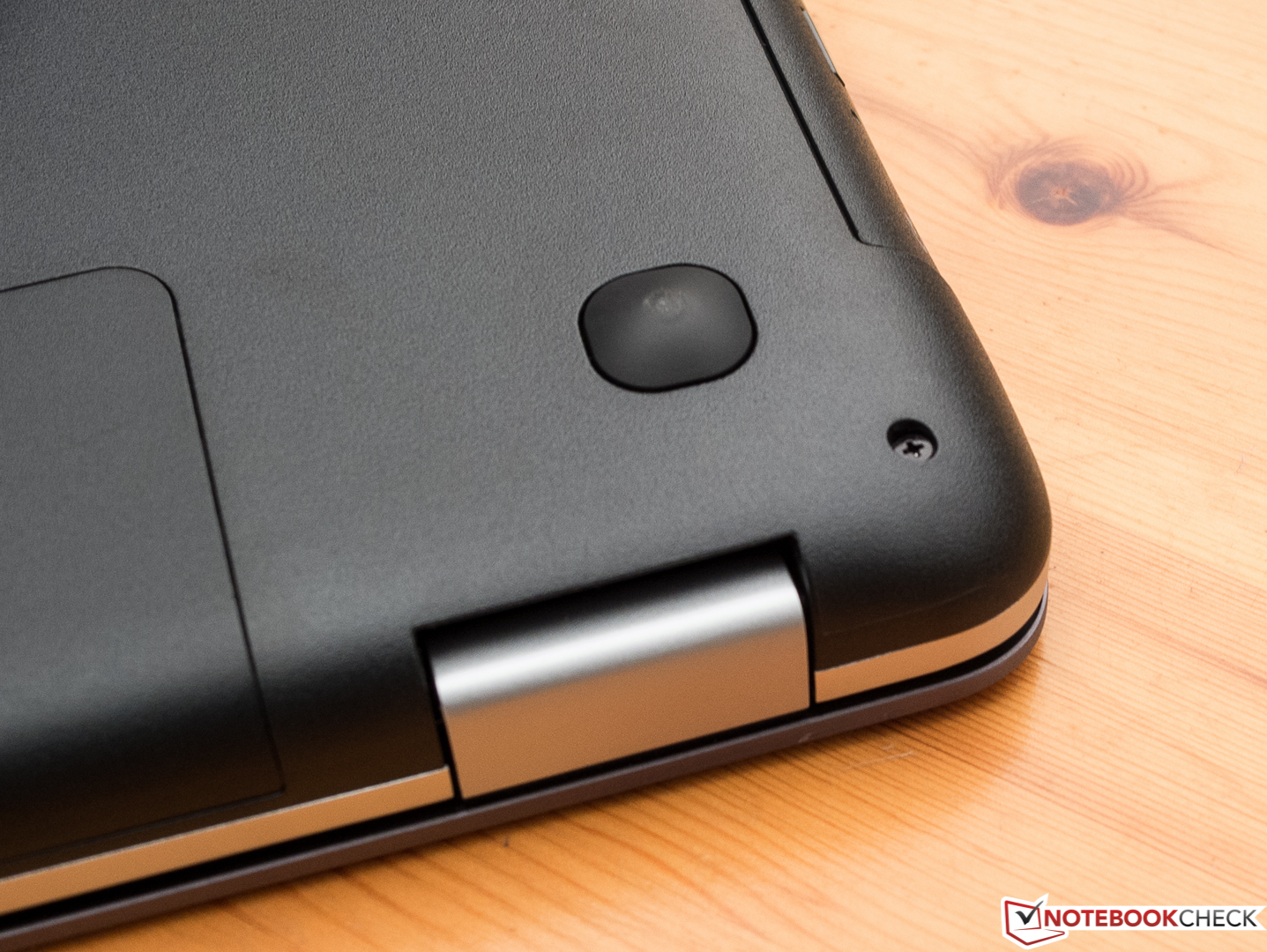

转轴...
转轴...

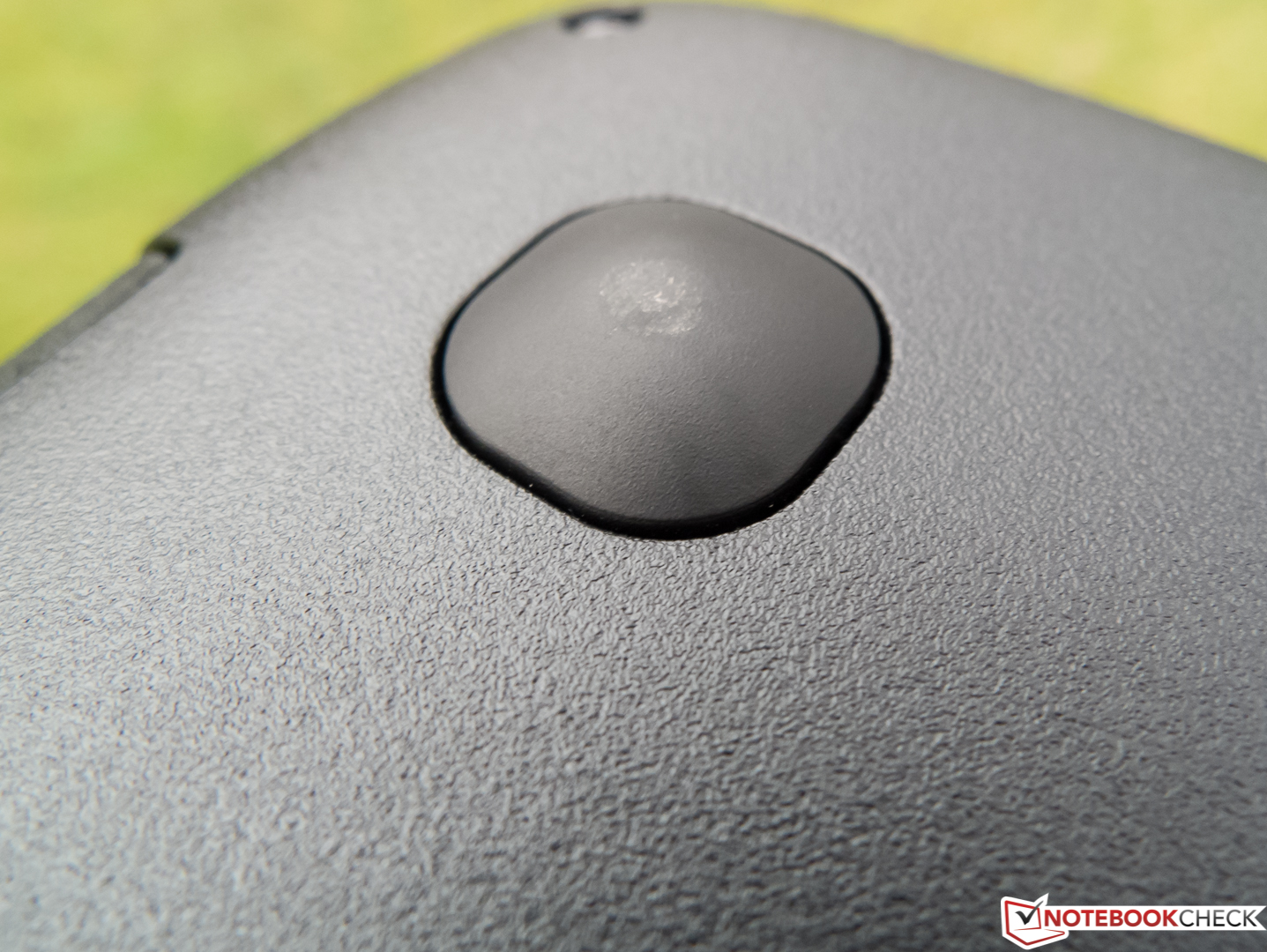

...和橡胶垫脚。
...和橡胶垫脚。

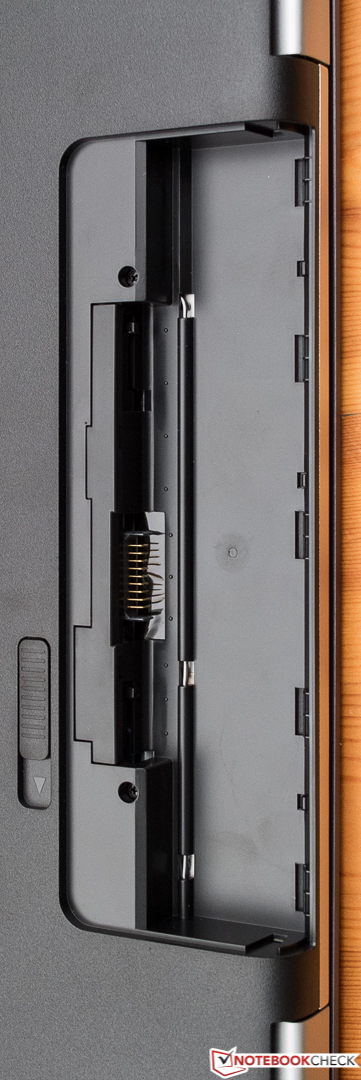

电池仓。
电池仓。
56-Wh 电池。
56-Wh 电池。

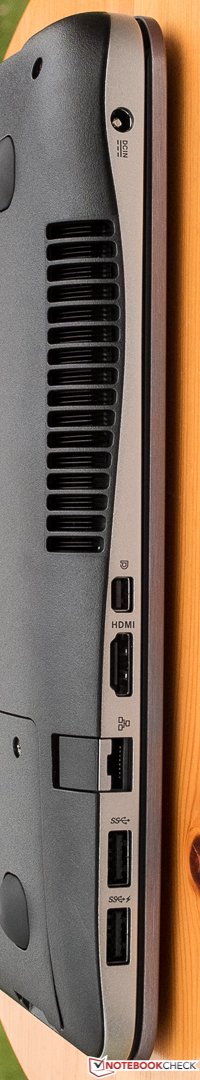

左侧接口和展开式以太网口。
左侧接口和展开式以太网口。

Please share our article, every link counts!
Mail Logo

Specifications

Asus N551JK-CN166H (N551 Series)
Processor
Intel Core i5-4200H 2 x 2.8 - 3.4 GHz, Haswell
Graphics adapter
NVIDIA GeForce GTX 850M - 2048 MB VRAM, Core: 1084 MHz, RAM: 2000 MHz, GDDR3, ForceWare 333.60, Optimus
Memory
8 GB
, DDR3L 1600 MHz, 单通道, 2 内存槽, 1 已占用
Display
15.60 inch 16:9, 1920 x 1080 pixel, Samsung 156HL01-102 (SDC324C), IPS, glossy: no
Mainboard
Intel HM86 (Lynx Point)
Storage
HGST Travelstar 5K1000 HTS541010A9E680, 1000 GB
, 5400 rpm, + SanDisk SSD U100 24 GB
Soundcard
Intel Lynx Point PCH - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm 整合耳机麦克风插头, Card Reader: SD/SDXC/MS/MS Pro/MS Pro Duo/MMC
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-N 7260 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Optical drive
MATSHITA BD-CMB UJ172 S
Size
height x width x depth (in mm): 28 x 383 x 255
Battery
56 Wh Lithium-Ion, 5200 mAh, 6 芯
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 高清
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 低音炮, Asus: FaceID, Smart Gesture, USB Charger Plus, Video DSP, ATK Package, CyberLink Media Story , 24 Months Warranty
Weight
2.7 kg, Power Supply: 446 g
Price
1000 Euro



Devices from a different Manufacturer and/or with a different CPU

Devices with the same GPU

华硕N751JK-T4144H 笔记本电脑简短评测
GeForce GTX 850M, Core i7 4710HQ, 17.30", 3.4 kg
惠普 Envy 17-k104ng 笔记本电脑简短评测
GeForce GTX 850M, Core i7 4510U, 17.30", 2.954 kg

Devices with Same Screen Size and/or Weight

高通骁龙 X Plus 8 核分析 - X1P-42-100 更小、更便宜,但效率不高
Adreno X1-45 1.7 TFLOPS, Snapdragon X SD X Plus X1P-42-100, ", 0 kg
高通骁龙 X Plus 8 核分析 - X1P-42-100 更小、更便宜,但效率不高
Adreno X1-45 1.7 TFLOPS, Snapdragon X SD X Plus X1P-42-100, 15.60", 1.428 kg
华硕 ZenBook S 16 OLED 笔记本电脑评测:Ryzen AI 9 365 和 Radeon 880M 的首秀
Radeon 880M, Strix Point (Zen 5/5c, Ryzen AI 3/5/7/9) Ryzen AI 9 365, 16.00", 1.5 kg

Pros

+ 时尚,高质量的机身
+ 成功的仿金属质感设计
+ 配备DisplayPort接口, 无VGA接口
+ 双频Wi-Fi
+ 维护窗口
+ 不错的触控板
+ 明亮、高对比度的IPS屏幕
+ 优秀的应用程序和游戏性能
+ 完美的Turbo加速实用性
+ 风扇声几乎难以察觉
+ 包含低音炮

Cons

- 机身较厚
- 无特别配件
- 无千兆Wi-Fi支持
- 维护底盖有些过紧
- 数字键盘过小
- 未采用SSD

Asus N551JK-CN166H - 01/28/2015 v4 (old)
Sven Kloevekorn

Chassis
82 / 98 → 84%
Keyboard
83%
Pointing Device
84%
Connectivity
73 / 81 → 90%
Weight
58 / 20-67 → 81%
Battery
81%
Display
85%
Games Performance
88 / 85 → 100%
Application Performance
81 / 92 → 88%
Temperature
92%
Noise
82 / 95 → 86%
Audio
80%
Average
81%
85%
Multimedia - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 N551JK-CN166H 笔记本电脑简短评测
Sven Kloevekorn, 2015-02- 7 (Update: 2024-11- 4)
