三星NP355V5C-S05DE 笔记本测评

三位一体的三星特色. 三星是另一个系列笔记本的NP355VC的形式释放。这一次三位一体的双核AMD处理器和双显卡,都应该以吸引买家。 15.6英寸的笔记本电脑是否能够不负众望,将取决于我们的审阅。
Samsung NP355V5C-S05DE: With twice the performance thanks to dual graphics but a dual-core processor?

More than 20 different models are currently provided by Samsung under the Series 3 banner. Among these are Samsung's entry level notebooks with display sizes between 11.6 and 17.3 inches. Our reviewed model is the 355V5C with a 15.6-inch screen which is identical to the 350V5C, except that it contains an AMD processor.

A matte display, a high performance graphics card, and a price of about 550 Euro (~$715) make this an interesting laptop. These are the important features which are supposed to help the device stand out from the competition. Nevertheless, other manufacturers also provide comparable notebooks in this price segment. Among these are the Acer TravelMate 5760G and the Medion Akoya P6812, which however contain processors from Intel.

目前提供超过20种不同型号的三星3系列的旗帜下。其中包括三星的入门级笔记本电脑的显示屏尺寸11.6英寸和17.3英寸之间。我们的审阅模式是355V5C的一个15.6英寸的屏幕是相同的350V5C,但它包含一个AMD处理器。



A雾面显示屏,高性能的图形卡,价格约为550欧元(约$715)这是一个有趣的笔记本电脑。这些都是重要的功能,这是为了帮助设备从竞争中脱颖而出。然而,其他厂商也提供类似的笔记本在这个价位段。其中包括宏基TravelMate5760G和MEDION AKOYA P6812,但是包含英特尔处理器。

Case

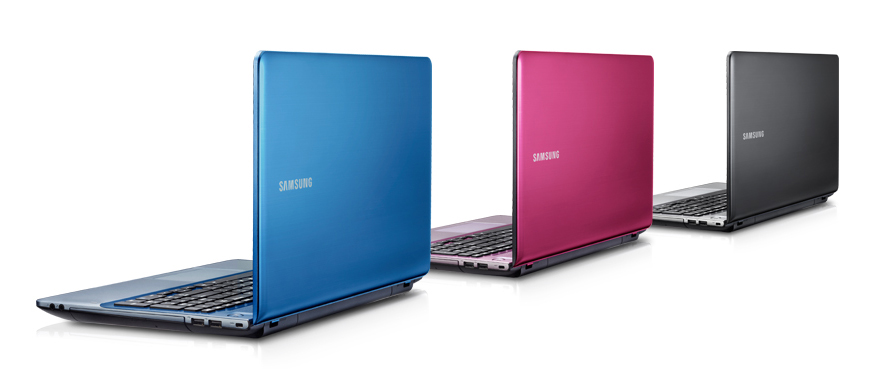

Color options
Color options

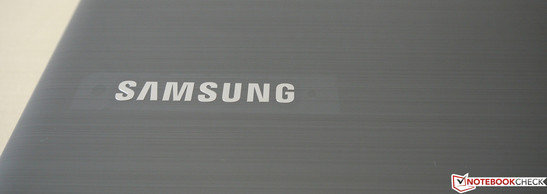

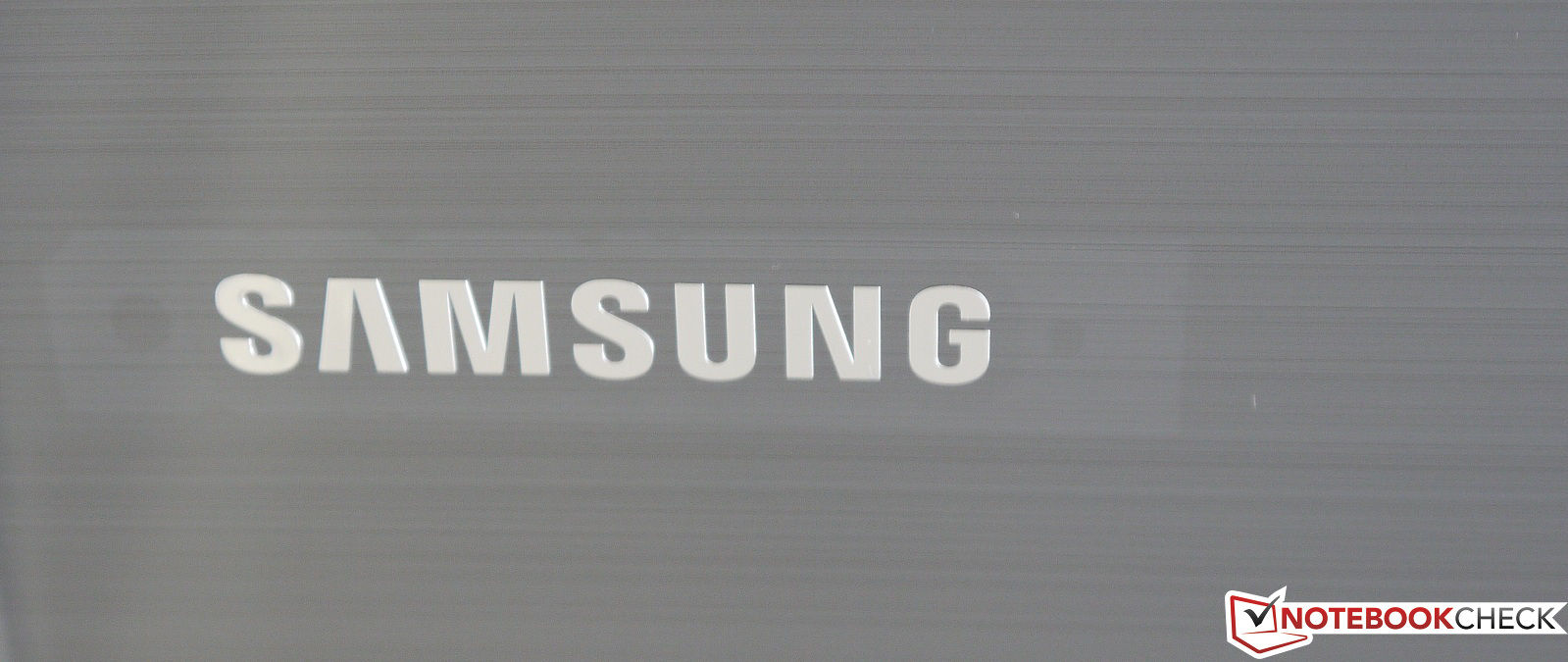

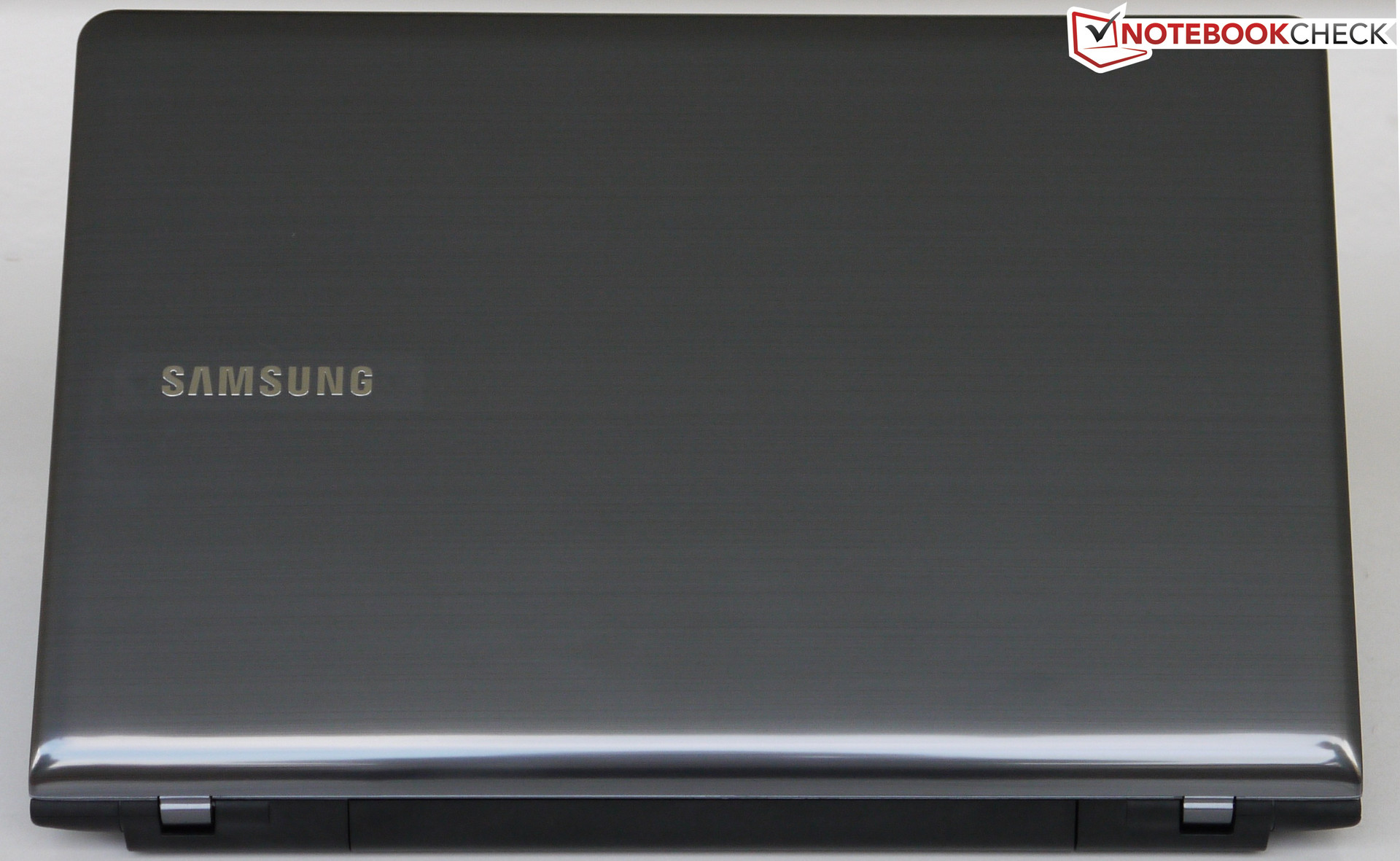

Plastic is the main material of choice for the Samsung 355V5C in order to lower costs. The display lid is clad in shiny gray plastic. While opening the notebook, the user is greeted by a matte surface. For those that don't take a liking to the gray display lid, there are also the colors blue and pink available as alternative choices. The color of the keyboard area and the palm rest also change accordingly. Regardless of this, the bottom of the notebook remains black in any case.

When it comes to the build, Samsung has allowed a few considerable blunders to sneak in. The sides, for example, don't have perfectly sharp edges, and the gaps between adjacent panels are not even in some places. The resistance to pressure on the other hand is reasonably good, while only the left and right sides of the keyboard can easily be dented inwards. The palm resting area on the other hand only gives way with a lot of pressure. Another positive is the optical drive, which is firm and doesn't wobble in its slot. In many cases this is an area of criticism for notebooks in this price segment.

The display is held in place by two hinges which aren't able to prevent teetering of the display. Nevertheless, these are still too stiff to allow the display to be opened easily with one hand.

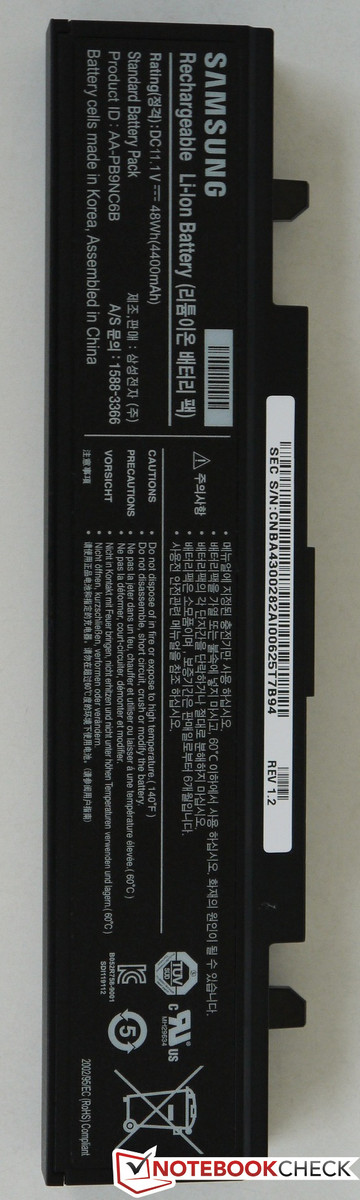

The battery is located on the bottom of the device, and is held in place by two hooks, and can be removed if required. Access to the cooling system in order to clean it is not possible with this Samsung notebook.

塑料是主要材料的选择为三星355V5C在为了降低成本。显示屏盖覆盖着闪亮的灰色塑料。用户打开笔记本电脑,映入眼帘的是磨砂表面。对于那些不喜欢灰色的显示屏盖,也有蓝色和粉红色可作为替代选择的颜色。在键盘区和掌托的颜色也发生相应的变化。不管怎样,在任何情况下,笔记本电脑的底部仍然是黑色。



例如,当谈到构建,三星已经允许一些相当大的失误偷偷英寸的两侧,不完美锋利的边缘,与相邻面板之间的差距,甚至在一些地方。的压力,另一方面是合理的良好的电阻,而仅在键盘的左侧和右侧,可以很容易地被削弱的向内。另一方面手掌休息区,只让与了很大的压力。另一个值得肯定的是,这是坚定的,不会摇晃在其插槽中的光盘驱动器。在许多情况下,这是一个区域的批评,在这个价位段的笔记本电脑。



的显示被保持在适当位置,由两个铰链,它们是无法防止的显示摇摇欲坠。然而,这些仍然是过于僵硬,允许用一只手轻松打开显示屏。



的移动设备的底部上的,电池位于由两个钩被保持在适当位置,并且如果需要的话,可以除去。访问的冷却系统,以清除是不可能的,这款三星笔记本。

Connectivity

From the perspective of interfaces, all the most important connectivity options for multimedia use should be included. And the new USB standard 3.0 wasn't forgotten either. An ExpressCard slot for the addition of further interfaces such as FireWire or eSATA, has been omitted.

All the interfaces have been spread across the sides of the notebook. Whereby there are two USB ports on either side such that two Y-cables can be used. The two USB ports next to each other can however get in each other’s way if the USB sticks are too wide. In an ideal scenario, the video and LAN ports would be located at the back of the notebook in order to avoid a mess of cables on the desk. The position of the four status LEDs on the other hand is favorable, and also don't annoy the user in dark surroundings.

从接口的角度来看,最重要的多媒体应用的连接选项应包括在内。新的USB标准3.0并没有被忘记。一个ExpressCard插槽接口,如FireWire或eSATA,进一步增加了已经不见了踪影。



所有的接口都被遍布在笔记本计算机的侧面。由此有使得两个Y电缆可用于任一侧上的两个USB端口。彼此相邻的两个USB端口,但是,可以在对方的方式,如果U盘,太宽。在一个理想的情况下,将视频和LAN端口位于笔记本电脑的背面,以避免在桌子上乱七八糟的电缆。四个状态指示灯的位置,另一方面是有利的,也没有惹恼了用户在黑暗环境中。

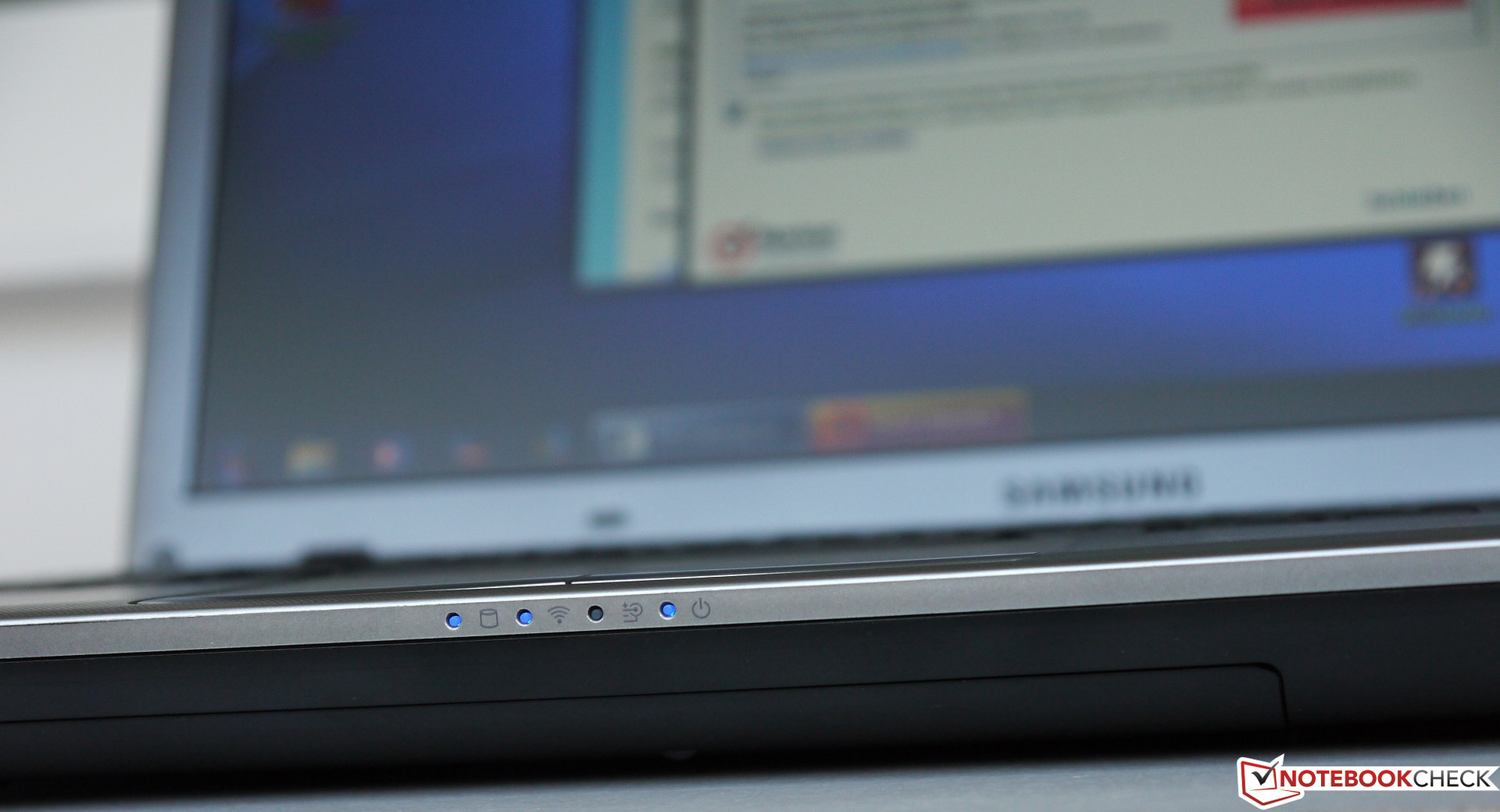

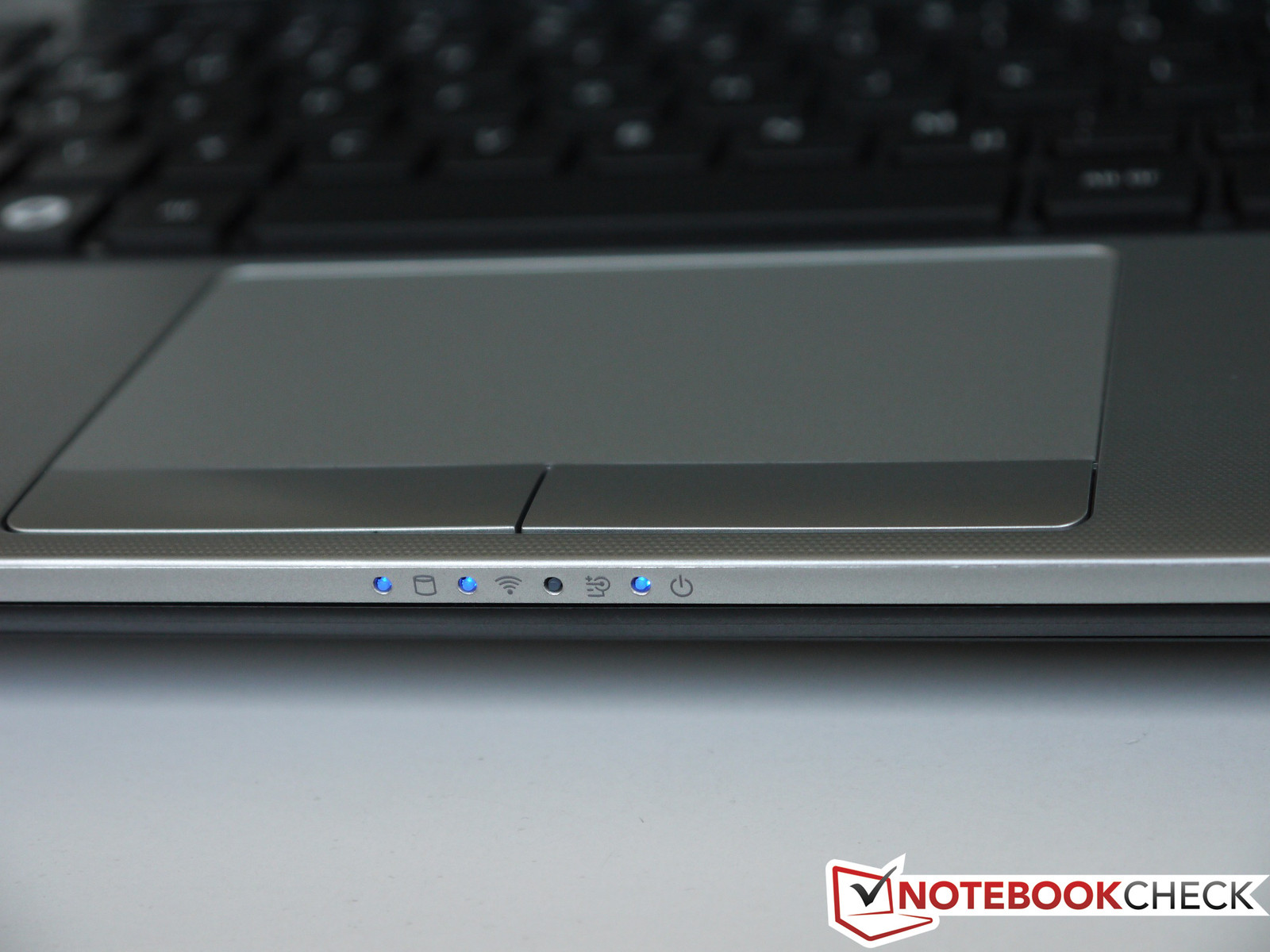

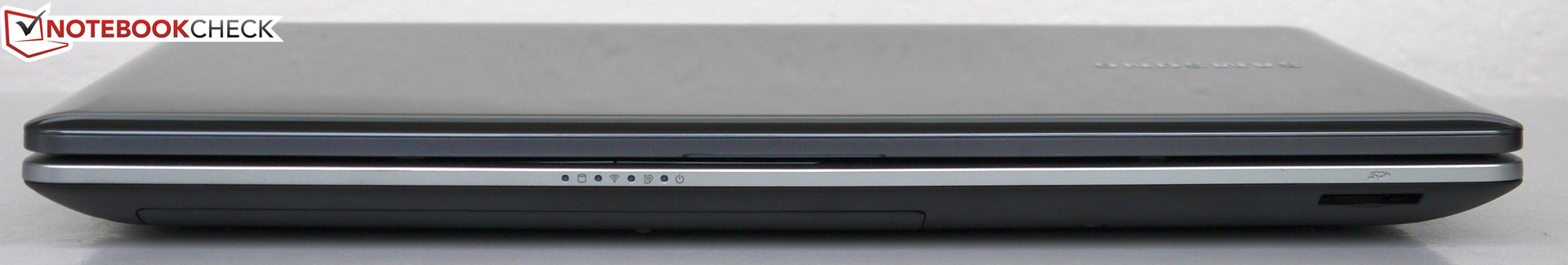

Front: Status LEDs, SD card reader
Front: Status LEDs, SD card reader

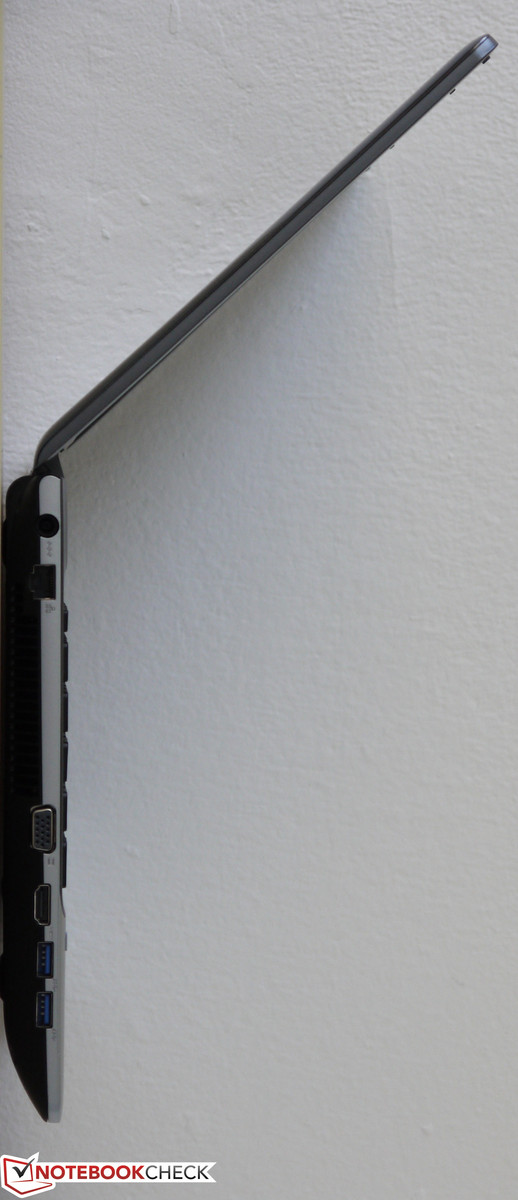

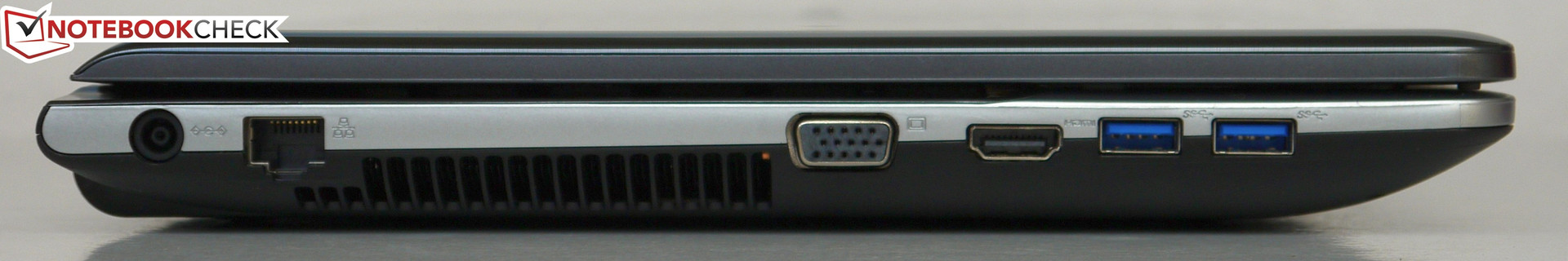

Left: Power input, GBit LAN, VGA, HDMI, 2x USB 3.0
Left: Power input, Gigabit LAN, VGA, HDMI, 2x USB 3.0

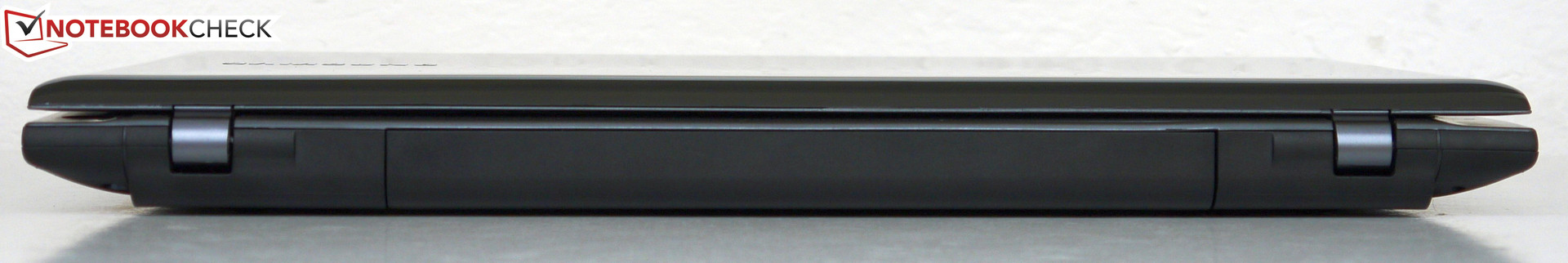

Rear: No interfaces
Rear: No interfaces

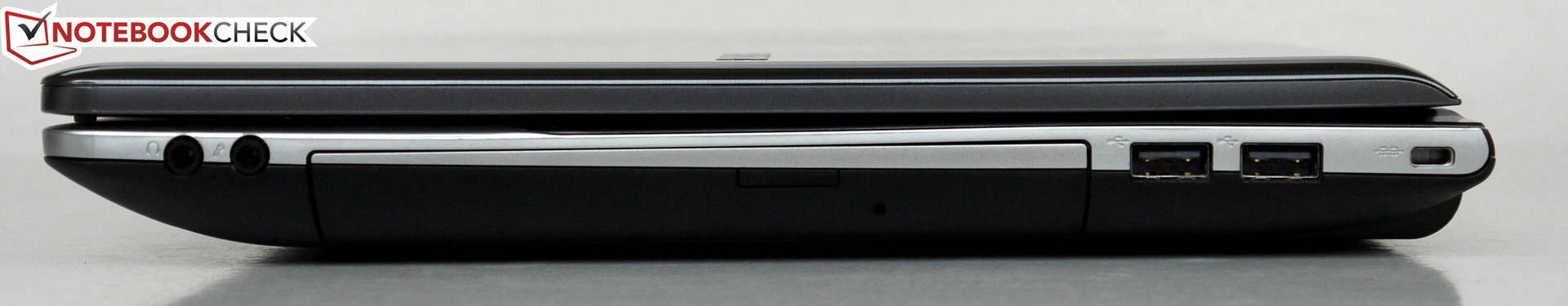

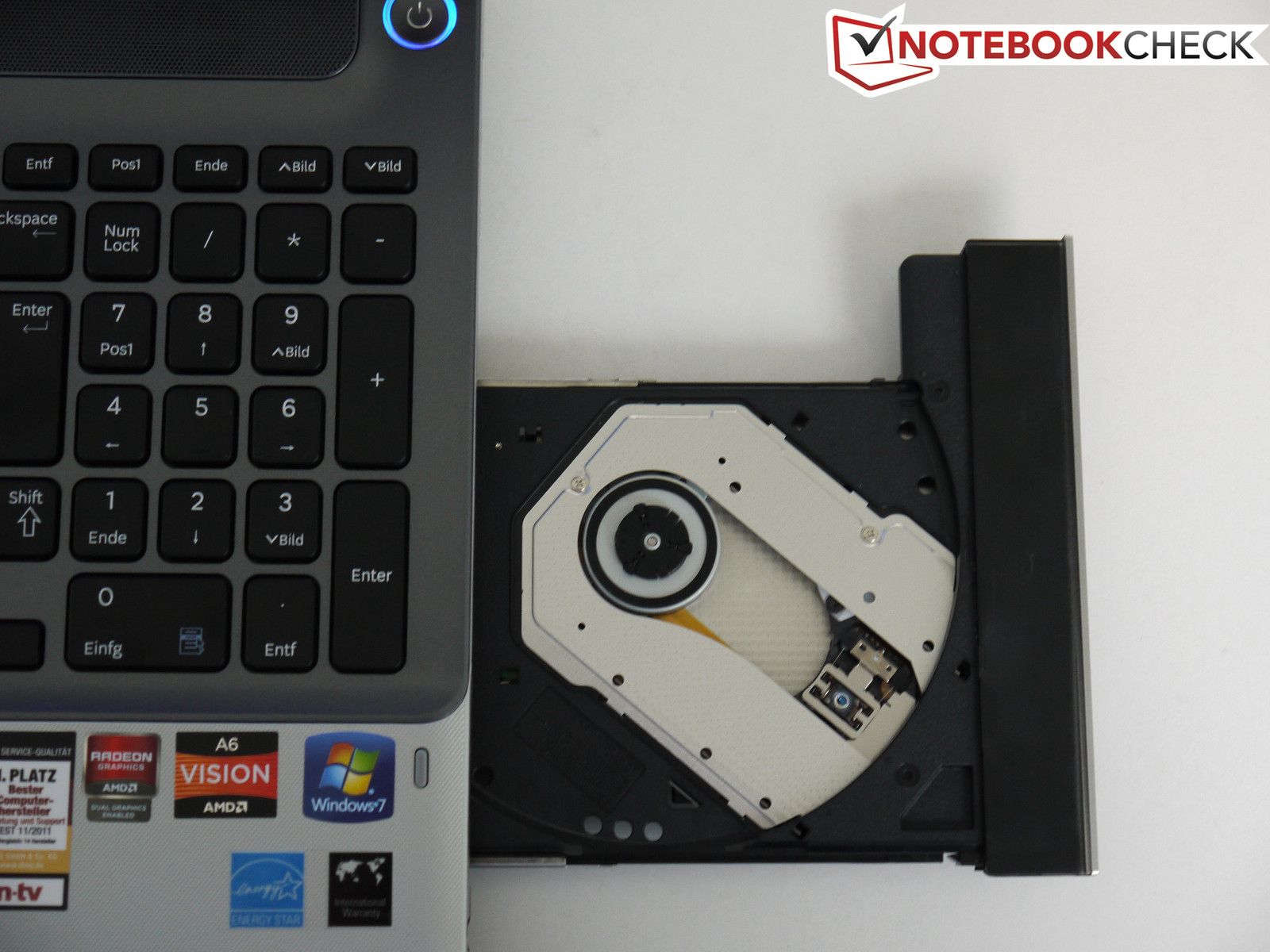

Right: Headphones, microphone, DVD burner, 2x USB 2.0, Kensington Lock
Right: Headphones, microphone, DVD burner, 2x USB 2.0, Kensington Lock
Test picture with the webcam with red tint
Test image with the webcam with red tint

Communication

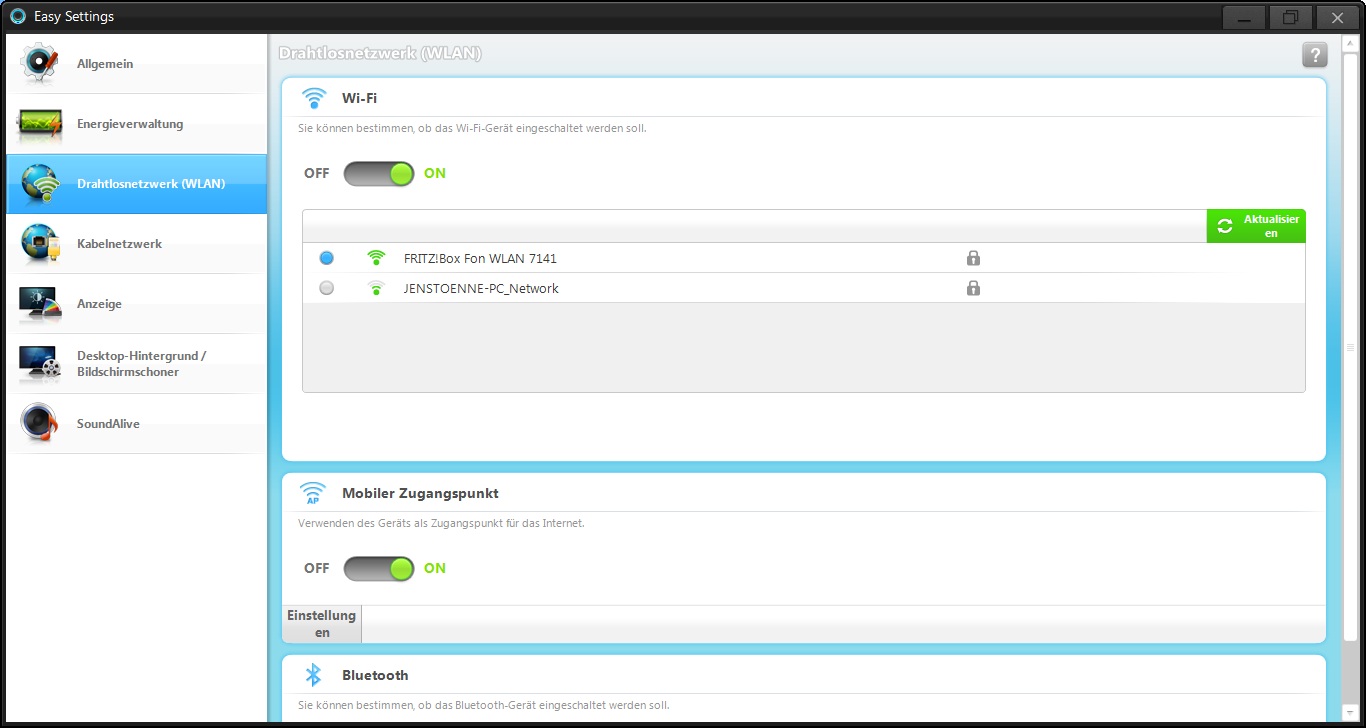

When it comes to the wireless communications options, Samsung has opted for solutions from Atheros. In this case two separate modules provide Bluetooth and WLAN. The Bluetooth 4.0 standard supported by the Atheros module AR3012, allows for communications to be established in under 5 milliseconds, which also provides for less power consumption. The Atheros AR9485 module on the other hand, offers the possibility to communicate using the WLAN standards 802.11 a/b/g/n. A further option for connecting to a network is by using the Gigabit Ethernet port, which is facilitated by a chip from Realtek.

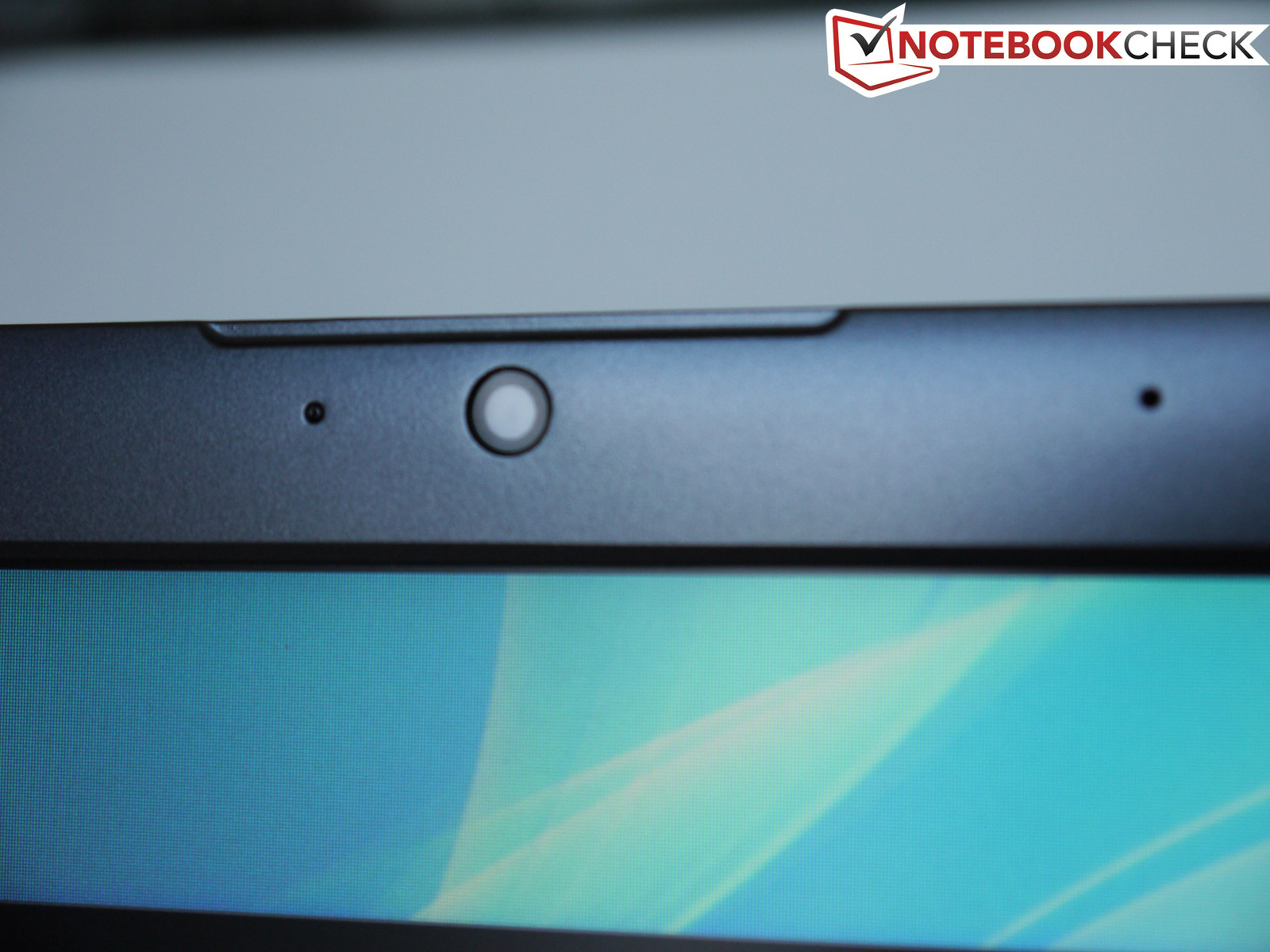

The webcam resolution is clearly too low at 640x480 pixels. A webcam with HD resolution would have been more in line with the latest trends.

Accessories

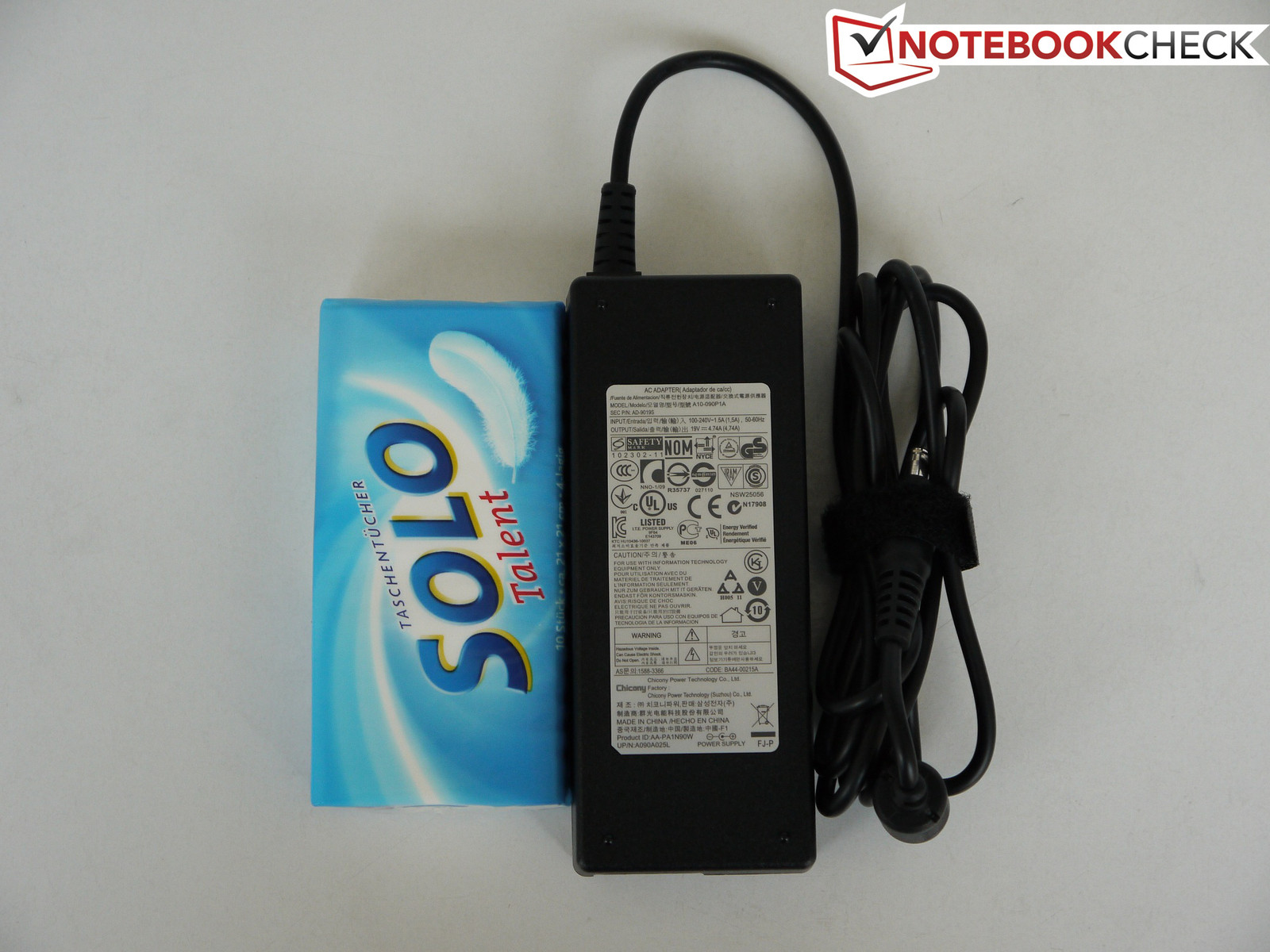

Included with the delivery is a small package with documentation, and the extremely rare System Recovery DVD, with which the system can be restored to its delivery state. Furthermore there are the battery and the AC adapter. From the software perspective, there is Office 2010 Starter, a 60 day trial version of Norton Internet Security and Cyberlink Media Suite that have been included.

Maintenance

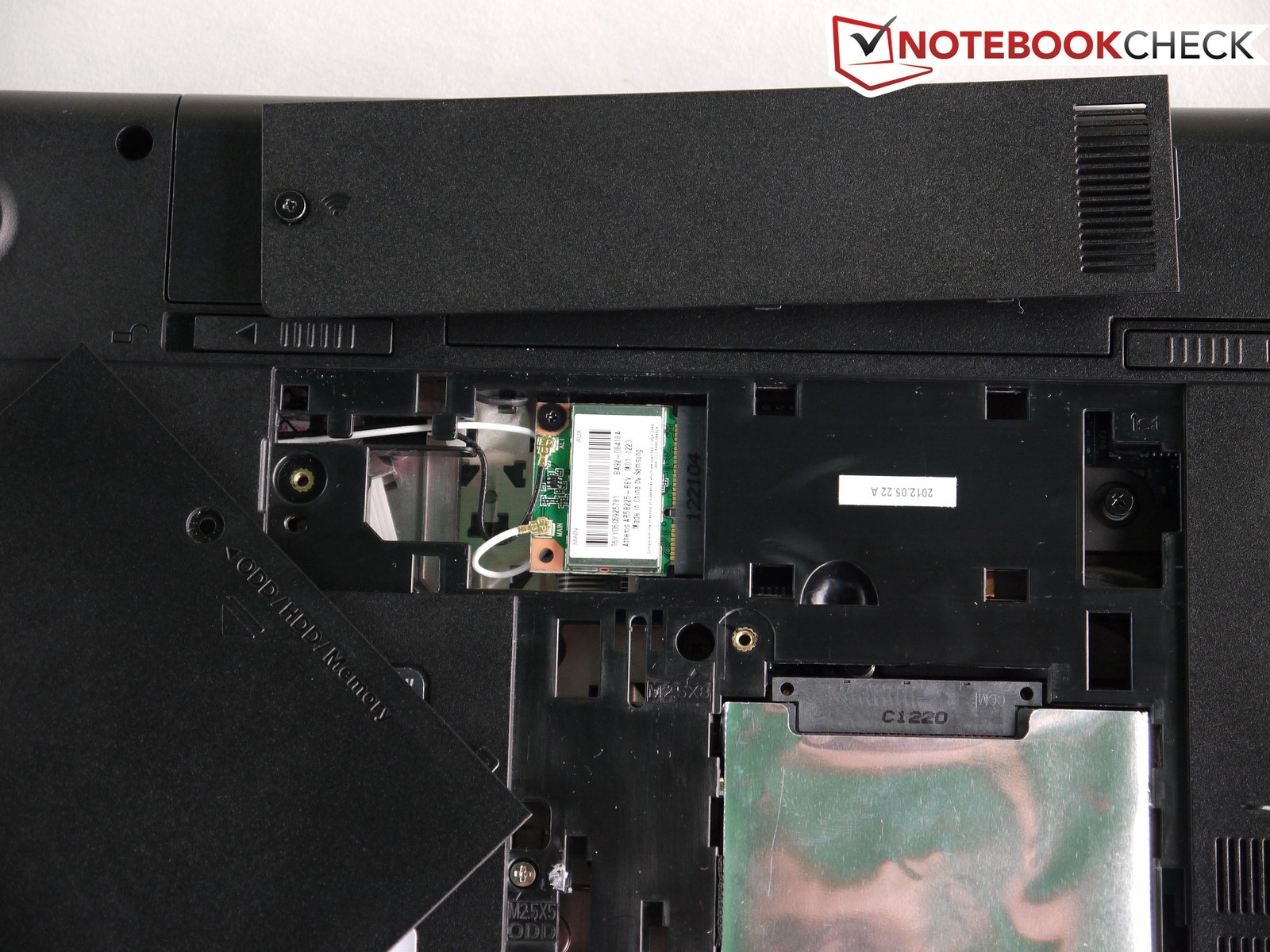

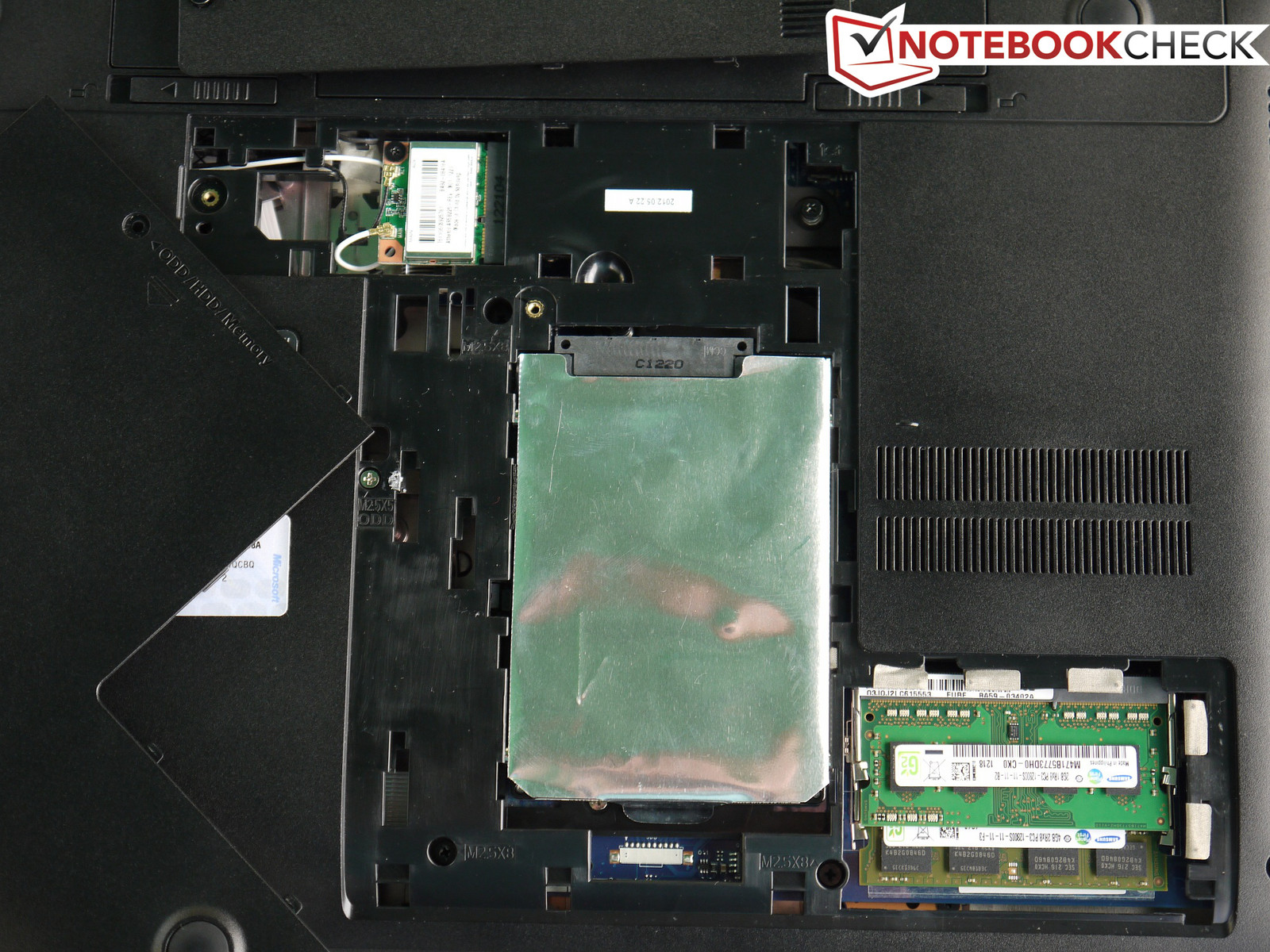

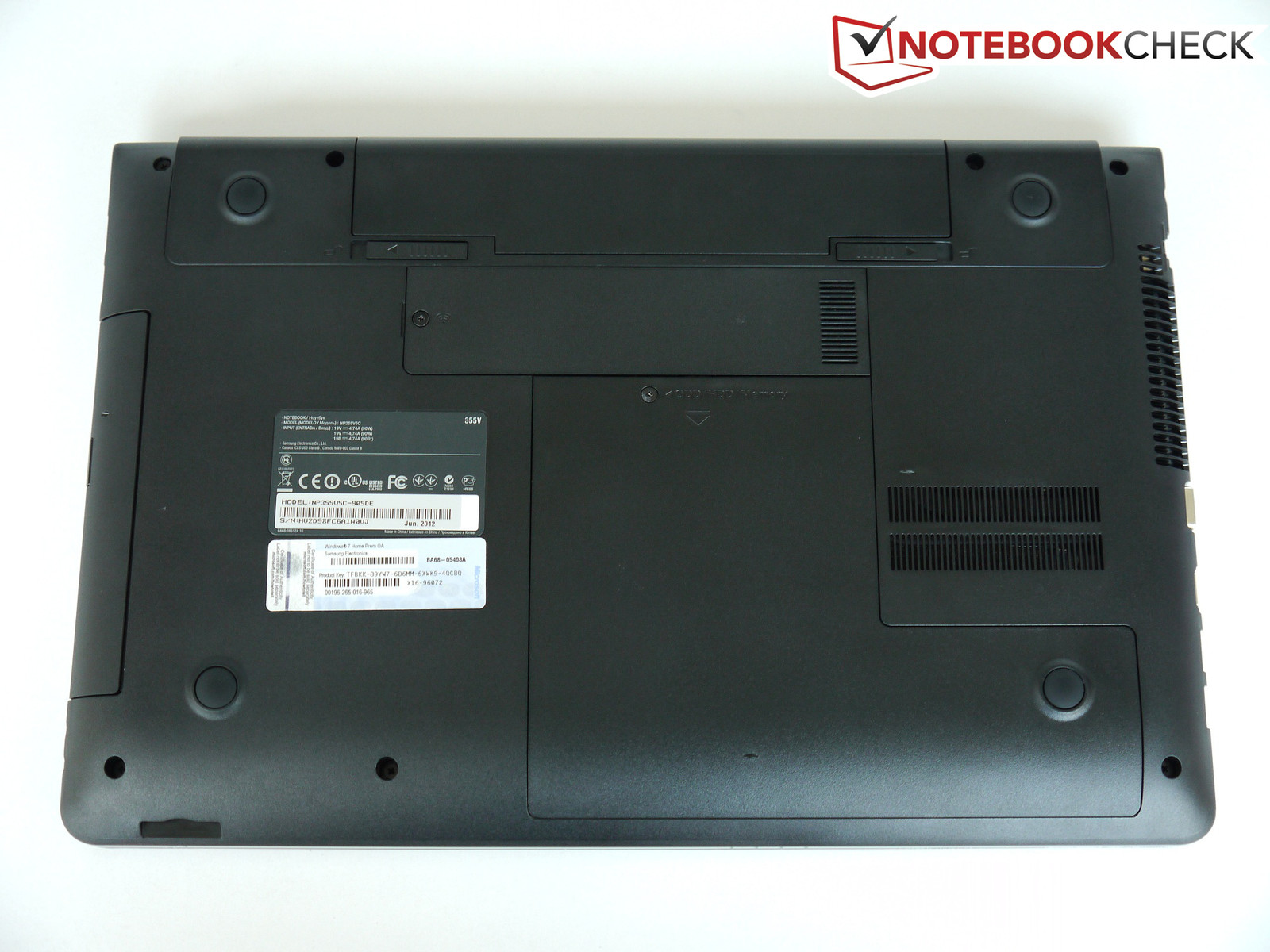

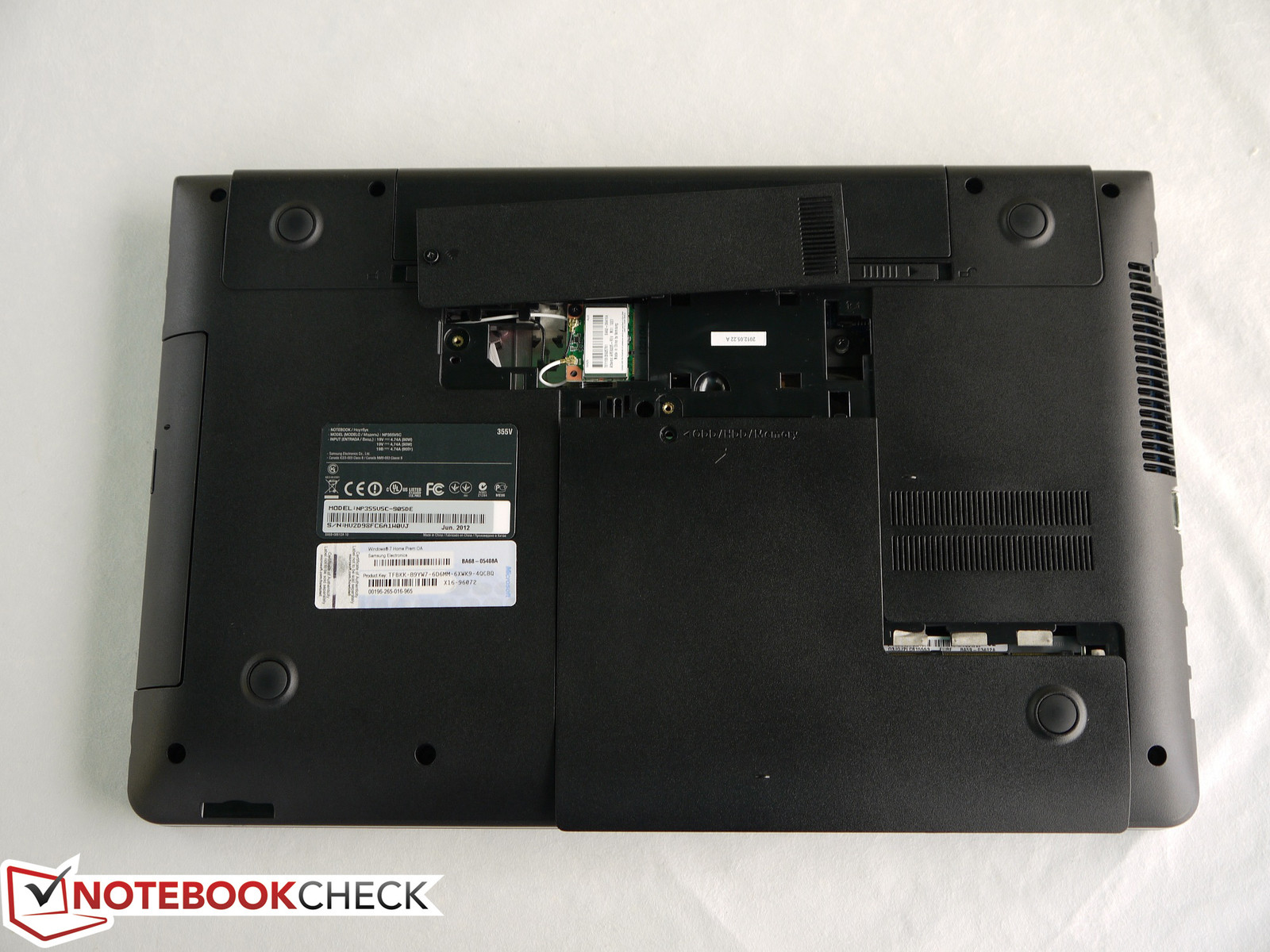

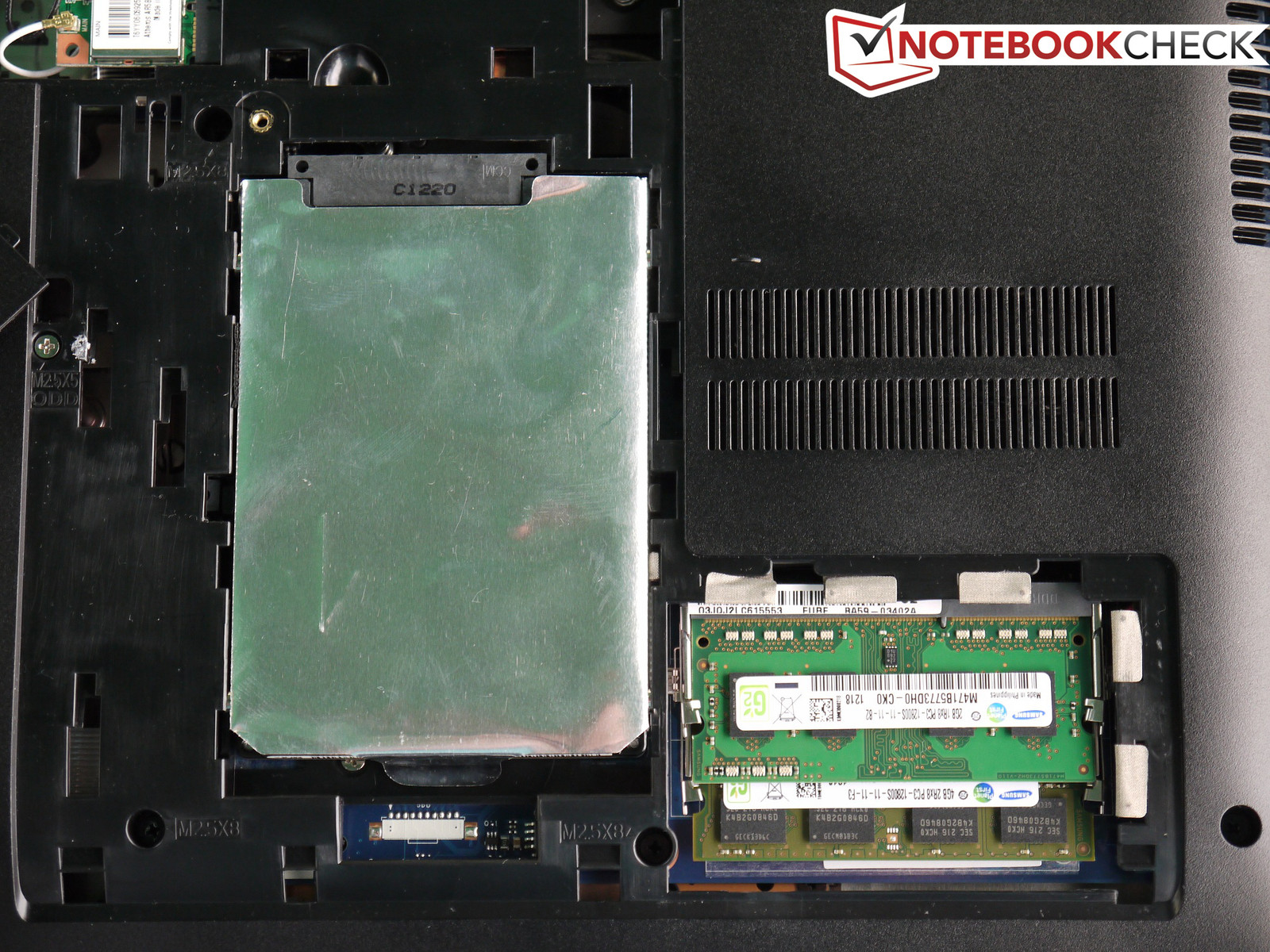

Access to the hard drive, RAM, WLAN module and the optical drive is provided by two maintenance panels. In case users are intending to replace the conventional rotating hard drive for a silent SSD, there are ample options thanks to SATA III. While the limits on extending the permanent memory are more or less unbounded, the maximum RAM capacity is limited to 8 GB. In this case, the included 2 GB module has to be replaced with one that has a capacity of 4 GB.

Warranty

Samsung always provides its products with a 24 months warranty period. An additional year of flexible manufacturer’s warranty costs an extra 69 Euro (~$90), while an extension to 48 months comes at a price of 129 Euro (~$170). The activation of the service extension has to be completed within 90 days of purchase.

通讯



当涉及到无线通信选件,三星已选择了Atheros的解决方案。在这种情况下,两个独立的模块提供了蓝牙和WLAN。支持蓝牙4.0标准模块Atheros的AR3012,允许进行通信必须建立在5毫秒,还提供了更低的功耗。 Atheros的AR9485模块,另一方面,提供了可能使用的WLAN标准802.11 A / B/ G / N。连接到网络使用的芯片来自Realtek的千兆以太网端口,这是促进进一步的选择。



网络摄像头分辨率为640×480像素显然太低。一个摄像头高清分辨率将一直线的最新趋势。



饰品

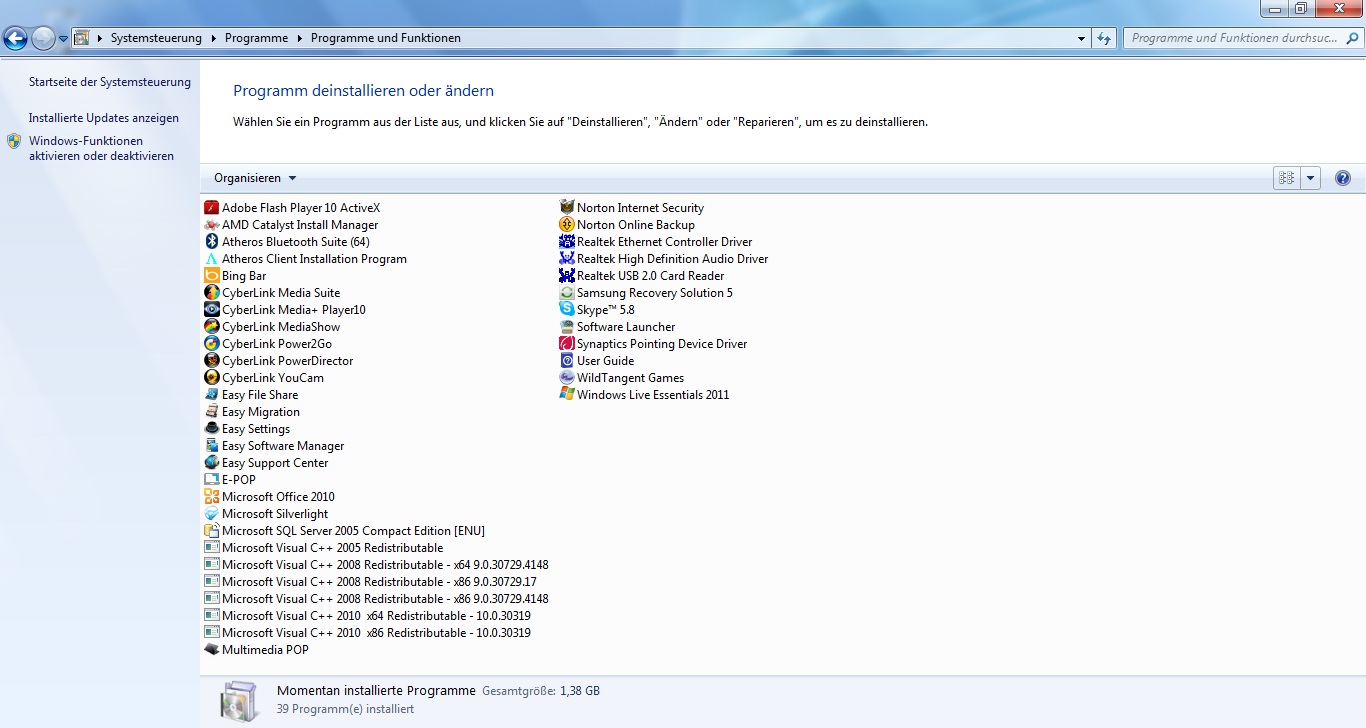

的交付是一个小包裹与文件,以及极为罕见的系统恢复DVD,系统可以恢复到其交付状态。此外,还有电池和AC适配器。从软件的角度来看,有Office 2010入门,已被列入的60天试用版的诺顿网络安全特警和Cyberlink媒体套件。



保养



访问硬盘驱动器,RAM,WLAN模块和光盘驱动器是由两个维护面板。在情况下,用户正打算以一种无声的SSD取代传统的旋转硬盘驱动器,有充足的选择SATA III。虽然都或多或少的无限延长了永久的记忆体上的限制,8 GB RAM的最大容量是有限的。在这种情况下,所包含的2 GB的模块被替换为一个有一个容量为4 GB。





三星产品提供24个月的保修期。灵活的制造商的保修额外一年的费用是额外的69欧元(约90美元),而延长至48个月的价格为129欧元(约170美元)。激活的服务扩展到在购买后90天之内完成。

Input Devices

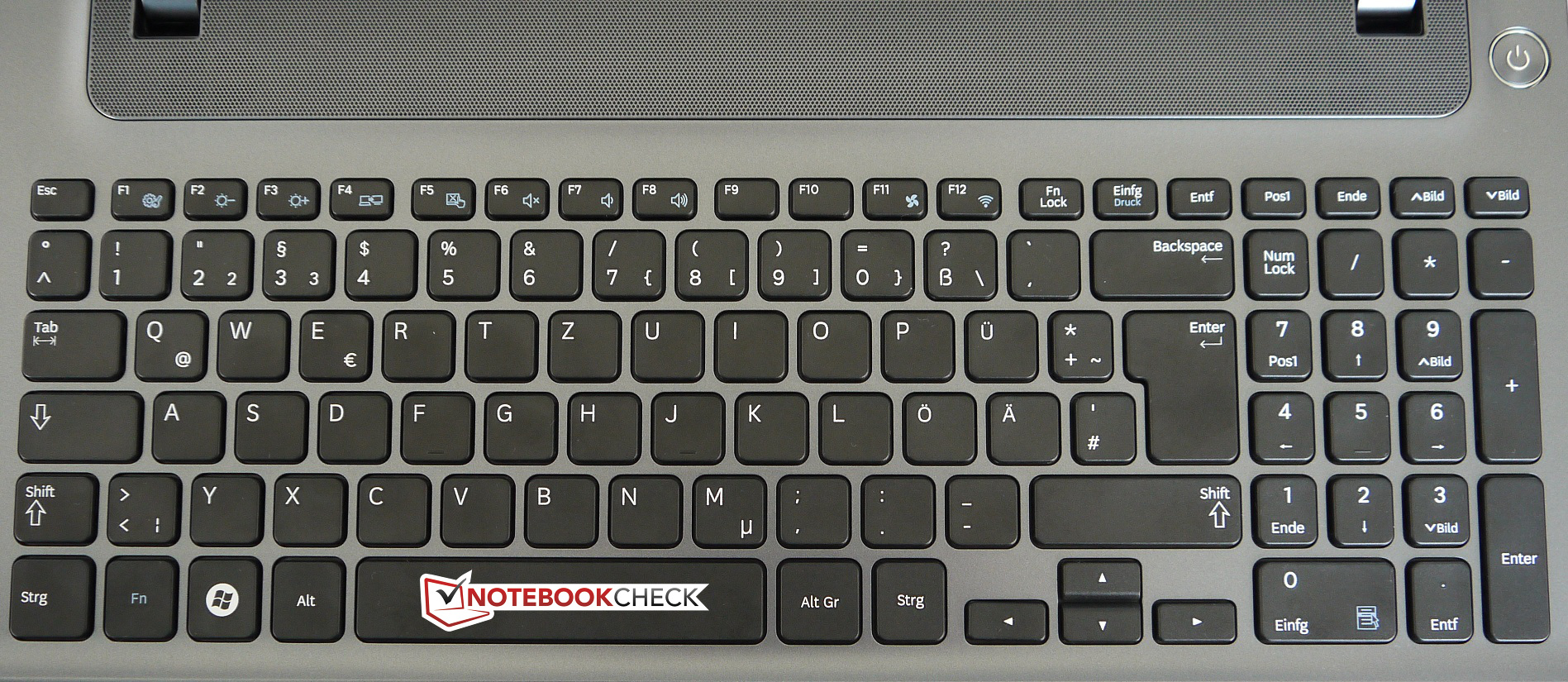

Keyboard

The keys in the chiclet keyboard have dimensions of 15.5 mm x 15 mm, and are therefore slightly rectangular. These dimensions however only apply to the normal letter keys. The width of the numeric keypad keys lies at 13.5 mm due to the lack of space. This difference is however only optically significant, and doesn't stand out in a negative way.

What is negative however, are the rattling keys and the vibration of the keyboard base when the keys are pressed quickly. In addition to this, the relatively soft pressure point of the keys is also an area of criticism. Due to these characteristics, the keyboard gives a spongy typing feeling.

Touchpad

The touchpad provides more than enough space even for big fingers, with its dimensions of 98 mm x 50 mm. Fingers glides easily and smoothly across the matte surface. Precise navigation using the touchpad should therefore not have any obstacles in its way, if it wasn't for the frustrating multi-touch scrolling. This only reacts about every fifth time to the input commands. In this case the response can be improved using the Synaptics software though, by enabling the side scroll strip. Another negative aspect is the very loud clicking mouse buttons which also come with short travel.



键盘



的巧克力键盘,键的尺寸为15.5毫米×15毫米,因此略呈长方形。然而,这些尺寸仅适用于正常的字母键。在于数字键盘键的宽度为13.5毫米,由于缺乏空间。然而,这种差异是唯一的光学显着,而并不突出,以消极的方式。



什么是负的,但是,是剑拔弩张键和键盘底座的振动,当键被按下时快速。以除了在此,相对较软的压力点的键也是批评的区域。由于这些特性,在键盘给出了海绵状的打字感觉。



触摸板



触控板提供了足够的空间,即使大手指,它的尺寸为98毫米×50毫米。手指滑动轻松,顺利地跨越了磨砂表面。因此,精确的导航使用触控板时应该没有任何障碍的方式,如果它不是为令人沮丧的多点触摸滚动。这只是反应输入命令的约五分之一的时间。在这种情况下的反应可以使用Synaptics软件虽然提高,通过使侧滚动条。另外一个不利的方面是非常响亮的点击鼠标按钮,还配备了短行程。

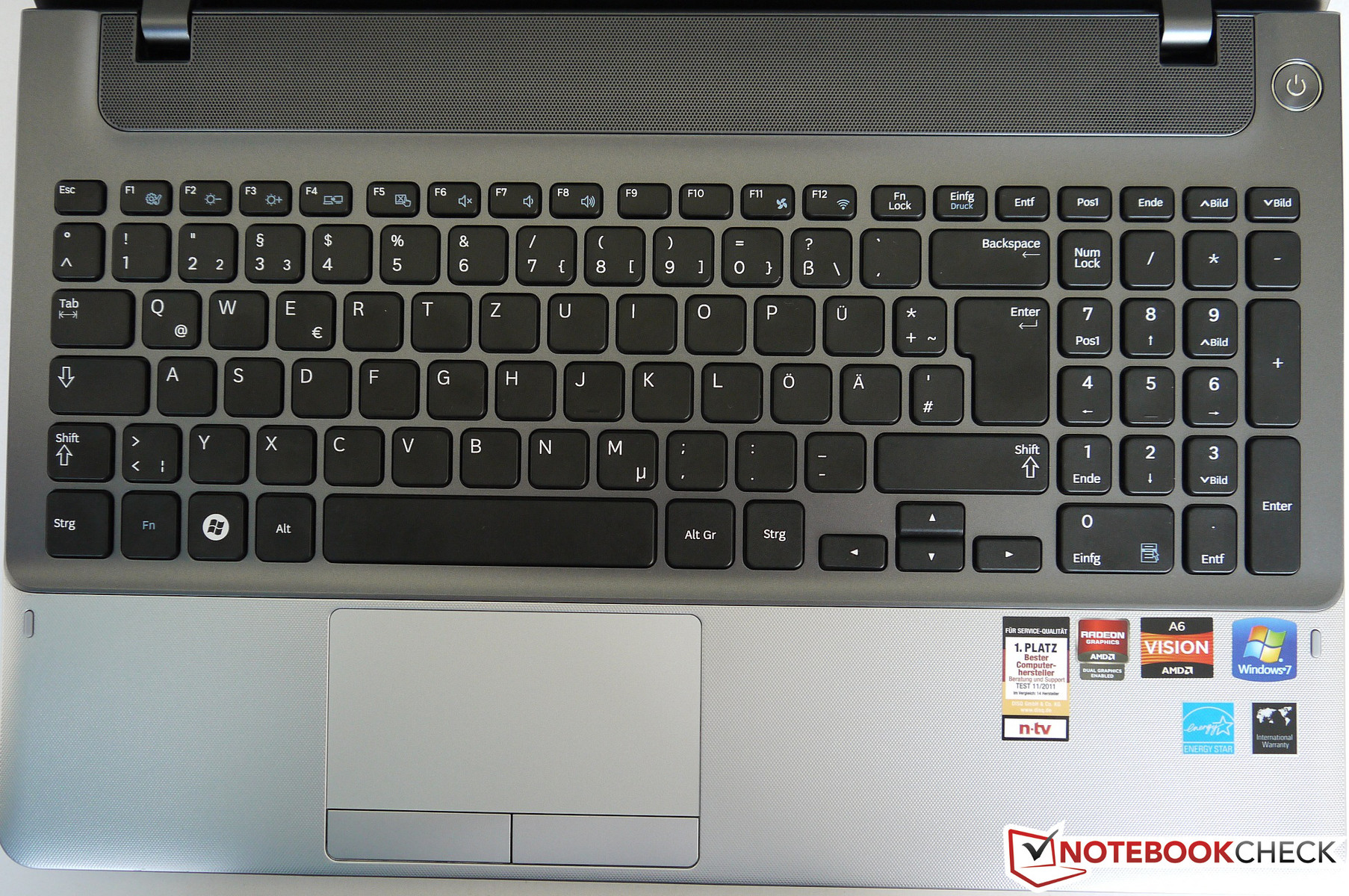

Keyboard
Keyboard

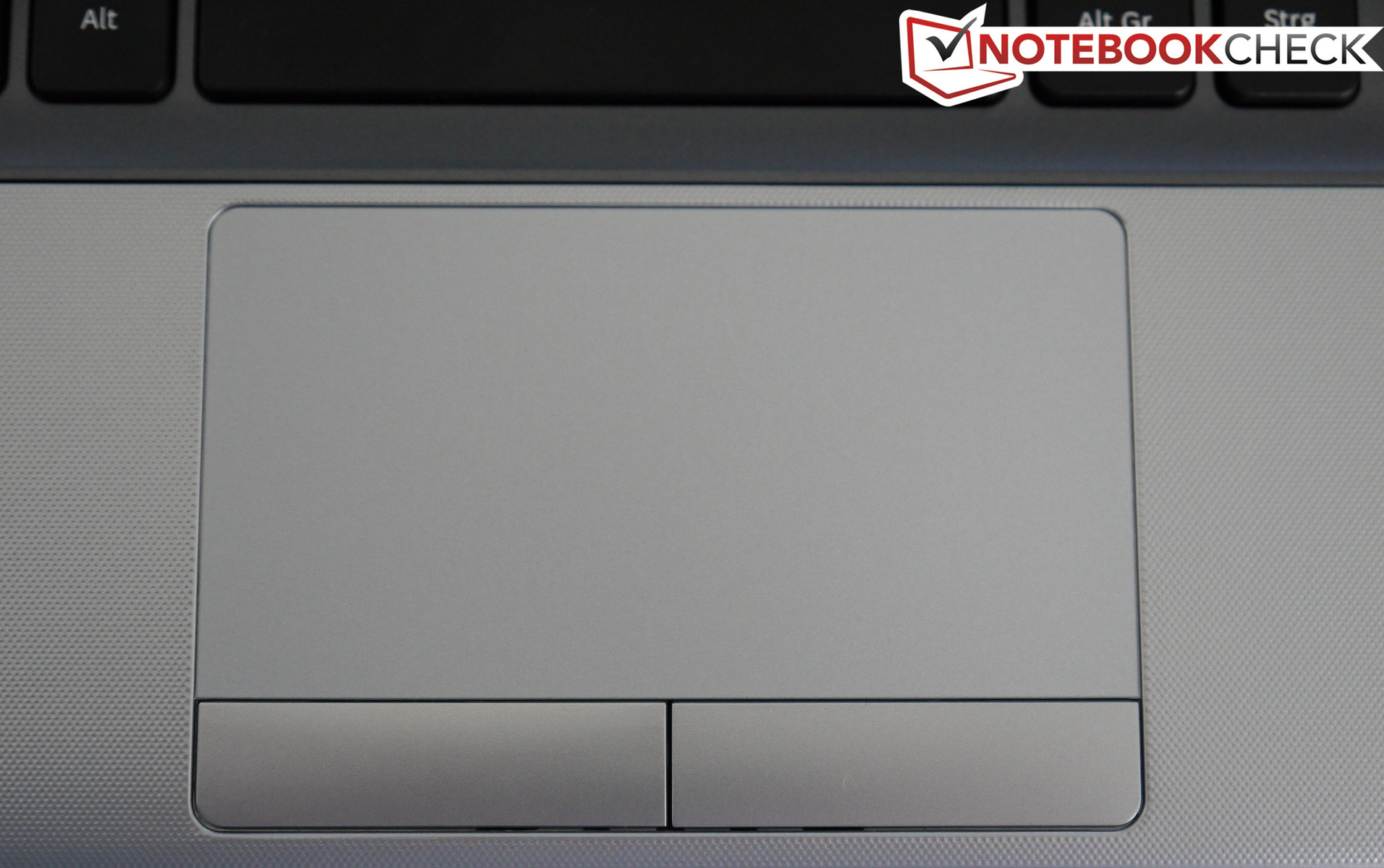

Touchpad
Touchpad

Display

The 15.6-inch display has a WXGA resolution (1366x768 pixels) and an aspect ratio of 16:9. The pixel density works out to be 100 PPI (Pixel per Inch). This is in line with some of the competition. For comparison, we have the smaller Asus Zenbook UX32VD that reaches a very high pixel density for notebooks of this size with 166 PPI. The matte display AU Optronics B156XTN02.1 houses an affordable TN panel, which is illuminated by white LEDs. A choice of other displays is not provided by Samsung for devices from its Series 3 notebooks.

15.6英寸的显示屏,具有WXGA分辨率(1366×768像素),纵横比为16:9。的象素密度是100 PPI(每英寸的像素)。这是在与一些竞争。为了便于比较,我们有较小的的华硕ZENBOOK UX32VD,达到一个非常高的像素密度,这种规模的有166 PPI的笔记本电脑。雾面显示屏AU友达光电B156XTN02.1,房屋负担得起的TN面板,这是照明的白光LED。可以选择其他显示由三星公司提供的设备系列笔记本电脑。

217
cd/m²
214
cd/m²
200
cd/m²
213
cd/m²
215
cd/m²
202
cd/m²
208
cd/m²
194
cd/m²
204
cd/m²
Distribution of brightness
AUO B156XTN02.1 tested with Gossen Mavo-Monitor
Maximum: 217 cd/m² (Nits) Average: 207.4 cd/m²
Brightness Distribution: 89 %
Center on Battery: 215 cd/m²
Contrast: 195:1 (Black: 1.1 cd/m²)51.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
70.4% sRGB (Argyll 2.2.0 3D)
49.91% Display P3 (Argyll 2.2.0 3D)

Unusual for Samsung notebooks is the very low brightness of the display. Despite the prefix SuperBright, the average brightness only reaches a mediocre 207 cd/m². The illumination distribution of 89% on the other hand stands out positively since this prevents any discrepancies from being visible. The contrast ratio of 195:1 on the other hand is too low, and can be due to the quality of the very affordable TN panel. Compared to its rivals, the contrast can however be classified as high since hardly any device in this price segment has a contrast ratio exceeding 200:1. An IPS panel cannot be expected in this price segment in any case. As a special feature Samsung has installed Movie Color Enhancer, which automatically optimizes the displayed images while playing movies.

The sRGB and AdobeRGB color spaces aren't covered by our review sample. This requirement should only apply to professional use though, who need it for editing images. Compared to the competition from Dell and Medion, the display of the reviewed device is ahead in most areas.



不寻常的三星笔记本电脑显示器的亮度是非常低的。尽管前缀超亮,平均亮度达到一个平庸的207坎德拉/平方米。另一方面,89%的照度分布的脱颖而出,正因为这样可以防止可见的任何差异。 195:1的对比度,另一方面是过低的,并可能是由于非常实惠的TN面板的质量。与它的竞争对手相比,但是,可以被归类对比度高,因为在这个价位段几乎没有任何设备,对比度超过200:1。在任何情况下,不能指望在这个价格段的IPS面板。作为一个特殊的功能,三星已经安装了的电影彩色增强,自动优化显示图像,同时播放电影。



sRGB和AdobeRGB色彩空间,不包括在我们的评测样机。这项规定应仅适用于专业用途,但是,谁需要它用于编辑图像。戴尔和Medion的竞争相比,审查设备的显示是领先的大部分地区。

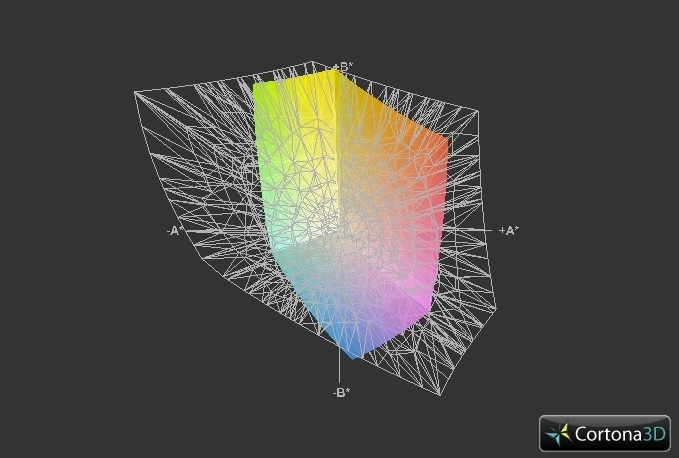

NP355V5C vs. AdobeRGB (t)
NP355V5C vs. AdobeRGB (t)

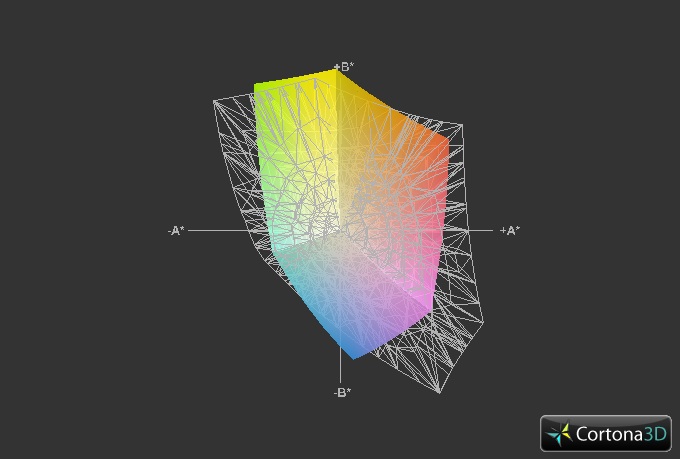

NP355V5C vs. sRGB (t)
NP355V5C vs. sRGB (t)

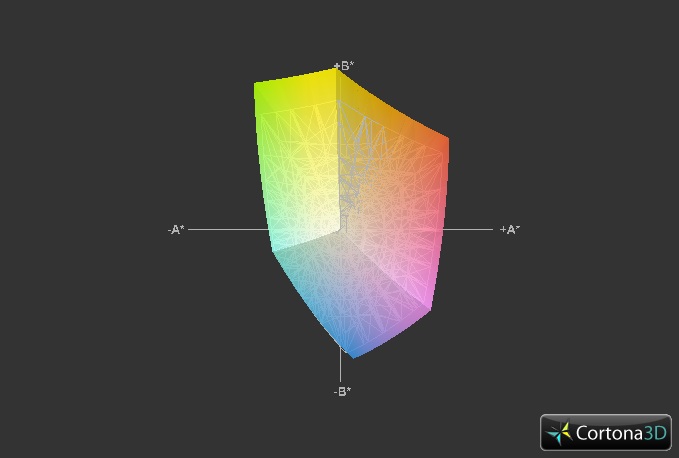

NP355V5C vs. Medion P6812 (t)
NP355V5C vs. Medion P6812 (t)

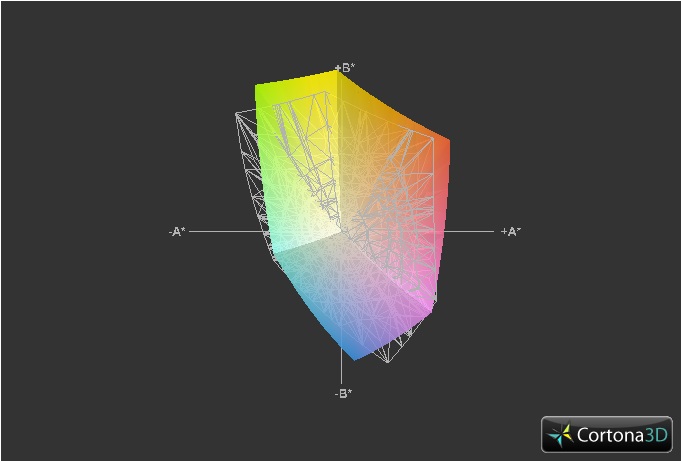

NP355V5C vs. Dell Vostro 3550 (t)
NP355V5C vs. Dell Vostro 3550 (t)

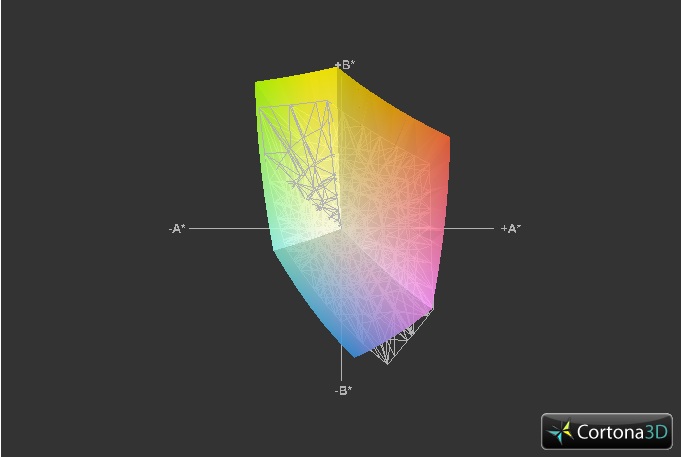

NP355V5C vs. Samsung 300E5A (t)
NP355V5C vs. Samsung 300E5A (t)

Outdoor use with the Samsung 355V5C is only recommendable in the shade, despite the matte display surface. With direct sunlight, the brightness of the display is quickly trumped, preventing recognition of the displayed images. And also with strong shadows, due to light from behind the screen, the contents of the display are difficult to discern.

户外使用与三星355V5C是唯一值得推荐的在树荫下,尽管雾面显示屏表面。阳光直射,显示器的亮度迅速捏造,防止所显示的图像识别。并且还带有强烈的阴影,由于光线从屏幕后面,显示的内容是难以辨别。

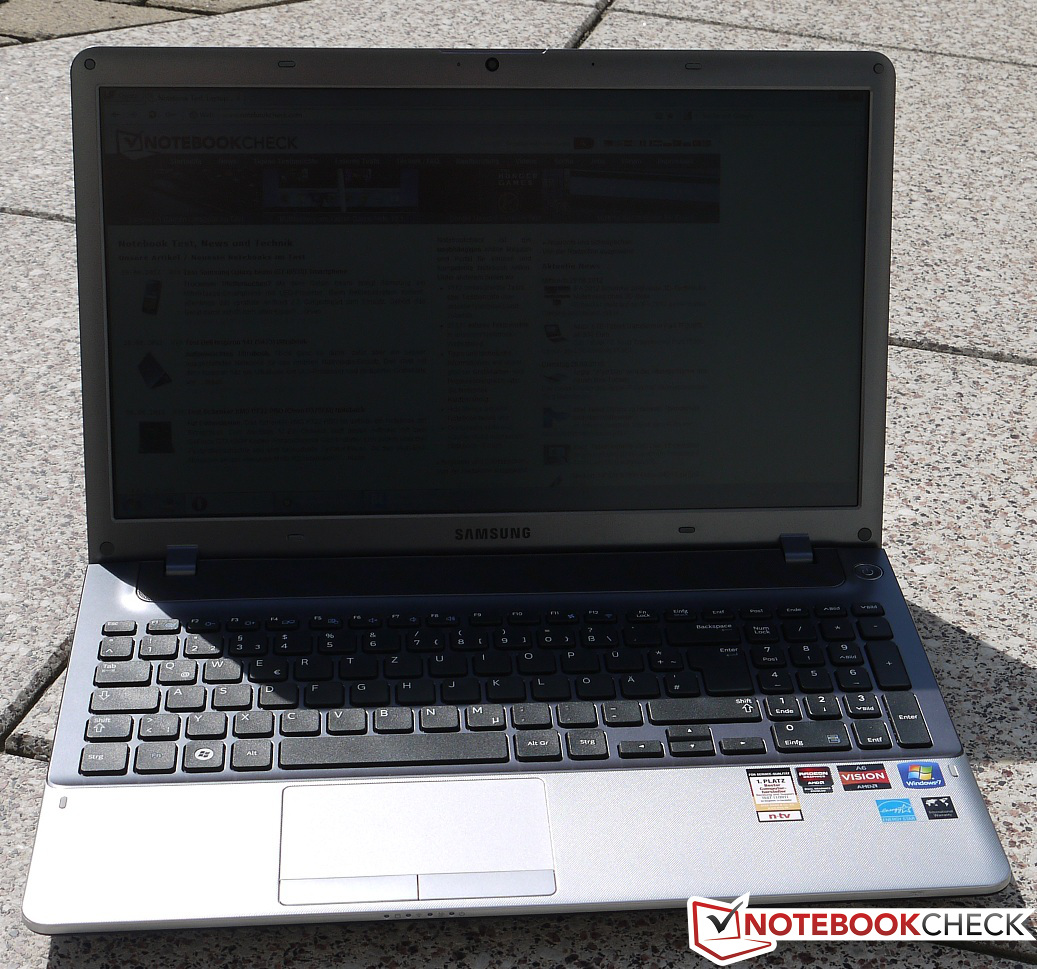

Direct sunlight
Direct sunlight
Use with strong shadow
Use under a shadow

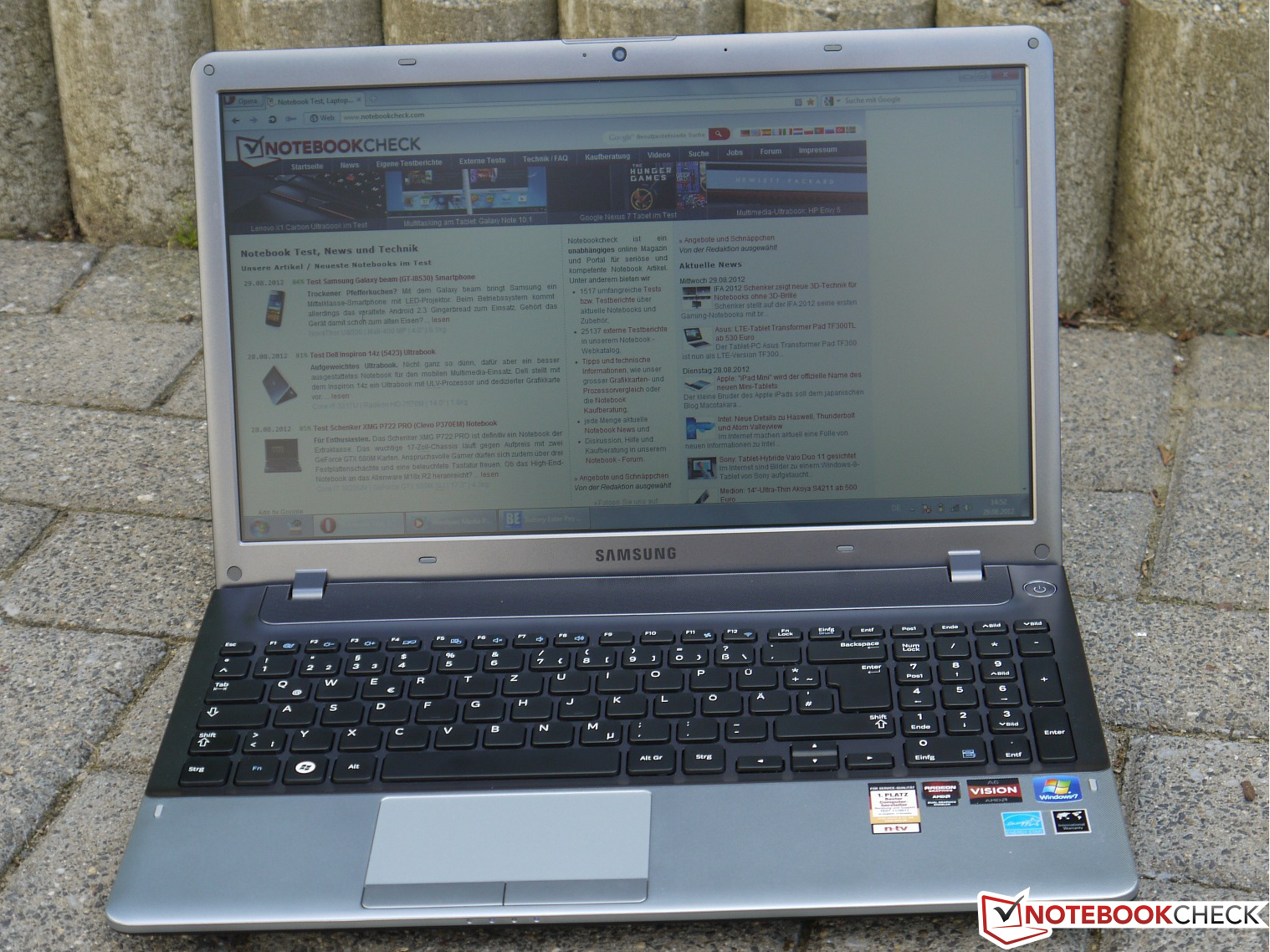

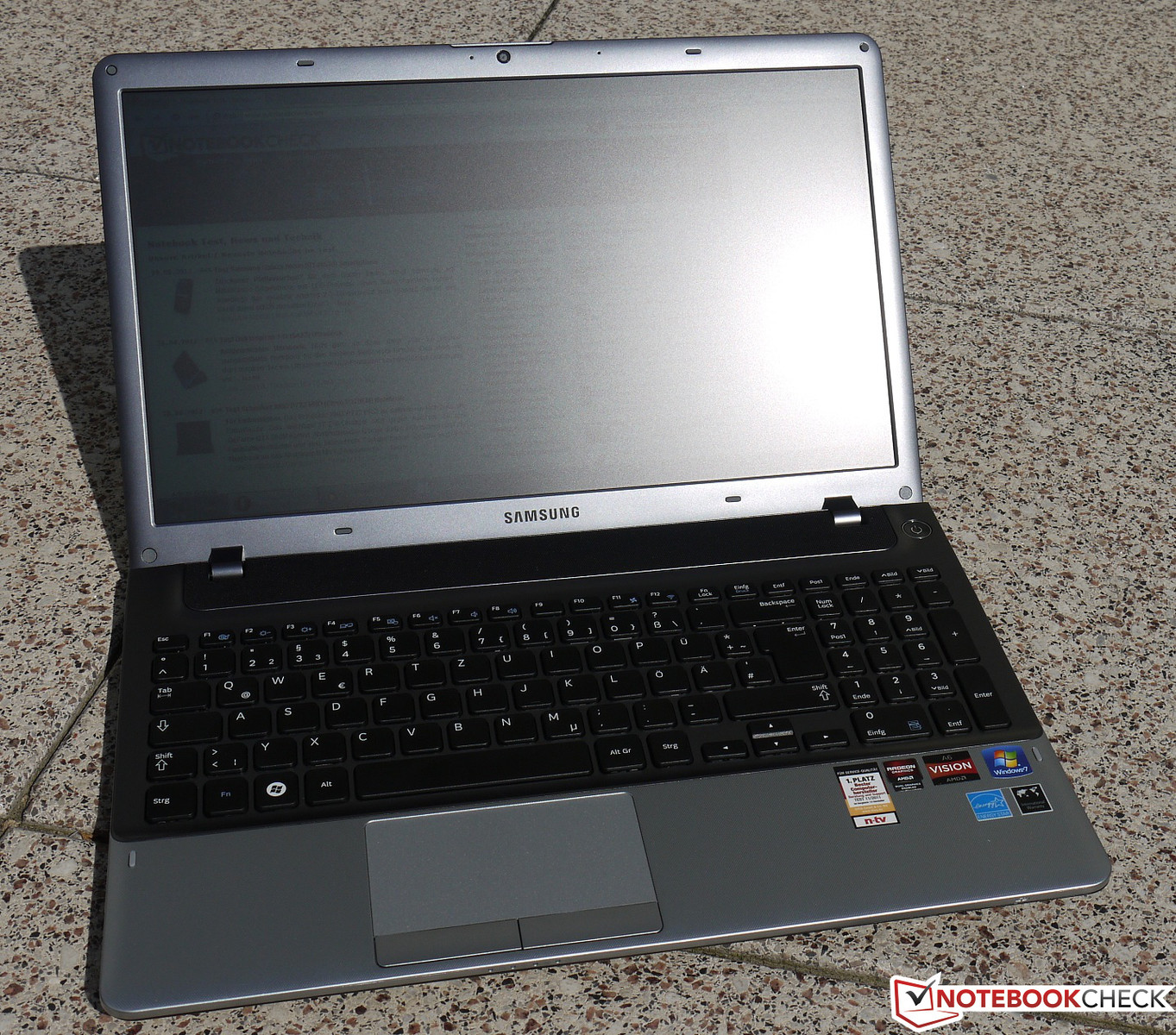

Outdoor use in the shade
Outdoor use in the shade

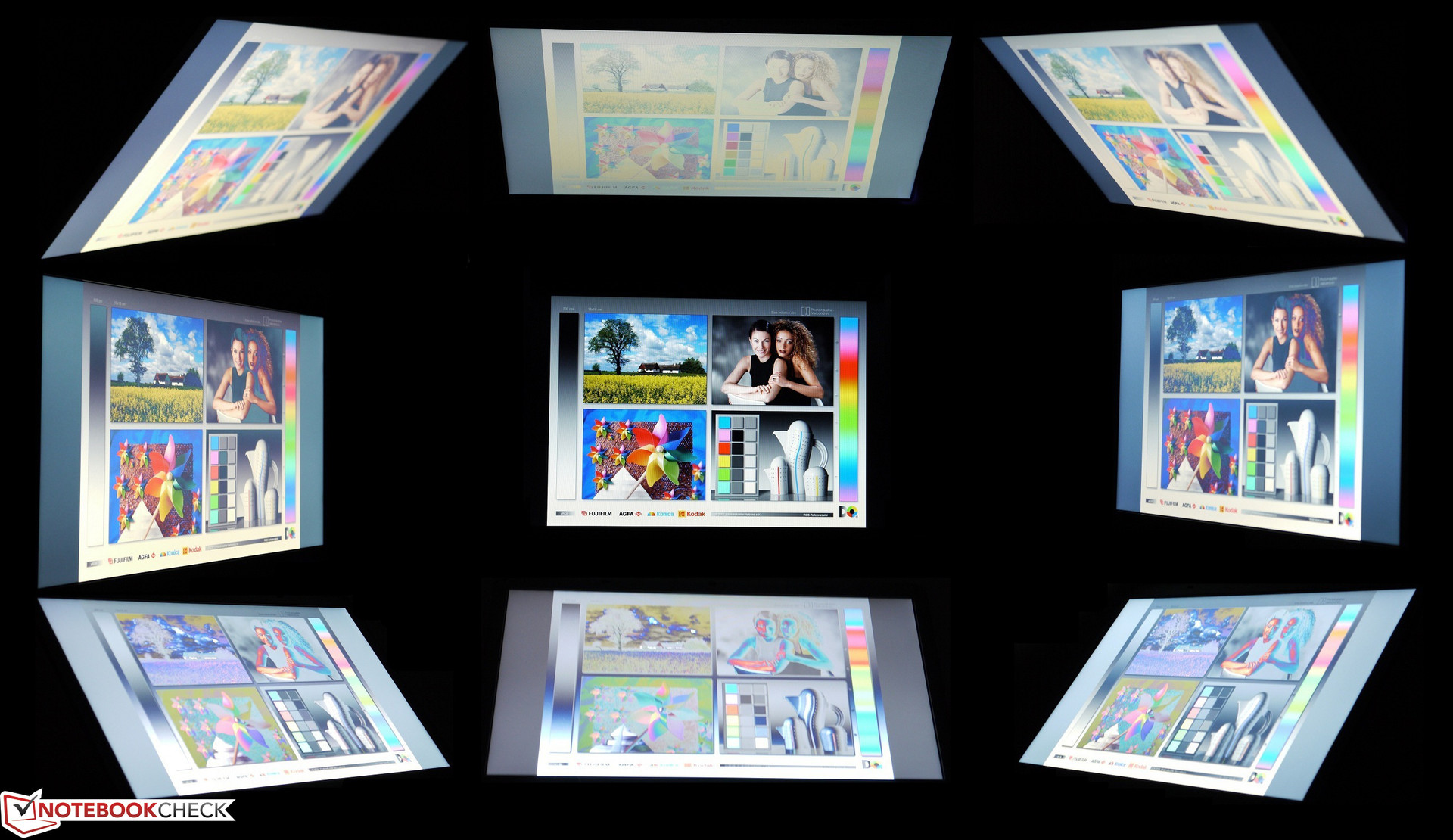

The viewing angles are also not able to make a good impression due to the TN panel. An inversion of the colors is noticeable from every angle except the ideal viewing position. Thus the display is only really perfect for someone sitting directly in front of the notebook.

Viewing angles Samsung NP355V5C-S05DE
Viewing angles of the Samsung NP355V5C-S05DE

Performance

The Samsung 355V5C is available in several different configurations. When it comes to the CPU, the buyer has the option of choosing between three Trinity based processors, the AMD A6-4400MA8-4500M and the quad-core A10-4600M. For graphics processing, the graphics unit integrated into the CPU can be relied upon, or the separate AMD Radeon HD 7670M graphics card with 1 or 2 GB of DDR3 memory can be used. The RAM can be expanded up to a maximum of 8 GB and the hard drive can have a capacity of between 500 and 1000 GB. For those that would prefer to leave the processing to an Intel processor, there is also the identical Samsung 350V5C with an i5 or i7 CPU from the Ivy Bridge generation. Our reviewed device is equipped with the slowest of the processors from the Series, the A6-4400M and 6 GB of DDR3 RAM. Along with this, there is a 750 GB hard drive and an AMD Radeon HD 7670M graphics card with 2 GB of DDR3 memory. With these features, the reviewed device should easily be suitable for internet surfing, HD video playback, Office tasks and occasional gaming.

三星355V5C是在几个不同的配置。当涉及到CPU,买方有三个三位一体的处理器,AMD A6-4400M,A8-4500M四核A10-4600M之间进行选择的选项。对于图形处理,图形单元集成到CPU可以依赖,或1或2 GB DDR3内存的AMD Radeon HD7670M的独立显卡,都可以使用。最多可扩充至最大8 GB的硬盘驱动器的容量在500和1000之间GB的RAM。对于那些宁愿离开Intel处理器的处理,也有i5或i7 CPU的Ivy Bridge世代的相同的三星350V5C的。我们审查的设备配备最慢的处理器系列,A6-4400M和6 GB的DDR3内存。伴随着这一点,有一个750 GB硬盘和AMD Radeon HD7670M的显卡,2 GB的DDR3内存。有了这些功能,审查设备应该很容易适用于网上冲浪,高清视频播放,Office任务和不定期的游戏。

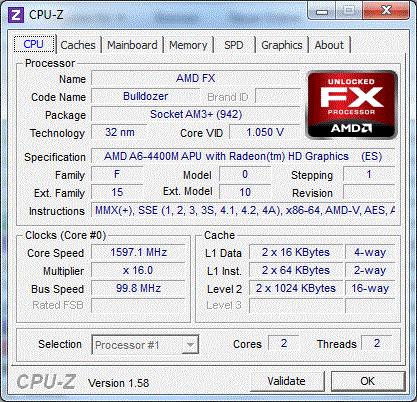

Systeminfo CPUZ CPU

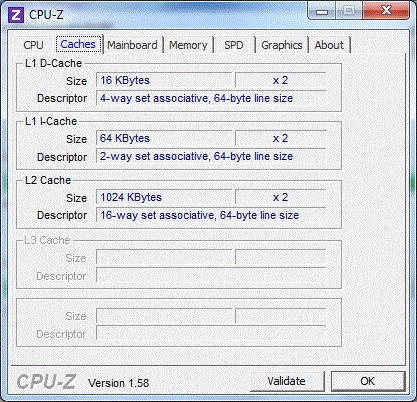

Systeminfo CPUZ Cache

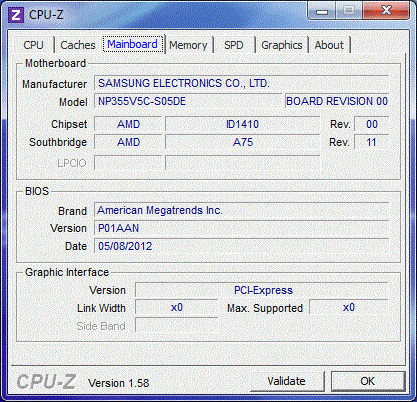

Systeminfo CPUZ Mainboard
Systeminfo CPUZ RAM

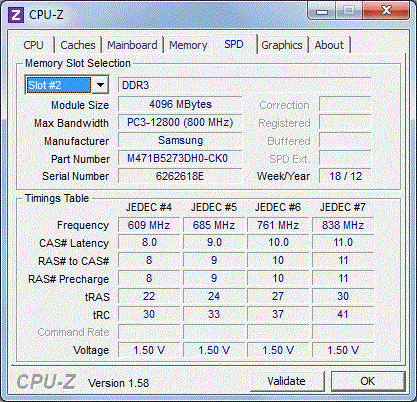

Systeminfo CPUZ RAM SPD

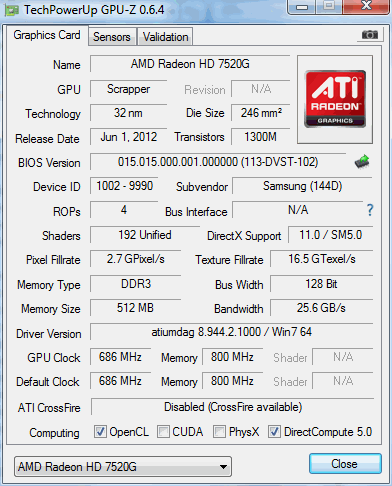

Systeminfo GPUZ

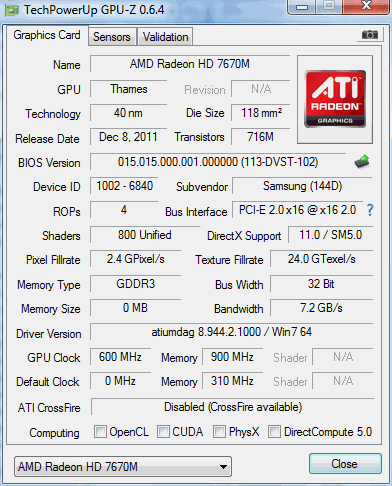

Systeminfo GPUZ 7670M
Systeminfo HDTune

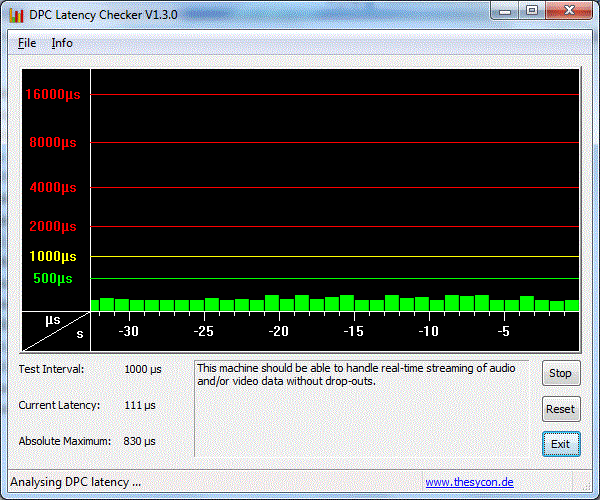

DPC Latenzen

System information Samsung NP355V5C-S05DE

Processor

The dual-core processor A6-4400M from AMD has a clock speed of 2.7 GHz when both cores are used, and can increase up to 3.2 GHz for single-thread applications. When selecting the Silent-Mode on the other hand, the power saving profile is activated, and the clock speed reduces to 1.4 GHz in order to lower the power consumption.

With the Cinebench R11.5 multi-core benchmark, the CPU already proves to be overwhelmed when compared to the Intel Pentium P6000, and falls 20% behind. The Intel Core i3-2330M meanwhile races far ahead, providing more than double the performance. Nevertheless, the maximum performance can also be counted on when battery powered. The Silent-Mode meanwhile leads to a performance reduction of 52 %.



从AMD A6-4400M双核处理器,时钟速度为2.7 GHz的双核,并能增加高达3.2 GHz的单执行绪应用程序。另一方面,当选择“无声模式,省电档案中被激活,并且,为了降低功耗的时钟速度降低到1.4 GHz。



CINEBENCH R11.5多核心基准,CPU已经证明了英特尔奔腾P6000相比,被淹没,后面下跌20%。英特尔酷睿i3-2330M同时比赛中遥遥领先,提供超过两倍的性能。然而,最大的性能也可以算的上电池供电时。静音模式,同时导致性能降低52%。



Cinebench R10 Rendering Single 32Bit
2239
Cinebench R10 Rendering Multiple CPUs 32Bit
3096
Cinebench R10 Shading 32Bit
5063
Cinebench R10 Rendering Single CPUs 64Bit
2990 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
4161 Points
Cinebench R10 Shading 64Bit
5142 Points
Cinebench R11.5 CPU Multi 64Bit
0.98 Points
Cinebench R11.5 OpenGL 64Bit
18.4 fps
Help
Cinebench R11.5 - CPU Multi 64Bit (sort by value)
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
0.98 Points
Acer TravelMate 5740Z-P602G25N
Graphics Media Accelerator (GMA) HD Graphics, P6000, WDC Scorpio Blue WD2500BEVT-22A23
1.18 Points +20%
Samsung 300E5A-S01
GeForce GT 520MX, 2330M, WDC Scorpio Blue WD5000BPVT-35HXZT1
2.11 Points +115%
Acer Aspire S3-391-53314G52add
HD Graphics 4000, 3317U, Hitachi Travelstar Z5K500 HTS545050A7E380 + 20 GB SSD Cache
2.4 Points +145%
Lenovo Thinkpad Edge E535-NZR5BGE
Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3
1.76 Points +80%
Acer Aspire V3-551G-10468G50Makk
Radeon HD 7660G + HD 7670M Dual Graphics, A10-4600M, Seagate Momentus 5400.6 ST9500325AS
2.01 Points +105%

System Performance

When it comes to the system performance, the reviewed device is able to make a good impression. With the PCMark 7 benchmark, the 355V5C is on a par with rivals like the Medion Akoya P6812, and the Samsung 300E5A-S01 which are both equipped with an Intel Core i3-2330M processor and an Nvidia GeForce GT 520MX or GT 555M graphics card. In addition, the Acer TravelMate 5760G-2454G50Mnsk (i5-2450M & GT 630M) is also within reaching distance with a small performance advantage of 3%. The reason for these good results is the relatively good performance of the dual graphics, the fast hard disk and 6 GB of RAM. Also the perceived performance makes a good impression, and doesn't allow for prolonged waiting times.

当涉及到系统的性能,审查设备能够留下一个好印象。 7的PCMark基准测试,355V5C MEDION AKOYA P6812,三星300E5A-S01配备了英特尔酷睿i3-2330M处理器和NVIDIA GeForce GT520MX的GT555M独立显卡,与对手一样相提并论。此外,宏碁TravelMate5760G-2454G50Mnsk(酷睿i5-2450M GT 630M)是一个小的性能优势的3%之内到达距离。这些良好的结果的原因是性能相对较好的双显卡切换,快速的硬盘和6 GB的RAM。感知性能也给人留下好印象,和不允许长时间等待时间的。

5.6
Windows 7 Experience Index
Processor
Calculations per second
5.6
Memory (RAM)
Memory operations per second
7.1
Graphics
Desktop performance for Windows Aero
5.9
Gaming graphics
3D business and gaming graphics
6.3
Primary hard disk
Disk data transfer rate
5.9
PCMark Vantage Result
4801 points
PCMark 7 Score
1600 points
Help

Storage Devices

The hard drive with a capacity of 750 GB which rotates at a speed of 5400 rpm is made by Hitachi, and despite the low rotational speed, it emits a clearly noticeable clicking sound. With an average transfer rate of 82.2 MB/s and a high burst rate of 131.1 MB/s, the HDD is nevertheless able to keep up with faster spinning hard drives. It is the access time of 19.9 ms that is a little on the slow side. An upgrade to an SSD would certainly raise the transfer rates considerably and access times as well as the system performance would also benefit from such a change. A comprehensive comparison between HDDs and SSDs can be found in our article SSDs and HDDs in comparison.

是由日立的硬盘驱动器的容量为750 GB5400转的速度旋转,尽管在低转速时,它会发出一个清晰醒目的点击声。 82.2 MB/秒,平均传输率和高爆率131.1 MB/ s的仍然能够跟上更快的高速旋转的硬盘驱动器,硬盘驱动器。它是存取时间为19.9毫秒,这是一个有点缓慢。升级到SSD肯定会大大提高传输速率和存取时间以及系统的性能也将受益于这样的变化。在我们的文章和硬盘驱动器相比,固态硬盘HDD和SSD之间的综合比较可以发现。

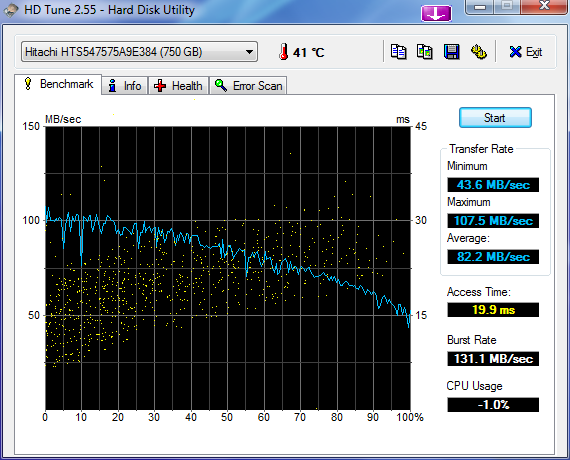

Hitachi Travelstar 5K750 HTS547575A9E384
Transfer Rate Minimum: 43.6 MB/s
Transfer Rate Maximum: 107.5 MB/s
Transfer Rate Average: 82.2 MB/s
Access Time: 19.9 ms
Burst Rate: 131.1 MB/s
CPU Usage: -1 %

Graphics Card

Our reviewed device offers the possibility to choose between two different graphics cards or to run both graphics accelerators together. Hereby there is the choice between the graphics unit integrated into the CPU, the AMD Radeon HD 7520G or the Radeon HD 7670M, which can make use of up to 2 GB of graphics memory. As standard, the dual graphics option is activated in the driver options.

With 3DMark Vantage the system is on a par with the GeForce GT 540M in terms of performance which is, however, below expectations. The system previously tested by us with a Radeon HD 7670M GPU and an Intel CPU, on average, outperformed the measured values by 15%. With the 3DMark 11 benchmark on the other hand, the tide however reverses in favor of the reviewed system, which outperforms by 17%. Thus the dual graphics can even keep up with the GeForce GT 555M and is able to significantly outperform the GT 540M by 33%.

我们审查的设备提供了可能性之间选择两个不同的图形卡,或同时运行图形加速器。在此,有图形单元集成到CPU中,AMD的Radeon HD7520G的Radeon HD7670M,它可以使用最多2 GB显存之间的选择。作为标准配置,双显卡选项被激活,驱动程序选项。



通过3DMark Vantage测试系统是与GeForce GT 540M在性能方面,但是,低于预期持平。以前我们测试了Radeon HD7670M GPU和英特尔CPU的系统中,平均15%,优于测量值。在3DMark11基准另一方面,然而,潮流逆转的审查系统,优于17%赞成。因此,双显卡甚至可以保持与GeForce GT 555M,能显着跑赢大市33%的GT 540M。

3DMark 03 Standard
21697 points
3DMark 05 Standard
11853 points
3DMark 06 Standard Score
6785 points
3DMark Vantage P Result
4269 points
3DMark 11 Performance
1458 points
Help
3DMark Vantage - 1280x1024 P Result (sort by value)
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
4269 Points
MSI GE620DX-443XPL
GeForce GT 555M, 2430M, WDC Scorpio Black WD5000BPKT-22PK4T0
5793 Points +36%
Asus K53SV-SX131V
GeForce GT 540M, 2410M, WDC Scorpio Blue WD6400BPVT-80HXZT1
4170 Points -2%
Dell Vostro 3560 (51609735)
Radeon HD 7670M, 3612QM, WDC Scorpio Black WD5000BPKT-75PK4T0
5357 Points +25%
3DMark 11 - 1280x720 Performance (sort by value)
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
1458 Points
MSI GE620DX-443XPL
GeForce GT 555M, 2430M, WDC Scorpio Black WD5000BPKT-22PK4T0
1461 Points 0%
Asus K53SV-SX131V
GeForce GT 540M, 2410M, WDC Scorpio Blue WD6400BPVT-80HXZT1
982 Points -33%
Dell Vostro 3560 (51609735)
Radeon HD 7670M, 3612QM, WDC Scorpio Black WD5000BPKT-75PK4T0
1243 Points -15%

Gaming Performance

In terms of the gaming performance, the performance of the review sample lies between a GeForce GT 630M and a GT 555M. The performance of the single HD 7670M in other test devices is only seldom exceeded and when it is, then only with high details. With a low detail setting, the frame rate is obviously limited and the dual graphics configuration lags behind the HD 7670M. This trait is hopefully the result of a driver issue which could be alleviated with an update. Nevertheless, games from 2011 are usually playable with medium details with the native resolution. With new and especially graphics intensive games, the settings should be set to their lowest level though, in order not to spoil the fun with juddering images. Further gaming tests for the AMD Radeon HD 7520G + HD 7670M dual graphics can be found in the GPU datasheet.

在游戏性能方面,表现的审查样本之间的GeForce GT 630M和GT 555M。在其他的测试装置中的单一的HD7670M的性能只有很少超过,当它是,那么只有具有高细节。具有低的详细设置,显然是有限的,帧速率的双重图形配置落后的HD7670M。这个特点是有希望的结果是驱动的问题,可以减轻与更新。然而从2011年开始,游戏中的细节的原始分辨率播放。新的,特别是图形密集的游戏,设置的最低水平,但为了不破坏晃动的影像的乐趣。更多的游戏测试的AMD Radeon HD7520G+ HD7670M双显卡,可以发现在GPU的数据表。

low med. high ultra
Deus Ex Human Revolution (2011) 72.2 45.1
F1 2011 (2011) 44 30 26
Fifa 12 (2011) 83.7 60.2 47
The Elder Scrolls V: Skyrim (2011) 37.9 31.7 22.4

Emissions

System Noise

In Silent-Mode and without out a high processing load, the Samsung 355V5C reaches a pleasant 31.2 dB (A) which is primarily the humming of the hard drive with the cooling fan switched off. This situation is however a less likely scenario and the system noise usually stays at a bearable 34.7 dB (A) with Silent-Mode disabled and a low processing load. The maximum we measured was 41.1 dB (A) which was generated by the cooling fan while the performance profile was set to its highest setting. When using the Silent-Mode at peak performance, the system noise produced noise of approximately 36.7 dB (A). The performance is however significantly limited due to the reduction of the CPU clock speed.



系统噪声



在静音模式并没有出较高的处理负载,三星355V5C达到一个愉快的31.2分贝(A),这主要是关闭的硬盘驱动器的冷却风扇的嗡嗡声。然而,这种情况是一个不太可能的情况下,系统的噪声通常保持在可以承受的34.7分贝(A),静音模式残疾人和低处理负荷。我们所测量的最大为41.1分贝(A),同时由冷却风扇产生的性能资料被设置为最高设置。当使用静音模式,系统峰值性能产生的噪声约36.7分贝(A)的噪音。的表现,但显着有限的,由于减少CPU时钟速度。



Noise Level

Idle
31.2 / 34.7 / 34.8 dB(A)
HDD
32.6 dB(A)
DVD
37 / dB(A)
Load
41.1 / 41.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft SL-320 (15 cm distance)

Temperature

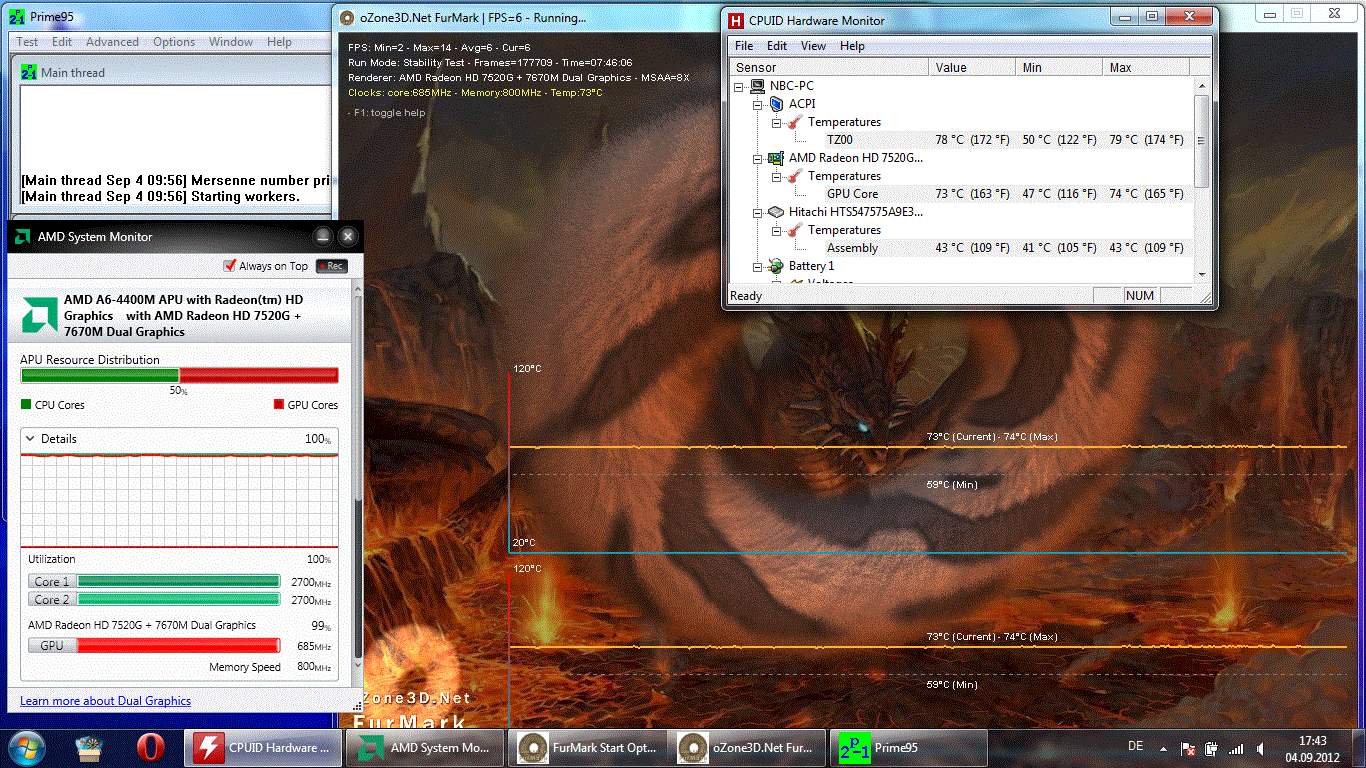

Stress test
Stress test

The worst case scenario in the idle test generated temperatures of about 40 °C, where the cooling fan was switched off causing heat to remain in the case. After a prolonged period of resting the notebook on your lap the heat dissipation becomes clearly noticeable and with a higher processing load, like when playing HD YouTube videos, even gets unpleasant. Disabling the Silent-Mode however allows the cooling fan to release the accrued heat. The palm rest, on the other hand, stays inconspicuous throughout.

Only after several hours of use with Furmark and Prime 95 during our stress test, did the device reach temperatures of over 40 °C on the left side, and become unpleasantly warm. The bottom of the notebook approached the critical 50 °C boundary. During normal use, temperatures such as these shouldn't be encountered though.

Throttling of the CPU wasn't observed while the system was fully utilized. The GPU clock speed fell to 496 MHz every few minutes for a few seconds. During the subsequently performed 3DMark 06 benchmark, this didn't have any impact. The GPU temperature reached a maximum of 74 °C.

最坏的情况下在空闲的测试生成的温度为约40℃下,在那里被关闭的情况下造成的热量留在冷却风扇。经过长时间的休息的笔记本电脑放在膝盖上,散热变得清晰醒目的和更高的处理负荷,如高清播放YouTube视频时,甚至会不愉快。禁用然而,在无声模式,使冷却风扇释放累积的热量。掌托,另一方面,保持不起眼的整个。



只有经过几个小时的使用用FURMARK和总理95在我们的压力测试,并在设备的温度超过40°C的左侧,并成为令人不快的温暖。笔记本电脑的底部接近临界50°C的边界。在正常使用过程中,如这些的温度应不遇到虽然。



节流的CPU时,没有观察到该系统充分利用。 GPU时钟速度下降到496 MHz的几秒钟每隔几分钟。在随后进行的3DMark06基准测试,这并没有产生任何影响。 GPU温度达到最高为74℃。

Max. Load
 44.5 °C33.4 °C28.9 °C
 43.1 °C37 °C28.5 °C
 43.2 °C39 °C28.4 °C
Maximum: 44.5 °C
Average: 36.2 °C
30.8 °C36.1 °C44.2 °C
30.6 °C46 °C39.4 °C
29 °C44 °C47.1 °C
Maximum: 47.1 °C
Average: 38.6 °C
Power Supply (max.)  53.4 °C | Room Temperature 24.8 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 36.2 °C / 97 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 44.5 °C / 112 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 47.1 °C / 117 F, compared to the average of 39.2 °C / 103 F
(±) In idle usage, the average temperature for the upper side is 34 °C / 93 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 43.2 °C / 109.8 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-14.4 °C / -26 F).

Speakers

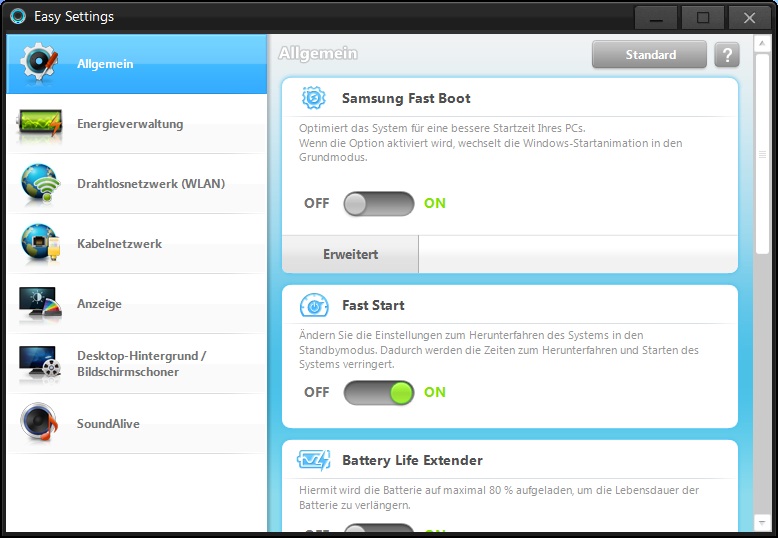

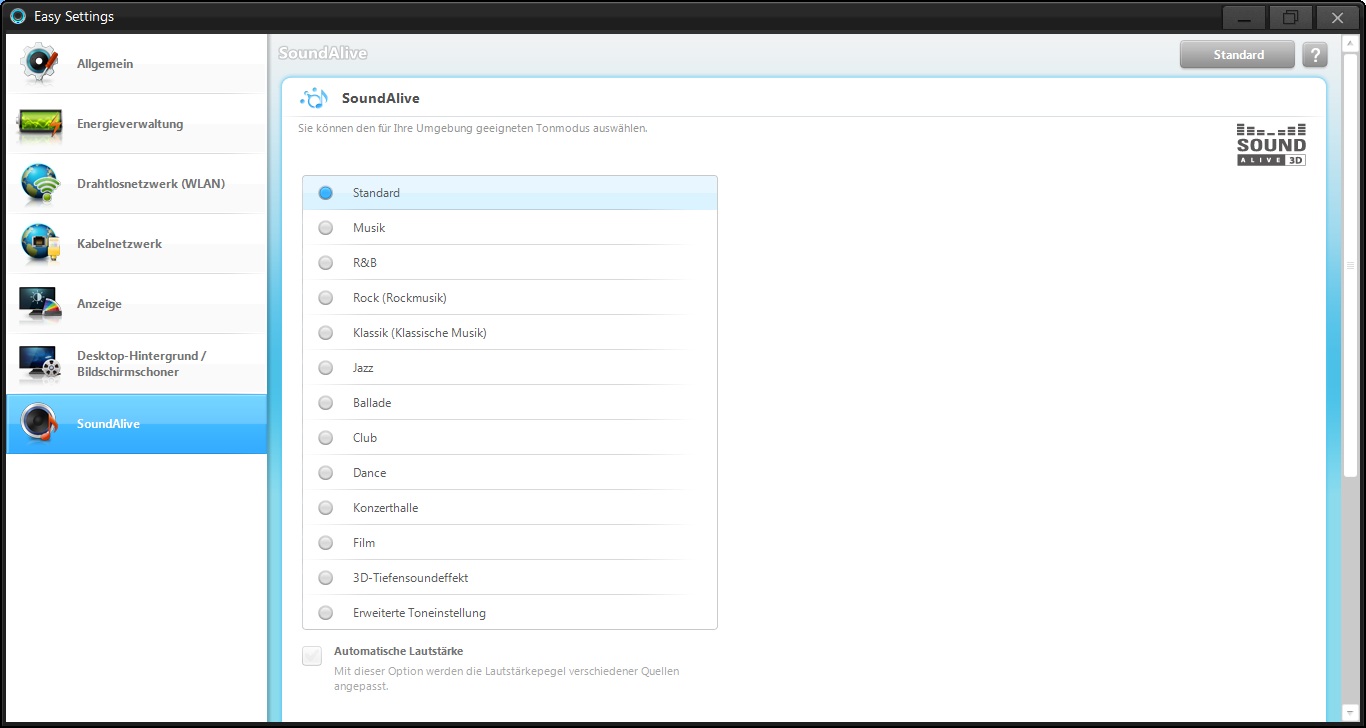

Easy Settings - SoundAlive

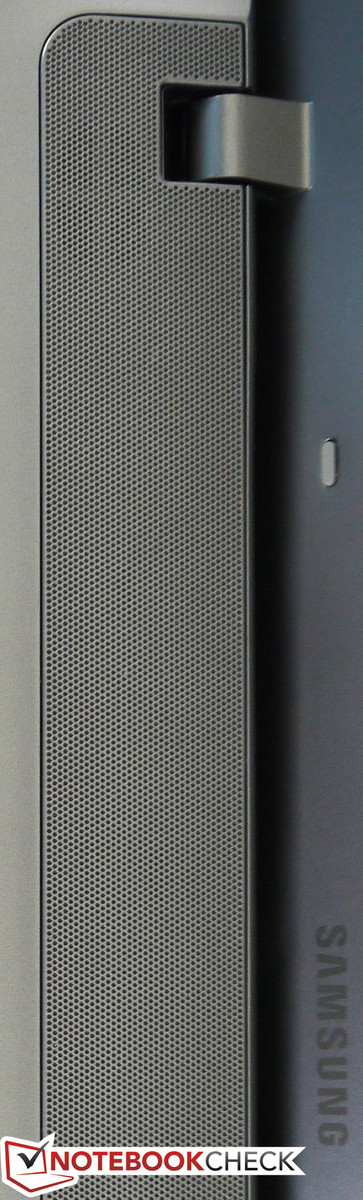

Music is emitted from the two speakers located above the keyboard below a metal mesh. The audio sounds a little thin due to the missing bass frequencies, although it is able to score points with a high volume, which additionally doesn't suffer from the usual distortion characteristics. High and low frequencies sound relatively well balanced. Using the pre-installed Easy Settings software, it is also possible to adjust the equalizer setting as preferred.

For those that have an elevated requirement in terms of audio quality, the notebook provides the usual audio output via digital and analog ports for external headphones or speakers.

音乐,从位于下面的金属网在键盘上方的两个扬声器发出。音频声音由于缺少的低音频率稍薄,虽然它是能够具有高的体积,其中还没有遭受通常的失真特性的得分。高,低频率的声音比较平衡。使用预装简易设置软件,但也可以作为优选调整均衡器设定。



对于那些有升高中的音频质量方面的要求,通过数字和模拟端口,用于外接耳机或扬声器的笔记本电脑提供了常用的音频输出。

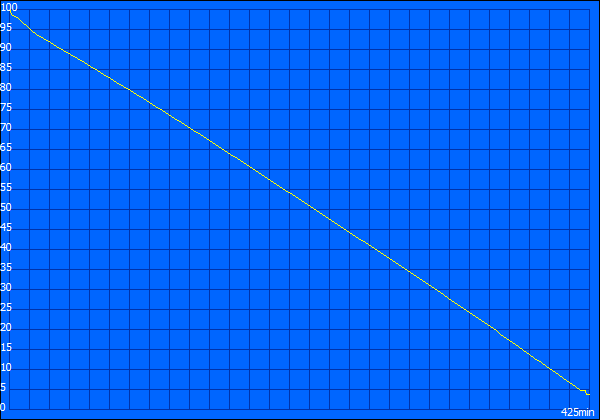

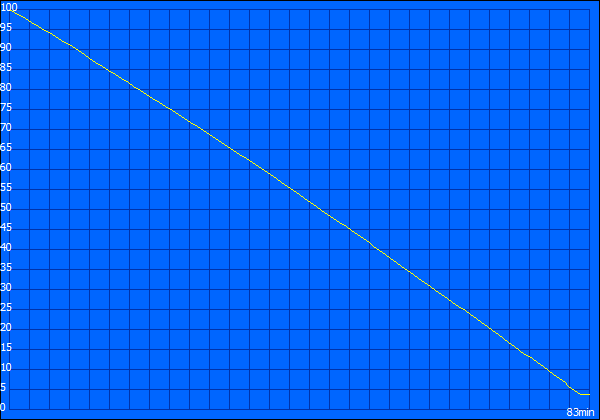

Battery Life

Power Consumption

The power consumption lies between 9.3 watts (Silent-Mode enabled) and 14.1 watts (Silent-Mode disabled) during idle state with average utilization. When fully utilized a maximum of 67.1 watts are required, which can be considered very good in light of the provided graphics performance. Switching into Silent-Mode reduces the power consumption down to 55.8 watts. The 90 watts AC adapter should be more than enough in all scenarios, and charging the battery will also still take place while the notebook is fully utilized.

耗电量



在空闲状态的功耗是9.3瓦(启用静音模式)和14.1瓦(已禁用静音模式)之间的平均使用率。充分利用时的最大67.1瓦是必需的,可以算是很不错的,在所提供的图形性能。切换到静音模式降低了功耗为55.8瓦。的90瓦交流电源适配器应该是绰绰有余在所有情况下,对电池进行充电,也还是会发生,同时充分利用笔记本电脑。

Power Consumption
Off / Standbydarklight 0.1 / 0.5 Watt
Idledarkmidlight 9.3 / 11.8 / 14.1 Watt
Load midlight 64.6 / 67.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

 7 hours and 5 minutes - this figure represent the maximum battery life of the Samsung 355V5C. This time was measured with the lowest brightness and disabled wireless modules. In most cases, this test result is far from reality. More genuine results are provided by tests resembling practical use, like when surfing the web via WLAN, with a normal brightness of 150 cd/m², or playing a DVD with the maximum brightness. In the first case we determined a battery life of 3 hours and 15 minutes. The DVD playback test on the other hand led to 2 hours and 22 minutes. While these results could still be described as good for multimedia notebooks from two years ago, figures such as these are more likely to be encountered at the bottom end of the scale of contemporary notebooks. A very positive example in this case would be the Samsung 300E5A, which can be used to surf the web for more than 6 hours via WLAN. Swapping the included 48 Wh battery for a more potent alternative is also not possible with the review device.

 电池运行时间



 7小时5分钟 - 这个数字代表的三星355V5C最长的电池寿命。这一次测定的最低亮度和残疾人士使用的无线模块。在大多数情况下,此测试结果是远离现实。更真实的结果,实际使用的测试类似,喜欢在网上冲浪时,通过WLAN,与正常亮度为150坎德拉/平方米,或在播放DVD的最大亮度。在第一种情况下,我们确定了3小时15分钟的电池寿命。另一方面上的DVD播放测试导致2小时和22分钟。虽然这些结果仍然可以被描述为从两年前多媒体笔记本电脑好,如这些数字是更可能会遇到的底端处的规模当代笔记本。在这种情况下,一个非常积极的例子是三星300E5A,它可以用来网上冲浪超过6小时内通过WLAN。交换包括48瓦时电池为一种更有效的替代方案,也不可能审查设备。

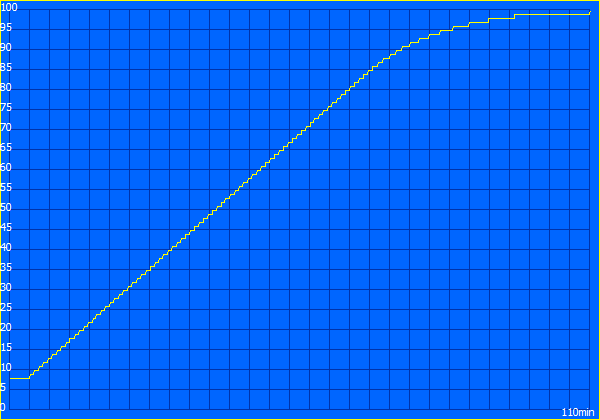

Charge time 110min.
Charge time 110min.
Maximum battery life 425min.
Maximum battery life 425min.
Battery life fully utilized 83min.
Battery life fully utilized 83min.
WLAN surfing 195min.
WLAN surfing 195min.
DVD movie 142min.
DVD movie 142min.

Battery Runtime
Idle (without WLAN, min brightness)
7h 05min
WiFi Surfing
3h 15min
DVD
2h 22min
Load (maximum brightness)
1h 23min

Verdict

All in all, Samsung has compiled a relatively comprehensive and high performance package. Anyone who can come to terms with the lower manufacturing quality and battery life could find the 355V5C to be a gaming capable multimedia notebook at an affordable price.

Those that place a high value on manufacturing quality, should take a closer look at the Acer Aspire V3-551G, although the matte display would have to be sacrificed with this choice. The Medion Akoya P6812 on the other hand also has a matte display, and also offers a high performance graphics card and Intel CPU. The downside of this option is however the increased weight and bigger dimensions. In both the case of the Medion and the Acer Aspire V3, users will also have to come to terms with sensitive shiny surfaces. Matte throughout are the Acer TravelMate 5760G and the Samsung 300E5A. In the latter case, the expectations from the graphics card would have to be curtailed however. In addition, both of these options would also imply that a USB 3.0 interface will no longer be available.

这一切的一切,三星已经编制了比较全面,高性能封装。任何人谁可以较低的制造质量和电池寿命方面,可以找到355V5C是一个游戏功能的多媒体笔记本电脑以低廉的价格。



那些地方一个高价值的制造质量,应该仔细看看宏碁Aspire V3-551G,虽然雾面显示屏,就必须牺牲这种选择。 MEDION AKOYA P6812另一方面也有雾面显示屏,并且还提供了一个高性能独立显卡和英特尔CPU。然而,此选项的缺点是增加的重量和更大的尺寸。 Medion公司和宏基的Aspire V3在这两种情况下,用户也将有来与敏感的有光泽的表面。磨砂整个宏基TravelMate5760G和三星300E5A。在后者的情况下,从图形卡的期望但是要受到限制。此外,也意味着这两个选项,一个USB 3.0接口将不再可用。

Please share our article, every link counts!
In Review: Samsung NP355V5C-S05DE, provided by:
In Review: The Samsung NP355V5C-S05DE provided by:

Specifications

Samsung NP355V5C-S05DE
Processor
AMD A6-4400M 2 x 2.7 - 3.2 GHz, Trinity
Graphics adapter
AMD Radeon HD 7520G + HD 7670M Dual Graphics - 2048 MB VRAM, Core: 600 MHz, Memory: 900 MHz, DDR3, 8.944.2.1000, AMD Enduro
Memory
6 GB
, 4096MB + 2048MB (Samsung), PC3-12800 800MHz
Display
15.60 inch 16:9, 1366 x 768 pixel, AUO B156XTN02.1, TN WLED, HD SuperBright LED Display, glossy: no
Mainboard
AMD A70M
Storage
Hitachi Travelstar 5K750 HTS547575A9E384, 750 GB
, 5400 rpm, SATA II, 8MB Cache
Soundcard
Realtek ALC269 @ AMD Hudson-2 FCH - High Definition Audio Controller
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 耳机,麦克风, Card Reader: SD, RJ-45
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Atheros AR9485WB-EG Wireless Network Adapter (b/g/n = Wi-Fi 4/), Bluetooth Atheros AR3012 (4.0)
Optical drive
TSSTcorp CDDVDW SN-208BB
Size
height x width x depth (in mm): 32.5 x 372 x 243
Battery
48 Wh Lithium-Ion, 4400 mAh, 11.1V, 6 cells, 288 g
Operating System
Microsoft Windows 7 Home Premium 64 Bit
Camera
Webcam: 0.3 Megapixel
Additional features
Speakers: Stereo, Keyboard Light: no, 笔记本电脑,6芯电池,90瓦交流适配器,文档,系统恢复DVD, 讯连科技媒体套件,微软Office 2010入门版,诺顿网络安全特警,Skype公司, 24 Months Warranty
Weight
2.335 kg, Power Supply: 457 g
Price
539 Euro



The first thing that emerges when unpacking is the shiny lid.
The first thing that emerges when unpacking is the shiny lid.
...and access to the most important components is granted.
...and access to the most important components is granted.
Both RAM banks are already occupied.
Both RAM banks are already occupied.
And the only MiniPCIe slot is also no longer free.
And the only MiniPCIe slot is also no longer free.
The battery has a capacity of 48 Wh...
The battery has a capacity of 48 Wh...
...and is charged with the 90 watt AC adapter.
...and is charged with the 90 watts AC adapter.
The webcam has a mere resolution of 0.3 megapixels.
The webcam is 0.3 megapixels.
The pre-installed software is not excessive.
The pre-installed software is not excessive.
Among this is Samsung's Easy Settings...
Among this is Samsung's Easy Settings...
...which provides quick access to important functions.
...which provides quick access to important functions.
Loosen the screws, push the large panel downwards...
Loosen the screws and push the large panel downwards...
On the bottom are two maintenance panels.
On the bottom are two maintenance panels.
From up close the drawn on lines are noticeable.
From up close, the texture is noticeable.
On the inside plastics dominate.
On the inside, plastics dominate.

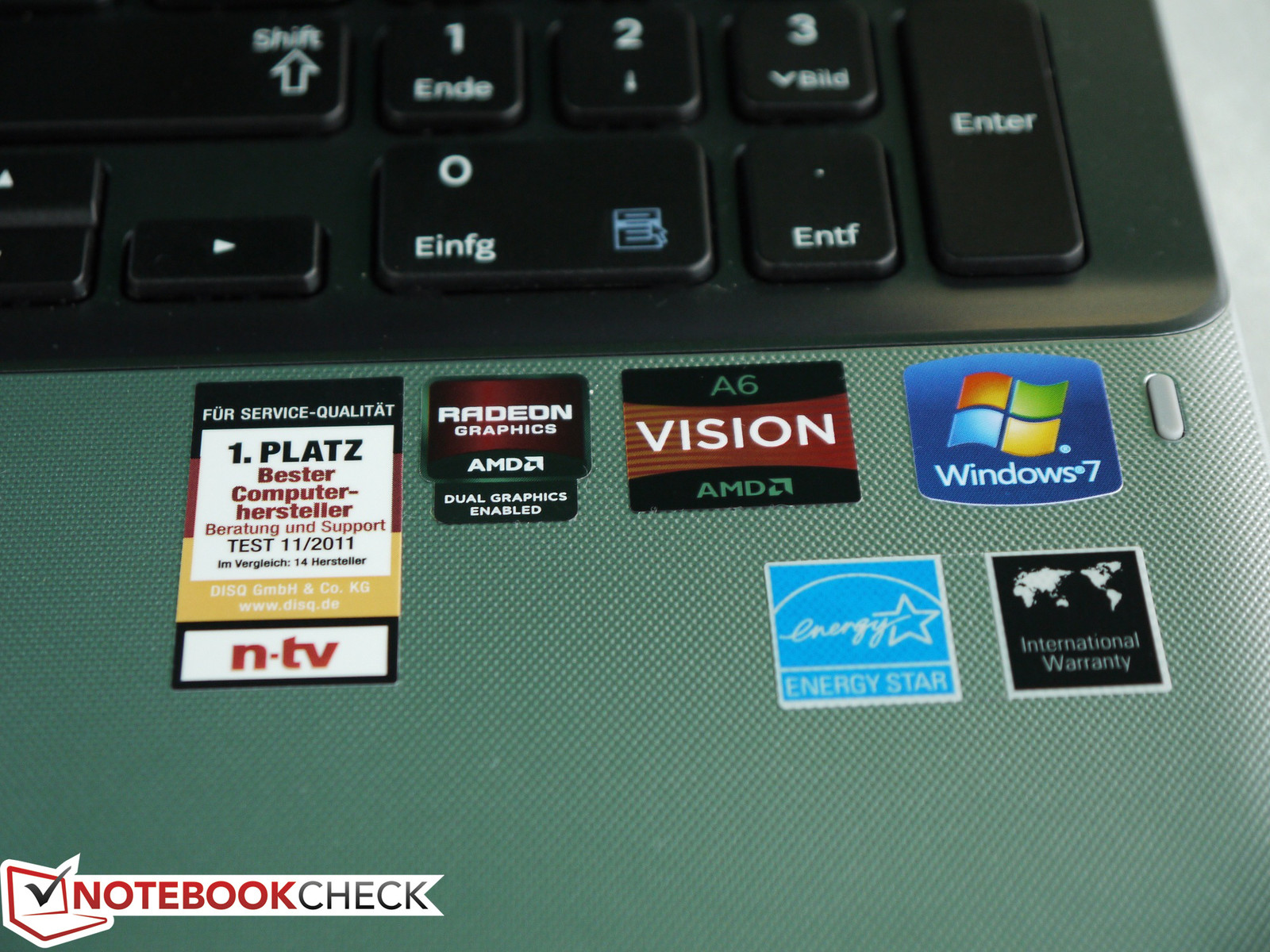

After folding open the display the stickers become visible.
After opening the lid, the stickers become visible.

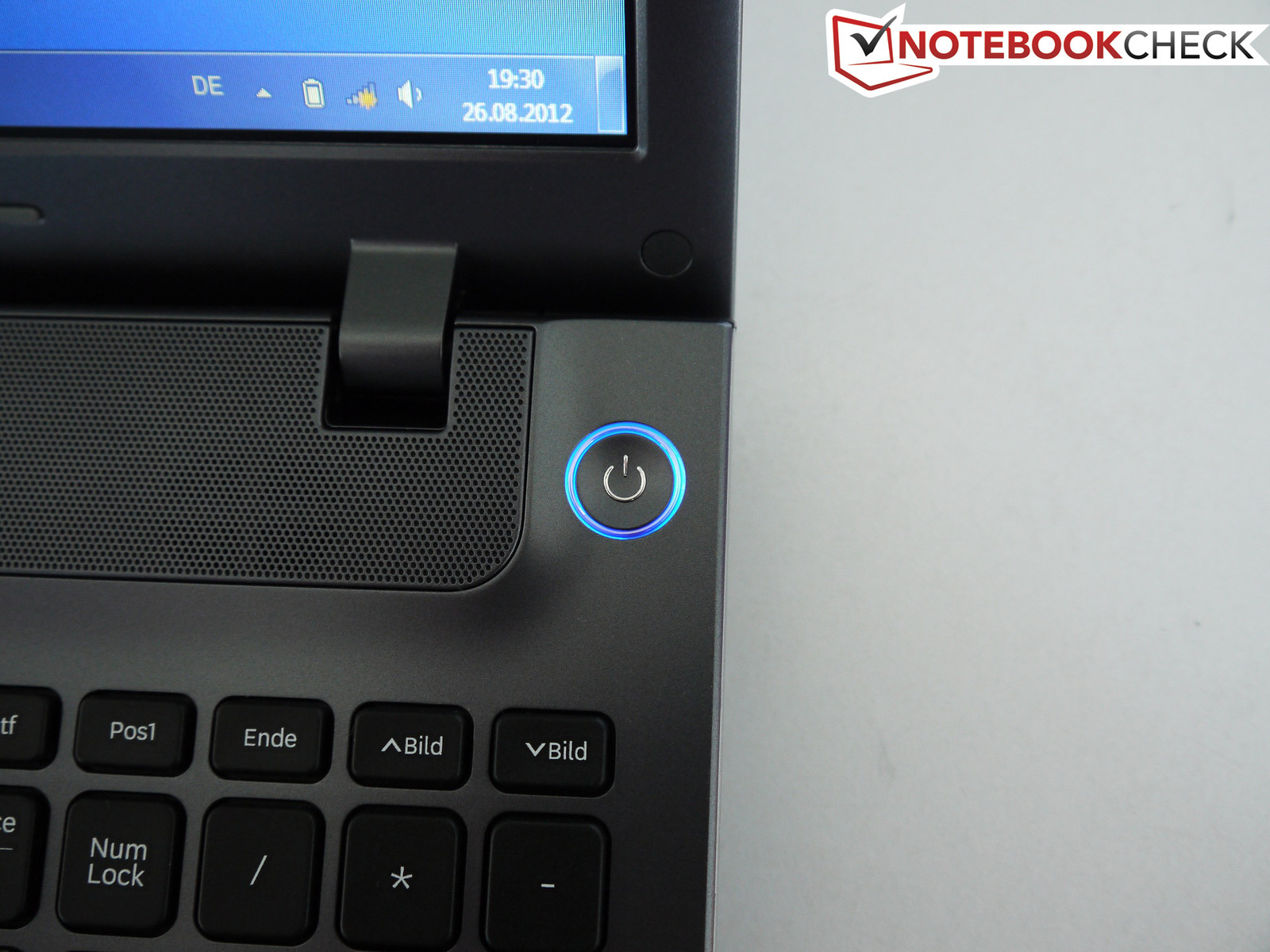

The start button sits at the edge and is lit blue.
The start button sits at the edge and is lit blue.
At the front in the middle are the 4 status LEDs,...
At the front, in the middle are the 4 status LEDs,...
...which aren't annoying in dark surroundings.
...which aren't annoying in dark surroundings.
The DVD burner is located on the right side.
The DVD burner is located on the right side.
The two stereo speakers are behind the mesh.
The two stereo speakers are behind the mesh.
The maximum opening angle is just about acceptable.
The maximum opening angle is just about acceptable.

Similar Notebooks

Devices with Same Screen Size and/or Weight

三星Galaxy Book4 Edge 16 笔记本电脑评测--最快的骁龙 X 精英版挑战 AMD 的 Zen 5
Adreno X1-85 4.6 TFLOPS, Snapdragon X SD X Elite X1E-84-100, 16.00", 1.555 kg
三星Galaxy Book4 Edge 16 评测--Copilot+ 笔记本电脑的电池续航能力令人失望
Adreno X1-85 3.8 TFLOPS, Snapdragon X SD X Elite X1E-80-100, 16.00", 1.545 kg
三星Galaxy Book4 Ultra 评测--配备 120 Hz OLED 和 RTX 4050 的多媒体笔记本电脑
NVIDIA GeForce RTX 4050 Laptop GPU, Meteor Lake-H Ultra 7 155H, 16.00", 1.823 kg
三星Galaxy Book3 Ultra 16评论:耐用的16英寸超极本与RTX 4050
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i7-13700H, 16.00", 1.812 kg
三星Galaxy Book3 Ultra 16 with RTX 4070 in review:商务型笔记本中的高图形性能
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i9-13900H, 16.00", 1.81 kg

Links

  • Manufacturer's information

Compare Prices

Pros

+ 电池寿命短
+ 有用的三星工具
+ USB 3.0和蓝牙4.0
+ 良好的系统性能

Cons

- 许多制造上的缺陷
- 令人沮丧的多点触摸滚动
- 微薄的处理器性能

Shortcut

What we like

The decent graphics performance of the dual graphics configuration, and the good location of the USB ports.

What we'd like to see

High quality materials, and a display that lives up to the multimedia name.

What surprises us

The extent to which AMD lags behind its competitor Intel in terms of CPU performance.

The competition

  • Acer TravelMate 5760G-2454G50Mnsk
  • Acer Aspire V3-551G-10468G50Makk
  • ASUS K53SM-SO151V
  • Medion Akoya P6812
  • Dell Vostro 3550
  • Samsung 300E5A-S01
  • Toshiba Satellite Pro C850-116.
    • 我们喜欢
    •
    • 体面的图形处理性能的双显卡配置,以及良好的USB端口的位置。
    •
    • 我们希望看到什么
    •
    • 高品质的材料,和一个显示住多媒体名称的。
    •
    • 但令人惊讶的
    •
    • AMD在何种程度上落后其竞争对手英特尔在CPU性能方面。
    •
    • 本次大赛
    •
    • 宏基TravelMate5760G-2454G50Mnsk
    • 宏碁Aspire V3-551G-10468G50Makk
    • 华硕K53SM-SO151V
    • MEDION AKOYA P6812
    • 戴尔Vostro成就3550
    • 三星300E5A-S01
    • 东芝Satellite Pro C850-116。

Rating

Samsung NP355V5C-S05DE - 09/24/2012 v3 (old)
Waldemar Trautwein

Chassis
77%
Keyboard
78%
Pointing Device
75%
Connectivity
70%
Weight
83%
Battery
80%
Display
75%
Games Performance
77%
Application Performance
86%
Temperature
74%
Noise
80%
Add Points
79%
Average
78%
78%
Multimedia - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 三星NP355V5C-S05DE 笔记本测评
Waldemar Trautwein, 2012-12-27 (Update: 2014-06-13)
