NVIDIA GeForce 305M

NVIDIA GeForce 305M

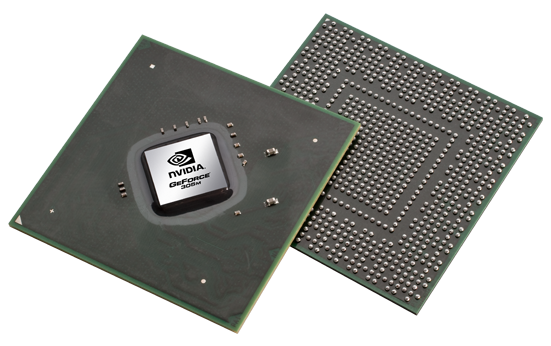

Nvidia的GeForce305M或G305M入门级(小型)笔记本电脑一台笔记本电脑的图形卡。它有一个类似的计算能力(ION)的GeForce9400M集成芯片组,但设有独立显存(512 MB与一个64位的内存接口)。该卡是基于GT218架构的核心,并支持硬件DirectX 10.1特效。该卡支持的PureVideo HD高清视频解码的显卡(如蓝光电影)。由卡的PhysX还没有真正的支持,因为缺乏性能。游戏性能应该比9400M G只有一点点,因此只适合于在较低的分辨率和细节的设置不要求苛刻的游戏或游戏。这是compareable的ATI Mobility Radeon HD 4350。因此,玩家们不会乐意与GeForce305M。

GeForce 300M Series

GeForce 320M 32 @ 0.45 GHz
GeForce 310M 16 @ 0.61 GHz64 Bit @ 800 MHz
GeForce 315M 16 @ 0.61 GHz64 Bit @ 790 MHz
GeForce 305M 16 @ 0.53 GHz64 Bit @ 700 MHz
Codenamen11m-lp1
ArchitectureGT2xx
Pipelines16 - unified
Core Speed525 MHz
Shader Speed1150 MHz
Memory Speed700 MHz
Memory Bus Width64 Bit
Memory TypeGDDR2, GDDR3, DDR2, DDR3
Max. Amount of Memory512 MB
Shared Memoryno
APIDirectX 10.1, Shader 4.1
technology40 nm
FeaturesDirectX Compute Support (Windows 7), CUDA, OpenCL, OpenGL 2.1, HybridPower
Date of Announcement10.01.2010
Information55 Gigaflops
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark 03 - 3DMark 03 - Standard
8555 Points (4%)
VIA S3 Graphics ProSavage8
50 -99%
...
7584 -11%
NVIDIA GeForce 8600M GS
7593 -11%
NVIDIA GeForce Go 7600
7798 -9%
7809 -9%
ATI Mobility Radeon HD 2600
7940 -7%
NVIDIA GeForce 9500M G
8034 -6%
ATI Mobility Radeon HD 4350
8090 -5%
8371 -2%
Intel UHD Graphics 605
8388 -2%
NVIDIA GeForce 305M
8555
8577 0%
ATI Mobility Radeon HD 4530
8597 0%
ATI Mobility Radeon X800
8600 1%
9262 8%
NVIDIA GeForce Go 7800
9300 9%
9378 10%
ATI Mobility Radeon HD 4570
9408 10%
9532 11%
ATI Mobility Radeon HD 3650
9596 12%
...
NVIDIA GeForce GTX 1080 Mobile
181125 2017%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
3101 points (4%)
Intel Graphics Media Accelerator (GMA) 900
57 -98%
...
2639 -15%
NVIDIA GeForce Go 7700
2677 -14%
2699 -13%
2746 -11%
NVIDIA GeForce Go 7600 GT
2800 -10%
2876 -7%
2947 -5%
ATI Mobility Radeon X1800
3000 -3%
ATI Mobility Radeon HD 2600
3037 -2%
NVIDIA GeForce 305M
3101
ATI Mobility Radeon HD 4350
3124 1%
3153 2%
ATI Mobility Radeon HD 4530
3254 5%
NVIDIA GeForce 8600M GT
3287 6%
ATI Mobility Radeon HD 3650
3330 7%
NVIDIA GeForce G210M
3394 9%
3468 12%
3494 13%
ATI Mobility Radeon HD 4570
3514 13%
...
24558 692%
0%
100%
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
