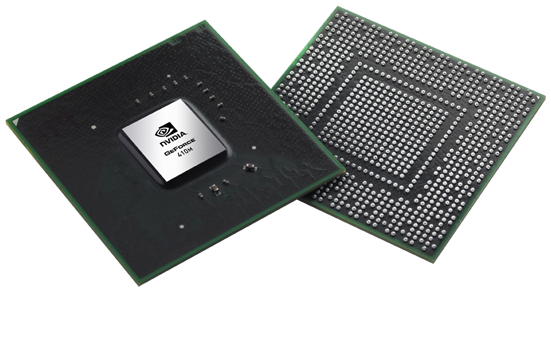

NVIDIA GeForce 410M

NVIDIA GeForce 410M

NVIDIA的GeForce410M是一款入门级的专用笔记本电脑的图形卡。它是基于GF119核心，这是有关Fermi架构。相比，是根据在同一芯片上的GT520M，410M是较慢的时钟。支持DirectX 11和OpenGL4.0。性能的渲染能力的GeForce410M集成Intel HD Graphics3000。然而，由于更好的驱动程序支持和专用存储器，一些游戏（如Dirt3和国际足联11）也运行得更快，在我们的测试 - 下面看的基准。的GeForce410M500M系列的功能，如支持码流的高清音频（蓝光）通过HDMI输出。这意味着该卡能够转移到高保真接收器Dolby True HD和DTS-HD比特流明智的，没有质量损失。 410M提供视频解码的PureVideo HD技术。视频处理器（VP4）支持的特征集C的GPU，因此能够完全解码MPEG-1，MPEG-2，MPEG-4第2部分（MPEG-4 ASP - 例如，DivX或XviD），VC-1 / WMV9，H.264（VLD，IDCT，运动补偿，去块“）。此外，GPU能够解码两个1080p视频流，同时（如蓝光图片，图片）。通过CUDA，OpenCL的，和DirectCompute2.1的支持，GeForce GT410M的可以帮助一般计算的。此外，可以从理论上做物理计算的GPU PhysX物理（如黑手党2“地铁2033”），但性能不会，这是足够的。随着传言的15瓦TDP，410M也适用于小型笔记本电脑。然而，集成英特尔HD 3000需要更少的电力。

GeForce 400M Series

GeForce 410M 48 @ 0.58 GHz64 Bit @ 800 MHz
GeForce 405M 16 @ 0.61 GHz64 Bit @ 1600 MHz
CodenameN12M-GS
ArchitectureFermi
Pipelines48 - unified
Core Speed575 MHz
Shader Speed1150 MHz
Memory Speed800 MHz
Memory Bus Width64 Bit
Memory TypeDDR3
Shared Memoryno
APIDirectX 11, Shader 5.0
Power Consumption15 Watt
technology40 nm
Date of Announcement06.01.2011

Benchmarks

3DMark 11 - 3DM11 Performance Score
min: 463     avg: 473     median: 477 (1%)     max: 482 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 408     avg: 415.3     median: 415 (0%)     max: 423 Points
+ 4 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -59%
...
Intel HD Graphics (Ivy Bridge)
310.6 -25%
Intel HD Graphics (Cherry Trail)
319.9 -23%
AMD Radeon HD 7340
330.4 -20%
Intel HD Graphics 400 (Braswell)
341.1 -18%
AMD Radeon HD 8210
344.5 -17%
Intel HD Graphics 2500
349 -16%
NVIDIA GeForce GT 415M
379 -9%
Intel HD Graphics (Braswell)
389.9 -6%
AMD Radeon HD 7400G
415 0%
NVIDIA GeForce 410M
415.3
AMD Radeon HD 8250
422.5 2%
AMD Radeon HD 8240
427.5 3%
AMD Radeon HD 6450M
443 7%
AMD Radeon HD 7420G
453 9%
AMD Radeon HD 6480G
467 12%
Intel HD Graphics 405 (Braswell)
469.1 13%
AMD Radeon R2 (Mullins/Beema/Carrizo-L)
471.7 14%
Intel HD Graphics 500
478.6 15%
Intel HD Graphics (Haswell)
479.6 15%
...
AMD Radeon RX 7900M
59943 14334%
max:
NVIDIA GeForce RTX 4090
104201 24991%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 1868     avg: 1923     median: 1922.5 (1%)     max: 1977 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 1473     avg: 1507     median: 1475 (1%)     max: 1574 Points
+ 3 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -96%
...
AMD Radeon HD 6520G
1295 -14%
Intel HD Graphics (Braswell)
1328 -12%
Intel HD Graphics 3000
1331 -12%
Intel HD Graphics 2500
1369 -9%
NVIDIA GeForce GT 130M
1379 -8%
AMD Radeon HD 7600G
1380 -8%
AMD Radeon HD 7420G
1484 -2%
NVIDIA GeForce 9650M GS
1486 -1%
AMD Radeon HD 6470M
1504 0%
NVIDIA GeForce 410M
1507
AMD Radeon R3 (Mullins/Beema)
1512 0%
AMD Radeon HD 8330
1513 0%
AMD Radeon HD 7470M
1516 1%
NVIDIA GeForce 9700M GT
1535 2%
AMD Radeon HD 6620G
1535 2%
NVIDIA GeForce 320M
1543 2%
AMD Radeon HD 8400
1655 10%
NVIDIA GeForce 8600M GT SLI
1665 10%
NVIDIA GeForce 8700M GT
1694 12%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 8689%
max:
AMD Radeon RX 7900 XTX
170928 11242%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
20641 Points (21%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 03 - 3DMark 03 - Standard
min: 10029     avg: 10054     median: 10067 (5%)     max: 10067 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 7538     avg: 7605     median: 7618 (8%)     max: 7659 Points
+ 3 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -98%
...
AMD Radeon HD 6520G
7273 -4%
AMD Radeon HD 6520G + HD 7450M Dual Graphics
7282 -4%
ATI Mobility Radeon HD 540v
7333 -4%
AMD Radeon HD 6620G
7365 -3%
ATI Mobility Radeon HD 5145
7483 -2%
AMD Radeon R6 (Kaveri)
7493 -1%
ATI Mobility Radeon HD 3650
7539 -1%
ATI Mobility Radeon X1800XT
7539 -1%
AMD Radeon HD 6510G2
7600 0%
NVIDIA GeForce 410M
7605
ATI Mobility Radeon HD 545v
7732 2%
AMD Radeon HD 7640G
7781 2%
NVIDIA Quadro FX 570M
7790 2%
NVIDIA GeForce GT 320M
7795 2%
AMD Radeon HD 6470M
8031 6%
ATI Mobility Radeon HD 3670
8176 8%
NVIDIA GeForce 610M
8276 9%
Intel HD Graphics 4000
8296 9%
AMD Radeon HD 7450M
8358 10%
...
AMD Radeon RX 7600M XT
69623 815%
max:
NVIDIA GeForce RTX 4080 Super
87172 1046%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
4613 points (6%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 3983     avg: 4167     median: 4035 (5%)     max: 4615 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x768 +
3DMark 06
4501 Points (6%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
9.9 points (20%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
9.9 points (21%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
10.7 points (23%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
16.9 points (9%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
10.9 points (21%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
9.1 points (13%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
1.4 points (4%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
1 points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 1.84     avg: 2.2     median: 2.2 (1%)     max: 2.54 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 0.68     avg: 0.7     median: 0.7 (0%)     max: 0.73 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 4.15     avg: 4.7     median: 4.7 (4%)     max: 5.34 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 0.81     avg: 0.9     median: 0.9 (1%)     max: 0.96 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 2.33     avg: 3.9     median: 3.9 (3%)     max: 5.39 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 6.96     avg: 7.5     median: 7.5 (8%)     max: 8.06 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 5.08     avg: 5.1     median: 5.1 (2%)     max: 5.13 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 2.52     avg: 2.6     median: 2.6 (1%)     max: 2.69 fps
+ 2 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
6.3 Points (80%)
+ 3 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
min: 5     avg: 5.1     median: 5.1 (65%)     max: 5.1 Points
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 2.25     avg: 2960     median: 3399 (2%)     max: 4244 points
+ 5 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 12.41     avg: 12.5     median: 12.4 (4%)     max: 12.61 fps
+ 5 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Anno 2070

Anno 2070

2011
low 1024x768
36.3  fps    + Compare
med. 1366x768
14.7  fps    + Compare
» With all tested laptops playable in detail settings low.
Fifa 12

Fifa 12

2011
low 800x600
157  fps    + Compare
med. 1024x768
85  fps    + Compare
high 1360x768
58  fps    + Compare
» With all tested laptops playable in detail settings high.
F1 2011

F1 2011

2011
low 800x600
66  fps    + Compare
med. 1024x768
35  fps    + Compare
high 1366x768
19  fps    + Compare
» With all tested laptops playable in detail settings low.
Deus Ex Human Revolution

Deus Ex Human Revolution

2011
low 1024x768
43 44.5 ~ 44 fps    + Compare
high 1366x768
17 17.6 ~ 17 fps    + Compare
ultra 1920x1080
8  fps    + Compare
» With all tested laptops playable in detail settings low.
Dirt 3

Dirt 3

2011
low 800x600
54 69.7 ~ 62 fps    + Compare
med. 1024x768
27.9 48 ~ 38 fps    + Compare
high 1360x768
18.6 26 ~ 22 fps    + Compare
» With most tested laptops playable in detail settings med..
Fifa 11

Fifa 11

2010
low 800x600
187.8 190 ~ 189 fps    + Compare
med. 1024x768
93 96 ~ 95 fps    + Compare
high 1360x768
64.4 66 ~ 65 fps    + Compare
» With all tested laptops playable in detail settings high.
Mafia 2

Mafia 2

2010
low 800x600
32.3  fps    + Compare
med. 1024x768
23  fps    + Compare
high 1360x768
20  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
StarCraft 2

StarCraft 2

2010
low 1024x768
101  fps    + Compare
med. 1360x768
19  fps    + Compare
high 1360x768
15  fps    + Compare
» With all tested laptops playable in detail settings low.
Metro 2033

Metro 2033

2010
low 800x600
19.7 26 ~ 23 fps    + Compare
med. 1360x768
14.5 15.8 ~ 15 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Risen

Risen

2009
low 800x600
43  fps    + Compare
med. 1024x768
17.9  fps    + Compare
high 1366x768
13.2  fps    + Compare
» With all tested laptops playable in detail settings low.
Need for Speed Shift

Need for Speed Shift

2009
med. 1024x768
20.6  fps    + Compare
high 1366x768
19  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
53.7  fps    + Compare
med. 1024x768
36.9  fps    + Compare
high 1360x768
16.7  fps    + Compare
» With all tested laptops playable in detail settings med..
Anno 1404

Anno 1404

2009
low 1024x768
108.9  fps    + Compare
ultra 1280x1024
13.2  fps    + Compare
» With all tested laptops playable in detail settings low.
lowmed.highultraQHD4K
Anno 207036.314.7
Fifa 121578558
F1 2011663519
Deus Ex Human Revolution44178
Dirt 3623822
Fifa 111899565
Mafia 232.32320
StarCraft 21011915
Metro 20332315
Risen4317.913.2
Need for Speed Shift20.619
Colin McRae: DIRT 253.736.916.7
Anno 1404108.913.2
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		1
5
4
2		6
3
2
8
1
1
2








For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 22. 01:29:27

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.024s ... 0.024s

#5 composed specs +0s ... 0.025s

#6 did output specs +0s ... 0.025s

#7 start showIntegratedCPUs +0s ... 0.025s

#8 getting avg benchmarks for device 2065 +0.013s ... 0.037s

#9 got single benchmarks 2065 +0.019s ... 0.056s

#10 got avg benchmarks for devices +0s ... 0.056s

#11 min, max, avg, median took s +0.44s ... 0.496s

#12 before gaming benchmark output +0s ... 0.496s

#13 Got 45 rows for game benchmarks. +0.003s ... 0.499s

#14 composed SQL query for gamebenchmarks +0s ... 0.499s

#15 got data and put it in $dataArray +0.007s ... 0.506s

#16 benchmarks composed for output. +0.263s ... 0.769s

#17 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 0.772s

#18 return log +0s ... 0.772s

No reviews found for this graphics card.

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

Class 2

Radeon RX 6800S
GeForce RTX 5060 Laptop *
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M4 32-core GPU *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 5050 Laptop *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
Radeon 890M *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
Arc 8-Core *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Quadro T1000 (Laptop) *
Radeon Pro WX 7100 *
Arc 7-Core *
Radeon RX 570X (Laptop) *

Class 3

M4 8-Core GPU *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Quadro T1000 Max-Q *
A310 *
A350M *
T600 Laptop GPU *
T550 Laptop GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

* Approximate position of the graphics adapter
