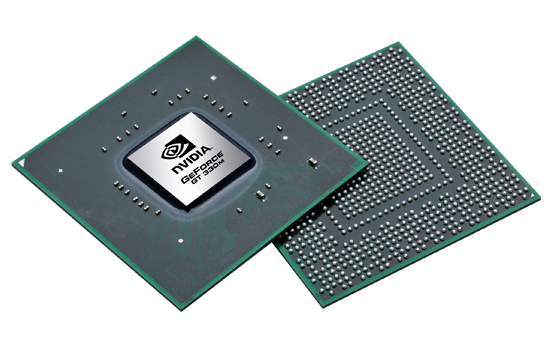

NVIDIA GeForce GT 330M

NVIDIA GeForce GT 330M

NVIDIA GeForce GT 330M GT 230M和技术上更快的主频GT 240M（但它仍然保持了GT 230M的功率包络的命名）的继任者。因此，GT330M是一个中档笔记本电脑的图形卡，提供DirectX 10.1特效。 GT 330M的性能类似的GeForce GT 240M，并因此位于的Mobility Radeon HD 4650的范围内。该卡支持DirectX 10.1和GT 230M / 240M（因为它是基于相同的GT216核心）的所有功能。现代的ATI Radeon HD 5650提供了DirectX 11特效，性能更好。现代和苛刻的DirectX 10和11游戏（如“孤岛危机”或上升），可以流畅的播放中详细的设置和分辨率设置。要求不高的游戏，如“模拟人生3运行在高细节和决议。请参阅下面的游戏列表详细的基准。 48个着色器核心的GT216桌面GTX 200架构的基础上，因此相比提高48核心的GeForce 9700M GTX位。根据NVIDIA的微架构，电池的运行时间和性能方面进行了改进。流处理器/着色器的一维（1D），因此不能直接相比，目前的AMD / ATI的Mobility Radeon HD 5650的卡，像5D着色器。要使用其他应用程序的GeForce GT 330M的计算性能，该卡支持CUDA，OpenCL的，直接计算。例如编码的视频流处理器大大快于使用一个快速的CPU。 GT330M支持使用集成PureVideo HD引擎的高清视频的硬件解码。集成的VP4视频处理器，能够完全解码H.264，VC-1，MPEG-2，MPEG-4 ASP（例如，DIVX，XVID）。不支持硬件解码MPEG-1编码的视频，但不高负荷的每一个CPU可以处理这个问题。结合酷睿​​i5-520M处理器，GT 330M 1-6％，VC1在5％至10％，WMV解码H.264 3-9％的CPU负载超过HDMI的Sony VAIO Z11（1080）。与GT 230M的性能取决于所使用的图形内存。 DDR2缓慢，该卡可高达20％，慢于更快的内存。通常情况下，GT 330M的搭配DDR3内存价格便宜，比较快的。 GDDR3会快一点。不支持Nvidia的GDDR5。也可用于具有最小的较慢的时钟速率和更低的功耗（代号N11P-LP）的笔记本电脑制造商的低功耗版本的GT 330M。

GeForce GT 300M Series

GeForce GT 335M 72 @ 0.45 GHz128 Bit @ 1066 MHz
GeForce GT 330M 48 @ 0.58 GHz128 Bit @ 1066 MHz
GeForce GT 325M 48 @ 0.45 GHz128 Bit @ 1066 MHz
GeForce GT 320M 24 @ 0.5 GHz128 Bit @ 790 MHz
CodenameN11P-GE1
ArchitectureGT2xx
Pipelines48 - unified
Core Speed575 MHz
Shader Speed1265 MHz
Memory Speed1066 MHz
Memory Bus Width128 Bit
Memory TypeGDDR2, GDDR3, DDR3
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 10.1, Shader 4.1
Transistor Count486 Million
technology40 nm
FeaturesDirectX Compute Support (Windows 7), CUDA, OpenCL, HybridPower, PhysX
Notebook Sizemedium sized
Date of Announcement10.01.2010
Information182 Gigaflops theoretische Rechenleistung
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 2159     avg: 2496     median: 2657.5 (1%)     max: 2800 Points
+ 18 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 1738     avg: 2039     median: 2134 (1%)     max: 2244 Points
+ 20 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -97%
...
NVIDIA GeForce 610M
1880 -8%
NVIDIA NVS 4200M
1896 -7%
ATI Mobility Radeon HD 3850
1928 -5%
AMD Radeon R2 (Stoney Ridge)
1930 -5%
AMD Radeon HD 7450M
1938 -5%
Intel HD Graphics 4200
1985 -3%
NVIDIA GeForce GT 230M
2012 -1%
AMD Radeon HD 6490M
2018 -1%
AMD Radeon HD 7620G
2031 0%
NVIDIA GeForce GT 330M
2039
Intel HD Graphics 505
2073 2%
NVIDIA GeForce GT 240M
2092 3%
AMD Radeon HD 7520G
2098 3%
AMD Radeon R4 (Beema)
2111 4%
NVIDIA Quadro NVS 5100M
2156 6%
Intel HD Graphics (Broadwell)
2196 8%
NVIDIA GeForce GT 520MX
2201 8%
NVIDIA Quadro FX 880M
2203 8%
ATI Mobility Radeon HD 4650
2207 8%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 6395%
max:
AMD Radeon RX 7900 XTX
170928 8283%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
min: 21859     avg: 26741     median: 26029.5 (27%)     max: 32183 Points
+ 14 benchmarks and specifications   + Show comparison chart
3DMark 03 - 3DMark 03 - Standard
min: 16182     avg: 18198     median: 18934 (10%)     max: 19604 Points
+ 23 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 11076     avg: 12591     median: 12982.5 (14%)     max: 13457 Points
+ 26 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
AMD Radeon HD 7660G + HD 7670M Dual Graphics
11878 -6%
Intel UHD Graphics 610
12054 -4%
NVIDIA GeForce GT 335M
12228 -3%
NVIDIA GeForce GTS 350M
12278 -2%
ATI Mobility Radeon HD 5650
12418 -1%
AMD Radeon HD 8650G
12469 -1%
AMD Radeon HD 7610M
12505 -1%
Intel UHD Graphics (Jasper Lake 16 EU)
12573 0%
Intel HD Graphics 620
12578 0%
NVIDIA GeForce GT 330M
12591
ATI Mobility Radeon HD 4650
12609 0%
ATI Mobility Radeon HD 4670
12614 0%
AMD Radeon HD 6630M
12640 0%
AMD Radeon HD 8730M
12762 1%
ATI Mobility Radeon HD 3870
12885 2%
NVIDIA GeForce 8600M GT SLI
12932 3%
NVIDIA GeForce GT 425M
12975 3%
NVIDIA GeForce 9700M GTS
13125 4%
NVIDIA Quadro NVS 5100M
13125 4%
...
NVIDIA GeForce RTX 4090 Laptop GPU
61850 391%
max:
NVIDIA GeForce RTX 4080 Super
87172 592%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
min: 6243     avg: 7064     median: 7285 (10%)     max: 7553 points
+ 6 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 5382     avg: 6063     median: 6232 (8%)     max: 6574 Points
+ 21 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x800 +
3DMark 06
min: 7121     avg: 7130     median: 7129.5 (9%)     max: 7138 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x768 +
3DMark 06
min: 6247     avg: 6654     median: 6677 (9%)     max: 7013 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x720 +
3DMark 06
min: 7355     avg: 7357     median: 7356.5 (10%)     max: 7358 Points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
min: 6.04     avg: 6.6     median: 6.6 (14%)     max: 7.07 points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
min: 4.79     avg: 6.1     median: 6.1 (13%)     max: 7.44 points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
13.5 points (28%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
min: 19.71     avg: 20.4     median: 20.4 (11%)     max: 21.06 points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
min: 7.31     avg: 7.8     median: 7.8 (15%)     max: 8.34 points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
min: 12.03     avg: 13.6     median: 13.6 (20%)     max: 15.13 points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
min: 2.93     avg: 3.1     median: 3.1 (8%)     max: 3.18 points
+ 2 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
3.8 points (8%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
min: 4     avg: 6.1     median: 6.4 (81%)     max: 6.5 Points
+ 21 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
min: 4.6     avg: 6     median: 6.4 (81%)     max: 6.5 Points
+ 21 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 2103     avg: 3416     median: 3409 (2%)     max: 4250 points
+ 25 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 13.24     avg: 15.3     median: 15.5 (5%)     max: 17.51 fps
+ 16 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Fifa 11

Fifa 11

2010
high 1360x768
58.7  fps    + Compare
ultra 1920x1080
29.6  fps    + Compare
» With all tested laptops playable in detail settings high.
Mafia 2

Mafia 2

2010
low 800x600
41.7 46.6 ~ 44 fps    + Compare + 📈 Graph
med. 1024x768
32.3 37.6 38.3 ~ 36 fps    + Compare + 📈 Graph
high 1360x768
26.8 31.1 32.2 ~ 30 fps    + Compare + 📈 Graph
ultra 1920x1080
19  fps    + Compare + 📈 Graph
» With most tested laptops playable in detail settings med..
StarCraft 2

StarCraft 2

2010
low 1024x768
108.8 153 158 162 171 ~ 151 fps    + Compare + 📈 Graph
med. 1360x768
31.7 32.7 39 39.3 39.9 41.4 56 ~ 40 fps    + Compare + 📈 Graph
high 1360x768
21.8 22 26.5 27.2 28.5 29.7 33 ~ 27 fps    + Compare + 📈 Graph
ultra 1920x1080
11.8 16 ~ 14 fps    + Compare + 📈 Graph
» With most tested laptops playable in detail settings med..
Metro 2033

Metro 2033

2010
low 800x600
23.1 33 36.4 36.6 ~ 32 fps    + Compare + 📈 Graph
med. 1360x768
23 23.2 25.1 ~ 24 fps    + Compare + 📈 Graph
high 1600x900
10  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Battlefield: Bad Company 2

Battlefield: Bad Company 2

2010
low 1024x768
49.7 51 52 52 57 59.5 ~ 54 fps    + Compare + 📈 Graph
med. 1366x768
23 25 26 27 28 32.1 ~ 27 fps    + Compare + 📈 Graph
high 1366x768
17.3 20 20 21.4 ~ 20 fps    + Compare + 📈 Graph
ultra 1920x1080
9 11 ~ 10 fps    + Compare
» With all tested laptops playable in detail settings low.
CoD Modern Warfare 2

CoD Modern Warfare 2

2009
low 800x600
107.6 112 ~ 110 fps    + Compare + 📈 Graph
med. 1024x768
36.3  fps    + Compare + 📈 Graph
high 1366x768
27 30 30.5 33 ~ 30 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings med..
Risen

Risen

2009
low 800x600
41 47 56.6 58.8 70.5 71 ~ 57 fps    + Compare
med. 1024x768
23 25.7 26.3 27.7 28 28 ~ 26 fps    + Compare
high 1366x768
16.8 17.5 17.7 21.2 22 ~ 19 fps    + Compare
ultra 1920x1080
11.9  fps    + Compare
» With all tested laptops playable in detail settings low.
Resident Evil 5

Resident Evil 5

2009
low 800x600
83.1  fps    + Compare
high 1360x768
31.7  fps    + Compare
ultra 1920x1080
17.9  fps    + Compare
» With all tested laptops playable in detail settings low.
Need for Speed Shift

Need for Speed Shift

2009
low 800x600
52.4  fps    + Compare
med. 1024x768
33.2 38 ~ 36 fps    + Compare
high 1366x768
20.4 27 ~ 24 fps    + Compare
ultra 1920x1080
11.3 14 ~ 13 fps    + Compare
» With most tested laptops playable in detail settings med..
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
61.1 62.6 68.9 79 80.4 85 98.4 ~ 76 fps    + Compare
med. 1024x768
33 42 42.6 43.4 47.4 48 50 ~ 44 fps    + Compare
high 1360x768
28 29.1 32.3 ~ 30 fps    + Compare
ultra 1920x1080
12.5  fps    + Compare
» With most tested laptops playable in detail settings med..
Anno 1404

Anno 1404

2009
low 1024x768
58 59.8 59.8 59.9 60 60 60 98.5 ~ 65 fps    + Compare
ultra 1280x1024
15.9 19 20.9 25.6 26 ~ 21 fps    + Compare
» With all tested laptops playable in detail settings low.
Sims 3

Sims 3

2009
low 800x600
233 233.4 279 ~ 248 fps    + Compare + 📈 Graph
med. 1024x768
61.9 68 98.5 ~ 76 fps    + Compare + 📈 Graph
high 1280x1024
31.8 48.9 ~ 40 fps    + Compare + 📈 Graph
» With most tested laptops playable in detail settings high.
F.E.A.R. 2

F.E.A.R. 2

2009
low 800x600
59.5 73.4 75 153 ~ 90 fps    + Compare
med. 1024x768
51.9 56 61.6 62 ~ 58 fps    + Compare
high 1280x1024
29.4 32 33 33 ~ 32 fps    + Compare
» With all tested laptops playable in detail settings med..
GTA IV - Grand Theft Auto

GTA IV - Grand Theft Auto

2008
low 800x600
42.6 48.5 ~ 46 fps    + Compare
med. 1024x768
28.3 35.5 ~ 32 fps    + Compare
high 1280x1024
20.7  fps    + Compare
» With all tested laptops playable in detail settings low.
Left 4 Dead

Left 4 Dead

2008
low 640x480
96.2 98 171 ~ 122 fps    + Compare
high 1024x768
64.8 66 79.3 ~ 70 fps    + Compare
» With all tested laptops playable in detail settings high.
Far Cry 2

Far Cry 2

2008
low 640x480
72.3 76 76.2 90.6 ~ 79 fps    + Compare
high 1024x768
29.7 34.6 35 35.4 ~ 34 fps    + Compare
» With all tested laptops playable in detail settings low.
Racedriver: GRID

Racedriver: GRID

2008
low 800x600
90 94.4 99 ~ 94 fps    + Compare
med. 1024x768
45 49.8 50 ~ 48 fps    + Compare
high 1280x1024
28.3 29 ~ 29 fps    + Compare
» With all tested laptops playable in detail settings med..
Trackmania Nations Forever

Trackmania Nations Forever

2008
low 640x480
225  fps    + Compare
high 1024x768
61.3  fps    + Compare
ultra 1920x1080
23.7  fps    + Compare
» With all tested laptops playable in detail settings high.
Call of Duty 4 - Modern Warfare

Call of Duty 4 - Modern Warfare

2007
low 800x600
151 189 ~ 170 fps    + Compare
med. 1024x768
60  fps    + Compare
high 1280x1024
35 36 ~ 36 fps    + Compare
» With most tested laptops playable in detail settings high.
Supreme Commander - FA Bench

Supreme Commander - FA Bench

2007
low 1024x768
38.6  fps    + Compare
med. 1024x768
27.5  fps    + Compare
high 1024x768
22.1 30.9 ~ 27 fps    + Compare
» With all tested laptops playable in detail settings low.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
low 1024x768
53.5 53.8 89.9 116.2 117 ~ 86 fps    + Compare
med. 1024x768
34.6 37.5 39.3 40 40.4 41 ~ 39 fps    + Compare
high 1024x768
20.1 21.2 22.1 23 23.1 26.8 ~ 23 fps    + Compare
» With most tested laptops playable in detail settings med..
Additional Benchmarks
High 1680x1050
11.5
Medium 1680x1050
19.4
Low 1680x1050
37.2
Low 0xAF 0xAA 1280x1024
46.7
Med 0xAF 0xAA 1280x1024
25.2
High 0xAF 0xAA 1280x1024
15.1
Low 1366x768
45.4
Medium 1366x768
27.9
High 1366x768
17.9
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
low 1024x768
56.4 56.5 90.6 93 94 ~ 78 fps    + Compare
med. 1024x768
32.4 34.2 38 38 38.2 42.8 ~ 37 fps    + Compare
high 1024x768
18.4 19.1 20.1 20.2 21 21.1 ~ 20 fps    + Compare
» With most tested laptops playable in detail settings med..
Additional Benchmarks
Low 1680x1050
36.9
Medium 1680x1050
19.5
High 1680x1050
10.9
Low 0xAF 0xAA 1280x1024
49.6
Med 0xAF 0xAA 1280x1024
24.4
High 0xAF 0xAA 1280x1024
13.9
Low 1366x768
46.6
Medium 1366x768
26.9
High 1366x768
16.8
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
med. 1024x768
55 58 58 60 ~ 58 fps    + Compare
high 1024x768
28 29 29 31 ~ 29 fps    + Compare
» With all tested laptops playable in detail settings med..
Call of Juarez Benchmark

Call of Juarez Benchmark

2006
high 1024x768
14.7 16.9 ~ 16 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
The Elder Scrolls IV - Oblivion

The Elder Scrolls IV - Oblivion

2006
high 1280x800
58  fps    + Compare
» With all tested laptops playable in detail settings high.
Half Life 2 - Lost Coast Benchmark

Half Life 2 - Lost Coast Benchmark

2005
high 1024x768
154.5  fps    + Compare
» With all tested laptops playable in detail settings high.
Quake 4

Quake 4

2005
ultra 1024x768
62  fps    + Compare
» With all tested laptops playable in detail settings ultra.
World of Warcraft

World of Warcraft

2005
low 800x600
208  fps    + Compare
med. 1024x768
157  fps    + Compare
high 1280x1024
42  fps    + Compare
» With all tested laptops playable in detail settings high.
Counter-Strike Source

Counter-Strike Source

2004
high 1024x768
125  fps    + Compare
» With all tested laptops playable in detail settings high.
Doom 3

Doom 3

2004
low 640x480
204.4  fps    + Compare
med. 640x480
203.1  fps    + Compare
high 800x600
180.6  fps    + Compare
ultra 1024x768
140 140 ~ 140 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
high 1024x768
532  fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
Fifa 1158.729.6
Mafia 244363019
StarCraft 2151402714
Metro 2033322410
Battlefield: Bad Company 254272010
CoD Modern Warfare 211036.330
Risen57261911.9
Resident Evil 583.131.717.9
Need for Speed Shift52.4362413
Colin McRae: DIRT 276443012.5
Anno 14046521
Sims 32487640
F.E.A.R. 2905832
GTA IV - Grand Theft Auto463220.68
Left 4 Dead12270
Far Cry 27934
Racedriver: GRID944829
Trackmania Nations Forever22561.323.7
Call of Duty 4 - Modern Warfare1706036
Supreme Commander - FA Bench38.627.527
Crysis - GPU Benchmark863923
Crysis - CPU Benchmark783720
World in Conflict - Benchmark5829
Call of Juarez Benchmark16
The Elder Scrolls IV - Oblivion58
Half Life 2 - Lost Coast Benchmark154.5
Quake 462
World of Warcraft20815742
Counter-Strike Source125
Doom 3204.4203.1180.6140
Quake 3 Arena - Timedemo532
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
7
9
7		4
11
2
2		12
11
2
4		10

1
1





For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 30. 08:57:27

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Fri, 28 Jun 2024 05:30:38 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.034s ... 0.035s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.036s

#6 composed specs +0s ... 0.036s

#7 did output specs +0s ... 0.036s

#8 start showIntegratedCPUs +0s ... 0.036s

#9 getting avg benchmarks for device 1532 +0.013s ... 0.048s

#10 got single benchmarks 1532 +0.094s ... 0.142s

#11 got avg benchmarks for devices +0s ... 0.142s

#12 min, max, avg, median took s +0.398s ... 0.54s

#13 before gaming benchmark output +0s ... 0.54s

#14 Got 240 rows for game benchmarks. +0.017s ... 0.557s

#15 composed SQL query for gamebenchmarks +0s ... 0.557s

#16 got data and put it in $dataArray +0.012s ... 0.569s

#17 benchmarks composed for output. +0.73s ... 1.299s

#18 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 1.303s

#19 return log +0s ... 1.303s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
GeForce MX570 *
Radeon RX 6300M *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
SD X Adreno X1-85 4.6 TFLOPS GPU *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
SD X Adreno X1-85 3.8 TFLOPS GPU *
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
Radeon Graphics (Ryzen 9000) *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
GeForce GT 330M
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)

* Approximate position of the graphics adapter
