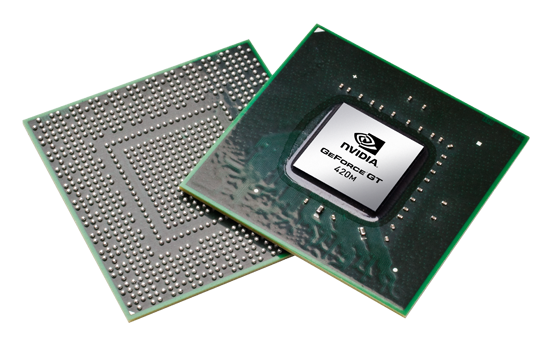

NVIDIA GeForce GT 420M

NVIDIA GeForce GT 420M

NVIDIA GeForce GT 420M是一个快速的在2010年提出的中档笔记本电脑的图形卡。它是基于GF108核心，这是关系到Fermi架构。因此，支持DirectX 11和OpenGL 4.0。相反的GT 415M，该卡拥有96个着色器核心。相比GT425M和GT435M，420M提供了较低的时钟速率。 GF108架构的GF108核心的GT 420M相关的GeFore GTX 480M的GF100核心，拥有96个着色器和一个128位内存总线，DDR3的。除内存控制器基本上可以被认为是减半的GF106 GF108。因此，老GT215（例如，GeForce GTS 350M的）或GT216（例如，GeForce GT 330M独立）内核的架构是没有可比性的。与GF100较小的GF104，GF106，GF108核心不同的是，不仅缩短了，但也有相当大的修改。相反的GF100，其目的是为专业应用，这些芯片的目标消费市场。它们的特点是着色器（3X16，而不是2X16），更多的纹理单元（8而不是4）每个流式多处理器（SM）和交换网板。由于尚有经调度程序（与3个着色器组），NVIDIA目前使用超标量执行更有效的使用量较高的着色器每个SM。理论上，着色器从而可以更有效地利用每个核心的性能得到改善。然而，在最坏的情况下，性能也差于GF100（及其前身）。 ECC内存保护，这是非常重要的专业应用软件，完全忽略和FP64硬件缩短（只有1/3的着色器FP64可以胜任自己的工作，而且相关的只有1/12的FP32的表现）。由于这些削减，大小的SM仅增长25％，尽管更高的着色器的数量和较大的经调度具有超标量调度功能。由于不同的着色器架构的着色器域和更高的时钟频率，核心数量不能直接相比，AMD的Radeon 5000系列（例如HD 5650）的核心。 GF104架构的详细信息。（和与之也GF106和GF108）被发现在桌面GTX 460的文章由Anandtech的。性能，因为GeForce GT 420M采用了全新的体系结构，具有类似的核心数较老的芯片的性能是没有可比性的。 DDR3绘图记忆体的128位总线相结合，应该是GT 420M的瓶颈。在我们的测试中，宏碁Aspire 5745PG样本前，一块GeForce GT 330M和GT 335M，GT 420M之间进行平均。由于较高的着色器数量的GT 420M，性能可以提高未来的驱动程序版本。 GT 420M的游戏性能是足够的中等详细设置在现代游戏一样，“战地：叛逆连队2。要求不高的游戏，应该运行在高细节的设置。选择最佳分辨率为1360X768，由于性能有限。图表上的3D性能基准测试和比较，可以发现如下。功能的新颖的GF104/106/108芯片是通过HDMI支持的码流HD音频输出（蓝光）。一样的Radeon HD 5650，GT 420M可以将Dolby True HD和DTS-HD比特流明智的一个高保真接收器，没有质量损失。 GT420M提供的PureVideo HD视频解码技术。视频处理器（VP4）支持的特征集C的GPU，因此能够完全解码MPEG-1，MPEG-2，MPEG-4第2部分（MPEG-4 ASP - 例如，DivX或XviD），VC-1 / WMV9，H.264（VLD，IDCT，运动补偿，去块“）。此外，GPU能够解码两个1080p视频流，同时（如蓝光图片，图片）。通过CUDA，OpenCL的，和DirectCompute 2.1的支持，GeForce GT 420M的可以帮助一般计算的。例如，流处理器能显着更快编码视频不是一个快速的CPU。此外，物理学计算可以通过GPU使用PhysX物理（如黑手党2“地铁2033”）。据传闻，功耗的GeForce GT 420M应该是约35瓦（TDP包括MXM主板和内存），因此适用于15“笔记本电脑。 Optimus和GT 420M的Aspire 5745PG审查单位配备了多需要10.7-12.3瓦的比GMA HD单独在空闲模式下，3DMark06的15.6-17.5瓦和23.2瓦时的Furmark。无负载时，芯片主频为50/100/135兆赫（芯片/ Shader /显存）分别在2D 200/400/325在3D模式以节省电源。此外，400M系列支持擎天柱从英特尔和Nvidia的GPU集成显卡之间自动切换。然而，笔记本电脑制造商需要实现它，它不能升级。

GeForce GT 400M Series

GeForce GT 445M 144 @ 0.59 GHz192 / 128 Bit @ 1250 MHz
GeForce GT 435M 96 @ 0.65 GHz128 Bit @ 800 MHz
GeForce GT 425M 96 @ 0.56 GHz128 Bit @ 800 MHz
GeForce GT 420M 96 @ 0.5 GHz128 Bit @ 800 MHz
GeForce GT 415M 48 @ 0.5 GHz128 Bit @ 800 MHz
CodenameN11P-GE
ArchitectureFermi
Pipelines96 - unified
Core Speed500 MHz
Shader Speed1000 MHz
Memory Speed800 MHz
Memory Bus Width128 Bit
Memory Type(G)DDR3
Shared Memoryno
APIDirectX 11, Shader 5.0
technology40 nm
Notebook Sizemedium sized
Date of Announcement03.09.2010
Information
Optimus Support, PureVideo HD VP4, Blu-Ray 3D, Bitstream HD Audio, CUDA, DirectCompute, OpenCL, OpenGL 4.0, DirectX 11
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark 11 - 3DM11 Performance Score
775 Points (1%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
685 Points (1%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -75%
...
Intel HD Graphics 4200
624 -9%
AMD Radeon HD 8350G
624 -9%
Intel HD Graphics 505
632 -8%
Intel HD Graphics (Broadwell)
641 -6%
Intel HD Graphics 5300
648 -5%
Intel UHD Graphics (Elkhart Lake 16 EU)
650 -5%
AMD Radeon HD 6620G
650 -5%
AMD Radeon HD 7640G
656 -4%
AMD Radeon HD 8450G
678 -1%
NVIDIA GeForce GT 420M
685
AMD Radeon HD 7600G
700 2%
Intel UHD Graphics 605
701 2%
AMD Radeon R4 (Beema)
721 5%
AMD Radeon R2 (Stoney Ridge)
731 7%
NVIDIA GeForce GT 525M
743 8%
AMD Radeon HD 7550M
753 10%
Intel HD Graphics 4400
755 10%
NVIDIA GeForce GT 425M
756 10%
AMD Radeon HD 7610M
757 11%
...
AMD Radeon RX 7900M
59943 8651%
max:
NVIDIA GeForce RTX 4090
104201 15112%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 2991     avg: 3051     median: 3051 (1%)     max: 3111 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 2514     avg: 2527     median: 2527 (1%)     max: 2540 Points
+ 2 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -98%
...
AMD Radeon HD 7640G
2222 -12%
AMD Radeon R4 (Stoney Ridge)
2243 -11%
AMD Radeon R5 (Beema/Carrizo-L)
2259 -11%
AMD Radeon HD 7500G
2322 -8%
ATI Mobility Radeon HD 5165
2362 -7%
NVIDIA Quadro FX 2700M
2392 -5%
Intel HD Graphics 4000
2441 -3%
NVIDIA GeForce 9700M GTS
2453 -3%
AMD Radeon HD 7550M
2478 -2%
NVIDIA GeForce GT 420M
2527
ATI Mobility Radeon HD 4670
2552 1%
AMD Radeon HD 6755G2
2593 3%
NVIDIA GeForce GT 335M
2624 4%
AMD Radeon R5 (Kaveri)
2674 6%
ATI Mobility Radeon HD 5650
2711 7%
AMD Radeon HD 6540G2
2731 8%
AMD Radeon HD 6680G2
2800 11%
NVIDIA Quadro FX 1800M
2801 11%
NVIDIA GeForce GT 425M
2803 11%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 5141%
max:
AMD Radeon RX 7900 XTX
170928 6664%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
min: 16559     avg: 18904     median: 18904 (20%)     max: 21249 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 03 - 3DMark 03 - Standard
min: 14473     avg: 15344     median: 15464.5 (8%)     max: 15972 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 10788     avg: 11125     median: 11124.5 (12%)     max: 11461 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA GeForce GT 130M
10417 -6%
NVIDIA GeForce GT 325M
10461 -6%
AMD Radeon HD 7660G
10550 -5%
NVIDIA GeForce GT 520MX
10556 -5%
NVIDIA GeForce Go 7900 GTX SLI
10585 -5%
NVIDIA GeForce GT 230M
10689 -4%
AMD Radeon R5 M335
10717 -4%
AMD Radeon HD 7570M
10786 -3%
AMD Radeon HD 6740G2
10949 -2%
NVIDIA GeForce GT 420M
11125
ATI Mobility Radeon HD 550v
11140 0%
NVIDIA Quadro FX 770M
11161 0%
AMD Radeon 520
11294 2%
NVIDIA GeForce 9700M GT
11355 2%
Intel UHD Graphics (Jasper Lake 32 EU)
11395 2%
Intel HD Graphics 610
11469 3%
NVIDIA Quadro FX 1700M
11550 4%
Intel HD Graphics 520
11565 4%
AMD Radeon HD 8550G
11672 5%
...
AMD Radeon RX 7600M XT
68064 512%
max:
NVIDIA GeForce RTX 4080 Super
87172 684%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 5988     avg: 6101     median: 6148 (8%)     max: 6168 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x768 +
3DMark 06
6301 Points (8%)
+ 1 benchmarks and specifications   + Show comparison chart
Unigine Heaven 2.1 - Heaven 2.1 high
min: 9.9     avg: 10.1     median: 10.1 (2%)     max: 10.3 fps
+ 2 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 7310
0.6 -94%
...
Intel UHD Graphics 605
9 -11%
NVIDIA GeForce GT 435M
9 -11%
NVIDIA GeForce GT 620M
9.1 -10%
NVIDIA GeForce GT 520MX
9.3 -8%
Intel HD Graphics 4000
9.585 -5%
AMD Radeon R5 (Beema/Carrizo-L)
9.7 -4%
AMD Radeon HD 8550G
9.8 -3%
AMD FirePro M2000
9.9 -2%
ATI Mobility Radeon HD 5650
10.05 0%
NVIDIA GeForce GT 420M
10.1
NVIDIA Quadro 1000M
10.1 0%
AMD Radeon R4 (Beema)
10.3 2%
AMD Radeon HD 7610M
10.45 3%
AMD Radeon HD 6630M
10.63 5%
AMD Radeon HD 8650G
10.7 6%
AMD Radeon HD 6680G2
10.8 7%
AMD Radeon R5 (Stoney Ridge)
10.8 7%
Intel HD Graphics 4400
10.87 8%
Intel HD Graphics (Broadwell)
10.9 8%
...
NVIDIA Quadro RTX 5000 (Laptop)
532 5167%
0%
100%
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 1.44     avg: 1.5     median: 1.5 (1%)     max: 1.46 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 0.56     avg: 0.6     median: 0.6 (0%)     max: 0.58 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 3.4     avg: 3.7     median: 3.7 (3%)     max: 3.98 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 0.78     avg: 0.8     median: 0.8 (1%)     max: 0.88 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 2.13     avg: 3.3     median: 3.3 (2%)     max: 4.41 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 5.19     avg: 6.2     median: 6.2 (7%)     max: 7.15 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 7.12     avg: 7.2     median: 7.2 (3%)     max: 7.26 fps
+ 2 benchmarks and specifications   + Show comparison chart
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 2.34     avg: 2.5     median: 2.5 (1%)     max: 2.61 fps
+ 2 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
6.5 Points (82%)
+ 2 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
min: 4.5     avg: 5.2     median: 5.2 (65%)     max: 5.8 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 3023     avg: 3529     median: 3464 (2%)     max: 4166 points
+ 4 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 0.92     avg: 14.3     median: 18.7 (6%)     max: 18.93 fps
+ 4 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Call of Duty: Black Ops

Call of Duty: Black Ops

2010
low 800x600
63.6  fps    + Compare + 📈 Graph
med. 1024x768
42.7  fps    + Compare + 📈 Graph
high 1360x768
34.3  fps    + Compare + 📈 Graph
ultra 1920x1080
20.9  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings med..
Fifa 11

Fifa 11

2010
low 800x600
184.1 307.5 ~ 246 fps    + Compare + 📈 Graph
med. 1024x768
102.6 148.8 ~ 126 fps    + Compare + 📈 Graph
high 1360x768
74.1 94.6 ~ 84 fps    + Compare + 📈 Graph
ultra 1920x1080
52.3  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Mafia 2

Mafia 2

2010
low 800x600
47.3  fps    + Compare
med. 1024x768
31.6  fps    + Compare
high 1360x768
25.1  fps    + Compare
ultra 1920x1080
14.9  fps    + Compare
» With all tested laptops playable in detail settings low.
StarCraft 2

StarCraft 2

2010
low 1024x768
112  fps    + Compare + 📈 Graph
med. 1360x768
34  fps    + Compare + 📈 Graph
high 1360x768
25  fps    + Compare + 📈 Graph
ultra 1920x1080
14  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings low.
Metro 2033

Metro 2033

2010
low 800x600
36 40 ~ 38 fps    + Compare
med. 1360x768
23 24.1 ~ 24 fps    + Compare
high 1600x900
12  fps    + Compare
ultra 1920x1080
4  fps    + Compare
» With all tested laptops playable in detail settings low.
Battlefield: Bad Company 2

Battlefield: Bad Company 2

2010
low 1024x768
41  fps    + Compare + 📈 Graph
med. 1366x768
31  fps    + Compare + 📈 Graph
high 1366x768
23  fps    + Compare + 📈 Graph
ultra 1920x1080
11  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings low.
CoD Modern Warfare 2

CoD Modern Warfare 2

2009
med. 1024x768
33  fps    + Compare + 📈 Graph
high 1366x768
29  fps    + Compare + 📈 Graph
ultra 1920x1080
18  fps    + Compare + 📈 Graph
» The benchmarks indicate that the game is not playable in the tested settings.
Risen

Risen

2009
low 800x600
58 67.5 ~ 63 fps    + Compare
med. 1024x768
27 28.2 ~ 28 fps    + Compare
high 1366x768
20 21 ~ 21 fps    + Compare
ultra 1920x1080
11  fps    + Compare
» With all tested laptops playable in detail settings low.
Resident Evil 5

Resident Evil 5

2009
low 800x600
81.7  fps    + Compare
high 1360x768
34.8  fps    + Compare
ultra 1920x1080
19.5  fps    + Compare
» With all tested laptops playable in detail settings low.
Need for Speed Shift

Need for Speed Shift

2009
low 800x600
43  fps    + Compare
med. 1024x768
28 34.2 ~ 31 fps    + Compare
high 1366x768
28 29.6 ~ 29 fps    + Compare
ultra 1920x1080
16  fps    + Compare
» With all tested laptops playable in detail settings low.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
63.6 64.7 ~ 64 fps    + Compare
med. 1024x768
32.7 51.1 ~ 42 fps    + Compare
high 1360x768
24.1 25 ~ 25 fps    + Compare
ultra 1920x1080
12.8  fps    + Compare
» With most tested laptops playable in detail settings med..
Anno 1404

Anno 1404

2009
low 1024x768
57.6 70 ~ 64 fps    + Compare
ultra 1280x1024
12  fps    + Compare
» With all tested laptops playable in detail settings low.
Sims 3

Sims 3

2009
high 1280x1024
32  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
F.E.A.R. 2

F.E.A.R. 2

2009
high 1280x1024
39  fps    + Compare
ultra 1920x1080
19  fps    + Compare
» With all tested laptops playable in detail settings high.
Left 4 Dead

Left 4 Dead

2008
high 1024x768
74  fps    + Compare
» With all tested laptops playable in detail settings high.
Far Cry 2

Far Cry 2

2008
low 640x480
79  fps    + Compare
high 1024x768
37.4  fps    + Compare
ultra 1920x1080
19  fps    + Compare
» With all tested laptops playable in detail settings high.
Crysis Warhead

Crysis Warhead

2008
low 800x600
47  fps    + Compare
ultra 1024x768
11  fps    + Compare
» With all tested laptops playable in detail settings low.
Trackmania Nations Forever

Trackmania Nations Forever

2008
low 640x480
201  fps    + Compare
high 1024x768
53.3  fps    + Compare
ultra 1920x1080
28.7  fps    + Compare
» With all tested laptops playable in detail settings high.
Call of Duty 4 - Modern Warfare

Call of Duty 4 - Modern Warfare

2007
high 1280x1024
30 59.8 ~ 45 fps    + Compare
» With most tested laptops playable in detail settings high.
Supreme Commander - FA Bench

Supreme Commander - FA Bench

2007
low 1024x768
48.2  fps    + Compare
med. 1024x768
32.9  fps    + Compare
high 1024x768
27.1  fps    + Compare
ultra 1920x1080
14.9  fps    + Compare
» With all tested laptops playable in detail settings low.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
low 1024x768
65.7  fps    + Compare
med. 1024x768
37.7  fps    + Compare
high 1024x768
22.7  fps    + Compare
ultra 1920x1080
5.3  fps    + Compare
» With all tested laptops playable in detail settings med..
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
med. 1024x768
37.3  fps    + Compare
high 1024x768
20.6  fps    + Compare
ultra 1920x1080
5  fps    + Compare
» With all tested laptops playable in detail settings med..
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
low 800x600
113  fps    + Compare
med. 1024x768
53  fps    + Compare
high 1024x768
29  fps    + Compare
ultra 1920x1080
12  fps    + Compare
» With all tested laptops playable in detail settings med..
Call of Juarez Benchmark

Call of Juarez Benchmark

2006
high 1024x768
51.3  fps    + Compare
» With all tested laptops playable in detail settings high.
Half Life 2 - Lost Coast Benchmark

Half Life 2 - Lost Coast Benchmark

2005
high 1024x768
115  fps    + Compare
» With all tested laptops playable in detail settings high.
Quake 4

Quake 4

2005
ultra 1024x768
62  fps    + Compare
» With all tested laptops playable in detail settings ultra.
World of Warcraft

World of Warcraft

2005
high 1280x1024
38  fps    + Compare
» With all tested laptops playable in detail settings high.
Doom 3

Doom 3

2004
low 640x480
187  fps    + Compare
ultra 1024x768
133  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
high 1024x768
436  fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
Call of Duty: Black Ops63.642.734.320.9
Fifa 112461268452.3
Mafia 247.331.625.114.9
StarCraft 2112342514
Metro 20333824124
Battlefield: Bad Company 241312311
CoD Modern Warfare 2332918
Risen63282111
Resident Evil 581.734.819.5
Need for Speed Shift43312916
Colin McRae: DIRT 264422512.8
Anno 14046412
Sims 332
F.E.A.R. 23919
Left 4 Dead74
Far Cry 27937.419
Crysis Warhead4711
Trackmania Nations Forever20153.328.7
Call of Duty 4 - Modern Warfare45
Supreme Commander - FA Bench48.232.927.114.9
Crysis - GPU Benchmark65.737.722.75.3
Crysis - CPU Benchmark37.320.65
World in Conflict - Benchmark113532912
Call of Juarez Benchmark51.3
Half Life 2 - Lost Coast Benchmark115
Quake 462
World of Warcraft38
Doom 3187133
Quake 3 Arena - Timedemo436
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
6
9
3		2
11

1		12
9
3
1		19
1
1
1





For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 09. 03:35:48

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 08 Nov 2024 19:43:11 +0100 +0.002s ... 0.002s

#4 no comparison url found in template nbc.compare_page_1 needed +0.118s ... 0.12s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.12s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.121s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.121s

#8 composed specs +0s ... 0.121s

#9 did output specs +0s ... 0.121s

#10 start showIntegratedCPUs +0s ... 0.121s

#11 getting avg benchmarks for device 1943 +0.027s ... 0.148s

#12 got single benchmarks 1943 +0.067s ... 0.215s

#13 got avg benchmarks for devices +0s ... 0.215s

#14 min, max, avg, median took s +1.007s ... 1.222s

#15 before gaming benchmark output +0s ... 1.222s

#16 Got 94 rows for game benchmarks. +0.062s ... 1.284s

#17 composed SQL query for gamebenchmarks +0s ... 1.284s

#18 got data and put it in $dataArray +0.027s ... 1.311s

#19 benchmarks composed for output. +2.576s ... 3.887s

#20 no comparison url found in template nbc.compare_page_1 needed +0.011s ... 3.898s

#21 return log +0s ... 3.898s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

M4 20-core GPU
Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

M4 8-Core GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
GeForce GT 420M
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

* Approximate position of the graphics adapter
