NVIDIA GeForce GT 520MX

NVIDIA GeForce GT 520MX

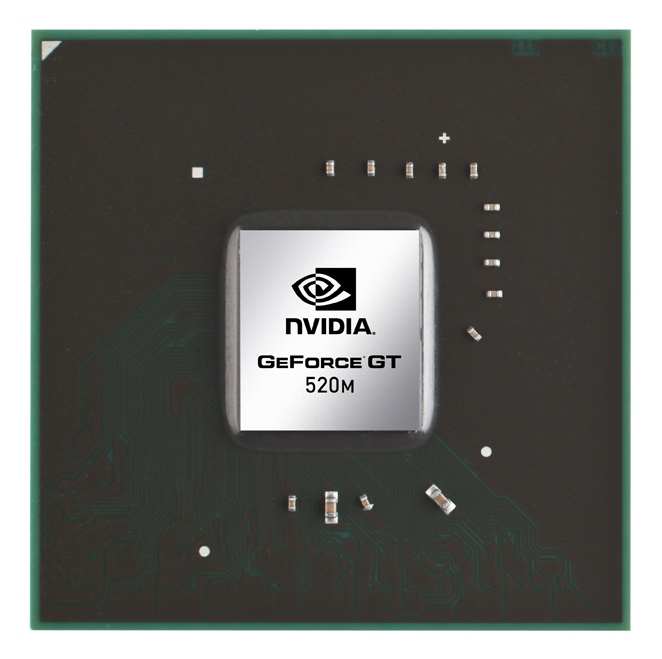

NVIDIA的GeForce GT 520MX是一款入门级的专用笔记本电脑的图形卡在2011年提出。它是基于GT 520M的GF119一样，但具有更高的核心和Shader时钟速率。使用DDR3，64位内存总线的显卡可能会成为一个瓶颈。架构的GF119拥有48个ALU，8个纹理单元和64位内存接口，为DDR3 VRAM。因此，它类似于一个半GF108（GeForce®（精视™）GT 540M），但已经与优化晶体管制造。光栅操作处理器（ROP）的差异保持同样的计算4。的GF119是smalles的芯片的费米生成用于低端笔记本电脑。作为一款入门级的卡片的性能，的GT 520MX有竞争反对在目前的Sandy Bridge处理器的英特尔HD Graphics 3000。由于更高的时钟速度，MX应该只稍微比HD 3000快，但显然还是超出了速度更快的GT 525M比GT 520M快。因此要求苛刻的游戏，如“孤岛危机2或黑手党2只运行在最低细节和决议流利。即使在高细节设置，播放要求不高的游戏沥FIFA 11或模拟人生3。至于其他的500M系列芯片的特点，520MX支持通过HDMI输出码流高清音频（蓝光）。这意味着该卡能够转移到高保真接收器Dolby True HD和DTS-HD比特流明智的，没有质量损失。的的GT520MX提供的PureVideo HD视频解码技术，。视频处理器（VP5）支持的功能集D，因此GPU能够完全解码MPEG-1，MPEG-2，MPEG-4第2部分（MPEG-4 ASP - 例如，DivX或XviD），VC-1 / WMV9，H.264（VLD，IDCT，运动补偿，去块“）。相对于旧的VP4，VP5提供更快的解码，在低功耗，HD-SD转码的4K x 4K分辨率的H.264解码支持。此外，GPU能够解码两个1080p视频流，同时（如蓝光图片，图片）。通过CUDA，OpenCL的，和DirectCompute 2.1的支持下，GeForce GT 520MX可帮助一般计算。例如，流处理器能显着更快编码视频不是一个快速的CPU。此外，可以从理论上做物理计算的GPU PhysX物理（如黑手党2“地铁2033”），但性能不会，这是足够的。

GeForce GT 500M Series

GeForce GT 555M 144 @ 0.53 - 0.75 GHz128, 192 Bit @ 785-900 MHz
GeForce GT 550M 96 @ 0.74 GHz128 Bit @ 900 MHz
GeForce GT 540M 96 @ 0.67 GHz128 Bit @ 900 MHz
GeForce GT 525M 96 @ 0.6 GHz128 Bit @ 900 MHz
GeForce GT 520MX 48 @ 0.9 GHz64 Bit @ 900 MHz
GeForce GT 520M 48 @ 0.74 GHz64 / 128 Bit @ 800 / 900 MHz
CodenameN12P-GVR
ArchitectureFermi
Pipelines48 - unified
Core Speed900 MHz
Shader Speed1800 MHz
Memory Speed900 MHz
Memory Bus Width64 Bit
Memory TypeDDR3
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 11, Shader 5.0
technology40 nm
FeaturesVerde Drivers, CUDA, Optimus, DirectCompute, OpenCL, DirectX11, OpenGL 4.1
Date of Announcement30.05.2011

Benchmarks

3DMark 11 - 3DM11 Performance Score
min: 658     avg: 666     median: 666 (1%)     max: 674 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 593     avg: 597     median: 596.5 (1%)     max: 600 Points
+ 2 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -71%
...
Intel HD Graphics 4000
522 -13%
AMD Radeon HD 7470M
522 -13%
AMD Radeon HD 6470M
531 -11%
AMD Radeon HD 8330
532 -11%
Intel UHD Graphics 600
558 -7%
AMD Radeon R3 (Mullins/Beema)
576 -4%
AMD Radeon HD 7450M
582 -3%
AMD Radeon HD 7520G
584 -2%
AMD Radeon HD 7500G
585 -2%
NVIDIA GeForce GT 520MX
597
AMD Radeon HD 6490M
599 0%
AMD Radeon R4 (Kaveri)
611 2%
AMD Radeon HD 8400
615 3%
AMD Radeon HD 8350G
624 5%
Intel HD Graphics 4200
624 5%
Intel HD Graphics 505
632 6%
Intel HD Graphics (Broadwell)
641 7%
Intel HD Graphics 5300
648 9%
AMD Radeon HD 6620G
650 9%
...
AMD Radeon RX 7900M
59943 9941%
max:
NVIDIA GeForce RTX 4090
106023 17659%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 2558     avg: 2620     median: 2619.5 (1%)     max: 2681 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 2179     avg: 2201     median: 2200.5 (1%)     max: 2222 Points
+ 2 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -97%
...
AMD Radeon HD 6490M
2018 -8%
AMD Radeon HD 7620G
2031 -8%
NVIDIA GeForce GT 330M
2039 -7%
Intel HD Graphics 505
2073 -6%
NVIDIA GeForce GT 240M
2092 -5%
AMD Radeon HD 7520G
2098 -5%
AMD Radeon R4 (Beema)
2111 -4%
NVIDIA Quadro NVS 5100M
2156 -2%
Intel HD Graphics (Broadwell)
2196 0%
NVIDIA GeForce GT 520MX
2201
NVIDIA Quadro FX 880M
2203 0%
ATI Mobility Radeon HD 4650
2207 0%
AMD Radeon HD 8350G
2212 0%
ATI Mobility Radeon HD 560v
2216 1%
NVIDIA GeForce 8800M GTS
2220 1%
AMD Radeon HD 7640G
2222 1%
AMD Radeon R4 (Stoney Ridge)
2243 2%
AMD Radeon R5 (Beema/Carrizo-L)
2259 3%
AMD Radeon HD 7500G
2322 5%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 5917%
max:
AMD Radeon RX 7900 XTX
170928 7666%
0%
100%
3DMark 03 - 3DMark 03 - Standard
min: 13717     avg: 13769     median: 13782 (7%)     max: 13808 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
10556 Points (12%)
+ 1 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
Intel HD Graphics 5000
9763 -8%
NVIDIA Quadro FX 1600M
9963 -6%
NVIDIA GeForce Go 7800 GTX SLI
9969 -6%
NVIDIA GeForce Go 7900 GS SLI
9996 -5%
NVIDIA GeForce Go 7950 GTX SLI
10256 -3%
AMD Radeon HD 7640G + HD 7670M Dual Graphics
10403 -1%
NVIDIA GeForce GT 130M
10417 -1%
NVIDIA GeForce GT 325M
10461 -1%
AMD Radeon HD 7660G
10550 0%
NVIDIA GeForce GT 520MX
10556
NVIDIA GeForce Go 7900 GTX SLI
10585 0%
NVIDIA GeForce GT 230M
10689 1%
AMD Radeon R5 M335
10717 2%
AMD Radeon HD 7570M
10786 2%
AMD Radeon HD 6740G2
10949 4%
NVIDIA GeForce GT 420M
11125 5%
ATI Mobility Radeon HD 550v
11140 6%
NVIDIA Quadro FX 770M
11161 6%
AMD Radeon 520
11294 7%
...
AMD Radeon RX 7600M XT
68064 545%
max:
NVIDIA GeForce RTX 4080 Super
87172 726%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
min: 5804     avg: 5900     median: 5899.5 (8%)     max: 5995 points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 5235     avg: 5296     median: 5296 (7%)     max: 5357 Points
+ 2 benchmarks and specifications   + Show comparison chart
Unigine Heaven 2.1 - Heaven 2.1 high
9.3 fps (2%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 7310
0.6 -94%
...
AMD Radeon R2 (Stoney Ridge)
7.8 -16%
AMD Radeon HD 7550M
8.1 -13%
AMD Radeon R4 (Stoney Ridge)
8.35 -10%
ATI Mobility Radeon HD 545v
8.7 -6%
AMD Radeon HD 6520G + HD 7450M Dual Graphics
8.867 -5%
Intel HD Graphics 505
8.9 -4%
Intel UHD Graphics 605
9 -3%
NVIDIA GeForce GT 435M
9 -3%
NVIDIA GeForce GT 620M
9.1 -2%
NVIDIA GeForce GT 520MX
9.3
Intel HD Graphics 4000
9.585 3%
AMD Radeon R5 (Beema/Carrizo-L)
9.7 4%
AMD Radeon HD 8550G
9.8 5%
AMD FirePro M2000
9.9 6%
ATI Mobility Radeon HD 5650
10.05 8%
NVIDIA GeForce GT 420M
10.1 9%
NVIDIA Quadro 1000M
10.1 9%
AMD Radeon R4 (Beema)
10.3 11%
AMD Radeon HD 7610M
10.45 12%
...
NVIDIA Quadro RTX 5000 (Laptop)
532 5620%
0%
100%
Windows 7 Experience Index - Win7 Gaming graphics
6.5 Points (82%)
+ 3 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
min: 4.5     avg: 4.6     median: 4.5 (57%)     max: 4.7 Points
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4558     avg: 4655     median: 4655 (3%)     max: 4752 points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 18.44     avg: 18.5     median: 18.5 (6%)     max: 18.5 fps
+ 4 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Dishonored

Dishonored

2012
low 1024x768
13.8  fps    + Compare
med. 1366x768
15.4  fps    + Compare
high 1366x768
15.2  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
World of Tanks v8

World of Tanks v8

2012
low 1024x768
42.6  fps    + Compare
med. 1366x768
15.1  fps    + Compare
high 1366x768
13  fps    + Compare
» With all tested laptops playable in detail settings low.
Fifa 13

Fifa 13

2012
low 1024x768
146  fps    + Compare
med. 1366x768
97  fps    + Compare
high 1366x768
52  fps    + Compare
» With all tested laptops playable in detail settings high.
F1 2012

F1 2012

2012
low 1024x768
39  fps    + Compare
med. 1366x768
34  fps    + Compare
high 1366x768
30  fps    + Compare
» With all tested laptops playable in detail settings low.
Borderlands 2

Borderlands 2

2012
low 1024x768
33  fps    + Compare
med. 1366x768
25.3  fps    + Compare
high 1366x768
20  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Torchlight 2

Torchlight 2

2012
low 1024x768
24.3  fps    + Compare
med. 1366x768
12.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Counter-Strike: GO

Counter-Strike: GO

2012
low 1024x768
75  fps    + Compare
med. 1366x768
68  fps    + Compare
high 1366x768
38  fps    + Compare
» With all tested laptops playable in detail settings high.
Darksiders II

Darksiders II

2012
med. 1366x768
26.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Sleeping Dogs

Sleeping Dogs

2012
low 1024x768
41  fps    + Compare
med. 1366x768
30.1  fps    + Compare
high 1366x768
10.3  fps    + Compare
» With all tested laptops playable in detail settings low.
Risen 2: Dark Waters

Risen 2: Dark Waters

2012
low 1024x768
20.8  fps    + Compare
med. 1366x768
14  fps    + Compare
high 1366x768
10.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Mass Effect 3

Mass Effect 3

2012
low 1280x720
36.1  fps    + Compare
high 1366x768
25.1  fps    + Compare
» With all tested laptops playable in detail settings low.
Anno 2070

Anno 2070

2011
low 1024x768
54.2 55.3 ~ 55 fps    + Compare
med. 1366x768
20.7 21.2 ~ 21 fps    + Compare
high 1366x768
12.7 13 ~ 13 fps    + Compare
» With all tested laptops playable in detail settings low.
The Elder Scrolls V: Skyrim

The Elder Scrolls V: Skyrim

2011
low 1280x720
31.3 31.4 ~ 31 fps    + Compare
med. 1366x768
21.8 22 ~ 22 fps    + Compare
high 1366x768
14 16.8 ~ 15 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Battlefield 3

Battlefield 3

2011
low 1024x768
11.8  fps    + Compare
med. 1366x768
10.5  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Fifa 12

Fifa 12

2011
low 800x600
218  fps    + Compare
med. 1024x768
107  fps    + Compare
high 1360x768
86  fps    + Compare
» With all tested laptops playable in detail settings high.
F1 2011

F1 2011

2011
low 800x600
66  fps    + Compare
med. 1024x768
47  fps    + Compare
high 1366x768
27  fps    + Compare
» With all tested laptops playable in detail settings med..
Deus Ex Human Revolution

Deus Ex Human Revolution

2011
low 1024x768
62.6  fps    + Compare
high 1366x768
26.3  fps    + Compare
» With all tested laptops playable in detail settings low.
Dirt 3

Dirt 3

2011
low 800x600
101.2  fps    + Compare
med. 1024x768
41.4  fps    + Compare
high 1360x768
27  fps    + Compare
» With all tested laptops playable in detail settings med..
Call of Duty: Black Ops

Call of Duty: Black Ops

2010
low 800x600
62.6  fps    + Compare
med. 1024x768
40.6  fps    + Compare
» With all tested laptops playable in detail settings med..
Battlefield: Bad Company 2

Battlefield: Bad Company 2

2010
low 1024x768
41  fps    + Compare
med. 1366x768
31  fps    + Compare
high 1366x768
22  fps    + Compare
» With all tested laptops playable in detail settings low.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
high 1024x768
21.6  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
lowmed.highultraQHD4K
Dishonored13.815.415.2
World of Tanks v842.615.113
Fifa 131469752
F1 2012393430
Borderlands 23325.320
Torchlight 224.312.6
Counter-Strike: GO756838
Darksiders II26.8
Sleeping Dogs4130.110.3
Risen 2: Dark Waters20.81410.8
Mass Effect 336.125.1
Anno 2070552113
The Elder Scrolls V: Skyrim312215
Battlefield 311.810.5
Fifa 1221810786
F1 2011664727
Deus Ex Human Revolution62.626.3
Dirt 3101.241.427
Call of Duty: Black Ops62.640.6
Battlefield: Bad Company 2413122
Crysis - GPU Benchmark21.6
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		4
8
5
2		9
6
3
13
3
1









For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 05. 04:43:07

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Thu, 04 Jul 2024 05:31:02 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.039s ... 0.04s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#8 composed specs +0s ... 0.041s

#9 did output specs +0s ... 0.041s

#10 start showIntegratedCPUs +0s ... 0.041s

#11 getting avg benchmarks for device 2614 +0.014s ... 0.055s

#12 got single benchmarks 2614 +0.024s ... 0.079s

#13 got avg benchmarks for devices +0s ... 0.079s

#14 min, max, avg, median took s +0.286s ... 0.365s

#15 before gaming benchmark output +0s ... 0.365s

#16 Got 60 rows for game benchmarks. +0.009s ... 0.374s

#17 composed SQL query for gamebenchmarks +0s ... 0.374s

#18 got data and put it in $dataArray +0.013s ... 0.387s

#19 benchmarks composed for output. +0.548s ... 0.935s

#20 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 0.938s

#21 return log +0s ... 0.938s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
SD X Adreno X1-85 4.6 TFLOPS GPU *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
SD X Adreno X1-85 3.8 TFLOPS GPU *
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
Radeon Graphics (Ryzen 9000) *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
GeForce GT 520MX
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)

* Approximate position of the graphics adapter
