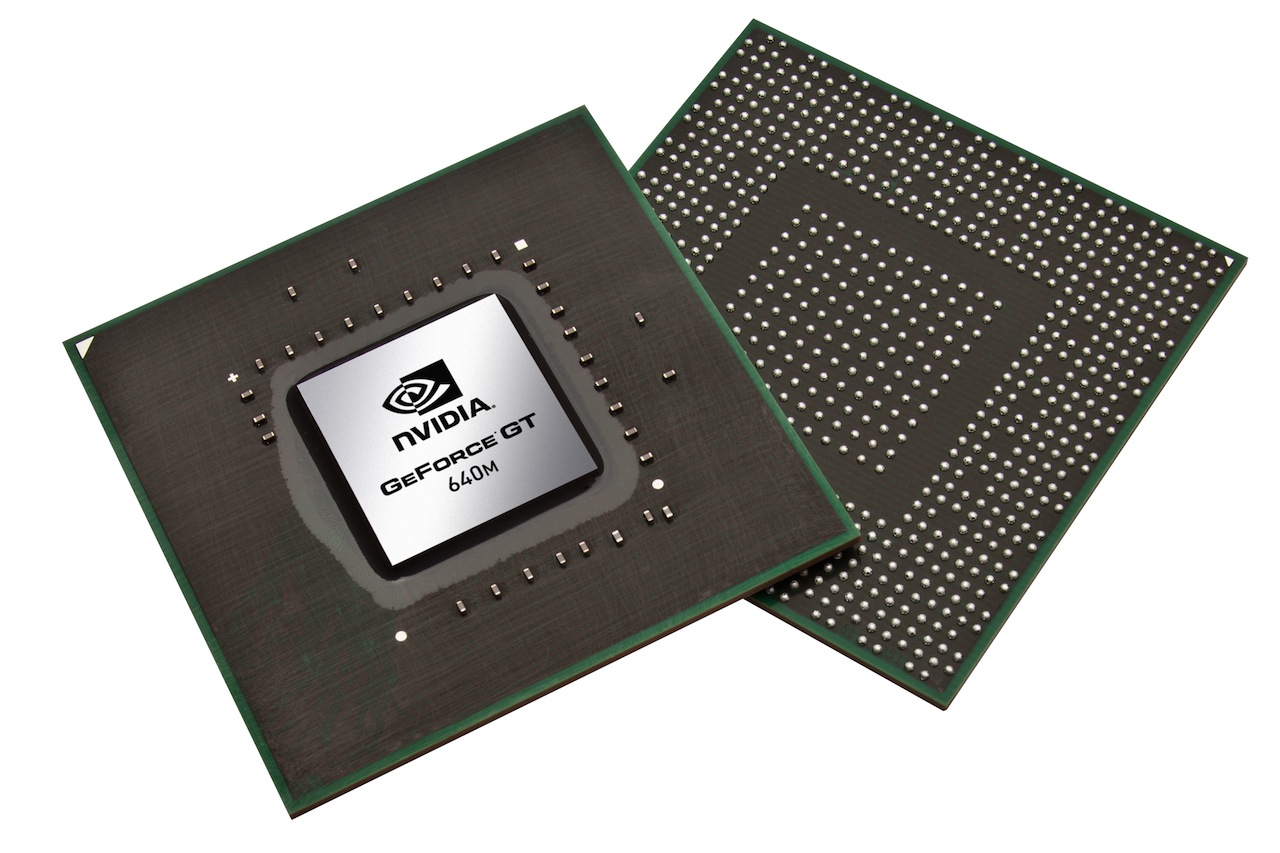

NVIDIA GeForce GT 640M LE

NVIDIA GeForce GT 640M LE

NVIDIA GeForce GT 640M LE是一个中期范围内，支持DirectX 11.1兼容的图形卡，宣布在2012年第一季度薄又轻的笔记本电脑。这是一个基于开普勒-GPU内建的GK107架构上，并在TSMC在28nm制造。显卡采用的是128位宽度的存储器接口与DDR3 VRAM。较慢的核心频率只有500 MHz的不同从一个正常的GT 640M LE模型。关注：继传闻，也将是一个基于Fermi架构的版本（96个着色器，762兆赫，DDR3/GDDR5，类似550M/555M）很可能更高的功耗比开普勒变种。开普勒架构架构是Fermi架构的继任者第一次出现在GeForce®（精视™）500M系列笔记本电脑。 GK107开普勒核心提供两种着色器块，称为SMX，每个192着色器共384着色器时钟频率以相同的速度为处理器核心的核心。虽然越来越多的着色器核心可在开普勒架构相比，Fermi设计，开普勒着色器仍有望高达两倍的电源效率。然而，由于缺少的热的着色器的域的时钟，两个着色器的开普勒芯片一样快，一个着色器的费米芯片（后者的时钟快两倍）。现在支持PCIe 3.0的移动开普勒系列和可选的Turbo模式可以自动超频Nvidia显卡的理论的15％，如果笔记本电脑的散热系统，使得它。升压模式的实施，这是在BIOS中完成的，但它最终依赖于制造商的笔记本电脑。性能由于仅有500兆赫的时钟速度，游戏性能的GeForce GT 640M LE低于640M的约20％。这是对GT 635M或GT 555M的水平相同。在重着色器的DirectX 11游戏和基准的表现是非常不错的。然而，128位内存接口，可以是一个瓶颈，如果使用DDR3绘图记忆体。像“战地3”2011年要求苛刻的游戏在1366×768和中设置播放。现在采用改进的功能集，包括支持高达4个主动的显示器。此外，高达3840x2160像素的高分辨率显示器，可以连接使用DisplayPort 1.2和HDMI 1.4a规范，如果有的话。 ，如Dolby TrueHD和DTS-HD，HD音频编解码器，可以通过比特流模式下，通过HDMI端口传输。然而，由于大多数笔记本电脑将采用擎天柱，集成的图形处理器（GPU）将有可能在显示器端口直接控制，可能会限制该功能由Nvidia的开普勒卡的设置。第5代PureVideo HD视频处理器（VP5）也集成在GK107核心，并提供高清视频的硬件解码。常见的编解码器，如MPEG-1/2，MPEG-4 ASP，H.264和VC1/WMV9完全支持4K分辨率，而VC1和MPEG-4支持高达1080p。两个数据流可以并行解码的功能，如图片，在图片。另一个新的特点是包含一个专用的视频编码引擎，类似英特尔QuickSync的NVENC API可以访问。功耗的GeForce GT 640M LE类似的旧GeForce GT 520M独立。其结果是，Nvidia的GPU是适用于薄又轻的笔记本电脑。

GeForce GT 600M Series

GeForce GT 650M SLI 768 @ 0.79 - 0.84 GHz2x 128 Bit @ 4000 MHz
GeForce GT 650M 384 @ 0.74 - 0.9 GHz128 Bit @ 1800 - 4000 MHz
GeForce GT 645M 384 @ 0.71 GHz128 Bit @ 1800 MHz
GeForce GT 640M 384 @ 0.63 - 0.65 GHz128 Bit @ 1800 - 4000 MHz
GeForce GT 640M LE 384 @ 0.5 GHz128 Bit @ 1800 - 4000 MHz
GeForce GT 635M 144 @ 0.66 - 0.75 GHz128/192 Bit @ 1800 MHz
GeForce GT 630M 96 @ 0.67 GHz128 Bit @ 1800 MHz
GeForce GT 625M 96 @ 0.63 GHz64 Bit @ 1800 MHz
GeForce GT 620M 96 @ 0.63 - 0.72 GHz64 / 128 Bit @ 1800 MHz
CodenameN13P-LP
ArchitectureFermi / Kepler
Pipelines384 - unified
Core Speed500 MHz
Memory Speed1800 - 4000 MHz
Memory Bus Width128 Bit
Memory TypeDDR3, GDDR5
Max. Amount of Memory2048 MB
Shared Memoryno
APIDirectX 11, Shader 5.0
technology28 nm
FeaturesOptimus, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play
Notebook Sizemedium sized
Date of Announcement22.03.2012

Benchmarks

3DMark 11 - 3DM11 Performance Score
min: 1335     avg: 1402     median: 1385 (2%)     max: 1519 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 1241     avg: 1349     median: 1259 (1%)     max: 1590 Points
+ 5 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -87%
...
AMD Radeon HD 8570M
1233 -9%
AMD Radeon R5 (Stoney Ridge)
1245 -8%
NVIDIA GeForce 820M
1259 -7%
NVIDIA Quadro 2000M
1261 -7%
AMD Radeon HD 8670M
1286 -5%
Intel HD Graphics 520
1296 -4%
AMD Radeon HD 8550M
1307 -3%
AMD Radeon HD 6770M
1328 -2%
AMD Radeon HD 7690M XT
1346 0%
NVIDIA GeForce GT 640M LE
1349
AMD FirePro M5950
1350 0%
Intel HD Graphics 530
1355 0%
AMD Radeon HD 8650G
1361 1%
AMD Radeon HD 8730M
1371 2%
Intel HD Graphics 6000
1372 2%
NVIDIA GeForce 910M
1413 5%
Intel HD Graphics 5600
1431 6%
AMD Radeon R6 (Carrizo)
1452 8%
Intel UHD Graphics (Jasper Lake 24 EU)
1458 8%
...
AMD Radeon RX 7900M
59943 4344%
max:
NVIDIA GeForce RTX 4090
106023 7759%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 2735     avg: 5212     median: 5788 (2%)     max: 6182 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 2255     avg: 4528     median: 4872 (3%)     max: 5557 Points
+ 5 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -99%
...
NVIDIA GeForce GTX 260M
4316 -5%
AMD Radeon 520
4324 -5%
NVIDIA Quadro FX 3700M
4326 -4%
NVIDIA NVS 5400M
4407 -3%
AMD Radeon R6 (Carrizo)
4415 -2%
AMD Radeon R7 (Carrizo)
4420 -2%
NVIDIA GeForce GT 635M
4441 -2%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
4452 -2%
NVIDIA GeForce GTS 360M
4516 0%
NVIDIA GeForce GT 640M LE
4528
AMD Radeon HD 6750M
4545 0%
Intel HD Graphics 520
4547 0%
NVIDIA GeForce GT 445M
4570 1%
AMD Radeon R7 M340
4606 2%
AMD Radeon R7 M460
4645 3%
AMD Radeon RX Vega 3
4739 5%
AMD Radeon R5 M240
4761 5%
AMD Radeon R7 M260
4787 6%
AMD Radeon R5 M255
4804 6%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 2825%
max:
AMD Radeon RX 7900 XTX
170928 3675%
0%
100%
3DMark 03 - 3DMark 03 - Standard
min: 22952     avg: 23397     median: 23258 (12%)     max: 23982 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 13748     avg: 14777     median: 15077 (17%)     max: 15507 Points
+ 3 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
AMD Radeon HD 7650M
14211 -4%
NVIDIA Quadro FX 2700M
14224 -4%
NVIDIA GeForce 820M
14352 -3%
NVIDIA GeForce GT 620M
14377 -3%
AMD Radeon HD 6650M
14502 -2%
NVIDIA GeForce GTX 260M SLI
14510 -2%
NVIDIA GeForce 920M
14564 -1%
NVIDIA GeForce GTS 250M
14733 0%
NVIDIA GeForce GTX 260M
14773 0%
NVIDIA GeForce GT 640M LE
14777
AMD Radeon HD 6570M
14855 1%
NVIDIA GeForce 9800M GT
14869 1%
AMD Radeon R7 M260
14924 1%
ATI Mobility Radeon HD 4830
14938 1%
NVIDIA GeForce 8800M GTX
14952 1%
AMD Radeon HD 6750M
15011 2%
Intel HD Graphics 4600
15058 2%
NVIDIA NVS 5200M
15064 2%
NVIDIA Quadro FX 1800M
15249 3%
...
NVIDIA GeForce RTX 4090 Laptop GPU
61850 319%
max:
NVIDIA GeForce RTX 4080 Super
87172 490%
0%
100%
3DMark 06 3DMark 06 - Standard 1366x768 +
3DMark 06
8414 Points (11%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 5639     avg: 8326     median: 8858 (12%)     max: 9599 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1024x768 +
3DMark 06
11571 Points (15%)
+ 1 benchmarks and specifications   + Show comparison chart
Unigine Heaven 2.1 - Heaven 2.1 high
min: 17.1     avg: 17.7     median: 17.4 (3%)     max: 18.5 fps
+ 3 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 7310
0.6 -97%
...
AMD Radeon R7 (Kaveri)
16.6 -6%
AMD Radeon 520
16.6 -6%
NVIDIA GeForce GT 630M
16.62 -6%
Intel HD Graphics 515
16.85 -5%
NVIDIA Quadro 2000M
16.95 -4%
ATI Mobility Radeon HD 5850
17.1 -3%
NVIDIA GeForce GT 555M
17.37 -2%
Intel HD Graphics 615
17.4 -2%
AMD Radeon HD 6740G2
17.65 0%
NVIDIA GeForce GT 640M LE
17.67
AMD Radeon R7 M270
17.85 1%
AMD FirePro M5950
17.9 1%
NVIDIA GeForce 910M
18 2%
AMD Radeon R5 M240
18.3 4%
AMD Radeon R5 M255
18.7 6%
AMD Radeon HD 6755G2
18.8 6%
Intel HD Graphics 6000
19.03 8%
NVIDIA GeForce GT 740M
19.4 10%
AMD Radeon R7 (Bristol Ridge)
19.5 10%
...
NVIDIA Quadro RTX 5000 (Laptop)
532 2911%
0%
100%
Windows 7 Experience Index - Win7 Gaming graphics
min: 6.2     avg: 6.6     median: 6.7 (84%)     max: 6.9 Points
+ 4 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
min: 4.8     avg: 6.1     median: 6.4 (80%)     max: 6.9 Points
+ 4 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 5824     avg: 5911     median: 5858 (4%)     max: 6105 points
+ 4 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 26.15     avg: 31.6     median: 32 (11%)     max: 33.91 fps
+ 5 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Guild Wars 2

Guild Wars 2

2012
low 1024x768
51  fps    + Compare
high 1366x768
26  fps    + Compare
» With all tested laptops playable in detail settings low.
Max Payne 3

Max Payne 3

2012
low 1024x768
33.3  fps    + Compare
med. 1366x768
30.9  fps    + Compare
high 1366x768
13.3  fps    + Compare
ultra 1920x1080
10.4  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dirt Showdown

Dirt Showdown

2012
low 1024x768
73.8  fps    + Compare
med. 1366x768
55.1  fps    + Compare
high 1366x768
36.1  fps    + Compare
ultra 1920x1080
13.4  fps    + Compare
» With all tested laptops playable in detail settings high.
Diablo III

Diablo III

2012
low 1024x768
98.6  fps    + Compare
med. 1366x768
65.3  fps    + Compare
high 1366x768
57.7  fps    + Compare
ultra 1920x1080
42.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Risen 2: Dark Waters

Risen 2: Dark Waters

2012
low 1024x768
39.1  fps    + Compare
med. 1366x768
25.1  fps    + Compare
high 1366x768
20.3  fps    + Compare
ultra 1920x1080
10.3  fps    + Compare
» With all tested laptops playable in detail settings low.
Mass Effect 3

Mass Effect 3

2012
low 1280x720
60  fps    + Compare
high 1366x768
39.1  fps    + Compare
ultra 1920x1080
26.4  fps    + Compare
» With all tested laptops playable in detail settings high.
Alan Wake

Alan Wake

2012
low 1024x768
42  fps    + Compare
med. 1366x768
25.2  fps    + Compare
ultra 1920x1080
11.2  fps    + Compare
» With all tested laptops playable in detail settings low.
Anno 2070

Anno 2070

2011
low 1024x768
55 90.4 ~ 73 fps    + Compare
med. 1366x768
30 40.5 ~ 35 fps    + Compare
high 1366x768
19 25.1 ~ 22 fps    + Compare
ultra 1920x1080
13.4  fps    + Compare
» With all tested laptops playable in detail settings low.
The Elder Scrolls V: Skyrim

The Elder Scrolls V: Skyrim

2011
low 1280x720
31 45.7 47 48.4 49.2 ~ 44 fps    + Compare
med. 1366x768
23 34.3 34.7 38 40.5 ~ 34 fps    + Compare
high 1366x768
17 26.3 26.3 28 31.6 ~ 26 fps    + Compare
ultra 1920x1080
12.9 14.5 18.6 ~ 15 fps    + Compare
» With most tested laptops playable in detail settings low.
Battlefield 3

Battlefield 3

2011
low 1024x768
38.1 41 ~ 40 fps    + Compare
med. 1366x768
24.6 28 ~ 26 fps    + Compare
high 1366x768
20.3 22 ~ 21 fps    + Compare
ultra 1920x1080
8.9  fps    + Compare
» With all tested laptops playable in detail settings low.
Fifa 12

Fifa 12

2011
low 800x600
308.1  fps    + Compare
med. 1024x768
171  fps    + Compare
high 1360x768
126.2  fps    + Compare
ultra 1920x1080
82.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2011

F1 2011

2011
low 800x600
91 105 ~ 98 fps    + Compare
med. 1024x768
66 70 ~ 68 fps    + Compare
high 1366x768
48 55 ~ 52 fps    + Compare
ultra 1920x1080
17  fps    + Compare
» With all tested laptops playable in detail settings high.
Deus Ex Human Revolution

Deus Ex Human Revolution

2011
low 1024x768
59 60 60 89.3 ~ 67 fps    + Compare
high 1366x768
46 47 49 51.8 ~ 48 fps    + Compare
ultra 1920x1080
17.4 19 19.1 ~ 19 fps    + Compare
» With all tested laptops playable in detail settings high.
Dirt 3

Dirt 3

2011
low 800x600
144.4  fps    + Compare
med. 1024x768
70.4  fps    + Compare
high 1360x768
51.1  fps    + Compare
ultra 1920x1080
16.8  fps    + Compare
» With all tested laptops playable in detail settings high.
StarCraft 2

StarCraft 2

2010
low 1024x768
124 184.9 261.2 ~ 190 fps    + Compare
med. 1360x768
53 55.7 58.2 ~ 56 fps    + Compare
high 1360x768
37 37.7 45 ~ 40 fps    + Compare
ultra 1920x1080
21.1 26.6 ~ 24 fps    + Compare
» With all tested laptops playable in detail settings high.
Metro 2033

Metro 2033

2010
low 800x600
58.4  fps    + Compare
med. 1360x768
37.5  fps    + Compare
high 1600x900
19.1  fps    + Compare
ultra 1920x1080
6.6  fps    + Compare
» With all tested laptops playable in detail settings med..
World of Warcraft

World of Warcraft

2005
low 800x600
78  fps    + Compare
med. 1024x768
53  fps    + Compare
high 1280x1024
26  fps    + Compare
» With all tested laptops playable in detail settings med..
lowmed.highultraQHD4K
Guild Wars 25126
Max Payne 333.330.913.310.4
Dirt Showdown73.855.136.113.4
Diablo III98.665.357.742.5
Risen 2: Dark Waters39.125.120.310.3
Mass Effect 36039.126.4
Alan Wake4225.211.2
Anno 207073352213.4
The Elder Scrolls V: Skyrim44342615
Battlefield 34026218.9
Fifa 12308.1171126.282.7
F1 201198685217
Deus Ex Human Revolution674819
Dirt 3144.470.451.116.8
StarCraft 2190564024
Metro 203358.437.519.16.6
World of Warcraft785326
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
7
7
3		3
7
3
1		8
7

1		13
1
1






For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 25. 05:49:29

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Tue, 25 Jun 2024 05:31:39 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.039s ... 0.04s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#11 composed specs +0s ... 0.042s

#12 did output specs +0s ... 0.042s

#13 start showIntegratedCPUs +0s ... 0.042s

#14 getting avg benchmarks for device 2988 +0.014s ... 0.056s

#15 got single benchmarks 2988 +0.032s ... 0.088s

#16 got avg benchmarks for devices +0s ... 0.088s

#17 min, max, avg, median took s +0.345s ... 0.433s

#18 before gaming benchmark output +0s ... 0.433s

#19 Got 100 rows for game benchmarks. +0.01s ... 0.443s

#20 composed SQL query for gamebenchmarks +0s ... 0.443s

#21 got data and put it in $dataArray +0.011s ... 0.455s

#22 benchmarks composed for output. +0.622s ... 1.076s

#23 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 1.079s

#24 return log +0s ... 1.079s

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
GeForce MX570 *
Radeon RX 6300M *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
SD X Adreno X1-85 GPU *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
SD X Adreno 3.8 TFLOPS GPU *
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
Radeon Graphics (Ryzen 9000) *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
GeForce GT 640M LE
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)

* Approximate position of the graphics adapter
