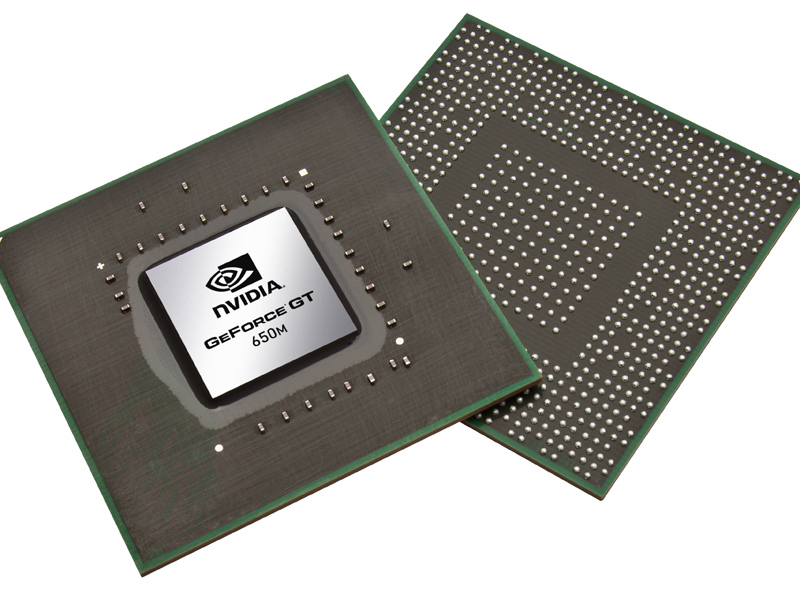

NVIDIA GeForce GT 650M

NVIDIA GeForce GT 650M

NVIDIA GeForce GT 650M是一个中期范围内，支持DirectX 11.1兼容的图形卡，宣布在2012年第一季度的笔记本电脑。这是一个基于开普勒-GPU内建的GK107架构上，并在TSMC在28nm制造。无论是比较常见的，但速度慢DDR3 VRAM或更便宜和更快的GDDR5的显卡采用的是128位宽度的存储器接口。由于较高的核心频率高达850 MHz的GT 650M是会显着比640M快。开普勒架构架构是继承Fermi架构的GeForce 400M系列笔记本电脑第一次出现在。 GK107开普勒核心提供两种着色器块，称为SMX，每个共384着色器内核，主频为中央纤芯相同的速度与192的着色器。虽然越来越多的着色器核心可在开普勒架构相比，Fermi设计，开普勒着色器仍有望高达两倍的电源效率。然而，由于缺少的热的着色器的域的时钟，两个着色器的开普勒芯片1着色器的费米芯片（作为后者的时钟快两倍）的一样快。现在支持PCIe 3.0的移动开普勒系列和可选的Turbo模式可以自动超频Nvidia显卡的理论的15％，如果笔记本电脑的散热系统，使得它。升压模式的实施，这是在BIOS中完成的，但它最终依赖于制造商的笔记本电脑。性能配备DDR3绘图记忆体的GeForce GT 650M的游戏性能是在2011年的前之间的GeForce®（精视™）GTX 460M和GTX 560M高端品类的地方。在重着色器的DirectX 11游戏和基准的表现是非常不错的。然而，128位内存接口，可以是一个瓶颈，如果采用DDR3绘图记忆体。尽管只有735 MHz的核心频率较慢，GDDR5版本的卡应该是类似的快。 2011年像“战地3”将播放要求苛刻的游戏，在1366×768中等或高设置。要求不高的游戏，如现代战争3“，很容易被刷爆的设置和1080p分辨率播放。现在采用改进的功能集，包括支持高达4个主动的显示器。此外，高达3840x2160像素的高分辨率显示器，可以连接使用DisplayPort 1.2和HDMI 1.4a规范，如果有的话。 ，如Dolby TrueHD和DTS-HD，HD音频编解码器，可以通过比特流模式下，通过HDMI端口传输。然而，由于大多数笔记本电脑将采用擎天柱，集成的图形处理器（GPU）将有可能在显示器端口直接控制，可能会限制该功能由Nvidia的开普勒卡的设置。第5代PureVideo HD视频处理器（VP5）也集成在GK107核心，并提供高清视频的硬件解码。常见的编解码器，如MPEG-1/2，MPEG-4 ASP，H.264和VC1/WMV9完全支持4K分辨率，而VC1和MPEG-4支持高达1080p。两个数据流可以并行解码的功能，如图片，在图片。另一个新的特点是包含一个专用的视频编码引擎，类似英特尔QuickSync的NVENC API可以访问。应最适合于中型笔记本15英寸或更大的功率消耗的GeForce GT 650M。

GeForce GT 600M Series

GeForce GT 650M SLI 768 @ 0.79 - 0.84 GHz2x 128 Bit @ 4000 MHz
GeForce GT 650M 384 @ 0.74 - 0.9 GHz128 Bit @ 1800 - 4000 MHz
GeForce GT 645M 384 @ 0.71 GHz128 Bit @ 1800 MHz
GeForce GT 640M 384 @ 0.63 - 0.65 GHz128 Bit @ 1800 - 4000 MHz
GeForce GT 640M LE 384 @ 0.5 GHz128 Bit @ 1800 - 4000 MHz
GeForce GT 635M 144 @ 0.66 - 0.75 GHz128/192 Bit @ 1800 MHz
GeForce GT 630M 96 @ 0.67 GHz128 Bit @ 1800 MHz
GeForce GT 625M 96 @ 0.63 GHz64 Bit @ 1800 MHz
GeForce GT 620M 96 @ 0.63 - 0.72 GHz64 / 128 Bit @ 1800 MHz
CodenameN13E-GE
ArchitectureKepler
Pipelines384 - unified
Core Speed735 - 900 (Boost) MHz
Memory Speed1800 - 4000 MHz
Memory Bus Width128 Bit
Memory TypeDDR3, GDDR5
Max. Amount of Memory2048 MB
Shared Memoryno
APIDirectX 11, Shader 5.0
technology28 nm
FeaturesOptimus, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play
Notebook Sizemedium sized
Date of Announcement22.03.2012

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
0.6 pt (2%)
AMD Radeon HD 8180
0.06404 -90%
...
AMD Radeon R5 (Bristol Ridge)
0.567 -10%
Intel UHD Graphics G7 (Lakefield GT2 64 EU)
0.572 -9%
AMD Radeon HD 8550G + HD 8750M Dual Graphics
0.576 -8%
AMD Radeon 520
0.583 -7%
AMD Radeon R7 M265
0.59 -6%
NVIDIA Quadro K1100M
0.592 -6%
Intel Iris Pro Graphics 5200
0.61 -3%
NVIDIA GeForce 830M
0.612 -2%
AMD Radeon R7 M260X
0.617 -2%
NVIDIA GeForce GT 650M
0.627
Intel Iris Graphics 540
0.64 2%
NVIDIA GeForce 920MX
0.64 2%
NVIDIA GeForce 930M
0.645 3%
AMD Radeon R6 M340DX
0.65 4%
Intel UHD Graphics G1 (Ice Lake 32 EU)
0.672 7%
NVIDIA GeForce GT 745M
0.676 8%
AMD Radeon 530
0.681 9%
NVIDIA GeForce 840M
0.695 11%
NVIDIA GeForce GT 750M
0.695 11%
...
NVIDIA GeForce RTX 4090 Laptop GPU
20.4 3154%
max:
NVIDIA GeForce RTX 4090
33.3 5211%
0%
100%
3DMark - 3DMark Cloud Gate Score
min: 6612     avg: 7487     median: 6874 (6%)     max: 8685 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
min: 9967     avg: 10564     median: 10647 (3%)     max: 10995 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 1212     avg: 1330     median: 1241 (2%)     max: 1496 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
min: 1231     avg: 1422     median: 1420 (2%)     max: 1616 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
min: 44818     avg: 76826     median: 84841.5 (9%)     max: 92803 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
min: 1982     avg: 2306     median: 2320 (3%)     max: 2453 Points
+ 26 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 1874     avg: 2104     median: 2111.5 (2%)     max: 2304 Points
+ 20 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -92%
...
NVIDIA GeForce 830M
1969 -6%
AMD FirePro M4000
1981 -6%
NVIDIA GeForce GT 740M
1985 -6%
NVIDIA GeForce GTX 470M
2003 -5%
AMD Radeon HD 8650G + HD 8570M Dual Graphics
2004 -5%
AMD Radeon R7 M360
2014 -4%
AMD Radeon 520
2017 -4%
AMD Radeon HD 7750M
2085 -1%
NVIDIA Quadro 4000M
2092 -1%
NVIDIA GeForce GT 650M
2104
AMD Radeon HD 7770M
2110 0%
AMD Radeon HD 7660G + HD 7670M Dual Graphics
2118 1%
NVIDIA GeForce MX110
2125 1%
AMD Radeon R7 M460
2139 2%
NVIDIA GeForce 930M
2145 2%
Intel UHD Graphics G1 (Ice Lake 32 EU)
2171 3%
NVIDIA GeForce GTX 480M
2185 4%
Intel Iris Graphics 540
2187 4%
AMD Radeon HD 8790M
2187 4%
...
AMD Radeon RX 7900M
59943 2749%
max:
NVIDIA GeForce RTX 4090
104201 4853%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 7712     avg: 9469     median: 9682 (3%)     max: 10648 Points
+ 21 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 6935     avg: 8081     median: 8338 (5%)     max: 9146 Points
+ 21 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -99%
...
ATI Mobility Radeon HD 5870
7614 -6%
NVIDIA GeForce GT 745M
7631 -6%
NVIDIA GeForce MX110
7645 -5%
NVIDIA GeForce 940MX
7691 -5%
AMD Radeon R7 M370
7782 -4%
NVIDIA GeForce GTX 480M
7906 -2%
AMD FirePro M4000
7990 -1%
NVIDIA GeForce GTX 560M
7999 -1%
AMD Radeon R9 M375
8042 0%
NVIDIA GeForce GT 650M
8081
Intel Iris Graphics 540
8220 2%
AMD Radeon HD 8790M
8407 4%
NVIDIA GeForce 9800M GTX SLI
8492 5%
AMD Radeon HD 8850M
8538 6%
NVIDIA GeForce GTX 470M
8589 6%
AMD Radeon R7 M275DX
8607 7%
NVIDIA GeForce GT 750M
8624 7%
NVIDIA GeForce GTX 260M SLI
8764 8%
NVIDIA Quadro K2100M
8930 11%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 1539%
max:
AMD Radeon RX 7900 XTX
170928 2015%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
44872 Points (47%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 03 - 3DMark 03 - Standard
min: 30536     avg: 34777     median: 36565 (19%)     max: 38010 Points
+ 9 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 17901     avg: 21266     median: 22638.5 (25%)     max: 23836 Points
+ 10 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
AMD Radeon RX 540
20313 -4%
NVIDIA GeForce GTX 660M
20551 -3%
NVIDIA GeForce GTX 480M
20818 -2%
NVIDIA GeForce 940MX
20861 -2%
AMD Radeon R9 M265X
20882 -2%
AMD Radeon HD 8770M
20968 -1%
NVIDIA GeForce GT 645M
21013 -1%
NVIDIA GeForce 920MX
21185 0%
AMD Radeon R7 M445
21189 0%
NVIDIA GeForce GT 650M
21266
NVIDIA Quadro 2000M
21287 0%
NVIDIA GeForce GT 745M
21505 1%
NVIDIA GeForce GTX 285M SLI
21611 2%
AMD Radeon HD 6970M
21991 3%
NVIDIA GeForce MX110
22463 6%
NVIDIA GeForce GTX 560M
22649 7%
Intel Iris Plus Graphics 655
22740 7%
NVIDIA GeForce GTX 950M
22798 7%
NVIDIA GeForce GTX 760M
22852 7%
...
AMD Radeon RX 7600M XT
68064 220%
max:
NVIDIA GeForce RTX 4080 Super
87172 310%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
min: 10661     avg: 12341     median: 12357 (16%)     max: 14004 points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 10661     avg: 13600     median: 13514 (18%)     max: 14990 Points
+ 21 benchmarks and specifications   + Show comparison chart
Unigine Heaven 3.0 - Unigine Heaven 3.0 DX 11
21.5 fps (7%)
+ 1 benchmarks and specifications   + Show comparison chart
Unigine Heaven 2.1 - Heaven 2.1 high
min: 21.8     avg: 28.3     median: 28.6 (5%)     max: 36.6 fps
+ 12 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 7310
0.6 -98%
...
AMD Radeon HD 8770M
26 -8%
Intel Iris Pro Graphics 5200
26.1 -8%
Intel HD Graphics 630
26.6 -6%
NVIDIA GeForce 930M
27.3 -4%
NVIDIA GeForce GTX 560M
27.56 -3%
NVIDIA GeForce 920MX
27.9 -1%
AMD Radeon R9 M375
27.9 -1%
NVIDIA Quadro M1200
28.1 -1%
NVIDIA GeForce 940M
28.3 0%
NVIDIA GeForce GT 650M
28.32
NVIDIA GeForce MX110
28.5 1%
NVIDIA Quadro M500M
28.65 1%
NVIDIA Quadro K620M
29 2%
AMD FirePro M4000
29.45 4%
AMD Radeon RX Vega 10
29.5 4%
NVIDIA GeForce GT 750M
29.8 5%
NVIDIA GeForce 840M
30.1 6%
NVIDIA GeForce GTX 470M
30.2 7%
AMD FirePro W4170M
31.1 10%
...
NVIDIA Quadro RTX 5000 (Laptop)
532 1779%
0%
100%
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 1.8     avg: 2.8     median: 3.1 (2%)     max: 3.32 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 0.93     avg: 1     median: 1 (1%)     max: 1 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 6.58     avg: 7.7     median: 7.8 (6%)     max: 8.77 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 1.15     avg: 1.2     median: 1.2 (1%)     max: 1.23 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 7.98     avg: 10.8     median: 11.5 (9%)     max: 12.08 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 11.55     avg: 13.9     median: 14.5 (16%)     max: 14.98 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 8.3     avg: 18.9     median: 22.2 (11%)     max: 23.03 fps
+ 4 benchmarks and specifications   + Show comparison chart
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 6.77     avg: 7.6     median: 7.7 (4%)     max: 8.42 fps
+ 4 benchmarks and specifications   + Show comparison chart
SPECviewperf 12
specvp12 sw-03 +
SPECviewperf 12 - specvp12 sw-03
12.9 fps (3%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 snx-02 +
SPECviewperf 12 - specvp12 snx-02
1.7 fps (0%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 showcase-01 +
SPECviewperf 12 - specvp12 showcase-01
8.5 fps (2%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 mediacal-01 +
SPECviewperf 12 - specvp12 mediacal-01
4.3 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 maya-04 +
SPECviewperf 12 - specvp12 maya-04
15.7 fps (4%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 energy-01 +
SPECviewperf 12 - specvp12 energy-01
0.3 fps (0%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 creo-01 +
SPECviewperf 12 - specvp12 creo-01
6.8 fps (3%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 catia-04 +
SPECviewperf 12 - specvp12 catia-04
7 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
min: 6.5     avg: 7     median: 7.1 (90%)     max: 7.2 Points
+ 13 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
min: 4.7     avg: 6.8     median: 7.1 (90%)     max: 7.2 Points
+ 12 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4544     avg: 6092     median: 6483.5 (5%)     max: 8268 points
+ 18 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 24.77     avg: 40.1     median: 42.2 (14%)     max: 47.51 fps
+ 22 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
93 Samples/s (0%)
+ 1 benchmarks and specifications   + Show comparison chart
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
190 Samples/s (0%)
+ 1 benchmarks and specifications   + Show comparison chart
ComputeMark v2.1 - ComputeMark v2.1 Result
1451 points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Company of Heroes 2

Company of Heroes 2

2013
low 1024x768
25.9  fps    + Compare
med. 1366x768
20.7  fps    + Compare
high 1366x768
13.3  fps    + Compare
ultra 1920x1080
4.8  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
GRID 2

GRID 2

2013
low 1024x768
113.8  fps    + Compare
med. 1366x768
82.1  fps    + Compare
high 1366x768
59.7  fps    + Compare
ultra 1920x1080
18.9  fps    + Compare
» With all tested laptops playable in detail settings high.
Metro: Last Light

Metro: Last Light

2013
low 1024x768
41 44.4 ~ 43 fps    + Compare
med. 1366x768
37 37.4 ~ 37 fps    + Compare
high 1366x768
19 22.4 ~ 21 fps    + Compare
ultra 1920x1080
12  fps    + Compare
» With all tested laptops playable in detail settings med..
BioShock Infinite

BioShock Infinite

2013
low 1280x720
96.7 98.6 ~ 98 fps    + Compare
med. 1366x768
54.2 57.7 ~ 56 fps    + Compare
high 1366x768
44.9 51.1 ~ 48 fps    + Compare
ultra 1920x1080
16.1 18.8 ~ 17 fps    + Compare
» With all tested laptops playable in detail settings high.
StarCraft II: Heart of the Swarm

StarCraft II: Heart of the Swarm

2013
low 1024x768
207.3  fps    + Compare
med. 1366x768
88.7  fps    + Compare
high 1366x768
65.2  fps    + Compare
ultra 1920x1080
25  fps    + Compare
» With all tested laptops playable in detail settings high.
SimCity

SimCity

2013
low 1024x768
40.9  fps    + Compare
med. 1366x768
25  fps    + Compare
high 1366x768
20.6  fps    + Compare
ultra 1920x1080
11.8  fps    + Compare
» With all tested laptops playable in detail settings low.
Tomb Raider

Tomb Raider

2013
low 1024x768
104.4 113.9 120 ~ 113 fps    + Compare
med. 1366x768
61.7 62.7 63.1 ~ 63 fps    + Compare
high 1366x768
37.2 37.8 43.5 ~ 40 fps    + Compare
ultra 1920x1080
12.5 14.4 14.9 ~ 14 fps    + Compare
» With all tested laptops playable in detail settings high.
Crysis 3

Crysis 3

2013
low 1024x768
51.3  fps    + Compare
med. 1366x768
32.6  fps    + Compare
high 1366x768
21.9  fps    + Compare
ultra 1920x1080
8.4  fps    + Compare
» With all tested laptops playable in detail settings low.
Dead Space 3

Dead Space 3

2013
low 1024x768
184.9  fps    + Compare
med. 1366x768
89.6  fps    + Compare
high 1366x768
69.3  fps    + Compare
ultra 1920x1080
41.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Far Cry 3

Far Cry 3

2012
low 1024x768
53.6  fps    + Compare
med. 1366x768
46.5  fps    + Compare
high 1366x768
28.3  fps    + Compare
ultra 1920x1080
8.8  fps    + Compare
» With all tested laptops playable in detail settings med..
Assassin´s Creed III

Assassin´s Creed III

2012
med. 1366x768
44.7  fps    + Compare
high 1366x768
42.4  fps    + Compare
ultra 1920x1080
15  fps    + Compare
» With all tested laptops playable in detail settings high.
Hitman: Absolution

Hitman: Absolution

2012
low 1024x768
45.8  fps    + Compare
med. 1366x768
40.4  fps    + Compare
high 1366x768
22.9  fps    + Compare
ultra 1920x1080
9.9  fps    + Compare
» With all tested laptops playable in detail settings med..
Call of Duty: Black Ops 2

Call of Duty: Black Ops 2

2012
low 1024x768
75.7 107 ~ 91 fps    + Compare
med. 1366x768
63.6 77.9 ~ 71 fps    + Compare
high 1366x768
42.4 46.1 ~ 44 fps    + Compare
ultra 1920x1080
27.4 28.2 ~ 28 fps    + Compare
» With all tested laptops playable in detail settings high.
Need for Speed: Most Wanted

Need for Speed: Most Wanted

2012
low 1024x768
58.3  fps    + Compare
med. 1366x768
49.6  fps    + Compare
high 1366x768
33.8  fps    + Compare
ultra 1920x1080
19.7  fps    + Compare
» With all tested laptops playable in detail settings med..
Medal of Honor: Warfighter

Medal of Honor: Warfighter

2012
low 1024x768
70.2  fps    + Compare
med. 1366x768
46.4  fps    + Compare
high 1366x768
38.5  fps    + Compare
ultra 1920x1080
17.6  fps    + Compare
» With all tested laptops playable in detail settings high.
Dishonored

Dishonored

2012
low 1024x768
93.4 94.4 ~ 94 fps    + Compare
med. 1366x768
79.5 91.7 ~ 86 fps    + Compare
high 1366x768
76.4 87.3 ~ 82 fps    + Compare
ultra 1920x1080
51.1 56 ~ 54 fps    + Compare
» With all tested laptops playable in detail settings ultra.
World of Tanks v8

World of Tanks v8

2012
low 1024x768
49.7  fps    + Compare
med. 1366x768
31.1  fps    + Compare
high 1366x768
26.5  fps    + Compare
ultra 1920x1080
15.3  fps    + Compare
» With all tested laptops playable in detail settings low.
Fifa 13

Fifa 13

2012
low 1024x768
261.7  fps    + Compare
med. 1366x768
195.8  fps    + Compare
high 1366x768
182.9  fps    + Compare
ultra 1920x1080
132.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2012

F1 2012

2012
low 1024x768
92 128.7 ~ 110 fps    + Compare
med. 1366x768
78 97.5 ~ 88 fps    + Compare
high 1366x768
53 73 ~ 63 fps    + Compare
ultra 1920x1080
32 39.3 ~ 36 fps    + Compare
» With most tested laptops playable in detail settings ultra.
Borderlands 2

Borderlands 2

2012
low 1024x768
82.1  fps    + Compare
med. 1366x768
65.1  fps    + Compare
high 1366x768
54  fps    + Compare
ultra 1920x1080
35.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Torchlight 2

Torchlight 2

2012
low 1024x768
79.2 113.8 ~ 97 fps    + Compare
med. 1366x768
68.3 81.5 ~ 75 fps    + Compare
ultra 1920x1080
67.3 69.4 ~ 68 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Guild Wars 2

Guild Wars 2

2012
low 1024x768
44.4  fps    + Compare
high 1366x768
29.8  fps    + Compare
ultra 1920x1080
12.5  fps    + Compare
» With all tested laptops playable in detail settings low.
Counter-Strike: GO

Counter-Strike: GO

2012
low 1024x768
161.3  fps    + Compare
med. 1366x768
136.8  fps    + Compare
high 1366x768
111.9  fps    + Compare
ultra 1920x1080
72.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Darksiders II

Darksiders II

2012
med. 1366x768
71.1  fps    + Compare
ultra 1920x1080
41.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Sleeping Dogs

Sleeping Dogs

2012
low 1024x768
87.6 88.4 ~ 88 fps    + Compare
med. 1366x768
64.5 71.6 74.6 ~ 70 fps    + Compare
high 1366x768
29.4 29.8 32.2 ~ 30 fps    + Compare
ultra 1920x1080
7.5 7.8 ~ 8 fps    + Compare
» With all tested laptops playable in detail settings med..
The Secret World

The Secret World

2012
low 1024x768
64.7  fps    + Compare
med. 1366x768
49  fps    + Compare
high 1366x768
36.2  fps    + Compare
ultra 1920x1080
13.8  fps    + Compare
» With all tested laptops playable in detail settings high.
Ghost Recon: Future Soldier

Ghost Recon: Future Soldier

2012
low 1024x768
51  fps    + Compare
med. 1366x768
22.2  fps    + Compare
ultra 1920x1080
11.8  fps    + Compare
» With all tested laptops playable in detail settings low.
Max Payne 3

Max Payne 3

2012
low 1024x768
55.1  fps    + Compare
med. 1366x768
50.9  fps    + Compare
high 1366x768
21.5 23.1 ~ 22 fps    + Compare
ultra 1920x1080
16.3 18.9 ~ 18 fps    + Compare
» With all tested laptops playable in detail settings med..
Dirt Showdown

Dirt Showdown

2012
low 1024x768
64.4 85 89 91 91 96.3 107.9 ~ 89 fps    + Compare
med. 1366x768
48.6 58 58.8 60.1 62 67 78 88.8 ~ 65 fps    + Compare
high 1366x768
39.3 40.1 44 47 53.8 53.9 54 54.3 55.8 56.2 57.8 ~ 51 fps    + Compare
ultra 1920x1080
15.5 16.1 16.5 17 18 18.3 19 19 19.9 20.5 ~ 18 fps    + Compare
» With all tested laptops playable in detail settings high.
Diablo III

Diablo III

2012
low 1024x768
157.7 158 161.9 164.3 164.3 165.5 165.5 ~ 162 fps    + Compare
med. 1366x768
93.4 94.5 101.5 105 108 110.3 127 ~ 106 fps    + Compare
high 1366x768
58.5 62 63.4 85 86 92.1 95.6 96.4 106.4 ~ 83 fps    + Compare
ultra 1920x1080
41.1 44.1 45.4 49 58.1 58.6 59.3 59.3 60.6 ~ 53 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Risen 2: Dark Waters

Risen 2: Dark Waters

2012
low 1024x768
64.7  fps    + Compare
med. 1366x768
42.6 43.6 43.7 ~ 43 fps    + Compare
high 1366x768
33.6 33.6 34.2 35.6 36.9 ~ 35 fps    + Compare
ultra 1920x1080
15.8 16 16.4 17.4 ~ 16 fps    + Compare
» With all tested laptops playable in detail settings med..
Mass Effect 3

Mass Effect 3

2012
low 1280x720
60 62 ~ 61 fps    + Compare
high 1366x768
56.6 59.8 62 ~ 59 fps    + Compare
ultra 1920x1080
35.3 46.6 48.1 49.5 ~ 45 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Alan Wake

Alan Wake

2012
low 1024x768
61.7  fps    + Compare
med. 1366x768
32.9 37 41.5 ~ 37 fps    + Compare
ultra 1920x1080
15.8 18.4 19 ~ 18 fps    + Compare
» With most tested laptops playable in detail settings med..
Anno 2070

Anno 2070

2011
low 1024x768
110 113.4 120.8 138 140.8 142.2 145.6 147.3 148.3 152 ~ 136 fps    + Compare
med. 1366x768
54.1 54.5 55.3 58.6 59.8 60 61.2 62.5 63.1 65 66.2 88.1 ~ 62 fps    + Compare
high 1366x768
29.1 35.9 36.2 36.9 37 38.2 38.8 38.9 39.3 39.8 40 40.2 40.2 40.4 52 62.9 ~ 40 fps    + Compare
ultra 1920x1080
16 16.4 17.7 18 18.1 18.4 18.8 19.1 19.3 19.3 19.9 20.2 20.3 23.2 ~ 19 fps    + Compare
» With most tested laptops playable in detail settings high.
The Elder Scrolls V: Skyrim

The Elder Scrolls V: Skyrim

2011
low 1280x720
34 75 77 ~ 62 fps    + Compare
med. 1366x768
32 56.8 59 ~ 49 fps    + Compare
high 1366x768
31 41 41 42.8 43 43.9 ~ 40 fps    + Compare
ultra 1920x1080
21 24 24.1 24.4 25.4 ~ 24 fps    + Compare
» With most tested laptops playable in detail settings high.
CoD: Modern Warfare 3

CoD: Modern Warfare 3

2011
low 1024x768
221.3  fps    + Compare
med. 1366x768
111.8  fps    + Compare
high 1366x768
62.1 68.8 73 ~ 68 fps    + Compare
ultra 1920x1080
36.1 40.4 41.6 44.2 45 ~ 41 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Battlefield 3

Battlefield 3

2011
low 1024x768
57.9 64.4 65.7 ~ 63 fps    + Compare
med. 1366x768
39.6 42.3 43.3 44.4 ~ 42 fps    + Compare
high 1366x768
30.3 31.1 33.6 34.1 35.4 ~ 33 fps    + Compare
ultra 1920x1080
11.8 15.1 15.2 15.5 15.8 ~ 15 fps    + Compare
» With all tested laptops playable in detail settings med..
Batman: Arkham City

Batman: Arkham City

2011
low 1024x768
122 146 ~ 134 fps    + Compare
med. 1366x768
61.9 89 120 ~ 90 fps    + Compare
high 1366x768
30.8 42 47 50 56 60 ~ 48 fps    + Compare
ultra 1920x1080
19 24 25 26 28 ~ 24 fps    + Compare
» With most tested laptops playable in detail settings high.
Fifa 12

Fifa 12

2011
low 800x600
289.6 318.9 325.6 390 392 424.2 ~ 357 fps    + Compare
med. 1024x768
168.2 189 220.8 236.2 237 246.9 257.5 ~ 222 fps    + Compare
high 1360x768
120.2 148.1 177.4 185.3 187.5 192.5 202.9 208.9 ~ 178 fps    + Compare
ultra 1920x1080
77 115.6 116.3 118.9 121.4 123.7 136.9 143.2 145.3 ~ 122 fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2011

F1 2011

2011
low 800x600
105 143 154 ~ 134 fps    + Compare
med. 1024x768
74 103 107 ~ 95 fps    + Compare
high 1366x768
61 63 65 75 78 79 ~ 70 fps    + Compare
ultra 1920x1080
26 26 27 29 29 31.1 ~ 28 fps    + Compare
» With all tested laptops playable in detail settings high.
Deus Ex Human Revolution

Deus Ex Human Revolution

2011
low 1024x768
61 143.9 174.1 175 ~ 139 fps    + Compare
high 1366x768
58 73.6 75.5 76.1 78 78.3 78.5 78.5 ~ 75 fps    + Compare
ultra 1920x1080
29 29.2 29.2 29.4 29.6 29.6 30.2 ~ 29 fps    + Compare
» With all tested laptops playable in detail settings high.
Dirt 3

Dirt 3

2011
low 800x600
142.1 176 211 ~ 176 fps    + Compare
med. 1024x768
102.3 113.8 114.8 ~ 110 fps    + Compare
high 1360x768
75.2 77.1 83.8 85.2 ~ 80 fps    + Compare
ultra 1920x1080
24.7 25.9 26.1 26.2 ~ 26 fps    + Compare
» With all tested laptops playable in detail settings high.
Crysis 2

Crysis 2

2011
low 800x600
98.2  fps    + Compare
med. 1024x768
81.6  fps    + Compare
high 1366x768
60 60.1 61.3 ~ 60 fps    + Compare
ultra 1920x1080
19.4 19.4 20.1 ~ 20 fps    + Compare
» With all tested laptops playable in detail settings high.
Call of Duty: Black Ops

Call of Duty: Black Ops

2010
low 800x600
151.8  fps    + Compare
med. 1024x768
110.6  fps    + Compare
high 1360x768
96.1  fps    + Compare
ultra 1920x1080
48.8 50 63.2 ~ 54 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Mafia 2

Mafia 2

2010
low 800x600
82.5 92.2 99.6 ~ 91 fps    + Compare
med. 1024x768
62.2 70.4 73.9 81.4 ~ 72 fps    + Compare
high 1360x768
53.6 60.6 62.3 71.5 ~ 62 fps    + Compare
ultra 1920x1080
34.9 36.6 38.5 45.8 ~ 39 fps    + Compare
» With most tested laptops playable in detail settings ultra.
StarCraft 2

StarCraft 2

2010
low 1024x768
162.3 224 242.8 296.5 ~ 231 fps    + Compare
med. 1360x768
79 79 80.4 86.1 ~ 81 fps    + Compare
high 1360x768
61.7 64.8 69 72.1 ~ 67 fps    + Compare
ultra 1920x1080
35.4 35.5 37.6 41 41.5 ~ 38 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Metro 2033

Metro 2033

2010
low 800x600
78.5 81 120.8 137.3 ~ 104 fps    + Compare
med. 1360x768
48.5 49.6 50.5 56.3 68.9 88.4 ~ 60 fps    + Compare
high 1600x900
26.6 28.6 29 32.2 33.4 44.6 ~ 32 fps    + Compare
ultra 1920x1080
10 10.4 10.8 11.1 15.4 ~ 12 fps    + Compare
» With all tested laptops playable in detail settings med..
CoD Modern Warfare 2

CoD Modern Warfare 2

2009
ultra 1920x1080
63  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Risen

Risen

2009
low 800x600
129.9  fps    + Compare
med. 1024x768
52.9  fps    + Compare
high 1366x768
33.8  fps    + Compare
ultra 1920x1080
25.2  fps    + Compare
» With all tested laptops playable in detail settings med..
Need for Speed Shift

Need for Speed Shift

2009
low 800x600
86.8  fps    + Compare
med. 1024x768
55.8  fps    + Compare
high 1366x768
44.5  fps    + Compare
ultra 1920x1080
29.3  fps    + Compare
» With all tested laptops playable in detail settings high.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
110.1  fps    + Compare
med. 1024x768
99.6  fps    + Compare
high 1360x768
62  fps    + Compare
ultra 1920x1080
42.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Anno 1404

Anno 1404

2009
low 1024x768
329  fps    + Compare
ultra 1280x1024
33.7  fps    + Compare
» With all tested laptops playable in detail settings low.
Trackmania Nations Forever

Trackmania Nations Forever

2008
low 640x480
184  fps    + Compare
high 1024x768
94.6  fps    + Compare
ultra 1920x1080
51.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
low 800x600
251 251 251 ~ 251 fps    + Compare
med. 1024x768
100 100 100 ~ 100 fps    + Compare
high 1024x768
88  fps    + Compare
ultra 1920x1080
29  fps    + Compare
» With all tested laptops playable in detail settings high.
World of Warcraft

World of Warcraft

2005
low 800x600
199 209 ~ 204 fps    + Compare
med. 1024x768
141 145 ~ 143 fps    + Compare
high 1280x1024
87 93 ~ 90 fps    + Compare
ultra 1920x1080
26  fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
Company of Heroes 225.920.713.34.8
GRID 2113.882.159.718.9
Metro: Last Light43372112
BioShock Infinite98564817
StarCraft II: Heart of the Swarm207.388.765.225
SimCity40.92520.611.8
Tomb Raider113634014
Crysis 351.332.621.98.4
Dead Space 3184.989.669.341.7
Far Cry 353.646.528.38.8
Assassin´s Creed III44.742.415
Hitman: Absolution45.840.422.99.9
Call of Duty: Black Ops 291714428
Need for Speed: Most Wanted58.349.633.819.7
Medal of Honor: Warfighter70.246.438.517.6
Dishonored94868254
World of Tanks v849.731.126.515.3
Fifa 13261.7195.8182.9132.8
F1 2012110886336
Borderlands 282.165.15435.7
Torchlight 2977568
Guild Wars 244.429.812.5
Counter-Strike: GO161.3136.8111.972.3
Darksiders II71.141.1
Sleeping Dogs8870308
The Secret World64.74936.213.8
Ghost Recon: Future Soldier5122.211.8
Max Payne 355.150.92218
Dirt Showdown89655118
Diablo III1621068353
Risen 2: Dark Waters64.7433516
Mass Effect 3615945
Alan Wake61.73718
Anno 2070136624019
The Elder Scrolls V: Skyrim62494024
CoD: Modern Warfare 3221.3111.86841
Battlefield 363423315
Batman: Arkham City134904824
Fifa 12357222178122
F1 2011134957028
Deus Ex Human Revolution1397529
Dirt 31761108026
Crysis 298.281.66020
Call of Duty: Black Ops151.8110.696.154
Mafia 291726239
StarCraft 2231816738
Metro 2033104603212
CoD Modern Warfare 263
Risen129.952.933.825.2
Need for Speed Shift86.855.844.529.3
Colin McRae: DIRT 2110.199.66242.3
Anno 140432933.7
Trackmania Nations Forever18494.651.2
World in Conflict - Benchmark2511008829
World of Warcraft2041439026
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		1
10
22
19		3
17
25
4		9
20
18
2		36
14
3
2





For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 09. 03:16:52

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 08 Nov 2024 19:43:11 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.029s ... 0.03s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.031s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.031s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.031s

#12 composed specs +0s ... 0.031s

#13 did output specs +0s ... 0.031s

#14 start showIntegratedCPUs +0s ... 0.031s

#15 getting avg benchmarks for device 2986 +0.024s ... 0.055s

#16 got single benchmarks 2986 +0.073s ... 0.128s

#17 got avg benchmarks for devices +0s ... 0.128s

#18 min, max, avg, median took s +0.613s ... 0.741s

#19 before gaming benchmark output +0s ... 0.741s

#20 Got 534 rows for game benchmarks. +0.028s ... 0.769s

#21 composed SQL query for gamebenchmarks +0s ... 0.769s

#22 got data and put it in $dataArray +0.033s ... 0.802s

#23 benchmarks composed for output. +1.783s ... 2.585s

#24 no comparison url found in template nbc.compare_page_1 needed +0.004s ... 2.589s

#25 return log +0s ... 2.589s

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

M4 20-core GPU
Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

M4 8-Core GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
GeForce GT 650M
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

* Approximate position of the graphics adapter
