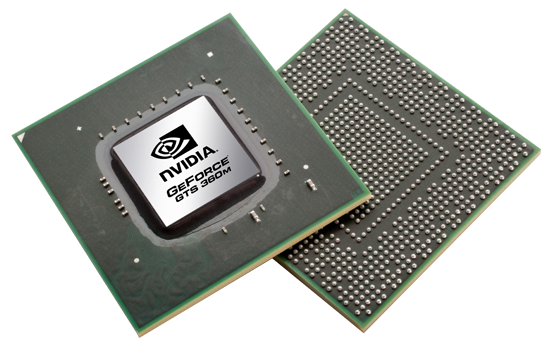

NVIDIA GeForce GTS 360M

NVIDIA GeForce GTS 360M

NVIDIA GeForce GTS 360M是一款高性能的笔记本电脑的图形卡GT215核心的基础上的。相比GTS 260M，GTS 360拥有更高的时钟速度。 GT215架构，支持DirectX 10.1和OpenGL 2.1，拥有96着色器核心，类似的9800M GT。的GTS 360M内存总线，不过，只有128位。为了弥补这一缺陷，GPU支持更快的GDDR5 VRAM。因此，整体性能显着更快的机型相比速度较慢的DDR3 VRAM。类似的GeForce 9800M GT，GTS 360M拥有96个流处理器的图形工作前的专用的像素和顶点着色器。 Nvidia的统一着色器的一维（AMD导致较高的着色器数量的5维着色器）。着色器的GT215核心中基于GTX 200桌面架构的，因此，相比提高的G92的卡（例如，9800M GT）。 GeForce®（精视™）GPU（图形处理器）计算的OpenCL，CUDA，支持DirectX和PhysX还支持使用的着色器渲染的图像（例如，编码视频或游戏或数学任务的计算物理）以外的其他任务。对于这些特殊的任务，GPU可以明显快于当前的CPU。移动图形卡有一个内置的PureVideo HD视频解码器与VP4。视频处理器（VP4）支持全解码H.264，VC-1，及MPEG-4 ASP（如DivX或XviD）。仍然不支持MPEG-1，但此编解码器的解码上的CPU是相当简单的。 GTS 360M与NVIDIA集成显卡（例如9400M）相结合，支持Hybrid SLI HybridPower（混合动力）的形式。 HybridPower（混合动力）之间切换的集成和专用的图形核心节电的目的是Windows Vista的唯一的方法。到现在为止，用户必须使用的工具GPU（图形处理器）之间的切换。后来，HybridPower（混合动力）的继任者是擎天柱，它可以自动切换GPU之间直接通过驱动程序。不支持GeForceBoost GTS 360M与集成GPU的SLI组合将不提供显着的性能提升。中高档的GeForce GTS 360M应该是因为更高的时钟速度略高于GTS 260M的性能。苛刻的DirectX 10游戏，如“孤岛危机”，流利的中高细节和分辨率较低的运行。旧的或要求不高的游戏运行在高细节设置和高分辨率流利的。更多细节可以发现在我们的测试下面的游戏性能。根据使用的绘图记忆体（GDDR5或GDDR3）的类型，性能可能会有所不同，GTS 360M。根据使用的图形RAM，最大时钟速率也不同。对于车型搭载GDDR5 VRAM，支持的最大时钟频率为2000兆赫。稍微慢时钟GTS 260M，它的额定功率为38瓦的TDP功耗应该是相似的。因此，GTS 360M的目的是为更强大的散热解决方案的笔记本电脑。

GeForce GTS 300M Series

GeForce GTS 360M 96 @ 0.58 GHz128 Bit @ 1800 MHz
GeForce GTS 350M 96 @ 0.5 GHz128 Bit @ 1600 MHz
CodenameN11E-GS1
ArchitectureGT2xx
Pipelines96 - unified
Core Speed575 MHz
Shader Speed1325 MHz
Memory Speed1800 MHz
Memory Bus Width128 Bit
Memory TypeDDR3, GDDR3, GDDR5
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 10.1, Shader 4.1
Transistor Count727 Million
technology40 nm
FeaturesDirectX Compute Support (Windows 7), CUDA, OpenCL, HybridPower, PhysX, SLI, Powermizer 8.0, MXM 3.0 Type-B
Notebook Sizelarge
Date of Announcement07.01.2010
Information360 GFlops
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 5333     avg: 5544     median: 5522 (2%)     max: 5777 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 4386     avg: 4516     median: 4569 (2%)     max: 4594 Points
+ 3 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -99%
...
NVIDIA GeForce 820M
4277 -5%
NVIDIA GeForce GTX 260M
4316 -4%
AMD Radeon 520
4324 -4%
NVIDIA Quadro FX 3700M
4326 -4%
NVIDIA NVS 5400M
4407 -2%
AMD Radeon R6 (Carrizo)
4415 -2%
AMD Radeon R7 (Carrizo)
4420 -2%
NVIDIA GeForce GT 635M
4441 -2%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
4452 -1%
NVIDIA GeForce GTS 360M
4516
NVIDIA GeForce GT 640M LE
4528 0%
AMD Radeon HD 6750M
4545 1%
Intel HD Graphics 520
4547 1%
NVIDIA GeForce GT 445M
4570 1%
AMD Radeon R7 M340
4606 2%
AMD Radeon R7 M460
4645 3%
AMD Radeon RX Vega 3
4739 5%
AMD Radeon R5 M240
4761 5%
AMD Radeon R7 M260
4787 6%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 2833%
max:
AMD Radeon RX 7900 XTX
170928 3685%
0%
100%
3DMark 03 - 3DMark 03 - Standard
min: 25762     avg: 26152     median: 26327 (14%)     max: 26366 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 16582     avg: 16712     median: 16674 (18%)     max: 16879 Points
+ 3 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA GeForce 9800M GTS
16430 -2%
AMD Radeon RX Vega 10
16454 -2%
NVIDIA GeForce GT 550M
16510 -1%
AMD Radeon R7 M440
16534 -1%
NVIDIA Quadro 1000M
16583 -1%
Intel Iris Pro Graphics 5200
16590 -1%
NVIDIA GeForce 9800M GTX
16638 0%
NVIDIA GeForce GT 735M
16640 0%
NVIDIA GeForce GT 740M
16696 0%
NVIDIA GeForce GTS 360M
16712
AMD Radeon HD 7730M
16766 0%
Intel UHD Graphics 24EUs (Alder Lake-N)
16771 0%
NVIDIA GeForce GT 730M
16882 1%
NVIDIA Quadro FX 2800M
16936 1%
NVIDIA GeForce 8800M GTX SLI
16942 1%
AMD Radeon HD 6850M
16944 1%
Intel UHD Graphics 620
16972 2%
NVIDIA GeForce 825M
17043 2%
NVIDIA GeForce GT 640M
17105 2%
...
AMD Radeon RX 7600M XT
68064 307%
max:
NVIDIA GeForce RTX 4080 Super
87172 422%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
9865 Points (13%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x800 +
3DMark 06
9819 Points (13%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x720 +
3DMark 06
min: 10622     avg: 10817     median: 10817 (14%)     max: 11012 Points
+ 2 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
6.8 Points (86%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
6.8 Points (86%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 3368     avg: 3665     median: 3664.5 (3%)     max: 3961 points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
27.8 fps (9%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Metro 2033

Metro 2033

2010
low 800x600
42.2  fps    + Compare + 📈 Graph
med. 1360x768
32.1  fps    + Compare + 📈 Graph
high 1600x900
17.9  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings low.
Battlefield: Bad Company 2

Battlefield: Bad Company 2

2010
med. 1366x768
52  fps    + Compare + 📈 Graph
high 1366x768
40.2  fps    + Compare + 📈 Graph
ultra 1920x1080
21.6  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
CoD Modern Warfare 2

CoD Modern Warfare 2

2009
med. 1024x768
61.3  fps    + Compare + 📈 Graph
high 1366x768
53.1  fps    + Compare + 📈 Graph
ultra 1920x1080
34  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
Risen

Risen

2009
med. 1024x768
45.7  fps    + Compare + 📈 Graph
high 1366x768
33.4  fps    + Compare + 📈 Graph
ultra 1920x1080
23.2  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings med..
Need for Speed Shift

Need for Speed Shift

2009
med. 1024x768
63.2  fps    + Compare + 📈 Graph
high 1366x768
53.1  fps    + Compare + 📈 Graph
ultra 1920x1080
32  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
med. 1024x768
80.9  fps    + Compare
high 1360x768
50.2  fps    + Compare
ultra 1920x1080
27.8  fps    + Compare
» With all tested laptops playable in detail settings high.
Anno 1404

Anno 1404

2009
low 1024x768
122.6  fps    + Compare + 📈 Graph
ultra 1280x1024
39.1  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
med. 1024x768
62.4  fps    + Compare
high 1024x768
38.5  fps    + Compare
ultra 1920x1080
9.9  fps    + Compare
» With all tested laptops playable in detail settings high.
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
med. 1024x768
60.5  fps    + Compare
high 1024x768
34.5  fps    + Compare
ultra 1920x1080
9.4  fps    + Compare
» With all tested laptops playable in detail settings med..
lowmed.highultraQHD4K
Metro 203342.232.117.9
Battlefield: Bad Company 25240.221.6
CoD Modern Warfare 261.353.134
Risen45.733.423.2
Need for Speed Shift63.253.132
Colin McRae: DIRT 280.950.227.8
Anno 1404122.639.1
Crysis - GPU Benchmark62.438.59.9
Crysis - CPU Benchmark60.534.59.4
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps
1

1
3
5
1
7

5
3







For more games that might be playable and a list of all games and graphics cards visit our Gaming List
