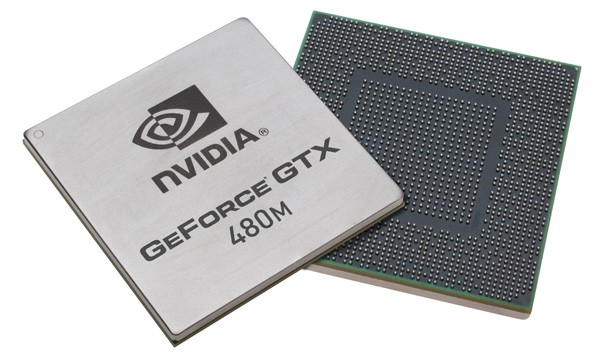

NVIDIA GeForce GTX 480M

NVIDIA GeForce GTX 480M

NVIDIA GeForce®(精视™)GTX 480M是一个高端的显卡,基于Fermi架构的笔记本电脑。其结果是,它支持DirectX 11和在40nm台积电产生。设有352芯,GTX480M到桌面GTX 465相似,但具有较低的时钟速率。 GeForce®(精视™)GTX 480M是结合2 GB的快速专用GDDR5显存,一般应优越的Mobility Radeon HD 5870的整体性能。从头开始重新设计和功能的三十亿个晶体管的GF100(亦称费米)芯片,假设所有512个着色器。 213十亿个晶体管的Mobility Radeon HD 5870(RV870)1.04十亿个晶体管到桌面HD 5870相比,GTX 480M模具在物理上是相当大的。手机费米芯片剥离下来到352个着色器核心(一维),32个ROPs,44个纹理单元。内存总线是256位的,但由于快速的GDDR5显存,这不应该是一个瓶颈。已被指定为100瓦的TDP时,考虑到MXM板和2 GB GDDR5的功耗。 AMD指定单独的芯片的TDP,因此这个值是竞争的Radeon显卡没有直接的可比性。尽管如此,GTX 480M只适用于非常大的台式机替代品(DTR)笔记本电脑了一个良好的散热解决方案。最初,只有蓝天提供的GTX 480M在其17“(D901F)和18”(X8100)准系统。 Nvidia的GeForce®(精视™)GTX 480M的性能更好的ATI Mobility Radeon HD 5870平均比为10%左右。在要求较高的DirectX 11游戏和基准(即使用了Tessellation引擎),GTX 480M,甚至更快。这意味着GTX480M是最快的单GPU显卡解决方案为笔记本电脑的早期到2010年年中。现代的DirectX 10游戏运行流利的高解析度和细节和反锯齿效果。只有在非常苛刻的游戏,如“孤岛危机”或“地铁2033”可能需要一些的降低设置(见下表)。费米的笔记本电脑的图形卡的DirectX 11硬件支持(和良好的Tessellation(曲面细分)执行),非常适合即将到来的DirectX 11游戏。与GeForce 300M系列,GeForce®(精视™)GTX 480M支持PureVideo HD VideoProcessor ​​4(VP4功能设置C)。这意味着GPU能够完全解码高清视频H.254,VC-1,MPEG-2,MPEG-4 ASP。显卡也可以加速Flash视频使用Flash 10.1或更高版本。可用于通用计算CUDA或DirectCompute的渲染核心的NVIDIA GeForce GTX 480M。高清视频的编码,例如,可以通过使用GPU的着色器芯,而不是明显快于最现代的CPU完成。手机费米芯片也支持PhysX物理,计算物理特效支持的游戏。相比台式机GPU的GeForce GTX 480M与到一个nunderclocked的NVIDIA GeForce®(精视™)GTX 465(1200分之607时钟速度)和因此面值与桌面的Radeon HD 5770。

GeForce GTX 400M Series

GeForce GTX 485M SLI 768 @ 0.58 GHz256 Bit @ 1500 MHz
GeForce GTX 470M SLI 576 @ 0.54 GHz192 Bit @ 1250 MHz
GeForce GTX 480M SLI 704 @ 0.43 GHz256 Bit @ 1200 MHz
GeForce GTX 460M SLI 384 @ 0.68 GHz192 Bit @ 1250 MHz
GeForce GTX 485M 384 @ 0.58 GHz256 Bit @ 1500 MHz
GeForce GTX 470M 288 @ 0.54 GHz192 Bit @ 1250 MHz
GeForce GTX 480M 352 @ 0.43 GHz256 Bit @ 1200 MHz
GeForce GTX 460M 192 @ 0.68 GHz192 Bit @ 1250 MHz
CodenameN11E-GTX-A3
ArchitectureFermi
Pipelines352 - unified
Core Speed425 MHz
Shader Speed850 MHz
Memory Speed1200 MHz
Memory Bus Width256 Bit
Memory TypeGDDR5
Max. Amount of Memory2048 MB
Shared Memoryno
APIDirectX 11, Shader 5.0
Power Consumption100 Watt
Transistor Count3 Billion
technology40 nm
Notebook Sizelarge
Date of Announcement25.05.2010
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark 11 - 3DM11 Performance Score
min: 2336     avg: 2387     median: 2387 (3%)     max: 2438 Points
3DMark 11 - 3DM11 Performance GPU
min: 2177     avg: 2185     median: 2184.5 (2%)     max: 2192 Points
171.8 -92%
...
2085 -5%
2092 -4%
2104 -4%
2110 -3%
2118 -3%
2125 -3%
2139 -2%
2145 -2%
Intel UHD Graphics G1 (Ice Lake 32 EU)
2171 -1%
NVIDIA GeForce GTX 480M
2185
Intel Iris Graphics 540
2187 0%
AMD Radeon HD 8790M
2187 0%
AMD Radeon R6 M255DX
2198 1%
AMD Radeon R7 M445
2208 1%
NVIDIA GeForce GT 745M
2213 1%
2215 1%
AMD FirePro W4190M
2221 2%
2245 3%
Intel Iris Plus Graphics 640
2275 4%
...
59943 2643%
max:
104201 4669%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 8467     avg: 8872     median: 8872 (3%)     max: 9277 Points
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 7854     avg: 7906     median: 7879 (4%)     max: 7986 Points
ATI Radeon HD 3200
62 -99%
...
Intel UHD Graphics G1 (Ice Lake 32 EU)
7444 -6%
AMD Radeon HD 8650G + HD 8670M Dual Graphics
7535 -5%
NVIDIA GeForce 9800M GT SLI
7591 -4%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
7610 -4%
7614 -4%
NVIDIA GeForce GT 745M
7631 -3%
7645 -3%
7691 -3%
7782 -2%
NVIDIA GeForce GTX 480M
7906
7990 1%
7999 1%
AMD Radeon R9 M375
8042 2%
8081 2%
Intel Iris Graphics 540
8220 4%
AMD Radeon HD 8790M
8407 6%
NVIDIA GeForce 9800M GTX SLI
8492 7%
AMD Radeon HD 8850M
8538 8%
8589 9%
...
132443 1575%
max:
170928 2062%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
min: 37908     avg: 39907     median: 39907 (41%)     max: 41906 Points
3DMark 03 - 3DMark 03 - Standard
min: 42919     avg: 43733     median: 43552 (23%)     max: 44727 Points
3DMark 05 - 3DMark 05 - Standard
min: 18745     avg: 20818     median: 19867 (22%)     max: 23842 Points
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA GeForce 9800M GTS SLI
19100 -8%
ATI Mobility Radeon HD 3870 X2
19187 -8%
NVIDIA GeForce GTX 280M SLI
19268 -7%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
19383 -7%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
19694 -5%
19971 -4%
20171 -3%
20313 -2%
20551 -1%
NVIDIA GeForce GTX 480M
20818
20861 0%
20882 0%
20968 1%
21013 1%
21185 2%
AMD Radeon R7 M445
21189 2%
21266 2%
21287 2%
NVIDIA GeForce GT 745M
21505 3%
...
69623 234%
max:
87172 319%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 13273     avg: 15394     median: 15066.5 (20%)     max: 18731 Points
Unigine Heaven 2.1 - Heaven 2.1 high
33.7 fps (6%)
0.6 -98%
...
30.1 -11%
30.2 -10%
AMD FirePro W4170M
31.1 -8%
31.4 -7%
NVIDIA Quadro K2100M
31.4 -7%
32.57 -3%
32.6 -3%
33.3 -1%
33.55 0%
NVIDIA GeForce GTX 480M
33.7
34.1 1%
35 4%
AMD FirePro W5130M
36 7%
36.1 7%
36.2 7%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
36.4 8%
AMD Radeon Pro WX 3100
36.8 9%
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
36.8 9%
37 10%
...
532 1479%
0%
100%
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
10 points (21%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
10.7 points (23%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
20.9 points (44%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
17.9 points (10%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
12.4 points (24%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
8.1 points (12%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
1.1 points (3%)
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
0.9 points (2%)
Windows 7 Experience Index - Win7 Gaming graphics
min: 7.2     avg: 7.3     median: 7.3 (92%)     max: 7.3 Points
Windows 7 Experience Index - Win7 Graphics
min: 7.2     avg: 7.3     median: 7.3 (92%)     max: 7.3 Points
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
4919 points (3%)
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 30.13     avg: 32.1     median: 32.1 (11%)     max: 34.09 fps
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Mafia 2

Mafia 2

2010
med. 1024x768
67.1  fps    + Compare
high 1360x768
60  fps    + Compare
ultra 1920x1080
40.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
med. 1360x768
45.2  fps    + Compare + 📈 Graph
high 1360x768
44.5  fps    + Compare + 📈 Graph
ultra 1920x1080
36.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
low 800x600
126  fps    + Compare
med. 1360x768
58.6 69 ~ 64 fps    + Compare + 📈 Graph
high 1600x900
31.3 34 ~ 33 fps    + Compare + 📈 Graph
ultra 1920x1080
11.8 12 ~ 12 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings med..
low 1024x768
108  fps    + Compare
med. 1366x768
64.8 97 ~ 81 fps    + Compare + 📈 Graph
high 1366x768
58 70 ~ 64 fps    + Compare + 📈 Graph
ultra 1920x1080
37 38 ~ 38 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
med. 1024x768
78.6  fps    + Compare + 📈 Graph
high 1366x768
68 68 ~ 68 fps    + Compare + 📈 Graph
ultra 1920x1080
47.9 51 ~ 49 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Risen

Risen

2009
med. 1024x768
68.4  fps    + Compare + 📈 Graph
high 1366x768
48.7  fps    + Compare + 📈 Graph
ultra 1920x1080
33.7 38 ~ 36 fps    + Compare + 📈 Graph
» With most tested laptops playable in detail settings ultra.
Resident Evil 5

Resident Evil 5

2009
low 800x600
150.5  fps    + Compare
high 1360x768
96.3  fps    + Compare
ultra 1920x1080
59.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Need for Speed Shift

Need for Speed Shift

2009
med. 1024x768
74  fps    + Compare + 📈 Graph
high 1366x768
70.7 84 ~ 77 fps    + Compare + 📈 Graph
ultra 1920x1080
51 52.6 ~ 52 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
176.5  fps    + Compare
med. 1024x768
94.1 130.5 ~ 112 fps    + Compare
high 1360x768
81.6 84.4 ~ 83 fps    + Compare
ultra 1920x1080
46.8 46.9 ~ 47 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Anno 1404

Anno 1404

2009
low 1024x768
170  fps    + Compare
ultra 1280x1024
53  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Sims 3

Sims 3

2009
high 1280x1024
105  fps    + Compare
» With all tested laptops playable in detail settings high.
F.E.A.R. 2

F.E.A.R. 2

2009
high 1280x1024
119  fps    + Compare
ultra 1920x1080
61  fps    + Compare
» With all tested laptops playable in detail settings ultra.
GTA IV - Grand Theft Auto

GTA IV - Grand Theft Auto

2008
high 1280x1024
53.9  fps    + Compare
» With all tested laptops playable in detail settings high.
Left 4 Dead

Left 4 Dead

2008
high 1024x768
142  fps    + Compare
» With all tested laptops playable in detail settings high.
Far Cry 2

Far Cry 2

2008
low 640x480
174  fps    + Compare
high 1024x768
106  fps    + Compare
ultra 1920x1080
45.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Crysis Warhead

Crysis Warhead

2008
low 800x600
98  fps    + Compare
ultra 1024x768
34  fps    + Compare
» With all tested laptops playable in detail settings low.
Trackmania Nations Forever

Trackmania Nations Forever

2008
ultra 1920x1080
52.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Call of Duty 4 - Modern Warfare

Call of Duty 4 - Modern Warfare

2007
high 1280x1024
93  fps    + Compare
» With all tested laptops playable in detail settings high.
Supreme Commander - FA Bench

Supreme Commander - FA Bench

2007
high 1024x768
52.4  fps    + Compare
ultra 1920x1080
45.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
high 1024x768
62.3  fps    + Compare
ultra 1920x1080
16.1  fps    + Compare
» With all tested laptops playable in detail settings high.
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
high 1024x768
58.3  fps    + Compare
ultra 1920x1080
15.5  fps    + Compare
» With all tested laptops playable in detail settings high.
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
high 1024x768
84  fps    + Compare
ultra 1920x1080
35  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
Half Life 2 - Lost Coast Benchmark

Half Life 2 - Lost Coast Benchmark

2005
high 1024x768
234  fps    + Compare
» With all tested laptops playable in detail settings high.
Quake 4

Quake 4

2005
ultra 1024x768
62  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Counter-Strike Source

Counter-Strike Source

2004
high 1024x768
191  fps    + Compare
» With all tested laptops playable in detail settings high.
Doom 3

Doom 3

2004
low 640x480
310  fps    + Compare
ultra 1024x768
290  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
high 1024x768
720  fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
Mafia 267.16040.9
StarCraft 245.244.536.8
Metro 2033126643312
Battlefield: Bad Company 2108816438
CoD Modern Warfare 278.66849
Risen68.448.736
Resident Evil 5150.596.359.7
Need for Speed Shift747752
Colin McRae: DIRT 2176.51128347
Anno 140417053
Sims 3105
F.E.A.R. 211961
GTA IV - Grand Theft Auto53.9
Left 4 Dead142
Far Cry 217410645.4
Crysis Warhead9834
Trackmania Nations Forever52.8
Call of Duty 4 - Modern Warfare93
Supreme Commander - FA Bench52.445.1
Crysis - GPU Benchmark62.316.1
Crysis - CPU Benchmark58.315.5
World in Conflict - Benchmark8435
Half Life 2 - Lost Coast Benchmark234
Quake 462
Counter-Strike Source191
Doom 3310290
Quake 3 Arena - Timedemo720
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps


2
6

1
7

6
12
4
3
14
2
1






For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 22. 04:35:57

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.028s ... 0.029s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.029s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.029s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.03s

#11 composed specs +0s ... 0.031s

#12 did output specs +0s ... 0.031s

#13 start showIntegratedCPUs +0s ... 0.031s

#14 getting avg benchmarks for device 1797 +0.013s ... 0.044s

#15 got single benchmarks 1797 +0.018s ... 0.062s

#16 got avg benchmarks for devices +0s ... 0.062s

#17 min, max, avg, median took s +0.33s ... 0.392s

#18 before gaming benchmark output +0s ... 0.392s

#19 Got 72 rows for game benchmarks. +0.005s ... 0.396s

#20 composed SQL query for gamebenchmarks +0s ... 0.396s

#21 got data and put it in $dataArray +0.012s ... 0.408s

#22 benchmarks composed for output. +0.529s ... 0.938s

#23 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 0.94s

#24 return log +0s ... 0.94s

No reviews found for this graphics card.

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

Class 2

GeForce RTX 5060 Laptop *
M1 Max 32-Core GPU *
GeForce RTX 2070 Super Mobile
M1 Max 24-Core GPU *
Quadro RTX 5000 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
Quadro P5200
GeForce RTX 5050 Laptop *
Quadro RTX 3000 Max-Q *
Quadro P4200
Quadro P5000 Max-Q *
GeForce GTX 980 (Laptop)
Quadro P4000
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000 Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *

Class 3

Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
Quadro T1000 Max-Q *
Vega M GH
Quadro M5000M
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
T500 Laptop GPU *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 660M
Radeon Pro WX 4150 *
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
GeForce GTX 960M
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
GeForce 945M
Quadro P500 *
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics 580
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
UHD Graphics 730
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
Quadro M600M
FirePro W4190M
Radeon R9 M375
Radeon R7 M445
Iris Plus Graphics 650
Iris Graphics 550
Radeon 625
Vega 6 *
Iris Plus Graphics 640
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 M360
GeForce 920M
Radeon 620
Radeon R7 M340
Radeon 610
Radeon 610M *
Vega 6 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
GeForce 910M
HD Graphics 520

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
UHD Graphics 617
UHD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 510
UHD Graphics 605
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics (Braswell)

* Approximate position of the graphics adapter
