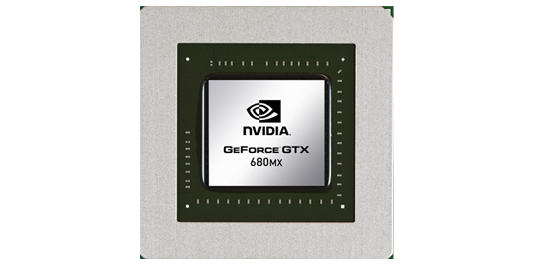

NVIDIA GeForce GTX 680MX
NVIDIA的GeForce 680MX是一个高端的DirectX 11.1兼容的显卡苹果的iMac。它具有核心GK104的28nm开普勒架构的基础上。相比GeForce®（精视™）GTX 680M，GTX功能680MX 1536年，而不是1344个CUDA核心和更高的内存时钟（720/2500MHz和720/1800兆赫）。开普勒架构架构是继承Fermi架构的GeForce 400M系列笔记本电脑第一次出现在。 GK104开普勒核心着色器提供8块，称为SMX，以相同的速度的时钟作为中央纤芯。在GTX 680MX 1536个CUDA核心，8个数据块都积极。虽然越来越多的着色器核心可在开普勒架构相比，Fermi设计，开普勒着色器悄悄预计将高达两倍的电源效率。然而，由于缺少的热着色器的域的时钟，两个着色器的开普勒芯片是类似的速度的一个着色器的费米芯片（作为后期的时钟快两倍）。现在支持PCIe 3.0的移动开普勒系列和可选的Turbo模式可以自动Nvidia显卡超频15％的理论，如果笔记本电脑的散热系统允许的话。升压模式的实施，这是在BIOS中完成的，但它最终依赖于制造商的笔记本电脑。性能额外的着色器核心和更快的内存，显卡性能应该是15％到25％以上的GTX 680M到桌面GTX 580次的和类似的GeForce 680MX GPU拥有足够的权力运行要求苛刻的游戏流利地与全高清分辨率和图形设置刷爆了2012年。战地3，天际和孤岛危机2，例如，在最高的详细设置播放。现在采用改进的功能集，包括支持高达4个主动的显示器。此外，分辨率高达3840x2160像素的显示器现在可以连接使用DisplayPort 1.2和HDMI 1.4a规范，如果有的话。 HD音频编解码器，寻找Dolby TrueHD和DTS-HD，可以通过HDMI端口传送比特流模式，但是，大多数笔记本电脑将采用擎天柱，集成的GPU（图形处理器）可能会显示端口直接控制，并可能限制功能由Nvidia的开普勒卡的设置。第5代PureVideo HD视频处理器（VP5）集成到GK104核心，并提供高清视频的硬件解码。常见的编解码器测试MPEG-1/2，MPEG-4 ASP，H.264和VC1/WMV9完全支持4K分辨率，而VC1和MPEG-4支持高达1080p。两个数据流可以并行解码的图片，在图片搜索功能。另一个新的特点是包含一个专用的视频编码引擎，类似英特尔QuickSync的NVENC API可以访问。功耗的GeForce 680MX应该稍微高于GTX 680M，使得它很难在一个小笔记本电脑的情况下冷却。也许，只有苹果的iMac电脑将使用GTX 680MX。
GeForce GTX 600M Series Architecture Kepler Pipelines 1536 - unified Core Speed 720 MHz Memory Speed 5000 MHz Memory Bus Width 256 Bit Memory Type GDDR5 Max. Amount of Memory 2048 MB Shared Memory no API DirectX 11, Shader 5.0, OpenGL 4.3 Power Consumption 122 Watt Transistor Count 3.5 Billion technology 28 nm Features Optimus, SLI, PhysX,
Verde Drivers,
CUDA, 3D Vision, 3DTV
Play Notebook Size large Date of Announcement 23.10.2012 Link to Manufacturer Page www.geforce.com
Benchmarks 3DMark 11 - 3DM11 Performance Score
6883 Points (10%)
...
NVIDIA Quadro P620
AMD Radeon 660M
AMD Radeon R9 M390
AMD Radeon R9 M290X
AMD Radeon Pro 460
NVIDIA Quadro K5100M
AMD Radeon RX 560 (Laptop)
AMD Radeon RX 480 (Laptop)
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 1050 Max-Q
...
max:
3DMark 11 - 3DM11 Performance GPU
6736 Points (6%)
...
AMD Radeon 660M
AMD Radeon Pro 460
AMD Radeon R9 M290X
AMD Radeon R9 M390
NVIDIA Quadro K5100M
NVIDIA GeForce GTX 1050 Max-Q
AMD Radeon HD 8970M
...
max:
3DMark Vantage + 3DMark Vantage - 3DM Vant. Perf. total
25501 Points (7%)
...
NVIDIA Quadro P1000
NVIDIA Quadro K5100M
NVIDIA GeForce GTX 765M SLI
NVIDIA Quadro P620
NVIDIA GeForce GTX 1050 Max-Q
AMD FirePro W7170M
NVIDIA GeForce GTX 780M
NVIDIA Quadro M3000M
...
max:
NVIDIA T600
3DM Vant. Perf. GPU no PhysX + 3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
25270 Points (14%)
...
AMD Radeon R9 M290X
NVIDIA Quadro K5100M
NVIDIA GeForce GTX 1050 Max-Q
NVIDIA GeForce GTX 765M SLI
AMD FirePro W7170M
NVIDIA GeForce GTX 780M
AMD Radeon 680M
NVIDIA Quadro M3000M
...
max:
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
Game Benchmarks The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
...
AMD Radeon Pro 555
NVIDIA Quadro P600
AMD Radeon Pro 455
NVIDIA Quadro K5100M
AMD Radeon RX 460 (Laptop)
Intel Iris Xe MAX Graphics
NVIDIA Quadro M2000M
NVIDIA GeForce GTX 960M
AMD Radeon HD 8970M
AMD Radeon R9 M390
AMD Radeon Pro 460
...
max:
...
NVIDIA GeForce GTX 950M
NVIDIA Quadro M1000M
AMD Radeon RX 550X (Laptop)
NVIDIA Quadro K5100M
AMD Radeon R9 M385X
NVIDIA Quadro P600
NVIDIA Quadro M2000M
AMD Radeon 660M
NVIDIA GeForce GTX 960M
...
max:
Intel HD Graphics (Haswell)
...
NVIDIA Quadro M2000M
AMD Radeon Pro 555
NVIDIA GeForce GTX 960M
AMD Radeon 660M
AMD Radeon Pro 455
NVIDIA Quadro P600
NVIDIA Quadro K5100M
NVIDIA Quadro P1000
AMD Radeon Pro 460
NVIDIA T500 Laptop GPU
AMD Radeon RX 460 (Laptop)
AMD Radeon HD 8970M
...
max:
...
AMD Radeon RX Vega 7
NVIDIA Quadro K5100M
NVIDIA Quadro P600
AMD Radeon Pro 555
NVIDIA Quadro M2000M
AMD Radeon Pro 455
NVIDIA GeForce GTX 960M
AMD Radeon 660M
NVIDIA Quadro P1000
AMD Radeon R9 M295X
AMD Radeon RX 460 (Laptop)
NVIDIA Quadro P620
...
max:
» With all tested laptops playable in detail settings med..
...
NVIDIA GeForce GTX 860M
NVIDIA GeForce GT 750M SLI
NVIDIA GeForce GTX 960M
NVIDIA GeForce GTX 770M
AMD Radeon HD 8970M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M
AMD Radeon HD 8970M Crossfire
NVIDIA GeForce GTX 780M SLI
» With all tested laptops playable in detail settings ultra.
...
NVIDIA GeForce GTX 950M
AMD FirePro M6100
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M SLI
NVIDIA GeForce GTX 780M
NVIDIA Quadro M5000M
AMD Radeon HD 8970M Crossfire
...
...
NVIDIA GeForce GTX 960M
AMD Radeon HD 8970M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GT 755M SLI
NVIDIA GeForce GTX 950M
NVIDIA GeForce GTX 780M
AMD Radeon R9 M290X
NVIDIA Quadro M5000M
...
» With all tested laptops playable in detail settings high.
...
AMD Radeon HD 8970M
AMD Radeon HD 8970M Crossfire
AMD FirePro M5100
NVIDIA GeForce GTX 770M
NVIDIA Quadro K3100M
NVIDIA GeForce GTX 780M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M SLI
AMD FirePro M6100
» With all tested laptops playable in detail settings ultra.
...
NVIDIA GeForce GTX 860M
NVIDIA GeForce GT 755M SLI
AMD Radeon Pro WX Vega M GL
NVIDIA Quadro K5100M
NVIDIA GeForce GTX 960M
NVIDIA GeForce GTX 780M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M SLI
AMD Radeon HD 8970M Crossfire
NVIDIA Quadro P2000 Max-Q
...
NVIDIA Quadro P5200
...
NVIDIA GeForce GT 755M SLI
NVIDIA GeForce GTX 960M
AMD Radeon HD 8970M
NVIDIA GeForce GTX 780M
NVIDIA Quadro K5100M
NVIDIA GeForce GTX 765M SLI
AMD Radeon Pro WX Vega M GL
NVIDIA Quadro P2000 Max-Q
AMD Radeon HD 8970M Crossfire
...
NVIDIA GeForce GTX 1080 Mobile
» With all tested laptops playable in detail settings high.
...
AMD Radeon HD 8970M
NVIDIA GeForce GTX 765M
NVIDIA GeForce GTX 770M
NVIDIA GeForce GTX 780M
NVIDIA GeForce GTX 860M
NVIDIA GeForce GTX 765M SLI
Intel HD Graphics (Bay Trail)
...
NVIDIA GeForce GTX 765M
NVIDIA GeForce GT 750M SLI
AMD Radeon HD 8970M
NVIDIA GeForce GTX 770M
NVIDIA GeForce GTX 860M
NVIDIA GeForce GTX 780M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M SLI
AMD Radeon HD 8970M Crossfire
...
NVIDIA GeForce GTX 765M
AMD Radeon HD 8970M
NVIDIA GeForce GT 750M SLI
NVIDIA GeForce GTX 770M
NVIDIA GeForce GTX 860M
NVIDIA GeForce GTX 780M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M SLI
AMD Radeon HD 8970M Crossfire
...
NVIDIA GeForce GTX 770M
NVIDIA GeForce GT 750M SLI
NVIDIA GeForce GTX 860M
AMD Radeon HD 8970M
NVIDIA GeForce GTX 765M SLI
NVIDIA GeForce GTX 780M
NVIDIA GeForce GTX 780M SLI
AMD Radeon HD 8970M Crossfire
» With all tested laptops playable in detail settings ultra.
low med. high ultra QHD 4K The Witcher 3 72 43.6 26.4 14.2 Dead Space 3 133 Hitman: Absolution 55.4 34.4 F1 2012 97.5 Sleeping Dogs 99 31.1 Battlefield 3 126 104 92 45.6 < 30 fps < 60 fps < 120 fps ≥ 120 fps 1 1 1 1 1 1 2 1 3 1 1
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
