NVIDIA GeForce GTX 880M SLI

NVIDIA GeForce GTX 880M SLI

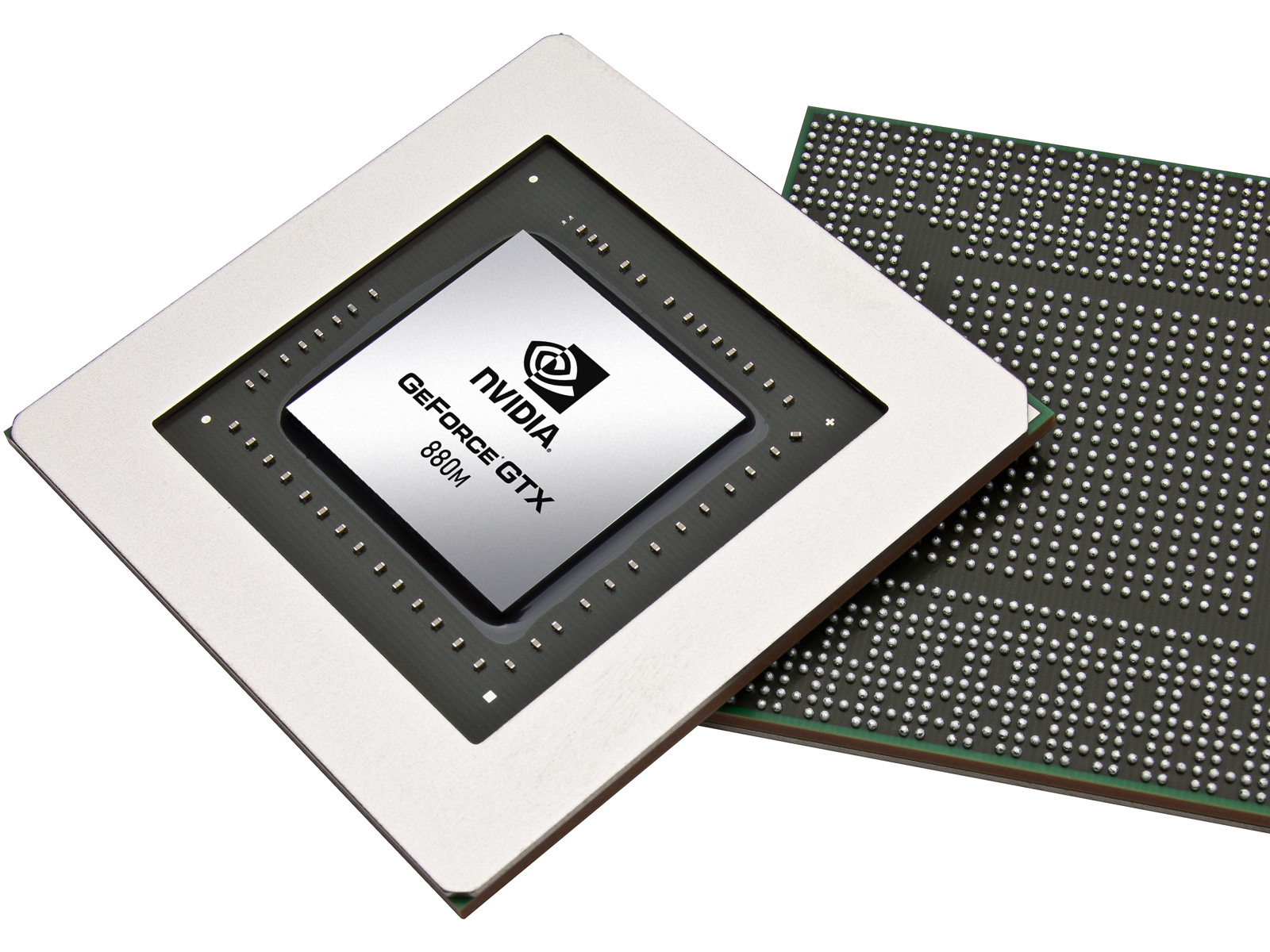

NVIDIA GeForce GTX 880M SLI是一个兼容DirectX 11的高端笔记本显卡，由两块GeForce GTX 880M组成。每块显卡有一个28纳米制程基于Kepler架构的的GK104核心。SLI设置的GTX 880M下的核心频率通常和单显卡模式下相同。在SLI设置下，每块显卡交替负责渲染一个单独的帧（在AFR模式下）。因此，它可能在较低帧数下（30fps）有“微卡帧”的情况。这个现象源自两个相邻帧间的时间间隔出现误差（例如在帧序列间出现的不规则延迟）。 架构 Kepler架构是取代最早使用于Geforce 400M系列的Fermi架构的新一代处理器架构。代号GK104的Kepler核心提供8个称作SMX着色器模块，它们有和主核心同样的时钟频率。在GTX 880M中，所有8个模块均激活而总共有1536个CUDA核心。尽管Kepler架构会使用相对Fermi架构更多的着色器核心数，但它的着色器能效最多可达Fermi的两倍。不过，由于着色器区域的频率不再更高，Kepler架构中的两个着色器的速度与Fermi架构中的一个着色器性能相当（因为后者通常运行于前者两倍高的频率）。 移动版的Kepler系列处理器提供了对PCIe 3.0的支持，和一个会在散热允许的情况下自动超频的可选Turbo加速模式。所有的GeForce 800M系列显卡均支持这个加速模式。 性能 类似于我们的单GPU显卡基准测试成绩，双显卡的GTX 880M SLI的性能表现也超出前代双显卡GeForce GTX 780M SLI约10%。这使得GTX 880M SLI成为现在市场上最快的移动图形解决方案（在2014年初）。配合优秀驱动的支持，SLI几乎使单显卡的性能翻倍，使得在全高清和最高细节设置下的高帧率流畅运行成为可能。 特性 本显卡的特性包括了对最多4个显示器的支持。此外，最高3840x2160像素的高分辨率显示器可以通过DisplayPort 1.2或者HDMI 1.4a（如果可用）连接。高清的音频编码，例如杜比TrueHD和DTS-HD，可以通过比特流模式由HDMI接口传输。不过，由于大多数的笔记本会使用Optimus技术，CPU的集成显示核心可能会对显示接口有直接的控制，这可能会限制Nvidia Kepler显卡的一些附加的功能。 第五代的PureVideo HD视频处理器（VP5）同样集成于GK104核心之中，提供了对HD视频的硬解码支持。它对通常的编码格式，如MPEG-1/2, MPEG-4 ASP, H.264和 VC1/WMV9，提供了高达4K分辨率硬解码的支持，而对VC1和MPEG-4则提供最高1080p分辨率硬解码的支持。两个视频源可以被同时平行解码，提供了对类似于画中画的功能的支持。另一个新的特点是配备了一个类似于Intel的QuickSync的视频编码引擎，它可以被NVENC API调用。 功耗 GeForce GTX 880M SLI的功耗也会相对单显卡配置的GTX 880M翻一倍，到至少200W（包括芯片和闪存）。因此，只有大型的桌面式笔记本可以提供足够控制这些热排放的散热能力。

GeForce GTX 800M Series

GeForce GTX 880M SLI 3072 @ 0.95 GHz2x 256 Bit @ 5000 MHz
GeForce GTX 860M SLI 1280 @ 1.03 GHz2x 128 Bit @ 5000 MHz
GeForce GTX 880M 1536 @ 0.95 GHz256 Bit @ 5000 MHz
GeForce GTX 870M 1344 @ 0.94 GHz192 Bit @ 5000 MHz
GeForce GTX 860M 640 @ 1.03 GHz128 Bit @ 5000 MHz
GeForce GTX 850M 640 @ 0.88 GHz128 Bit @ 2000 - 5000 MHz
CodenameN15E-GX-A2
ArchitectureKepler
Pipelines3072 - unified
Core Speed954 MHz
Memory Speed5000 MHz
Memory Bus Width2x 256 Bit
Memory TypeGDDR5
Max. Amount of Memory2x 8192 MB
Shared Memoryno
APIDirectX 12 (FL 11_0), Shader 5.0, OpenGL 4.3
Power Consumption206 Watt
Transistor Count0 Billion
technology28 nm
FeaturesOptimus, SLI, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play
Notebook Sizelarge
Date of Announcement12.03.2014
Link to Manufacturer Pagewww.nvidia.de

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
5.4 pt (16%)
AMD Radeon HD 8180
0.06605 -99%
...
NVIDIA GeForce GTX 1650 Ti Mobile
4.52 -16%
NVIDIA GeForce GTX 780M SLI
4.6 -14%
NVIDIA GeForce GTX 965M SLI
4.65 -14%
AMD Radeon RX Vega M GH
4.67 -13%
AMD Radeon HD 8970M Crossfire
4.72 -12%
NVIDIA GeForce GTX 1060 Max-Q
4.75 -12%
AMD Radeon R9 M290X Crossfire
4.81 -11%
AMD Radeon RX 580 (Laptop)
5.13 -5%
NVIDIA GeForce GTX 1060 Mobile
5.27 -2%
NVIDIA GeForce GTX 880M SLI
5.38
NVIDIA GeForce RTX 3050 6GB Laptop GPU
5.45 1%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
5.52 3%
NVIDIA Quadro P4000
5.58 4%
AMD Radeon RX 5500M
5.59 4%
NVIDIA Quadro P3200
5.72 6%
NVIDIA GeForce GTX 980 (Laptop)
5.94 10%
NVIDIA RTX A2000 Laptop GPU
5.99 11%
NVIDIA GeForce GTX 1660 Ti Max-Q
6.08 13%
NVIDIA GeForce RTX 3050 Ti Laptop GPU
6.09 13%
...
NVIDIA GeForce RTX 4090 Laptop GPU
21.1 292%
max:
NVIDIA GeForce RTX 4090
33.3 519%
0%
100%
3DMark - 3DMark Cloud Gate Score
23794 Points (25%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
77057 Points (20%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 9054     avg: 9111     median: 9111 (16%)     max: 9168 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
min: 11708     avg: 11817     median: 11817 (13%)     max: 11926 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
316040 Points (38%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
12756 Points (18%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
15823 Points (14%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -99%
...
AMD Radeon RX Vega M GH
14302 -10%
AMD Radeon RX 5300M
14412 -9%
NVIDIA GeForce GTX 965M SLI
14428 -9%
NVIDIA GeForce GTX 1060 Mobile
14692 -7%
AMD Radeon Pro 5500M
14725 -7%
NVIDIA RTX A1000 Laptop GPU
15135 -4%
AMD Radeon RX 580 (Laptop)
15223 -4%
NVIDIA Quadro P4000
15433 -2%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
15711 -1%
NVIDIA GeForce GTX 880M SLI
15823
NVIDIA Quadro P4000 Max-Q
15837 0%
NVIDIA Quadro P3200
16233 3%
AMD Radeon RX 5500M
16564 5%
NVIDIA GeForce GTX 980 (Laptop)
17028 8%
NVIDIA GeForce RTX 3050 6GB Laptop GPU
17113 8%
NVIDIA GeForce RTX 3050 Ti Laptop GPU
17562 11%
NVIDIA RTX A2000 Laptop GPU
17690 12%
NVIDIA GeForce GTX 1660 Ti Max-Q
17711 12%
AMD Radeon RX 6500M
17889 13%
...
AMD Radeon RX 7900M
59943 279%
max:
NVIDIA GeForce RTX 4090
106023 570%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
36366 Points (11%)
+ 1 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
42967 Points (24%)
+ 1 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -100%
...
NVIDIA Quadro P3000
36405 -15%
NVIDIA Quadro T2000 Max-Q
36812 -14%
AMD Radeon R9 M290X Crossfire
37644 -12%
NVIDIA GeForce GTX 1060 Mobile
38910 -9%
AMD Radeon HD 8970M Crossfire
39191 -9%
Intel Arc A310
39213 -9%
NVIDIA GeForce GTX 1070 Mobile
40134 -7%
NVIDIA GeForce GTX 1650 Ti Mobile
40643 -5%
NVIDIA Quadro P4000
42370 -1%
NVIDIA GeForce GTX 880M SLI
42967
NVIDIA GeForce GTX 780M SLI
43525 1%
NVIDIA T1200 Laptop GPU
43587 1%
NVIDIA GeForce GTX 970M SLI
44188 3%
NVIDIA GeForce GTX 980 (Laptop)
45346 6%
NVIDIA GeForce RTX 2050 Mobile
45988 7%
NVIDIA Quadro P3200
46624 9%
NVIDIA GeForce GTX 1080 Max-Q
46945 9%
NVIDIA GeForce RTX 3050 4GB Laptop GPU
47209 10%
NVIDIA GeForce GTX 1070 Max-Q
47227 10%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 208%
max:
AMD Radeon RX 7900 XTX
170928 298%
0%
100%
Unigine Heaven 3.0 - Unigine Heaven 3.0 DX 11
145.9 fps (48%)
+ 1 benchmarks and specifications   + Show comparison chart
Unigine Heaven 2.1 - Heaven 2.1 high
164.2 fps (31%)
+ 1 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 7310
0.6 -100%
...
NVIDIA GeForce GTX 1650 Mobile
120 -27%
AMD Radeon R9 M295X
125.9 -23%
NVIDIA GeForce GTX 680M SLI
135.1 -18%
NVIDIA Quadro T1000 (Laptop)
149.7 -9%
AMD Radeon R9 M290X Crossfire
150 -9%
AMD Radeon HD 7970M Crossfire
151.3 -8%
AMD Radeon HD 8970M Crossfire
154.3 -6%
NVIDIA Quadro M5000M
155.3 -5%
NVIDIA GeForce GTX 780M SLI
163.2 -1%
NVIDIA GeForce GTX 880M SLI
164.2
NVIDIA Quadro RTX 3000 (Laptop)
199.4 21%
NVIDIA GeForce GTX 1080 Mobile
224.2 37%
NVIDIA Quadro RTX 5000 Max-Q
236.1 44%
NVIDIA Quadro RTX 5000 (Laptop)
532 224%
0%
100%
SPECviewperf 12
specvp12 sw-03 +
SPECviewperf 12 - specvp12 sw-03
31 fps (8%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 snx-02 +
SPECviewperf 12 - specvp12 snx-02
3.1 fps (0%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 showcase-01 +
SPECviewperf 12 - specvp12 showcase-01
34.1 fps (7%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 mediacal-01 +
SPECviewperf 12 - specvp12 mediacal-01
18.5 fps (5%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 maya-04 +
SPECviewperf 12 - specvp12 maya-04
54.1 fps (15%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 energy-01 +
SPECviewperf 12 - specvp12 energy-01
1 fps (1%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 creo-01 +
SPECviewperf 12 - specvp12 creo-01
20.1 fps (8%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp12 catia-04 +
SPECviewperf 12 - specvp12 catia-04
16.4 fps (3%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
64.7 fps (22%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
113.4 fps (7%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Titanfall

Titanfall

2014
low 1024x768
60  fps    + Compare
med. 1366x768
60  fps    + Compare
high 1366x768
60  fps    + Compare
ultra 1920x1080
59.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Thief

Thief

2014
low 1024x768
76.2  fps    + Compare
med. 1366x768
73.3  fps    + Compare
high 1366x768
70  fps    + Compare
ultra 1920x1080
63.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
X-Plane 10.25

X-Plane 10.25

2013
low 1024x768
115.6  fps    + Compare
med. 1366x768
54.2  fps    + Compare
high 1366x768
27.9  fps    + Compare
ultra 1920x1080
22.3  fps    + Compare
» With all tested laptops playable in detail settings med..
Call of Duty: Ghosts

Call of Duty: Ghosts

2013
low 1024x768
97.2  fps    + Compare
med. 1366x768
91.4  fps    + Compare
high 1366x768
75.1  fps    + Compare
ultra 1920x1080
71.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Battlefield 4

Battlefield 4

2013
low 1024x768
194.4  fps    + Compare
med. 1366x768
179.3  fps    + Compare
high 1366x768
155.8  fps    + Compare
ultra 1920x1080
84.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2013

F1 2013

2013
low 1024x768
117  fps    + Compare
med. 1366x768
117  fps    + Compare
high 1366x768
114  fps    + Compare
ultra 1920x1080
95  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Saints Row IV

Saints Row IV

2013
low 1280x720
85.4  fps    + Compare
med. 1366x768
72.4  fps    + Compare
high 1366x768
69.3  fps    + Compare
ultra 1920x1080
67.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Dota 2

Dota 2

2013
low 1024x768
117.7  fps    + Compare
med. 1366x768
116.1  fps    + Compare
ultra 1920x1080
115.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
GRID 2

GRID 2

2013
low 1024x768
211.6  fps    + Compare
med. 1366x768
152.2  fps    + Compare
high 1366x768
141.4  fps    + Compare
ultra 1920x1080
119.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Metro: Last Light

Metro: Last Light

2013
low 1024x768
112.8  fps    + Compare
med. 1366x768
107.6  fps    + Compare
high 1366x768
90.2  fps    + Compare
ultra 1920x1080
61.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
BioShock Infinite

BioShock Infinite

2013
low 1280x720
222.6  fps    + Compare
med. 1366x768
198.1  fps    + Compare
high 1366x768
181.4  fps    + Compare
ultra 1920x1080
104  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Tomb Raider

Tomb Raider

2013
low 1024x768
426.6  fps    + Compare
med. 1366x768
367.4  fps    + Compare
high 1366x768
296  fps    + Compare
ultra 1920x1080
141.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Crysis 3

Crysis 3

2013
low 1024x768
128.3  fps    + Compare
med. 1366x768
113.6  fps    + Compare
high 1366x768
93.2  fps    + Compare
ultra 1920x1080
52.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Far Cry 3

Far Cry 3

2012
low 1024x768
113.6  fps    + Compare
med. 1366x768
103.2  fps    + Compare
high 1366x768
85.6  fps    + Compare
ultra 1920x1080
63.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Hitman: Absolution

Hitman: Absolution

2012
low 1024x768
67.2  fps    + Compare
med. 1366x768
62.2  fps    + Compare
high 1366x768
54.4  fps    + Compare
ultra 1920x1080
53.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Guild Wars 2

Guild Wars 2

2012
low 1024x768
115.4  fps    + Compare
high 1366x768
61  fps    + Compare
ultra 1920x1080
56  fps    + Compare
» With all tested laptops playable in detail settings ultra.
lowmed.highultraQHD4K
Titanfall60606059.9
Thief76.273.37063.6
X-Plane 10.25115.654.227.922.3
Call of Duty: Ghosts97.291.475.171.2
Battlefield 4194.4179.3155.884.5
F1 201311711711495
Saints Row IV85.472.469.367.4
Dota 2117.7116.1115.8
GRID 2211.6152.2141.4119.1
Metro: Last Light112.8107.690.261.8
BioShock Infinite222.6198.1181.4104
Tomb Raider426.6367.4296141.8
Crysis 3128.3113.693.252.3
Far Cry 3113.6103.285.663.6
Hitman: Absolution67.262.254.453.1
Guild Wars 2115.46156
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

11
5
1
10
4		1
1
9
4		1
4
10
1





For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 28. 04:49:35

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Tue, 25 Jun 2024 05:31:39 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.033s ... 0.034s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.034s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.034s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.034s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s

#8 composed specs +0s ... 0.035s

#9 did output specs +0s ... 0.035s

#10 start showIntegratedCPUs +0s ... 0.035s

#11 getting avg benchmarks for device 5214 +0.026s ... 0.061s

#12 got single benchmarks 5214 +0.007s ... 0.067s

#13 got avg benchmarks for devices +0s ... 0.067s

#14 min, max, avg, median took s +0.349s ... 0.416s

#15 before gaming benchmark output +0s ... 0.416s

#16 Got 62 rows for game benchmarks. +0.005s ... 0.421s

#17 composed SQL query for gamebenchmarks +0s ... 0.421s

#18 got data and put it in $dataArray +0.009s ... 0.43s

#19 benchmarks composed for output. +0.587s ... 1.017s

#20 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 1.02s

#21 return log +0s ... 1.02s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
GeForce MX570 *
Radeon RX 6300M *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 880M SLI
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
SD X Adreno X1-85 GPU *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
SD X Adreno 3.8 TFLOPS GPU *
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
Radeon Graphics (Ryzen 9000) *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)

* Approximate position of the graphics adapter
