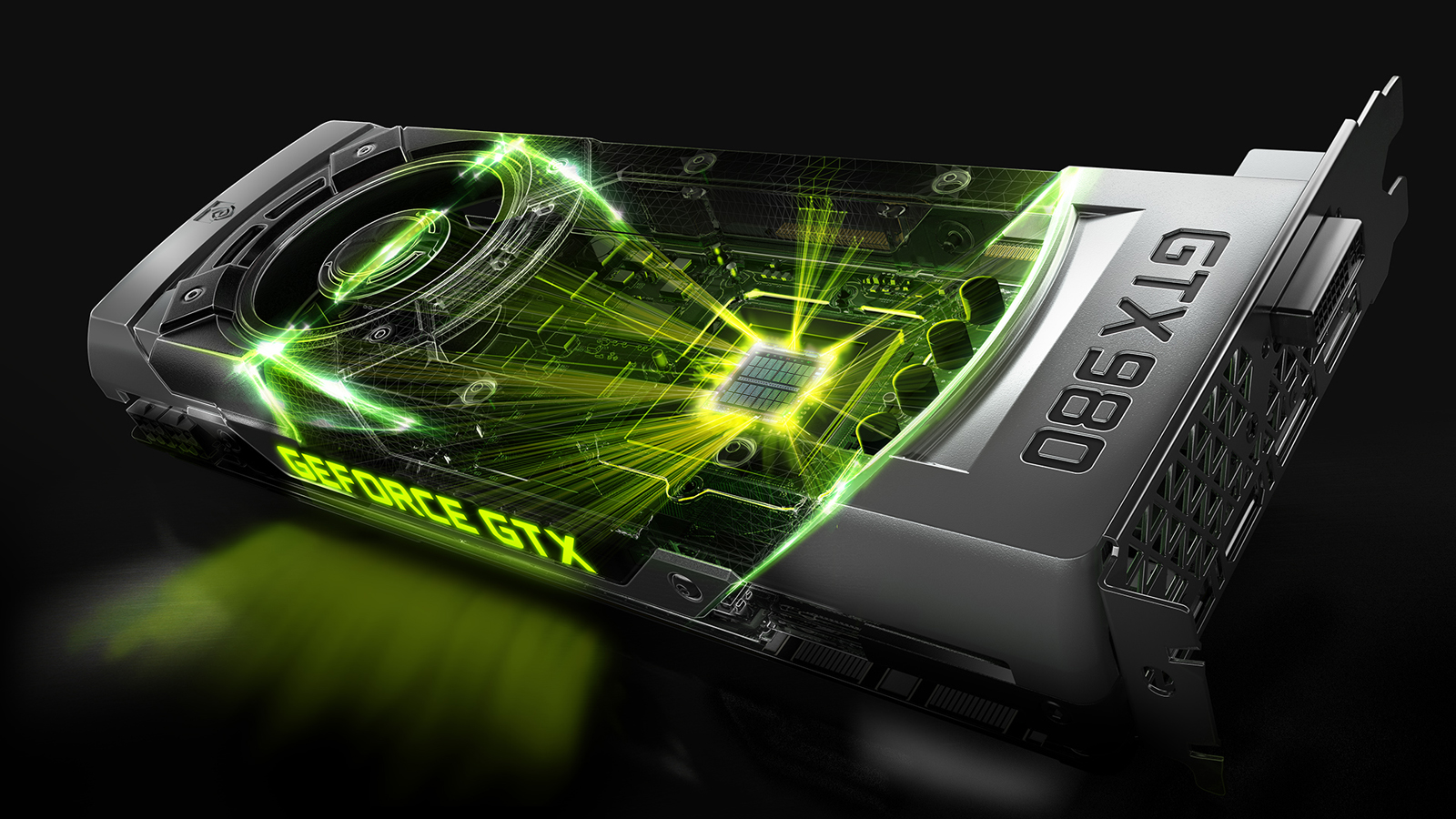

NVIDIA GeForce GTX 980是一款第二代基于Maxwell架构的高端桌面显卡。它采用的GM204核心使用了28纳米的TSMC技术制造。相比较老的GeForce GTX 780Ti，980在降低了的平均功耗下提供了相近的性能。命名相似的Nvidia Geforce GTX 980M采用了相同的芯片，但配备了较少的着色器核心，和更低的时钟频率，因此性能明显较低。
Geforce GTX 980支持很多独特的功能，例如CUDA, 3D Vision, PhysX, GeForce Experience, GameStream, GPU Boost 3.0, 自适应垂直同步 / G-同步, SLI, DSR, MFAA，和虚拟实境功能的延迟改善。
GeForce GTX 900 Series
| ||||||||||||||||||||||
| Codename | GM204 | |||||||||||||||||||||
| Architecture | Maxwell | |||||||||||||||||||||
| Pipelines | 2048 - unified | |||||||||||||||||||||
| Core Speed | 1126 - 1216 (Boost) MHz | |||||||||||||||||||||
| Memory Speed | 3500 MHz | |||||||||||||||||||||
| Memory Bus Width | 256 Bit | |||||||||||||||||||||
| Memory Type | GDDR5 | |||||||||||||||||||||
| Max. Amount of Memory | 4 GB | |||||||||||||||||||||
| Shared Memory | no | |||||||||||||||||||||
| API | DirectX 12_1, OpenGL 4.5 | |||||||||||||||||||||
| Power Consumption | 165 Watt | |||||||||||||||||||||
| Transistor Count | 5.2 Billion | |||||||||||||||||||||
| technology | 28 nm | |||||||||||||||||||||
| Features | CUDA, 3D Vision, PhysX, GeForce Experience, Surround, GameStream, GPU Boost 2.0, Adaptive Vertical Sync, G-SYNC, SLI | |||||||||||||||||||||
| Date of Announcement | 19.09.2014 | |||||||||||||||||||||
| Link to Manufacturer Page | www.nvidia.de | |||||||||||||||||||||
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 323076 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 256207 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 18386 | |
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 24891 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 84129 |
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 86619 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Alienware Amplifier | 4210U | GeForce GTX 980 1126 / 3500 MHz 4 GB | 8 GB | 6453 |
| Alienware Amplifier | 5500U | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 7746 |
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 10345 | |
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 10450 |
| Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 11229 |
| Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 11408 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Alienware Amplifier | 4210U | GeForce GTX 980 1126 / 3500 MHz 4 GB | 8 GB | 11349 |
| Alienware Amplifier | 5500U | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 11390 |
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 12590 |
| Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 13286 |
| Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 13386 |
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 13510 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 275316 | |
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 361442 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 12348 | |
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 13768 |
| Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 14570 |
| Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 15325 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 16838 |
| Desktop-PC by NV (GTX 980) | 4770K | GeForce GTX 980 | 16 GB | 17512 |
| Notebookcheck Desktop PC | 6700K | GeForce GTX 980 1127 / 3500 MHz 4 GB | 16 GB | 17697 |
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 17811 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 37997 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 44693 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Alienware Amplifier | 4210U | GeForce GTX 980 1126 / 3500 MHz 4 GB | 8 GB | 109.1 |
| Desktop-PC | 3770K | GeForce GTX 980 1126 / 3506 MHz 4 GB | 8 GB | 150.2 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 6831 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 62.9 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 109.6 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 99.6 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Desktop PC | 6700K | GeForce GTX 980 1126 / 3500 MHz 4 GB | 16 GB | 209.1 |
| Model | CPU | GPU | RAM | Value |
|---|---|---|---|---|
| Zotac ZBOX Magnus EN980-U | 6400 | GeForce GTX 980 1190 / 7010 MHz 4 GB | 9554 |
- Average benchmark values for this graphics cardThe following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| Just Cause 4 | 109 | 77.1 | 66.6 | 61.8 | 43.9 | 23.5 |
| Darksiders III | 236 | 112 | 91 | 79 | 48.3 | 23.7 |
| Battlefield V | 188 | 109 | 90.2 | 81.9 | 61.5 | 32 |
| Farming Simulator 19 | 311 | 210 | 135 | 102 | 68.8 | 35.9 |
| Fallout 76 | 60 | 60 | 59.9 | 59.9 | 57.4 | 30.9 |
| Hitman 2 | 84.9 | 75.2 | 68.9 | 67 | 46.7 | 22.3 |
| Call of Duty Black Ops 4 | 158 | 85.7 | 77.1 | 70 | 46.5 | 22.4 |
| Assassin´s Creed Odyssey | 96 | 69 | 58 | 35 | 27 | 14 |
| Forza Horizon 4 | 145 | 90 | 83 | 59 | 48 | 34 |
| FIFA 19 | 305 | 253 | 230 | 208 | 147 | 75.8 |
| Shadow of the Tomb Raider | 132 | 66 | 59 | 51 | 34 | 17 |
| F1 2018 | 204 | 130 | 103 | 70 | 54 | 32 |
| Monster Hunter World | 104 | 68.5 | 59.9 | 50.1 | 31.5 | 15.8 |
| The Crew 2 | 60 | 60 | 60 | 60 | 44.5 | 23.6 |
| Far Cry 5 | 126 | 80 | 73 | 69 | 48 | 24 |
| Kingdom Come: Deliverance | 145 | 84.1 | 69.4 | 50.1 | 33.4 | 16.1 |
| Final Fantasy XV Benchmark | 121 | 63 | 44.6 | 17.1 | ||
| Fortnite | 316 | 242 | 116 | 91.4 | 53.1 | 25.3 |
| Star Wars Battlefront 2 | 212 | 95.7 | 84.2 | 69.8 | 44.4 | 8.6 |
| Need for Speed Payback | 161 | 107 | 93.8 | 87.2 | 58.7 | 29.8 |
| Call of Duty WWII | 249 | 212 | 105 | 80.1 | 63.8 | 37.2 |
| Wolfenstein II: The New Colossus | 154 | 97.5 | 85.5 | 69.4 | 48.7 | 28.1 |
| Assassin´s Creed Origins | 103 | 70 | 64 | 54 | 34 | 19 |
| Destiny 2 | 166 | 122 | 109 | 88.1 | 43.4 | 22.6 |
| ELEX | 122 | 94.8 | 76.6 | 58.3 | 38.7 | 19.6 |
| The Evil Within 2 | 92.8 | 58.4 | 55.4 | 53.1 | 20.5 | |
| Middle-earth: Shadow of War | 167 | 103 | 78 | 53 | 21 | |
| FIFA 18 | 361 | 329 | 285 | 251 | 113 | |
| Ark Survival Evolved | 118 | 57.2 | 39.7 | 26.7 | 9.4 | |
| F1 2017 | 230 | 143 | 117 | 75 | 34 | |
| Playerunknown's Battlegrounds (PUBG) | 129 | 92.9 | 79.4 | 55.8 | 19.8 | |
| Dirt 4 | 332 | 163 | 105 | 69.1 | 38.3 | |
| Rocket League | 250 | 231 | 156 | 70.1 | ||
| Prey | 144 | 143 | 135 | 131 | 41 | |
| Warhammer 40.000: Dawn of War III | 168 | 68.2 | 46.6 | 41 | 14.5 | |
| Mass Effect Andromeda | 160 | 93.9 | 63.3 | 55.8 | 24.2 | |
| Ghost Recon Wildlands | 144 | 76.4 | 70.4 | 38.8 | 25.7 | |
| For Honor | 279 | 121 | 115 | 83.1 | 35.3 | |
| Resident Evil 7 | 395 | 201 | 126 | 104 | 34.4 | |
| Watch Dogs 2 | 143 | 127 | 72.1 | 45.2 | 26.4 | |
| Dishonored 2 | 104 | 98.2 | 67.8 | 61.8 | 32.1 | |
| Call of Duty Infinite Warfare | 125 | 124 | 106 | 90.2 | 46.9 | |
| Titanfall 2 | 144 | 144 | 101 | 90.9 | 34.3 | |
| Farming Simulator 17 | 311 | 269 | 246 | 196 | 106 | |
| Battlefield 1 | 199 | 194 | 105 | 96.9 | 39.2 | |
| Civilization VI | 89.9 | 73.5 | 66.2 | 64.1 | 61.3 | |
| Mafia 3 | 94.2 | 66.6 | 36.5 | 15.4 | ||
| FIFA 17 | 429 | 401 | 308 | 296 | 124 | |
| Deus Ex Mankind Divided | 129 | 99.8 | 57 | 32.4 | 18 | |
| No Man's Sky | 149 | 129 | 80.4 | 36.1 | 33.9 | |
| Mirror's Edge Catalyst | 198 | 156 | 83.4 | 76.4 | 28.3 | |
| Overwatch | 299 | 298 | 197 | 117 | 62.3 | |
| Doom | 177 | 172 | 104 | 97.5 | 34.4 | |
| Need for Speed 2016 | 136 | 133 | 99.6 | 74.6 | 34 | |
| Hitman 2016 | 85.2 | 83.7 | 60.9 | 57.8 | 26.2 | |
| The Division | 185 | 143 | 72.7 | 57.7 | 27.7 | |
| Far Cry Primal | 135 | 99 | 88 | 63 | 29 | |
| XCOM 2 | 124 | 87.3 | 65.4 | 31.3 | 18.7 | |
| Rise of the Tomb Raider | 205 | 135 | 80.5 | 73 | 27.9 | |
| Rainbow Six Siege | 347.2 | 256.4 | 149.6 | 107.6 | 50.1 | |
| Just Cause 3 | 147.1 | 135.9 | 94.9 | 84.2 | 36.6 | |
| Star Wars Battlefront | 200 | 199.9 | 119.2 | 104.1 | 40.4 | |
| Assassin's Creed Syndicate | 123.2 | 113.7 | 80.8 | 33.5 | 27.6 | |
| Fallout 4 | 148.9 | 140.8 | 95.6 | 80 | 33.8 | |
| Call of Duty: Black Ops 3 | 123 | 120.4 | 98.5 | 77.4 | 30.3 | |
| Anno 2205 | 156.4 | 145.4 | 84.3 | 31.6 | 34.2 | |
| FIFA 16 | 265.6 | 241.3 | 243.5 | 123.5 | ||
| World of Warships | 161.2 | 134.9 | 118 | 114.4 | 60.2 | |
| Metal Gear Solid V | 60 | 60 | 59.9 | 60 | 52 | |
| Mad Max | 225.6 | 140.5 | 138.3 | 46.6 | ||
| Batman: Arkham Knight | 104 | 96 | 81 | 61 | 33 | |
| The Witcher 3 | 214 | 147 | 85 | 46 | 29 | |
| Dirt Rally | 419.4 | 163.8 | 132.1 | 96.4 | 84 | |
| GTA V | 139.7 | 131.8 | 99.3 | 45.4 | 59.4 | |
| Battlefield Hardline | 182.5 | 167.4 | 129.7 | 92.9 | ||
| Evolve | 104.3 | 97.8 | 97.6 | 87.1 | ||
| The Crew | 60 | 60 | 60 | 60 | ||
| Dragon Age: Inquisition | 126.8 | 119 | 77 | 56 | ||
| Far Cry 4 | 102.4 | 101.4 | 66 | 60 | ||
| Assassin's Creed Unity | 78.4 | 70 | 51 | 38 | ||
| Call of Duty: Advanced Warfare | 179.2 | 135.2 | 83 | 62 | ||
| Civilization: Beyond Earth | 150.9 | 149 | 117 | 109 | ||
| F1 2014 | 133 | 130 | 127 | 116 | ||
| The Evil Within | 65 | 65 | 63.8 | |||
| Ryse: Son of Rome | 86.6 | 84.5 | 72 | 69 | ||
| Alien: Isolation | 245.3 | 229.8 | 140 | 113 | ||
| Middle-earth: Shadow of Mordor | 218.7 | 193.3 | 110.1 | 89 | ||
| Fifa 15 | 306.4 | 245.6 | 244.6 | 167.9 | ||
| Sims 4 | 199.3 | 150.4 | 114 | 106 | ||
| Risen 3: Titan Lords | 57.6 | 68.1 | 79.7 | 90.2 | ||
| GRID: Autosport | 297.4 | 154.3 | 102 | 87 | ||
| Watch Dogs | 94.9 | 82.3 | 47 | 38 | ||
| Wolfenstein: The New Order | 60 | 60 | 60 | 60 | ||
| Thief | 101.6 | 98.6 | 98 | 81 | ||
| Call of Duty: Ghosts | 182.6 | 165.6 | 115.4 | 77.1 | ||
| Battlefield 4 | 179.7 | 162.7 | 157.4 | 93.4 | 51 | |
| Saints Row IV | 104.3 | 92.4 | 83.2 | 82.8 | ||
| Dota 2 | 120 | 119.1 | 117.5 | |||
| Metro: Last Light | 146.3 | 141 | 129.5 | 86 | ||
| BioShock Infinite | 286.4 | 241.7 | 225 | 116 | ||
| Tomb Raider | 491.4 | 402.4 | 323.6 | 151 | ||
| Crysis 3 | 147.4 | 134.5 | 105.7 | 58.3 | ||
| Far Cry 3 | 132.8 | 122.8 | 102.7 | 66.4 | ||
| Hitman: Absolution | 105.4 | 99.3 | 89.7 | 68.3 | ||
| Guild Wars 2 | 133.7 | 78.4 | 67 | |||
| Sleeping Dogs | 84.3 | |||||
| < 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 26 77 | 2 48 52 | 13 70 21 | 1 28 64 9 | 1 19 3 1 | 36 29 8 3 |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Sat, 07 Dec 2024 05:31:35 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_1 needed +0.026s ... 0.027s
#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#10 composed specs +0s ... 0.027s
#11 did output specs +0s ... 0.027s
#12 start showIntegratedCPUs +0s ... 0.027s
#13 getting avg benchmarks for device 5986 +0.026s ... 0.053s
#14 got single benchmarks 5986 +0.018s ... 0.071s
#15 got avg benchmarks for devices +0s ... 0.071s
#16 min, max, avg, median took s +0.412s ... 0.483s
#17 before gaming benchmark output +0s ... 0.483s
#18 Got 571 rows for game benchmarks. +0.012s ... 0.495s
#19 composed SQL query for gamebenchmarks +0s ... 0.495s
#20 got data and put it in $dataArray +0.067s ... 0.562s
#21 benchmarks composed for output. +4.19s ... 4.752s
#22 no comparison url found in template nbc.compare_page_1 needed +0.008s ... 4.759s
#23 return log +0s ... 4.759s
» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.
» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.
» Notebook Gaming List
Playable games for each graphics card and their average FPS results.
* Approximate position of the graphics adapter
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
