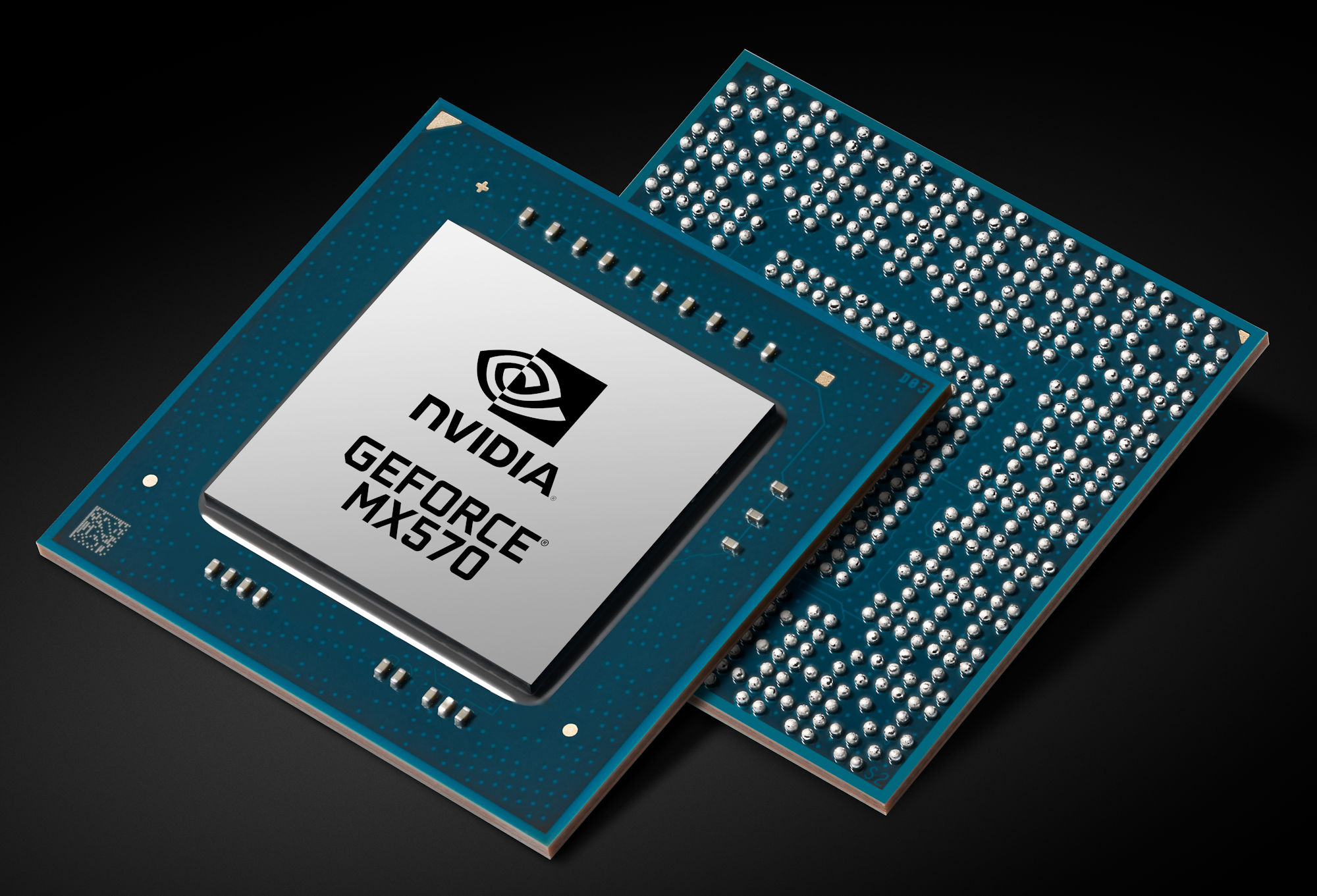

NVIDIA GeForce MX570
Nvidia GeForce MX570（GN20-S5，设备ID 0x25A6）是一款用于笔记本电脑的入门级移动显卡。它基于安培GA107芯片，有2GB GDDR6。与类似的GeForce RTX 2050相比，MX570提供的VRAM少了2GB，TDP更低。与RTX 3050相比，MX570和RTX 2050提供的内存总线大大减少，只有64位。理论上，MX570还提供了光线追踪和张量核心，但光线追踪的性能将太低。然而，DLSS可以在选定的游戏中发挥作用。
由于大大减少了显存总线，移动版GeForce MX570的游戏性能应明显低于RTX 3050。首批基准测试将快速版本定位为略高于GeForce GTX 1650，与RTX 2050处于同一水平。
GA107芯片采用8纳米工艺制造。光线追踪核心在MX570中是不可用的。
GeForce MX500 Series
| |||||||
| Codename | GN20-S5 | ||||||
| Architecture | Ampere | ||||||
| Pipelines | 2048 - unified | ||||||
| Core Speed | 1477 (Boost) MHz | ||||||
| Memory Speed | 12000 MHz | ||||||
| Memory Bus Width | 64 Bit | ||||||
| Memory Type | GDDR6 | ||||||
| Max. Amount of Memory | 2048 MB | ||||||
| Shared Memory | no | ||||||
| API | DirectX 12_1, OpenGL 4.6 | ||||||
| Power Consumption | 15-45 Watt | ||||||
| technology | 8 nm | ||||||
| Features | Vulkan 1.2, OpenGL 4.6, OpenCL 3.0, GPU Boost, Optimus, PCIe 4.0, Game Ready Drivers, Win 10 / 11 | ||||||
| Date of Announcement | 17.12.2021 | ||||||
Benchmarks
Cinebench R15 OpenGL 64 Bit +
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
Stalker 2
2024
Until Dawn
2024
Space Marine 2
2024
Black Myth: Wukong
2024
F1 24
2024
Helldivers 2
2024
EA Sports FC 24
2023
Counter-Strike 2
2023
Baldur's Gate 3
2023
The Witcher 3 v4.00
2023
Horizon Zero Dawn
2020
Strange Brigade
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| Indiana Jones and the Great Circle | 0 | |||||
| Stalker 2 | 3.31 | 2.84 | ||||
| Call of Duty Black Ops 6 | 45 | 34 | ||||
| Until Dawn | 35.7 | 23.7 | ||||
| Space Marine 2 | 22.1 | |||||
| Black Myth: Wukong | 30 | 14 | 7 | |||
| F1 24 | 34.7 | 30.5 | 16.6 | 4.3 | ||
| Senua's Saga Hellblade 2 | 4.61 | |||||
| Helldivers 2 | 12.6 | |||||
| EA Sports FC 24 | 62.8 | 42.6 | 12.1 | |||
| Counter-Strike 2 | 122 | 106 | 45.4 | 34 | ||
| Cyberpunk 2077 2.1 Phantom Liberty | 32.9 | 13.1 | ||||
| Baldur's Gate 3 | 34.3 | 26.6 | ||||
| The Witcher 3 v4.00 | 20.7 | |||||
| Horizon Zero Dawn | 50 | 36 | 30 | 28 | ||
| Strange Brigade | 141.3 | 69.5 | 58 | 45.2 | ||
| X-Plane 11.11 | 87.8 | 78.8 | 67.8 | |||
| Final Fantasy XV Benchmark | 73.8 | 37.8 | 26 | |||
| Dota 2 Reborn | 137.6 | 113.9 | 99.5 | 89.1 | ||
| The Witcher 3 | 128.7 | 90.1 | 33.5 | |||
| GTA V | 135.1 | 139.3 | 72.5 | 36.4 | ||
| < 30 fps < 60 fps < 120 fps ≥ 120 fps | 5 7 2 5 | 4 4 6 1 | 3 4 3 | 4 4 1 | | |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
Notebook reviews with NVIDIA GeForce MX570 graphics card
Dell Vostro 16 5620, i7-1260P MX570: Intel Core i7-1260P, 16.00", 1.9 kg
External Review » Dell Vostro 16 5620, i7-1260P MX570
