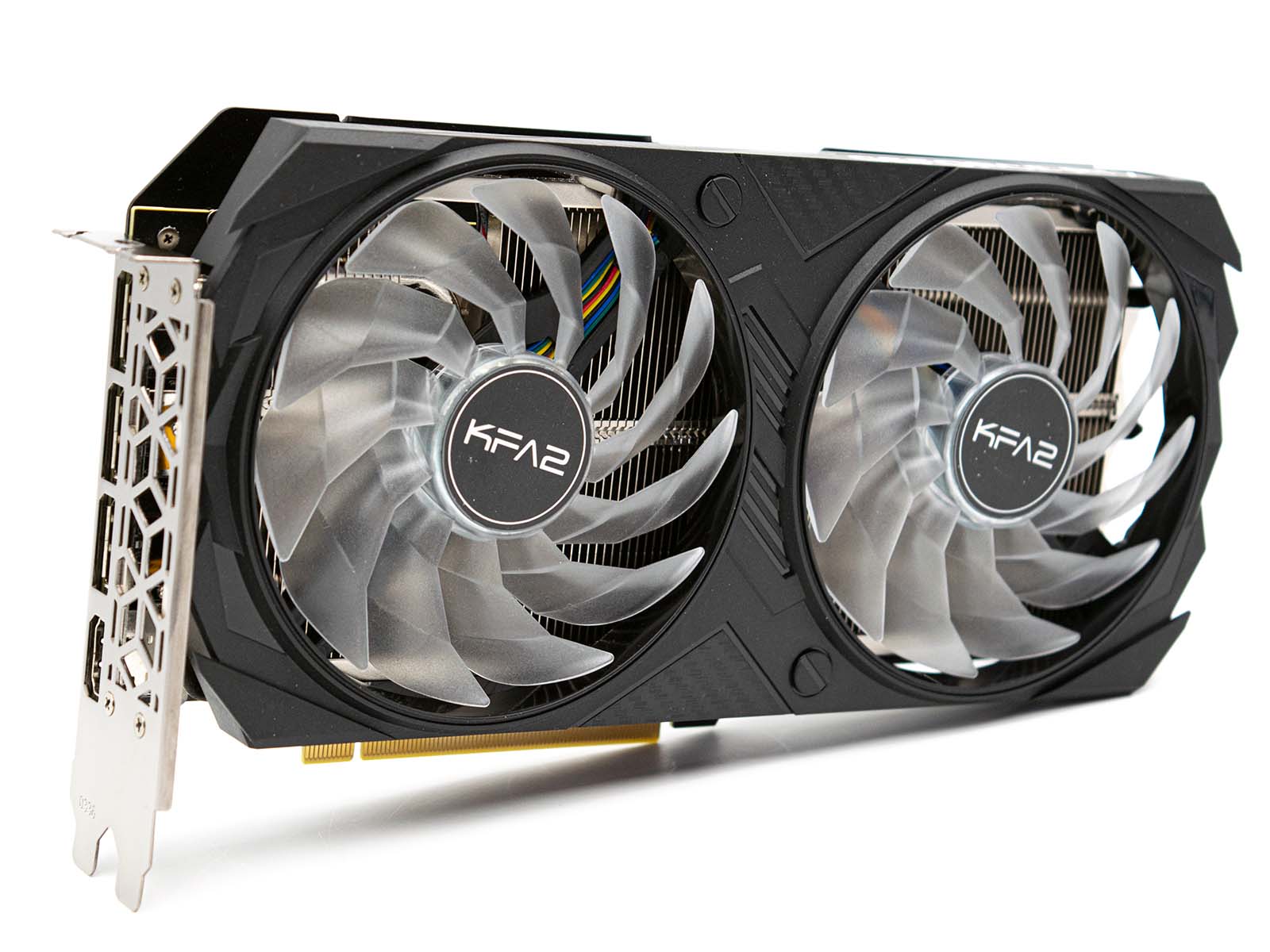

NVIDIA GeForce RTX 4060 Ti 16G

NVIDIA NVIDIA GeForce RTX 4060 Ti 16G

NvidiaGeForce RTX 4060 Ti 16 GB是一款中端桌面 GPU,采用台积电 5 纳米工艺制造。除了 8 GB 型号外,现在还推出了 16 GB 型号,主要用于为性能要求较高的游戏提供明显的附加值。 随着两款GeForce RTX 4060 型号的推出,Nvidia 正在将其目前的 Ada-Lovelace 阵容向中端产品靠拢。这里使用的芯片是 AD106。它结合了 4,352 个内存单元和 16 GB GDDR6。内存接口为 128 位,内存带宽为 288 GB/s。

功能特点

NvidiaGeForce RTX 4060 Ti 16 GB 并不缺少已经引入 Ada-Lovelace 代高端型号的功能,例如带帧生成功能的 DLSS 3.0。这明显使新的中端型号与 NvidiaGeForce RTX 3060 Ti 不同,并可在提供这些功能的游戏中获得明显优势。

性能表现

在没有 DLSS 的情况下,性能与 NvidiaGeForce RTX 4060 Ti 8 GB 相当。与 NvidiaGeForce RTX 3060 Ti 相比,NvidiaGeForce RTX 4060 Ti 16 GB 的性能可提高约 10%。与 AMD 相比,NvidiaGeForce RTX 4060 Ti 16 GB 略微领先于 Radeon RX 7600。在某些游戏中,16 GB VRAM 的优势非常明显。有时,我们会在 8GB VRAM 不足的游戏中看到明显更好的帧率。Nvidia 成功地实现了为 1080p 游戏打造一款优秀游戏 GPU 的目标,而拥有 16GB 内存的 NvidiaGeForce RTX 4060 Ti 是两款 RTX 4060 Ti 中更值得关注的一款。遗憾的是,Nvidia 为更大的 VRAM 收取了高昂的溢价。这未必会让 NvidiaGeForce RTX 4060 Ti 16 GB 更容易在市场上占据一席之地。

功耗

NvidiaGeForce RTX 4060 Ti 16 GB 的功耗被制造商规定为 165 瓦(TDP)。这比 8GB 型号多出 5 瓦。为了不降低图形芯片的能耗,功耗的增加是不可避免的。不过,与 NvidiaGeForce RTX 3060 Ti 相比,NvidiaGeForce RTX 4060 Ti 16 GB 还是要经济得多。

GeForce RTX 4000 Series

NVIDIA GeForce RTX 4090 16384 @ 2.24 - 2.52 GHz384 Bit @ 21000 MHz
NVIDIA GeForce RTX 4080 Super 10240 @ 2.3 - 2.55 GHz? Bit @ 23000 MHz
NVIDIA GeForce RTX 4080 9728 @ 2.21 - 2.51 GHz256 Bit @ 22400 MHz
NVIDIA GeForce RTX 4070 Ti SUPER 8448 @ 2.34 - 2.61 GHz256 Bit @ 21000 MHz
NVIDIA GeForce RTX 4070 Ti 7680 @ 2.31 - 2.61 GHz192 Bit @ 21000 MHz
NVIDIA GeForce RTX 4070 SUPER 7168 @ 1.98 - 2.48 GHz192 Bit @ 21000 MHz
NVIDIA GeForce RTX 4070 5888 @ 1.92 - 2.48 GHz192 Bit @ 21000 MHz
NVIDIA GeForce RTX 4060 Ti 16G 4352 @ 2.31 - 2.54 GHz128 Bit @ 18000 MHz
NVIDIA GeForce RTX 4060 Ti 8G 4352 @ 2.31 - 2.54 GHz128 Bit @ 18000 MHz
NVIDIA GeForce RTX 4060 3072 @ 1.83 - 2.46 GHz128 Bit @ 17000 MHz
CodenameAD106
ArchitectureAda Lovelace
Pipelines4352 - unified
TMUs136
ROPs48
Raytracing Cores34
Tensor / AI Cores136
Core Speed2310 - 2535 (Boost) MHz
Theoretical Performance22.06 TFLOPS FP16, 22.06 TFLOPS FP32, 0.3448 TFLOPS FP64
CacheL2: 32.768 KB
Memory Speed18000 effective = 2250 MHz
Memory Bus Width128 Bit
Memory TypeGDDR6
Max. Amount of Memory16 GB
Shared Memoryno
Memory Bandwidth288 GB/s
APIDirectX 12_2, Shader 6.7, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3
Die Size 188 mm²
technology5 nm
PCIePCIe 4.0 x8
Displays4 Displays (max.), HDMI 2.1, DisplayPort 1.4a
FeaturesDLSS 3.0, Frame-Generation, Ray-Tracing
Date of Announcement18.05.2023
PredecessorNVIDIA GeForce RTX 3060 Ti

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
14.3 pt (43%)
AMD Radeon HD 8180
0.06404 -100%
...
NVIDIA GeForce RTX 3060 Ti
12.4 -13%
12.4 -13%
12.5 -13%
12.5 -13%
13.1 -8%
AMD Radeon RX 6650 XT
13.2 -8%
13.2 -8%
13.7 -4%
13.7 -4%
NVIDIA GeForce RTX 4060 Ti 16G
14.3
14.3 0%
14.4 1%
14.6 2%
NVIDIA GeForce GTX 1070 SLI (Desktop)
15.1 6%
15.1 6%
15.1 6%
15.2 6%
AMD Radeon RX 6700 XT
15.7 10%
NVIDIA Titan RTX
15.8 10%
...
33.3 133%
0%
100%
3DMark - 3DMark Time Spy Score
13605 Points (39%)
3DMark - 3DMark Time Spy Graphics
13359 Points (35%)
112 -99%
...
11837 -11%
11850 -11%
AMD Radeon Pro W6800
12136 -9%
AMD Radeon RX 6700 XT
12204 -9%
12386 -7%
12640 -5%
12784 -4%
12806 -4%
13239 -1%
NVIDIA GeForce RTX 4060 Ti 16G
13359
13423 0%
AMD Radeon RX 6750 XT
13686 2%
13953 4%
14283 7%
NVIDIA GeForce RTX 3070 Ti
14893 11%
NVIDIA Titan RTX
14893 11%
15184 14%
16172 21%
16308 22%
...
36259 171%
0%
100%
3DMark - 3DMark Ice Storm Unlimited Graphics
600933 Points (61%)
3DMark - 3DMark Ice Storm Extreme Graphics
441972 Points (52%)
3DMark - 3DMark Cloud Gate Score
75160 Points (71%)
3DMark - 3DMark Cloud Gate Graphics
165263 Points (41%)
3DMark - 3DMark Fire Strike Standard Score
31146 Points (52%)
3DMark - 3DMark Fire Strike Standard Graphics
32275 Points (36%)
3DMark - 3DMark Ice Storm Graphics
507049 Points (56%)
3DMark - 3DMark Night Raid
78458 Points (74%)
3DMark - 3DMark Night Raid Graphics Score
158525 Points (61%)
3DMark 11 - 3DM11 Performance Score
38780 Points (50%)
3DMark 11 - 3DM11 Performance GPU
43112 Points (37%)
171.8 -100%
...
40354 -6%
40391 -6%
40410 -6%
41303 -4%
41541 -4%
41630 -3%
AMD Radeon RX 6650 XT
41837 -3%
42016 -3%
NVIDIA GeForce GTX 1070 SLI (Desktop)
42691 -1%
NVIDIA GeForce RTX 4060 Ti 16G
43112
43219 0%
43430 1%
AMD Radeon Pro W6800
44404 3%
AMD Radeon RX 6700 XT
45258 5%
46877 9%
46934 9%
47882 11%
AMD Radeon RX 6750 XT
48304 12%
NVIDIA Titan RTX
49115 14%
...
104201 142%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
116054 Points (34%)
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
119922 Points (65%)
ATI Radeon HD 3200
62 -100%
...
102514 -15%
103306 -14%
NVIDIA Titan X Pascal
103837 -13%
108029 -10%
AMD Radeon RX 6750 XT
108158 -10%
AMD Radeon RX 6700 XT
111088 -7%
111866 -7%
114614 -4%
117909 -2%
NVIDIA GeForce RTX 4060 Ti 16G
119922
122828 2%
NVIDIA GeForce RTX 3070 Ti
126438 5%
129977 8%
130327 9%
132443 10%
132521 11%
135301 13%
136576 14%
138261 15%
...
170928 43%
0%
100%
3DMark 05 - 3DMark 05 - Standard
85110 Points (93%)
Intel Graphics Media Accelerator (GMA) 500
133.4 -100%
...
NVIDIA GeForce GTX 1660 Super (Desktop)
76840 -10%
77313 -9%
77761 -9%
NVIDIA T1000
78565 -8%
80108 -6%
80878 -5%
81737 -4%
81832 -4%
82041 -4%
NVIDIA GeForce RTX 4060 Ti 16G
85110
NVIDIA GeForce RTX 3070 Ti
85241 0%
85279 0%
85372 0%
85804 1%
NVIDIA GeForce GTX 1060 (Desktop)
85875 1%
NVIDIA GeForce GTX 1650 Super (Desktop)
86965 2%
86975 2%
87172 2%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
66993 Points (88%)
Unigine Valley 1.0 - Unigine Valley 1.0 DX
127.8 fps (39%)
SPECviewperf 12
specvp12 sw-03 +
SPECviewperf 12 - specvp12 sw-03
95.1 fps (24%)
specvp12 snx-02 +
SPECviewperf 12 - specvp12 snx-02
14.8 fps (2%)
specvp12 showcase-01 +
SPECviewperf 12 - specvp12 showcase-01
132 fps (29%)
specvp12 mediacal-01 +
SPECviewperf 12 - specvp12 mediacal-01
110 fps (28%)
specvp12 maya-04 +
specvp12 energy-01 +
SPECviewperf 12 - specvp12 energy-01
22.6 fps (20%)
specvp12 creo-01 +
SPECviewperf 12 - specvp12 creo-01
73.4 fps (29%)
specvp12 catia-04 +
SPECviewperf 12 - specvp12 catia-04
128 fps (21%)
specvp12 3dsmax-05 +
SPECviewperf 12 - specvp12 3dsmax-05
290 fps (51%)
SPECviewperf 13 specvp13 sw-04 +
SPECviewperf 13 - specvp13 sw-04
135 fps (36%)
specvp13 snx-03 +
SPECviewperf 13 - specvp13 snx-03
26.6 fps (3%)
specvp13 showcase-02 +
SPECviewperf 13 - specvp13 showcase-02
133 fps (29%)
specvp13 medical-02 +
SPECviewperf 13 - specvp13 medical-02
85.1 fps (18%)
specvp13 maya-05 +
SPECviewperf 13 - specvp13 maya-05
403 fps (46%)
specvp13 energy-02 +
SPECviewperf 13 - specvp13 energy-02
45.3 fps (15%)
specvp13 creo-02 +
SPECviewperf 13 - specvp13 creo-02
301 fps (44%)
specvp13 catia-05 +
SPECviewperf 13 - specvp13 catia-05
189 fps (21%)
specvp13 3dsmax-06 +
SPECviewperf 13 - specvp13 3dsmax-06
289 fps (50%)
SPECviewperf 2020 specvp2020 snx-04 4k +
specvp2020 medical-03 4k +
SPECviewperf 2020 - specvp2020 medical-03 4k
16.5 fps (16%)
specvp2020 maya-06 4k +
SPECviewperf 2020 - specvp2020 maya-06 4k
237 fps (39%)
specvp2020 energy-03 4k +
SPECviewperf 2020 - specvp2020 energy-03 4k
44.9 fps (6%)
specvp2020 creo-03 4k +
SPECviewperf 2020 - specvp2020 creo-03 4k
95.9 fps (45%)
specvp2020 catia-06 4k +
SPECviewperf 2020 - specvp2020 catia-06 4k
38.5 fps (25%)
specvp2020 3dsmax-07 4k +
SPECviewperf 2020 - specvp2020 3dsmax-07 4k
88.8 fps (37%)
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official Medium Offscreen 1080
104.6 fps (1%)
Basemark GPU 1.2 - Basemark GPU 1.2 Vulkan Official High Offscreen 2160
3.6 fps (1%)
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
4570 Samples/s (16%)
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
11226 Samples/s (20%)
ComputeMark v2.1 - ComputeMark v2.1 Result
32285 points (35%)
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
304 Watt (43%)
020406080100120140160180200220240260280300Tooltip
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
310 Watt (43%)
020406080100120140160180200220240260280300320Tooltip
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
0.4 fps per Watt (35%)
Emissions Witcher 3 Fan Noise +
Emissions - Witcher 3 Fan Noise
42.6 dB(A) (68%)
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

low 1920x1080
163.3  fps    + Compare + 📈 Graph
med. 1920x1080
129.6  fps    + Compare + 📈 Graph
high 1920x1080
107.1  fps    + Compare + 📈 Graph
ultra 1920x1080
103.8  fps    + Compare + 📈 Graph
QHD 2560x1440
70.2  fps    + Compare + 📈 Graph
4K 3840x2160
35.1  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
62.7  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
234
Lies of P

Lies of P

2023
low 1920x1080
253  fps    + Compare + 📈 Graph
med. 1920x1080
220  fps    + Compare + 📈 Graph
high 1920x1080
192  fps    + Compare + 📈 Graph
ultra 1920x1080
171.2  fps    + Compare + 📈 Graph
QHD 2560x1440
112.7  fps    + Compare + 📈 Graph
4K 3840x2160
54.1  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
86.9  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
351
Starfield

Starfield

2023
low 1920x1080
94.9  fps    + Compare + 📈 Graph
med. 1920x1080
81.7  fps    + Compare + 📈 Graph
high 1920x1080
65.7  fps    + Compare + 📈 Graph
ultra 1920x1080
57.7  fps    + Compare + 📈 Graph
QHD 2560x1440
46.6  fps    + Compare + 📈 Graph
4K 3840x2160
29.4  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
120
low 1920x1080
119.4  fps    + Compare + 📈 Graph
med. 1920x1080
119.1  fps    + Compare + 📈 Graph
high 1920x1080
119.2  fps    + Compare + 📈 Graph
ultra 1920x1080
118.8  fps    + Compare + 📈 Graph
QHD 2560x1440
94.1  fps    + Compare + 📈 Graph
4K 3840x2160
50  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
119.1
low 1920x1080
83.8  fps    + Compare + 📈 Graph
high 1920x1080
71  fps    + Compare + 📈 Graph
ultra 1920x1080
59.4  fps    + Compare + 📈 Graph
QHD 2560x1440
41.2  fps    + Compare + 📈 Graph
4K 3840x2160
23  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
48.7  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low 1280x720
122.4
low 1920x1080
184.9  fps    + Compare + 📈 Graph
med. 1920x1080
190  fps    + Compare + 📈 Graph
high 1920x1080
173.1  fps    + Compare + 📈 Graph
ultra 1920x1080
147.1  fps    + Compare + 📈 Graph
QHD 2560x1440
101.9  fps    + Compare + 📈 Graph
4K 3840x2160
54  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
194.3
low 1920x1080
141.6  fps    + Compare + 📈 Graph
med. 1920x1080
124.4  fps    + Compare + 📈 Graph
high 1920x1080
101.4  fps    + Compare + 📈 Graph
ultra 1920x1080
90.1  fps    + Compare + 📈 Graph
QHD 2560x1440
70.6  fps    + Compare + 📈 Graph
4K 3840x2160
42  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Very Low Preset 1280x720
190.9
Very High Preset + Very High Raytracing TAA 1920x1080
60.5
Very High Preset + Very High Raytracing + DLSS Quality + FG 3840x2160
53.7
F1 23

F1 23

2023
low 1920x1080
386  fps    + Compare
med. 1920x1080
349  fps    + Compare
high 1920x1080
251  fps    + Compare
ultra 1920x1080
81.9  fps    + Compare
QHD 2560x1440
51  fps    + Compare
4K 3840x2160
24.6  fps    + Compare
4K DLSS 3840x2160
43.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ultra Low Preset TAA 1280x720
373
Diablo 4

Diablo 4

2023
low 1920x1080
332  fps    + Compare + 📈 Graph
med. 1920x1080
283  fps    + Compare + 📈 Graph
high 1920x1080
249  fps    + Compare + 📈 Graph
ultra 1920x1080
211  fps    + Compare + 📈 Graph
QHD 2560x1440
138.3  fps    + Compare + 📈 Graph
4K 3840x2160
68  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
93.5  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
395
low 1920x1080
113.6  fps    + Compare + 📈 Graph
med. 1920x1080
98.3  fps    + Compare + 📈 Graph
high 1920x1080
91.7  fps    + Compare + 📈 Graph
ultra 1920x1080
85.3  fps    + Compare + 📈 Graph
QHD 2560x1440
53.5  fps    + Compare + 📈 Graph
4K 3840x2160
25  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
166.7
Epic Preset + Ray Tracing 1920x1080
67
low 1920x1080
330  fps    + Compare + 📈 Graph
med. 1920x1080
309  fps    + Compare + 📈 Graph
high 1920x1080
229  fps    + Compare + 📈 Graph
ultra 1920x1080
166.3  fps    + Compare + 📈 Graph
QHD 2560x1440
113.7  fps    + Compare + 📈 Graph
4K 3840x2160
55.5  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset Low TAA 1280x720
313
low 1920x1080
143.4  fps    + Compare + 📈 Graph
med. 1920x1080
117.1  fps    + Compare + 📈 Graph
high 1920x1080
103.6  fps    + Compare + 📈 Graph
ultra 1920x1080
87.4  fps    + Compare + 📈 Graph
QHD 2560x1440
56.3  fps    + Compare + 📈 Graph
4K 3840x2160
26.8  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
43.3  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
189.5
low 1920x1080
203  fps    + Compare + 📈 Graph
med. 1920x1080
146.8  fps    + Compare + 📈 Graph
high 1920x1080
134.7  fps    + Compare + 📈 Graph
ultra 1920x1080
96.7  fps    + Compare + 📈 Graph
QHD 2560x1440
69.2  fps    + Compare + 📈 Graph
4K 3840x2160
37.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Prioritize Performance Preset 1280x720
269
low 1920x1080
261.5  fps    + Compare
med. 1920x1080
225.3  fps    + Compare
high 1920x1080
168.3  fps    + Compare
ultra 1920x1080
164.8  fps    + Compare
QHD 2560x1440
115.1  fps    + Compare
4K 3840x2160
65.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Minimum Settings 1280x720
378.1
low 1920x1080
122.3  fps    + Compare + 📈 Graph
med. 1920x1080
111.8  fps    + Compare + 📈 Graph
high 1920x1080
109.5  fps    + Compare + 📈 Graph
ultra 1920x1080
108  fps    + Compare + 📈 Graph
QHD 2560x1440
84  fps    + Compare + 📈 Graph
4K 3840x2160
51.7  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ultra Low Preset 1280x720
125.3
low 1920x1080
259  fps    + Compare + 📈 Graph
med. 1920x1080
197.9  fps    + Compare + 📈 Graph
high 1920x1080
117.3  fps    + Compare + 📈 Graph
ultra 1920x1080
92.3  fps    + Compare + 📈 Graph
QHD 2560x1440
68  fps    + Compare + 📈 Graph
4K 3840x2160
38.3  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
332
Returnal

Returnal

2023
low 1920x1080
133  fps    + Compare
med. 1920x1080
128  fps    + Compare
high 1920x1080
116  fps    + Compare
ultra 1920x1080
98  fps    + Compare
QHD 2560x1440
71  fps    + Compare
4K 3840x2160
40  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
168
Epic Preset + Epic Ray-Tracing 1920x1080
84
Epic Preset + Epic Ray-Tracing 3840x2160
31
low 1920x1080
166.6  fps    + Compare + 📈 Graph
med. 1920x1080
132.3  fps    + Compare + 📈 Graph
high 1920x1080
107  fps    + Compare + 📈 Graph
ultra 1920x1080
80  fps    + Compare + 📈 Graph
QHD 2560x1440
57.6  fps    + Compare + 📈 Graph
4K 3840x2160
30.6  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset Low TAA 1280x720
177.3
Ultra Preset + Full Ray Tracing High TAA 1920x1080
55.8
Ultra Preset + Full Ray Tracing High TAA 3840x2160
21
low 1920x1080
129.5  fps    + Compare + 📈 Graph
med. 1920x1080
123.5  fps    + Compare + 📈 Graph
high 1920x1080
105.6  fps    + Compare + 📈 Graph
ultra 1920x1080
104.7  fps    + Compare + 📈 Graph
QHD 2560x1440
65.2  fps    + Compare + 📈 Graph
4K 3840x2160
31.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset TAA 1280x720
196.6
low 1920x1080
273  fps    + Compare
med. 1920x1080
229  fps    + Compare
high 1920x1080
190.9  fps    + Compare
ultra 1920x1080
149.9  fps    + Compare
QHD 2560x1440
99.7  fps    + Compare
4K 3840x2160
52  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset / Off 1280x720
302.9
RT Ultra Preset / On FXAA 1920x1080
39.6
low 1920x1080
323  fps    + Compare + 📈 Graph
med. 1920x1080
216  fps    + Compare + 📈 Graph
high 1920x1080
160.5  fps    + Compare + 📈 Graph
ultra 1920x1080
129.1  fps    + Compare + 📈 Graph
QHD 2560x1440
77.8  fps    + Compare + 📈 Graph
4K 3840x2160
32.7  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
389
low 1920x1080
207.9  fps    + Compare
med. 1920x1080
168.2  fps    + Compare
high 1920x1080
160.1  fps    + Compare
ultra 1920x1080
102  fps    + Compare
QHD 2560x1440
78.6  fps    + Compare
4K 3840x2160
48.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset (without FSR Upscaling) 1280x720
226.4
Ultra Preset (without FSR Upscaling) + Full Ray-Tracing 1920x1080
86.6
low 1920x1080
200  fps    + Compare + 📈 Graph
med. 1920x1080
174.7  fps    + Compare + 📈 Graph
high 1920x1080
144.7  fps    + Compare + 📈 Graph
ultra 1920x1080
142.7  fps    + Compare + 📈 Graph
QHD 2560x1440
97.7  fps    + Compare + 📈 Graph
4K 3840x2160
49.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
246
low 1920x1080
157.6  fps    + Compare + 📈 Graph
med. 1920x1080
148.1  fps    + Compare + 📈 Graph
high 1920x1080
136.5  fps    + Compare + 📈 Graph
ultra 1920x1080
128.2  fps    + Compare + 📈 Graph
QHD 2560x1440
98.4  fps    + Compare + 📈 Graph
4K 3840x2160
54.2  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Very Low Preset 1280x720
192.3
Very High Preset + Ray-Tracing TAA 1920x0180
74.1
low 1920x1080
113  fps    + Compare + 📈 Graph
med. 1920x1080
108.3  fps    + Compare + 📈 Graph
high 1920x1080
102.1  fps    + Compare + 📈 Graph
ultra 1920x1080
97.6  fps    + Compare + 📈 Graph
QHD 2560x1440
71  fps    + Compare + 📈 Graph
4K 3840x2160
38.2  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
132.9
low 1920x1080
150.6  fps    + Compare + 📈 Graph
med. 1920x1080
119  fps    + Compare + 📈 Graph
high 1920x1080
87.1  fps    + Compare + 📈 Graph
ultra 1920x1080
65.8  fps    + Compare + 📈 Graph
QHD 2560x1440
46.1  fps    + Compare + 📈 Graph
4K 3840x2160
24.6  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
50.4  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
185.2
Ultra DLSS Quality 3840x2160
37
low 1920x1080
201  fps    + Compare + 📈 Graph
med. 1920x1080
147.7  fps    + Compare + 📈 Graph
high 1920x1080
124.5  fps    + Compare + 📈 Graph
ultra 1920x1080
98.6  fps    + Compare + 📈 Graph
QHD 2560x1440
68.1  fps    + Compare + 📈 Graph
4K 3840x2160
22.6  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
262
F1 22

F1 22

2022
low 1920x1080
353  fps    + Compare
med. 1920x1080
338  fps    + Compare
high 1920x1080
256  fps    + Compare
ultra 1920x1080
88.3  fps    + Compare
QHD 2560x1440
56.1  fps    + Compare
4K 3840x2160
27.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ultra Low Preset 16xAF TAA 1280x720
506
low 1920x1080
228  fps    + Compare + 📈 Graph
med. 1920x1080
216  fps    + Compare + 📈 Graph
high 1920x1080
216  fps    + Compare + 📈 Graph
ultra 1920x1080
213  fps    + Compare + 📈 Graph
QHD 2560x1440
125.2  fps    + Compare + 📈 Graph
4K 3840x2160
57.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Lowest Settings 1280x720
273
Highest Settings + Maximum Ray Tracing 1920x1080
89.1
low 1920x1080
292  fps    + Compare
med. 1920x1080
229  fps    + Compare
high 1920x1080
151.9  fps    + Compare
ultra 1920x1080
117.8  fps    + Compare
QHD 2560x1440
80.2  fps    + Compare
4K 3840x2160
36.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Lowest Preset (DX12) 1280x720
446
low 1920x1080
175.6  fps    + Compare
med. 1920x1080
137.2  fps    + Compare
high 1920x1080
114.7  fps    + Compare
ultra 1920x1080
102.6  fps    + Compare
QHD 2560x1440
62.2  fps    + Compare
4K 3840x2160
27  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
224
Ray Tracing Ultra Preset (DLSS off) 1920x1080
49
Ray Tracing Ultra Preset (DLSS off) 3840x2160
13.2
low 1920x1080
241  fps    + Compare
med. 1920x1080
214  fps    + Compare
high 1920x1080
195.2  fps    + Compare
ultra 1920x1080
161.5  fps    + Compare
QHD 2560x1440
135.2  fps    + Compare
4K 3840x2160
83.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
241
low 1920x1080
166.7  fps    + Compare + 📈 Graph
med. 1920x1080
138.5  fps    + Compare + 📈 Graph
high 1920x1080
111.1  fps    + Compare + 📈 Graph
ultra 1920x1080
80.6  fps    + Compare + 📈 Graph
QHD 2560x1440
67.9  fps    + Compare + 📈 Graph
4K 3840x2160
44.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1280x720
235
low 1280x720
411  fps    + Compare + 📈 Graph
med. 1920x1080
329  fps    + Compare + 📈 Graph
high 1920x1080
271  fps    + Compare + 📈 Graph
ultra 1920x1080
237  fps    + Compare + 📈 Graph
QHD 2560x1440
185.4  fps    + Compare + 📈 Graph
4K 3840x2160
110.3  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1920x1080
415
low 1280x720
205  fps    + Compare
med. 1920x1080
193  fps    + Compare
high 1920x1080
192  fps    + Compare
ultra 1920x1080
186  fps    + Compare
QHD 2560x1440
128  fps    + Compare
4K 3840x2160
66  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1920x1080
196
Ultra Preset + Ultra Ray-Tracing 1920x1080
99
Far Cry 6

Far Cry 6

2021
low 1280x720
226  fps    + Compare + 📈 Graph
med. 1920x1080
180  fps    + Compare + 📈 Graph
high 1920x1080
153.6  fps    + Compare + 📈 Graph
ultra 1920x1080
136.1  fps    + Compare + 📈 Graph
QHD 2560x1440
98.9  fps    + Compare + 📈 Graph
4K 3840x2160
53.5  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Graphics Quality 1920x1080
205
Ultra Graphics Quality + HD Textures + DXR TAA 1920x1080
111.1
F1 2021

F1 2021

2021
low 1280x720
605  fps    + Compare
med. 1920x1080
463  fps    + Compare
high 1920x1080
355  fps    + Compare
ultra 1920x1080
176.7  fps    + Compare
QHD 2560x1440
126.7  fps    + Compare
4K 3840x2160
66.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
239  fps    + Compare + 📈 Graph
med. 1920x1080
199.1  fps    + Compare + 📈 Graph
high 1920x1080
184.7  fps    + Compare + 📈 Graph
ultra 1920x1080
180.1  fps    + Compare + 📈 Graph
QHD 2560x1440
129.3  fps    + Compare + 📈 Graph
4K 3840x2160
69.7  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
F1 2020

F1 2020

2020
low 1280x720
487  fps    + Compare
med. 1920x1080
395  fps    + Compare
high 1920x1080
335  fps    + Compare
ultra 1920x1080
230  fps    + Compare
QHD 2560x1440
172.5  fps    + Compare
4K 3840x2160
95.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
229  fps    + Compare
med. 1920x1080
195.3  fps    + Compare
high 1920x1080
147.6  fps    + Compare
ultra 1920x1080
117.3  fps    + Compare
QHD 2560x1440
81.7  fps    + Compare
4K 3840x2160
42.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Very Low Overall Quality (DX11) 1920x1080
218
Control

Control

2019
low 1280x720
240  fps    + Compare + 📈 Graph
med. 1920x1080
155.2  fps    + Compare + 📈 Graph
high 1920x1080
113.3  fps    + Compare + 📈 Graph
QHD 2560x1440
73.1  fps    + Compare + 📈 Graph
4K 3840x2160
36  fps    + Compare + 📈 Graph
4K DLSS 3840x2160
42.8  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
Additional Benchmarks
High Quality Preset & High Ray Tracing Preset (DX12) 1920x1080
73
High Quality Preset & High Ray Tracing Preset (DX12) 3840x2160
21.6
low 1280x720
182  fps    + Compare + 📈 Graph
med. 1920x1080
160  fps    + Compare + 📈 Graph
high 1920x1080
154  fps    + Compare + 📈 Graph
ultra 1920x1080
137  fps    + Compare + 📈 Graph
QHD 2560x1440
119  fps    + Compare + 📈 Graph
4K 3840x2160
67  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
low 1280x720
293  fps    + Compare
med. 1920x1080
162.4  fps    + Compare
high 1920x1080
128  fps    + Compare
ultra 1920x1080
100  fps    + Compare
QHD 2560x1440
78.6  fps    + Compare
4K 3840x2160
48.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ultra Quality DXR 16xAF 1920x1080
84.5
low 1280x720
318  fps    + Compare
med. 1920x1080
224  fps    + Compare
high 1920x1080
203  fps    + Compare
ultra 1920x1080
182.7  fps    + Compare
QHD 2560x1440
119.6  fps    + Compare
4K 3840x2160
58.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Lowest Preset 1920x1080
305
Strange Brigade

Strange Brigade

2018
low 1280x720
620  fps    + Compare
med. 1920x1080
344  fps    + Compare
high 1920x1080
272  fps    + Compare
ultra 1920x1080
235  fps    + Compare
QHD 2560x1440
153  fps    + Compare
4K 3840x2160
79.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Far Cry 5

Far Cry 5

2018
low 1280x720
227  fps    + Compare + 📈 Graph
med. 1920x1080
191  fps    + Compare + 📈 Graph
high 1920x1080
182  fps    + Compare + 📈 Graph
ultra 1920x1080
171  fps    + Compare + 📈 Graph
QHD 2560x1440
127  fps    + Compare + 📈 Graph
4K 3840x2160
65  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset TAA 1920x1080
214
low 1280x720
206  fps    + Compare
med. 1920x1080
189.3  fps    + Compare
high 1920x1080
138.5  fps    + Compare
4K 3840x2160
114.1  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1280x720
235  fps    + Compare
med. 1920x1080
177  fps    + Compare
high 1920x1080
124.6  fps    + Compare
QHD 2560x1440
90.5  fps    + Compare
4K 3840x2160
51.2  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
371  fps    + Compare + 📈 Graph
med. 1366x768
278  fps    + Compare + 📈 Graph
high 1920x1080
183.5  fps    + Compare + 📈 Graph
ultra 1920x1080
67.6 154.8 ~ 111 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
low 1280x720
292.9  fps    + Compare
med. 1366x768
253.8  fps    + Compare
high 1920x1080
247.1  fps    + Compare
ultra 1920x1080
224.1  fps    + Compare
4K 3840x2160
162.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
637.3  fps    + Compare
med. 1366x768
445.9  fps    + Compare
high 1920x1080
269.5  fps    + Compare
ultra 1920x1080
132.3  fps    + Compare
QHD 2560x1440
96.1  fps    + Compare
4K 3840x2160
78.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Ultra Graphics & Postprocessing (HBAO+) 3840x2160
53.1
Medium Graphics & Postprocessing 1920x1080
316.4
GTA V

GTA V

2015
low 1024x768
188.1  fps    + Compare
med. 1366x768
187.8  fps    + Compare
high 1920x1080
187.2  fps    + Compare
ultra 1920x1080
139.2  fps    + Compare
QHD 2560x1440
101.3  fps    + Compare
4K 3840x2160
100.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Highest Settings possible 16xAF 4xMSAA + FXAA 3840x2160
43.4
Normal/Off 4xAF 1920x1080
187.9
Lowest Settings possible 1920x1080
188.2
lowmed.highultraQHD4K
Baldur's Gate 3163.3129.6107.1103.870.235.1
Lies of P253220192171.2112.754.1
Starfield94.981.765.757.746.629.4
Armored Core 6119.4119.1119.2118.894.150
Immortals of Aveum83.87159.441.223
Atlas Fallen184.9190173.1147.1101.954
Ratchet & Clank Rift Apart141.6124.4101.490.170.642
F1 2338634925181.95124.6
Diablo 4332283249211138.368
Star Wars Jedi Survivor113.698.391.785.353.525
Dead Island 2330309229166.3113.755.5
The Last of Us143.4117.1103.687.456.326.8
Resident Evil 4 Remake203146.8134.796.769.237.8
Company of Heroes 3261.5225.3168.3164.8115.165.2
Sons of the Forest122.3111.8109.51088451.7
Atomic Heart259197.9117.392.36838.3
Returnal133128116987140
Hogwarts Legacy166.6132.31078057.630.6
Dead Space Remake129.5123.5105.6104.765.231.8
The Witcher 3 v4.00273229190.9149.999.752
High On Life323216160.5129.177.832.7
The Callisto Protocol207.9168.2160.110278.648.2
Need for Speed Unbound200174.7144.7142.797.749.8
Spider-Man Miles Morales157.6148.1136.5128.298.454.2
Uncharted Legacy of Thieves Collection113108.3102.197.67138.2
A Plague Tale Requiem150.611987.165.846.124.6
The Quarry201147.7124.598.668.122.6
F1 2235333825688.356.127.7
Ghostwire Tokyo228216216213125.257.8
Tiny Tina's Wonderlands292229151.9117.880.236.7
Cyberpunk 2077 1.6175.6137.2114.7102.662.227
GRID Legends241214195.2161.5135.283.5
God of War166.7138.5111.180.667.944.8
Farming Simulator 22411329271237185.4110.3
Guardians of the Galaxy20519319218612866
Far Cry 6226180153.6136.198.953.5
F1 2021605463355176.7126.766.3
Death Stranding239199.1184.7180.1129.369.7
F1 2020487395335230172.595.2
Borderlands 3229195.3147.6117.381.742.5
Control240155.2113.373.136
Far Cry New Dawn18216015413711967
Metro Exodus293162.412810078.648.1
Shadow of the Tomb Raider318224203182.7119.658.5
Strange Brigade62034427223515379.6
Far Cry 522719118217112765
X-Plane 11.11206189.3138.5114.1
Final Fantasy XV Benchmark235177124.690.551.2
Rise of the Tomb Raider371278183.5111
Dota 2 Reborn292.9253.8247.1224.1162.8
The Witcher 3637.3445.9269.5132.396.178.5
GTA V188.1187.8187.2139.2101.3100.8
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps


5
47


7
44


17
35

2
23
24

8
31
10
9
27
14
1

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 19. 19:46:12

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Tue, 19 Nov 2024 05:32:27 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.019s ... 0.02s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.02s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.02s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.021s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.021s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.021s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.021s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.022s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.022s

#13 composed specs +0.001s ... 0.023s

#14 did output specs +0s ... 0.023s

#15 start showIntegratedCPUs +0s ... 0.023s

#16 getting avg benchmarks for device 11614 +0.023s ... 0.045s

#17 got single benchmarks 11614 +0.009s ... 0.054s

#18 got avg benchmarks for devices +0s ... 0.054s

#19 min, max, avg, median took s +0.724s ... 0.778s

#20 before gaming benchmark output +0s ... 0.778s

#21 Got 313 rows for game benchmarks. +0.04s ... 0.818s

#22 composed SQL query for gamebenchmarks +0s ... 0.818s

#23 got data and put it in $dataArray +0.033s ... 0.851s

#24 benchmarks composed for output. +2.289s ... 3.139s

#25 no comparison url found in template nbc.compare_page_1 needed +0.006s ... 3.146s

#26 return log +0s ... 3.146s

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA RTX A6000 Desktop
Radeon Pro W6800 Desktop
NVIDIA Titan RTX Desktop
GeForce RTX 3070 Ti Desktop
Radeon RX 6750 XT Desktop
Radeon RX 6700 XT Desktop
NVIDIA GeForce RTX 3060 Ti Desktop
Radeon RX 6650 XT Desktop
GeForce RTX 2080 (Desktop) Desktop

Class 2

NVIDIA GeForce RTX 3060 Desktop
Titan X Pascal Desktop
Radeon VII Desktop
Radeon RX 5700 XT (Desktop) Desktop
GeForce GTX 1080 (Desktop) Desktop
GeForce RTX 2060 Super (Desktop) Desktop
Radeon RX 5700 (Desktop) Desktop
GeForce RTX 2060 (Desktop) Desktop
RX Vega 64 Desktop
RX Vega 56 Desktop
Radeon RX 5600 XT (Desktop) Desktop
Pro Vega 56 Desktop
GeForce GTX 1660 Ti (Desktop) Desktop
GeForce GTX 1660 Super (Desktop) Desktop
RTX A2000 Desktop
GeForce GTX 1660 (Desktop) Desktop
GeForce GTX 1650 Super (Desktop) Desktop
Radeon R9 Fury Desktop
Radeon R9 Nano Desktop
Radeon RX 580 Desktop
GeForce GTX 1060 (Desktop) Desktop
Radeon RX 570 Desktop
Radeon RX 480 Desktop
Arc A380 Desktop
GeForce GTX 970 Desktop

Class 3

T1000 Desktop
GeForce GTX 960 Desktop
Radeon R7 370 Desktop
GeForce GTX 950 Desktop
T600 Desktop
UHD Graphics 32EUs
UHD Graphics 750
UHD Graphics 730
FirePro W4100 Desktop
FirePro W2100 Desktop

Class 4

VideoCore VII *

* Approximate position of the graphics adapter

Klaus Hinum (Update: 2024-02-24)
