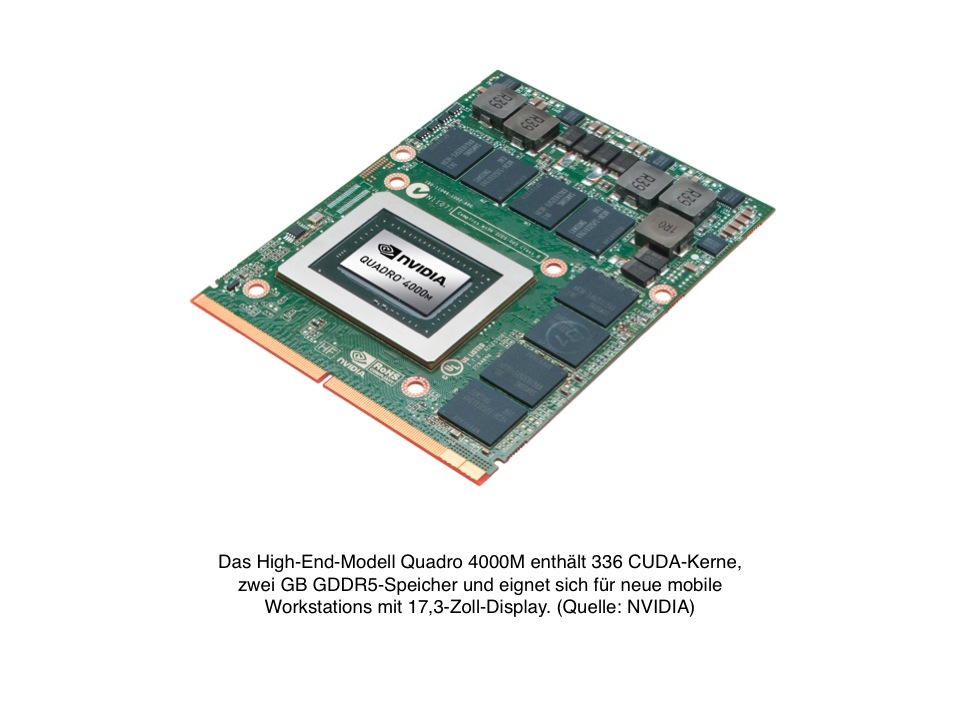

NVIDIA Quadro 4000M

NVIDIA®（英伟达™）Quadro4000M是一家专业工作站显卡基于Fermi架构的（或者更具体地说，可能是GF104）。不同的是5010M，4000M不支持ECC内存和双精度（DP）浮点计算。 Quadro系列产品提供认证的驱动程序进行了优化，如CAD或DCC专业应用程序的稳定性和性能。其结果是，多个科学或商业学科可以使使用的工作站GPU。 OpenGL的性能，例如，应以消费者为导向的类似规格的显卡，显着优于。可以访问着色器/ CUDA核心，使用DirectX11和OpenGL4.1图形渲染的DirectCompute，OpenCL的，AXE，和CUDA通用的计算。由于新的Fermi核心，4000M提供更高的性能与它的前辈相比，在通用计算。此外，NVIDIA的Quadro4000M是兼容的3D Vision Pro，一款新的软件解决方案由NVIDIA®（英伟达™）立体输出。 4000M支持NVIDIA®（英伟达™）Optimus之间自动切换集成显卡的Quadro节电的目的。是否不支持此功能的笔记本电脑，但是，笔记本电脑制造商的依赖。类似的GeForce®（精视™）GTX480M，而Quadro4000M指定在100瓦的TDP，因此，仅发现大如蓝天D901F笔记本电脑的。

Quadro M Series

Quadro M5500	2048 @ 1.14 - 1.14 GHz	256 Bit @ 6606 MHz
Quadro M5000M	1536 @ 0.96 - 1.05 GHz	256 Bit @ 5000 MHz
Quadro M4000M	1280 @ 0.98 - 1.01 GHz	256 Bit @ 5012 MHz
Quadro M3000M	1024 @ 1.05 GHz	256 Bit @ 5000 MHz
Quadro M2200	1024 @ 0.69 - 1.04 GHz	128 Bit @ 5508 MHz
Quadro M1200	640 @ 0.99 - 1.15 GHz	128 Bit @ 5000 MHz
Quadro M2000M	640 @ 1.04 - 1.2 GHz	128 Bit @ 5000 MHz
Quadro M1000M	512 @ 0.99 - 1.07 GHz	128 Bit @ 5000 MHz
Quadro M620	512 @ 1.02 GHz	128 Bit @ 5012 MHz
Quadro 5010M	384 @ 0.45 GHz	256 Bit @ 1300 MHz
Quadro 4000M	336 @ 0.48 GHz	256 Bit @ 1200 MHz
Quadro M520	384 @ 0.76 - 1.02 GHz	64 Bit
Quadro M600M	384 @ 0.84 - 0.88 GHz	128 Bit @ 5012 MHz
Quadro M500M	384 @ 1.03 - 1.12 GHz	64 Bit @ 4004 MHz
Quadro 5000M	320 @ 0.41 GHz	256 Bit @ 1200 MHz
Quadro 3000M	240 @ 0.45 GHz	256 Bit @ 625 MHz
Quadro 2000M	192 @ 0.55 GHz	128 Bit @ 900 MHz
Quadro 1000M	96 @ 0.7 GHz	128 Bit @ 900 MHz

Codename

Fermi

Architecture

Fermi

Pipelines

336 - unified

Core Speed

475 MHz

Shader Speed

950 MHz

Memory Speed

1200 MHz

Memory Bus Width

256 Bit

Memory Type

GDDR5

Max. Amount of Memory

2048 MB

Shared Memory

API

DirectX 11, Shader 5.0

Power Consumption

100 Watt

technology

40 nm

Features

OpenGl 4.1, FP32

Notebook Size

large

Date of Announcement

22.02.2011

Link to Manufacturer Page

www.nvidia.com

Benchmarks

3DMark 11 - 3DM11 Performance Score

min: 2229 avg: 2335 median: 2334.5 (3%) max: 2440 Points

+ 2 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision	2720QM	Quadro 4000M		2229
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	2440

3DMark 11 - 3DM11 Performance GPU

min: 2025 avg: 2092 median: 2092 (2%) max: 2159 Points

+ 2 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision	2720QM	Quadro 4000M		2025
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	2159

AMD Radeon HD 6250

171.8 -92%

...

AMD Radeon HD 8550G + HD 8670M Dual Graphics

1942 -7%

NVIDIA GeForce 830M

1969 -6%

AMD FirePro M4000

1981 -5%

NVIDIA GeForce GT 740M

1985 -5%

NVIDIA GeForce GTX 470M

2003 -4%

AMD Radeon HD 8650G + HD 8570M Dual Graphics

2004 -4%

AMD Radeon R7 M360

2014 -4%

AMD Radeon 520

2017 -4%

AMD Radeon HD 7750M

2085 0%

NVIDIA Quadro 4000M

2092

NVIDIA GeForce GT 650M

2104 1%

AMD Radeon HD 7770M

2110 1%

AMD Radeon HD 7660G + HD 7670M Dual Graphics

2118 1%

NVIDIA GeForce MX110

2125 2%

AMD Radeon R7 M460

2139 2%

NVIDIA GeForce 930M

2145 3%

Intel UHD Graphics G1 (Ice Lake 32 EU)

2171 4%

NVIDIA GeForce GTX 480M

2185 4%

AMD Radeon HD 8790M

2187 5%

...

AMD Radeon RX 7900M

59943 2765%

max:

NVIDIA GeForce RTX 4090

106023 4968%

100%

3DMark Vantage
3DM Vant. Perf. total +

3DMark Vantage - 3DM Vant. Perf. total

10722 Points (3%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	10722

3DM Vant. Perf. GPU no PhysX +

3DMark Vantage - 3DM Vant. Perf. GPU no PhysX

9184 Points (5%)

+ 1 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	9184

ATI Radeon HD 3200

62 -99%

...

NVIDIA GeForce GTX 470M

8589 -6%

AMD Radeon R7 M275DX

8607 -6%

NVIDIA GeForce GT 750M

8624 -6%

NVIDIA GeForce GTX 260M SLI

8764 -5%

NVIDIA Quadro K2100M

8930 -3%

AMD Radeon RX Vega 8 (Ryzen 2000/3000)

8994 -2%

AMD FirePro M6000

9070 -1%

Intel Iris Graphics 550

9089 -1%

AMD Radeon R9 M265X

9135 -1%

NVIDIA Quadro 4000M

9184

Intel UHD Graphics Xe G4 48EUs

9484 3%

NVIDIA GeForce GTX 660M

9666 5%

AMD Radeon HD 6950M

9694 6%

ATI Mobility Radeon HD 4870 X2

9844 7%

NVIDIA GeForce GTX 570M

9902 8%

AMD Radeon RX Vega 10

9909 8%

NVIDIA GeForce GTX 280M SLI

9947 8%

AMD Radeon HD 8870M

10052 9%

NVIDIA Quadro K3000M

10067 10%

...

NVIDIA GeForce RTX 4090 Laptop GPU

132443 1342%

max:

AMD Radeon RX 7900 XTX

170928 1761%

100%

3DMark 06 3DMark 06 - Standard 1280x1024 +

3DMark 06

17727 Points (23%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
3DMark 06 - Standard 1280x1024
Dell Precision M6600 (3DMark 06 - Standard 1280x1024)	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	17727

Unigine Heaven 2.1 - Heaven 2.1 high

31.4 fps (6%)

+ 1 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	31.4

AMD Radeon HD 7310

0.6 -98%

...

NVIDIA Quadro M500M

28.65 -9%

NVIDIA Quadro K620M

29 -8%

AMD FirePro M4000

29.45 -6%

AMD Radeon RX Vega 10

29.5 -6%

NVIDIA GeForce GT 750M

29.8 -5%

NVIDIA GeForce 840M

30.1 -4%

NVIDIA GeForce GTX 470M

30.2 -4%

AMD FirePro W4170M

31.1 -1%

NVIDIA Quadro K2100M

31.4 0%

NVIDIA Quadro 4000M

31.4

NVIDIA GeForce GTX 660M

32.57 4%

AMD Radeon R9 M265X

32.6 4%

AMD Radeon HD 6970M

33.3 6%

NVIDIA GeForce GTX 570M

33.55 7%

NVIDIA GeForce GTX 480M

33.7 7%

NVIDIA Quadro K3000M

34.1 9%

NVIDIA GeForce MX130

35 11%

AMD FirePro W5130M

36 15%

AMD FirePro M6000

36.1 15%

...

NVIDIA Quadro RTX 5000 (Laptop)

532 1594%

100%

SPECviewperf 11
specvp11 snx-01 +

SPECviewperf 11 - specvp11 snx-01

26.4 fps (16%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	26.38

specvp11 tcvis-02 +

SPECviewperf 11 - specvp11 tcvis-02

29.2 fps (17%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	29.22

specvp11 sw-02 +

SPECviewperf 11 - specvp11 sw-02

39.1 fps (30%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	39.13

specvp11 proe-05 +

SPECviewperf 11 - specvp11 proe-05

10.6 fps (12%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	10.59

specvp11 maya-03 +

SPECviewperf 11 - specvp11 maya-03

51.4 fps (39%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	51.4

specvp11 lightwave-01 +

SPECviewperf 11 - specvp11 lightwave-01

42.1 fps (45%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	42.12

specvp11 ensight-04 +

SPECviewperf 11 - specvp11 ensight-04

24.9 fps (12%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	24.89

specvp11 catia-03 +

SPECviewperf 11 - specvp11 catia-03

36.5 fps (19%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	36.53

Windows 7 Experience Index - Win7 Gaming graphics

7.1 Points (90%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	7.1

Windows 7 Experience Index - Win7 Graphics

7.1 Points (90%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	7.1

Cinebench R10 Cinebench R10 Shading (32bit) +

Cinebench R10 - Cinebench R10 Shading (32bit)

6638 points (5%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	6638

Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +

Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit

46 fps (16%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Dell Precision M6600	2920XM	Quadro 4000M 475 / 625 MHz 2 GB	8 GB	45.98

- Range of benchmark values for this graphics card

- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

StarCraft 2

2010

180 fps + Compare

112 fps + Compare

79 fps + Compare

71 fps + Compare

» With all tested laptops playable in detail settings ultra.

Anno 1404

2009

173 fps + Compare

62 fps + Compare

» With all tested laptops playable in detail settings ultra.

Sims 3

2009

279 fps + Compare

165 fps + Compare

79 fps + Compare

» With all tested laptops playable in detail settings high.

Racedriver: GRID

2008

188 fps + Compare

148 fps + Compare

117 fps + Compare

» With all tested laptops playable in detail settings high.

	low	med.	high	ultra
StarCraft 2	180	112	79	71
Anno 1404	173			62
Sims 3	279	165	79
Racedriver: GRID	188	148	117
< 30 fps < 60 fps < 120 fps ≥ 120 fps	4	1 2	3	2

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28

log 22. 05:53:07

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Sat, 22 Jun 2024 05:33:05 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.039s ... 0.04s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.04s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.041s

#17 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#18 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#19 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.042s

#20 composed specs +0s ... 0.042s

#21 did output specs +0s ... 0.042s

#22 start showIntegratedCPUs +0s ... 0.042s

#23 getting avg benchmarks for device 2431 +0.014s ... 0.056s

#24 got single benchmarks 2431 +0.011s ... 0.067s

#25 got avg benchmarks for devices +0s ... 0.067s

#26 min, max, avg, median took s +0.303s ... 0.37s

#27 before gaming benchmark output +0s ... 0.37s

#28 Got 12 rows for game benchmarks. +0.002s ... 0.372s

#29 composed SQL query for gamebenchmarks +0s ... 0.372s

#30 got data and put it in $dataArray +0.002s ... 0.374s

#31 benchmarks composed for output. +0.115s ... 0.49s

#32 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 0.492s

#33 return log +0s ... 0.492s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU

NVIDIA RTX 5000 Ada Generation Laptop GPU

Radeon RX 7900M

NVIDIA GeForce RTX 4080 Laptop GPU

NVIDIA RTX 4000 Ada Generation Laptop GPU

NVIDIA RTX 3500 Ada Generation Laptop GPU

GeForce RTX 3080 Ti Laptop GPU

NVIDIA GeForce RTX 4070 Laptop GPU

NVIDIA RTX 3000 Ada Generation Laptop GPU

RTX A5500 Laptop GPU

GeForce RTX 3080 Laptop GPU

Radeon RX 6850M XT

GeForce RTX 3070 Ti Laptop GPU

RTX A4500 Laptop GPU

RTX A5000 Laptop GPU

NVIDIA GeForce RTX 4060 Laptop GPU

NVIDIA RTX 2000 Ada Generation Laptop GPU

Quadro RTX 6000 (Laptop)

Radeon RX 6800M

GeForce RTX 2080 Super Mobile

GeForce RTX 3070 Laptop GPU

RTX A4000 Laptop GPU *

Class 2

GeForce RTX 2080 Mobile

Radeon RX 6700M

M3 Max 30-Core GPU *

Quadro RTX 5000 (Laptop)

Radeon RX 7600M *

M2 Max 30-Core GPU *

GeForce RTX 3060 Laptop GPU

M1 Max 32-Core GPU *

Radeon RX 7600S

GeForce RTX 2070 Super Mobile

GeForce RTX 2080 Super Max-Q

RTX A3000 Laptop GPU

M1 Max 24-Core GPU *

A770M *

GeForce RTX 2070 Mobile

Quadro RTX 5000 Max-Q

GeForce RTX 2080 Max-Q

Radeon RX 5700M *

GeForce GTX 1080 Mobile

Quadro RTX 4000 (Laptop)

M3 Pro 14-Core GPU *

M2 Pro 16-Core GPU *

M1 Pro 16-Core GPU *

Radeon PRO W6600M *

GeForce RTX 2070 Super Max-Q

Quadro RTX 4000 Max-Q *

M1 Pro 14-Core GPU *

GeForce RTX 2070 Max-Q *

Radeon RX 6600S *

Quadro P5200

Quadro RTX 3000 (Laptop) *

GeForce RTX 2060 Mobile

Quadro RTX 3000 Max-Q *

GeForce GTX 1080 Max-Q

GeForce GTX 1070 Mobile

GeForce RTX 2060 Max-Q *

Quadro P4200

NVIDIA GeForce RTX 4050 Laptop GPU

Nvidia RTX 1000 Ada Generation Laptop GPU

A730M *

GeForce GTX 1660 Ti Mobile

GeForce RTX 3050 Ti Laptop GPU

GeForce RTX 3050 6GB Laptop GPU

A570M *

RTX A1000 Laptop GPU

GeForce GTX 1070 Max-Q

A550M *

Quadro P5000 Max-Q *

GeForce RTX 3050 4GB Laptop GPU

Nvidia RTX 500 Ada Generation Laptop GPU

A530M *

GeForce GTX 1660 Ti Max-Q

GeForce GTX 980 (Laptop)

Quadro M5500

Quadro P4000

Quadro T2000 (Laptop) *

GeForce GTX 1060 Mobile

GeForce GTX 1650 Ti Mobile

A370M *

Radeon RX 5500M

Radeon Pro 5500M *

Quadro P4000 Max-Q

Quadro P3200

Radeon RX 580X (Laptop) *

Radeon RX 580 (Laptop)

Radeon RX 6450M *

GeForce RTX 2050 Mobile

GeForce MX570 *

Radeon RX 6300M *

GeForce GTX 1650 Mobile

Radeon Pro 5300M

Radeon RX 5300M

Quadro P3000

GeForce GTX 1060 Max-Q

Quadro P3000 Max-Q *

GeForce GTX 1650 Ti Max-Q *

Quadro T2000 Max-Q *

Radeon Pro WX 7100 *

Radeon RX 570X (Laptop) *

Radeon RX 570 (Laptop) *

Radeon RX 470 (Laptop) *

GeForce GTX 1650 Max-Q *

T1200 Laptop GPU *

Radeon 890M *

Quadro T1000 (Laptop) *

Quadro T1000 Max-Q *

A310 *

A350M *

Class 3

GeForce GTX 980M

Vega M GH

Quadro M5000M

Radeon Pro Vega 20

Radeon 880M *

SD X Adreno X1-85 GPU *

Radeon 780M *

GeForce MX550

GeForce GTX 1050 Ti Mobile

Radeon 680M

Quadro P2000

Quadro P2000 Max-Q

Quadro M4000M

GeForce GTX 970M

T500 Laptop GPU *

GeForce MX450 *

Radeon R9 M395X

GeForce GTX 1050 Ti Max-Q *

Radeon Pro Vega 16

Vega M GL / 870

WX Vega M GL

Radeon R9 M485X

Quadro M3000M

GeForce GTX 1050 Mobile

FirePro W7170M

Radeon R9 M395

GeForce GTX 1050 Max-Q *

SD X Adreno 3.8 TFLOPS GPU *

Radeon 760M *

Radeon Radeon Steam Deck 8CU

Radeon 660M

Radeon Pro WX 4150 *

GeForce GTX 965M

Radeon RX 560X (Laptop)

Radeon RX 560 (Laptop)

Quadro M2200

Radeon RX 460 (Laptop)

Quadro P1000

Radeon R9 M390

Xe MAX

Radeon Pro 560X

Radeon Pro 560

Radeon Pro 460

Radeon Pro WX 4130 *

Iris Xe G7 96EUs

GeForce MX350

GeForce GTX 960M

Quadro M1200

Quadro P620 *

Radeon RX 550X (Laptop)

Radeon RX 550 (Laptop)

Radeon RX 640

Radeon Pro WX 3200 *

Radeon Pro 555X

Radeon Pro 555

Radeon Pro 455

Quadro P600

Quadro M2000M

Radeon RX 540X *

Radeon Pro WX 2100 *

Radeon RX 540 *

Radeon Pro WX 3100 *

GeForce GTX 950M

Radeon Pro 450

Radeon 630

Radeon 540X *

Radeon R9 M470X *

Radeon R9 M385X

Quadro P520

Quadro M1000M

Quadro M620 *

GeForce 945M

Quadro P500 *

UHD Graphics 64EUs

Iris Plus Graphics G7 (Ice Lake 64 EU) *

Vega 10 *

Iris Pro Graphics P580

Iris Pro Graphics 580

Radeon R9 M470 *

FirePro W5170M *

Radeon R9 M370X

Vega 9

FirePro W5130M

UHD Graphics Xe G4 48EUs *

UHD Graphics 32EUs

UHD Graphics Xe 32EUs (Tiger Lake-H) *

UHD Graphics 750

Radeon 740M *

GeForce MX230

Vega 8 *

Vega 7

Radeon R7 M465

Quadro 4000M

Iris Pro Graphics 6200

GeForce MX130

GeForce 940MX

Quadro M520

Vega 8

GeForce 940M

Iris Plus Graphics G4 (Ice Lake 48 EU)

GeForce 930MX

Quadro M600M

FirePro W4190M

Radeon R9 M375

Iris Plus Graphics 655

Radeon R7 M445

Quadro M500M

Iris Plus Graphics 650

GeForce 930M

Iris Graphics 550

Radeon 530

Radeon 625

Vega 6 *

Iris Plus Graphics 645

GeForce MX110 *

Iris Plus Graphics 640

GeForce 920MX

Iris Graphics 540

UHD Graphics 24EUs (Alder Lake-N) *

Radeon R7 (Bristol Ridge) *

Radeon R7 M460 *

Radeon R7 M360

GeForce 920M

Radeon R8 M445DX

Radeon 620

Radeon R7 M440

Radeon R7 M340

Radeon 520

Radeon 610

Radeon Graphics (Ryzen 7000)

Radeon 610M *

Vega 6 *

Vega 5 *

Radeon Graphics (Ryzen 9000) *

UHD Graphics G1 (Ice Lake 32 EU)

UHD Graphics Xe 16EUs (Tiger Lake-H) *

UHD Graphics G7 (Lakefield GT2 64 EU)

HD Graphics 530

Radeon R5 (Bristol Ridge)

UHD Graphics 620

HD Graphics 620

Adreno 690 *

Adreno 685 *

Adreno 680 *

Radeon R5 M330

Radeon R5 M430

Vega 3 *

GeForce 910M

HD Graphics 520

Iris Graphics 6100

UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730

Radeon R5 M320 *

Radeon R5 M315 *

Radeon R5 M420 *

Vega 2 *

Radeon R5 (Stoney Ridge)

HD Graphics 6000

UHD Graphics (Jasper Lake 32 EU) *

UHD Graphics 617

UHD Graphics 615

UHD Graphics (Jasper Lake 24 EU) *

HD Graphics 615

HD Graphics 515

UHD Graphics 610

HD Graphics 610

HD Graphics 510

UHD Graphics (Jasper Lake 16 EU)

UHD Graphics 605

HD Graphics 505

HD Graphics 5300

Radeon R4 (Stoney Ridge)

Radeon R5 (Beema/Carrizo-L)

Radeon R4 (Beema)

Radeon R3 (Mullins/Beema)

Radeon R2 (Stoney Ridge)

HD Graphics (Broadwell)

UHD Graphics 600

HD Graphics 500

HD Graphics 405 (Braswell)

HD Graphics (Braswell)

HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)

Radeon R6 (Mullins)

* Approximate position of the graphics adapter

> Notebookcheck中文版（NBC中国） > FAQ / 小提示/ 技术参数 > 移动显示芯片——基准测试成绩列表 > NVIDIA Quadro 4000M

Klaus Hinum (Update: 2016-01-26)
