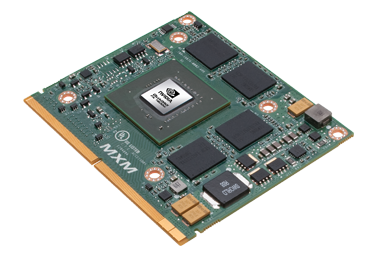

NVIDIA Quadro FX 1800M

NVIDIA Quadro FX 1800M

NVIDIA®（英伟达™）Quadro FX1800M是一个中高端专业图形卡的移动工作站，15“显示器，它是基于与GeForce GT 335M在同一芯片上，但也可配备快速的GDDR5显存。FX1800M运职业司机和一个特殊的BIOS，提高了性能和稳定性，如CAD和DCC应用程序中。认证的驱动程序保证完美无瑕的和快速的工作与专业应用软件如Premiere，Photoshop中，后的效果时，AutoCAD，3ds Max中的TrueSpace，搅拌机，CATIA，，IronCAD，数学的LightWave 3D，4D影院，Softimage公司，所有经认证的应用程序列表可以发现的Nvidia.com网页的Quadro FX显卡为GeForce产品相比，提供了更好的性能，特别是对于基于OpenGL的应用程序。到GeForce GT 335M的游戏性能应该是相似的，虽然玩家要选择的GeForce®（精视™）显卡的优化驱动程序的支持（即在游戏中更好的性能和少的问题）。还有所有的现代和要求苛刻的游戏，2009年应该至少运行在中等详细的设置（见更多的游戏结果的GeForce GT 335M页）。在40nm工艺制造的芯片，并提供72个一维的统一着色器。这些可以比约300-4005维的图形着色器卡AMD。这些处理核心也可以被访问，CUDA，OpenCL的，和DirectCompute使用的计算能力比渲染图像的其他任务（例如转码视频）。QuadroFX1800M还支持PureVideo HD的的新VideoProcessor（VP4）高清视频解码的显卡。这有助于减少CPU的负荷，延长电池的运行时间。的Quadro FX1800M也支持使用擎天柱集成和独立显卡之间的自动切换。首先移动工作站不提供擎天柱，开发周期这些笔记本电脑是非常长的。

Quadro FX Series

Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
ArchitectureGT2xx
Pipelines72 - unified
Core Speed560 MHz
Shader Speed1125 MHz
Memory Speed1100 MHz
Memory Bus Width128 Bit
Memory TypeDDR3, GDDR5
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 10.1, Shader 4.1
Power Consumption45 Watt
technology40 nm
FeaturesPowerMizer 9.0, EnergyStar (3.8W), 16x FSAA Support, CUDA, NVIEW, OpenGL 3.2
Notebook Sizemedium sized
Date of Announcement01.02.2010
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 3444     avg: 3452     median: 3451.5 (1%)     max: 3459 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 2774     avg: 2801     median: 2800.5 (2%)     max: 2827 Points
+ 2 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -98%
...
AMD Radeon HD 7550M
2478 -12%
NVIDIA GeForce GT 420M
2527 -10%
ATI Mobility Radeon HD 4670
2552 -9%
AMD Radeon HD 6755G2
2593 -7%
NVIDIA GeForce GT 335M
2624 -6%
AMD Radeon R5 (Kaveri)
2674 -5%
ATI Mobility Radeon HD 5650
2711 -3%
AMD Radeon HD 6540G2
2731 -2%
AMD Radeon HD 6680G2
2800 0%
NVIDIA Quadro FX 1800M
2801
NVIDIA GeForce GT 425M
2803 0%
AMD Radeon HD 6480G + HD 7450M Dual Graphics
2865 2%
Intel HD Graphics 5300
2914 4%
NVIDIA GeForce GT 525M
2927 4%
NVIDIA GeForce 9800M GS
2955 5%
Intel UHD Graphics (Jasper Lake 16 EU)
2969 6%
AMD Radeon HD 6520G + HD 7450M Dual Graphics
2974 6%
Intel HD Graphics 4400
3005 7%
AMD Radeon R5 (Stoney Ridge)
3044 9%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 4628%
max:
AMD Radeon RX 7900 XTX
170928 6002%
0%
100%
3DMark 05 - 3DMark 05 - Standard
15249 Points (17%)
+ 1 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA GeForce GT 640M LE
14777 -3%
AMD Radeon HD 6570M
14855 -3%
NVIDIA GeForce 9800M GT
14869 -2%
AMD Radeon R7 M260
14924 -2%
ATI Mobility Radeon HD 4830
14938 -2%
NVIDIA GeForce 8800M GTX
14952 -2%
AMD Radeon HD 6750M
15011 -2%
Intel HD Graphics 4600
15058 -1%
NVIDIA NVS 5200M
15064 -1%
NVIDIA Quadro FX 1800M
15249
NVIDIA GeForce GT 540M
15284 0%
ATI Mobility Radeon HD 5850
15365 1%
ATI Mobility Radeon HD 4850
15419 1%
AMD Radeon HD 6770M
15484 2%
AMD Radeon HD 6730M
15492 2%
AMD Radeon R7 M340
15629 2%
NVIDIA Quadro FX 3700M
15759 3%
AMD Radeon RX Vega 3
15885 4%
NVIDIA Quadro K2000M
16020 5%
...
NVIDIA GeForce RTX 4090 Laptop GPU
61850 306%
max:
NVIDIA GeForce RTX 4080 Super
87172 472%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 7416     avg: 7573     median: 7572.5 (10%)     max: 7729 Points
+ 2 benchmarks and specifications   + Show comparison chart
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
12.4 fps (7%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
13 fps (7%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
28.1 fps (21%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
7.5 fps (9%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
16.6 fps (13%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
39 fps (42%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
12.3 fps (6%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
17.5 fps (9%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
6.6 Points (84%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
5 Points (63%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
20 fps (7%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
