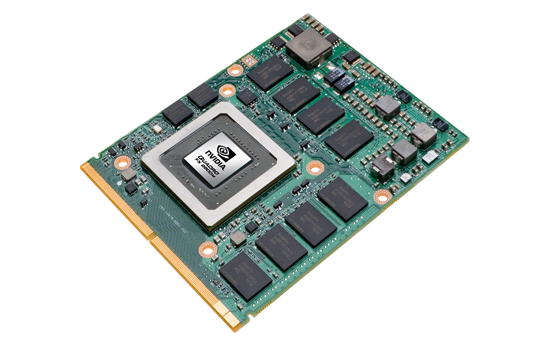

NVIDIA Quadro FX 2800M

NVIDIA®（英伟达™）Quadro FX2800M高端笔记本电脑是一款移动工作站图形卡。它基于的Geforce9800M GT/ G92核心，但具有更高的时钟速率，并产生了55nm的制造工艺与65nm工艺的9800M GT。卡Quadro FX系列专业应用软件，如CAD或DCC进行了优化。 OpenGL的性能，特别是要明显优于消费者的GeForce显卡。中发现的Quadro FX2800M等移动工作站戴尔M6500，支持DirectX10.0和OpenGL 2.1。在戴尔的笔记本电脑，该卡是能够同时输出两个显示器（的DisplayPort可以实现高达2560x1600，DVI/ HDMI高达1920x1200的）。戴尔称，一个65瓦的热功率消耗，，而Nvidia价格的GPU（图形处理器）在75瓦的TDP。由于比较高的65至75瓦的功耗（TDP）和一个10瓦的空闲模式，在Quadro FX2800M在介质中通常只foud的的大笔记本电脑提供强大的散热解决方案。

Quadro FX Series

Quadro FX 3800M	128 @ 0.68 GHz	256 Bit @ 1000 MHz
Quadro FX 3700M	128 @ 0.55 GHz	256 Bit @ 800 MHz
Quadro FX 2800M	96 @ 0.6 GHz	256 Bit @ 1000 MHz
Quadro FX 3600M	96 @ 0.5 GHz	256 Bit @ 800 MHz
Quadro FX 1800M	72 @ 0.56 GHz	128 Bit @ 1100 MHz
Quadro FX 2700M	48 @ 0.53 GHz	256 Bit @ 800 MHz
Quadro FX 880M	48 @ 0.55 GHz	128 Bit @ 790 MHz
Quadro FX 3500M	24/8 cores @ 0.58 GHz	256 Bit @ 700 MHz
Quadro FX 2500M	24/8 cores @ 0.5 GHz	256 Bit @ 600 MHz
Quadro FX 1700M	32 @ 0.63 GHz	128 Bit @ 800 MHz
Quadro FX 1600M	32 @ 0.63 GHz	128 Bit @ 800 MHz
Quadro FX 1500M	20/7 cores @ 0.38 GHz	256 Bit @ 500 MHz
Quadro FX 770M	32 @ 0.5 GHz	128 Bit @ 800 MHz
Quadro FX 570M	32 @ 0.48 GHz	128 Bit @ 700 MHz
Quadro FX 380M	16 @ 0.63 GHz	64 Bit @ 800 MHz
Quadro FX 370M	8 @ 0.58 GHz	64 Bit @ 700 MHz
Quadro FX 360M	16 @ 0.4 GHz	64 Bit @ 600 MHz
Quadro FX 350M	4/3 cores @ 0.45 GHz	64 Bit @ 350 MHz

Codename

NB10-GLM3

Architecture

G9x

Pipelines

96 - unified

Core Speed

600 MHz

Shader Speed

1500 MHz

Memory Speed

1000 MHz

Memory Bus Width

256 Bit

Memory Type

GDDR3

Max. Amount of Memory

1024 MB

Shared Memory

API

DirectX 10, Shader 4.0

Power Consumption

75 Watt

Transistor Count

754 Million

technology

55 nm

Features

OpenGL 2.1, CUDA, PowerMizer 8.0

Notebook Size

large

Date of Announcement

01.12.2009

Link to Manufacturer Page

www.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +

3DMark Vantage - 3DM Vant. Perf. total

min: 5779 avg: 5783 median: 5783 (2%) max: 5787 Points

+ 2 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	5779
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	5787

3DM Vant. Perf. GPU no PhysX +

3DMark Vantage - 3DM Vant. Perf. GPU no PhysX

min: 5000 avg: 5037 median: 5037 (3%) max: 5074 Points

+ 2 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	5000
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	5074

ATI Radeon HD 3200

62 -99%

...

AMD Radeon R7 M260

4787 -5%

AMD Radeon R5 M255

4804 -5%

AMD Radeon HD 7640G + HD 7670M Dual Graphics

4812 -4%

NVIDIA GeForce GT 555M

4847 -4%

AMD Radeon R7 M440

4903 -3%

AMD Radeon HD 7640G + HD 7610M Dual Graphics

4937 -2%

AMD Radeon HD 6740G2

4956 -2%

NVIDIA GeForce 920M

5033 0%

AMD Radeon R6 M255DX

5035 0%

NVIDIA Quadro FX 2800M

5037

NVIDIA GeForce GT 735M

5058 0%

Intel HD Graphics 620

5059 0%

Intel Iris Graphics 5100

5072 1%

AMD Radeon HD 7690M

5081 1%

AMD Radeon R7 (Bristol Ridge)

5111 1%

AMD Radeon HD 6850M

5142 2%

AMD Radeon HD 6770M

5150 2%

AMD Radeon R7 M360

5162 2%

Intel HD Graphics 530

5173 3%

...

NVIDIA GeForce RTX 4090 Laptop GPU

132443 2529%

max:

AMD Radeon RX 7900 XTX

170928 3293%

100%

3DMark 2001SE - 3DMark 2001 - Standard

34844 Points (36%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	34844

3DMark 03 - 3DMark 03 - Standard

33900 Points (18%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	33900

3DMark 05 - 3DMark 05 - Standard

min: 16310 avg: 16936 median: 16935.5 (19%) max: 17561 Points

+ 2 benchmarks and specifications - Hide comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	16310
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	17561

Intel Graphics Media Accelerator (GMA) 500

133.4 -99%

...

AMD Radeon R7 M440

16534 -2%

NVIDIA Quadro 1000M

16583 -2%

Intel Iris Pro Graphics 5200

16590 -2%

NVIDIA GeForce 9800M GTX

16638 -2%

NVIDIA GeForce GT 735M

16640 -2%

NVIDIA GeForce GT 740M

16696 -1%

NVIDIA GeForce GTS 360M

16712 -1%

AMD Radeon HD 7730M

16766 -1%

NVIDIA GeForce GT 730M

16882 0%

NVIDIA Quadro FX 2800M

16936

NVIDIA GeForce 8800M GTX SLI

16942 0%

AMD Radeon HD 6850M

16944 0%

Intel UHD Graphics 620

16972 0%

NVIDIA GeForce 825M

17043 1%

NVIDIA GeForce GT 640M

17105 1%

ATI FirePro M7740

17192 2%

NVIDIA GeForce 840M

17271 2%

Intel UHD Graphics 24EUs (Alder Lake-N)

17272 2%

AMD Radeon 530

17513 3%

...

NVIDIA GeForce RTX 4090 Laptop GPU

61850 265%

max:

NVIDIA GeForce RTX 4080 Super

87172 415%

100%

3DMark 06 3DMark 06 - Standard 1280x1024 +

3DMark 06

min: 11162 avg: 11359 median: 11358.5 (15%) max: 11555 Points

+ 2 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
3DMark 06 - Standard 1280x1024
Lenovo Thinkpad W701 2500-2EG (3DMark 06 - Standard 1280x1024)	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	11162
HP Elitebook 8740w 820QM/FX2800M (3DMark 06 - Standard 1280x1024)	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	11555

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax

32.3 points (67%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	32.33

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia

39 points (82%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	38.95

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight

44 points (93%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	43.97

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya

59.6 points (32%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	59.6

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer

42.6 points (83%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	42.59

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks

59.5 points (88%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	59.5

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter

35.2 points (91%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	35.2

SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX

31.3 points (64%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	31.28

SPECviewperf 11
specvp11 snx-01 +

SPECviewperf 11 - specvp11 snx-01

min: 13.58 avg: 14.7 median: 13.9 (8%) max: 16.55 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	13.58
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	13.87
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	16.55

specvp11 tcvis-02 +

SPECviewperf 11 - specvp11 tcvis-02

min: 15.1 avg: 16 median: 15.3 (9%) max: 17.4 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	15.1
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	15.34
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	17.4

specvp11 sw-02 +

SPECviewperf 11 - specvp11 sw-02

min: 6.73 avg: 14.1 median: 7.5 (6%) max: 28 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	6.73
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	7.46
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	28

specvp11 proe-05 +

SPECviewperf 11 - specvp11 proe-05

min: 4.67 avg: 5.1 median: 4.7 (6%) max: 5.89 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	4.67
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	4.67
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	5.89

specvp11 maya-03 +

SPECviewperf 11 - specvp11 maya-03

min: 6.2 avg: 7 median: 7.4 (6%) max: 7.5 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	6.2
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	7.4
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	7.5

specvp11 lightwave-01 +

SPECviewperf 11 - specvp11 lightwave-01

min: 7.99 avg: 16.2 median: 8.5 (9%) max: 32 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	7.99
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	8.48
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	32

specvp11 ensight-04 +

SPECviewperf 11 - specvp11 ensight-04

min: 10.8 avg: 11.9 median: 11.1 (5%) max: 13.7 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	10.8
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	11.06
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	13.7

specvp11 catia-03 +

SPECviewperf 11 - specvp11 catia-03

min: 9.53 avg: 13.4 median: 9.7 (5%) max: 20.92 fps

+ 3 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	9.53
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	9.67
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	20.92

Windows Vista Experience Index - Windows Vista Leistungsindex - Grafik (Spiele)

6.8 Points (100%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	6.8

Windows Vista Experience Index - Windows Vista Leistungsindex - Grafik

6.8 Points (100%)

+ 1 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	6.8

Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +

Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit

min: 28.16 avg: 28.8 median: 28.8 (10%) max: 29.36 fps

+ 2 benchmarks and specifications + Show comparison chart

Model	CPU	GPU	RAM	Value
Lenovo Thinkpad W701 2500-2EG	720QM	Quadro FX 2800M 600 / 1013 MHz 1 GB	2 GB	28.16
HP Elitebook 8740w 820QM/FX2800M	820QM	Quadro FX 2800M 600 / 1000 MHz 1 GB	8 GB	29.36

- Range of benchmark values for this graphics card

- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Mafia 2

2010

63.2 fps + Compare

56.1 fps + Compare

48.9 fps + Compare

30.8 fps + Compare

» With all tested laptops playable in detail settings high.

StarCraft 2

2010

158 fps + Compare

60 fps + Compare

52 fps + Compare

29.6 fps + Compare

» With all tested laptops playable in detail settings high.

Battlefield: Bad Company 2

2010

58.9 fps + Compare

41.5 fps + Compare

23.1 fps + Compare

» With all tested laptops playable in detail settings high.

CoD Modern Warfare 2

2009

158.1 fps + Compare

78.9 fps + Compare

66.7 fps + Compare

41.2 fps + Compare

» With all tested laptops playable in detail settings ultra.

Colin McRae: DIRT 2

2009

96.3 fps + Compare

89.5 fps + Compare

62.6 fps + Compare

30.7 fps + Compare

» With all tested laptops playable in detail settings high.

	low	med.	high	ultra
Mafia 2	63.2	56.1	48.9	30.8
StarCraft 2	158	60	52	29.6
Battlefield: Bad Company 2		58.9	41.53	23.07
CoD Modern Warfare 2	158.1	78.9	66.7	41.2
Colin McRae: DIRT 2	96.3	89.5	62.6	30.7
< 30 fps < 60 fps < 120 fps ≥ 120 fps	2 2	2 3	3 2	2 3

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28

log 26. 03:59:17

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Tue, 25 Jun 2024 05:31:39 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.043s ... 0.044s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.044s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#17 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#18 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#19 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.045s

#20 composed specs +0s ... 0.045s

#21 did output specs +0s ... 0.045s

#22 start showIntegratedCPUs +0s ... 0.045s

#23 getting avg benchmarks for device 1544 +0.013s ... 0.057s

#24 got single benchmarks 1544 +0.009s ... 0.066s

#25 got avg benchmarks for devices +0s ... 0.066s

#26 min, max, avg, median took s +0.357s ... 0.423s

#27 before gaming benchmark output +0s ... 0.423s

#28 Got 19 rows for game benchmarks. +0.003s ... 0.427s

#29 composed SQL query for gamebenchmarks +0s ... 0.427s

#30 got data and put it in $dataArray +0.003s ... 0.43s

#31 benchmarks composed for output. +0.188s ... 0.617s

#32 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 0.62s

#33 return log +0s ... 0.62s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU

NVIDIA RTX 5000 Ada Generation Laptop GPU

Radeon RX 7900M

NVIDIA GeForce RTX 4080 Laptop GPU

NVIDIA RTX 4000 Ada Generation Laptop GPU

NVIDIA RTX 3500 Ada Generation Laptop GPU

GeForce RTX 3080 Ti Laptop GPU

NVIDIA GeForce RTX 4070 Laptop GPU

NVIDIA RTX 3000 Ada Generation Laptop GPU

RTX A5500 Laptop GPU

GeForce RTX 3080 Laptop GPU

Radeon RX 6850M XT

GeForce RTX 3070 Ti Laptop GPU

RTX A4500 Laptop GPU

RTX A5000 Laptop GPU

NVIDIA GeForce RTX 4060 Laptop GPU

NVIDIA RTX 2000 Ada Generation Laptop GPU

Quadro RTX 6000 (Laptop)

Radeon RX 6800M

GeForce RTX 2080 Super Mobile

GeForce RTX 3070 Laptop GPU

RTX A4000 Laptop GPU *

Class 2

GeForce RTX 2080 Mobile

Radeon RX 6700M

M3 Max 30-Core GPU *

Quadro RTX 5000 (Laptop)

Radeon RX 7600M *

M2 Max 30-Core GPU *

GeForce RTX 3060 Laptop GPU

M1 Max 32-Core GPU *

Radeon RX 7600S

GeForce RTX 2070 Super Mobile

GeForce RTX 2080 Super Max-Q

RTX A3000 Laptop GPU

M1 Max 24-Core GPU *

A770M *

GeForce RTX 2070 Mobile

Quadro RTX 5000 Max-Q

GeForce RTX 2080 Max-Q

Radeon RX 5700M *

GeForce GTX 1080 Mobile

Quadro RTX 4000 (Laptop)

M3 Pro 14-Core GPU *

M2 Pro 16-Core GPU *

M1 Pro 16-Core GPU *

Radeon PRO W6600M *

GeForce RTX 2070 Super Max-Q

Quadro RTX 4000 Max-Q *

M1 Pro 14-Core GPU *

GeForce RTX 2070 Max-Q *

Radeon RX 6600S *

Quadro P5200

Quadro RTX 3000 (Laptop) *

GeForce RTX 2060 Mobile

Quadro RTX 3000 Max-Q *

GeForce GTX 1080 Max-Q

GeForce GTX 1070 Mobile

GeForce RTX 2060 Max-Q *

Quadro P4200

NVIDIA GeForce RTX 4050 Laptop GPU

Nvidia RTX 1000 Ada Generation Laptop GPU

A730M *

GeForce GTX 1660 Ti Mobile

GeForce RTX 3050 Ti Laptop GPU

GeForce RTX 3050 6GB Laptop GPU

A570M *

RTX A1000 Laptop GPU

GeForce GTX 1070 Max-Q

A550M *

Quadro P5000 Max-Q *

GeForce RTX 3050 4GB Laptop GPU

Nvidia RTX 500 Ada Generation Laptop GPU

A530M *

GeForce GTX 1660 Ti Max-Q

GeForce GTX 980 (Laptop)

Quadro M5500

Quadro P4000

Quadro T2000 (Laptop) *

GeForce GTX 1060 Mobile

GeForce GTX 1650 Ti Mobile

A370M *

Radeon RX 5500M

Radeon Pro 5500M *

Quadro P4000 Max-Q

Quadro P3200

Radeon RX 580X (Laptop) *

Radeon RX 580 (Laptop)

Radeon RX 6450M *

GeForce RTX 2050 Mobile

GeForce MX570 *

Radeon RX 6300M *

GeForce GTX 1650 Mobile

Radeon Pro 5300M

Radeon RX 5300M

Quadro P3000

GeForce GTX 1060 Max-Q

Quadro P3000 Max-Q *

GeForce GTX 1650 Ti Max-Q *

Quadro T2000 Max-Q *

Radeon Pro WX 7100 *

Radeon RX 570X (Laptop) *

Radeon RX 570 (Laptop) *

Radeon RX 470 (Laptop) *

GeForce GTX 1650 Max-Q *

T1200 Laptop GPU *

Radeon 890M *

Quadro T1000 (Laptop) *

Quadro T1000 Max-Q *

A310 *

A350M *

Class 3

GeForce GTX 980M

Vega M GH

Quadro M5000M

Radeon Pro Vega 20

Radeon 880M *

SD X Adreno X1-85 GPU *

Radeon 780M *

GeForce MX550

GeForce GTX 1050 Ti Mobile

Radeon 680M

Quadro P2000

Quadro P2000 Max-Q

Quadro M4000M

GeForce GTX 970M

T500 Laptop GPU *

GeForce MX450 *

Radeon R9 M395X

GeForce GTX 1050 Ti Max-Q *

Radeon Pro Vega 16

Vega M GL / 870

WX Vega M GL

Radeon R9 M485X

Quadro M3000M

GeForce GTX 1050 Mobile

FirePro W7170M

Radeon R9 M395

GeForce GTX 1050 Max-Q *

SD X Adreno 3.8 TFLOPS GPU *

Radeon 760M *

Radeon Radeon Steam Deck 8CU

Radeon 660M

Radeon Pro WX 4150 *

GeForce GTX 965M

Radeon RX 560X (Laptop)

Radeon RX 560 (Laptop)

Quadro M2200

Radeon RX 460 (Laptop)

Quadro P1000

Radeon R9 M390

Xe MAX

Radeon Pro 560X

Radeon Pro 560

Radeon Pro 460

Radeon Pro WX 4130 *

Iris Xe G7 96EUs

GeForce MX350

GeForce GTX 960M

Quadro M1200

Quadro P620 *

Radeon RX 550X (Laptop)

Radeon RX 550 (Laptop)

Radeon RX 640

Radeon Pro WX 3200 *

Radeon Pro 555X

Radeon Pro 555

Radeon Pro 455

Quadro P600

Quadro M2000M

Radeon RX 540X *

Radeon Pro WX 2100 *

Radeon RX 540 *

Radeon Pro WX 3100 *

GeForce GTX 950M

Radeon Pro 450

Radeon 630

Radeon 540X *

Radeon R9 M470X *

Radeon R9 M385X

Quadro P520

Quadro M1000M

Quadro M620 *

GeForce 945M

Quadro P500 *

UHD Graphics 64EUs

Iris Plus Graphics G7 (Ice Lake 64 EU) *

Vega 10 *

Iris Pro Graphics P580

Iris Pro Graphics 580

Radeon R9 M470 *

FirePro W5170M *

Radeon R9 M370X

Vega 9

FirePro W5130M

UHD Graphics Xe G4 48EUs *

UHD Graphics 32EUs

UHD Graphics Xe 32EUs (Tiger Lake-H) *

UHD Graphics 750

Radeon 740M *

GeForce MX230

Vega 8 *

Vega 7

Radeon R7 M465

Iris Pro Graphics 6200

GeForce MX130

GeForce 940MX

Quadro M520

Vega 8

GeForce 940M

Iris Plus Graphics G4 (Ice Lake 48 EU)

GeForce 930MX

Quadro M600M

FirePro W4190M

Radeon R9 M375

Iris Plus Graphics 655

Radeon R7 M445

Quadro M500M

Iris Plus Graphics 650

GeForce 930M

Iris Graphics 550

Radeon 530

Radeon 625

Vega 6 *

Iris Plus Graphics 645

GeForce MX110 *

Iris Plus Graphics 640

GeForce 920MX

Iris Graphics 540

UHD Graphics 24EUs (Alder Lake-N) *

Radeon R7 (Bristol Ridge) *

Radeon R7 M460 *

Radeon R7 M360

GeForce 920M

Radeon R8 M445DX

Radeon 620

Radeon R7 M440

Radeon R7 M340

Radeon 520

Radeon 610

Radeon Graphics (Ryzen 7000)

Radeon 610M *

Vega 6 *

Vega 5 *

Radeon Graphics (Ryzen 9000) *

UHD Graphics G1 (Ice Lake 32 EU)

UHD Graphics Xe 16EUs (Tiger Lake-H) *

UHD Graphics G7 (Lakefield GT2 64 EU)

HD Graphics 530

Radeon R5 (Bristol Ridge)

UHD Graphics 620

HD Graphics 620

Adreno 690 *

Adreno 685 *

Adreno 680 *

Quadro FX 2800M

Radeon R5 M330

Radeon R5 M430

Vega 3 *

GeForce 910M

HD Graphics 520

Iris Graphics 6100

UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730

Radeon R5 M320 *

Radeon R5 M315 *

Radeon R5 M420 *

Vega 2 *

Radeon R5 (Stoney Ridge)

HD Graphics 6000

UHD Graphics (Jasper Lake 32 EU) *

UHD Graphics 617

UHD Graphics 615

UHD Graphics (Jasper Lake 24 EU) *

HD Graphics 615

HD Graphics 515

UHD Graphics 610

HD Graphics 610

HD Graphics 510

UHD Graphics (Jasper Lake 16 EU)

UHD Graphics 605

HD Graphics 505

HD Graphics 5300

Radeon R4 (Stoney Ridge)

Radeon R5 (Beema/Carrizo-L)

Radeon R4 (Beema)

Radeon R3 (Mullins/Beema)

Radeon R2 (Stoney Ridge)

HD Graphics (Broadwell)

UHD Graphics 600

HD Graphics 500

HD Graphics 405 (Braswell)

HD Graphics (Braswell)

HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)

Radeon R6 (Mullins)

* Approximate position of the graphics adapter

> Notebookcheck中文版（NBC中国） > FAQ / 小提示/ 技术参数 > 移动显示芯片——基准测试成绩列表 > NVIDIA Quadro FX 2800M

Klaus Hinum (Update: 2016-01-26)
