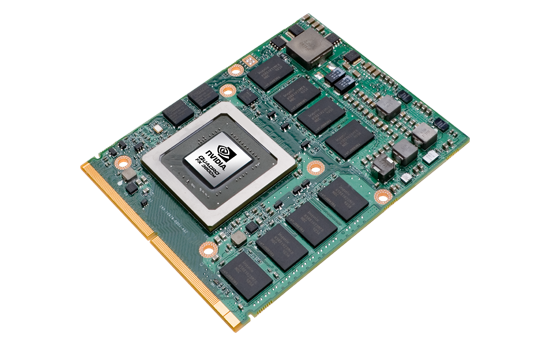

NVIDIA Quadro FX 3800M

NVIDIA Quadro FX 3800M

NVIDIA®（英伟达™）Quadro FX 3800M高端笔记本电脑是一款移动工作站图形卡。它基于的GeForce GTX 280M核心（G92核心）和具有128个CUDA核心（统一着色器）。的Quadro FX 3700M，Quadro FX 3800M的相比具有更高的时钟速度和manufacturered在55nm制程（65nm工艺的3700M）。事实上，FX3800M主频甚至高于消费者的GeForce GTX 280M并执行显着更好的结果。卡Quadro FX系列专业应用软件，如CAD或DCC进行了​​优化。值得一提的是，OpenGL性能应提高消费者的GeForce显示卡的规格相近​​的。当时的公告（2009年12），FX 3800M最快的工作站图形卡的笔记本电脑。

Quadro FX Series

Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
CodenameN10E-GLM4
ArchitectureG9x
Pipelines128 - unified
Core Speed675 MHz
Shader Speed1688 MHz
Memory Speed1000 MHz
Memory Bus Width256 Bit
Memory TypeGDDR3
Max. Amount of Memory1024 MB
Shared Memoryno
APIDirectX 10, Shader 4.0
Power Consumption100 Watt
Transistor Count754 Million
technology55 nm
FeaturesOpenGL 2.1, CUDA, PowerMizer 8.0
Notebook Sizelarge
Date of Announcement20.12.2009
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 6584     avg: 6951     median: 6779 (2%)     max: 7491 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 5758     avg: 5926     median: 6002 (3%)     max: 6019 Points
+ 3 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -99%
...
AMD Radeon HD 7690M XT
5594 -6%
AMD Radeon HD 8550G + HD 8670M Dual Graphics
5595 -6%
NVIDIA GeForce GTX 285M
5631 -5%
NVIDIA Quadro K2000M
5698 -4%
Intel Iris Graphics 6100
5717 -4%
NVIDIA GeForce GT 740M
5735 -3%
AMD Radeon HD 7730M
5833 -2%
AMD Radeon HD 8730M
5870 -1%
ATI FirePro M7740
5896 -1%
NVIDIA Quadro FX 3800M
5926
Intel UHD Graphics 620
5948 0%
NVIDIA GeForce 830M
5957 1%
AMD Radeon HD 8550G + HD 8750M Dual Graphics
5961 1%
AMD Radeon R7 M265
5977 1%
NVIDIA GeForce GT 730M
5987 1%
NVIDIA GeForce 8800M GTX SLI
5995 1%
AMD Radeon R7 M445
6000 1%
AMD Radeon R7 M270
6027 2%
AMD Radeon 610M
6032 2%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 2135%
max:
AMD Radeon RX 7900 XTX
170928 2784%
0%
100%
3DMark 2001SE - 3DMark 2001 - Standard
min: 32886     avg: 34790     median: 34790 (36%)     max: 36694 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 03 - 3DMark 03 - Standard
min: 33146     avg: 37082     median: 38191 (20%)     max: 39909 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark 05 - 3DMark 05 - Standard
min: 16593     avg: 18199     median: 18043 (20%)     max: 19960 Points
+ 3 benchmarks and specifications   - Hide comparison chart
Intel Graphics Media Accelerator (GMA) 500
133.4 -99%
...
NVIDIA GeForce GT 640M
17105 -6%
ATI FirePro M7740
17192 -6%
NVIDIA GeForce 840M
17271 -5%
Intel UHD Graphics 24EUs (Alder Lake-N)
17272 -5%
AMD Radeon 530
17513 -4%
AMD Radeon HD 7690M XT
17545 -4%
AMD Radeon HD 7690M
17784 -2%
ATI Mobility Radeon HD 5870
18044 -1%
NVIDIA NVS 5400M
18136 0%
NVIDIA Quadro FX 3800M
18199
NVIDIA GeForce GTX 280M
18414 1%
AMD Radeon HD 6950M
18466 1%
ATI Mobility Radeon HD 4870 X2
18522 2%
AMD Radeon HD 8870M
18829 3%
NVIDIA Quadro 5000M
18903 4%
NVIDIA GeForce GTX 285M
18965 4%
ATI Mobility Radeon HD 5870 Crossfire
19079 5%
NVIDIA GeForce 9800M GTS SLI
19100 5%
ATI Mobility Radeon HD 3870 X2
19187 5%
...
NVIDIA GeForce RTX 4090 Laptop GPU
61850 240%
max:
NVIDIA GeForce RTX 4080 Super
87172 379%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
13232 points (17%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 12050     avg: 12765     median: 12923 (17%)     max: 13323 Points
+ 3 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - 3dsmax
32.8 points (68%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Catia
45.8 points (96%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - EnSight
47.4 points (100%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Maya
59.7 points (32%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - Pro/Engeneer
51.1 points (100%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - SolidWorks
59.7 points (88%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS Teamcenter
38.5 points (100%)
+ 1 benchmarks and specifications   + Show comparison chart
SPEC Viewperf 10.0 - SPEC Viewperf 10.0 - UGS NX
35.3 points (72%)
+ 1 benchmarks and specifications   + Show comparison chart
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
18.8 fps (11%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
18.7 fps (11%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
30.6 fps (23%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
6.9 fps (8%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
16.6 fps (12%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
38.4 fps (41%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
16.2 fps (8%)
+ 1 benchmarks and specifications   + Show comparison chart
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
23.4 fps (12%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Gaming graphics
6.9 Points (87%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 Graphics
6.9 Points (87%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 4429     avg: 4928     median: 4928 (4%)     max: 5427 points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 32.07     avg: 32.7     median: 32.7 (11%)     max: 33.29 fps
+ 2 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Fifa 11

Fifa 11

2010
med. 1024x768
230.6  fps    + Compare
high 1360x768
124.2  fps    + Compare
» With all tested laptops playable in detail settings high.
Risen

Risen

2009
med. 1024x768
64.9  fps    + Compare
ultra 1920x1080
31.8  fps    + Compare
» With all tested laptops playable in detail settings med..
Need for Speed Shift

Need for Speed Shift

2009
med. 1024x768
78.5  fps    + Compare
ultra 1920x1080
40.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
97  fps    + Compare
med. 1024x768
82  fps    + Compare
ultra 1920x1080
29.9  fps    + Compare
» With all tested laptops playable in detail settings med..
Anno 1404

Anno 1404

2009
low 1024x768
142.8  fps    + Compare
ultra 1280x1024
61.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
lowmed.highultraQHD4K
Fifa 11230.6124.2
Risen64.931.8
Need for Speed Shift78.540.9
Colin McRae: DIRT 2978229.9
Anno 1404142.861.9
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

1
1

3
1


1		1
2
1






For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 26. 03:48:20

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Tue, 25 Jun 2024 05:31:39 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.036s ... 0.037s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#17 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#18 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#19 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.038s

#20 composed specs +0s ... 0.038s

#21 did output specs +0s ... 0.038s

#22 start showIntegratedCPUs +0s ... 0.038s

#23 getting avg benchmarks for device 1541 +0.015s ... 0.053s

#24 got single benchmarks 1541 +0.016s ... 0.068s

#25 got avg benchmarks for devices +0s ... 0.068s

#26 min, max, avg, median took s +0.431s ... 0.499s

#27 before gaming benchmark output +0s ... 0.499s

#28 Got 11 rows for game benchmarks. +0.003s ... 0.502s

#29 composed SQL query for gamebenchmarks +0s ... 0.502s

#30 got data and put it in $dataArray +0.002s ... 0.504s

#31 benchmarks composed for output. +0.114s ... 0.618s

#32 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 0.62s

#33 return log +0s ... 0.62s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
GeForce MX570 *
Radeon RX 6300M *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Radeon 890M *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Core *
A350M *
Arc 7-Core *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
SD X Adreno X1-85 GPU *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
SD X Adreno 3.8 TFLOPS GPU *
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Quadro FX 3800M
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
Radeon Graphics (Ryzen 9000) *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Radeon R4 (Stoney Ridge)
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

Class 5

Radeon R2 (Mullins/Beema/Carrizo-L)
Radeon R6 (Mullins)

* Approximate position of the graphics adapter
