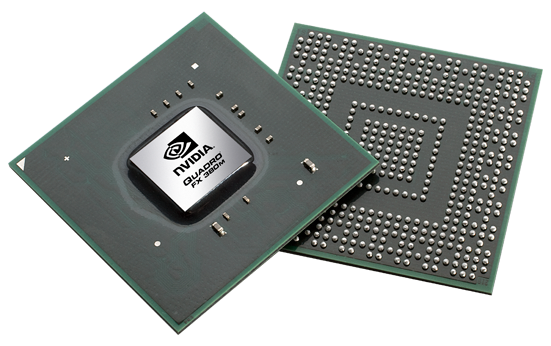

NVIDIA Quadro FX 380M

NVIDIA Quadro FX 380M

NVIDIA Quadro FX380M是一家专业入门级显卡的移动工作站。它是基于GeForce 310M独立,因此3D性能不是很好。由于特殊的驱动程序及优化,为专业应用的性能要好多了(比310M执行)。另一个优点是认证的驱动程序,保证了良好的专业应用程序的性能没有错误。该卡支持DirectX 10.1和G 310M(因为它是基于相同的GT218核心)的所有功能。因此,PureVideo高清解码高清视频的显卡支持。所使用的视频处理器(VP4)是能够完全硬件解码H.264,VC-1,MPEG-2,MPEG-4 ASP(DivX或XviD),以尽量减少CPU的负荷。不支持MPEG-1,但可以很容易地处理每一个现代CPU。类似的GeForce310M的游戏性能的FX380M,因此定位在入门级类。然而,职业司机的应用进行了优化,因此可能提供一个更糟糕的表现。现代的3D游戏,如COD现代战争2只运行在低细节和决议流利。一些要求苛刻的游戏如NFS Shift或GTA4不会运行在所有流利。要求不高的游戏,如模拟人生3运行中的细节和决议流利。因此,不能被推荐的显卡为游戏玩家。 FX380M支持,支持DirectX10.1计算,CUDA和OpenCL的图形处理器,着色器可用于其他任务,不是渲染图像(例如更快的视频编码)。 GT218核心的使用是在40nm工艺制造,并根据在桌面上GTX 200架构。

Quadro FX Series

Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
Codenamen10m-glm
ArchitectureGT2xx
Pipelines16 - unified
Core Speed625 MHz
Shader Speed1530 MHz
Memory Speed800 MHz
Memory Bus Width64 Bit
Memory TypeGDDR3, DDR3
Max. Amount of Memory512 MB
Shared Memoryno
APIDirectX 10.1, Shader 4.1
Power Consumption25 Watt
Transistor Count260 Million
technology40 nm
FeaturesDirectX Compute Support (Windows 7), CUDA, OpenCL, OpenGL 2.1, certified drivers
Date of Announcement07.01.2010
Link to Manufacturer Pagewww.nvidia.com

Benchmarks

3DMark 05 - 3DMark 05 - Standard
7095 Points (8%)
Intel Graphics Media Accelerator (GMA) 500
133.4 -98%
...
NVIDIA GeForce 9500M GS
6669 -6%
NVIDIA GeForce G210M
6720 -5%
ATI Mobility Radeon HD 2700
6729 -5%
ATI Mobility Radeon HD 4570
6755 -5%
AMD Radeon R2 (Stoney Ridge)
6853 -3%
6928 -2%
6991 -1%
7024 -1%
7077 0%
NVIDIA Quadro FX 380M
7095
ATI Mobility Radeon X1900
7117 0%
7168 1%
7236 2%
7273 3%
7282 3%
7333 3%
7365 4%
7483 5%
7493 6%
...
68064 859%
max:
87172 1129%
0%
100%
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
3690 points (5%)
Intel Graphics Media Accelerator (GMA) 900
57 -98%
...
ATI Mobility Radeon HD 3650
3330 -10%
NVIDIA GeForce G210M
3394 -8%
3468 -6%
3494 -5%
ATI Mobility Radeon HD 4570
3514 -5%
3579 -3%
NVIDIA GeForce 9600M GS
3600 -2%
3648 -1%
NVIDIA GeForce 9500M GS
3663 -1%
NVIDIA Quadro FX 380M
3690
3698 0%
3708 0%
3726 1%
3776 2%
3847 4%
NVIDIA Quadro FX 570M
3883 5%
NVIDIA GeForce Go 7900 GS
3895 6%
NVIDIA Quadro FX 1500M
3903 6%
3997 8%
...
24558 566%
0%
100%
3DMark 06 - Standard 1280x1024 +
3DMark 06
3687 Points (5%)
SIS Mirage 3 671MX
68 -98%
...
Intel HD Graphics 4200
3529 -4%
AMD Radeon HD 8400
3532 -4%
AMD Radeon HD 8610G
3538 -4%
3551 -4%
3595 -2%
3596 -2%
3625 -2%
3648 -1%
NVIDIA GeForce 9500M GS
3679 0%
NVIDIA Quadro FX 380M
3687
3741 1%
3751 2%
3760 2%
3794 3%
NVIDIA Quadro FX 570M
3800 3%
AMD Radeon R2 (Stoney Ridge)
3809 3%
3846 4%
AMD Radeon HD 8450G
3868 5%
Intel UHD Graphics 600
3884 5%
...
64183 1641%
max:
74741 1927%
0%
100%
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
