NVIDIA T550 Laptop GPU

NVIDIA T550 Laptop GPU

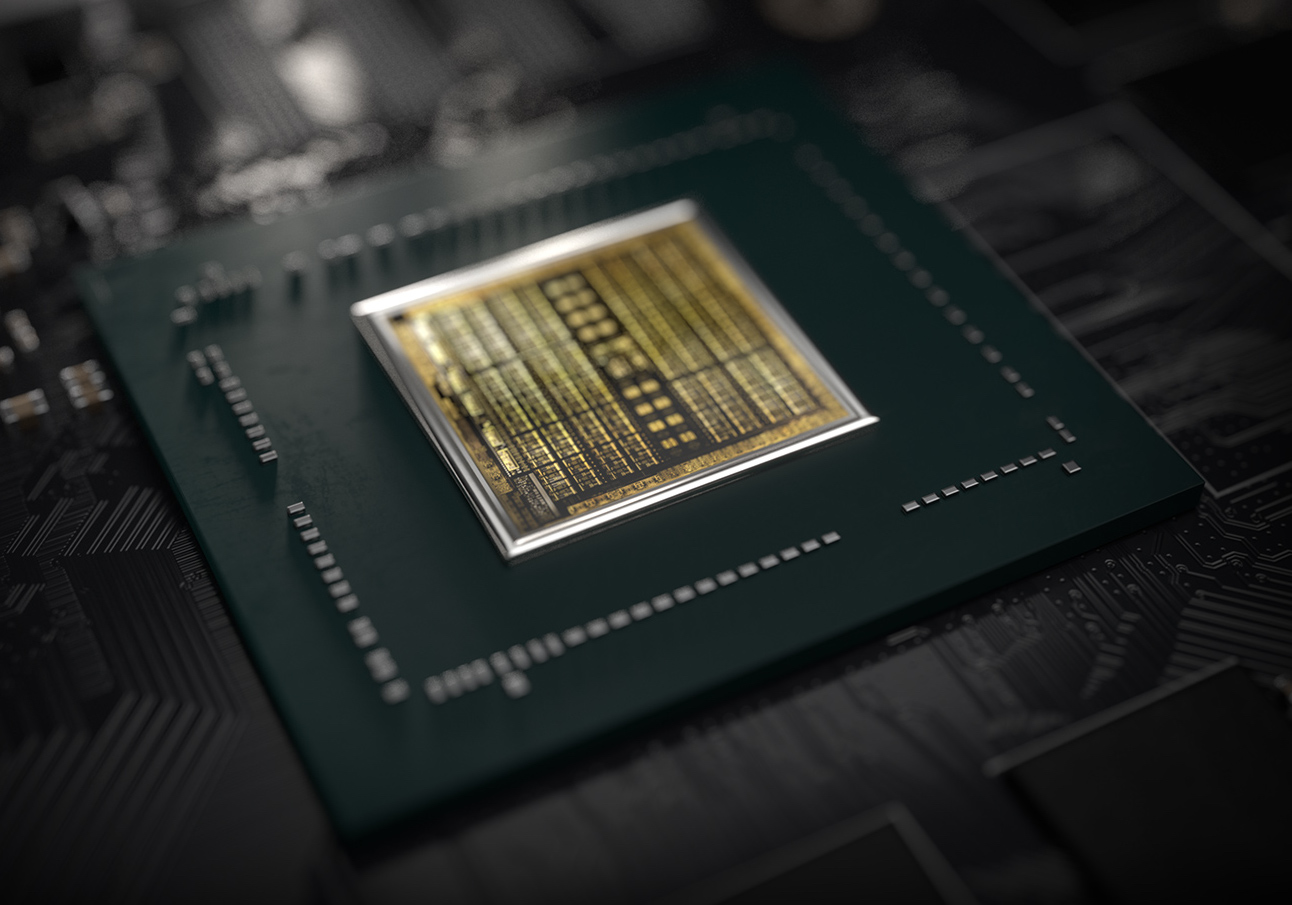

用于笔记本电脑的Nvidia T550 Laptop GPU（以前称为Quadro T550 Mobile）是一款基于图灵架构（TU117芯片）的专业移动显卡。它基于消费者的GeForce MX550，具有相同的1024个内核和64位内存总线。该卡提供4GB GDDR6，最大带宽为112GB/s，没有专用显示输出（通过Optimus使用iGPU显示输出）。该芯片是在台积电的12纳米FinFET制造的。

专业GPU提供经过认证的驱动程序，在专业应用（CAD、DCC、医疗、勘探和可视化应用）中的稳定性和性能方面进行了优化。因此，与相应的消费者GPU相比，这些领域的性能要好得多。

图灵一代不仅为RTX卡引入了光线追踪，而且还优化了内核和缓存的架构。根据Nvidia的说法，CUDA核心现在提供了浮点和整数操作的并发执行，以提高现代游戏中计算量大的工作负载的性能。此外，缓存也被重新设计（与Pascal相比，新的统一内存架构具有两倍的缓存）。这使得每个时钟的指令数增加了50%，与Pascal相比，功耗效率提高了40%。与更快的Quadro RTX卡相反，T550不具有光线追踪和Tensor核心。

Quadro Turing Series

Quadro RTX 6000 (Laptop) 4608 @ 1.28 - 1.46 GHz384 Bit @ 14000 MHz
Quadro RTX 5000 (Laptop) 3072 @ 1.04 - 1.55 GHz256 Bit @ 14000 MHz
Quadro RTX 5000 Max-Q 3072 @ 0.6 - 1.35 GHz256 Bit @ 14000 MHz
Quadro RTX 4000 (Laptop) 2560 @ 1.11 - 1.56 GHz256 Bit @ 14000 MHz
Quadro RTX 4000 Max-Q 2560 @ 0.78 - 1.38 GHz256 Bit @ 14000 MHz
Quadro RTX 3000 (Laptop) 1920 @ 0.95 - 1.38 GHz192 Bit @ 14000 MHz
Quadro RTX 3000 Max-Q 1920 @ 0.6 - 1.22 GHz192 Bit @ 14000 MHz
Quadro T2000 (Laptop) 1024 @ 1.58 - 1.79 GHz128 Bit @ 8000 MHz
Quadro T2000 Max-Q 1024 @ 0.93 - 1.5 GHz128 Bit @ 8000 MHz
Quadro T1000 (Laptop) 768 @ 1.4 - 1.46 GHz128 Bit @ 8000 MHz
T1000 896 @ 1.07 - 1.4 GHz128 Bit @ 10000 MHz
T1200 Laptop GPU 1024 @ 0.86 - 1.43 GHz128 Bit @ 10000 MHz
Quadro T1000 Max-Q 768 @ 0.8 - 1.46 GHz128 Bit @ 8000 MHz
T600 Laptop GPU 896 @ 1.4 GHz128 Bit @ 10000 MHz
T550 Laptop GPU 1024 @ 1.07 - 1.67 GHz64 Bit @ 12000 MHz
T500 Laptop GPU 896 @ 1.37 - 1.7 GHz64 Bit @ 10000 MHz
T600 640 @ 0.74 - 1.34 GHz128 Bit @ 10000 MHz
CodenameTU117
ArchitectureTuring
Pipelines1024 - unified
Core Speed1065 - 1665 (Boost) MHz
Theoretical Performance7.2 TFLOPS FP16, 3.7 TFLOPS FP32
Memory Speed12000 effective = 1500 MHz
Memory Bus Width64 Bit
Memory TypeGDDR5, GDDR6
Max. Amount of Memory4 GB
Shared Memoryno
Memory Bandwidth112 GB/s
APIDirectX 12_1, Shader 6.7, OpenGL 4.6
Power Consumption25 Watt (20 - 60 Watt TGP)
technology12 nm
Notebook Sizemedium sized
Date of Announcement27.05.2022
InformationOptimus only
Link to Manufacturer Pagenvdam.widen.net

Benchmarks

3DMark - 3DMark Time Spy Score
min: 2031     avg: 2187     median: 2066 (6%)     max: 2465 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Time Spy Graphics
min: 1882     avg: 2021     median: 1928 (5%)     max: 2252 Points
+ 3 benchmarks and specifications   - Hide comparison chart
Intel UHD Graphics 605
113 -94%
...
AMD Radeon 740M
1699 -16%
NVIDIA Quadro M2200
1724 -15%
Intel Iris Xe MAX Graphics
1735 -14%
AMD Radeon RX 560X (Laptop)
1788 -12%
NVIDIA GeForce MX450
1796 -11%
NVIDIA GeForce GTX 965M
1810 -10%
NVIDIA T500 Laptop GPU
1814 -10%
Intel Graphics 4-Cores iGPU (Arc)
1878 -7%
Qualcomm SD X Adreno X1-85 4.6 TFLOPS
1989 -2%
NVIDIA T550 Laptop GPU
2021
NVIDIA Quadro P2000
2046 1%
NVIDIA Quadro P2000 Max-Q
2049 1%
AMD Radeon Pro WX Vega M GL
2062 2%
AMD Radeon RX Vega M GL / 870
2070 2%
AMD Radeon 760M
2116 5%
AMD Radeon Pro Vega 16
2198 9%
AMD Radeon 680M
2219 10%
NVIDIA GeForce GTX 1050 Ti Max-Q
2245 11%
NVIDIA GeForce GTX 1050 Ti Mobile
2309 14%
...
AMD Radeon RX 7900M
19434 862%
max:
NVIDIA GeForce RTX 4090
36259 1694%
0%
100%
3DMark - 3DMark Cloud Gate Score
min: 17399     avg: 17614     median: 17614 (17%)     max: 17829 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Cloud Gate Graphics
min: 32743     avg: 33219     median: 33218.5 (8%)     max: 33694 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Score
min: 4559     avg: 4786     median: 4581 (8%)     max: 5218 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Fire Strike Standard Graphics
min: 4816     avg: 5100     median: 4890 (6%)     max: 5593 Points
+ 3 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Wild Life Extreme Unlimited
min: 3530     avg: 3590     median: 3589.5 (4%)     max: 3649 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance Score
min: 7405     avg: 8160     median: 8160 (11%)     max: 8915 Points
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 11 - 3DM11 Performance GPU
min: 7432     avg: 8067     median: 8066.5 (7%)     max: 8701 Points
+ 2 benchmarks and specifications   - Hide comparison chart
AMD Radeon HD 6250
171.8 -98%
...
AMD Radeon 740M
7490 -7%
NVIDIA GeForce GTX 965M
7536 -7%
AMD Radeon Pro 560X
7590 -6%
NVIDIA GeForce GTX 1050 Mobile
7662 -5%
NVIDIA GeForce GTX 780M
7692 -5%
AMD Radeon RX 460 (Laptop)
7793 -3%
NVIDIA T500 Laptop GPU
7808 -3%
NVIDIA GeForce GTX 765M SLI
7944 -2%
AMD Radeon RX 560X (Laptop)
7970 -1%
NVIDIA T550 Laptop GPU
8067
NVIDIA GeForce MX450
8129 1%
Intel Iris Xe MAX Graphics
8133 1%
NVIDIA Quadro P2000 Max-Q
8148 1%
NVIDIA Quadro M3000M
8289 3%
AMD Radeon RX 560 (Laptop)
8323 3%
NVIDIA Quadro P2000
8387 4%
NVIDIA GeForce GTX 880M
8553 6%
AMD Radeon R9 M395
8656 7%
NVIDIA GeForce GTX 1050 Ti Max-Q
8781 9%
...
AMD Radeon RX 7900M
59943 643%
max:
NVIDIA GeForce RTX 4090
104201 1192%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
25155 Points (7%)
+ 1 benchmarks and specifications   + Show comparison chart
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
24697 Points (13%)
+ 1 benchmarks and specifications   - Hide comparison chart
ATI Radeon HD 3200
62 -100%
...
NVIDIA GeForce GTX 965M
22986 -7%
Qualcomm SD X Adreno X1-85 4.6 TFLOPS
23042 -7%
NVIDIA GeForce GTX 485M SLI
23092 -6%
NVIDIA GeForce GTX 670MX SLI
23936 -3%
NVIDIA GeForce GTX 870M
23989 -3%
AMD Radeon R9 M290X
24205 -2%
NVIDIA GeForce GTX 580M SLI
24335 -1%
NVIDIA Quadro K5100M
24457 -1%
AMD Radeon HD 6990M Crossfire
24558 -1%
NVIDIA T550 Laptop GPU
24697
NVIDIA Quadro M2200
24915 1%
NVIDIA GeForce GTX 680MX
25270 2%
NVIDIA GeForce GTX 1050 Max-Q
25293 2%
NVIDIA GeForce GTX 765M SLI
25664 4%
AMD FirePro W7170M
25898 5%
NVIDIA GeForce GTX 1050 Mobile
26569 8%
NVIDIA GeForce GTX 780M
27315 11%
AMD Radeon 680M
27350 11%
NVIDIA Quadro M3000M
27921 13%
...
NVIDIA GeForce RTX 4090 Laptop GPU
132443 436%
max:
AMD Radeon RX 7900 XTX
170928 592%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
31003 Points (41%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 3.3 Classroom CUDA *
min: 278     avg: 282     median: 283 (42%)     max: 285 Seconds
+ 3 benchmarks and specifications   + Show comparison chart
Blender - Blender 3.3 Classroom OPTIX *
min: 256     avg: 263.3     median: 265 (99%)     max: 269 Seconds
+ 3 benchmarks and specifications   + Show comparison chart
SPECviewperf 13 specvp13 sw-04 +
SPECviewperf 13 - specvp13 sw-04
min: 95     avg: 98.8     median: 95.8 (26%)     max: 105.68 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 snx-03 +
SPECviewperf 13 - specvp13 snx-03
min: 95.8     avg: 101.7     median: 99.7 (11%)     max: 109.67 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 showcase-02 +
SPECviewperf 13 - specvp13 showcase-02
min: 24.8     avg: 26.1     median: 25.3 (6%)     max: 28.06 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 medical-02 +
SPECviewperf 13 - specvp13 medical-02
min: 34.5     avg: 37.2     median: 36.2 (8%)     max: 40.74 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 maya-05 +
SPECviewperf 13 - specvp13 maya-05
min: 77.5     avg: 82     median: 80.9 (9%)     max: 87.57 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 energy-02 +
SPECviewperf 13 - specvp13 energy-02
min: 11.7     avg: 12.4     median: 12 (4%)     max: 13.37 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 creo-02 +
SPECviewperf 13 - specvp13 creo-02
min: 82.4     avg: 86.2     median: 85.5 (13%)     max: 90.66 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 catia-05 +
SPECviewperf 13 - specvp13 catia-05
min: 104     avg: 110.4     median: 109 (12%)     max: 118.22 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp13 3dsmax-06 +
SPECviewperf 13 - specvp13 3dsmax-06
min: 61.6     avg: 63.7     median: 63 (11%)     max: 66.38 fps
+ 3 benchmarks and specifications   + Show comparison chart
SPECviewperf 2020 specvp2020 solidworks-05 1080p +
SPECviewperf 2020 - specvp2020 solidworks-05 1080p
min: 46.3     avg: 54     median: 54.3 (11%)     max: 61.38 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 snx-04 1080p +
SPECviewperf 2020 - specvp2020 snx-04 1080p
min: 84     avg: 99.4     median: 99.3 (16%)     max: 114.82 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 medical-03 1080p +
SPECviewperf 2020 - specvp2020 medical-03 1080p
min: 13.5     avg: 15.6     median: 15.4 (10%)     max: 17.87 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 maya-06 1080p +
SPECviewperf 2020 - specvp2020 maya-06 1080p
min: 86.9     avg: 98.2     median: 98.1 (11%)     max: 109.68 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 energy-03 1080p +
SPECviewperf 2020 - specvp2020 energy-03 1080p
min: 10.6     avg: 12.1     median: 12 (8%)     max: 13.56 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 creo-03 1080p +
SPECviewperf 2020 - specvp2020 creo-03 1080p
min: 44.5     avg: 46.2     median: 45.7 (23%)     max: 48.5 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 catia-06 1080p +
SPECviewperf 2020 - specvp2020 catia-06 1080p
min: 22.4     avg: 25.6     median: 24.9 (15%)     max: 29.58 fps
+ 3 benchmarks and specifications   + Show comparison chart
specvp2020 3dsmax-07 1080p +
SPECviewperf 2020 - specvp2020 3dsmax-07 1080p
min: 28.3     avg: 30     median: 29.6 (9%)     max: 32.03 fps
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 184.9     avg: 193     median: 189.2 (11%)     max: 205 fps
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
99.6 % (100%)
+ 3 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench 5.0 Aztec Ruins High Tier Offscreen
19 fps (3%)
+ 1 benchmarks and specifications   - Hide comparison chart
Intel HD Graphics 400 (Braswell)
3.3 -83%
...
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
9.3 -51%
Intel UHD Graphics (Jasper Lake 32 EU)
10.45 -45%
Intel UHD Graphics G7 (Lakefield GT2 64 EU)
11 -42%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
11.4 -40%
Intel UHD Graphics 620
11.97 -37%
AMD Radeon 530
12 -37%
NVIDIA GeForce MX110
14.9 -22%
Qualcomm Adreno 630
15.59 -18%
Intel UHD Graphics G1 (Ice Lake 32 EU)
16.3 -14%
NVIDIA T550 Laptop GPU
19
Intel Iris Plus Graphics 645
20.2 6%
AMD Radeon RX Vega 5
21.2 12%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
22 16%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
22.1 16%
AMD Radeon RX Vega 10
23.4 23%
Intel UHD Graphics Xe G4 48EUs
24 26%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
24.3 28%
AMD Radeon 540X
24.9 31%
AMD Radeon RX Vega 7
26.8 41%
...
NVIDIA GeForce RTX 4090 Laptop GPU
536 2721%
0%
100%
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Offscreen
43.5 fps (3%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench - GFXBench Car Chase Offscreen
118.3 fps (13%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench 3.1 - GFXBench Manhattan ES 3.1 Offscreen
172.6 fps (4%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
229.9 fps (13%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
449.9 fps (4%)
+ 1 benchmarks and specifications   + Show comparison chart
ComputeMark v2.1 - ComputeMark v2.1 Result
5190 points (6%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
min: 34.2     avg: 34.7     median: 34.7 (5%)     max: 35.1 Watt
+ 2 benchmarks and specifications   + Show comparison chart
051015202530354045Tooltip
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
min: 41.2     avg: 41.3     median: 41.3 (6%)     max: 41.4 Watt
+ 2 benchmarks and specifications   + Show comparison chart
051015202530354045Tooltip
Power Consumption - Witcher 3 Power Consumption *
min: 42.9     avg: 44.1     median: 44.1 (10%)     max: 45.3 Watt
+ 2 benchmarks and specifications   + Show comparison chart
05101520253035404550Tooltip
Power Consumption - Witcher 3 ultra Power Efficiency
min: 0.4393     avg: 0.4     median: 0.4 (40%)     max: 0.4569 fps per Watt
+ 2 benchmarks and specifications   + Show comparison chart
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
min: 0.4734     avg: 0.5     median: 0.5 (40%)     max: 0.483 fps per Watt
+ 2 benchmarks and specifications   + Show comparison chart
Emissions Witcher 3 Fan Noise +
Emissions - Witcher 3 Fan Noise
min: 38.2     avg: 40.4     median: 40.5 (65%)     max: 42.5 dB(A)
+ 3 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 22

F1 22

2022
low 1920x1080
66.4 69.6 69.9 ~ 69 fps    + Compare
med. 1920x1080
59.9 62 63 ~ 62 fps    + Compare
high 1920x1080
41.4 43.3 44.6 ~ 43 fps    + Compare
ultra 1920x1080
29.5 31 33.4 ~ 31 fps    + Compare
» With all tested laptops playable in detail settings high.
Additional Benchmarks
Ultra Low Preset 16xAF TAA 1280x720
124.1
122.6
F1 2021

F1 2021

2021
low 1280x720
151.1 152.7 156.6 ~ 153 fps    + Compare
med. 1920x1080
70.7 74.4 75.4 ~ 74 fps    + Compare
high 1920x1080
56.5 59.5 59.9 ~ 59 fps    + Compare
ultra 1920x1080
36.1 36.8 37 ~ 37 fps    + Compare
» With all tested laptops playable in detail settings ultra.
Strange Brigade

Strange Brigade

2018
low 1280x720
126.1 128 139 ~ 131 fps    + Compare
med. 1920x1080
47.7 51 56 ~ 52 fps    + Compare
high 1920x1080
38.7 42 44 ~ 42 fps    + Compare
ultra 1920x1080
33.2 36 38 ~ 36 fps    + Compare
» With most tested laptops playable in detail settings ultra.
Far Cry 5

Far Cry 5

2018
low 1280x720
75  fps    + Compare
med. 1920x1080
41  fps    + Compare
high 1920x1080
38  fps    + Compare
ultra 1920x1080
35  fps    + Compare
» With all tested laptops playable in detail settings high.
X-Plane 11.11

X-Plane 11.11

2018
low 1280x720
65.5 68.1 77.4 ~ 70 fps    + Compare
med. 1920x1080
59.4 64.1 65.4 ~ 63 fps    + Compare
high 1920x1080
55.5 57 58.8 ~ 57 fps    + Compare
» With all tested laptops playable in detail settings high.
Final Fantasy XV Benchmark

Final Fantasy XV Benchmark

2018
low 1280x720
60.2 60.7 65.7 ~ 62 fps    + Compare
med. 1920x1080
30.5 30.5 31.2 ~ 31 fps    + Compare
high 1920x1080
22 22.2 22.3 ~ 22 fps    + Compare
» With all tested laptops playable in detail settings low.
Dota 2 Reborn

Dota 2 Reborn

2015
low 1280x720
111.4 113.3 126 ~ 117 fps    + Compare
med. 1366x768
100.3 103.8 110.1 ~ 105 fps    + Compare
high 1920x1080
92.1 92.3 101.2 ~ 95 fps    + Compare
ultra 1920x1080
84 85.2 93.4 ~ 88 fps    + Compare
» With all tested laptops playable in detail settings ultra.
The Witcher 3

The Witcher 3

2015
low 1024x768
121 123 139 ~ 128 fps    + Compare
med. 1366x768
73 75 78 ~ 75 fps    + Compare
high 1920x1080
39 40 43 ~ 41 fps    + Compare
ultra 1920x1080
19.6 19.9 23.2 ~ 21 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
GTA V

GTA V

2015
low 1024x768
106.2 116 127.2 ~ 116 fps    + Compare
med. 1366x768
103.3 117.2 120.6 ~ 114 fps    + Compare
high 1920x1080
61.5 61.6 63.9 ~ 62 fps    + Compare
ultra 1920x1080
29 29.2 29.6 ~ 29 fps    + Compare
» With all tested laptops playable in detail settings high.
lowmed.highultraQHD4K
F1 2269624331
F1 2021153745937
Strange Brigade131524236
Far Cry 575413835
X-Plane 11.11706357
Final Fantasy XV Benchmark623122
Dota 2 Reborn1171059588
The Witcher 3128754121
GTA V1161146229
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

6
3
3
6
1
6
2
2
4
1






For more games that might be playable and a list of all games and graphics cards visit our Gaming List

v1.28
log 19. 02:51:20

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Sat, 16 Nov 2024 05:32:18 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_1 needed +0.024s ... 0.025s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.025s

#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#16 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#17 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#18 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#19 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.026s

#20 composed specs +0s ... 0.026s

#21 did output specs +0s ... 0.026s

#22 start showIntegratedCPUs +0s ... 0.026s

#23 getting avg benchmarks for device 11429 +0.012s ... 0.038s

#24 got single benchmarks 11429 +0.014s ... 0.053s

#25 got avg benchmarks for devices +0s ... 0.053s

#26 min, max, avg, median took s +0.714s ... 0.767s

#27 before gaming benchmark output +0s ... 0.767s

#28 Got 94 rows for game benchmarks. +0.011s ... 0.778s

#29 composed SQL query for gamebenchmarks +0s ... 0.778s

#30 got data and put it in $dataArray +0.006s ... 0.784s

#31 benchmarks composed for output. +0.403s ... 1.187s

#32 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 1.19s

#33 return log +0s ... 1.19s

Notebook reviews with NVIDIA T550 Laptop GPU graphics card

惠普ZBook Firefly 14 G9笔记本评测--移动工作站更新后性能更强

惠普ZBook Firefly 14 G9笔记本评测--移动工作站更新后性能更强

在我们对ZBook Firefly 14 G9进行审查后，惠普发布了更新，以提高性能。然而，不久之后又发布了进一步的更新，其中CPU的性能又有一定程度的下降。因此，我们再次审查了这款紧凑型工作站的性能。...
Intel Core i7-1265U | NVIDIA T550 Laptop GPU | 14.00" | 1.5 kg
惠普ZBook Firefly 14 G9笔记本电脑的审查。英特尔Alder Lake-U降低了这款移动工作站的速度

惠普ZBook Firefly 14 G9笔记本电脑的审查。英特尔Alder Lake-U降低了这款移动工作站的速度

惠普的ZBook Firefly 14 G9移动工作站希望在一个紧凑的包装中提供大量的性能。然而，结果是相当令人失望的，特别是在CPU性能方面，因为英特尔的Alder Lake芯片被严重扼杀了。...
Intel Core i7-1265U | NVIDIA T550 Laptop GPU | 14.00" | 1.5 kg
惠普ZBook Firefly 16 G9笔记本电脑评测--移动工作站，性能不尽如人意

惠普ZBook Firefly 16 G9笔记本电脑评测--移动工作站，性能不尽如人意

通过最新的ZBook Firefly 16 G9，惠普的移动工作站首次有了16英寸的外形尺寸，并结合了Alder Lake-U处理器和Nvidia的专用T550 GPU。不幸的是，这两个组件的性能都有所欠缺。...
Intel Core i7-1265U | NVIDIA T550 Laptop GPU | 16.00" | 2 kg

Lenovo ThinkPad P14s G3, i7-1260P T550: Intel Core i7-1260P, 14.00", 1.2 kg
  External Review » Lenovo ThinkPad P14s G3, i7-1260P T550

HP ZBook Firefly 16 G9-6B897EA: Intel Core i7-1265U, 16.00", 2 kg
  External Review » HP ZBook Firefly 16 G9-6B897EA

Lenovo ThinkPad P16s G1, i5-1240P: Intel Core i5-1240P, 16.00", 1.7 kg
  External Review » Lenovo ThinkPad P16s G1, i5-1240P

Lenovo ThinkPad P16s G1, i7-1280P: Intel Core i7-1280P, 16.00", 1.7 kg
  External Review » Lenovo ThinkPad P16s G1, i7-1280P

Lenovo ThinkPad P14s G3 21AK003SGE: Intel Core i5-1240P, 14.00", 1.2 kg
  External Review » Lenovo ThinkPad P14s G3 21AK003SGE

Please share our article, every link counts!
Mail Logo

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
Radeon RX 7900M
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA RTX 3500 Ada Generation Laptop GPU
GeForce RTX 3080 Ti Laptop GPU
M4 40-core GPU *
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
GeForce RTX 3080 Laptop GPU
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon RX 7600M *
M4 32-core GPU *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
A770M *
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 1070 Max-Q
A550M *
Quadro P5000 Max-Q *
Radeon 890M *
GeForce RTX 3050 A Laptop GPU
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
GeForce GTX 980 (Laptop)
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
Arc 8-Core *
GeForce RTX 2050 Mobile
Arc 140V *
GeForce MX570 *
Radeon RX 6300M *
Arc 130V *
GeForce GTX 1650 Mobile
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Quadro T1000 (Laptop) *
Radeon Pro WX 7100 *
Arc 7-Core *
Radeon RX 570X (Laptop) *

Class 3

M4 8-Core GPU *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Quadro T1000 Max-Q *
A310 *
A350M *
T600 Laptop GPU *
T550 Laptop GPU *
GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 880M *
Adreno 830 *
Adreno X1-85 4.6 TFLOPS *
Radeon 780M *
GeForce MX550
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
GeForce GTX 1050 Max-Q *
Radeon 760M *
Adreno X1-85 3.8 TFLOPS *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Adreno X1-45 2.1 TFLOPS *
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
GeForce 945M
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Adreno X1-45 1.7 TFLOPS *
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
Radeon 740M *
UHD Graphics 730
GeForce MX230
Vega 8 *
Vega 7
Radeon R7 M465
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Iris Plus Graphics 655
Radeon R7 M445
Quadro M500M
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 530
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
HD Graphics 6000
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
VideoCore VII *
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)

* Approximate position of the graphics adapter
