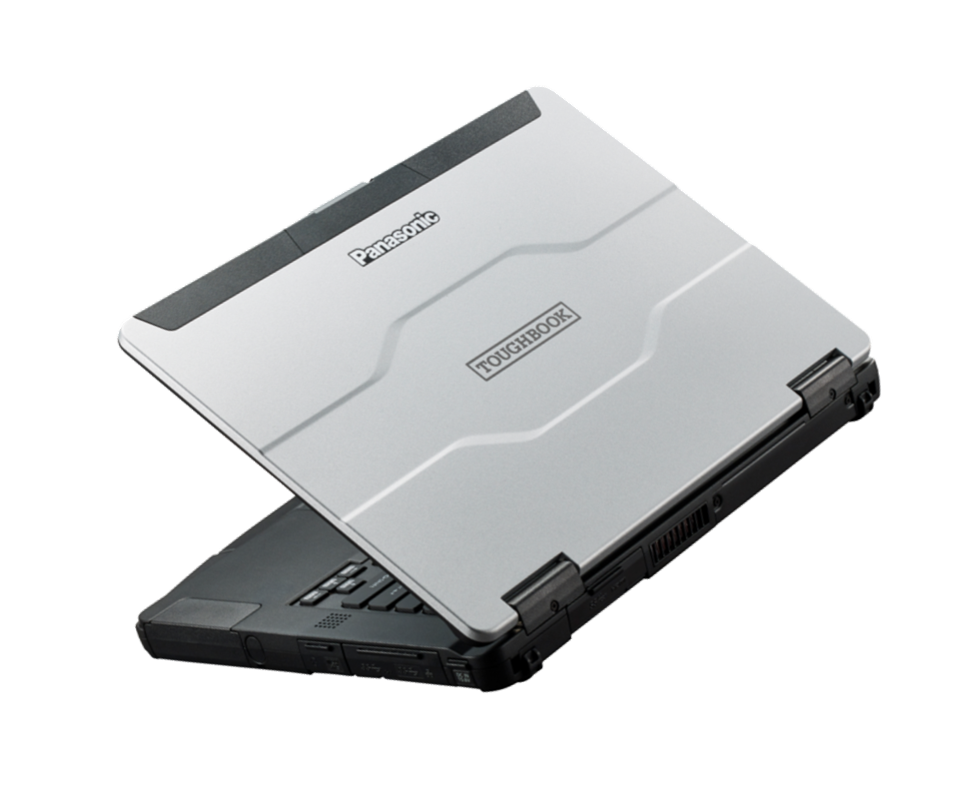

Panasonic Toughbook FZ-55

Specifications

Panasonic Toughbook FZ-55
Panasonic Toughbook FZ-55
Processor
Intel Core i5-8365U 4 x 1.6 - 4.1 GHz, Whiskey Lake-U
Graphics adapter
Intel UHD Graphics 620, Core: 300 MHz, RAM: 1200 MHz, DDR4, 25.20.100.6793
Memory
8 GB
, DDR4, 10-10-10-28, Single-Channel
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, 10-point capacitive, InfoVision M140NWF5 R3, IPS, IVO057D, glossy: no
Mainboard
Intel Cannon Lake-U PCH-LP Premium
Storage
Samsung SSD PM871b MZNLN256HAJQ, 256 GB
Soundcard
Intel Cannon Lake-LP - cAVS
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Docking Station Port, Audio Connections: 3.5 mm combo, Card Reader: MicroSD reader, Brightness Sensor
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5, LTE, GPS
Size
height x width x depth (in mm): 33 x 346 x 272
Battery
71 Wh Lithium-Ion, removeable
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1080p
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 36 Months Warranty, ruggedized, waterproof
Weight
2.23 kg, Power Supply: 504 g



Price comparison

Average Score: 85.98% - good
Average of 4 scores (from 5 reviews)
price: 50%, performance: 66%, features: 49%, display: 84% mobility: 77%, workmanship: 85%, ergonomy: 71%, emissions: 95%

Reviews for the Panasonic Toughbook FZ-55

80.9% Panasonic Toughbook FZ-55 MK1 Laptop Review | Notebookcheck
The latest 14-inch Toughbook addresses many of the shortcomings of last year's model while retaining compatibility with all last generation accessories.
Panasonic Toughbook 55 Review
Source: Mobile Tech Review - 3YVq1Mwn8ow English Archive.org version
Lisa Gade reviews the Panasonic Toughbook 55, a 14” rugged laptop with integrated handle and many modular bays for customization. Need a dedicated AMD GPU, different ports, a fingerprint scanner or optical drive? Swap them in! The FZ-55 is Panasonic’s semi-rugged laptop with Ultrabook class CPUs and up to a 1000 nit full HD touch screen with pen. Yes, there’s an even more rugged Toughbook 31 that’s designed to survive being dragged across the desert floors behind and ATV, but the 55 strikes a balance between durability and portability. 4 LTE is optional, it has 2 RAM slots, up to 2 M.2 SSDs and a backlit keyboard.
Single Review, online available, Long, Date: 07/29/2020
90% Panasonic Toughbook 55 Review – A surprisingly practical and modular platform.
Source: Toptenreviews English EN→zh-CN Archive.org version
It does many things well, but the two standout aspects are the modularity of the design, and what that enables from a security perspective. It enables customers to customise the hardware in a way that doesn’t involve the maker having an inordinate number of different SKUs and allows the machine to be smartly repurposed during its working life.
Single Review, online available, Medium, Date: 04/15/2020
Rating: Total score: 90%
90% Panasonic Toughbook 55 review
Source: Techradar English EN→zh-CN Archive.org version
An amazing piece of engineering, the Toughbook 55 delivers a go-anywhere computing platform that can be easily customised to support many challenging roles. The only downside of this level of flexibility is that it comes with a hefty price tag.
Single Review, online available, Long, Date: 01/21/2020
Rating: Total score: 90%
Panasonic Toughbook 55
Source: PC Mag English EN→zh-CN Archive.org version
A large portion of the Panasonic Toughbook 55's 13.6-by-10.7-inch base is made up of bays that can accept a dizzying array of modules—everything from RFID readers to Blu-ray drives. Just pop them out (as shown above) to replace them with a different module.
Single Review, online available, Short, Date: 09/09/2019
83% Panasonic Toughbook 55 [TEST]: Alt kan udskiftes på den modulære laptop
Source: Alt om Data DA→zh-CN Archive.org version
Single Review, online available, Medium, Date: 03/17/2020
Rating: Total score: 83% price: 50% performance: 67%

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i5-8365U: » Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


2.23 kg: 大部分12到16寸的亚笔记本电脑,超极本和轻盈标准笔记本电脑的重量在这个水平上。


» Further information can be found in our Notebook Purchase Guide.
