惠普Pavilion g6-2200sg 笔记本测评

对于节俭的游戏玩家.奔腾处理器和Radeon HD7670 GPU给大家一个便宜的笔记本电脑。我们的分析表明,这款笔记本是否是有说服力的。
Windows

Editor's Note (December 18, 2012): The following review has not yet been edited for grammatical errors. A final draft of the review will be released soon.

For the original German review, see here.

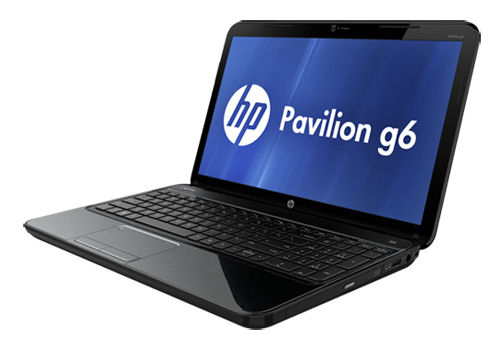

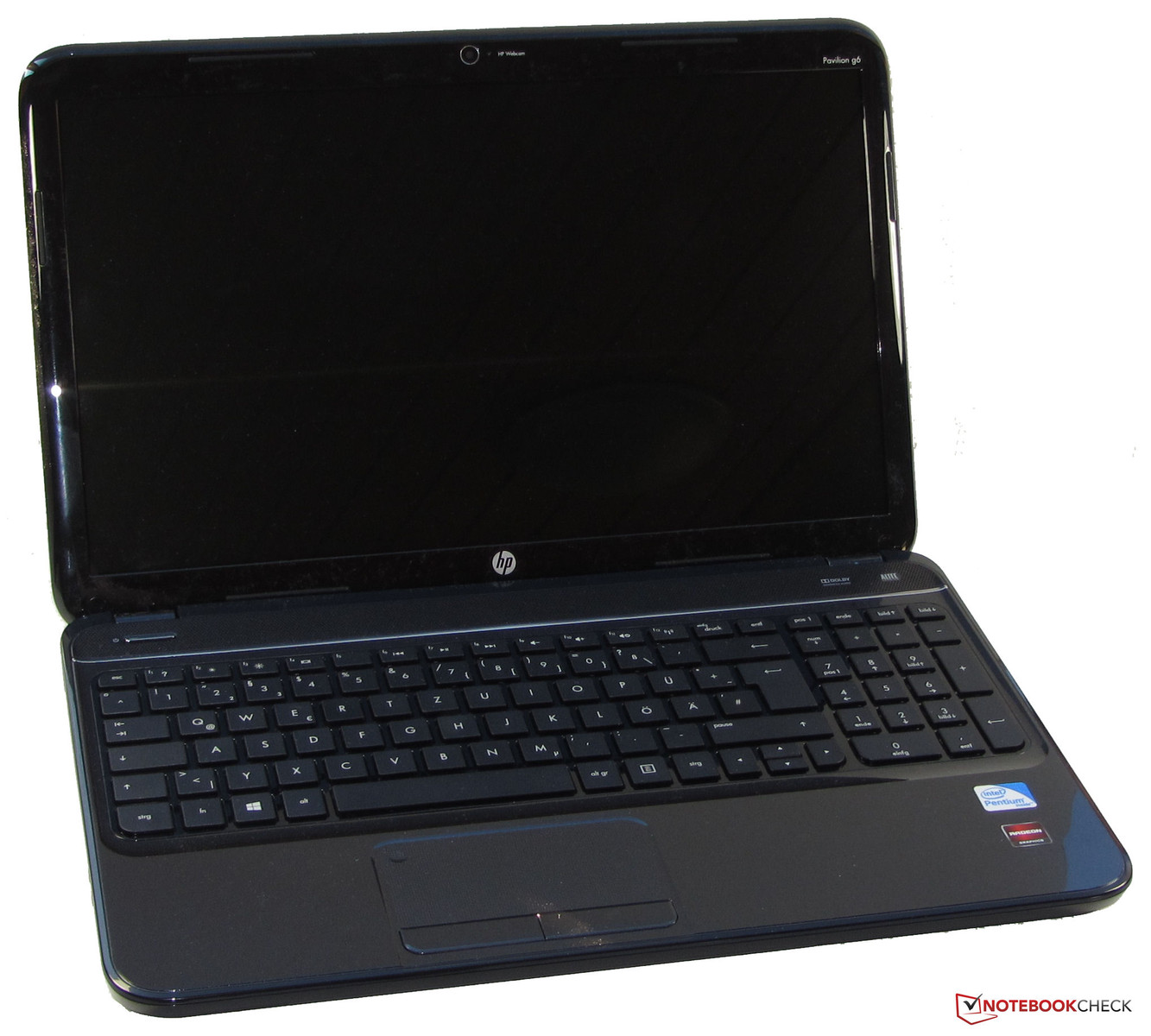

A new 15.6-inch model form HP's Pavilion product line-up entered our tests. HP equipped it with an Intel Pentium B980 dual core CPU, an AMD Radeon HD 7670M GPU and six GB RAM. On paper, this should result in a cheap, gaming-capable laptop. Our test reveals if this is actually the case.

We use the following competitors in order to classify our test sample: Acer's Aspire V5-571G (Intel Core i5-3317U, Nvidia GeForce GT 620M) and Samsung's NP355V5C-S05DE (AMD A6-4400M, AMD Radeon HD 7520G + HD 7670M Dual Graphics).

编者注(12月18日,2012年):尚未被编辑语法错误。最后草案的审查将很快被释放。



对于的德国原装审查,在这里看到。



一个新的15.6英寸机型,惠普Pavilion产品线进入我们的测试。 HP它配备了英特尔奔腾B980双核CPU,AMD的Radeon HD7670M GPU(图形处理器)和6 GB的RAM。在纸面上,这将导致一个便宜的,游戏功能的笔记本电脑。我们的测试表明,如果这是实际的情况。



我们使用的下列竞争对手,我们的测试样机进行分类:宏碁的Aspire V5-571G(英特尔酷睿酷睿i5-3317U,Nvidia公司的GeForce GT620M)和三星NP355V5C-S05DE(AMD A6-4400M,AMD的Radeon HD7520G+ HD7670M双显卡)。

Case

Just like the Acer Aspire V5-571G's and the Samsung NP355V5C's the case of the 15.6-incher is entirely made from plastics. However the two competitors use matte surfaces while the Pavilion uses glossy ones. The color of the notebook is called Sparkling Black as the surfaces sparkle in various colors when light falls on them. Generally, the stability of the case is satisfying. Merely the keyboard and the palm rest areas (above the DVD burner) are slightly unstable and give under pressure. While the base unit can hardly be twisted, not much little effort is needed for the lid.

就像宏碁Aspire V5-571G和,三星NP355V5C的15.6英寸的情况下,完全是由塑料制成。然而,这两个竞争对手使用磨砂面馆使用光面。被称为笔记本电脑的颜色闪亮的黑色表面闪闪发光,各种颜色光线落在他们。一般来说,在稳定的情况下是令人满意的。只是键盘和掌托地区(以上的DVD刻录机)稍稍有些不稳定,给的压力下。虽然基座单元也很难被扭曲,需要很少的努力没有太大的盖子。

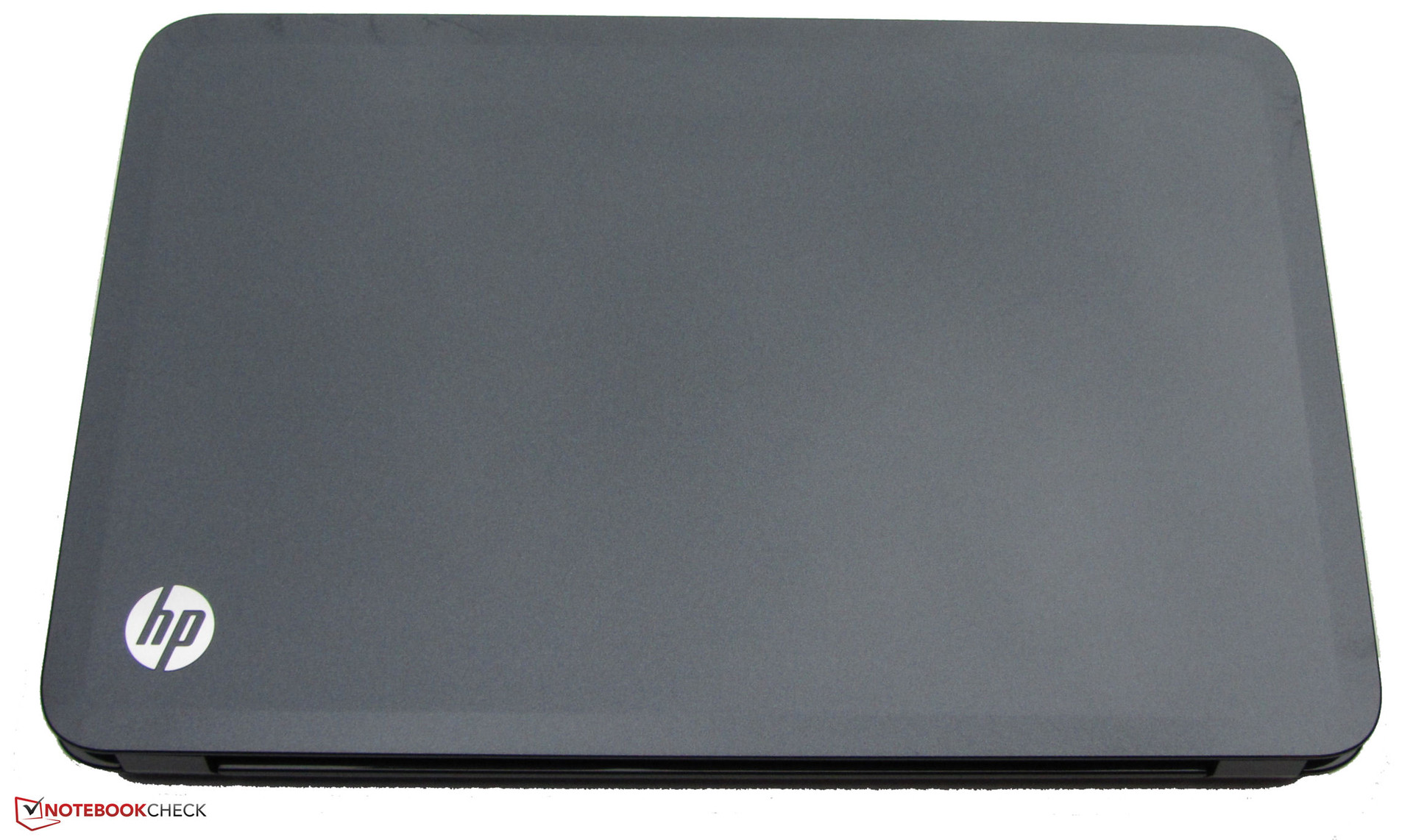

Apart from the bottom side all surfaces are glossy
Apart from the bottom side all surfaces are glossy
The case is a magnet for fingerprints
The case is a magnet for fingerprints

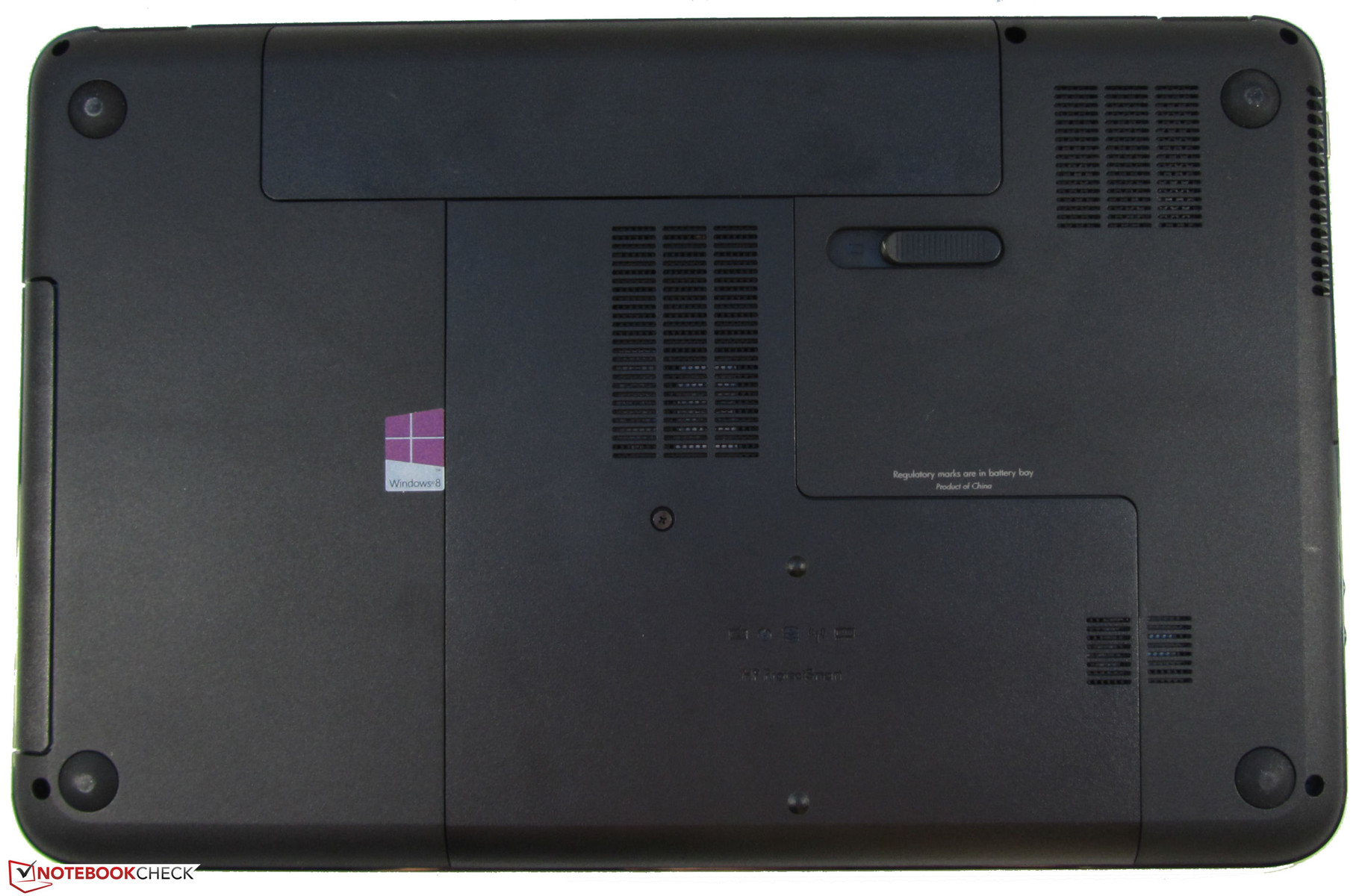

A single maintenance opening is available
A single maintenance opening is available

Connectivity

The connectivity of the three laptops is almost identical. The computer from Samsung has one USB port more than the others. All laptops offer at least one USB-3.0 port.

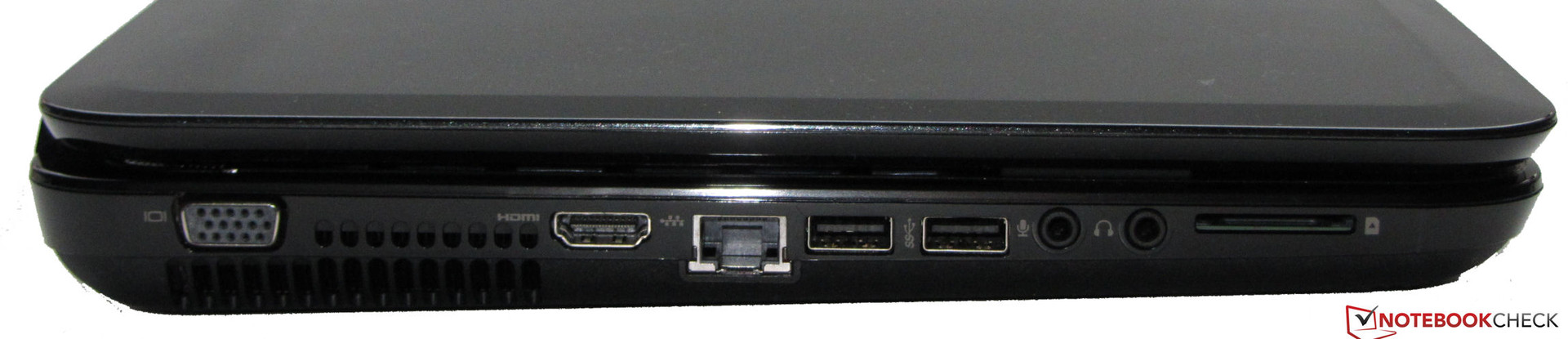

left side: VGA, HDMI, Ethernet, 2x USB 3.0, mic, headphones card reader (SD and MMC)
left side: VGA, HDMI, Ethernet, 2x USB 3.0, mic, headphones card reader (SD and MMC)

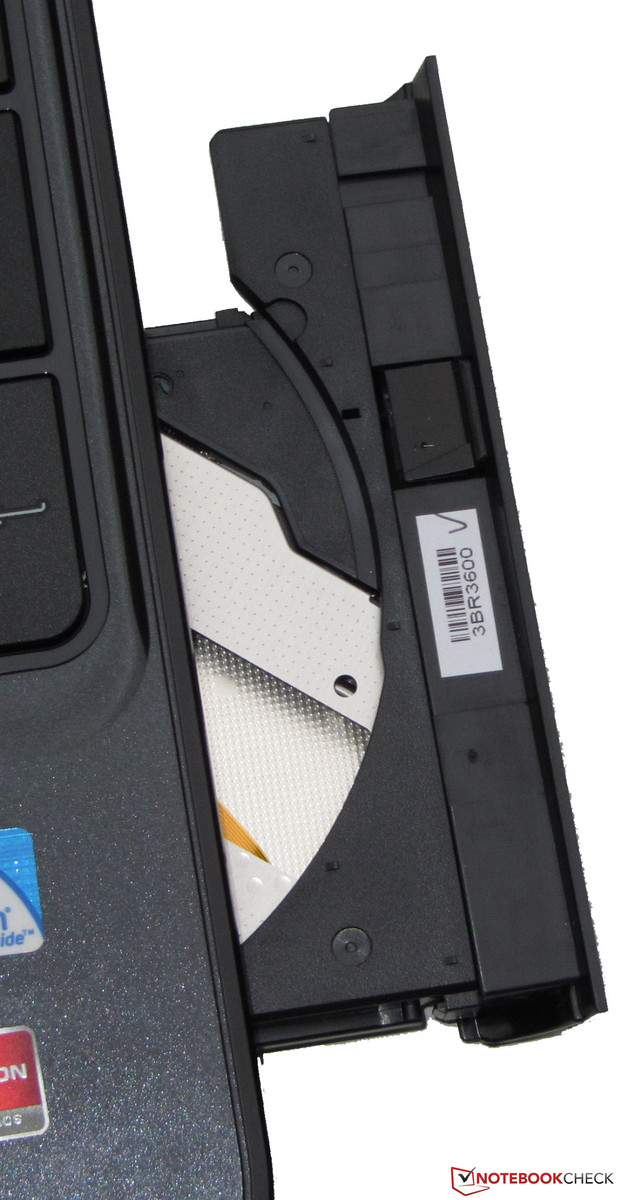

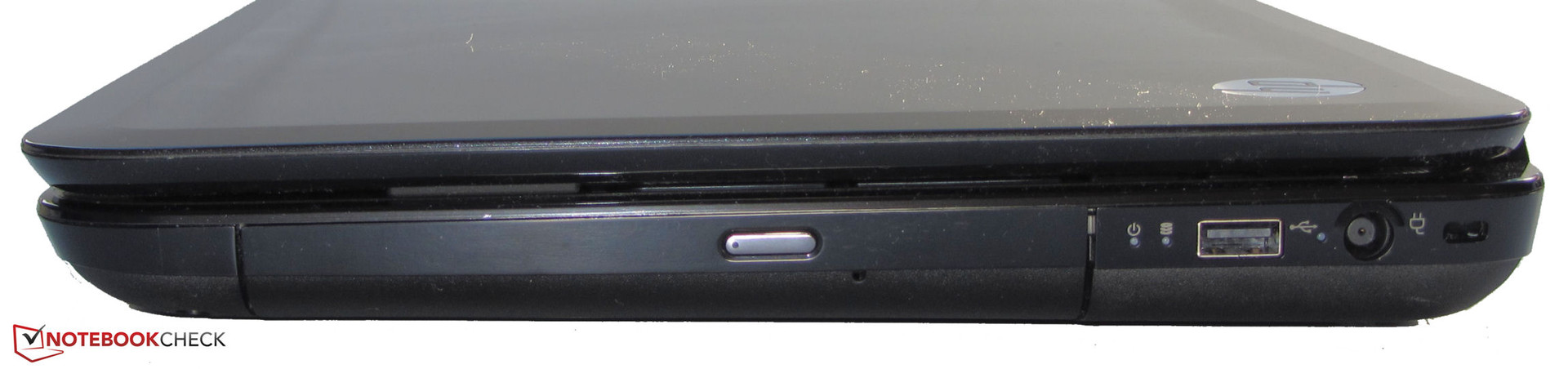

right side: Kensington lock slot, USB 2.0, DVD burner
right side: Kensington lock slot, USB 2.0, DVD burner

Communication

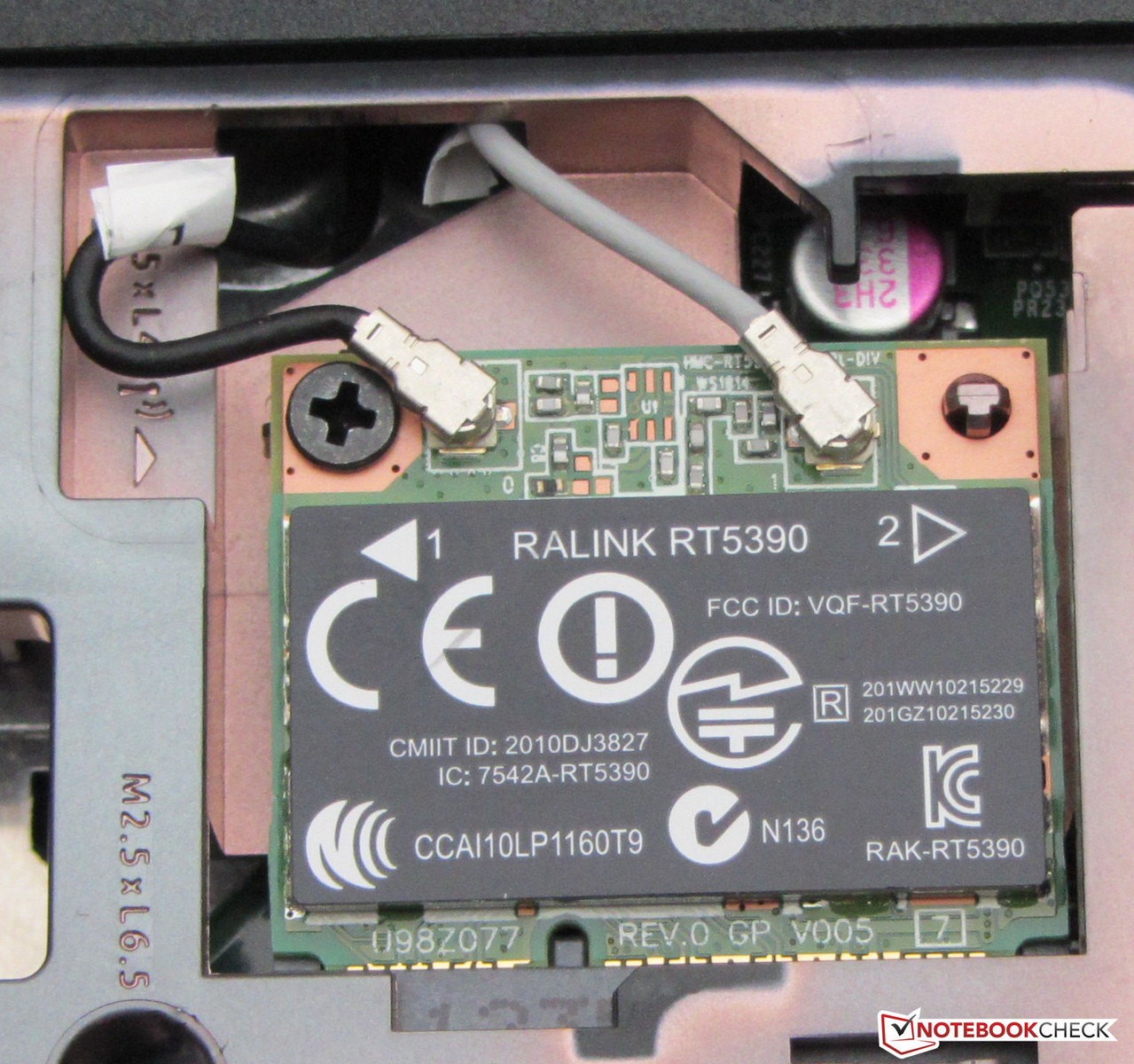

Our test sample is equipped with the RT5390R WiFi module from Ralink, which supports standards 802.11 b/g/n. To our surprise, HP only use a Fast Ethernet chip from Realtek for wired networks. In 2012, we'd also expect GigaBit Ethernet in low-cost devices and the competitors from Acer and Samsung have such. As the Pavilion does not have a Bluetooth module, you will need to use a Bluetooth stick if needed. But, comes with a built-in web cam.

Accessories

In the shipping box there are the usual accessories: a quick start guide and several small booklets with safety instructions and warranty information.

Operating System and Recovery

The Pavilion g6-2200sg comes pre-installed with Windows 8 (64 Bit), but an installation DVD does not belong to the scope of delivery. A Recovery is done via HP's recovery system, which is launched by pressing F11 at boot. Please note: The process will delete all data created and applications installed by the user.

Maintenance

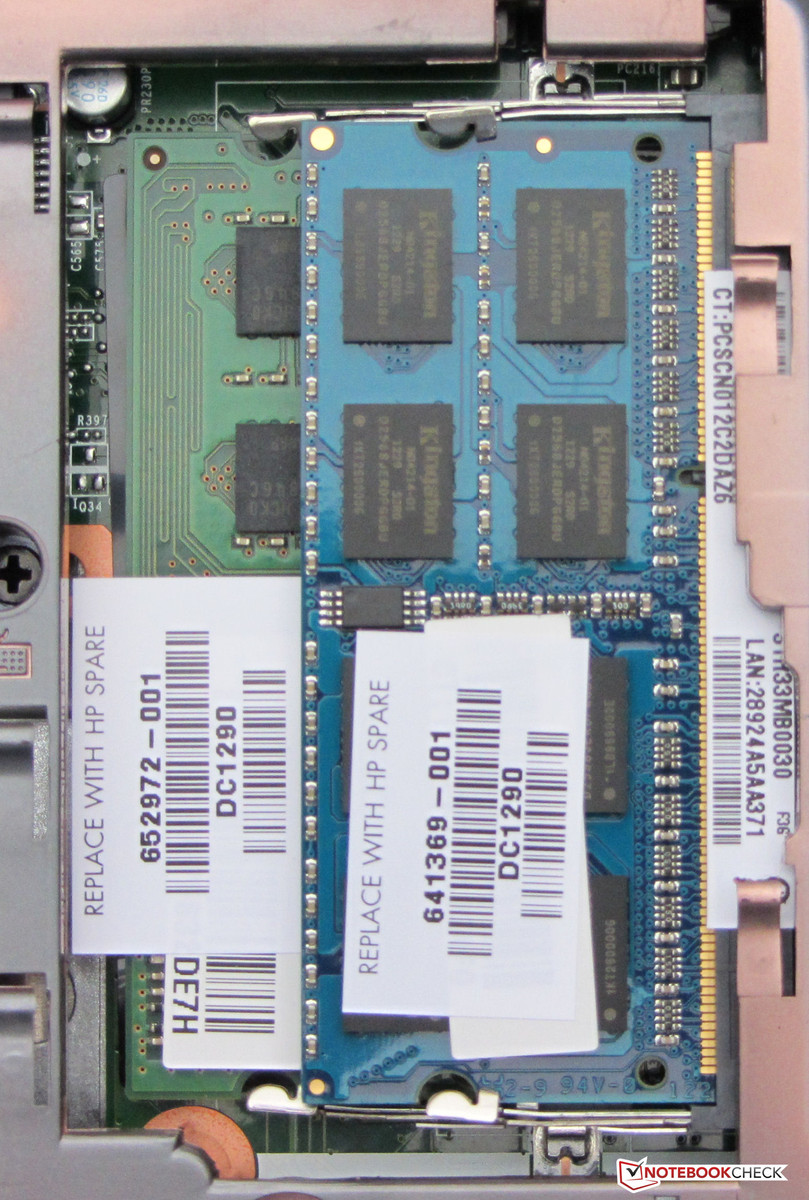

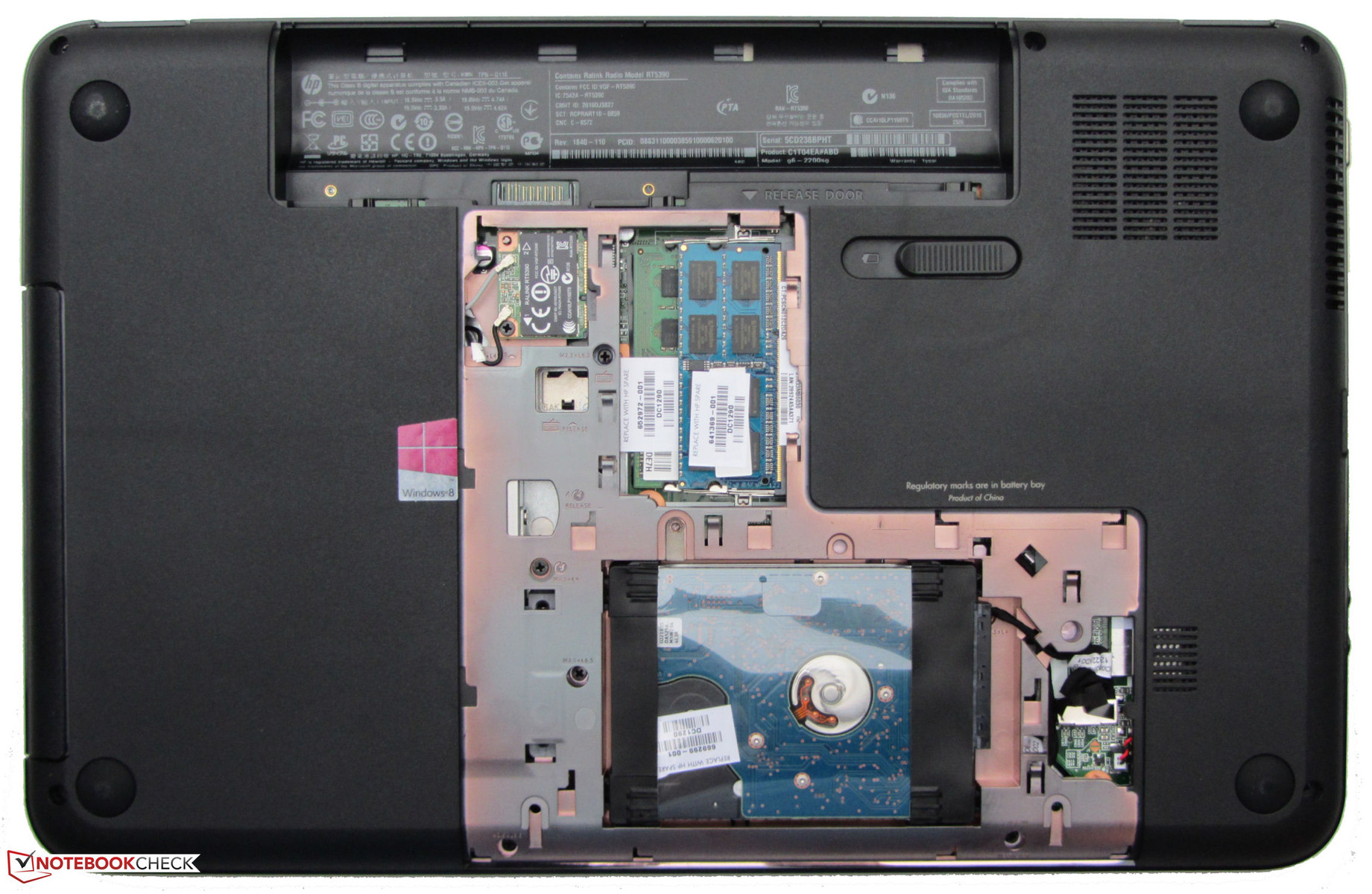

RAM, hard drive and WiFi module are hidden behind a service door. However, the fan is not accessible. The Pavilion has two RAM slots and supports up to 8 GB RAM and comes standard with 6 GB RAM. The hard drive can be replaced with a few steps. Attention: HP uses a hard drive which is 7 mm high while conventional hard drive are 9.5 mm.

Warranty

HP grant a pickup & return warranty of 12 month for the Pavilion. In a warranty case, the notebook will be picked up at the user site and brought back afterwards. Samsung and Acer grant 24 month for there computers. But, the warranty of the g6-2200sg can be upgraded: HP offer two Care Packs. A pickup & return warranty of 3 years, e.g., costs 95 Euro. Adding accidental damage protection will rise the total price to about 140 to 170 Euro. Spilling a drink over your laptop is an example for an accidental damage.

通讯



我们的测试样机配备了雷凌的RT5390R WiFi模块,支持标准,支持802.11 b / g / n的。我们惊讶的是,HP只使用一个快速以太网芯片来自Realtek的有线网络。在2012年,我们也期待有这样的千兆以太网的低成本设备和竞争对手宏碁和三星。由于展馆内没有蓝牙模块,如果需要的话,您将需要使用蓝牙棒。但是,带有一个内置的网络摄像头。



饰品



包装箱中有通常的附件:快速入门指南和几个小的安全说明和保修信息的小册子。



操作系统和恢复



馆G6-2200sg预装的Windows 8(64位)的安装DVD,但不属于供货范围内。经济复苏是通过HP的恢复系统,这是按F11在开机时启动。请注意:该过程将删除所有由用户创建的数据和应用程序安装。



保养



内存,硬盘驱动器和WiFi模块背后都隐藏着一个服务门。然而,风扇是无法访问的。馆有2个内存插槽,支持高达8 GB的RAM,标配6 GB RAM。几个步骤可以更换硬盘驱动器。注意:HP使用而传统的硬盘驱动器为9.5毫米,7毫米高的硬盘驱动器。





HP授予的展馆皮卡返回12个月的保修。在保修的情况下,将拿起笔记本电脑,在用户现场,之后被带回。三星和宏碁授予24个月有电脑的。但是,在保修的G6-2200sg的可升级:HP提供两种护理包。的拾取器返回保修3年,例如,费用为95欧元。添加保护意外损坏的总价格将上升到约140至170欧元。一个偶然的损害溢出饮料在你的笔记本电脑就是一个例子。

Input Devices

Keyboard

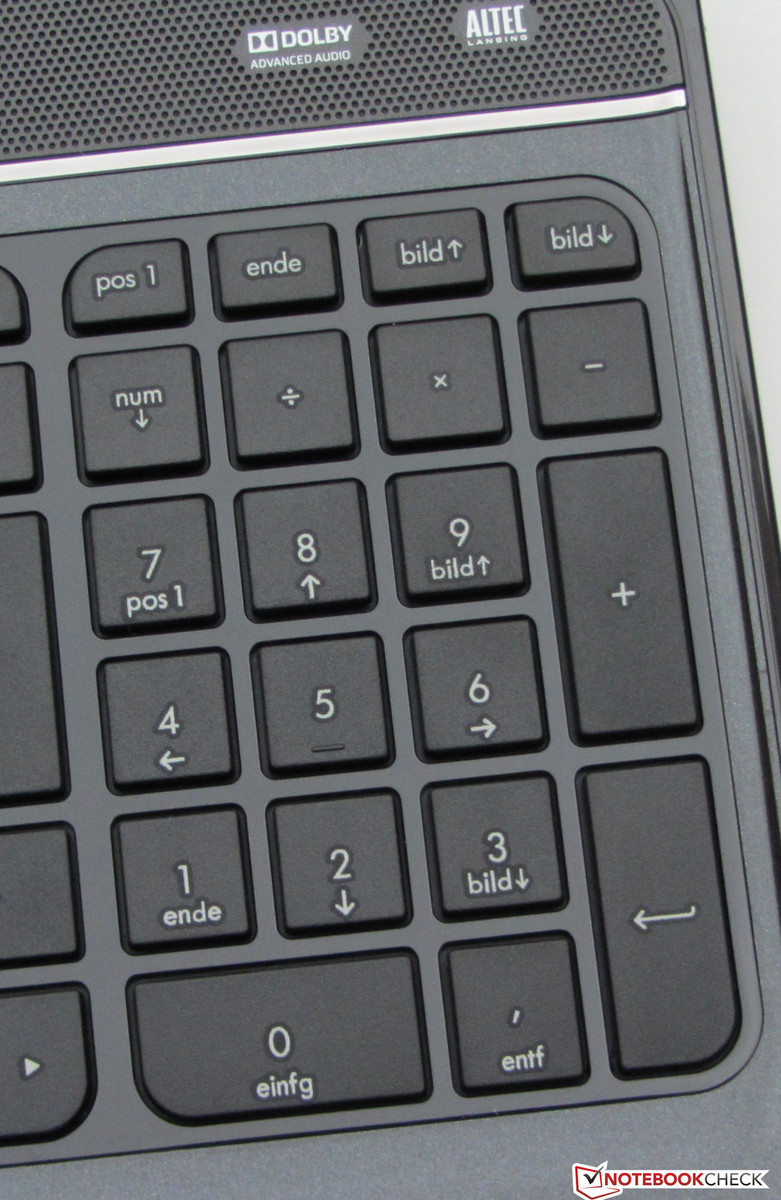

The main keys of the Chiclet keyboard are 15 x 15 mm and have a medium stroke and a crisp pressure point. Merely the area above the DVD burner flexes when typing, the others don't. There is a small manufacturing flaw in front of the space bar: The keyboard does not sit flush with the case here. Overall, the keyboard is decent. A nice feature: The WiFi, Mute and Caps-Lock  keys each house a small indicator LED.

Touchpad

The Synaptics Touchpad is slightly recessed into the palm rest. Its surface of 9.6 x 4.6 cm is sufficiently big for multi-touch gestures, which can be enabled and disabled individually in the configuration menu. The surface of the touchpad is covered with tiny dots, which do not have a negative impact on the gliding traits. The touchpad can be switched on and off by double tapping the small depression in its upper left corner. Its two mouse buttons have a short stroke, and crisp, clearly audible feedback.

键盘



Chiclet键盘的主键是15×15毫米,有一个中等的中风和清脆的压力点。只是上面的区域的DVD刻录机弯曲打字的时候,别人不一样。有一个小的制造缺陷,在前面的空格键:键盘不会坐在这里齐平的情况下。总体来说,键盘是体面的。一个很好的功能:无线网络,静音和caps-lock键每间房子一个小的LED指示灯。



触摸板



Synaptics触摸板的掌托略微凹陷。 9.6×4.6厘米,它的表面是够大的多点触摸手势,在配置菜单中,可以启用和禁用单独的。的触摸板的表面覆盖有小点,不具有滑翔性状产生负面影响。可以打开和关闭触摸板双攻的小凹陷,在其左上角。两个鼠标按键行程短,明快

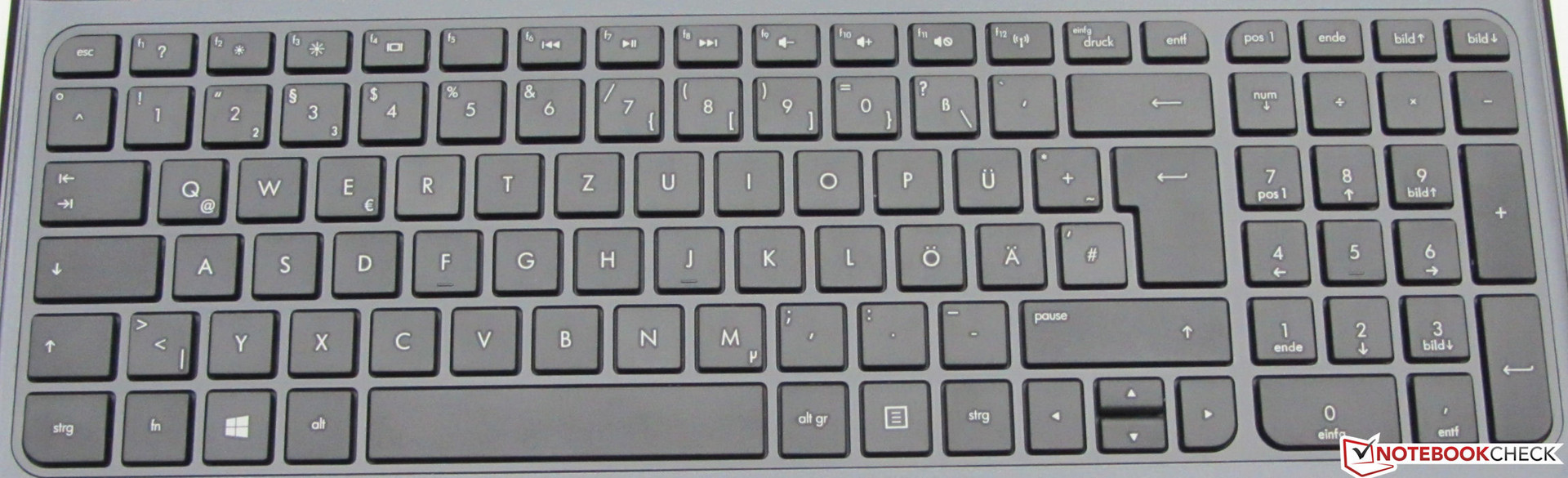

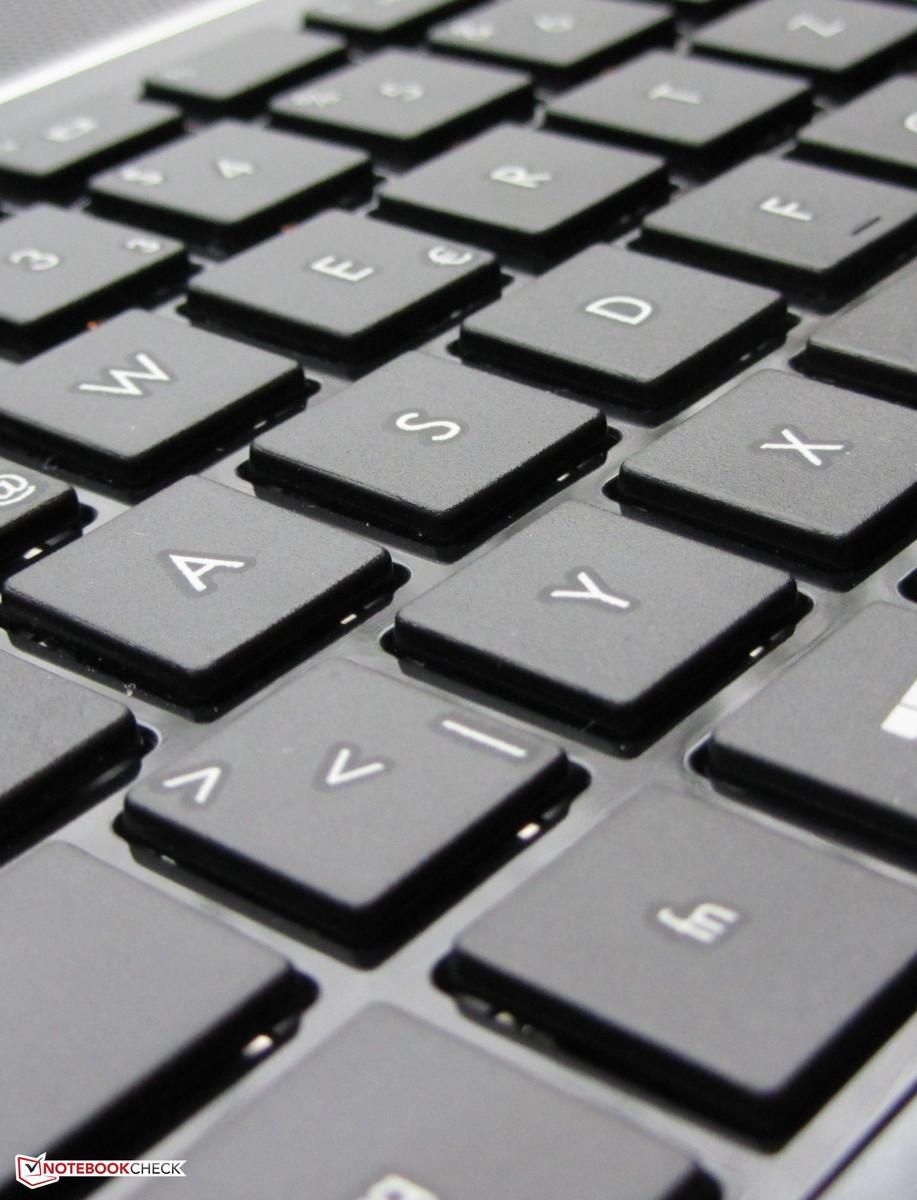

Comfortable keyboard
Comfortable keyboard

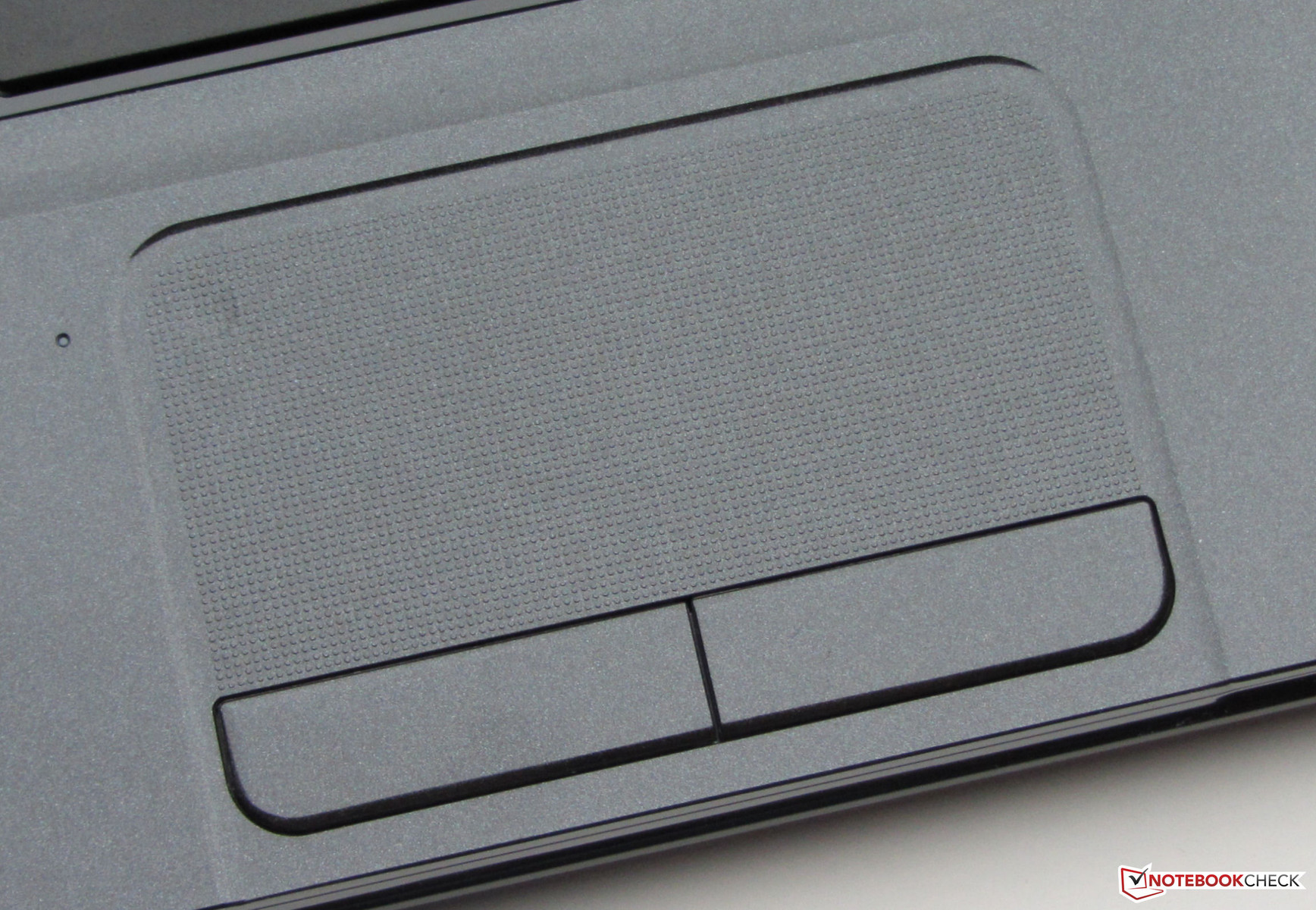

The touchpad supports multi-touch gestures
The touchpad supports multi-touch gestures

Display

The Pavilion is equipped with a glossy 15.6-inch display with a native resolution of 1,366 x 768 pixels. HP does not offer other options. The average brightness of 189,8 cd/m² is lower mid-range, but the two competitors do not perform better.  The display of the Aspire (177,6 cd/m²) is even slightly darker than the HP's while Samsung's (207,4 cd/m²) is a little bit brighter.

馆配备15.6英寸的显示屏采用了镜面的原生分辨率为1366×768像素。 HP不提供其他选项。平均189,8 cd /m²的亮度是低中档,但两个竞争对手有更好的表现。显示的Aspire(177,6坎德拉/平方米),甚至比HP的稍深,而三星(207,4坎德拉/平方米)是一点点变亮。

183
cd/m²
171
cd/m²
177
cd/m²
196
cd/m²
207
cd/m²
197
cd/m²
191
cd/m²
191
cd/m²
195
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 207 cd/m² (Nits) Average: 189.8 cd/m²
Brightness Distribution: 83 %
Center on Battery: 208 cd/m²
Contrast: 690:1 (Black: 0.3 cd/m²)55.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
80.1% sRGB (Argyll 2.2.0 3D)
54% Display P3 (Argyll 2.2.0 3D)

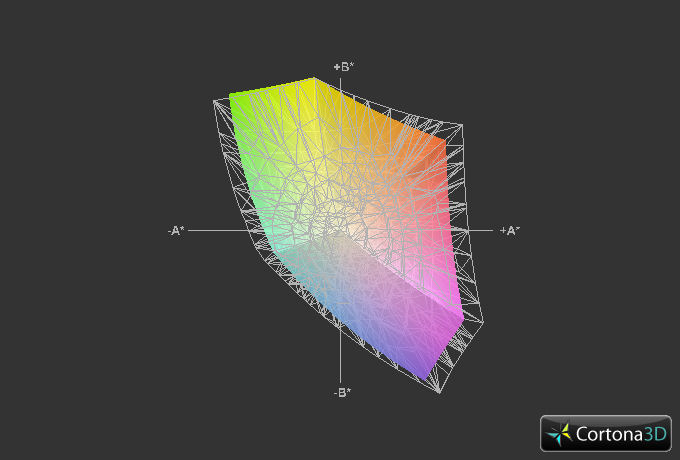

Pavilion g6-2200sg vs. sRGB
Pavilion g6-2200sg vs. sRGB

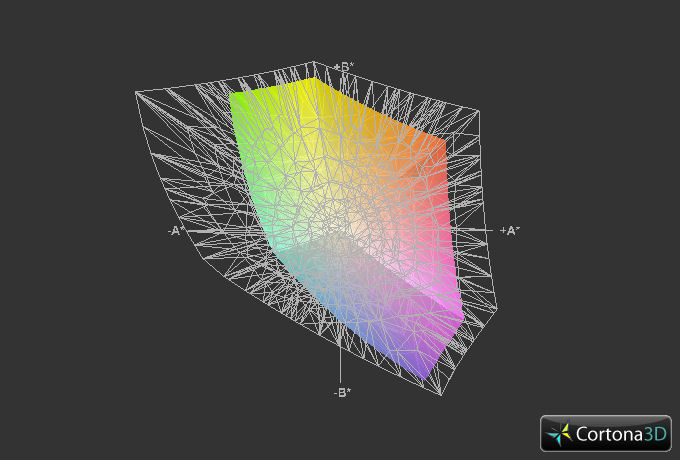

Pavilion g6-2200sg vs. AdobeRGB
Pavilion g6-2200sg vs. AdobeRGB

While the display is standard fare in terms of brightness, its contrast (690:1) and black value (0.3 cd/m²) are very good. Even much more expensive laptops frequently do not achieve such good values. The display can neither completely cover sRGB nor AdobeRGB, but sRGB coverage is pretty good.

虽然显示的是标准票价的亮度,对比度(690:1)和黑色值(0.3 cd /m²的)都非常好。甚至更昂贵的笔记本电脑往往没有达到这种良好的价值观。显示既不能完全覆盖SRGB,也AdobeRGB的,,但SRGB覆盖是相当好。

Low brightness and reflective surface actually prevent outdoor usage. Thanks to the high contrast, the displayed content can definitely be recognized, but you should avoid too bright a place.

计算机系统运行平稳无口吃的PC马克7基准结果符合我们的预期:展馆的性能之间宏基的Aspire V5-571G的(英特尔酷睿酷睿i5-3317U,Nvidia公司的GeForce GT620M)和三星NP355V5C的(AMD A6-4400MAMD的Radeon HD7520G+ HD7670M),但三台笔记本电脑的结果差距不大。

Again the display is only standard fare in terms of viewing angels. Moves in vertical direction will quickly have a negative impact on the image, while the viewing angles are wider in horizontal direction.

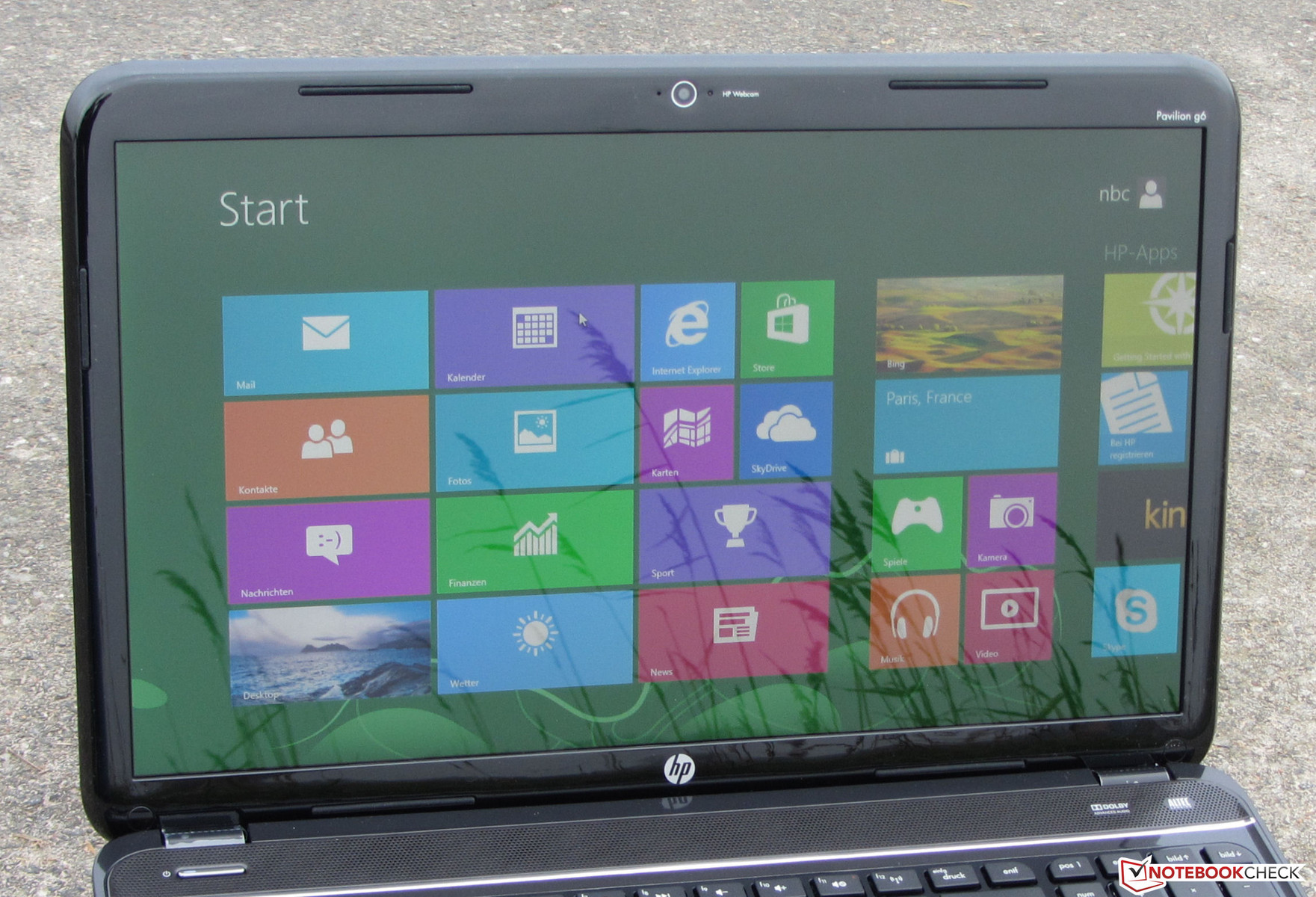

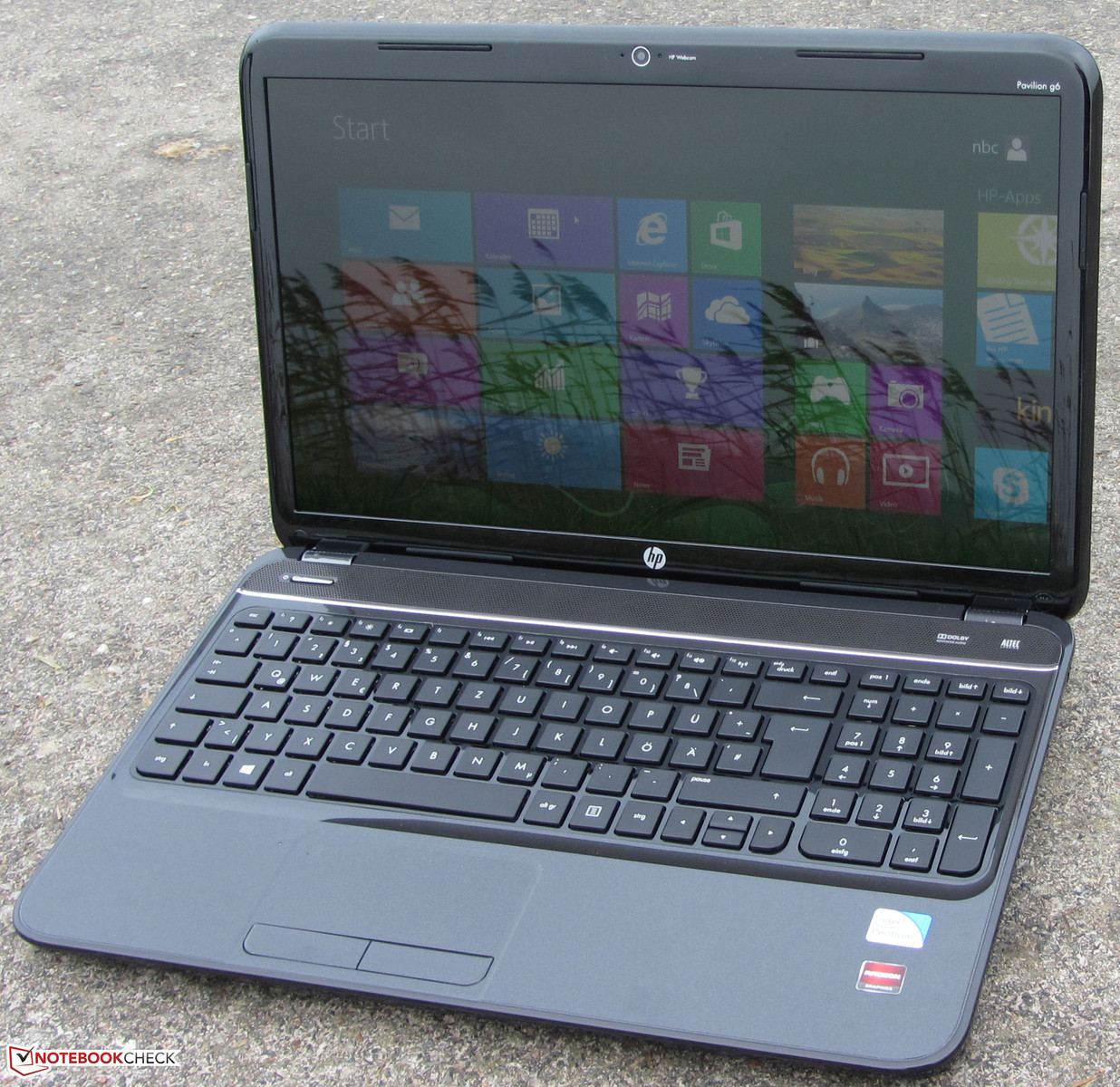

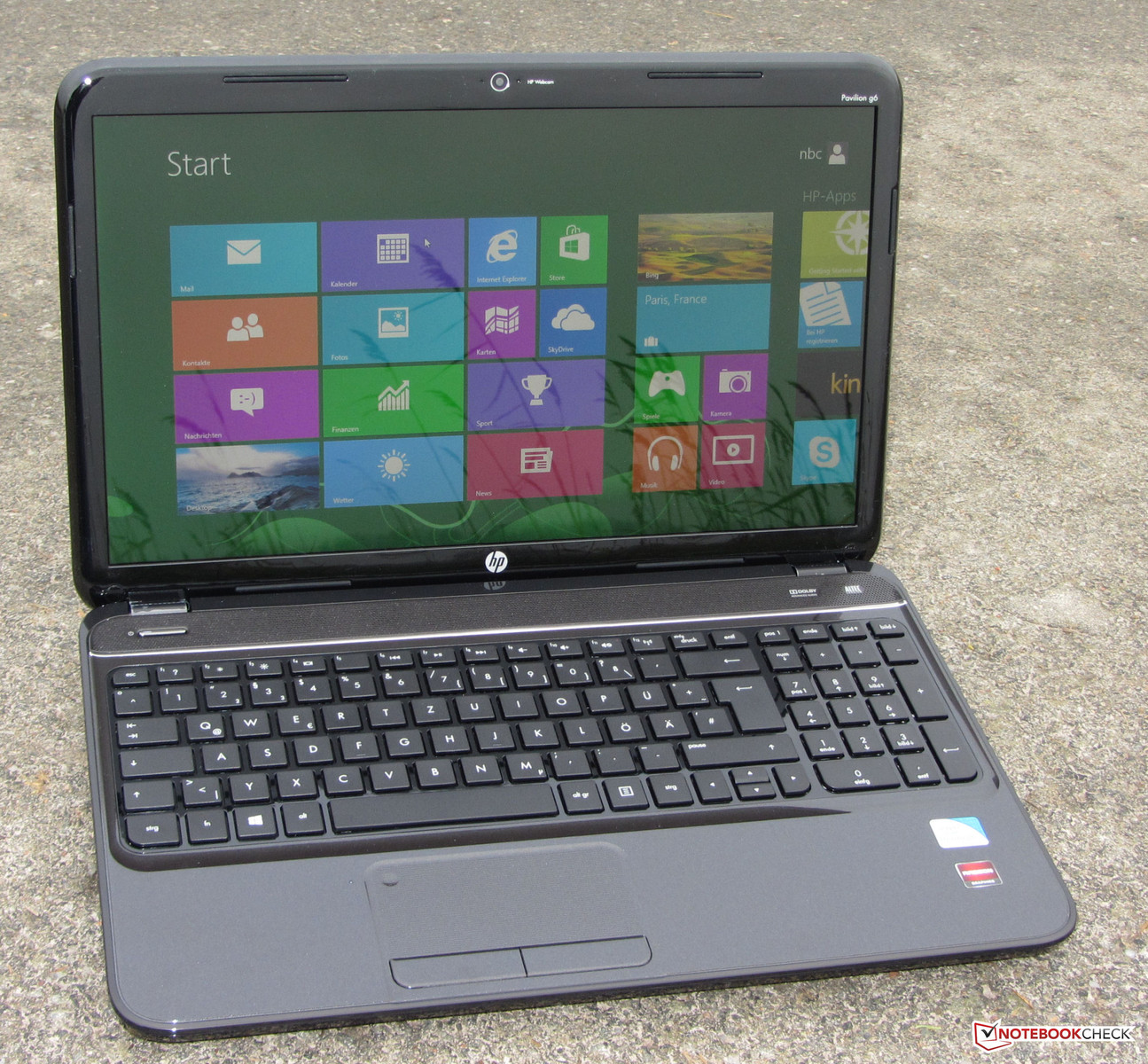

the Pavilion g6-2200sg outdoors
the Pavilion g6-2200sg outdoors

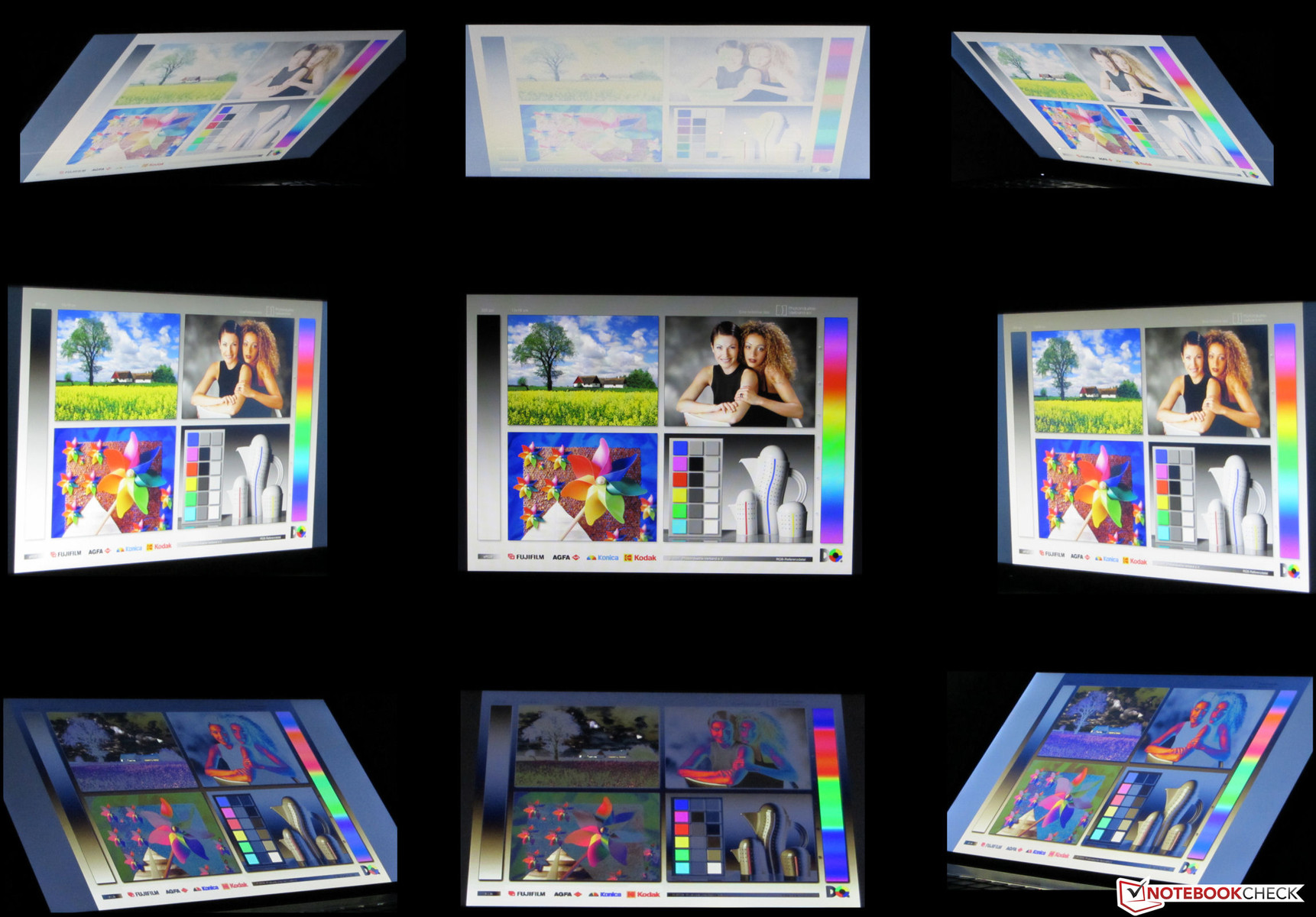

viewing angles: HP Pavilion g6-2200sg
viewing angles: HP Pavilion g6-2200sg

Performance

With the Pavilion g6-220sg, Hewlett Packard deliver a multimedia notebook for frugal customers, which is currently available for about 480 Euro. Its performance suffices usual tasks and can also run 3D games smoothly. While our test model is only available in this particular configuration, HP also offer a lot of other Pavilion g6 models, some of them with AMD others with Intel CPUs.

惠普的Pavilion G6-220sg,提供多媒体笔记本电脑节俭的客户,这是目前可用于约480欧元。它的性能足够的日常工作​​,也可以顺利运行3D游戏。虽然我们的测试模型只适用于这个特定的配置,HP还提供了很多其他馆G6车型,其中一些与AMD与英特尔CPU的人。

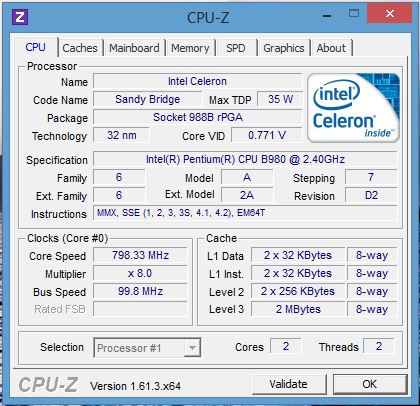

Systeminfo CPUZ CPU

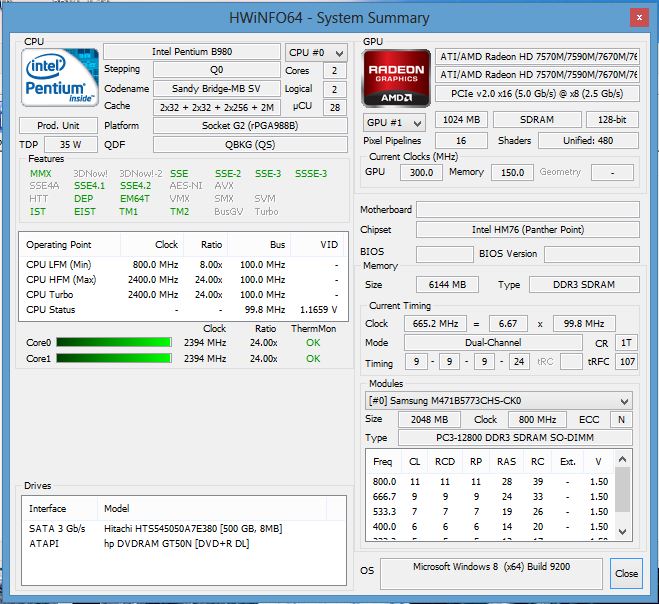

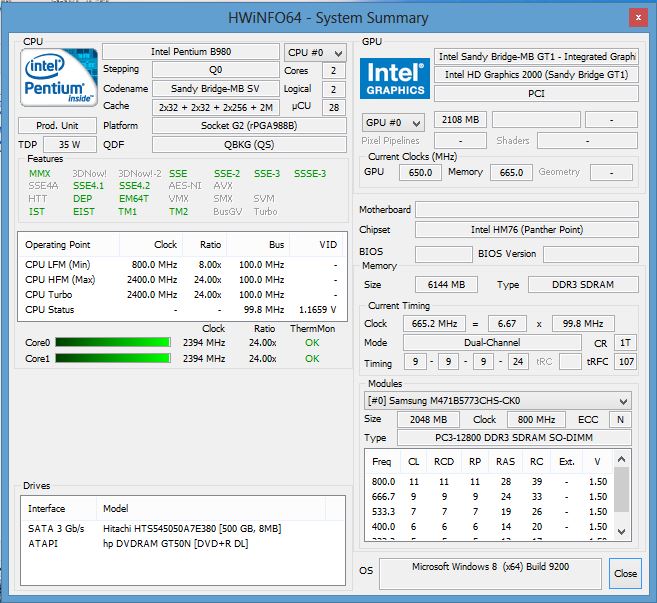

Systeminfo HWInfo

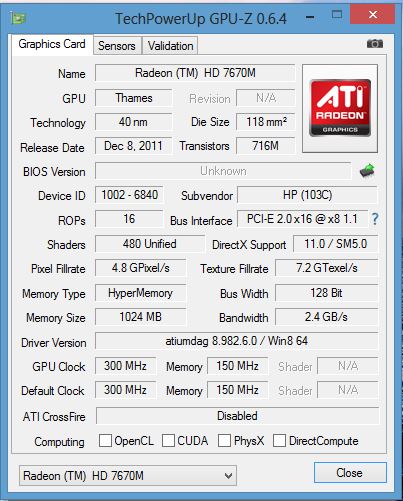

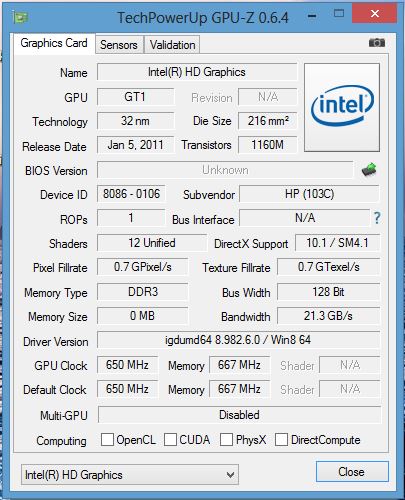

Systeminfo GPUZ
Systeminfo GPUZ

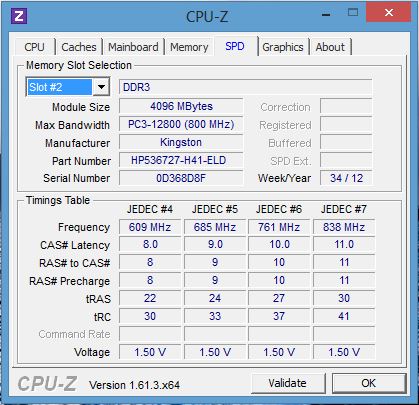

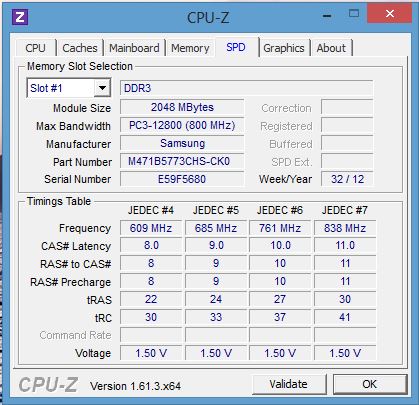

Systeminfo CPUZ RAM SPD
Systeminfo CPUZ RAM SPD

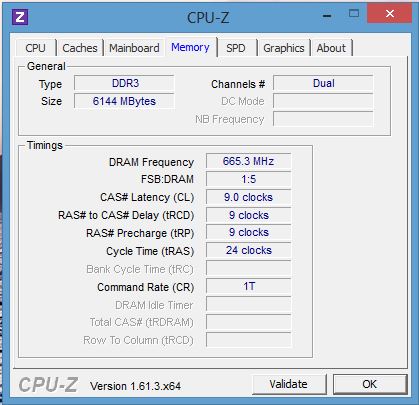

Systeminfo CPUZ RAM

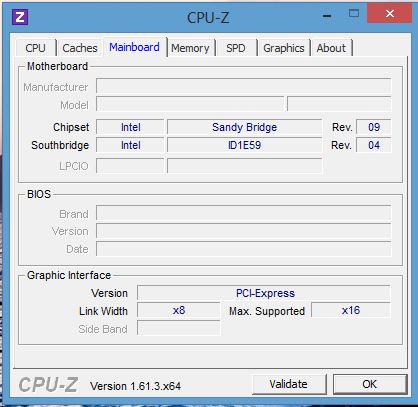

Systeminfo CPUZ Mainboard

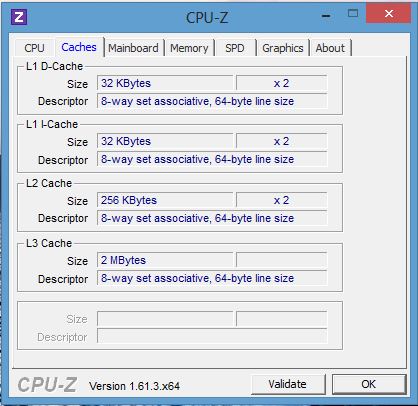

Systeminfo CPUZ Cache
Systeminfo HWInfo
System information HP Pavilion g6-2200sg

Processor

The Pavilion g6-2200sg is equipped with an Intel Pentium B980 processor, a dual core Sandy Bridge CPU with a clock rate of 2.4 GHz. Unfortunately the CPU does not use Intel's Turbo technology.

As the CPU constantly runs at full speed in the Cinebench tests, it performs as expected. Furthermore, the HP notebook bests Samsung's NP355V5C-S05DE (AMD A6-4400M, AMD Dual Graphics) in CPU-intensive tests, because of its faster CPU. But both of them are outperformed by Acer's Aspire V5-571G (Intel Core i5-3317U, Nvidia GeForce GT 620M), which uses the fastest CPU of the three contenders.  But the Pavilion performs better than its competitors in the GL tests as the combination of Pentium B980 and HD 7670M GPU is more powerful than the CPU/GPU combinations of the others.

馆G6-2200sg是配备了英特尔奔腾B980处理器,双核心的Sandy Bridge CPU的时钟频率为2.4 GHz。不幸的是,CPU不使用英特尔的Turbo技术。



由于不断的CPU运行在全速在CINEBENCH的测试,它按预期执行。此外,HP笔记本在CPU密集型测试的最好成绩三星的NP355V5C的S05DE(AMD,AMD A6-4400M双显卡),因为它的速度更快的CPU。但两个人都跑赢大市宏基的Aspire V5-571G(英特尔酷睿i5-3317U的NVIDIA GeForce GT620M),它使用三个竞争者最快的CPU。但展馆内的性能比其竞争对手在GL的测试,奔腾B980和HD7670M GPU相结合的是更强大的比其

Cinebench R10 Rendering Single 32Bit
3118
Cinebench R10 Rendering Multiple CPUs 32Bit
5027
Cinebench R10 Shading 32Bit
5564
Cinebench R10 Rendering Single CPUs 64Bit
3885 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
7316 Points
Cinebench R10 Shading 64Bit
5709 Points
Cinebench R11.5 CPU Single 64Bit
0.95 Points
Cinebench R11.5 CPU Multi 64Bit
1.84 Points
Cinebench R11.5 OpenGL 64Bit
34.11 fps
Help
Cinebench R11.5 - OpenGL 64Bit (sort by value)
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
34.11 fps
HP Pavilion g6-1352eg
Radeon HD 6480G + HD 7450M Dual Graphics, A4-3305M, Samsung SpinPoint M8 HN-M500MBB
17.44 fps -49%
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
18.4 fps -46%
Lenovo IdeaPad N586-MA663GE
Radeon HD 7520G, A6-4400M, WDC Scorpio Blue WD7500BPVT-24HXZT3
21.04 fps -38%
Acer Aspire V5-571G-53314G50Makk
GeForce GT 620M, 3317U, Hitachi Travelstar Z5K500 HTS545050A7E380
27.41 fps -20%
Acer Aspire V3-551G-10468G50Makk
Radeon HD 7660G + HD 7670M Dual Graphics, A10-4600M, Seagate Momentus 5400.6 ST9500325AS
27.61 fps -19%
Fujitsu Lifebook AH532
GeForce GT 640M LE, 3210M, Toshiba MK7575GSX
33.86 fps -1%
Cinebench R11.5 - CPU Multi 64Bit (sort by value)
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1.84 Points
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
0.98 Points -47%
Lenovo IdeaPad N586-MA663GE
Radeon HD 7520G, A6-4400M, WDC Scorpio Blue WD7500BPVT-24HXZT3
1.13 Points -39%
HP Pavilion g6-1352eg
Radeon HD 6480G + HD 7450M Dual Graphics, A4-3305M, Samsung SpinPoint M8 HN-M500MBB
1.16 Points -37%
Acer Aspire V3-551G-10468G50Makk
Radeon HD 7660G + HD 7670M Dual Graphics, A10-4600M, Seagate Momentus 5400.6 ST9500325AS
2.01 Points +9%
Acer Aspire V5-571G-53314G50Makk
GeForce GT 620M, 3317U, Hitachi Travelstar Z5K500 HTS545050A7E380
2.38 Points +29%
Fujitsu Lifebook AH532
GeForce GT 640M LE, 3210M, Toshiba MK7575GSX
2.89 Points +57%

System Performance

The computer system runs smoothly without stuttering and the results of the PC Mark 7 benchmark meet our expectations: The Pavilion's performance is between Acer Aspire V5-571G's (Intel Core i5-3317U, Nvidia GeForce GT 620M) and Samsung NP355V5C's (AMD A6-4400M, AMD Radeon HD 7520G + HD 7670M), but the results of the three laptops do not differ much.

计算机系统运行平稳无口吃的PC马克7基准结果符合我们的预期:展馆的性能之间宏基的Aspire V5-571G的(英特尔酷睿酷睿i5-3317U,Nvidia公司的GeForce GT620M)和三星NP355V5C的(AMD A6-4400MAMD的Radeon HD7520G+ HD7670M),但三台笔记本电脑的结果差距不大。

5.1
Windows 8 Experience Index
Processor
Calculations per second
6.3
Memory (RAM)
Memory operations per second
7.3
Graphics
Desktop performance for Windows Aero
5.1
Gaming graphics
3D business and gaming graphics
6.5
Primary hard disk
Disk data transfer rate
5.9
PCMark 7 Score
1723 points
Help
PCMark 7 - Score (sort by value)
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1723 Points
HP Pavilion g6-1352eg
Radeon HD 6480G + HD 7450M Dual Graphics, A4-3305M, Samsung SpinPoint M8 HN-M500MBB
1313 Points -24%
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
1600 Points -7%
Lenovo IdeaPad N586-MA663GE
Radeon HD 7520G, A6-4400M, WDC Scorpio Blue WD7500BPVT-24HXZT3
1626 Points -6%
Acer Aspire V5-571G-53314G50Makk
GeForce GT 620M, 3317U, Hitachi Travelstar Z5K500 HTS545050A7E380
1858 Points +8%
Fujitsu Lifebook AH532
GeForce GT 640M LE, 3210M, Toshiba MK7575GSX
2165 Points +26%

Mass storage

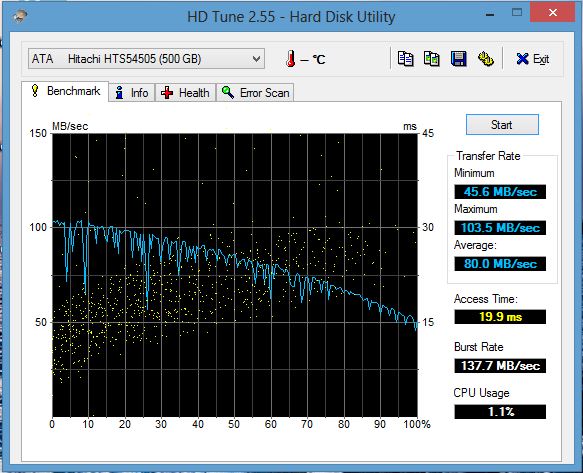

HD Tune
HD Tune

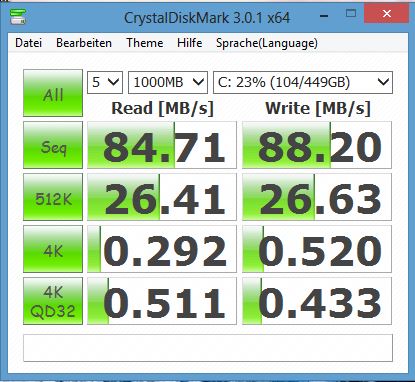

CrystalDiskMark
CrystalDiskMark

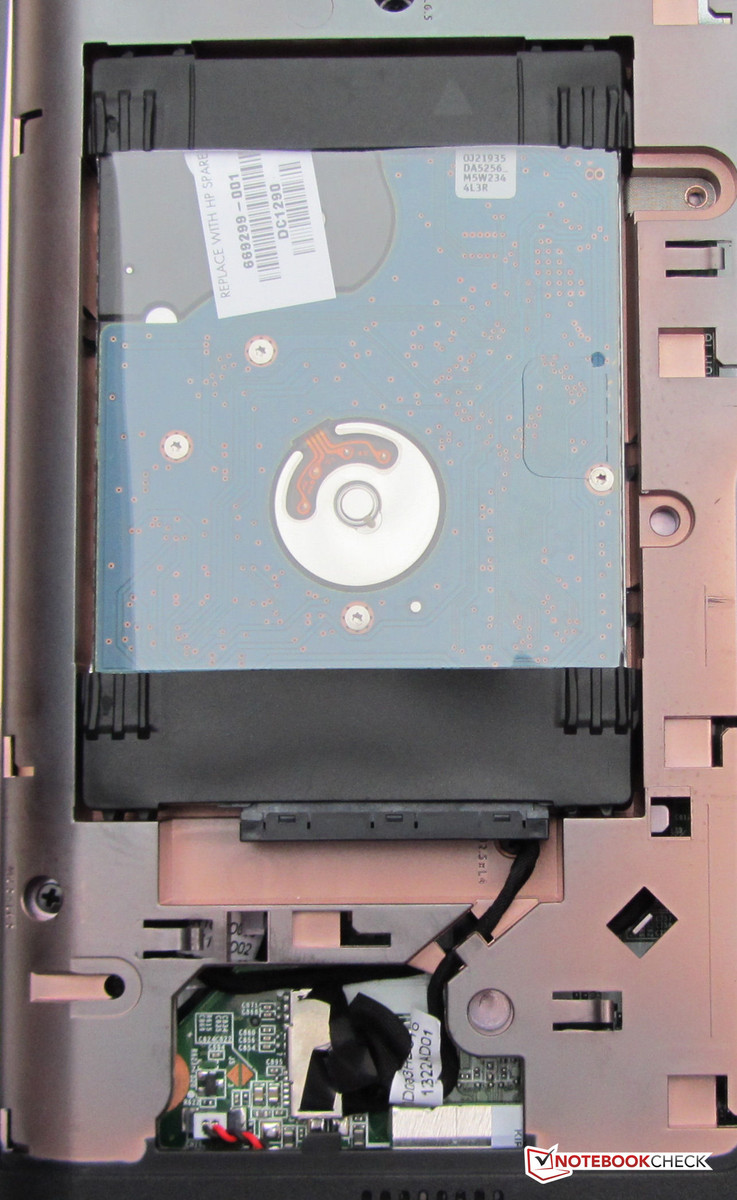

HP equip the Pavilion with a Hitachi Travelstar Z5K500 hard drive (500  GB, 5,400 RPM). CrystalDiskMark reports  a read rate of 84.71 MB/s and HD Tune an average transfer rate of 80 MB/s. Both values are more than fine for a 5,400 RPM hard drive compared to slower hard drives often found in cheap notebooks.

HP装备馆与日立Travelstar Z5K500硬盘(500 GB,5400 RPM)。 CrystalDiskMark的报告84.71 MB/ s和HD Tune的平均传输速率为80 MB/秒的读取速度。这两个值都较精细的5,400 RPM硬盘驱动器相比,速度较低的硬盘经常出现在便宜的笔记本电脑。

Hitachi Travelstar Z5K500 HTS545050A7E380
Transfer Rate Minimum: 45.6 MB/s
Transfer Rate Maximum: 103.5 MB/s
Transfer Rate Average: 80 MB/s
Access Time: 19.9 ms
Burst Rate: 137.7 MB/s
CPU Usage: 1.1 %

Graphics Card

Two GPUs work inside the Pavilion g6-2200sg: Intel's HD Graphics (Sandy Bridge) and AMD's Radeon HD 7670M. The Intel GPU supports DirectX 10.1 and runs at a clock rate of 350 to 1150 MHz while the graphics card from AMD is mid range, runs at 300 to 600 MHz and supports DirectX 11. The two GPUs do not work together, but the one which is more appropriate for a particular task is selected.

At the end of 2012 Nvidia's graphics switch (Optimus) still works better than AMD's. We had to manually configure that the Radeon GPU should be used before running benchmarks and games. Otherwise, the system nearly always used the CPU from Intel. Especially inexperienced users could get annoyed at games stuttering.

The results of the 3D Mark benchmarks are as expected. If all 3D Mark versions are taken into account, none of the notebooks achieves a clear victory. On contrary, their 3D-performance does not differ much. Thanks to its Radeon GPUs working together, Samsung's 15.6-incher wins the first price in 3D Mark 11. As the the impact of the CPU on the result is lowest here, the computer with the weakest CPU can score points.

两个GPU内工作的Pavilion G6-2200sg:英特尔高清显卡的Sandy Bridge和AMD的Radeon HD7670M。英特尔GPU支持DirectX 10.1,在350至1150 MHz的时钟速率运行,而从AMD的显卡是中档,运行在300至600 MHz,支持DirectX 11。两个GPU不在一起,但是这是一个更适合特定的任务选择。



在2012年年底Nvidia的显卡切换(擎天柱)仍然优于AMD的。我们不得不手动配置之前,应使用的Radeon GPU运行基准测试和游戏。否则,系统将几乎总是使用CPU从英特尔。在游戏口吃,尤其是没有经验的用户可以得到恼火。



在3D Mark基准测试的结果是否如预期。如果考虑到所有的3D马克版本的笔记本电脑,没有达到一个明确的胜利。相反,他们的3D性能没有多大差别。三星的15.6 incher的Radeon GPU(图形处理器)一起工作,赢得了第一个在3D MARK11的价格。由于在CPU上的结果的影响这里是最低的,在计算机与最弱的CPU可以得分。

3DMark 05 Standard
12194 points
3DMark 06 Standard Score
7536 points
3DMark Vantage P Result
4582 points
3DMark 11 Performance
1233 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
HP Pavilion g6-2200sg
Radeon HD 7670M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1233 Points
Lenovo IdeaPad N586-MA663GE
Radeon HD 7520G, A6-4400M, WDC Scorpio Blue WD7500BPVT-24HXZT3
747 Points -39%
HP Pavilion g6-1352eg
Radeon HD 6480G + HD 7450M Dual Graphics, A4-3305M, Samsung SpinPoint M8 HN-M500MBB
996 Points -19%
Acer Aspire V5-571G-53314G50Makk
GeForce GT 620M, 3317U, Hitachi Travelstar Z5K500 HTS545050A7E380
1145 Points -7%
Fujitsu Lifebook AH532
GeForce GT 640M LE, 3210M, Toshiba MK7575GSX
1385 Points +12%
Samsung NP355V5C-S05DE
Radeon HD 7520G + HD 7670M Dual Graphics, A6-4400M, Hitachi Travelstar 5K750 HTS547575A9E384
1458 Points +18%
Acer Aspire V3-551G-10468G50Makk
Radeon HD 7660G + HD 7670M Dual Graphics, A10-4600M, Seagate Momentus 5400.6 ST9500325AS
1988 Points +61%

Gaming Performance

The Pavilion g6-220sg is definitively gaming capable. It can even run modern computer games in medium to high graphics quality at its native resolution. The laptop merely cannot achieve decent frame rates in brand new and very performance demanding games like Hitman: Absolution. Although we explicitly selected the Radeon GPU, we cannot exclude that the GPU switch did not work in the Hitman benchmark. We faced a similar problem with F1 2012, which refused to start with active Radeon GPU.

馆G6-220sg是明确的游戏能力。它甚至可以在其原始分辨率运行现代的电脑游戏中高图形质量。这款笔记本电脑不仅可以实现品牌新的,非常的性能要求苛刻的游戏,像杀手:赦免体面的帧速率。虽然我们明确地选择了Radeon GPU,我们也不能排除,GPU开关没有工作,在杀手基准。我们面临着相似的问题,2012年,F1拒绝开始积极的Radeon GPU。

low med. high ultra
StarCraft 2 (2010) 133.8 48.6 31.1 18.3
CoD: Modern Warfare 3 (2011) 94.3 55.4 35.8 20.2
The Elder Scrolls V: Skyrim (2011) 52.6 36.7 27.8 14.7
Mass Effect 3 (2012) 49.9 34.8 21.9
Dirt Showdown (2012) 53.6 29.2 23 10.8
Counter-Strike: GO (2012) 98.2 79.3 64.6 44.9
Fifa 13 (2012) 136.5 108.7 94.6 58.3
Hitman: Absolution (2012) 15.9 13.6 8.7

Emissions

System Noise

Fortunately the Pavilion runs quietly while idle. The noise level amounts to 31.3 to 32.6 dB here. When using the DVD drive the noise increases to 35.6 dB. Unfortunately the clacking of the hard drive is quite audible time and again.

Under full load (stress test: Prime95 and Furmark), the fan accelerates and the noise reaches 48.7 dB while the g6-2200sg works at a tolerable noise level of 38.1 dB under medium load (3DMark 06). The noise of the Aspire V5-571G and the Samsung NP355V5C-S05DE, which are only significantly quieter under full load, is on a similar level.

系统噪声



幸运的是,馆悄悄地在空闲时运行。噪音水平达31.3至32.6分贝这里。当使用DVD驱动器的噪音增加至35.6分贝。不幸的是,牙齿互撞声的硬盘驱动器是相当声音一次又一次。



在满载条件下(压力测试:Prime95和Furmark的),风扇加速和噪声达到48.7分贝的同时在一个容许噪声电平下38.1分贝中等负荷(3DMark 06的),的G6-2200sg工程。的Aspire V5-571G和三星NP355V5C-S05DE,这是唯一显着安静的在满载情况下,噪音水平相近。

Noise Level

Idle
31.3 / 31.3 / 32.1 dB(A)
HDD
32.6 dB(A)
DVD
35.6 / dB(A)
Load
38.1 / 48.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

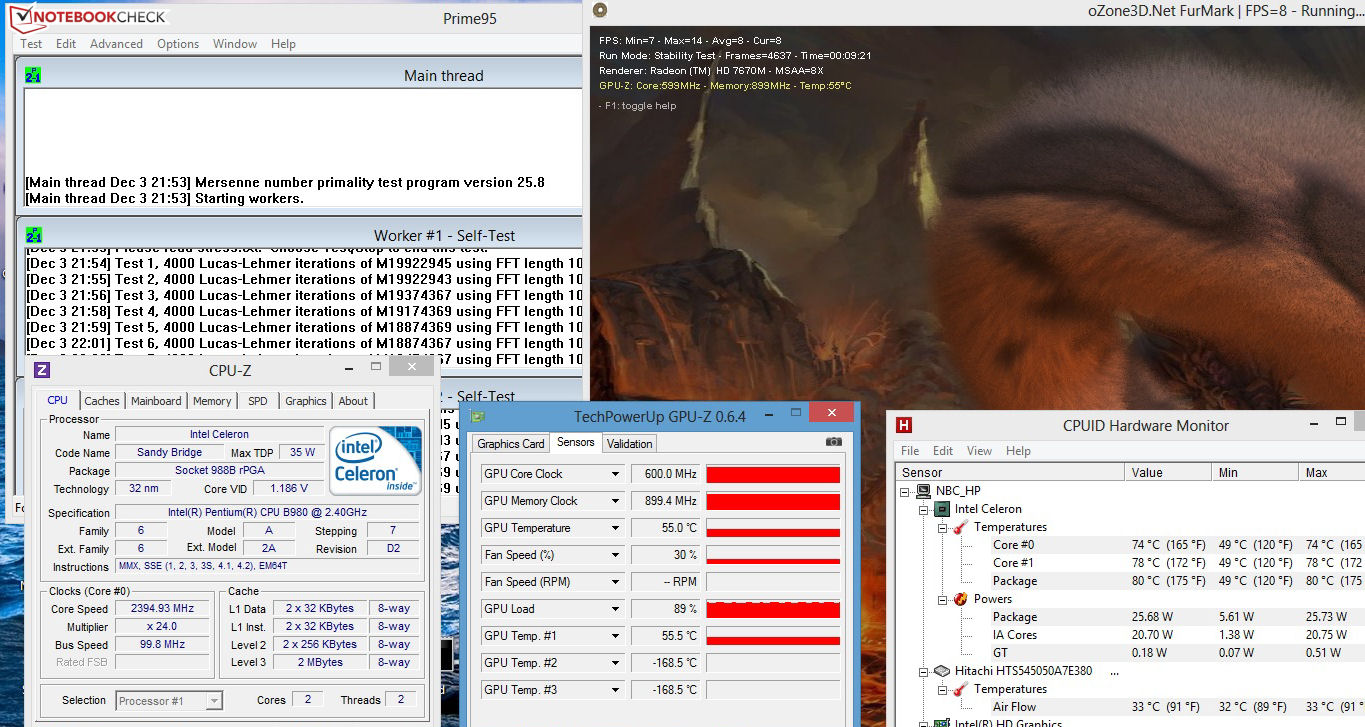

HP's Pavilion g6-2200sg during the stress test
HP's Pavilion g6-2200sg during the stress test

Regardless of the load the surface temperatures are fine. While idle the temperature only increases to 30.1 degrees Celsius on a single area (underside below the touchpad). Under full load (Prime 95 and Furmark run in parallel) the temperatures only rise moderately to 21.7 and 40.8 degrees Celsius. So, the laptop can be used on the lap in any case. Acer's Aspire V5-571G and Samsung's NP355V5C cannot compete with the HP here and develop more heat.

During our stress test (Prime 95 and Furmark run for at least an hour) CPU and GPU run at full speed on mains power. While CPU speed is not reduced on battery, the GPU's clock falls to 400 MHz and the CPU temperature levels off at 80 Grad Celsius.

不管负载的表面温度都很好。处于闲置状态时的温度上升到摄氏30.1度,在单一区域(触控板下方的底部)。在满负荷(总理95和Furmark的运行在平行)的温度仅温和上升至21.7和40.8摄氏度。因此,笔记本电脑可用于在任何情况下,上一圈。宏碁的Aspire V5-571G和三星的NP355V5C的无法与之抗衡HP在这里,开发出更多的热量。



在我们的压力测试(总理95和Furmark的运行至少一个小时)CPU和GPU全速运行在主电源。虽然CPU速度不减少电池供电,GPU的时钟下降到400 MHz的CPU温度水平在80研究生摄氏度。

Max. Load
 24.9 °C33.8 °C26.2 °C
 31.6 °C30.6 °C23 °C
 29.2 °C22.7 °C22 °C
Maximum: 33.8 °C
Average: 27.1 °C
24.2 °C38.2 °C40.8 °C
21.7 °C34.2 °C34.3 °C
22 °C26.5 °C25.1 °C
Maximum: 40.8 °C
Average: 29.7 °C
Power Supply (max.)  54.2 °C | Room Temperature 19.3 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 27.1 °C / 81 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 33.8 °C / 93 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.8 °C / 105 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-0.4 °C / -0.8 F).

Speakers

The stereo speakers of the notebook sit above the keyboard beneath a perforated grille. "Altec Lansing" and "Dolby Advanced Audio" suggest decent sound and this is not completely wrong. The speakers' sound is loud, but lacks bass. Speech is clearly audible and watching films is indeed possible without external solutions.

立体声扬声器的笔记本电脑,坐在键盘上方的一个穿孔的进气格栅下方。 “奥特蓝星”和“杜比PC先进音频技术”建议体面的声音,这是完全错误的。音箱的声音是响亮,但缺乏低音。语音清晰可闻,看电影的确是可能的,无需外部的解决方案。

Battery Life

Power Consumption

Similar to Samsung's computer our test device needs about 9.2 and 13.9 Watt while idle. Unsurprisingly, the Aspire V5-571G is significantly more frugal than its competitors, as it is equipped with a frugal ULV processor. Under medium (3D Mark 06) and full load (Prime95 and Furmark) the power consumption increases to 50 Watt and respectively 69 Watt. The Samsung (64.6 Watt and 67.1 Watt) is close to the Pavilion under full load. But, thanks to its frugal components, the Aspire (42.1 Watt and 49.5 Watt) performs better again.

耗电量



我们的测试设备需要类似三星的计算机空闲时约9.2和13.9瓦。不出所料的Aspire V5-571G是比其竞争对手更节俭的,因为它是一个节俭的ULV处理器配备。在介质(3D MARK06)和满载功耗(Prime95和FURMARK)增加至50瓦和69瓦分别。三星(64.6瓦和67.1瓦)是接近满负荷下的馆。但是,由于其节俭组件的Aspire(42.1瓦和49.5瓦)性能更好。

Power Consumption
Off / Standbydarklight 0.1 / 0.3 Watt
Idledarkmidlight 9.2 / 13.2 / 13.9 Watt
Load midlight 50 / 69 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Life

In idle mode our test sample achieves a battery runtime of 6:03 h minutes, while the Acer already shuts down after 5:43 h and Samsung's NP355V5C-S05DE runs for 7:05 h. The maximum battery life is recorded by means of the Battery Eater Reader's test with energy saving profile, lowest display brightness and disabled WiFi-modules. Under load the notebook achieves a minimal battery life of 1:21 h, which is similar to the competitor's (Acer: 1:32 h, Samsung: 1:23 h). The Battery Eater Classic Test is used for this test with highest display brightness and enabled WiFi modules.

In our WLAN test the HP achieves a runtime of 3:48 h (Acer, Samsung: 3:15 h).  Here our looping script simulates internet surfing by automatically loading new web page with different content every 40 seconds. During this test the display brightness is set to about 150 cd/m² and the energy saving profile is active. The DVD test, run at maximum display brightness and with energy saving profile (or higher if the DVD does not play smoothly) already ends after three hours. But the competitors have even shorter runtimes in this scenario (Acer: 2:42 h, Samsung: 2:22 h).

The battery runtimes of the Pavilion and the Samsung notebooks can be easily compared to each others as their battery capacities are nearly on par (HP: 47 Wh, Samsung: 48 Wh). On contrary, the Acer is equipped with a smaller battery (37 Wh).

在空闲模式下的六时03分Ĥ分钟,我们的测试样机实现了电池的使用时间,而宏碁已经关闭后,5时43 h和三星的NP355V5C S05DE7时05分Ĥ运行。记录最长的电池寿命电池食阅读器的测试手段,具有节能环保的个人主页上,最低显示亮度和残疾人的WiFi模块。笔记本电脑负载下实现了类似的竞争对手(宏碁:1:32ħ,三星:1:23ħ)1:21小时,这是一个最小的电池寿命。用于本次测试的最高显示亮度和功能的WiFi模块的电池食经典测试。



在我们的WLAN测试的HP实现的运行时间为3时48分H(宏碁,三星:3:15ħ)。在这里我们的循环脚本模拟不同的内容每40秒自动加载新的网页上网冲浪。在这个测试中,显示器的亮度被设置为约150坎德拉/平方米,节能档案中被激活。 DVD测试,运行在最大显示亮度和节能配置文件(或更高版本的DVD播放不流畅)已经在三小时后结束。但竞争对手在这种情况下有更短的运行时间(小时,三星宏碁:2:42:2:22ħ)。



馆和三星笔记本电脑的电池运行时间,可以很容易地相比,其电池容量是每个人几乎持平(HP,三星:48瓦47瓦)。正好相反,由于宏基配备一个较小的电池(37瓦)。

Battery Runtime
Idle (without WLAN, min brightness)
6h 03min
WiFi Surfing
3h 48min
DVD
3h 00min
Load (maximum brightness)
1h 21min

Verdict

HP's Pavilion g6-2200sg.
HP's Pavilion g6-2200sg.

The Pavilion g6-2200sg is a good deal and a decent notebook for all looking for a  cheap general purpose notebook. It delivers a fair system performance, which suffices most users, works quietly under low load and comes with a very contrast-rich display. Furthermore, the Pavilion is also interesting for gamers who do not like to spend 800 to 1000 Euro for a fancy gaming computer. The cons of the 15.6-incher are a short warranty period of only 12 month, the lack of GigaBit Ethernet and the inconvenient graphics switch.

Acer's Aspire V5-571G is basically interesting for user looking for an especially thin an frugal device. We also recommend the Aspire if maximum CPU performance is required while we suggest the Samsung NP355V5C-S05DE if a long battery life and/or a matte display are buying criteria.

馆G6-2200sg是一个很好的协议和一个像样的笔记本电脑都在寻找一个便宜的一般用途的笔记本电脑。它提供了一个公平的系统性能,足够大多数用户在低负荷下,悄悄地,并配备了非常丰富的对比显示。此外,展馆也很有趣,谁不喜欢花费800至1000欧元的豪华电脑游戏的玩家。 15.6英寸的利弊是一个只有12个月的保修期短,缺乏千兆以太网和不便显卡切换。



宏碁的Aspire V5-571G为用户寻找一个特别薄,节约型的设备基本上是有趣的。我们还建议最大CPU性能的Aspire如果需要,我们建议三星NP355V5C S05DE如果一个较长的电池寿命和/或雾面显示屏所购买的标准。

Courtesy of ...
Please share our article, every link counts!
In Review: HP Pavilion g6-2200sg
In Review: HP Pavilion g6-2200sg, courtesy of:

Specifications

HP Pavilion g6-2200sg (Pavilion g6 Series)
Processor
Intel Pentium B980 2 x 2.4 GHz, Sandy Bridge
Graphics adapter
AMD Radeon HD 7670M - 1024 MB VRAM, Core: 600 MHz, Memory: 900 MHz, 8.982.6.0, GPU-Umschaltung
Memory
6 GB
, DDR3, Dual-Channel
Display
15.60 inch 16:9, 1366 x 768 pixel, TN LED, glossy: yes
Mainboard
Intel HM76 (Panther Point)
Storage
Hitachi Travelstar Z5K500 HTS545050A7E380, 500 GB
, 5400 rpm
Soundcard
Intel Panther Point PCH - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: headphones, mic, Card Reader: SD, MMC
Networking
Realtek RTL8102E Family PCI-E Fast Ethernet (10/100MBit/s), Ralink RT5390R 802.11b/g/n 1x1 Wi-Fi Adapter (b/g/n = Wi-Fi 4/)
Optical drive
HP DVDRAM GT50N
Size
height x width x depth (in mm): 36 x 376 x 244
Battery
47 Wh Lithium-Ion
Operating System
Microsoft Windows 8 64 Bit
Camera
Webcam: Ja
Additional features
Speakers: stereo, Keyboard: Chiclet, Keyboard Light: no, 诺顿网络安全特警(60天试用),讯连科技媒体套件10,讯连科技YouCam,微软Office 2010入门,Windows Live Essentials的11日,Skype公司, 12 Months Warranty
Weight
2.5 kg, Power Supply: 298.5 g
Price
479 Euro



A number pad is available.
A number pad is available.
The key size is comfortable.
The key size is comfortable.

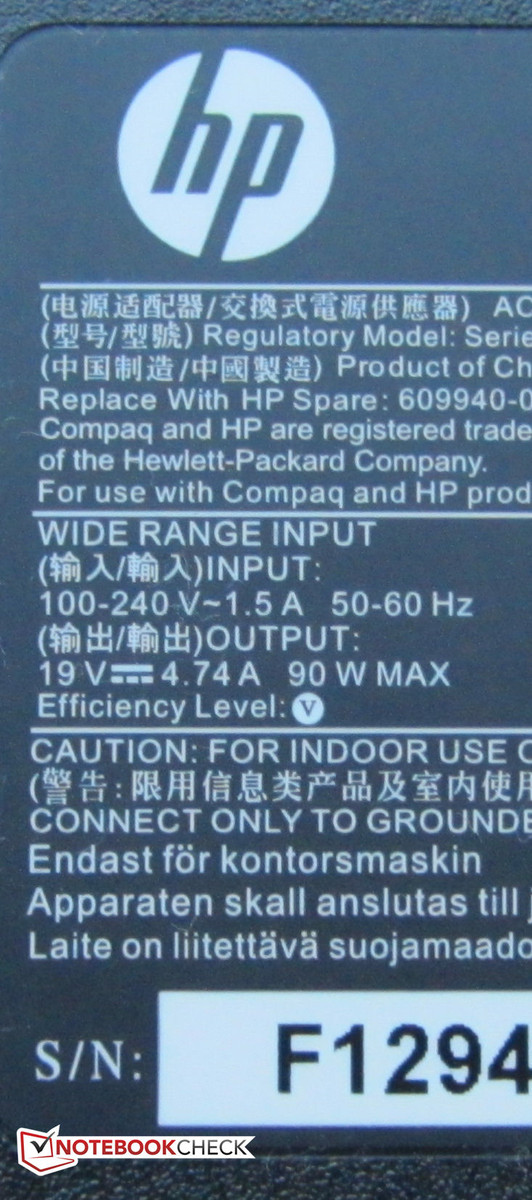

...and delivers up to 90 watt.
...and delivers up to 90 watt.

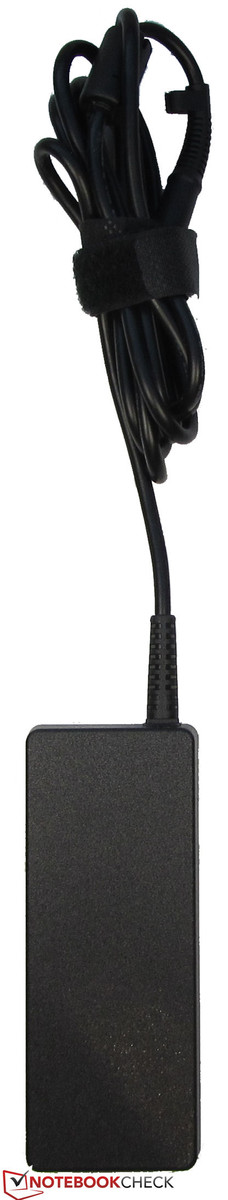

The power adapter weighs 354.5 gram...
The power adapter weighs 354.5 gram...

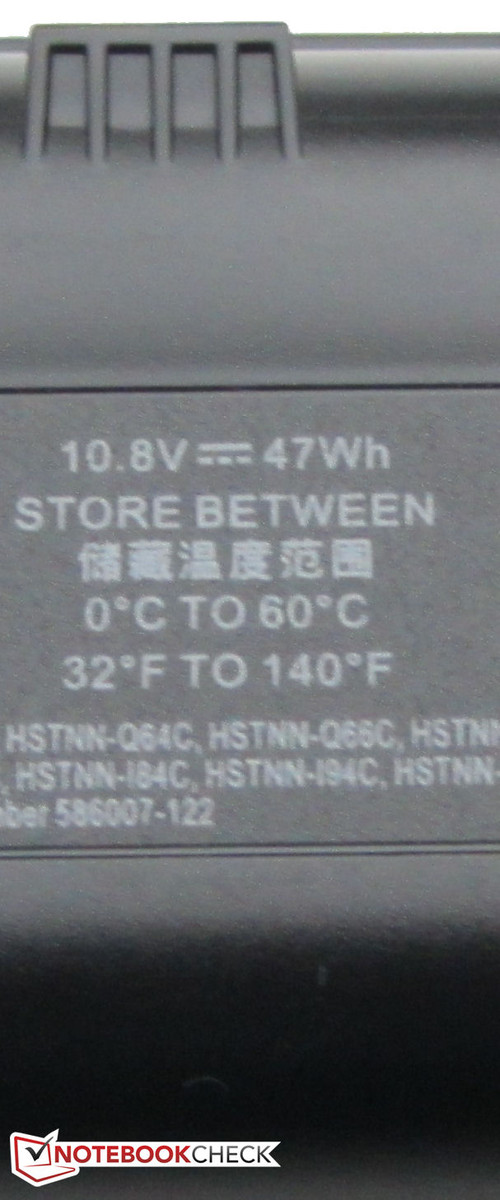

...and has a capacity of 47 Wh.
...and has a capacity of 47 Wh.

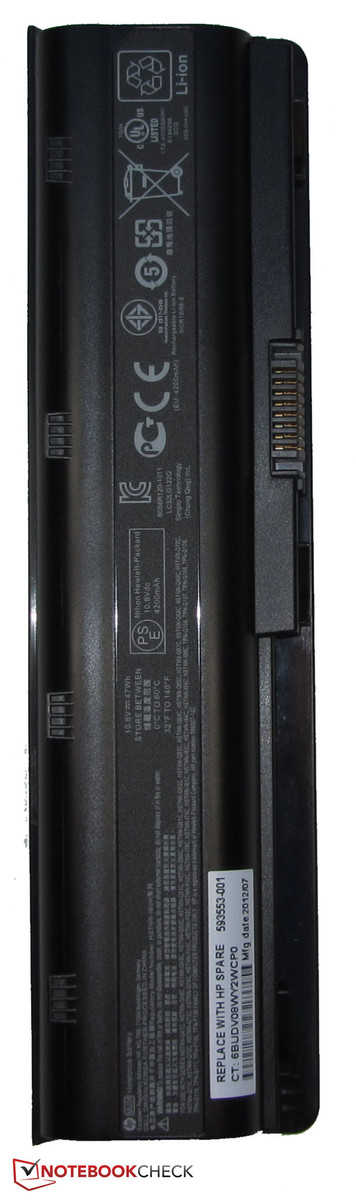

The battery weighs 298.5 gram...
The battery weighs 298.5 gram...
Nice: two WiFi antennas
Nice: two WiFi antennas
The hard drive is clearly audible
The hard drive is clearly audible
two RAM slots
two RAM slots
The maintenance cover is only held by a single screw.
The maintenance cover is only held by a single screw.
The DVD burners reads and writes all kinds of DVDs and CDs.
The DVD burners reads and writes all kinds of DVDs and CDs.
Outdoors
Outdoors

Similar Laptops

Devices from a different Manufacturer and/or with a different CPU

惠普 Envy m6-1101sg 笔记本测评
Radeon HD 7670M, Core i5 3210M
惠普 Envy 6-1000sg 超级本测评
Radeon HD 7670M, Core i5 3317U
惠普 Envy 6-1000sg 超级本测评
Radeon HD 7670M, Core i5 3317U

Devices with the same GPU

三星3系列350E7C S08DE笔记本测评
Radeon HD 7670M, Core i7 3610QM, 17.30", 2.79 kg
东芝Satellite L870-16P笔记本测评
Radeon HD 7670M, Core i5 3210M, 17.30", 2.7 kg

Devices with Same Screen Size and/or Weight

惠普Pavilion Plus 16 评论:配备 RTX 4050 的高级多媒体笔记本电脑
GeForce RTX 3050 6GB Laptop GPU, Raptor Lake-H i7-13700H, 16.00", 1.89 kg

Links

Compare Prices

Pros

+对比丰富的显示功能
+不错的游戏性能
+体面键盘
+在低负载情况下安静
+便宜的


Cons

-仅仅12个月的保修期
-只是快速以太网
-GPU-频繁切换,需要手动配置
-温和的电池运行时间

Shortcut

What we like

the contrast-rich display, the low price, the good performance

What we'd like to see

a Gigabit Ethernet port

What surprises us

HP offer much gaming performance for little money with the Pavilion g6-220sg.

The competition

Acer Aspire V5-571G, Samsung NP355V5C-S05DE, Lenovo IdeaPad N586, Acer Aspire V3-551G, Fujitsu Lifebook AH532, Medion Akoya P6812 MD98760, Samsung 300E5A-S01

我们喜欢



对比丰富的显示功能,低廉的价格,良好的性能



我们希望看到什么



一个千兆以太网端口



但令人惊讶的



HP的Pavilion G6-220sg提供多一点钱的游戏性能。



本次大赛



宏碁Aspire V5-571G NP355V5C-S05DE,三星,联想IdeaPad N586,宏碁Aspire MEDION AKOYA P6812 MD98760,三星300E5A-S01 V3-551G,富士通LIFEBOOK AH532,

Rating

HP Pavilion g6-2200sg - 12/06/2012 v3 (old)
Sascha Mölck

Chassis
78%
Keyboard
82%
Pointing Device
80%
Connectivity
66%
Weight
81%
Battery
82%
Display
77%
Games Performance
77%
Application Performance
88%
Temperature
90%
Noise
83%
Add Points
81%
Average
80%
80%
Multimedia - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 惠普Pavilion g6-2200sg 笔记本测评
Sascha Mölck, 2012-12-20 (Update: 2014-06-13)
