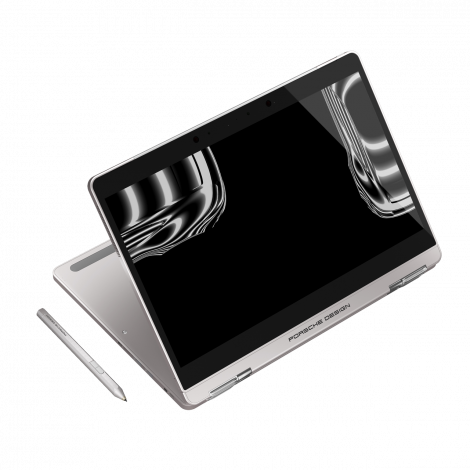

Porsche Design BOOK ONE

Specifications

Porsche Design BOOK ONE
Porsche Design BOOK ONE
Processor
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Graphics adapter
Memory
16 GB
, Dual-Channel LPDDR3-1866
Display
13.30 inch 16:9, 3200 x 1800 pixel 276 PPI, 10-Finger kapazitiv, native pen support, SHP147D (LQ133Z1JZ25), IPS, Gorillaglas 4, Anti-Fingerprint-Beschichtung, Anti-Reflexionsbeschichtung, glossy: yes, detachable screen
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Intel SSD 600p SSDPEKKW512G7, 512 GB
, 441 GB free
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 DisplayPort, Audio Connections: 3.5 mm, Card Reader: microSD, Brightness Sensor
Networking
Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 15.9 x 311.4 x 226.5
Battery
70 Wh Lithium-Polymer, 25 Wh Tablet + 45 Wh Tastatur-Dock
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 5 MP + IR-Kamera
Additional features
Speakers: 2x 2 Watt, Keyboard: Chiclet, Keyboard Light: yes, 60-Watt USB-C-Netzteil, BOOK ONE PEN, Adapter USB-C auf HDMI, AAAA-Batterie, Reinigungstuch, Schnellstartanleitung, Sicherheitsbestimmungen, Microsoft Office Testversion, 24 Months Warranty
Weight
1.573 kg, Power Supply: 760 g
Price
2795 Euro



Price comparison

Average Score: 70.93% - average
Average of 4 scores (from 4 reviews)
price: - %, performance: 41%, features: 56%, display: 89% mobility: 80%, workmanship: 76%, ergonomy: 86%, emissions: 78%

Reviews for the Porsche Design BOOK ONE

80.7% Porsche Design BOOK ONE (i7, 512 GB, QHD+) Convertible Review | Notebookcheck
A Porsche with performance problems. The Book One from Porsche Design is a noble 2-in-1 system for $2,500. However, you will be disappointed if you expect maximum performance and quality. We tested the new device.
69% Recensione PORSCHE DESIGN book ONE
Source: Andrea Galeazzi Italian IT→zh-CN Archive.org version
Single Review, online available, Short, Date: 01/15/2018
Rating: Total score: 69%
67% Test Af Porsche Design Book One
Source: Lyd og Billede DA→zh-CN Archive.org version
Single Review, online available, Short, Date: 01/17/2018
Rating: Total score: 67%
Test Av Porsche Design Book One
Source: Ljud och Bild SV→zh-CN Archive.org version
Single Review, online available, Short, Date: 01/05/2018
67% Test Av Porsche Design Book One
Source: Ljud och Bild SV→zh-CN Archive.org version
Single Review, online available, Short, Date: 01/05/2018
Rating: Total score: 67%

Comment

Intel HD Graphics 620:

集成显卡(GT2, 24 EUs)可以在一些Kaby-Lake-Refresh处理器构架(15 W ULV 系列)中找到。而在技术上,与前代 Kaby-Lake集成显卡相同,我们称它为HD Graphics 620.



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7500U:

基于Kaby-Lake架构的双核处理器,主频为2.7至3.5 GHz,支持超线程,采用改进的14纳米制程技术制造。

» Further information can be found in our Comparison of Mobile Processsors.


13.30":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.573 kg: 这是11到13寸的超大尺寸平板电脑,亚笔记本电脑,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
