惠普 Pro X2 410 G1 变形本简短评测

安静的诱惑。 HP Pro X2 410并不是一款简单的2合1笔记本。它配备了Core i5处理器和快速的固态硬盘,且采用了无风扇的散热系统。这是一个前所未有的设计,但是否可行呢?
Haswell Ultrabook Convertible / 2-in-1
387
cd/m²
378
cd/m²
396
cd/m²
358
cd/m²
380
cd/m²
375
cd/m²
314
cd/m²
345
cd/m²
326
cd/m²
Distribution of brightness
LG Philips LGD039E tested with X-Rite i1Pro 2
Maximum: 396 cd/m² (Nits) Average: 362.1 cd/m²
Brightness Distribution: 79 %
Center on Battery: 380 cd/m²
Contrast: 567:1 (Black: 0.67 cd/m²)
ΔE Color 4.17 | 0.5-29.43 Ø4.93
ΔE Greyscale 2.35 | 0.5-98 Ø5.2
Gamma: 2.35
Cinebench R11.5
CPU Multi 64Bit (sort by value)
HP Pro X2 410 G1
HD Graphics 4200, 4202Y, Sandisk X110 SD6SN1M-256G-1006
1.82 Points
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
2.51 Points +38%
Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM
1.05 Points -42%
CPU Single 64Bit (sort by value)
HP Pro X2 410 G1
HD Graphics 4200, 4202Y, Sandisk X110 SD6SN1M-256G-1006
0.48 Points
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
1.14 Points +138%
Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM
0.66 Points +38%
Cinebench R11.5 CPU Multi 64Bit
1.82 Points
Cinebench R11.5 OpenGL 64Bit
16.34 fps
Cinebench R11.5 CPU Single 64Bit
0.48 Points
Cinebench R15 CPU Multi 64Bit
169 Points
Cinebench R15 CPU Single 64Bit
72 Points
Help
PCMark 7 - Score (sort by value)
HP Pro X2 410 G1
HD Graphics 4200, 4202Y, Sandisk X110 SD6SN1M-256G-1006
4095 Points
HP Spectre 13-h205eg x2
HD Graphics 4200, 4202Y, Samsung SSD PM841 MZMTD128HAFV mSATA
4139 Points +1%
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
4808 Points +17%
Fujitsu Stylistic Q704
HD Graphics 4400, 4300U, Samsung MZNTD128HAGM
3248 Points -21%
Asus Transformer Book Trio TX201LA
HD Graphics 4400, 4500U, Hitachi Travelstar Z5K500 HTS545050A7E680
2906 Points -29%
PCMark 7 Score
4095 points
Help
Sandisk X110 SD6SN1M-256G-1006
Sequential Read: 499.3 MB/s
Sequential Write: 426.3 MB/s
512K Read: 286.3 MB/s
512K Write: 371 MB/s
4K Read: 30.78 MB/s
4K Write: 70.4 MB/s
4K QD32 Read: 313.2 MB/s
4K QD32 Write: 202.4 MB/s
3DMark 06
Score Unknown Setting (sort by value)
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
2108 Points
1280x1024 Standard Score AA:0x AF:0x (sort by value)
HP Pro X2 410 G1
HD Graphics 4200, 4202Y, Sandisk X110 SD6SN1M-256G-1006
3521 Points
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
6253 Points +78%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
1868 Points -47%
3DMark 06 Standard Score
3521 points
Help
Max. Load
 32.5 °C35 °C34.9 °C
 32.5 °C37.4 °C35 °C
 33.5 °C38.6 °C38 °C
Maximum: 38.6 °C
Average: 35.3 °C
33.8 °C41.1 °C33.7 °C
34.2 °C41.5 °C32.8 °C
34.2 °C35.1 °C32.5 °C
Maximum: 41.5 °C
Average: 35.4 °C
Power Supply (max.)  35.9 °C | Room Temperature 23.8 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.4 °C / 87 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.6 °C / 101.5 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-10.5 °C / -18.9 F).
Battery Runtime - WiFi (sort by value)
HP Pro X2 410 G1
500 min
HP Spectre 13-h205eg x2
445 min
HP Split x2
361 min
Asus Transformer Book Trio TX201LA
291 min
Fujitsu Stylistic Q702 (LKN:Q7020M0002PL)
445 min
Microsoft Surface Pro 2
387 min
Fujitsu Stylistic Q704
411 min

Legend


HP Pro X2 410 G1 Intel Core i5-4202Y, Intel HD Graphics 4200, Sandisk X110 SD6SN1M-256G-1006

HP Spectre 13-h205eg x2 Intel Core i5-4202Y, Intel HD Graphics 4200, Samsung SSD PM841 MZMTD128HAFV mSATA

HP Split x2 Intel Core i3-3229Y, Intel HD Graphics 4000, Micron RealSSD C400 MTFDDAT128MAM-1J2

Asus Transformer Book Trio TX201LA Intel Core i7-4500U, Intel HD Graphics 4400, Hitachi Travelstar Z5K500 HTS545050A7E680

Fujitsu Stylistic Q702 (LKN:Q7020M0002PL) Intel Core i3-3217U, Intel HD Graphics 4000, Samsung SSD 830 Series MZ7PC128HAFU

Microsoft Surface Pro 2 Intel Core i5-4200U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Fujitsu Stylistic Q704 Intel Core i5-4300U, Intel HD Graphics 4400, Samsung MZNTD128HAGM
Battery Runtime
Idle (without WLAN, min brightness)
12h 00min
WiFi Surfing
8h 20min
Big Buck Bunny H.264 1080p
9h 10min
Load (maximum brightness)
4h 00min

Tablet & Dock: Video and WLAN (Browsing) playback performed using IE and Video Metro/Modern RT apps.

Battery Runtime
Idle (without WLAN, min brightness)
7h 40min
WiFi Surfing
5h 30min
Big Buck Bunny H.264 1080p
6h 00min
Load (maximum brightness)
3h 00min

Tablet only

Power Consumption
Off / Standbydarklight 0.2 / 0.3 Watt
Idledarkmidlight 4.1 / 7.4 / 7.4 Watt
Load midlight 13.5 / 13.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

这款2合1设计的多面手向我们证明了性能表现并不总是与规格参数挂钩的。过热引发的降频让HP Pro X2 410 G1在长时间的处理器和显卡高负载运行中性能下降了近40%,这在炎热的天气下变得尤其明显。不过HP Pro X2 410在大多数的情况下,如办公软件应用,网络应用和视频播放,以及Windows Store游戏运行中仍然性能表现出色,同时保证了作为便携笔记本的不错电池续航时间。

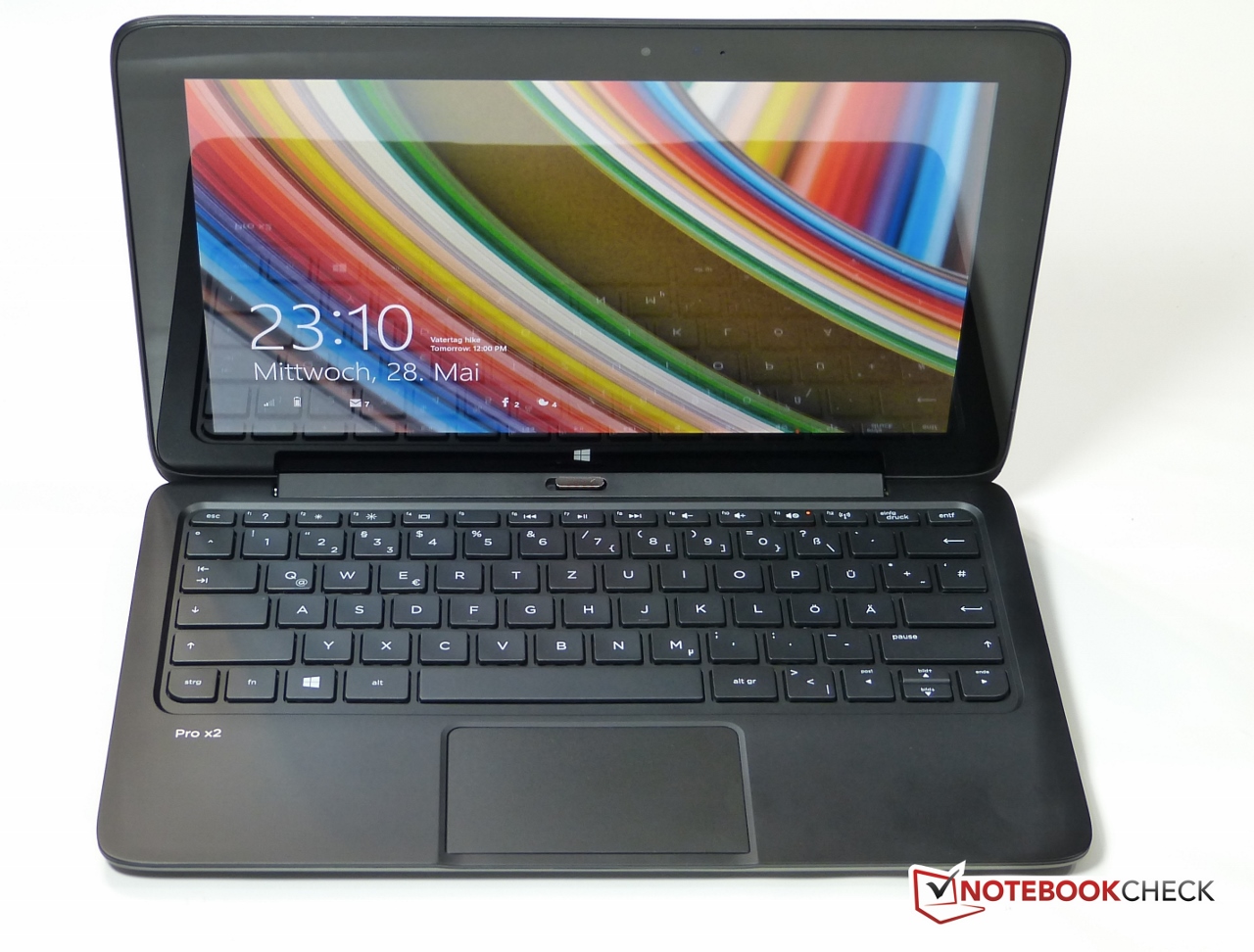

这种2合1设计最大的短板在于基座重量和屏幕开合角度的难以两全。这款笔记本在屏幕展开的时候,尽管角度很小,却依然很容易向后倾倒。

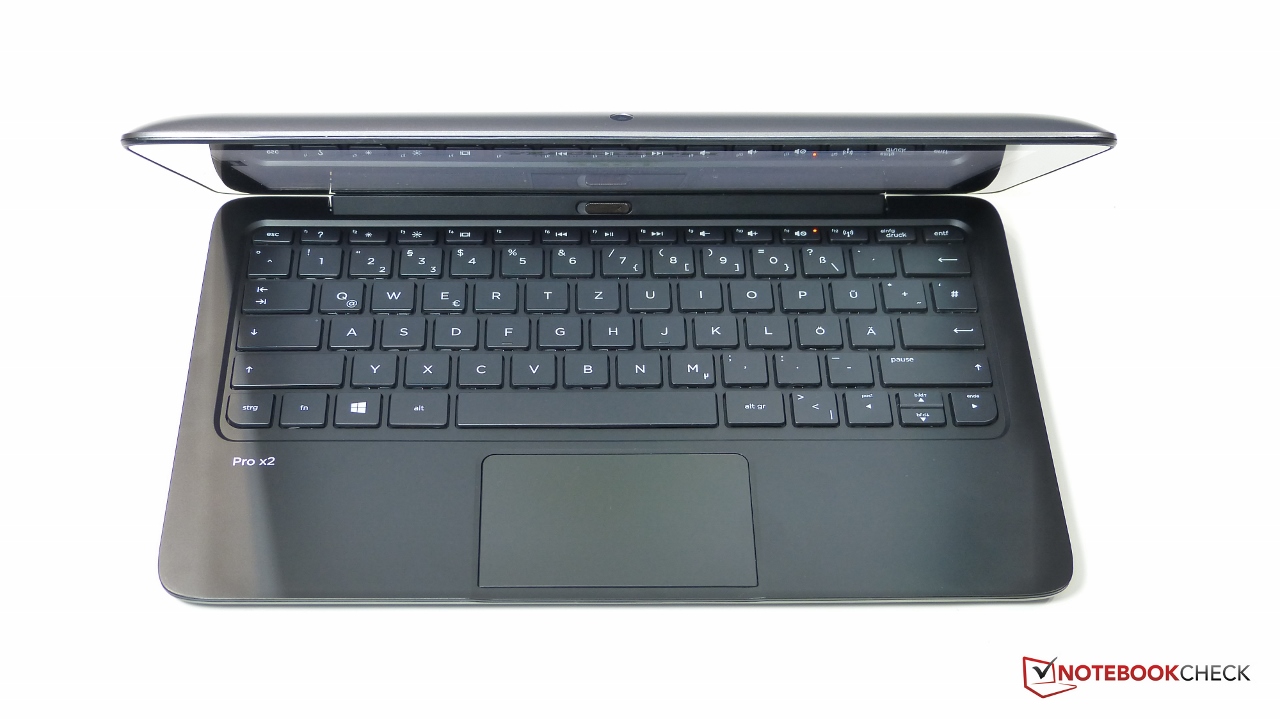

在工作区域——屏幕,键盘,和鼠标——Pro X2 410则为我们提供了高质量的部件,以及非常坚固的机身。

对于一部分用户来说, Pro X2 410 G1是他们所需要的唯一一台电脑,既用于在桌面连接外接显示器使用,也可以在会议或办公室中移动使用;但对于其他用户来说这款笔记本的高重量可能会影响它的实用性。这款产品的定位是中小企业需要使用电脑移动办公,而不需要使用高性能视频编缉、大量图片处理或其他高强度运算的用户。电脑游戏爱好者可能需要看看别的产品,尽管它也可以运行一些Windows Store和win RT版的游戏,但显然这并不是游戏玩家所需要的。

HP Pro X2 410将会与Microsoft Surface Pro 2Pro 3,以及面向商务用户的Fujitsu Stylistic Q704直接对抗。惠普最新发布的Pro X2 610可能也是一个有力的竞争者,同时其他的一体式变形本如Thinkpad Yoga也可以纳入参考范围。

HP Pro X2 410是一款优秀的2合1笔记本产品。这是一款侧重笔记本模式、有不错电池续航时间、且可以充当无噪音台式机或平板的变形本产品。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

HP Pro X2 410 G1 Convertible/2-in-1
HP Pro X2 410 G1 Convertible/2-in-1


Please share our article, every link counts!

Specifications

HP Pro X2 410 G1 (Pro X2 Series)
Processor
Intel Core i5-4202Y 2 x 1.6 - 2 GHz, Haswell
Graphics adapter
Intel HD Graphics 4200, Core: 848 MHz, RAM: 798 MHz
Memory
4 GB
, DDR3
Display
11.60 inch 16:9, 1366 x 768 pixel, 电容型,10点触控, LG Philips LGD039E, IPS, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
Sandisk X110 SD6SN1M-256G-1006, 256 GB
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5毫米整合耳机接口, Card Reader: 平板上的MicroSD卡槽,和键盘基座上的SD卡槽, Sensors: 基础Windows传感器套件
Networking
Ralink RT3290 802.11n Wireless Network Adapter (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 25 x 303 x 193
Battery
51 Wh Lithium-Polymer
Operating System
Microsoft Windows 8.1 Pro 64 Bit
Camera
Webcam: 200万像素前置,200万像素后置
Additional features
Speakers: Stereo, Keyboard: 孤岛式, Keyboard Light: no, 12 Months Warranty
Weight
1.596 kg
Price
1128 Euro



Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

联想 Miix 2 11 多模式平板简短评测
HD Graphics 4200, Core i3 4012Y

Devices with the same GPU

惠普 Split x2 13-m210eg 变形本简短评测
HD Graphics 4200, Core i5 4210Y, 13.30", 2.2 kg

Devices with Same Screen Size and/or Weight

惠普 Elite x360 1040 G11 二合一笔记本评测:适合商务人士使用
Arc 8-Core, Meteor Lake-H Ultra 7 165H, 14.00", 1.487 kg
惠普 Envy x360 2 合 1 16 评论:Ryzen 7 8840HS 击败酷睿 7 155U
Radeon 780M, Hawk Point (Zen 4/4c, Ryzen 8040) R7 8840HS, 16.00", 1.769 kg

Pros

+ 性能最强的无噪音平板其中之一
+ 优秀的做工
+ 不错的键盘
+ 电池续航

Cons

- 略差的屏幕可视角度
- 作为11.6寸笔记本电脑来说过沉
- 作为11.6寸平板电脑来说过沉
- 在负载下会很烫

HP Pro X2 410 G1 - 06/17/2014 v4 (old)
Steve Chippy Paine

Chassis
76 / 98 → 78%
Keyboard
77%
Pointing Device
83%
Connectivity
55 / 80 → 69%
Weight
68 / 35-78 → 77%
Battery
91%
Display
80%
Games Performance
50 / 68 → 74%
Application Performance
65 / 87 → 75%
Temperature
83%
Noise
100%
Audio
60 / 91 → 66%
Camera
38 / 85 → 45%
Add Points
-4%
Average
66%
75%
Convertible - Weighted Average
