Qualcomm Adreno 330

Qualcomm Adreno 330
高通Adreno 330是一款为智能手机和平板设计的集成于高通整合系统芯片中的显卡。它最早发布于2013年中旬，主要用于安卓设备中。这款显卡采用了名为FlexRender的技术。它可以“智能地”在TBR(Tile Based Renderer,基于区块的渲染器)和传统的直接渲染之间切换。它提供了对OpenGL ES 3.0的支持，大多使用于安卓系统的智能手机和平板电脑中。 Adreno 330的主频根据所属的系统芯片的型号不同而不同。它从在Snapdragon 800 MSM8974中的450MHz，到在MSM8974AB中的550MHz，最高到Snapdragon 801 MSM8974AC中的578MHz。 相比Adreno 320，它在架构上有一些较小的改变。 作为一款安卓设备处理器中的高端显卡（在2013年），Adreno 330可以满足复杂游戏的性能需求。我们测试了Acer Liquid S2（请参考我们的评测）的Snapdragon 800 MSM8974中运行于450MHz的Adreno 330显卡。在这款平板上游戏运行于1920x1080分辨率下，因此对显卡的要求较高。 Real Racing 3在高设定下（通过RR3 Graphics应用）在一部分赛道中十分流畅不过在另外一些可以看到很多赛车的赛道中有些卡帧。在中设定下它可以一直地保持流畅运行。不过电池消耗（在3个比赛共45分钟的运行后消耗了25%的电量）和发热量都很高。 Fifa 14和Angry Birds Go都可以比较流畅地运行，尽管都会遇到一些轻微的卡帧现象。在Angry Birds Go的测试中它给我们的感觉是一直运行于较低的帧数范围。 较老的游戏如GTA 3和需求较低的游戏如Subway Surf或Temple Run 2对于Liquid S2来说都没什么问题。特别是这两款游戏都可以运行于较高的帧数下。

Adreno 300 Series

Adreno 330 32 @ 0.45 - 0.58 GHz
Adreno 320 16 @ 0.4 GHz
Adreno 308 6
Adreno 306 6 @ 0.45 GHz
Adreno 305 6 @ 0.45 GHz
Adreno 304 6 @ 0.4 GHz
Adreno 302 6 @ 0.4 GHz
Pipelines32 - unified
Core Speed450 - 578 (Boost) MHz
Shared Memoryyes
APIDirectX 9_3, OpenGL ES 3.0
technology28 nm
Date of Announcement07.01.2013
CPU in Adreno 330GPU Base SpeedGPU Boost / Turbo

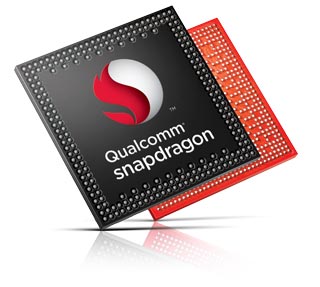

Qualcomm Snapdragon 801 MSM8974AC4 x 2450 MHz578 MHz? MHz
Qualcomm Snapdragon 801 APQ8074AB4 x 2360 MHz578 MHz? MHz
Qualcomm Snapdragon 801 MSM8974AB4 x 2360 MHz578 MHz? MHz
» show 2 more
min. - max.450 - ? MHz? - 450 MHz

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
min: 10153     avg: 17810     median: 18007 (2%)     max: 22684 Points
+ 34 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Extreme Graphics
min: 7283     avg: 9051     median: 9118 (1%)     max: 10768 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Ice Storm Graphics
min: 10184     avg: 15992     median: 17935 (2%)     max: 21680 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot (ES 3.0) Unlimited
974 Points (4%)
+ 2 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot (ES 3.0) Unlimited Graphics
1030 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot Extreme (ES 3.1) Unlimited
0 Points (0%)
+ 1 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot (ES 3.0)
min: 710     avg: 1030     median: 1116.5 (10%)     max: 1176 Points
+ 5 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot (ES 3.0) Graphics
min: 643     avg: 1006     median: 1089.5 (7%)     max: 1202 Points
+ 4 benchmarks and specifications   + Show comparison chart
3DMark - 3DMark Sling Shot Extreme (ES 3.1)
0 Points (0%)
+ 1 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 8.1     avg: 10.5     median: 11 (0%)     max: 12.1 fps
+ 25 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 13     avg: 23.6     median: 24 (0%)     max: 28.1 fps
+ 39 benchmarks and specifications   + Show comparison chart
AnTuTu 3DRating - 3DRating V4.0 for OpenGL ES 2.0
min: 4826     avg: 5231     median: 5231 (39%)     max: 5636 Points
+ 2 benchmarks and specifications   + Show comparison chart
AnTuTu 3DRating - Antutu 3.0 3DRating Score
10143 Points (100%)
+ 1 benchmarks and specifications   + Show comparison chart
AnTuTu v3 - AnTuTu v3 GPU
9637 Points (100%)
+ 1 benchmarks and specifications   + Show comparison chart
Basemark ES 2.0 - Basemark ES 2.0
min: 43.06     avg: 58.6     median: 59.6 (98%)     max: 60 fps
+ 20 benchmarks and specifications   + Show comparison chart
Basemark X 1.0 - Basemark X 1.0 Off-Screen
min: 11.9     avg: 14.1     median: 14.2 (67%)     max: 15.6 fps
+ 12 benchmarks and specifications   + Show comparison chart
Basemark X 1.1 - Basemark X 1.1 High Quality
min: 8851     avg: 11510     median: 11943 (27%)     max: 12943 Points
+ 15 benchmarks and specifications   + Show comparison chart
Basemark X 1.1 - Basemark X 1.1 Medium Quality
min: 17913     avg: 22815     median: 23230 (52%)     max: 25299 Points
+ 16 benchmarks and specifications   + Show comparison chart
NenaMark2 - NenaMark2 Score
min: 58.3     avg: 59.7     median: 59.9 (89%)     max: 60.3 fps
+ 19 benchmarks and specifications   + Show comparison chart
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 2D Graphics Tests
min: 1829     avg: 3304     median: 3382 (1%)     max: 4122 Points
+ 21 benchmarks and specifications   + Show comparison chart
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 3D Graphics Tests
min: 786     avg: 1326     median: 1242 (2%)     max: 2061 Points
+ 19 benchmarks and specifications   + Show comparison chart
Smartbench 2012 - Smartbench 2012 Gaming Index
min: 3414     avg: 4238     median: 4354 (95%)     max: 4568 points
+ 27 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Battle Bay

Battle Bay

2018
high
34  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Dead Trigger 2

Dead Trigger 2

2013
high
27 2392 x 1440 30 32 1920 x 1080 ~ 30 fps    + Compare + 📈 Graph
» The benchmarks indicate that the game is not playable in the tested settings.
Fifa 14 Mobile Android

Fifa 14 Mobile Android

2013
high
29 2392 x 1440 29.4 1920 x 1080 ~ 29 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Asphalt 8: Airborne

Asphalt 8: Airborne

2013
low
28 2392 x 1440  fps    + Compare
high
27.7 2392 x 1440 28 1920 x 1080 28 29 1920x1080 ~ 28 fps    + Compare + 📈 Graph
» The benchmarks indicate that the game is not playable in the tested settings.
Gangstar Vegas

Gangstar Vegas

2013
ultra
16 2392 x 1440 20.3 1920 x 1080 ~ 18 fps    + Compare + 📈 Graph
» The benchmarks indicate that the game is not playable in the tested settings.

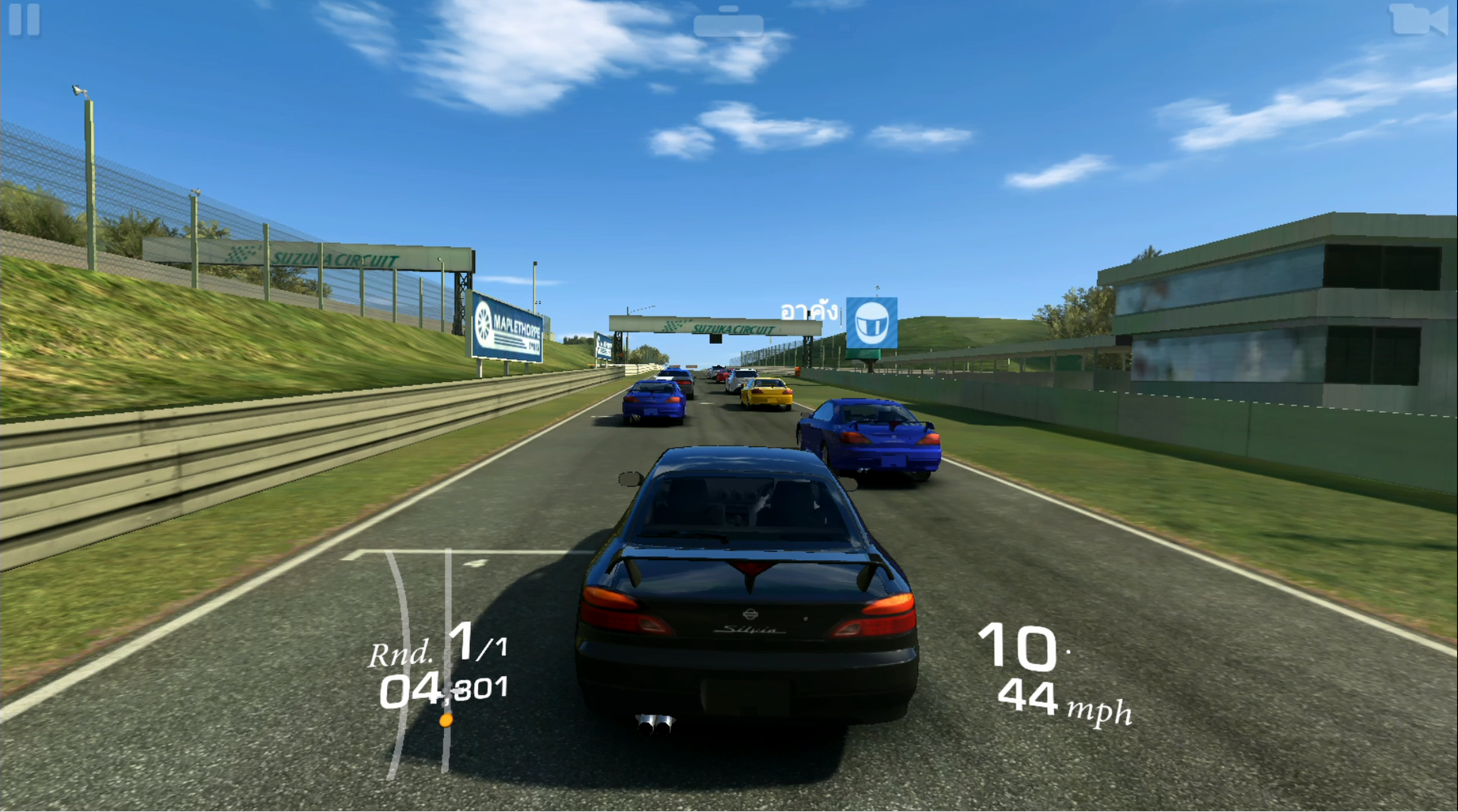

Real Racing 3

Real Racing 3

2013
high
23 2392 x 1440 28.5 1920x1080 □ ~ 26 fps    + Compare + 📈 Graph
» The benchmarks indicate that the game is not playable in the tested settings.

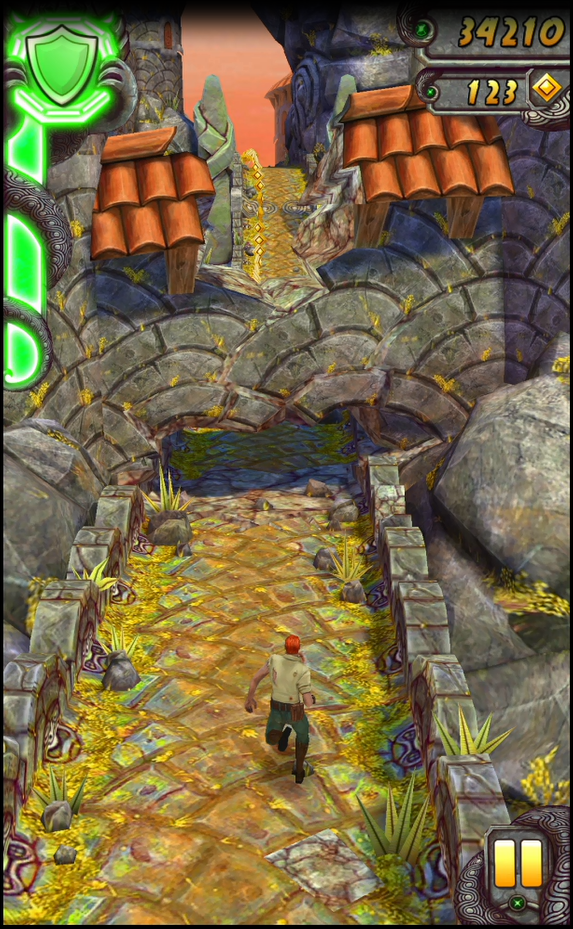

Temple Run 2

Temple Run 2

2013
high
58 □ 59 1440 x 2406 59 1920x1080 ~ 59 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.

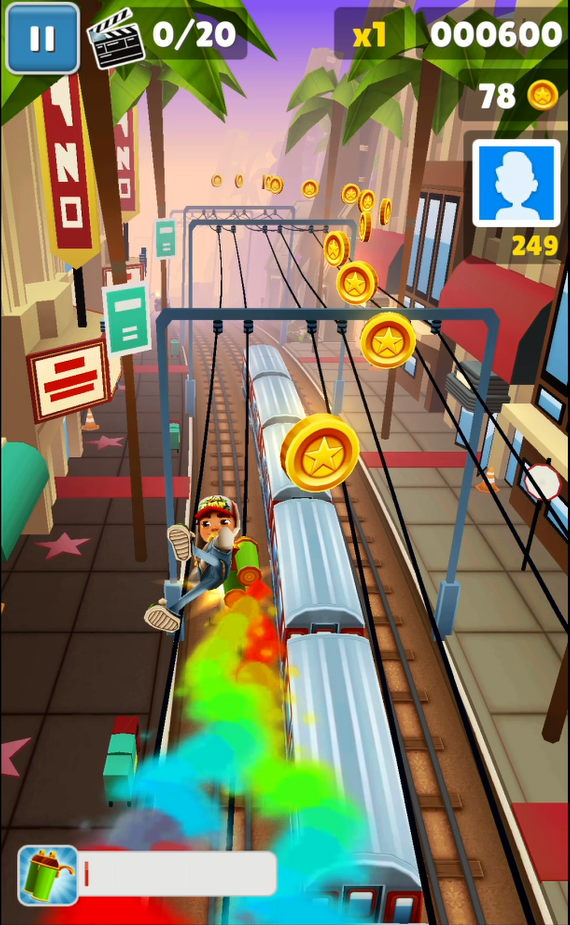

Subway Surfers

Subway Surfers

2012
high
49 1440 x 2406 56 1920x1080 □ ~ 53 fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings high.
Grand Theft Auto 3 Android

Grand Theft Auto 3 Android

2011
low
24.5 2392 x 1440 27 1920 x 1080 ~ 26 fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Minecraft - Pocket Edition

Minecraft - Pocket Edition

2011
ultra
45 2392 x 1440 57.9 1920 x 1080 ~ 51 fps    + Compare
» With all tested laptops playable in detail settings ultra.
lowmed.highultraQHD4K
Battle Bay34
Dead Trigger 230
Fifa 14 Mobile Android29
Asphalt 8: Airborne2828
Gangstar Vegas18
Real Racing 326
Temple Run 259
Subway Surfers53
Grand Theft Auto 3 Android26
Minecraft - Pocket Edition51
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		2





3
4

1
1







For more games that might be playable and a list of all games and graphics cards visit our Gaming List
