东芝 Satellite L70-B-130 笔记本电脑简短评测

骨“灰”玩家? 东芝自信地宣传它们的新多媒体笔记本产品,配备AMD R9 M265X显卡的Satellite L70-B-130提供了“终极图形性能”。我们的评测将会告诉你这款17村的笔记本是否兑现了东芝的承诺,骨“灰”的含义又在哪里,最后这款笔记本更适合什么样的用户选择。
Haswell Laptop / Notebook Windows
190
cd/m²
198
cd/m²
204
cd/m²
222
cd/m²
213
cd/m²
214
cd/m²
200
cd/m²
195
cd/m²
178
cd/m²
Distribution of brightness
Samsung 173KT02-T01 tested with X-Rite i1Pro 2
Maximum: 222 cd/m² (Nits) Average: 201.6 cd/m²
Brightness Distribution: 80 %
Center on Battery: 213 cd/m²
Contrast: 176:1 (Black: 1.21 cd/m²)
ΔE Color 9.54 | 0.5-29.43 Ø4.91
ΔE Greyscale 11.41 | 0.5-98 Ø5.2
50% AdobeRGB 1998 (Argyll 1.6.3 3D)
54.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
77.5% sRGB (Argyll 2.2.0 3D)
52.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.48
Cinebench R15 - CPU Multi 64Bit (sort by value)
Toshiba Satellite L70-B-130
535 Points
Acer Aspire V3-772G-747a8G1.12TWakk
579 Points +8%
Asus N750JK-T4042H
464 Points -13%
MSI GP70-2PEi545
324 Points -39%
Acer Aspire V 17 Nitro (VN7-791G-759Q)
660 Points +23%

Legend


Toshiba Satellite L70-B-130 Intel Core i7-4710HQ, AMD Radeon R9 M265X, TOSHIBA MQ01ABD075

Acer Aspire V3-772G-747a8G1.12TWakk Intel Core i7-4702MQ, NVIDIA GeForce GTX 850M, Kingston RBU-SMS10053128GA

Asus N750JK-T4042H Intel Core i7-4700HQ, NVIDIA GeForce GTX 850M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

MSI GP70-2PEi545 Intel Core i5-4200H, NVIDIA GeForce 840M, Western Digital Scorpio Blue WD5000LPVX

Acer Aspire V 17 Nitro (VN7-791G-759Q) Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, Kingston RBU-SNS8100S3128GD
Cinebench R11.5 CPU Single 64Bit
1.54 Points
Cinebench R11.5 CPU Multi 64Bit
6.33 Points
Cinebench R11.5 OpenGL 64Bit
63.8 fps
Cinebench R15 CPU Single 64Bit
132 Points
Cinebench R15 CPU Multi 64Bit
535 Points
Cinebench R15 OpenGL 64Bit
58.3 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help
PCMark 8
Home Score Accelerated v2 (sort by value)
Toshiba Satellite L70-B-130
3791 Points
Acer Aspire V3-772G-747a8G1.12TWakk
3474 Points -8%
Asus N750JK-T4042H
3827 Points +1%
MSI GP70-2PEi545
2819 Points -26%
Creative Score Accelerated v2 (sort by value)
Toshiba Satellite L70-B-130
4155 Points
Acer Aspire V3-772G-747a8G1.12TWakk
4826 Points +16%
Asus N750JK-T4042H
4762 Points +15%
MSI GP70-2PEi545
3554 Points -14%
Work Score Accelerated v2 (sort by value)
Toshiba Satellite L70-B-130
4378 Points
Acer Aspire V3-772G-747a8G1.12TWakk
4216 Points -4%
Asus N750JK-T4042H
3972 Points -9%
MSI GP70-2PEi545
3625 Points -17%

Legend


Toshiba Satellite L70-B-130 Intel Core i7-4710HQ, AMD Radeon R9 M265X, TOSHIBA MQ01ABD075

Acer Aspire V3-772G-747a8G1.12TWakk Intel Core i7-4702MQ, NVIDIA GeForce GTX 850M, Kingston RBU-SMS10053128GA

Asus N750JK-T4042H Intel Core i7-4700HQ, NVIDIA GeForce GTX 850M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

MSI GP70-2PEi545 Intel Core i5-4200H, NVIDIA GeForce 840M, Western Digital Scorpio Blue WD5000LPVX
PCMark 7 Score
3278 points
PCMark 8 Home Score Accelerated v2
3791 points
PCMark 8 Creative Score Accelerated v2
4155 points
PCMark 8 Work Score Accelerated v2
4378 points
Help
TOSHIBA MQ01ABD075
Transfer Rate Minimum: 37.4 MB/s
Transfer Rate Maximum: 115.9 MB/s
Transfer Rate Average: 82.3 MB/s
Access Time: 20 ms
Burst Rate: 124.9 MB/s
CPU Usage: 3.1 %
3DMark 11
1280x720 Performance Combined (sort by value)
Toshiba Satellite L70-B-130
3057 Points
MSI GP70-2PEi545
1953 Points -36%
Asus N750JK-T4042H
3700 Points +21%
1280x720 Performance Physics (sort by value)
Toshiba Satellite L70-B-130
6485 Points
MSI GP70-2PEi545
3928 Points -39%
Asus N750JK-T4042H
6378 Points -2%
1280x720 Performance GPU (sort by value)
Toshiba Satellite L70-B-130
2678 Points
MSI GP70-2PEi545
2493 Points -7%
Asus N750JK-T4042H
4497 Points +68%
1280x720 Performance (sort by value)
Toshiba Satellite L70-B-130
2977 Points
MSI GP70-2PEi545
2562 Points -14%
Asus N750JK-T4042H
4616 Points +55%
Acer Aspire V3-772G-747a8G1.12TWakk
4558 Points +53%

Legend


Toshiba Satellite L70-B-130 Intel Core i7-4710HQ, AMD Radeon R9 M265X, TOSHIBA MQ01ABD075

MSI GP70-2PEi545 Intel Core i5-4200H, NVIDIA GeForce 840M, Western Digital Scorpio Blue WD5000LPVX

Asus N750JK-T4042H Intel Core i7-4700HQ, NVIDIA GeForce GTX 850M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

Acer Aspire V3-772G-747a8G1.12TWakk Intel Core i7-4702MQ, NVIDIA GeForce GTX 850M, Kingston RBU-SMS10053128GA
3DMark 06 Standard Score
15426 points
3DMark Vantage P Result
10557 points
3DMark 11 Performance
2977 points
3DMark Cloud Gate Standard Score
9950 points
3DMark Fire Strike Score
1963 points
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Toshiba Satellite L70-B-130
18.5 fps
MSI GP70-2PEi545
14.8 fps -20%
Acer Aspire V3-772G-747a8G1.12TWakk
38.6 fps +109%
Asus N750JK-T4042H
28 fps +51%
1366x768 High Preset (sort by value)
Toshiba Satellite L70-B-130
54.9 fps
MSI GP70-2PEi545
43.7 fps -20%
Acer Aspire V3-772G-747a8G1.12TWakk
100.4 fps +83%
Asus N750JK-T4042H
84 fps +53%
Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Toshiba Satellite L70-B-130
23.4 fps
MSI GP70-2PEi545
16.9 fps -28%
Acer Aspire V3-772G-747a8G1.12TWakk
40 fps +71%
Asus N750JK-T4042H
31 fps +32%
1366x768 High Preset AA:FX AF:8x (sort by value)
Toshiba Satellite L70-B-130
52.6 fps
MSI GP70-2PEi545
32.9 fps -37%
Acer Aspire V3-772G-747a8G1.12TWakk
87.1 fps +66%
Asus N750JK-T4042H
85 fps +62%
Far Cry 3
1920x1080 DX11 Ultra Preset (HDAO, Enhanced Alpha To Coverage) AA:4x MS (sort by value)
Toshiba Satellite L70-B-130
10.4 fps
MSI GP70-2PEi545
8.4 fps -19%
Asus N750JK-T4042H
17.2 fps +65%
1366x768 DX11 High Preset (SSAO, Standard Alpha To Coverage) AA:2x MS (sort by value)
Toshiba Satellite L70-B-130
32.5 fps
MSI GP70-2PEi545
25.4 fps -22%
Asus N750JK-T4042H
49.2 fps +51%
1366x768 DX9 Medium Preset (sort by value)
Toshiba Satellite L70-B-130
56.9 fps
MSI GP70-2PEi545
47 fps -17%
Asus N750JK-T4042H
70.1 fps +23%

Legend


Toshiba Satellite L70-B-130 Intel Core i7-4710HQ, AMD Radeon R9 M265X, TOSHIBA MQ01ABD075

MSI GP70-2PEi545 Intel Core i5-4200H, NVIDIA GeForce 840M, Western Digital Scorpio Blue WD5000LPVX

Acer Aspire V3-772G-747a8G1.12TWakk Intel Core i7-4702MQ, NVIDIA GeForce GTX 850M, Kingston RBU-SMS10053128GA

Asus N750JK-T4042H Intel Core i7-4700HQ, NVIDIA GeForce GTX 850M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
lowmed.highultra
The Elder Scrolls V: Skyrim (2011) 94.8 69.9 47.4 26.4
Anno 2070 (2011) 157.4 81.7 48 21.9
Diablo III (2012) 95.1 82.2 51.6
Dishonored (2012) 104.9 85.9 78 44
Call of Duty: Black Ops 2 (2012) 110.9 90.1 53.5 34.7
Hitman: Absolution (2012) 50.5 46 31.1 14.7
Far Cry 3 (2012) 56.9 32.5 10.4
Tomb Raider (2013) 149.9 75.8 52.6 23.4
BioShock Infinite (2013) 123.8 64.1 54.9 18.5
Thief (2014) 37.8 27.2 23.5 12.7
GRID: Autosport (2014) 71.2 40 25.2
Risen 3: Titan Lords (2014) 60 47.2 28.3 15.6
Fifa 15 (2014) 84.5 46.6

Noise Level

Idle
33 / 33 / 33 dB(A)
HDD
33.2 dB(A)
DVD
35.6 / dB(A)
Load
47.2 / 47.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Max. Load
 26.4 °C34.7 °C54 °C
 35.5 °C41.9 °C45.6 °C
 25.7 °C25.9 °C33.4 °C
Maximum: 54 °C
Average: 35.9 °C
51.3 °C28.2 °C25.3 °C
42 °C29.5 °C25 °C
31 °C27.9 °C25.2 °C
Maximum: 51.3 °C
Average: 31.7 °C
Power Supply (max.)  53 °C | Room Temperature 24.2 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 35.9 °C / 97 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 54 °C / 129 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 51.3 °C / 124 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27.5 °C / 82 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.4 °C / 92.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-4.6 °C / -8.3 F).
Power Consumption
Off / Standbydarklight 0.2 / 0.2 Watt
Idledarkmidlight 6.9 / 10.9 / 11.5 Watt
Load midlight 79.5 / 86 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Battery Runtime - WiFi (sort by value)
Toshiba Satellite L70-B-130
197 min
Asus N750JK-T4042H
321 min
MSI GP70-2PEi545
182 min
Acer Aspire V3-772G-747a8G1.12TWakk
169 min
Acer Aspire V 17 Nitro (VN7-791G-759Q)
220 min

Legend


Toshiba Satellite L70-B-130 Intel Core i7-4710HQ, AMD Radeon R9 M265X, TOSHIBA MQ01ABD075

Asus N750JK-T4042H Intel Core i7-4700HQ, NVIDIA GeForce GTX 850M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

MSI GP70-2PEi545 Intel Core i5-4200H, NVIDIA GeForce 840M, Western Digital Scorpio Blue WD5000LPVX

Acer Aspire V3-772G-747a8G1.12TWakk Intel Core i7-4702MQ, NVIDIA GeForce GTX 850M, Kingston RBU-SMS10053128GA

Acer Aspire V 17 Nitro (VN7-791G-759Q) Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, Kingston RBU-SNS8100S3128GD
Battery Runtime
Idle (without WLAN, min brightness)
7h 48min
WiFi Surfing
3h 17min
Big Buck Bunny H.264 1080p
2h 51min
Load (maximum brightness)
0h 46min
In review: Toshiba Satellite L70-B-130
In review: Toshiba Satellite L70-B-130

在低于1000欧元(7814人民币)的多媒体笔记本电脑市场中竞争十分激烈,而东芝凭借“具备游戏性能的多媒体笔记本”设计理念在其中占据了一席之地。不过这家生产商的一些设计元素我们并不总是能够理解:高光的钢琴漆塑料外壳分辨率1600x900像素的镜面屏幕 对于一款17.3寸的笔记本来说有些难以接受,难以接受的还有把AMD Radeon R9 M265X 称作“骨灰玩家级显卡”。有兴趣的消费者可能还需要对这款笔记本做一些深入的了解。如果期待不是特别高的话,用户会发现东芝Satellite L70-B-130是一款高性能的多媒体笔记本,在应用程序性能上表现十分出色。我们同样对它的音响系统效果和待机电池续航时间十分赞赏。不过,我们必须要指出的是,我们在压力测试中发现,它在处理器显卡负载下的升温十分吓人

需要更强劲游戏性能也愿意把预算提高的1200欧元(9377人民币)的消费者,可以考虑配备GTX 850M或更好显卡的产品。例如华硕的N750JK,Acer的V3-772G,或者Clevo W370SS

 注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

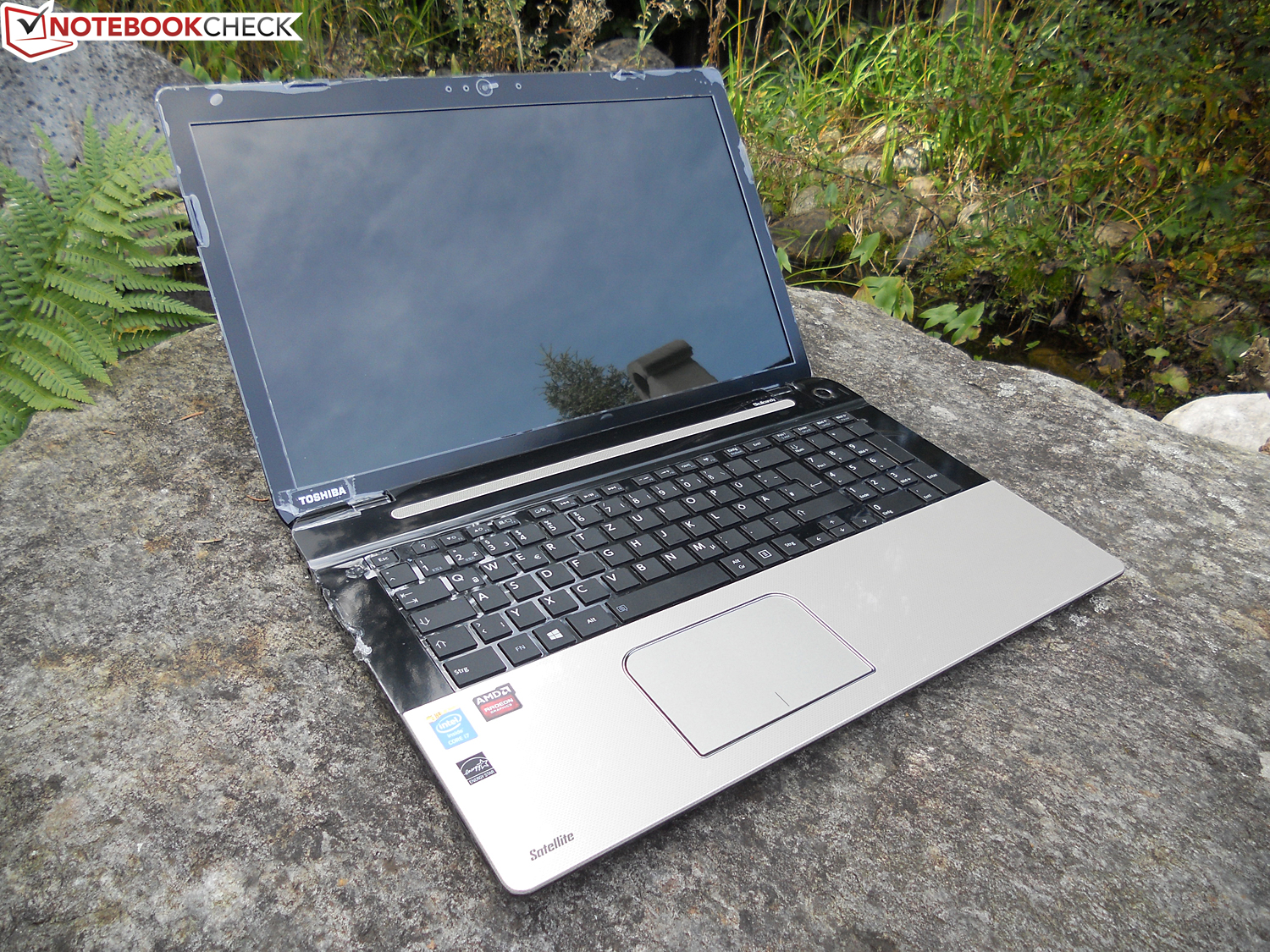

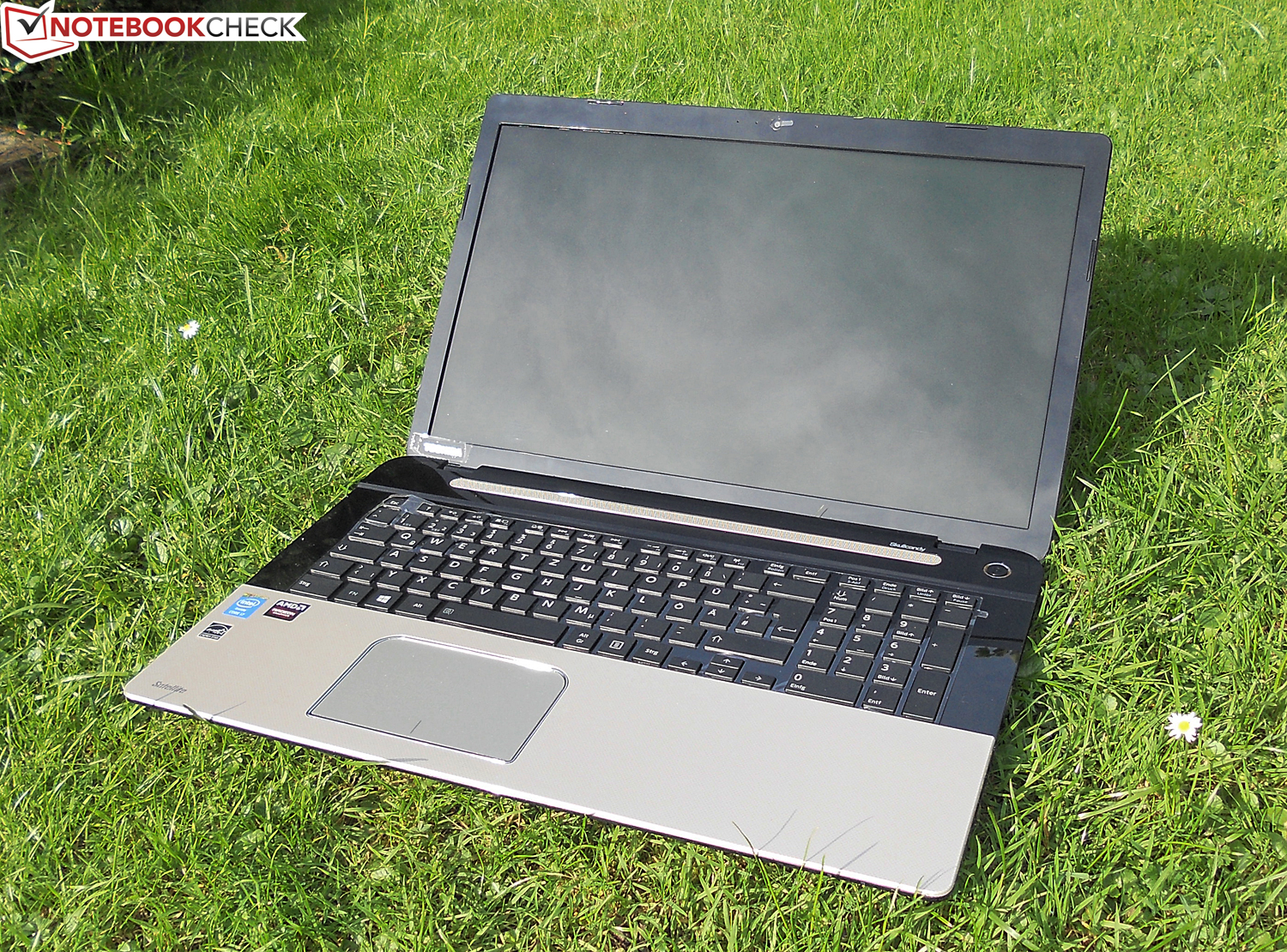

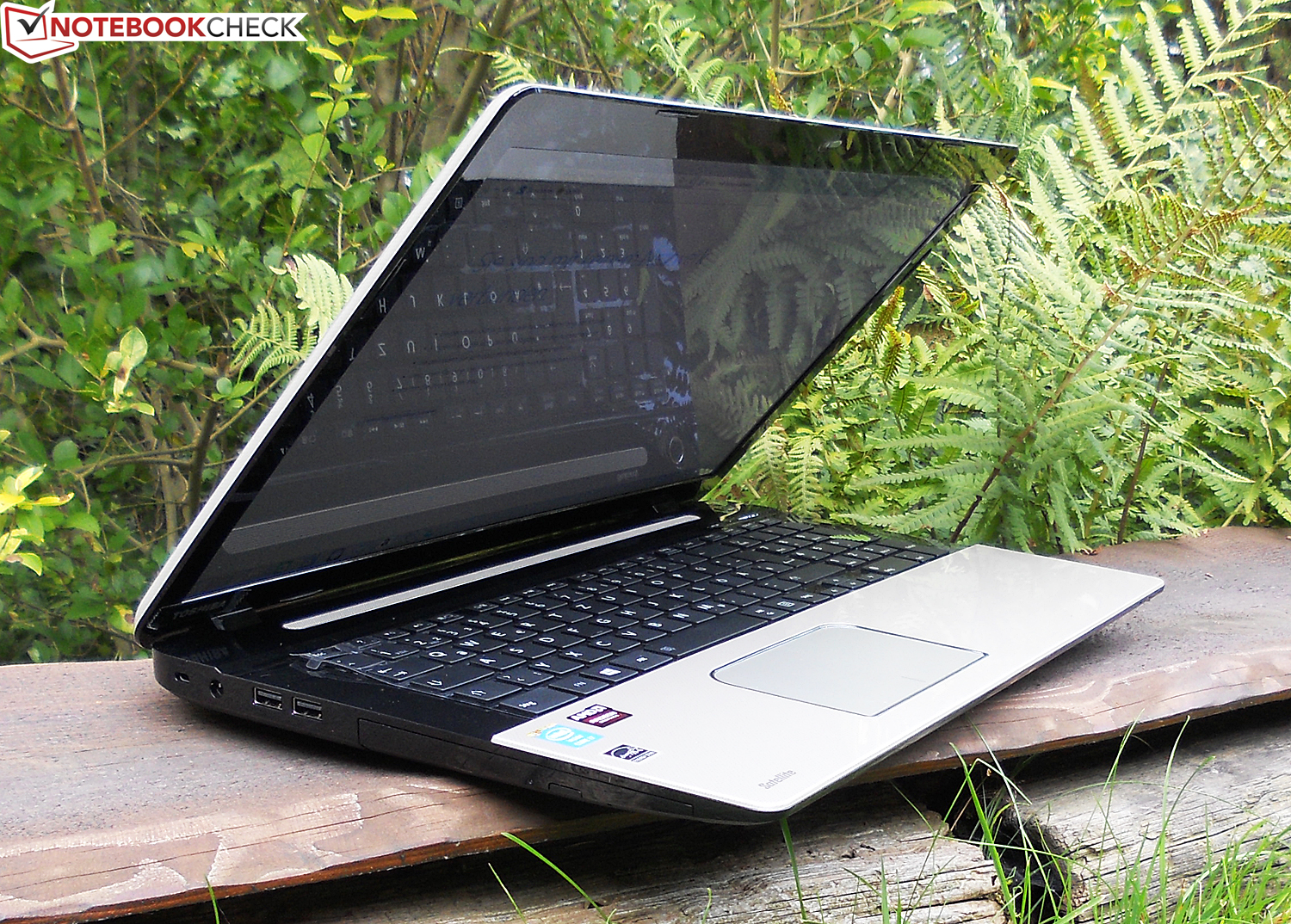

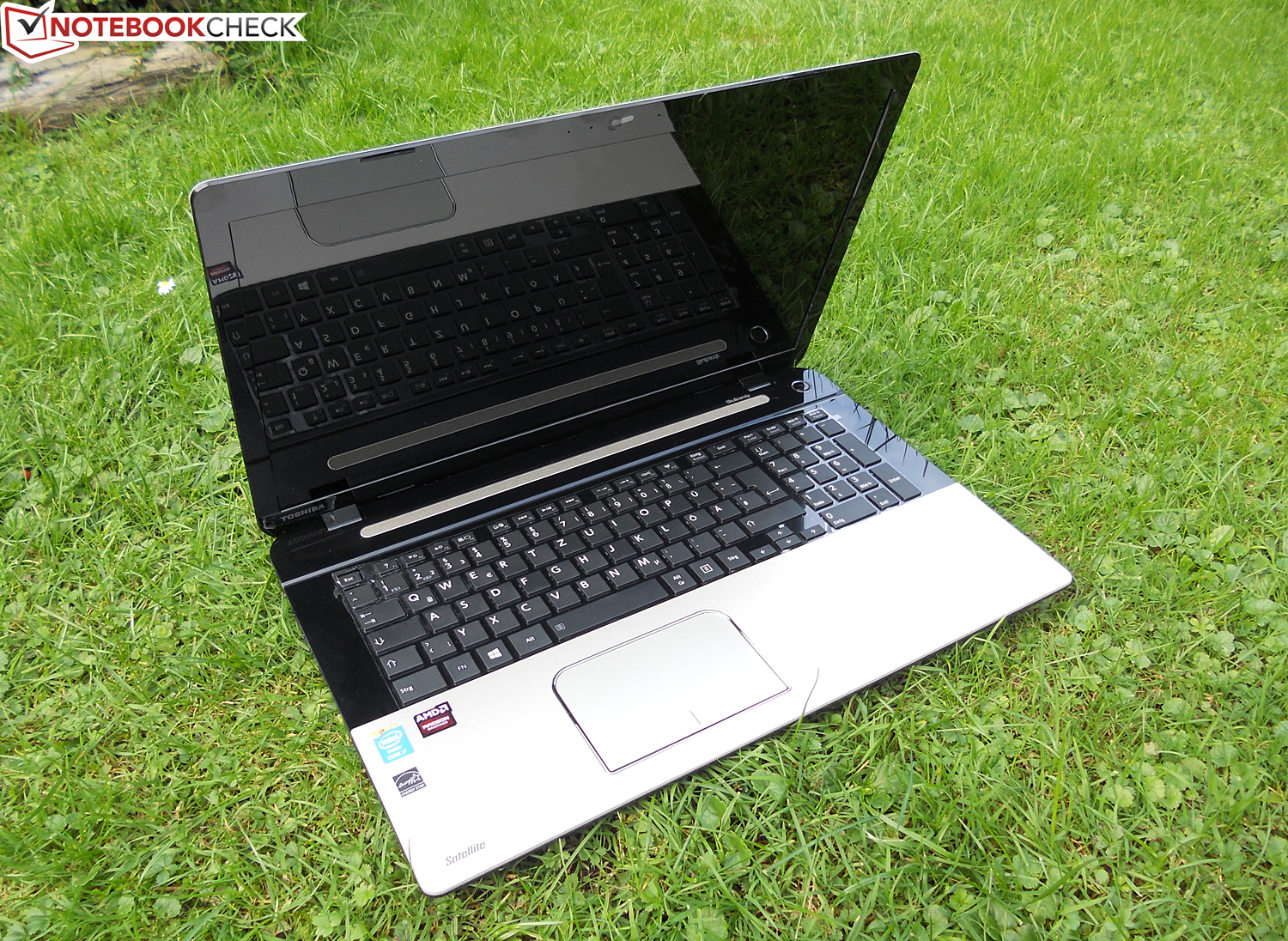

正在测试: 全新的东芝 Satellite L70-B-130.
正在测试: 全新的东芝 Satellite L70-B-130.

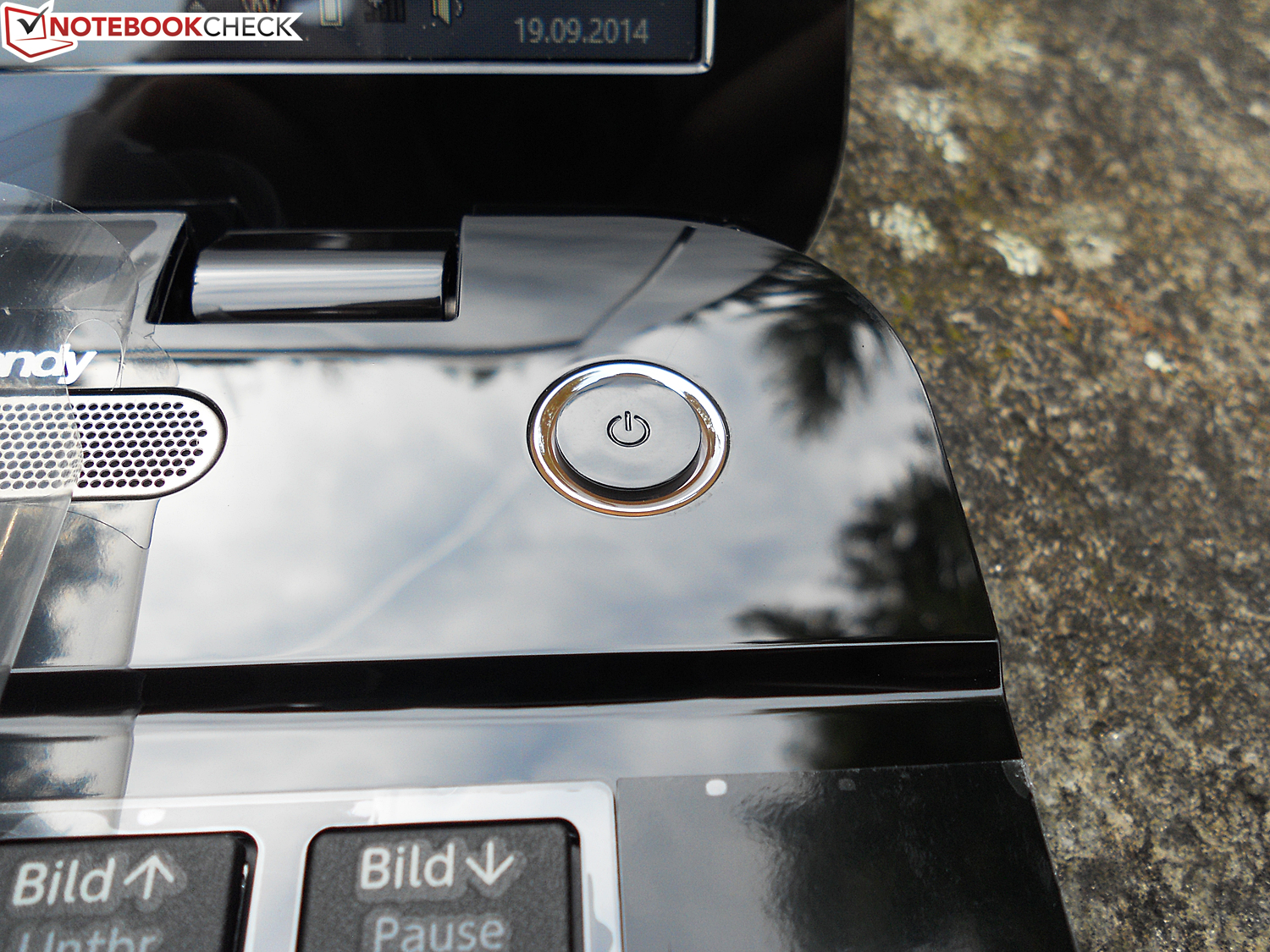

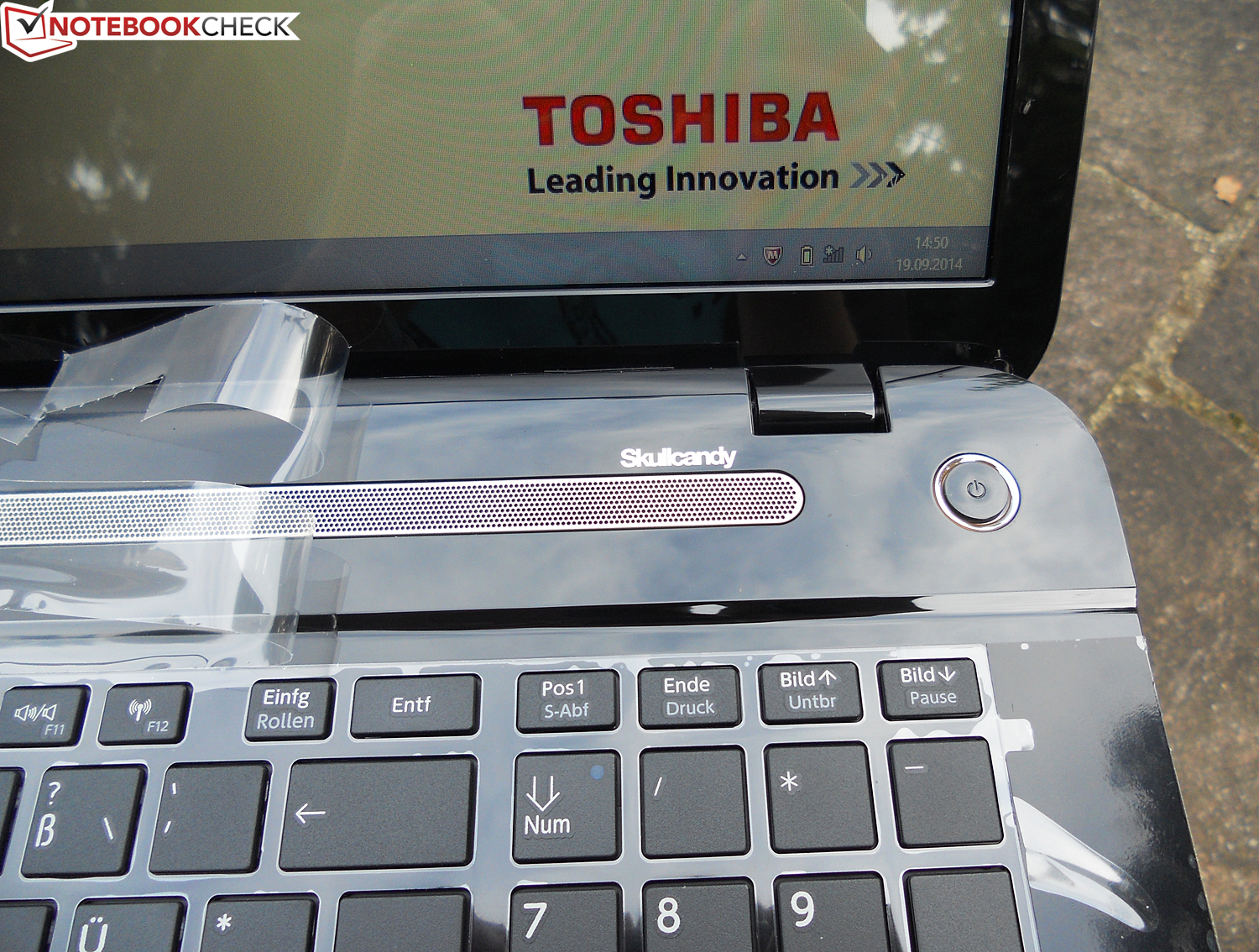

这款多媒体笔记本需要通过右上角的电源按键新生。
这款多媒体笔记本需要通过右上角的电源按键新生。

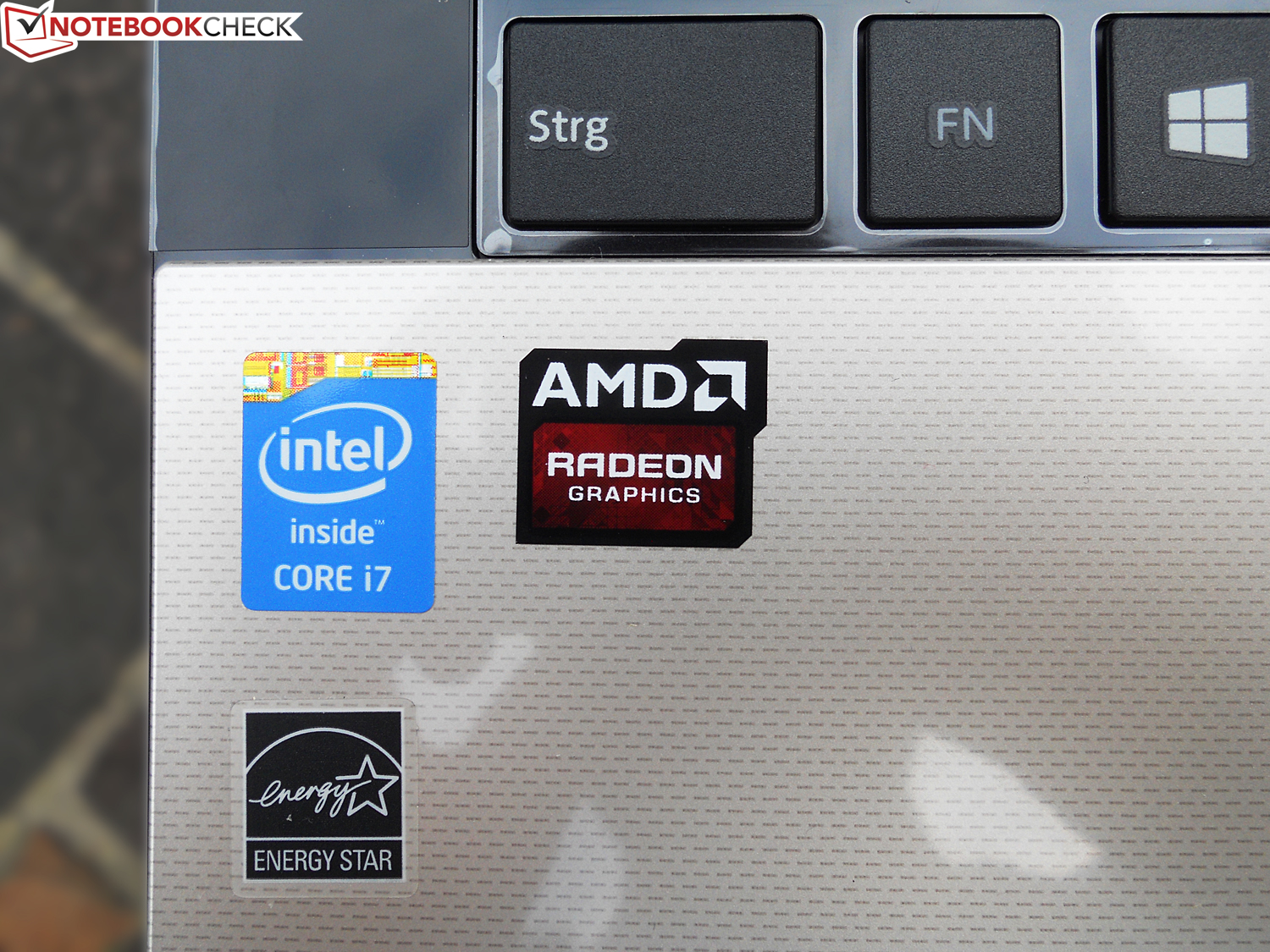

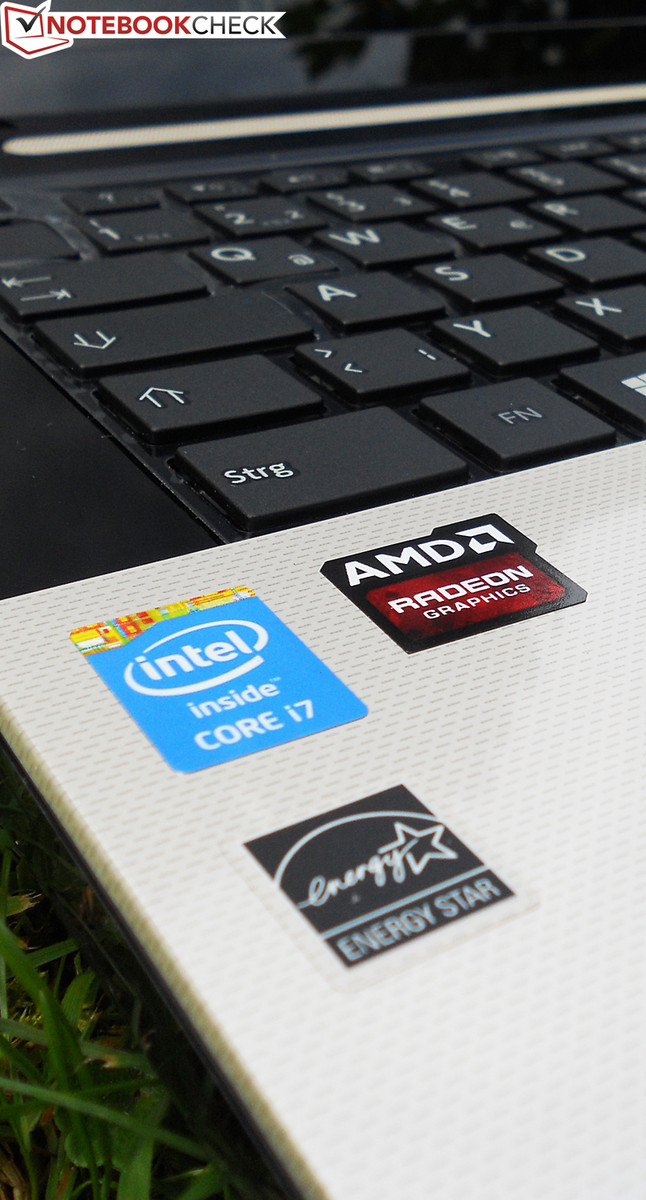

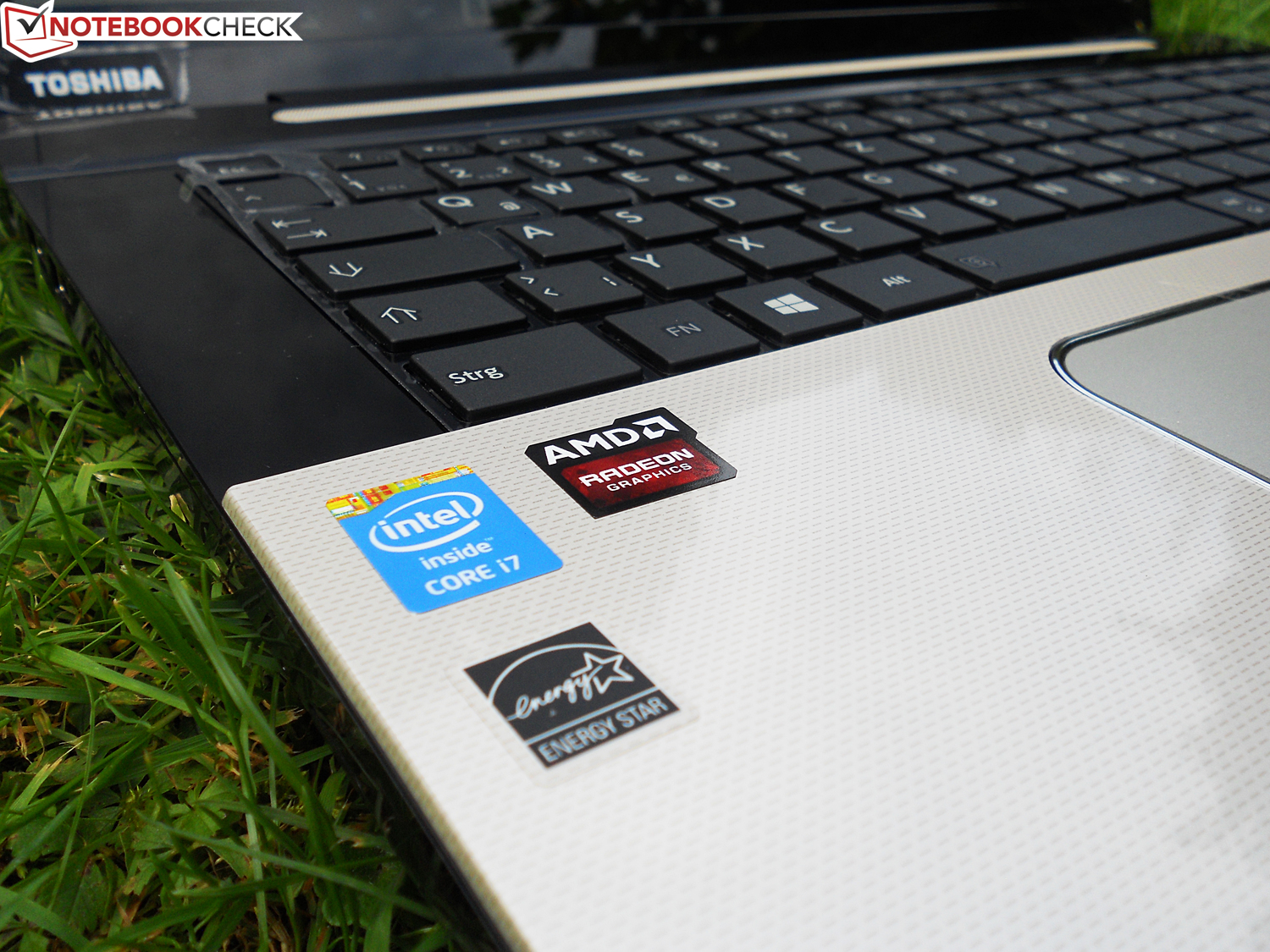

它搭载了: 最新的 AMD Radeon R9 M265X。
它搭载了: 最新的 AMD Radeon R9 M265X。
还有Intel的 i7 4710HQ。
还有Intel的 i7 4710HQ。

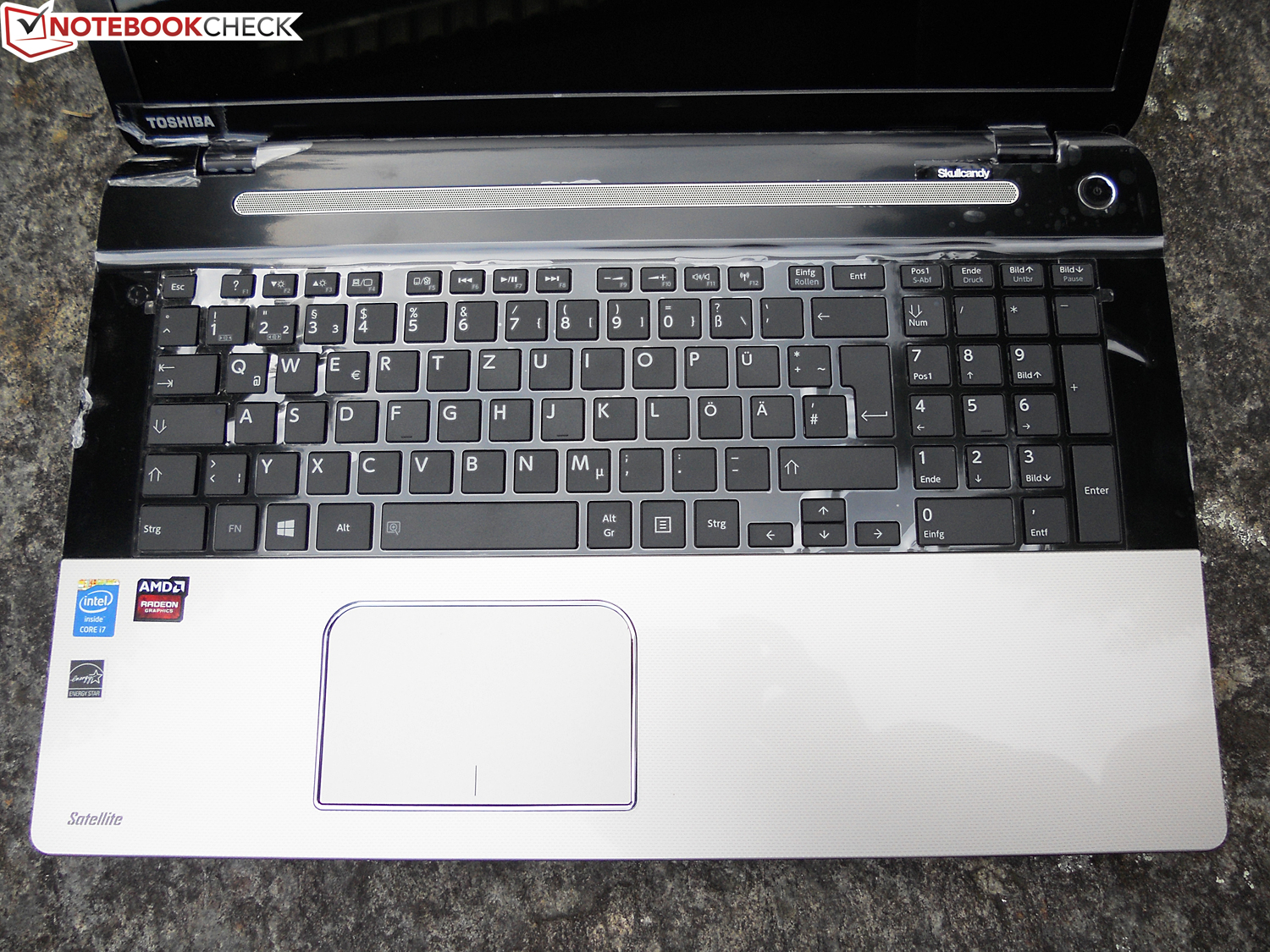

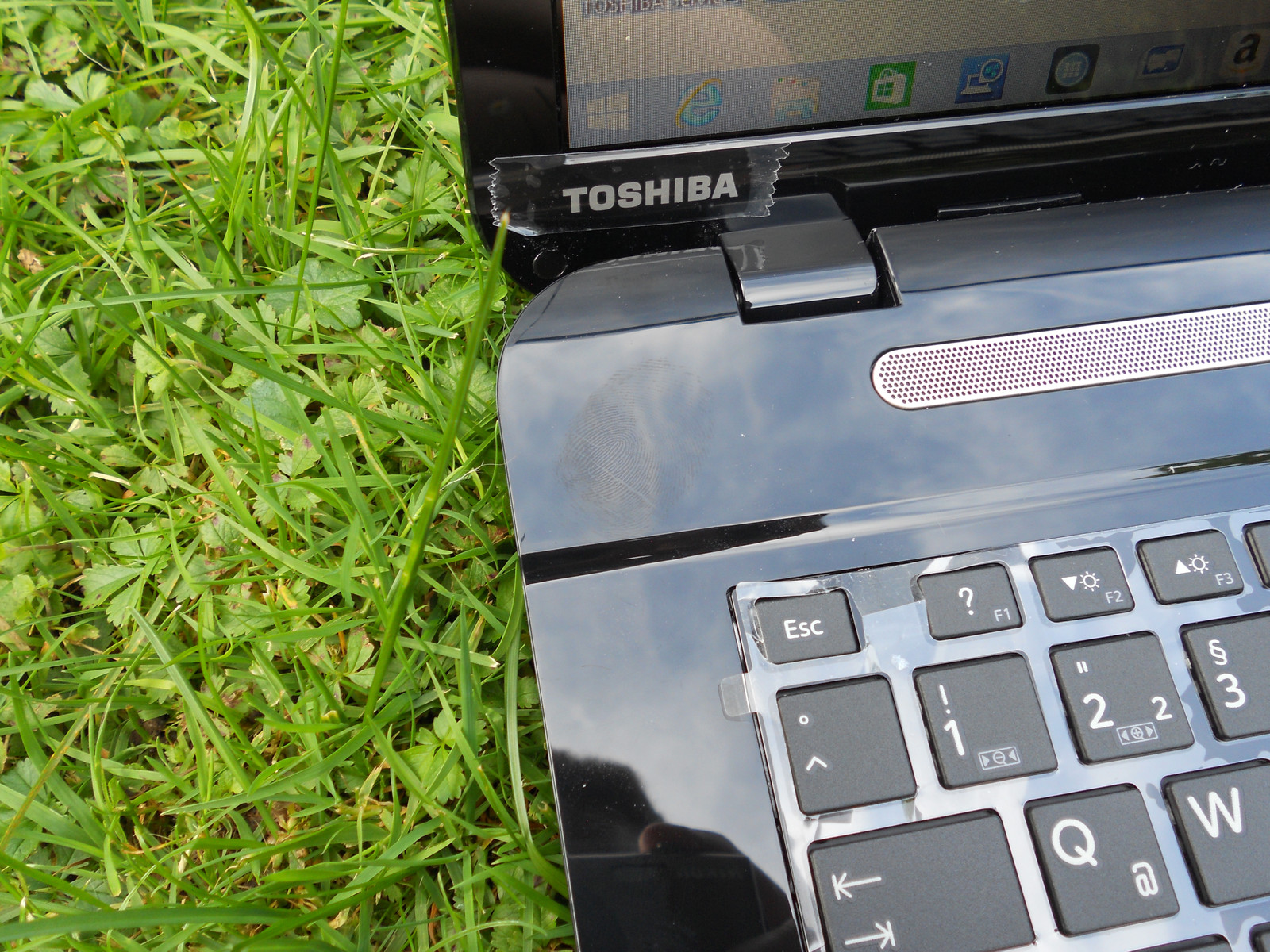

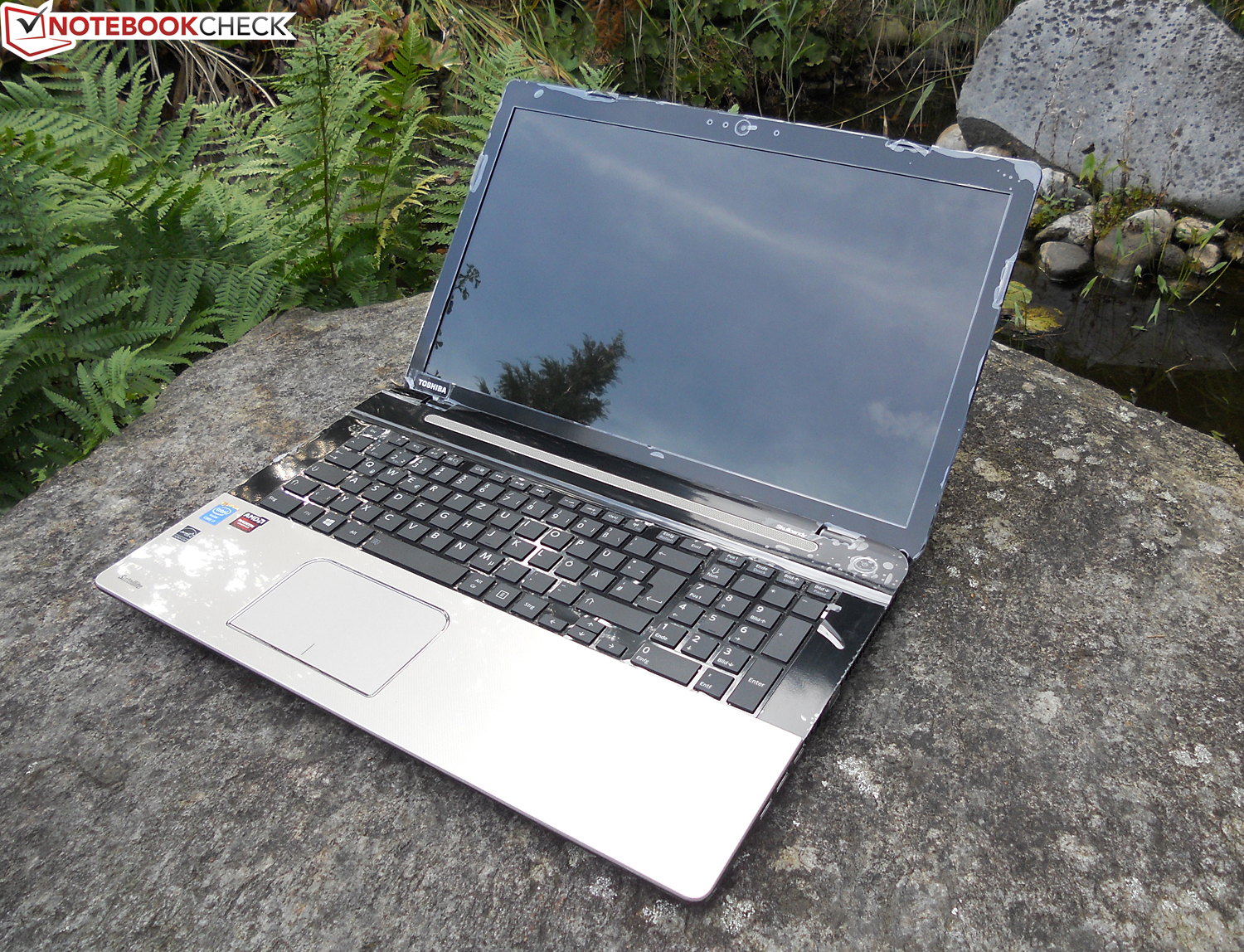

大量的塑料贴纸保护着这款光面的设备不受灰尘侵染。
大量的塑料贴纸保护着这款光面的设备不受灰尘侵染。

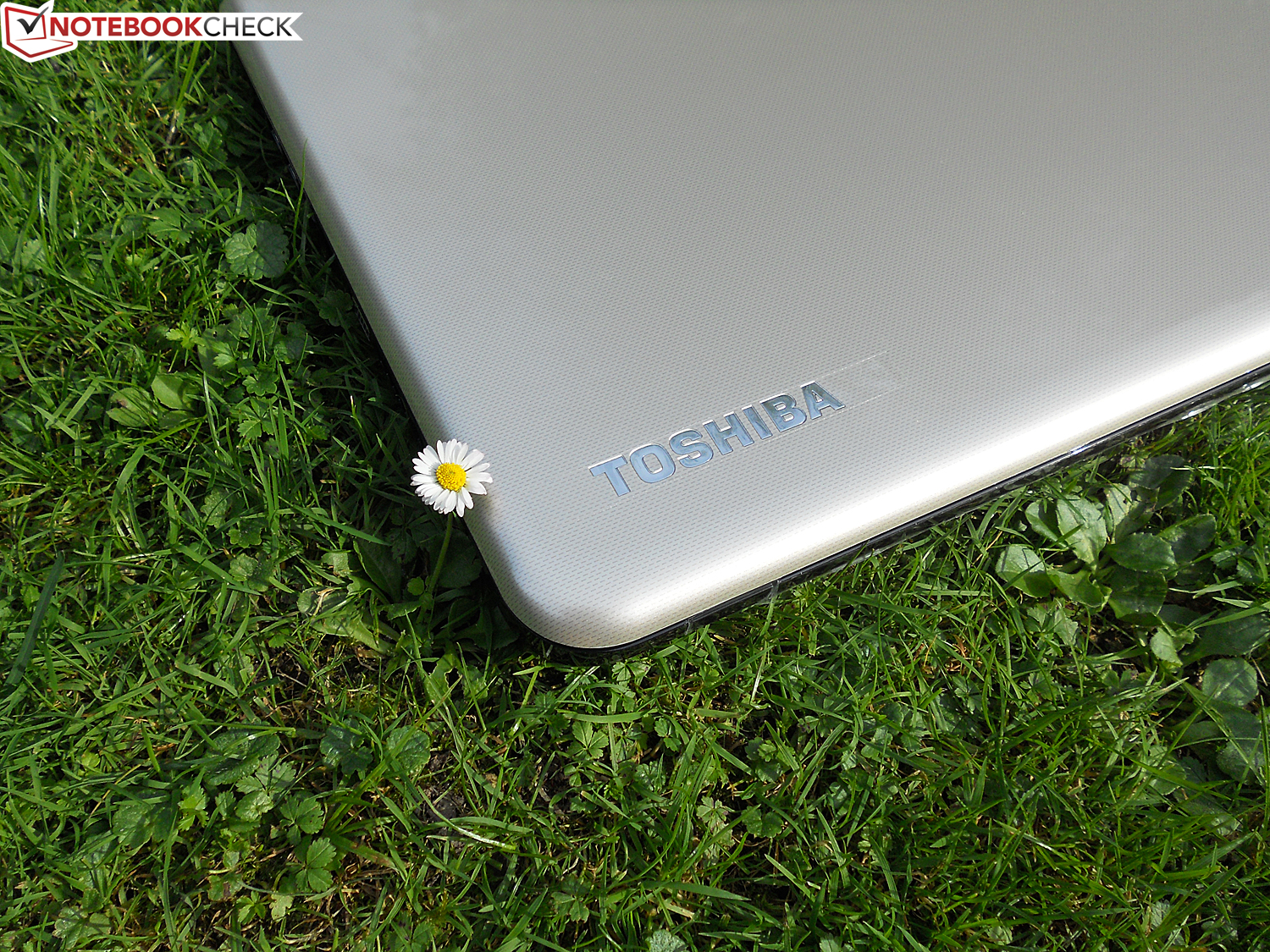

把它们揭下来之后, 这款笔记本就变成了灰尘和指纹的最佳目标。
把它们揭下来之后, 这款笔记本就变成了灰尘和指纹的最佳目标。
它可能会吸引很多的消费者。
它可能会吸引很多的消费者。

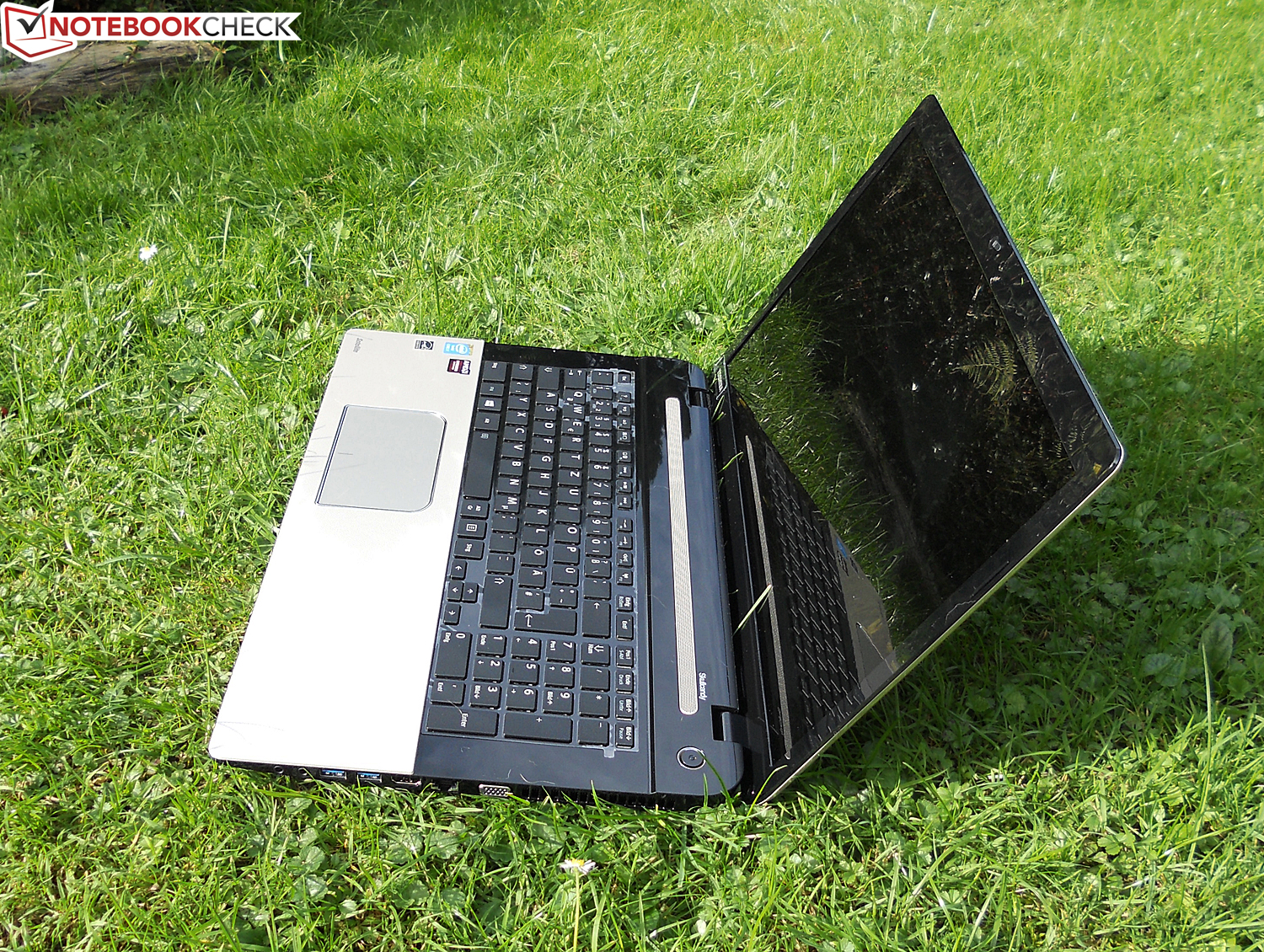

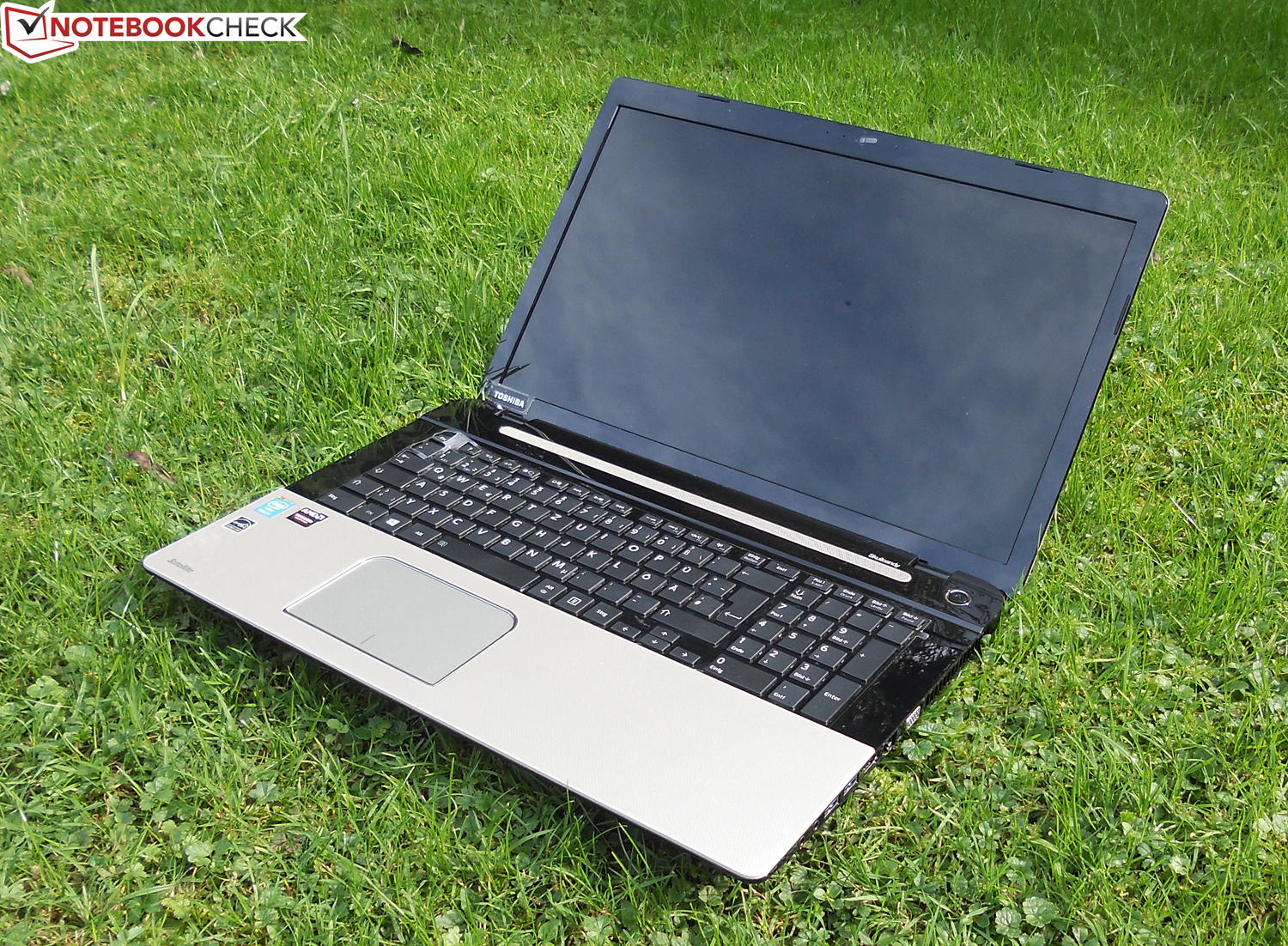

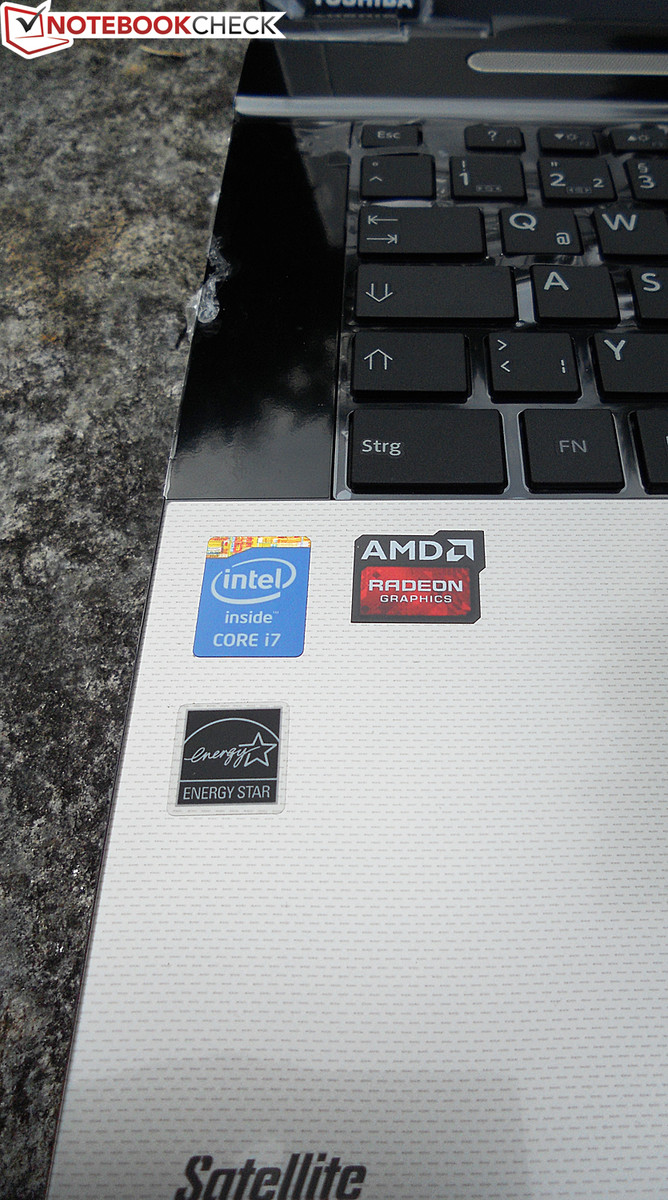

银色的掌托和黑色的键盘区形成了鲜明的对比。
银色的掌托和黑色的键盘区形成了鲜明的对比。

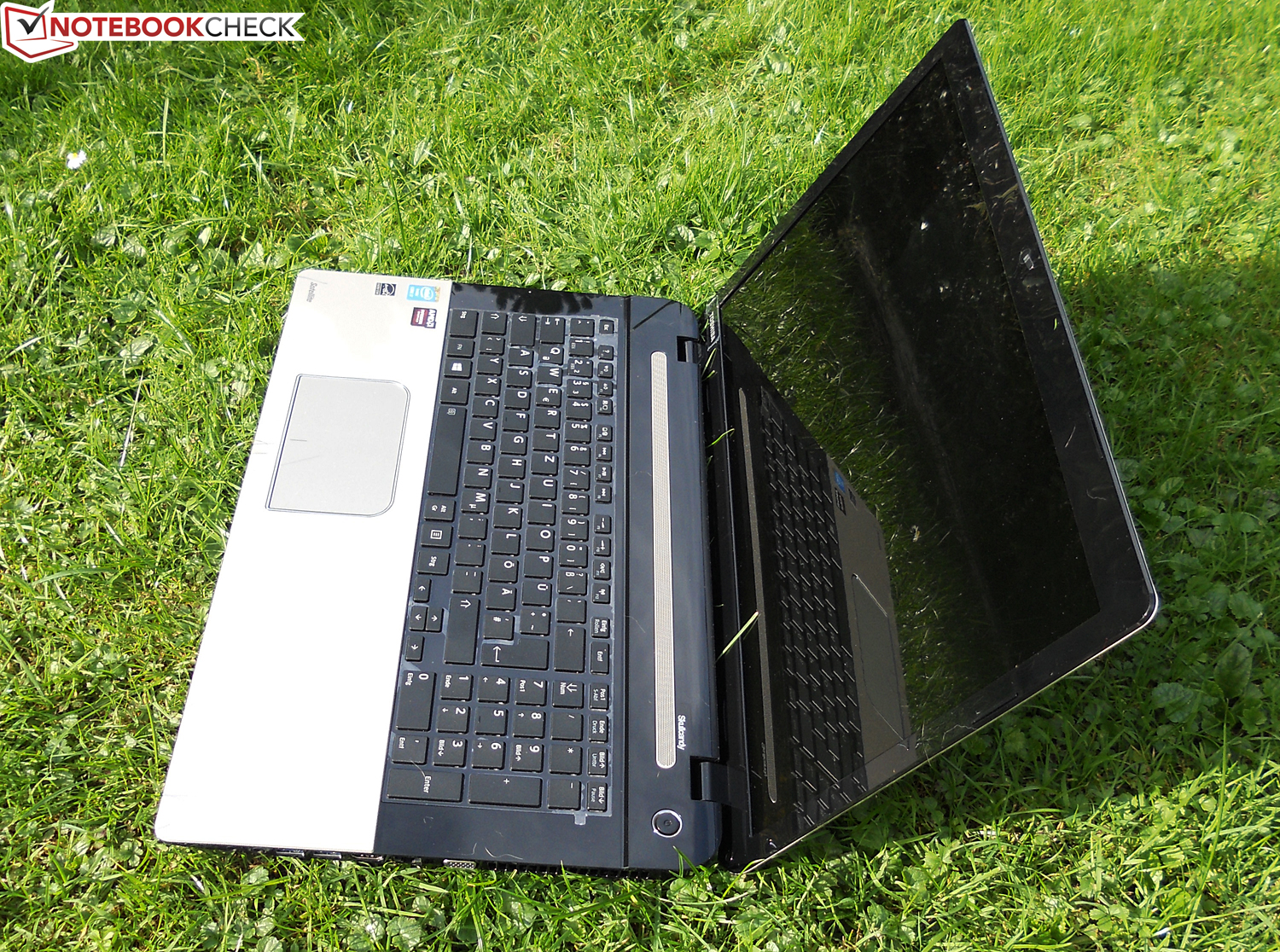

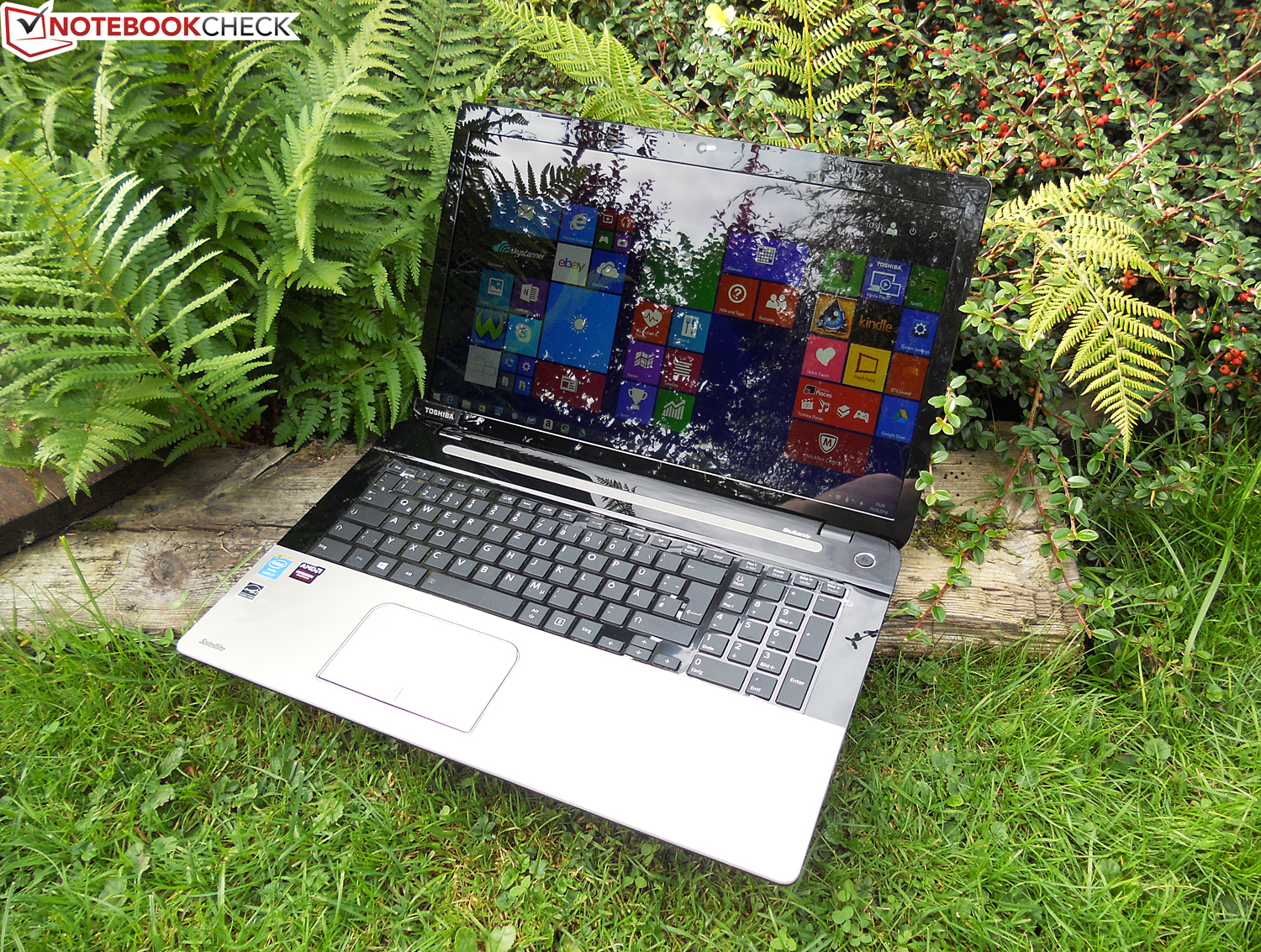

它简洁精美的机身设计十分优雅。
它简洁精美的机身设计十分优雅。

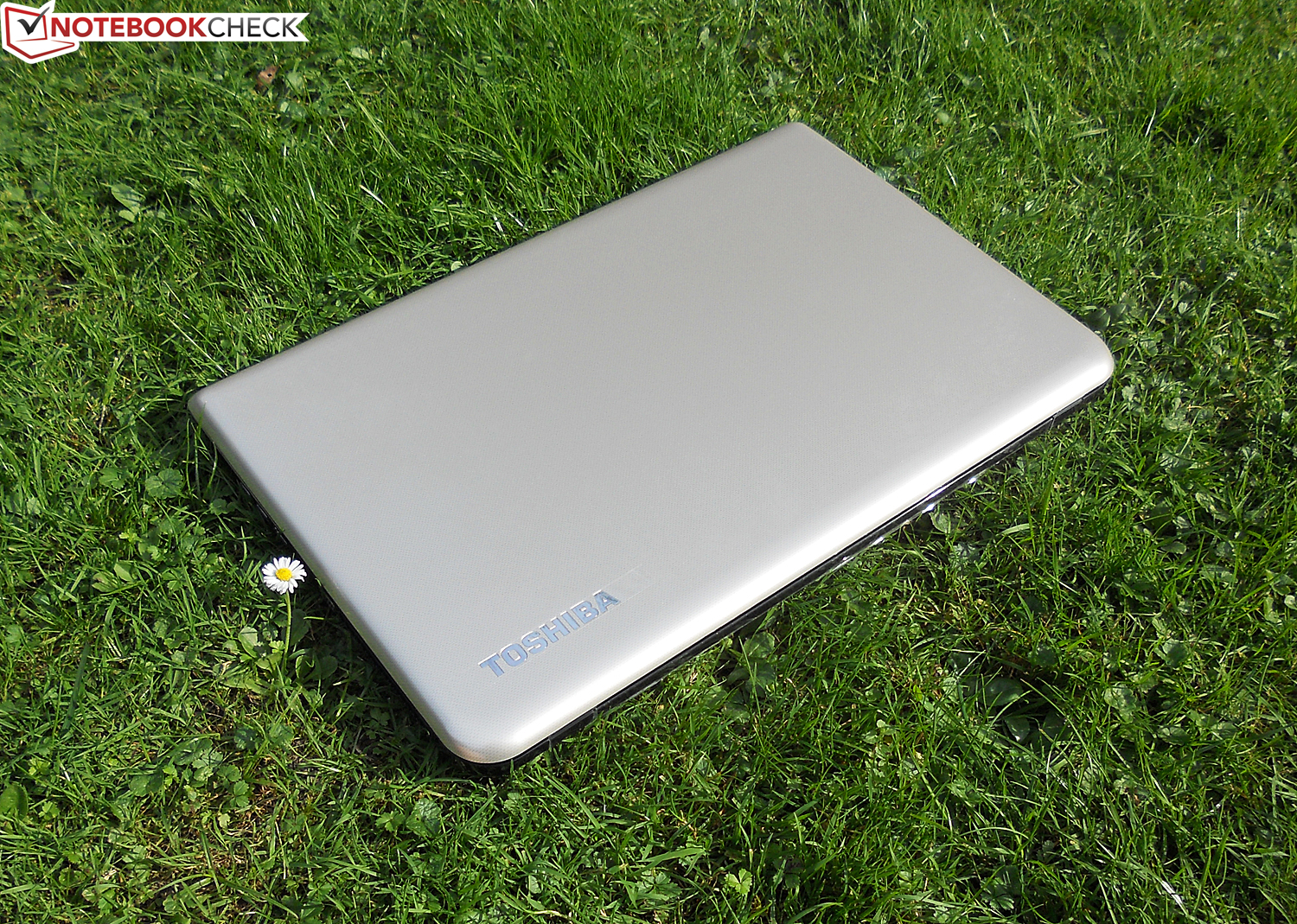

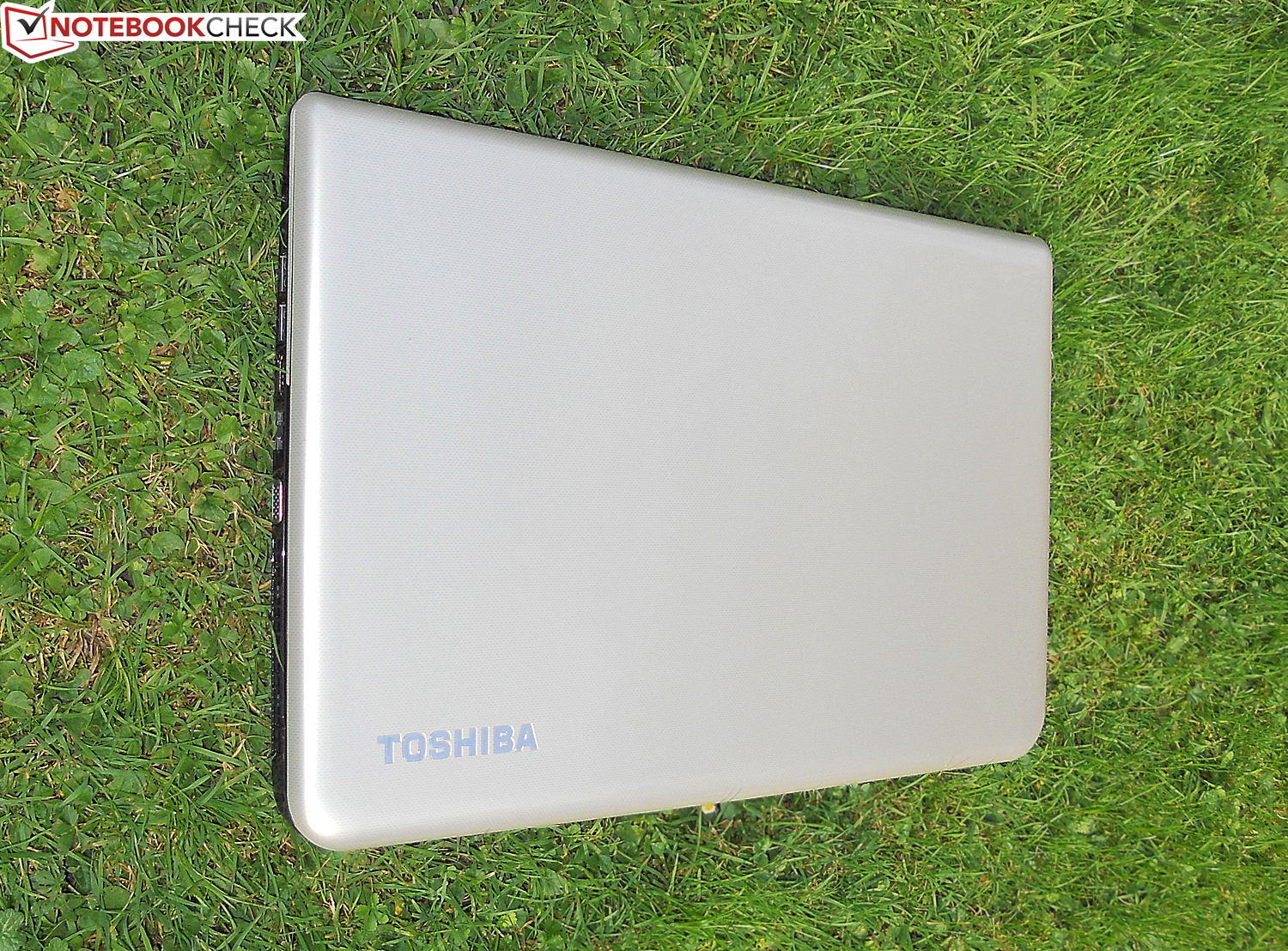

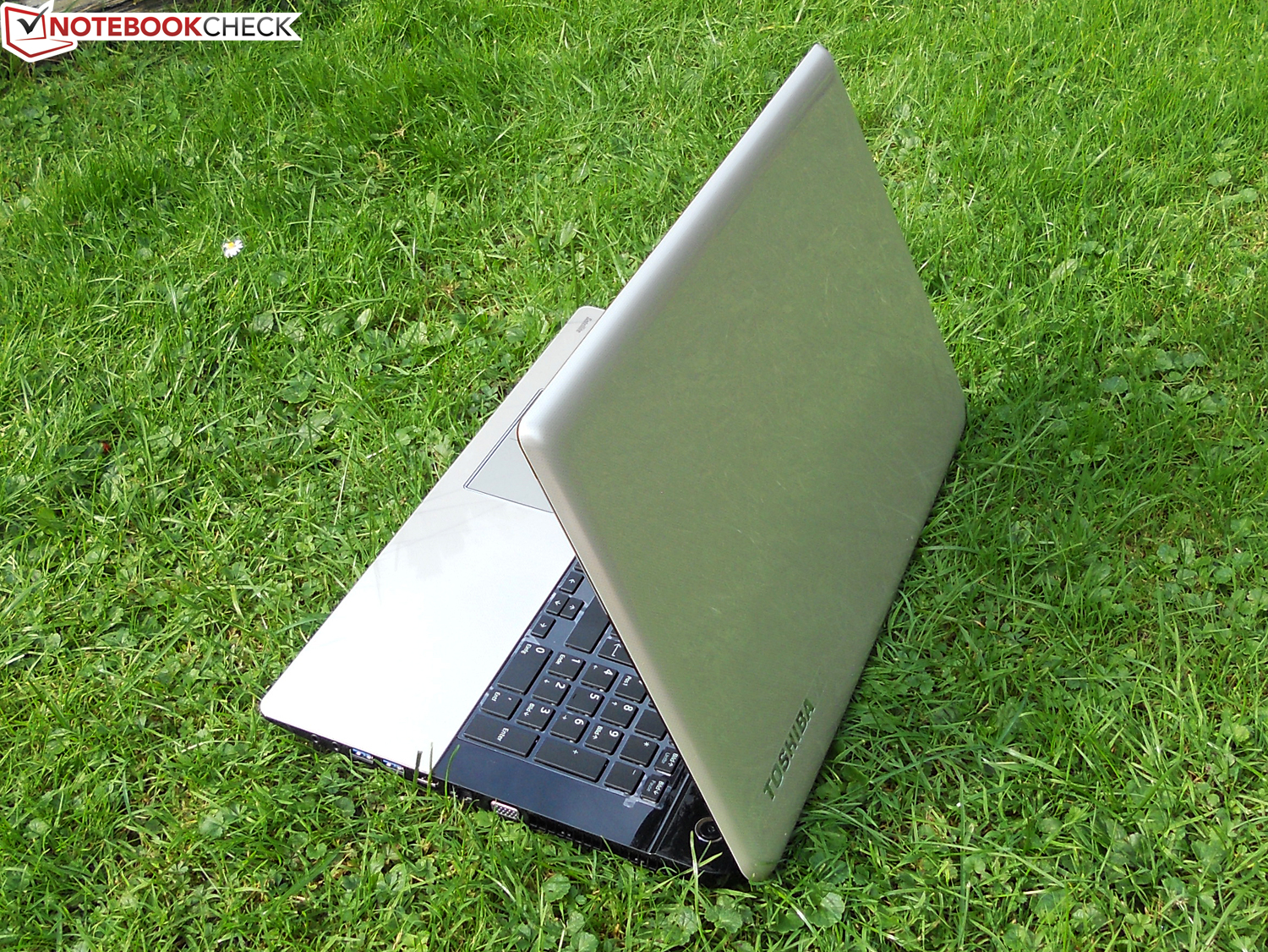

这款笔记本在合上上盖后也非常漂亮。
这款笔记本在合上上盖后也非常漂亮。

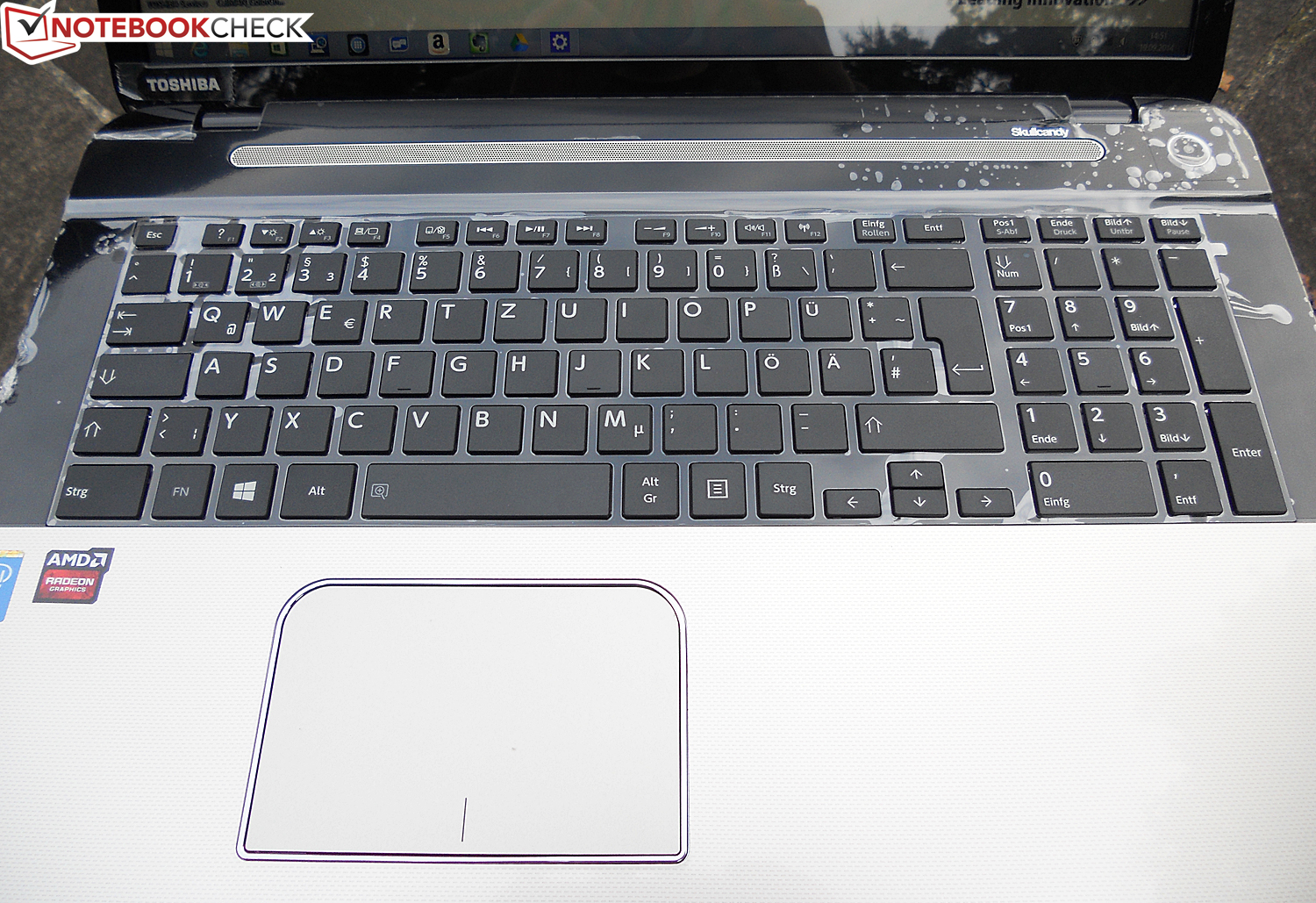

很遗憾它的键盘没给我们留下非常好的印象,它不是非常适合打字很多的用户。
很遗憾它的键盘没给我们留下非常好的印象,它不是非常适合打字很多的用户。

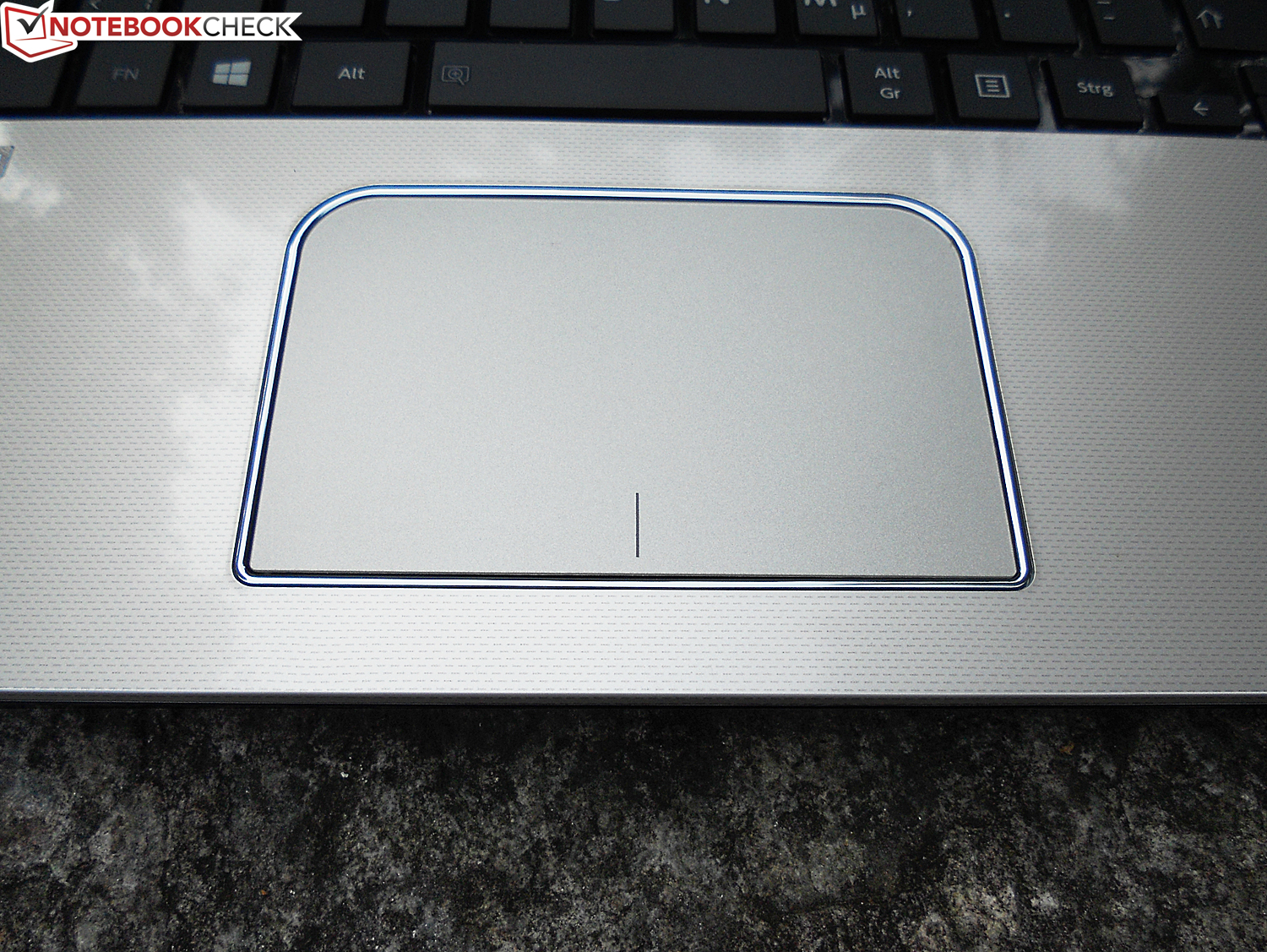

它的触控板的滑动识别很方便使用。多点触控手势的支持也十分实用。
它的触控板的滑动识别很方便使用。多点触控手势的支持也十分实用。

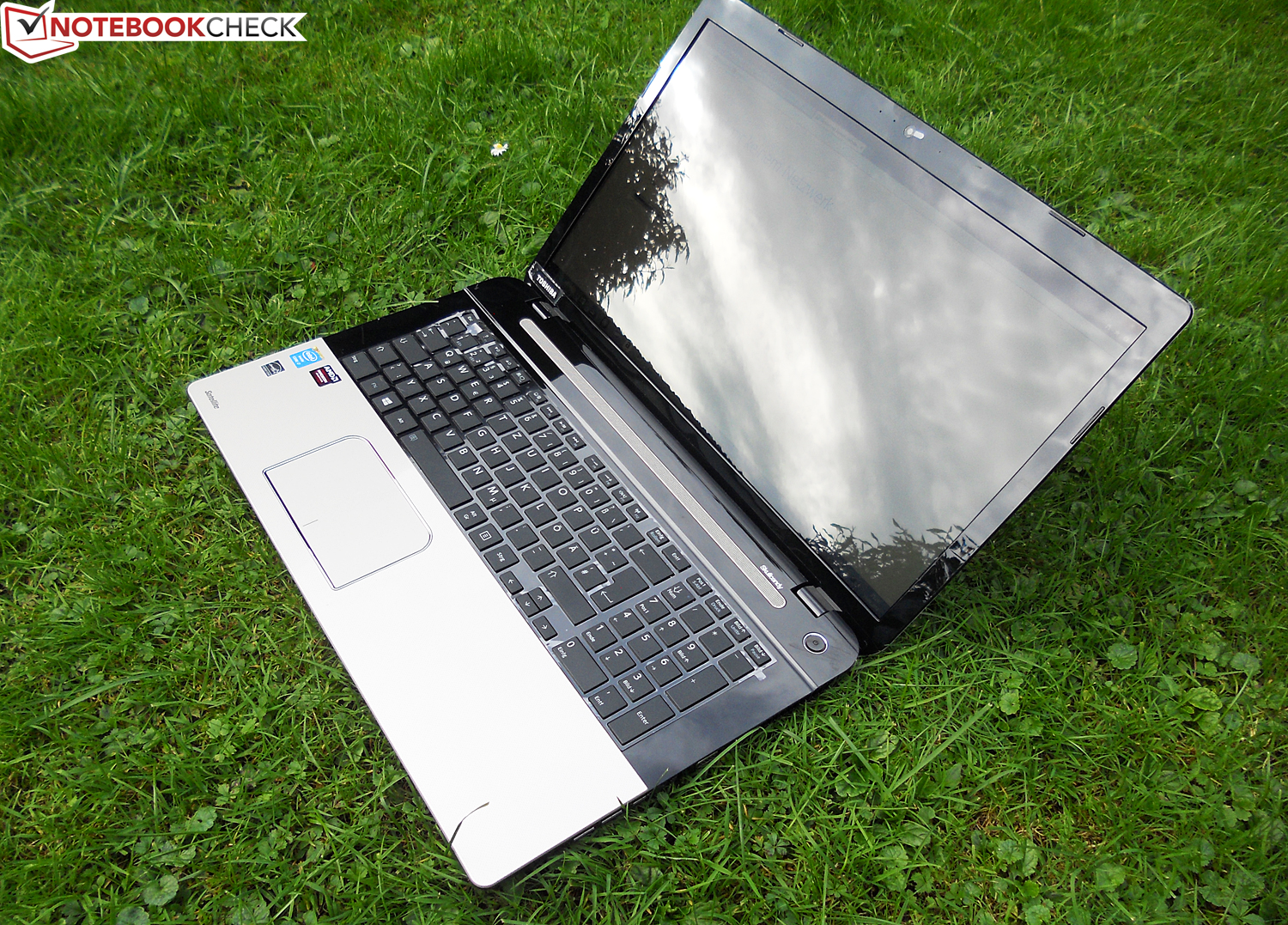

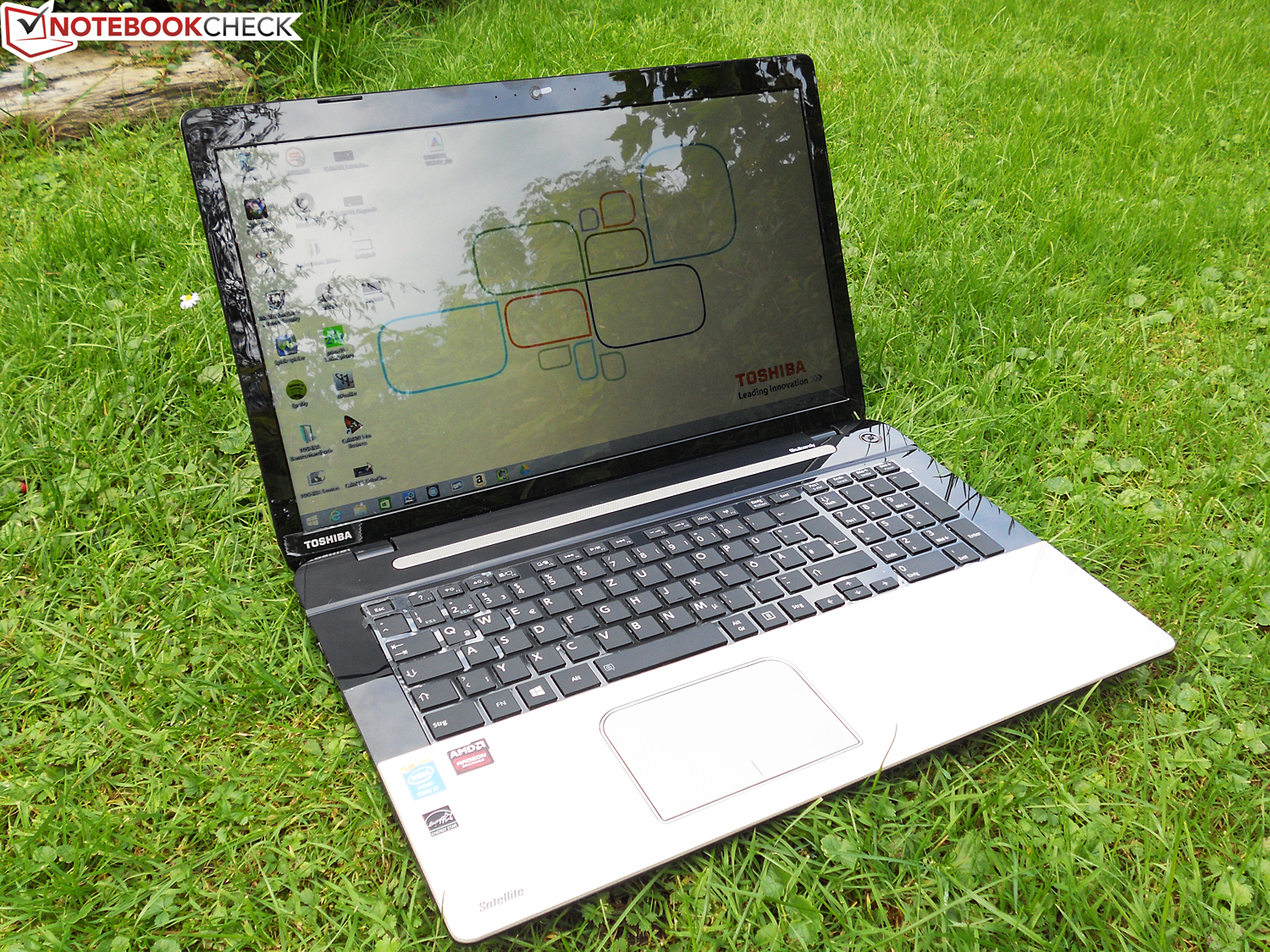

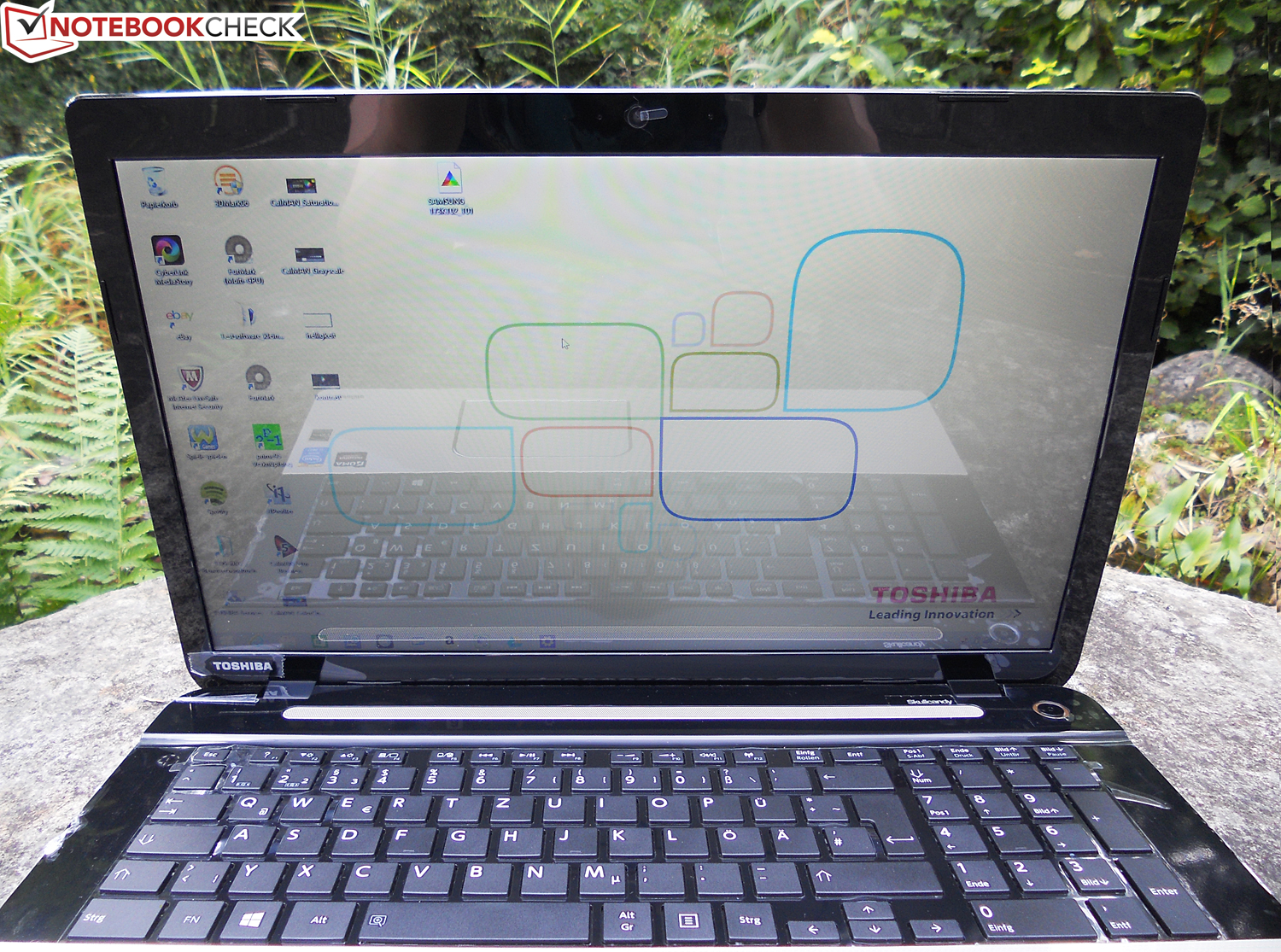

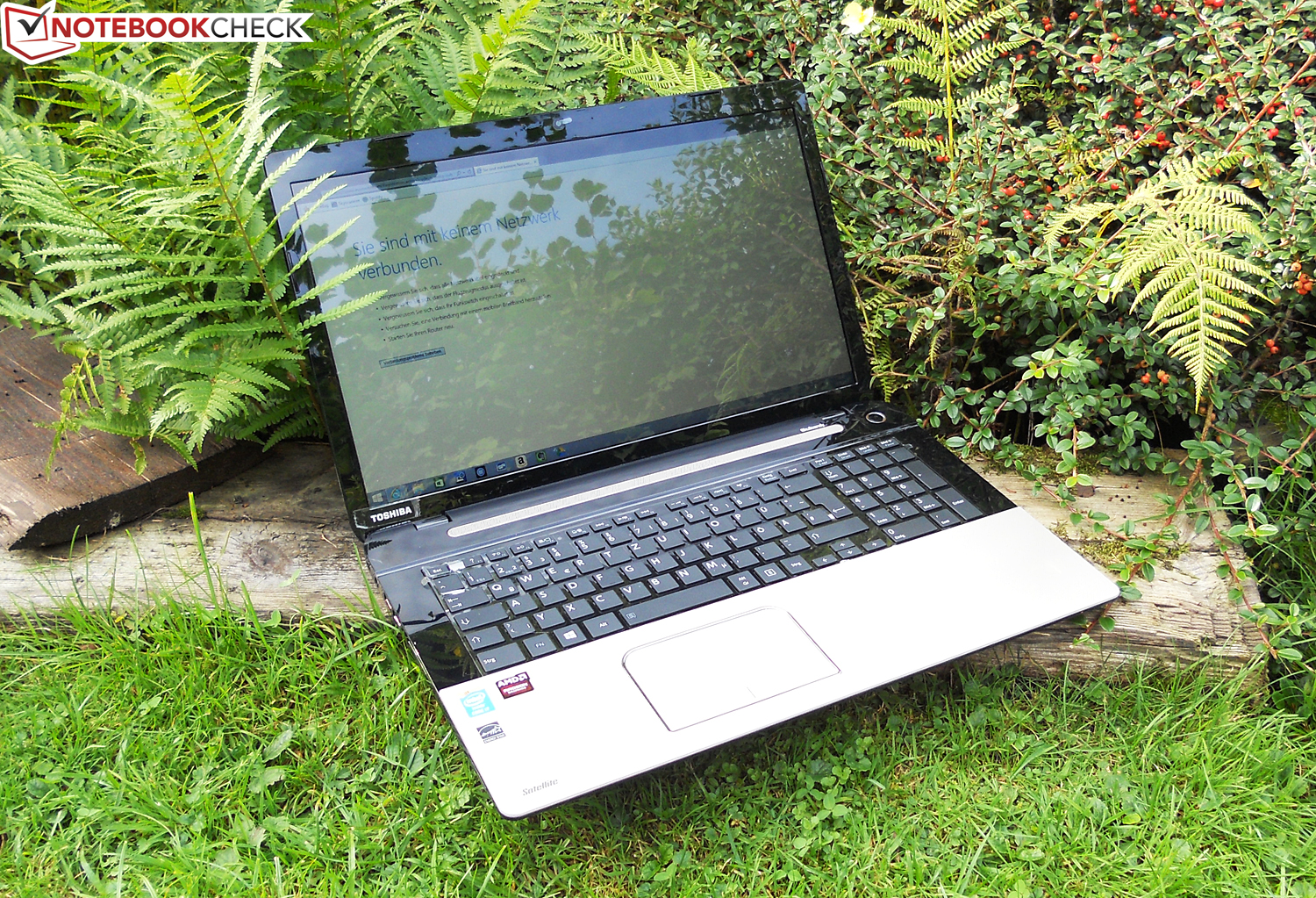

镜面的屏幕和不高的亮度让户外使用变得有些困难。
镜面的屏幕和不高的亮度让户外使用变得有些困难。
它的音响系统十分出色,优于大部分笔记本产品。
它的音响系统十分出色,优于大部分笔记本产品。

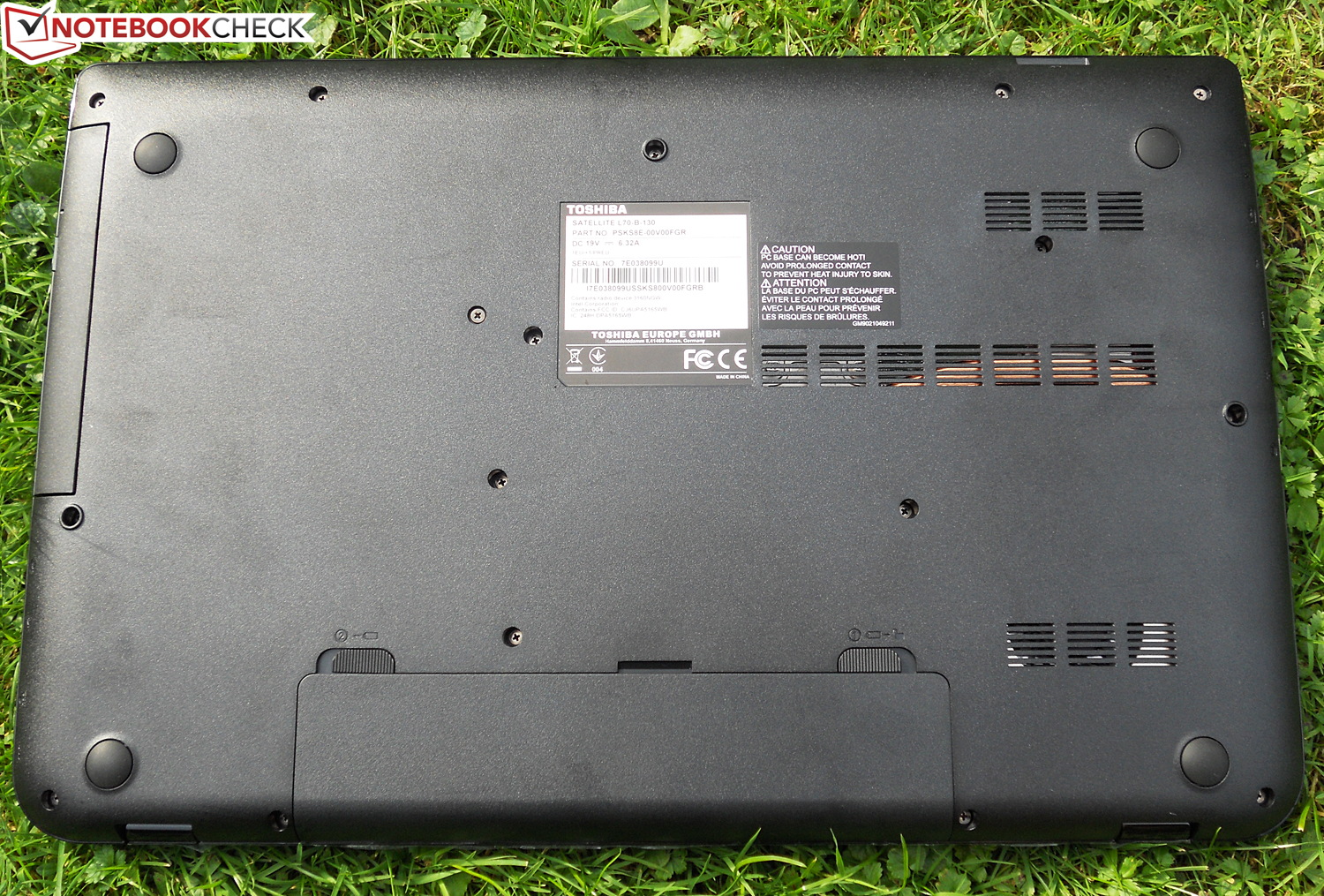

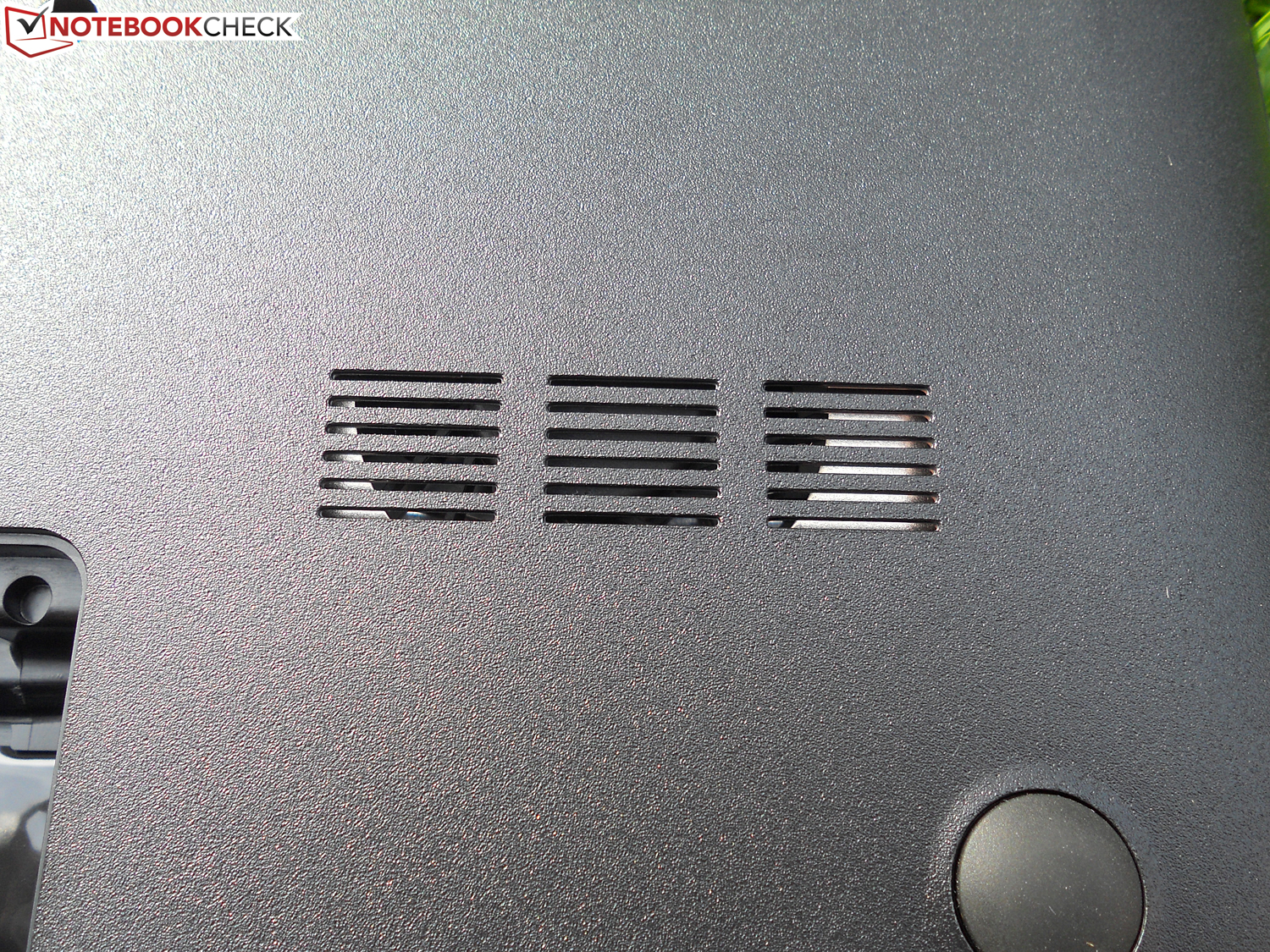

它的底盖采用了磨砂塑料材质。
它的底盖采用了磨砂塑料材质。

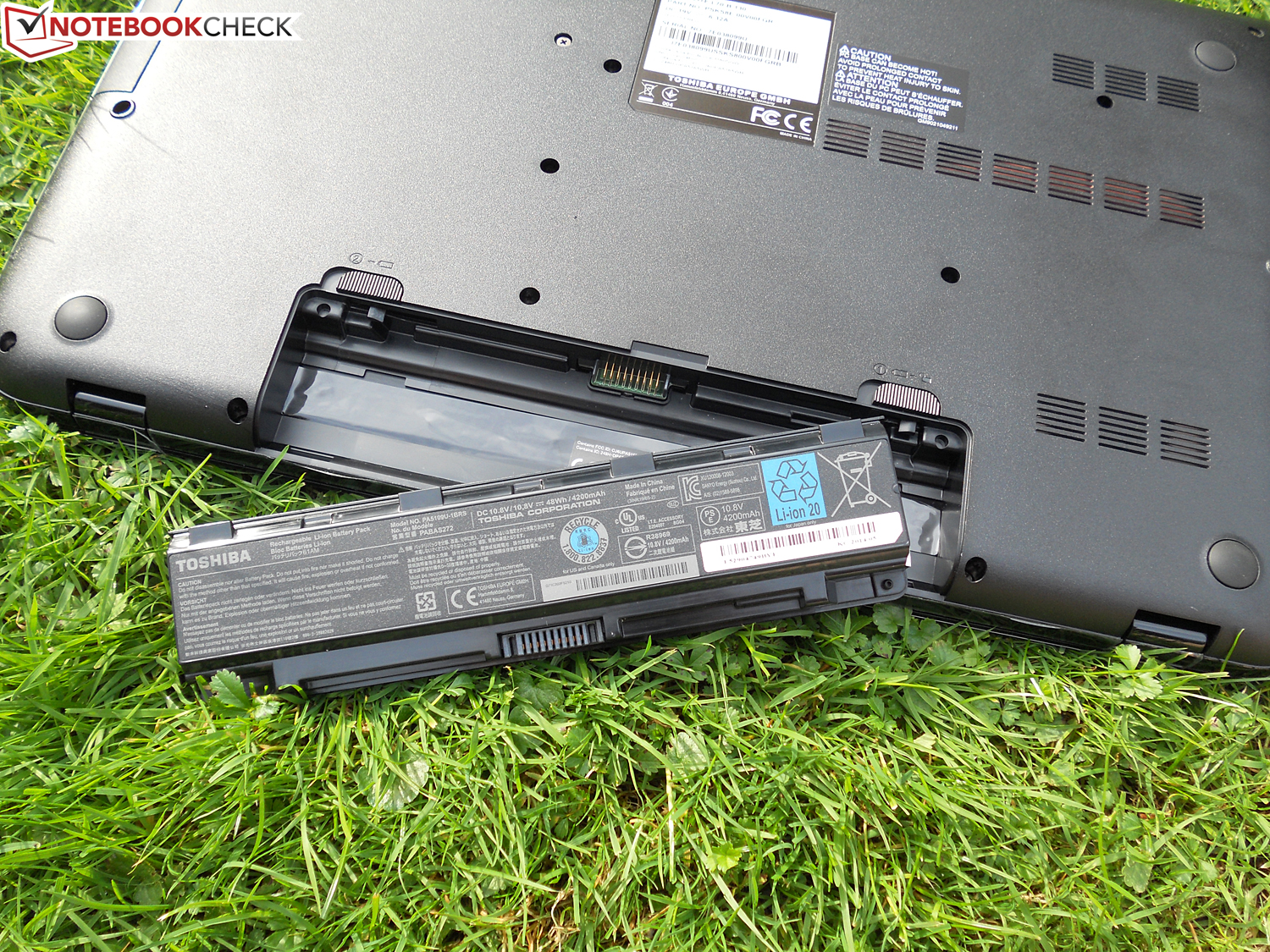

锂电池采用了可拆卸的设计...
锂电池采用了可拆卸的设计...

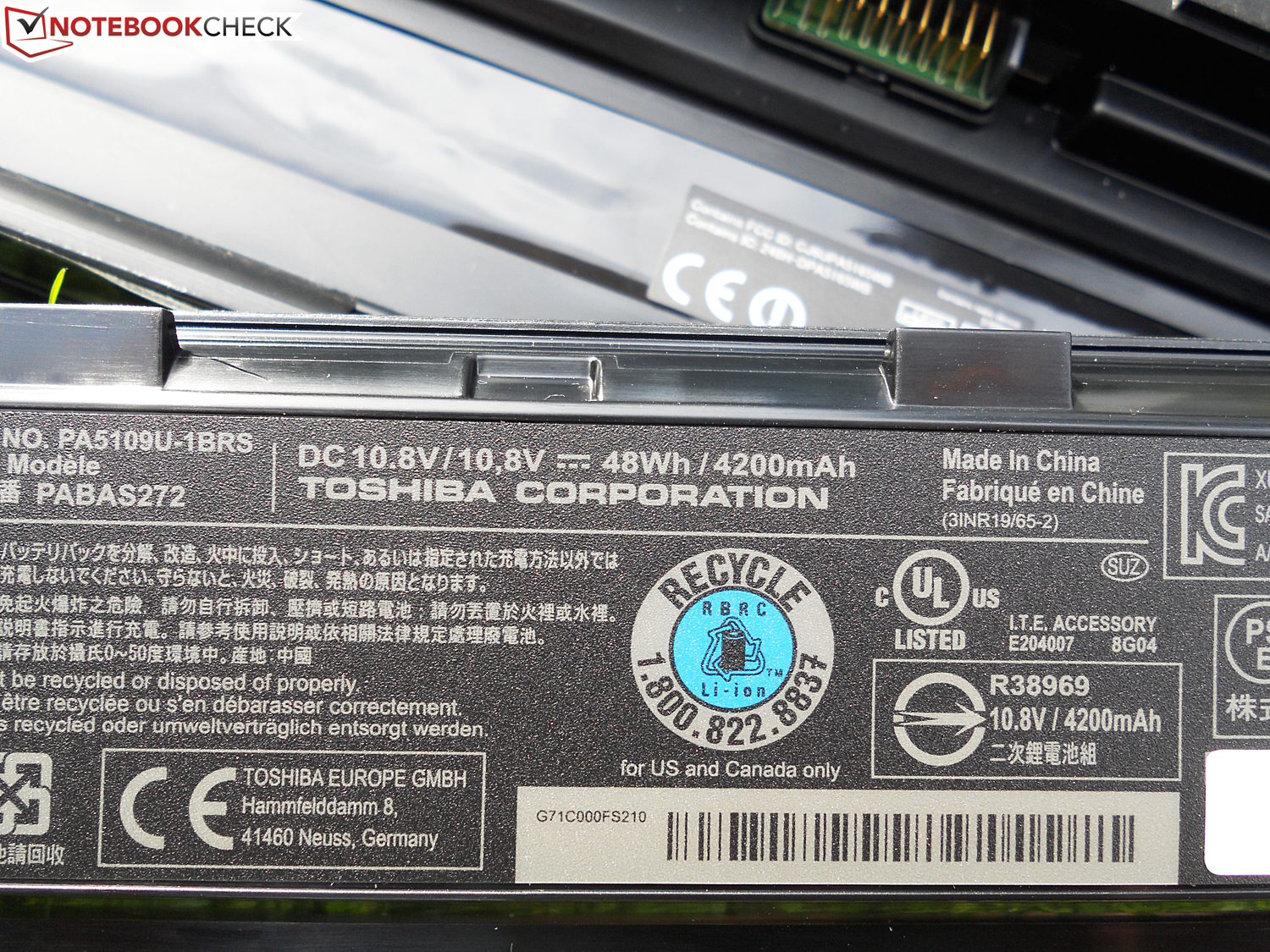

...容量为 48 Wh。
...容量为 48 Wh。

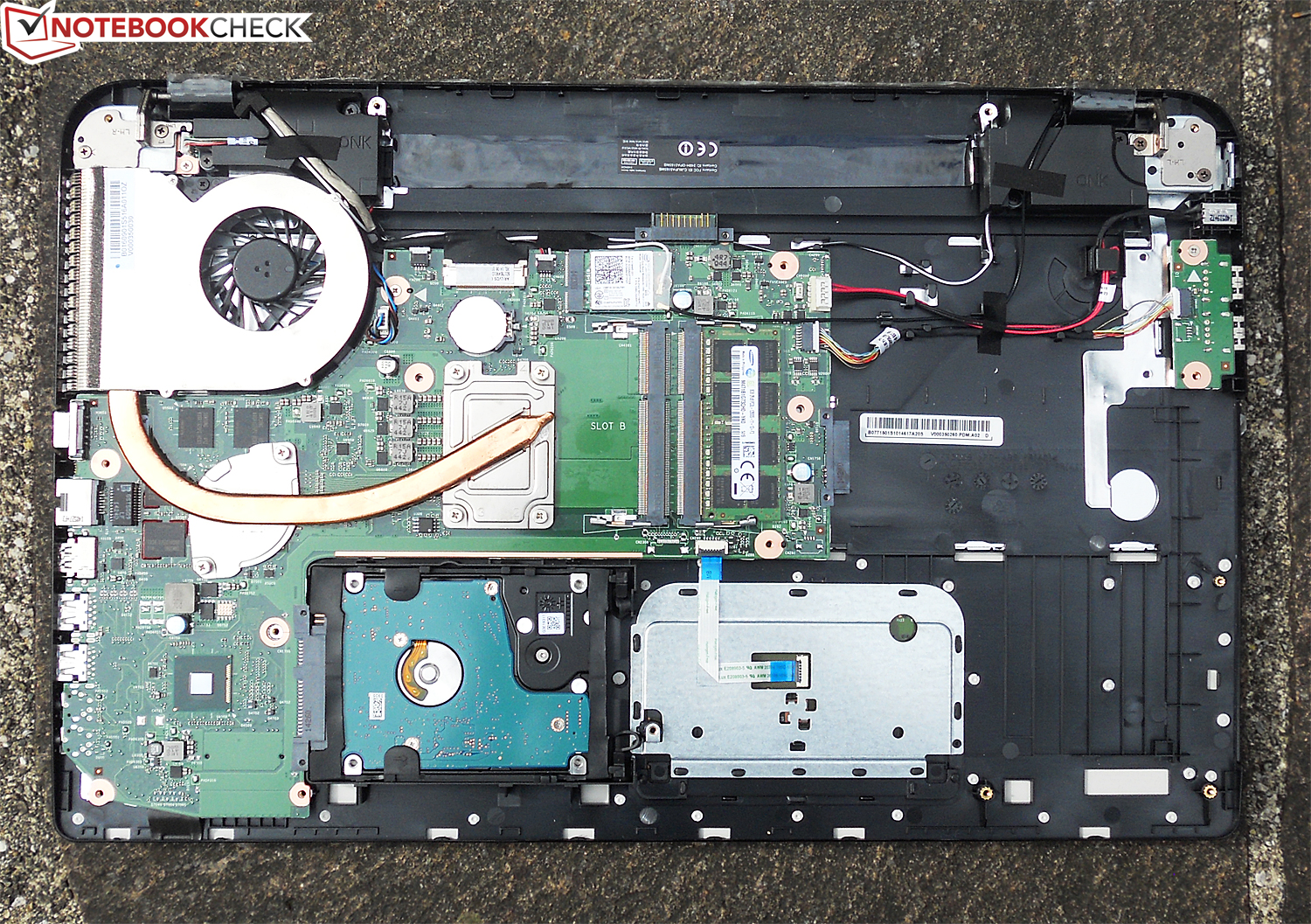

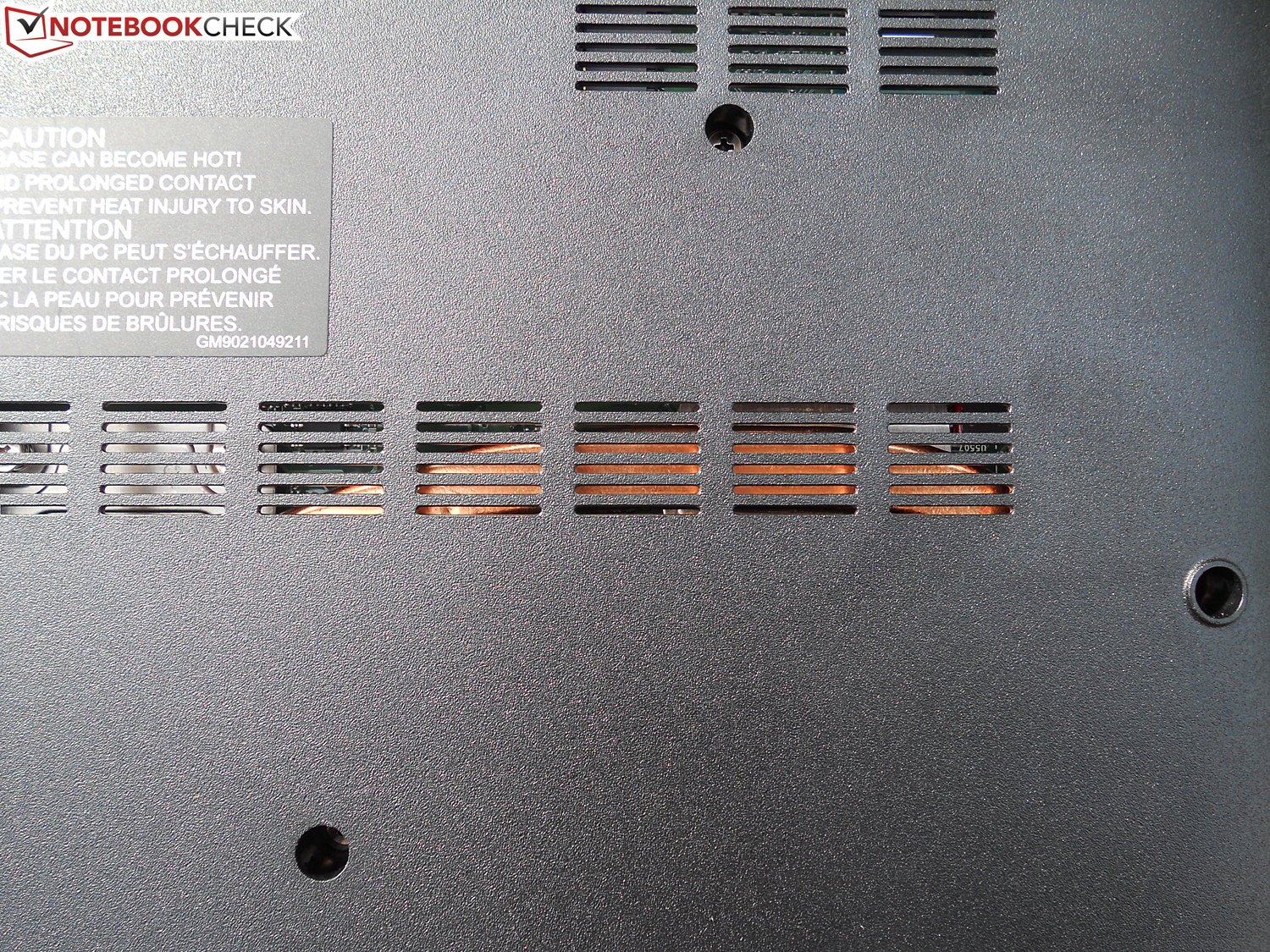

在底盖下可以看到它的散热管。
在底盖下可以看到它的散热管。
...和风扇。不过,怎么才能接触到它们呢?
...和风扇。不过,怎么才能接触到它们呢?
这款笔记本肯定没有为用户维护升级考虑。经过大量的耐心,细心,和汗水...
这款笔记本肯定没有为用户维护升级考虑。经过大量的耐心,细心,和汗水...

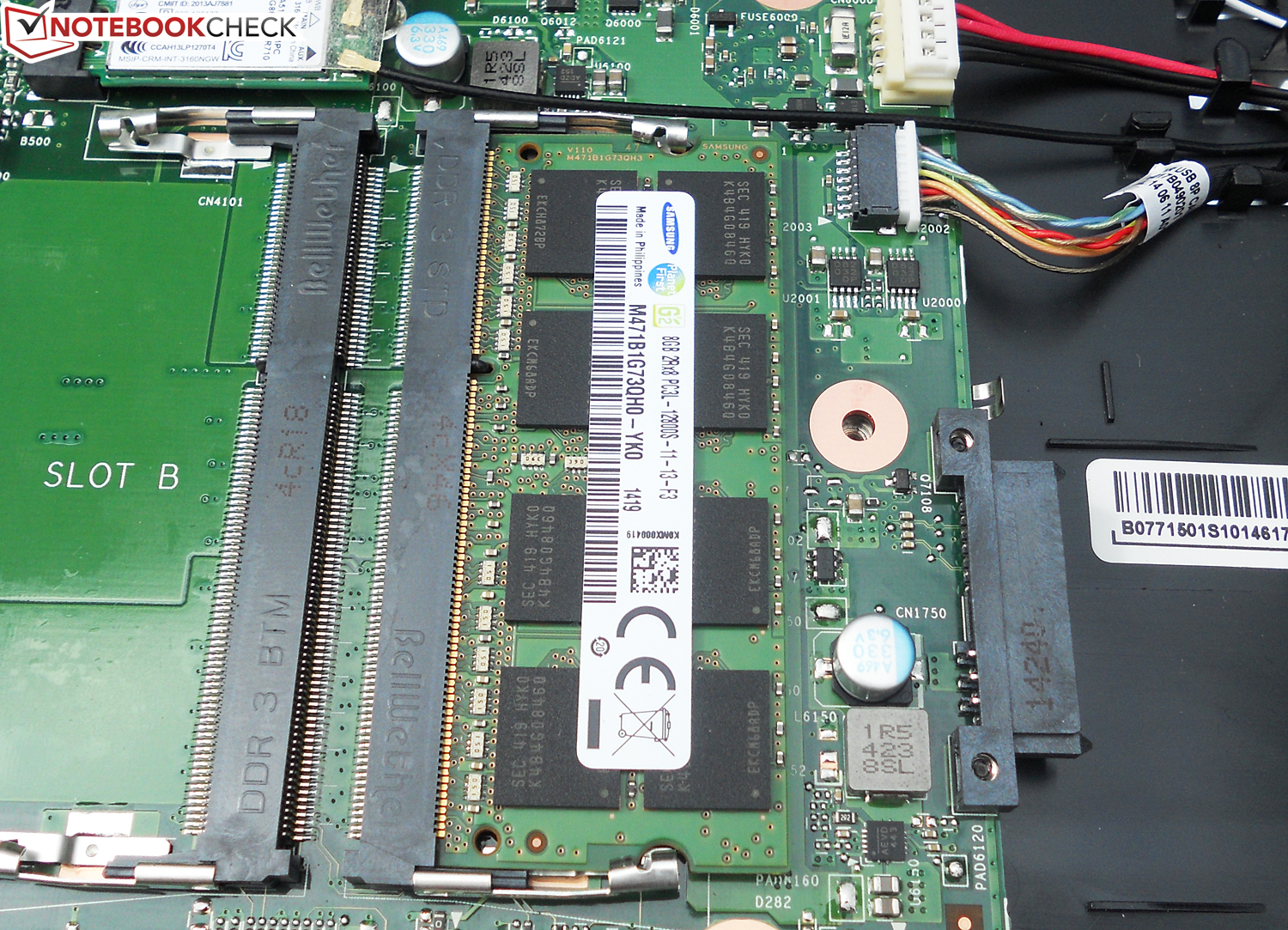

...我们看到了它的内存,和...
...我们看到了它的内存,和...

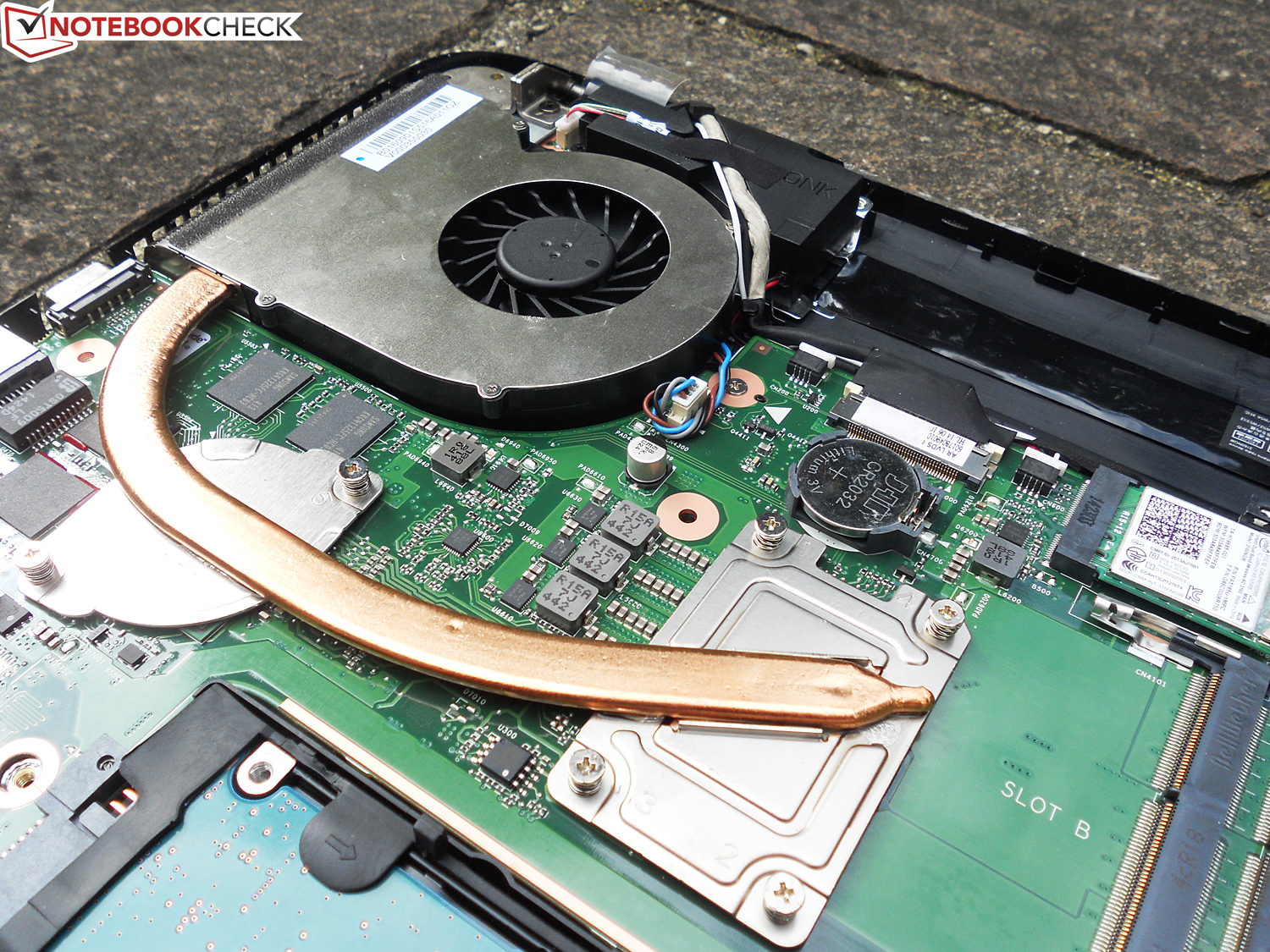

...风扇,处理器和显卡使用了同一根散热管。
...风扇,处理器和显卡使用了同一根散热管。
Please share our article, every link counts!
Mail Logo

Specifications

Toshiba Satellite L70-B-130 (Satellite L70 Series)
Processor
Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz, Haswell
Graphics adapter
AMD Radeon R9 M265X - 2048 MB VRAM, Core: 625 MHz, RAM: 1000 MHz, GDDR5, 13.351.1001.0, Enduro
Memory
8 GB
, 1600 MHz; 1 插槽已占用 (单通道); 2 插槽可用
Display
17.30 inch 16:9, 1600 x 900 pixel, Samsung 173KT02-T01, TN, glossy: yes
Mainboard
Intel HM86 (Lynx Point)
Storage
TOSHIBA MQ01ABD075, 750 GB
, 5400 rpm, 5400 rpm
Soundcard
Intel Lynx Point PCH - High Definition Audio Controller
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 耳机-输出插口 (立体声), 麦克风-输入插口, Card Reader: SD
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optical drive
Matshita DVD-RAM UJ8E2
Size
height x width x depth (in mm): 33 x 413 x 268
Battery
48 Wh Lithium-Ion
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 1280 x 720
Additional features
Speakers: Onkyo 立体声扬声器, DTS Sound, Skullcandy 认证, Keyboard: 孤岛式, Keyboard Light: no, CyberLink MediaStory, CyberLink PowerDVD, DTS Sound, Evernote®, McAfee LiveSafe™ (30天试用版), MS Office 365 (30天试用版), Eco节能设置, 功能键设置, Media Player by sMedio TrueLink+ PC Health Monitor, 系统设置, 显示设置, 24 Months Warranty
Weight
2.87 kg, Power Supply: 540 g
Price
949 Euro



Similar devices with the Same Specs

Devices with the same GPU

东芝 Satellite P50t-B-10T 笔记本电脑简短评测
Radeon R9 M265X, Core i7 4710HQ, 15.60", 2.379 kg

Devices with Same Screen Size and/or Weight

东芝 Satellite P50-C-10G 笔记本电脑简短评测
GeForce 930M, Core i7 5500U, 15.60", 2.185 kg
东芝 Satellite S50-B-12U 笔记本电脑简短评测
Radeon R7 M260, Core i5 4210U, 15.60", 2.004 kg
东芝 Satellite L50-B-182 笔记本电脑简短评测
Radeon R7 M260, Core i7 4500U, 15.60", 2.2 kg
东芝 Satellite Pro C70-B-111 笔记本电脑简短评测
Radeon R7 M260, Core i5 4200U, 17.30", 2.7 kg

Devices from the same Manufacturer

东芝 Portégé X30 (i7-7600U, 256 GB) 笔记本电脑简短评测
HD Graphics 620, Kaby Lake i7-7600U, 13.30", 1.043 kg

Pros

+ 设计时尚
+ 不错的音响系统
+ 出色的多媒体性能和游戏性能
+ 舒适的机身温度
+ 长待机时间

Cons

- 钢琴漆表面非常容易沾染污渍
- 镜面屏幕亮度不高
- 非全高清分辨率
- 负载下发热量大
- 负载下噪音较大
- 无维护升级窗口
- 中高负载下电池续航较短

Toshiba Satellite L70-B-130 - 10/06/2014 v4 (old)
Christoph Herberholz

Chassis
53 / 98 → 54%
Keyboard
65%
Pointing Device
78%
Connectivity
64 / 81 → 79%
Weight
58 / 20-67 → 81%
Battery
73%
Display
66%
Games Performance
89 / 85 → 100%
Application Performance
87 / 92 → 95%
Temperature
82%
Noise
74 / 95 → 78%
Audio
70%
Camera
42 / 85 → 49%
Average
69%
74%
Multimedia - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 东芝 Satellite L70-B-130 笔记本电脑简短评测
Christoph Herberholz, 2014-10-20 (Update: 2014-10-21)
