东芝 Tecra Z40 A-147 笔记本电脑简短评测

Name: Toshiba Tecra Z40 A-147
Brand: Toshiba

办公室镁铝。 东芝的Tecra Z40准确来说并不是一款超级本产品，不过仍然很轻薄。请阅读我们的评测以了解它是否提供了我们所期待的高质量办公笔记本电脑的必要表现。

Florian Wimmer, ✓ Tanja Hinum (translated by Yuchen Wang), Published 07/19/2014 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Windows


243 cd/m²	239 cd/m²	244 cd/m²
265 cd/m²	256 cd/m²	254 cd/m²
272 cd/m²	246 cd/m²	236 cd/m²

Distribution of brightness

TOS5092 tested with X-Rite i1Pro 2

Maximum: 272 cd/m² (Nits) Average: 250.6 cd/m²
Brightness Distribution: 87 %
Center on Battery: 256 cd/m²
Contrast: 188:1 (Black: 1.36 cd/m²)
ΔE Color 10.86 | 0.5-29.43 Ø4.93
ΔE Greyscale 11.71 | 0.5-98 Ø5.2
38% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.68% AdobeRGB 1998 (Argyll 2.2.0 3D)
60.6% sRGB (Argyll 2.2.0 3D)
40.32% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16

Download ICC File (X-Rite i1Pro 2)

Cinebench R10 Shading 64Bit

5903 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

9865 Points

Cinebench R10 Rendering Single CPUs 64Bit

4830 Points

Cinebench R11.5 OpenGL 64Bit

15.09 fps

Cinebench R11.5 CPU Multi 64Bit

2.49 Points

Cinebench R11.5 CPU Single 64Bit

1.11 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

20.38 fps

Cinebench R15 CPU Multi 64Bit

231 Points

Cinebench R15 CPU Single 64Bit

100 Points

Help

... in comparison

Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Toshiba Tecra Z40 A-147	4830 Points
Dell Latitude E7440	5277 Points +9%
Acer TravelMate P645-MG-74508G75tkk	5430 Points +12%
HP EliteBook 840 G1	6025 Points +25%
Fujitsu LifeBook E744	6078 Points +26%
Rendering Multiple CPUs 64Bit (sort by value)
Toshiba Tecra Z40 A-147	9865 Points
Dell Latitude E7440	10797 Points +9%
Acer TravelMate P645-MG-74508G75tkk	10988 Points +11%
HP EliteBook 840 G1	11664 Points +18%
Fujitsu LifeBook E744	19148 Points +94%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Toshiba Tecra Z40 A-147	1.11 Points
Dell Latitude E7440	1.23 Points +11%
Acer TravelMate P645-MG-74508G75tkk	1.24 Points +12%
HP EliteBook 840 G1	1.46 Points +32%
Fujitsu LifeBook E744	1.4 Points +26%
CPU Multi 64Bit (sort by value)
Toshiba Tecra Z40 A-147	2.49 Points
Dell Latitude E7440	2.77 Points +11%
Acer TravelMate P645-MG-74508G75tkk	2.55 Points +2%
HP EliteBook 840 G1	2.92 Points +17%
Fujitsu LifeBook E744	5.43 Points +118%

Cinebench R15
CPU Single 64Bit (sort by value)
Toshiba Tecra Z40 A-147	100 Points
Dell Latitude E7440	105 Points +5%
Acer TravelMate P645-MG-74508G75tkk	109 Points +9%
HP EliteBook 840 G1	126 Points +26%
Fujitsu LifeBook E744	124 Points +24%
CPU Multi 64Bit (sort by value)
Toshiba Tecra Z40 A-147	231 Points
Dell Latitude E7440	253 Points +10%
Acer TravelMate P645-MG-74508G75tkk	234 Points +1%
HP EliteBook 840 G1	272 Points +18%
Fujitsu LifeBook E744	509 Points +120%

Legend

Toshiba Tecra Z40 A-147 Intel Core i5-4200U, Intel HD Graphics 4400, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Latitude E7440 Intel Core i5-4300U, Intel HD Graphics 4400, Samsung SSD SM841 128GB

Acer TravelMate P645-MG-74508G75tkk Intel Core i7-4500U, AMD Radeon HD 8750M, Toshiba THNSNJ256GMCT

HP EliteBook 840 G1 Intel Core i7-4600U, Intel HD Graphics 4400, Intel SSD Pro 1500 Series SSDSC2BF180A4H

Fujitsu LifeBook E744 Intel Core i7-4702MQ, Intel HD Graphics 4600, Samsung SSD PM851 256 GB MZ7TE256HMHP

PCMark 7 Score		4126 points
PCMark 8 Home Score Accelerated v2		2810 points
PCMark 8 Creative Score Accelerated v2		2495 points
PCMark 8 Work Score Accelerated v2		4094 points
Help

... in comparison

PCMark 7 - Score (sort by value)
Toshiba Tecra Z40 A-147	4126 Points
Dell Latitude E7440	4535 Points +10%
Acer TravelMate P645-MG-74508G75tkk	5159 Points +25%
HP EliteBook 840 G1	5303 Points +29%
Fujitsu LifeBook E744	4334 Points +5%

PCMark 8
Work Score Accelerated v2 (sort by value)
Toshiba Tecra Z40 A-147	4094 Points
HP EliteBook 840 G1	5180 Points +27%
Fujitsu LifeBook E744	3972 Points -3%
Creative Score Accelerated v2 (sort by value)
Toshiba Tecra Z40 A-147	2495 Points
HP EliteBook 840 G1	3114 Points +25%
Fujitsu LifeBook E744	2758 Points +11%
Home Score Accelerated v2 (sort by value)
Toshiba Tecra Z40 A-147	2810 Points
HP EliteBook 840 G1	3610 Points +28%
Fujitsu LifeBook E744	2790 Points -1%

AS SSD

Hitachi Travelstar Z7K500 HTS725050A7E630

Sequential Read: 107.2MB/s

Sequential Write: 103.7MB/s

4K Read: 0.55MB/s

4K Write: 0.57MB/s

4K-64 Read: 0.34MB/s

4K-64 Write: 0.53MB/s

Access Time Read: 16ms

Access Time Write: 14ms

Score Read: 12Points

Score Write: 12Points

Score Total: 29Points

AS SSD
Seq Read (sort by value)
Toshiba Tecra Z40 A-147	107.2 MB/s
Dell Latitude E7440	505 MB/s +371%
Acer TravelMate P645-MG-74508G75tkk	479.7 MB/s +347%
HP EliteBook 840 G1	450.9 MB/s +321%
Fujitsu LifeBook E744	513 MB/s +379%
4K Read (sort by value)
Toshiba Tecra Z40 A-147	0.55 MB/s
Dell Latitude E7440	33.69 MB/s +6025%
Acer TravelMate P645-MG-74508G75tkk	13.1 MB/s +2282%
HP EliteBook 840 G1	23.67 MB/s +4204%
Fujitsu LifeBook E744	33.31 MB/s +5956%
4K-64 Read (sort by value)
Toshiba Tecra Z40 A-147	0.34 MB/s
Dell Latitude E7440	376.7 MB/s +110694%
Acer TravelMate P645-MG-74508G75tkk	386.7 MB/s +113635%
HP EliteBook 840 G1	204.3 MB/s +59988%
Fujitsu LifeBook E744	368.5 MB/s +108282%
4K-64 Write (sort by value)
Toshiba Tecra Z40 A-147	0.53 MB/s
Dell Latitude E7440	253 MB/s +47636%
Acer TravelMate P645-MG-74508G75tkk	148.5 MB/s +27919%
HP EliteBook 840 G1	217.1 MB/s +40862%
Fujitsu LifeBook E744	196.3 MB/s +36938%
Access Time Read (sort by value)
Toshiba Tecra Z40 A-147	16 ms *
Dell Latitude E7440	0.086 ms * +99%
Acer TravelMate P645-MG-74508G75tkk	0.179 ms * +99%
HP EliteBook 840 G1	0.102 ms * +99%
Fujitsu LifeBook E744	0.096 ms * +99%
Access Time Write (sort by value)
Toshiba Tecra Z40 A-147	14 ms *
Dell Latitude E7440	0.036 ms * +100%
Acer TravelMate P645-MG-74508G75tkk	0.081 ms * +99%
HP EliteBook 840 G1	0.277 ms * +98%
Fujitsu LifeBook E744	0.033 ms * +100%
Score Read (sort by value)
Toshiba Tecra Z40 A-147	12 Points
Dell Latitude E7440	461 Points +3742%
Acer TravelMate P645-MG-74508G75tkk	448 Points +3633%
HP EliteBook 840 G1	273 Points +2175%
Fujitsu LifeBook E744	453 Points +3675%
Score Write (sort by value)
Toshiba Tecra Z40 A-147	12 Points
Dell Latitude E7440	375 Points +3025%
Acer TravelMate P645-MG-74508G75tkk	234 Points +1850%
HP EliteBook 840 G1	335 Points +2692%
Fujitsu LifeBook E744	320 Points +2567%
Score Total (sort by value)
Toshiba Tecra Z40 A-147	29 Points
Dell Latitude E7440	1076 Points +3610%
Acer TravelMate P645-MG-74508G75tkk	910 Points +3038%
HP EliteBook 840 G1	745 Points +2469%
Fujitsu LifeBook E744	1003 Points +3359%

* ... smaller is better

3DMark 11 Performance		782 points
3DMark Ice Storm Standard Score		28516 points
3DMark Cloud Gate Standard Score		3789 points
3DMark Fire Strike Score		500 points
Help

... in comparison

3DMark
1920x1080 Fire Strike Score (sort by value)
Toshiba Tecra Z40 A-147	500 Points
Acer TravelMate P645-MG-74508G75tkk	1169 Points +134%
HP EliteBook 840 G1	632 Points +26%
Fujitsu LifeBook E744	590 Points +18%
1280x720 Cloud Gate Standard Score (sort by value)
Toshiba Tecra Z40 A-147	3789 Points
Acer TravelMate P645-MG-74508G75tkk	5610 Points +48%
HP EliteBook 840 G1	4778 Points +26%
Fujitsu LifeBook E744	5515 Points +46%

3DMark 11 - 1280x720 Performance (sort by value)
Toshiba Tecra Z40 A-147	782 Points
Acer TravelMate P645-MG-74508G75tkk	1854 Points +137%
HP EliteBook 840 G1	988 Points +26%
Fujitsu LifeBook E744	1058 Points +35%

	low	med.	high
Diablo III (2012)	49.3	37.2	29.6
Tomb Raider (2013)	40.2	24.3	12.1
Thief (2014)	10.2	7.3	3.9

Noise Level

Idle		28.7 / 28.7 / 30.2 dB(A)
HDD		29.5 dB(A)
Load		31.2 / 35.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-451 (15 cm distance)

Max. Load

Idle


38.7 °C	34.8 °C	31.3 °C
33.5 °C	33.3 °C	29.4 °C
29.1 °C	27.3 °C	27.3 °C

Maximum: 38.7 °C
Average: 31.6 °C


30.7 °C	33.6 °C	33.6 °C
28.9 °C	30.5 °C	32.1 °C
26.5 °C	27.8 °C	28.8 °C

Maximum: 33.6 °C
Average: 30.3 °C

Power Supply (max.) 34.8 °C | Room Temperature 22.1 °C | Fluke 62 Max

(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.7 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 33.6 °C / 92 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.7 °C / 84 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.1 °C / 84.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.4 °C / -2.5 F).

Power Consumption

Off / Standby	0 / 0.1 Watt
Idle	3.7 / 6 / 6.3 Watt
Load	26.5 / 28.3 Watt


Key: min: , med: , max: Extech Power Analyzer Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Idle (without WLAN, min brightness)		9h 46min
WiFi Surfing		7h 06min
Big Buck Bunny H.264 1080p		6h 25min
Load (maximum brightness)		2h 11min

使用办公设备时，你经常会注意到用户的反馈：而其中只有很少一部分问题可以改善。对于东芝的Tecra Z40 A-147来说，我们认为需要它的输入设备需要一些改进。它的键盘可以有更好的反馈，而点击触控板也不太适合办公用途，尽管你可以使用指点杆的按键来配合触控板。

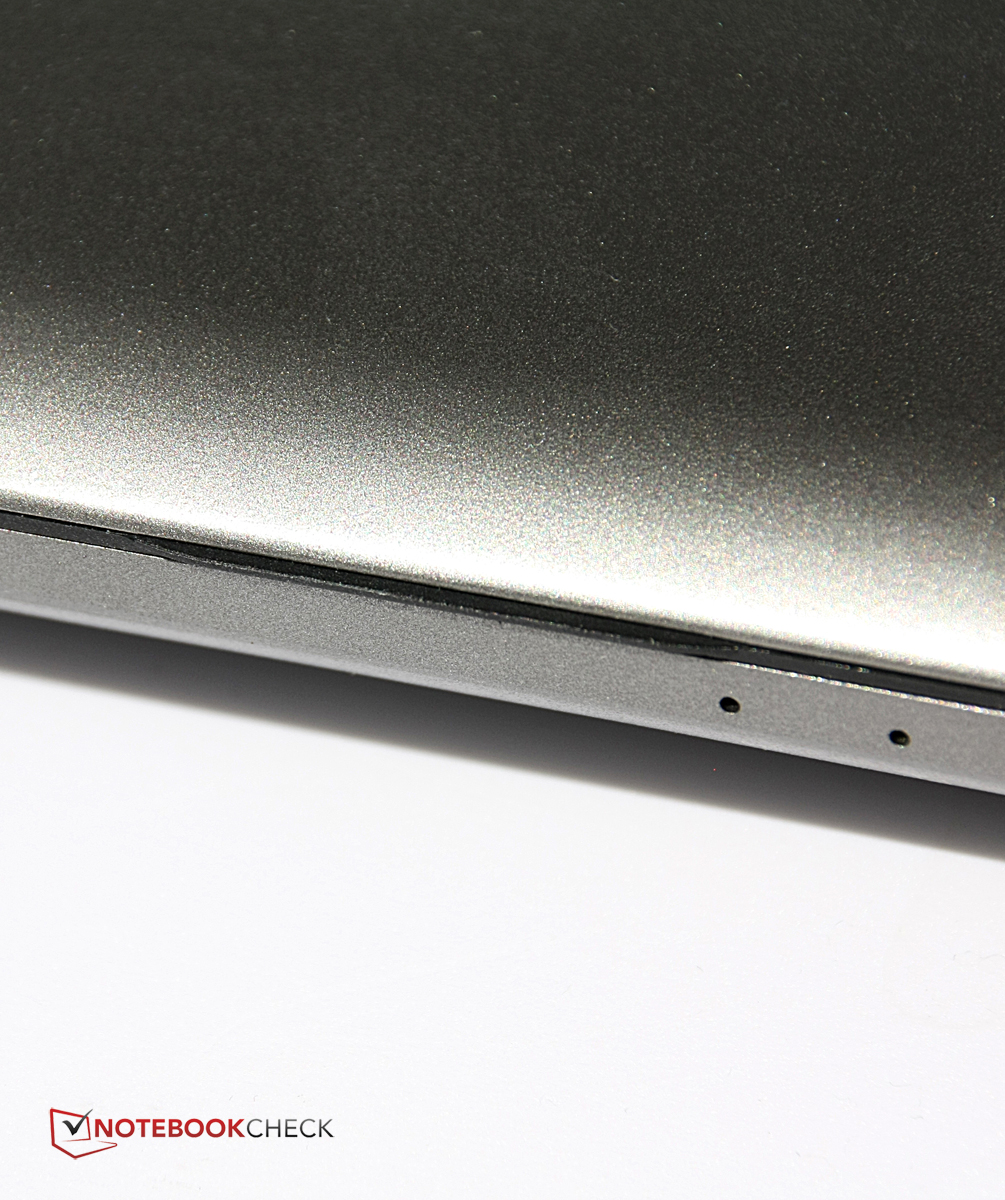

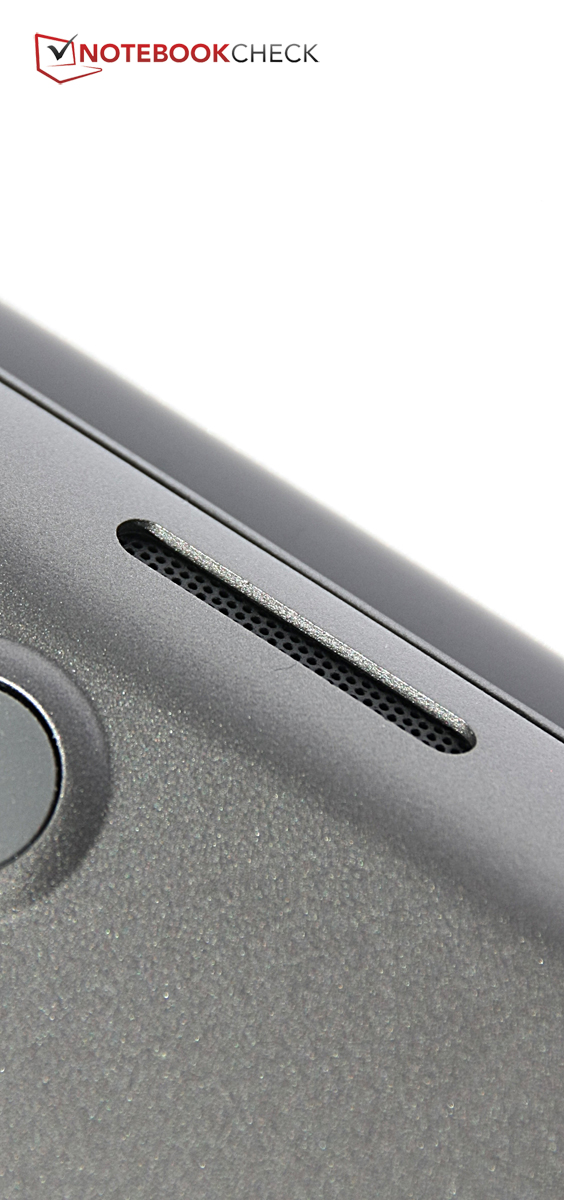

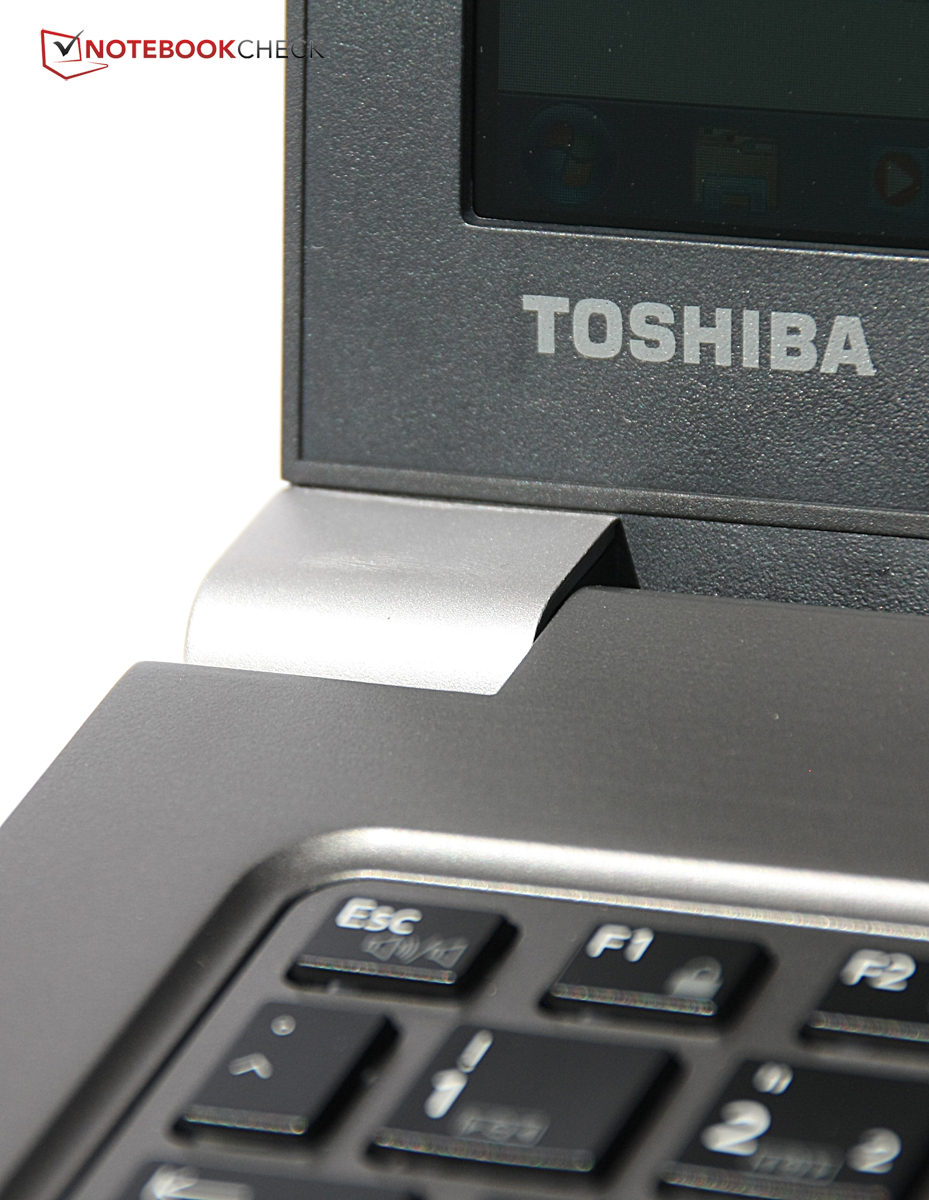

当你打开脆弱的屏幕上盖时会对它一开始给你的高质量印象有些怀疑。如果你用一点劲，屏幕上盖甚至会扭曲。它的扬声器表现平庸，但对于办公用途来说也无可厚非。较大的色差、低对比度和高黑值让它的屏幕很难被称为一个亮点。

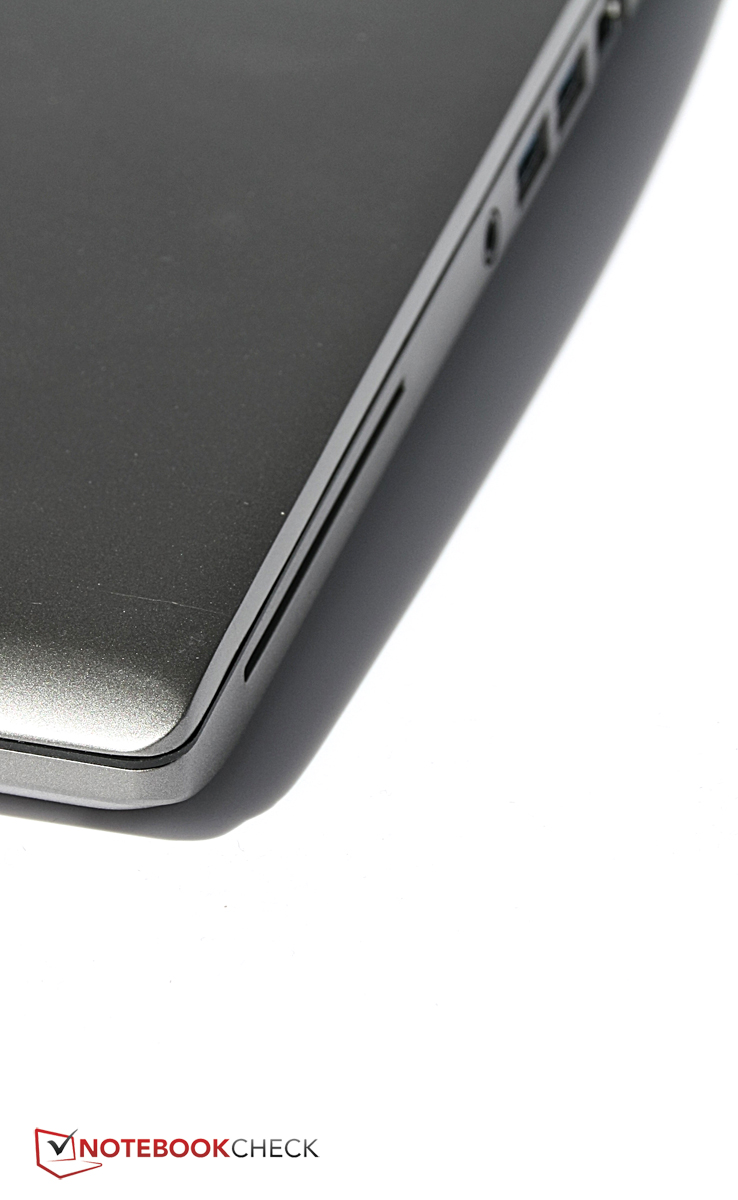

除此之外，Tecra Z40 A-147有很多优势：超轻超薄的机身、丰富的接口都是同类产品中的典范。它的性能表现也不错，同样WLAN和WWAN的信号强度也不错。实用的安全功能，安静的风扇和低发热量也是它的长处。

东芝Tecra Z40 A-147对于需要高质量、高性能、长电池续航的办公笔记本电脑的用户来说是一个不错的选择。如果你对屏幕的要求不高，也不需要长时间用键盘打字的话，它的劣势就很少了。不过，这款笔记本电脑由于我们提到的一些缺点只得到了银牌。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Toshiba Tecra Z40 A-147 (Tecra Z40 Series)

Processor

Intel Core i5-4200U 2 x 1.6 - 2.6 GHz, Haswell

Graphics adapter

Intel HD Graphics 4400, Core: 1000 MHz

Memory

4 GB

, 单通道, 800 MHz

Display

14.00 inch 16:9, 1600 x 900 pixel, TOS5092, TN LED, glossy: no

Mainboard

Intel Lynx Point-LP

Storage

Hitachi Travelstar Z7K500 HTS725050A7E630, 500 GB

, 7200 rpm, 453 GB free

Soundcard

Intel Lynx Point-LP - High Definition Audio Controller

Connections

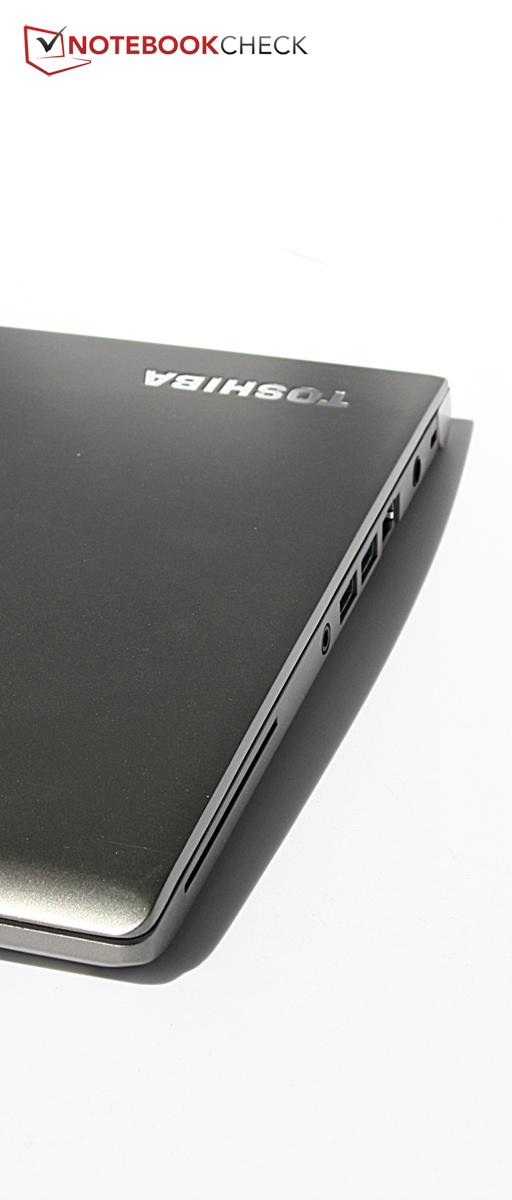

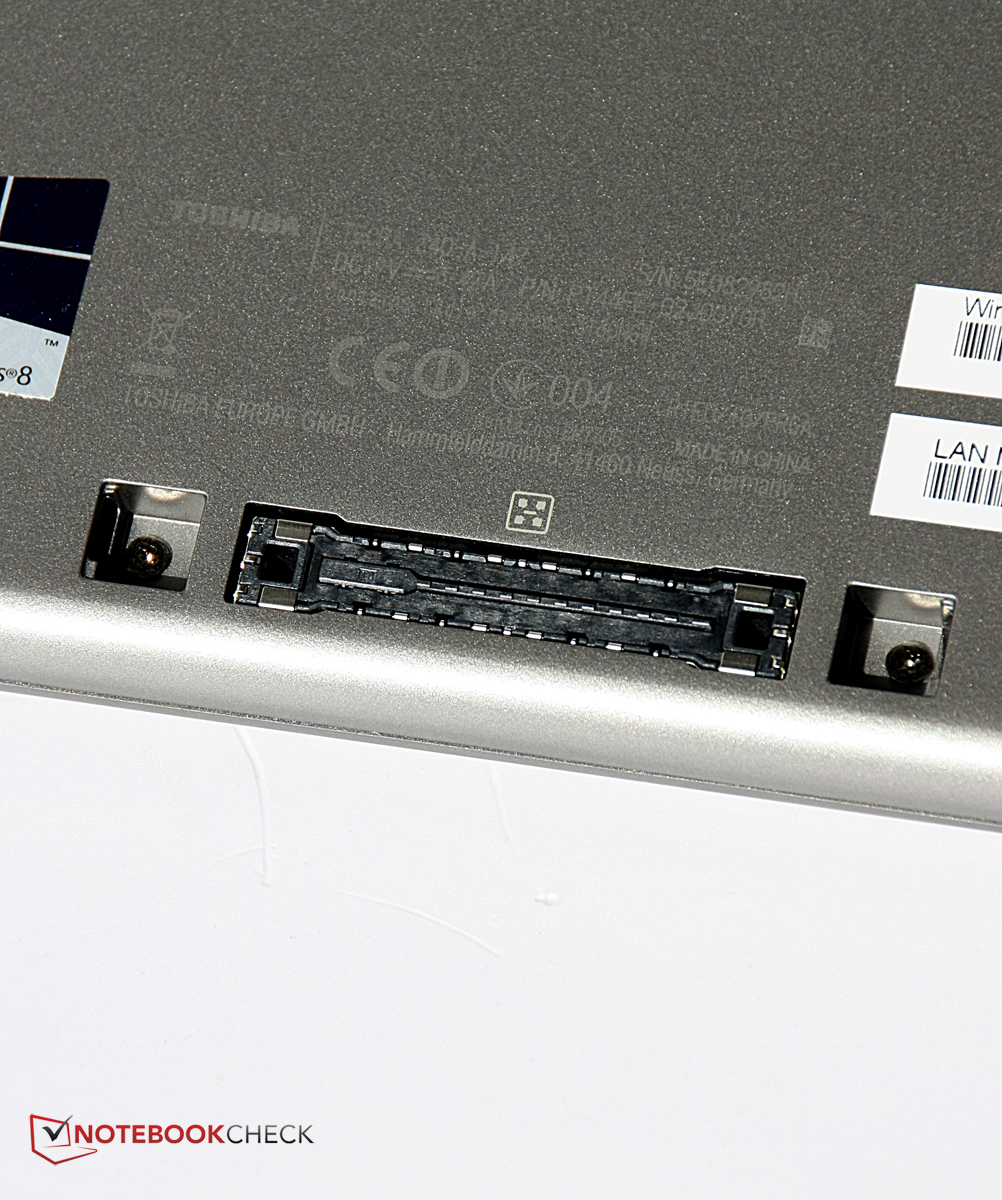

3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Docking Station Port, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD读卡器，最大支持64GB, 1 SmartCard, Sensors: 指纹识别，震动传感器

Networking

Intel Ethernet Connection I218-V (10/100/1000MBit/s), Intel Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, LTE (4G), HSPA+, GSM/GPRS/EDGE

Size

height x width x depth (in mm): 20.4 x 338 x 236

Battery

62 Wh Lithium-Ion, 4 芯, Battery runtime (according to manufacturer): 9 h

Operating System

Microsoft Windows 7 Professional 64 Bit

Camera

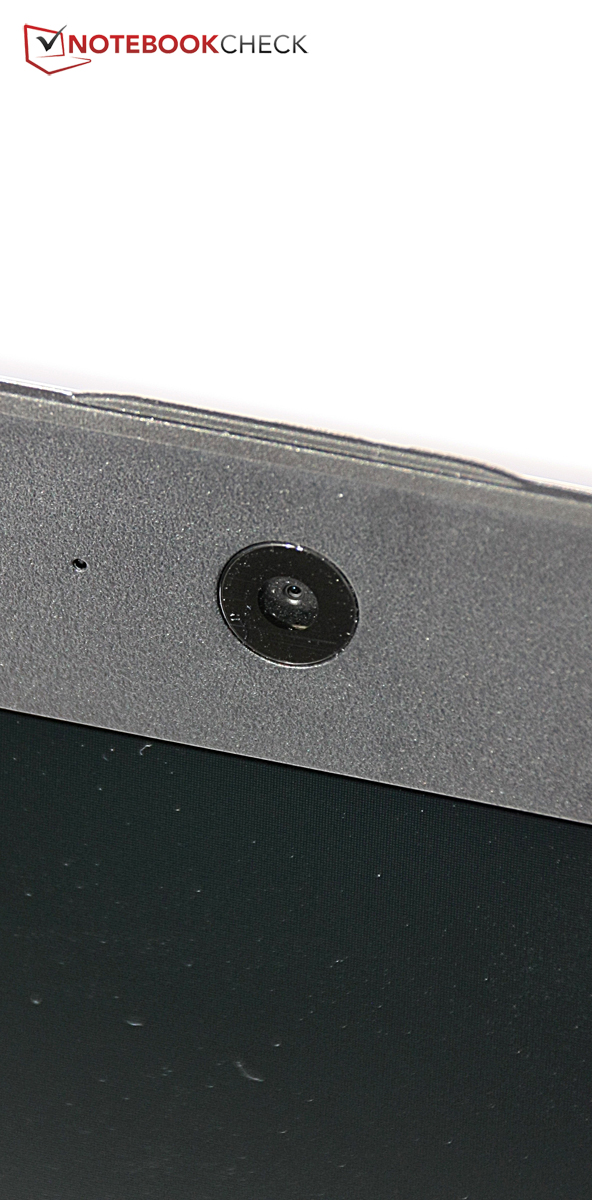

Webcam: 200万像素全高清摄像头

Additional features

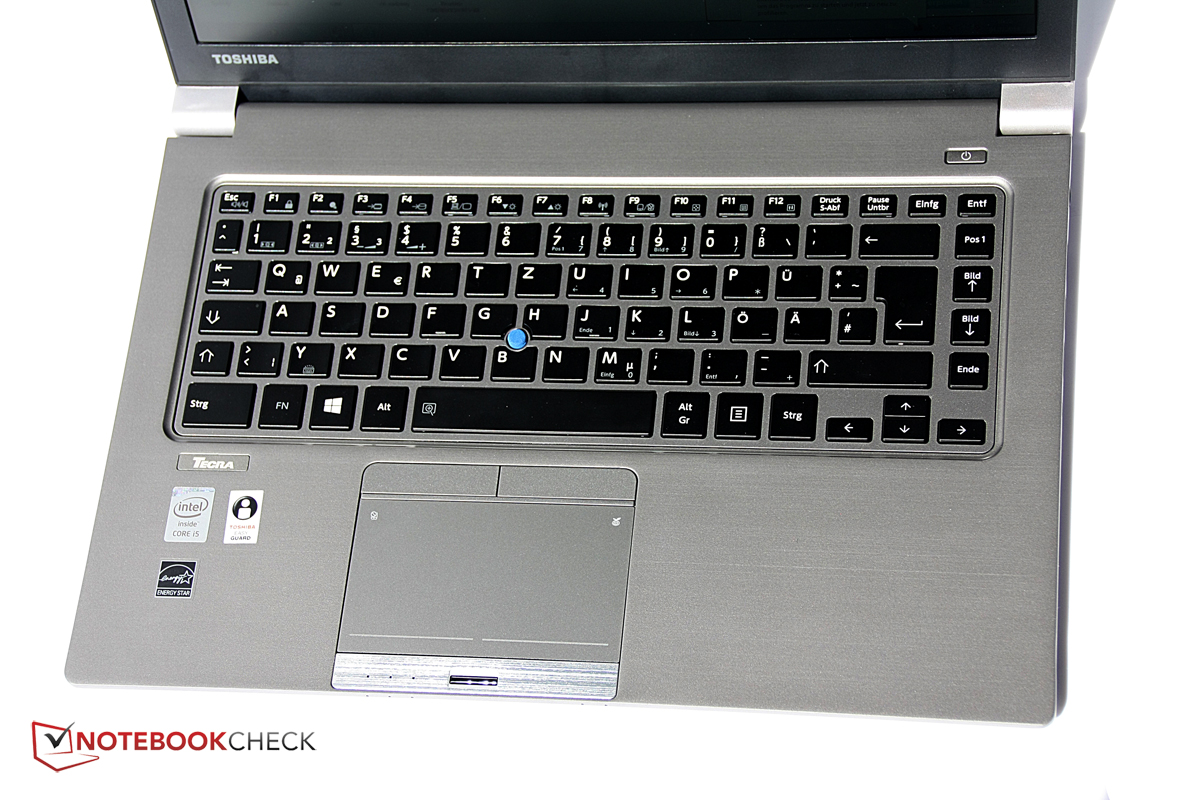

Speakers: 立体声扬声器, Keyboard: 87键孤岛式键盘, Keyboard Light: yes, TOSHIBA Eco Utility, TOSHIBA PC Health Monitor

Weight

1.47 kg, Power Supply: 130 g

Price

1349 Euro

Links

Toshiba homepage
Toshiba notebook section
Tecra Z40 (Series)

Devices from a different Manufacturer and/or with a different CPU

戴尔 Latitude 14 E5450 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U

东芝 Tecra Z40T-A1410 笔记本简短评测
HD Graphics 4400, Core i5 4310U

Devices with the same GPU and/or Screen Size

Acer TravelMate P246-M-598B 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 2.063 kg

戴尔 Latitude 14 Rugged 5404 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 3.07 kg

戴尔 Latitude 14 Rugged Extreme 笔记本电脑简短评测
HD Graphics 4400, Core i5 4300U, 3.69 kg

Devices with the same GPU

戴尔 Latitude E5550 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 15.60", 2.14 kg

东芝 Satellite Pro R50-B-112 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.3 kg

Pros

+ 不错的电池续航

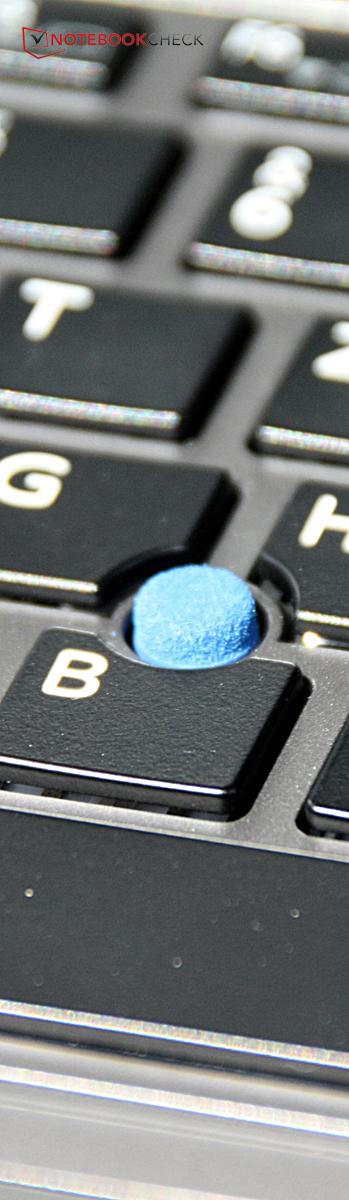

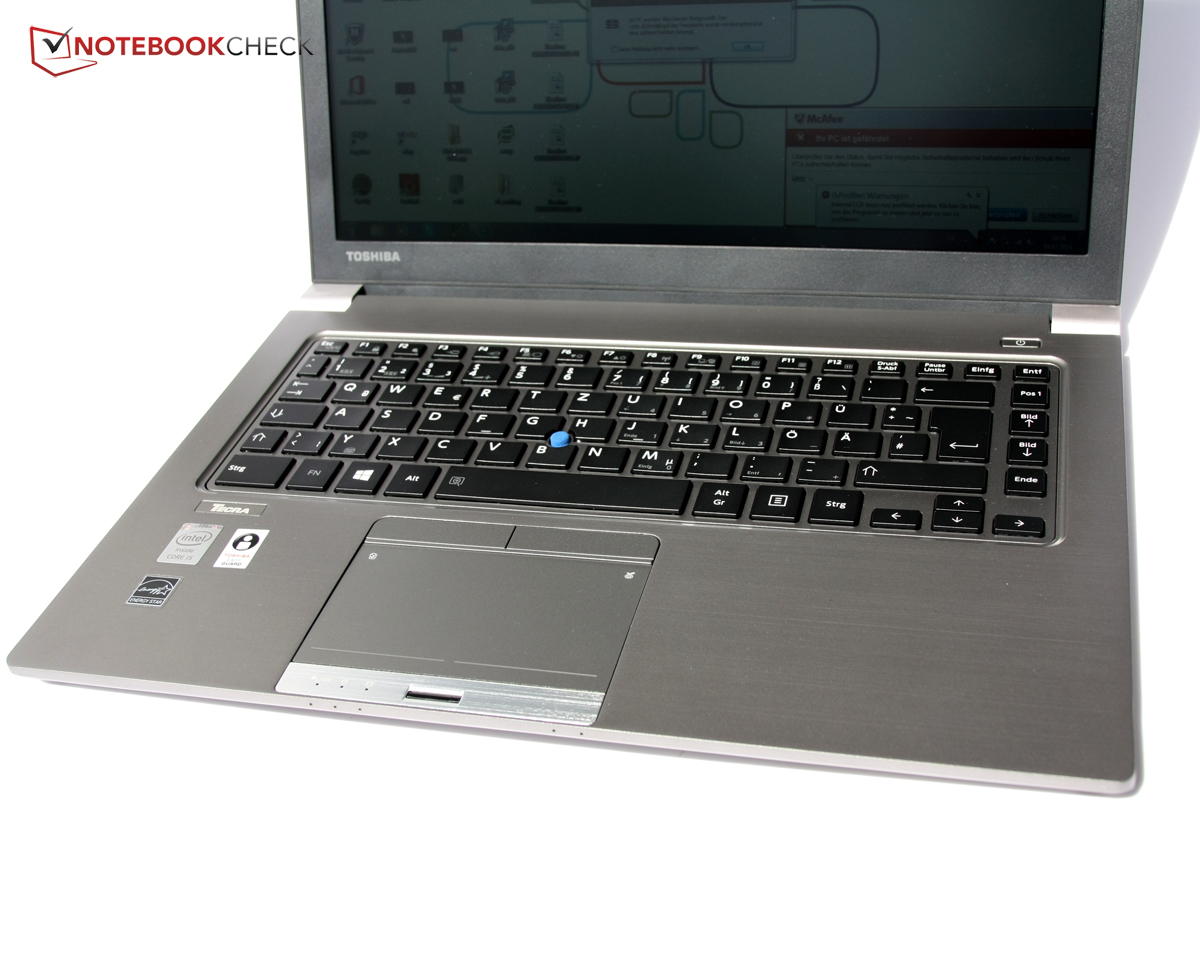

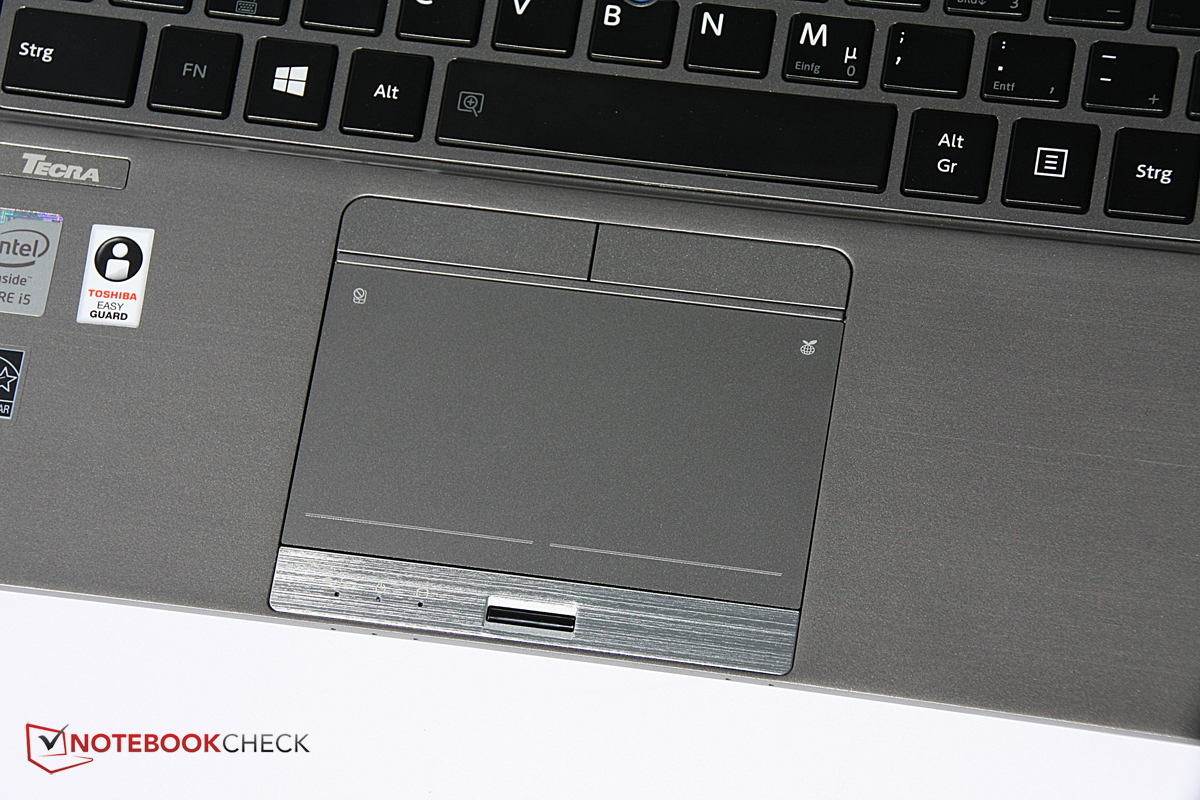

+ 额外的鼠标替代品：小蓝点（Accupoint）

+ 磨砂屏幕

+ 高质量机身

+ 丰富的接口配置

+ 安全功能

+ 轻

+ 很好的无线信号

+ 合理的性能表现

+ 发热量低

Cons

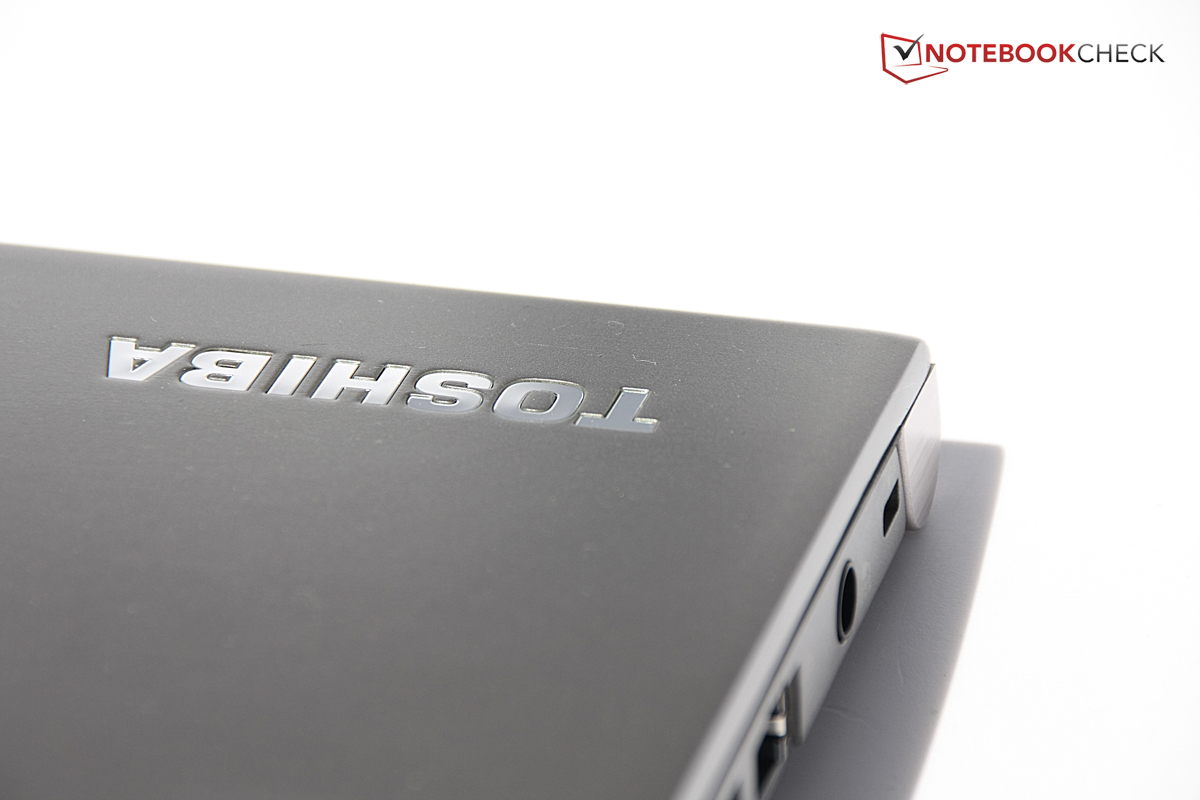

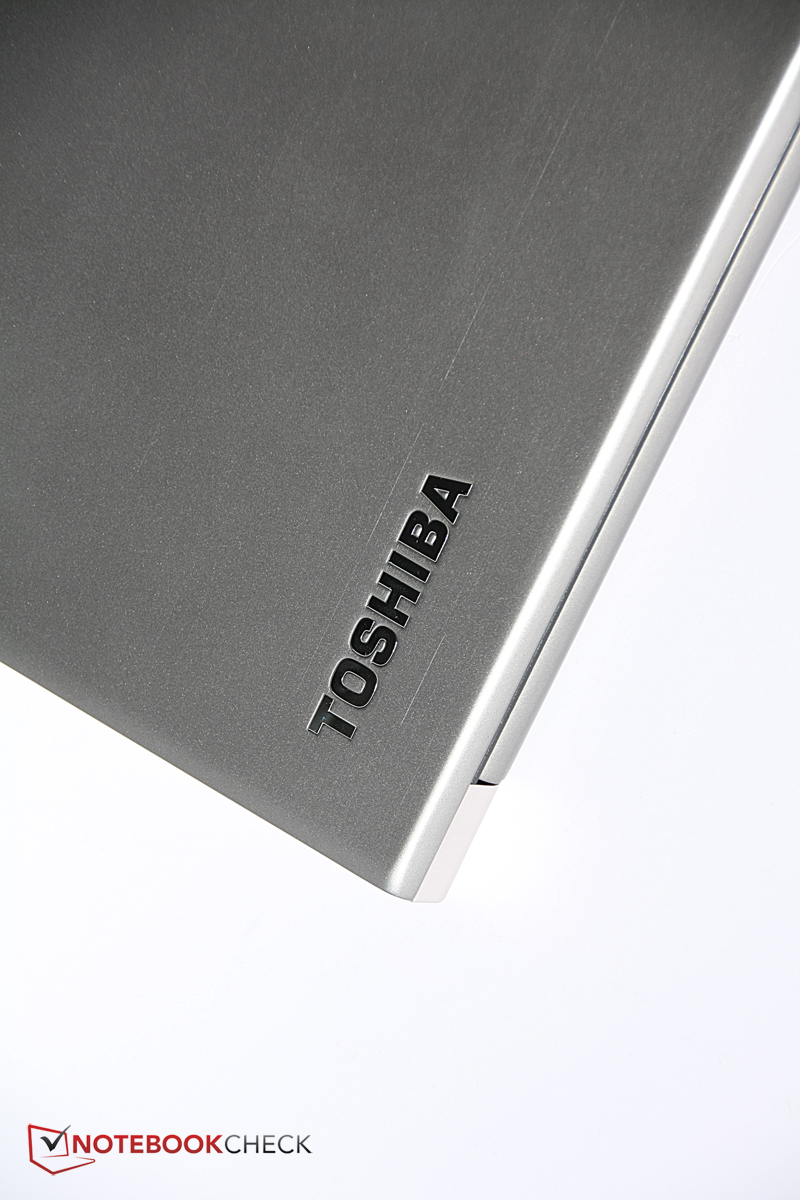

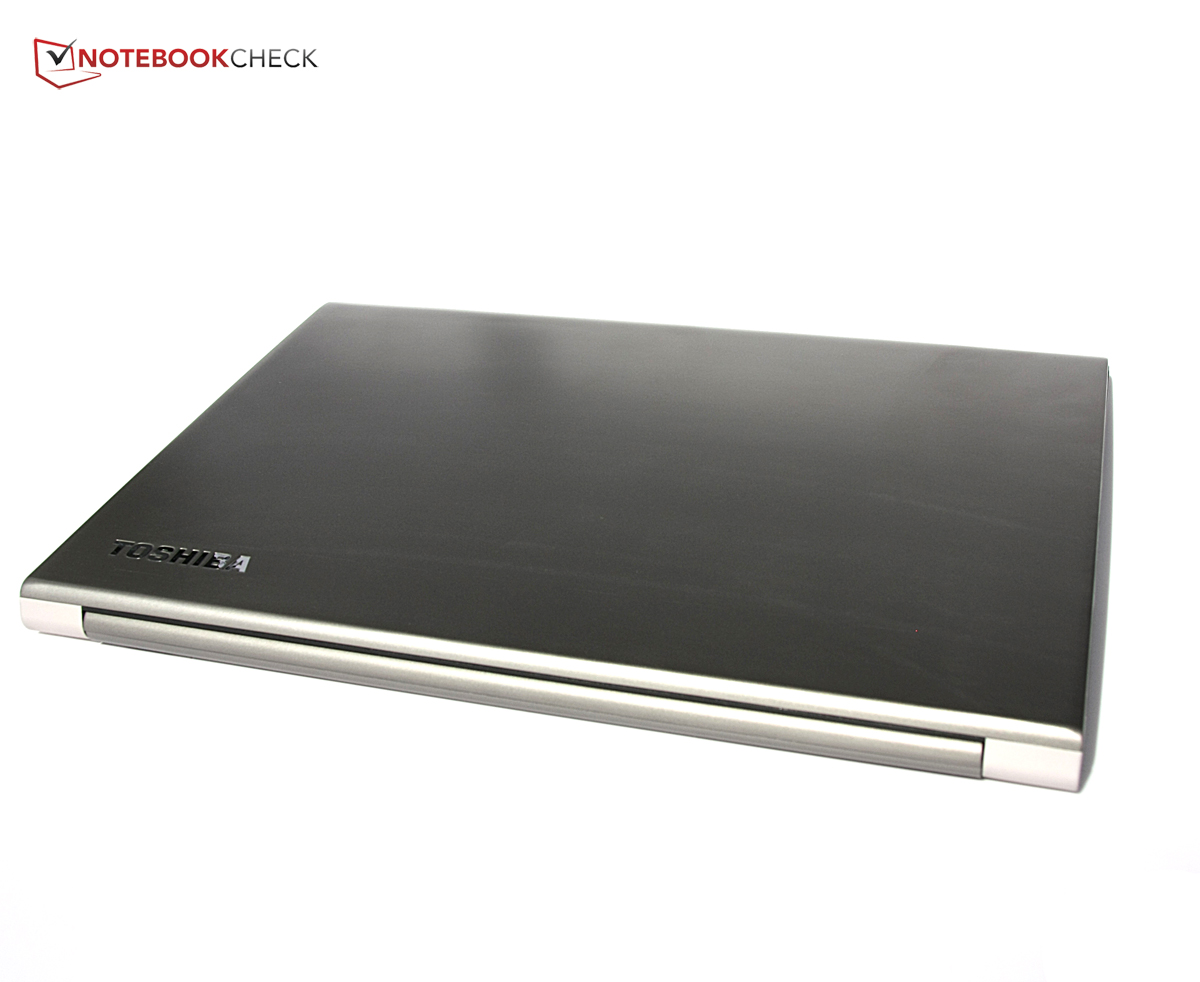

- 上盖易磨损

- 键盘反馈有限

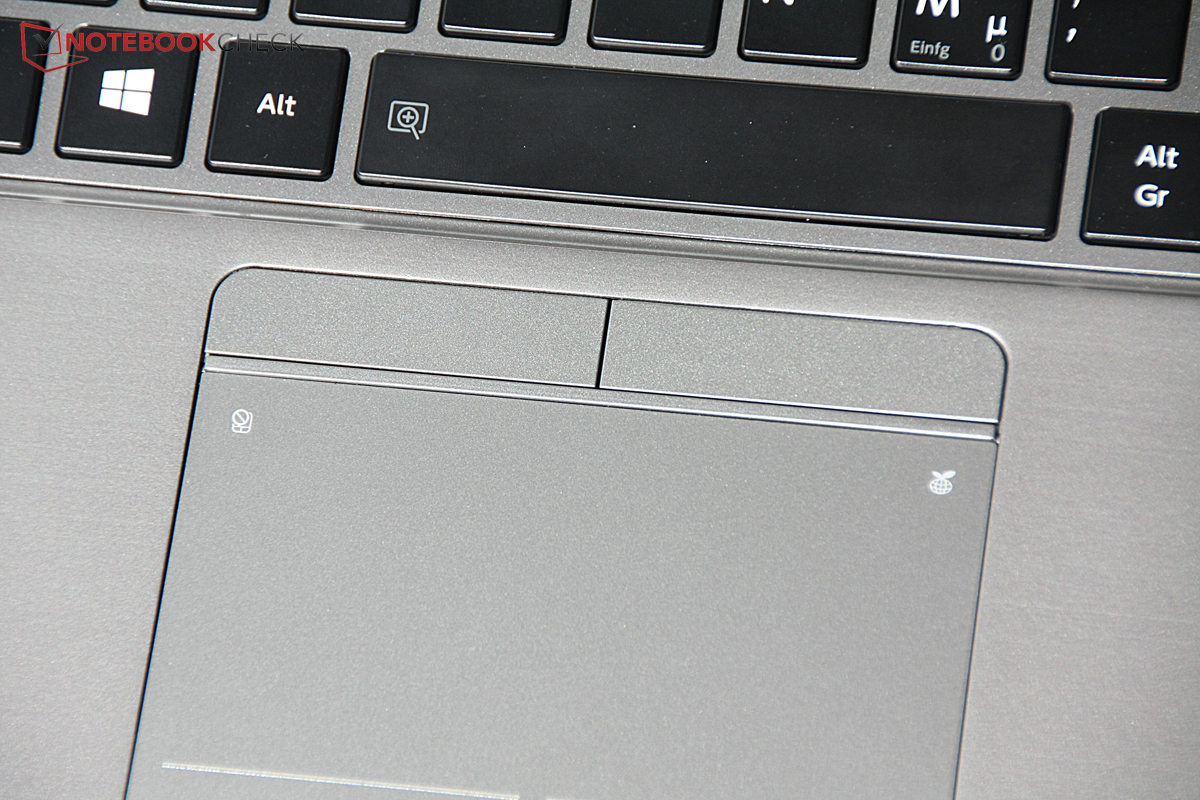

- 触控板

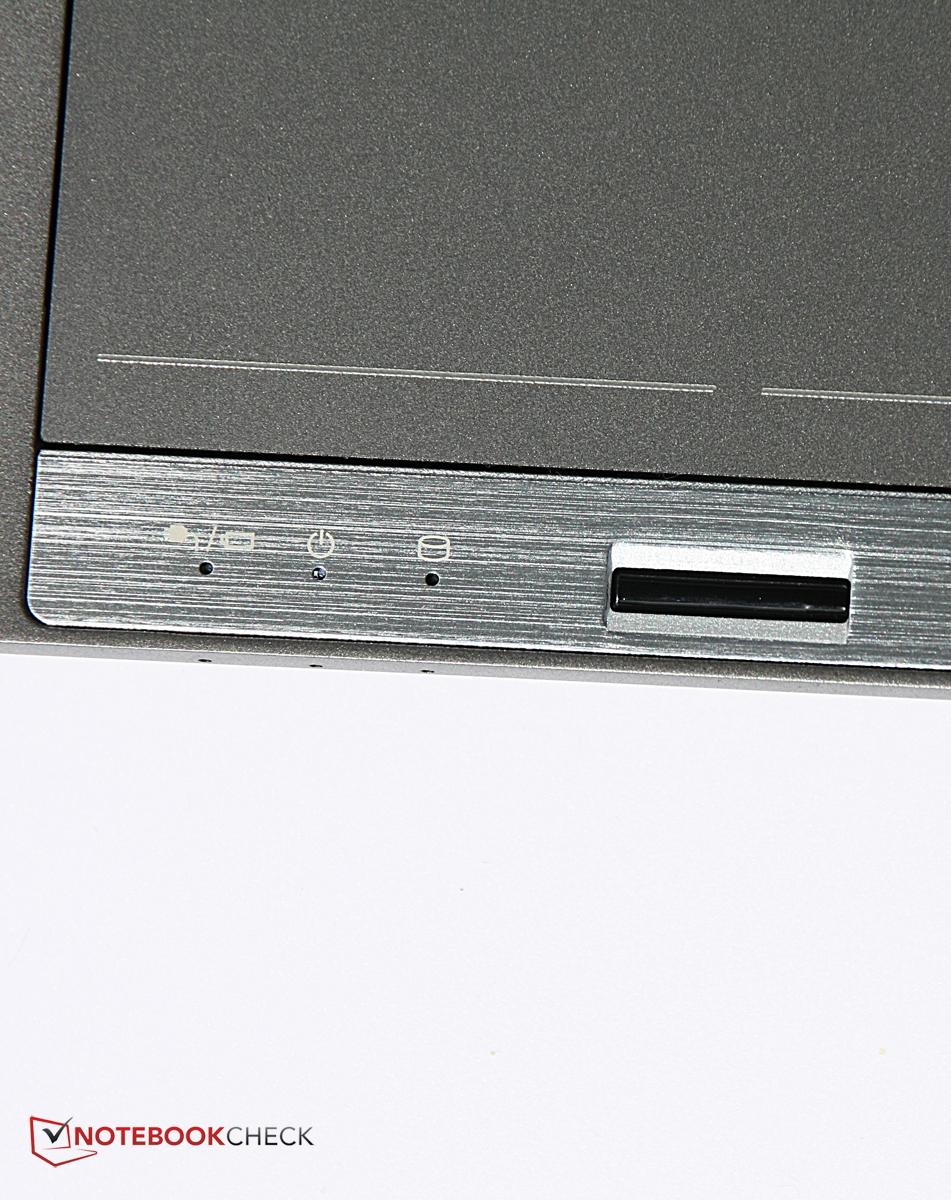

- 指纹识别器的位置奇怪

- 屏幕较色不准确

- 对比度和黑值较差

Toshiba Tecra Z40 A-147 - 2014-07-09 07/09/2014 v4 ^(old)
Florian Wimmer

Chassis

80 / 98 → 82%

Keyboard

78%

Pointing Device

88%

Connectivity

80 / 80 → 100%

Weight

69 / 20-67 → 100%

Battery

88%

Display

73%

Games Performance

52 / 68 → 76%

Application Performance

72 / 92 → 78%

Temperature

92%

Noise

96%

Audio

55%

Camera

65 / 85 → 76%

Average

76%

82%

Office - Weighted Average

> Notebookcheck中文版（NBC中国） > 评测 > 东芝 Tecra Z40 A-147 笔记本电脑简短评测

Florian Wimmer, 2014-07-19 (Update: 2014-09-19)

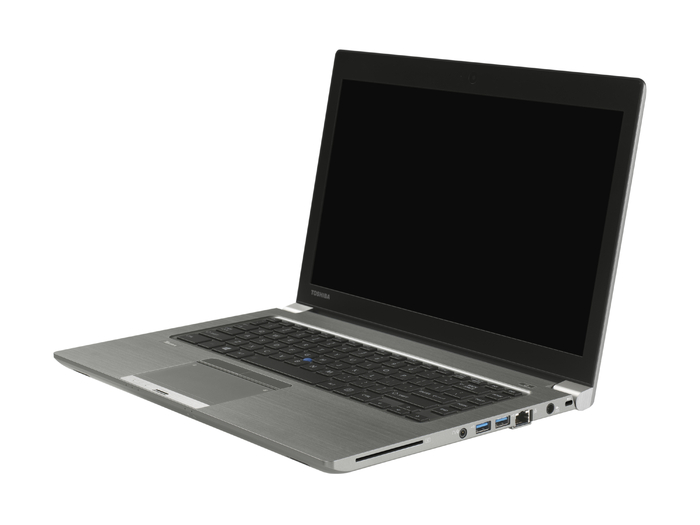

东芝 Tecra Z40 A-147 笔记本电脑简短评测

Specifications

More articles related to this device

Pros

Cons
