东芝 Tecra Z40T-A1410 笔记本简短评测

触屏办公笔记本。 东芝希望他们的Tecra高端系列可以凭1080p分辨率磨砂屏幕和很多其他高端商务笔记本的常见功能,吸引那些需要触控屏幕轻薄长续航笔记本的用户。它的表现全面吗?
Business Touchscreen Windows Haswell
309.3
cd/m²
301.9
cd/m²
277.2
cd/m²
279.1
cd/m²
281.5
cd/m²
247.6
cd/m²
262.1
cd/m²
268.1
cd/m²
234.1
cd/m²
Distribution of brightness
TOS508F tested with X-Rite i1Basic Pro 2
Maximum: 309.3 cd/m² (Nits) Average: 273.4 cd/m²
Brightness Distribution: 76 %
Center on Battery: 281.5 cd/m²
Contrast: 1193:1 (Black: 0.236 cd/m²)
ΔE Color 4.9 | 0.5-29.43 Ø4.91
ΔE Greyscale 4.63 | 0.5-98 Ø5.2
57.29% AdobeRGB 1998 (Argyll 1.6.3 3D)
61.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
84.8% sRGB (Argyll 2.2.0 3D)
66.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.41
Cinebench R10 Shading 32Bit
5897
Cinebench R10 Rendering Multiple CPUs 32Bit
8960
Cinebench R10 Rendering Single 32Bit
5897
Cinebench R10 Shading 64Bit
6086 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
11731 Points
Cinebench R10 Rendering Single CPUs 64Bit
5547 Points
Cinebench R11.5 OpenGL 64Bit
14.95 fps
Cinebench R11.5 CPU Multi 64Bit
2.9 Points
Cinebench R11.5 CPU Single 64Bit
1.28 Points
Help
5.2
Windows 7 Experience Index
Processor
Calculations per second
7.1
Memory (RAM)
Memory operations per second
7.2
Graphics
Desktop performance for Windows Aero
5.2
Gaming graphics
3D business and gaming graphics
6.5
Primary hard disk
Disk data transfer rate
5.9
PCMark Vantage Result
6833 points
PCMark 7 Score
2686 points
Help
Hitachi Travelstar Z7K500 HTS725050A7E630
Transfer Rate Minimum: 44.3 MB/s
Transfer Rate Maximum: 126.1 MB/s
Transfer Rate Average: 99.4 MB/s
Access Time: 16.8 ms
Burst Rate: 200.8 MB/s
CPU Usage: -1 %
3DMark 03 Standard
9156 points
3DMark 05 Standard
7420 points
3DMark 06 Standard Score
4548 points
3DMark Vantage P Result
2587 points
Help
lowmed.highultra
BioShock Infinite (2013) 29.16 15.36 12.44 7.5

Noise Level

Idle
34.2 / 34.3 / 34.5 dB(A)
Load
38.8 / 39.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)
Max. Load
 38.2 °C41.4 °C35 °C
 36.2 °C38.2 °C33.4 °C
 33.4 °C31.8 °C31.8 °C
Maximum: 41.4 °C
Average: 35.5 °C
36.2 °C38.6 °C38.2 °C
34.6 °C35.8 °C35.8 °C
33.6 °C33 °C33.4 °C
Maximum: 38.6 °C
Average: 35.5 °C
Power Supply (max.)  45.2 °C | Room Temperature 26.5 °C | Raytek Raynger ST
(±) The average temperature for the upper side under maximal load is 35.5 °C / 96 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 38.6 °C / 101 F, compared to the average of 36.8 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 33.2 °C / 92 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.4 °C / 92.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-5.8 °C / -10.4 F).
Battery Runtime
Idle (without WLAN, min brightness)
10h 05min
WiFi Surfing
5h 54min
Load (maximum brightness)
2h 15min
Battery Runtime
Reader / Idle (sort by value)
Toshiba Tecra Z40t-A1410
605 min
Toshiba Tecra Z40 A-147
586 min
Lenovo ThinkPad Yoga
797 min
Dell Latitude E7440
615 min
WiFi (sort by value)
Toshiba Tecra Z40t-A1410
354 min
Toshiba Tecra Z40 A-147
426 min
Lenovo ThinkPad Yoga
455 min
Dell Latitude E7440
317 min
Load (sort by value)
Toshiba Tecra Z40t-A1410
135 min
Toshiba Tecra Z40 A-147
131 min
Lenovo ThinkPad Yoga
122 min
Dell Latitude E7440
70 min

Legend


Toshiba Tecra Z40t-A1410 Intel Core i5-4310U, Intel HD Graphics 4400, Hitachi Travelstar Z7K500 HTS725050A7E630

Toshiba Tecra Z40 A-147 Intel Core i5-4200U, Intel HD Graphics 4400, Hitachi Travelstar Z7K500 HTS725050A7E630

Lenovo ThinkPad Yoga Intel Core i5-4200U, Intel HD Graphics 4400, Samsung PM841 Series MZ7TD128HAFV-000L1

Dell Latitude E7440 Intel Core i5-4200U, Intel HD Graphics 4400, Seagate Laptop Ultrathin ST500LT032
Toshiba Tecra Z40T-A1410 Notebook
Toshiba Tecra Z40T-A1410 Notebook

东芝Tecra Z40T-A1410在很多方面都和它的低配版Tecra Z40-A-147一样成功,如低重量的镁合金机身丰富的接口配备很好的电池续航低发热,和安静的运行。它也是现有不多的一款提供非镜面触控屏幕的笔记本——这对于特别是商务电脑来说非常值得称赞。

不过它所在的市场竞争非常激烈,Tecra Z40T有很多明显的问题让它难以获得我们的推荐。首先,它的磨砂屏幕由屏幕面板上的一个抗反射涂层实现——不过这个涂层带来的颗粒感让它的显示效果大打折扣。它的输入设备——对于商务设备来说非常关键的一个部件——只能称作一般,键盘的触键过硬点击触控板的表现也和我们以前评测过的设备的一样实用性较差

另外,这款笔记本的性能由于没有配备固态硬盘而受到了很大的限制(同时还有负载下的降频问题)。 最后,它的维护性很差,让用户很难方便地更换部件。不少于11个的螺丝和很多橡胶垫脚都需要被卸下才能打开机器的底盖,而且在这个过程中用户必须十分小心以避免损伤机体。

并不是一款不好的产品不过在这个价位上,已经有很多更好的机型了:例如联想的ThinkPad Yoga和戴尔的Latitude E7440就是两个这样的例子。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

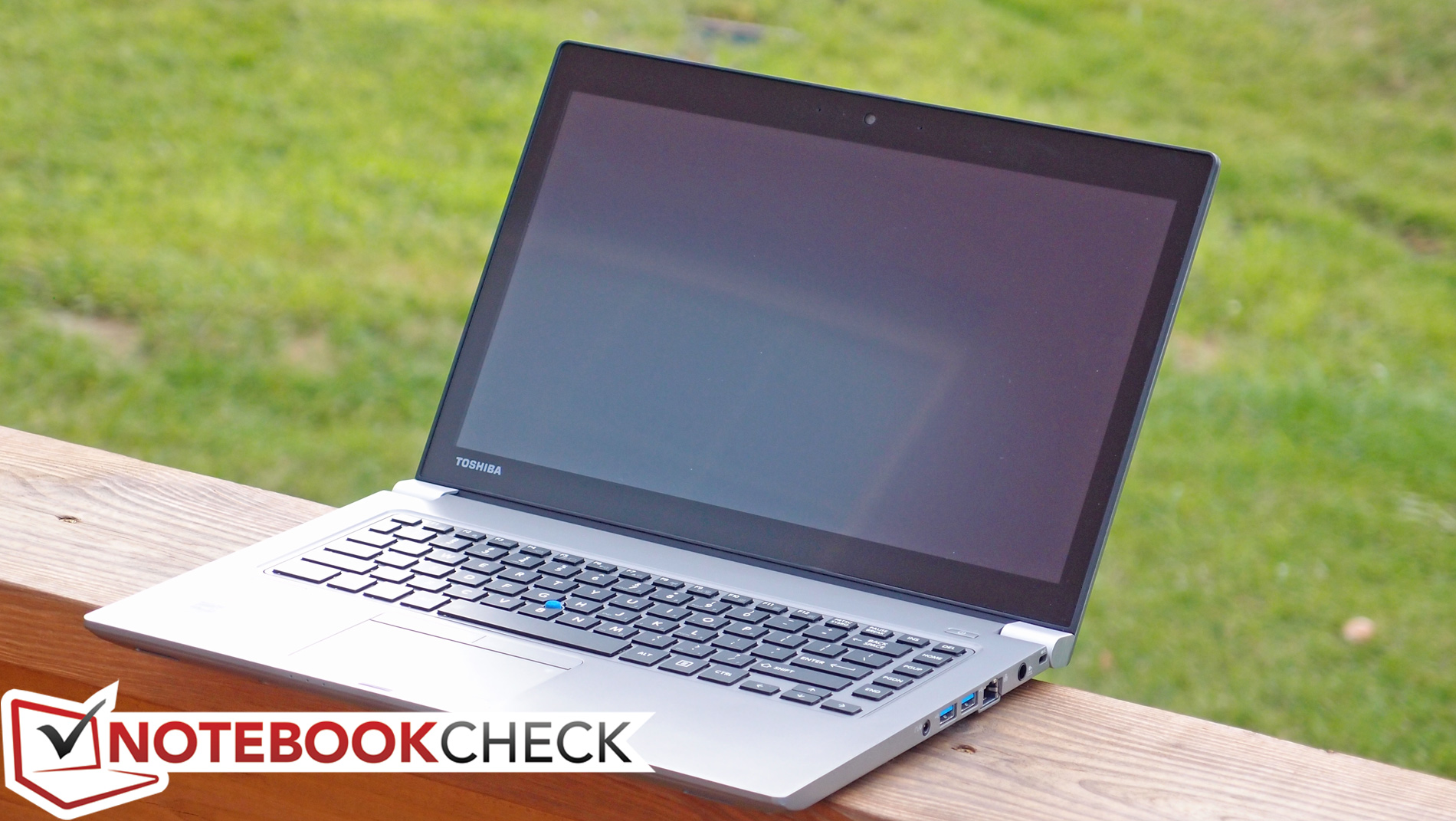

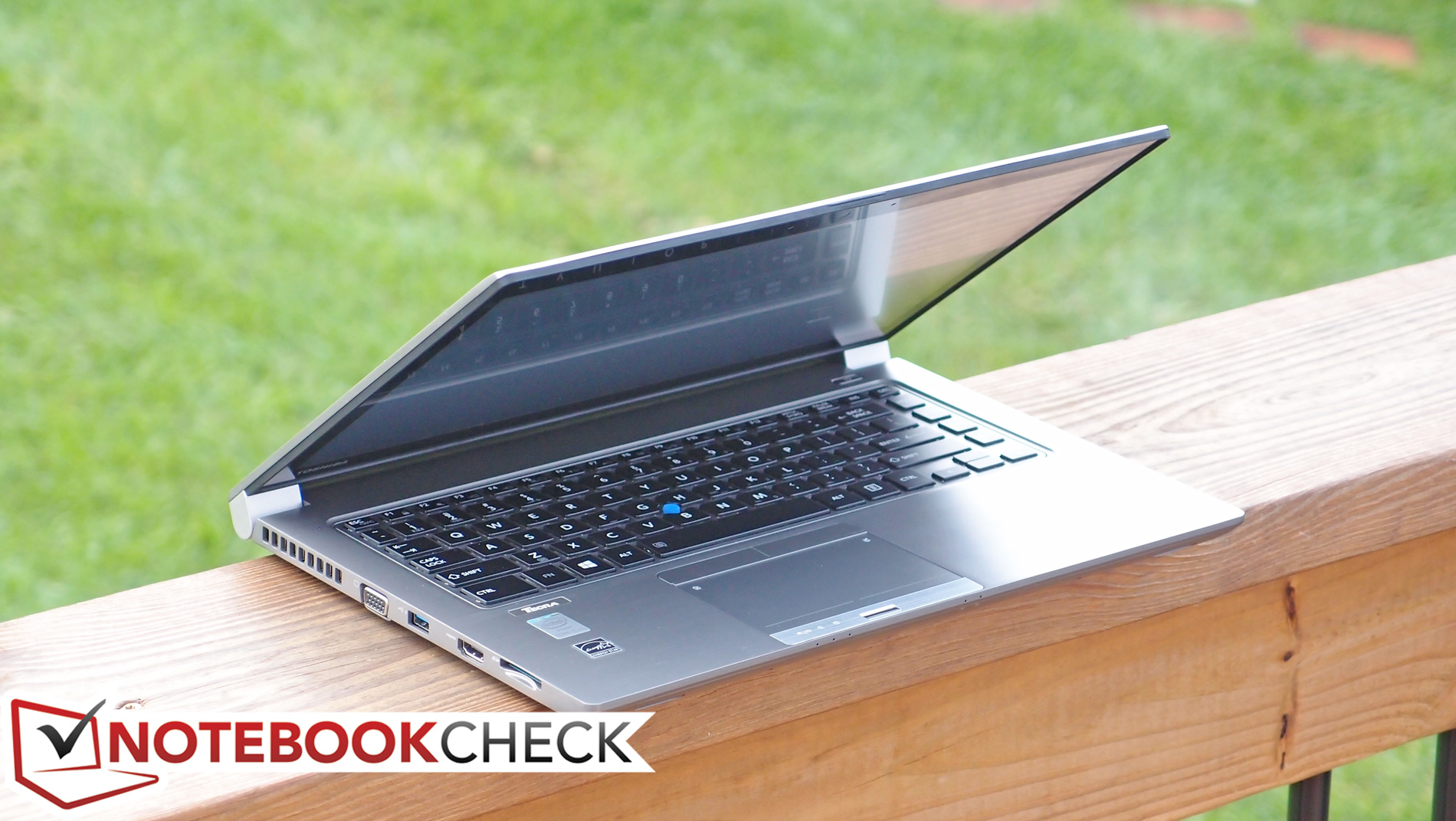

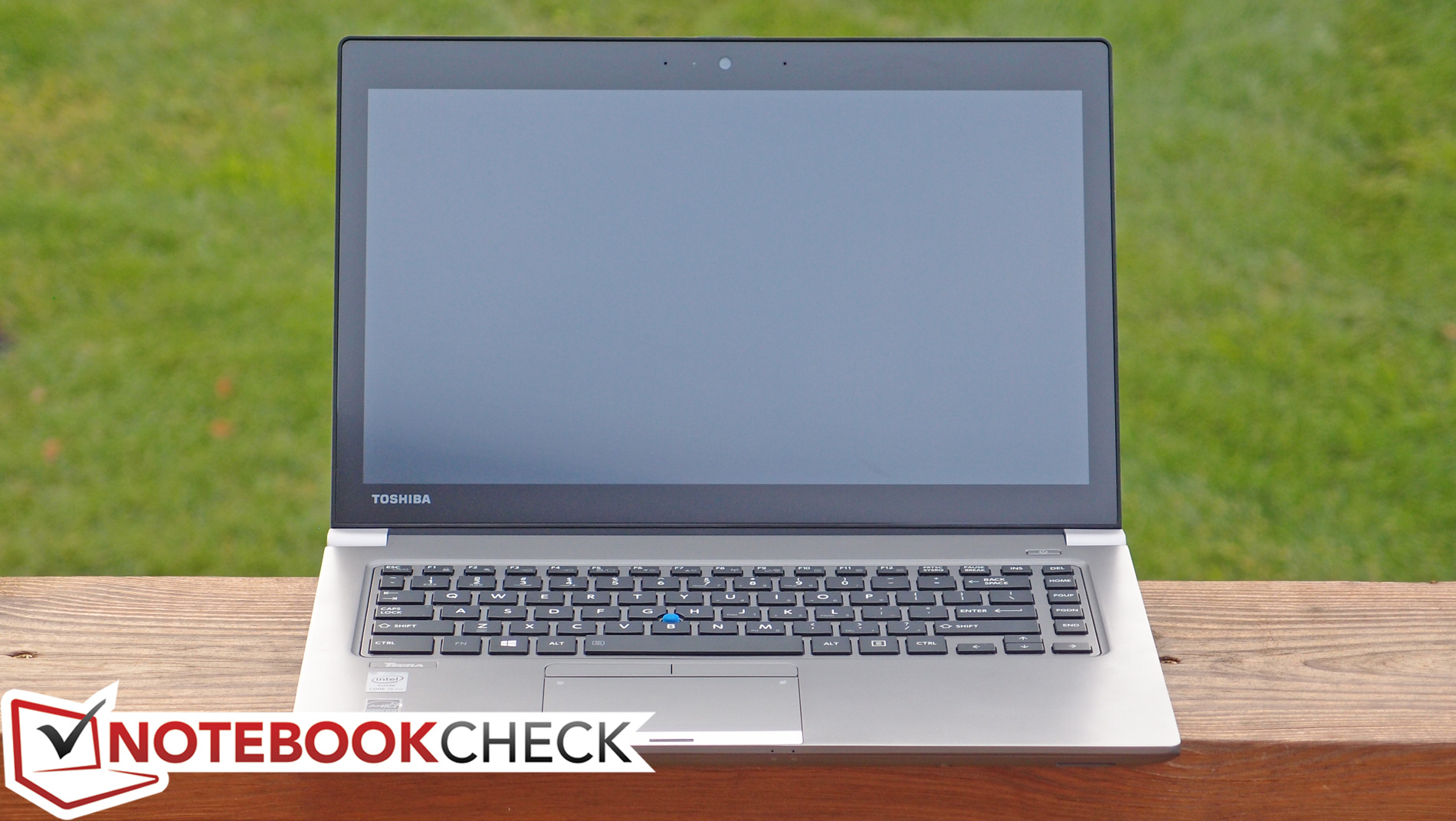

吸引人的商务外观设计
吸引人的商务外观设计

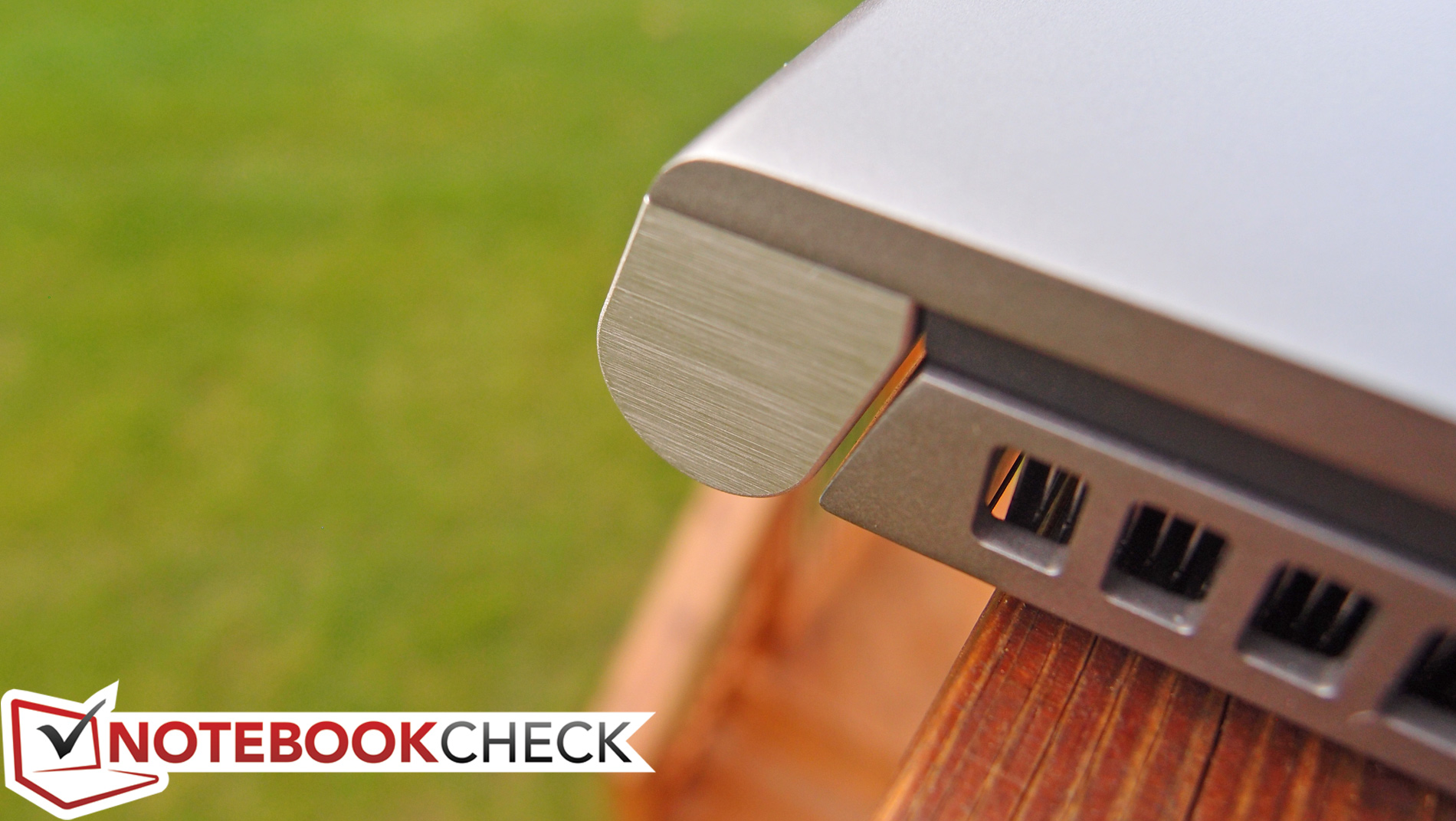

屏幕转轴仍需改进
屏幕转轴仍需改进

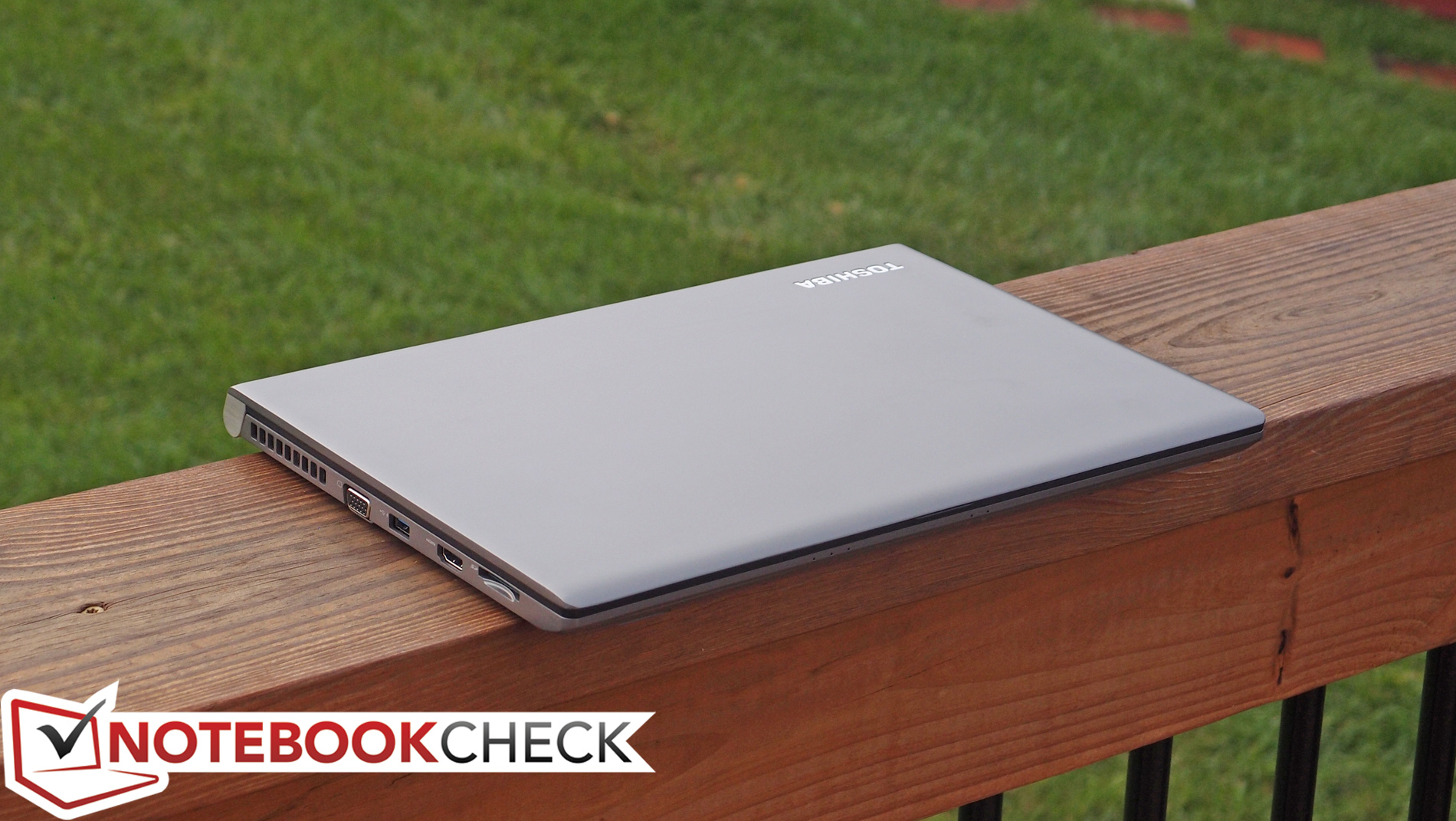

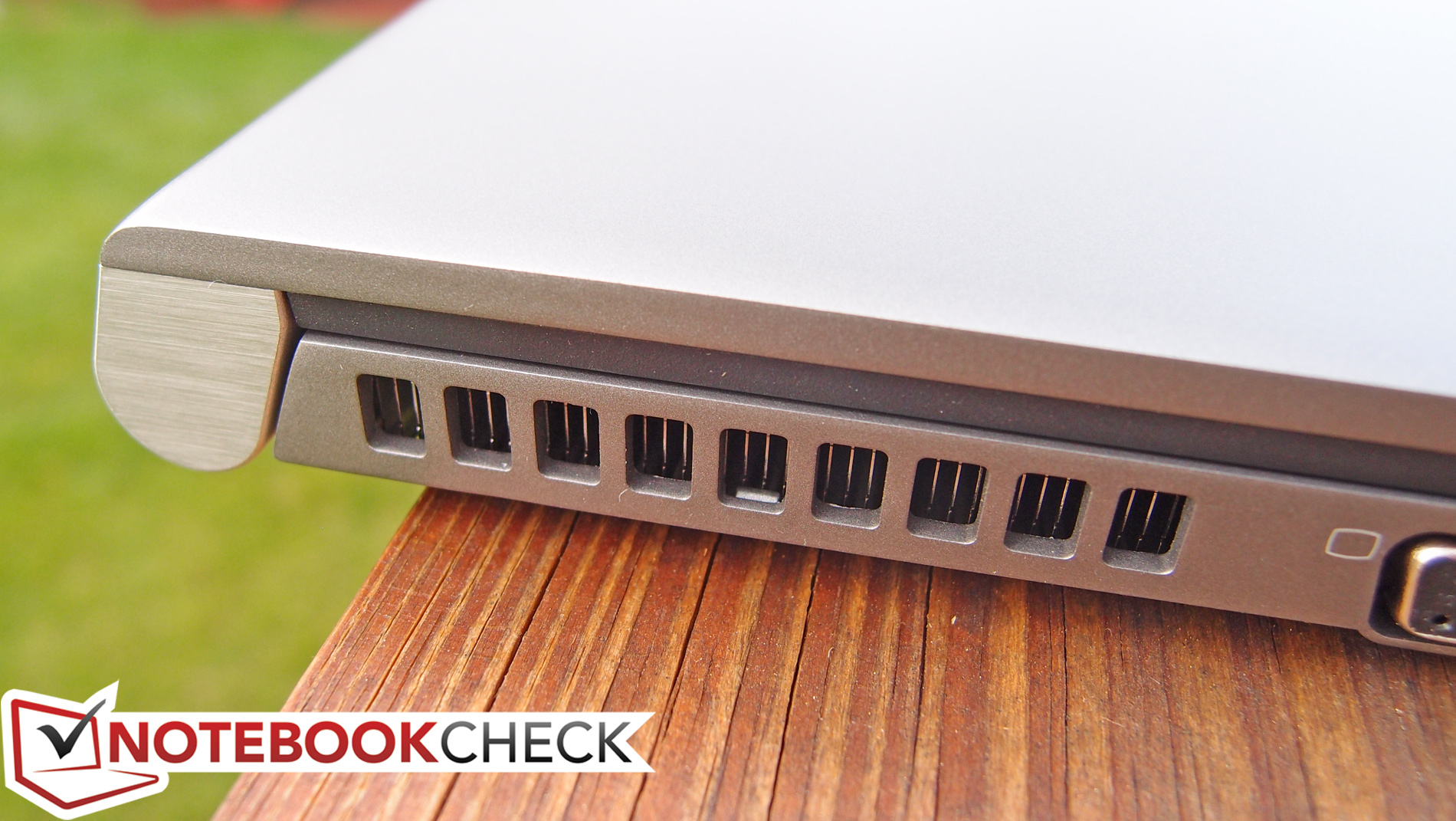

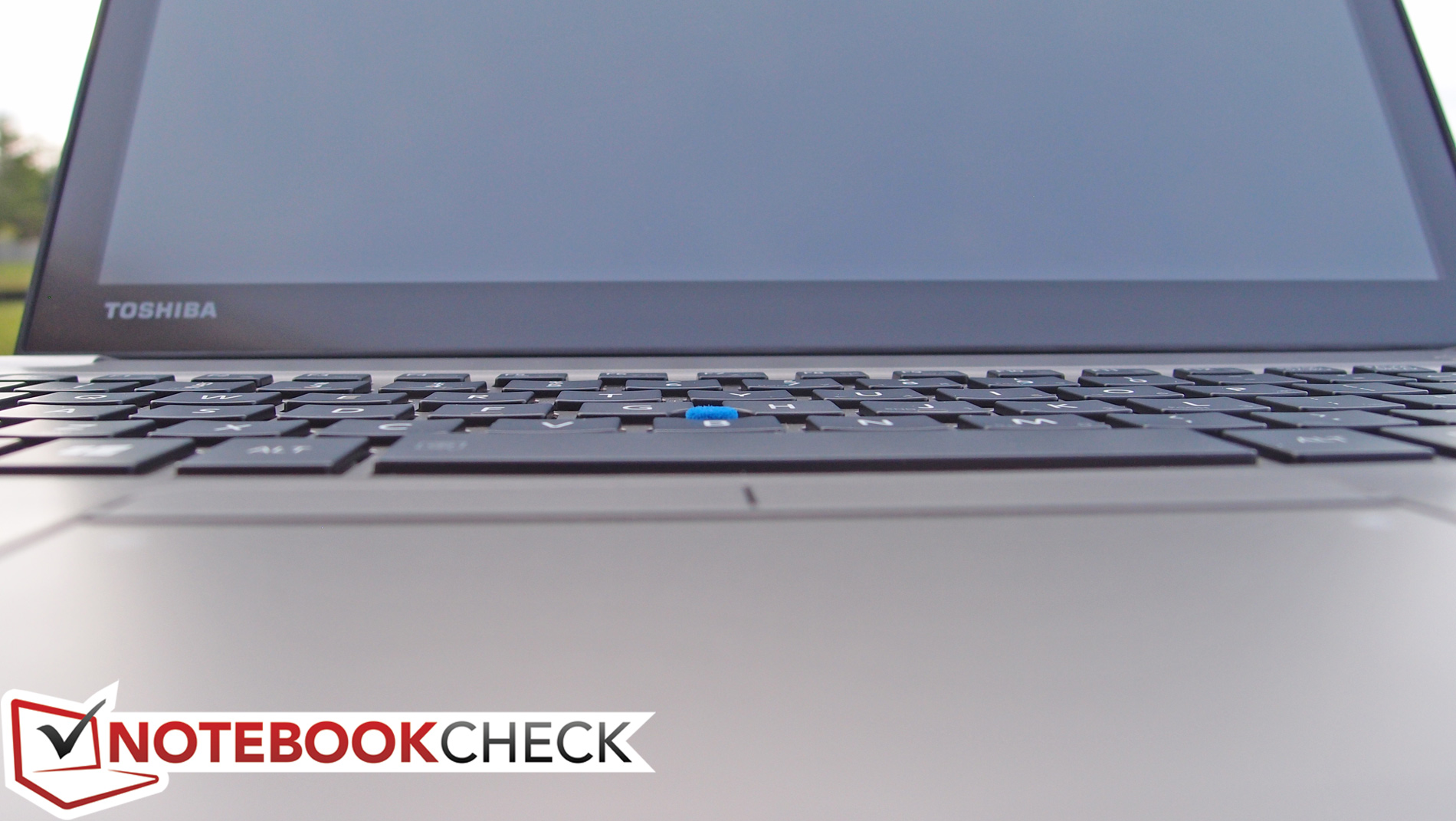

低调实用的设计
低调实用的设计

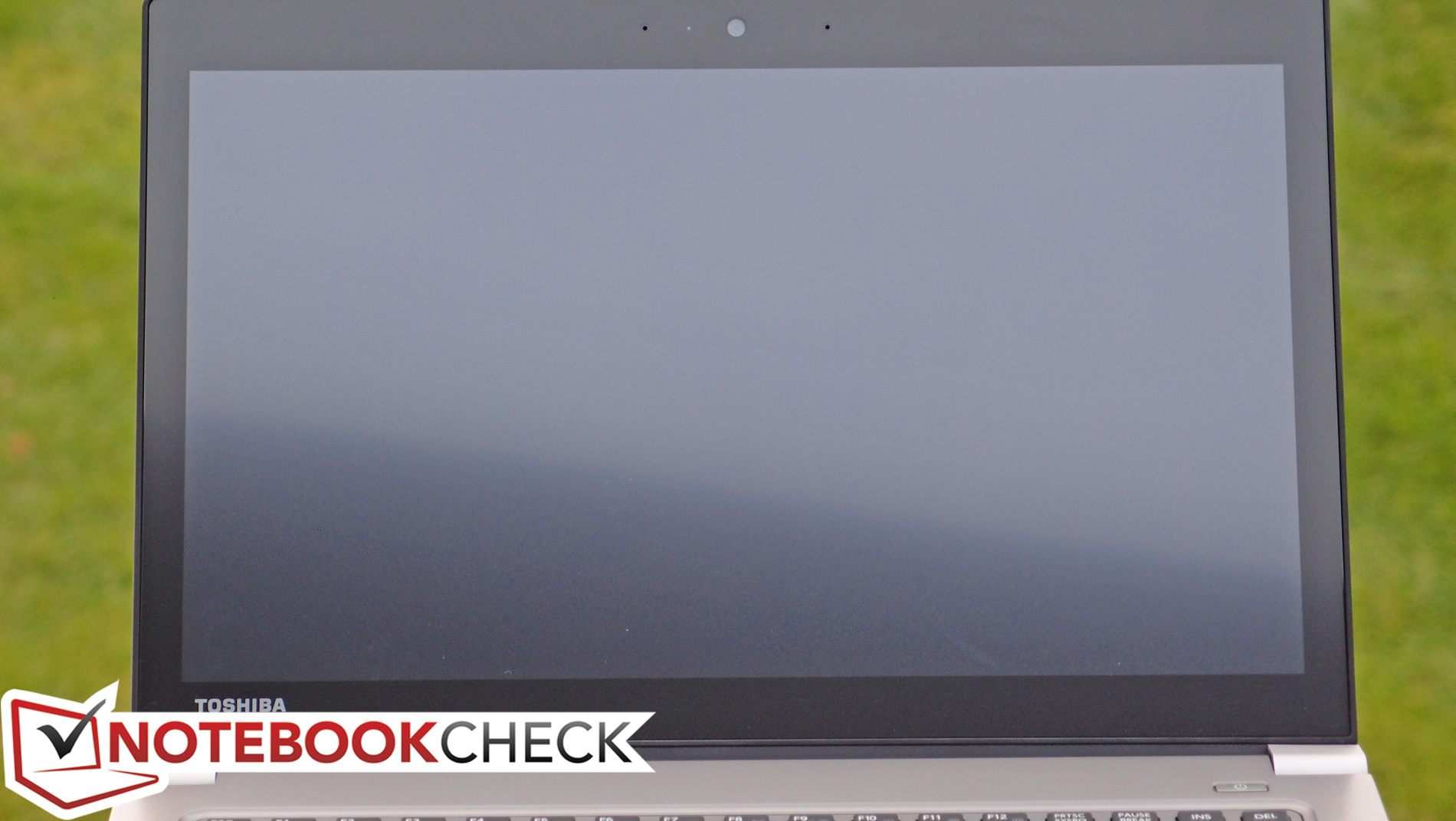

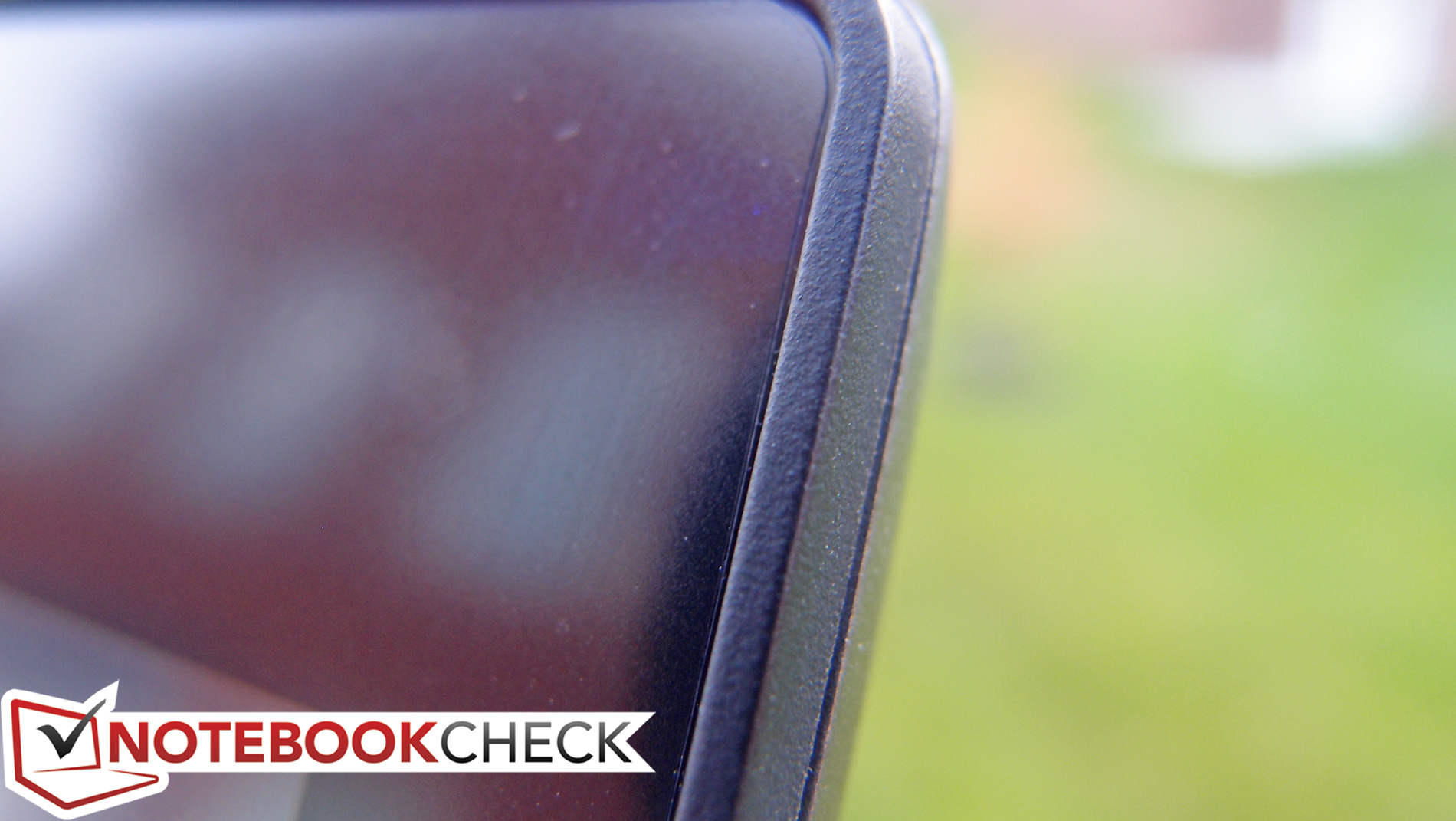

磨砂的触控屏幕是个惊喜...
磨砂的触控屏幕是个惊喜...

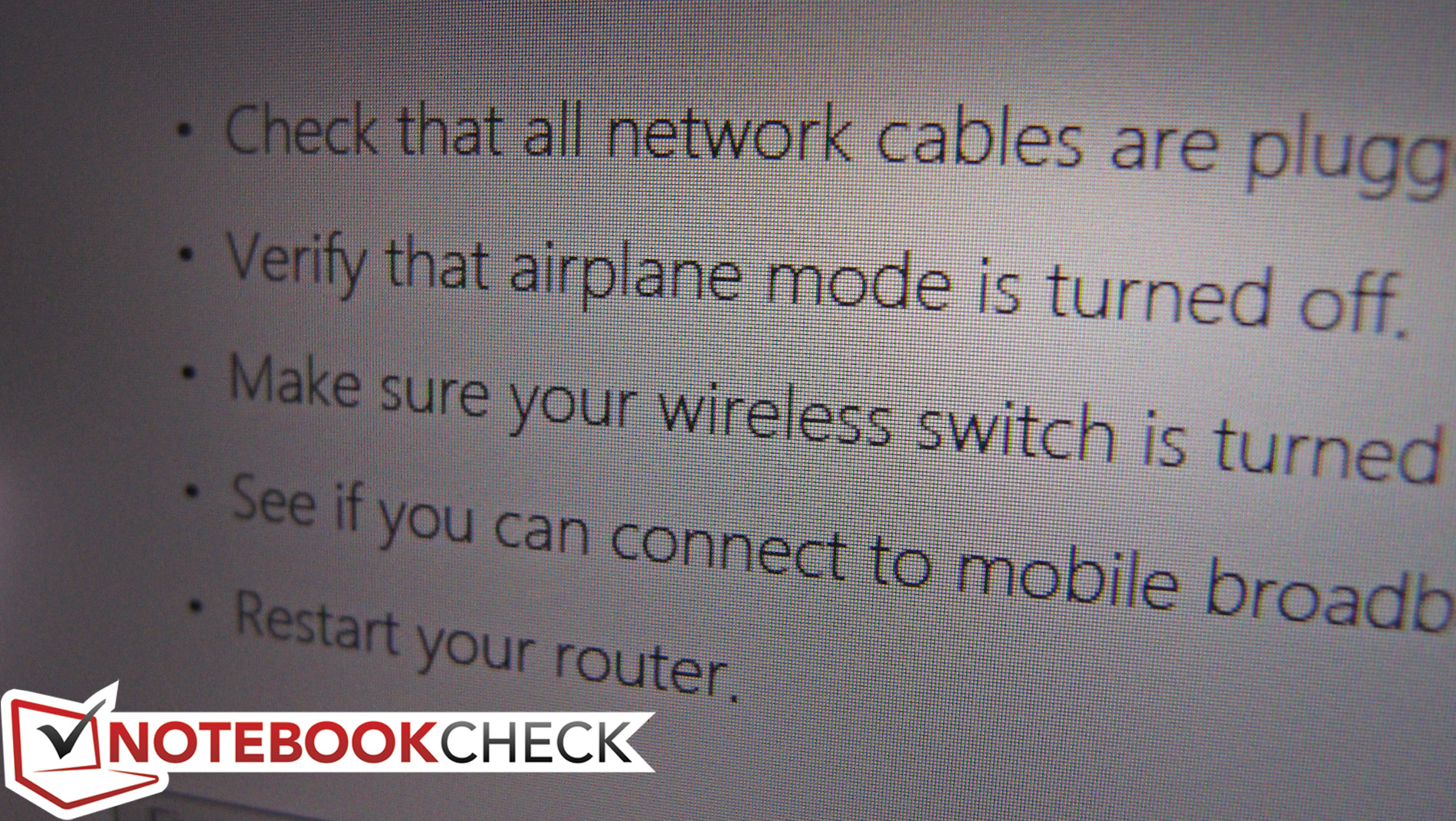

...如果它的显示效果没有这么重的颗粒感就更好了。
...如果它的显示效果没有这么重的颗粒感就更好了。

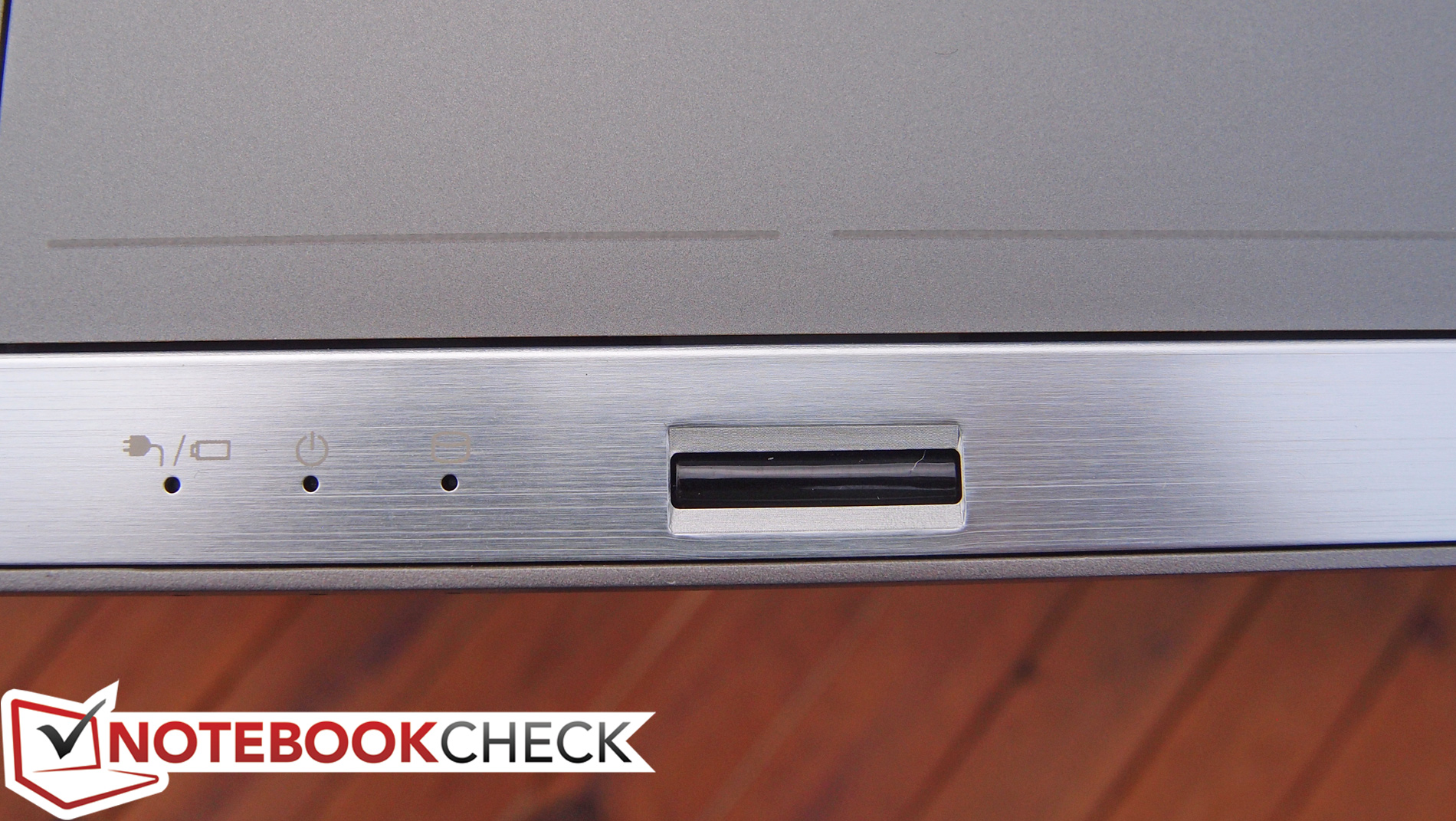

指纹识别器位于触控板下方
指纹识别器位于触控板下方

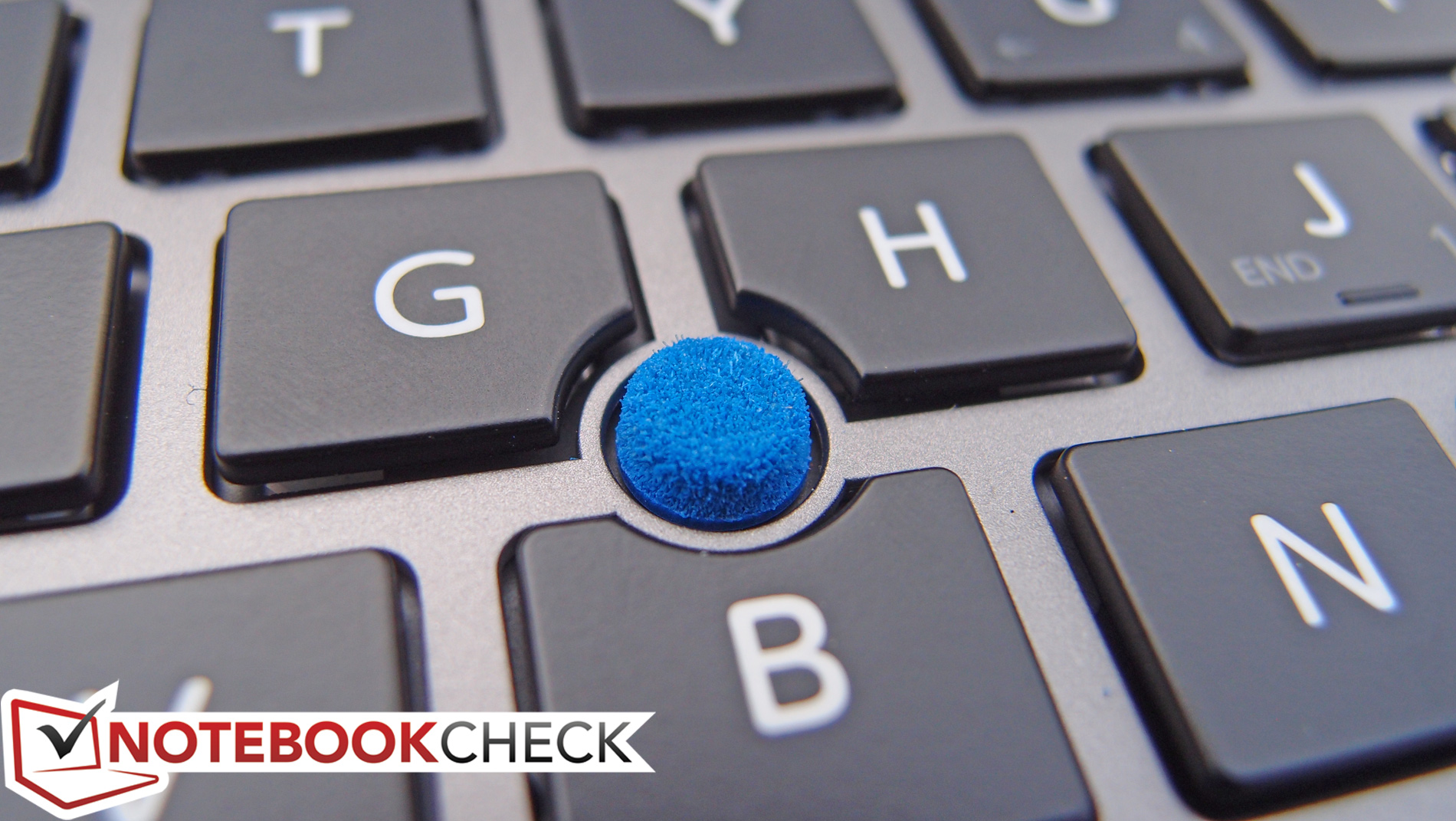

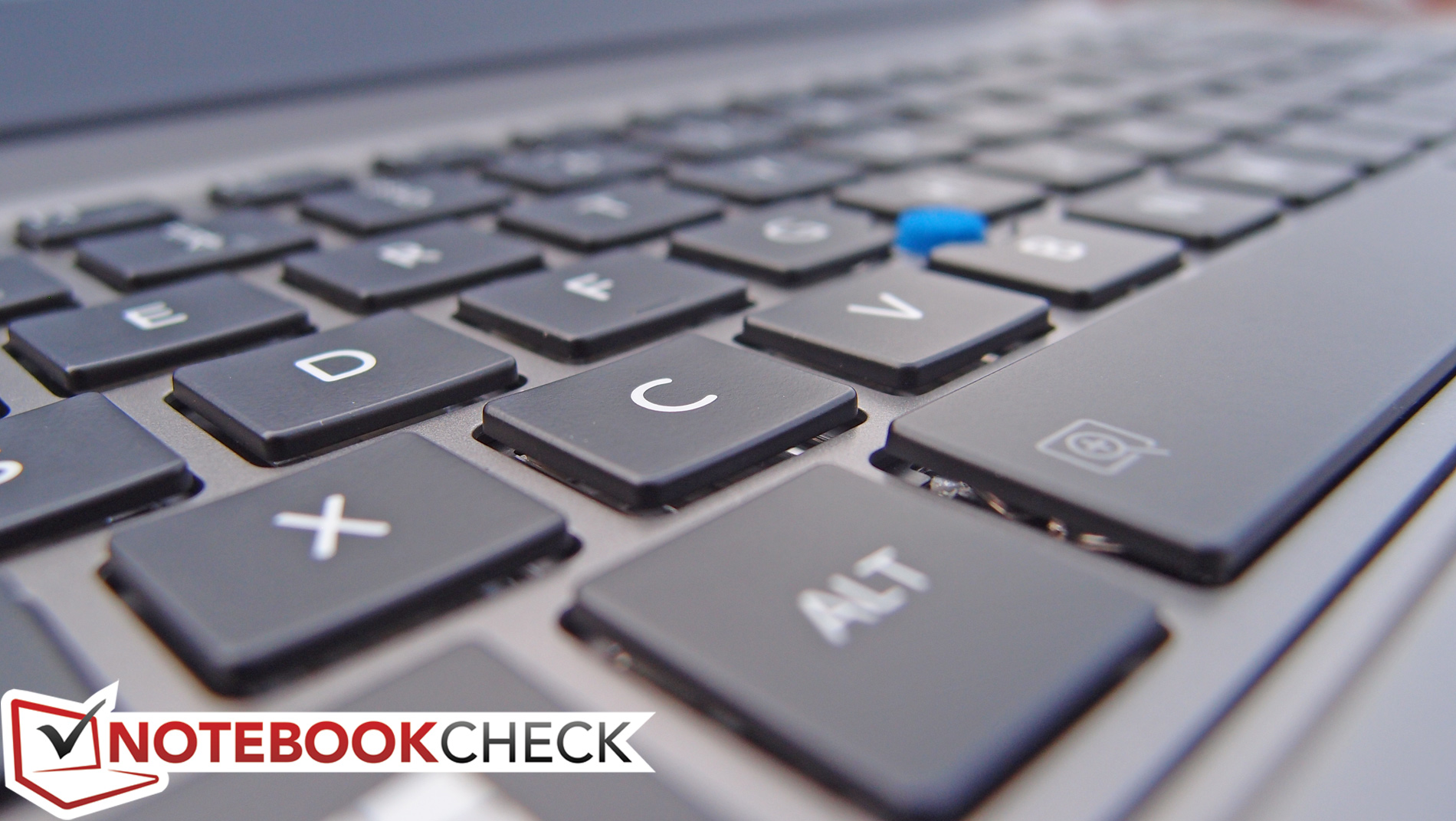

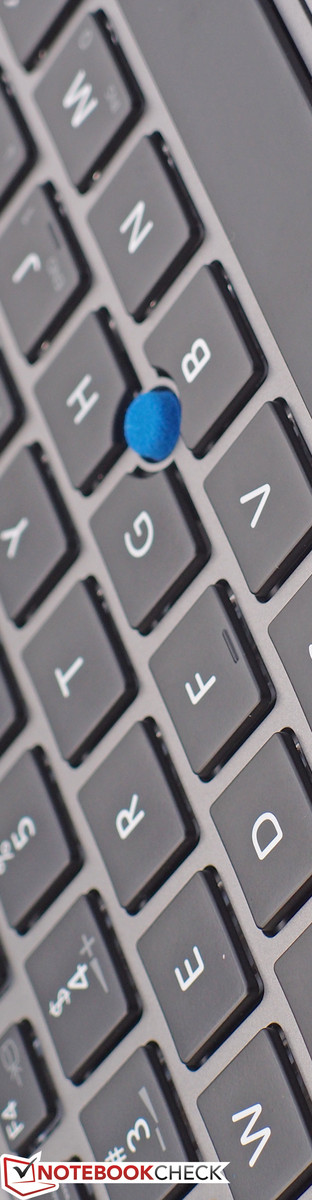

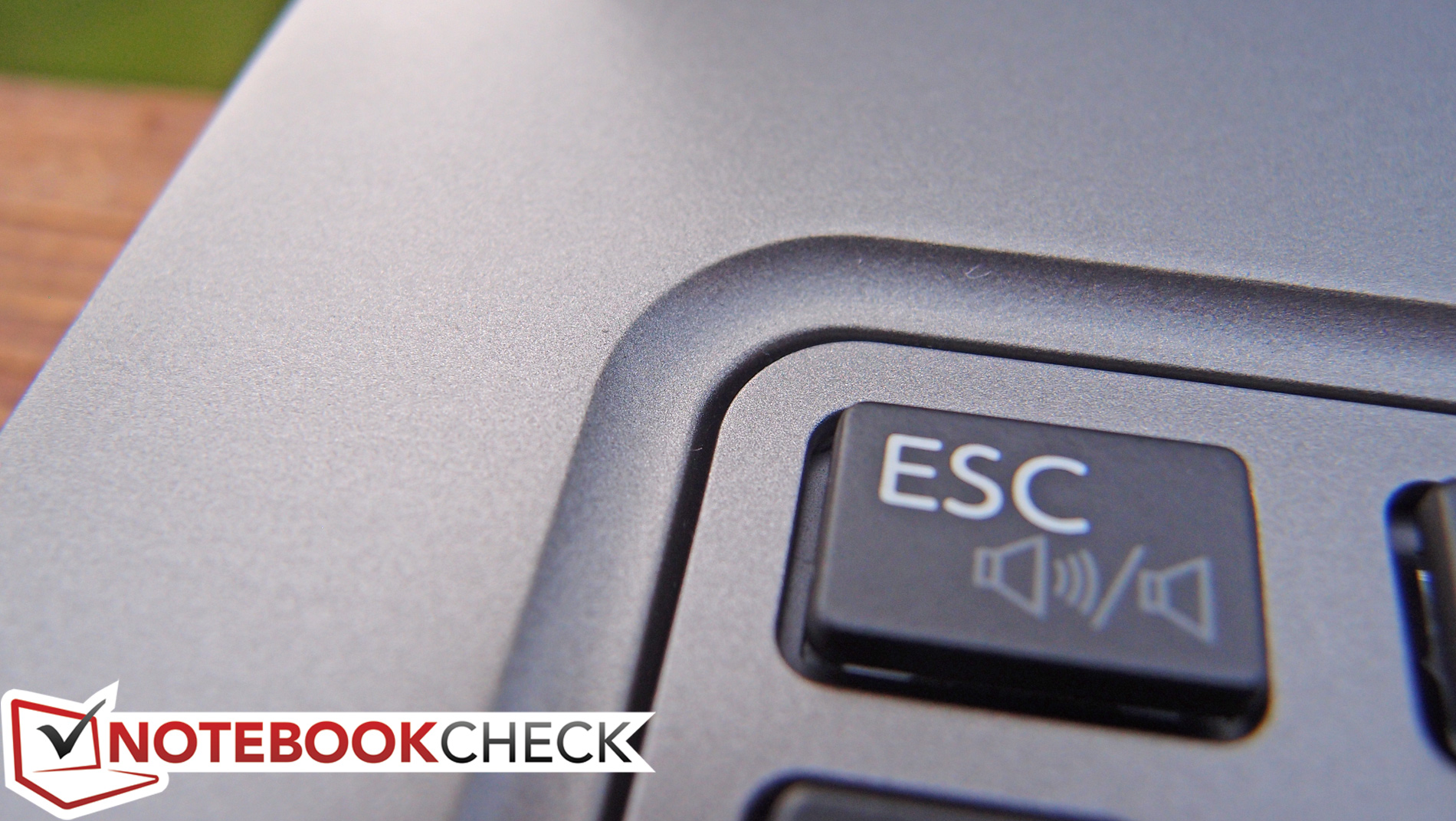

键盘的质量很难与ThinkPad和Latitude相比
键盘的质量很难与ThinkPad和Latitude相比

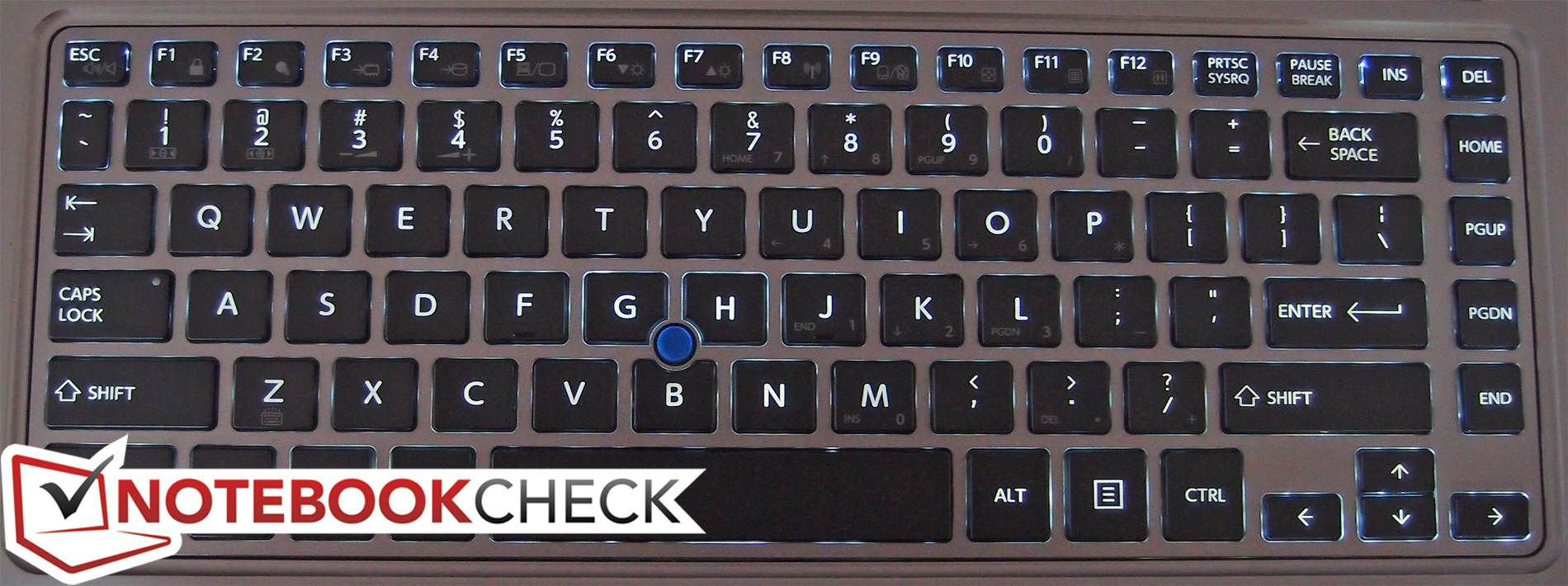

键盘背光非常方便
键盘背光非常方便

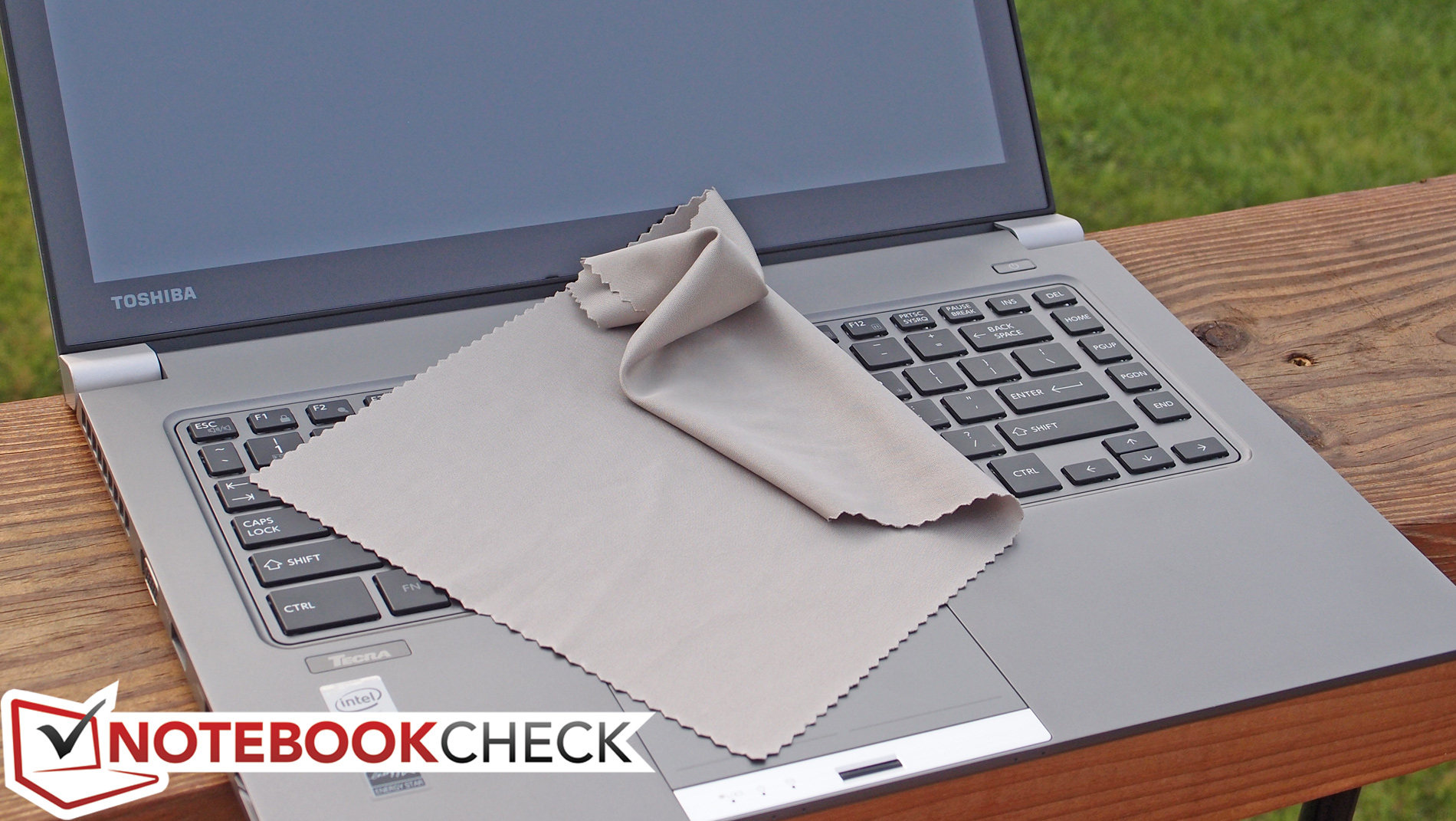

附带的屏幕布
附带的屏幕布

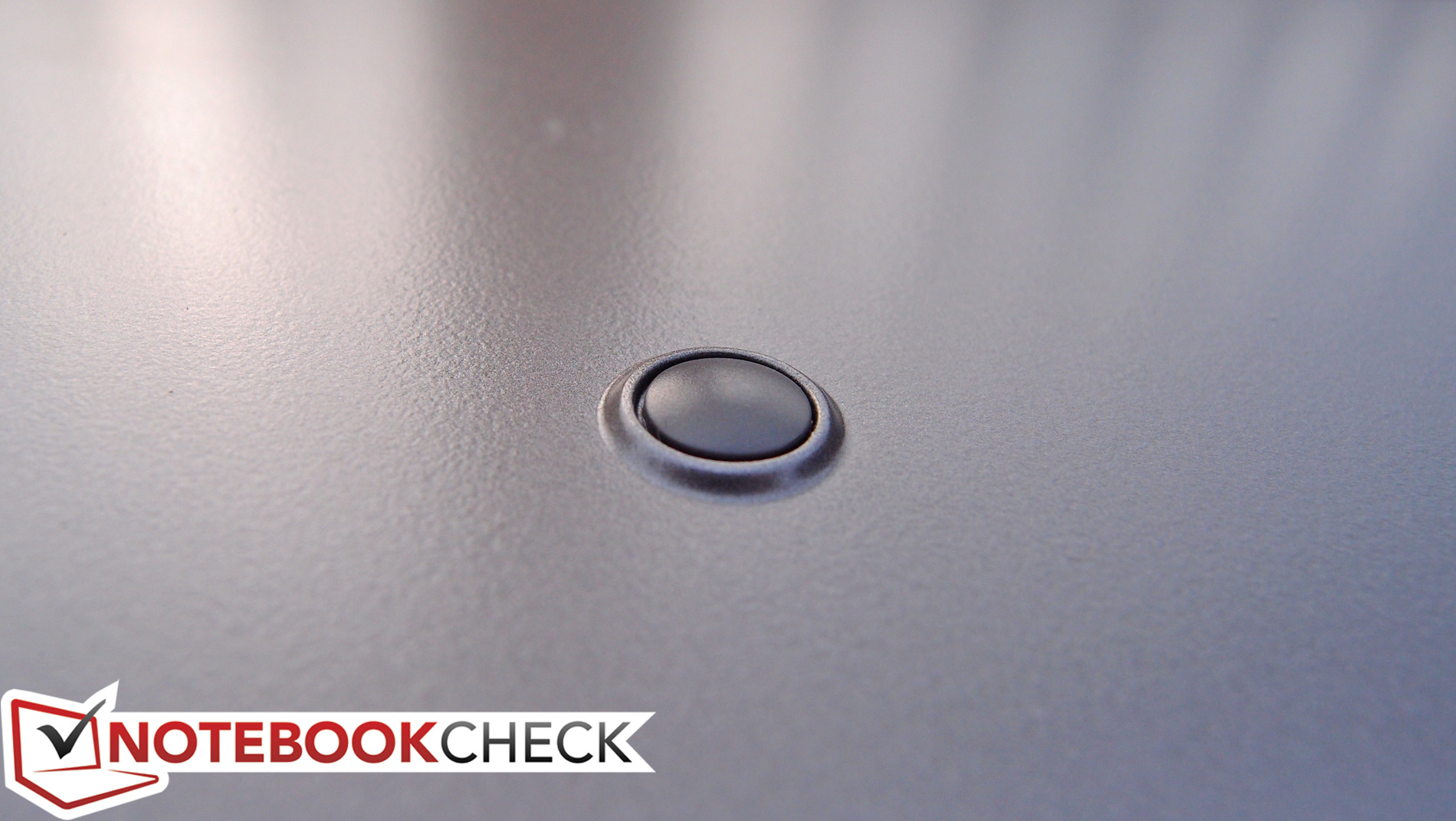

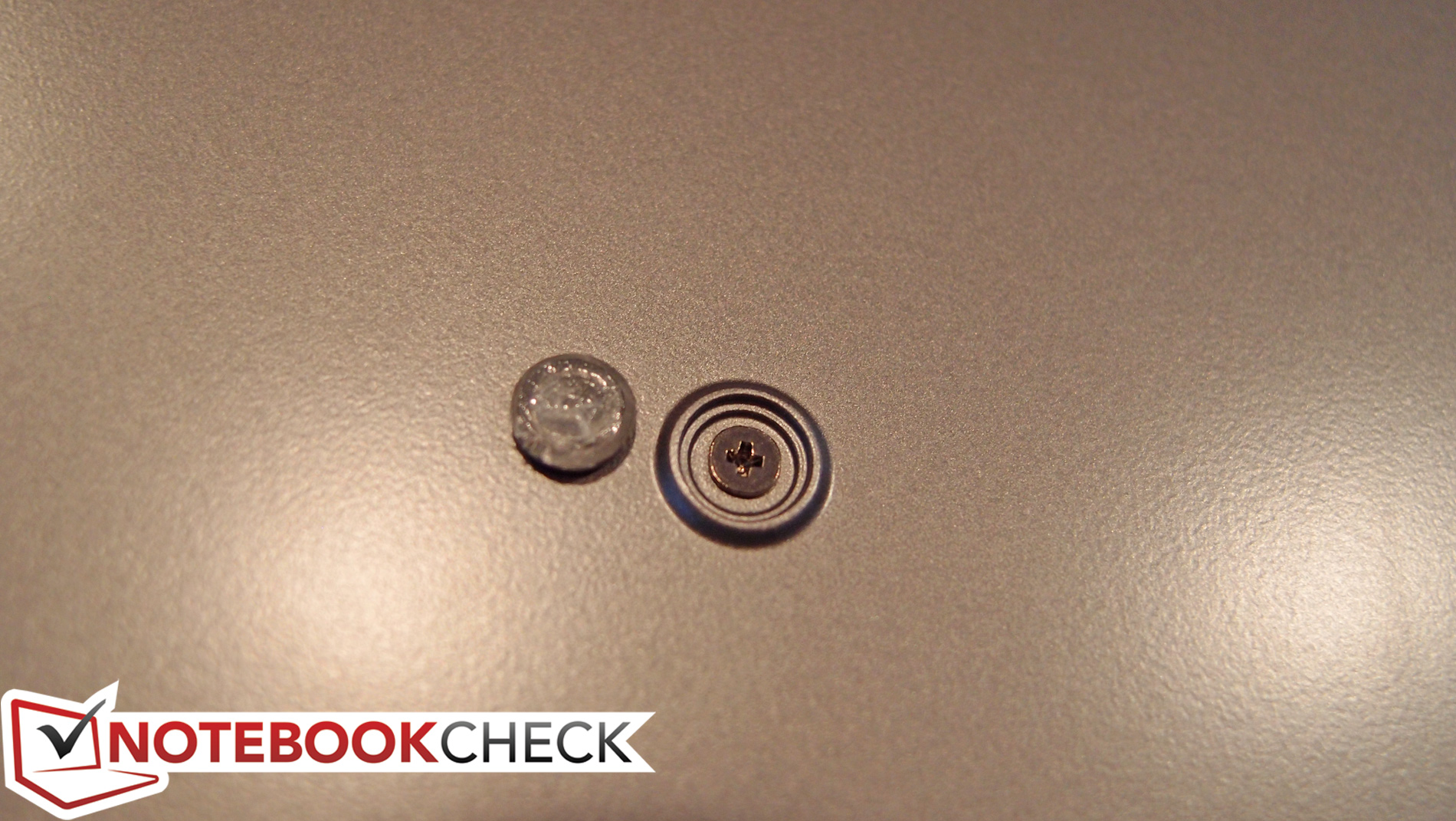

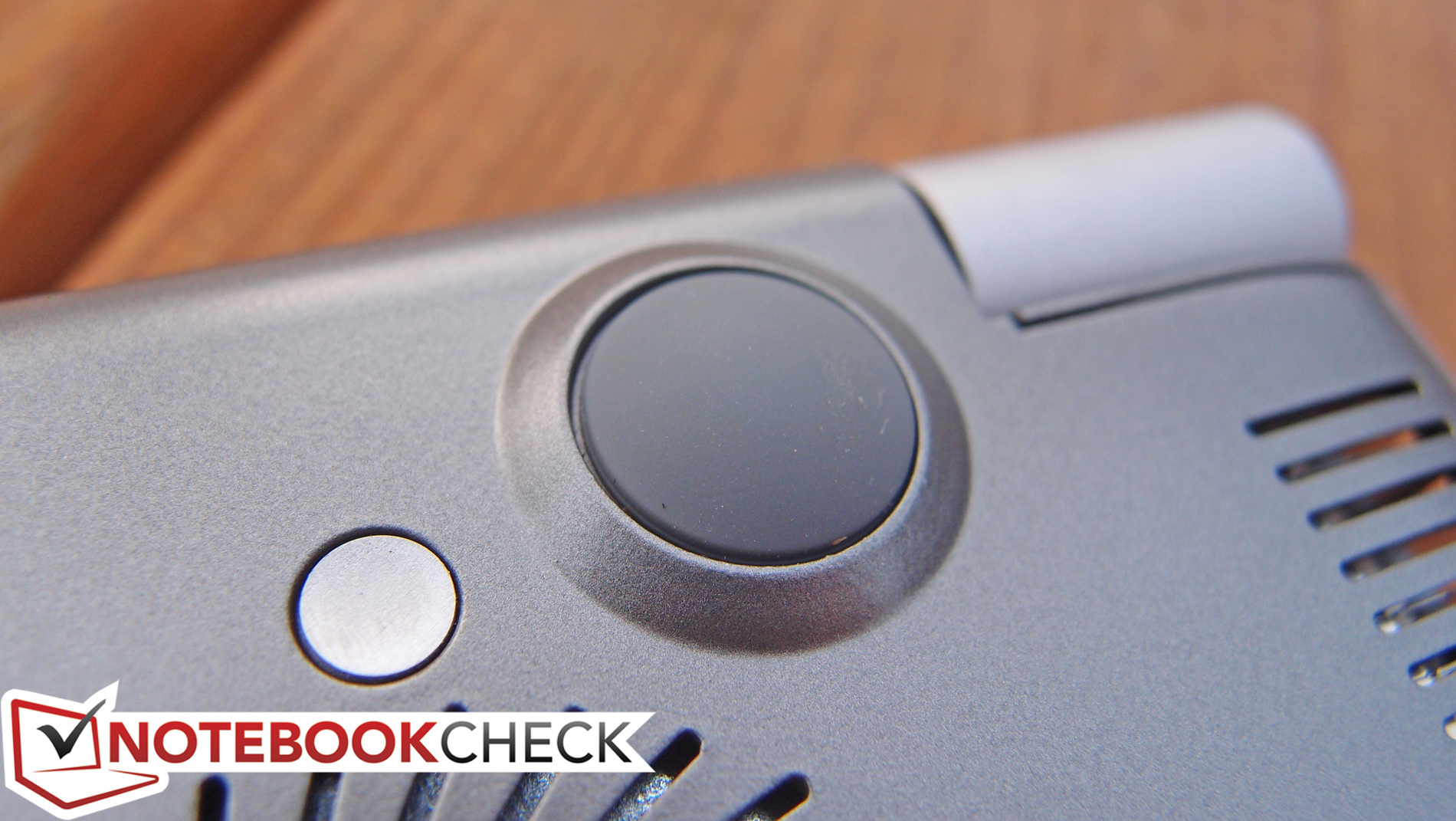

底盖螺丝隐藏在垫脚下面
底盖螺丝隐藏在垫脚下面

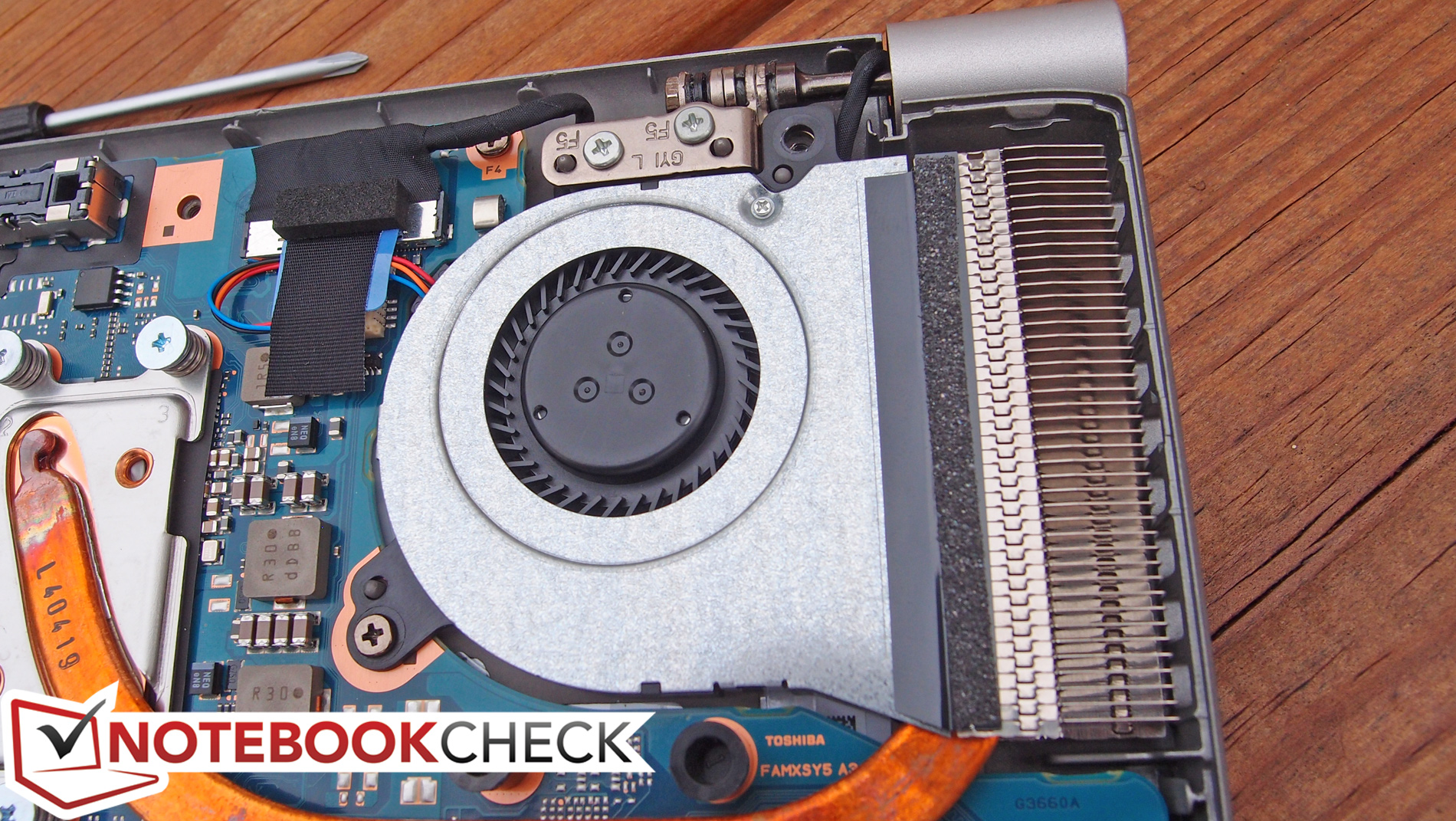

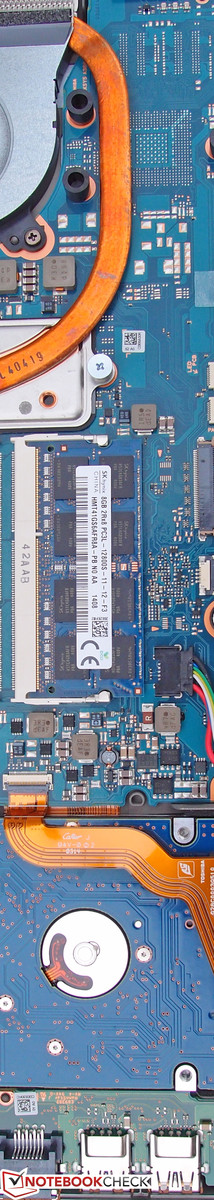

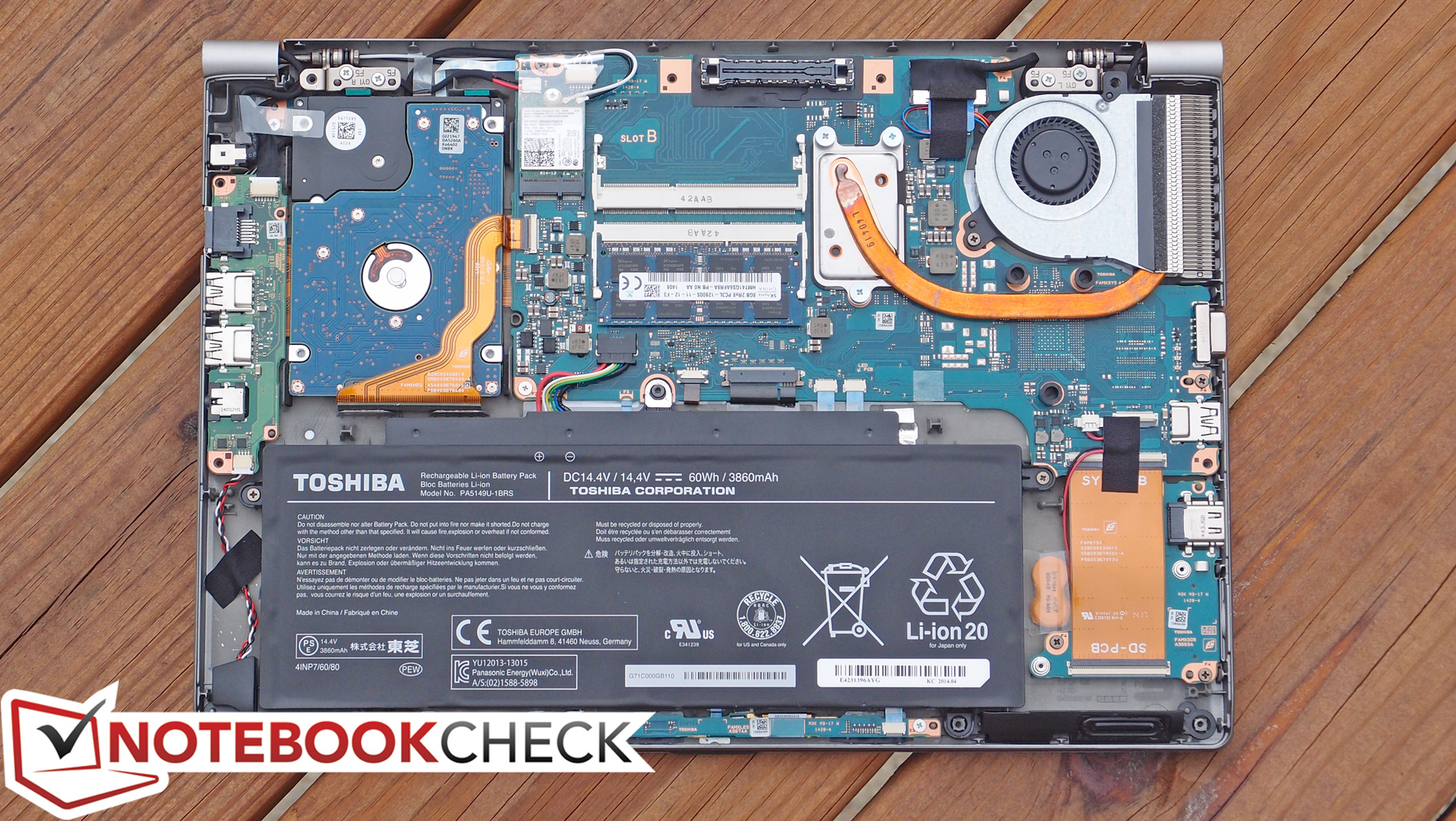

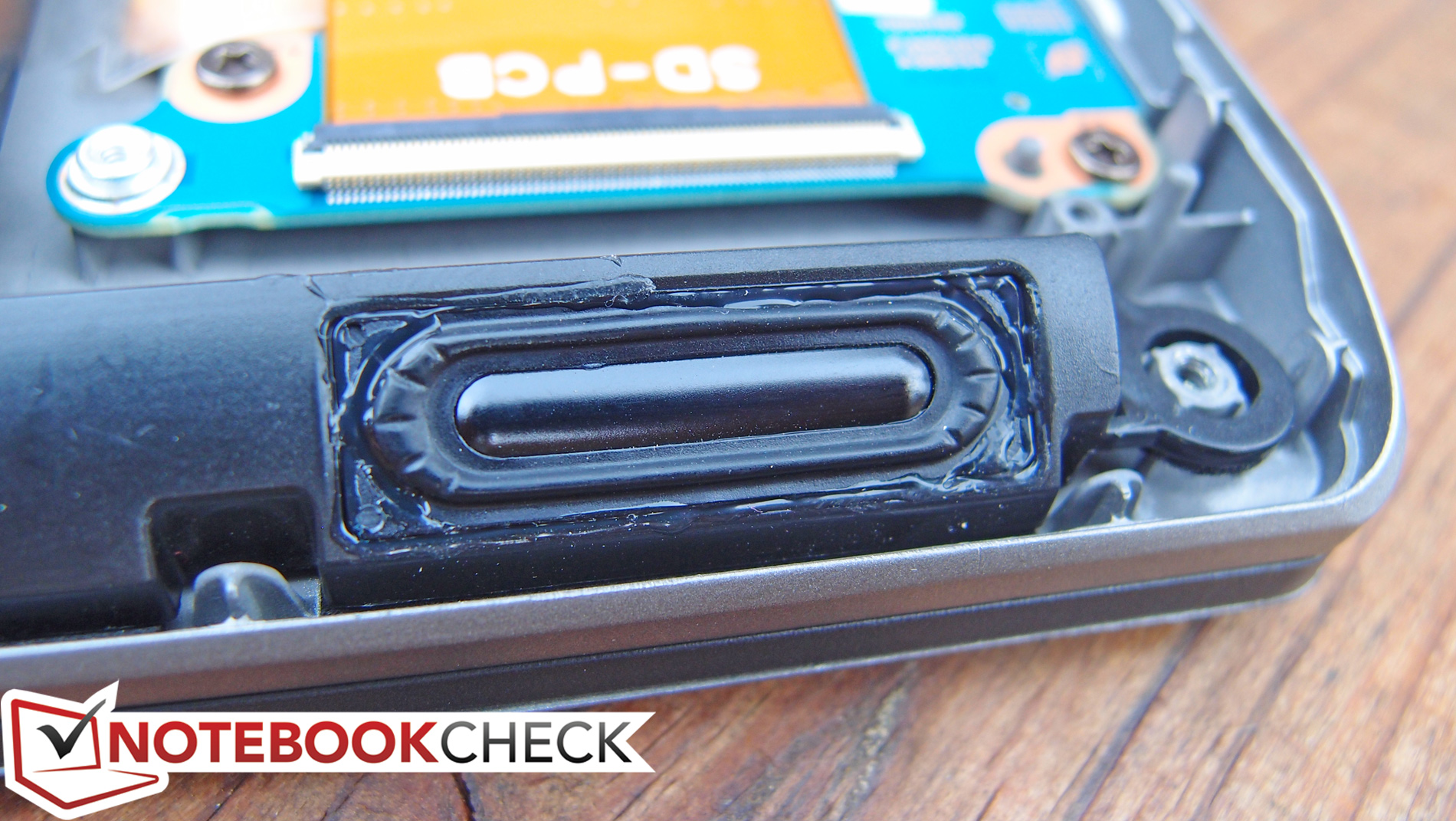

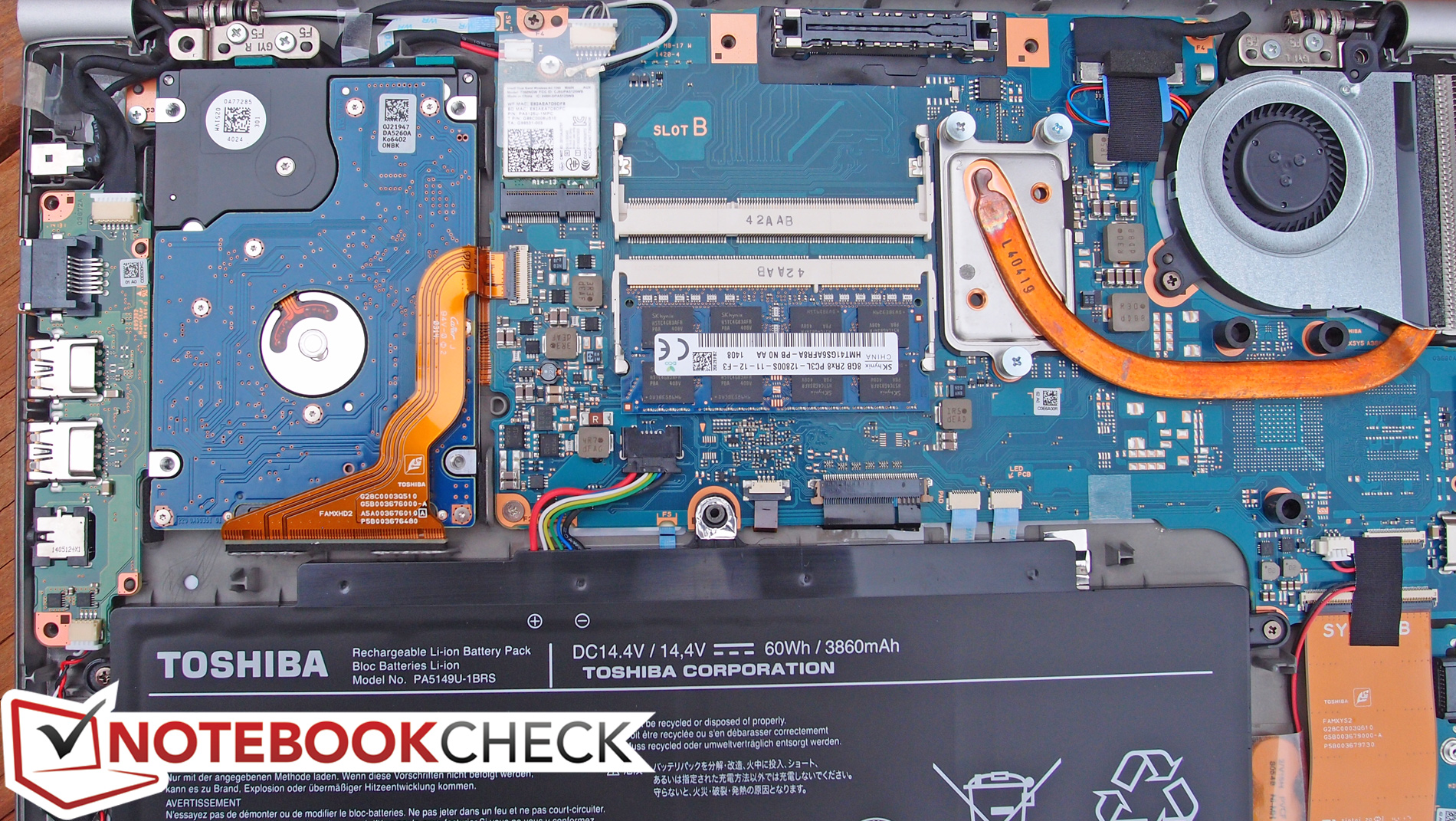

打开底盖,大部分的部件都可以更换
打开底盖,大部分的部件都可以更换

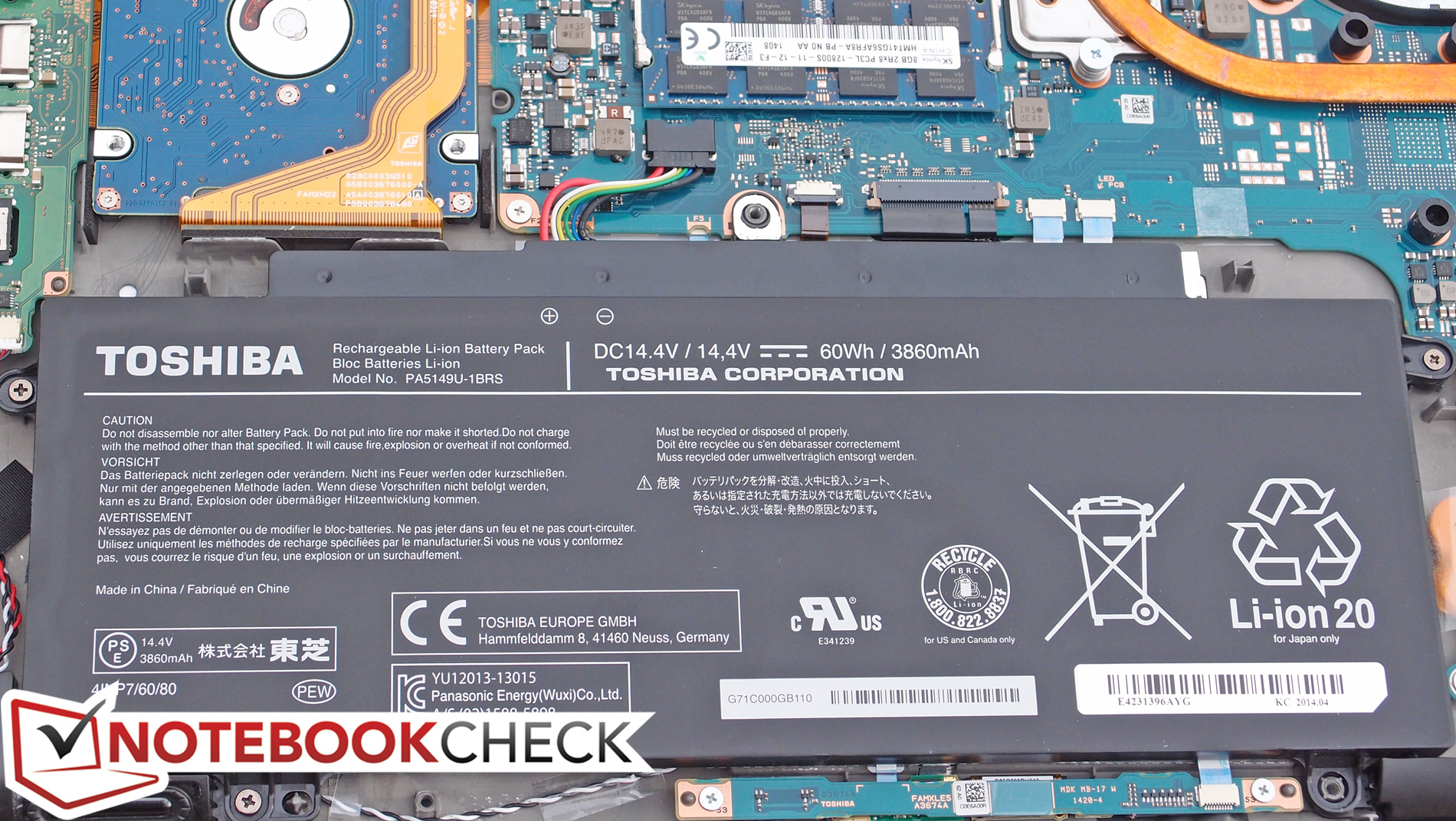

60 Wh 电池
60 Wh 电池
高低分明
高低分明

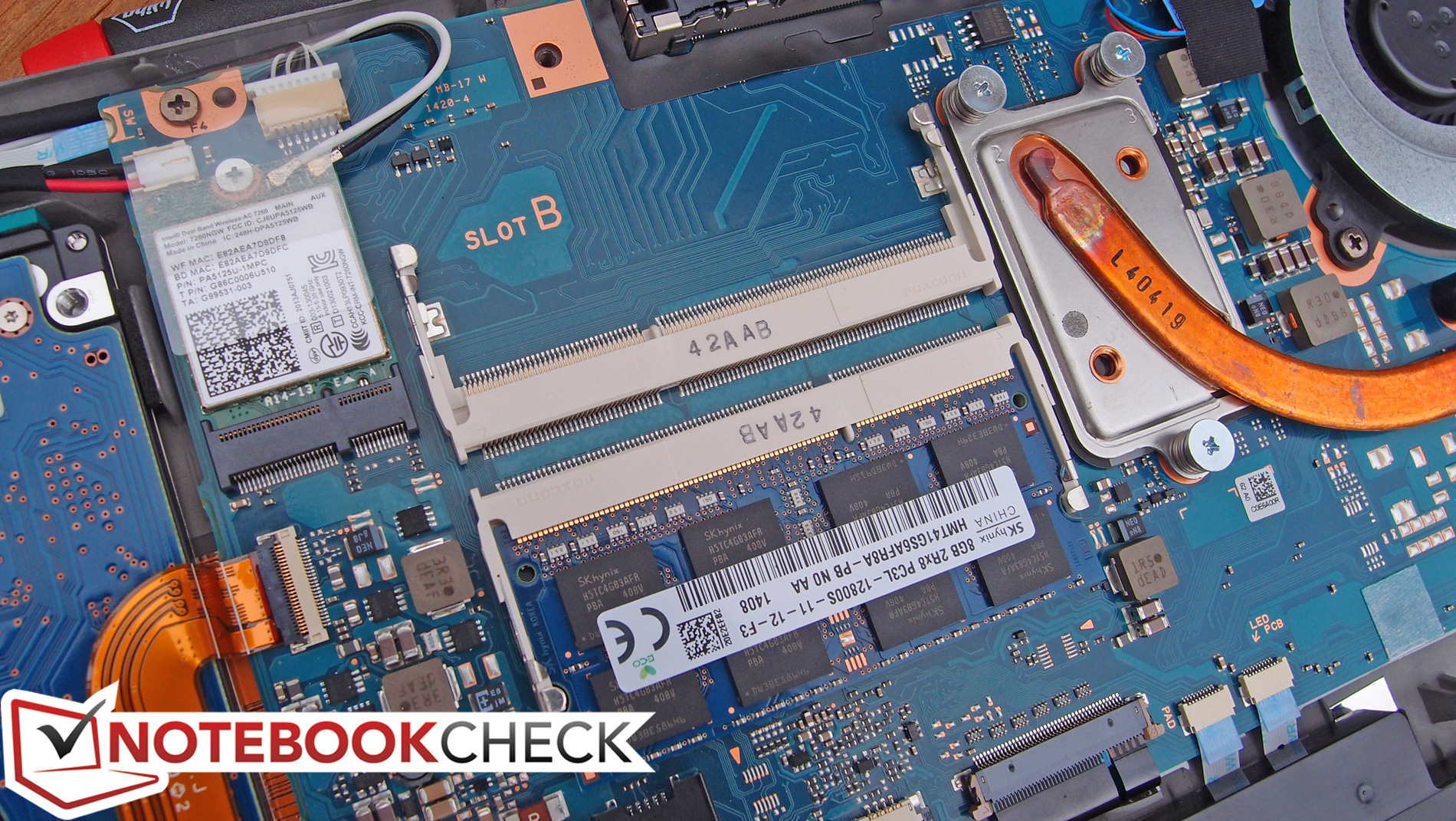

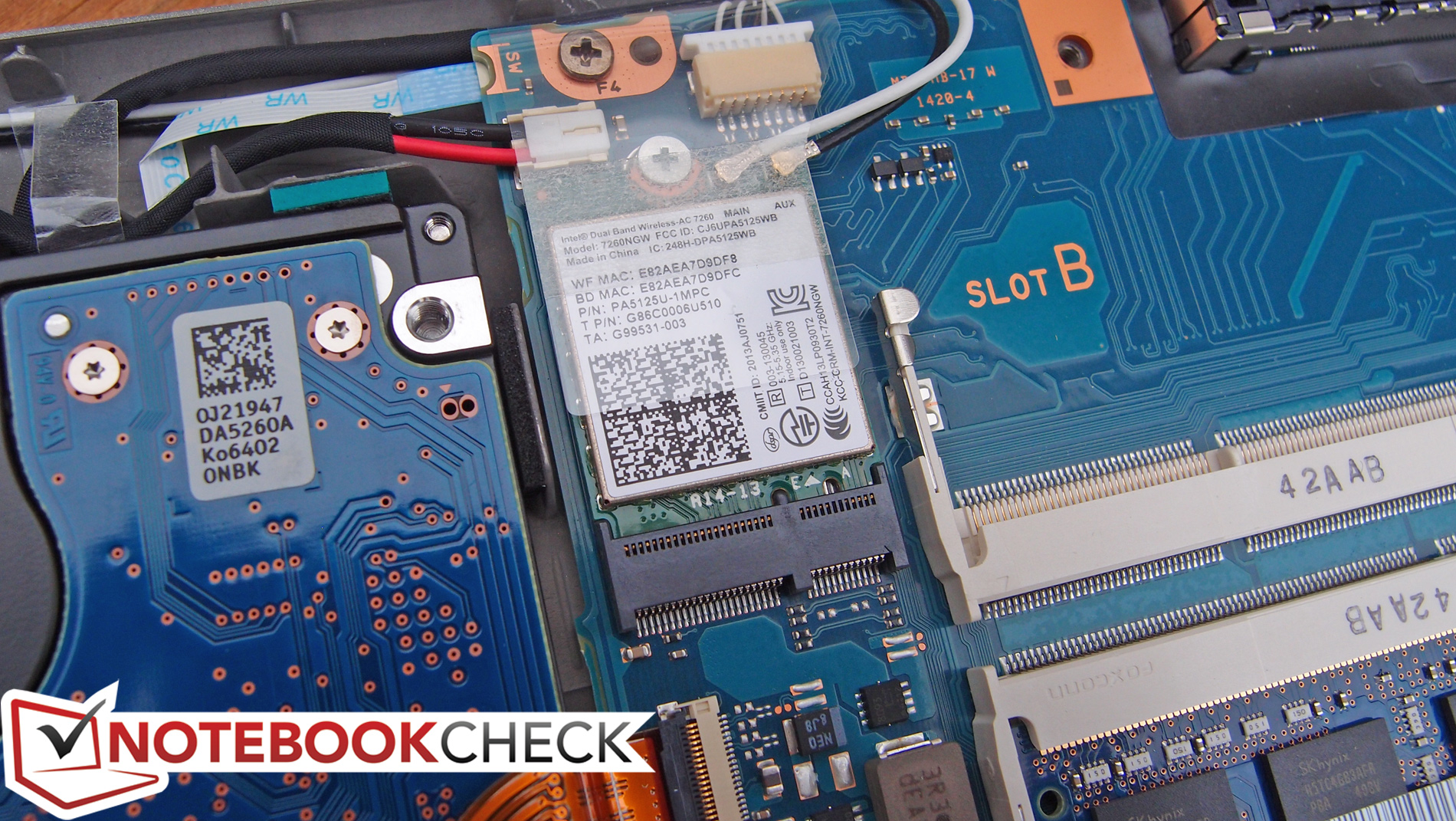

第二条同样的内存应该可以大幅提高显卡的性能
第二条同样的内存应该可以大幅提高显卡的性能
Please share our article, every link counts!
Mail Logo

Specifications

Toshiba Tecra Z40t-A1410 (Tecra Z40 Series)
Processor
Intel Core i5-4310U 2 x 2 - 3 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400, Core: 1100 MHz, RAM: 1600 MHz MHz, 10.18.10.3412
Memory
8 GB
, DDR3L 1600 MHz, 单通道
Display
14.00 inch 16:9, 1920 x 1080 pixel, 10点触控, TOS508F, TFT LED, glossy: no
Mainboard
Intel Lynx Point-LP
Storage
Hitachi Travelstar Z7K500 HTS725050A7E630, 500 GB
, 7200 rpm, 7200 RPM
Soundcard
Realtek ALC283 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections

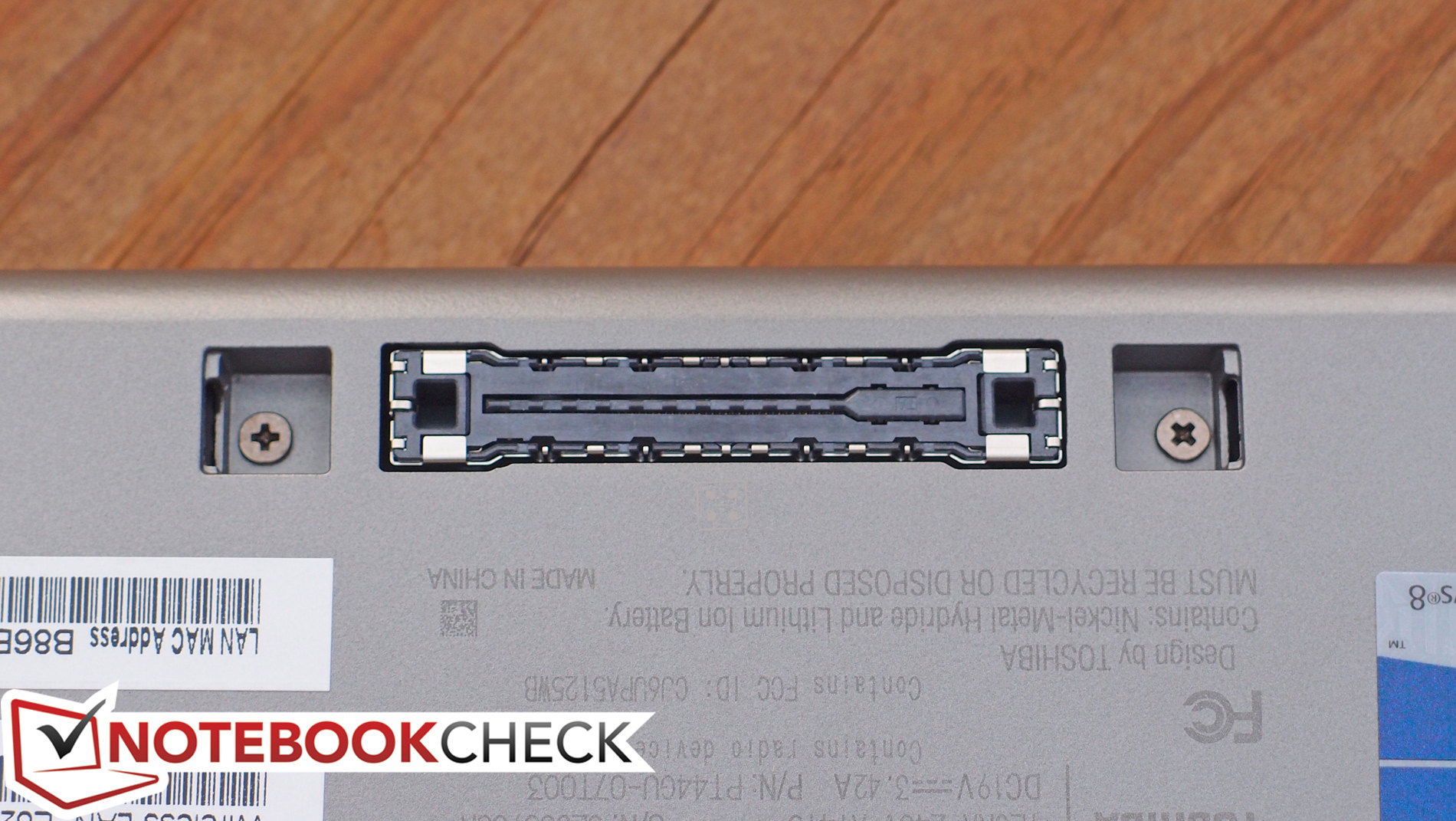

3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD, 1 Fingerprint Reader, Sensors: 硬盘冲击传感器 (东芝冲击保护系统)
Networking
Intel I218-LM Gigabit (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 24 x 340 x 235
Battery
60 Wh Lithium-Ion, 4芯
Operating System
Microsoft Windows 7 Professional 64 Bit
Camera

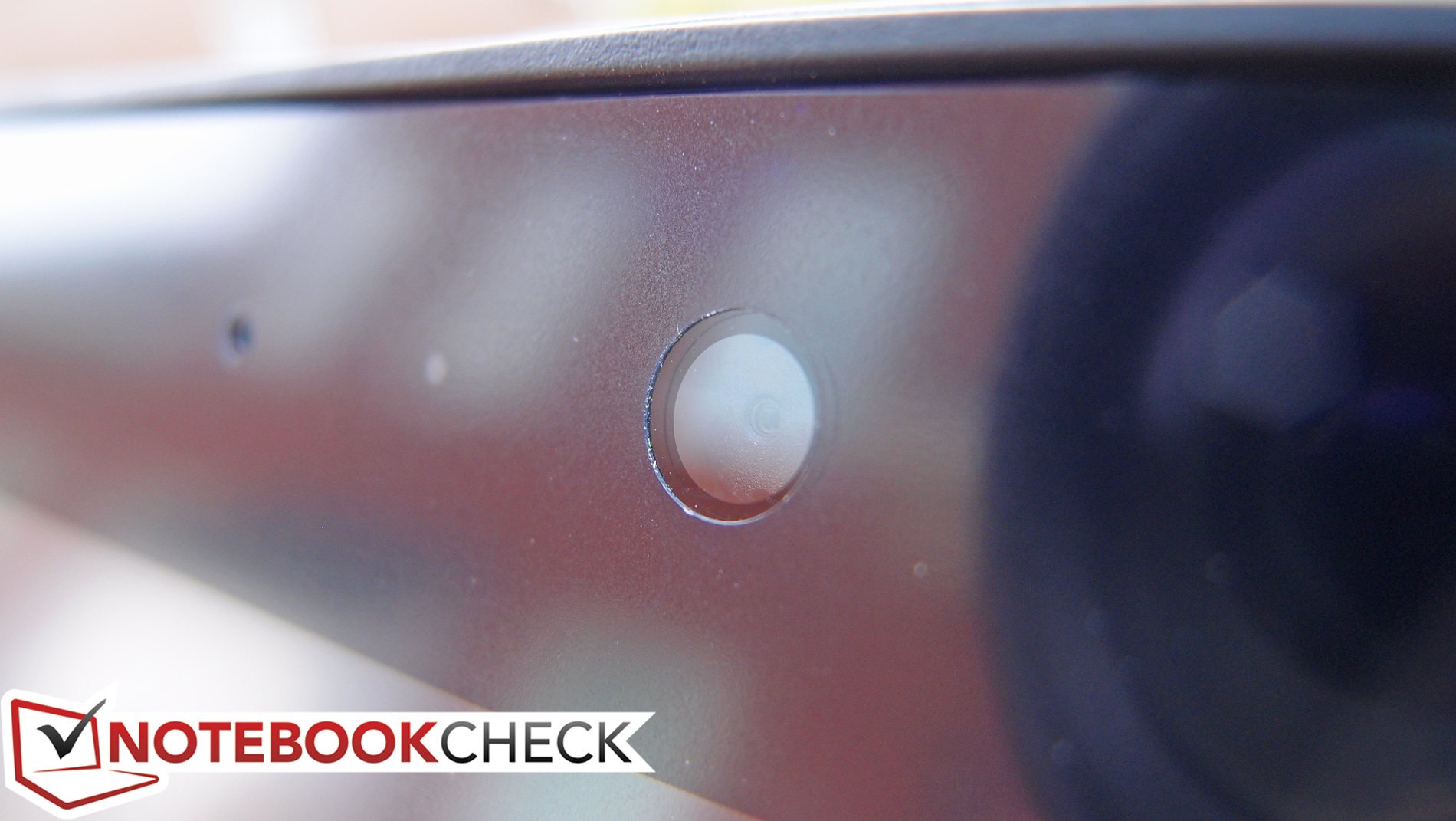

Webcam: 200万像素 立体声麦克风
Additional features
Speakers: 立体声 位于机身底面, Keyboard: 孤岛式, Keyboard Light: yes, DTS Studio Sound, 硬盘恢复, Norton Internet Security (30天试用版), TOSHIBA 媒体播放器(sMedio Truelink+), TOSHIBA PC Diagnostic Tool, TOSHIBA PC Health Monitor, TOSHIBA Recovery Disk Creator, TOSHIBA Service Station, 36 Months Warranty
Weight
1.624 kg, Power Supply: 336 g
Price
1389 Euro



Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

Devices with the same GPU and/or Screen Size

戴尔 Latitude 14 Rugged 5404 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 3.07 kg

Devices with the same GPU

戴尔 Latitude E5550 笔记本电脑简短评测
HD Graphics 4400, Core i5 4310U, 15.60", 2.14 kg
东芝 Satellite Pro R50-B-112 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.3 kg

Pros

+ 优秀的接口配备
+ 机身重量轻
+ 不错的电池续航
+ 稳固的屏幕转轴
+ 低发热
+ 负载下噪音小
+ 3年质保
+ 磨砂触控屏幕

Cons

- 屏幕由于有防反光涂层颗粒感很强
- 系统性能一般
- 负载下有降频现象
- 键盘的键程较短、反馈较弱
- 点击式触控板
- 作为商务笔记本维护升级应该更方便
- 屏幕上盖易磨损

Toshiba Tecra Z40t-A1410 - 09/18/2014 v4 (old)
Steve Schardein

Chassis
79 / 98 → 81%
Keyboard
77%
Pointing Device
81%
Connectivity
69 / 80 → 86%
Weight
68 / 20-67 → 100%
Battery
87%
Display
75%
Games Performance
61 / 68 → 90%
Application Performance
62 / 92 → 67%
Temperature
88%
Noise
80%
Audio
50%
Camera
67 / 85 → 79%
Add Points
-1%
Average
67%
77%
Office - Weighted Average
