华硕 Transformer Book T300LA-C4006H 变形本简短评测

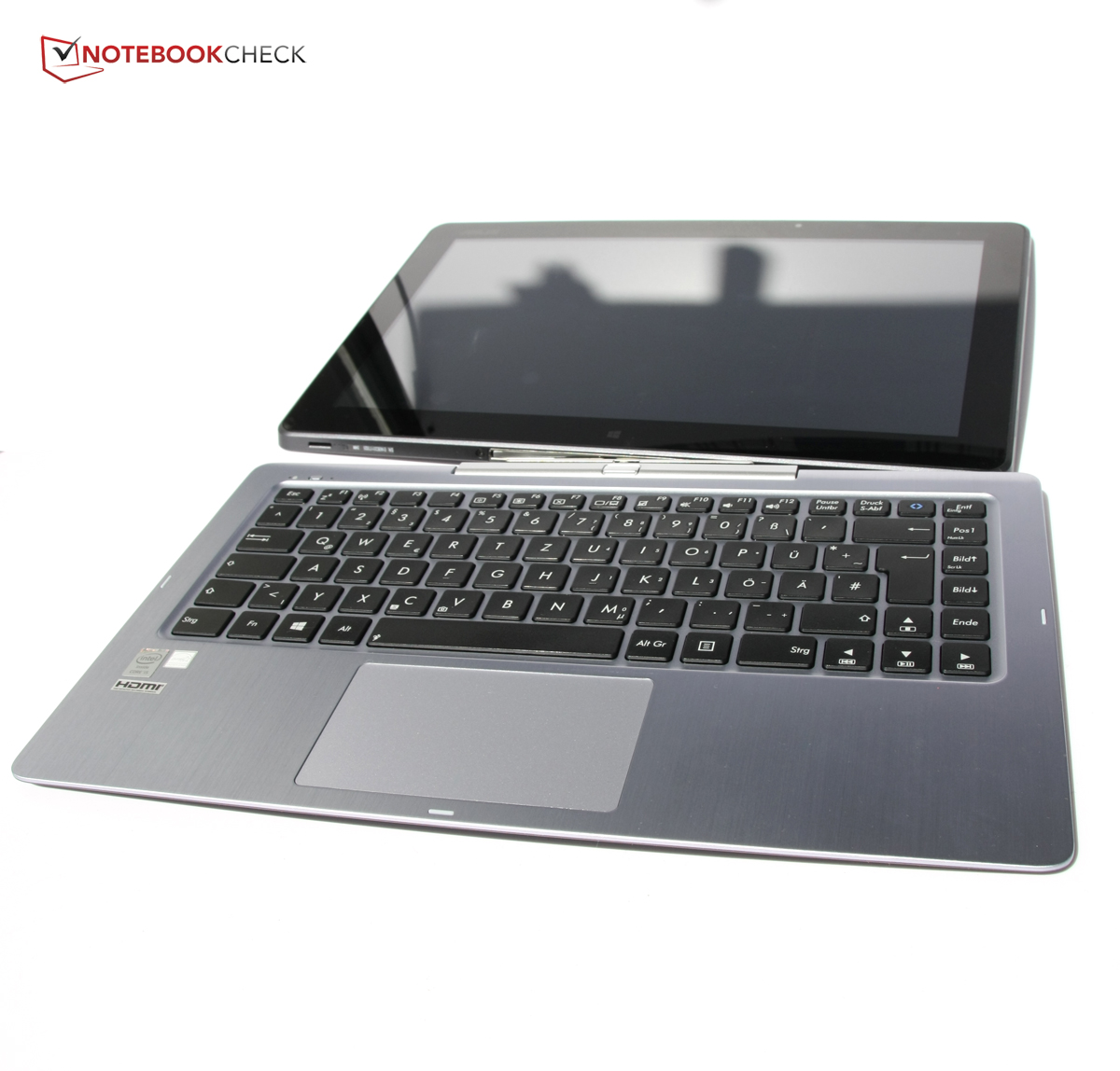

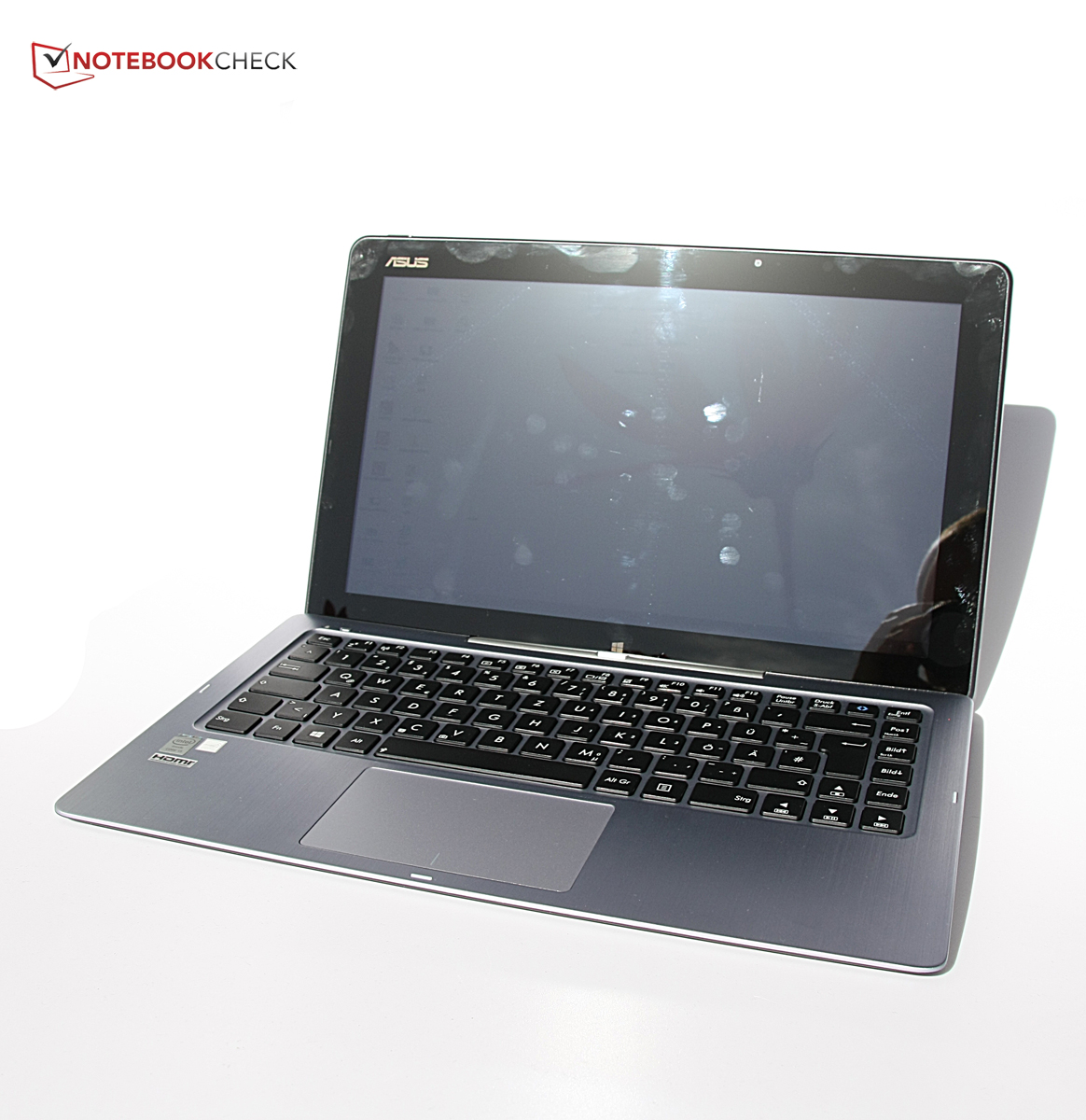

平板,变身! 华硕Transformer Book T300LA是一款可以连接高质量键盘底座而变身为经典的笔记本的Windows平板。这个想法很有魅力,不过它也有一些缺点。请阅读我们的评测以了解更多细节。
Convertible / 2-in-1 Haswell Tablet Touchscreen Windows
240
cd/m²
204
cd/m²
191
cd/m²
243
cd/m²
229
cd/m²
214
cd/m²
224
cd/m²
223
cd/m²
215
cd/m²
Distribution of brightness
M133NWF2R0 tested with X-Rite i1Pro 2
Maximum: 243 cd/m² (Nits) Average: 220.3 cd/m²
Brightness Distribution: 79 %
Center on Battery: 175.6 cd/m²
Contrast: 848:1 (Black: 0.27 cd/m²)
ΔE Color 4.5 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.52 | 0.5-98 Ø5.2
62.59% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
96% sRGB (Argyll 2.2.0 3D)
70.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.42
Cinebench R10 Rendering Single CPUs 64Bit
4955 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
9779 Points
Cinebench R10 Shading 64Bit
5799 Points
Cinebench R11.5 CPU Single 64Bit
1.12 Points
Cinebench R11.5 CPU Multi 64Bit
2.37 Points
Cinebench R11.5 OpenGL 64Bit
13.22 fps
Cinebench R15 CPU Single 64Bit
92 Points
Cinebench R15 CPU Multi 64Bit
214 Points
Cinebench R15 Ref. Match 64Bit
63.3 %
Help
Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Asus Transformer Book T300LA-C4006H
4955 Points
Asus Transformer Book TX300CA
4383 Points -12%
Microsoft Surface Pro 2
5038 Points +2%
Toshiba Satellite W30t-A-101
2940 Points -41%
Lenovo Yoga 2 Pro
4975 Points 0%
HP Spectre 13-h205eg x2
3890 Points -21%
Rendering Multiple CPUs 64Bit (sort by value)
Asus Transformer Book T300LA-C4006H
9779 Points
Asus Transformer Book TX300CA
6522 Points -33%
Microsoft Surface Pro 2
10011 Points +2%
Toshiba Satellite W30t-A-101
6503 Points -34%
Lenovo Yoga 2 Pro
9940 Points +2%
HP Spectre 13-h205eg x2
7188 Points -26%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus Transformer Book T300LA-C4006H
1.12 Points
Asus Transformer Book TX300CA
0.86 Points -23%
Microsoft Surface Pro 2
1.14 Points +2%
Toshiba Satellite W30t-A-101
0.67 Points -40%
Lenovo Yoga 2 Pro
1.13 Points +1%
HP Spectre 13-h205eg x2
0.88 Points -21%
CPU Multi 64Bit (sort by value)
Asus Transformer Book T300LA-C4006H
2.37 Points
Asus Transformer Book TX300CA
1.7 Points -28%
Microsoft Surface Pro 2
2.51 Points +6%
Toshiba Satellite W30t-A-101
1.63 Points -31%
Lenovo Yoga 2 Pro
2.39 Points +1%
HP Spectre 13-h205eg x2
1.85 Points -22%
Cinebench R15
CPU Single 64Bit (sort by value)
Asus Transformer Book T300LA-C4006H
92 Points
Toshiba Satellite W30t-A-101
60 Points -35%
HP Spectre 13-h205eg x2
77 Points -16%
CPU Multi 64Bit (sort by value)
Asus Transformer Book T300LA-C4006H
214 Points
Toshiba Satellite W30t-A-101
152 Points -29%
HP Spectre 13-h205eg x2
171 Points -20%

Legend


Asus Transformer Book T300LA-C4006H Intel Core i5-4200U, Intel HD Graphics 4400, SanDisk SD6SB1M128G1002

Asus Transformer Book TX300CA Intel Core i7-3537U, Intel HD Graphics 4000, SanDisk U100 128 GB

Microsoft Surface Pro 2 Intel Core i5-4200U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Toshiba Satellite W30t-A-101 Intel Core i3-4020Y, Intel HD Graphics 4200, WD Blue UltraSlim WD5000MPCK-22AWHT0

Lenovo Yoga 2 Pro Intel Core i5-4200U, Intel HD Graphics 4400, Samsung SSD PM841 MZMTD128HAFV mSATA

HP Spectre 13-h205eg x2 Intel Core i5-4202Y, Intel HD Graphics 4200, Samsung SSD PM841 MZMTD128HAFV mSATA
PCMark 7 Score
4357 points
PCMark 8 Home Score Accelerated v2
1918 points
PCMark 8 Creative Score Accelerated v2
2233 points
PCMark 8 Work Score Accelerated v2
2348 points
Help
PCMark 7 - Score (sort by value)
Asus Transformer Book T300LA-C4006H
4357 Points
Asus Transformer Book TX300CA
3846 Points -12%
Microsoft Surface Pro 2
4808 Points +10%
Toshiba Satellite W30t-A-101
2399 Points -45%
Lenovo Yoga 2 Pro
4670 Points +7%
HP Spectre 13-h205eg x2
4139 Points -5%
PCMark 8
Home Score Accelerated v2 (sort by value)
Asus Transformer Book T300LA-C4006H
1918 Points
Toshiba Satellite W30t-A-101
2044 Points +7%
Creative Score Accelerated v2 (sort by value)
Asus Transformer Book T300LA-C4006H
2233 Points
Toshiba Satellite W30t-A-101
1810 Points -19%
Work Score Accelerated v2 (sort by value)
Asus Transformer Book T300LA-C4006H
2348 Points
Toshiba Satellite W30t-A-101
2516 Points +7%
SanDisk SD6SB1M128G1002
Sequential Read: 470.6MB/s
Sequential Write: 271.8MB/s
4K Read: 28.2MB/s
4K Write: 76.2MB/s
4K-64 Read: 315.1MB/s
4K-64 Write: 157.4MB/s
Access Time Read: 0.114ms
Access Time Write: 0.054ms
Score Read: 390Points
Score Write: 261Points
Score Total: 851Points
AS SSD
Seq Read (sort by value)
Asus Transformer Book T300LA-C4006H
470.6 MB/s
Asus Transformer Book TX300CA
459.6 MB/s -2%
Microsoft Surface Pro 2
504 MB/s +7%
Lenovo Yoga 2 Pro
501 MB/s +6%
HP Spectre 13-h205eg x2
502 MB/s +7%
Seq Write (sort by value)
Asus Transformer Book T300LA-C4006H
271.8 MB/s
Asus Transformer Book TX300CA
262.3 MB/s -3%
Microsoft Surface Pro 2
313.3 MB/s +15%
Lenovo Yoga 2 Pro
129.7 MB/s -52%
HP Spectre 13-h205eg x2
131.8 MB/s -52%
4K Read (sort by value)
Asus Transformer Book T300LA-C4006H
28.2 MB/s
Asus Transformer Book TX300CA
9.32 MB/s -67%
Microsoft Surface Pro 2
22.53 MB/s -20%
Lenovo Yoga 2 Pro
25.47 MB/s -10%
HP Spectre 13-h205eg x2
24.19 MB/s -14%
4K Write (sort by value)
Asus Transformer Book T300LA-C4006H
76.2 MB/s
Asus Transformer Book TX300CA
8.87 MB/s -88%
Microsoft Surface Pro 2
69.1 MB/s -9%
Lenovo Yoga 2 Pro
58.7 MB/s -23%
HP Spectre 13-h205eg x2
51.6 MB/s -32%
4K-64 Read (sort by value)
Asus Transformer Book T300LA-C4006H
315.1 MB/s
Asus Transformer Book TX300CA
27.29 MB/s -91%
Microsoft Surface Pro 2
331.8 MB/s +5%
Lenovo Yoga 2 Pro
295.5 MB/s -6%
HP Spectre 13-h205eg x2
308.4 MB/s -2%
Access Time Read (sort by value)
Asus Transformer Book T300LA-C4006H
0.114 ms *
Asus Transformer Book TX300CA
0.429 ms * -276%
Microsoft Surface Pro 2
0.74 ms * -549%
Lenovo Yoga 2 Pro
0.101 ms * +11%
HP Spectre 13-h205eg x2
0.115 ms * -1%
Access Time Write (sort by value)
Asus Transformer Book T300LA-C4006H
0.054 ms *
Asus Transformer Book TX300CA
0.476 ms * -781%
Microsoft Surface Pro 2
0.72 ms * -1233%
Lenovo Yoga 2 Pro
0.058 ms * -7%
HP Spectre 13-h205eg x2
0.069 ms * -28%
Score Read (sort by value)
Asus Transformer Book T300LA-C4006H
390 Points
Asus Transformer Book TX300CA
83 Points -79%
Microsoft Surface Pro 2
405 Points +4%
Lenovo Yoga 2 Pro
371 Points -5%
HP Spectre 13-h205eg x2
383 Points -2%
Score Write (sort by value)
Asus Transformer Book T300LA-C4006H
261 Points
Asus Transformer Book TX300CA
42 Points -84%
Microsoft Surface Pro 2
356 Points +36%
Lenovo Yoga 2 Pro
181 Points -31%
HP Spectre 13-h205eg x2
180 Points -31%

* ... smaller is better

3DMark 11 Performance
703 points
3DMark Ice Storm Standard Score
26490 points
3DMark Cloud Gate Standard Score
3499 points
3DMark Fire Strike Score
439 points
Help
3DMark 11
1280x720 Performance (sort by value)
Asus Transformer Book T300LA-C4006H
703 Points
Asus Transformer Book TX300CA
519 Points -26%
Microsoft Surface Pro 2
991 Points +41%
Toshiba Satellite W30t-A-101
828 Points +18%
Lenovo Yoga 2 Pro
897 Points +28%
HP Spectre 13-h205eg x2
721 Points +3%
1280x720 Performance GPU (sort by value)
Asus Transformer Book T300LA-C4006H
630 Points
Asus Transformer Book TX300CA
468 Points -26%
Microsoft Surface Pro 2
881 Points +40%
Toshiba Satellite W30t-A-101
741 Points +18%
Lenovo Yoga 2 Pro
799 Points +27%
HP Spectre 13-h205eg x2
640 Points +2%
3DMark
1920x1080 Fire Strike Score (sort by value)
Asus Transformer Book T300LA-C4006H
439 Points
Asus Transformer Book TX300CA
331 Points -25%
Microsoft Surface Pro 2
648 Points +48%
Toshiba Satellite W30t-A-101
512 Points +17%
HP Spectre 13-h205eg x2
450 Points +3%
1280x720 Cloud Gate Standard Score (sort by value)
Asus Transformer Book T300LA-C4006H
3499 Points
Asus Transformer Book TX300CA
2409 Points -31%
Microsoft Surface Pro 2
4514 Points +29%
Toshiba Satellite W30t-A-101
3449 Points -1%
HP Spectre 13-h205eg x2
3230 Points -8%
1280x720 Ice Storm Standard Score (sort by value)
Asus Transformer Book T300LA-C4006H
26490 Points
Asus Transformer Book TX300CA
17775 Points -33%
Microsoft Surface Pro 2
41415 Points +56%
Toshiba Satellite W30t-A-101
34297 Points +29%
HP Spectre 13-h205eg x2
29562 Points +12%
lowmed.highultra
Diablo III (2012) 45.3 30.2 25.6 13.6
Thief (2014) 14.2 8.3 7 4.3
Watch Dogs (2014) 12.2 9.2 1.5

Noise Level

Idle
28.2 / 28.2 / 29.3 dB(A)
Load
32.7 / 32.7 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-300 (15 cm distance)
Max. Load
 39.9 °C39.1 °C33.7 °C
 39 °C33.2 °C26.7 °C
 34.3 °C30.5 °C26.8 °C
Maximum: 39.9 °C
Average: 33.7 °C
30.4 °C40.3 °C40.6 °C
28.6 °C34.9 °C38.4 °C
27.9 °C30.8 °C33.3 °C
Maximum: 40.6 °C
Average: 33.9 °C
Power Supply (max.)  42.7 °C | Room Temperature 23.5 °C | Raytek Raynger ST
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 39.9 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.6 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.4 °C / 83 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.3 °C / 93.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-6.2 °C / -11.1 F).
Power Consumption
Off / Standbydarklight 0 / 0.01 Watt
Idledarkmidlight 3.3 / 5.6 / 7.8 Watt
Load midlight 21.8 / 28.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
14h 23min
WiFi Surfing
10h 53min
Big Buck Bunny H.264 1080p
9h 52min
Load (maximum brightness)
2h 26min
In review: Asus Transformer Book T300LA-C4006H.
In review: Asus Transformer Book T300LA-C4006H.

相对较低的价格——和较少的功能。在实际使用中这还好,只是它缺少的我们很喜欢的在TX300CA中的一些功能让我们很难接受。

例如它的键盘底座,让人感觉不再是平板不可或缺的一部分了——而更像是第三方设计的键盘埠。前代产品底座中的第二块电池是个非常好的想法。尽管这款测试机提供了很长的电池续航时间,不过底座中的额外电池还可以让它持续运行更久。同样的,考虑到平板中配备的容量较小的固态硬盘,键盘底座中如果可以配备硬盘将会更加方便。前作在底座中的额外扬声器提供了不错的音效,不过现在平板中内置了质量更高的扬声器。尽管功能少了很多,但底座的重量几乎没有减轻同样也成为了一个遗憾。

它类似智能手机的通过USB接口给键盘底座电池充电的设计和奇怪的接线设计让我们感到十分困惑。

不过当我们开始测试它的性能和能效时这些怀旧的想法开始消失了。新的Haswell处理器提供了一些很大的改变:Transformer Book T300LA比前作更加强大。它的游戏性能达到了令人满意的水平,互联网浏览和办公软件应用则可以无瑕地运行。

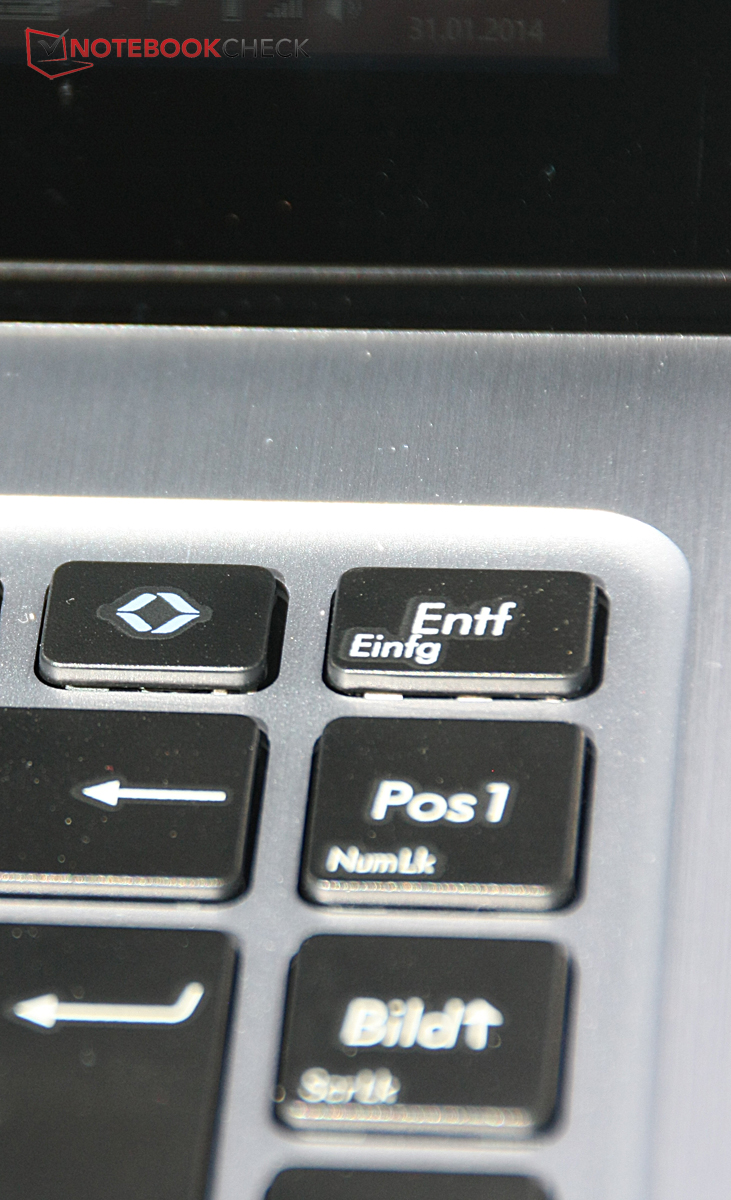

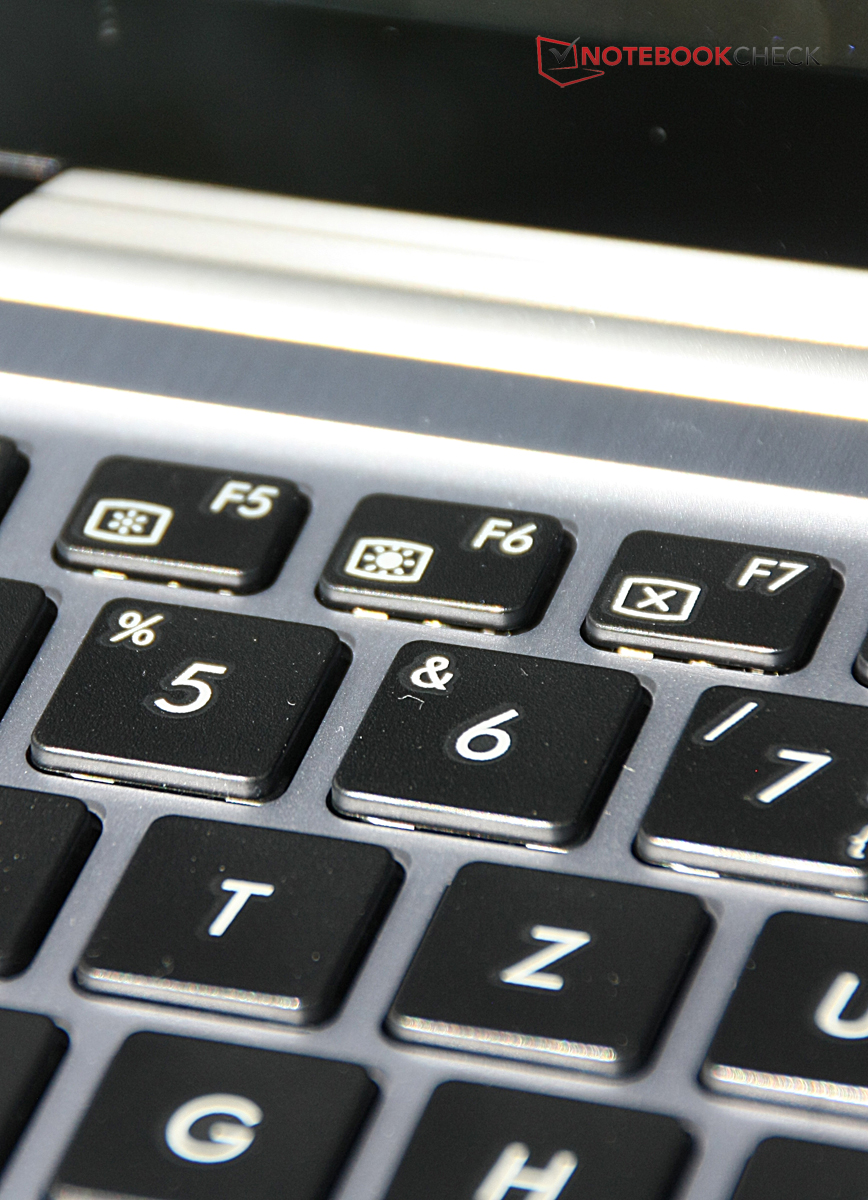

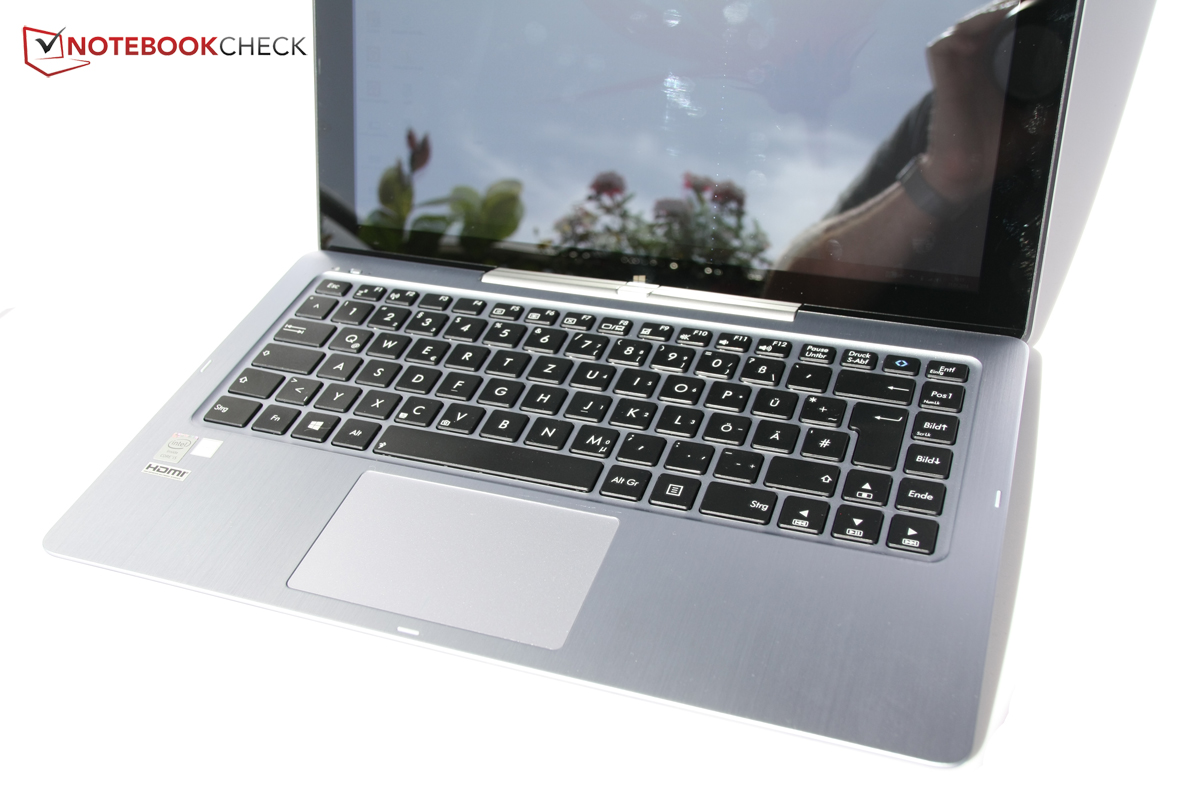

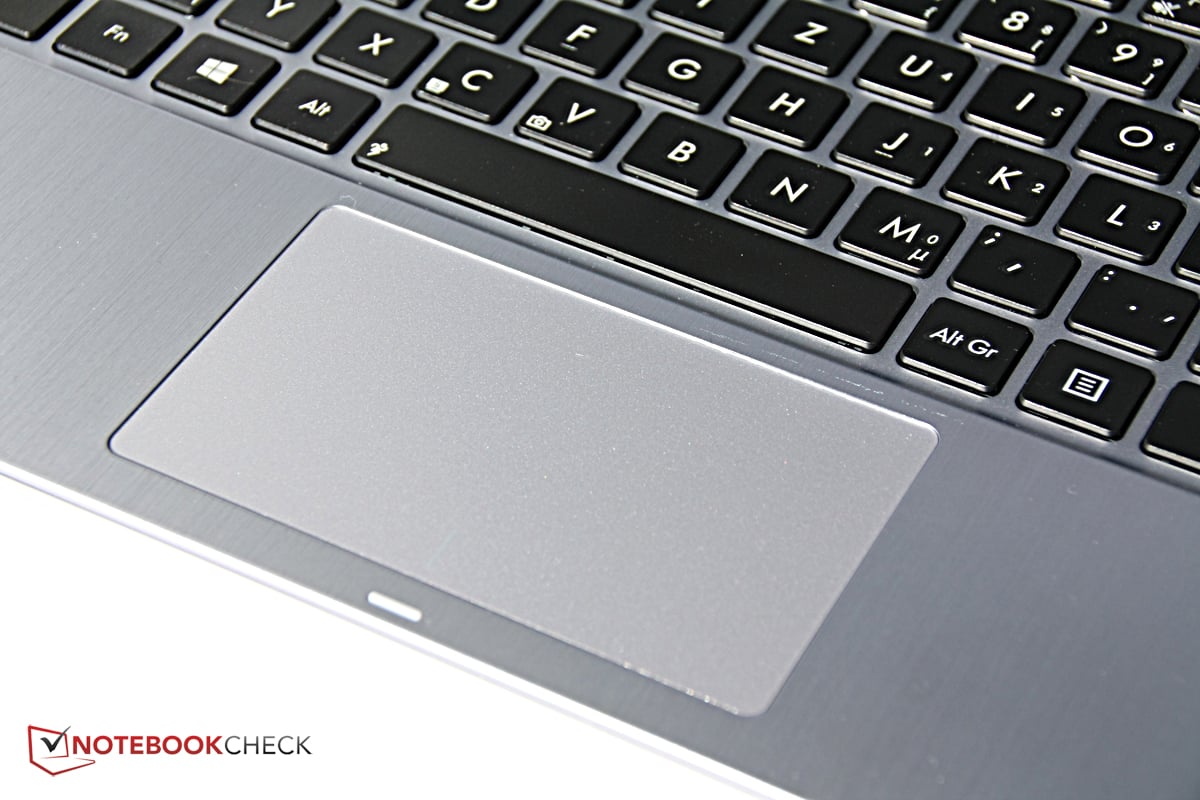

总体来说,华硕提供了质量上乘的屏幕面板。它的输入设备同样让人满意,运行温度和噪音水平也让人感到很舒适。

就像之前已经提到的,华硕的这款包含键盘底座的大尺寸平板是一款设计优秀、可以与竞争者不分伯仲的产品。除去我们通过对比它与前代产品所感到的一些遗憾与怀旧,新的Transformer Book以它高质量的做工、强大的性能、和可以搭配键盘在不同模式下使用的全面表现,仍然给我们留下了很好的印象

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

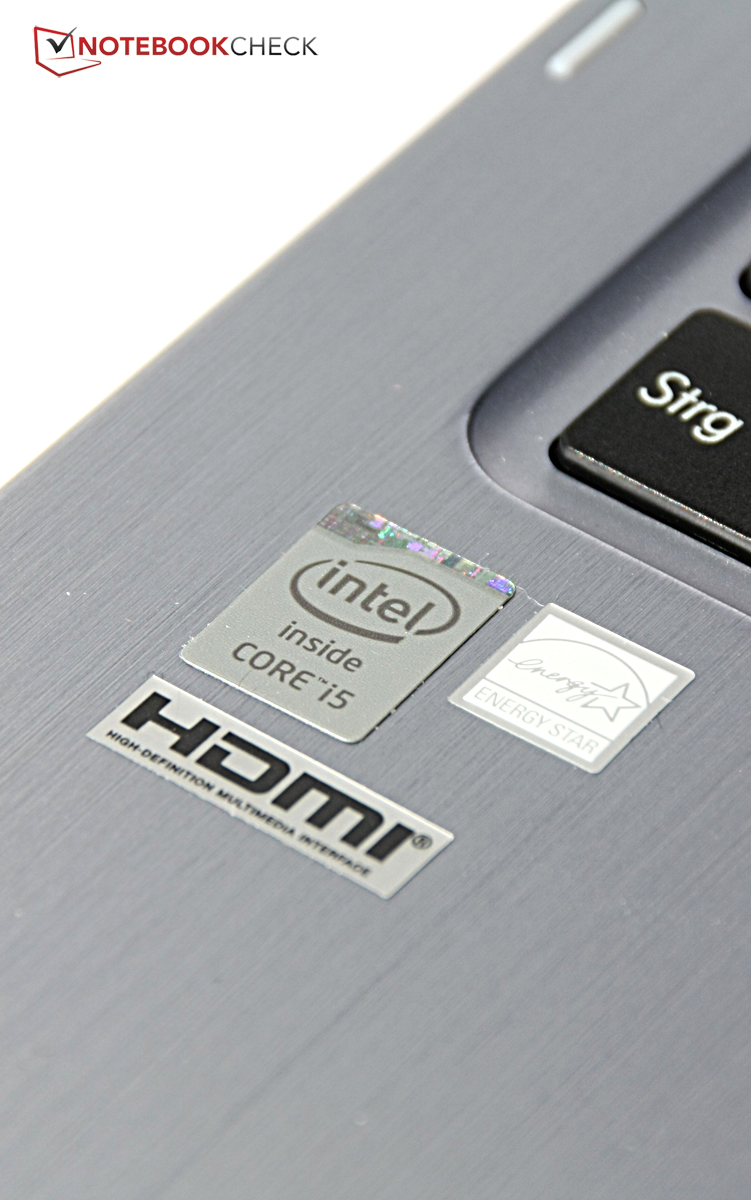

感谢你的Haswell更新,华硕。
感谢你的Haswell更新,华硕。
配备了Haswell处理器,Transformer Book T300LA相比前代产品能效更高。
配备了Haswell处理器,Transformer Book T300LA相比前代产品能效更高。
由于售价的降低,华硕减少了一些功能:
由于售价的降低,华硕减少了一些功能:

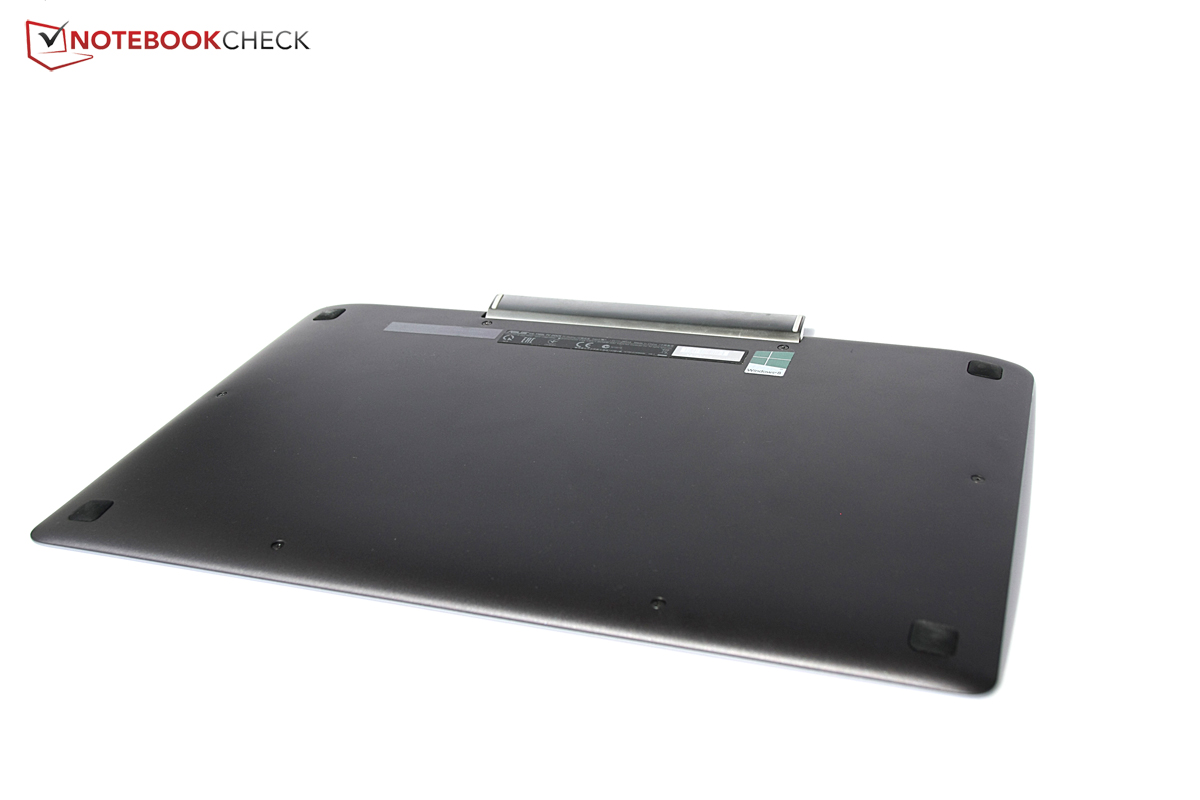

底座不再提供硬盘,且底座的电池不再给平板的电池充电了。
底座不再提供硬盘,且底座的电池不再给平板的电池充电了。

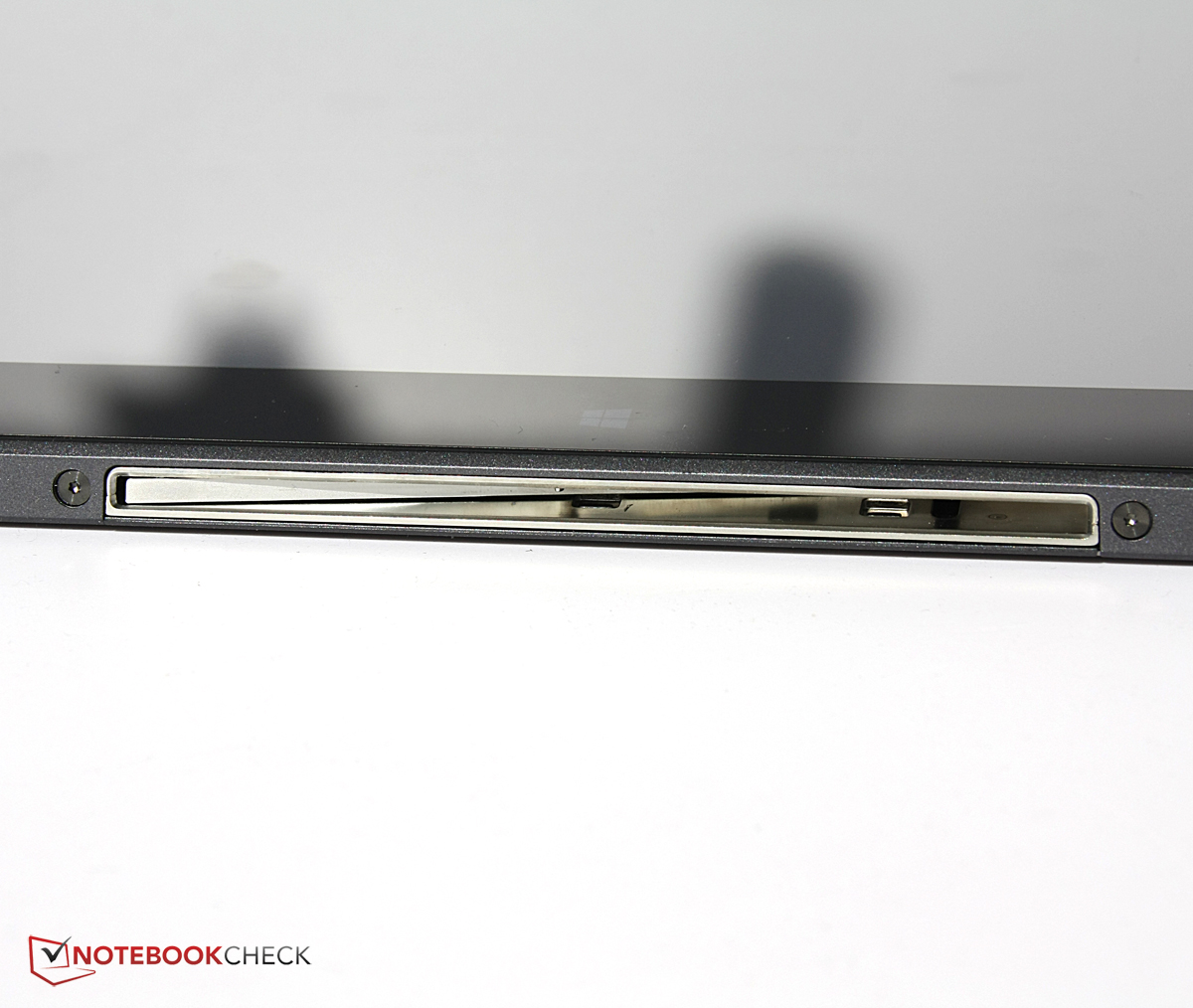

它们间的连接仅仅是物理上的:数据无法再通过键盘埠接口传输。
它们间的连接仅仅是物理上的:数据无法再通过键盘埠接口传输。
作为替代,键盘现在和平板通过蓝牙交换数据。所以它们在分开的时候同样可以一起使用。
作为替代,键盘现在和平板通过蓝牙交换数据。所以它们在分开的时候同样可以一起使用。

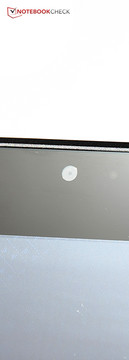

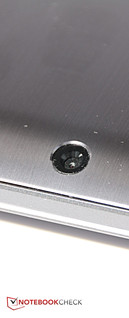

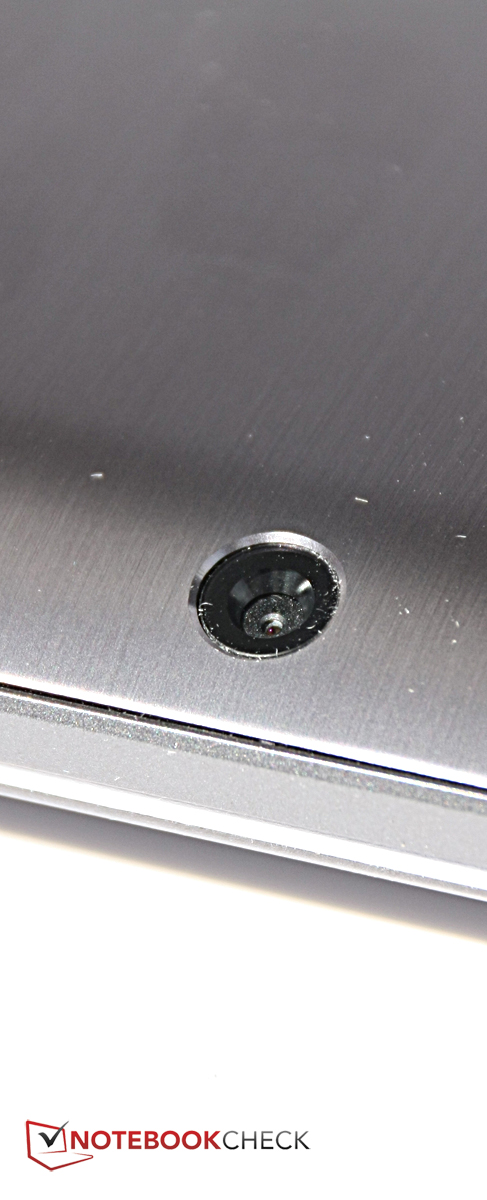

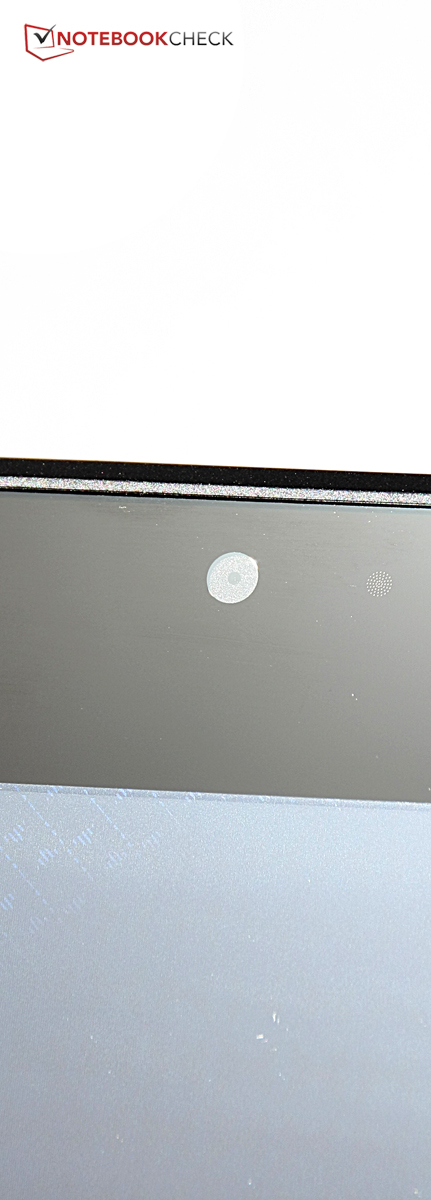

前置和后置的相机的照片拍摄质量都比较平庸。
前置和后置的相机的照片拍摄质量都比较平庸。
它的色彩还原还不错,不过细节上的损失较大。
它的色彩还原还不错,不过细节上的损失较大。
如果相机智能拍摄质量很差的照片的话,它是否还必须在所有平板中存在呢?
如果相机智能拍摄质量很差的照片的话,它是否还必须在所有平板中存在呢?

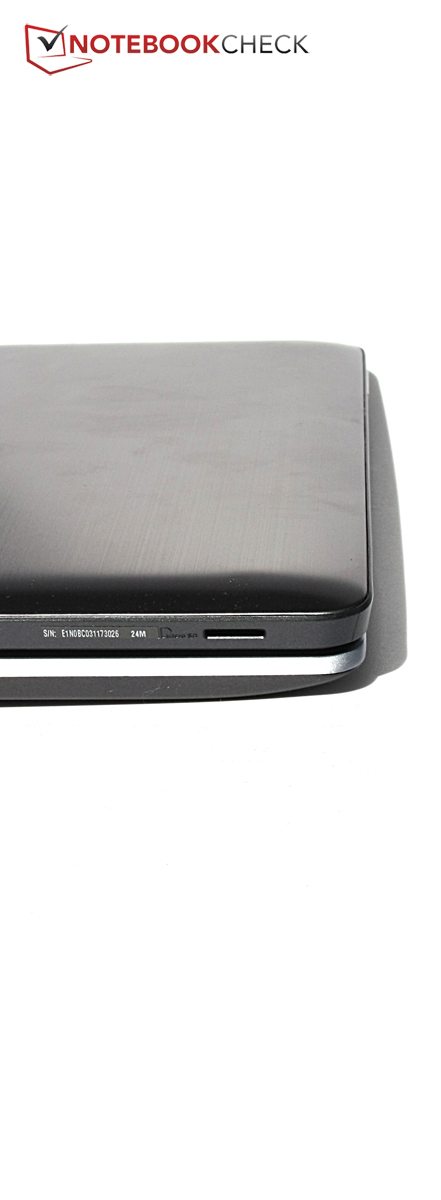

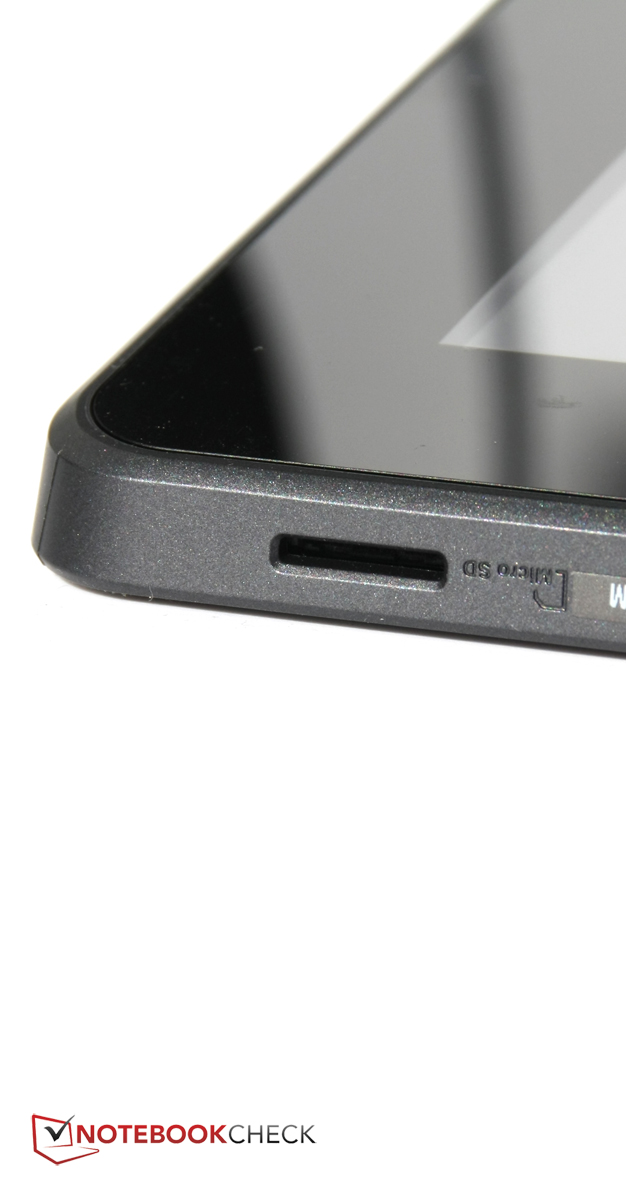

因为microSD卡槽位于设备底部,需要使用卡槽时必须将平板旋转一圈。
因为microSD卡槽位于设备底部,需要使用卡槽时必须将平板旋转一圈。
平板约重1.1 kg (~2.4 lbs),所以你可能无法单手握持很久。
平板约重1.1 kg (~2.4 lbs),所以你可能无法单手握持很久。
由于接口处的磁铁有时候会把平板和底座固定到错误的位置,它们之间的连接需要一些技巧。
由于接口处的磁铁有时候会把平板和底座固定到错误的位置,它们之间的连接需要一些技巧。

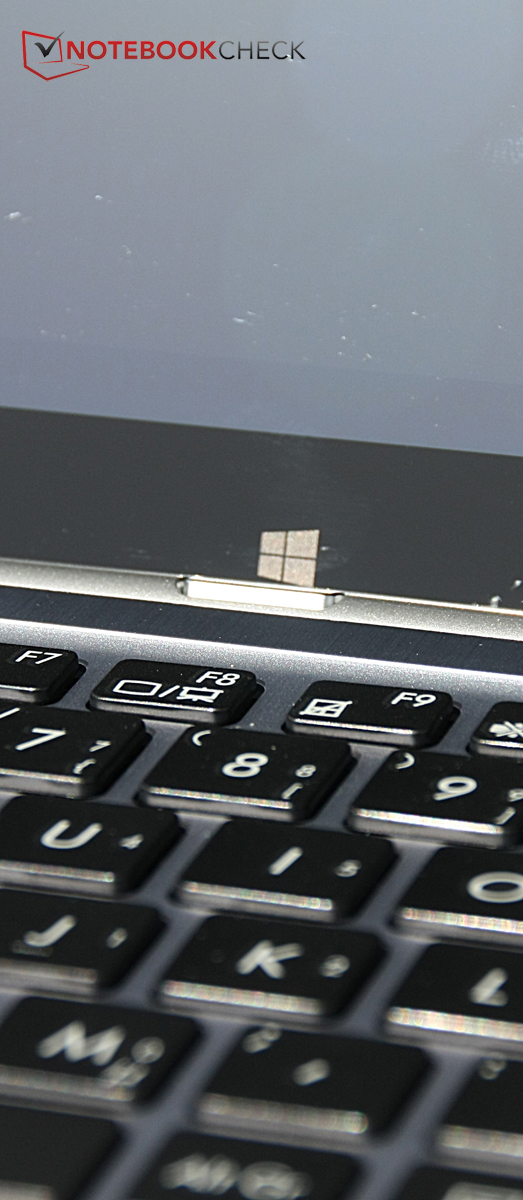

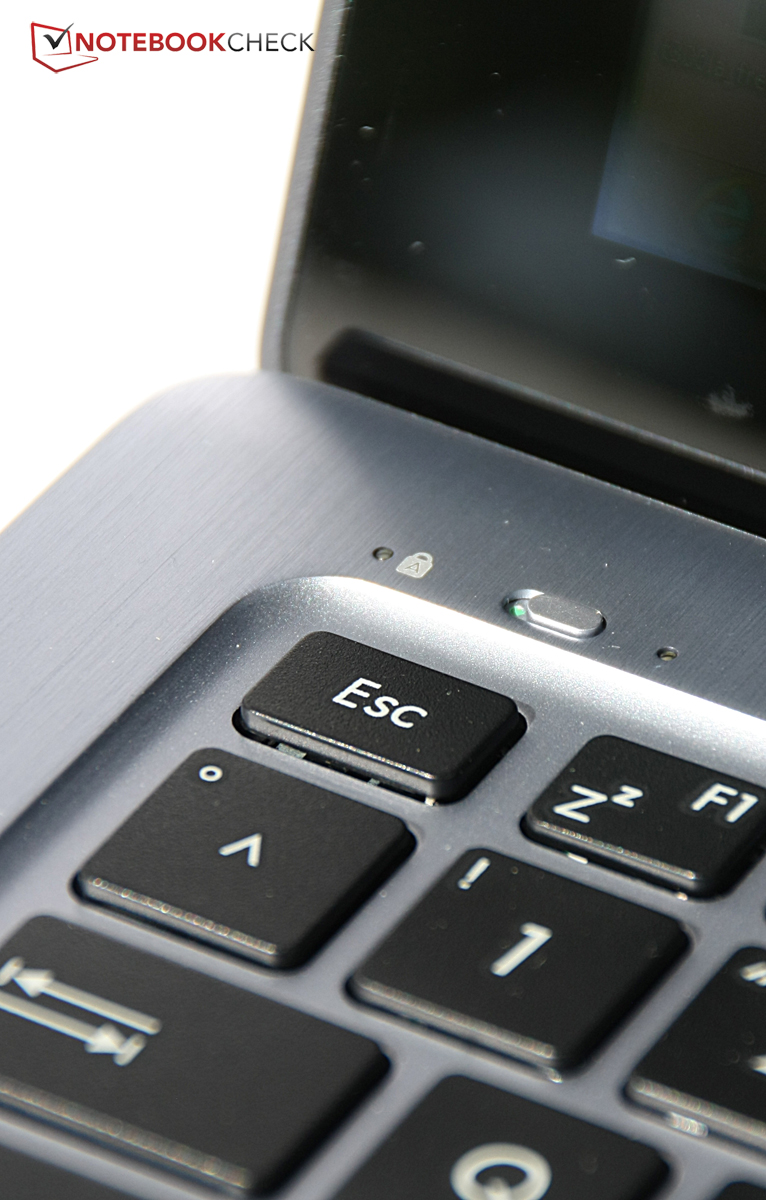

底座中的输入设备质量很高。
底座中的输入设备质量很高。
相对前作,这款测试机提供了更多的按键。
相对前作,这款测试机提供了更多的按键。
蓝牙键盘有自己的电池,因此它也需要充电。
蓝牙键盘有自己的电池,因此它也需要充电。
底座的电池通过USB接口充电,它可以被平板充电,不过这需要占用它唯一的USB接口。
底座的电池通过USB接口充电,它可以被平板充电,不过这需要占用它唯一的USB接口。

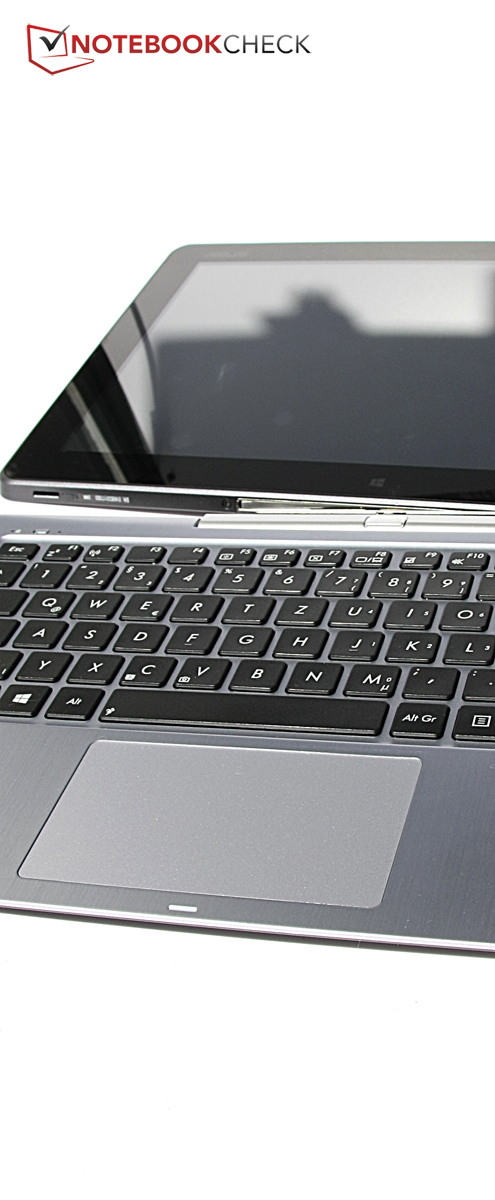

触控板很大且定位准确,不过你需要习惯点击式触控板的设计。
触控板很大且定位准确,不过你需要习惯点击式触控板的设计。
处理器提供了很高的性能和相对很低的能耗。
处理器提供了很高的性能和相对很低的能耗。
Transformer Book的游戏性能有限。
Transformer Book的游戏性能有限。

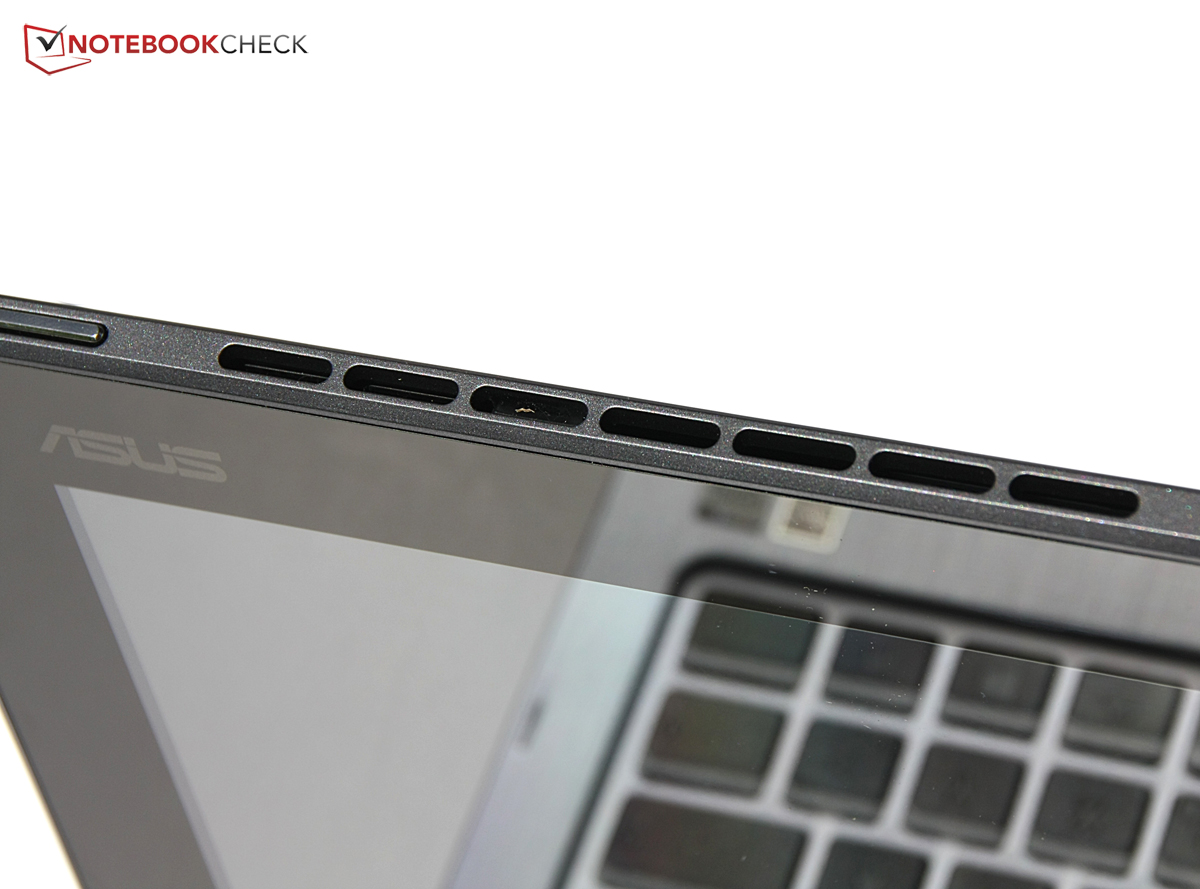

通过新的设计,现在风扇的排风口位于机身侧面。
通过新的设计,现在风扇的排风口位于机身侧面。
配合触控屏幕和传统的输入设备,Windows 8.1是这类设备的最佳操作系统。
配合触控屏幕和传统的输入设备,Windows 8.1是这类设备的最佳操作系统。
总体来说,它是一款优秀的变形平板。不过熟悉前作的消费者可能会怀念它所缺少的一些功能。
总体来说,它是一款优秀的变形平板。不过熟悉前作的消费者可能会怀念它所缺少的一些功能。


Please share our article, every link counts!

Specifications

Asus Transformer Book T300LA-C4006H (Transformer Book Series)
Processor
Intel Core i5-4200U 2 x 1.6 - 2.6 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400 - 3.9 GB VRAM, Core: 998 MHz, RAM: 798 MHz
Memory
4 GB
Display
13.30 inch 16:9, 1920 x 1080 pixel, 电容型, M133NWF2R0, IPS, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
SanDisk SD6SB1M128G1002, 128 GB
, 78 GB free
Soundcard
Intel Lynx Point-LP - High Definition Audio Controller
Connections
1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD读卡器, Sensors: 加速传感器, 陀螺仪, 指南针, 环境光传感器
Networking
Intel Dual Band Wireless-N 7260 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 23 x 343 x 218
Battery
50 Wh Lithium-Polymer, Battery runtime (according to manufacturer): 8 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 后置: 200万像素, 前置: 90万像素
Additional features
Speakers: 平板中内置 SonicMaster 扬声器, Keyboard: 底座:孤岛式键盘;平板:触控键盘, Keyboard Light: no, 24 Months Warranty
Weight
1.9 kg, Power Supply: 130 g
Price
899 Euro



Devices from a different Manufacturer and/or with a different CPU

华硕 Q302LA 变形本简短评测
HD Graphics 4400, Core i3 4030U
戴尔 Inspiron 13 7347 变形本简短评测
HD Graphics 4400, Core i5 4210U
联想 Yoga 2 13 变形本简短评测
HD Graphics 4400, Core i3 4010U

Devices with the same GPU

联想 Horizon 2s-F0AT0003US 一体机简短评测
HD Graphics 4400, Core i5 4210U, 19.50", 2.478 kg
东芝 Satellite Radius P50W-BST2N01 变形本简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.168 kg

Pros

+ 运行发热低
+ 优秀的应用程序性能
+ 安静的风扇
+ 不错的扬声器音效
+ 易用的输入设备
+ 高质量金属机身
+ 底座同时可以作为蓝牙键盘
+ 稳定的WLAN信号
+ 优质的屏幕
+ 高能效
+ 超长电池续航

Cons

- 低亮度屏幕
- 无法外接显示器
- 触屏表面对拖动操作有些阻力过大
- 无升级维护可能
- 屏幕转轴只允许很小的屏幕角度
- 连接键盘和底座需要些技巧

Asus Transformer Book T300LA-C4006H - 07/05/2014 v4 (old)
Florian Wimmer

Chassis
79 / 98 → 81%
Keyboard
87%
Pointing Device
86%
Connectivity
46 / 80 → 58%
Weight
64 / 35-78 → 67%
Battery
91%
Display
81%
Games Performance
56 / 68 → 82%
Application Performance
67 / 87 → 77%
Temperature
89%
Noise
97%
Audio
68 / 91 → 75%
Camera
58 / 85 → 68%
Average
75%
80%
Convertible - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 Transformer Book T300LA-C4006H 变形本简短评测
Florian Wimmer, 2014-07-20 (Update: 2014-09-19)
