华硕 Transformer Pad TF103C-1B072A 平板电脑简短评测

变形金刚:回归。 搭配键盘底座对于一款安卓平板来说是个很方便的功能。华硕的Transformer平板系列是这类平板中的代表作。关于Transformer Pad TF103C-1B072A延续了前作的哪些优势和它有哪些弱点可以在本文中找到答案。
Android ARM Convertible / 2-in-1 Tablet Touchscreen Bay Trail
395
cd/m²
420
cd/m²
400
cd/m²
421
cd/m²
440
cd/m²
412
cd/m²
399
cd/m²
434
cd/m²
392
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 440 cd/m² (Nits) Average: 412.6 cd/m²
Brightness Distribution: 89 %
Center on Battery: 440 cd/m²
Contrast: 1073:1 (Black: 0.41 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.93
ΔE Greyscale 6.75 | 0.5-98 Ø5.2
Gamma: 2.99
Linpack Android / IOS
Single Thread (sort by value)
Asus Transformer Pad TF103C-1B072A
230 MFLOPS
Asus Transformer Pad TF300T
43.85 MFLOPS -81%
Asus Memo Pad HD 7 ME176C
206.5 MFLOPS -10%
HP SlateBook x2
607 MFLOPS +164%
Samsung Galaxy Tab 4 10.1
81 MFLOPS -65%
Lenovo Yoga Tablet 10 HD+
113 MFLOPS -51%
Multi Thread (sort by value)
Asus Transformer Pad TF103C-1B072A
600 MFLOPS
Asus Transformer Pad TF300T
87.5 MFLOPS -85%
Asus Memo Pad HD 7 ME176C
326.9 MFLOPS -46%
HP SlateBook x2
628 MFLOPS +5%
Samsung Galaxy Tab 4 10.1
225 MFLOPS -62%
Lenovo Yoga Tablet 10 HD+
281 MFLOPS -53%
Geekbench 2 - 32 Bit - Total Score (sort by value)
Asus Transformer Pad TF103C-1B072A
1811 Points
Asus Transformer Pad TF300T
1440 Points -20%
Acer Iconia W510
1398 Points -23%
Lenovo Miix 2 10
2581 Points +43%
Samsung Galaxy Tab 4 10.1
1282 Points -29%
Lenovo Yoga Tablet 10 HD+
1596 Points -12%
AnTuTu v4 - Total Score (sort by value)
Asus Transformer Pad TF103C-1B072A
32742 Points
Asus Memo Pad HD 7 ME176C
31690 Points -3%
HP SlateBook x2
31327 Points -4%
Samsung Galaxy Tab 4 10.1
15351 Points -53%
Lenovo Yoga Tablet 10 HD+
18926 Points -42%

Legend


Asus Transformer Pad TF103C-1B072A Intel Atom Z3745, Intel HD Graphics (Bay Trail), 16 GB eMMC Flash

Asus Transformer Pad TF300T NVIDIA Tegra 3, NVIDIA GeForce ULP (Tegra 3), 32 GB SSD

Acer Iconia W510 Intel Atom Z2760, Intel Graphics Media Accelerator (GMA) 3650, 64 GB SSD

Lenovo Miix 2 10 Intel Atom Z3740D, Intel HD Graphics (Bay Trail), SanDisk U100 128 GB

Asus Memo Pad HD 7 ME176C Intel Atom Z3745, Intel HD Graphics (Bay Trail), 16 GB eMMC Flash

HP SlateBook x2 Nvidia Tegra 4, NVIDIA GeForce Tegra 4, 16 GB SSD

Samsung Galaxy Tab 4 10.1 Qualcomm Snapdragon 400 MSM8226, Qualcomm Adreno 305, 16 GB SSD

Lenovo Yoga Tablet 10 HD+ Qualcomm Snapdragon 400 APQ8028, Qualcomm Adreno 305, 16 GB eMMC Flash
3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Asus Transformer Pad TF103C-1B072A
14283 Points
Samsung Galaxy Tab 4 10.1
4485 Points -69%
Lenovo Yoga Tablet 10 HD+
4074 Points -71%
1920x1080 Ice Storm Extreme Score (sort by value)
Asus Transformer Pad TF103C-1B072A
9063 Points
Samsung Galaxy Tab 4 10.1
2873 Points -68%
Lenovo Yoga Tablet 10 HD+
2641 Points -71%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Asus Transformer Pad TF103C-1B072A
23.9 fps
Samsung Galaxy Tab 4 10.1
10.1 fps -58%
Lenovo Yoga Tablet 10 HD+
5.6 fps -77%
1920x1080 T-Rex Offscreen (sort by value)
Asus Transformer Pad TF103C-1B072A
17.8 fps
Samsung Galaxy Tab 4 10.1
5.9 fps -67%
Lenovo Yoga Tablet 10 HD+
5.6 fps -69%
Sunspider - 1.0 Total Score (sort by value)
Asus Transformer Pad TF103C-1B072A
676 ms *
Lenovo Miix 2 10
423.6 ms * +37%
HP SlateBook x2
960 ms * -42%
Samsung Galaxy Tab 4 10.1
983 ms * -45%
Lenovo Yoga Tablet 10 HD+
958 ms * -42%
Mozilla Kraken 1.1 - Total (sort by value)
Asus Transformer Pad TF103C-1B072A
6308 ms *
HP SlateBook x2
7089 ms * -12%
Samsung Galaxy Tab 4 10.1
15104 ms * -139%
WebXPRT 2013 - Overall (sort by value)
Asus Transformer Pad TF103C-1B072A
461 Points
HP SlateBook x2
324 Points -30%
Samsung Galaxy Tab 4 10.1
135 Points -71%
Lenovo Yoga Tablet 10 HD+
174 Points -62%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB (sort by value)
Asus Transformer Pad TF103C-1B072A
91.1 MB/s
HP SlateBook x2
57.6 MB/s -37%
Lenovo Yoga Tablet 10 HD+
97.6 MB/s +7%
Samsung Galaxy Tab 4 10.1
117.8 MB/s +29%
Sequential Write 256KB (sort by value)
Asus Transformer Pad TF103C-1B072A
17 MB/s
HP SlateBook x2
8.65 MB/s -49%
Lenovo Yoga Tablet 10 HD+
16.13 MB/s -5%
Samsung Galaxy Tab 4 10.1
16.71 MB/s -2%
Random Read 4KB (sort by value)
Asus Transformer Pad TF103C-1B072A
13.61 MB/s
HP SlateBook x2
7.84 MB/s -42%
Lenovo Yoga Tablet 10 HD+
13.73 MB/s +1%
Samsung Galaxy Tab 4 10.1
14.77 MB/s +9%
Random Write 4KB (sort by value)
Asus Transformer Pad TF103C-1B072A
1.09 MB/s
HP SlateBook x2
0.35 MB/s -68%
Lenovo Yoga Tablet 10 HD+
0.8 MB/s -27%
Samsung Galaxy Tab 4 10.1
1.83 MB/s +68%
Max. Load
 34.2 °C32.4 °C27.4 °C
 31.5 °C29.3 °C27.7 °C
 31.7 °C31.3 °C29 °C
Maximum: 34.2 °C
Average: 30.5 °C
27.1 °C33.2 °C35.4 °C
27.3 °C28.9 °C30.5 °C
27.7 °C28.9 °C30.2 °C
Maximum: 35.4 °C
Average: 29.9 °C
Power Supply (max.)  47.4 °C | Room Temperature 22.9 °C | Voltcraft IR-350
(+) The average temperature for the upper side under maximal load is 30.5 °C / 87 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(+) The maximum temperature on the upper side is 34.2 °C / 94 F, compared to the average of 33.7 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 35.4 °C / 96 F, compared to the average of 33.2 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 30 °C / 86 F.
Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 2.5 / 3.8 / 3.9 Watt
Load midlight 5.2 / 6.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
10h 52min
WiFi Surfing
7h 52min
WiFi Websurfing (Android 4.4.2)
5h 53min
Big Buck Bunny H.264 1080p
7h 36min
Load (maximum brightness)
3h 16min

几乎所有的生产商在今年都需要削减成本了。他们的新产品变得更加实惠,因此相对前代产品都省去了一个或更多的功能。用户需要仔细分辨是否用同样的预算购买前代产品反而可以获得更多的功能。

对于华硕的Transformer Pad TF103C-1B072A来说在市场上并没有一个直接的前代产品。以前的产品由于略微过时的处理器而很难对比。不过,与其他竞争对手的比较显得很有必要。很多在这个价格范围内的变形本在键盘底座中附加了电池以延长使用时间——不过TF103C并没有。而且HDMI接口也被裁掉了。打字时偶尔的延迟十分恼人,这让使用它工作变得异常艰辛。

不过,华硕的Transformer Pad TF103C-1B072A以300欧元(约408美元)的价格提供了不错的性能——不过它并未搭配大容量工作内存。除去略微偏蓝的色彩,它的屏幕非常优秀,且机身在运行中保持的低温和音效不错的扬声器都给它提供了加分。优质的机身,和实用的预装软件,方便的键盘底座,尽管没有第二块电池仍然较长的电池续航时间让它仍然值得推荐。不过,由于它测试中时常卡机,且与很多测试软件不兼容,我们从总分中扣除了一分。

Windows操作系统在鼠标和键盘操作使用中仍然更方便。需要这些功能的用户可以考虑Acer Iconia W510 或者Microsoft Surface 2 ,它们搭配了全尺寸的键盘底座。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

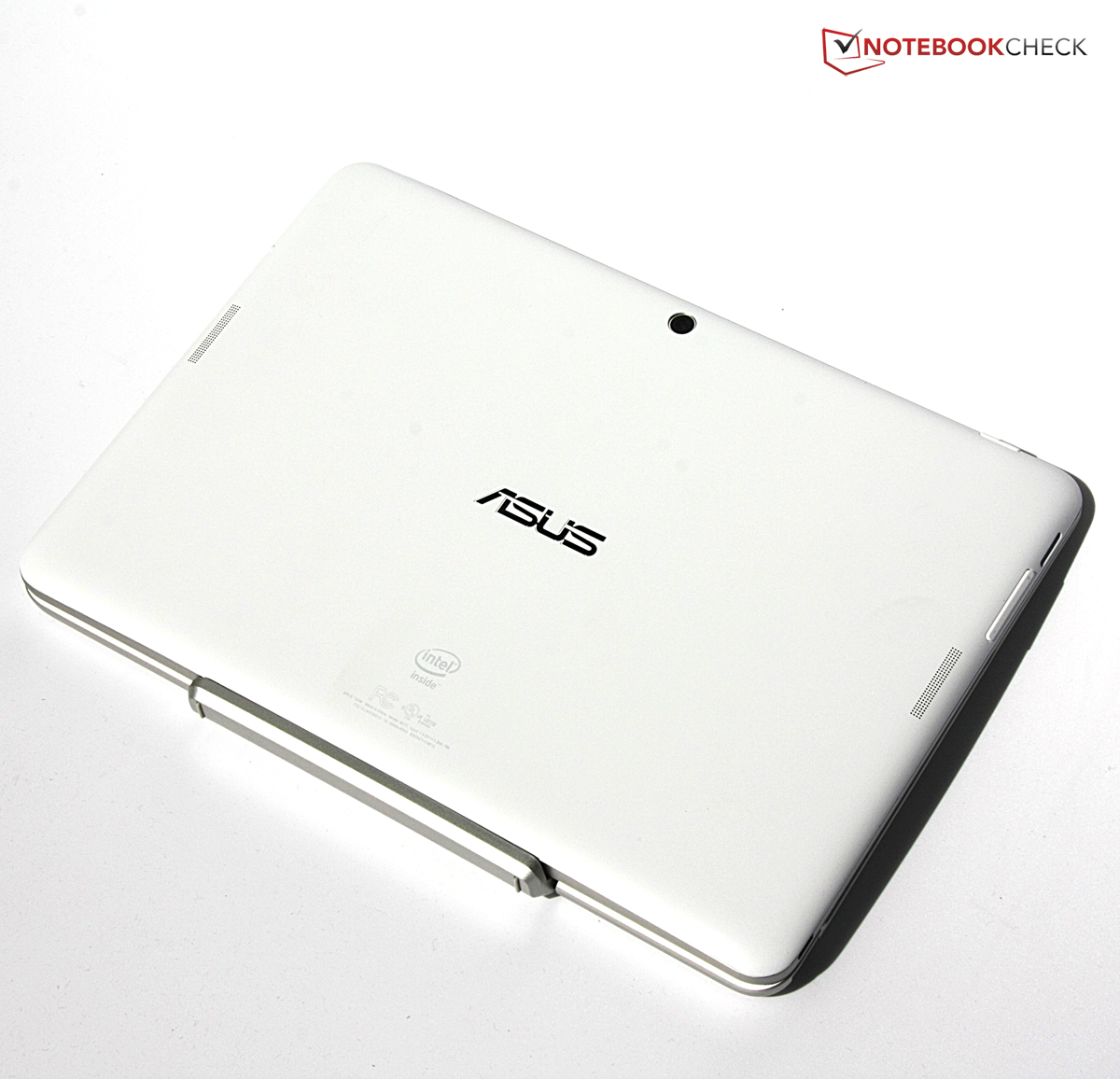

In review: Asus Transformer Pad TF103C-1B072A. Review sample courtesy of Asus Germany.
In review: Asus Transformer Pad TF103C-1B072A. Review sample courtesy of Asus Germany.

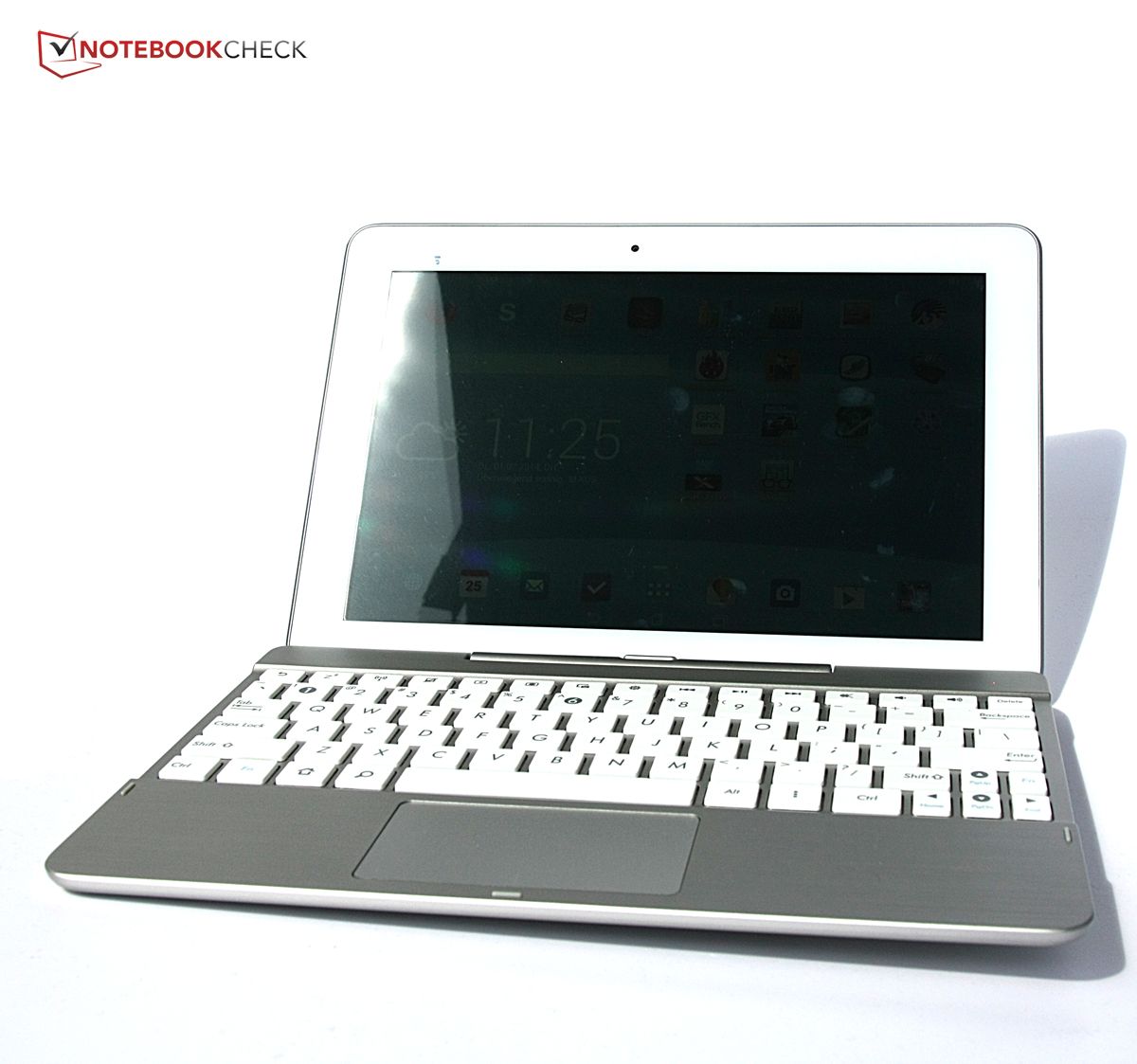

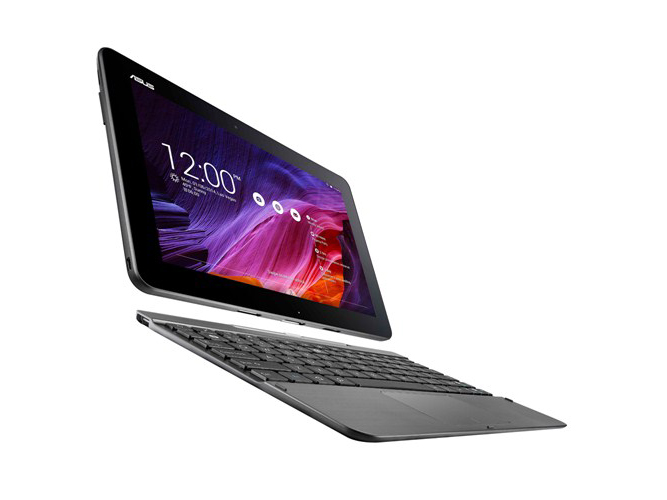

Transformer Pad TF103C主打低价,有不包含键盘底座的版本。
Transformer Pad TF103C主打低价,有不包含键盘底座的版本。
华硕在减低成本上做得很好,不过一些功能被省去了。
华硕在减低成本上做得很好,不过一些功能被省去了。

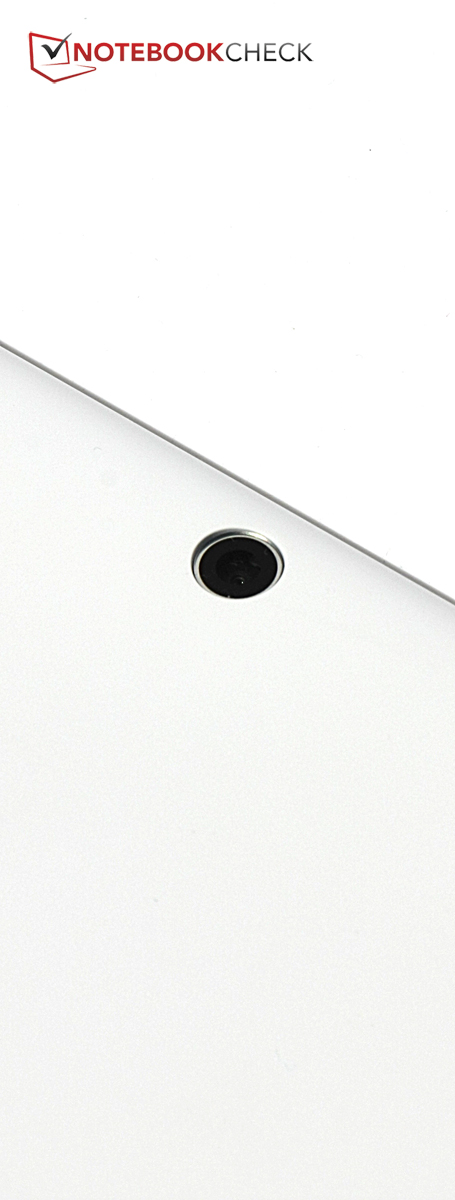

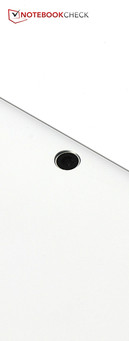

相机的拍摄质量不高。
相机的拍摄质量不高。

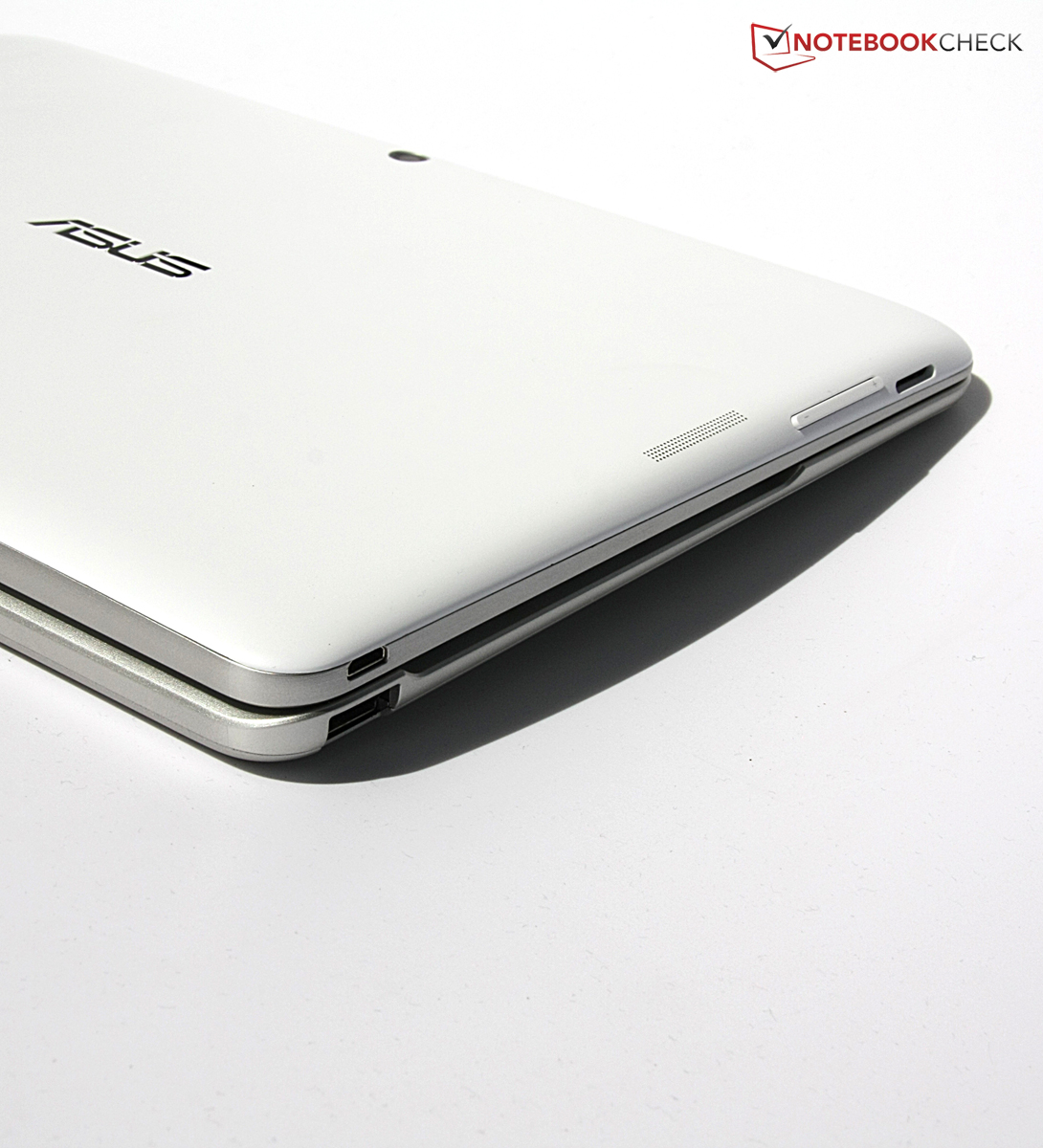

没有HDMI或MHL接口。
没有HDMI或MHL接口。

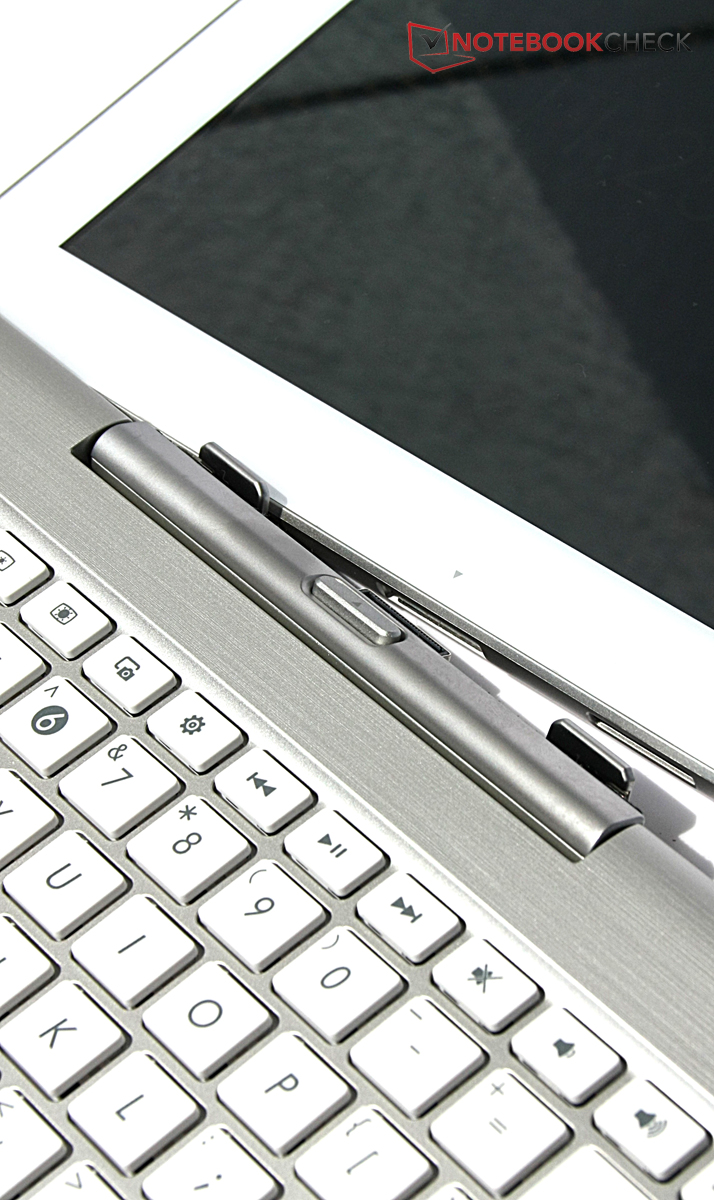

不过,键盘转接口的设计很好。
不过,键盘转接口的设计很好。

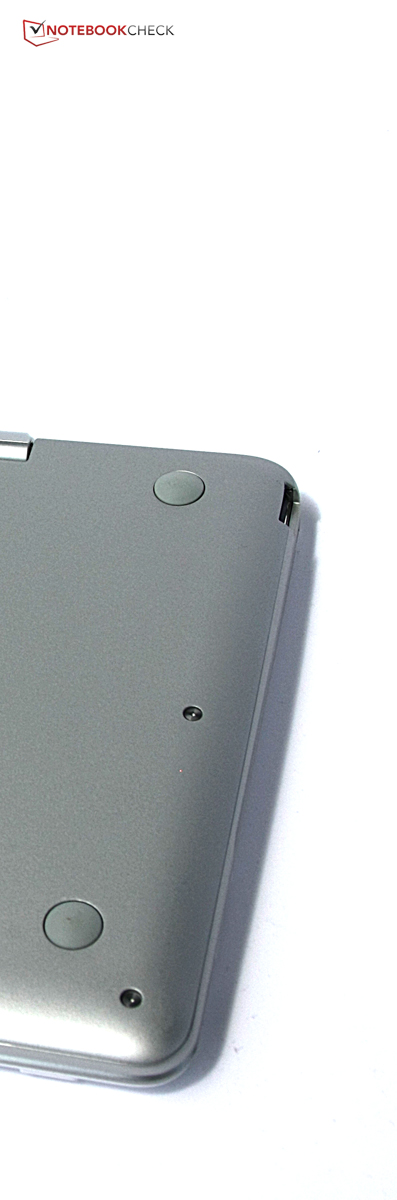

除此之外,键盘底座并没有附带第二块电池,在很多其他产品中这是个额外的优势。
除此之外,键盘底座并没有附带第二块电池,在很多其他产品中这是个额外的优势。

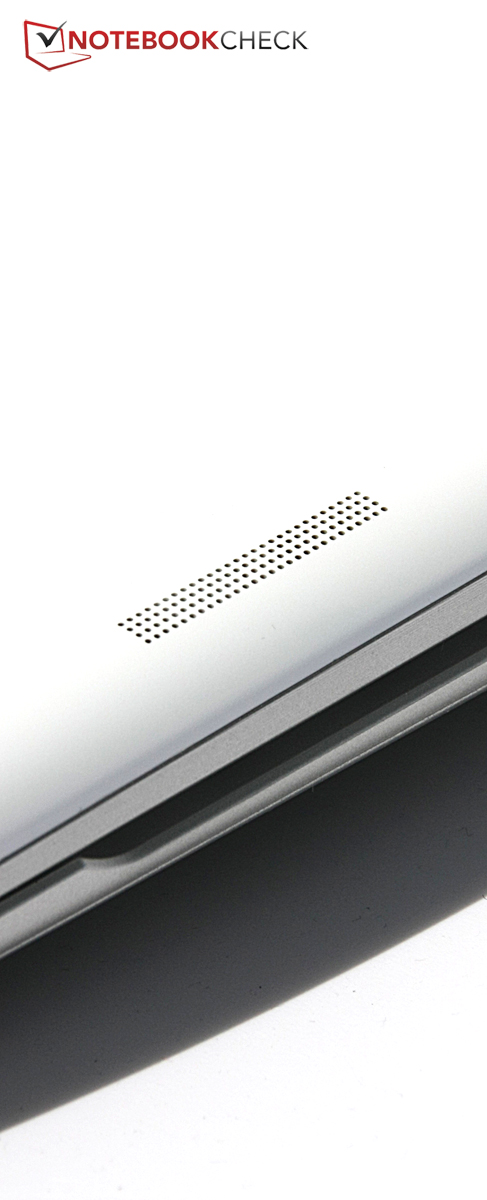

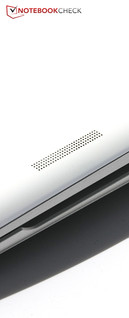

扬声器的音效对于平板来说十分出色。
扬声器的音效对于平板来说十分出色。
这款平板的重量相对其他同价格产品更轻。
这款平板的重量相对其他同价格产品更轻。

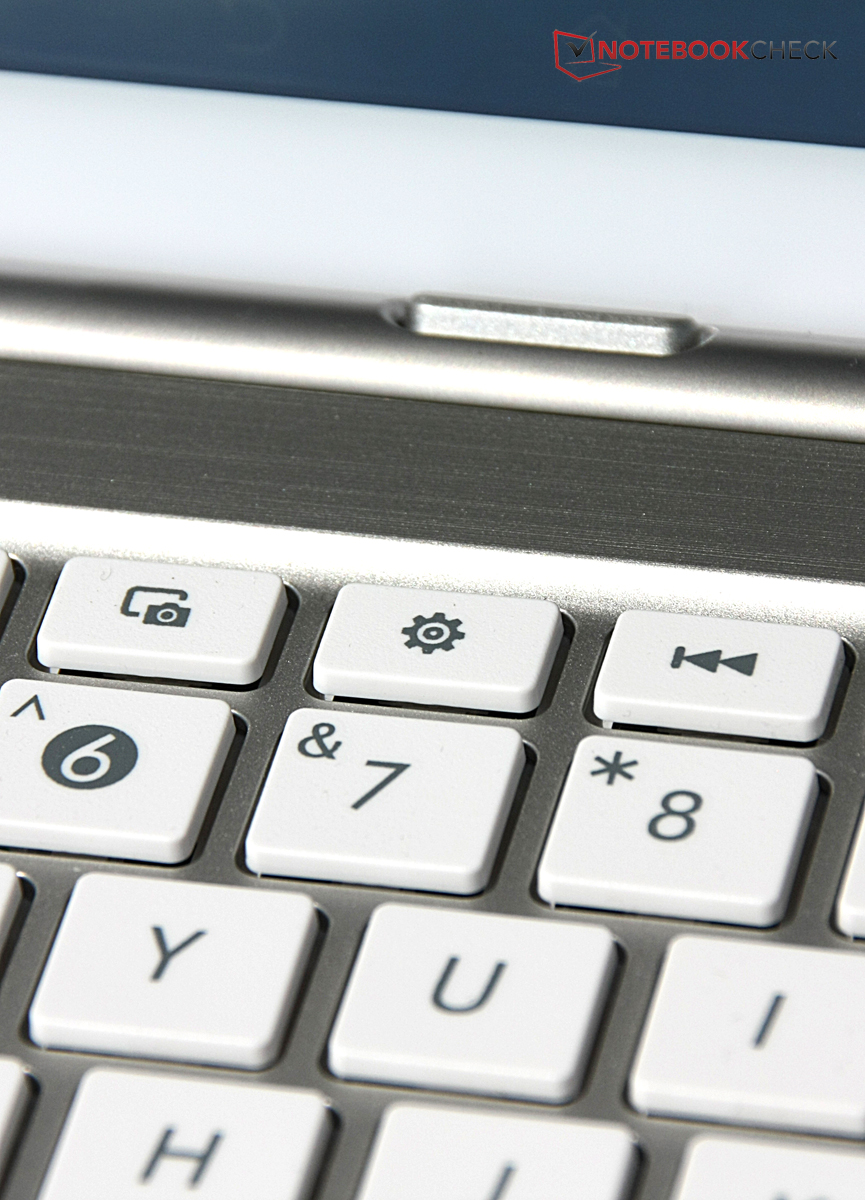

键盘上有很多功能键。
键盘上有很多功能键。

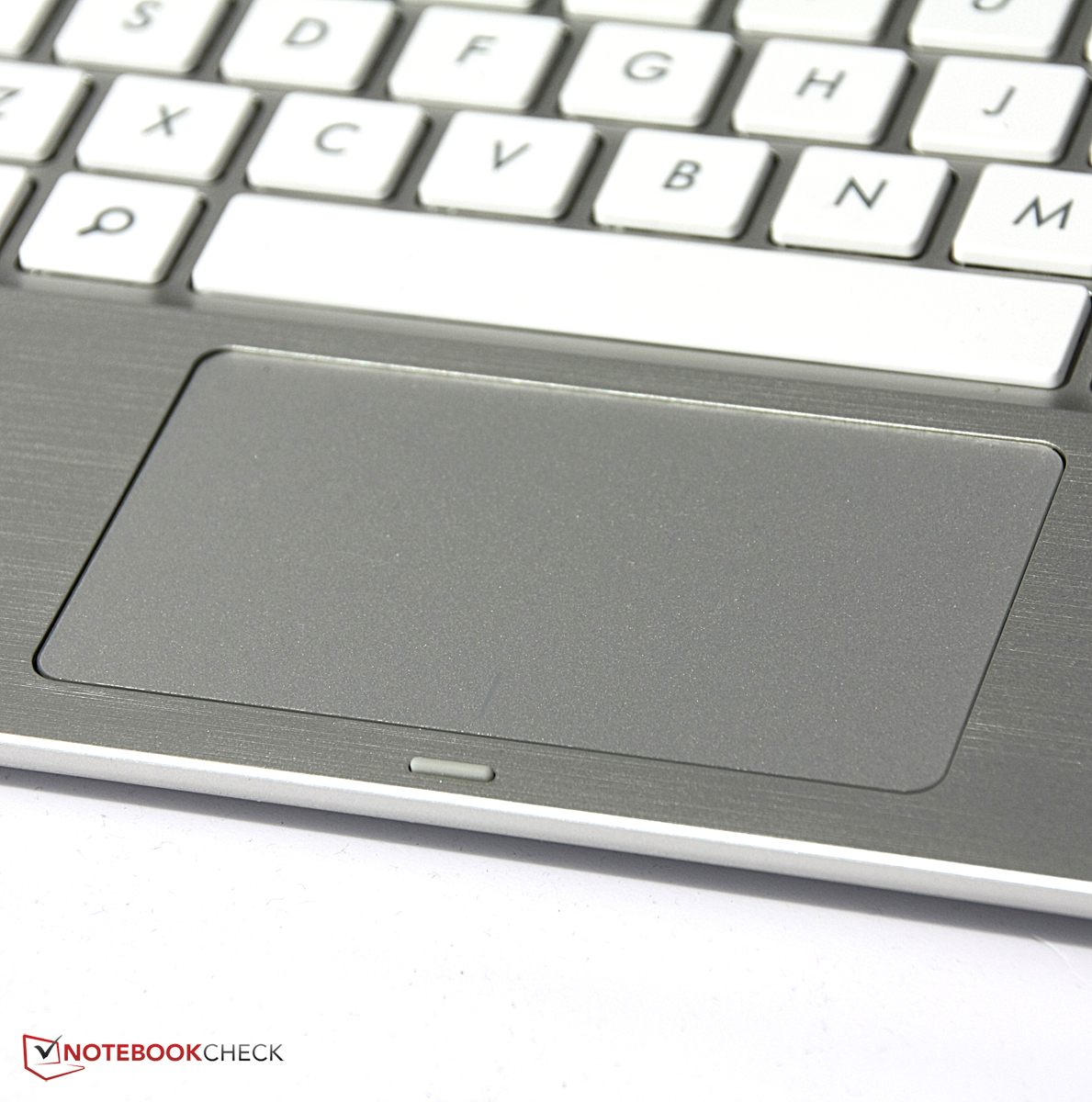

触控板很好用。
触控板很好用。
将平板插入底座?没问题:对于Transformer Pad TF103C这简单又快捷。
将平板插入底座?没问题:对于Transformer Pad TF103C这简单又快捷。
由于没有附加电池,程序崩溃和软件延迟的问题,它有一些减分。
由于没有附加电池,程序崩溃和软件延迟的问题,它有一些减分。
Please share our article, every link counts!

Specifications

Asus Transformer Pad TF103C-1B072A (Transformer Book Series)
Processor
Intel Atom Z3745 4 x 1.3 - 1.9 GHz, Bay Trail-T
Graphics adapter
Intel HD Graphics (Bay Trail)
Memory
1024 MB
Display
10.10 inch 16:10, 1280 x 800 pixel, 电容型, IPS, glossy: yes
Storage
16 GB eMMC Flash, 16 GB
, 11.13 GB free
Connections
2 USB 2.0, Audio Connections: 3.5毫米整合耳机接口, Card Reader: microSD卡槽,最大支持64GB, Sensors: G-传感器, 数字指南针, Miracast
Networking
802.11a/b/g/n (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 9.9 x 257 x 178
Battery
19 Wh Lithium-Ion, Battery runtime (according to manufacturer): 9.5 h
Operating System
Android 4.4 KitKat
Camera
Webcam: 主相机: 200万像素, 前置摄像头: 30万像素
Additional features
Speakers: 后置 SonicMaster 立体声扬声器, Keyboard: 底座: 孤岛式键盘; 平板: 触控键盘, Keyboard Light: no, Do it later, Omlet, Story, What's next, 24 Months Warranty
Weight
550 g, Power Supply: 50 g
Price
300 Euro



Similar devices with the Same Specs

Similar devices from a different Manufacturer

Devices from a different Manufacturer and/or with a different CPU

Acer Iconia Tab 10 A3-A30 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3735F
惠普 Pavilion 10-k000ng x2 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3736F
联想 ThinkPad 10 多模式平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3795

Devices with the same GPU

富士通 Stylistic V535 (Z3795,128 GB, LTE) 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3795, 8.30", 0.55 kg

Pros

+ 不错的做工质量
+ 坚固的机身
+ 低调而时尚的设计
+ 方便的键盘埠
+ 实用的键盘
+ 优秀的扬声器
+ 好用的预装软件
+ 性价比高
+ 明亮的屏幕
+ 不错的电池续航
+ 系统发热低

Cons

- 相机较差
- 没有第二块电池...
- ...而底座依然很沉
- 有时不准确的触控板
- 烦人的打字输入延迟
- 浏览器不时崩溃
- 屏幕校色偏蓝
- 没有HDMI接口, 没有MHL

Asus Transformer Pad TF103C-1B072A - 08/02/2014 v4 (old)
Florian Wimmer

Chassis
80%
Keyboard
70 / 80 → 88%
Pointing Device
81%
Connectivity
42 / 65 → 65%
Weight
82 / 40-88 → 88%
Battery
90%
Display
82%
Games Performance
60 / 68 → 88%
Application Performance
49 / 76 → 64%
Temperature
92%
Noise
100%
Audio
64 / 91 → 70%
Camera
44 / 85 → 52%
Add Points
-1%
Average
67%
