索尼Xperia E双智能手机测评

双SIM初学者.一个并不需要两个独立的智能手机用于私人及商业用途。索尼提供了一种廉价的双SIM卡智能手机的Xperia E双自带的Android作业系统,单核心芯片,一块3.5英寸的显示屏和一个微型读卡器。值得花费这170欧元(约$225)?
Smartphone Android

For the original German review, see here.

The principle behind dual-SIM smartphones is pretty simple. It is possible to switch between the different cards while the phone is running so you carry less and work more efficiently. Evidently, such a device is also useful for private use for people with two mobile phone numbers, since the switch of the SIM takes time and effort. Another advantage is the automatic separation of the data. In our opinion other important factors for such a device are also an exchangeable battery and a card reader and the possibility to easily switch between the cards.

The Sony Xperia E dual is a newer version of the Sony Xperia E. The latter is available for 10 Euros (~$13) less. Inside the smartphone there is a Qualcomm Snapdragon S1 Single-Core-SoC running at 1 GHz. Furthermore, the smartphone is also equipped with an integrated Adreno 200 graphic unit, 512 MB RAM, 4 GB internal storage space, 802.11b/g/n WLAN and a 3.2 megapixel camera for snapshots. It is powered by a relatively older version of Google Android, namely 4.0.4 (Ice Cream Sandwich) where an update is planned already.

In this review we are testing the smartphone from tip to toe. An important dual-SIM competitor is the Samsung Galaxy S DUOS with a 4-inch screen. Moreover, there are standard mid-range devices available. The Xperia J is the new line in the portfolio of Sony. Is the Sony Xperia E dual a reasonable expansion of the portfolio or is it just another first-time user segment product?

对于的德国原装审查,在这里看到。

双SIM卡智能手机背后的原理非常简单。不同卡之间进行切换,而手机正在运行,所以你随身携带并提高工作效率,这是可能的。很明显,这样的设备也可使用两个手机号码用于私人用途的人,由于开关的SIM需要时间和精力。另一个优点是数据的自动分离。在我们看来,这种装置的其他重要因素,也可更换的电池和一个读卡器和卡之间的轻松切换的可能性。

索尼Xperia E双是一个较新版本的索尼Xperia E.后者为10欧元(约$ 13)。在智能手机里面有一个高通Snapdragon S1单核SOC以1 GHz运行。此外,智能手机还配备了一个集成的Adreno200图形单元,512 MB ​​RAM,4 GB的内部存储空间,支持802.11b/g/n无线局域网和一个320万像素的摄像头为快照。它是由一个相对较旧的版本,即谷歌Android4.0.4(冰淇淋三明治)的更新计划已经。

在这次审查中,我们正在测试的智能手机从尖到脚趾。一个重要的竞争对手是双SIM卡三星Galaxy S DUOS了一块4英寸的屏幕。此外,也有中档的标准设备。的Xperia J是索尼新线组合中。是索尼Xperia E双合理扩大的投资组合,或者是它只是一个用户细分产品首次?

Case

How we test - Case

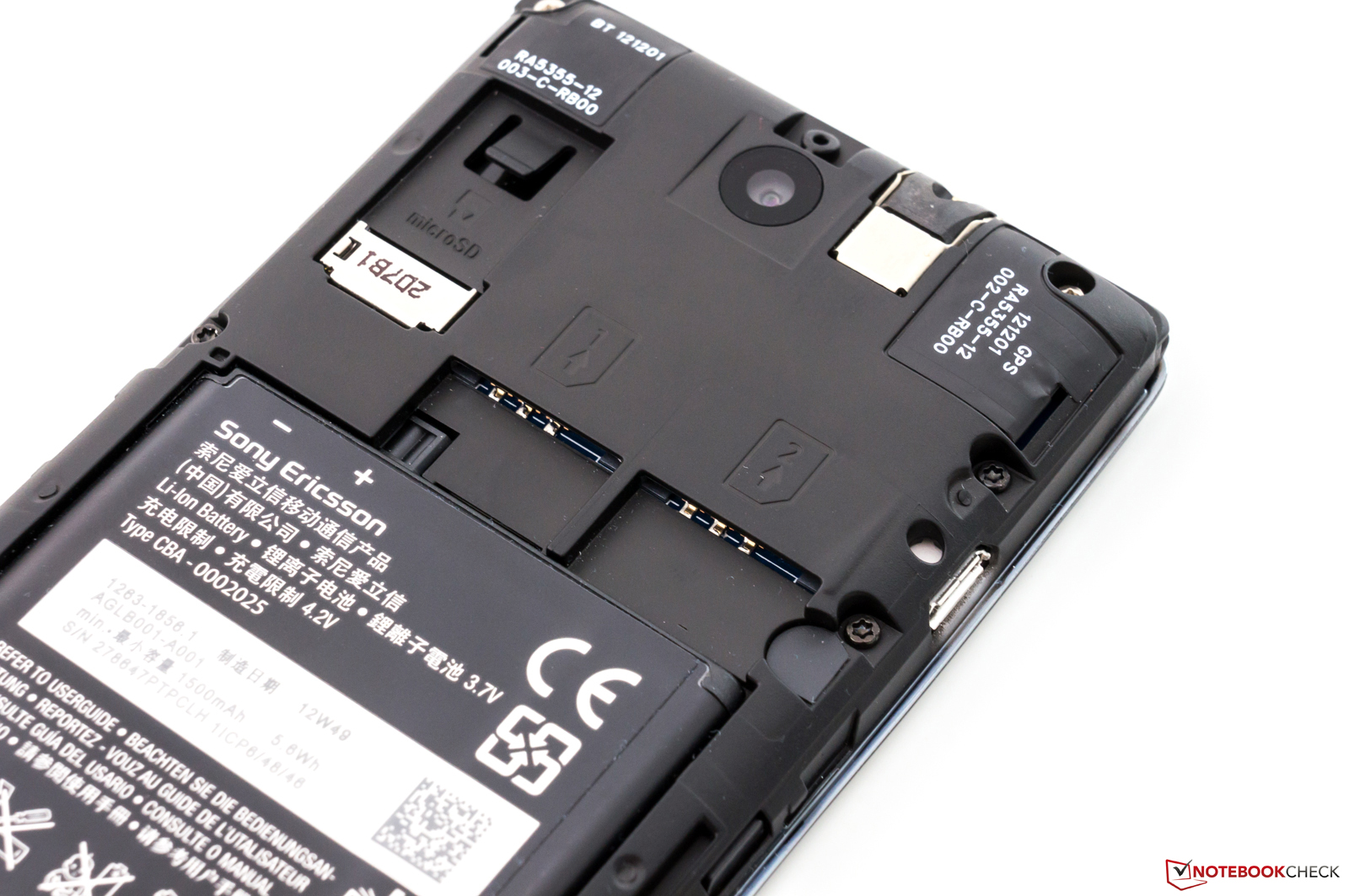

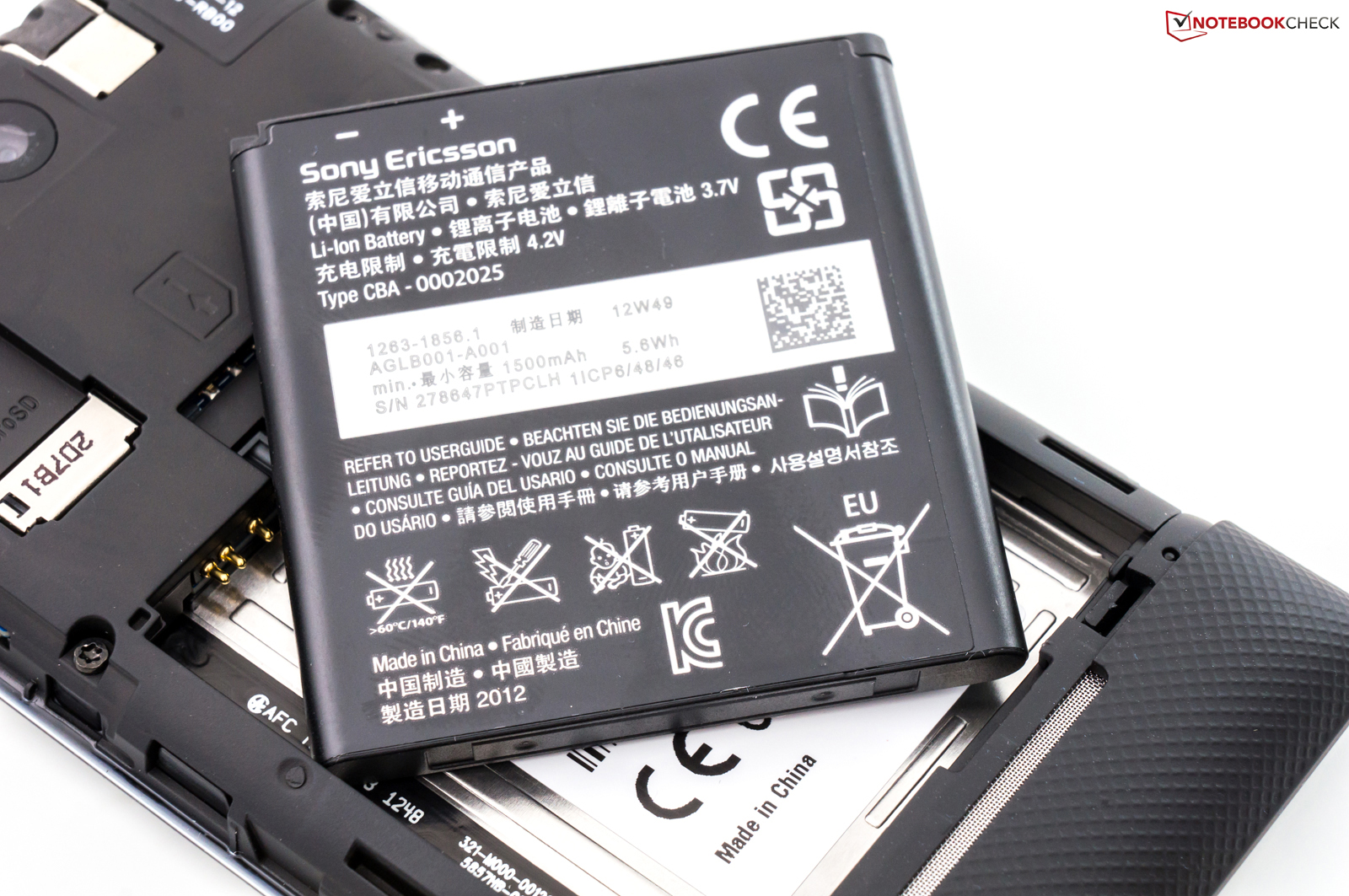

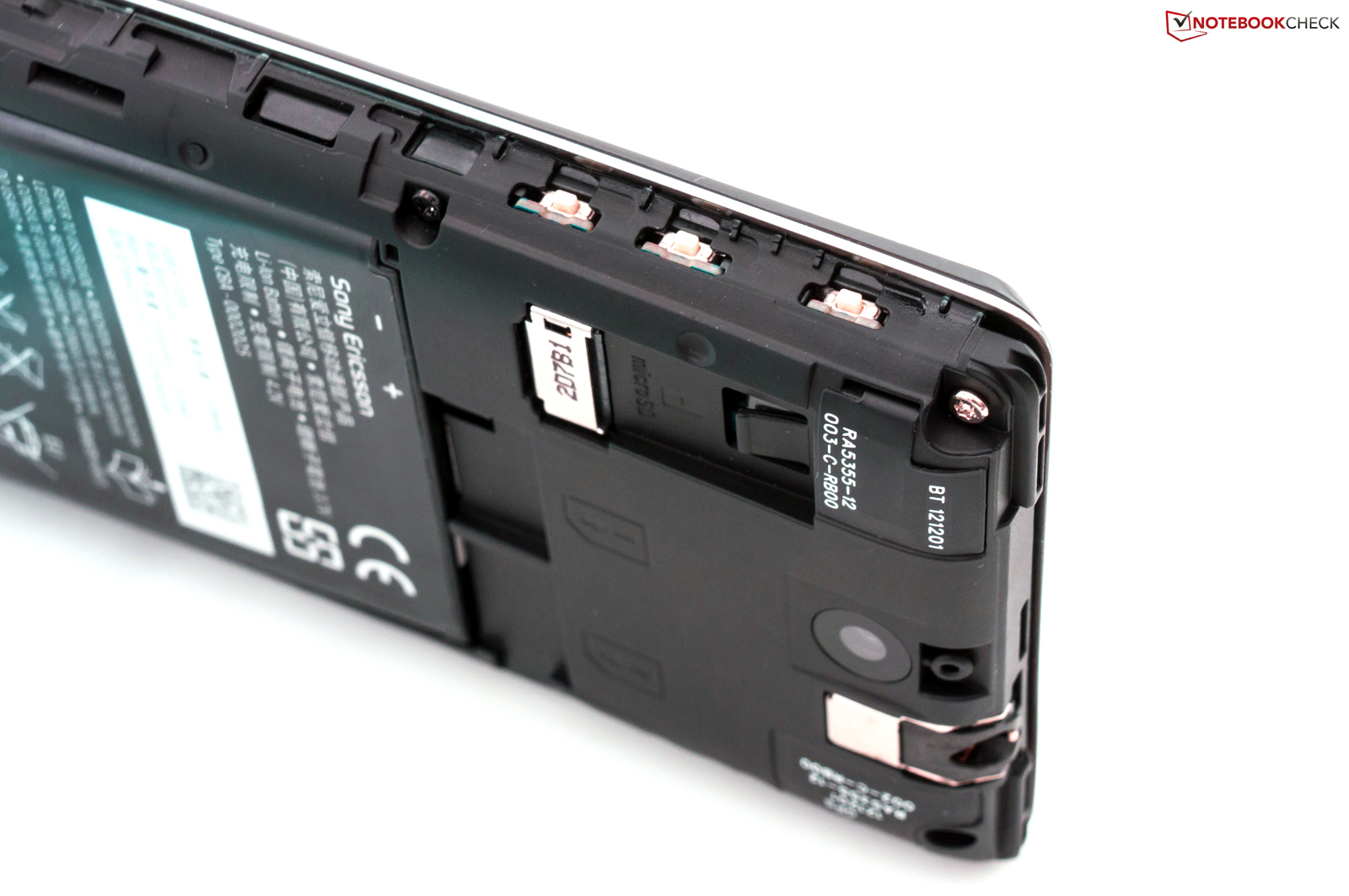

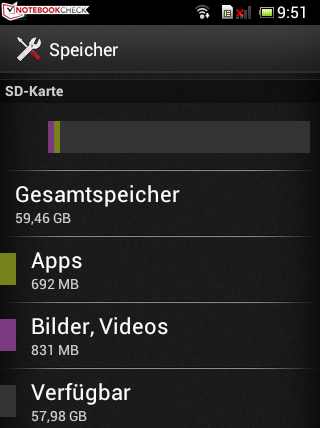

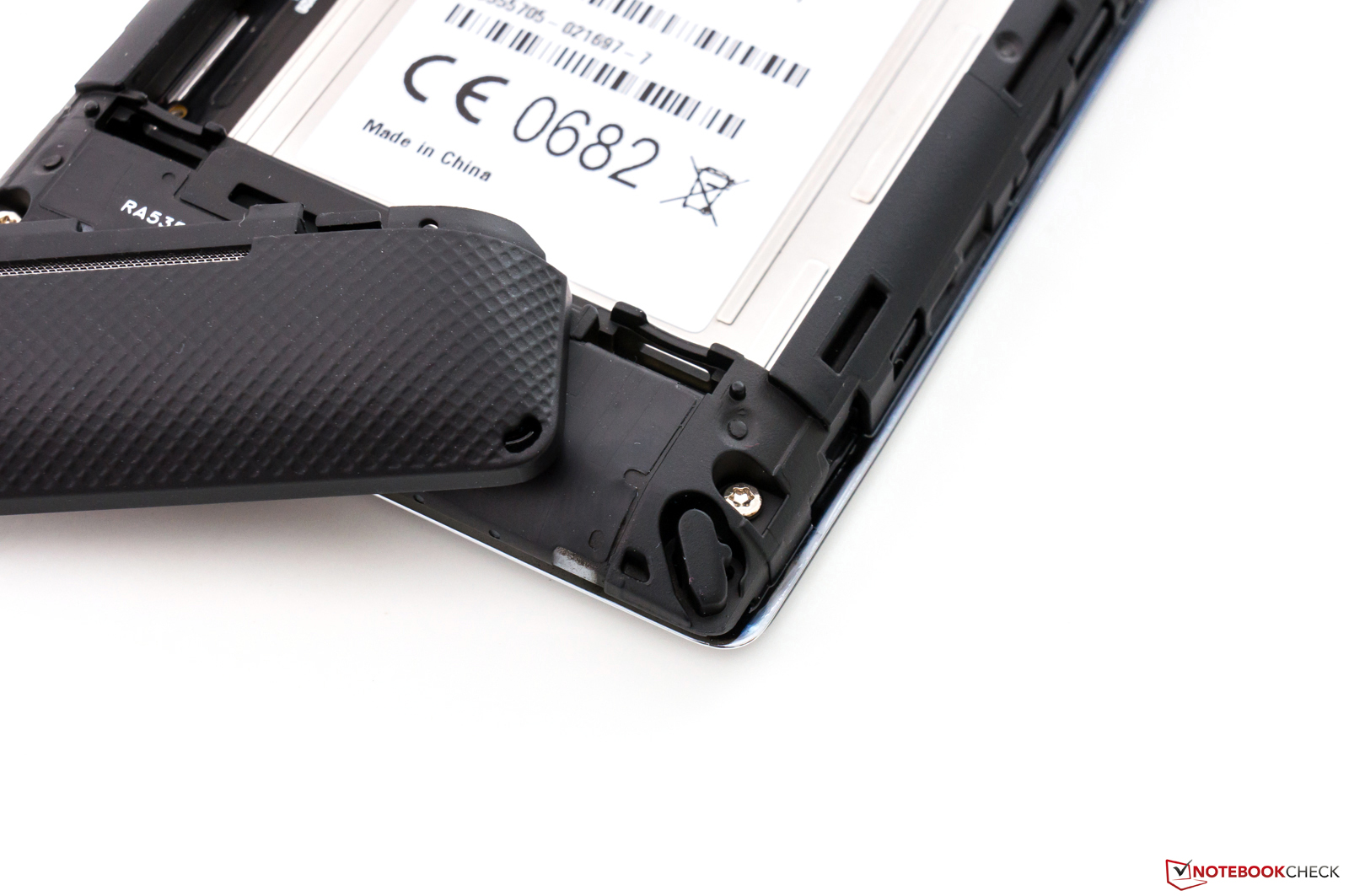

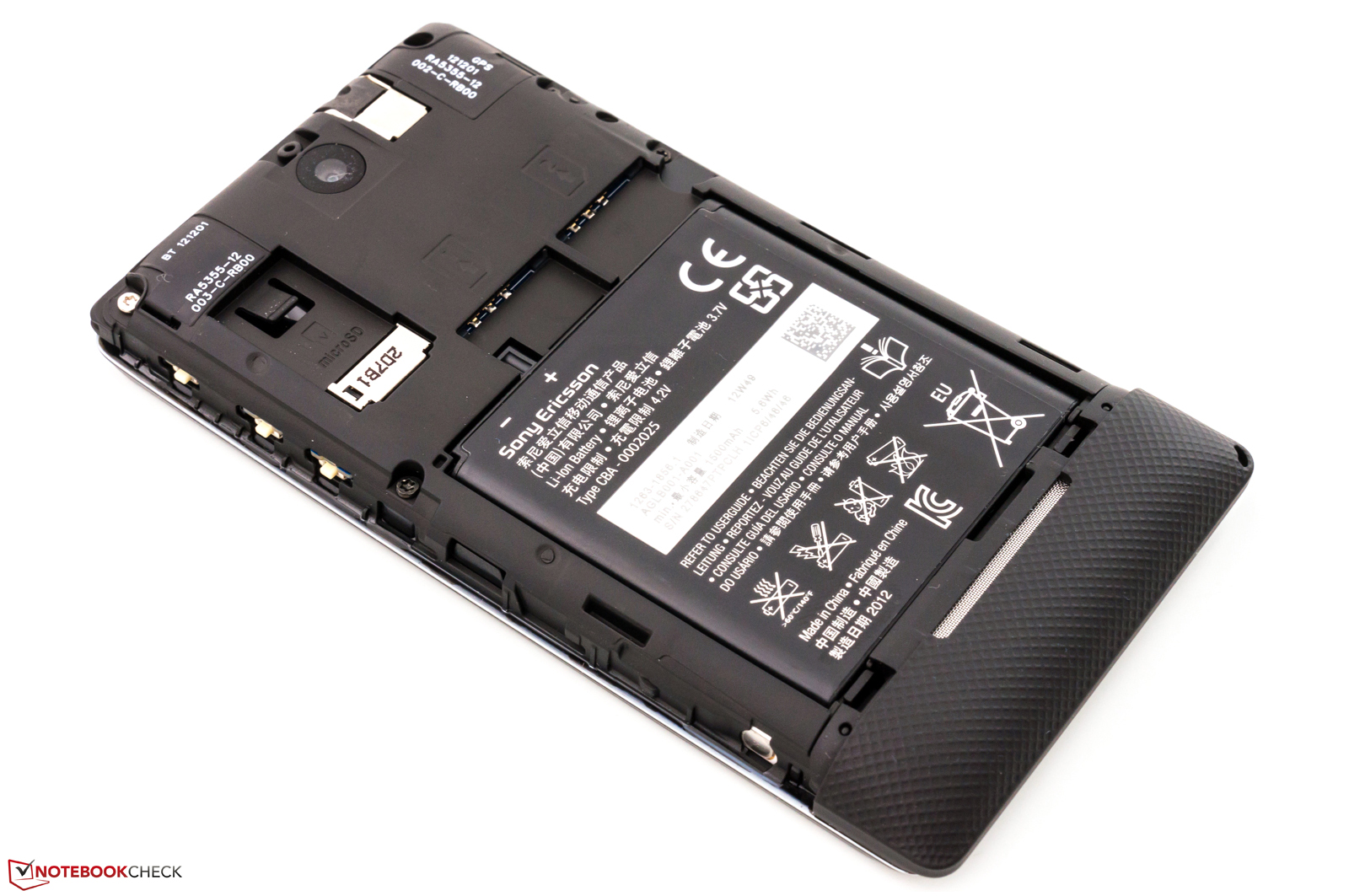

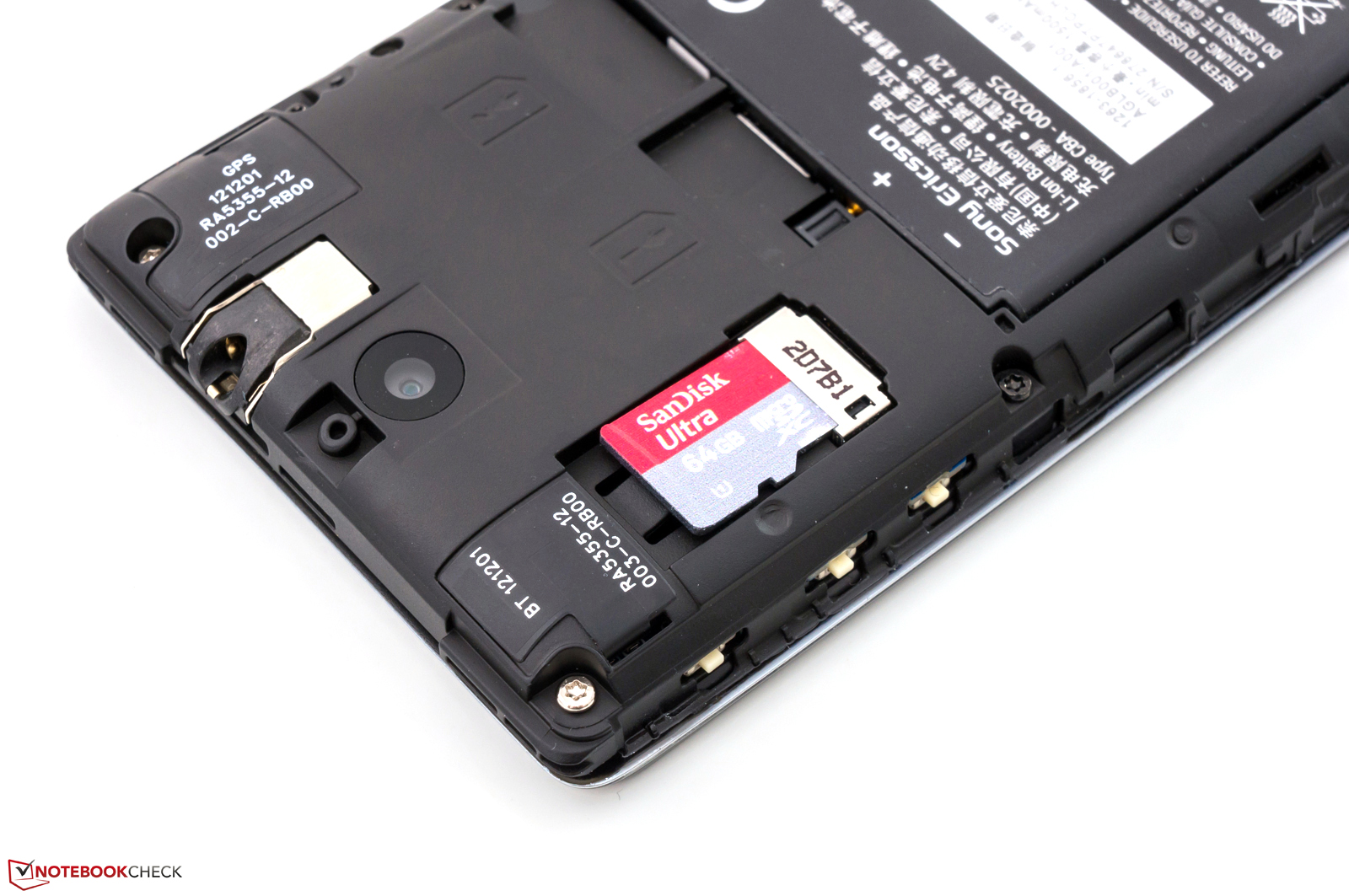

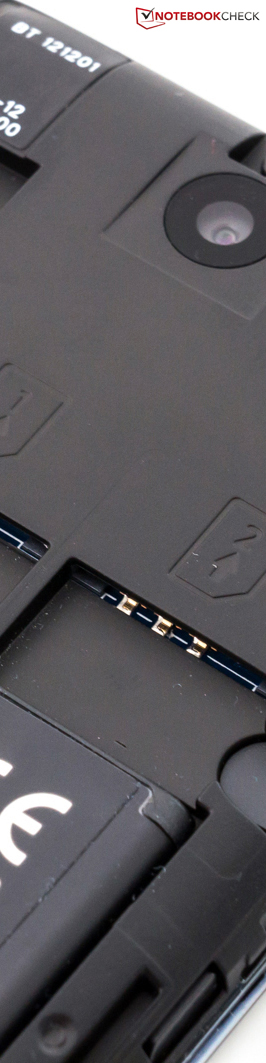

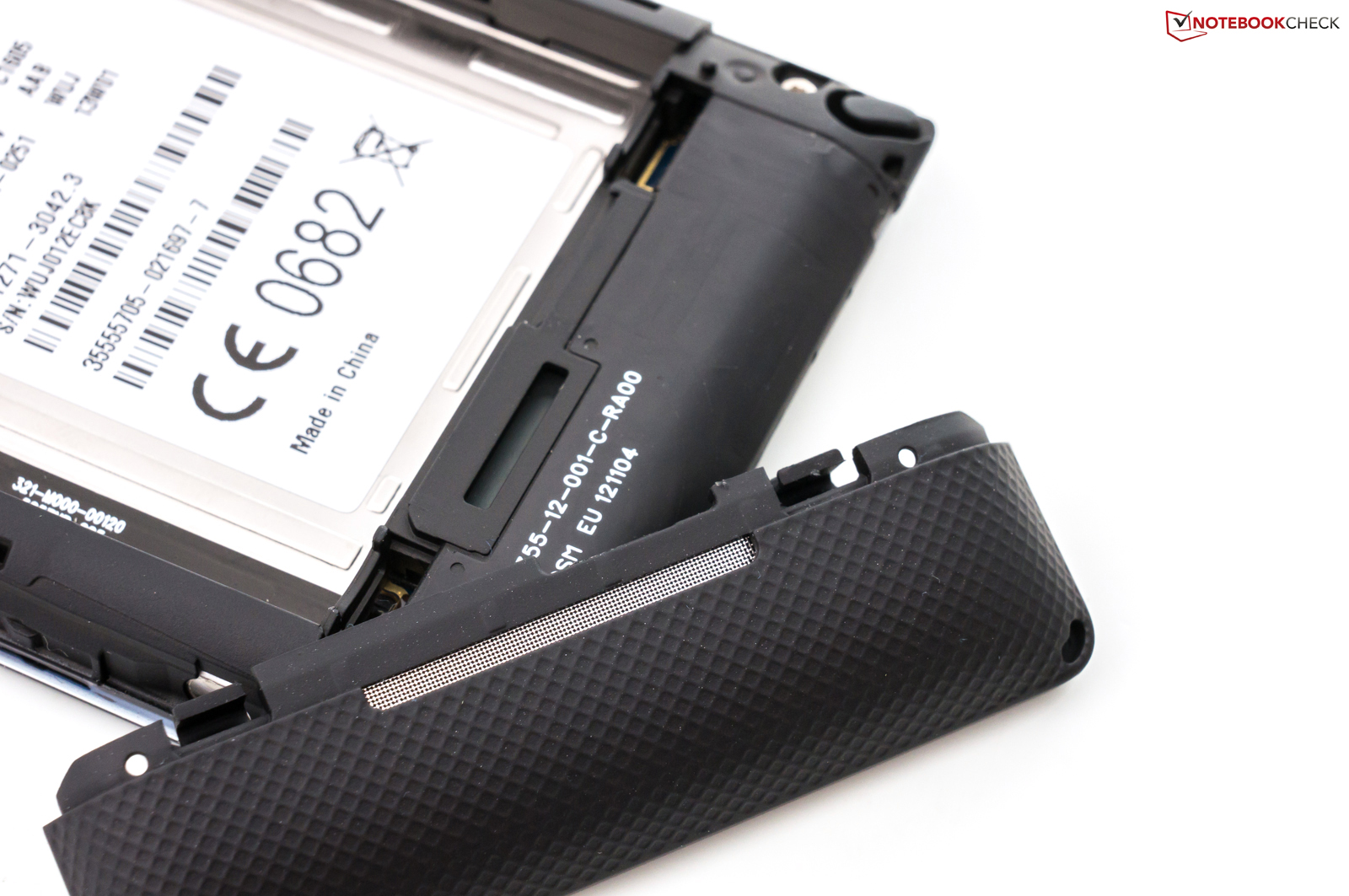

The battery is exchangeable. Integrated card reader.
The battery is exchangeable. Integrated card reader.

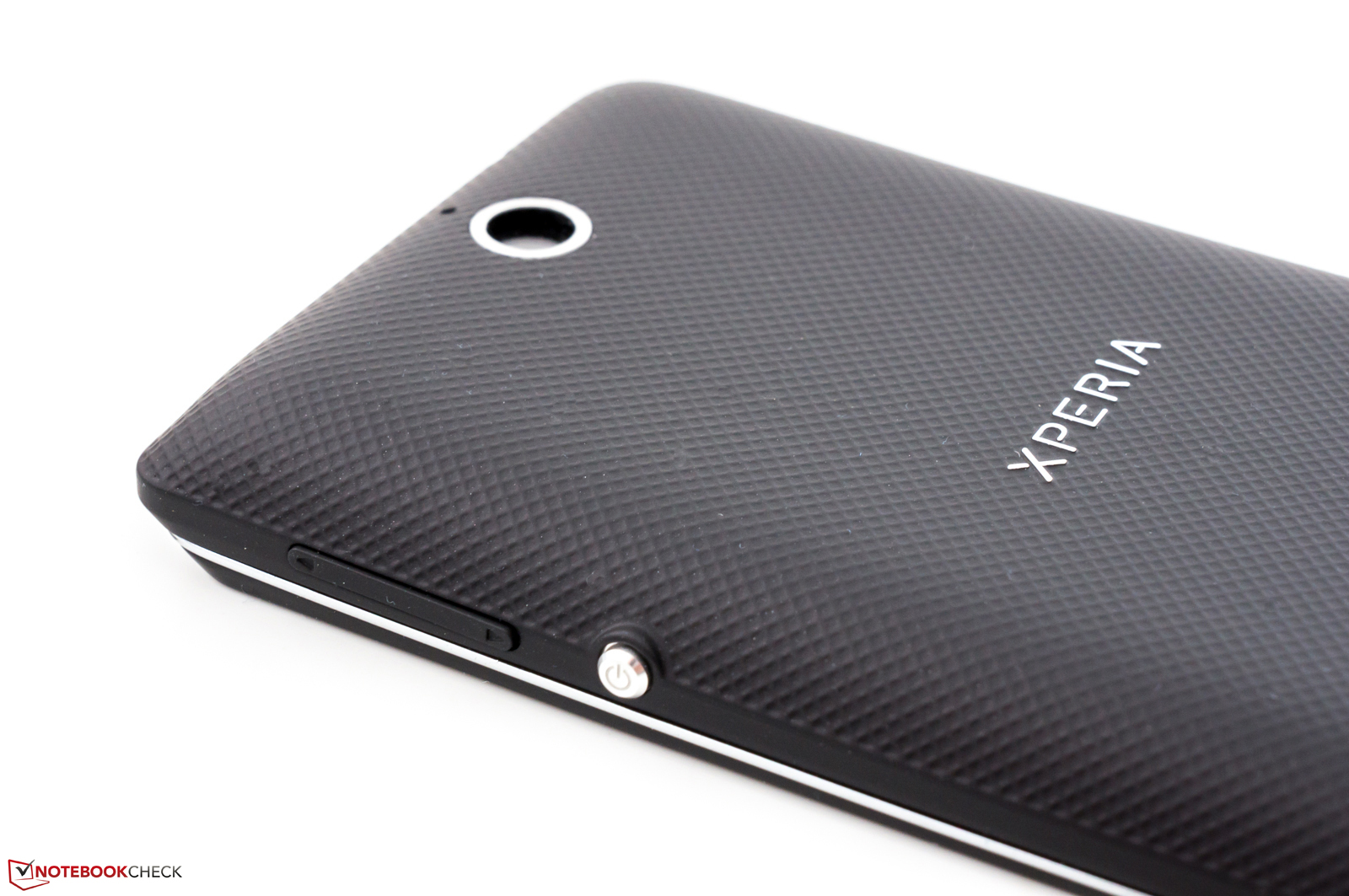

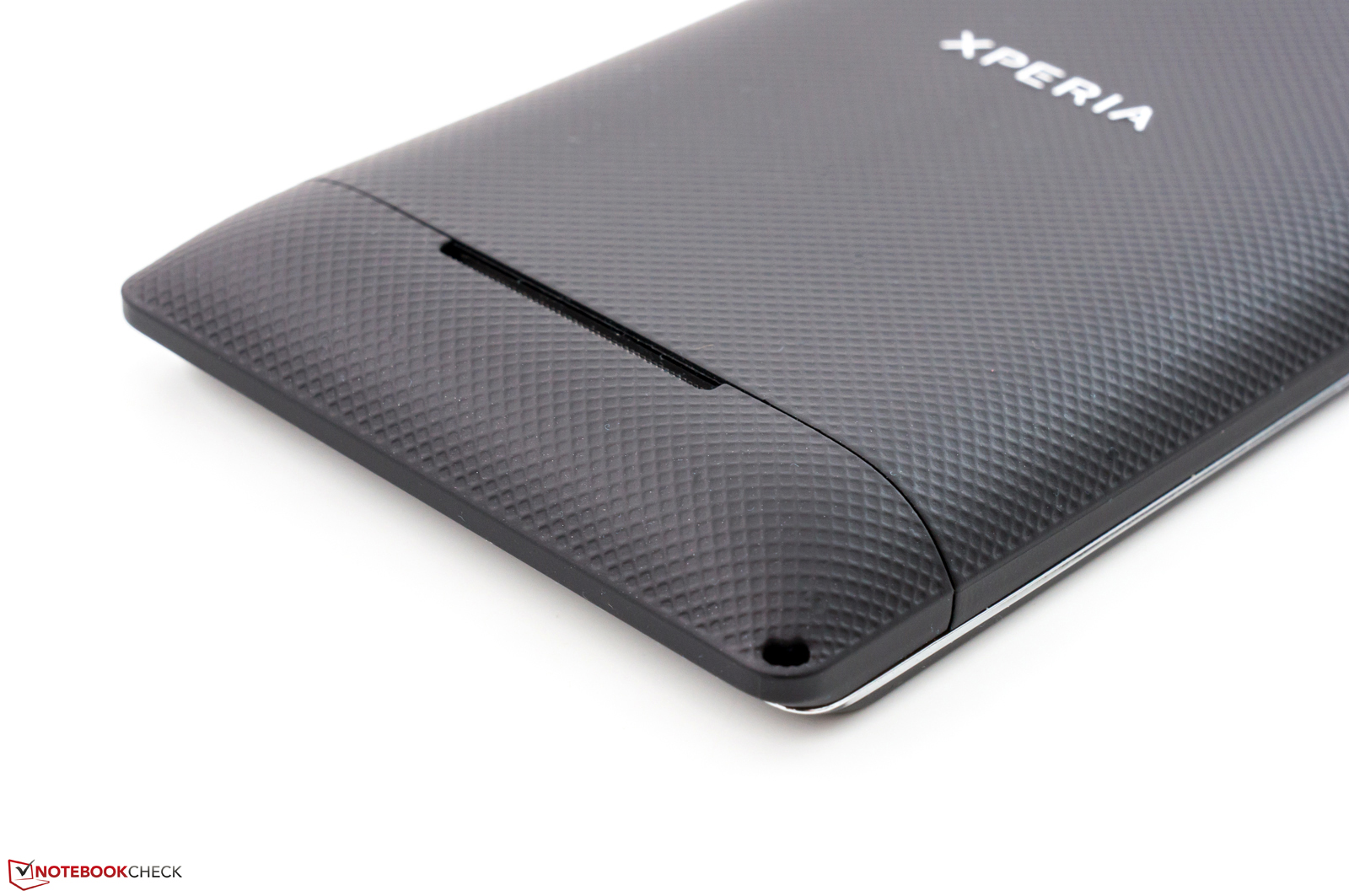

The quality in terms of haptic and stability is limited.
The quality in terms of haptic and stability is limited.

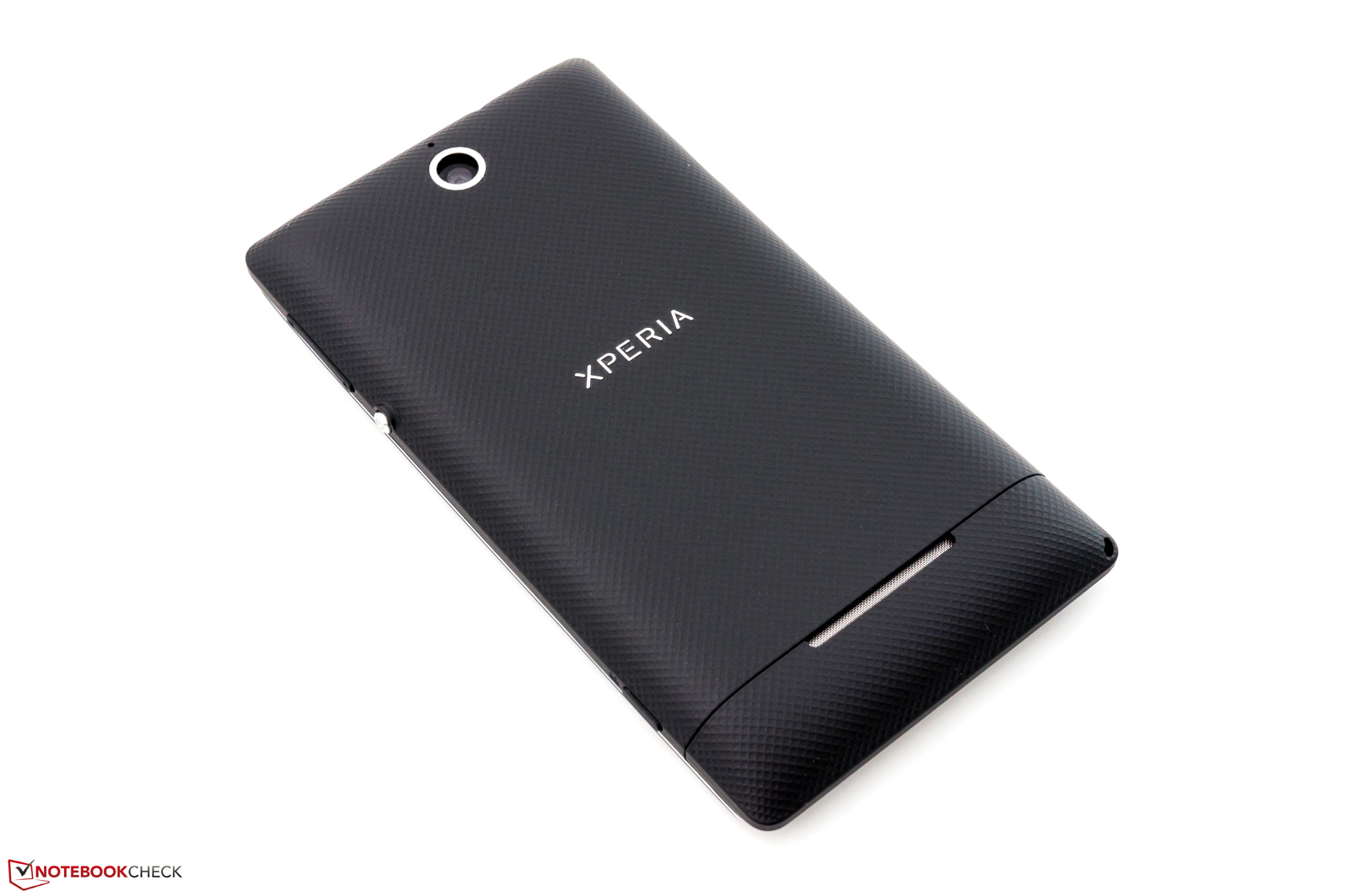

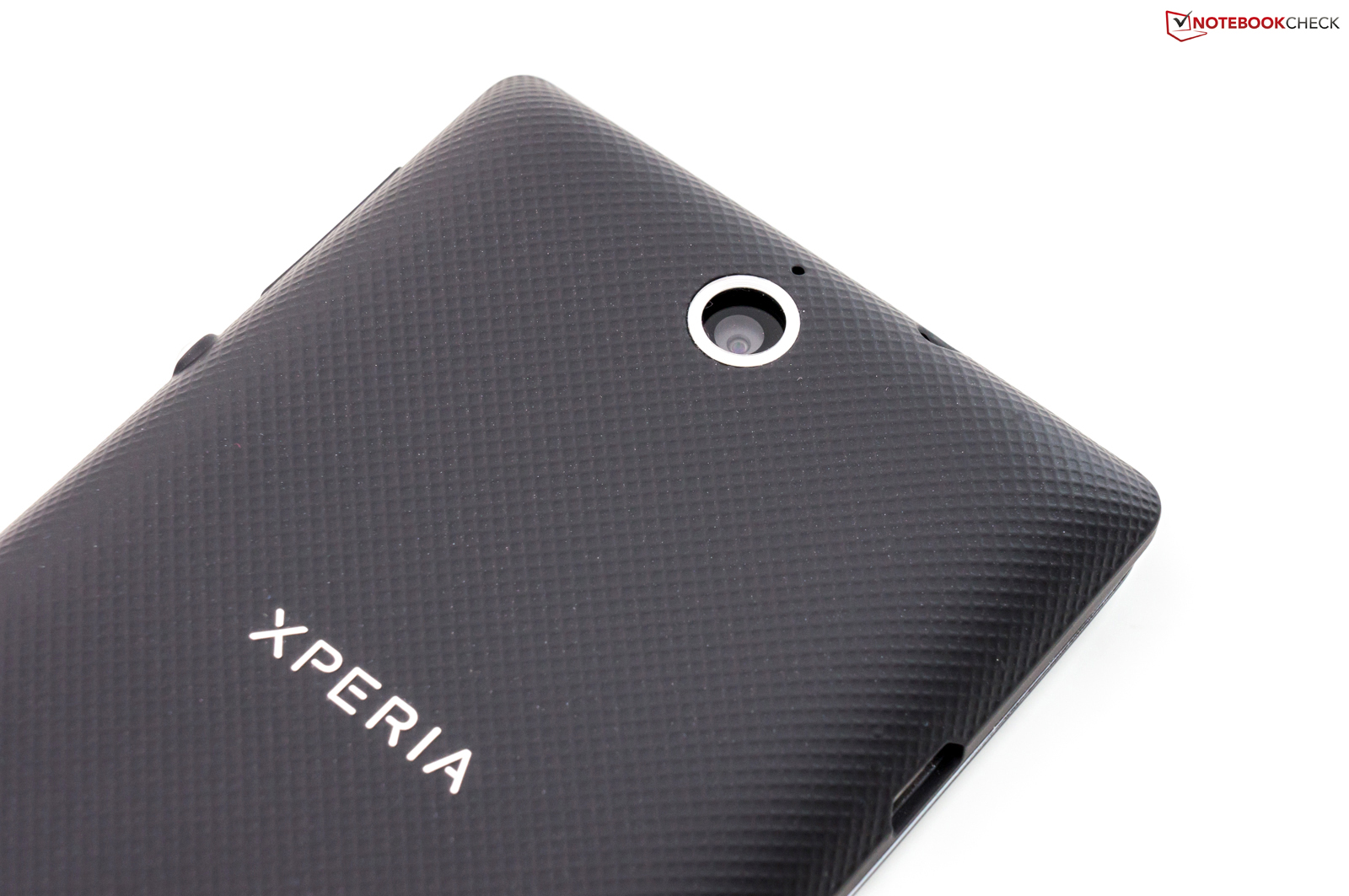

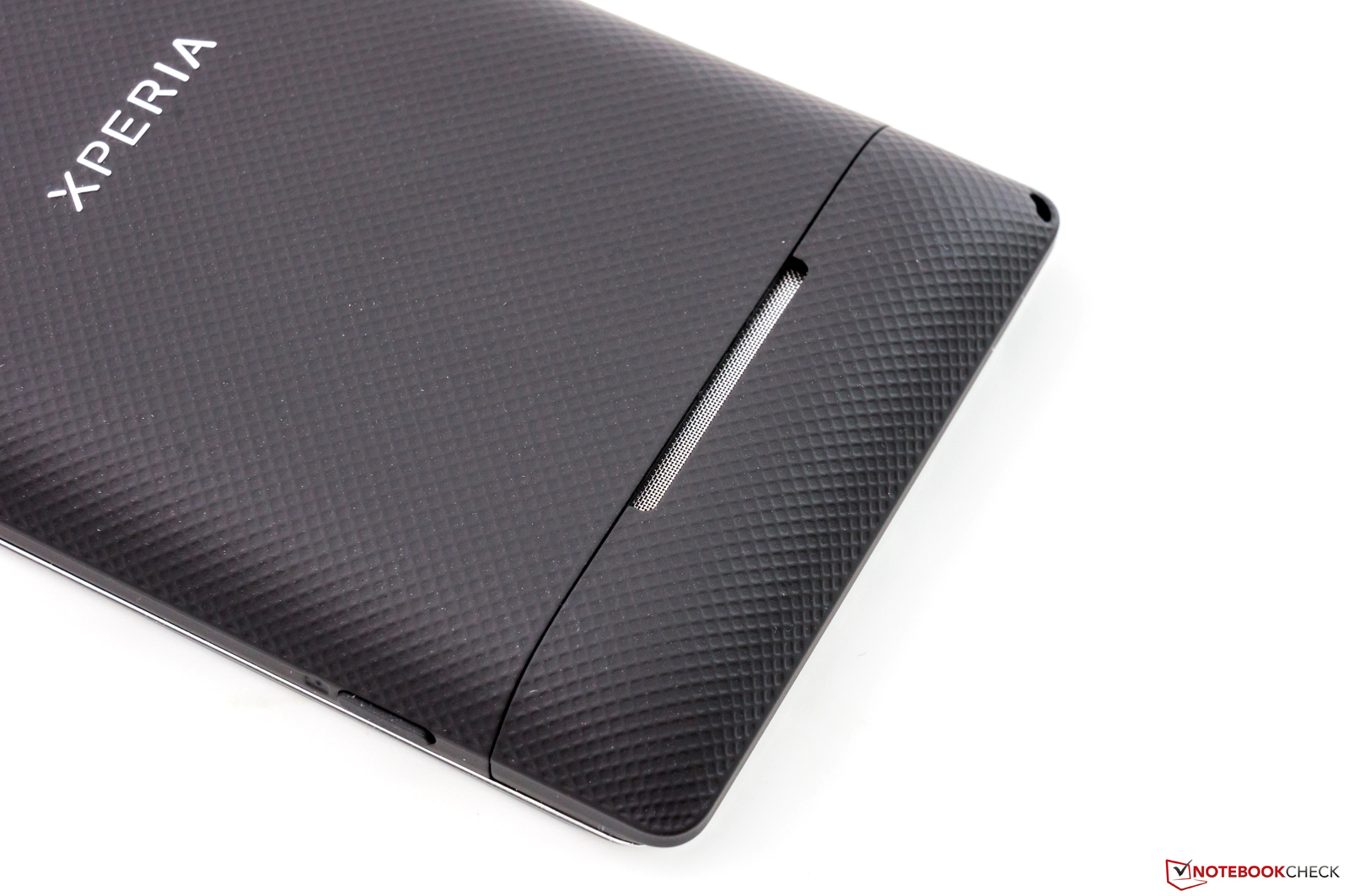

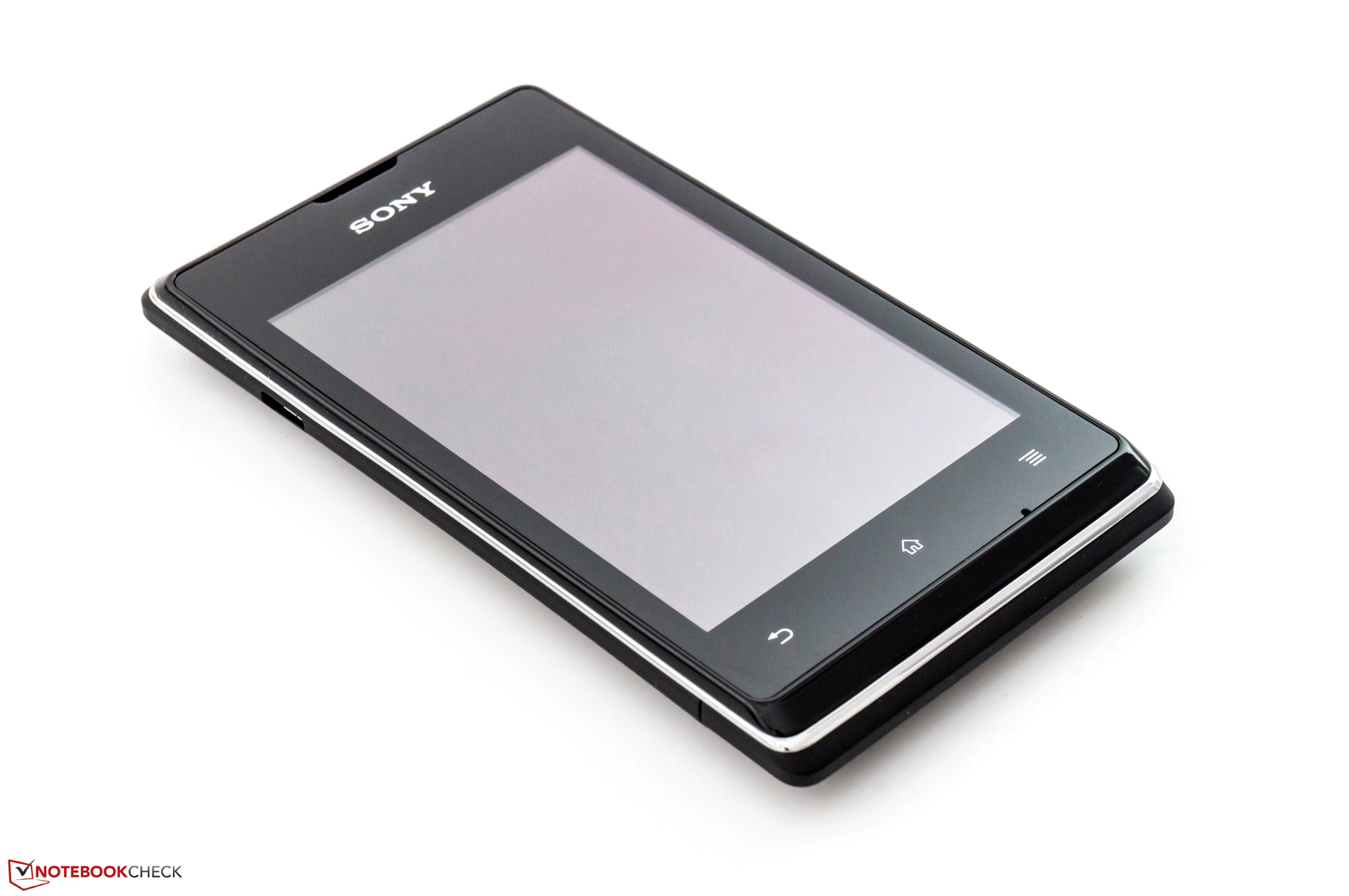

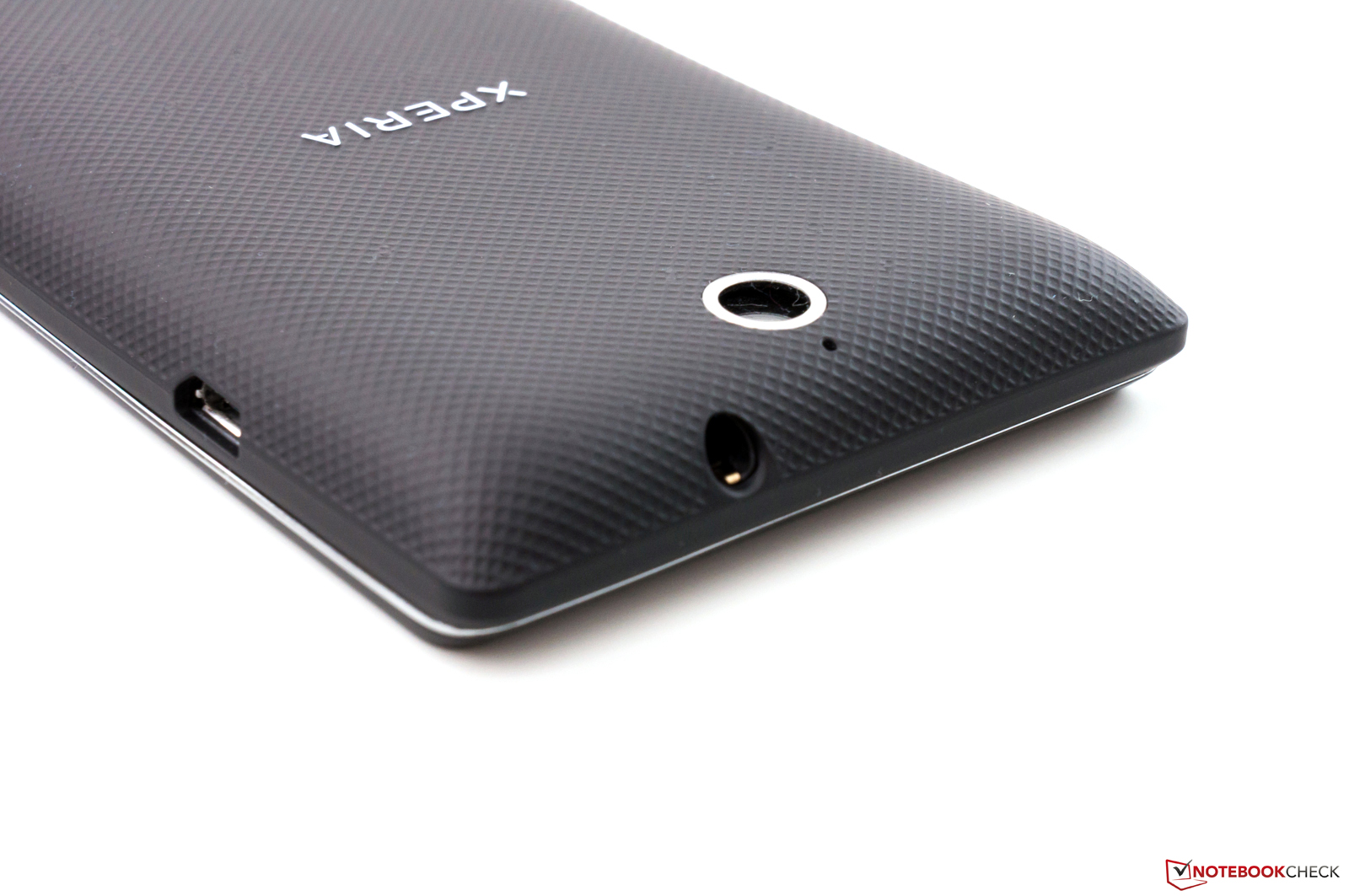

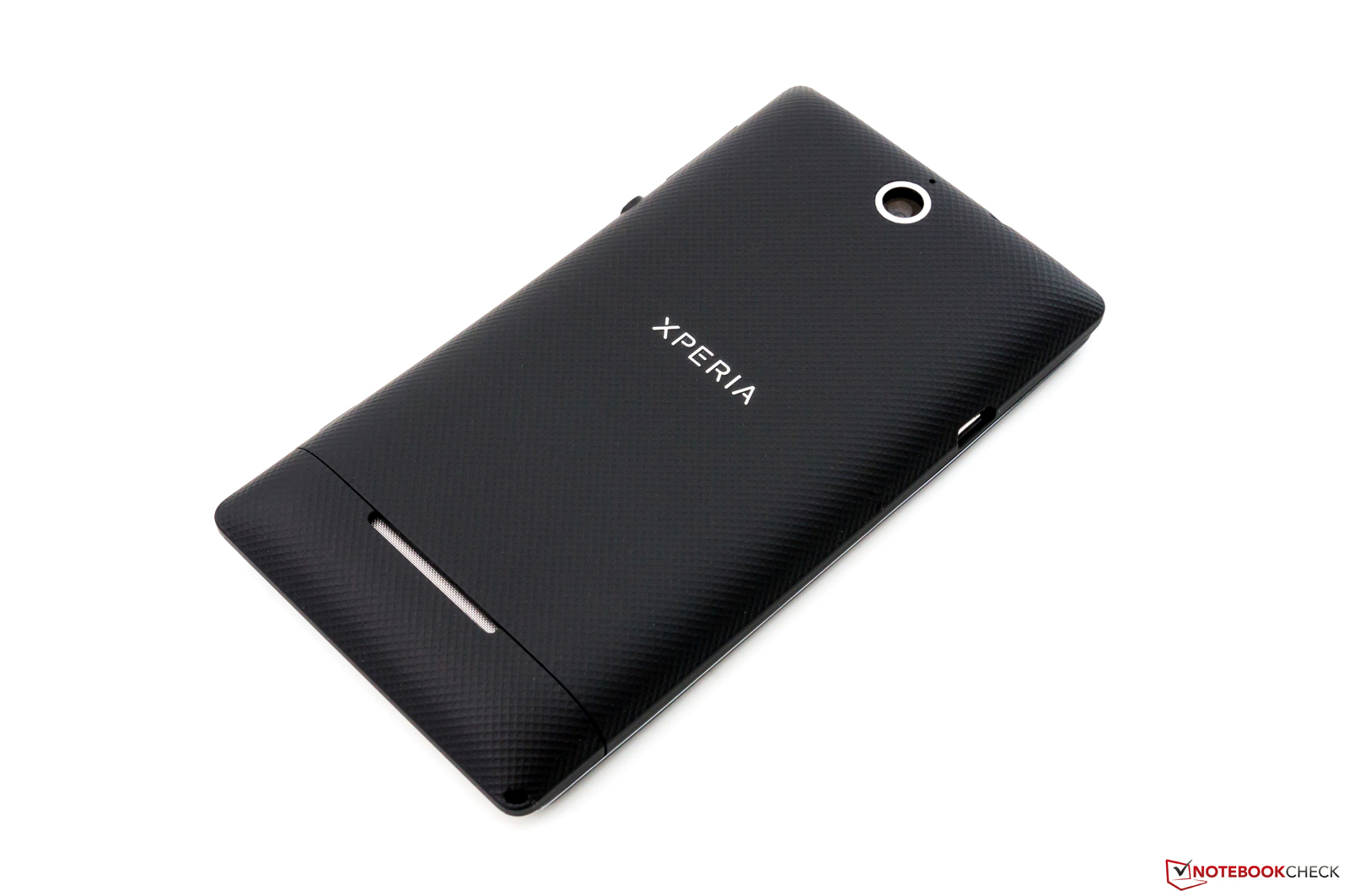

The case is made of polycarbonate.
The case is made of polycarbonate.

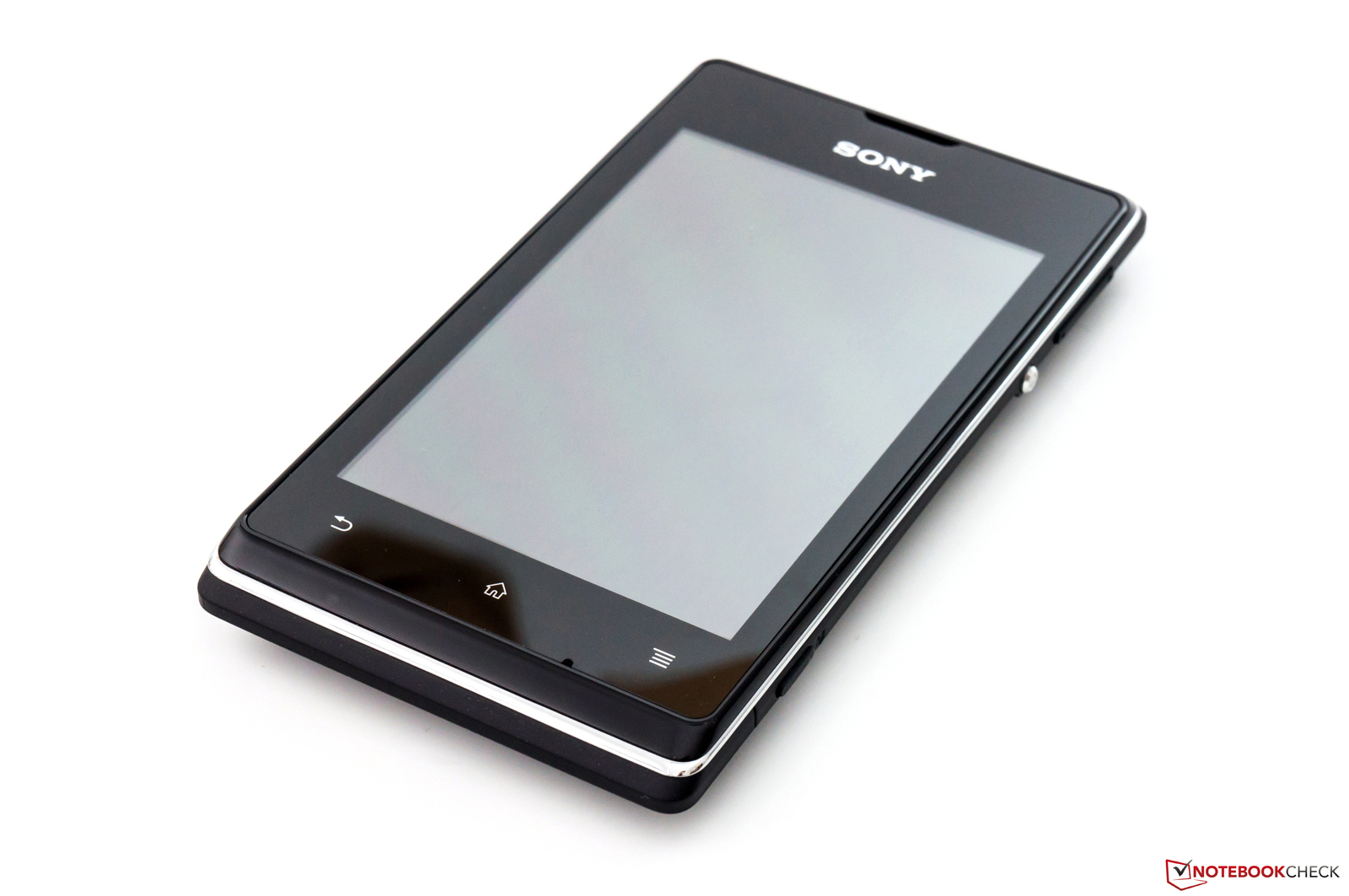

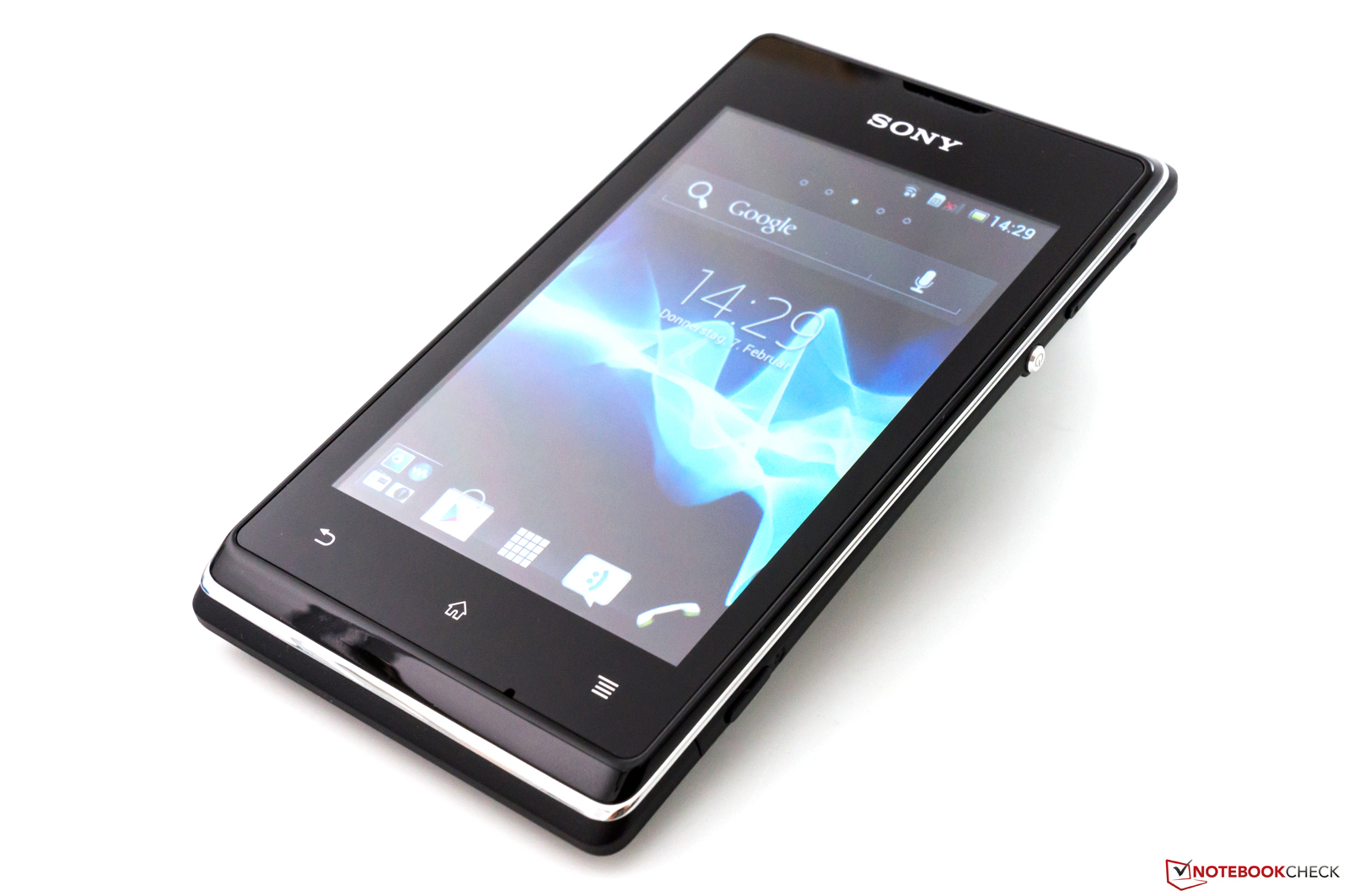

The design of the Sony Xperia E dual is very reminiscent of the other devices of the series. Its black case of polycarbonate convinces through a mixture of matte and glossy surfaces. A thin frame in chrome helps smooth the design. A cool feature is the blue flashing LED stripe at the bottom of the device; however it only becomes visible in dark environments. The manufacturing of the individual parts of the case is of high quality. The smartphone sits nicely in the hand through the rounded backside. The textured surface results in a comfortable feel. The finish is too smooth in our view. A thin coating would offer much more hold.

Unfortunately, the stability is not totally convincing for us. Even when applying small force, one can already feel a certain deformation of the case. This is due to the multi-part case. A single body case usually performs much better. Another point of concern is the PMMA display protection (Polymethylmethacrylate). In comparison to Gorilla glass, it is not very robust. When applying stronger pressure, one can see waves on the TFT display.

The phone measures 61.8 x 113.5 x 11 millimeters (~2.4 x 4.5 x 0.4 inches/W x L x H) and weighs 116 grams (~0.35 pounds). Although it is relatively light, current smartphones are a bit thinner usually. It is comparable to the Samsung Galaxy S DUOS GT-S7562 in terms of size and weight.

索尼Xperia E双的设计很容易让人想起该系列的其他设备。聚碳酸酯说服它的黑色外壳通过磨砂和光面表面的混合物。镀铬薄框架有助于平滑的设计。一个很酷的功能是蓝色闪烁LED在设备底部的条纹,但它只有在黑暗的环境中变得可见。的情况下的各个部分的制造,是高质量的。智能手机在手坐在很好通过背面四舍五入。舒适的手感质感的表面结果。我们认为,终点是太顺利。薄涂层将提供更保持。

不幸的是,稳定是我们不能完全令人信服。即使施加很小的力,已经可以感受到一定的变形的情况。这是由于多部分的情况下。通常执行一个单一的身体情况要好得多。另一点值得关注的是(聚甲基丙烯酸甲酯)PMMA显示保护。在大猩猩玻璃相比,它不是非常健壮的。施加强大压力时,人们可以看到的TFT显示屏上的波。

这款手机的措施61.8所述113.5×11毫米(约2.4×4.5×0.4英寸/宽x长x高),重量为116克(0.35磅)。虽然它是比较轻的,目前的智能手机薄一点通常。它是三星Galaxy S DUOS GT-S7562在尺寸和重量方面相媲美。

Equipment

How we test - equipment

The ports on the phone come as no surprise. A headset or external speakers can be connected via the 3.5 mm stereo port on top of the phone. Fresh energy as well as data from a PC can be received through the micro-USB (left side). In addition, there is also a card reader so that the integrated 4 GB flash memory can be expanded (Net capacity: 2.28 GB). Even though the specs in the manufacturers’ data give a maximum of 32 GB, micro-SD cards of up to 64 GB are supported.

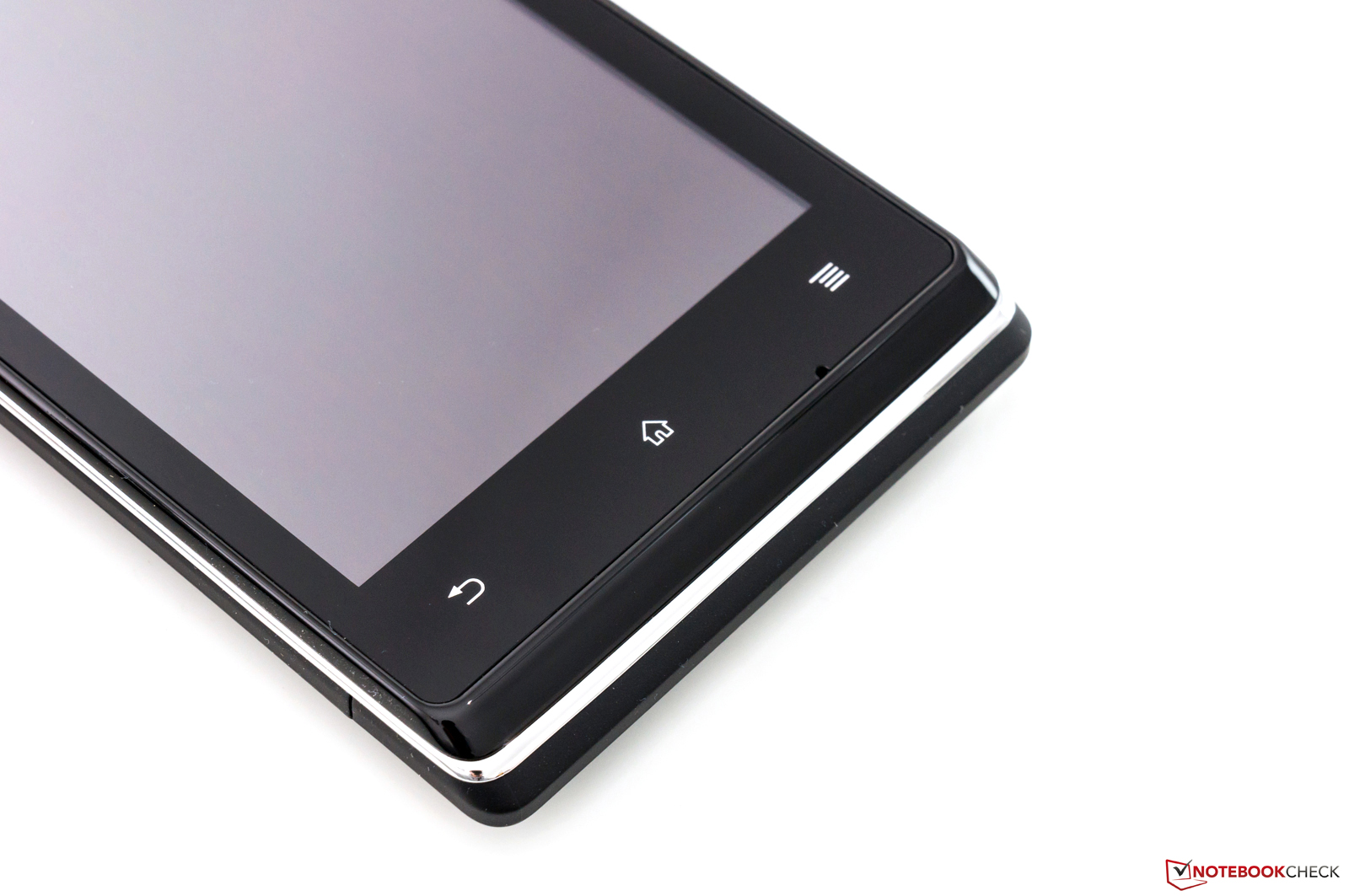

The control of the device is performed through buttons all around it. On the right hand side there is a compact volume switch and the power button which is not so convincing in its shape. Moreover, the individual pressure points are too imprecise. Right below the screen there are located the three typical Android touch buttons. We are not going to explain their functions in more detail. They are illuminated so that these controls are easily visible in the evening.

在手机上的端口是毫不奇怪的。通过手机顶部的3.5毫米立体声端口可以连接耳机或外部扬声器。可以接收新的活力,以及从PC的数据通过微型USB(左侧)。此外,也有一个读卡器可以扩展集成4 GB快闪记忆体(净容积:2.28 GB)。即使规格在制造商的数据支持最大32 GB的micro-SD卡高达64 GB。

是通过设备的控制按钮周围的一切。在右手侧有一个紧凑的音量开关和电源键,还没有令人信服的在其形状。此外,个人的压力点太不确切。屏幕正下方的位于有三种典型的Android触控按键。我们不打算更详细地解释自己的职能。照亮它们,使这些控件在晚上很容易看到。

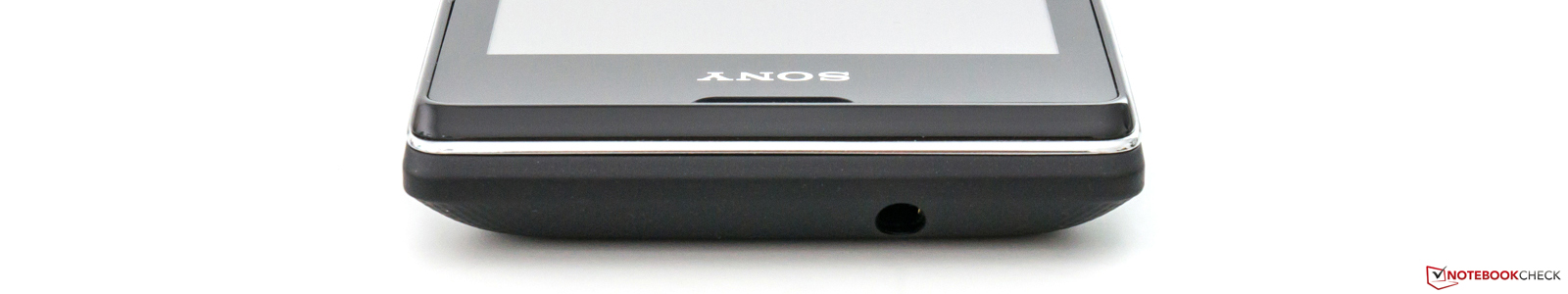

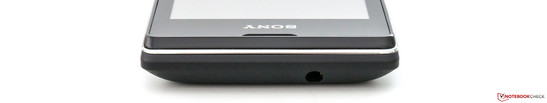

Head end: 3.5 mm stereo port
Head end: 3.5 mm stereo port

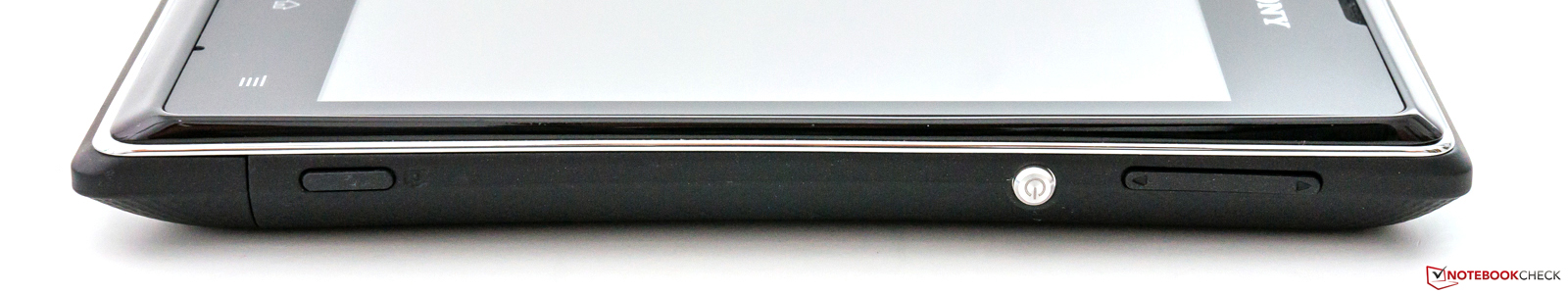

Right side: camera trigger, power button, volume switch
Right side: camera trigger, power button, volume switch

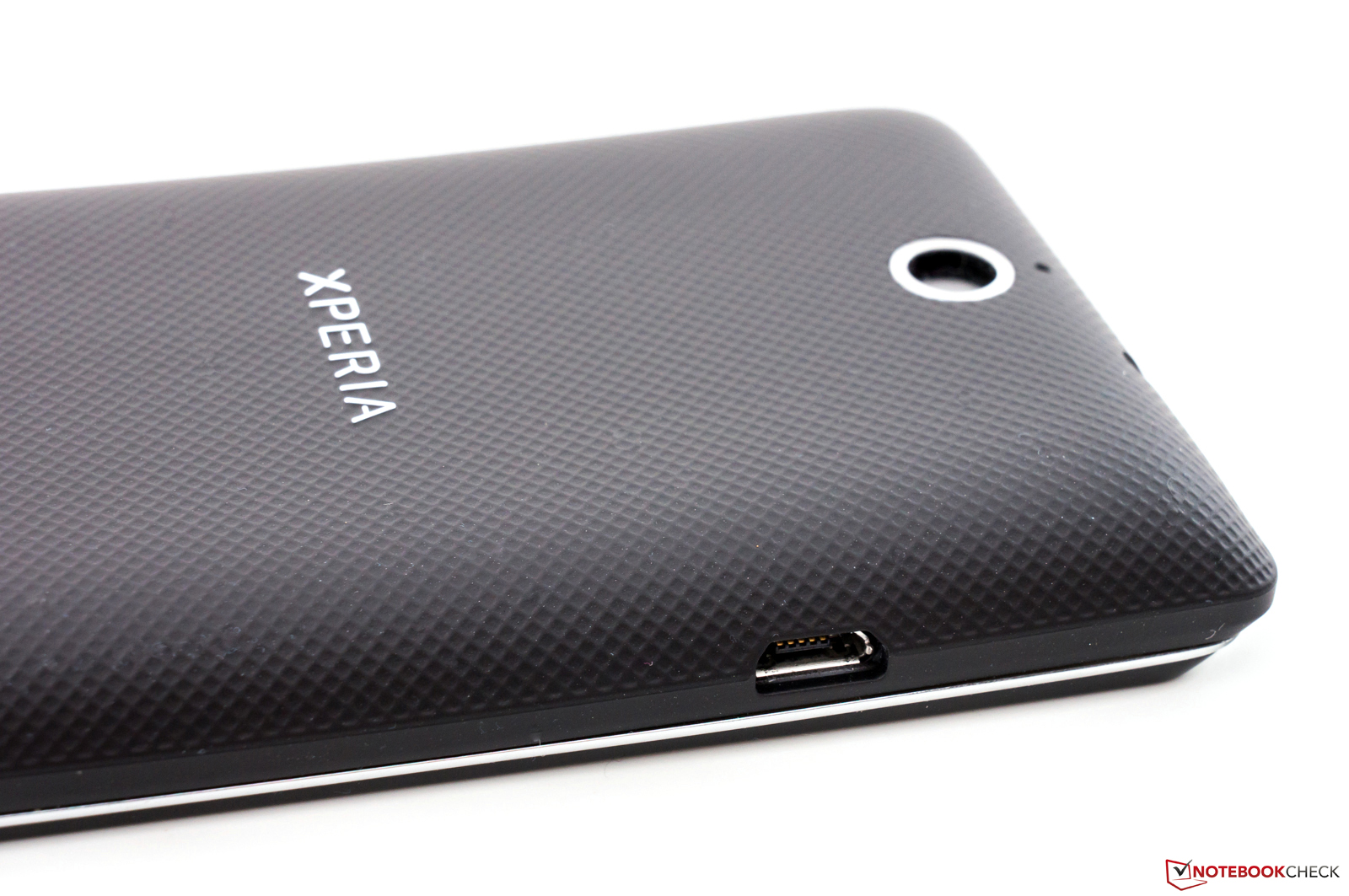

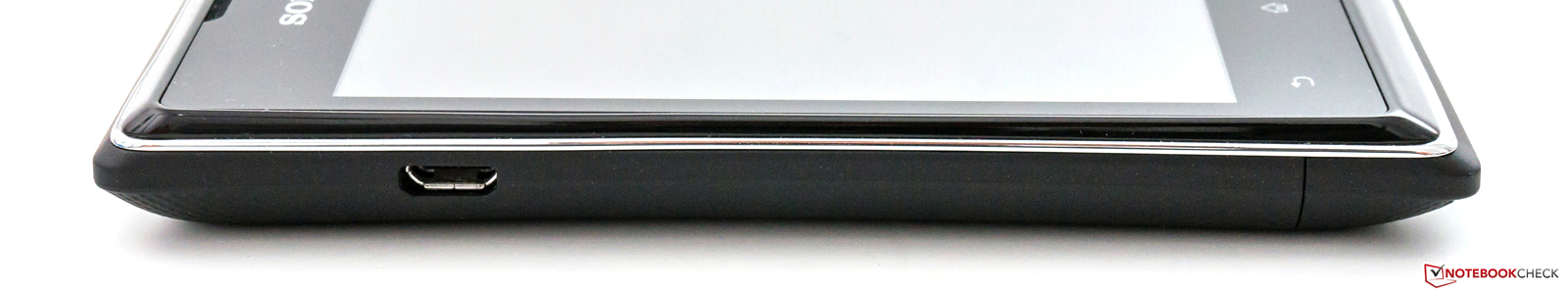

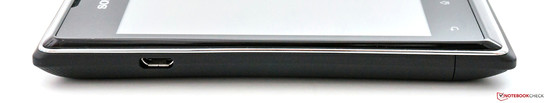

Left side: micro-USB
Left side: micro-USB

Software

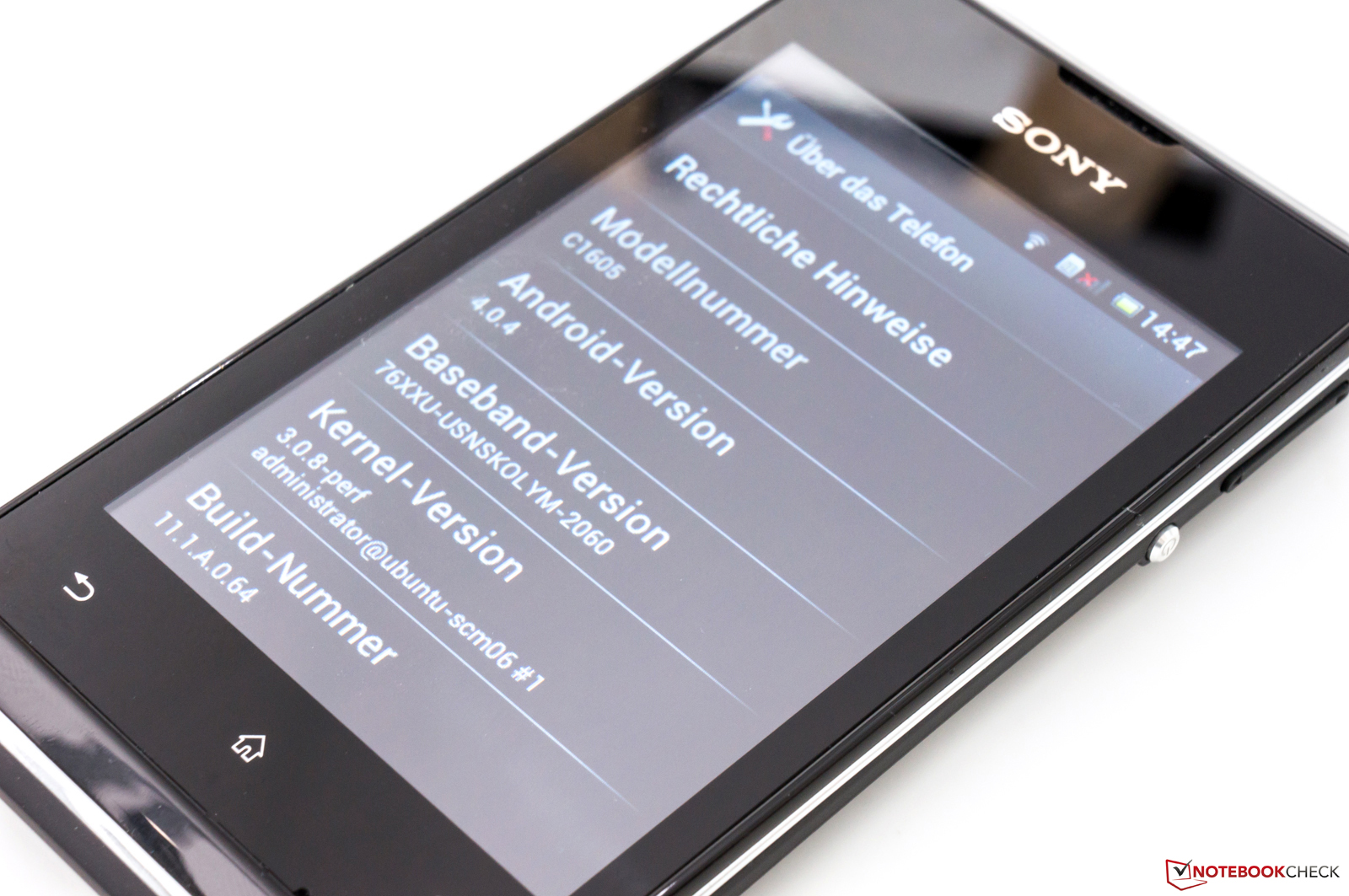

The Sony Xperia E dual ships with Google Android 4.0.4, alias Ice Cream Sandwich. The launcher was slightly modified visually. An update to the current version of Google Android (4.1) is planned according to Sony. The normal version of our test device (single-SIM card) already features Jelly Bean. A negative point is the preinstalled bloatware that is abundant. The performance of the system is fine. Some longer loading times and the occasional micro lag are a consequence of the relatively weak hardware specs.

Communication & GPS

In terms of wireless technology the smartphone offers simple standard equipment. Local wireless (WLAN) can be received using the following standards: 802.11b/g/n. For data transmission between the device and peripheral devices there is Bluetooth 2.1 +EDR included. The current version Bluetooth 4.0 is much faster and also saves a lot of energy in comparison to its predecessor, but in the lower price segment this technology is rarely included.

Obviously, one also has mobile access to the Internet with the Xperia E dual. The two slots are shaped for mini-SIM cards. The smaller micro or nano SIM cards can be used via adapters. The wireless module supports WCDMA/UMTS (HSPA) through the following frequencies: 850, 900, 1900 and 2100 MHz.

With A-GPS it is possible to use location dependent applications and services on the device too. A good example is navigation in the car. We checked the performance of the chip with the app GPS Test. Indoors the performance is mostly fine, although outside positioning is still much faster. However, when going into a staircase, the cellar or an underground parking lot, then this feature of the Xperia reaches its limit.

软件

索尼Xperia E双船,别名谷歌Android4.0.4冰淇淋三明治。稍加修改视觉发射。按照索尼的计划更新当前版本的谷歌Android(4.1)。我们的测试设备(单-SIM卡)的普通版已经提供糖豆。负点是预装的英国媒体报道,这是丰富。该系统的性能是好的。一些较长的加载时间和偶尔的微滞后是相对较弱的硬件规格的后果。

通信与GPS

在无线技术方面的智能手机提供简单的标准设备。可以接收本地无线网络(WLAN)使用下列标准:支持802.11b/g/n。有关的移动设备和外围设备之间的数据传输,蓝牙2.1 + EDR包括。当前版本的蓝牙4.0快很多,同时也节省了大量的能源,它的前身相比,但在较低的价格段,这种技术很少。

显然,也有移动接入互联网的Xperia E双。迷你SIM卡的两个插槽的形状。可以用更小的微纳米SIM卡通过适配器。无线模块,支持WCDMA/ UMTS(HSPA)通过以下频率:850,900,1900和2100 MHz。

使用A-GPS,它有可能使用在设备上的位置相关的应用程序和服务的太多。一个很好的例子是在汽车导航。我们检查了应用GPS测试芯片的性能。室内的表现主要是精细,虽然外面的定位仍然是更快的。然而,当进入楼梯,地窖或地下停车场,那么这个功能的Xperia达到其极限。

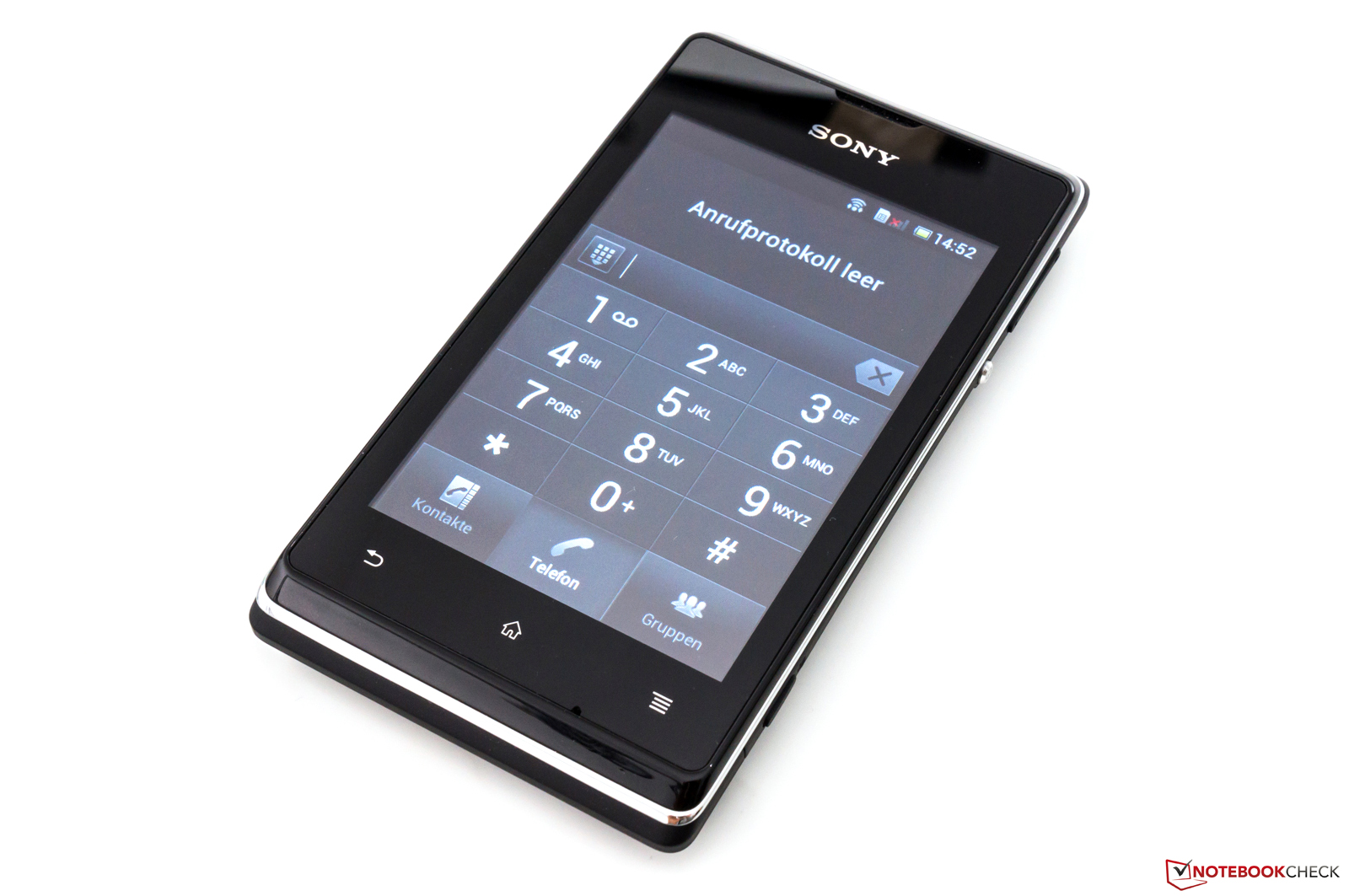

Well-arranged phone application.
Well-arranged phone application.

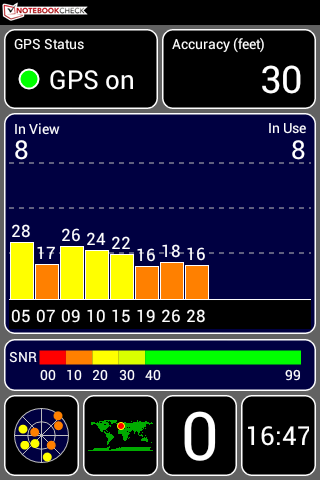

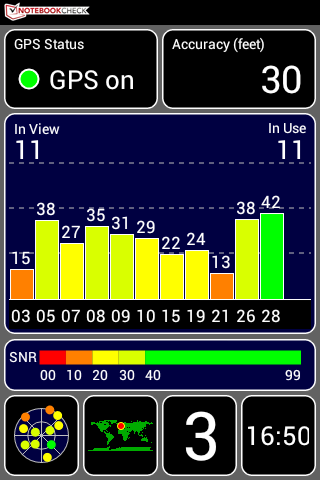

Positioning outside
Positioning outside
Positioning inside
Positioning inside

Telephony

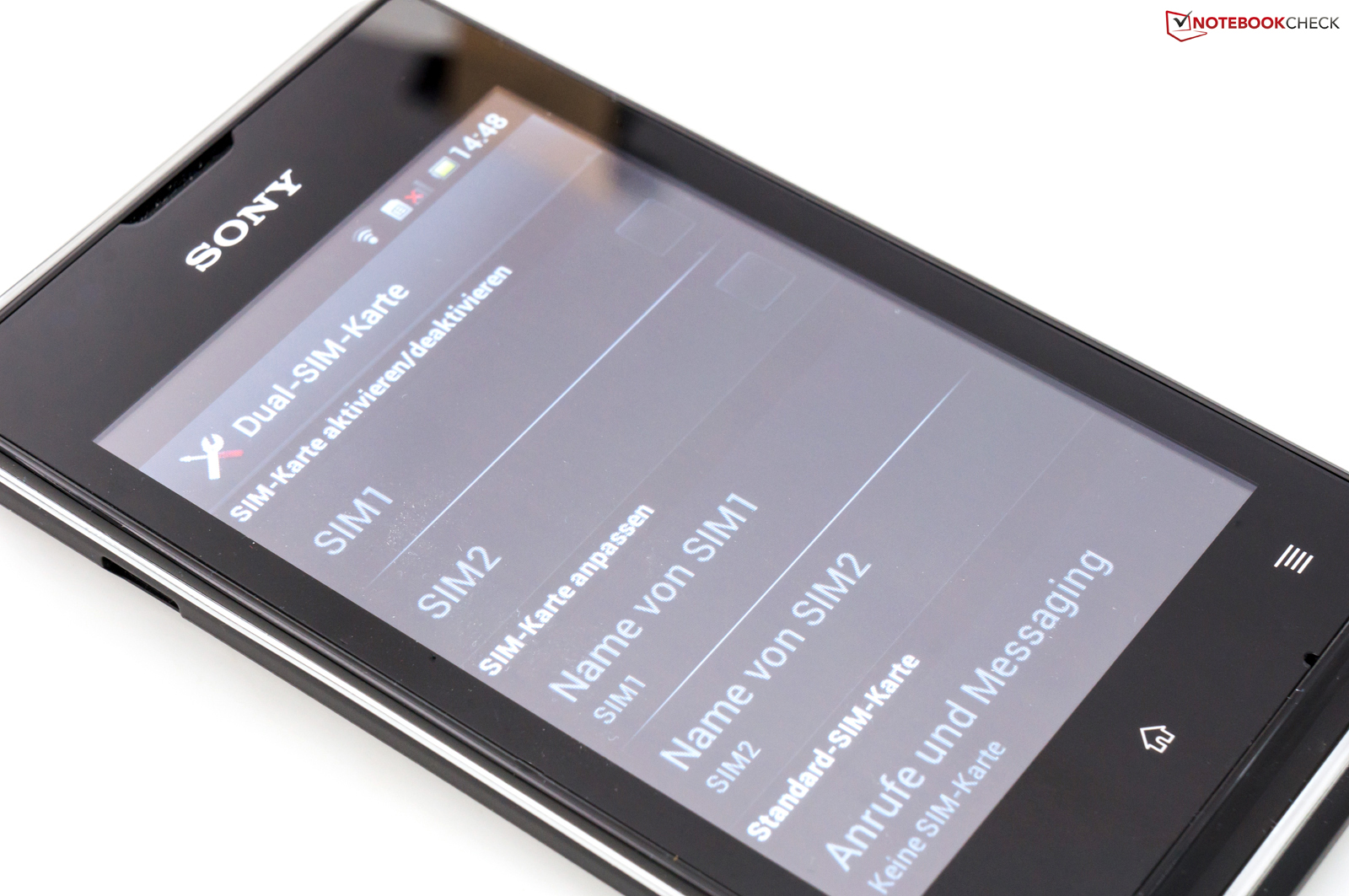

The apps of the device are tidy and clearly arranged. Contacts can easily be imported from the SIM cards or from ones Google account. Through a separation into groups, it is easy to keep the private and the business contacts apart. The switch between the SIM cards takes place through an elegant widget that can be placed on a home screen. There are further settings available in the properties of the system. The Sony Xperia E dual supports the four main GSM frequencies (850, 900, 1800 & 1900 MHz) so that it can be used in most countries.

Camera

On the backside there is a camera module that offers a resolution of 3.2 megapixels (2048x1536 pixels). Hence, it provides a solution mostly for snapshots that do not require high demands. An LED light or flash is not integrated while this extra is included in the Sony Xperia J. For comparison we have analyzed the high-end Apple iPhone 5 device versus Sony`s system camera. Photos in the daylight without digital zoom are fine. On the edges of a building and on the outside there are some flaws though. The zoom is not of much use, since it lowers the quality significantly.

In addition to photos, the Xperia E dual can also make video recordings. However, with a maximum resolution of 640x480 pixels (VGA) they do not satisfy today’s HD standards. A cheap digital camera may be the better solution for simple, but beautiful recordings.

电话


该设备的应用程序是非常整齐,并明确安排。可以很容易地从SIM卡导入或从谷歌帐户的联系。通过成组的分离,很容易保持私有和业务往来分开。 SIM卡之间的切换通过一个主屏幕上放置一个优雅的小工具,可发生。有进一步的设置,可以在系统的性能。索尼的Xperia E双支持四个主要的GSM频率(850,900,1800和1900兆赫),以便它可以在大多数国家使用。

相机

的背面有一个摄像头模块,提供了一个分辨率为3.2百万像素(2048x1536像素)。因此,它提供了一个解决方案,多为不要求很高的要求的快照。一个LED灯或闪光灯没有集成,而这额外的包含在比较中,我们已经分析了高端的苹果iPhone 5设备与索尼`S系统相机的索尼Xperia J.。在白天不使用数码变焦的照片都很好。在建筑物的边缘,在外面,虽然也存在一些缺陷。变焦是没有多大用处,因为它显着地降低了质量。

的Xperia E双除照片外,也可以进行录像。然而,最大分辨率为640×480像素(VGA),他们并不满足今天的高清标准。便宜的数码相机可能是更好的解决方案很简单,但美丽的录音。

Sony Xperia E dual: 3.2 megapixel (50% zoom)
Sony Xperia E dual: 3.2 megapixel (50% zoom)
Sony NEX-5R: 16.1 megapixel (18 millimeter)
Sony NEX-5R: 16.1 megapixel (18 millimeter)
Apple iPhone 5: 8 megapixel (no zoom)
Apple iPhone 5: 8 megapixel (no zoom)
Sony Xperia E dual: 3.2 megapixel (no zoom)
Sony Xperia E dual: 3.2 megapixel (no zoom)
Apple iPhone 5: 8 megapixel (50% zoom)
Apple iPhone 5: 8 megapixel (50% zoom)
Sony NEX-5R: 16.1 megapixel (35 millimeter)
Sony NEX-5R: 16.1 megapixel (35 millimeter)
Sony Xperia E dual: 3.2 megapixel (100% zoom)
Sony Xperia E dual: 3.2 megapixel (100% zoom)
Sony NEX-5R: 16.1 megapixel (55 millimeter)
Sony NEX-5R: 16.1 megapixel (55 millimeter)
Apple iPhone 5: 8 megapixel (100% zoom)
Apple iPhone 5: 8 megapixel (100% zoom)

Accessories

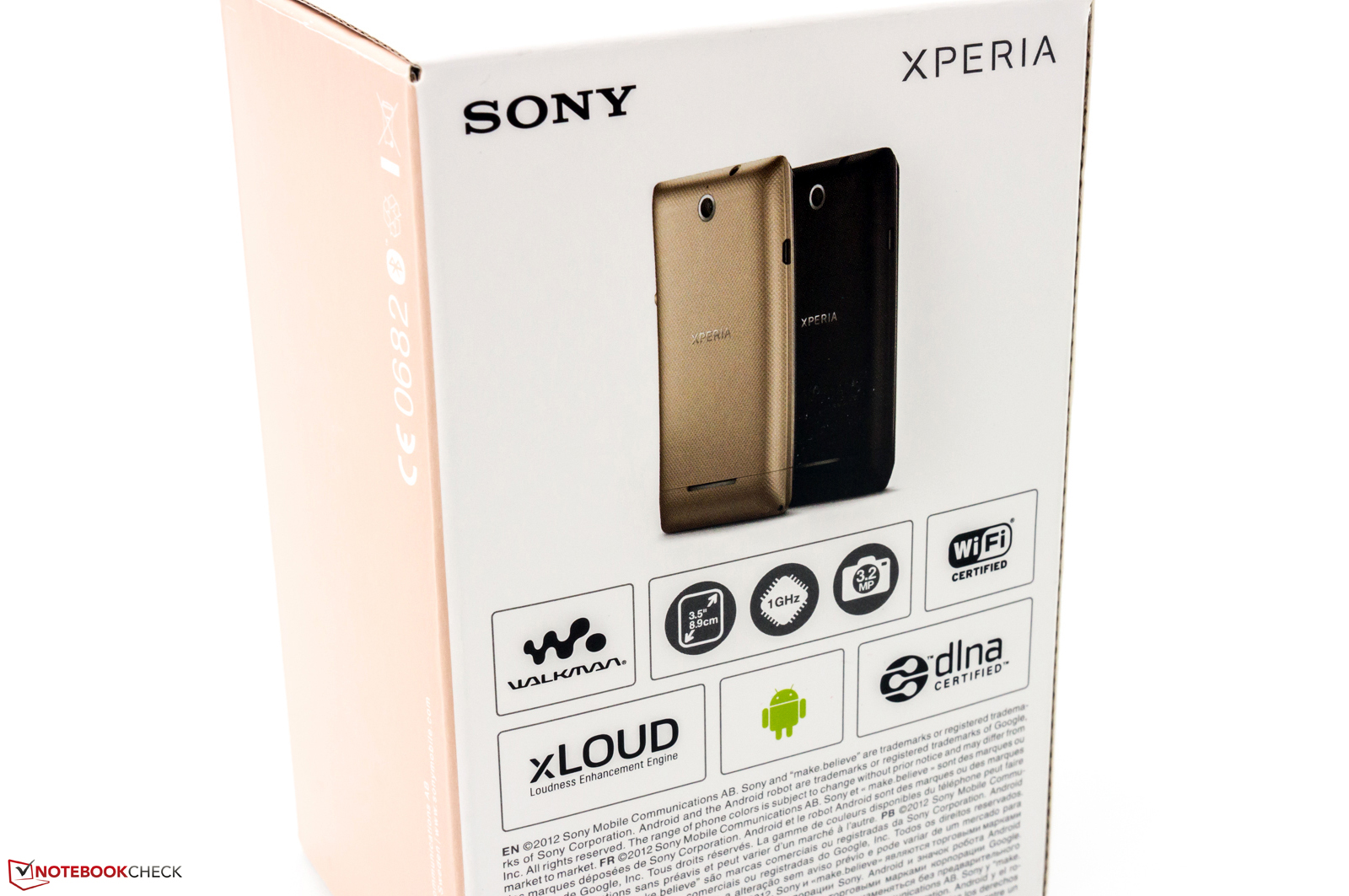

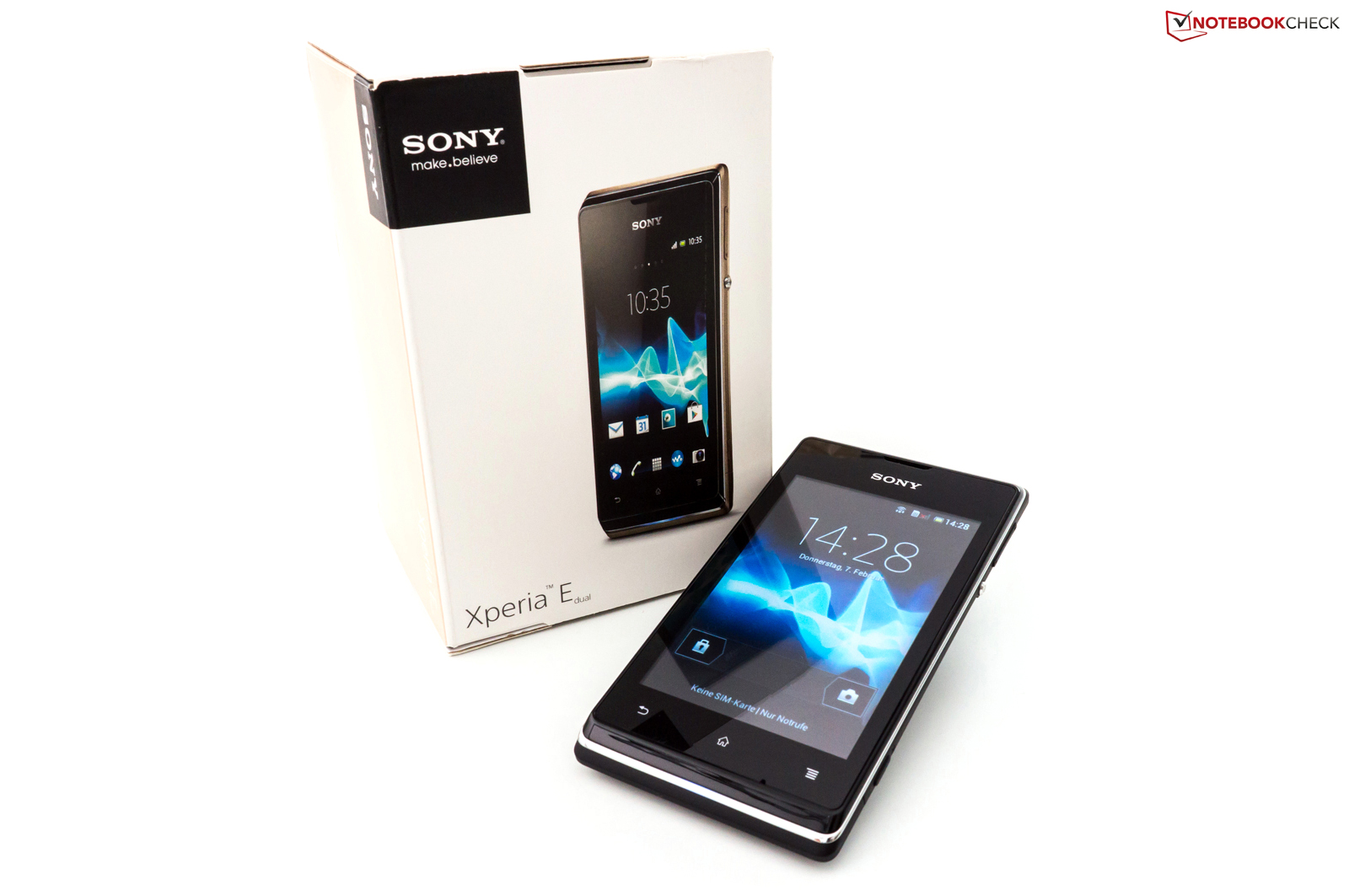

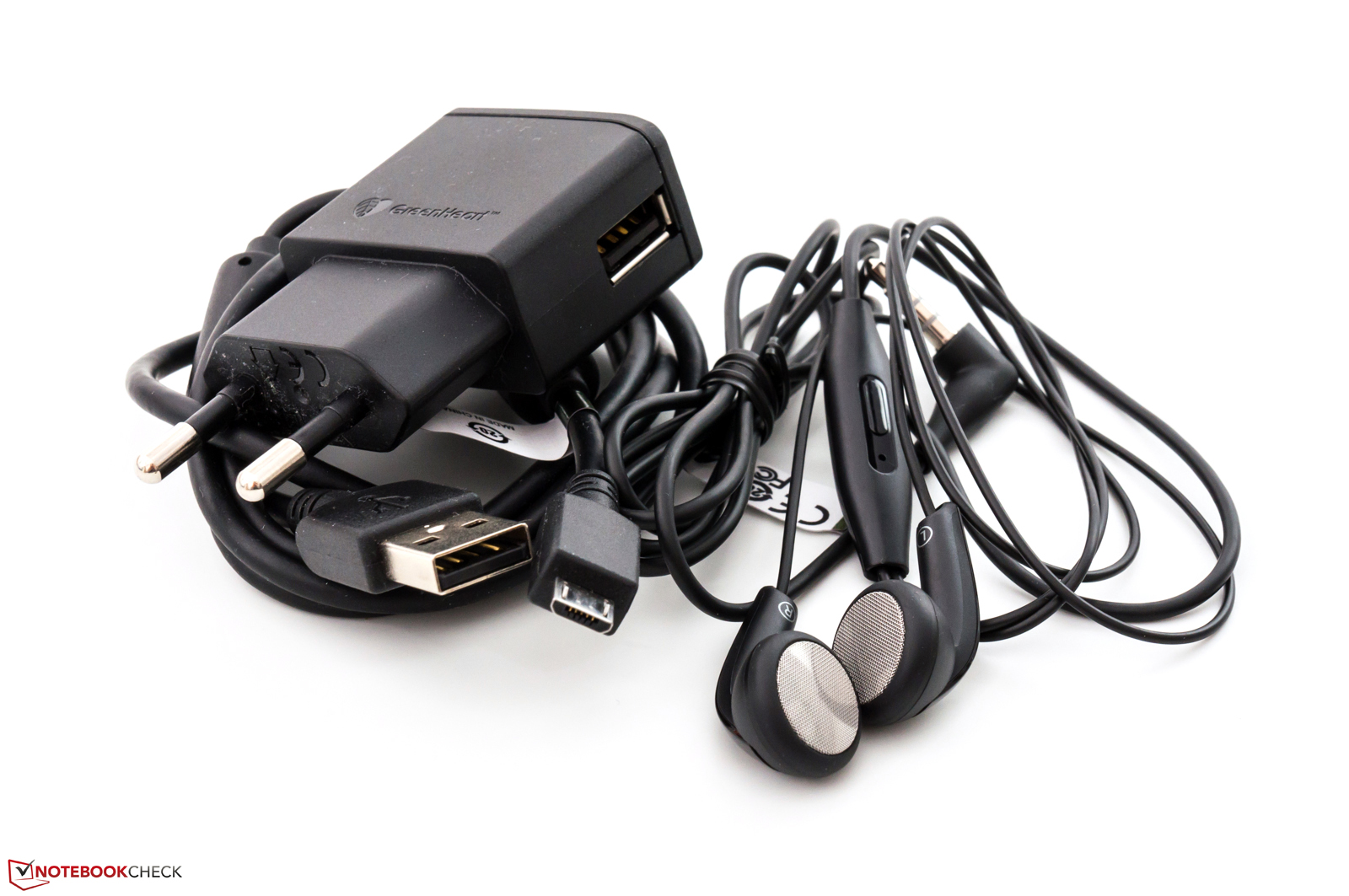

The package contains standard accessories.
The package contains standard accessories.

The package contains the most important accessories for basic use. Due to the low entry price there are no extras provided. Besides the main device, Sony includes a lithium-ion battery, a UBS cable, the modular USB charger, a simple headset, and a printed instructions manual. Sony offers many products in its Store where it is often worthwhile to make a price comparison. Interestingly the company does not sell any second batteries or replacement batteries through the website.

Warranty

Sony offers a warranty of 24 months for the Xperia E dual, which starts from the date of purchase. The battery and the accessories included are protected for 12 months through the warranty.

该软件包包含了最重要的配件基本使用。由于低端价格有没有额外提供。除了主要的移动设备,索尼包括一个锂离子电池,UBS电缆,模块化的USB充电器,一个简单的头戴式耳机,以及印刷的说明书。索尼在其商店里提供了许多产品它往往是值得做价格比较。有趣的是,公司不出售任何第二电池或更换电池通过网站。



索尼提供的Xperia E双,从购买之日起的24个月的保修。电池及配件包括保护通过保修12个月。

Input Devices and Controls

Input commands are made through a capacitive 3.5-inch touchscreen which converts touch with very high precision. The device also supports multi-touch gestures, but to a limited extent, since the panel can only cope with two fingers at the same time. However, in everyday life this fact is not noticed. A virtual keyboard is used for inputting text. The visual style of the keyboard has changed slightly. Overall, the layout seems very comfortable. Only the keyboard uses a lot of space in landscape format, as we have already discussed in the test of the Sony Xperia J.

通过电容的3.5英寸的触摸屏,具有非常高的精度将触摸输入命令。该器件还支持多点触摸手势,但在有限的范围内,因为面板用两个手指在同一时间只能处理。然而,在日常生活中是没有注意到这一事实。使用虚拟键盘输入文字。键盘的视觉风格也略有改变。总体而言,布局看起来很舒服。键盘上的按键采用了大量的空间在横向格式,我们已经讨论过在测试索尼Xperia J.

In landscape format it is barely possible to read the content.
In landscape format it is barely possible to read the content.

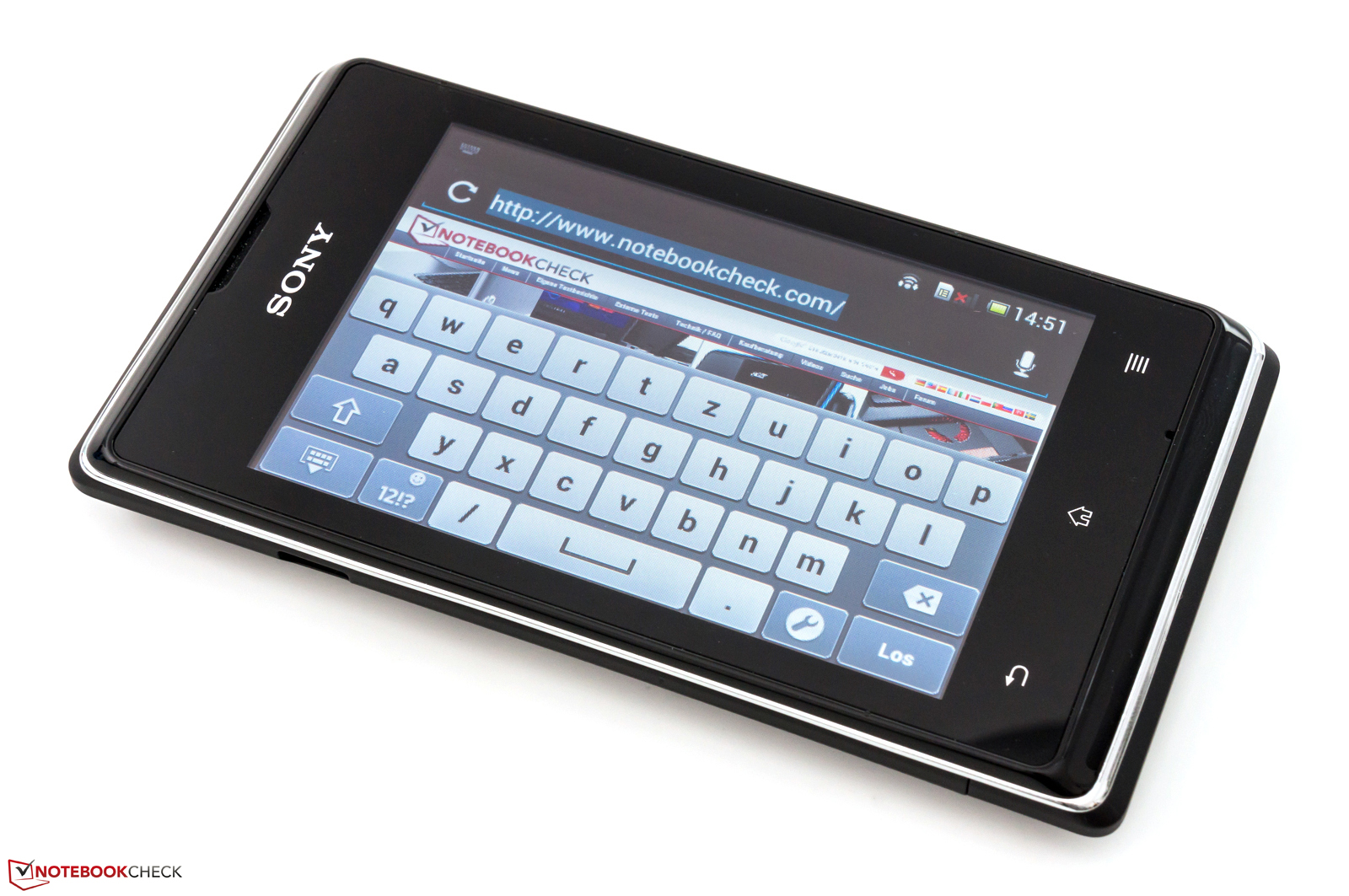

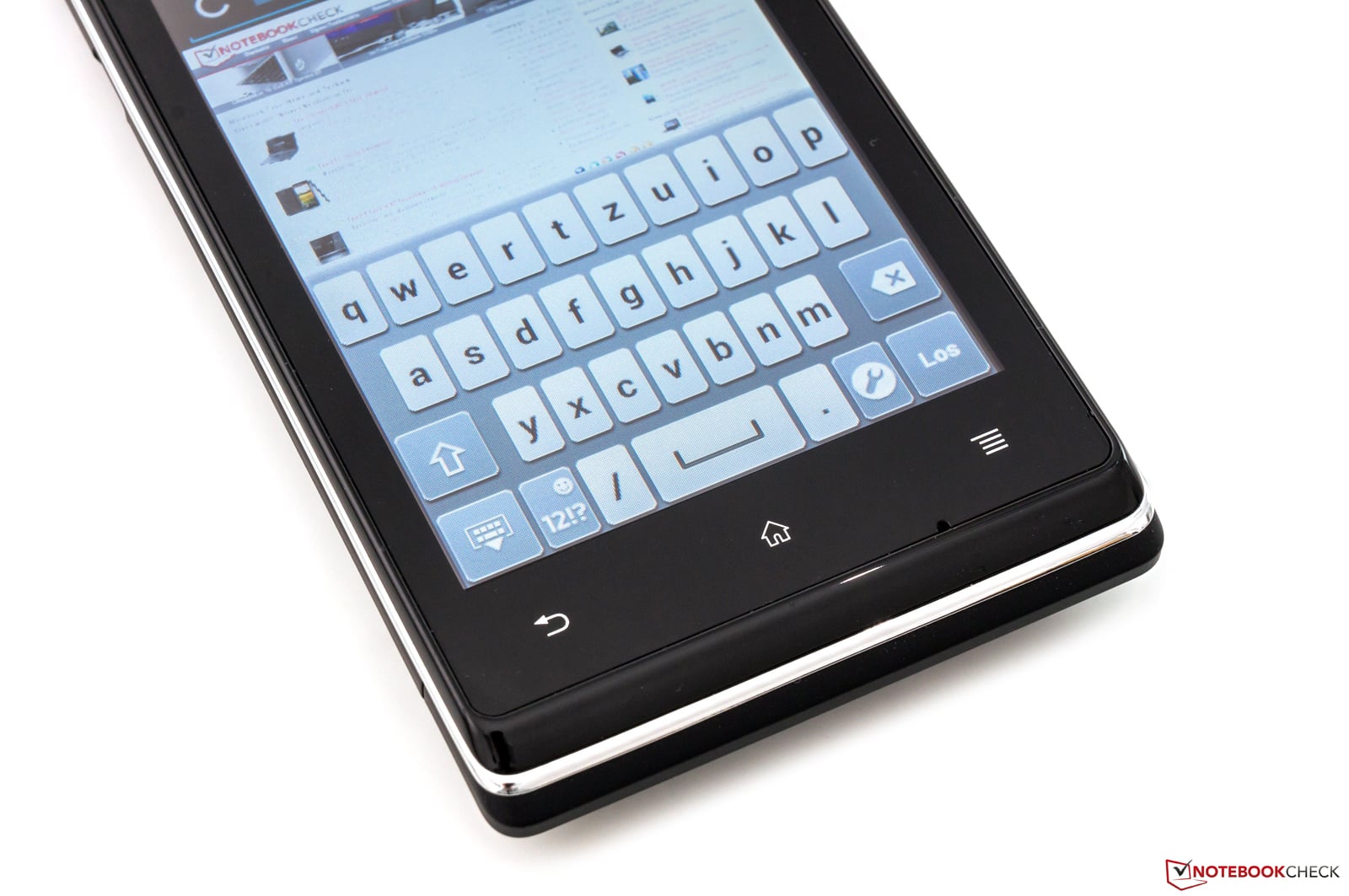

Virtual QWERTZ-keyboard in portrait format.
Virtual QWERTZ-keyboard in portrait format.

Display

How we test - Display

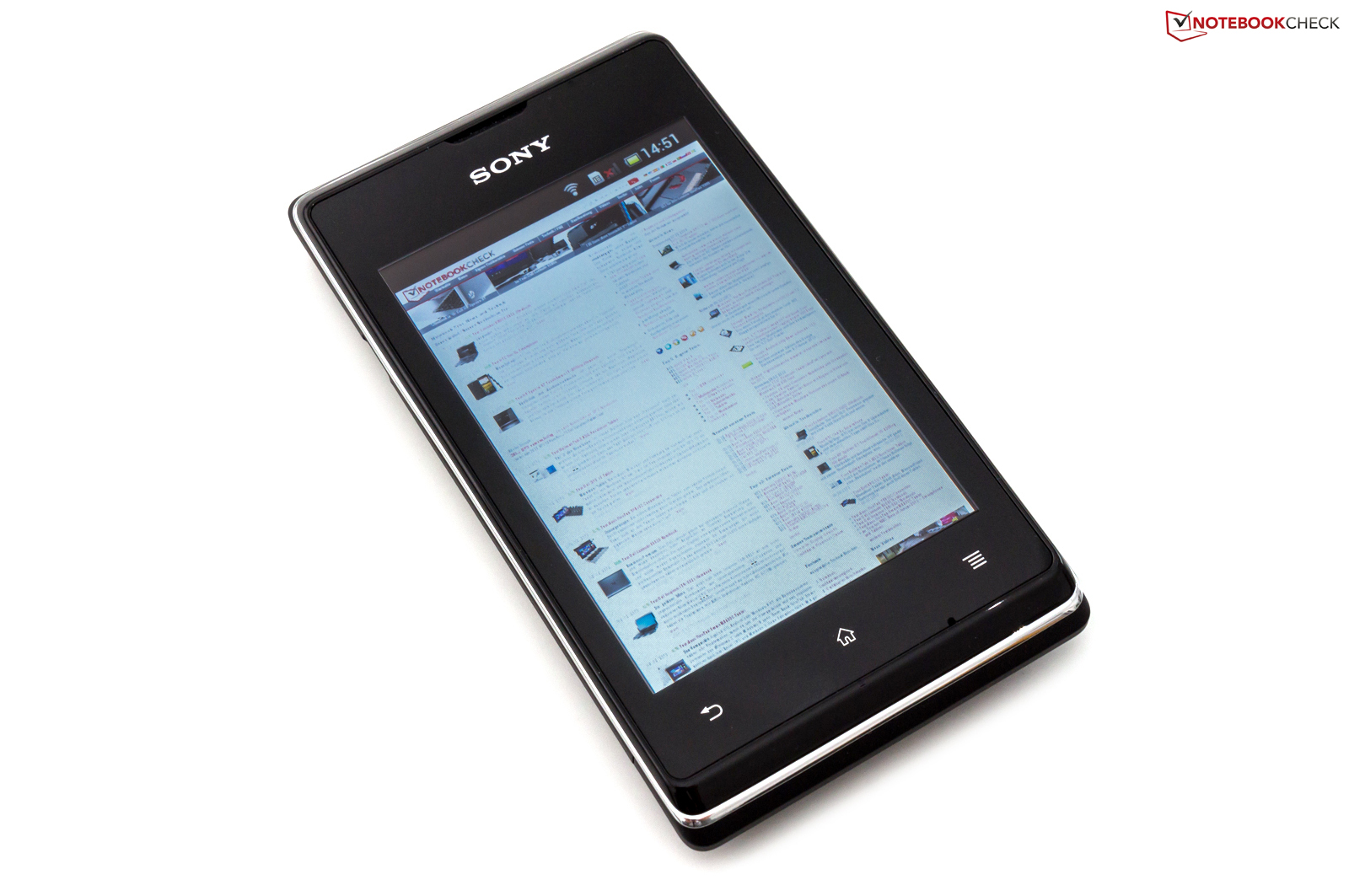

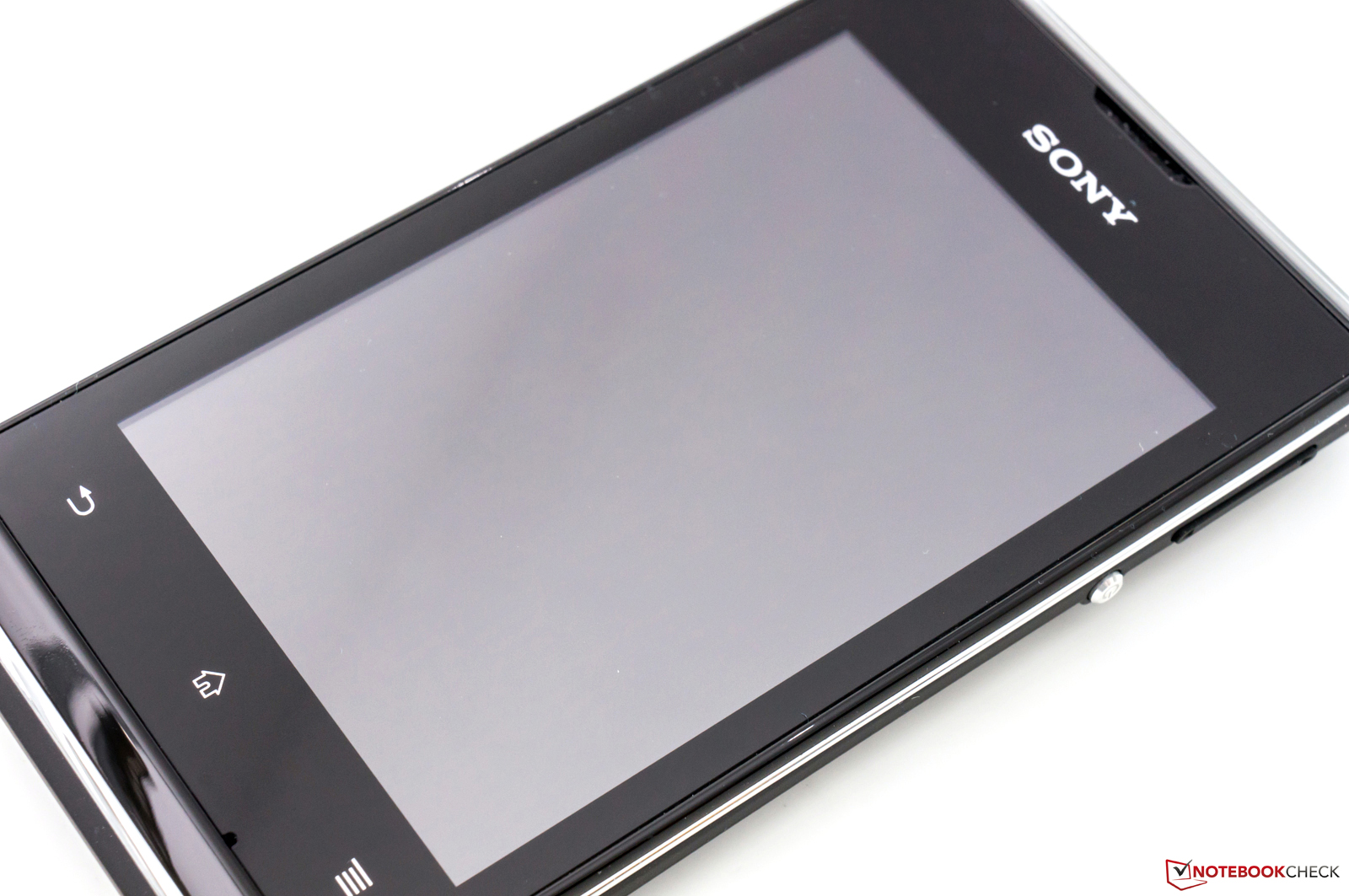

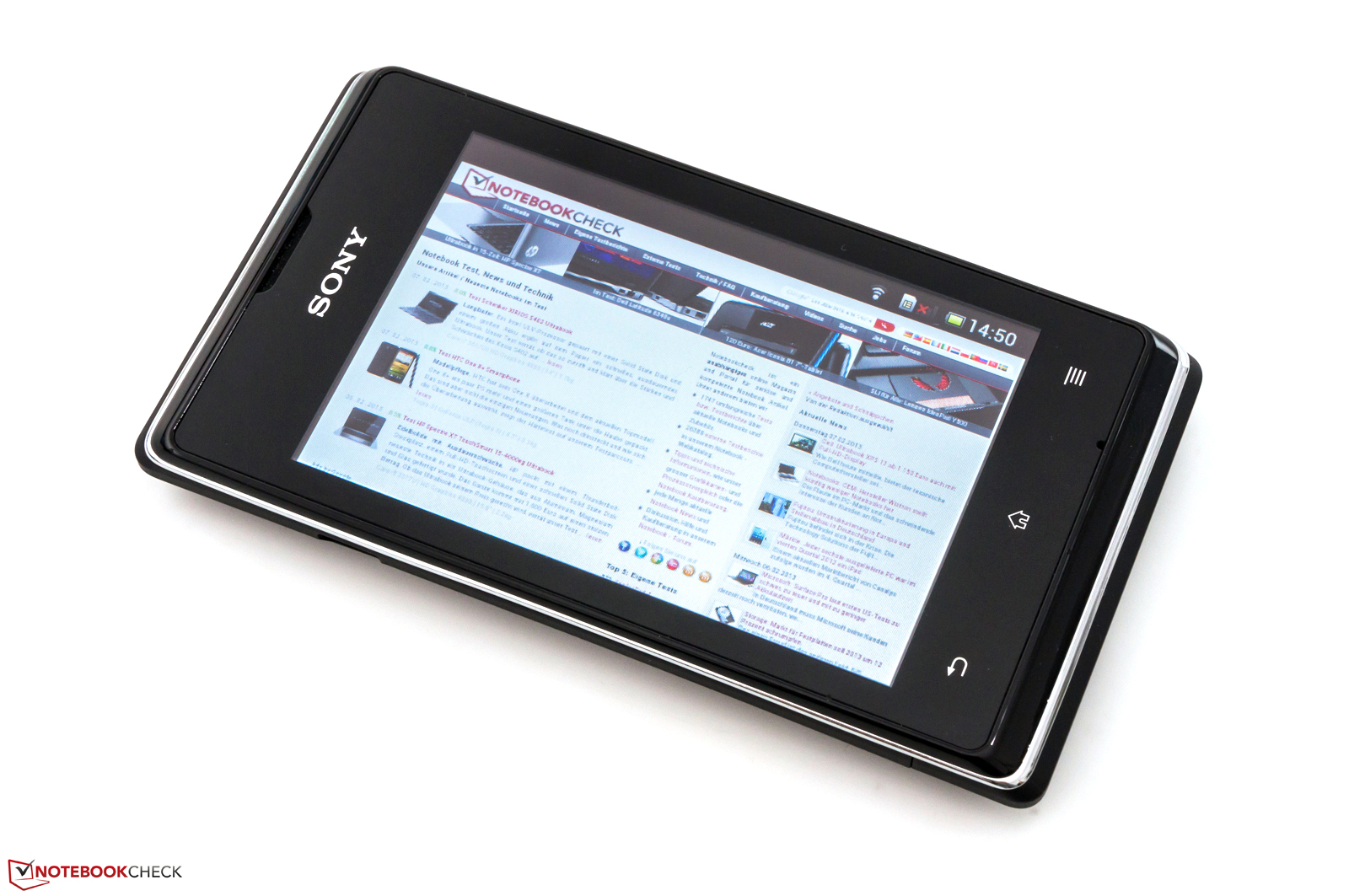

The 3.5 inch display has a resolution of 320 x 480 pixel (2:3).
The 3.5-inch display has a resolution of 320 x 480 pixels (2:3).

The Sony Xperia E dual features a glossy 3.5-inch screen with a resolution of 320x480 pixels in the 2:3 format. This results in a relatively low pixel density of only 165 PPI so that the picture looks very grainy. The difference becomes especially apparent when compared to the Apple iPhone 5, Google Nexus 4 or the Samsung Galaxy S3. Another negative point is the display technology that is being used in the device. It is an LCD-TFT display whereas high quality devices offer IPS or AMOLED displays.

We have measured the quality of the screen with the Mavo screen from Gossen. The panel reached a light density of 315 cd/m². This value is pretty good in class comparison, even though it is not the brightest of all. The Samsung Galaxy S DUOS as a direct competitor is a bit brighter on average. With 91% the illumination level is very uniform and also convincing. Overall, these are good results for this section of the test.

索尼Xperia E双设有一个光滑的3.5英寸的屏幕,分辨率为320x480像素的2:3格式。这样的结果在一个相对较低的像素密度仅为165 PPI,使画面看起来很粗糙。差异变得尤为明显,相比苹果iPhone5,谷歌Nexus4或三星Galaxy S3。另外一个不利的一点是,正在使用中的设备的显示技术。这是一个LCD-TFT显示屏,而高品质的设备提供IPS或AMOLED显示屏。

我们测量了画面质量与戈森MAVO屏幕。面板达到315坎德拉/平方米的光密度。类比较中,这个值是相当不错的,即使它是不亮的。作为一个直接的竞争对手三星Galaxy S DUOS平均明亮一点。 91%的照明水平是非常均匀的,也有说服力。总体而言,这些都是很好的测试结果本节。

304
cd/m²
306
cd/m²
320
cd/m²
307
cd/m²
309
cd/m²
323
cd/m²
316
cd/m²
317
cd/m²
335
cd/m²
Distribution of brightness
tested with Gossen Mavo-Monitor
Maximum: 335 cd/m² (Nits) Average: 315.2 cd/m²
Brightness Distribution: 91 %
Center on Battery: 309 cd/m²
Contrast: 719:1 (Black: 0.43 cd/m²)

The black level is low with just 0.43 cd/m² so that an almost deep black can be presented. Still a light gray hue is noticeable and because of the technology in use that cannot be avoided either. The given brightness and the black level yield a contrast ration of 719:1. The measured values are in mid-range and these good results also beat the competitor from Samsung.

黑电平是低只有0.43坎德拉/平方米可以提出这样一个几乎深黑。浅灰色的色调仍然是明显的,因为该技术在使用,不能避免。给定的亮度和黑电平产生719:1对比度口粮。测量值是在中档和这些好成绩也击败了来自三星的竞争对手。

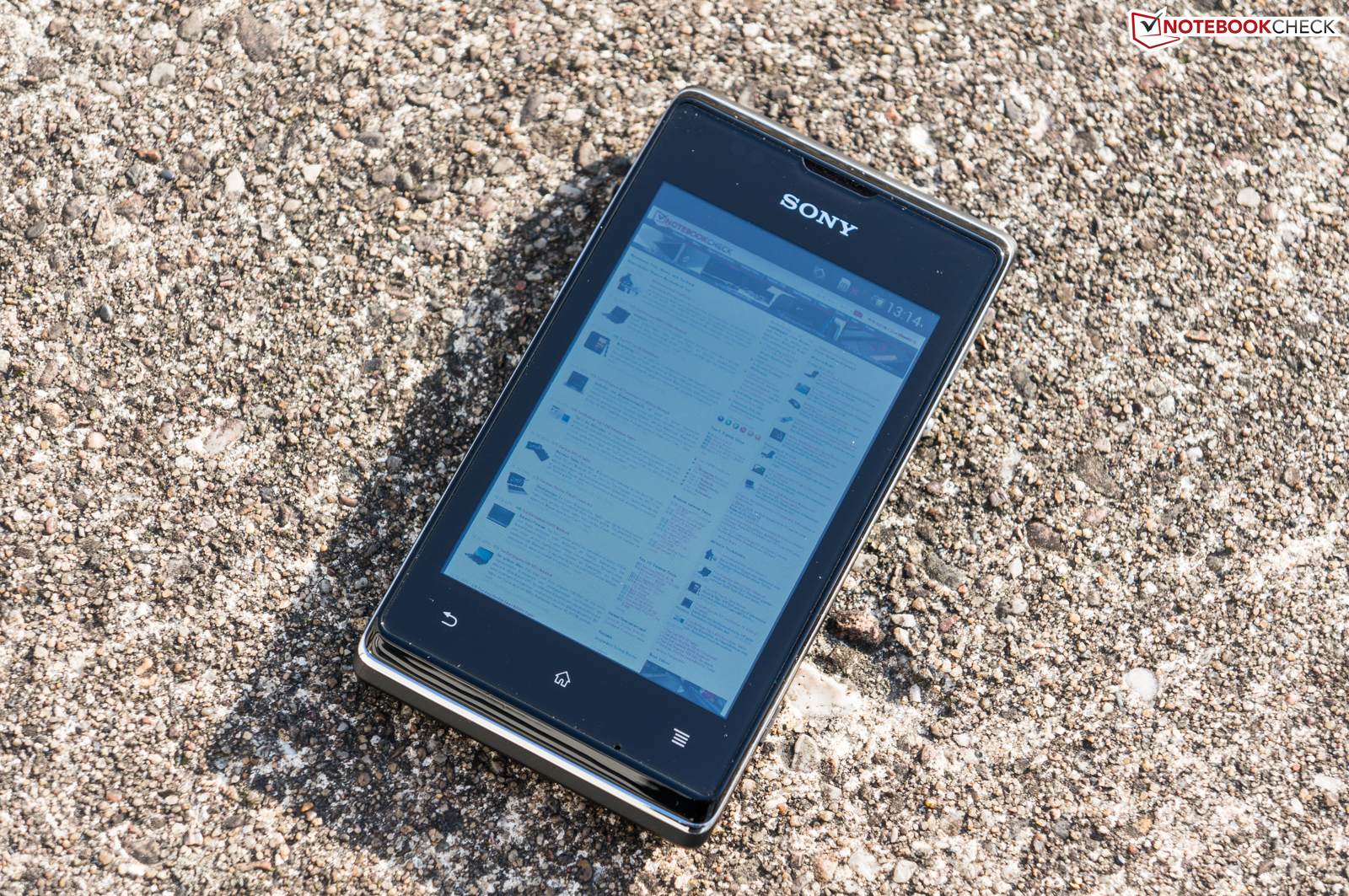

Outdoor use
Outdoor use

Figuratively speaking the device comes as a double-edged sword for outdoor use. At maximum brightness of the screen the content is clearly visible, however only when in direct view of the screen. Viewed from the side, content is not recognizable anymore. If the brightness is decreased, then the reflections due to the glossy surface increase in turn. Hence, an efficient use is not possible anymore. In order to solve this one can change the sitting position or purchase a matte display protection foil.

打个比方设备作为双刃剑在户外使用。在最大亮度的屏幕内容清晰可见,但只有在直接看到屏幕。从侧面看,内容是无法识别了。如果降低亮度的反射,然后由于光滑的表面依次增加。因此,有效率的使用是不可能的了。为了解决这一个可以改变坐姿,或购买了雾面显示屏保护贴膜。

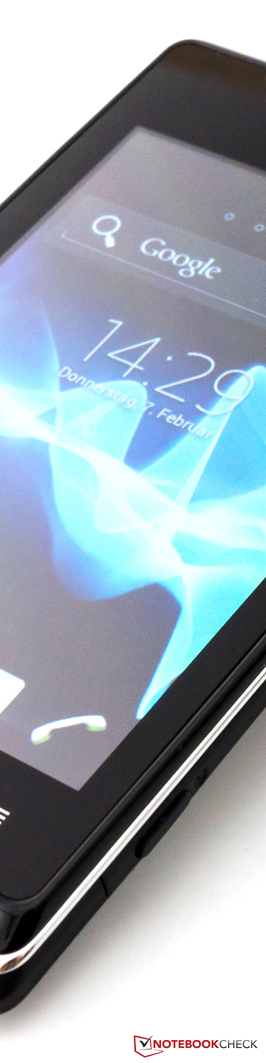

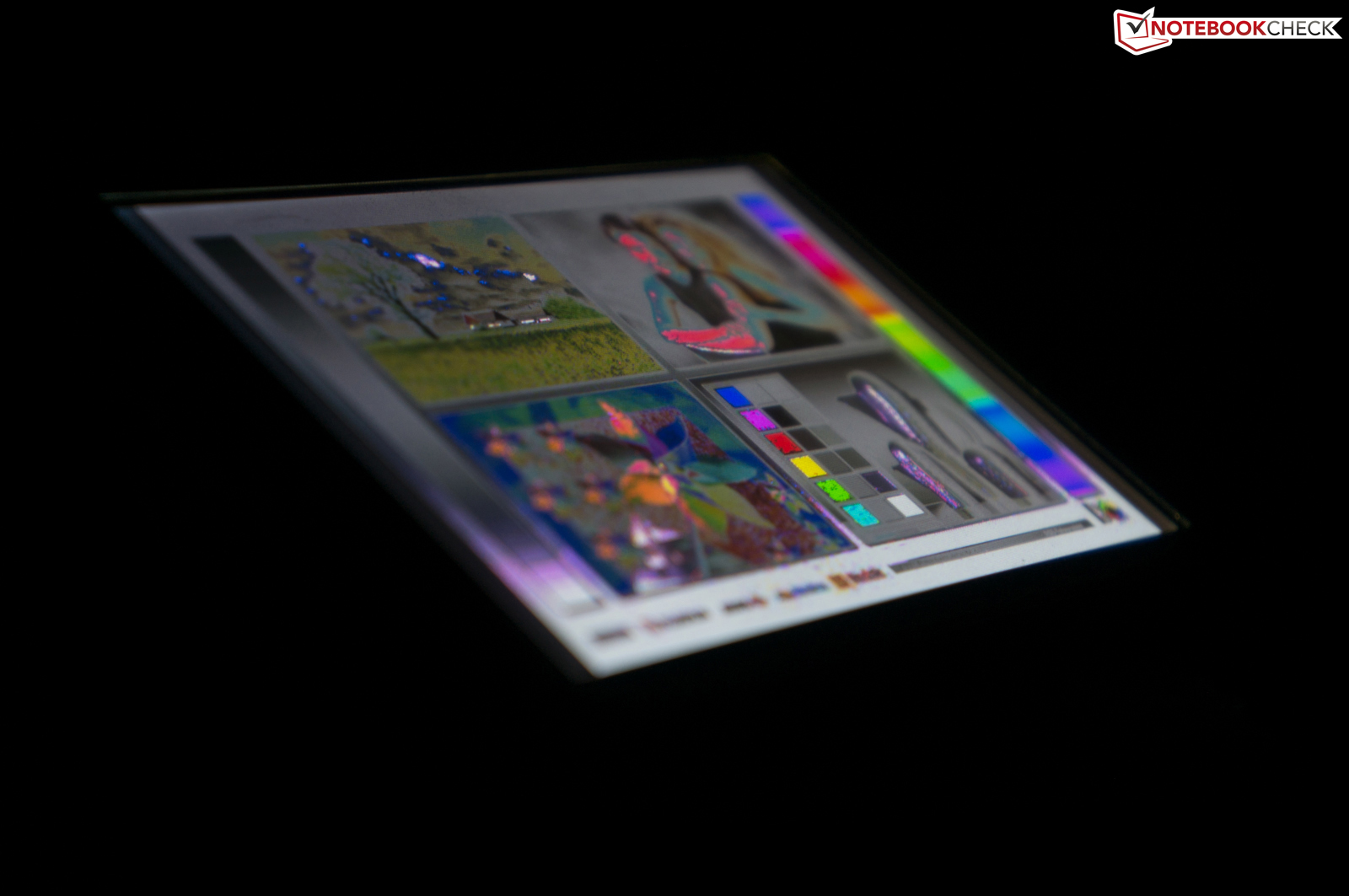

Viewing angle
Viewing angle

The viewing angle stability is probably the biggest problem of the LCD-TFT display in use here. Even just a small deviation along the vertical axis leads to an inversion or a fade-in of the content. The screen deals better with horizontal movements. The aforementioned alternative technologies usually offered at a higher cost do not have problems with this. The cheaper choice comes with this trade-off.

视角稳定性可能是这里使用的LCD-TFT显示的最大问题。甚至只是一个沿垂直轴的小偏差导致的反转或渐强的内容。屏幕优惠更好的水平运动。上述替代技术通常提供更高的成本没有问题。最便宜的选择与权衡。

Performance

How we test - Performance

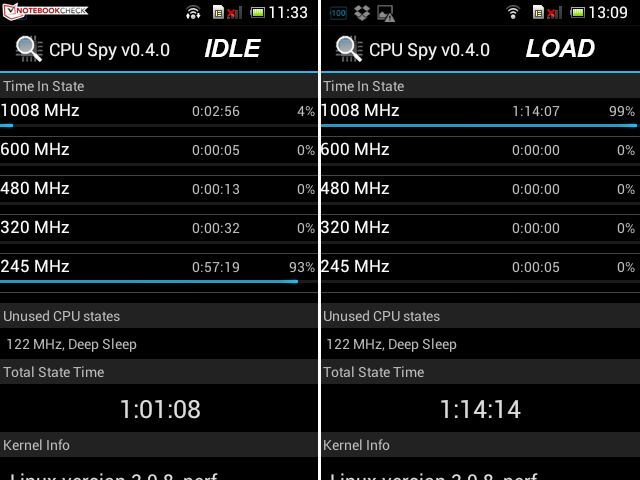

CPU Spy shows the time behavior of the SoCs.
CPU Spy shows the time behavior of the SoCs.
Under the hood: Qualcomm Snapdragon S1 with 1 GHz.
Under the hood: Qualcomm Snapdragon S1 with 1 GHz.

Inside the Sony Xperia E dual there is a Qualcomm Snapdragon S1 MSM7227A System-on-a-Chip (SoC) at work. We have already analyzed the chip in detail in the tests of the Samsung Galaxy S DUOS and the Sony Xperia J. In this case it is a single-core chip (Cortex A5) based on the  ARMv7-Architecture running at 1 GHz. The SoC is produced in 45 Nanometer size and contains the Adreno 200 (Enhanced) graphic unit.

It also contains 512 MB RAM. Modern devices in the mid- and upper range usually offer dual or quad cores and a maximum of 2GB RAM. Naturally, one should not compare apples and oranges here, since the costs of such devices are much higher too.

First, we checked the time behavior of the SoCs with the tool CPU Spy. In idle mode the snapdragon S1 is working over 90 percent of the time with only 245 MHz, hence consuming little energy. Under load the maximum performance of 1008 MHz is activated without any problems.

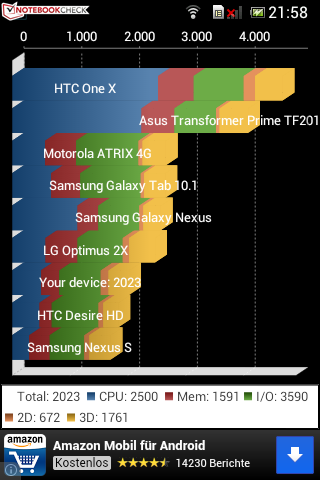

Then we enter the benchmark test round with the synthetic tests. Interestingly, our test device is faster than the Sony Xperia J, even though they both feature the same hardware. This becomes clearly visible in the GPU benchmark test NenaMark 2. Our device with the Adreno 200 GPU reaches 27.4 FPS (frames per second) there. The Xperia J with only 19.6 FPS performs about 28% worse. The Samsung Galaxy S DUOS is about on the same level as the Sony Xperia J. For multi-thread calculations from Linpack there is only a difference of a few points in the scores of these three devices. In addition, we have also included the Google Nexus 4 in the comparison table so that the difference to a faster Android smartphone can also be seen.

里面的索尼Xperia E双是高通Snapdragon S1 MSM7227A系统在一个芯片(SoC)在工作。我们已经详细分析芯片在测试中,三星Galaxy S DUOS和索尼Xperia J.在这种情况下,它是一个单核心芯片的基础上,以1 GHz运行的ARMv7架构的Cortex A5。该SoC在45纳米大小,并包含了Adreno200(增强)图形单元。

它还包含512 MB ​​RAM。在中期和范围上的现代设备通常提供双或四核处理器,最大2GB内存。当然,不应该比较苹果和桔子,在这里,由于这种装置的成本也高得多。

首先,我们检查了工具CPU间谍行为的SoC。在空闲模式下的Snapdragon S1的工作的时间超过90%,只有245 MHz,因此消耗的能量很少。在负载下被激活为1008 MHz的最高的性能,没有任何问题。

然后我们进入了一轮综合测试基准测试。有趣的是,我们的测试设备的速度比是索尼XperiaĴ,尽管它们都具有相同的硬件。在GPU基准测试NenaMark2这变得清晰可见。我们的设备与Adreno 200的GPU达到27.4 FPS(每秒帧数)。只有19.6 FPS的Xperia J有表现差约28%。大约是在同一水平上的多线程计算的Linpack作为索尼Xperia J.三星Galaxy S DUOS仅相差几个点的分数,这三个设备。此外,我们还包括谷歌Nexus4的比较表中也可以看出,以便更快的Android智能手机的差异。

AnTuTu v3 - Total Score (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
5517 Points
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
4075 Points -26%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
17555 Points +218%
NenaMark2 - --- (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
27.4 fps
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
19.6 fps -28%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
20.1 fps -27%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
59 fps +115%

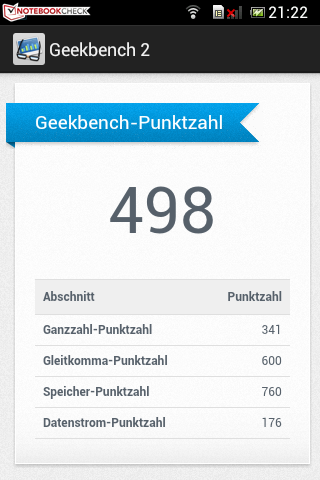

Geekbench 2 - 32 Bit - Total Score (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
498 Points
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
465 Points -7%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
442 Points -11%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
2054 Points +312%
Basemark ES 2.0 - Taiji Free (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
11.54 fps
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
5.8 fps -50%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
6.11 fps -47%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
53.5 fps +364%
Linpack Android / IOS - Multi Thread (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
37.11 MFLOPS
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
37.38 MFLOPS +1%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
37.49 MFLOPS +1%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
221.6 MFLOPS +497%

In the browser benchmarks it yields some good and some bad results. On the one hand, the Xperia E dual reaches a good score of 325 in the Peacekeeper-Benchmark. On the other hand, in Browsermark 2.0 the device turns out to be too slow. Comparable devices are at least 50 percent better here. In Google V8 the result is average, hereby the Google Nexus 4 with the Chrome browser unsurprisingly scores the highest. Last but not least, we listed the Sunspider-Benchmark. Here, a lower score is better. This Sony device does not deliver good results in this benchmark though. The HTC Windows Phone 8S convinces us with just 1410 milliseconds. A recommendation: also try using Google Chrome from the Play Store.

浏览器基准测试,它产生了一些好的,一些不好的结果。的Xperia E双一方面,达到一个很好的得分325和平卫士基准的。另一方面,在Browsermark2.0设备原来是太慢了。与同类器件至少50%,更好地在这里。在谷歌V8成绩平平,现谷歌Nexus4与Chrome浏览器的意料之中得分最高。最后但并非最不重要的,我们列出的SunSpider基准。在这里,得分越低,比较好。这款索尼设备不提供了良好的效果,虽然在此基准。 HTC的Windows Phone8S说服我们只用1410毫秒。一个建议:尝试使用谷歌浏览器播放存储。

Peacekeeper - --- (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
325 Points
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
287 Points -12%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
236 Points -27%
HTC Windows Phone 8S
Adreno 305, S4 Plus MSM8227, 4 GB Flash
197 Points -39%
Google V8 Ver. 7 - Google V8 Ver. 7 Score (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
705 Points
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
704 Points 0%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
580 Points -18%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
1381 Points +96%
HTC Windows Phone 8S
Adreno 305, S4 Plus MSM8227, 4 GB Flash
477 Points -32%
Browsermark - --- (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
811 points
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
1196 points +47%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
1839 points +127%
HTC Windows Phone 8S
Adreno 305, S4 Plus MSM8227, 4 GB Flash
1543 points +90%
Sunspider - 0.9.1 Total Score (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
2831 ms *
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
3014 ms * -6%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
1895 ms * +33%
HTC Windows Phone 8S
Adreno 305, S4 Plus MSM8227, 4 GB Flash
1410 ms * +50%

* ... smaller is better

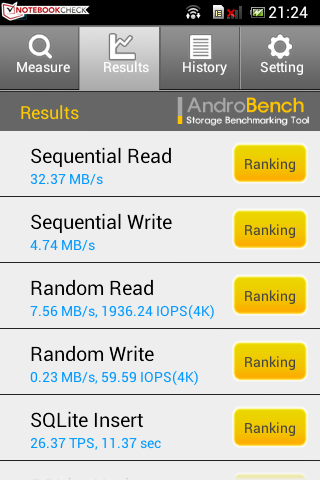

In conclusion, the AndroBench tests the performance of the integrated flash memory. Overall, the Sony Xperia E dual delivers a good presentation in the range of the Samsung Galaxy S DUOS. In comparison, the readout performance of the Xperia E duo is really good. The Google Nexus 4 is much better in this aspect too.

最后,该AndroBench测试集成闪存的性能。总体来说,索尼Xperia E双提供了一个很好的介绍三星Galaxy S DUOS的范围。相比之下,读出性能的XperiaÉ二人是非常好的。谷歌Nexus4在这方面好得多。

AndroBench 3-5
Random Write 4KB (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
0.23 MB/s
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
0.25 MB/s +9%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
0.25 MB/s +9%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
1.07 MB/s +365%
Random Read 4KB (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
7.56 MB/s
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
6.49 MB/s -14%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
7.21 MB/s -5%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
12.14 MB/s +61%
Sequential Write 256KB (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
4.74 MB/s
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
5.3 MB/s +12%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
4.96 MB/s +5%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
13.97 MB/s +195%
Sequential Read 256KB (sort by value)
Sony Xperia E dual
Adreno 200, S1 MSM7227A, 4 GB Flash
32.37 MB/s
Sony Xperia J
Adreno 200, S1 MSM7227A, 4 GB Flash
29.64 MB/s -8%
Samsung Galaxy S DUOS GT-S7562
Adreno 200, S1 MSM7227A
30.92 MB/s -4%
Google Nexus 4
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
49.7 MB/s +54%

Games

The Sony Xperia E dual is not a gaming monster with its somewhat lower hardware specs, but it plays most game titles just fine. Current 2D-games and many 3D-titles run without any major problems. For instance, Temple Run 2 runs smoothly throughout, although the graphics are sometimes not very beautiful because of the low display resolution. The gyroscope converts any movement very rapidly. Demanding titles, such as GTA III, can bring the hardware to its knees. Lagging can significantly impact the fun of play. Also, the loading times before and during a game can be nerve-wracking. It was not possible to start the game ShadowGun: DeadZone in this test.

索尼Xperia E双是不是一个游戏怪物,其硬件规格稍低,但它玩大多数游戏就好了。当前2D游戏和3D标题没有任何重大问题。例如,寺运行2运行平稳,虽然图形有时由于显示分辨率低,不是很美观。陀螺仪将任何移动非常迅速。苛刻的标题,如GTA III可以带来硬件的膝盖。滞后大大影响游戏的乐趣。此外,之前在比赛中的加载时间可伤脑筋。这是不可能开始游戏暗影之枪:在本次测试的盲区。

Voice Quality

The voice quality of the Xperia E dual leaves a good impression. The caller is understood clearly and the same holds for the receiver on the other side. One point of criticism is the suppression of background noise. The headset that is included is fairly cheap, but satisfactory. People who make a lot of calls would probably change to a higher quality headset which sits better in the ear over time and also offers better sound quality.

语音质量的Xperia E双留下了很好的印象。该呼叫者清楚地理解,也同样适用于另一侧上的接收器。批评的一点是背景噪声抑制。包括耳机是相当便宜的,但满意。人们谁做了很多电话到一个更高品质的耳机,坐在更好的在耳边,随着时间的推移可能会改变,也提供了更好的音质。

Emissions

How we test - Emissions

Temperature

Rejected heat is led away passively through the case. Overall, the smartphone leaves a good impression. It stays cool during load. The higher temperature on the left hand side of the device is noticeable. Presumably the SoC and other system components are located under there. All values remain in the safe range though with a maximum temperature of 36.2 °C (97.16 °F), whereas the HTC Windows Phone 8S or the Samsungs Galaxy S DUOS climb up to over 40 °C (104 °F) under heavy load. This is a plus for the Sony Xperia E duo.

拒绝领走热的情况下被动地通过。总体而言,智能手机留下了很好的印象。加载过程中保持冷静。在左手侧的设备的较高的温度是明显的。据推测,在SoC和其它系统组件位于下那里。所有的值保持在安全范围内,但与最高温度为36.2°C(97.16°F),而HTC的Windows Phone8S或三星的Galaxy S DUOS爬上超过40°C(104°F)重负载下。这是一个加号的索尼XperiaÉ二人。

Max. Load
 33.9 °C28.6 °C25.8 °C
 36.2 °C28 °C26.3 °C
 35 °C28.1 °C25.9 °C
Maximum: 36.2 °C
Average: 29.8 °C
29.6 °C27.9 °C25.6 °C
32 °C28.3 °C26.4 °C
30.7 °C28.1 °C26.2 °C
Maximum: 32 °C
Average: 28.3 °C
Power Supply (max.)  34.2 °C | Room Temperature 21.7 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 29.8 °C / 86 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 36.2 °C / 97 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 32 °C / 90 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 32.8 °C / 91 F.

Speakers

Der Mono-Speaker liegt im breiten Durchschnitt.
The mono speaker is average.

To play audio material there is a mono speaker at the lower backside of the device. The sound impression is not very convincing. Trebles are too pronounced. Bass and low-pitched sounds are missing entirely. The maximum volume is convincing, but the sound produces distortions from 60 percent onwards. External and peripheral audio devices can be connected through the 3.5 mm stereo port and the quality of transmission is excellent.

播放音频材料,在较低的设备背面有一个单声道扬声器。声音的印象是非常有说服力的。三串太明显。低音和低调的声音完全丢失。最大音量是有说服力的,但是从60%起的声音产生失真。通过3.5毫米立体声端口,可以连接外部及周边音频设备的传输质量优良。

Energy Management

How we test - Battery Life

Energy Consumption

The power consumption of the components constitutes a crucial point for a device with limited battery capacity. Sony includes a battery with 1500 mAh which equates to 5.6 Watt-hours.

In office use the consumption of the smartphone is between 0.7 and 1.4 Watts. The Sony Xperia J consumes less electricity in this scenario, although it has identical hardware, but a bigger screen. The Galaxy S DUOS from Samsung is not as good with 1.8 Watts at the top end of the consumption table. Hence, in comparison to the Xperia J this test device does not convince us in this scenario. During heavy load the consumption of both Sony devices is identical with 1.6 or 2.1 Watts, respectively. The Galaxy S DUOS again consumes more electricity with a maximum of 2.7 Watts, while this smartphone is equipped with a bigger 4-inch display.

元件构成的功率消耗的设备具有有限的电池容量的一个关键点。索尼包括1500毫安时的电池,这相当于5.6瓦小时。

在办公室使用的智能手机的消费量为0.7至1.4瓦特。索尼XperiaĴ消耗更少的电力,在这种情况下,虽然它具有相同的硬件,但一个更大的屏幕。来自三星的Galaxy S DUOS不如在高端消费表1.8瓦。因此,在该测试装置中比较的的Xperia J不说服我们在这种情况下。在重负载的消费两个索尼设备是相同的1.6或2.1瓦,分别。银河S DUOS再次消耗更多的电力,最大2.7瓦,而这款智能手机配备了一个更大的4英寸显示屏。

Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 0.7 / 1.2 / 1.4 Watt
Load midlight 1.6 / 2.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC-940

Battery Runtime

The exchangeable li-ion battery offers 1.500 mAh.
The exchangeable li-ion battery offers 1500 mAh.

In addition to the calling time of 6 hours and 12 minutes as specified by Sony, we have undertaken our own running time measurements. The beginning is marked by the maximum battery run time under minimal screen brightness and all wireless connections disabled (airplane mode). After 18 hours and 43 minutes the Sony Xperia E dual has to be recharged. The Xperia J, with a bigger battery and lower consumption, lasts longer at 21 hours and 30 minutes. The Samsung Galaxy S DUOS comes nowhere near with only 12 hours and 36 minutes.

At the other extreme is the minimal run time under heavy load that we have simulated with the tool Stability Test. The brightness of the screen was maximized and all wireless connections also enabled. After 3 hours and 17 minutes a full battery charge is drained. In this scenario the Xperia J and the Galaxy S DUOS last longer.

A more common scenario is estimated with “surfing with WLAN” mode. With a standard brightness of 150 cd/m² every 40 seconds a new web page is displayed. The test device lasts almost 10 hours in this mode. The difference to the Xperia J is about three hours. The Samsung device lasts about 30 minutes less than the test device.

除了由索尼指定6小时12分钟的通话时间,我们已进行我们自己的运行时间测量。开始标记最小的屏幕亮度下的最大的电池运行时间,并禁用所有无线连接(飞行模式)。 18小时43分钟后,索尼Xperia E双充电。的Xperia J,具有更大的电池和较低的消耗,持续时间为21小时30分钟。三星Galaxy S DUOS远不只有12小时和36分钟。

在另一个极端是最小的重负载下的运行时间,我们有模拟工具稳定性测试。屏幕亮度最大化,也使所有无线连接。 3小时17分钟后,一个完整的电池电量耗尽。在这种情况下的Xperia J和银河S DUOS持续更长的时间。

更常见的情况估计,与“天翼WLAN”模式。随着标准的​​亮度为150坎德拉/平方米,每40秒显示一个新的网页。试验装置,在这种模式下,持续近10小时。的的Xperia J的差大约是3小时。三星设备持续约30分钟不到的测试设备。

Battery Runtime
Idle (without WLAN, min brightness)
18h 43min
WiFi Surfing
9h 55min
Load (maximum brightness)
3h 17min

Verdict

How we test - Verdict

Sony Xperia E dual Smartphone.
Sony Xperia E dual Smartphone.

The Sony Xperia E dual is a good dual-SIM smartphone for little money. One should not expect too much besides this function though. The case  is undoubtedly fancy, but the stability is not ideal. The card reader allowing up to 64 GB is a useful feature considering the small internal storage provided. The integration of the dual-SIM function proves to be good in Android. An update to Google Android 4.1 (Jelly Bean) is yet to be released by Sony though.

The 3.5-inch touchscreen offers convincing test results. However, the low resolution of 320x480 pixels and the use of LCD-TFT technology are not up to date anymore. The performance is fine for a device that costs less than 200 Euros (~$265) and performance in everyday life is good. For gamers and multimedia enthusiasts it is the wrong choice. The battery life based on the 1500 mAh battery is fine; however the consumption in office use is too high in comparison to similar products. Overall, it is a good device for first-users who do not want to carry around two smartphones all the time. Nonetheless, the question still remains why so far only smartphones in the lower price range offer the dual-SIM feature in Germany.

索尼Xperia E双双SIM卡智能手机是一个很好的一点钱。除了这个功能,但人们不应该指望太多。的情况下,无疑是看中,但稳定性不理想。允许多达64 GB的读卡器是一个非常有用的功能,考虑提供内部存储。双SIM卡功能的整合在Android被证明是良好的。谷歌Android4.1(果冻豆)的更新又是由索尼,虽然被释放。

3.5英寸的触摸屏提供有说服力的测试结果。然而,低的分辨率为320x480像素,使用的LCD-TFT技术是不是最新的了。性能优良的设备,成本低于200欧元(约$265),并在日常生活中的表现是不错的。对于游戏玩家和多媒体爱好者,这是错误的选择。 1500毫安的电池的电池寿命的基础上是好的,但是在同类产品相比,在办公室使用的消费太高。总体而言,它是一个很好的设备的第一用户,谁不想随身携带两个智能手机所有的时间。尽管如此,问题仍然存在,为什么迄今在德国,只有在较低的价格范围内的智能手机提供了双SIM卡的功能。

Review unit provided by ...
Please share our article, every link counts!
In Review: Sony Xperia E dual Smartphone
In Review: Sony Xperia E dual Smartphone, provided by:

Specifications

Sony Xperia E dual (Xperia Series)
Processor
Qualcomm Snapdragon S1 MSM7227A 1 x 1 GHz, Cortex A5
Graphics adapter
Qualcomm Adreno 200
Memory
512 MB
, LPDDR1, onboard
Display
3.50 inch 2:3, 480 x 320 pixel, capacitive, multi-Touch, TFT LED, Diagonal: 8.9 centimeters, PMMA, 165 DPI, glossy: yes
Storage
4 GB Flash, 4 GB
, integrated
Connections
Audio Connections: 3,5 mm stereo, Card Reader: Micro-SD up to 64 GB, Sensors: gyroscope, A-GPS, accelerometer, digital compass, Micro-USB
Networking
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 2.1 +EDR, GSM: 850, 900, 1.800 and 1.900 MHz - WCDMA/UMTS: 900 and 2.100 MHz (Europe)
Size
height x width x depth (in mm): 11 x 61.8 x 113.5
Battery
6 Wh Lithium-Ion, 1500 mAh, exchangeable, type: BA700
Operating System
Android 4.0
Camera
Webcam: Hauptkamera mit 3.2 Megapixel, 2.048 x 1.536 Pixel, Autofokus, 4x Digitalzoom, 4:3, Videoaufzeichnung in VGA (640 x 480 Pixel)
Additional features
Speakers: mono, Keyboard: virtual, QWERTZ, 智能手机,USB电缆,模块化的USB供电,耳机,文档, 谷歌地图,通话,导航,文件指挥官,智能连接,YouTube,音乐无限,在线PlayMemorie,新闻和天气,的TrackID,Evernote的,OfficeSuite的PlayNow功能,索尼选择,NeoReader应用,更新中心,UKW收音机,随身, 24 Months Warranty, DNLA,型号:C1605,颜色变化:黑色或金色
Weight
116 g, Power Supply: 65 g
Price
169 Euro



The card reader also supports memory cards of up to 64 GB.
The card reader also supports memory cards of up to 64 GB.
The panel has a resolution of 320 x 480 pixel (2:3) and offers 165 DPI.
The panel has a resolution of 320 x 480 pixel (2:3) and offers 165 DPI.
AndroBench determines the performance of the memory.
AndroBench determines the performance of the memory.
In comparison the result of Quadrant 2.0 (2.023 points).
In comparison the result of Quadrant 2.0 (2.023 points).
The smartphone score 498 points in GeekBench 2.
The smartphone score 498 points in GeekBench 2.

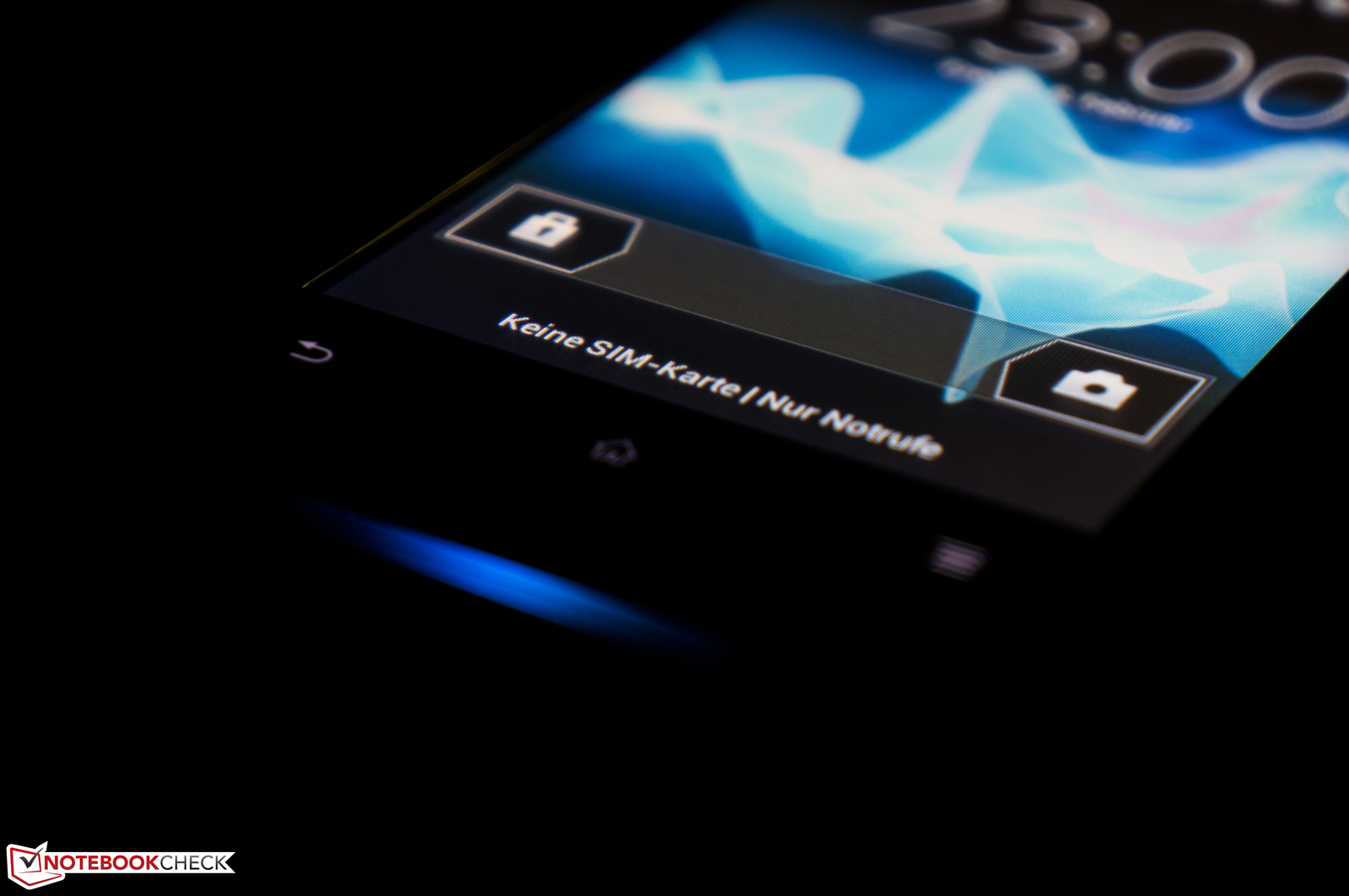

A blue LED stripe in the lower part gives an attractive touch.
A blue LED stripe in the lower part gives an attractive touch.
The simple mono speaker is not very convincing overall.
The simple mono speaker is not very convincing overall.
There is a built in 3.2 megapixel camera for snapshots.
There is a built in 3.2 megapixel camera for snapshots.

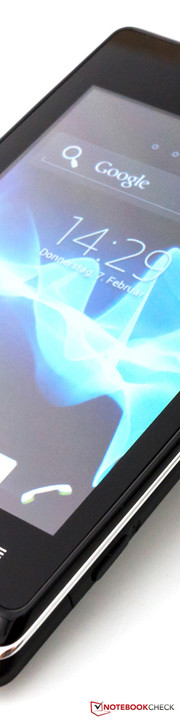

Sony equips the device with a glossy 3.5 inch display.
Sony equips the device with a glossy 3.5 inch display.
The small buttons can get dirty, if the back side is removed.
The small buttons can get dirty, if the back side is removed.
We test the Sony Xperia E dual first-use smartphone.
We test the Sony Xperia E dual first-use smartphone.
The corresponding holders are hidden behind the casing.
The corresponding holders are hidden behind the casing.
Small opening for a tag or a wrist strap.
Small opening for a tag or a wrist strap.
One can use audio devices through the stereo input .
One can use audio devices through the stereo input .
Vis-à-vis : Volume control and the power button.
Vis-à-vis : Volume control and the power button.
Data and energy through a micro-USB.
Data and energy through a micro-USB.
The back offers a structured plastic surface.
The back offers a structured plastic surface.
There is a suitable menu for the switch in the properties.
There is a suitable menu for the switch in the properties.
Special feature: Two SIM cards can be used.
Special feature: Two SIM cards can be used.
It is powered by a single-core-SoC chip from Qualcomm.
It is powered by a single-core-SoC chip from Qualcomm.
Below the display are the Android controls.
Below the display are the Android controls.

Similar devices

Similar devices from a different Manufacturer

Devices with Same Screen Size and/or Weight

索尼 Xperia 10 V 评测--具有强大持久力的轻型智能手机
Adreno 619, Snapdragon SD 695 5G, 6.10", 0.159 kg

Links

Price Comparison

Pros

+ 花哨的设计和坚固的内置
+ 坐在舒适在手
+ 读卡器支持高达64GB
+ 可交换电池
+ 两个SIM卡空间
+ 价格便宜
+ 令人信服的值的显示
+ 在外面的温度增加
+ 可接受的电池寿命

Cons

-
- 触觉及稳定性没有说服力
- 低显示分辨率(320×480像素)
- 液晶TFT面板的视野角稳定
- 性能比较缓慢
- 只有512 MB的RAM和磁盘空间(2,3 GB存储净)
- 无法播放高清晰度(HD)内容
- 坏单声道扬声器
- 消耗在办公室使用有点高

Shortcut

What we like

The integration of the dual-SIM function, the integrated card reader for media of up to 64 GB and the good results of the display performance tests.

What we are missing

Faster and better hardware and most of all a higher resolution display on the basis of the IPS- or AMOLED Technology.

What surprises us

The fact that apparently Sony and other producers seem to consider the use of dual-SIM smartphones only in the lower price segment – at least in Germany. What a shame!

The competitors

The Samsung Galaxy S DUOS GT-S7562 as dual-SIM counterpart. Alternatives for single SIM card: Sony Xperia J, Sony Xperia T, Samsung Galaxy S3 Mini, HTC Windows Phone 8S, HTC One SV, Nokia Lumia 820, Motorola RAZR i or clearly the Google Nexus 4.

我们喜欢


的双SIM卡功能的整合,集成卡阅读器,用于媒体高达64 GB和显示性能的测试结果良好。

我们缺少什么

更快,更好的硬件和更高的分辨率显示的IPS-或AMOLED技术的基础上。

但令人惊讶的


的事实,显然索尼和其他生产者似乎考虑使用双SIM卡的智能手机只在较低的价格段 - 至少在德国。什么丢人!

竞争对手


三星Galaxy S DUOS GT-S7562双SIM卡对应。单SIM卡的替代品:HTC的Windows Phone8S,三星Galaxy S3小型,索尼Xperia J,索尼XperiaŤ的HTC One SV,诺基亚Lumia820,摩托罗拉RAZRí或清楚谷歌Nexus4。

Rating

Sony Xperia E dual - 08/05/2013 v3 (old)
Felix Sold

Chassis
78%
Keyboard
38%
Pointing Device
89%
Connectivity
40%
Weight
100%
Battery
97%
Display
78%
Games Performance
20%
Application Performance
30%
Temperature
90%
Noise
100%
Add Points
70%
Average
69%
84%
Smartphone - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 索尼Xperia E双智能手机测评
Felix Sold, 2013-05- 9 (Update: 2014-06-13)
