惠普 15-BW077AX (A9-9420, Radeon R5) 笔记本电脑简短评测

迟缓而坚固。 惠普15-BW077AX是一台来自惠普的搭配AMD最新A9处理器的入门级笔记本电脑。尽管它年纪轻轻,但这块处理器让我们感觉落后于竞争对手数年之久,整个笔记本电脑能够给用户带来的功能也十分有限。
AMD Bristol Ridge / Stoney Ridge Laptop / Notebook Windows
HP 15-bw077ax (15 bw000 Series)
Processor
AMD A9-9420 2 x 3 - 3.6 GHz, Stoney Ridge
Graphics adapter
AMD Radeon R5 (Stoney Ridge), Core: 205 MHz, RAM: 750 MHz, Crimson ReLive 17.1.1
Memory
4 GB
, DDR4-2400 / PC4-19200
Display
15.60 inch 16:9, 1366 x 768 pixel 100 PPI, 非触控, BOE BOE06A4, TN LED, glossy: yes
Mainboard
AMD CZ FCH
Storage
WDC Scorpio Blue WD10JPVX-60JC3T1, 1000 GB
, 5400 rpm, 5400 RPM 机械硬盘, 931 GB free
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合音频输入/输出接口(耳机), Card Reader: 四合一SD/SDHC/SDXC读卡器
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/)
Size
height x width x depth (in mm): 20 x 380 x 254
Battery
31 Wh Lithium-Ion, removeable, 4芯
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清
Additional features
Speakers: 双扬声器, Keyboard: 孤岛式, Keyboard Light: no, Norton Antivirus
Weight
1.86 kg, Power Supply: 201 g
Price
410 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

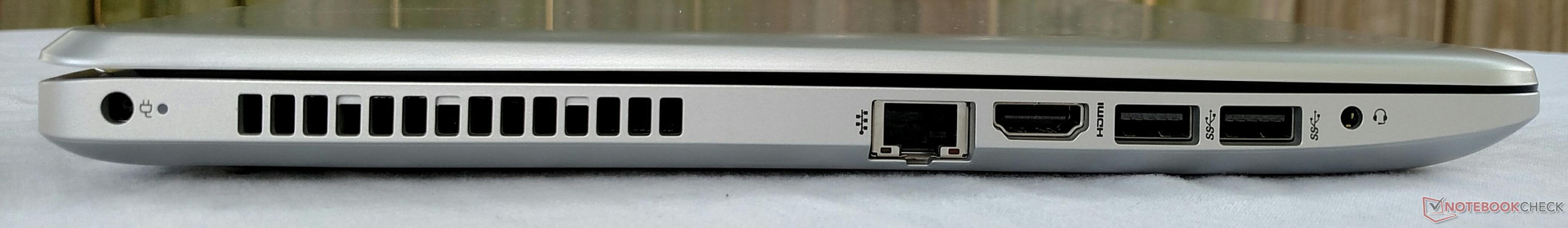

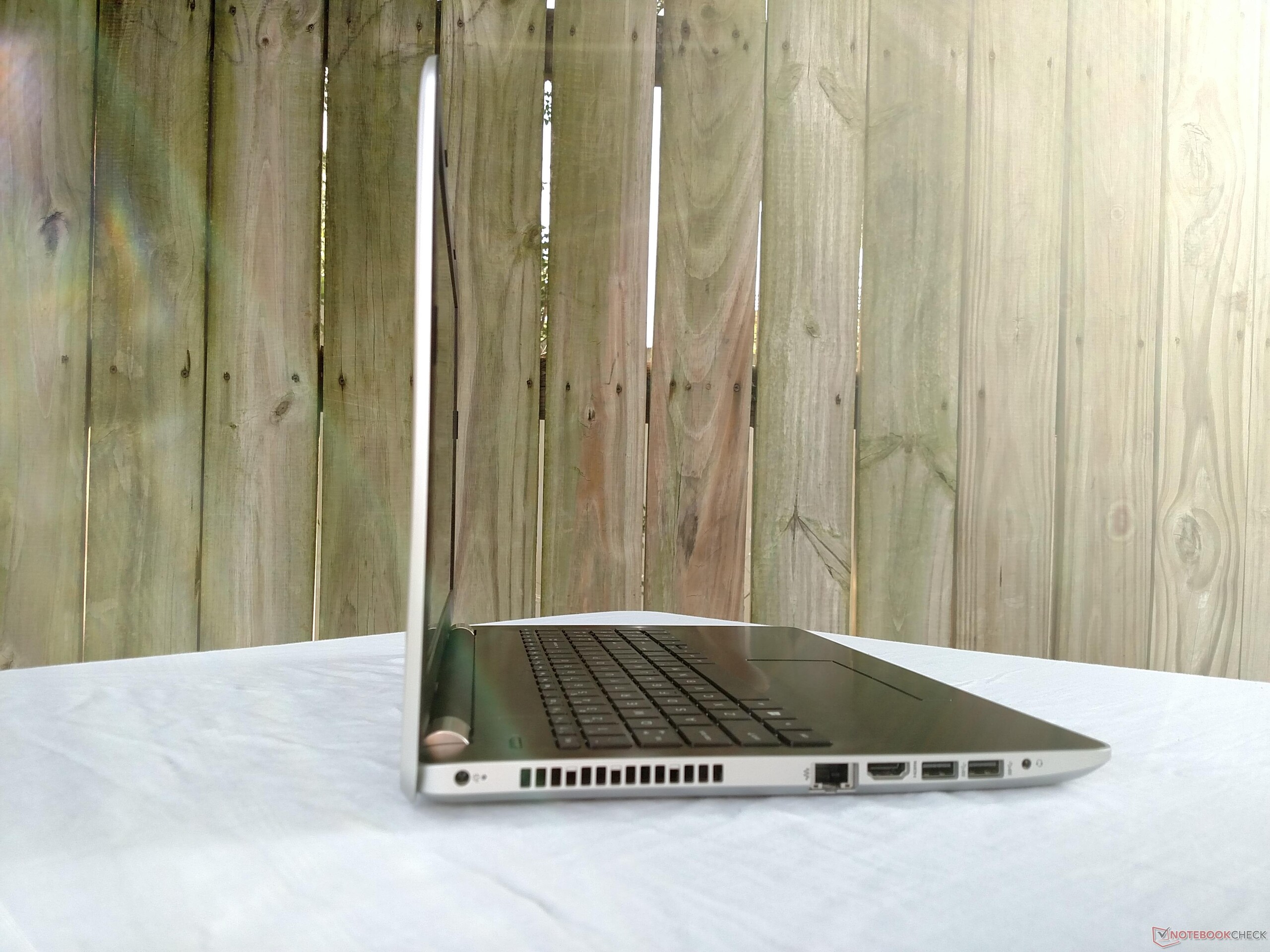

Left: Power in, Ethernet, HDMI, 2x USB 3.1 (Gen 1), Combo audio in/out
Left: Power in, Ethernet, HDMI, 2x USB 3.1 (Gen 1), Combo audio in/out

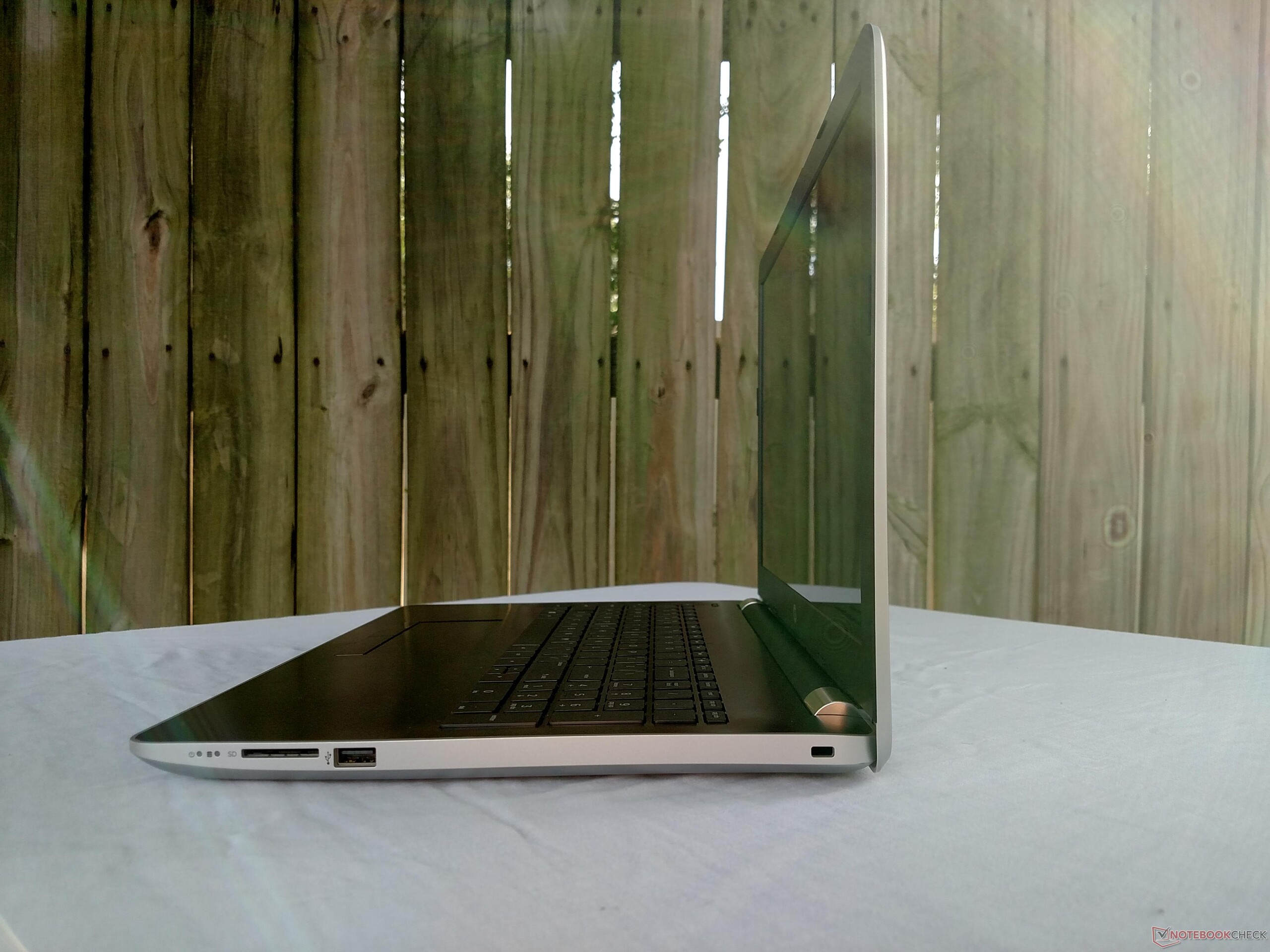

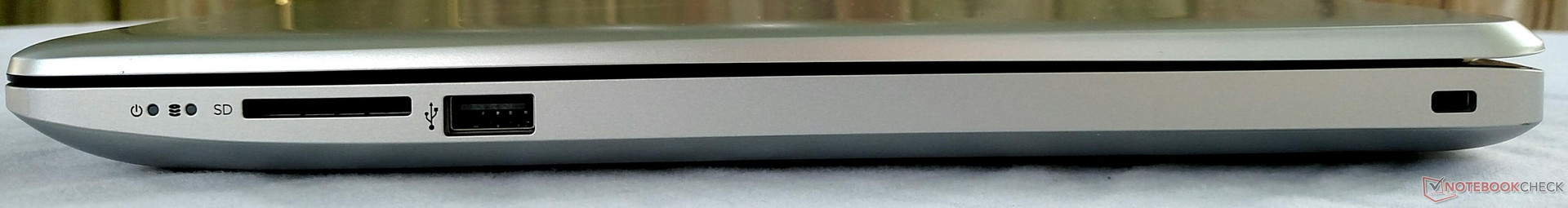

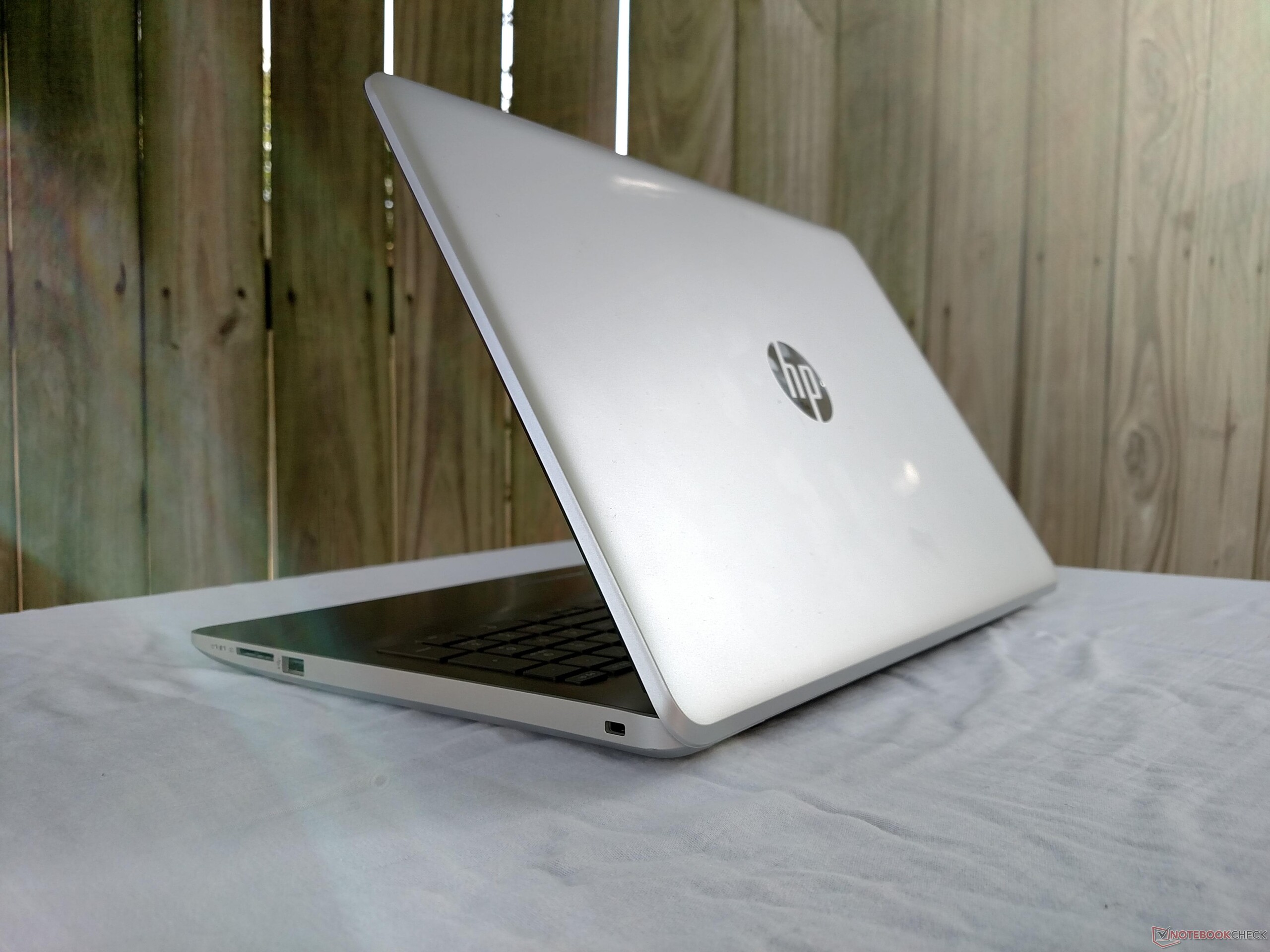

Right: Activity LEDs, SD Card, USB 2.0, Kensington lock
Right: Activity LEDs, SD Card, USB 2.0, Kensington lock

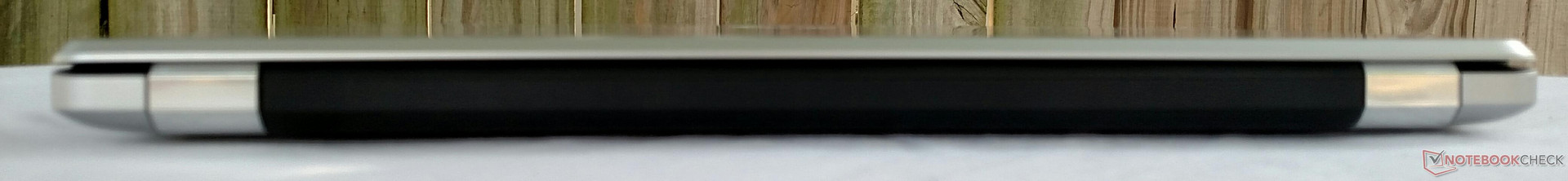

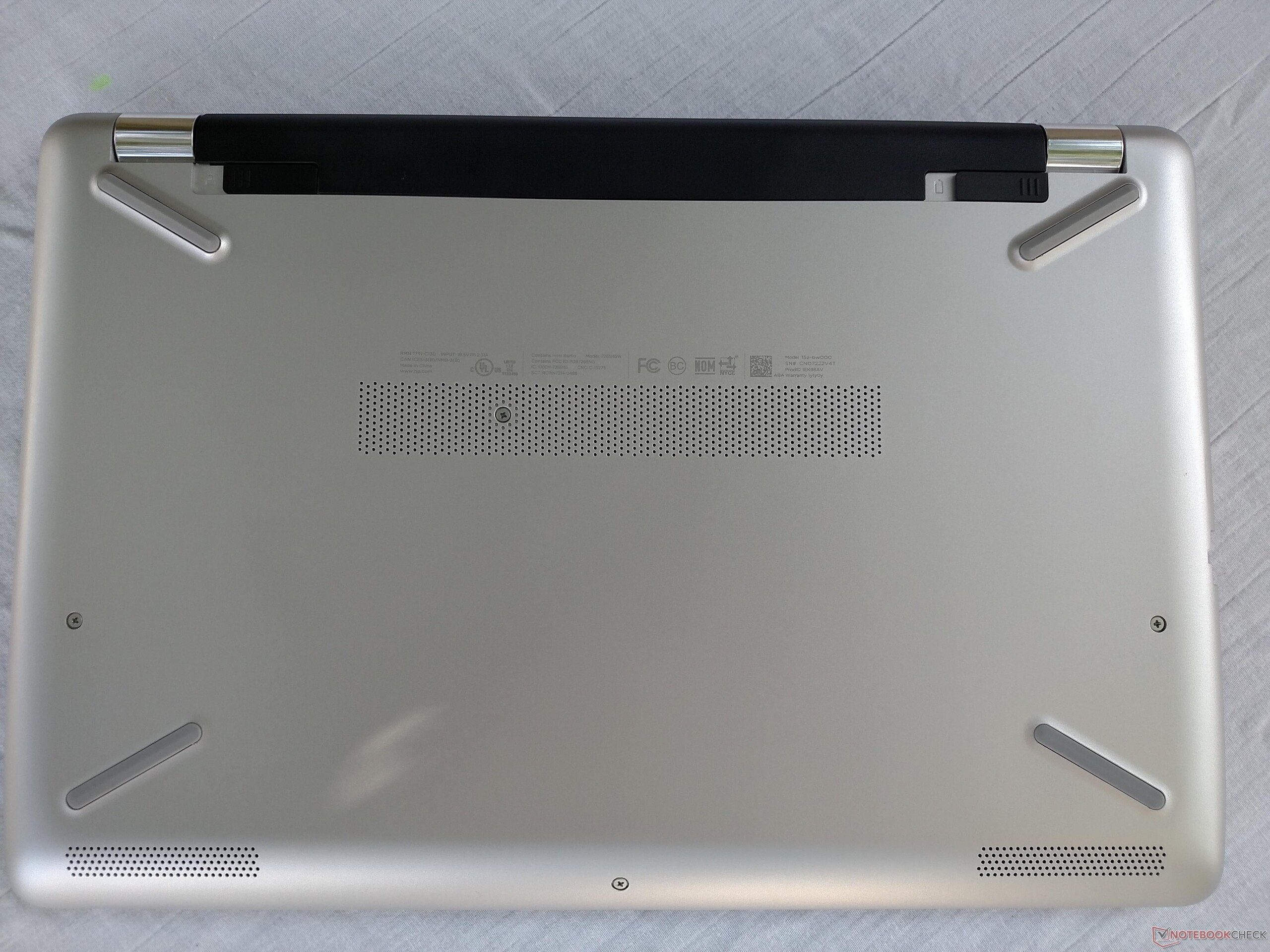

Rear: removable battery
Rear: removable battery

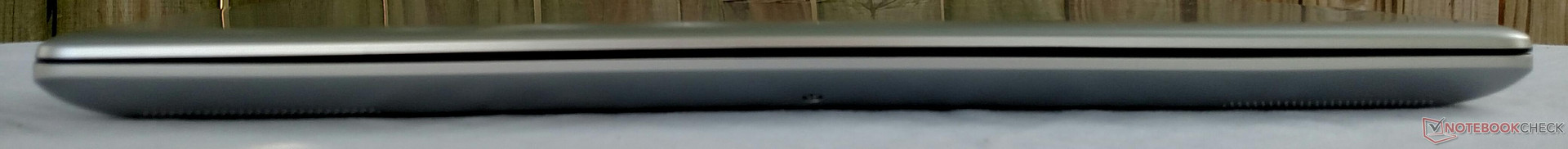

Front: none
Front: none
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo Yoga 510-14AST

64.1 MB/s +131%
HP Pavilion 15-aw004ng W8Y60EA

57.3 MB/s +106%
Lenovo B50-10 80QR0013GE

45.4 MB/s +64%
HP 15-bw077ax

27.75 MB/s
Asus X555DA-BB11

24.9 MB/s -10%
maximum AS SSD Seq Read Test (1GB)
Lenovo B50-10 80QR0013GE

87.3 MB/s +154%
Lenovo Yoga 510-14AST

86.7 MB/s +152%
HP Pavilion 15-aw004ng W8Y60EA

85.3 MB/s +148%
HP 15-bw077ax

34.42 MB/s
Asus X555DA-BB11

26.8 MB/s -22%
Networking
iperf3 transmit AX12
HP 15-bw077ax
Intel Dual Band Wireless-AC 7265
349 MBit/s
Lenovo Yoga 510-14AST
Qualcomm Atheros QCA9377 Wireless Network Adapter
332 MBit/s -5%
Asus X555DA-BB11
Realtek 8821AE Wireless LAN 802.11ac PCI-E NIC
197 MBit/s -44%
iperf3 receive AX12
HP 15-bw077ax
Intel Dual Band Wireless-AC 7265
442 MBit/s
Asus X555DA-BB11
Realtek 8821AE Wireless LAN 802.11ac PCI-E NIC
341 MBit/s -23%
Lenovo Yoga 510-14AST
Qualcomm Atheros QCA9377 Wireless Network Adapter
188 MBit/s -57%
218
cd/m²
212.6
cd/m²
204.1
cd/m²
200.7
cd/m²
194.1
cd/m²
183.9
cd/m²
175.5
cd/m²
176.1
cd/m²
159.4
cd/m²
Distribution of brightness
BOE BOE06A4 tested with X-Rite i1Pro 2
Maximum: 218 cd/m² (Nits) Average: 191.6 cd/m² Minimum: 9.3 cd/m²
Brightness Distribution: 73 %
Center on Battery: 192.8 cd/m²
Contrast: 719:1 (Black: 0.27 cd/m²)
ΔE Color 9.9 | 0.5-29.43 Ø4.92
ΔE Greyscale 11.6 | 0.5-98 Ø5.2
58% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.16
HP 15-bw077ax
BOE BOE06A4, TN LED, 15.6", 1366x768
Lenovo B50-10 80QR0013GE
Chi Mei N156BGE-EA2, TN LED, 15.6", 1366x768
Lenovo Yoga 510-14AST
AU Optronics B140XTN02.E, TN LED, 14", 1366x768
Asus X555DA-BB11
TN LED, 15.6", 1920x1080
HP Pavilion 15-aw004ng W8Y60EA
Chi Mei, TN LED, 15.6", 1920x1080
Display
Display P3 Coverage
40.21
34.15
35.12
40.35
sRGB Coverage
60.1
51.4
52.7
60.3
AdobeRGB 1998 Coverage
41.56
35.28
36.29
41.71
Response Times
15%
-47%
1%
0%
Response Time Grey 50% / Grey 80% *
42.4 ?(22, 20.4)
28 ?(13, 15)
34%
70 ?(32, 38)
-65%
42 ?(23.6, 18.4)
1%
41 ?(19, 22)
3%
Response Time Black / White *
22.4 ?(17.2, 5.2)
20 ?(10, 10)
11%
29 ?(23, 6)
-29%
22.4 ?(14.4, 8)
-0%
23 ?(10, 13)
-3%
PWM Frequency
198.4 ?(99)
200 ?(90)
1%
Screen
5%
-17%
6%
-3%
Brightness middle
194.1
245
26%
242
25%
242.7
25%
240
24%
Brightness
192
230
20%
224
17%
232
21%
228
19%
Brightness Distribution
73
84
15%
88
21%
88
21%
89
22%
Black Level *
0.27
0.46
-70%
0.62
-130%
0.52
-93%
0.49
-81%
Contrast
719
533
-26%
390
-46%
467
-35%
490
-32%
Colorchecker dE 2000 *
9.9
8.34
16%
13.03
-32%
4.9
51%
10.96
-11%
Colorchecker dE 2000 max. *
23.4
12.31
47%
18.79
20%
20.3
13%
18.36
22%
Greyscale dE 2000 *
11.6
9.48
18%
14.6
-26%
2.7
77%
11.34
2%
Gamma
2.16 102%
2.38 92%
2.22 99%
2.34 94%
2.27 97%
CCT
11981 54%
10624 61%
18869 34%
6876 95%
12292 53%
Color Space (Percent of AdobeRGB 1998)
37
38
3%
33
-11%
33.5
-9%
39
5%
Color Space (Percent of sRGB)
58
57
-2%
52
-10%
52.5
-9%
60
3%
Total Average (Program / Settings)
10% / 7%
-32% / -22%
4% / 5%
-2% / -2%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

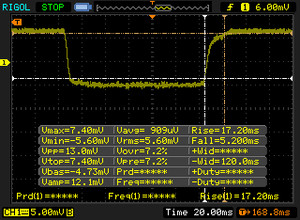

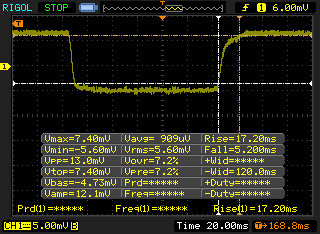

       Response Time Black to White
22.4 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 5.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 46 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21 ms).

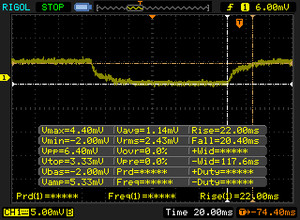

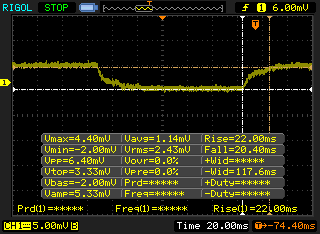

       Response Time 50% Grey to 80% Grey
42.4 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 20.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 67 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

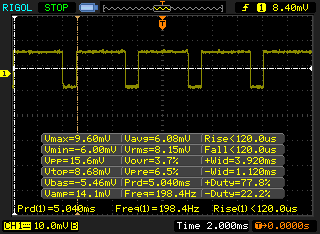

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 198.4 Hz ≤ 99 % brightness setting

The display backlight flickers at 198.4 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 99 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198.4 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

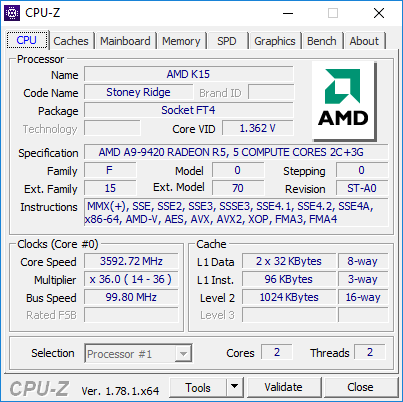

CPU-Z: CPU
CPU-Z: CPU

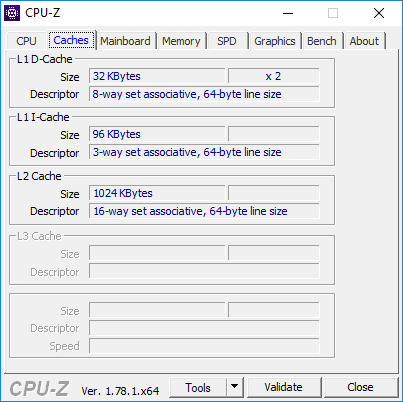

CPU-Z: Caches
CPU-Z: Caches

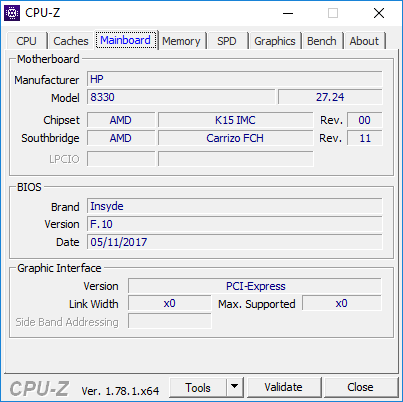

CPU-Z: Mainboard
CPU-Z: Mainboard

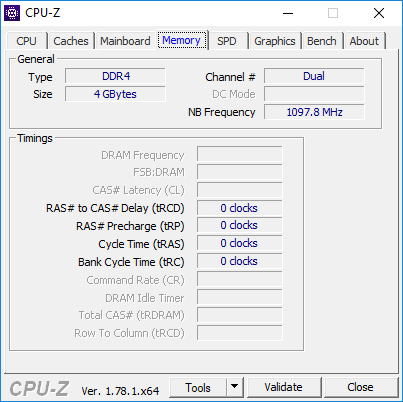

CPU-Z: Memory
CPU-Z: Memory

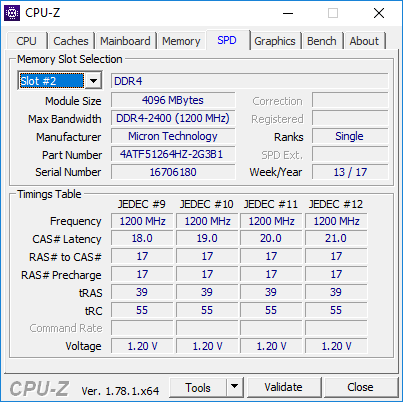

CPU-Z: SPD
CPU-Z: SPD

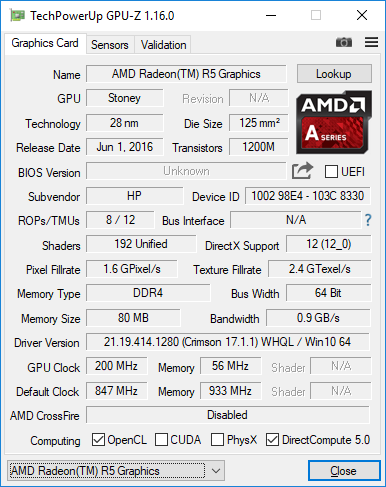

GPU-Z
GPU-Z

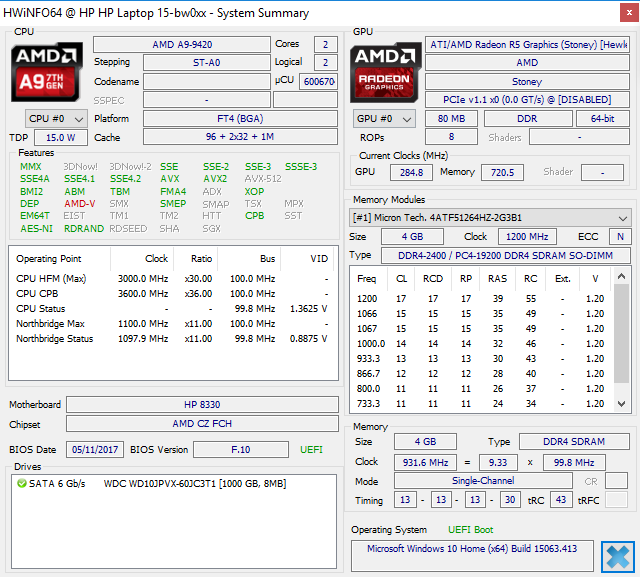

HWiNFO64
HWiNFO64
0102030405060708090100110120130140Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Acer TravelMate P249-M-3895
Intel Core i3-6100U
98 Points +31%
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
86 Points +15%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
75 Points 0%
HP 15-bw077ax
AMD A9-9420
75 Points
Asus X555DA-BB11
AMD A10-8700P
64 Points -15%
Lenovo Yoga 510-14AST
AMD A9-9410
63 Points -16%
Lenovo B50-10 80QR0013GE
Intel Pentium N3540
40 Points -47%
CPU Multi 64Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
256 Points +106%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
250 Points +102%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
215 Points +73%
Asus X555DA-BB11
AMD A10-8700P
180 Points +45%
Lenovo B50-10 80QR0013GE
Intel Pentium N3540
151 Points +22%
Lenovo Yoga 510-14AST
AMD A9-9410
130 Points +5%
HP 15-bw077ax
AMD A9-9420
124 Points
Cinebench R11.5
CPU Single 64Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
1.03 Points +7%
HP 15-bw077ax
AMD A9-9420
0.96 Points
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
0.87 Points -9%
Asus X555DA-BB11
AMD A10-8700P
0.83 Points -14%
Lenovo Yoga 510-14AST
AMD A9-9410
0.82 Points -15%
CPU Multi 64Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
2.85 Points +83%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
2.59 Points +66%
Asus X555DA-BB11
AMD A10-8700P
2.3 Points +47%
Lenovo Yoga 510-14AST
AMD A9-9410
1.59 Points +2%
HP 15-bw077ax
AMD A9-9420
1.56 Points
Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
8718 Points +88%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
8426 Points +82%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
6077 Points +31%
Asus X555DA-BB11
AMD A10-8700P
4808 Points +4%
HP 15-bw077ax
AMD A9-9420
4627 Points
Lenovo Yoga 510-14AST
AMD A9-9410
4619 Points 0%
Lenovo B50-10 80QR0013GE
Intel Pentium N3540
4454 Points -4%
Rendering Single 32Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
3871 Points +40%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
3714 Points +35%
HP 15-bw077ax
AMD A9-9420
2761 Points
Lenovo Yoga 510-14AST
AMD A9-9410
2694 Points -2%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
2520 Points -9%
Asus X555DA-BB11
AMD A10-8700P
2192 Points -21%
Lenovo B50-10 80QR0013GE
Intel Pentium N3540
1340 Points -51%
wPrime 2.10 - 1024m
Lenovo Yoga 510-14AST
AMD A9-9410
751 s * -1%
HP 15-bw077ax
AMD A9-9420
747 s *
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
645 s * +14%
Asus X555DA-BB11
AMD A10-8700P
507 s * +32%

* ... smaller is better

Cinebench R10 Shading 32Bit
2752
Cinebench R10 Rendering Multiple CPUs 32Bit
4627
Cinebench R10 Rendering Single 32Bit
2761
Cinebench R11.5 OpenGL 64Bit
16.4 fps
Cinebench R11.5 CPU Multi 64Bit
1.56 Points
Cinebench R11.5 CPU Single 64Bit
0.96 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
19.66 fps
Cinebench R15 CPU Multi 64Bit
124 Points
Cinebench R15 CPU Single 64Bit
75 Points
Help
PCMark 8
Home Score Accelerated v2
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
2904 Points +45%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
2670 Points +33%
Asus X555DA-BB11
Radeon R6 (Carrizo), A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2335 Points +16%
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
2005 Points
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1413 Points -30%
Work Score Accelerated v2
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
3883 Points +31%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
3728 Points +26%
Asus X555DA-BB11
Radeon R6 (Carrizo), A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3246 Points +10%
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
2961 Points
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1426 Points -52%
Creative Score Accelerated v2
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
3569 Points +52%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
2898 Points +23%
Asus X555DA-BB11
Radeon R6 (Carrizo), A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2856 Points +22%
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
2350 Points
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1265 Points -46%
PCMark 8 Home Score Accelerated v2
2005 points
PCMark 8 Creative Score Accelerated v2
2350 points
PCMark 8 Work Score Accelerated v2
2961 points
Help
HP 15-bw077ax
WDC Scorpio Blue WD10JPVX-60JC3T1
Lenovo B50-10 80QR0013GE
Seagate Momentus Thin ST500LT012-1DG142
Lenovo Yoga 510-14AST

Asus X555DA-BB11
Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Pavilion 15-aw004ng W8Y60EA

CrystalDiskMark 3.0
-3%
6722%
-5%
5054%
Read Seq
91.3
103.5
13%
434.6
376%
106.9
17%
503
451%
Write Seq
90.2
91.1
1%
207.7
130%
97.5
8%
316.6
251%
Read 512
29.02
33.74
16%
356.3
1128%
32.28
11%
261.9
802%
Write 512
39.51
38.77
-2%
195.6
395%
35.39
-10%
281.2
612%
Read 4k
0.34
0.374
10%
26.71
7756%
0.373
10%
17.04
4912%
Write 4k
0.94
0.649
-31%
56.8
5943%
0.636
-32%
46.55
4852%
Read 4k QD32
0.83
0.818
-1%
176.3
21141%
0.694
-16%
125
14960%
Write 4k QD32
0.96
0.648
-32%
163.3
16910%
0.682
-29%
131.4
13588%
WDC Scorpio Blue WD10JPVX-60JC3T1
Sequential Read: 91.3 MB/s
Sequential Write: 90.2 MB/s
512K Read: 29.02 MB/s
512K Write: 39.51 MB/s
4K Read: 0.34 MB/s
4K Write: 0.94 MB/s
4K QD32 Read: 0.83 MB/s
4K QD32 Write: 0.96 MB/s
3DMark 11
1280x720 Performance GPU
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, A10-9600P
3775 Points +244%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
1633 Points +49%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, i5-7200U
1589 Points +45%
Asus Zenbook UX360UA-C4159T
Intel HD Graphics 520, 6500U
1489 Points +36%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, i7-7600U
1446 Points +32%
Fujitsu Lifebook S936 6600U 512GB PalmSecure
Intel HD Graphics 520, 6600U
1442 Points +32%
Acer TravelMate P449-M-7407
Intel HD Graphics 520, 6500U
1410 Points +29%
Asus X555DA-BB11
AMD Radeon R6 (Carrizo), A10-8700P
1288 Points +18%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), A9-9410
1190 Points +9%
Acer TravelMate P249-M-3895
Intel HD Graphics 520, 6100U
1131 Points +3%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
1096 Points
Lenovo B50-10 80QR0013GE
Intel HD Graphics (Bay Trail), N3540
200 Points -82%
1280x720 Performance Combined
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, i5-7200U
1630 Points +106%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
1566 Points +98%
Acer TravelMate P449-M-7407
Intel HD Graphics 520, 6500U
1486 Points +88%
Asus Zenbook UX360UA-C4159T
Intel HD Graphics 520, 6500U
1479 Points +87%
Fujitsu Lifebook S936 6600U 512GB PalmSecure
Intel HD Graphics 520, 6600U
1297 Points +64%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, A10-9600P
1296 Points +64%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, i7-7600U
1225 Points +55%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), A9-9410
988 Points +25%
Acer TravelMate P249-M-3895
Intel HD Graphics 520, 6100U
911 Points +15%
Asus X555DA-BB11
AMD Radeon R6 (Carrizo), A10-8700P
861 Points +9%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
790 Points
Lenovo B50-10 80QR0013GE
Intel HD Graphics (Bay Trail), N3540
239 Points -70%
3DMark
1280x720 Cloud Gate Standard Graphics
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, A10-9600P
12483 Points +241%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, i5-7200U
9153 Points +150%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
8075 Points +121%
Asus Zenbook UX360UA-C4159T
Intel HD Graphics 520, 6500U
7917 Points +116%
Microsoft Surface Pro (2017) i5
Intel HD Graphics 620, i5-7300U
7265 Points +98%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, i7-7600U
7068 Points +93%
Acer TravelMate P449-M-7407
Intel HD Graphics 520, 6500U
7064 Points +93%
Fujitsu Lifebook S936 6600U 512GB PalmSecure
Intel HD Graphics 520, 6600U
6971 Points +90%
Lenovo Thinkpad 13-20J1001BUS
Intel HD Graphics 620, i3-7100U
5854 Points +60%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), A9-9410
4755 Points +30%
Asus X555DA-BB11
AMD Radeon R6 (Carrizo), A10-8700P
4033 Points +10%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
3661 Points
Lenovo B50-10 80QR0013GE
Intel HD Graphics (Bay Trail), N3540
1290 Points -65%
1920x1080 Fire Strike Graphics
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, A10-9600P
2209 Points +244%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, i5-7200U
1106 Points +72%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
1000 Points +56%
Microsoft Surface Pro (2017) i5
Intel HD Graphics 620, i5-7300U
889 Points +38%
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, i7-7600U
847 Points +32%
Acer TravelMate P449-M-7407
Intel HD Graphics 520, 6500U
825 Points +29%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), A9-9410
772 Points +20%
Asus X555DA-BB11
AMD Radeon R6 (Carrizo), A10-8700P
764 Points +19%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
642 Points
1920x1080 Ice Storm Extreme Graphics
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, i5-7200U
49623 Points
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, A10-9600P
47091 Points
Acer TravelMate P449-M-7407
Intel HD Graphics 520, 6500U
40939 Points
Toshiba Portege X30-D (PT274U-01N001)
Intel HD Graphics 620, i7-7600U
36544 Points
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), A9-9410
33943 Points
Lenovo Thinkpad 13-20J1001BUS
Intel HD Graphics 620, i3-7100U
28425 Points
Asus X555DA-BB11
AMD Radeon R6 (Carrizo), A10-8700P
26331 Points
3DMark 11 Performance
1103 points
3DMark Cloud Gate Standard Score
2673 points
3DMark Fire Strike Score
596 points
Help
01234567891011Tooltip
The Witcher 3 low
Ashes of the Singularity - 1280x768 low (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
7 fps
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
14.2 fps +103%
Batman: Arkham City
1024x768 Low Preset (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
35 fps
1366x768 Medium Preset (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
27 fps
1366x768 High Preset DX11 AA:2x MS (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
13 fps
Batman: Arkham Origins
1024x768 All Off (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
44 fps
1366x768 Normal / On (PhysX Off) (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
26 fps
1366x768 DX11 Enhanced / On (PhysX Off) AA:2x MS (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
14 fps
BioShock Infinite
1280x720 Very Low Preset (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
38 fps
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
12.2 fps -68%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
43.5 fps +14%
Asus X555DA-BB11
Radeon R6 (Carrizo), A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
36.3 fps -4%
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
72.7 fps +91%
1366x768 Medium Preset (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
22 fps
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
5.6 fps -75%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
26.9 fps +22%
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
42.9 fps +95%
1366x768 High Preset (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
18 fps
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
4.8 fps -73%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
22.2 fps +23%
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
33.7 fps +87%
Call of Duty: Advanced Warfare - 1024x768 Low / Off (Shader Preload On) (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
12 fps
The Witcher 3 - 1024x768 Low Graphics & Postprocessing (sort by value)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
9 fps
lowmed.highultra
Mafia 2 (2010) 26 21 17
Batman: Arkham City (2011) 35 27 13
BioShock Infinite (2013) 38 22 18
Metro: Last Light (2013) 13 10 6
Company of Heroes 2 (2013) 13 10 5
Batman: Arkham Origins (2013) 44 26 14
Middle-earth: Shadow of Mordor (2014) 16 11
Alien: Isolation (2014) 27 17
Call of Duty: Advanced Warfare (2014) 12
The Witcher 3 (2015) 9
Batman: Arkham Knight (2015) 8 5
Rise of the Tomb Raider (2016) 14 8
Hitman 2016 (2016) 4 2
Ashes of the Singularity (2016) 7

Noise Level

Idle
31.8 / 33.2 / 34 dB(A)
Load
33.3 / 36.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)   environment noise: 27.8 dB(A)
HP 15-bw077ax
Radeon R5 (Stoney Ridge), A9-9420, WDC Scorpio Blue WD10JPVX-60JC3T1
Lenovo B50-10 80QR0013GE
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
Asus X555DA-BB11
Radeon R6 (Carrizo), A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Pavilion 15-aw004ng W8Y60EA
Radeon R8 M445DX, A10-9600P
Noise
-2%
5%
1%
-7%
off / environment *
27.8
31.2
-12%
30.4
-9%
28.9
-4%
31.2
-12%
Idle Minimum *
31.8
33.5
-5%
30.4
4%
31.6
1%
31.7
-0%
Idle Average *
33.2
33.5
-1%
30.4
8%
32
4%
31.9
4%
Idle Maximum *
34
33.5
1%
30.4
11%
32.4
5%
31.9
6%
Load Average *
33.3
33.5
-1%
31.3
6%
33.3
-0%
41
-23%
Load Maximum *
36.4
33.5
8%
33.3
9%
35.5
2%
42.7
-17%

* ... smaller is better

Max. Load
 37.2 °C30 °C26.2 °C
 36.6 °C32.2 °C26.2 °C
 33 °C32.2 °C30.2 °C
Maximum: 37.2 °C
Average: 31.5 °C
26.4 °C26.8 °C40.6 °C
27 °C27.8 °C39 °C
29.8 °C30 °C36.2 °C
Maximum: 40.6 °C
Average: 31.5 °C
Power Supply (max.)  40.2 °C | Room Temperature 23 °C | Fluke 62 Mini
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 37.2 °C / 99 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.6 °C / 105 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33 °C / 91.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-4.2 °C / -7.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.540.92539.340.13137.144.54038.942.85035.643.96336.942.68035.343.61003345.212532.445.316033.351.520032.755.325030.560.631530.263.540028.460.350028.260.26302963.78003066.3100028.361.7125026.661.9160025.761.120002554.2250024.860.2315024.659.940002462.9500023.765.1630023.665.7800023.366.1100002362.11250022.962.91600022.965SPL38.475N3.337.9median 26.6median 61.7Delta3.33.731.934.831.931.731.231.734.936.134.929.729.929.729.529.329.528.228.328.226.92726.926.525.726.527.524.327.529.623.429.633.223.533.24321.54354.721.154.762.120.462.157.419.457.456.41956.46518.16565.118.265.161.617.761.660.517.460.559.517.759.56017.86060.618.260.660.118.160.161.518.261.553.118.453.160.218.460.265.418.665.46518.4656018.36073.530.573.532.51.432.5median 60median 18.4median 607.61.27.6hearing rangehide median Pink NoiseHP 15-bw077axLenovo Yoga 510-14AST
HP 15-bw077ax audio analysis

(±) | speaker loudness is average but good (74.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8.8% lower than median
(±) | linearity of bass is average (9.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(±) | linearity of mids is average (7.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(+) | highs are linear (6.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.6% difference to median)
Compared to same class
» 31% of all tested devices in this class were better, 4% similar, 65% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 16% of all tested devices were better, 4% similar, 80% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo Yoga 510-14AST audio analysis

(-) | not very loud speakers (65 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.3% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(±) | linearity of mids is average (8.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(±) | linearity of highs is average (8.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.8% difference to median)
Compared to same class
» 59% of all tested devices in this class were better, 8% similar, 33% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 58% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.15 / 0.33 Watt
Idledarkmidlight 8 / 9.4 / 13.9 Watt
Load midlight 18.5 / 23 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
HP 15-bw077ax
A9-9420, Radeon R5 (Stoney Ridge), WDC Scorpio Blue WD10JPVX-60JC3T1, TN LED, 1366x768, 15.6"
Lenovo B50-10 80QR0013GE
N3540, HD Graphics (Bay Trail), Seagate Momentus Thin ST500LT012-1DG142, TN LED, 1366x768, 15.6"
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge), , TN LED, 1366x768, 14"
Asus X555DA-BB11
A10-8700P, Radeon R6 (Carrizo), Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB, TN LED, 1920x1080, 15.6"
HP Pavilion 15-aw004ng W8Y60EA
A10-9600P, Radeon R8 M445DX, , TN LED, 1920x1080, 15.6"
Power Consumption
28%
20%
-30%
-43%
Idle Minimum *
8
4.8
40%
3.9
51%
8.3
-4%
5.5
31%
Idle Average *
9.4
7.5
20%
7.4
21%
8.6
9%
8.2
13%
Idle Maximum *
13.9
9.2
34%
9.4
32%
13.1
6%
9.5
32%
Load Average *
18.5
16
14%
19.2
-4%
31.2
-69%
44.5
-141%
Load Maximum *
23
15.4
33%
22.5
2%
43.9
-91%
58
-152%

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
9h 00min
WiFi Websurfing
3h 26min
Load (maximum brightness)
1h 05min
HP 15-bw077ax
A9-9420, Radeon R5 (Stoney Ridge), 31 Wh
Lenovo B50-10 80QR0013GE
N3540, HD Graphics (Bay Trail), 24 Wh
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge), 35 Wh
Asus X555DA-BB11
A10-8700P, Radeon R6 (Carrizo), 37 Wh
HP Pavilion 15-aw004ng W8Y60EA
A10-9600P, Radeon R8 M445DX, 41 Wh
Battery Runtime
0%
62%
-8%
25%
Reader / Idle
540
847
57%
435
-19%
560
4%
WiFi v1.3
206
207
0%
325
58%
176
-15%
260
26%
Load
65
112
72%
72
11%
95
46%

Pros

+ 坚固的机身
+ 优秀的扬声器
+ 相对安静清凉的运行

Cons

- 迟缓的处理器
- 机械硬盘性能低
- TN屏幕品质差
- 键盘反馈绵软
- 电池续航短
In review: HP 15-bw077ax. Review unit courtesy of Computer Upgrade King.
In review: HP 15-bw077ax. Review unit courtesy of Computer Upgrade King.

惠普15-bw077ax是一台弱点较多而优势较少的笔记本电脑。它的机身品质对于低价设备来说十分不错,在运行中甚至负载下这台设备也非常安静清凉。它的扬声器也可以提供丰富的多媒体享受,相比其他低价设备高出了一个档次。

不过,它的处理器性能较低,而系统的整体响应速度也极慢。搭配上昏暗的屏幕,绵软的键盘,它给人的整体感受十分惨淡,这让我们很难向用户推荐惠普15-bw077ax。这台设备几乎没有任何可以脱颖而出的一技之长,它很可能会一生在货架上度过,被大多数用户忽视。

如果你正在选找一台实惠型设备,它应该不是个很好的选择。Chromebook由于操作系统更轻盈可以提供更顺畅的使用体验,而售价则与之相当(甚至更便宜),同时也有其他很多很好的低价设备可供选择。我们的实惠型办公笔记本电脑排行榜列出了许多高性价比设备,它们的价位大都与这款设备相当。不论如何,我们不推荐用户花费时间考虑这台设备。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

HP 15-bw077ax - 07/08/2017 v6 (old)
Sam Medley

Chassis
66 / 98 → 67%
Keyboard
60%
Pointing Device
64%
Connectivity
43 / 81 → 53%
Weight
65 / 20-67 → 95%
Battery
72%
Display
70%
Games Performance
52 / 85 → 61%
Application Performance
52 / 92 → 56%
Temperature
92%
Noise
88 / 95 → 92%
Audio
70%
Camera
50 / 85 → 59%
Average
65%
70%
Multimedia - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 惠普 15-BW077AX (A9-9420, Radeon R5) 笔记本电脑简短评测
Sam Medley, 2017-07-16 (Update: 2017-07-16)
