华为手环4和4e:两个一起用也没什么问题

智能手环进化。

虽然华为Band 4是我们测试的重点,但我们同时也评测了Band 4e。 虽然较小的健身手环提供的功能明显不足,但它具有一项很酷的非凡功能。
Accessory Gadget Wearable

Huawei offers its fourth-generation fitness tracker in three different model versions. We have already tested the Huawei Band 4 Pro with OLED - it is the only model that offers GPS. Like the Band 4 Pro, the Band 4 also offers a heart rate sensor. In addition, it brings some typical smart band functions, such as the full display of notifications. In contrast, the Band 4e can only signal that a notification has arrived, without being able to display either the notification itself or from which app it came from. On the other hand, the Band 4e offers one particular function that not only the two other models cannot offer, but that is also very special in general. There is a 6-axis sensor that can record more precise information while running, from which the corresponding Huawei Health app then calculates the step pattern, landing force, and amount of time of ground contact, as well as the number, height, and duration of jumps while playing Basketball.

Huawei Band 4
Processor
Apollo 3
Memory
1 MB
Display
0.96 inch, 80 x 160 pixel, yes, TFT, glossy: yes
Storage
32 MB
Connections
Sensors: 3-axis acceleration sensor, infrared wear sensor, optical heart rate sensor
Networking
Bluetooth 4.2
Battery
91 mAh Lithium-Ion, Battery runtime (according to manufacturer): 168 h
Additional features
Keyboard Light: yes, 384 KB RAM; connectivity: Android 4.4+, iOS 9.0+; water proof: 5 ATM
Weight
20 g
Price
39 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Case and Equipment – Fitness trackers with some differences

There are already some significant differences in the exteriors of both trackers. While Band 4e offers a simply designed monochrome display with a button on the bottom edge, the Band 4 has a full-area color touch display with manual brightness control and a large selection of alternative watch faces. Its comfortably soft Silicone band - available optionally in black, pink, or red - ensures a tight fit around the wrist, which is important for the optical heart rate sensor.

The latter is missing in the Band 4e, and the designers from Huawei have opted for a completely different design. The tracker is worn loosely around the wrist, held by an adjustable, elastic band made from recycled materials. The box also includes a clip to fasten it to your shoe. Since only the shoe clip has two contacts, the tracker is able to change into shoe-mode automatically, if you enable automatic recognition. In addition to the band and shoe clip, the Band 4e also includes a charger with a standard USB connection.

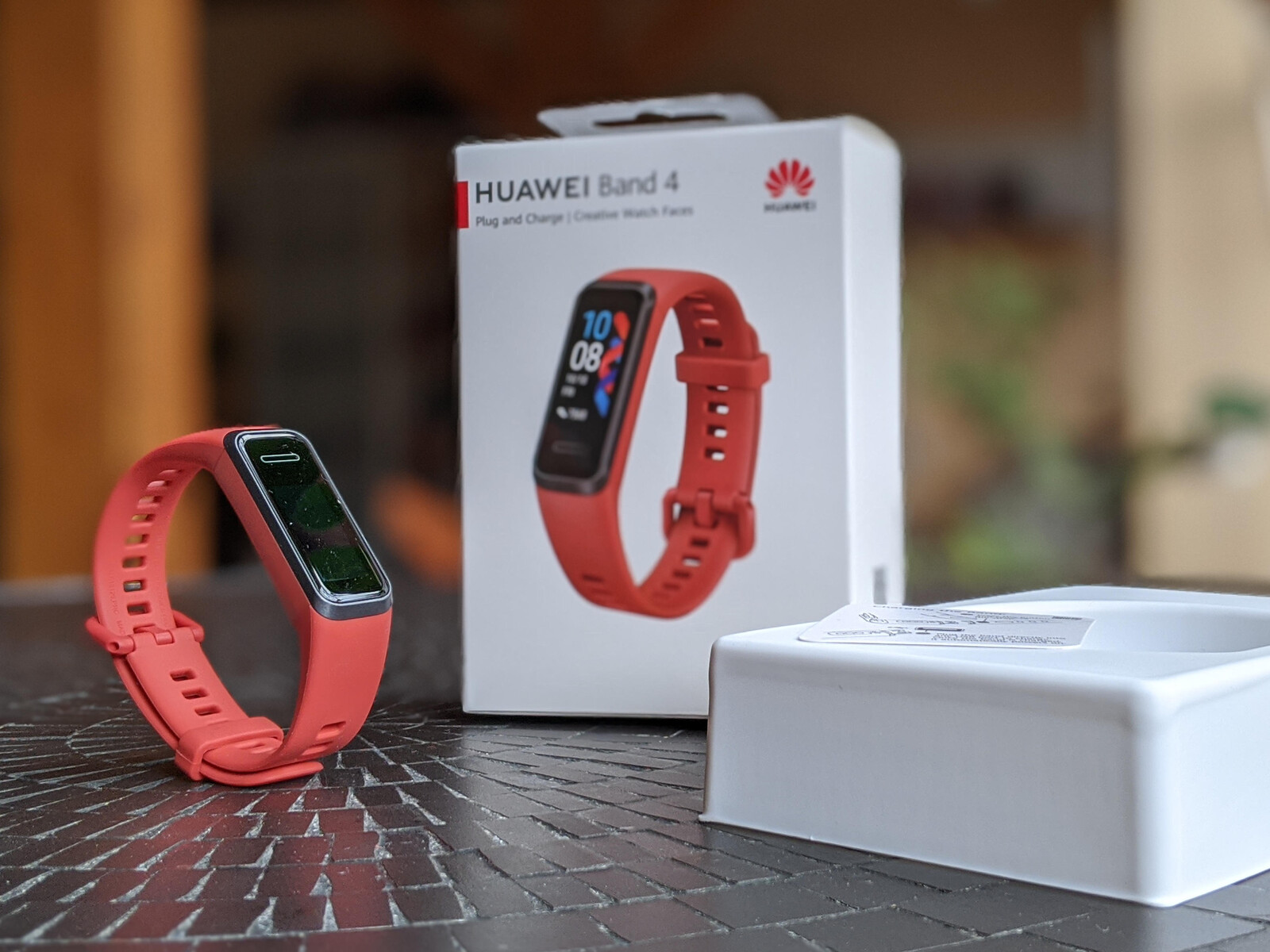

Band 4 box contents
Band 4 box contents

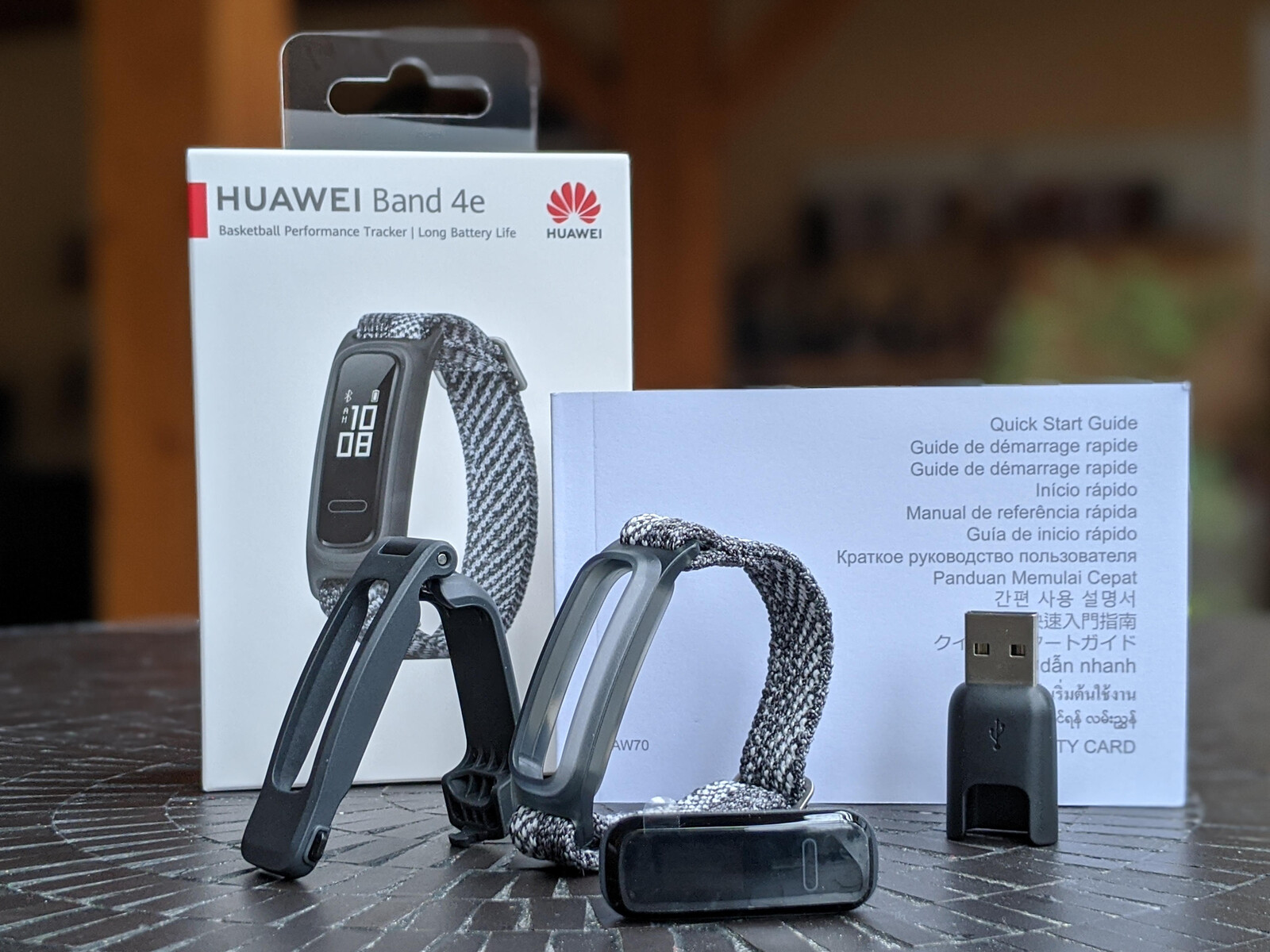

Band 4e box contents
Band 4e box contents

Huawei has integrated the charger cleverly into the Band 4. It appears when you open the band on one side of the tracker case, and you can then directly plug it into a corresponding USB charger (not included).

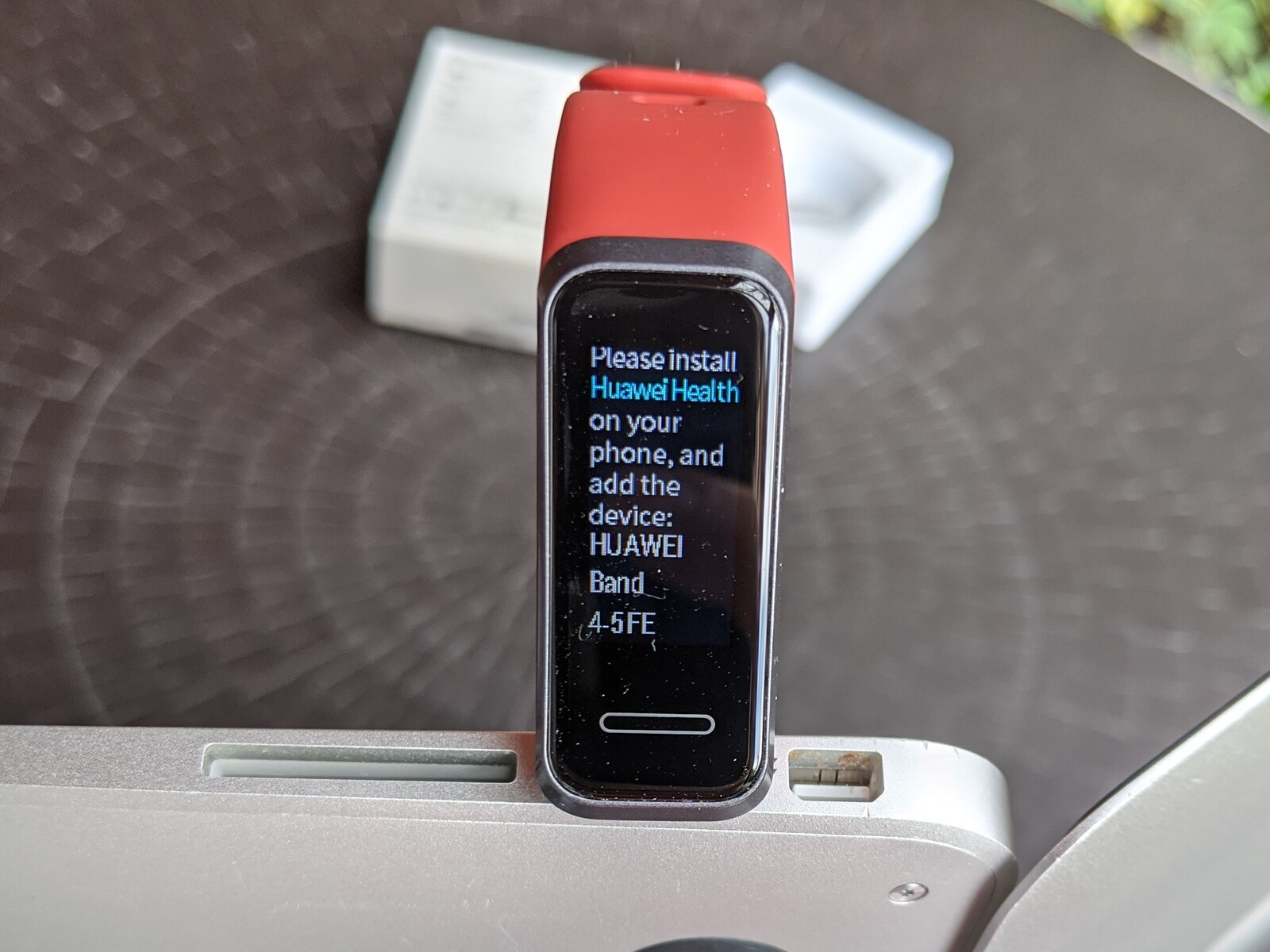

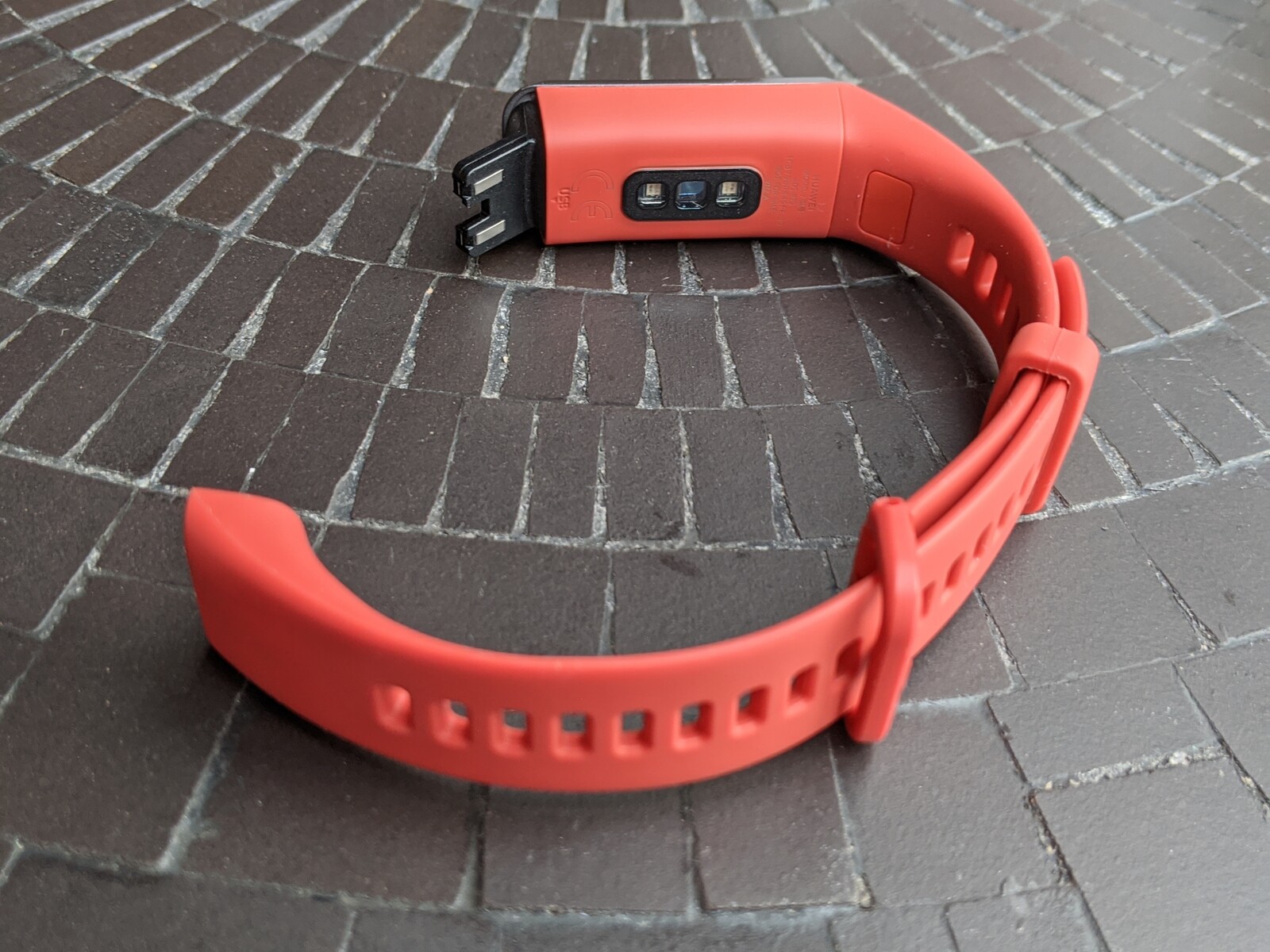

Band 4 charging connector
Band 4 charging connector
Charging
Charging

Setup – The Health app supports parallel operation

Both trackers cannot be used without the Huawei Health app and logging into a Huawei account. From our test of the Huawei Watch GT 2, we already had the app installed on a Pixel 3, but this led to some difficulties before our actual test. After some research, we found out that the Huawei Mobile Services, which need to run in the background, created some trouble after an update, particularly in some Pixel models. In our case, the work-around consisted in initially creating the Huawei account - if not already created - using a browser, for example, and then connecting the already created Huawei account via the account setup in the system settings. While the Health app still displayed an error initially upon opening it the next time, it ran without any problems afterwards.

The app was then able to connect to both bands in parallel without any trouble. It combined their information, which makes sense when the devices have different sensors as is the case here (Band 4 with a heart rate sensor and Band 4e with a more accurate gyroscope).

Operation and Software – Only Band 4 has a touchscreen

All the trackers of the Huawei Band-4 series offer a sensor key at the bottom of the display for operation. However, in the Band 4e, this is the only input option. The display changes when the key is tapped or alternatively when the wrist is turned. Alternately the smartphone search function and the status for the activities of the day are displayed: minutes of being stationary or intense activities, the number of steps and distance, calories used, and sleep duration. Notifications are signaled but not displayed.

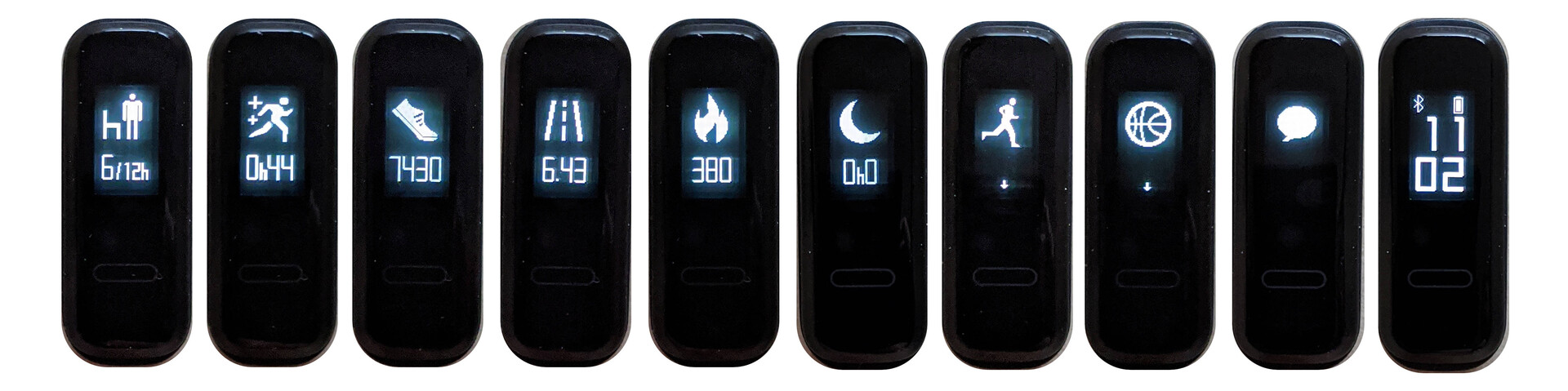

Band 4e display
Left to right: Activity statuses (5), sleep duration, running and basketball mode, notification, time of day

The Band 4 offers more display and operation options: Using the touch display, which covers the whole front, you can move forward and backward through the displayed functions. Swiping from the left corresponds to a back button, and the Home button at the bottom of the display leads to the home screen from any other place.

The number of notifications is already displayed inside a badge on the overview screen and you can read the full notifications on the fitness watch. However, removing them becomes an issue, since reading the notifications on the smartphone does not have any effect on the fitness band. You either have to read them again one by one, or you can delete all of them at once.

In the announcement of the Band 4, a remote control for the camera was mentioned. However, this is missing in our test unit. Instead, the Band 4 offers a player control, which works universally with the player that is activated on the smartphone at that point. In our test, this worked with the integrated music player, as well as with Deezer, Spotify, and the Audible audio book app from Amazon.

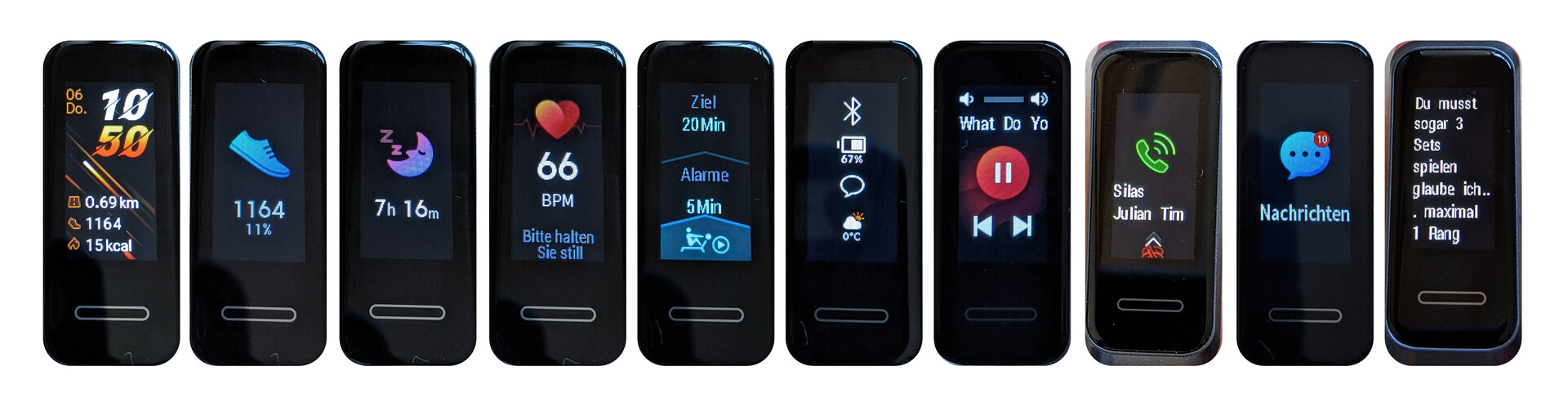

Displays on the Band 4
Displays on the Band 4

Using the app, you can change the sequence of items for both smart trackers, activate Bluetooth disconnection notifications, setup alarms, and select the apps for which notifications should be signaled or on the Band 4 also be displayed. You can only deactivate the notifications using the app. You can also setup times for silent mode.

In addition to displaying the collected fitness data in informative charts, the Health app also shows the sleep protocol. Although the Band 4e does not have a heart rate sensor, it can determine the various sleep phases using the recordings from the movement sensor.

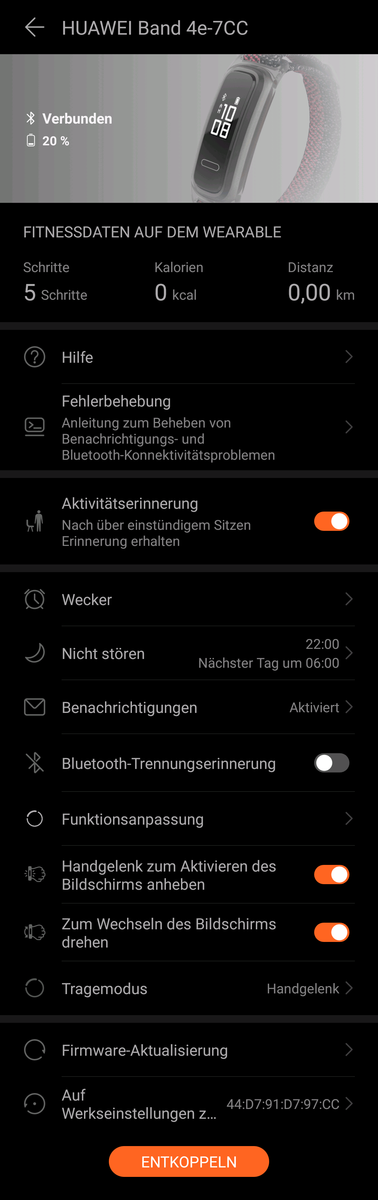

Band 4e Settings
Band 4e Settings

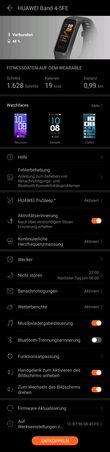

Band 4 Settings
Band 4 Settings

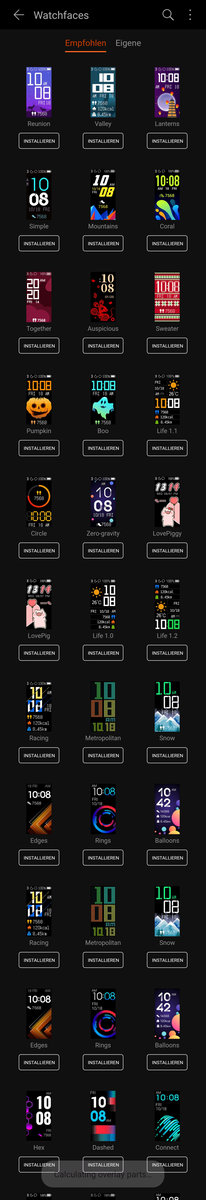

Band 4 watch faces
Band 4 watch faces

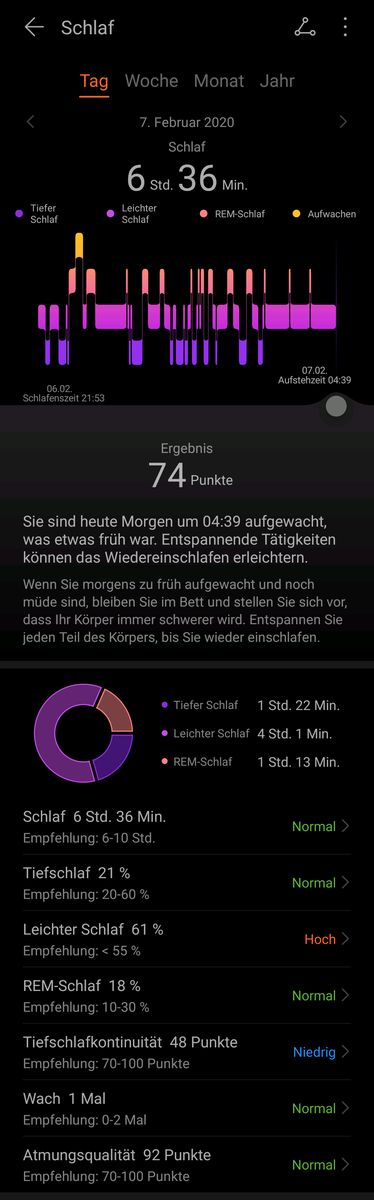

Band 4 sleep protocol
Band 4 sleep protocol

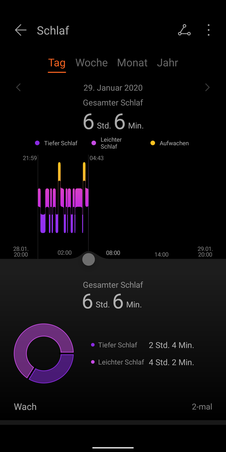

Band 4e sleep protocol
Band 4e sleep protocol

Fitness and Training – Band 4e offers a 6-axis gyroscope

For indoor training, the Band 4 offers running, walking, biking, a crosstrainer, a rowing ergometer, and free training - aerobic, for example, aerobic according to the symbol. Outdoors, you can select from walking and running. If you want to capture your GPS coordinates to record your route or get a more exact analysis, you have to bring your smartphone.

The same also goes for the Band 4e. If you fasten the tracker directly to the shoe, its 6-axis gyroscope can also offer details and analyses that the Band 4 cannot deliver: in addition to the speed and step frequency (steps per minute), the app also determines the amount of time of ground contact, the landing impact, and step pattern. You can also combine the landing impact and ground contact time in their corresponding charts, or optionally also analyze them in connection with the speed and step frequency.

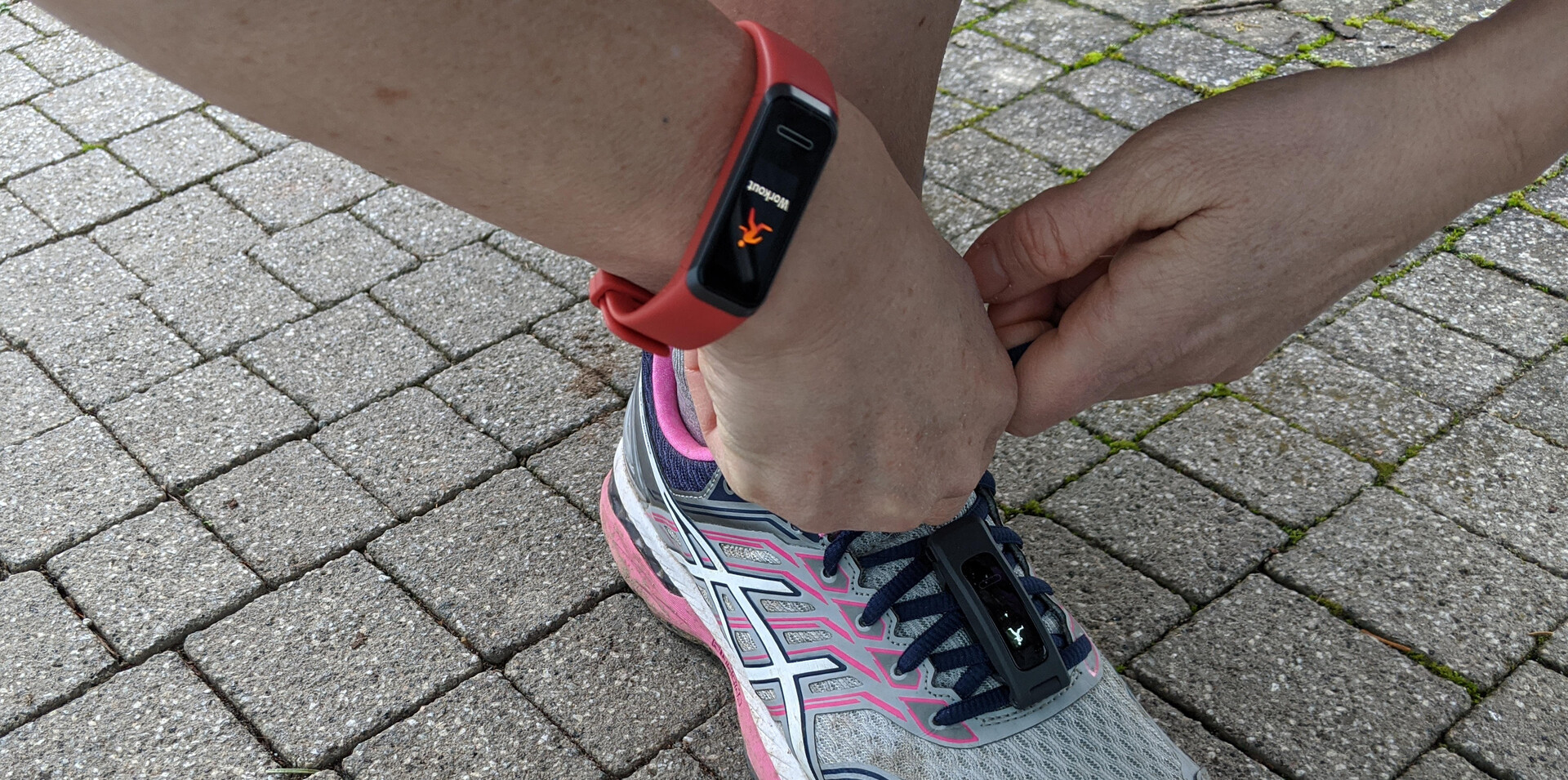

Using Band 4 and Band 4e together
Using Band 4 and Band 4e together

The step pattern displays the percentage ratio of contact of the heel, middle, and front of the foot. The analysis for the author is: 99% landing on the heel, with the dark red color of the bar indicating that this is doubtlessly bad. A text in the app help explains that landing on the heel will create more of an impact shock on landing and recommends to land more gently on the front or side of the foot when running. So the fact that more than 90% of all joggers apparently also land on the heel does not improve things.

Because it is supposed to be better and more natural, the author tried to change her running style in order to test the reaction of the tracker. This resulted in at least some improvement of the ratio. In the long run, a reduction of the ground contact time would probably increase the running speed and improve the result further. Those who are interested in this subject can find some help and instructions with training character on the Internet. There are also questions on the cases where it might be advisable to change the landing pattern of the feet.

In our test, the Huawei Health app then combined the data of the Band 4e, which was attached to the shoe for the step analysis, and the heart rate recording from the Band 4 into a common analysis. We did not test the baseball mode of the Band 4e.

The following app screenshots show the running protocol and charts, first with each of the bands, and then both in combination for comparison. They also show examples of the display of the times for each round and a combined chart.

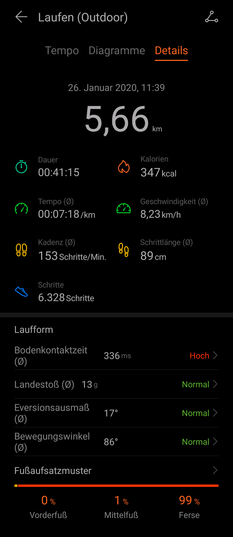

Band 4e running protocol
Band 4e running protocol

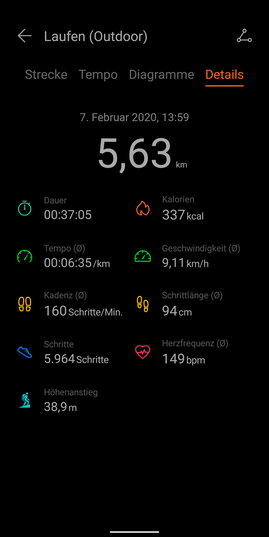

Band 4 running protocol
Band 4 running protocol

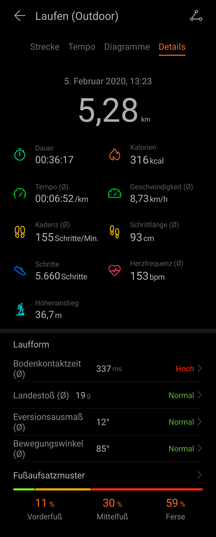

Running protocol both bands
Running protocol both bands

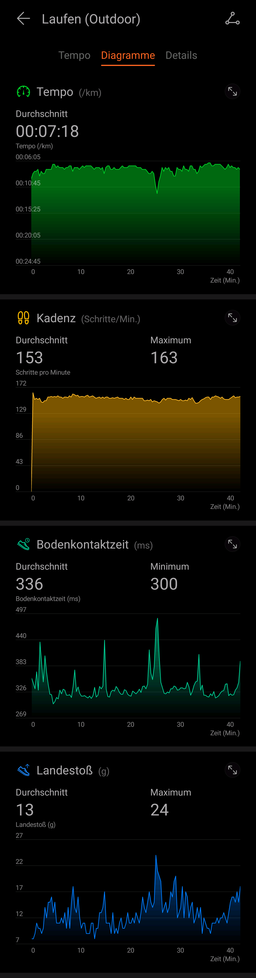

Band 4e charts
Band 4e charts

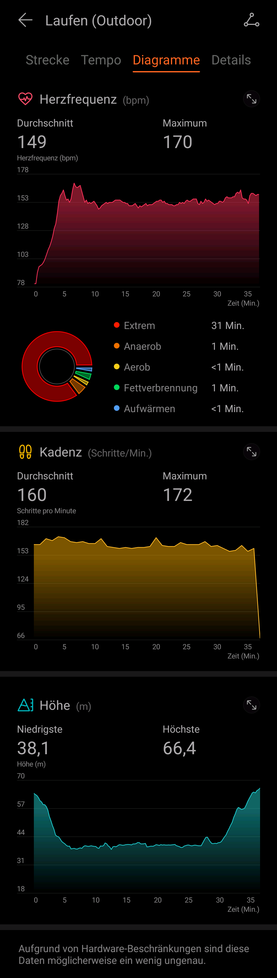

Band 4 charts
Band 4 charts

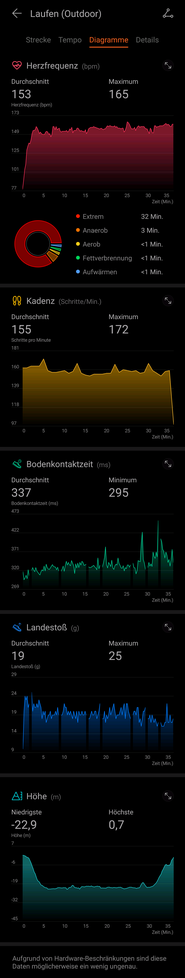

Charts from both bands
Charts from both bands
Speed protocol
Speed protocol

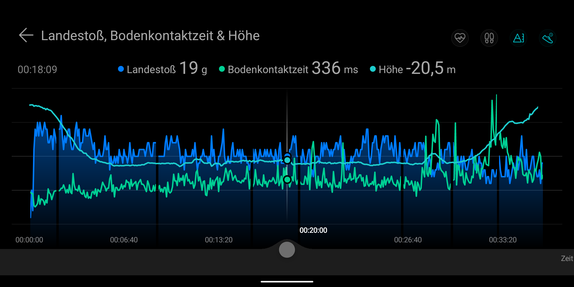

Example chart
Example chart


Battery Life – Fitness watches with a long battery life

According to Huawei, the battery capacity of the two fitness trackers - 91 mAh in the Band 4 and 77 mAh in the Band 4e - is sufficient to last at least for a week in case of the Band 4 and two weeks in the case of the Band 4e. Such a long battery life, which of course also depends on the usage, is difficult to confirm during the short time period of our testing. We can only confirm a trend, if there are no conspicuous abnormalities. We did not observe anything conspicuous in our test. The fact that the charge of the Band 4e displayed in our screenshots is in some cases significantly lower than in the Band 4, is due to the Band 4 arriving a week later for our testing.

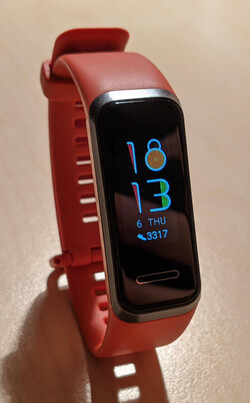

Verdict

华为手环4和4e:两个一起用也没什么问题

Band 4e的价格约为39欧元(〜42美元),Band 4e的价格为29欧元(〜31美元),这两个健身手环属于价格更实惠的类型。顺便说一句,于今年秋天上市的Honor Band 5,也是同一个价格段的产品,甚至更便宜。那些正在寻找简单的健身手环来激励自己更多运动的人选择这两款手环不会有错。那些喜欢通知功能的人也应该选择Band4。即使此功能不是很重要,甚至会很快变得令人烦恼,无法获得重要的通知,但随后必须用智能手机才能阅读。

Band 4和Band 4e本身不只是简单的健身手环,但在一起使用时,尤其是在训练的时候,它们的功能可以互补。

尽管您会发现许多类似于Band 4的健身手环,但它们却过于简陋,Band 4e却提供了具有精确传感器的功能,在这个价格范围内很少见到,对跑步者可能非常有用。与我们测试中的Band 4结合使用,或者与带GPS的Band 4 Pro结合使用,对于跑步爱好者群体可能会很有趣。当然,与Band 4一起买的价格也将总计约70欧元(〜76美元),而Band 4 Pro则将超过100欧元(〜108美元)。但是,最后,即使是在专业领域(例如Garmin Fenix 6),也只能使用外部附件来获得其他传感器数据。

那些仍然拥有华为较旧手环的用户也应该可以将其应用程序与Band 4e结合使用。除了较旧的华为手环,该应用程序还列出了Honor的一些设备。但是,我们无法尝试。
