测试中的 "彩虹六号 "提取。笔记本和台式机基准测试

要求适度。

彩虹六号萃取》与前几部作品只有模糊的相似之处,但它仍然可以提供几个小时令人愉快的合作游戏。我们仔细看了一下硬件要求,并在本文中展示了各种GPU基准测试。
Gaming Laptop / Notebook Desktop Gamecheck
彩虹六号的提取

技术

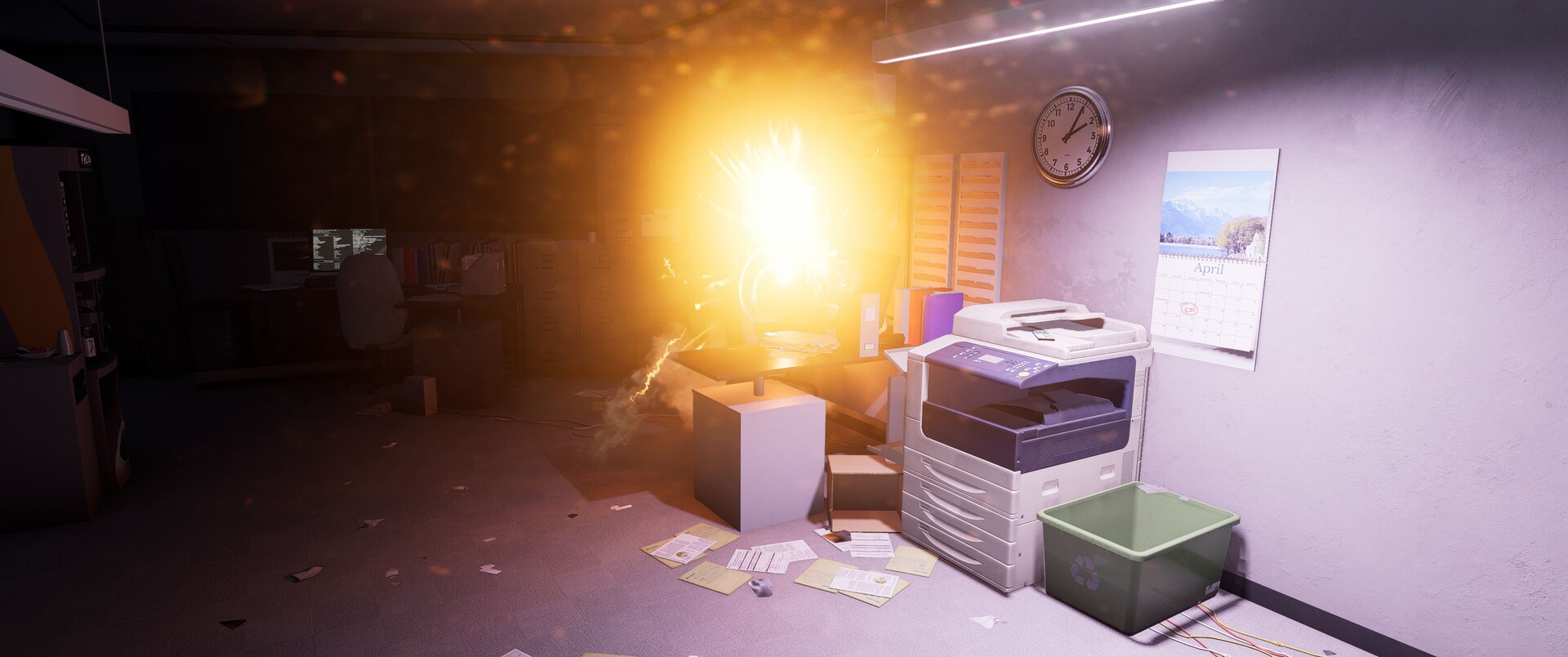

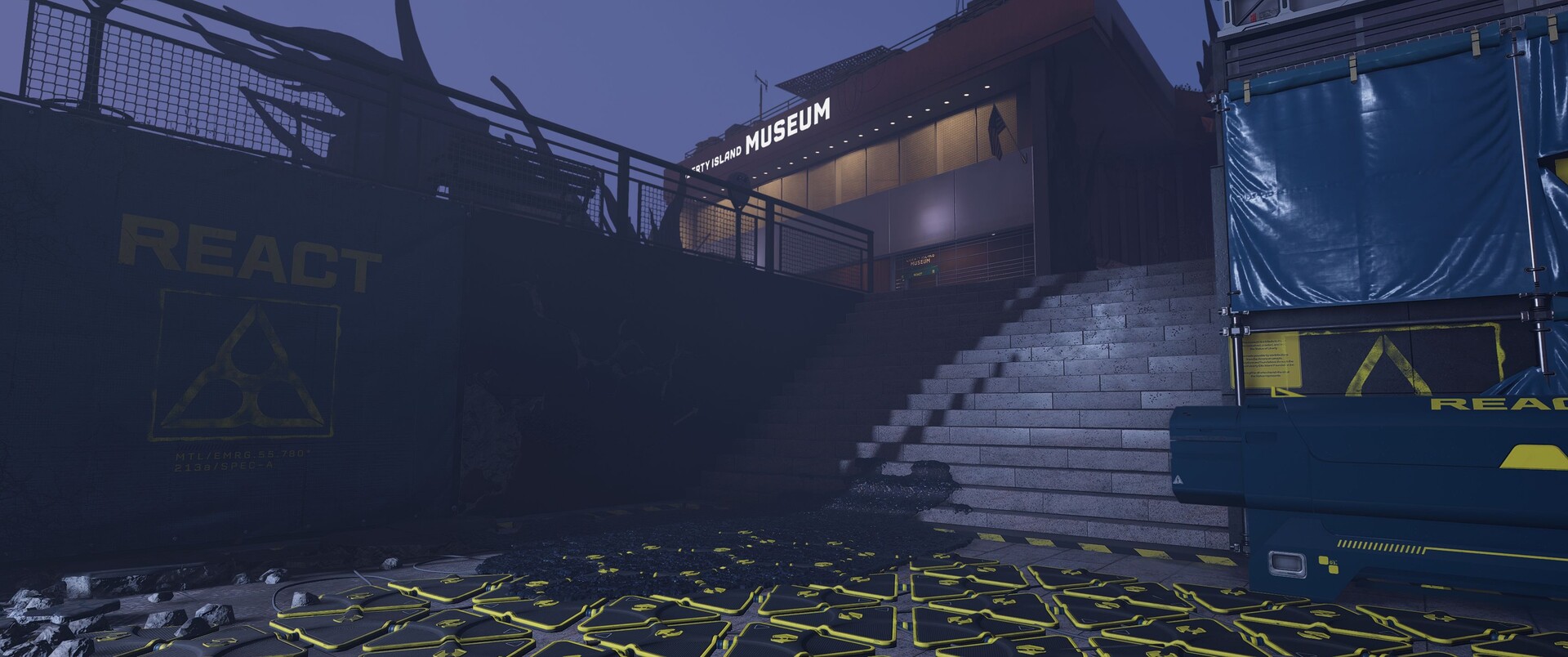

虽然 "萃取 "是关于外星瘟疫的,但游戏在很多方面让人想起了《彩虹六号》。 彩虹六号围攻.萃取》继承了其同名游戏的相对较低的硬件要求,该游戏至今已超过6年,但仍然非常受欢迎--这让弱小系统的所有者感到高兴。画面质量总体上不是最好的,但处于坚实和良好的水平。物理元素和效果是最大的优势之一,尽管屏幕上经常有很多动作,所以很容易失去方向。

彩虹六号的提取
彩虹六号的提取
彩虹六号的提取
彩虹六号的提取

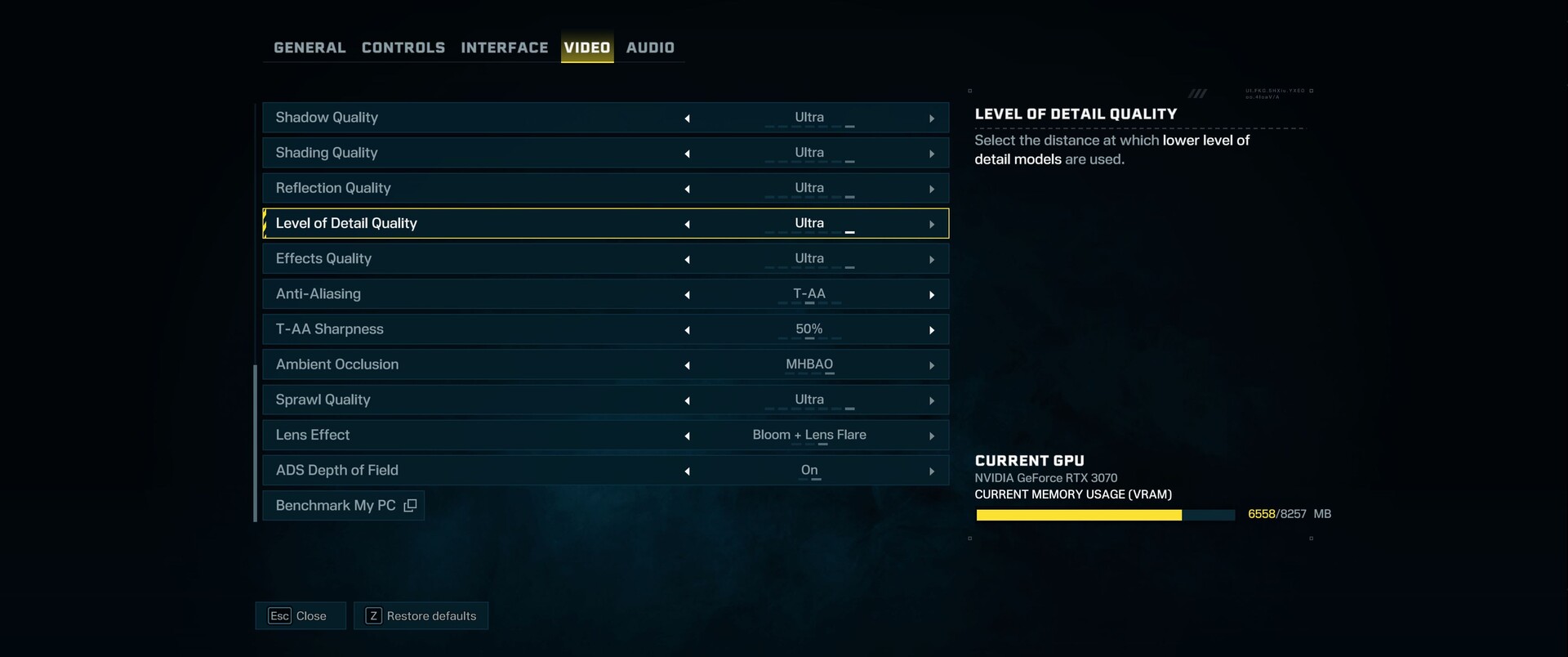

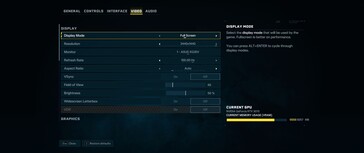

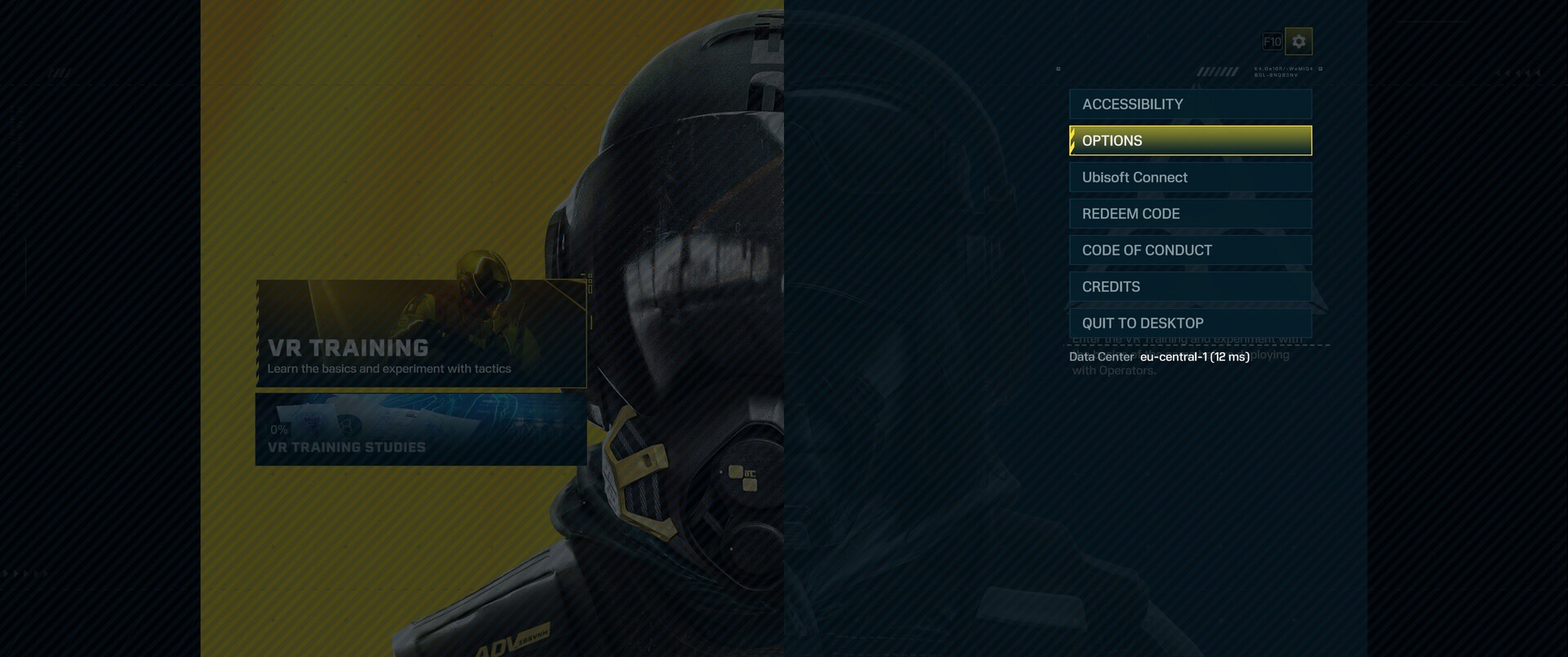

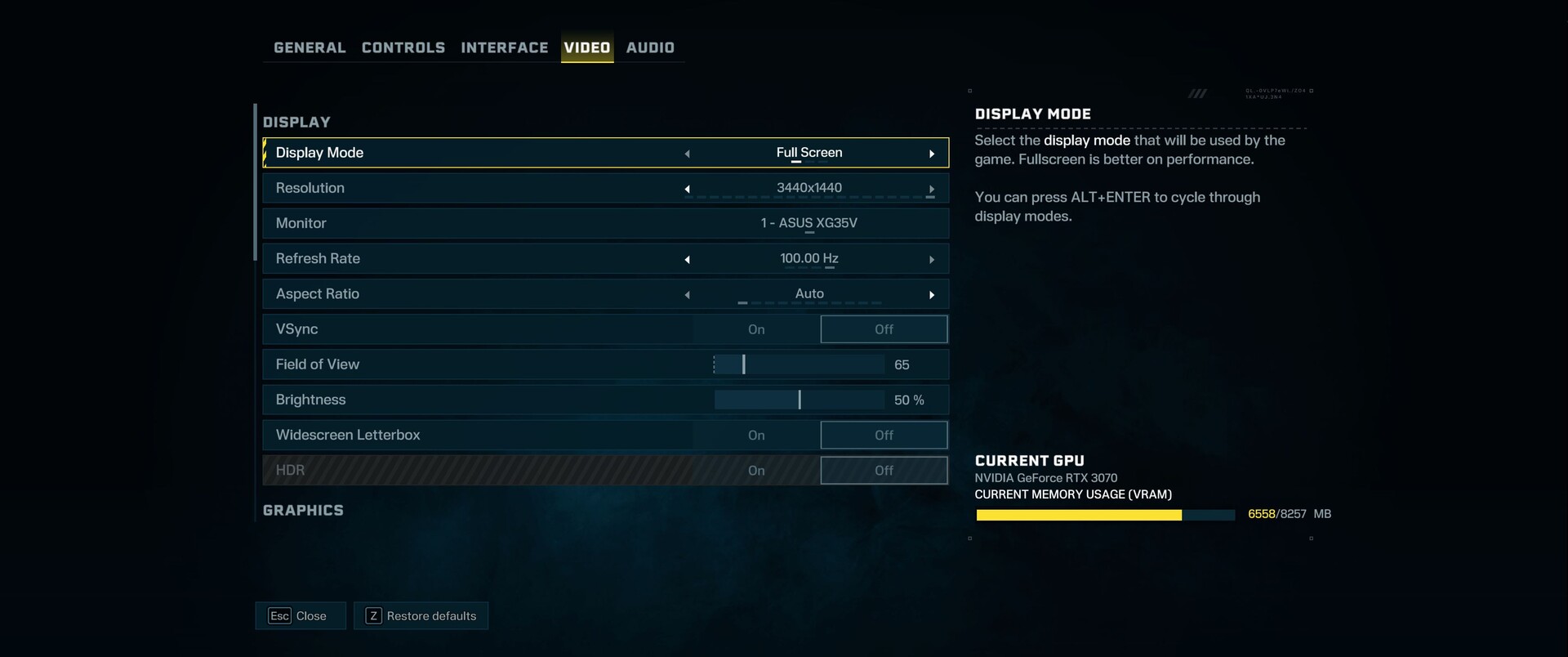

正如育碧的典型做法,在图形选项方面没有什么可抱怨的。虽然在相应的菜单中有一些滚动工作,但《提取》也提供了大量的设置选项。虽然显示器的所有相关参数都可以在上部区域找到(分辨率、长宽比、频率、V-Sync等),但有近20个细节和质量控制,可以通过预设一次性调好。提取包含7个预设,范围从超低到超。

彩虹六号的提取
彩虹六号的提取
彩虹六号的提取
彩虹六号的提取

注意:在默认情况下,游戏将分辨率质量设置为动态。我们将预设值用于我们的基准测试,但在每种情况下都将后者选项设置为固定100%。同时,Nvidia在一些功能中也有参与(如DLSS & Reflex)。考虑到可跳过的介绍视频,一些图形选项需要重新启动的事实并不太令人讨厌。只有第一次启动时才会有点烦人,因为Extraction在极端情况下要对着色器进行几分钟的优化,正如我们从现在越来越多的游戏中了解到的那样(例如 使命召唤).

彩虹六号的提取
彩虹六号的提取
彩虹六号的提取
彩虹六号的提取

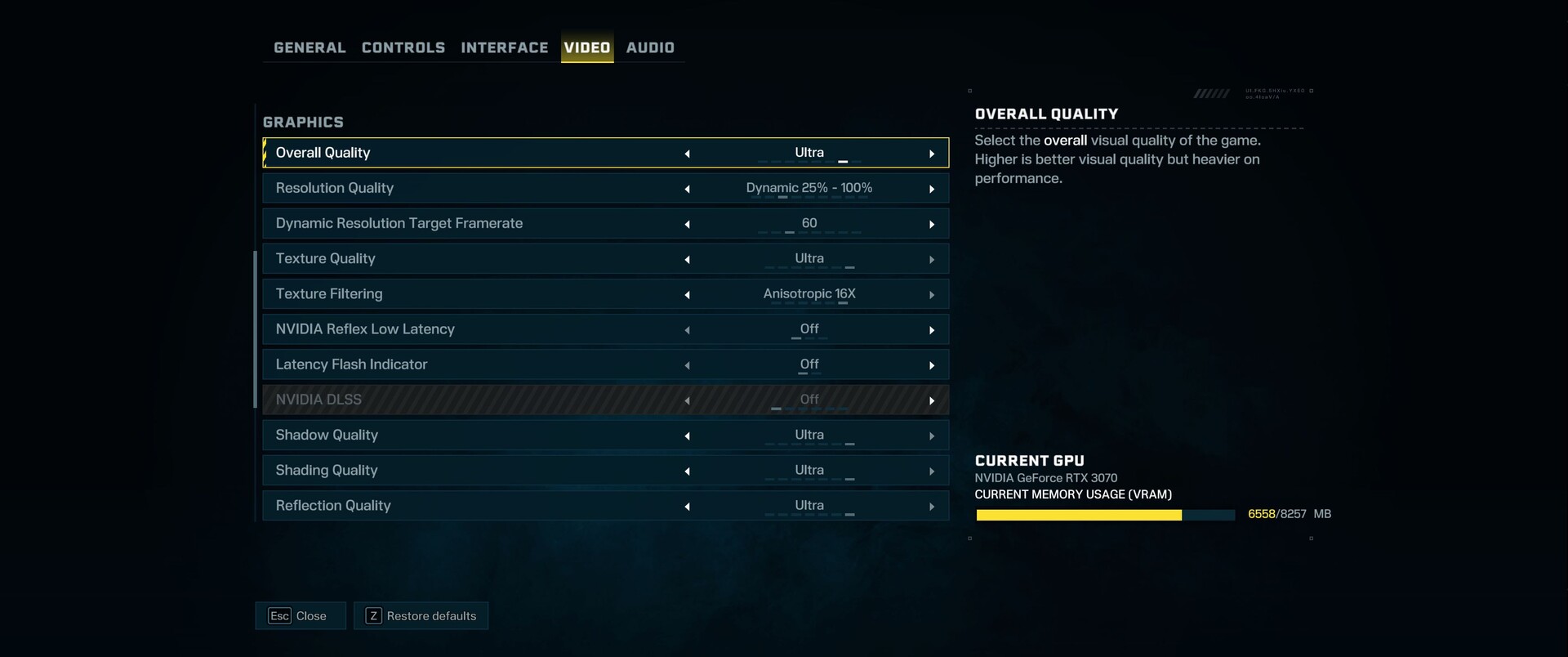

不错:所有的设置都提供了文字解释。在图形菜单中也有一个VRAM显示。据此,游戏在全高清下需要大约6.5GB的最大细节,在QHD下需要大约7GB,在UHD下需要大约8GB。下载量约为48GB,加上近9GB的高清纹理包。在技术上,《Extraction》是一个干净的数字。这款游戏在测试中运行非常稳定。

基准

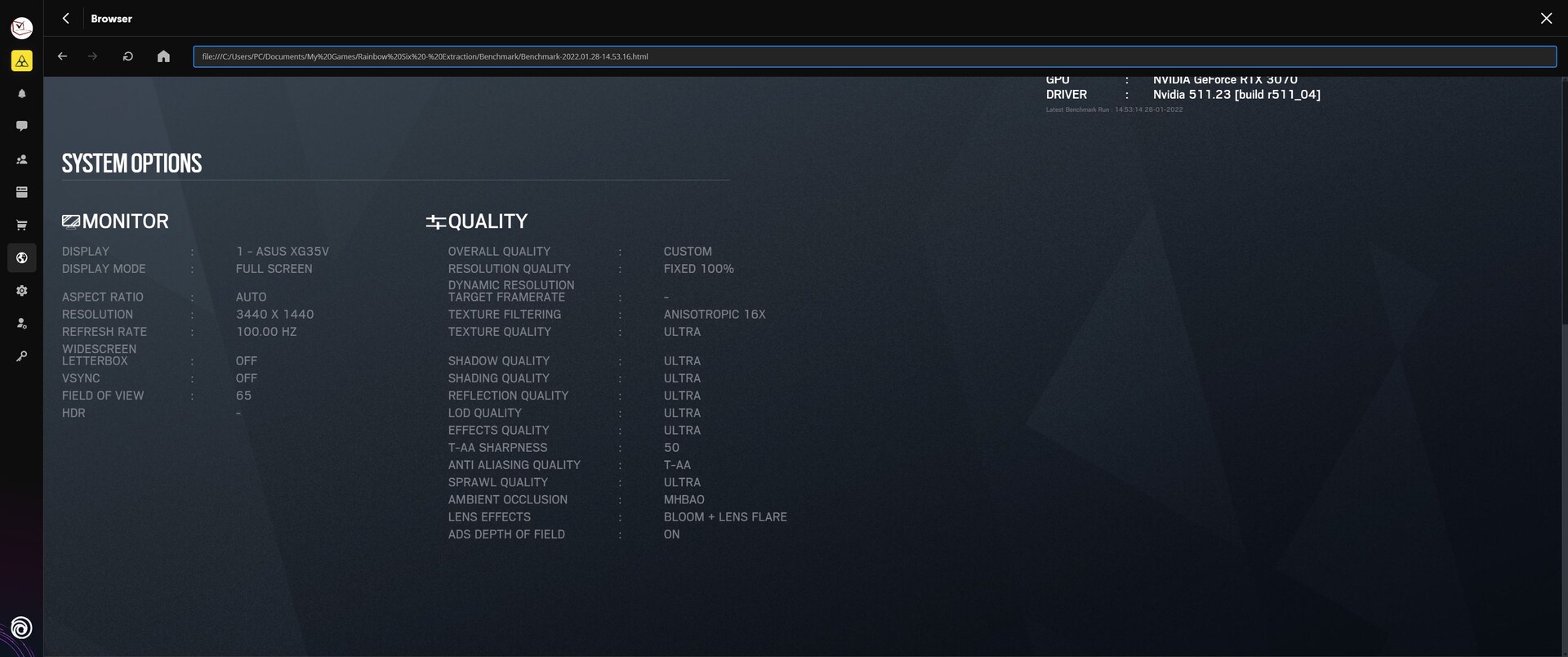

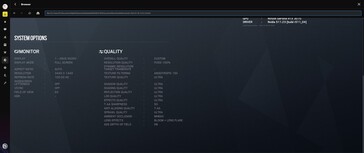

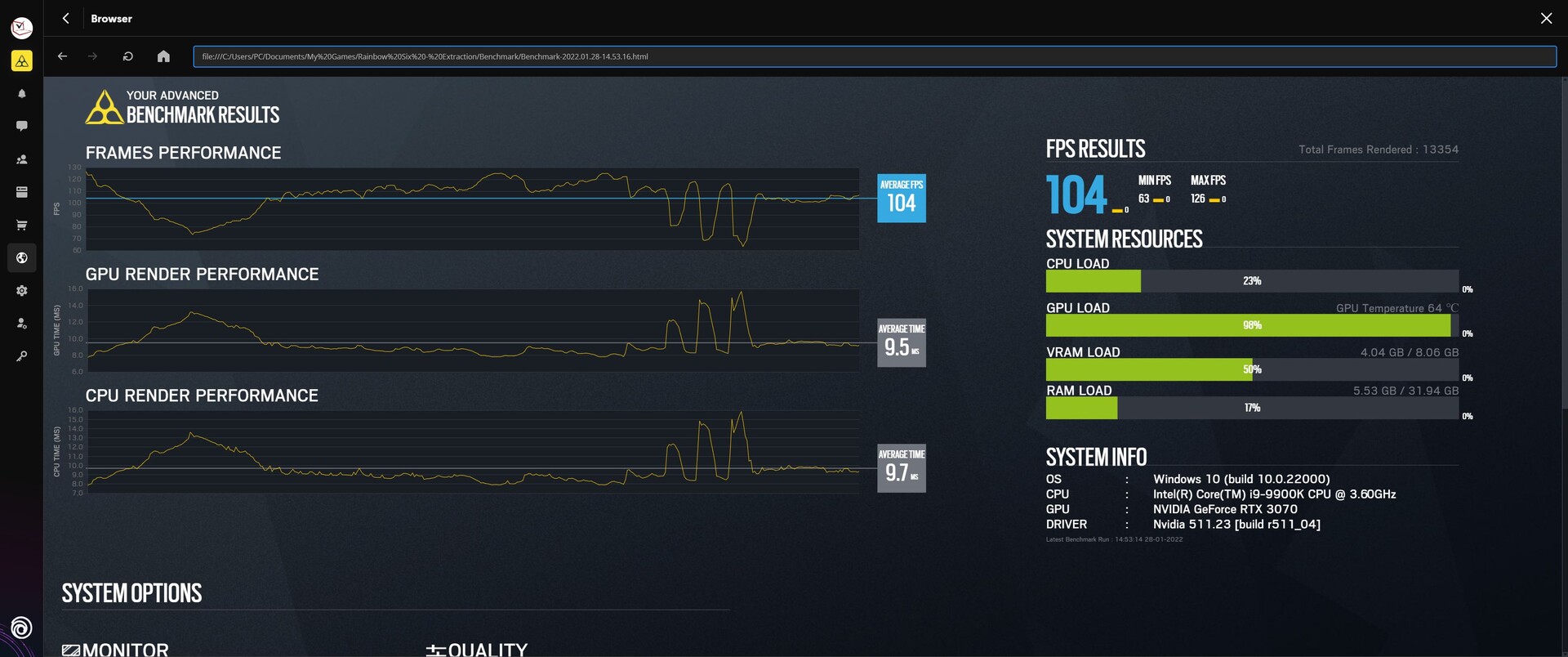

正如你对育碧的期望,该标题提供了一个内置的基准功能。这显示了一个跟踪镜头,并包含几个人物和物理通道(爆炸),这让人想起了《彩虹六号》的基准测试。虽然在两分钟的良好序列中没有呈现任何性能信息,但在运行后出现了一个带有几个图表和负载指标的广泛评估。由于这是一个第一人称视角的标题,平均应该是至少40 FPS,或者更好的是60 FPS。

彩虹六号的提取
彩虹六号的提取

结果

对于基准,我们主要使用我们的合作伙伴XMG (Schenker Technologies)的租赁设备。MSI.

FHD (1,920 x 1,080)

彩虹六号萃取》绝对不需要一个高端系统。当使用1,920 x 1,080像素时,即使是中档GPU的水平,如 GeForce GTX 1650(Ti)的高到最大的细节。

Rainbow Six Extraction
    1920x1080 Very Low Preset (with Fixed Resolution Quality)     1920x1080 Medium Preset (with Fixed Resolution Quality)     1920x1080 High Preset (with Fixed Resolution Quality)     1920x1080 Ultra Preset (with Fixed Resolution Quality)
NVIDIA GeForce RTX 3090, i9-9900K
MSI GeForce RTX 3090 Suprim X
347 (261min) fps ∼65%
341 (268min) fps ∼65%
287 (200min) fps ∼12%
NVIDIA GeForce RTX 3080, i9-9900K
MSI GeForce RTX 3080 Gaming X Trio
330 (256min) fps ∼62%
324 (254min) fps ∼62%
263 (159min) fps ∼11%
NVIDIA GeForce RTX 3070, i9-9900K
MSI GeForce RTX 3070 Ventus 3X
266 (205min) fps ∼50%
259 (200min) fps ∼49%
199 (113min) fps ∼8%
NVIDIA GeForce RTX 3080 Laptop GPU, i7-11800H
XMG Neo 15 @165 W TGP
223 (171min) fps ∼42%
218 (161min) fps ∼41%
170 (104min) fps ∼7%
NVIDIA GeForce RTX 3070 Laptop GPU, i7-11800H
XMG Neo 17 @140 W TGP
208 (158min) fps ∼39%
202 (141min) fps ∼38%
157 (95min) fps ∼7%
AMD Radeon RX 6800M, R9 5900HX
Asus ROG Strix G15
183 (146min) fps ∼34%
179 (140min) fps ∼34%
153 (107min) fps ∼6%
NVIDIA GeForce RTX 3060 Laptop GPU, i7-11800H
XMG Core 15 @130 W TGP
168 (118min) fps ∼32%
163 (120min) fps ∼31%
125 (76min) fps ∼5%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H
MSI GP65 Leopard 9SD
116 (87min) fps ∼22%
105 (80min) fps ∼20%
85 (47min) fps ∼4%
NVIDIA GeForce RTX 3050 Ti Laptop GPU, i7-11800H
XMG Focus 17 @75 W TGP
116 (84min) fps ∼22%
113 (85min) fps ∼21%
67 (39min) fps ∼3%
NVIDIA GeForce GTX 1650 Ti Mobile, i7-10750H
MSI GP75
88 (64min) fps ∼15%
80 (57min) fps ∼15%
78 (56min) fps ∼15%
60 (35min) fps ∼3%
NVIDIA GeForce GTX 1650 Mobile, i7-10750H
MSI GL75
79 (56min) fps ∼14%
72 (53min) fps ∼14%
69 (49min) fps ∼13%
53 (29min) fps ∼2%

QHD (2,560 x 1,440)

在QHD范围内,事情变得有点更苛刻。2,560 x 1,440像素和Ultra预设的组合渴望得到一个 GeForce GTX 1660 Ti或更好。

Rainbow Six Extraction
    2560x1440 Ultra Preset (with Fixed Resolution Quality)
NVIDIA GeForce RTX 3090, i9-9900K
MSI GeForce RTX 3090 Suprim X
203 (112min) fps ∼8%
NVIDIA GeForce RTX 3080, i9-9900K
MSI GeForce RTX 3080 Gaming X Trio
181 (106min) fps ∼7%
NVIDIA GeForce RTX 3070, i9-9900K
MSI GeForce RTX 3070 Ventus 3X
132 (74min) fps ∼5%
NVIDIA GeForce RTX 3080 Laptop GPU, i7-11800H
XMG Neo 15 @165 W TGP
111 (59min) fps ∼5%
NVIDIA GeForce RTX 3070 Laptop GPU, i7-11800H
XMG Neo 17 @140 W TGP
103 (58min) fps ∼4%
AMD Radeon RX 6800M, R9 5900HX
Asus ROG Strix G15
95 (68min) fps ∼4%
NVIDIA GeForce RTX 3060 Laptop GPU, i7-11800H
XMG Core 15 @130 W TGP
81 (44min) fps ∼3%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H
MSI GP65 Leopard 9SD
54 (28min) fps ∼2%
NVIDIA GeForce RTX 3050 Ti Laptop GPU, i7-11800H
XMG Focus 17 @75 W TGP
36 (23min) fps ∼1%

UHD (3,840 x 2,160)

在4K中,你很难避免一个真正的游戏系统。 3.840 x 2160像素至少需要一个 GeForce RTX 3060Radeon RX 6800M.为了安全起见,你只能用一个 GeForce RTX 3070RTX 3080.

Rainbow Six Extraction
    3840x2160 Ultra Preset (with Fixed Resolution Quality)
NVIDIA GeForce RTX 3090, i9-9900K
MSI GeForce RTX 3090 Suprim X
111 (60min) fps ∼9%
NVIDIA GeForce RTX 3080, i9-9900K
MSI GeForce RTX 3080 Gaming X Trio
98 (55min) fps ∼8%
NVIDIA GeForce RTX 3070, i9-9900K
MSI GeForce RTX 3070 Ventus 3X
68 (35min) fps ∼5%
NVIDIA GeForce RTX 3080 Laptop GPU, i7-11800H
XMG Neo 15 @165 W TGP
57 (29min) fps ∼4%
NVIDIA GeForce RTX 3070 Laptop GPU, i7-11800H
XMG Neo 17 @140 W TGP
53 (27min) fps ∼4%
AMD Radeon RX 6800M, R9 5900HX
Asus ROG Strix G15
44 (29min) fps ∼3%
NVIDIA GeForce RTX 3060 Laptop GPU, i7-11800H
XMG Core 15 @130 W TGP
42 (20min) fps ∼3%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H
MSI GP65 Leopard 9SD
26 (11min) fps ∼2%
NVIDIA GeForce RTX 3050 Ti Laptop GPU, i7-11800H
XMG Focus 17 @75 W TGP
19 (11min) fps ∼1%

注意事项

由于游戏测试非常耗时,而且经常受到安装或激活限制的阻碍,因此我们只能为您提供文章发表时的部分基准测试。更多的显卡将在未来几天和几周内安装。

Overview

Show Restrictions
PosModel< PrevNext >Rainbow Six Extraction
 Rainbow Six Extraction (2022)
low
1920x1080
Very Low Preset (with Fixed Resolution Quality)
med.
1920x1080
Medium Preset (with Fixed Resolution Quality)
high
1920x1080
High Preset (with Fixed Resolution Quality)
ultra
1920x1080
Ultra Preset (with Fixed Resolution Quality)
QHD
2560x1440
Ultra Preset (with Fixed Resolution Quality)
4K
3840x2160
Ultra Preset (with Fixed Resolution Quality)
NVIDIA GeForce RTX 4090
530
489
468
446
343
198
NVIDIA GeForce RTX 4080
542
464
403
393
246
148
NVIDIA GeForce RTX 3090 Ti
411n2
347n2
315n2
290n2
208n2
116n2
AMD Radeon RX 6950 XT
479
382
367
280
192
92
NVIDIA GeForce RTX 4090 Laptop GPU
378
347
346
314
219
112
NVIDIA GeForce RTX 3090
360
316.5n2
309.5n2
264n2
189n2
105n2
NVIDIA GeForce RTX 3080 Ti
365
353
348
282
194
104
NVIDIA GeForce RTX 4080 Laptop GPU
278
272
221
172
88
NVIDIA GeForce RTX 3080 12 GB
379
275
273
239
168
96
NVIDIA GeForce RTX 3080
330
324
263
181
98
AMD Radeon RX 6800
353
285
278
202
149
72
NVIDIA Titan RTX
264
225
223
179
130
70
NVIDIA GeForce RTX 3080 Ti Laptop GPU
212n3
185n3
180n3
159n3
113n3
50.5n2
NVIDIA GeForce RTX 4070 Laptop GPU
253
240
188
125
64
NVIDIA GeForce RTX 3070
266
259
199
132
68
AMD Radeon RX 6750 XT
199
126
59
AMD Radeon RX 6700 XT
282
237
225
182
116
55
NVIDIA GeForce RTX 3080 Laptop GPU
223
218
170
111
57
NVIDIA GeForce RTX 3060 Ti
262
205
192
164
101
57
PosModel< PrevNext >Rainbow Six Extraction
low med. high ultra QHD 4K
NVIDIA GeForce RTX 3070 Ti Laptop GPU
210
182n2
176.5n2
139.5n2
91
46
NVIDIA GeForce RTX 4060 Laptop GPU
186
145
141
128.55n2
106
52.4
AMD Radeon RX 6800M
183
179
153
95
44
AMD Radeon RX 6650 XT
240n2
180n2
180n2
131n2
87n2
41n2
AMD Radeon RX 6600 XT
207
177
169
128
80
34
NVIDIA GeForce RTX 3070 Laptop GPU
241n3
197.5n4
191n4
155n4
103n3
51n2
AMD Radeon RX 6800S
172
167
133
81
27
NVIDIA GeForce RTX 3060
195
162
157
129
85
44
NVIDIA Titan X Pascal
172
161
149
125
84
44
NVIDIA GeForce RTX 2070 Super (Desktop)
203
178
171
120
92
47
AMD Radeon RX 5700 XT (Desktop)
199
170
164
136
88
39
NVIDIA GeForce RTX 3060 Laptop GPU
168
159n2
125n2
81
42
AMD Radeon RX 7600S
156
154
125
76
37
NVIDIA GeForce RTX 2060 Super (Desktop)
171
148
146
119
78
34
AMD Radeon RX 6600
176
149
142
105
70
25
AMD Radeon RX 5700 (Desktop)
190
153
148
126
79
38
AMD Radeon RX 6600M
141
126
120
94
AMD Radeon RX 6700S
159
157
126
66
NVIDIA GeForce RTX 3050
169
135
132
102
66
33
AMD Radeon RX 5600 XT (Desktop)
204
181
141
101
67
25
PosModel< PrevNext >Rainbow Six Extraction
low med. high ultra QHD 4K
NVIDIA GeForce GTX 1660 Ti (Desktop)
171
129
125
95
62
25
NVIDIA GeForce GTX 1660 Super (Desktop)
131
109
105
74
56
27
AMD Radeon RX 6500 XT
101
91
66
33
19
6
AMD Radeon RX 5500 XT (Desktop)
131
100
97
84
51
20
NVIDIA GeForce RTX 4050 Laptop GPU
173.5n2
140.5n2
135n2
107n2
56
Intel Arc A730M
103
99
83
55
NVIDIA GeForce GTX 1660 Ti Mobile
116
105
85
54
26
NVIDIA GeForce RTX 3050 Ti Laptop GPU
116n3
112n3
83n3
36
19
NVIDIA GeForce GTX 1660 (Desktop)
102
97
95
77
47
21
NVIDIA GeForce GTX 1650 Super (Desktop)
99
91
88
68
31
17
NVIDIA GeForce RTX 3050 4GB Laptop GPU
98n2
94n2
66n2
AMD Radeon RX 6500M
96
69
61
34
NVIDIA GeForce GTX 1060 Mobile
98
76
64
54
NVIDIA GeForce GTX 1650 Ti Mobile
88
80
78
60
AMD Radeon RX 5500M
95
78
76
36
NVIDIA GeForce RTX 2050 Mobile
88
70
66
42
NVIDIA GeForce GTX 1650 Mobile
79
72
69
53
Intel Arc A350M
68
52
45
30
17
2.6
AMD Radeon 780M
65
48
45
33
NVIDIA GeForce GTX 1050 Ti Mobile
61
46
42
27
PosModel< PrevNext >Rainbow Six Extraction
low med. high ultra QHD 4K
AMD Radeon 680M
84n2
72n2
69.5n2
57.5n2
NVIDIA GeForce MX450
74n2
33.5n2
33n2
17n2
NVIDIA GeForce GTX 1050 Mobile
52
38
36
16
AMD Radeon 660M
45
35
30
AMD Radeon RX 560X (Laptop)
47
33
30
20
Intel Iris Xe Graphics G7 96EUs
25n3
25n3
23n3
17n3
15
7
NVIDIA GeForce MX350
35
21
18
NVIDIA GeForce GT 1030 (Desktop)
19
15
15
8
NVIDIA GeForce MX250
28
19
15
NVIDIA GeForce MX150
20
16
15
8
5
Intel Iris Xe Graphics G7 80EUs
21
19
19
13
NVIDIA GeForce GT 710
5
Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
33
25
24
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
23
17
AMD Radeon RX Vega 10
13
10
10
Intel UHD Graphics Xe G4 48EUs
18
15
14
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
19
14
Intel UHD Graphics 770
22
16
16
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.5n4
24.5n4
23.5n4
19n3
12n2
5.5n2
AMD Radeon RX Vega 7
24
18
17
12
PosModel< PrevNext >Rainbow Six Extraction
low med. high ultra QHD 4K
NVIDIA GeForce MX130
16
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
19
14
NVIDIA GeForce 930MX
12
Intel Iris Graphics 550
15
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
13
12
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
14
AMD Radeon RX Vega 5
19
18
Intel UHD Graphics 630
10
Intel UHD Graphics 620
10
AMD Radeon RX Vega 3
11
(-) * Smaller values are better. / n123 Number of benchmarks for this median value / * Approximate position



Legend
5Stutters – This game is very likely to stutter and have poor frame rates. Based on all known benchmarks using the specified graphical settings, average frame rates are expected to fall below 25fps
May Stutter – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, stutters and poor frame rates are expected.
30Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 25fps
40Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 35fps
60Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 58fps
May Run Fluently – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, fluent frame rates are expected.
?Uncertain – This graphics card experienced unexpected performance issues during testing for this game. A slower card may be able to achieve better and more consistent frame rates than this particular GPU running the same benchmark scene.
Uncertain – This graphics card has not been explicitly tested on this game and no reliable interpolation can be made based on the performances of surrounding cards of the same class or family.
The value in the fields displays the average frame rate of all values in the database. Move your cursor over the value to see individual results.

Test systems

XMG Neo 15 (RTX 3080) - 点击照片,打开配置器 (bestware.com)
XMG Neo 15 (RTX 3080) - 点击照片,打开配置器 (bestware.com)
XMG Neo 17 (RTX 3070) - 点击照片,打开配置器 (bestware.com)
XMG Neo 17 (RTX 3070) - 点击照片,打开配置器 (bestware.com)
XMG Core 15 (RTX 3060) - 点击照片打开配置器 (bestware.com)
XMG Core 15 (RTX 3060) - 点击照片打开配置器 (bestware.com)
XMG Focus 17 (RTX 3050 Ti) - 点击照片打开配置器 (bestware.com)
XMG Focus 17 (RTX 3050 Ti) - 点击照片打开配置器 (bestware.com)

设备
显卡 处理器 内存 操作系统
XMG Neo 15 NvidiaGeForce RTX 3080 @165 W TGP (16 GB GDDR6) Intel Core i7-11800H 2 x 16 GB DDR4 Windows 10 64 Bit
XMG Neo 17 NvidiaGeForce RTX 3070 @140 W TGP (8 GB GDDR6) Intel Core i7-11800H 2 x 16 GB DDR4 Windows 10 64 Bit
XMG Core 15 NvidiaGeForce RTX 3060 @130 W TGP (6 GB GDDR6) Intel Core i7-11800H 2 x 16 GB DDR4 Windows 10 64 Bit
XMG Focus 17 NvidiaGeForce RTX 3050 Ti @75 W TGP (4 GB GDDR6) Intel Core i7-11800H 2 x 16 GB DDR4 Windows 10 64 Bit
微星GP65 NvidiaGeForce GTX 1660 Ti (6 GB GDDR6) Intel Core i7-9750H 2 x 8 GB DDR4 Windows 10 64 Bit
微星GP75 NvidiaGeForce GTX 1650 Ti (4 GB GDDR6) Intel Core i7-10750H 2 x 8 GB DDR4 Windows 10 64 Bit
微星GL75 NvidiaGeForce GTX 1650 (4 GB GDDR6) Intel Core i7-10750H 2 x 8 GB DDR4 Windows 10 64 Bit
华硕ROG Strix G15 AMD Radeon RX 6800M(12 GB GDDR6) AMD Ryzen 9 5900HX 2 x 8 GB DDR4 Windows 11
MSI Prestige 14 Evo Intel Iris Xe (96 CUs) Intel Core i7-1185G7 1 x 16 GB DDR4 Windows 11
微星 Prestige 14 Evo Intel Iris Xe (96 CUs) Intel Core i7-1195G7 2 x 8 GB DDR4 Windows 11
Acer Swift 3 SF314-42 AMD Radeon Vega 7 AMD Ryzen 7 4700U 2 x 4 GB DDR4 Windows 11
台式电脑 I MSIGeForce RTX 3090 (24 GB GDDR6X)
MSIGeForce RTX 3080 (10 GB GDDR6X)
MSIGeForce RTX 3070 (8 GB GDDR6)
Intel Core i9-9900K 4 x 8 GB DDR4 Windows 11
桌面-PC II NvidiaGeForce RTX 3090 FE (24 GB GDDR6X)
NvidiaGeForce RTX 3060 (12 GB GDDR6X)
Nvidia Titan RTX (24 GB GDDR6)
NvidiaGeForce RTX 2070 超级 (8 GB GDDR6)GDDR6)
NvidiaGeForce RTX 2060 Super (8 GB GDDR6)
KFA2GeForce GTX 1660 Super (6 GB GDDR6)
PNYGeForce GTX 1660 (6 GB GDDR5)
KFA2GeForce GTX 1650 Super (4 GBGDDR6)
KFA2GeForce GTX 1650(4 GB GDDR5)
AMD Radeon RX 6700 XT(12 GB DDR6)
AMD Radeon RX 6600 XT(8 GB GDDR6)
AMD Radeon RX 6600(8 GB GDDR6)
AMD Radeon RX 5700 XT(8GB GDDR6)
AMD Radeon RX 5700(8 GB GDDR6)
AMD Radeon RX 5600 XT(6 GB GDDR6)
AMD Radeon RX 5500 XT(8 GB GDDR6)
AMD Ryzen 9 5900X 2 x 32 GB DDR4 Windows 10 64 Bit
桌面电脑III NvidiaGeForce RTX 2080 Super FE Intel Core i9-11900K 2 x 8 GB DDR4 Windows 11
4K显示器 Nvidia驱动 AMD驱动
华硕PB287Q,飞利浦Brilliance 329P9H, 宏碁Predator XB321HK ForceWare 511.23 Adrenalin 22.1.1
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 测试中的 "彩虹六号 "提取。笔记本和台式机基准测试
Florian Glaser, 2022-02- 8 (Update: 2024-08-15)
