AMD Ryzen 7 6800H与Ryzen 7 7735HS:不要被重塑的品牌所迷惑

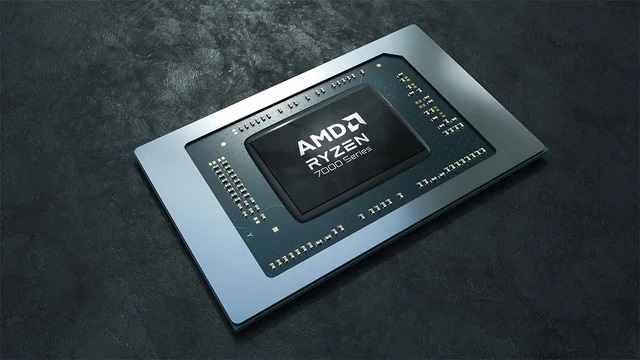

AMD Ryzen 7 6800H与Ryzen 7 7735HS:不要被重塑的品牌所迷惑(图片来源:AMD)
AMD Ryzen 7 6800H与Ryzen 7 7735HS:不要被重塑的品牌所迷惑(图片来源:AMD)
如果你真的想要一台Ryzen 7000系列的笔记本电脑,那么你会想找一台有Ryzen 7 7840H或Ryzen 9 7945HX的。低端到中端的选择充其量只能提供比移动的Ryzen 6000系列少得多的东西。
Laptop / Notebook Mini PC AMD Zen 3 (Vermeer)

AMD公布了其 移动Ryzen 7000处理器的阵容在2023年CES上发布了用于笔记本电脑的移动Ryzen 7000处理器,从低端SKU到速度惊人的Zen 4 Ryzen 9 7945HX.后者令人印象特别深刻,因为它甚至可以与英特尔最快的第13代Raptor Lake-H CPU相媲美,但它下面的几乎所有东西都没有那么令人兴奋。

问题是,大多数移动Ryzen 7000 CPU甚至没有利用Zen 4架构,而是建立在可追溯到Zen 2的旧设计上。因此,这些新的7000系列CPU的一些性能可以与旧的处理器几乎完全相同,尽管它们的名字不同。

这方面的一个例子涉及到2022年的 Ryzen 7 6800H和2023年 Ryzen 7 7735HS.两者都是基于相同的Zen 3+架构,具有完全相同的缓存大小、核心数量和集成的Radeon 680M图形。的 Beelink SER6 Pro有6800H和7735HS两个SKU,在所有基准测试中的表现几乎完全相同,正如我们下面的对比图所示。

人们可能期望较新的7735HS至少能提供更高的每瓦性能,但情况似乎也并非如此。当引入类似的负载时,这两个迷你PC SKU之间的功耗几乎是相同的。

如果你正在选购内部装有Ryzen 7 7735HS的笔记本电脑,考虑使用Ryzen 7 6800H的旧版本可能是有益的,因为它的速度同样快,而且可能更便宜。

Cinebench R15 Multi Loop

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS: Ø1891 (1862.98-1952.55)
Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average AMD Ryzen 7 6800H

78.8 pt
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
77.3 pt
Beelink SER6 Pro
AMD Ryzen 7 6800H
75.5 pt
Average AMD Ryzen 7 6800HS

74.4 pt
Cinebench R23 / Multi Core
Average AMD Ryzen 7 6800H
  (11481 - 14660, n=11)
12957 Points
Average AMD Ryzen 7 6800HS
  ()
11992 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
11626 (11015.5min - 11625.6max) Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
11481 (10813.7min - 11481.3max) Points
Cinebench R23 / Single Core
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
1537 Points
Average AMD Ryzen 7 6800H
  (1500 - 1552, n=9)
1527 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
1506 Points
Average AMD Ryzen 7 6800HS
  ()
1455 Points
Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 6800H
  (4460 - 5661, n=9)
5101 Points
Average AMD Ryzen 7 6800HS
  ()
4634 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
4524 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
4460 Points
Cinebench R20 / CPU (Single Core)
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
598 Points
Average AMD Ryzen 7 6800H
  (580 - 605, n=9)
596 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
584 Points
Average AMD Ryzen 7 6800HS
  ()
570 Points
Cinebench R15 / CPU Multi 64Bit
Average AMD Ryzen 7 6800H
  (1585 - 2366, n=10)
2090 Points
Average AMD Ryzen 7 6800HS
  ()
1987 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
1953 (1862.98min - 1952.55max) Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
1931 (1821.83min - 1930.5max) Points
Cinebench R15 / CPU Single 64Bit
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
247 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
242 Points
Average AMD Ryzen 7 6800H
  (182.7 - 250, n=10)
234 Points
Average AMD Ryzen 7 6800HS
  ()
234 Points
Blender / v2.79 BMW27 CPU
Beelink SER6 Pro
AMD Ryzen 7 6800H
268 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
263 Seconds *
Average AMD Ryzen 7 6800HS
  ()
258 Seconds *
Average AMD Ryzen 7 6800H
  (213 - 268, n=8)
242 Seconds *
7-Zip 18.03 / 7z b 4
Average AMD Ryzen 7 6800H
  (55067 - 64817, n=8)
59319 MIPS
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
57693 MIPS
Average AMD Ryzen 7 6800HS
  ()
56170 MIPS
Beelink SER6 Pro
AMD Ryzen 7 6800H
55963 MIPS
7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
5809 MIPS
Beelink SER6 Pro
AMD Ryzen 7 6800H
5768 MIPS
Average AMD Ryzen 7 6800H
  (5521 - 5803, n=8)
5726 MIPS
Average AMD Ryzen 7 6800HS
  ()
5495 MIPS
Geekbench 5.5 / Multi-Core
Average AMD Ryzen 7 6800H
  (8898 - 10355, n=10)
9458 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
9357 Points
Average AMD Ryzen 7 6800HS
  ()
9298 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
9218 Points
Geekbench 5.5 / Single-Core
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
1580 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
1554 Points
Average AMD Ryzen 7 6800H
  (1518 - 1568, n=10)
1550 Points
Average AMD Ryzen 7 6800HS
  ()
1492 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 6800H
  (14.9 - 18.5, n=9)
16.3 fps
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
15.1 fps
Average AMD Ryzen 7 6800HS
  ()
15.1 fps
Beelink SER6 Pro
AMD Ryzen 7 6800H
15 fps
LibreOffice / 20 Documents To PDF
Average AMD Ryzen 7 6800H
  (48.7 - 79.5, n=8)
55.1 s *
Average AMD Ryzen 7 6800HS
  ()
55 s *
Beelink SER6 Pro
AMD Ryzen 7 6800H
48.8 s *
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
44.3 s *
R Benchmark 2.5 / Overall mean
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
0.512 sec *
Average AMD Ryzen 7 6800HS
  ()
0.512 sec *
Beelink SER6 Pro
AMD Ryzen 7 6800H
0.4989 sec *
Average AMD Ryzen 7 6800H
  (0.4783 - 0.515, n=8)
0.4943 sec *

* ... smaller is better

Blender
v3.3 Classroom HIP/AMD
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
318 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
314 Seconds *
v3.3 Classroom CPU
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
453 Seconds *
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
445 Seconds *

* ... smaller is better

Performance Rating
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
99.6 pt
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
99 pt
AIDA64 / FP32 Ray-Trace
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
13148 KRay/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
12876 KRay/s
AIDA64 / FPU Julia
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
83889 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
82673 Points
AIDA64 / CPU SHA3
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
2886 MB/s
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
2885 MB/s
AIDA64 / CPU Queen
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
95566 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
93785 Points
AIDA64 / FPU SinJulia
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
12094 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
11981 Points
AIDA64 / FPU Mandel
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
45982 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
45287 Points
AIDA64 / CPU AES
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
118383 MB/s
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
117400 MB/s
AIDA64 / CPU ZLib
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
732 MB/s
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
712 MB/s
AIDA64 / FP64 Ray-Trace
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
7032 KRay/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
6917 KRay/s
AIDA64 / CPU PhotoWorxx
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
30542 MPixel/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
30360 MPixel/s
3DMark Performance Rating - Percent
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
99.5 pt
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
98.7 pt
Average AMD Radeon 680M

91.6 pt
3DMark 11 - 1280x720 Performance GPU
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
10807 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
10734 Points
Average AMD Radeon 680M
  (6858 - 11668, n=34)
10018 Points
3DMark
1920x1080 Fire Strike Graphics
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
7180 Points
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
7026 Points
Average AMD Radeon 680M
  (3791 - 7653, n=35)
6673 Points
2560x1440 Time Spy Graphics
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
2452 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
2395 Points
Average AMD Radeon 680M
  (1359 - 2607, n=35)
2219 Points
2560x1440 Time Spy Score
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
2751 Points
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
2693 Points
Average AMD Radeon 680M
  (1546 - 2914, n=35)
2485 Points

Power Consumption external Monitor

0510152025303540455055606570Tooltip
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63.6 (62.6-72)
Beelink SER6 Pro R7 6800H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø62.1 (60.9-70.6)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø62.7 (55.1-67.9)
Beelink SER6 Pro R7 6800H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø61 (57.5-66.4)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.9 (62.7-67.8)
Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.6 (61.3-68.3)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.6 (60.9-64.9)
Beelink SER6 Pro R7 6800H, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø61.4 (59.7-62.8)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Idle 1min (external Monitor): Ø9.2 (8.79-12.5)
Beelink SER6 Pro R7 6800H, Radeon 680M; Idle 1min (external Monitor): Ø8.51 (8.12-9.32)
