华硕(ASUS) 灵耀U 2代 (i7-8565U)笔记本电脑评测

全面屏。

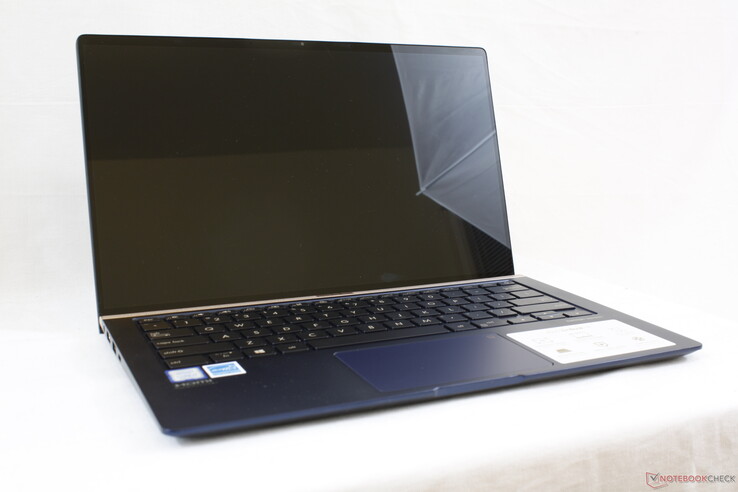

全新的华硕灵耀U拥有令人难以置信的92％屏占比，甚至超过了XPS 13。华硕如何在屏幕的四个面做到如此窄的边框，同时仍然提供100％sRGB色域和Whiskey Lake-U处理器？
Whiskey Lake Ultrabook Laptop / Notebook
Asus ZenBook 14 UX433FA (ZenBook 14 Series)

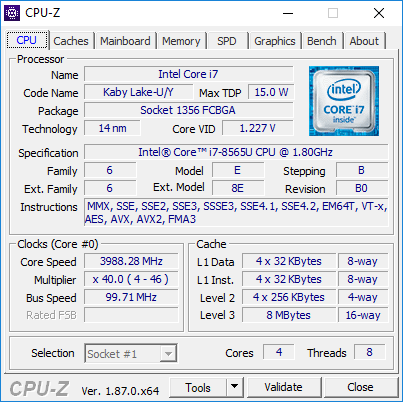

Processor
Intel Core i7-8565U 4 x 1.8 - 4.6 GHz, Whiskey Lake-U

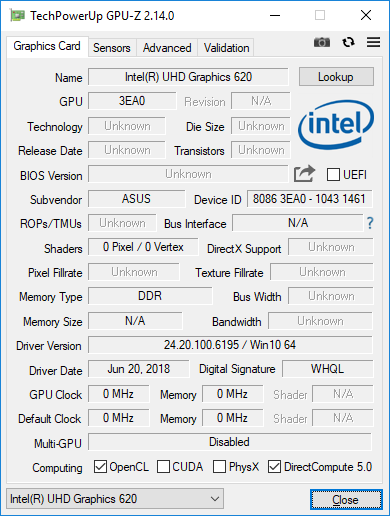

Graphics adapter
Intel UHD Graphics 620, 24.20.100.6195
Memory
16 GB
, LPDDR3板载双通道内存，1200 MHz, 10-10-10-28, 双通道
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, AU Optronics B140HAN03.2, IPS, AUO323D, glossy: yes

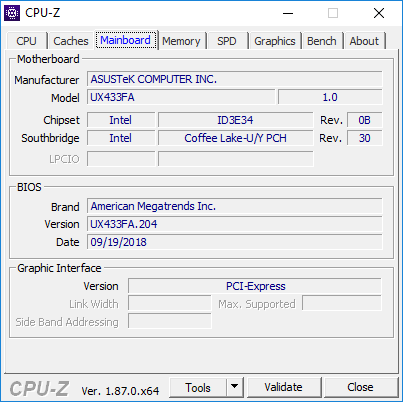

Mainboard
Intel Cannon Lake-U PCH-LP Premium
Storage
WDC PC SN520 SDAPNUW-512G, 512 GB
Soundcard
Realtek ALC255 @ Intel Cannon Point-LP PCH - cAVS (Audio, Video, Speech)
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, Audio Connections: 3.5 mm combo, Card Reader: MicroSD, Brightness Sensor
Networking
Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5
Size
height x width x depth (in mm): 15.9 x 319 x 199
Battery
50 Wh Lithium-Polymer, 3-cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 3D 720p
Additional features
Speakers: 哈曼卡顿扬声器，Alexa语音识别, Keyboard: 巧克力, Keyboard Light: yes, USB转RJ-45转换头, Asus Hello, 键盘热键, E-Service, 12 Months Warranty
Weight
1.19 kg, Power Supply: 132 g
Price
7699 USD
Links
Asus homepage
Asus notebook section
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



❌
324 mm 225 mm 15.9 mm 1.3 kg322 mm 227 mm 14.9 mm 1.4 kg319 mm 199 mm 15.9 mm 1.2 kg304.1 mm 212.4 mm 15.6 mm 1.2 kg304 mm 217 mm 14.6 mm 1.3 kg302 mm 199 mm 11.6 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

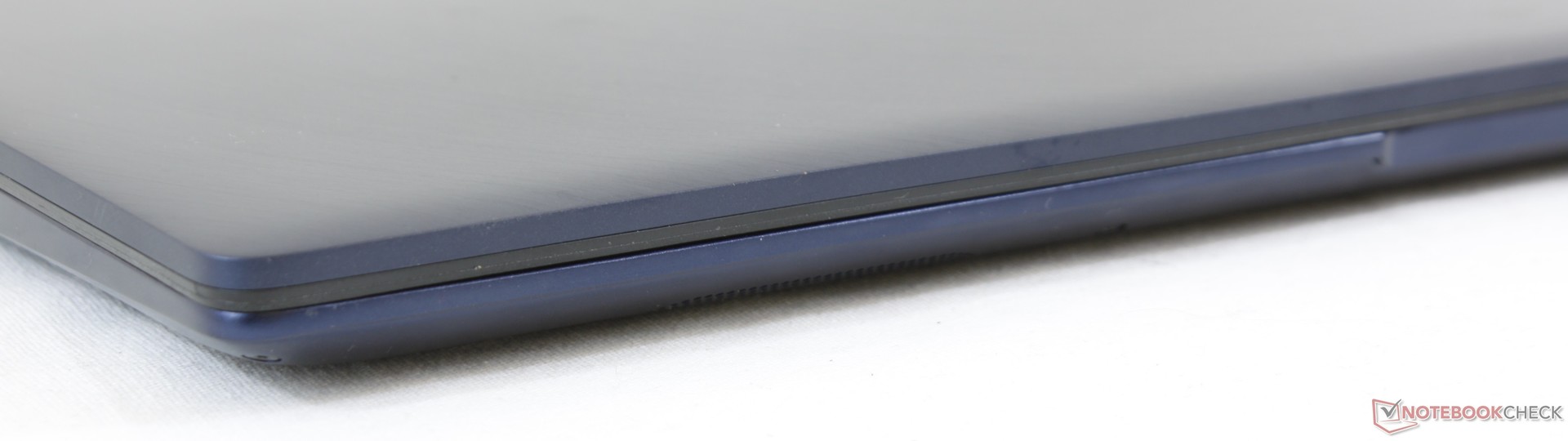

Front: No connectivity
Front: No connectivity

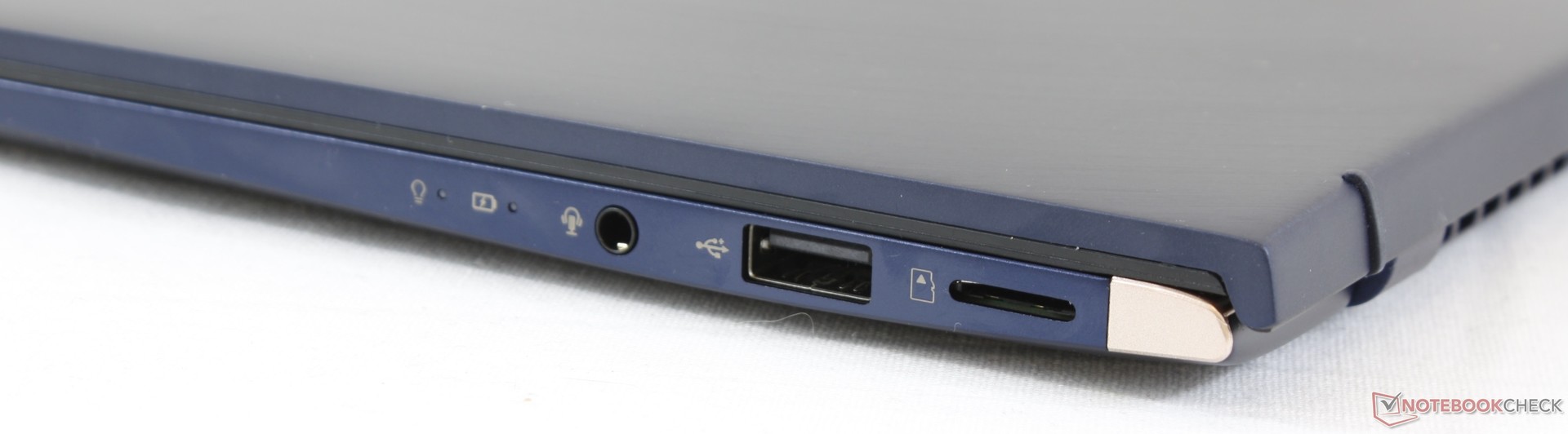

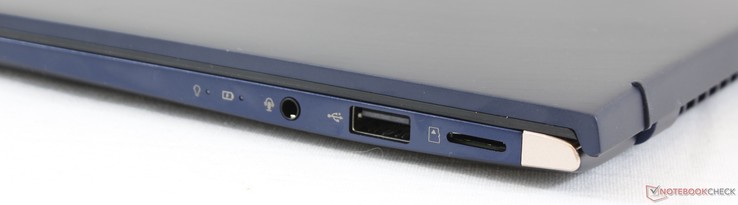

Right: 3.5 mm combo audio, USB Type-A 2.0, MicroSD reader
Right: 3.5 mm combo audio, USB Type-A 2.0, MicroSD reader

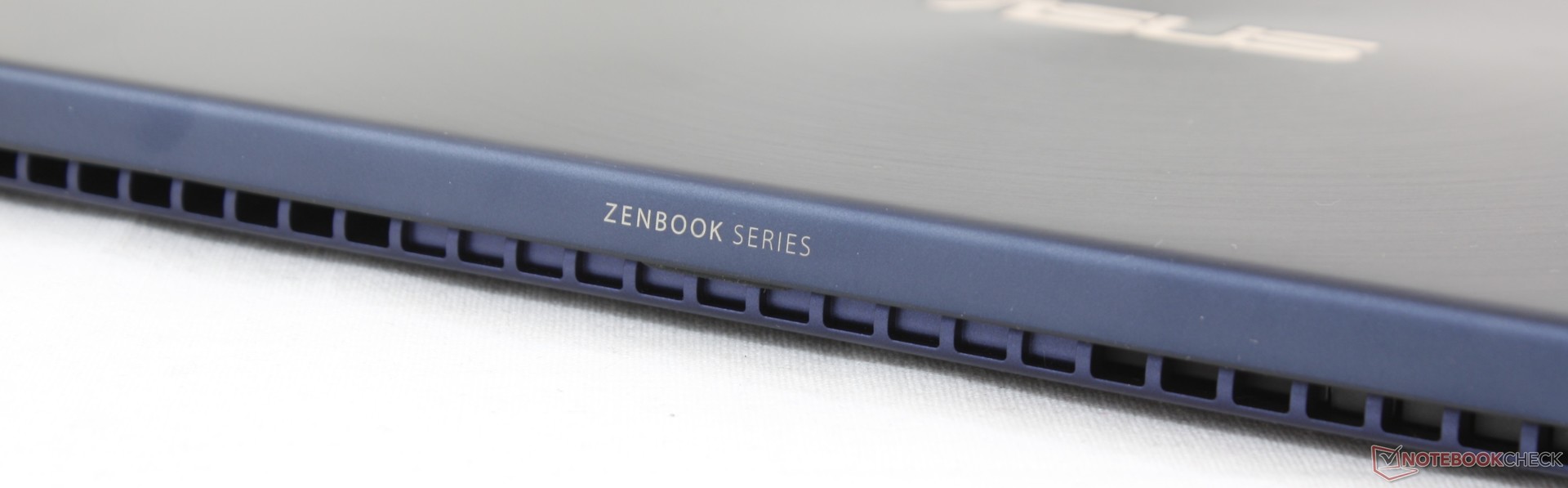

Rear: No connectivity
Rear: No connectivity

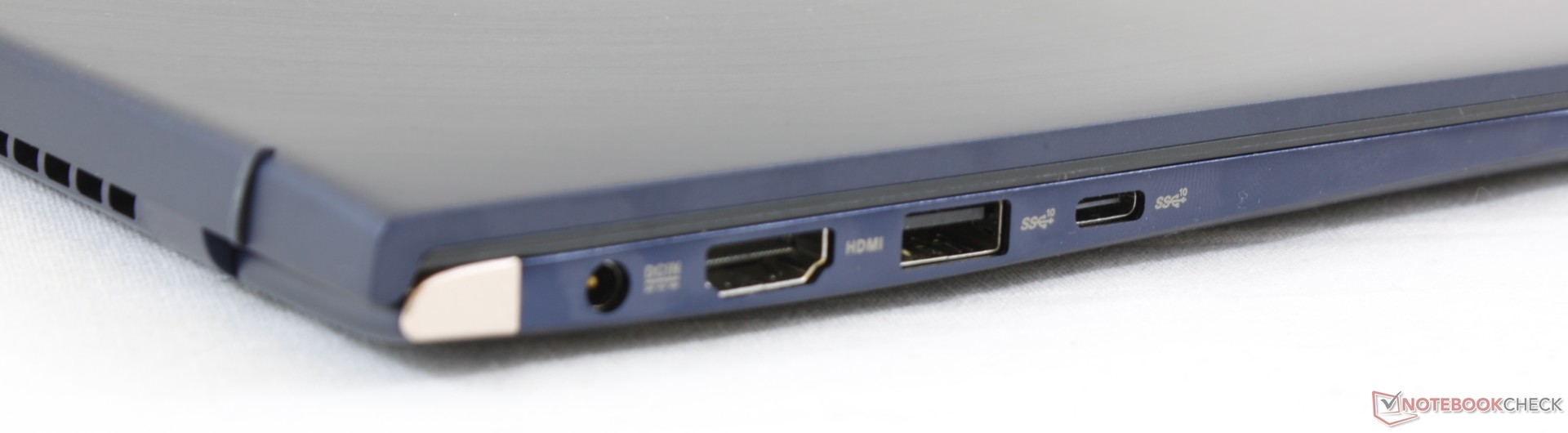

Left: AC adapter, HDMI, USB Type-A 3.1 (10 Gbps), USB Type-C Gen. 2
Left: AC adapter, HDMI, USB Type-A 3.1 (10 Gbps), USB Type-C Gen. 2
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP Spectre x360 13-ae048ng
  (Toshiba Exceria Pro M501 microSDXC 64GB)
157.2 MB/s +404%
Dell XPS 13 9370 i7 UHD
  (Toshiba Exceria Pro UHS-II)
156.4 MB/s +401%
Asus Zenbook UX430UN
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35.61 MB/s +14%
Asus ZenBook 14 UX433FA
  (Toshiba Exceria Pro M501 microSDXC)
31.2 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9370 i7 UHD
  (Toshiba Exceria Pro UHS-II)
207.2 MB/s +474%
HP Spectre x360 13-ae048ng
  (Toshiba Exceria Pro M501 microSDXC 64GB)
206.9 MB/s +473%
Asus Zenbook UX430UN
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.8 MB/s +2%
Asus ZenBook 14 UX433FA
  (Toshiba Exceria Pro M501 microSDXC)
36.1 MB/s
Networking
iperf3 transmit AX12
Asus ZenBook 14 UX433FA
Intel Wireless-AC 9560
563 MBit/s
Huawei Matebook X Pro i5
Intel Dual Band Wireless-AC 8265
513 MBit/s -9%
Dell XPS 13 9370 i7 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
504 MBit/s -10%
Asus Zenbook UX430UN
Intel Dual Band Wireless-AC 8265
478 MBit/s -15%
iperf3 receive AX12
Dell XPS 13 9370 i7 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
665 MBit/s +4%
Huawei Matebook X Pro i5
Intel Dual Band Wireless-AC 8265
660 MBit/s +3%
Asus Zenbook UX430UN
Intel Dual Band Wireless-AC 8265
648 MBit/s +1%
Asus ZenBook 14 UX433FA
Intel Wireless-AC 9560
641 MBit/s
293
cd/m²		310.6
cd/m²		312.3
cd/m²
296.9
cd/m²		332.8
cd/m²		328.9
cd/m²
288.3
cd/m²		314.4
cd/m²		310.8
cd/m²
Distribution of brightness
AU Optronics B140HAN03.2 tested with X-Rite i1Pro 2
Maximum: 332.8 cd/m² (Nits) Average: 309.8 cd/m² Minimum: 18.75 cd/m²
Brightness Distribution: 87 %
Center on Battery: 332.8 cd/m²
Contrast: 1148:1 (Black: 0.29 cd/m²)
ΔE Color 5.14 | 0.5-29.43 Ø4.92, calibrated: 3.61
ΔE Greyscale 8.8 | 0.5-98 Ø5.2
89.2% sRGB (Argyll 1.6.3 3D)
58.1% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
89.7% sRGB (Argyll 2.2.0 3D)
64.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.33
Asus ZenBook 14 UX433FA
AU Optronics B140HAN03.2, IPS, 14", 1920x1080		Apple MacBook Air 2018
APPA039, IPS, 13.3", 2560x1600		Dell XPS 13 9370 i7 UHD
ID: Sharp SHP148B, Name: LQ133D1, Dell P/N: 8XDHY, IPS, 13.3", 3840x2160		Huawei Matebook X Pro i5
Tianma XM, IPS, 13.9", 3000x2000		Lenovo Yoga C930-13IKB 81C4
AUO B139HAN03_0, IPS, 13.9", 1920x1080		Asus Zenbook UX430UN
NV140FHM-N62, BOE0718, IPS, 14", 1920x1080
Display
6%
8%
4%
0%
-3%
Display P3 Coverage
64.3
67.8
5%
68.9
7%
65.9
2%
62.7
-2%
64.6
0%
sRGB Coverage
89.7
96.1
7%
98.4
10%
95.2
6%
92.6
3%
84.8
-5%
AdobeRGB 1998 Coverage
65.1
69.8
7%
69.5
7%
67.6
4%
64.7
-1%
62
-5%
Response Times
-9%
-80%
-5%
3%
-37%
Response Time Grey 50% / Grey 80% *
39.6 ?(21.2, 18.4)
39.6 ?(20.8, 18.8)
-0%
69.6 ?(32.4, 37.2)
-76%
40.4 ?(19.2, 21.2)
-2%
34.4 ?(18.8, 15.6)
13%
43.6 ?(24.4, 19.2)
-10%
Response Time Black / White *
24 ?(14.4, 9.6)
28 ?(15.6, 12.4)
-17%
44 ?(24.4, 19.6)
-83%
25.6 ?(11.6, 14)
-7%
25.6 ?(15.6, 10)
-7%
39.2 ?(22.8, 16.4)
-63%
PWM Frequency
113600 ?(75)
3759 ?(20)
200 ?(99)
Screen
31%
25%
23%
-11%
6%
Brightness middle
332.8
320
-4%
478.5
44%
442.7
33%
312
-6%
310.4
-7%
Brightness
310
315
2%
466
50%
428
38%
295
-5%
303
-2%
Brightness Distribution
87
95
9%
86
-1%
84
-3%
87
0%
89
2%
Black Level *
0.29
0.29
-0%
0.43
-48%
0.31
-7%
0.43
-48%
0.31
-7%
Contrast
1148
1103
-4%
1113
-3%
1428
24%
726
-37%
1001
-13%
Colorchecker dE 2000 *
5.14
1.2
77%
3.09
40%
2.24
56%
7.6
-48%
4.07
21%
Colorchecker dE 2000 max. *
11.88
3.2
73%
5.94
50%
7.19
39%
15.06
-27%
8.33
30%
Colorchecker dE 2000 calibrated *
3.61
0.5
86%
2.06
43%
1.11
69%
1.96
46%
4.07
-13%
Greyscale dE 2000 *
8.8
0.8
91%
2.4
73%
9.7
-10%
8.8
-0%
2.8
68%
Gamma
2.33 94%
2.2 100%
2.063 107%
1.42 155%
2.01 109%
2.217 99%
CCT
8227 79%
6548 99%
6883 94%
6227 104%
6874 95%
7033 92%
Color Space (Percent of AdobeRGB 1998)
58.1
62.1
7%
69.47
20%
61.6
6%
59.1
2%
55.3
-5%
Color Space (Percent of sRGB)
89.2
96
8%
98.36
10%
95
7%
92.3
3%
84.6
-5%
Total Average (Program / Settings)
9% / 22%
-16% / 9%
7% / 16%
-3% / -7%
-11% / -1%

* ... smaller is better

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

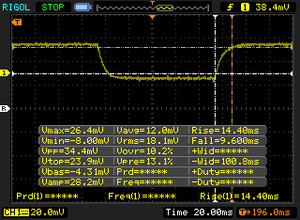

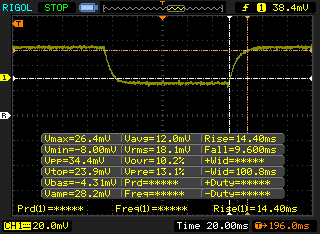

   ↔    Response Time Black to White
24 ms ... rise ↗ and fall ↘ combined↗ 14.4 ms rise
↘ 9.6 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 50 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

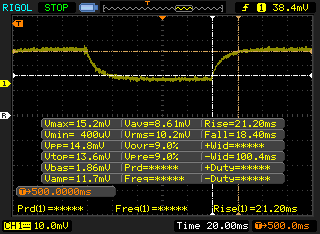

   ↔    Response Time 50% Grey to 80% Grey
39.6 ms ... rise ↗ and fall ↘ combined↗ 21.2 ms rise
↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

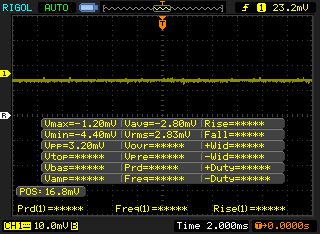

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.


03570105140175210245280315350385420455490525560595Tooltip
Asus ZenBook 14 UX433FA UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G; CPU Multi 64Bit: Ø591 (579.19-624.27)
Asus Zenbook UX430UN GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002; CPU Multi 64Bit: Ø556 (529.72-624.09)
Huawei MateBook X Pro, i7 GeForce MX150, i5-8550U, Toshiba XG5 KXG50ZNV512G; CPU Multi 64Bit: Ø485 (464.55-537.4)
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10
Cinebench R15
CPU Single 64Bit
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
174 Points +3%
Asus FX504GD
Intel Core i5-8300H
170 Points +1%
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
169 Points
Asus Zenbook UX430UN
Intel Core i7-8550U
165 Points -2%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U
163 Points -4%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U
154 Points -9%
Dell XPS 13 9370 FHD i5
Intel Core i5-8250U
144 Points -15%
Asus ZenBook UX530UX-FY070T
Intel Core i7-7500U
141 Points -17%
Lenovo Ideapad 720S-13ARR
AMD Ryzen 7 2700U
135 Points -20%
Apple MacBook Air 2018
Intel Core i5-8210Y
132 Points -22%
Asus Zenbook 3 Deluxe UX490UA
Intel Core i5-7200U
125 Points -26%
CPU Multi 64Bit
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
746 Points +20%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U
687 Points +10%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U
608 Points -3%
Dell XPS 13 9370 FHD i5
Intel Core i5-8250U
669 Points +7%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U
639 Points +2%
Asus Zenbook UX430UN
Intel Core i7-8550U
624 Points 0%
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
624 Points
Asus FX504GD
Intel Core i5-8300H
609 Points -2%
Lenovo Ideapad 720S-13ARR
AMD Ryzen 7 2700U
546 Points -12%
Asus Zenbook 3 Deluxe UX490UA
Intel Core i5-7200U
337 (265min - 337max) Points -46%
Asus ZenBook UX530UX-FY070T
Intel Core i7-7500U
307 Points -51%
Apple MacBook Air 2018
Intel Core i5-8210Y
285 Points -54%
Cinebench R11.5
CPU Single 64Bit
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
1.98 Points
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
1.97 Points -1%
Asus FX504GD
Intel Core i5-8300H
1.72 Points -13%
Asus Zenbook UX430UN
Intel Core i7-8550U
1.7 Points -14%
CPU Multi 64Bit
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
7.65 Points +12%
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
6.86 Points
Asus Zenbook UX430UN
Intel Core i7-8550U
6.58 Points -4%
Asus FX504GD
Intel Core i5-8300H
6.2 Points -10%
Cinebench R10
Rendering Multiple CPUs 32Bit
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
23794 Points +21%
Asus FX504GD
Intel Core i5-8300H
20061 Points +2%
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
19689 Points
Asus Zenbook UX430UN
Intel Core i7-8550U
19550 Points -1%
Lenovo Ideapad 720S-13ARR
AMD Ryzen 7 2700U
9812 Points -50%
Rendering Single 32Bit
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
6760 Points
Asus FX504GD
Intel Core i5-8300H
6482 Points -4%
Asus Zenbook UX430UN
Intel Core i7-8550U
6478 Points -4%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
6436 Points -5%
Lenovo Ideapad 720S-13ARR
AMD Ryzen 7 2700U
4379 Points -35%
wPrime 2.10 - 1024m
Asus Zenbook UX430UN
Intel Core i7-8550U
269.1 s * -2%
Asus ZenBook 14 UX433FA
Intel Core i7-8565U
263.3 s *
Asus FX504GD
Intel Core i5-8300H
252.1 s * +4%
Dell XPS 15 9575 i7-8705G
Intel Core i7-8705G
197.6 s * +25%

* ... smaller is better

Cinebench R10 Shading 32Bit
10106
Cinebench R10 Rendering Multiple CPUs 32Bit
19689
Cinebench R10 Rendering Single 32Bit
6760
Cinebench R11.5 OpenGL 64Bit
39.98 fps
Cinebench R11.5 CPU Multi 64Bit
6.86 Points
Cinebench R11.5 CPU Single 64Bit
1.98 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
49.63 fps
Cinebench R15 CPU Multi 64Bit
624 Points
Cinebench R15 CPU Single 64Bit
169 Points
Help
PCMark 10 | PCMark 8
PCMark 10
Score
Average of class Subnotebook
  (4993 - 7788, n=49, last 2 years)
6427 Points +72%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
4072 Points +9%
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
3858 Points +3%
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G
3736 Points
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
3728 Points 0%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3445 Points -8%
Apple MacBook Air 2018
UHD Graphics 617, i5-8210Y, Apple SSD AP0256
2174 Points -42%
Essentials
Average of class Subnotebook
  (9476 - 11331, n=49, last 2 years)
10486 Points +32%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
9291 Points +17%
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G
7952 Points
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
7798 Points -2%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
7410 Points -7%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
7083 Points -11%
Apple MacBook Air 2018
UHD Graphics 617, i5-8210Y, Apple SSD AP0256
4504 Points -43%
Productivity
Average of class Subnotebook
  (6440 - 10623, n=49, last 2 years)
8627 Points +35%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
6505 Points +2%
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
6487 Points +1%
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G
6400 Points
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
5727 Points -11%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
5475 Points -14%
Apple MacBook Air 2018
UHD Graphics 617, i5-8210Y, Apple SSD AP0256
3902 Points -39%
Digital Content Creation
Average of class Subnotebook
  (5305 - 10983, n=49, last 2 years)
8048 Points +189%
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
3082 Points +11%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
3033 Points +9%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
2994 Points +8%
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G
2781 Points
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
2735 Points -2%
Apple MacBook Air 2018
UHD Graphics 617, i5-8210Y, Apple SSD AP0256
1609 Points -42%
PCMark 8
Home Score Accelerated v2
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
3792 Points +15%
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
3615 Points +10%
HP Spectre x360 13-ae048ng
UHD Graphics 620, i5-8550U, Toshiba NVMe THNSN51T02DUK
3605 Points +10%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3478 Points +6%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
3371 Points +3%
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G
3285 Points
Average of class Subnotebook
  (1739 - 4730, n=2, last 2 years)
3235 Points -2%
Apple MacBook Air 2018
UHD Graphics 617, i5-8210Y, Apple SSD AP0256
2484 Points -24%
Work Score Accelerated v2
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
5110 Points +5%
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G
4851 Points
Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002
4732 Points -2%
HP Spectre x360 13-ae048ng
UHD Graphics 620, i5-8550U, Toshiba NVMe THNSN51T02DUK
4463 Points -8%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
4339 Points -11%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
4125 Points -15%
Average of class Subnotebook
  (1609 - 5271, n=2, last 2 years)
3440 Points -29%
Apple MacBook Air 2018
UHD Graphics 617, i5-8210Y, Apple SSD AP0256
3209 Points -34%
PCMark 8 Home Score Accelerated v2
3285 points
PCMark 8 Work Score Accelerated v2
4851 points
PCMark 10 Score
3736 points
Help
Asus ZenBook 14 UX433FA
WDC PC SN520 SDAPNUW-512G		Dell XPS 13 9370 i7 UHD
Toshiba XG5 KXG50ZNV512G		Huawei Matebook X Pro i5
Samsung PM961 MZVLW256HEHP		Lenovo Yoga C930-13IKB 81C4
SK hynix PC401 HFS256GD9TNG		Asus Zenbook UX430UN
SanDisk SD8SN8U512G1002		HP Spectre x360 13-ae048ng
Toshiba NVMe THNSN51T02DUK
AS SSD
-22%
-4%
-192%
-70%
-570%
Seq Read
1201
2205
84%
2416
101%
1228
2%
494.4
-59%
1574
31%
Seq Write
931
435.8
-53%
1170
26%
544
-42%
300.3
-68%
377.1
-59%
4K Read
40.25
29.36
-27%
48.33
20%
39.16
-3%
25.39
-37%
31.73
-21%
4K Write
111.5
107.4
-4%
103.1
-8%
106.5
-4%
47.88
-57%
1.73
-98%
4K-64 Read
916
678
-26%
1039
13%
466.4
-49%
366
-60%
115.6
-87%
4K-64 Write
871
444.8
-49%
399.6
-54%
305.1
-65%
183.5
-79%
2.09
-100%
Access Time Read *
0.05
0.059
-18%
0.058
-16%
0.46
-820%
0.089
-78%
0.044
12%
Access Time Write *
0.032
0.055
-72%
0.036
-13%
0.51
-1494%
0.088
-175%
2.391
-7372%
Score Read
1076
926
-14%
1329
24%
628
-42%
441
-59%
305
-72%
Score Write
1075
596
-45%
620
-42%
466
-57%
261
-76%
42
-96%
Score Total
2696
1911
-29%
2575
-4%
1394
-48%
926
-66%
455
-83%
Copy ISO MB/s
1153
585
-49%
739
-36%
628
-46%
467.6
-59%
1205
5%
Copy Program MB/s
415.1
570
37%
312.3
-25%
540
30%
270.5
-35%
281.8
-32%
Copy Game MB/s
930
503
-46%
486.3
-48%
533
-43%
225.1
-76%
856
-8%

* ... smaller is better

CrystalDiskMark 5.2 / 6
AS SSD
hddimg
WDC PC SN520 SDAPNUW-512G
CDM 5/6 Read Seq Q32T1: 1727 MB/s
CDM 5/6 Write Seq Q32T1: 1455 MB/s
CDM 5/6 Read 4K Q32T1: 339.2 MB/s
CDM 5/6 Write 4K Q32T1: 510 MB/s
CDM 5 Read Seq: 1336 MB/s
CDM 5 Write Seq: 753 MB/s
CDM 5/6 Read 4K: 43.28 MB/s
CDM 5/6 Write 4K: 123 MB/s
3DMark 11 | 3DMark
3DMark 11
1280x720 Performance GPU
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, i7-8705G
10118 Points +411%
Asus FX504GD
NVIDIA GeForce GTX 1050 Mobile, i5-8300H
7133 Points +260%
Asus ZenBook UX530UX-FY070T
NVIDIA GeForce GTX 950M, i7-7500U
4117 Points +108%
Asus Zenbook UX430UN
NVIDIA GeForce MX150, i5-8550U
3867 Points +95%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
3044 Points +54%
Lenovo Ideapad 720S-13ARR
AMD Radeon RX Vega 10, R7 2700U
2688 Points +36%
Asus ZenBook 14 UX433FA
Intel UHD Graphics 620, i7-8565U
1979 Points
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, i7-8650U
1977 Points 0%
Dell XPS 13 9370 i7 UHD
Intel UHD Graphics 620, i5-8550U
1915 Points -3%
Dell XPS 13 9370 FHD i5
Intel UHD Graphics 620, i5-8250U
1776 Points -10%
Average Intel UHD Graphics 620
  (1144 - 3432, n=244)
1749 Points -12%
Asus Zenbook 3 Deluxe UX490UA
Intel HD Graphics 620, i5-7200U
1644 Points -17%
Apple MacBook Air 2018
Intel UHD Graphics 617, i5-8210Y
1572 Points -21%
1280x720 Performance Combined
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, i7-8705G
8633 Points +380%
Asus FX504GD
NVIDIA GeForce GTX 1050 Mobile, i5-8300H
7025 Points +290%
Asus ZenBook UX530UX-FY070T
NVIDIA GeForce GTX 950M, i7-7500U
3955 Points +120%
Asus Zenbook UX430UN
NVIDIA GeForce MX150, i5-8550U
3467 Points +93%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
2683 Points +49%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, i7-8650U
1858 Points +3%
Asus ZenBook 14 UX433FA
Intel UHD Graphics 620, i7-8565U
1800 Points
Dell XPS 13 9370 i7 UHD
Intel UHD Graphics 620, i5-8550U
1755 Points -2%
Dell XPS 13 9370 FHD i5
Intel UHD Graphics 620, i5-8250U
1665 Points -7%
Average Intel UHD Graphics 620
  (927 - 2505, n=244)
1578 Points -12%
Apple MacBook Air 2018
Intel UHD Graphics 617, i5-8210Y
1472 Points -18%
Asus Zenbook 3 Deluxe UX490UA
Intel HD Graphics 620, i5-7200U
1423 Points -21%
Lenovo Ideapad 720S-13ARR
AMD Radeon RX Vega 10, R7 2700U
1157 Points -36%
3DMark
1280x720 Cloud Gate Standard Graphics
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, i7-8705G
42351 Points +275%
Asus FX504GD
NVIDIA GeForce GTX 1050 Mobile, i5-8300H
38881 Points +244%
Asus ZenBook UX530UX-FY070T
NVIDIA GeForce GTX 950M, i7-7500U
18961 Points +68%
Asus Zenbook UX430UN
NVIDIA GeForce MX150, i5-8550U
17469 Points +55%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
14343 Points +27%
Asus ZenBook 14 UX433FA
Intel UHD Graphics 620, i7-8565U
11294 Points
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, i7-8650U
10213 Points -10%
Dell XPS 13 9370 i7 UHD
Intel UHD Graphics 620, i5-8550U
9533 Points -16%
Lenovo Ideapad 720S-13ARR
AMD Radeon RX Vega 10, R7 2700U
9364 Points -17%
Average Intel UHD Graphics 620
  (6205 - 16400, n=225)
9262 Points -18%
Asus Zenbook 3 Deluxe UX490UA
Intel HD Graphics 620, i5-7200U
8382 Points -26%
Apple MacBook Air 2018
Intel UHD Graphics 617, i5-8210Y
7231 Points -36%
1920x1080 Fire Strike Graphics
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, i7-8705G
7348 Points
Asus FX504GD
NVIDIA GeForce GTX 1050 Mobile, i5-8300H
6356 Points
Asus ZenBook UX530UX-FY070T
NVIDIA GeForce GTX 950M, i7-7500U
3293 Points
Asus Zenbook UX430UN
NVIDIA GeForce MX150, i5-8550U
3122 Points
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
2070 Points
Lenovo Ideapad 720S-13ARR
AMD Radeon RX Vega 10, R7 2700U
1567 Points
Dell XPS 13 9370 i7 UHD
Intel UHD Graphics 620, i5-8550U
1283 Points
Average Intel UHD Graphics 620
  (557 - 2608, n=213)
1161 Points
Dell XPS 13 9370 FHD i5
Intel UHD Graphics 620, i5-8250U
1100 Points
Asus Zenbook 3 Deluxe UX490UA
Intel HD Graphics 620, i5-7200U
1018 Points
Apple MacBook Air 2018
Intel UHD Graphics 617, i5-8210Y
947 Points
1920x1080 Ice Storm Extreme Graphics
Asus FX504GD
NVIDIA GeForce GTX 1050 Mobile, i5-8300H
200390 Points
Dell XPS 13 9370 i7 UHD
Intel UHD Graphics 620, i5-8550U
47091 Points
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, i7-8705G
46963 Points
Asus Zenbook UX430UN
NVIDIA GeForce MX150, i5-8550U
45768 Points
Average Intel UHD Graphics 620
  (26409 - 59483, n=71)
42924 Points
2560x1440 Time Spy Graphics
Dell XPS 15 9575 i7-8705G
AMD Radeon RX Vega M GL / 870, i7-8705G
2072 Points +415%
Asus FX504GD
NVIDIA GeForce GTX 1050 Mobile, i5-8300H
1597 Points +297%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
624 Points +55%
Asus ZenBook 14 UX433FA
Intel UHD Graphics 620, i7-8565U
402 Points
Average Intel UHD Graphics 620
  (299 - 797, n=88)
389 Points -3%
Apple MacBook Air 2018
Intel UHD Graphics 617, i5-8210Y
286 Points -29%
3DMark 11 | 3DMark
3DMark 06 Standard Score
11207 points
3DMark Vantage P Result
7761 points
3DMark 11 Performance
2201 points
3DMark Ice Storm Standard Score
64710 points
3DMark Cloud Gate Standard Score
9469 points
3DMark Time Spy Score
461 points
Help
lowmed.highultra
BioShock Infinite (2013) 78.5 38.1 31.8 9.7
Rise of the Tomb Raider (2016) 22.8 13.7 7.2 5.7
Rocket League (2017) 71.4 32.9 21.1
Asus ZenBook 14 UX433FA
UHD Graphics 620, i7-8565U, WDC PC SN520 SDAPNUW-512G		Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G		Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP		Asus Zenbook UX430UN
GeForce MX150, i5-8550U, SanDisk SD8SN8U512G1002		Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG		HP Spectre x360 13-ae048ng
UHD Graphics 620, i5-8550U, Toshiba NVMe THNSN51T02DUK
Noise
4%
1%
-4%
4%
2%
off / environment *
28.8
28
3%
27.9
3%
28.3
2%
27.9
3%
30.13
-5%
Idle Minimum *
28.8
28
3%
27.9
3%
28.9
-0%
27.9
3%
30.13
-5%
Idle Average *
28.8
28
3%
27.9
3%
30
-4%
27.9
3%
30
-4%
Idle Maximum *
29.1
28
4%
27.9
4%
30.2
-4%
29.3
-1%
30.13
-4%
Load Average *
36.1
32.5
10%
36.2
-0%
41.8
-16%
32
11%
33.4
7%
Load Maximum *
41.2
42.2
-2%
45.2
-10%
42
-2%
39.3
5%
33
20%
Witcher 3 ultra *
45
42

* ... smaller is better

Noise Level

Idle
28.8 / 28.8 / 29.1 dB(A)
Load
36.1 / 41.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 28.8 dB(A)
Max. Load
 42.4 °C36.4 °C38 °C
 39.4 °C36.2 °C27.6 °C
 31 °C28 °C27.6 °C
Maximum: 42.4 °C
Average: 34.1 °C
38.6 °C45 °C40.2 °C
32.4 °C37 °C36.4 °C
29.2 °C32.4 °C33 °C
Maximum: 45 °C
Average: 36 °C
Power Supply (max.)  50.4 °C | Room Temperature 20 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 34.1 °C / 93 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.7 °C / -4.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.636.22533.535.33132.8314031.630.85028.632.26330.432.68029.834.610028.539.912527.545.916026.150.9200255625025.46231524.963.540024.963.450024.161.263022.459.780022.165.3100021.668125021.766.9160021.270.920002171250021.272.1315020.969.1400020.965.3500021.270.8630020.973.4800021.175.81000020.8751250020.772.21600020.668.8SPL33.882.7N2.155.1median 21.6median 66.9Delta1.25.935.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAsus ZenBook 14 UX433FAApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook 14 UX433FA audio analysis

(±) | speaker loudness is average but good (75.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.8% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.2% higher than median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.1% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 4% similar, 60% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 23% of all tested devices were better, 5% similar, 72% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.78 / 0.89 Watt
Idledarkmidlight 3.9 / 5.9 / 8.8 Watt
Load midlight 41.7 / 44 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus ZenBook 14 UX433FA
i7-8565U, UHD Graphics 620, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 14"		Dell XPS 13 9370 i7 UHD
i5-8550U, UHD Graphics 620, Toshiba XG5 KXG50ZNV512G, IPS, 3840x2160, 13.3"		Huawei Matebook X Pro i5
i5-8250U, GeForce MX150, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.9"		Lenovo Yoga C930-13IKB 81C4
i5-8550U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 13.9"		Asus Zenbook UX430UN
i5-8550U, GeForce MX150, SanDisk SD8SN8U512G1002, IPS, 1920x1080, 14"		HP Spectre x360 13-ae048ng
i5-8550U, UHD Graphics 620, Toshiba NVMe THNSN51T02DUK, IPS, 1920x1080, 13.3"
Power Consumption
-18%
-26%
-21%
-1%
12%
Idle Minimum *
3.9
5
-28%
3.5
10%
3.4
13%
3
23%
3.2
18%
Idle Average *
5.9
8.3
-41%
8.9
-51%
7.5
-27%
5.8
2%
6
-2%
Idle Maximum *
8.8
8.8
-0%
12.3
-40%
11.8
-34%
6.2
30%
9.2
-5%
Load Average *
41.7
46.4
-11%
54.2
-30%
47.7
-14%
54.1
-30%
29.5
29%
Load Maximum *
44
48.6
-10%
52.1
-18%
63.2
-44%
56.4
-28%
35.6
19%
Witcher 3 ultra *
42.4
45.9

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
19h 06min
WiFi Websurfing
10h 30min
Load (maximum brightness)
3h 16min
Asus ZenBook 14 UX433FA
i7-8565U, UHD Graphics 620, 50 Wh		Apple MacBook Air 2018
i5-8210Y, UHD Graphics 617, 50.3 Wh		Dell XPS 13 9370 i7 UHD
i5-8550U, UHD Graphics 620, 52 Wh		Huawei Matebook X Pro i5
i5-8250U, GeForce MX150, 57.4 Wh		Lenovo Yoga C930-13IKB 81C4
i5-8550U, UHD Graphics 620, 60 Wh		Asus Zenbook UX430UN
i5-8550U, GeForce MX150, 50 Wh		HP Spectre x360 13-ae048ng
i5-8550U, UHD Graphics 620, 60 Wh
Battery Runtime
-14%
-33%
-12%
5%
-23%
-16%
Reader / Idle
1146
819
-29%
1243
8%
1039
-9%
WiFi v1.3
630
668
6%
465
-26%
557
-12%
664
5%
560
-11%
527
-16%
Load
196
131
-33%
109
-44%
133
-32%
98
-50%
166
-15%

Pros

+ 低负载下非常安静
+ MX150独显可选
+ 四面窄边框屏幕
+ 比上一代更加坚固的机身
+ 位置正常的摄像头
+ 没有PWM调光
+ 雾面和亮面两种选项
+ 键盘反馈很不错
+ 机身占地小
+ 长续航
+ 虚拟小键盘

Cons

- Whiskey LakeU i78565U只比i78550U性能强一点点
- 仍然在使用AC适配器接口充电，而不是USB TypeC
- 虚拟小键盘没有任何震动反馈和亮度控制
- 下部边框被藏在机身底下
- 屏幕出厂的色准和灰度较差
- 升级M.2 SSD可能会影响保修
- 无线模块和内存焊在主板上，无法升级
- 触控板比上一代小
- 键盘不防水
- AC适配器充电速度慢
- 没有触摸屏选项
- MicroSD读卡器速度慢
- 没有雷电3
华硕(ASUS) 灵耀U 2代 笔记本电脑评测
华硕(ASUS) 灵耀U 2代 笔记本电脑评测

超极本在选择多样化方面一直有着稳步的增长，各OEM间的产品也越来越同化。即便如此，华硕仍然凭借UX580的ScreenPad和现在的四面NanoEdge边框等独特设计让我们眼前一亮，这使得UX433的尺寸对于14英寸屏幕来说很小。新设计在视觉上与众不同，同时改善了上一代的刚性和拓展性。这是我们一直以来所期待的升级，但在视觉上仍然具有引人注目和符合人体工程学的开创性特征。

我们特别喜欢UX433的防眩光哑光和光面面板两种选项以及GeForce MX150独立显卡。大多数超极本只有光面面板，而且只配备性能较差的英特尔集成显卡。

UX433最薄弱的是CPU性能。我们不是说性能令人失望，但是作为Whiskey Lake-U架构的CPU，性能相较Kaby Lake-R的提升之小以至于用户不会注意到任何不同。其实华硕知道这一点，因为官方的UX433产品页面只拿Whiskey Lake-U和第7代Kaby Lake CPU作比较而不是第8代Kaby Lake-R的CPU，以宣传更大的CPU性能提升。我们不禁觉得如果装配了性能差不多的i7-8550U或i5-8250U，价格会便宜许多。

对于未来的迭代，我们希望看到的是雷电3和更亮的屏幕，这样才能更好地与XPS 13，MateBook X Pro，MacBook Pro 13，Samsung NP900以及其他在户外环境中显示效果更佳的产品竞争。华硕应该取消AC适配器接口，并采用更多功能的USB Type-C充电。虚拟NumPad，指纹识别器和防泼溅键盘则是其他制造商可以考虑但未能配备的功能，这使UX433具有竞争力。

“上一代UX430的视觉和质量升级。即使它省略了这个价格范围内其他超极本上常见的一些功能，这台笔记本仍然很强大。如果用户从至少两三年前的笔记本电脑升级过来，Whiskey Lake-U的CPU性能将会得到很大的提升。”

Asus ZenBook 14 UX433FA - 11/20/2018 v6 (old)
Allen Ngo

Chassis
81 /  98 → 83%
Keyboard
80%
Pointing Device
75%
Connectivity
47 / 80 → 59%
Weight
73 / 35-78 → 88%
Battery
93%
Display
81%
Games Performance
59 / 68 → 86%
Application Performance
90 / 87 → 100%
Temperature
89 / 91 → 98%
Noise
93%
Audio
60 / 91 → 66%
Camera
45 / 85 → 53%
Average
74%
84%
Subnotebook - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版（NBC中国） > 评测 > 华硕(ASUS) 灵耀U 2代 (i7-8565U)笔记本电脑评测
Allen Ngo, 2018-12- 5 (Update: 2024-11- 4)
